TMOP18e
Mini Floor Scrubber
Operations Manual
2
Table of Contents
1. Safety Information
- Fire Safety
- Operating Safety
- Service Safety
2. PRODUCT DATA
- Specifications
- Features
- Handle Features
3. INTENDED USE OF THE EQUIPMENT
- Non Intended Use of the Equipment
4. OPERATION
- Filling the Cleaning Solution Tank
- Operating the Equipment
- Modes
- Stopping the Equipment
5. CLEANING & STORAGE
- Cleaning
- Storage
6. MAINTENANCE
- Brush Replacement
- Squeegee Replacement
- Attaching a New Squeegee
- Replacing the Hose
- Maintenance Record
7. TROUBLESHOOTING
8. REPLACEMENT PARTS
9. WARRANTY
- Warranty Claims
10. CATALOG & COUPON
4
5
5
6
6
6
7
7
8
8
9
9
9
9
10
10
10
11
11
11
11
12
12
13
14
15
15
15
18
3
Register Your Equipment
Thank you for purchasing TOMAHAWK® equipment! Your product is covered by the
TOMAHAWK® Warranty policy, but in order to activate your warranty, we need you to register
your product. In addition to activating your equipment warranty, product registration will
grant you access to important product updates, streamlined customer service and more.
INCLUDED WITH YOUR REGISTRATION
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2.
3.
4.
5.
Equipment Resources
TOMAHAWK®
running smoothly - the proper equipment, spare parts, instruction manuals, and more are
needed at the drop of a hat. Visit www.tomahawk-power.com to gain access to the incredible
resources below.
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found at the TOMAHAWK® Resource Center
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on the TOMAHAWK® Manuals Page
Service Requests
TOMAHAWK® Technician will respond
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com
This manual provides information and procedures to safely operate and maintain this
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an
additional copy, please contact TOMAHAWK® or visit
www.tomahawk-power.com
This
machine is built with user safety in mind; however, it can present hazards if improperly
operated and serviced. Follow operating instructions carefully. If you have questions about
operating or servicing this equipment, please contact TOMAHAWK®.
The information contained in this manual is based on machines in production at the time of
publication. TOMAHAWK® reserves the right to change any portion of this information
without notice.
No part of this publication may be reproduced in any form or by any means, electronic or
TOMAHAWK®.
Any type of reproduction or distribution not authorized by TOMAHAWK® represents an
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.

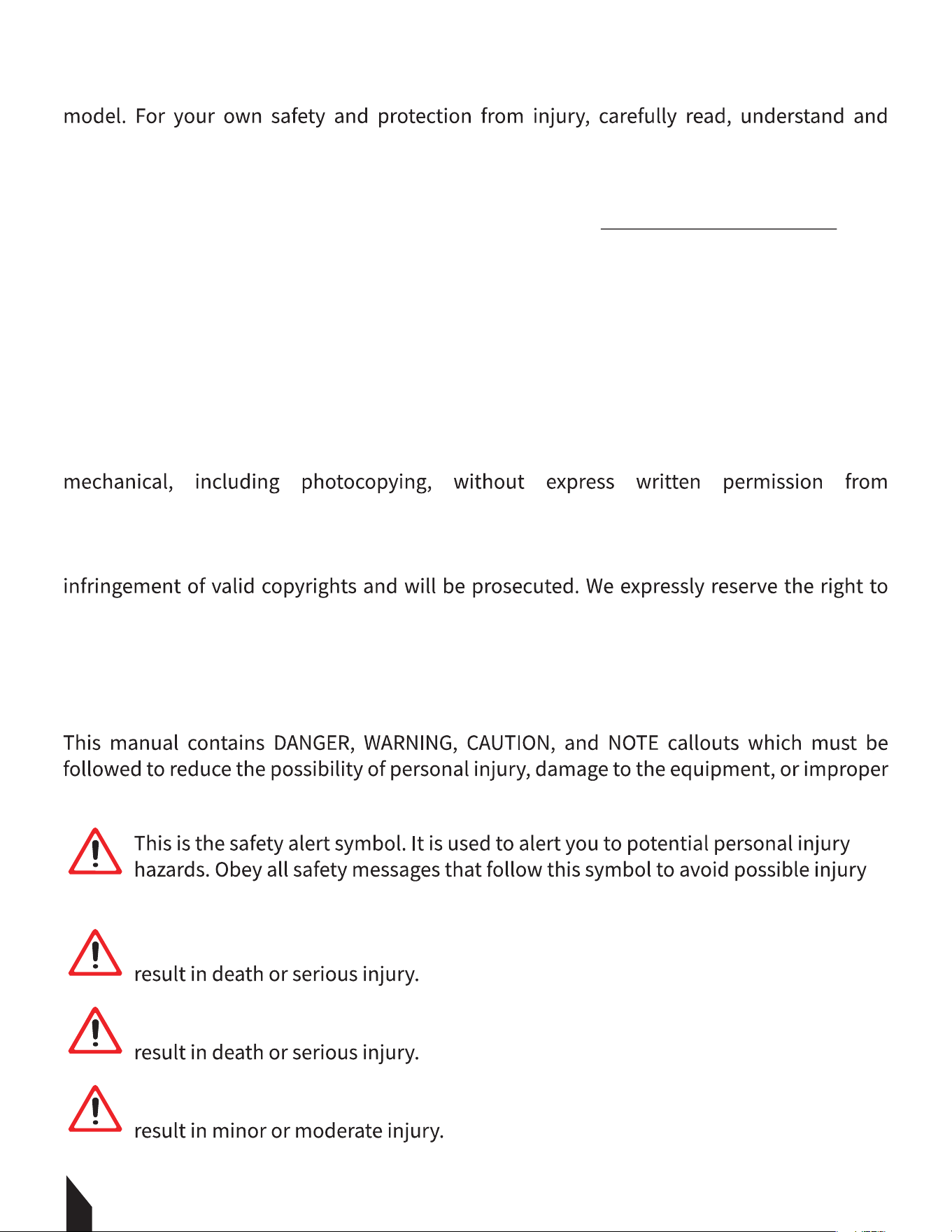

1. Safety Information
service.
or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
WARNING indicates a potentially hazardous situation which, if not avoided, could
CAUTION indicates a potentially hazardous situation which, if not avoided, may
DANGER
WARNING
CAUTION
4
5

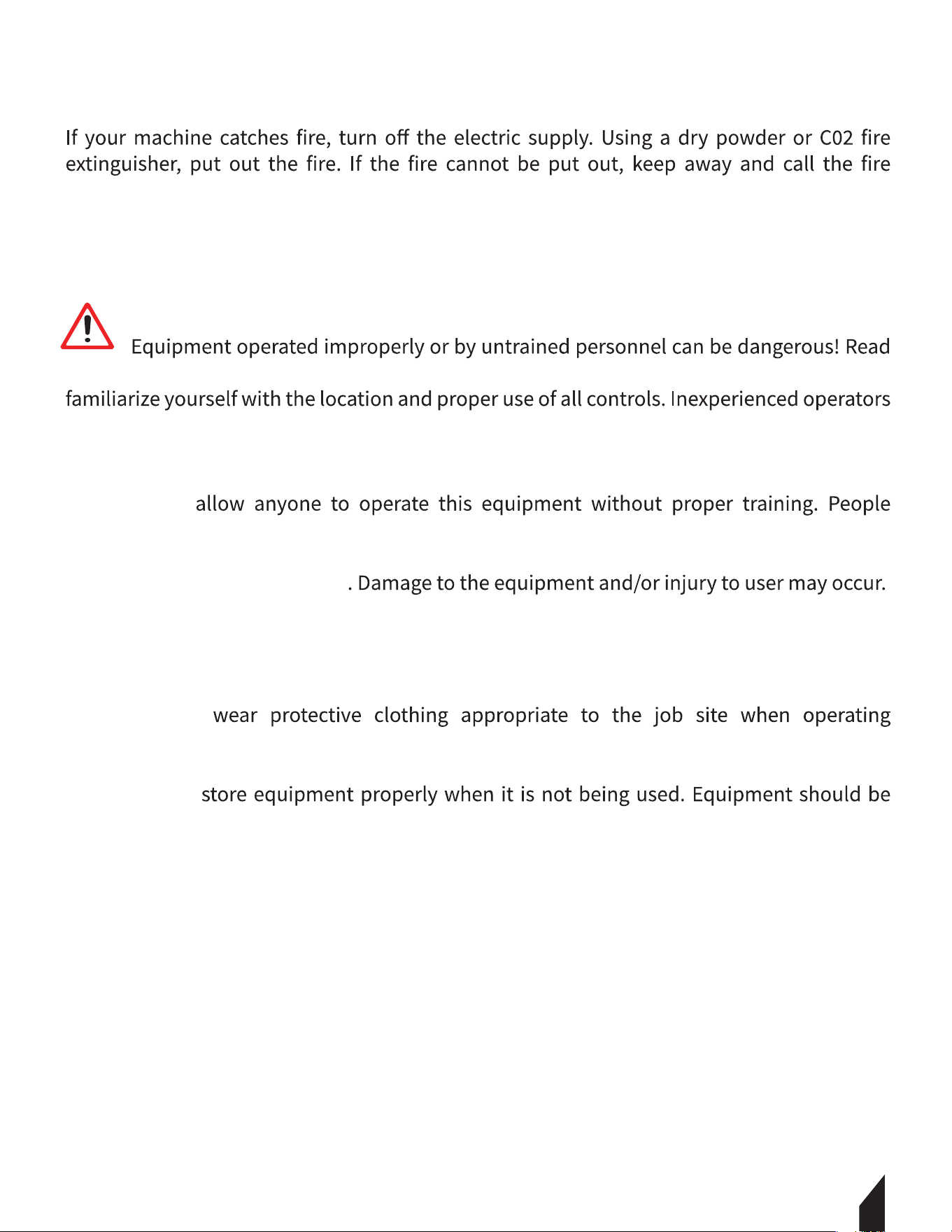

1.1 Fire Safety
departement. If you are in any doubt about the safety condition of your machine, please
consult TOMAHAWK®.
1.2 Operating Safety
Familiarity and proper training are required for the safe operation of equipment!
the operating instructions contained in both this manual and the engine manual and
should receive instruction from someone familiar with the equipment before being allowed
to operate the machine.
1.2.1 NEVER
operating this equipment must be familiar with the risks and hazards associated with it.
1.2.2 NEVER use accessories or attachments for this equipment, which are not
recommended by TOMAHAWK®
1.2.3 NEVER leave machine running unattended.
1.2.4 ALWAYS be sure operator is familiar with proper safety precautions and operation
techniques before using machine.
1.2.5 ALWAYS wear hearing protection when operating equipment.
1.2.6 ALWAYS
equipment.
1.2.7 ALWAYS wear hearing protection when operating equipment.
1.2.8 ALWAYS
stored in a clean, dry location out of the reach of children.
1.2.9 ALWAYS operate machine with all safety devices and guards in place and in working
order. DO NOT modify or remove safety devices. DO NOT operate machine if any safety
devices or guards are missing or inoperative.
1.2.10 ALWAYS read, understand, and follow procedures in Operator's Manual before
attempting to operate equipment.
WARNING
6
1.3 Service Safety
For your own personal protection and for the safety of those around you, please read
and ensure you fully understand the following safety information. It is the
this equipment safely. If you are unsure about the safe and correct use of this equipment
consult your supervisor.
1.3.1 DO NOT
1.3.2 ALWAYS replace worn or damaged components with spare parts designed and
recommended by TOMAHAWK®.
1.3.3 ALWAYS
labels. Labels provide important operating instructions and warn of dangers and hazards.
1.3.4
at a safe distance.
1.3.5
equipment is being used.
1.3.6 Make sure you know how to safely switch this machine OFF before you switch it ON in
1.3.7 Always switch OFF before transporting, moving it around the site, or servicing it.
1.3.8
touching it.
1.3.9 NEVER pull or guide the machine using the cable and never pull on the cable to
disconnect the plug.
1.3.10 DO NOT operate the machine when you are ill, feeling tired, or when under the
influence of alcohol or drugs.
1.3.11
over or trapped underneath the machine.
1.3.12 DO NOT
1.3.13 DO NOT use this machine in wet conditions.

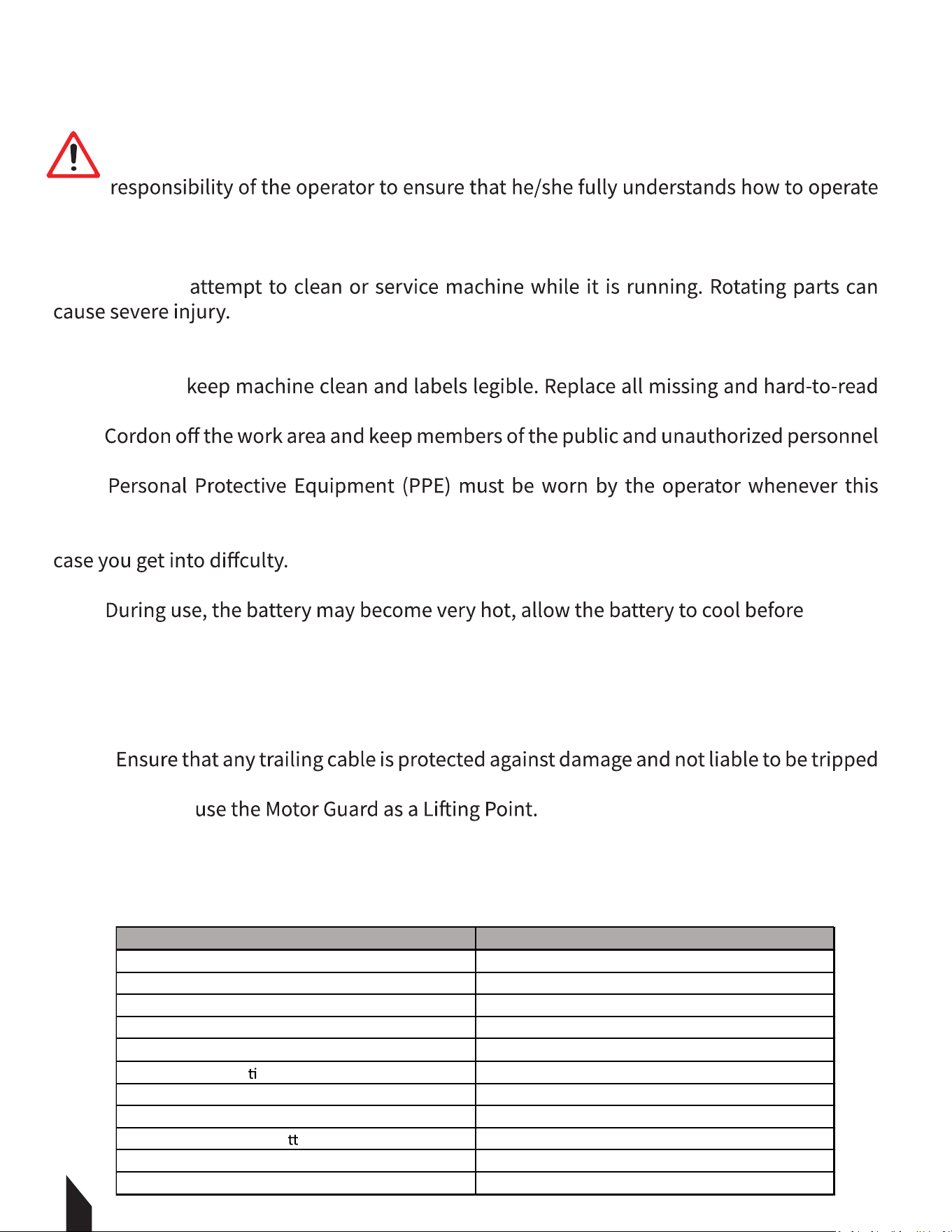

2. PRODUCT DATA
2.1 SPECIFICATIONS
WARNING
MODEL TMOP18e
Rated Voltage 36V
Brush Dimension 8.3in. X2
Brush Speed 0-450prm/min
Brush Motor Power 36V-120w
Brush Pressure 13.2 lb
Solu on Tank Capacity 1.05 Gal
Recovery Tank Capacity 1.71 Gal
Noise Level 65-67 DB
Ba ery 78 Minutes
Weight (Net/Gross) 36.4/58.4 lb
Dimensions 45.7x21x11.2 in
7

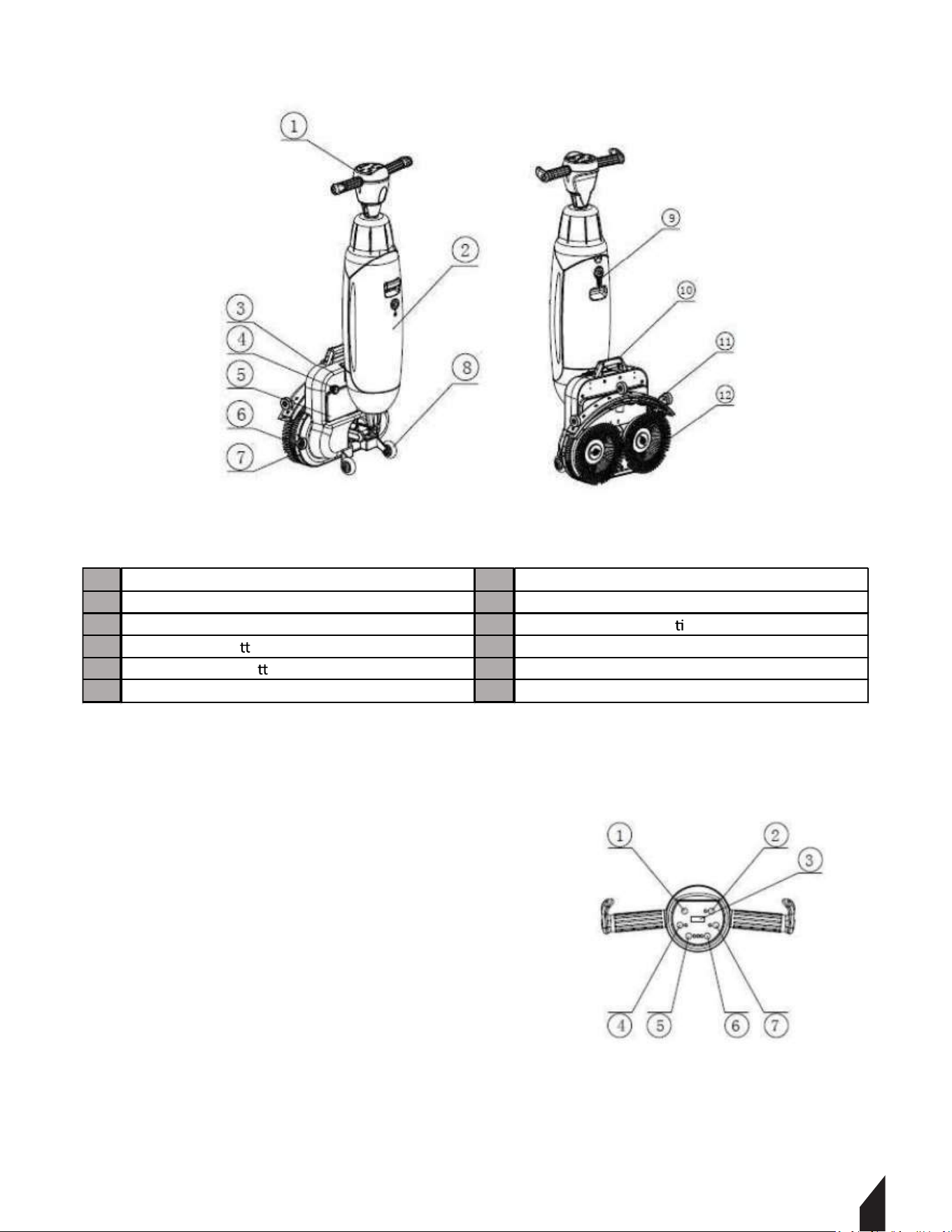

2.2 Features

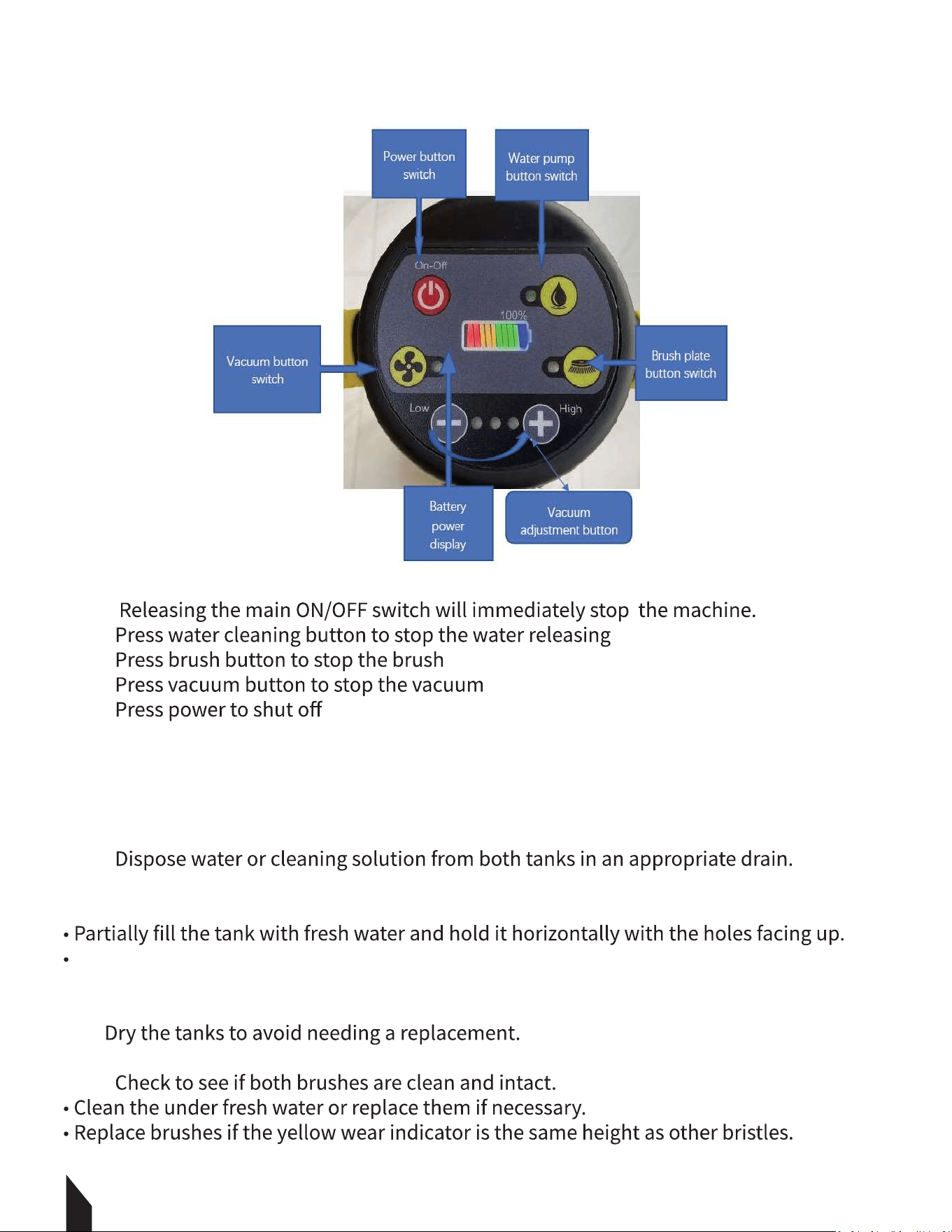

2.3 Handle Features
2.3.1 Power switch (ON/OFF)
2.3.2 Water pump(ON/OFF)
2.3.3 Battery indicator
2.3.4 Vacuum Motor(ON/OFF)
2.3.5 Speed Adjustment- Low “-”
2.3.6 Speed Adjustment- High “+”
2.3.7 Brush Motor(ON/OFF)
1 Top Handle 7 Surrounding Fence
2 Recovery Tank 8 Castor Wheels
3 Scrub Deck 9 Solu on Tank
4 Ba ery Pack Box Knob 10 Carrying Handle
5 Ba ery Pack Box 11 Squeegee Assembly
6 Bumper Wheels 12 Brushes
8

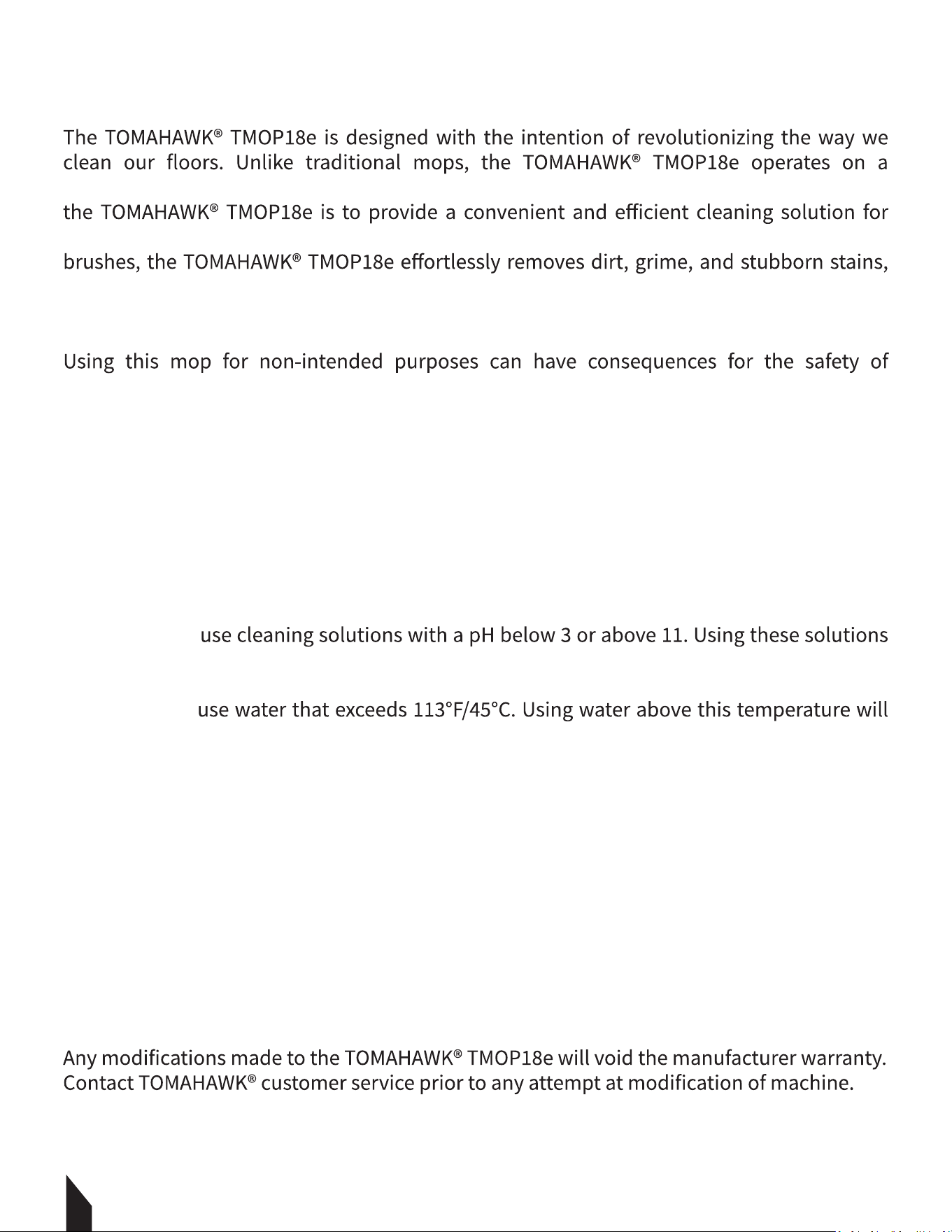

3. INTENDED USE OF THE EQUIPMENT
rechargeable battery, eliminating the need for strenuous manual labor. The intended use of
various surfaces, including hardwood floors, tiles, and laminate. With its motorized spinning
leaving floors sparkling clean.
3.1 Non-Intended Use Of The Equipment
operators and bystanders, and it may also void the warranty on the product.
3.1.1 NEVER operate the equipment near flammable dusts, liquids, or vapors.
3.1.2 NEVER operate the equipment when flammable or poisonous liquids like gasoline, oil
acids, or other chemicals are present on the floor.
3.1.3 DO NOT fill the equipment with any flammable solutions. ONLY use water-based
solutions.
3.1.4 DO NOT
can damage the equipment and void the warranty.
3.1.5 DO NOT
void the tank warranty.
3.1.6 DO NOT use the equipment outside or on uneven surfaces.
3.1.7 DO NOT store the equipment outside in order to avoid damage to electronic
components.
3.1.8 ONLY use manufacturer supplied parts for maintance.
3.1.8 ONLY trained adults that have read and understand the operation manual should
operate the machine.
3.2 Modifications
9

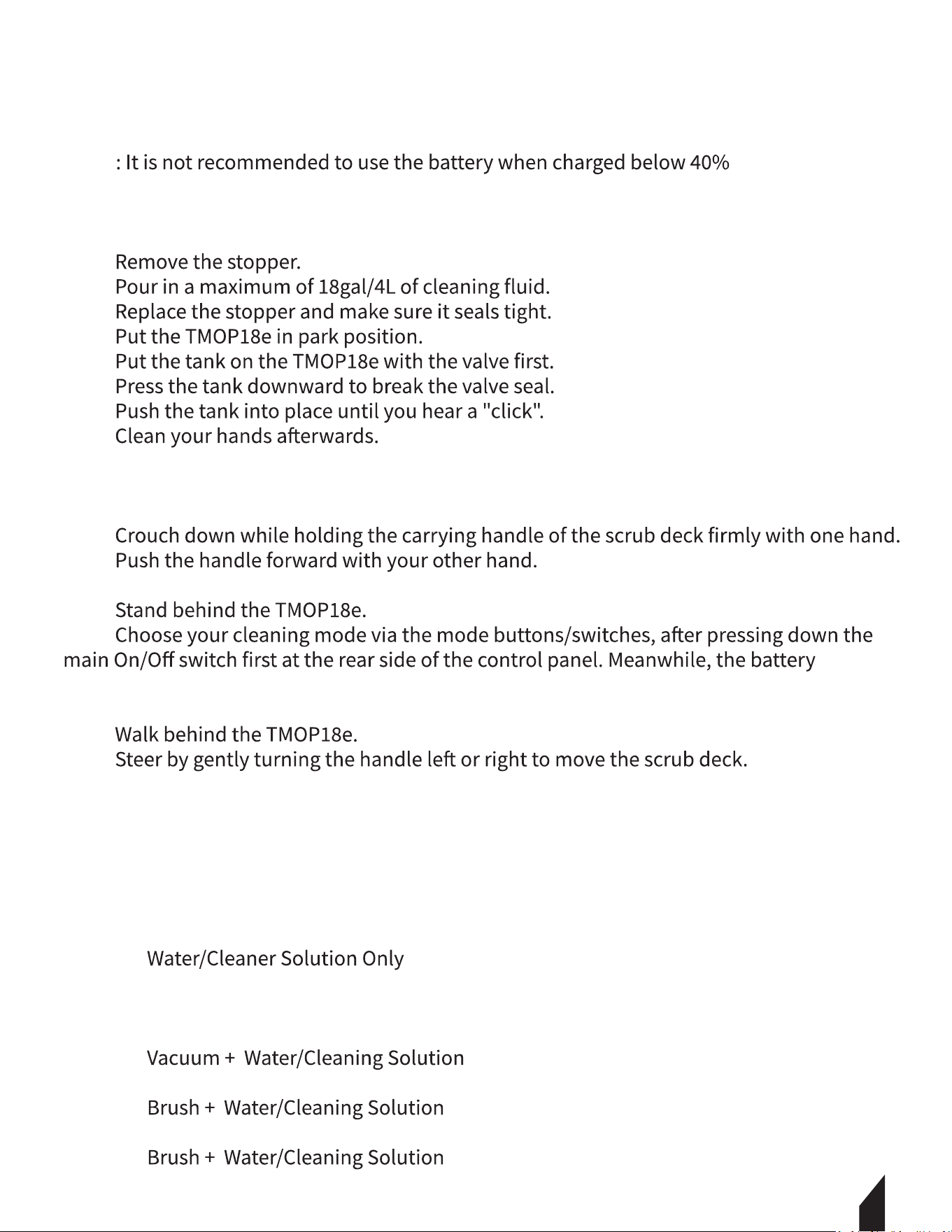

4. OPERATION
BEFORE YOU START always check the brushes and squeegee for wear and tear.
NOTE
4.1 Filling the Cleaning Solution Tank
4.1.1
4.1.2
4.1.3
4.1.4
4.1.5
4.1.6
4.1.7
4.1.8
4.2 Operating The Equipment
4.2.1
4.2.2
4.2.3 Bring the scrub deck slowly down to the floor.
4.2.4
4.2.5
indicator will illuminate power.
4.2.6 Hold the handle with both hands.
4.2.7
4.2.8
4.3 MODES
MODE 1: Vacuum Only
MODE 2: Brush Only
MODE 3:
MODE 4: Vacuum + Brush
MODE 5:
MODE 6:
MODE 7: + Vacuum
10
4.3 Modes Continued
NOTE: Press all corresponding buttons for MODE
4.4 Stopping the Equipment
Note:
4.4.1
4.4.2
4.4.3
4.4.4
5. CLEANING & STORAGE
5.1 Cleaning
5.1.1
5.1.2 To clean the recovery tank thoroughly:
Tilt the tank repeatedly, thoroughly rinsing all the dirt and debris out from the tank.
5.1.3 To clean the solution tank, follow the same procedure.
Tip:
5.1.4
11
5.1.5
5.2 Storage
5.2.1
5.2.2
5.2.3
brushes facing away from thewall.
6. MAINTENANCE

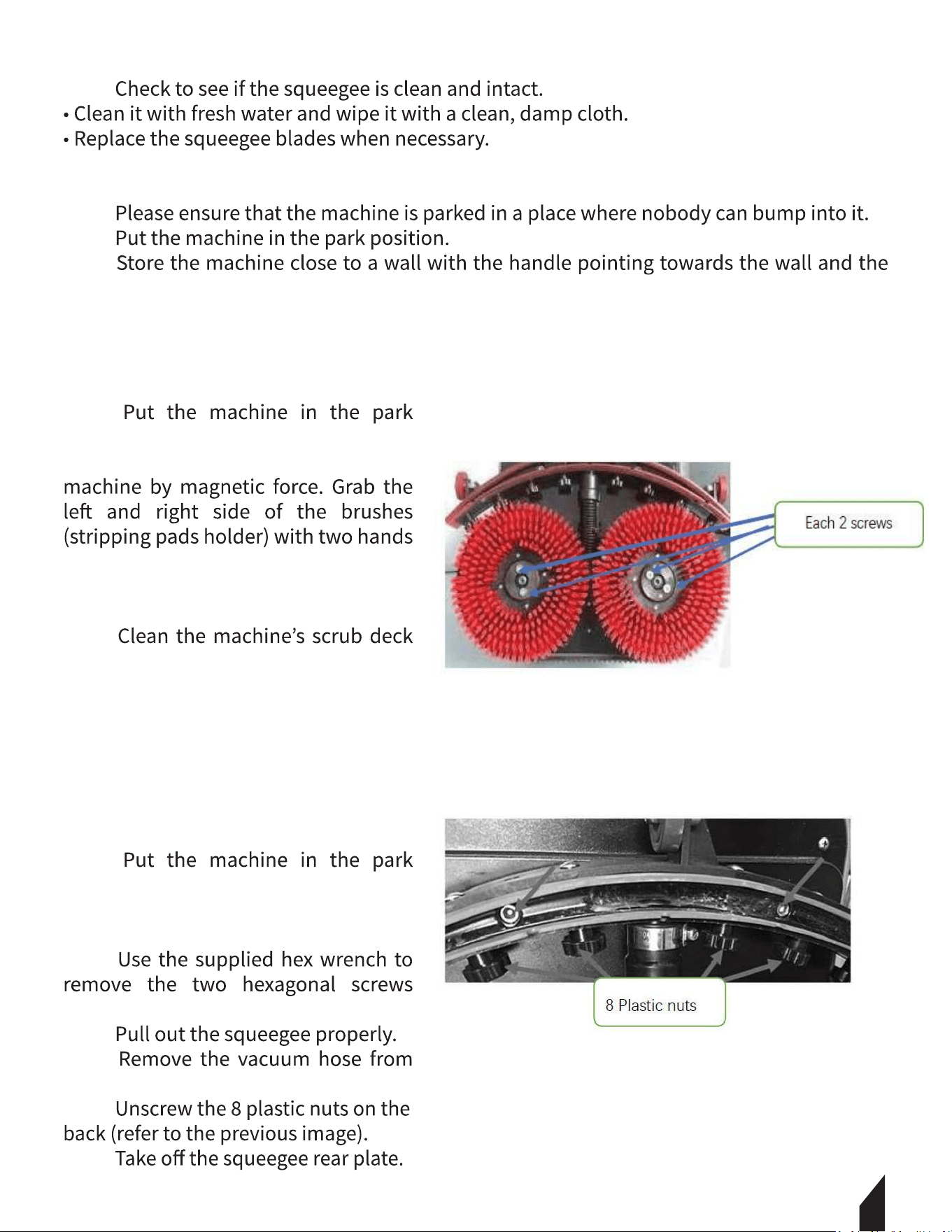

6.1 Brush Replacement
6.1.1
position.
6.1.2 The brushes connect on the
and pull the brush out against
machine.
6.1.3 Visually inspect the motor disks
6.1.4
with a clean, dry cloth before installing
the brushes or stripping pads holder.
6.2 Squeegee Replacement
The squeegee blades come in pairs and
wear out over time. When you notice
the floor is no longer being dried
properly, replace the squeegee blades.
6.2.1
position.
6.2.2 Hold the scrub deck firmly with
one hand.
6.2.3
inside the squeegee completely.
6.2.4
6.2.5
the squeegee by twisting the hose.
6.2.6
6.2.7
12
6.2.8
6.2.9
6.2.10
6.2.11
Inspect the front and rear rubber blades:
plate screws through the holes.
NOTE:
The special squeegee blades that contain small arrow-like shapes cannot be
switched. These need to be replaced everytime.

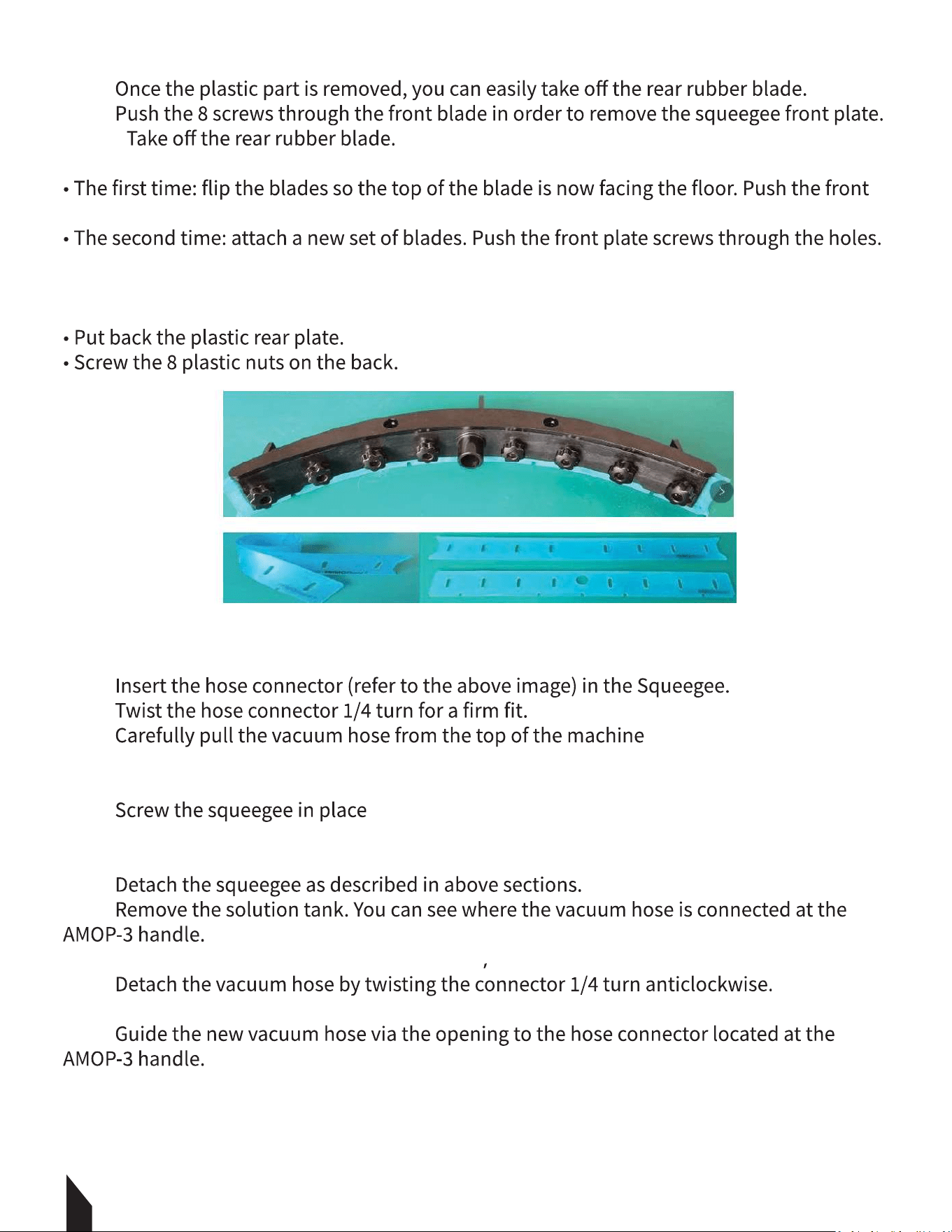

6.3 Attaching a New Squeegee
6.3.1
Take the vacuum hose
6.3.2
6.3.3
6.3.4
6.3.5
Hold the scrub deck firmly with one hand.
6.3.6
Align the pins on the scrub deck with the holes on the squeegee.
6.3.7
6.4 Replacing The Hose
6.4.1
6.4.2
6.4.3
Hold the scrub deck firmly with one hand
6.4.4
6.4.5
Now you can carefully pull the vacuum hose from the top of the machine.
6.4.6
13

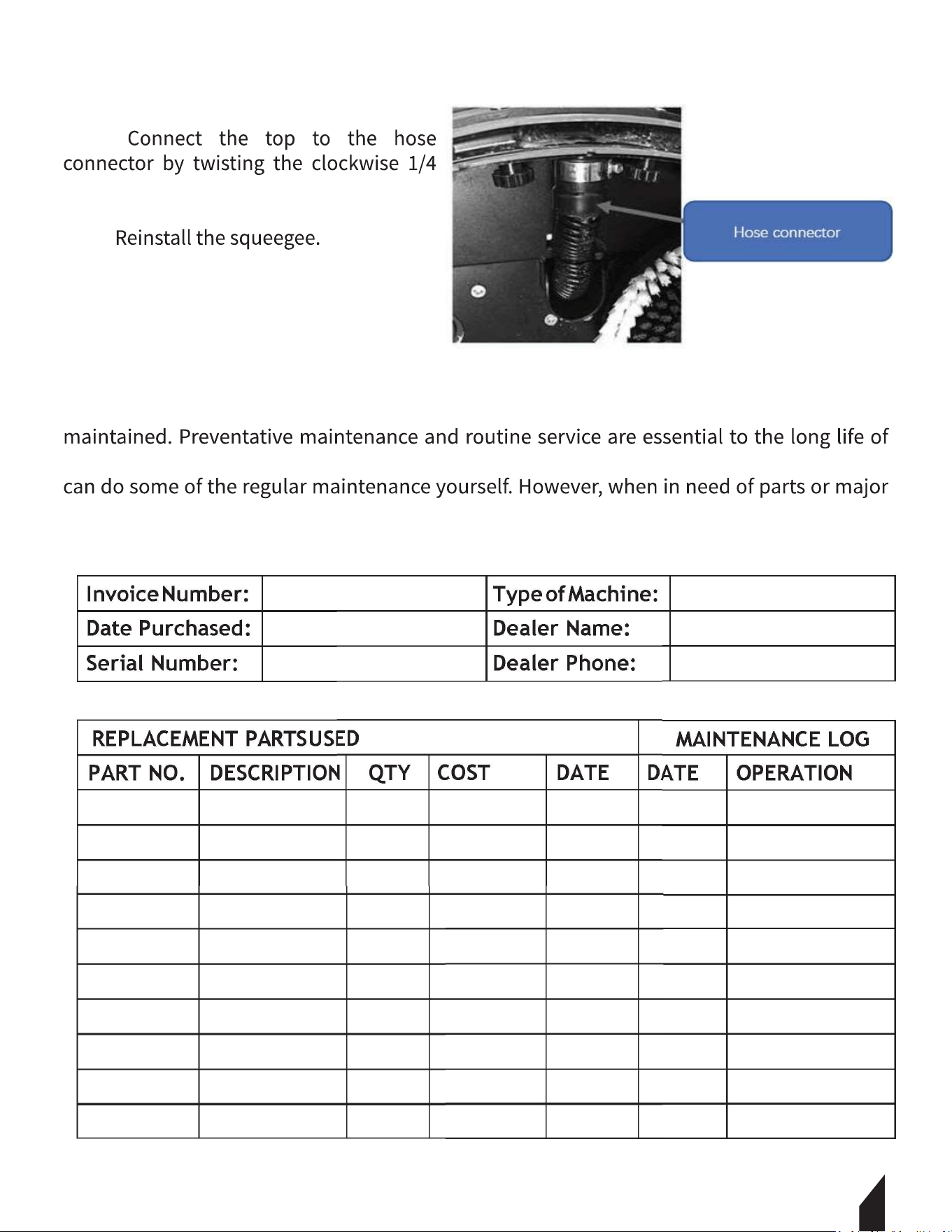

6.4 Replacing The Hose (Continued)
6.4.7
turn until they have lined up.
6.4.1
6.5 Maintenance Record
TOMAHAWK® tools are assembled with care and will provide years of service when properly
your equipment. Adhere to reading through this manual thoroughly. You will find that you
service, be sure to contact a TOMAHAWK® Technician. For your convenience we have
provided this space to record relevant data about your TOMAHAWK® equipment.

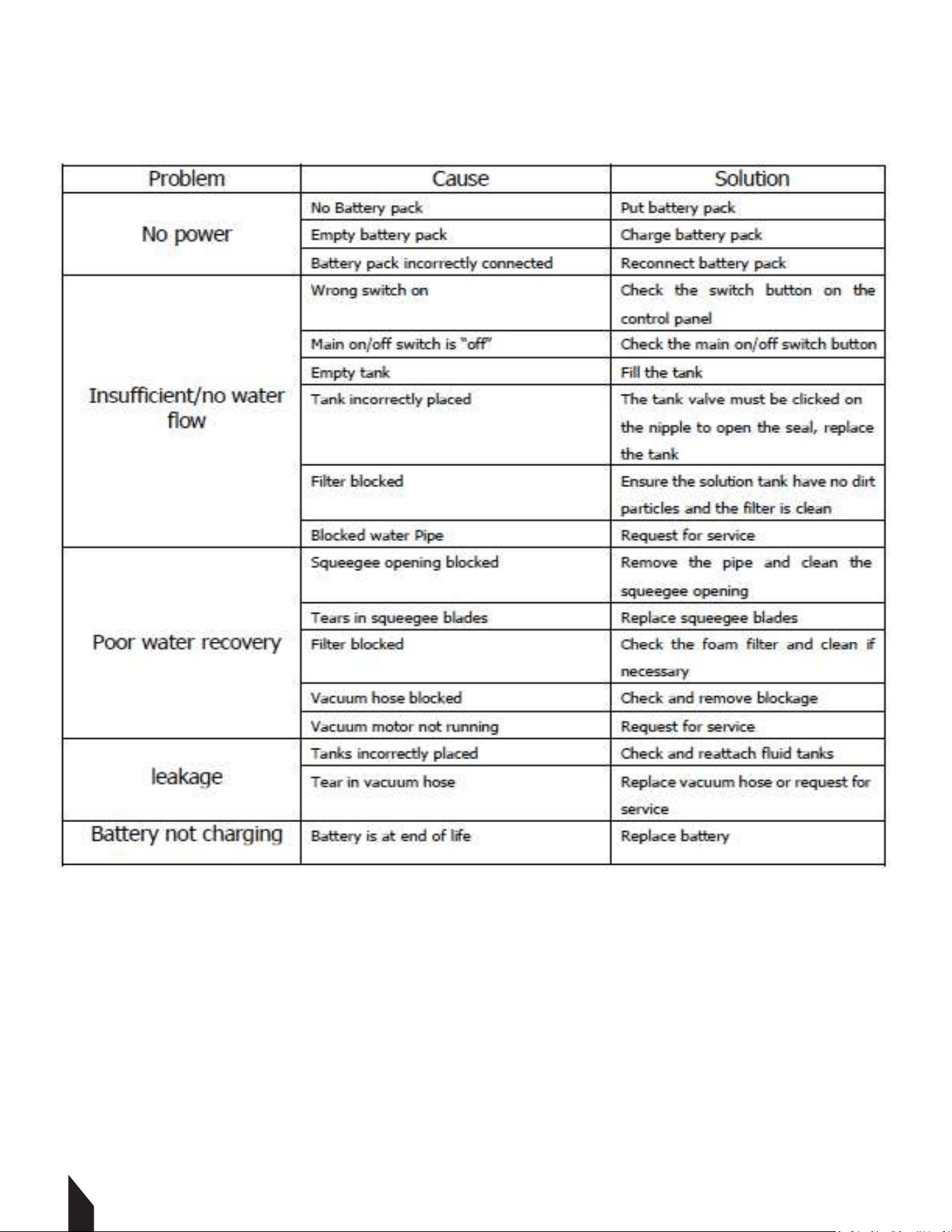

7. TROUBLESHOOTING
1414

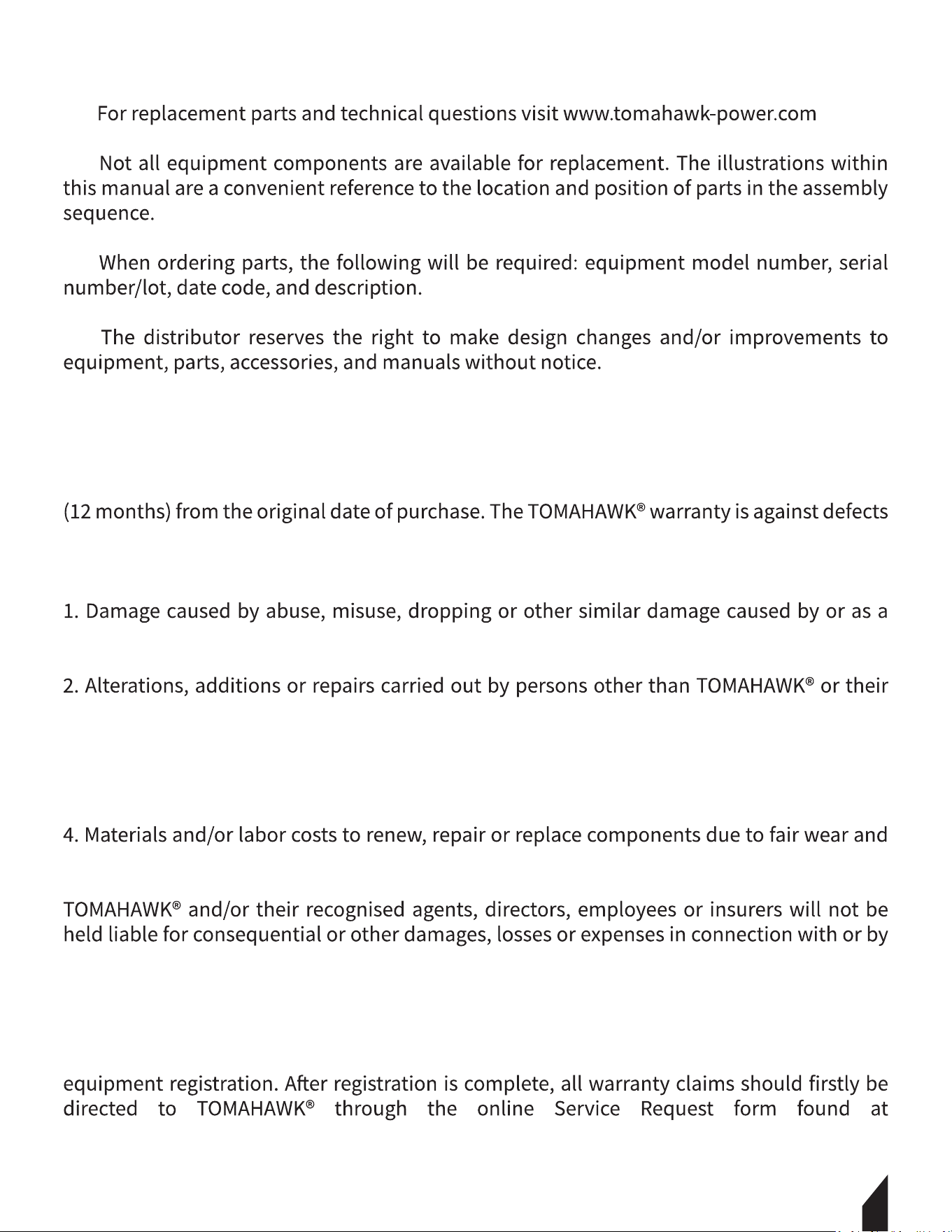

8. REPLACEMENT PARTS
8.1
8.2
8.3
8.4
9. WARRANTY
Your new TOMAHAWK® equipment is warranted to the original purchaser for a period of
one-year.
in design, materials and workmanship.
The following are not covered under the warranty:
result of failure to follow assembly, operation or user maintenance instructions.
recognised agents.
3. Transportation or shipment costs to and from TOMAHAWK® or their recognised agents, for
repair or assessment against a warranty claim, on any machine.
tear.
reason of or the inability to use the machine for any purpose.
9.1 Warranty Claims
Before submitting any warranty claim, your new TOMAHAWK® equipment should be
registered through www.tomahawk-power.com. Follow the steps on page 3 to complete the
www.tomahawk-power.com
15
16
24
TAKE BACK YOUR YARD
Enjoy the outdoors again.
Tomahawk mosquito foggers deliver the
power to eliminate virus-carrying pests,
before they ruin outdoor activities for your
friends and family. 10x Faster than manual
sprayers, cover 1 acre in less than 30 minutes
with
blowing solution. No matter the season, keep
your yard pest free and looking great!
Item #: TMD14
3.7 GALLON TURBO
BACKPACK FOGGER
www.tomahawk-power.com
17
IN LESS TIME
wider path to reach more surface area so you can finish sweeping faster
around indoor and outdoor spaces and on wet or dry surfaces!
CLEAN MORE
Item #: TOS38
www.tomahawk-power.com
14.5
GAL
COMMERCIAL
38” PUSH SWEEPER
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
We’re here to help!
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
We’re here to help!
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
17
USE CODE
SAVE10
AT CHECKOUT FOR
10% OFF YOUR ORDER AT
WWW.TOMAHAWK-POWER.COM
www.tomahawk-power.com
tomahawk-power.com
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
INVERTER INVERTER
tomahawk-power.com
3.7 Gallon 3HP Backpack Fogger
Part#: TMD14
Turbo Boosted Pump with 40ft + Horizontal Reach
Sprays 1 acre in 30 minutes
10X Faster than Manual Pump Sprayers
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
Commercial 38" Push Sweeper
Part#: TOS38
Collect up to 14.5 gallons of dust and debris
Can be used indoors & outdoors on wet or dry surfaces
Includes integrated airflow control and fine dust filter
Lightweight design, capable of fitting through doorways
1 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG135Ai
Steady 50 - 135 Amp DC welding output
3300 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG210A
Steady 50 - 210 Amp DC welding output
2000 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
INVERTER
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
5 Gallon Backpack Power Sprayer
Part#: TPS25
Reach Up to 30ft Horizontal Reach
Sprays acres in 10 minutes
10X Faster than Manual Pump Sprayers
50-435 Adjustable PSI Commercial Grade Pump
1 Year Product Warranty
4.75 Gallon Battery Power Sprayer
Part#: eTPS18
Reach Up to 30ft Horizontal Reach
Sprays 6000 sq ft in 10 minutes
10X Faster than Manual Pump Sprayers
70 PSI Commercial Grade Pump
1 Year Product Warranty
4 Gal. Motorized Fertilizer Spreader
Part#: TGS30
Reach up to 30ft Horizontally
Sprays 1 acre in 30 minutes
20X Faster than push spreaders
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
3” Full Trash Water Pump
Part#: TW3H
Moves liquids at a rate up to 375 gal/min
Handle solids up to 1.5"
Silicone carbide seals and a chrome plated volute
8 HP engine protected by rugged all purpose frame
3 Year Engine Warranty & 1 Year Product Warranty
INVERTER
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
Power Your World
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
TOMAHAWK®, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
