Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 14
Entertainment Systems 18
AM/FM stereo with CD 18
AM/FM stereo with in-dash six CD 25
Climate Controls 33
Manual heating and air conditioning 33
Rear window defroster 34
Lights 35
Headlamps 35
Turn signal control 38
Bulb replacement 38
Driver Controls 43
Windshield wiper/washer control 43
Steering wheel adjustment 44
Power windows 45
Mirrors 46
Speed control 46
Locks and Security 54
Keys 54
Locks 54
Anti-theft system 57
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Table of Contents
1
Seating and Safety Restraints 64
Seating 64
Safety restraints 68
Air bags 79
Child restraints 84
Driving 99
Starting 99
Brakes 104
Traction control 107
Transmission operation 108
Vehicle loading 117
Trailer towing 120
Roadside Emergencies 122
Getting roadside assistance 122
Hazard flasher switch 124
Fuel pump shut-off switch 124
Fuses and relays 125
Changing tires 130
Jump starting 136
Wrecker towing 141
Customer Assistance 142
Reporting safety defects (U.S. only) 152
Cleaning 153
Maintenance and Specifications 161
Engine compartment 164
Engine oil 167
Battery 171
Fuel information 182
Part numbers 215
Refill capacities 215
Lubricant specifications 218
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Table of Contents
2
Accessories 225
Index 228
All rights reserved. Reproduction by any means, electronic
or mechanical including photocopying, recording or by any
information storage and retrieval system or translation in
whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change
the contents without notice and without incurring
obligation.
Copyright © 2003 Ford Motor Company
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Table of Contents
3
CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its
constituents, and certain vehicle
components contain or emit chemicals known to
the State of California to cause cancer and birth
defects or other reproductive harm. In addition,
certain fluids contained in vehicles and certain
products of component wear contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other
reproductive harm.
CONGRATULATIONS
Congratulations on acquiring your new Ford. Please
take the time to get well acquainted with your
vehicle by reading this handbook. The more you
know and understand about your vehicle the greater
the safety and pleasure you will derive from driving
it.
For more information on Ford Motor Company and
its products visit the following website:
• In the United States: www.ford.com
• In Canada: www.ford.ca
• In Australia: www.ford.com.au
• In Mexico: www.ford.com.mx
Additional owner information is given in separate
publications.
This Owner’s Guide describes every option and
model variant available and therefore some of the
items covered may not apply to your particular
vehicle. Furthermore, due to printing cycles it may
describe options before they are generally available.
Remember to pass on the Owner’s Guide when
reselling the vehicle. It is an integral part of the
vehicle.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
4
Fuel pump shut-off switch In the event of
an accident the safety switch will
automatically cut off the fuel supply to the engine.
The switch can also be activated through sudden
vibration (e.g. collision when parking). To reset
the switch, refer to the Fuel pump shut-off
switch in the Roadside emergencies chapter.
SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury and
prevent possible damage to others, your vehicle and
its equipment? In this guide, answers to such
questions are contained in comments highlighted by
the warning triangle symbol. These comments
should be read and observed.
Warning symbols on your vehicle
When you see this
symbol, it is imperative
that you consult the
relevant section of this
guide before touching or attempting adjustment of
any kind.
Protecting the environment
We must all play our
part in protecting the
environment. Correct
vehicle usage and the
authorized disposal of waste cleaning and lubrication
materials are significant steps towards this aim.
Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in.
Try not to drive continuously at the same speed for
the first 1,600 km (1,000 miles) of new vehicle
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
5
operation. Vary your speed to allow parts to adjust
themselves to other parts.
Do not add friction modifier compounds or special
break-in oils during the first few thousand
kilometers (miles) of operation, since these additives
may prevent piston ring seating. See Engine oil in
the Maintenance and specifications chapter for
more information on oil usage.
SPECIAL NOTICES
Emission warranty
The New Vehicle Limited Warranty includes
Bumper-to-Bumper Coverage, Safety Restraint
Coverage, Corrosion Coverage, and 6.0L Power
Stroke Diesel Engine Coverage. In addition, your
vehicle is eligible for Emissions Defect and
Emissions Performance Warranties. For a detailed
description of what is covered and what is not
covered, refer to the Warranty Guide that is
provided to you along with your Owner’s Guide.
Special instructions
For your added safety, your vehicle is fitted with
sophisticated electronic controls.
Please read the section Supplemental
Restraint System (SRS) in the Seating and
safety restraints chapter. Failure to follow the
specific warnings and instructions could result in
personal injury.
Front seat mounted rear facing child or
infant seats should NEVER be used in front
of a passenger side air bag unless the air bag can
be and is turned OFF.
Data Recording
Computers in your vehicle are capable of recording
detailed data potentially including but not limited to
information such as:
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
6
• the use of restraint systems including seat belts
by the driver and passengers,
• information about the performance of various
systems and modules in the vehicle, and
• information related to engine, throttle, steering,
brake or other system status.
Any of this information could potentially include
information regarding how the driver operates the
vehicle, potentially including but not limited to
information regarding vehicle speed, brake or
accelerator application, or steering input. This
information may be stored during regular operation
or in a crash or near crash event.
This stored information may be read out and used
by:
• Ford Motor Company.
• service and repair facilities.
• law enforcement or government agencies.
• others who may assert a right or obtain your
consent to know such information.
Notice to owners of Cobra vehicles
Before you drive your vehicle, be sure to read the
“SVT Cobra Owner’s Guide Supplement.” This book
contains important operation and maintenance
information.
MIDDLE EAST/NORTH AFRICA VEHICLE
SPECIFIC INFORMATION
For your particular global region, your vehicle may
be equipped with features and options that are
different from the ones that are described in this
Owner Guide; therefore, a supplement has been
supplied that complements this book. By referring to
the pages in the provided supplement, you can
properly identify those features, recommendations
and specifications that are unique to your vehicle.
Refer to this Owner Guide for all other
required information and warnings.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
7
These are some of the symbols you may see on your
vehicle.
Vehicle Symbol Glossary
Safety Alert See Owner’s Guide
Fasten Safety Belt Air Bag-Front
Air Bag-Side Child Seat
Child Seat
Installation Warning
Child Seat Lower
Anchor
Child Seat Tether
Anchor
Brake System
Anti-Lock Brake
System
Brake Fluid -
Non-Petroleum
Based
Traction Control AdvanceTrac娂
Master Lighting
Switch
Hazard Warning
Flasher
Fog Lamps-Front Fuse Compartment
Fuel Pump Reset
Windshield
Wash/Wipe
Windshield
Defrost/Demist
Rear Window
Defrost/Demist
Power Windows
Front/Rear
Power Window
Lockout
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
8
Vehicle Symbol Glossary
Child Safety Door
Lock/Unlock
Interior Luggage
Compartment
Release Symbol
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant
Temperature
Do Not Open When
Hot
Battery
Avoid Smoking,
Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering
Fluid
Maintain Correct
Fluid Level
MAX
MIN
Emission System Engine Air Filter
Passenger
Compartment Air
Filter
Jack
Check fuel cap Low tire warning
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
9
WARNING LIGHTS AND CHIMES
Base instrument cluster
Optional instrument cluster
Mach 1 instrument cluster
Warning lights and gauges can alert you to a vehicle
condition that may become serious enough to cause
expensive repairs. A warning light may illuminate
when a problem exists with one of your vehicle’s
functions. Many lights will illuminate when you start
your vehicle to make sure the bulb works. If any
light remains on after starting the vehicle, have the
respective system inspected immediately.
P!
BRAKE
L
0
00000 00
C
E
F
H
LH
10
20
30
20
40
60
80
100
120
140
160
180
40
50
60 70
80
90
100
11 0
120
4
5
6
7
3
2
1
H
THEFT
RPMX1000
FUEL DOOR
SELECT/RESET
LOW
FUEL
O/D
OFF
AIR
BAG
SERVICE
ENGINE
SOON
MPH km/h
ABS
.
CHECK
FUEL
CAP
P!
BRAKE
L
0
00000 00
C
E
F
H
LH
10
20
40
60
80
20
40
60
80
100
120 14 0
160
180
200
220
240
100
120
140
30
50
70 90
110
130
150
4
5
6
7
8
3
2
1
H
THEFT
RPMX1000
FUEL DOOR
SELECT/RESET
LOW
FUEL
O/D
OFF
AIR
BAG
SERVICE
ENGINE
SOON
CHECK
FUEL
CAP
MPH km/h
ABS
.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
10
Service engine soon:
The Service engine
soon indicator light
illuminates when the
ignition is first turned to the ON position to check
the bulb. Solid illumination after the engine is
started indicates the On Board Diagnostics System
(OBD-II) has detected a malfunction. Refer to On
board diagnostics (OBD-II) in the Maintenance
and Specifications chapter. If the light is blinking,
engine misfire is occurring which could damage your
catalytic converter. Drive in a moderate fashion
(avoid heavy acceleration and deceleration) and
have your vehicle serviced immediately.
Under engine misfire conditions, excessive
exhaust temperatures could damage the
catalytic converter, the fuel system, interior floor
coverings or other vehicle components, possibly
causing a fire.
Check fuel cap:
Illuminates when the
fuel cap may not be
properly installed.
Continued driving with this light on may cause the
Service engine soon light to come on. Refer to Fuel
filler cap in the Maintenance and Specifications
chapter.
Brake system
warning light: To
confirm the brake
system warning light is
functional, it will momentarily illuminate when the
ignition is turned to the ON position when the
engine is not running, or in a position between ON
and START, or by applying the parking brake when
the ignition is turned to the ON position. If the
brake system warning light does not illuminate at
this time, seek service immediately from your
dealership. Illumination after releasing the parking
SERVICE
ENGINE
SOON
CHECK
FUEL
CAP
P!
BRAKE
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
11
brake indicates low brake fluid level and the brake
system should be inspected immediately by your
servicing dealership.
Driving a vehicle with the brake system
warning light on is dangerous. A significant
decrease in braking performance may occur. It will
take you longer to stop the vehicle. Have the
vehicle checked by your dealer immediately.
Anti-lock brake
system: If the ABS
light stays illuminated
or continues to flash, a
malfunction has been detected, have the system
serviced immediately. Normal braking is still
functional unless the brake warning light also is
illuminated.
Air bag readiness: If
this light fails to
illuminate when
ignition is turned to ON, continues to flash or
remains on, have the system serviced immediately. A
chime will also sound when a malfunction in the
supplemental restraint system has been detected.
Safety belt: Reminds
you to fasten your
safety belt. A chime
will also sound to
remind you to fasten your safety belt.
Charging system:
Illuminates when the
battery is not charging
properly.
Low fuel: Illuminates
when the fuel level in
the fuel tank is at or
near empty. Refer to
Fuel gauge in this chapter).
ABS
AIR
BAG
LOW
FUEL
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
12
Overdrive off:
Illuminates when the
overdrive function of
the transmission has been turned off, refer to the
Driving chapter. If the light flashes steadily or does
not illuminate, have the transmission serviced soon,
or damage may occur.
Traction Control娂
active: Illuminates
when the Traction
Control娂 system is
active. If the light
remains on, have the system serviced immediately.
Anti-theft system:
Flashes when the
Securilock娂 Passive
Anti-theft System has been activated.
Turn signal:
Illuminates when the
left or right turn signal
or the hazard lights are turned on. If the indicators
stay on or flash faster, check for a burned out bulb.
High beams:
Illuminates when the
high beam headlamps
are turned on.
Key-in-ignition warning chime: Sounds when the
key is left in the ignition in the OFF/LOCK or ACC
position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the
headlamps or parking lamps are on, the ignition is
off (the key is not in the ignition) and the driver’s
door is opened.
O/D
OFF
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
13
GAUGES
Base instrument cluster gauges
Optional instrument cluster gauges
Mach 1 instrument cluster gauges
Speedometer: Indicates the current vehicle speed.
• Base instrument
cluster
P!
BRAKE
L
C
E
F
H
LH
10
20
30
20
40
60
80
100
120
140
160
180
40
50
60 70
80
90
100
11 0
120
4
5
6
7
3
2
1
H
THEFT
RPMX1000
FUEL DOOR
SELECT/RESET
LOW
FUEL
O/D
OFF
AIR
BAG
SERVICE
ENGINE
SOON
MPH km/h
ABS
00000 00
.
CHECK
FUEL
CAP
P!
BRAKE
0
00000 00
F
H
H
10
20
40
60
80
20
40
60
80
100
120 14 0
160
180
200
220
240
100
120
140
30
50
70 90
110
130
150
4
5
6
7
8
3
2
1
H
THEFT
RPMX1000
FUEL DOOR
SELECT/RESET
LOW
FUEL
O/D
OFF
AIR
BAG
SERVICE
ENGINE
SOON
MPH km/h
ABS
.
L
L
CHECK
FUEL
CAP
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
14
• Optional instrument
cluster
• Mach 1 instrument
cluster
Engine coolant
temperature gauge:
Indicates engine
coolant temperature. At
normal operating temperature, the needle will be in
the normal range (between “H” and “C”). If it enters
the red section, the engine is overheating. Stop the
vehicle as soon as safely possible, switch off the
engine and let the engine cool.
Never remove the coolant reservoir cap
while the engine is running or hot.
Odometer: Registers
the total kilometers
(miles) of the vehicle.
Trip odometer:
Registers the
kilometers (miles) of
individual journeys.
Press and release the
reset button until a “T”
appears in the display.
Press and hold the button for three seconds to reset.
C H
0
00000 00
4
5
6
7
8
3
2
1
RPMX1000
SELECT/RESET
.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
15
Tachometer: Indicates the engine speed in
revolutions per minute. Driving with your
tachometer pointer continuously at the top of the
scale may damage the engine.
• Base instrument
cluster
• Optional instrument
cluster
• Mach 1 instrument
cluster
Battery voltage
gauge: Indicates the
battery voltage when
the ignition is in the
ON position. If the pointer moves and stays outside
the normal operating range, have the vehicle’s
electrical system checked as soon as possible.
Engine oil pressure
gauge: Indicates
engine oil pressure.
The needle should stay
in the normal operating range (between “L” and
“H”). If the needle falls below the normal range, stop
the vehicle, turn off the engine and check the engine
oil level. Add oil if needed. If the oil level is correct,
have your vehicle checked at your dealership or by a
qualified technician.
LH
L H
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
16
Fuel gauge: Indicates
approximately how
much fuel is left in the
fuel tank (when the
ignition is in the ON position). The fuel gauge may
vary slightly when the vehicle is in motion or on a
grade.
Refer to Filling the tank in the Maintenance and
Specifications chapter for more information.
F
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
17
AM/FM STEREO / SINGLE CD RADIO (IF
EQUIPPED)
1. Balance:
Press
/ to shift
sound to the left/right
speakers.
2. Fade: Press
/
to shift sound to the
front/rear speakers.
3. SCN (Scan): Press
to hear a brief sampling
of all listenable stations
or CD tracks. Press again to stop.
4. CLK: To set the
hour, press and hold
CLK and press SEEK
to decrease
or increase the hours.
To set the minute, press and hold CLK and press
TUNE to decrease
or increase the minutes.
5. EJ (eject): Press to
eject a CD.
BASS
CD
TREB BAL FADE
SCN
CLK
AM
FM
VOL - PUSH ON
SEEK
EJ
COMP
DISC
DISCS
TUNE
123456
FM1
ST
SHUFFLE
CDCD
14
15
16 17
18
1 234
13
65
8
12
11
7910
CLK
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
18
6. COMP
(Compression): In CD
mode, press to bring
louder and softer levels into more comfortable
listening level. The compression icon (c) will appear
in the display.
7. Shuffle: Press to
listen to the tracks on
the CD in random
order. Press again to turn off.
8. Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station. Press and hold a preset
button until sound returns. This radio is equipped
with six station memory preset controls which allow
you to set up to six AM stations and 12 FM stations
(six in FM1 and six in FM2).
9. CD:
Press and
hold until desired
selection is reached.
10.
CD:Press
and hold until desired
selection is reached.
11. Tune / Discs:In
radio mode, press to
move up or down the
frequency band in individual increments.
12. Seek: Press and
release SEEK
/
for previous/next
strong station, selection or track.
13. Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
SHUFFLE
6
123456
SHUFFLE
CDCD
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
19
14. CD: Press to enter
CD mode or to play a
CD already loaded into
the system.
15. AM/FM: Press to
choose a frequency
band in radio mode.
16. Bass:
Press
/ to
increase/decrease the
bass output.
17. Treble:
Press
/ to
increase/decrease the
treble output.
18. CD door: Insert a
CD printed side up.
MACH姞 MP3 AUDIO SYSTEM (IF EQUIPPED)
1. Balance:
Press
/ to shift
sound to the left/right
speakers.
2. Fade: Press
/
to shift sound to the
rear/front speakers.
DISC
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
20
3. Scan: Press to hear
a brief sampling of all
listenable radio
stations, CD or MP3 tracks. Press again to stop.
4. CLK: To set the
clock press and hold
the CLK control for the
following functions:
• To set the hour, press SEEK
/ control to
decrease or increase to the hours.
• To set the minutes, press TUNE DIR
/ to
decrease or increase the minutes.
Release CLK to save the clock settings. Press CLK
again to return the display to radio mode.
5. EJ (Eject): Press to
stop and eject a disc. If
a disc is ejected and
not removed, the player will automatically reload the
disc and return to radio mode.
6. COMP
(Compression): In CD
and MP3 mode, press
to adjust the soft and loud sounds together for a
more consistent listening level. The compression
icon (c) will illuminate in the display.
7. Shuffle: Press to
engage random play on
the CD or MP3 disc.
SHF then ON will briefly appear in the display. Press
SEEK to select another random track on the disc.
Press shuffle again to disable.
8. Repeat: Press to
repeat the current
track.
9. CD
(Fast
forward): Press and
hold until the desired
selection point is reached. This function is not
enabled in MP3 mode.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
21
10. CD (Rewind):
Press and hold until
the desired selection
point is reached. This function is not enabled in MP3
mode.
11. MP3 directory:
Allows you to listen to
songs in MP3 flat file
mode and MP3 directory mode.
• Insert a MP3 disc to engage in the flat file mode.
The MP3 icon will be displayed.
• While in the MP3 flat file mode, press the MP3
DIR control to enter into the directory mode.
Press the TUNE DIR control to change
directories. The MP3 icon and the DIR icon will
be displayed.
12. Track: Press to
locate a specific MP3
track or directory.
TRAC will appear in the display. Rotate volume
control to advance or reverse through the tracks or
directories. The MP3 icon will flash in the display
while the MACH威 track function is enabled.
13. Memory presets: To set a station: Select
frequency band AM/FM; tune to a station, press and
hold a preset button until sound returns.
14. CD door: Insert a
CD with the label side
up.
15. Tune/Directory:
Press TUNE
DIR
/ to change
the radio frequency down/up or change the MP3
directories.
16. Seek: Press and
release SEEK
/
for previous/next
strong station selection or CD and MP3 tracks.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
22
17. Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
18. CD: Press CD to
play a CD or MP3 disc.
When the MP3 disc is
loaded, CD and LOAD will appear on the display.
The display will briefly show the total number of
tracks on the disc as TXXX (XXX=number of
tracks).
19. AM/FM: Press to
select a frequency band
in radio mode.
20. Bass:
Press
/ to
decrease/increase the
bass output.
21. Treble:
Press
/ to
decrease/increase the
treble output.
MP3 FUNCTIONS
Your audio system is equipped with MP3 capability
which allows you to listen to songs in MP3 flat file
mode and MP3 directory mode.
To engage MP3 flat file mode, insert an MP3 disc. If
an MP3 disc is already present in the player, press
the CD control. The MP3 icon will display while the
player is in MP3 mode.
While in MP3 flat file
mode, press the MP3
DIR control to enter
into MP3 directory mode. The MP3 icon and the DIR
icon will display while the player is in directory
mode.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
23
Your MACH威 MP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACH威 MP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
• There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
• MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
numbers each MP3 track on the disc (denoted by
the .mp3 file extension) from T001 to T255.
• MP3 directory mode represents a directory
structure consisting of one level of directories
(folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3
extension) and all directories containing MP3
files, from 01–01 to 99–99. The first two digits
denote the directory number and the last two
digits denote the track number within that
directory.
• Creating discs with only one level of
subdirectories will help with navigation through
the disc files.
ERROR MESSAGES
You may experience an error message for the
following situations:
• NO DISC when the CD control is pressed and
there is not a CD present.
• DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
• CD ERR for any other disc malfunction.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
24
MACH姞 460 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
MACH姞 1000 SATELLITE READY SOUND
SYSTEM RADIO — CD CHANGER COMPATIBLE
(IF EQUIPPED)
Your vehicle may be equipped with the MACH
1000威 audio system. This system is equipped with a
rack of amplifiers and subwoofers in the trunk of the
vehicle. Do not store or rest items on the amplifier
rack, as this could cause damage to the amplifiers
and void your warranty.
The MACH 1000威 audio system is capable of
producing very high sound pressure levels. For your
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
25
listening comfort and protection, it is not
recommended to listen to the MACH 1000威 audio
system at high volume levels for extended periods of
time.
1. Seek: Press and
release SEEK
/
for previous/next
strong station, selection or track.
2. Rewind: In CD
mode, press until
desired selection is
reached.
Fast forward: In CD mode, press until desired
selection is reached.
TEXT: TEXT is only available when equipped with
Satellite radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
3. DSP (Digital
Signal Processing):
Press DSP to access
the Ambiance menu. Ambiance gives the feeling of
“being there” to your music, creating increased
clarity as well as an open and spacious feel to the
music. Press SEL to engage/disengage. Turn the
volume control to increase/decrease the level of
ambiance.
Occupancy: Press DSP again to change the
occupancy mode to optimize sound for:
• ALL SEATS — Enhances acoustic sound for all
seating locations.
• DRIVER SEAT — Enhances acoustic sound for
the driver. Rear seat and passenger seat
performance may be compromised in favor of the
driver.
• REAR SEAT - Enhances acoustic sound for the
rear seat passengers.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
26
4. MACH (MACH 1000
only): Press to engage
MACH 1000 mode.
MACH 1000 mode enhances acoustic sound for all
seating locations and increases the signal to the
trunk mounted speakers and amplifiers for enhanced
bass performance. Press again to return to
previously set occupancy mode.
Mute: (MACH 460
only): Press to mute
the playing media.
5. Eject: Press EJ and
choose the
corresponding preset
(1–6) to eject the desired CD. Press and hold to
eject all loaded discs.
6. Bass: Press BASS;
then press
SEL
/ to
decrease/increase the bass output.
Treble: Press TREB;
then press
SEL
/ to
decrease/increase the treble output.
7. Select: Use with
Bass, Treble, Balance
and Fade controls to
adjust levels.
8. Balance: Press BAL;
then press
SEL
/ to shift
sound to the left/right speakers.
Fade: Press FADE;
then press
SEL
/ to shift
sound to the front/rear speakers.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
27
9. Menu: Press MENU
and SEL to access
clock mode, RDS
on/off, Traffic, Program type, Show type and
Compression modes.
Traffic: Allows you to hear traffic broadcasts. With
the feature ON, press SEEK or SCAN to find a
station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not
available in most U.S. markets.
FIND Program type: Allows you to search
RDS-equipped stations for a certain category of
music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE: Displays the station’s call letters and
format.
Compression: Brings soft and loud CD passages
together for a more consistent listening level.
Setting the clock: Press MENU until SELECT
HOUR or SELECT MINUTE is displayed. Use SEL to
manually increase (
) or decrease ( ) the
hours/minutes. Press MENU again to disengage clock
mode.
10. Memory presets:
To set a station: Select
frequency band
AM/FM; tune to a station, press and hold a preset
button until sound returns. In CD mode, press to
access the desired disc.
11. SAT (if
equipped): Your
Audiophile radio comes
equipped with Satellite Ready capability. The kit to
enable the Satellite reception is available through
your Ford dealer. Detailed satellite instructions are
included with the dealer installed kit.
12. AM/FM: Press to
select AM/FM
frequency band.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
28
Autostore: Allows you to set the strongest local
radio stations without losing your original manually
set preset stations for AM/FM1/FM2 . Press and
momentarily hold AM/FM. AUTOSTORE will flash on
the display. When the six strongest stations are
filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the
system will store the last one in the remaining
presets. Press again to disengage.
13. Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
Speed sensitive volume: Radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise. Recommended
level is 1–3. Level 0 turns the feature off and level 7
is the maximum setting.
Press and hold the volume control for five seconds.
Then press SEL to increase (
) or decrease ( )
the volume setting. The level will appear in the
display.
14. Load: Press LOAD
and the corresponding
preset (1–6) to load a
CD into the desired slot. Press and hold to load up
to six discs at once.
15. CD AUX: Press to
access CD or AUX
mode.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
peel and cause the CD to become jammed. It is
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
29
recommended that homemade CDs be identified
with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage
CDs. Please contact your dealer for further
information.
16. Scan: Press to
move up the radio
frequency band. SCAN
automatically finds a station, plays it for five seconds
seconds, then moves to the next station. Press again
to stop.
CD: Press to sample CD selections for eight
seconds. Press again to stop.
17. Disc/Tune: Radio:
Press
or to
manually tune down or
up the radio frequency band. CD: Press
to select
the previous disc or to select the next disc.
CAT: CAT is only available when equipped with
Satellite Radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
18. CD door: Insert
disc label side up.
For information
regarding SIRIUS Satellite Radio, please call toll-free
888-539-SIRIUS (888-539-7474) or visit the SIRIUS
website at www.siriusradio.com
RADIO FREQUENCIES
AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the
Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1600, 1610 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
30
RADIO RECEPTION FACTORS
There are three factors that can effect radio
reception:
• Distance/strength: The further you travel from an
FM station, the weaker the signal and the weaker
the reception.
• Terrain: Hills, mountains, tall buildings, power
lines, electric fences, traffic lights and
thunderstorms can interfere with your reception.
• Station overload: When you pass a broadcast
tower, a stronger signal may overtake a weaker
one and play while the weak station frequency is
displayed.
CD PLAYER CARE
All audios are CD changer compatible. See your
dealer for further details.
Do:
• Handle discs by their edges only. Never touch the
playing surface.
• Inspect discs before playing. Clean only with an
approved CD cleaner and wipe from the center
out.
Don’t:
• Expose discs to direct sunlight or heat sources for
extended periods of time.
• Insert more than one disc into each slot of the CD
changer magazine.
• Clean using a circular motion.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
31
peel and cause the CD to become jammed. It is
recommended that homemade CDs be identified
with permanent felt tip marker rather than
adhesive labels. Ball point pens may damage
CDs. Please contact your dealer for further
information.
AUDIO SYSTEM WARRANTY AND SERVICE
Refer to the Warranty Guide for audio system
warranty information. If service is necessary, see
your dealer or qualified technician.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
32
MANUAL HEATING AND AIR CONDITIONING
SYSTEM
1. Fan speed
adjustment: Controls
the volume of air
circulated in the
vehicle.
2. Temperature selection: Controls the
temperature of the airflow in the vehicle.
3. Air flow selections: Controls the direction of
the airflow in the vehicle. See the following for a
brief description on each control.
MAX A/C: Uses recirculated air through the
instrument panel registers to cool the vehicle. This
mode is more noisy than A/C, but is more
economical and efficient. May reduce undesirable
odors from entering the vehicle.
A/C: Uses outside air to cool the vehicle. Air flows
from the instrument panel register vents only.
: Distributes outside air through the instrument
panel vents.
O (OFF): Outside air is shut out and the fan will
not operate.
: Distributes outside air through the floor vents.
: Distributes outside air through the windshield
defroster vents and floor vents.
: Distributes outside air through the windshield
defroster vents.
OPERATING TIPS
• To reduce fog build up on the windshield during
humid weather, place the air flow selector in
the
position.
• To reduce humidity build up inside the vehicle:
during cold weather, do not drive with the air
flow selector in the OFF or MAX A/C position.
during warm weather, do not drive with the air
flow selector in the OFF position.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Climate Controls
33
• Under normal weather conditions, do not leave
the air flow selector in MAX A/C or OFF when the
vehicle is parked. This allows the vehicle to
“breathe” using the outside air inlet vents.
• Do not put objects under the front seats that will
interfere with the air flow to the back seats.
• Remove any snow, ice or leaves from the air
intake area at the base of the windshield.
Do not place objects on top of the
instrument panel as these objects may
become projectiles in a collision or sudden stop.
REAR WINDOW DEFROSTER
Ensure that the ignition
is in the ON position.
Press the control to
clear the rear window of thin ice and fog. The LED
will illuminate.
The defroster turns off automatically after 10
minutes or when the ignition is turned OFF. To
manually turn off the defroster before 10 minutes,
push the control again.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Climate Controls
34
HEADLAMP CONTROL
• The first position
turns on the parking,
tail, license plate and
side marker lamps.
• The outer position
turns on the
headlamps.
Foglamp control (if equipped)
The foglamps can be
turned on when the
ignition is in the ON
position and the
headlamp control is in
either of the following
positions:
• Parking lamps
• Low beams
Press the foglamp control to activate the foglamps.
Press the foglamp control again to deactivate the
foglamps.
When the highbeams are activated, the foglamps will
not operate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output. To
activate:
• the ignition must be turned on
• the headlamp control is in the OFF or Parking
lamps position
• the high beam headlamps must be turned off
• the parking brake is released
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
35
Always remember to turn on your
headlamps at dusk or during inclement
weather. The Daytime Running Light (DRL)
System does not activate your tail lamps and
generally may not provide adequate lighting during
these conditions. Failure to activate your
headlamps under these conditions may result in a
collision.
High beams
Push the lever toward
the instrument panel to
activate. Pull the lever
towards you to
deactivate.
Flash to pass
Pull toward you slightly
to activate and release
to deactivate.

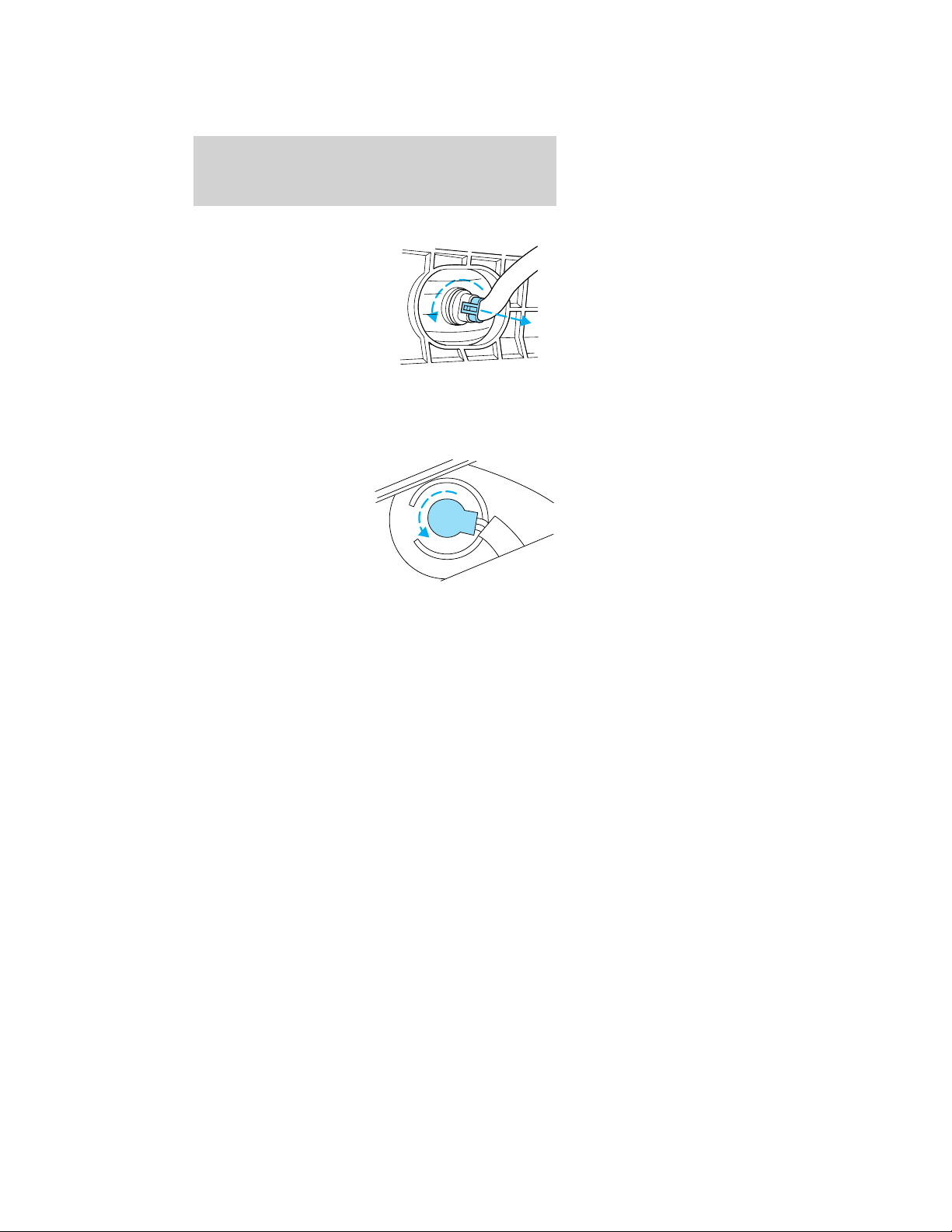

PANEL DIMMER CONTROL
To adjust the
brightness of the
instrument panel:
• Rotate
clockwise/counterclockwise
when the headlamp
control is in the
parking lamp or low-beam position.
To turn on the courtesy lamps:
• Rotate fully counterclockwise.
OFF
HI
LO
OFF
HI
LO
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
36
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed
at the assembly plant.
If your vehicle has been in an accident the alignment
of your headlamps should be checked by a qualified
service technician.
Headlamp vertical aim adjustment
1. Park the vehicle on a level surface approximately
7.6 meters (25 feet) from a vertical wall or screen
directly in front of it.
• (1) Eight feet
• (2) Center height of lamp to ground
• (3) Twenty five feet
• (4) Horizontal
reference line
2. Measure the height
from the center of your
headlamp to the
ground and mark a 2.4
meter (8 foot)
horizontal reference
line on the vertical wall or screen at this height (a
piece of masking tape works well). The center of the
lamp is marked by a 3.0 mm circle on the headlamp
lens.
3. Turn on the low beam headlamps to illuminate the
wall or screen and open the hood.
4. On the wall or
screen you will observe
a light pattern with flat
edges at the top of the
beam pattern. If the
flat edges are not at
the horizontal
reference line, the beam will need to be adjusted.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
37

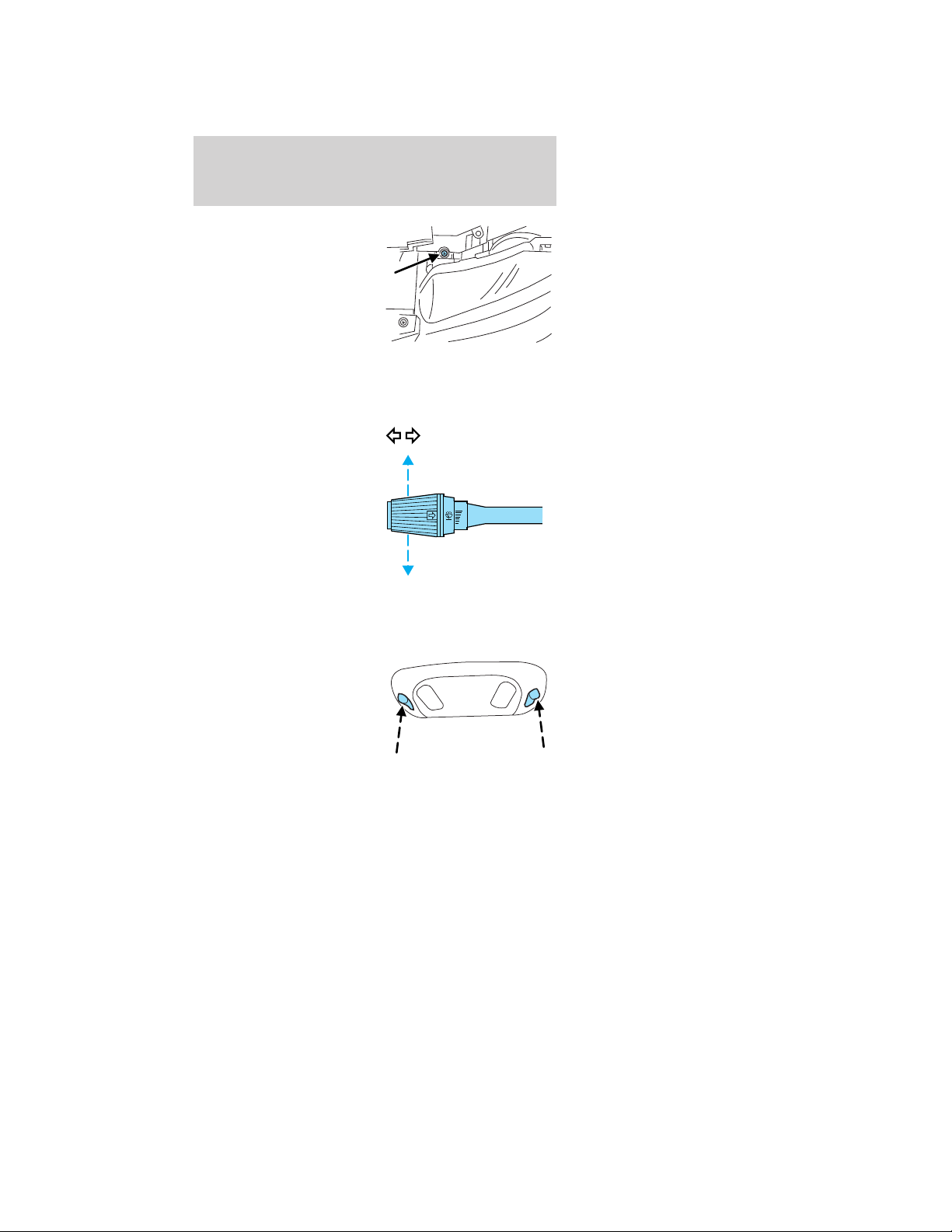

5. Locate the vertical
adjuster on each
headlamp, then use a 6
mm allen wrench or
screwdriver to adjust
the headlamp up or
down.
6. HORIZONTAL AIM
IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
7. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
• Push down to
activate the left turn
signal.
• Push up to activate
the right turn signal.
INTERIOR LAMPS
Map lamps (if equipped)
For coupes the map
lamps are located on
the interior roof. Press
the controls on either
side of the lamp to
turn the light on.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
OFF
HI
LO
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
38
Using the right bulbs
Replacement bulbs are specified in the chart below.
Headlamp bulbs must be marked with an authorized
“D.O.T.” for North America and an “E” for Europe to
assure lamp performance, light brightness and
pattern and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Tail lamp, brakelamp, turn lamp 3157K
Park lamp, turn lamp, side marker
(front)
3157 AK (amber)
Backup lamp 3156K
License plate lamp 168
High-mount brakelamp 906
Headlamps 9007
Luggage compartment lamp 906
Dome lamp 575
Map lamp 575
Visor vanity lamp 74
Glove compartment 194
Rearview mirror map lamps 192
Fog lamp 899
All replacement bulbs are clear in color except where
noted.
To replace all instrument panel lights - see your dealer.
Interior bulbs
Check the operation of all bulbs frequently.
Map lamps
For bulb replacement, see a qualified service
technician or your dealer.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
39

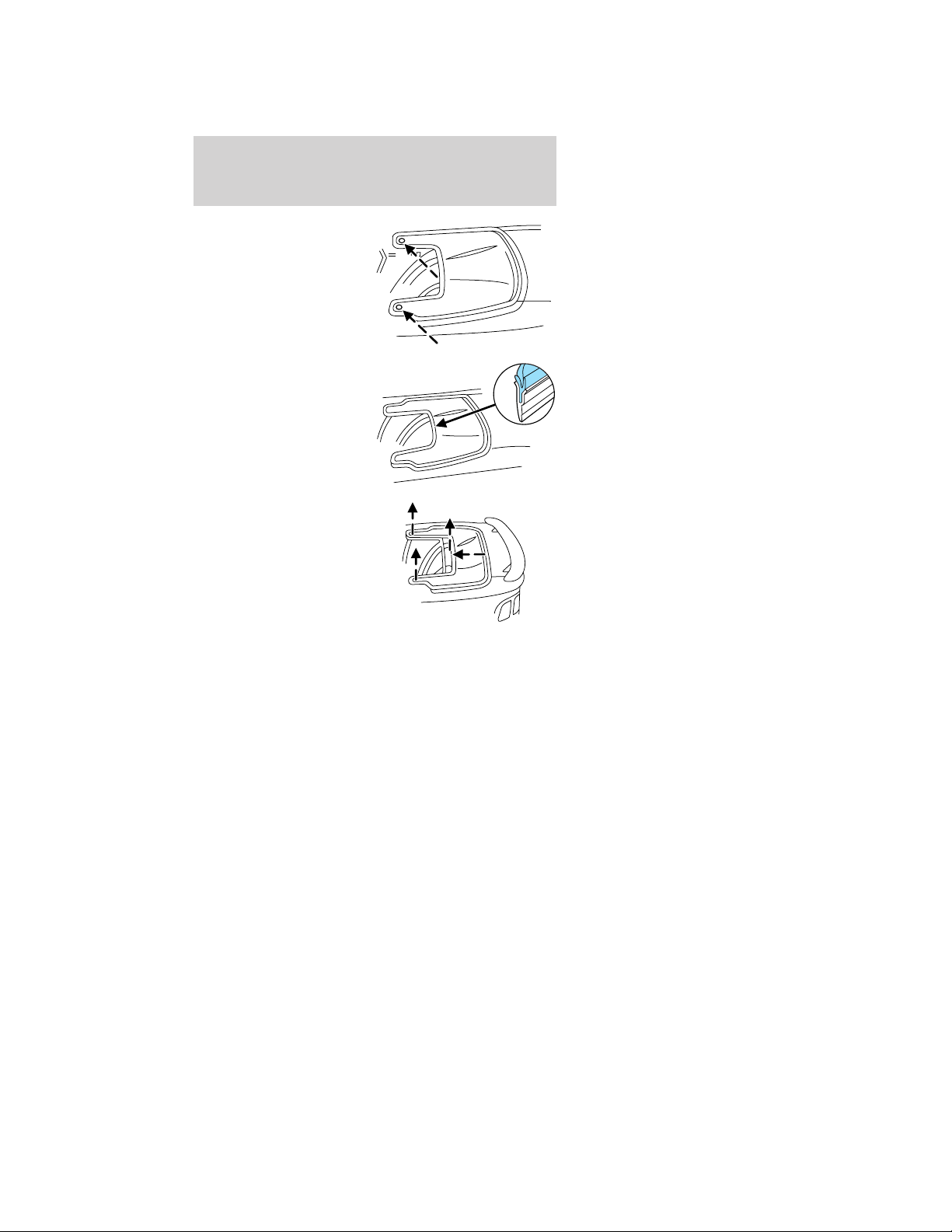

Replacing headlamp bulbs
To remove the headlamp bulb:
1. Make sure headlamp switch is in the OFF
position, then open the hood.
2. At the back of the
headlamp, pull two
retainer pins up to
release the headlamp
assembly.
3. Pull headlamp
assembly forward and
disconnect the
electrical connector from the bulb by pulling
rearward.
4. Remove the bulb
retaining ring by
rotating it
counterclockwise and
slide off the plastic
base.
5. Remove the old bulb
from the lamp assembly
by pulling it straight
out of the lamp
assembly.
Handle a halogen headlamp bulb carefully
and keep out of children’s reach. Grasp the
bulb only by its plastic base and do not touch the
glass. The oil from your hand could cause the bulb
to break the next time the headlamps are
operated.
Install the new bulb in reverse order.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
40
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the OFF
position and open the hood.
2. At the back of the
headlamp, pull two
retainer pins up to
release the headlamp
assembly.
3. Pull headlamp
assembly forward and
rotate the bulb socket
counterclockwise and remove from lamp assembly.
4. Pull the bulb straight
out from the socket
and push in the new
bulb.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open the trunk.
2. Inside trunk, locate
access hole under the
rear decklid.
3. Rotate the bulb
socket
counterclockwise and
pull it out of the lamp assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
41
Replacing foglamp bulbs
1. Make sure the
headlamp switch is in
the OFF position.
2. Rotate the foglamp
bulb socket
counterclockwise and
remove from foglamp.
3. Disconnect the
electrical connector and pull the bulb straight out.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open trunk and
remove bulb socket
from the trunk lid by
turning it
counterclockwise.
2. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing tail lamp/backup bulbs
For bulb replacement, see a dealer or qualified
technician.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Lights
42
MULTI-FUNCTION LEVER
Windshield wiper:
Rotate the end of the
control away from you
to increase the interval
speed of the wipers;
rotate towards you to
decrease the interval speed of the wipers.
• Top two positions are for LO and HI speed
constant wipe.
Windshield washer:
Push the end of the
stalk:
• briefly: causes a
single swipe of the wipers without washer fluid.
• a quick push and hold: the wipers will swipe three
times with washer fluid.
• a long push and hold: the wipers and washer fluid
will be activated for up to ten seconds.
CHANGING THE WIPER BLADES
1. Pull the wiper arm
away from the vehicle.
Turn the blade at an
angle from the wiper
arm. Push the lock pin
manually to release the
blade and pull the
wiper blade down
toward the windshield
to remove it from the
arm.
2. Attach the new
wiper to the wiper arm and press it into place until a
click is heard.
3. Replace wiper blades every 6 months for optimum
performance.
OFF
HI
LO
OFF
HI
LO
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
43
TILT STEERING WHEEL (IF EQUIPPED)
To adjust the steering
wheel:
1. Pull and hold the
steering wheel release
control toward you.
2. Move the steering
wheel up or down until
you find the desired
location.
3. Release the steering wheel release control. This
will lock the steering wheel in position.
Never adjust the steering wheel when the
vehicle is moving.
OVERHEAD STORAGE NET (IF EQUIPPED)
Be sure to
secure objects
when placed in the
storage net in order
to help reduce the
risk that they
become projectiles in
the event of a
collision.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
44
AUXILIARY POWER POINT
The power point is an
additional power
source for electrical
accessories. A power
point is located in front
of the center console
storage bin.
Do not plug optional
electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the
cigarette lighter element.
The Maximum power each power point can supply
depends on the fuse rating. For example: a 20A fuse
should supply a maximum of 240 Watts, a 15A fuse
should supply a maximum of 180 Watts and a 10A
fuse should supply a maximum of 120 Watts.
Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not
being used.
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use
of the power outlet can cause damage not
covered by your warranty.
POWER WINDOWS
When closing
the power
windows, you should
verify they are free
of obstructions and
ensure that children
and/or pets are not in
the proximity of the
window openings.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
45
Press and hold the bottom part of the rocker switch
to open the window. Press and hold the top part of
the rocker switch to close the window.
One touch down
Allows the driver’s
window to open fully
without holding the
control down. Press
completely down on
the bottom part of the
rocker switch and release quickly. Press again to
stop.
POWER SIDE VIEW MIRRORS
(IF EQUIPPED)
To adjust your mirrors:
1. Move the mirror
selector control all the
way to the left to
adjust the left mirror
or all the way to the
right to adjust the right
mirror.
2. Move the control in the direction you wish to tilt
the mirror.
3. Return the control to the center position.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of
48 km/h (30 mph) or more without keeping your
foot on the accelerator pedal. Speed control does
not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic
or on roads that are winding, slippery or
unpaved.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
46
Setting speed control
The controls for using
your speed control are
located on the steering
wheel for your
convenience.
1. Press the ON control
and release it.
2. Accelerate to the desired speed.
3. Press the SET
ACCEL control and
release it.
4. Take your foot off
the accelerator pedal.
Note:
• Vehicle speed may vary momentarily when driving
up and down a steep hill.
• If the vehicle speed increases above the set speed
on a downhill, you may want to apply the brakes
to reduce the speed.
• If the vehicle speed decreases more than 16 km/h
(10 mph) below your set speed on an uphill, your
speed control will disengage.
Resuming a set speed
Press the RESUME
control and release it.
This will automatically
return the vehicle to
the previously set
speed. The RESUME
control will not work if
the vehicle speed is not
faster than 48 km/h (30 mph).
OFF
ON
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
47
Increasing speed while using speed control
There are two ways to
set a higher speed:
• Press and hold the
SET ACCEL control
until you get to the
desired speed, then
release the control.
You can also use the
SET ACCEL control to operate the Tap-Up
function. Press and release this control to
increase the vehicle set speed in small amounts
by 1.6 km/h (1 mph).
• Use the accelerator pedal to get to the desired
speed. When the vehicle reaches that speed press
and release the SET ACCEL control.
Reducing speed while using speed control
There are two ways to
reduce a set speed:
• Press and hold the
COAST control until
you get to the
desired speed, then
release the control.
You can also use the
COAST control to operate the Tap-Down function.
Press and release this control to decrease the
vehicle set speed in small amounts by 1.6 km/h
(1 mph).
• Depress the brake
pedal until the
desired vehicle
speed is reached,
press the SET
ACCEL control.
Turning off speed control
There are two ways to turn off the speed control:
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
RESUME
SET
ACCEL
COAST
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
48
• Depress the brake pedal or the clutch pedal (if
equipped). This will not erase your vehicle’s
previously set speed.
• Press the speed
control OFF control.
Note: When you turn
off the speed control or
the ignition, your speed
control set speed
memory is erased.
CENTER CONSOLE
Your vehicle may be equipped with a variety of
console features. These include:
• Dual cupholders
• Auxiliary power point
• Coin holder slots (if equipped)
• Convertible top control (if equipped)
Use only soft cups in the cupholder. Hard
objects can injure you in a collision.
Cell phone use
The use of Mobile Communications Equipment has
become increasingly important in the conduct of
business and personal affairs. However, drivers must
not compromise their own or others’ safety when
using such equipment. Mobile Communications can
enhance personal safety and security when
appropriately used, particularly in emergency
situations. Safety must be paramount when using
mobile communications equipment to avoid negating
these benefits.
Mobile Communication Equipment includes, but is
not limited to cellular phones, pagers, portable email
devices, in vehicle communications systems,
telematics devices and portable two-way radios.
OFF
ON
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
49
A driver’s first responsibility is the safe
operation of the vehicle. The most important
thing you can do to prevent a crash is to avoid
distractions and pay attention to the road. Wait
until it is safe to operate Mobile Communications
Equipment.
POSITIVE RETENTION FLOOR MAT
(IF EQUIPPED)
Position the floor mat so
that the eyelet is over the
pointed end of the
retention post and rotate
forward to lock in. Make
sure that the mat does not
interfere with the operation
of the accelerator or the
brake pedal. To remove the
floor mat, reverse the installation procedure.
INTERIOR TRUNK CONTROL
The remote trunk release control is located in the
glove compartment. Press to open trunk.
CONVERTIBLE (IF EQUIPPED)
Do not store articles behind rear seat. Articles
stored in the convertible top stowage compartment
may break the rear glass window when the top is
lowered.
Lowering the convertible top
The convertible top can be lowered with the side
windows either up or down.
The convertible top will not operate unless the
parking brake is engaged. Do not lower the top while
the vehicle is moving because the top may be
severely damaged. Also, do not lower the top when
the top material is wet.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
50
To lower the convertible top:
1. Bring vehicle to a complete stop. Engage the
parking brake. Key must be in the ON position.
2. Check the convertible top stowage compartment
behind the rear seat to be sure it is empty and ready
to receive the top.
3. Unclamp the top from the windshield header at
both the right and left sides by pulling each clamp
rearward until the hook in the windshield header is
free. The clamps are flush with the header when in
the closed position.
4. Close the windshield header clamps immediately
after disengagement, to avoid cutting the top
material and to permit installation of the vinyl boot.
5. If the top has not
been lowered for some
time and sticks to the
windshield header,
push the front of the
top up slightly with
your hand to loosen it.
6. Push the convertible
top switch on the
console in front of the
armrest and hold until
the top is completely
stored.
7. Disengage the
parking brake.
Installation of the boot (if equipped)
1. Push boot rearward
and engage boot under
the body molding at
the rear and sides.
S
E
T
P
A
R
K
B
R
A
K
E
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
51
2. Fasten boot to
quarter trim panel with
snap or pivot latch on
both sides of the
vehicle.
3. Insert boot tongue
into groove located on
rear of seat.
4. To remove, unfasten
the snaps or pivot
latches and the boot
tongue.
5. Pull forward and lift
off.
Raising the convertible top
The convertible top will not operate unless the
parking brake is engaged. Do not raise the top while
the vehicle is moving because the top may be
severely damaged.
To raise the convertible top:
1. Bring the vehicle to a complete stop. Engage the
parking brake. Key must be in the ON position.
2. Remove the boot cover and store it in the luggage
compartment.
3. Lower the front and rear side windows.
4. Push the convertible top button, holding it until
the top unfolds and moves forward toward the
windshield header.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
52
5. Open both top clamps before the top meets the
windshield header
6. Continue to use the top motor to raise the top
until it has reached the fully closed position flush to
the header.
7. The two pins under the forward edge of the top
should seat themselves in the matching holes in the
header.
8. To fasten both clamps securely, push the clamp
handles into the header on the top until they are
flush with the header. Pulling down on the header at
the center grip while closing the latches may assist
in fastening the clamps.
9. Raise the front and rear side windows.
10. Disengage the parking brake.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driver Controls
53
KEYS
The key operates all locks on your vehicle. In case of
loss, replacement keys are available from your
dealer.
You should always carry a second key with you in a
safe place in case you require it in an emergency.
Refer to SecuriLock娂 Passive Anti-Theft System
for more information.
POWER DOOR LOCKS
Press U to unlock all
doors and L to lock all
doors.
INTERIOR LUGGAGE COMPARTMENT
RELEASE
Your vehicle is equipped with a mechanical interior
luggage compartment release handle that provides a
means of escape for children and adults in the event
they become locked inside the luggage
compartment.
Adults are advised to familiarize themselves with the
operation and location of the release handle.
U L
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
54
To open the luggage
compartment door (lid)
from within the
luggage compartment,
pull the illuminated “T”
shaped handle and
push up on the trunk
lid. The handle is
composed of a material
that will glow for hours
in darkness following
brief exposure to
ambient light.
The “T” shaped handle will be located either on the
luggage compartment door (lid) or inside the
luggage compartment near the tail lamps.
Keep vehicle
doors and
luggage compartment
locked and keep keys
and remote
transmitters out of a
child’s reach.
Unsupervised
children could lock
themselves in the
trunk and risk injury.
Children should be
taught not to play in
vehicles.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
55
On hot days, the temperature in the trunk
or vehicle interior can rise very quickly.
Exposure of people or animals to these high
temperatures for even a short time can cause
death or serious heat-related injuries, including
brain damage. Small children are particularly at
risk.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules
and with RS-210 of Industry Canada. Operation is
subject to the following two conditions: (1) This
device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
Your vehicle is equipped with a remote entry system
which allows you to:
• unlock the vehicle
doors without a key.
• lock all the vehicle
doors without a key.
• activate the personal
alarm.
• release the decklid.
These features will not operate when the ignition is
in the RUN or START position.
If there is any potential remote keyless entry
problem with your vehicle, ensure ALL remote
entry transmitters are taken to the dealership, to
aid in troubleshooting.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
56
Unlocking the doors
1. Press and release to unlock the driver’s door.
Note: The interior lamps will illuminate.
2. Press
and release again within three seconds
to unlock the passenger door.
Locking the doors
1. Press and release to lock all the doors. Note:
The interior lamps will turn off (unless the dome
lamp control is in the full-up position), and the
headlamps and parking lamps will flash.
2. Press
and release again within three seconds
to confirm that all the doors are closed and locked.
Note: The doors will lock again, the horn will chirp
once and the headlamps and parking lamps will
flash.
If any of the doors are not properly closed the horn
will make two quick chirps.
Sounding a panic alarm
Press
to activate the alarm. The horn will
sound for a maximum of 30 seconds and the
parklamps will flash for a maximum of 3 minutes.
Press again or turn the ignition to ON to deactivate,
or wait for the alarm to timeout in 3 minutes.
Note: The panic alarm will only operate when the
ignition is in the OFF or ACC position.
Opening the trunk
Press
once to open the trunk.
• Ensure that the trunk is closed and latched before
driving your vehicle. Failure to properly latch the
trunk may cause objects to fall out or block the
driver’s rear view.
Replacing the battery
The remote entry transmitter uses one coin type
three-volt lithium battery CR2032 or equivalent. The
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
57
typical operating range for your remote entry
transmitter is approximately 10 meters (33 feet). A
decrease in the operating range could be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle and
• other vehicles parked next to the vehicle.
To replace the battery:
1. Twist a thin coin
between the two halves
of the remote entry
transmitter near the
key ring. DO NOT
TAKE THE RUBBER
COVER AND CIRCUIT
BOARD OFF THE FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any
grease on the battery
terminals on the back
surface of the circuit
board.
3. Remove the old battery.
4. Insert the new battery. Refer to the diagram
inside the remote entry transmitter for the correct
orientation of the battery. Press the battery down to
ensure that the battery is fully seated in the battery
housing cavity.
5. Snap the two halves back together.
Note: Replacement of the battery will not cause the
remote transmitter to become deprogrammed from
your vehicle. The remote transmitter should operate
normally after battery replacement.
Replacing lost remote entry transmitters
If you would like to have your remote entry
transmitter reprogrammed because you lost one, or
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
58
would like to buy additional remote entry
transmitters, you can either reprogram them
yourself, or take all remote entry transmitters to
your authorized dealer for reprogramming.
How to reprogram your remote entry
transmitters
You must have all remote entry transmitters
(maximum of four) available before beginning this
procedure.
To reprogram the
remote entry
transmitters:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the
ignition.
3. Turn the key from the 2 (LOCK) position to 3
(OFF).
4. Cycle eight times rapidly (within 10 seconds)
between the 3 (OFF) position and 4 (ON). Note:
The eighth turn must end in the 4 (ON) position.
5. The doors will lock, then unlock, to confirm that
the programming mode has been activated.
6. Within 20 seconds press any button on the remote
entry transmitter. Note: If more than 20 seconds
have passed you will need to start the procedure
over again.
7. The doors will lock, then unlock, to confirm that
this remote entry transmitter has been programmed.
8. Repeat Step 6 to program each additional remote
entry transmitter.
9. Turn the ignition to the 3 (OFF) position after
you have finished programming all of the remote
entry transmitters. Note: After 20 seconds, you will
automatically exit the programming mode.
10. The doors will lock, then unlock, to confirm that
the programming mode has been exited.
3
1
2
5
4
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
59
Illuminated entry
The interior lamps illuminate when the remote entry
system is used to unlock the door(s) or sound the
personal alarm.
The illuminated entry system will turn off the
interior lights if:
• the ignition switch is turned to the ON position,
or
• the remote transmitter lock control is pressed, or
• after 25 seconds of illumination.
The dome lamp control (if equipped) must not be
set to the OFF position for the illuminated entry
system to operate.
The inside lights will not turn off if:
• they have been turned on with the dimmer
control, or
• any door is open.
The battery saver will shut off the interior lamps 30
minutes after the ignition has been turned to the
OFF position, 10 minutes after if the last door is left
open, and 30 minutes after if the trunk is left open
or the dome lamp switch is left on.
SECURILOCK姟 PASSIVE ANTI-THEFT SYSTEM
SecuriLock娂 passive anti-theft system is an engine
immobilization system. This system is designed to
prevent the engine from being started unless a
coded key programmed to your vehicle is used.
The use of the wrong type of coded key may lead to
a “no-start” condition.
Your vehicle comes with two coded keys; additional
coded keys may be purchased from your dealer. The
dealer can program your spare keys to your vehicle
or you can program the keys yourself. Refer to
Programming spare keys for instructions on how
to program the coded key.
Note: The SecuriLock娂 passive anti-theft system is
not compatible with non-Ford aftermarket remote
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
60
start systems. Use of these systems may result in
vehicle starting problems and a loss of security
protection.
Note: Large metallic objects, electronic devices that
are used to purchase gasoline or similar items, or a
second coded key on the same key chain may cause
vehicle starting issues. You need to prevent these
objects from touching the coded key while starting
the engine. These objects will not cause damage to
the coded key, but may cause a momentary issue if
they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off,
remove all objects on the key chain away from the
coded key and restart the engine.
Theft indicator
The theft indicator is located in the instrument
cluster.
• When the ignition is in the OFF position, the
indicator will flash once every 2 seconds to
indicate the SecuriLock娂 system is functioning as
a theft deterrent.
• When the ignition is in the ON position, the
indicator will glow for 3 seconds, then turn off to
indicate normal system functionality.
If a problem occurs with the SecuriLock娂 system,
the indicator will flash rapidly or glow steadily when
the ignition is in the ON position. If this occurs, the
vehicle should be taken to an authorized dealer for
service.
Automatic arming
The vehicle is armed
immediately after
switching the ignition
to the 3 (OFF)
position.
The
THEFT
indicator
will flash every two
seconds when the
vehicle is armed.
3
2
1
5
4
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
61
Automatic disarming
Switching the ignition to the 4 (ON) position with a
coded key disarms the vehicle.
• The
THEFT
indicator will illuminate for three
seconds and then go out.
• If the
THEFT
indicator stays on for an extended
period of time or flashes rapidly, have the system
serviced by your dealer.
Replacement keys
If your keys are lost or stolen and you don’t have an
extra coded key, you will need to have your vehicle
towed to a dealership. The key codes need to be
erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an
extra programmed key away from the vehicle in a
safe place to help prevent any inconveniences.
Please visit an authorized dealer to purchase
additional spare or replacement keys.
Programming spare keys
You can program your own coded keys to your
vehicle. Please read and understand the entire
procedure before you begin.
Tips:
• A maximum of eight keys can be coded to your
vehicle.
• Only use Securilock娂 keys.
• You must have two previously programmed coded
keys (keys that already operate your vehicle’s
engine) and the new unprogrammed key(s)
readily accessible.
• If no previously programmed coded keys are
available, you must take your vehicle to your
dealer to have the spare key(s) programmed.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
62
1. Insert a previously
programmed coded key
into the ignition.
2. Turn the ignition
from the 3 (OFF)
position to the 4 (ON)
position. Keep the
ignition in the 4 (ON)
position for at least one second, but no more than
10 seconds.
3. Turn the ignition to the 3 (OFF) position, and
remove the coded key from the ignition.
4. Within ten seconds of removing the previously
programmed coded key, insert the other previously
programmed coded key into the ignition.
5. Turn the ignition from the 3 (OFF) position to the
4 (ON) position. Keep the ignition in the 4 (ON)
position for at least one second but not more than
10 seconds.
6. Turn the ignition to the 3 (OFF) position, and
remove the second key from the ignition.
7. Within twenty seconds of removing the previously
programmed coded key, insert the unprogrammed
key (new/valet key) into the ignition.
8. Turn the ignition from the 3 (OFF) position to the
4 (ON) position. Keep the ignition in the 4 (ON)
position for at least one second.
9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will
start the vehicle’s engine and the theft indicator light
will illuminate for three seconds and then go out. If
the key was not successfully programmed, it will not
start your vehicle’s engine and the theft indicator
light will flash on and off rapidly. If failure repeats,
bring your vehicle to your dealer to have the new
key(s) programmed.
To program additional new unprogrammed key(s),
repeat this procedure from step 1 for each additional
key.
3
2
1
5
4
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Locks and Security
63
SEATING
Notes:
Reclining the seatback can cause an
occupant to slide under the seat’s safety
belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks
to reduce the risk of injury in a collision or
sudden stop.
Adjustable head restraints
Head restraints help to limit head motion in the
event of a rear collision. Adjust your head restraint
so that it is located directly behind your head or as
close to that position as possible.
The head restraints can
be moved up and
down.
4–way head restraints (if equipped)
Your vehicle may have
head restraints that
can be moved in four
directions:
• up and down
• forward or backward
Adjusting the front manual seat (if equipped)
Never adjust the driver’s seat or seatback
when the vehicle is moving.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
64
Always drive and ride with your seatback
upright and the lap belt snug and low across
the hips.
Lift handle to move
seat forward or
backward.
Pull lever up to adjust
seatback.
Using the power lumbar support (if equipped)
The power lumbar
control is located on
the outboard side of
the seat.
Press one side of the
control to adjust
firmness.
Press the other side of the control to adjust
softness.
Adjusting the front power seat (if equipped)
Never adjust the driver’s seat or seatback
when the vehicle is moving.
Do not pile cargo higher than the seatbacks
to avoid injuring people in a collision or
sudden stop.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
65
Always drive and ride with your seatback
upright and the lap belt snug and low across
the hips.
Reclining the seatback can cause an
occupant to slide under the seat’s safety
belt, resulting in severe personal injuries in the
event of a collision.
The control is located on the front of the driver’s
seat.
Press front to raise or
lower the front portion
of the seat cushion.
Press rear to raise or
lower the rear portion
of the seat cushion.
Press the control to
move the seat forward,
backward, up or down.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
66
REAR SEATS
Use the seatback
release to fold the back
of the front seat
forward for rear seat
passenger entry or exit.
This release handle is
located on the lower
outboard back of the
seat. The seatback
locks automatically when returned to the normal
position.
The rotating boot on the front seat belt is designed
to allow rear seat entry/exit. To enter the rear seat:
1. Remove safety belt
from safety belt guide
on top of front seat.
2. Rotate the safety
belt boot rearward.
3. Enter the rear seat in front of the safety belt.
4. Rotate the safety belt boot forward and place the
belt in the belt guide on the seat back to allow use
by the front driver/passenger.
2nd seat/split-folding rear seat
One or both rear seatbacks can be folded down to
provide additional cargo space.
To lower the
seatback(s) from inside
the vehicle, pull tab to
release seat back and
then fold seatback
down.
When raising the seatback(s), make sure you hear
the seat latch into place.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
67
SAFETY RESTRAINTS
Safety restraints precautions
Always drive and ride with your seatback
upright and the lap belt snug and low across
the hips.
To reduce the risk of injury, make sure
children sit where they can be properly
restrained.
Never let a passenger hold a child on his or
her lap while the vehicle is moving. The
passenger cannot protect the child from injury in a
collision.
All occupants of the vehicle, including the
driver, should always properly wear their
safety belts, even when an air bag (SRS) is
provided.
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not allow
people to ride in any area of your vehicle that is
not equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
In a rollover crash, an unbelted person is
significantly more likely to die than a person
wearing a safety belt.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
68
Each seating position in your vehicle has a
specific safety belt assembly which is made
up of one buckle and one tongue that are designed
to be used as a pair. 1) Use the shoulder belt on
the outside shoulder only. Never wear the shoulder
belt under the arm. 2) Never swing the safety belt
around your neck over the inside shoulder. 3)
Never use a single belt for more than one person.
Always transport children 12 years old and
under in the back seat and always properly
use appropriate child restraints.
Safety belts and seats can become hot in a
vehicle that has been closed up in sunny
weather; they could burn a small child. Check seat
covers and buckles before you place a child
anywhere near them.
Combination lap and shoulder belts
Before fastening the
safety belt, make sure
the shoulder belt
passes through the belt
guide on the top of the
seatback.
Coupe shown,
convertible is similar
and safety belt must also pass through the belt
guide.
1. Insert the belt
tongue into the proper
buckle (the buckle
closest to the direction
the tongue is coming
from) until you hear a
snap and feel it latch.
Make sure the tongue
is securely fastened in the buckle.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
69
2. To unfasten, push
the release button and
remove the tongue
from the buckle.
Energy Management Feature
• This vehicle has a safety belt system with an
energy management feature at the front seating
positions to help further reduce the risk of injury
in the event of a head-on collision.
• This safety belt system has a retractor assembly
that is designed to pay out webbing in a
controlled manner. This feature is designed to
help reduce the belt force acting on the
occupant’s chest.
After any vehicle collision, the safety belt
system at all outboard seating positions
(except driver, which has no “automatic locking
retractor” feature) must be checked by a qualified
technician to verify that the “automatic locking
retractor” feature for child seats is still functioning
properly. In addition, all safety belts should be
checked for proper function.
BELT AND RETRACTOR ASSEMBLY MUST
BE REPLACED if the safety belt assembly
“automatic locking retractor” feature or any other
safety belt function is not operating properly when
checked according to the procedures in Workshop
Manual.
Failure to replace the Belt and Retractor
assembly could increase the risk of injury in
collisions.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
70
The front and rear outboard safety restraints in the
vehicle are combination lap and shoulder belts. The
front passenger and rear seat outboard safety belts
have two types of locking modes described below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free
shoulder belt length adjustment to your movements
and locking in response to vehicle movement. For
example, if the driver brakes suddenly or turns a
corner sharply, or the vehicle receives an impact of
approximately 8 km/h (5 mph) or more, the
combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Automatic locking mode
The automatic locking mode is not available on the
driver safety belt.
When to use the automatic locking mode
In this mode, the shoulder belt is automatically
pre-locked. The belt will still retract to remove any
slack in the shoulder belt. The automatic locking
mode is not available on the driver safety belt.
This mode should be used any time a child safety
seat is installed in a passenger front or outboard
rear seating position. Children 12 years old and
under should be properly restrained in the rear seat
whenever possible. Refer to Safety restraints for
children or Safety seats for children later in this
chapter.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
71
How to use the automatic locking mode
• Buckle the
combination lap and
shoulder belt.
• Grasp the shoulder
portion and pull
downward until the
entire belt is pulled
out.
• Allow the belt to retract. As the belt retracts, you
will hear a clicking sound. This indicates the
safety belt is now in the automatic locking mode.
How to disengage the automatic locking mode
Ford Motor Company recommends that all
safety belt assemblies and attaching
hardware should be inspected by a qualified
technician after any collision. Safety belt
assemblies not in use during a collision should also
be inspected and replaced if either damage or
improper operation is noted.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
72
Disconnect the combination lap/shoulder belt and
allow it to retract completely to disengage the
automatic locking mode and activate the vehicle
sensitive (emergency) locking mode.
After any vehicle collision, the front
passenger and rear outboard seat belt
systems must be checked by a qualified technician
to verify that the “automatic locking retractor”
feature for child seats is still functioning properly.
In addition, all seat belts should be checked for
proper function.
BELT AND RETRACTOR ASSEMBLY MUST
BE REPLACED if the seat belt assembly
“automatic locking retractor” feature or any other
seat belt function is not operating properly when
checked according to the procedures in Workshop
Manual.
Failure to replace the Belt and Retractor
assembly could increase the risk of injury in
collisions.
Safety belt warning light and indicator
chime
The safety belt warning light illuminates in the
instrument cluster and a chime sounds to remind
the occupants to fasten their safety belts.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
73
Conditions of operation
If... Then...
The driver’s safety belt is
not buckled before the
ignition switch is turned
to the ON position...
The safety belt warning light
illuminates1-2 minutes and the
warning chime sounds 4-8
seconds.
The driver’s safety belt is
buckled while the
indicator light is
illuminated and the
warning chime is
sounding...
The safety belt warning light
and warning chime turn off.
The driver’s safety belt is
buckled before the
ignition switch is turned
to the ON position...
The safety belt warning light
will turn on for 3 seconds and
then turn off. The indicator
chime will remain off.
BeltMinder
The BeltMinder feature is a supplemental warning to
the safety belt warning function. This feature
provides additional reminders to the driver that the
driver’s safety belt is unbuckled by intermittently
sounding a chime and illuminating the safety belt
warning lamp in the instrument cluster.
If... Then...
The driver’s safety belt is
not buckled
approximately 5 seconds
after the safety belt
warning light has turned
off...
The BeltMinder feature is
activated - the safety belt
warning light illuminates and
the warning chime sounds for 6
seconds every 30 seconds,
repeating for approximately 5
minutes or until safety belt is
buckled.
The driver’s safety belt is
buckled while the safety
belt indicator light is
illuminated and the safety
belt warning chime is
sounding...
The BeltMinder feature will not
activate.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
74
If... Then...
The driver’s safety belt is
buckled before the
ignition switch is turned
to the ON position...
The BeltMinder feature will not
activate.
The following are reasons most often given for not
wearing safety belts: (All statistics based on U.S.
data)
Reasons given... Consider...
“Crashes are rare events” 36700 crashes occur every
day. The more we drive, the
more we are exposed to “rare”
events, even for good drivers. 1
in 4 of us will be seriously
injured in a crash during our
lifetime.
“I’m not going far” 3of4fatal crashes occur
within 25 miles of home.
“Belts are uncomfortable” We design our safety belts to
enhance comfort. If you are
uncomfortable - try different
positions for the safety belt
upper anchorage and seatback
which should be as upright as
possible; this can improve
comfort.
“I was in a hurry” Prime time for an accident.
BeltMinder reminds us to take a
few seconds to buckle up.
“Safety belts don’t work” Safety belts, when used
properly, reduce risk of death
to front seat occupants by 45%
in cars, and by 60% in light
trucks.
“Traffic is light” Nearly 1 of 2 deaths occur in
single-vehicle crashes, many
when no other vehicles are
around.
“Belts wrinkle my clothes” Possibly, but a serious crash
can do much more than wrinkle
your clothes, particularly if you
are unbelted.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
75
Reasons given... Consider...
“The people I’m with
don’t wear belts”
Set the example, teen deaths
occur 4 times more often in
vehicles with TWO or MORE
people. Children and younger
brothers/sisters imitate behavior
they see.
“I have an air bag” Air bags offer greater protection
when used with safety belts.
Frontal airbags are not designed
to inflate in rear and side
crashes or rollovers.
“I’d rather be thrown
clear”
Not a good idea. People who
are ejected are 40 times
more likely to DIE. Safety
belts help prevent ejection, WE
CAN’T “PICK OUR CRASH”.
Do not sit on top of a buckled safety belt to
avoid the Belt Minder chime. Sitting on the
safety belt will increase the risk of injury in an
accident. To disable (one-time) or deactivate the
Belt Minder feature please follow the directions
stated below.
One time disable
Any time the safety belt is buckled and then
unbuckled during an ignition ON cycle, the
BeltMinder will be disabled for that ignition cycle
only.
Deactivating/activating the BeltMinder feature
Read steps1-9thoroughly before proceeding
with the deactivation/activation programming
procedure.
The BeltMinder feature can be deactivated/activated
by performing the following procedure:
Before following the procedure, ensure that the
following conditions are met:
• The parking brake is set.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
76
• The gearshift is in P (Park) (automatic
transmission) or the neutral position (manual
transmission).
• The ignition switch is in the OFF position.
• All vehicle doors are closed.
• The driver’s safety belt is unbuckled.
• The parklamps/headlamps are in OFF position (If
vehicle is equipped with Autolamps, this will not
affect the procedure).
To reduce the risk of injury, do not
deactivate/activate the Belt Minder feature
while driving the vehicle.
BeltMinder activation and deactivation
procedure
1. Turn the ignition switch to the RUN (or ON)
position. (DO NOT START THE ENGINE.)
2. Wait until the safety belt warning light turns off.
(Approximately 1–2 minutes.)
• Steps 3–5 must be completed within 60 seconds
or the procedure will have to be repeated.
3. Buckle then unbuckle the safety belt three times,
ending with the safety belt unbuckled. This can be
done before or during BeltMinder warning activation.
4. Turn on the parklamps/headlamps, turn off the
parklamps/headlamps.
5. Buckle then unbuckle the safety belt three times,
ending with the safety belt unbuckled.
• After step 5 the safety belt warning light will be
turned on for three seconds.
6. Within seven seconds of the safety belt warning
light turning off, buckle then unbuckle the safety
belt.
• This will disable BeltMinder if it is currently
enabled, or enable BeltMinder if it is currently
disabled.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
77
7. Confirmation of disabling BeltMinder is provided
by the safety belt warning light flashing four times
per second for three seconds.
8. Confirmation of enabling BeltMinder is provided
by:
• The safety belt warning light flashing four times
per second for three seconds.
• Followed by three seconds with the safety belt
warning light off.
• Once again, the safety belt warning light will flash
four times per second for three seconds.
9. After receiving confirmation, the
deactivation/activation procedure is complete.
Safety belt extension assembly
If the safety belt is too short when fully extended,
there is a 20 cm (8 inch) safety belt extension
assembly that can be added (part number 611C22).
This assembly can be obtained from your dealer at
no cost.
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the webbing on
the label. Also, use the safety belt extension only if
the safety belt is too short for you when fully
extended.
Do not use extensions to change the fit of
the shoulder belt across the torso.
Safety belt maintenance
Inspect the safety belt systems periodically to make
sure they work properly and are not damaged.
Inspect the safety belts to make sure there are no
nicks, tears or cuts. Replace if necessary. All safety
belt assemblies, including retractors, buckles, front
seat belt buckle assemblies, buckle support
assemblies (slide bar-if equipped), shoulder belt
height adjusters (if equipped), shoulder belt guide
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
78
on seatback (if equipped), child safety seat LATCH
and tether anchors, and attaching hardware, should
be inspected after a collision. Ford Motor Company
recommends that all safety belt assemblies in use in
vehicles involved in a collision be replaced. However,
if the collision was minor and a qualified technician
finds that the belts do not show damage and
continue to operate properly, they do not need to be
replaced. Safety belt assemblies not in use during a
collision should also be inspected and replaced if
either damage or improper operation is noted.
Failure to inspect and if necessary replace
the safety belt assembly under the above
conditions could result in severe personal injuries
in the event of a collision.
Refer to Interior in the Cleaning chapter.
AIR BAG SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
79
Important SRS precautions
The SRS is designed to
work with the safety
belt to help protect the
driver and right front
passenger from certain
upper body injuries.
Air bags DO NOT
inflate slowly; there is
a risk of injury from a
deploying air bag.
All occupants of the vehicle, including the
driver, should always properly wear their
safety belts, even when an air bag (SRS) is
provided.
Always transport children 12 years old and
under in the back seat and always properly
use appropriate child restraints.
The National Highway Traffic Safety
Administration (NHTSA) recommends a
minimum distance of at least 25 cm (10 inches)
between an occupant’s chest and the driver air bag
module.
Never place your arm over the air bag
module as a deploying air bag can result in
serious arm fractures or other injuries.
To properly position yourself away from the air bag:
• Move your seat to the rear as far as you can while
still reaching the pedals comfortably.
• Recline the seat slightly one or two degrees from
the upright position.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
80
Do not put anything on or over the air bag
module. Placing objects on or over the air
bag inflation area may cause those objects to be
propelled by the air bag into your face and torso
causing serious injury.
Do not attempt to service, repair, or modify
the air bag supplemental restraint systems
or its fuses. See your Ford or Lincoln Mercury
dealer.
Modifying or adding equipment to the front
end of the vehicle (including frame, bumper,
front end body structure and tow hooks) may
affect the performance of the air bag system,
increasing the risk of injury. Do not modify the
front end of the vehicle.
Children and air bags
Children must always
be properly restrained.
Accident statistics
suggest that children
are safer when
properly restrained in
the rear seating
positions than in the
front seating position.
Failure to follow these
instructions may
increase the risk of
injury in a collision.
Air bags can kill or injure a child in a child
seat. NEVER place a rear-facing child seat
in front of an active air bag. If you must use a
forward-facing child seat in the front seat, move
the seat all the way back.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
81
How does the air bag supplemental restraint
system work?
The air bag SRS is
designed to activate
when the vehicle
sustains a longitudinal
deceleration sufficient
to cause the air bag
sensors to close an
electrical circuit that
initiates air bag
inflation. The fact that the air bags did not inflate in
a collision does not mean that something is wrong
with the system. Rather, it means the forces were
not sufficient enough to cause activation. Air bags
are designed to inflate in frontal and near-frontal
collisions, not rollover, side-impact, or rear-impacts
unless the collision causes sufficient longitudinal
deceleration.
The air bags inflate and
deflate rapidly upon
activation. After air bag
deployment, it is
normal to notice a
smoke-like, powdery
residue or smell the
burnt propellant. This
may consist of
cornstarch, talcum
powder or sodium
compounds which may
irritate the skin and eyes, but none of the residue is
toxic.
While the SRS is designed to help reduce serious
injuries, contact with a deploying air bag may also
cause abrasions, swelling or temporary hearing loss.
Because air bags must inflate rapidly and with
considerable force, there is the risk of death or
serious injuries such as fractures, facial and eye
injuries or internal injuries, particularly to occupants
who are not properly restrained or are otherwise out
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
82
of position at the time of air bag deployment. It is
extremely important that occupants be properly
restrained as far away from the air bag module as
possible while maintaining vehicle control.
The SRS consists of:
• driver and passenger air bag modules (which
include the inflators and air bags)
• one or more impact and safing sensors
• a readiness light and tone
• a diagnostic module
• and the electrical wiring which connects the
components
The diagnostic module monitors its own internal
circuits and the supplemental air bag electrical
system wiring (including the impact sensors), the
system wiring, the air bag system readiness light, the
air bag back up power and the air bag ignitors.
Several air bag system components get hot
after inflation. Do not touch them after
inflation.
If the air bag has deployed, the air bag will
not function again and must be replaced
immediately. If the air bag is not replaced, the
unrepaired area will increase the risk of injury in a
collision.
Determining if the system is operational
The SRS uses a readiness light in the instrument
cluster or a tone to indicate the condition of the
system. Refer to Air bag readiness section in the
Instrument cluster chapter. Routine maintenance of
the air bag is not required.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
83
A difficulty with the system is indicated by one or
more of the following:
• The readiness light
will either flash or
stay lit.
• The readiness light will not illuminate immediately
after ignition is turned on.
• A series of five beeps will be heard. The tone
pattern will repeat periodically until the problem
and/or light are repaired.
If any of these things happen, even intermittently,
have the SRS serviced at your dealership or by a
qualified technician immediately. Unless serviced,
the system may not function properly in the event of
a collision.
Disposal of air bags and air bag equipped
vehicles
See your local dealership or qualified technician. Air
bags MUST BE disposed of by qualified personnel.
SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to
properly use safety restraints for children. Also see
Air bag supplemental restraint system (SRS) in
this chapter for special instructions about using air
bags.
Important child restraint precautions
You are required by law to use safety restraints for
children in the U.S. and Canada. If small children
(generally children who are four years old or
younger and who weigh 18 kg [40 lbs] or less) ride
in your vehicle, you must put them in safety seats
made especially for children. Many states require
that children use approved booster seats until they
are eight years old. Check your local and state or
provincial laws for specific requirements regarding
the safety of children in your vehicle. When possible,
always place children under age 12 in the rear seat
AIR
BAG
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
84
of your vehicle. Accident statistics suggest that
children are safer when properly restrained in the
rear seating positions than in the front seating
position.
Never let a passenger hold a child on his or
her lap while the vehicle is moving. The
passenger cannot protect the child from injury in a
collision.
Always follow the instructions and warnings that
come with any infant or child restraint you might
use.
Children and safety belts
If the child is the proper size, restrain the child in a
safety seat. Children who are too large for child
safety seats (as specified by your child safety seat
manufacturer) should always wear safety belts.
Follow all the important safety restraint and air bag
precautions that apply to adult passengers in your
vehicle.
If the shoulder belt portion of a combination lap and
shoulder belt can be positioned so it does not cross
or rest in front of the child’s face or neck, the child
should wear the lap and shoulder belt. Moving the
child closer to the center of the vehicle may help
provide a good shoulder belt fit.
Do not leave children, unreliable adults, or
pets unattended in your vehicle.
Child booster seats
Children outgrow a typical convertible or toddler
seat when they weigh 40 pounds and are around 4
years of age. Although the lap/shoulder belt will
provide some protection, these children are still too
small for lap/shoulder belts to fit properly, which
could increase the risk of serious injury.
To improve the fit of both the lap and shoulder belt
on children who have outgrown child safety seats,
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
85
Ford Motor Company recommends use of a
belt-positioning booster.
Booster seats position a child so that safety belts fit
better. They lift the child up so that the lap belt
rests low across the hips and the knees bend
comfortably. Booster seats also make the shoulder
belt fit better and more comfortably for growing
children.
When children should use booster seats
Children need to use booster seats from the time
they outgrow the toddler seat until they are big
enough for the vehicle seat and lap/shoulder belt to
fit properly. Generally this is when they weigh about
80 lbs (about 8 to 12 years old).
Booster seats should be used until you can answer
YES to ALL of these questions:
• Can the child sit all
the way back against
the vehicle seat back
with knees bent
comfortably at the
edge of the seat
without slouching?
• Does the lap belt rest low across the hips?
• Is the shoulder belt centered on the shoulder and
chest?
• Can the child stay seated like this for the whole
trip?
Types of booster seats
There are two types of belt-positioning booster
seats:
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
86
• Those that are
backless.
If your backless
booster seat has a
removable shield,
remove the shield
and use the
lap/shoulder belt. If a
seating position has a low seat back and no head
restraint, a backless booster seat may place your
child’s head (top of ear level) above the top of the
seat. In this case, move the backless booster to
another seating position with a higher seat back
and lap/shoulder belts.
• Those with a high
back.
If, with a backless
booster seat, you
cannot find a seating
position that
adequately supports
your child’s head, a
high back booster seat would be a better choice.
Both can be used in any vehicle in a seating position
equipped with lap/shoulder belts if your child is over
40 lbs.
The shoulder belt should cross the chest, resting
snugly on the center of the shoulder. The lap belt
should rest low and snug across the hips, never up
high across the stomach.
If the booster seat slides on the vehicle seat, placing
a rubberized mesh sold as shelf or carpet liner under
the booster seat may improve this condition.
The importance of shoulder belts
Using a booster without a shoulder belt increases
the risk of a child’s head hitting a hard surface in a
collision. For this reason, you should never use a
booster seat with a lap belt only. It is best to use a
booster seat with lap/shoulder belts in the back seat-
the safest place for children to ride.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
87
Follow all instructions provided by the
manufacturer of the booster seat.
Never put the shoulder belt under a child’s
arm or behind the back because it
eliminates the protection for the upper part of the
body and may increase the risk of injury or death
in a collision.
Never use pillows, books, or towels to boost
a child. They can slide around and increase
the likelihood of injury or death in a collision.
SAFETY SEATS FOR CHILDREN
Child and infant or child safety seats
Use a safety seat that is recommended for the size
and weight of the child. Carefully follow all of the
manufacturer’s instructions with the safety seat you
put in your vehicle. If you do not install and use the
safety seat properly, the child may be injured in a
sudden stop or collision.
When installing a child safety seat:
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
88
• Review and follow
the information
presented in the Air
bag supplemental
restraint system
(SRS) section in this
chapter.
• Use the correct
safety belt buckle for that seating position (the
buckle closest to the direction the tongue is
coming from).
• Insert the belt tongue into the proper buckle until
you hear a snap and feel it latch. Make sure the
tongue is securely fastened in the buckle.
• Keep the buckle release button pointing up and
away from the safety seat, with the tongue
between the child seat and the release button, to
prevent accidental unbuckling.
• Place seat back in upright position.
• Put the safety belt in the automatic locking mode.
Refer to Automatic locking mode (passenger
side front and outboard rear seating positions)
(if equipped) section in this chapter.
• LATCH lower anchors are recommended for use
by children up to 22 kg (48 pounds) in a child
restraint. Top tether anchors can be used for
children up to 27 kg (60 pounds) in a child
restraint, and to provide upper torso restraint for
children up to 36 kg (80 pounds) using an upper
torso harness and a belt-positioning booster.
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety seat
in a seating position with LATCH and tether
anchors. For more information on top tether straps
and anchors, refer to Attaching safety seats with
tether straps in this chapter. For more information
of LATCH anchors refer to Attaching safety seats
with LATCH (Lower Anchors and Tethers for
Children) attachments in this chapter.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
89
Carefully follow all of the manufacturer’s
instructions included with the safety seat
you put in your vehicle. If you do not install and
use the safety seat properly, the child may be
injured in a sudden stop or collision.
Rear-facing child seats or infant carriers
should never be placed in the front seats.
Installing child safety seats with combination
lap and shoulder belts
If you must use a
forward facing child
seat in the front seat
(reminder - children 12
years old and under
should always be
properly restrained in
the rear seat) the
shoulder belt must
be routed through
the belt guide at the
top of the seatback,
refer to Safety
Restraints earlier in
this chapter for routing
through the belt holder.
Air bags can kill or injure a child in a child
seat. NEVER place a rear-facing child seat
in front of an active air bag. If you must use a
forward-facing child seat in the front seat, move
the seat all the way back.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
90
1. Position the child
safety seat in a seat
with a combination lap
and shoulder belt.
Children 12 and under should be properly
restrained in the rear seat whenever
possible.
2. Pull down on the
shoulder belt and then
grasp the shoulder belt
and lap belt together.
3. While holding the
shoulder and lap belt
portions together, route
the tongue through the
child seat according to
the child seat
manufacturer’s
instructions. Be sure
the belt webbing is not
twisted.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
91
4. Insert the belt
tongue into the proper
buckle (the buckle
closest to the direction
the tongue is coming
from) for that seating
position until you hear
a snap and feel the
latch engage. Make
sure the tongue is
latched securely by
pulling on it.
5. To put the retractor
in the automatic
locking mode, grasp the
shoulder portion of the
belt and pull downward
until all of the belt is
extracted and a click is
heard.
6. Allow the belt to retract. The belt will click as it
retracts to indicate it is in the automatic locking
mode.
7. Pull the lap belt
portion across the child
seat toward the buckle
and pull up on the
shoulder belt while
pushing down with
your knee on the child
seat.
8. Allow the safety belt to retract to remove any
slack in the belt.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
92
9. Before placing the
child in the seat,
forcibly move the seat
forward and back to
make sure the seat is
securely held in place.
To check this, grab the
seat at the belt path
and attempt to move it
side to side and forward. There should be no more
than one inch of movement for proper installation.
10. Try to pull the belt out of the retractor to make
sure the retractor is in the automatic locking mode
(you should not be able to pull more belt out). If the
retractor is not locked, unbuckle the belt and repeat
steps two through nine.
Check to make sure the child seat is properly
secured before each use.
Attaching child safety seats with tether straps in
addition to the safety belt
Most new forward-facing child safety seats include a
tether strap which goes over the back of the seat
and hooks to an anchoring point. Tether straps are
available as an accessory for many older safety seats.
Contact the manufacturer of your child seat for
information about ordering a tether strap.
The rear seats of your vehicle are equipped with
built-in tether strap anchors located behind the seats
on the package tray behind the speakers (coupe) or
on the lower backside of the seatback (convertible).
The tether anchors in your vehicle are either located
under a cover marked with the child tether anchor
symbol (shown with title) or are under a flap in the
convertible top boot.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
93
The tether strap anchors in your vehicle are in the
following positions (shown from top view):
Attach the
tether strap
only to the
appropriate tether
anchor as shown.
The tether strap may
not work properly if
attached somewhere
other than the
correct tether
anchor.
1. Position the child safety seat on the seat cushion.
2. Route the child safety seat tether strap over the
back of the seat.
For vehicles with adjustable head restraints, route
the tether strap under the head restraint and
between the head restraint posts, otherwise route
the tether strap over the top of the seatback.
3. Locate the correct
anchor for the selected
seating position as
shown previously.
For Coupe only:
4. Open the tether
anchor covers.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
94
5. Clip the tether strap
to the anchor as
shown.
For Convertible only:
The tether anchors on
the convertible are
located on the lower
backside of the
seatback.
4. Access tether
anchors located behind
the seatback and pull
away vinyl flap to
expose anchors.
5. Clip the tether strap
to the anchor as
shown.
If the tether strap is clipped incorrectly, the
child safety seat may not be retained
properly in the event of a collision.
Install the child safety seat tightly using the LATCH
anchors or safety belts. Follow the instructions in
this chapter.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
95
7. Tighten the child safety seat tether strap
according to the manufacturer’s instructions.
If the safety seat is not anchored properly,
the risk of a child being injured in a collision
greatly increases.
Attaching safety seats with LATCH (Lower
Anchors and Tethers for Children) attachments
Some child safety seats have two rigid or webbing
mounted attachments that connect to two anchors
at certain seating positions in your vehicle. This type
of child seat eliminates the need to use safety belts
to attach the child seat. For forward-facing child
seats, the tether strap must also be attached to the
proper tether anchor. See Attaching safety seats
with tether straps in this chapter.
Your vehicle has LATCH anchors for child seat
installation at the seating positions marked with the
child seat symbol.
The center of
the rear seat is
NOT designed as a
seating position. The
LATCH anchors were
not designed to be
used with a child
seat in the center
position and there is
no tether anchor
available at the
center. Attempted
use of the center as a
seating position will
increase the risk of
injury or death in the
event of a collision.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
96
Never attach two LATCH child safety seats
to the same anchor. In a crash, one anchor
may not be strong enough to hold two child safety
seat attachments and may break, causing serious
injury or death.
The lower anchors for
child seat installation
are located at the rear
section of the rear seat
between the cushion
and seat back. The
LATCH anchors are
below the locator
symbols on the seat
back. One pair of
anchors are provided
for each rear designated seating position.
Follow the child seat manufacturer’s instructions to
properly install a child seat with LATCH
attachments. Two plastic LATCH guides can be
obtained at no charge from any Ford or
Lincoln-Mercury dealer. They snap onto the LATCH
lower anchors in the seat to help attach a child seat
with rigid attachments. The guides hold the seat
trim away to expose the anchor and make it easier
to attach some child seats.
Attach LATCH lower attachments of the
child seat only to the anchors shown.
If you install a child seat with rigid LATCH
attachments, do not tighten the tether strap enough
to lift the child seat off the vehicle seat cushion
when the child is seated in it. Keep the tether strap
just snug without lifting the front of the child seat.
Keeping the child seat just touching the vehicle seat
gives the best protection in a severe crash.
Each time you use the safety seat, check that the
seat is properly attached to the lower anchors and
tether anchor. Try to tilt the child seat from side to
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
97
side. Also try to tug the seat forward. Check to see
if the anchors hold the seat in place.
If the safety seat is not anchored properly,
the risk of a child being injured in a crash
greatly increases.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Seating and Safety Restraints
98
STARTING
Positions of the ignition
1. ACCESSORY, allows
the electrical
accessories such as the
radio to operate while
the engine is not
running.
2. LOCK, locks the
steering wheel, automatic transmission gearshift
lever and allows key removal. For vehicles equipped
with a manual transmission, you must depress the
ignition release lever to release the key.
3. OFF, shuts off the engine and all accessories
without locking the steering wheel. This position
also allows the automatic transmission shift lever to
be moved from the P (Park) position without the
brake pedal being depressed.
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
4. ON, all electrical circuits operational. Warning
lights illuminated. Key position when driving.
5. START, cranks the engine. Release the key as
soon as the engine starts.
Preparing to start your vehicle
Engine starting is controlled by the powertrain
control system. This system meets all Canadian
Interference-Causing Equipment standard
requirements regulating the impulse electrical field
strength of radio noise.
When starting a fuel-injected engine, don’t press the
accelerator before or during starting. Only use the
3
1
2
5
4
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
99
accelerator when you have difficulty starting the
engine. For more information on starting the vehicle,
refer to Starting the engine in this chapter.
Extended idling at high engine speeds can
produce very high temperatures in the
engine and exhaust system, creating the risk of
fire or other damage.
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine compartment
and exhaust system, which can start a fire.
Do not start your vehicle in a closed garage
or in other enclosed areas. Exhaust fumes
can be toxic. Always open the garage door before
you start the engine. See Guarding against
exhaust fumes in this chapter for more
instructions.
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you smell
exhaust fumes.
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
Important safety precautions
When the engine starts, the idle RPM runs faster to
warm the engine. If the engine idle speed does not
slow down automatically, have the vehicle checked.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
100
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts.
For more information on safety belts and their
proper usage, refer to the Seating and Safety
Restraints chapter.
2. Make sure the headlamps and electrical
accessories are off.
If starting a vehicle with an automatic transmission:
• Make sure the
parking brake is set.
• Make sure the
gearshift is in P
(Park).
If starting a vehicle
with a manual
transmission:
1. Make sure the
parking brake is set.
2. Push the clutch
pedal to the floor.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
101
• Turn the key to 4
(ON) without
turning the key to 5
(START).
Make sure the corresponding lights illuminate or
illuminate briefly. If a light fails to illuminate, have
the vehicle serviced.
• If the driver’s safety belt is fastened, the
light
may not illuminate.
1
2
3
4
5
P!
BRAKE
L
0
00000 00
C
E
F
H
LH
10
20
30
20
40
60
80
100
120
140
160
180
40
50
60 70
80
90
100
11 0
120
4
5
6
7
3
2
1
H
THEFT
RPMX1000
FUEL DOOR
SELECT/RESET
LOW
FUEL
O/D
OFF
AIR
BAG
SERVICE
ENGINE
SOON
MPH km/h
ABS
.
CHECK
FUEL
CAP
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
102
Starting the engine
1. Turn the key to 4
(ON) without turning
the key to 5 (START).
2. Turn the key to 5
(START), then release
the key as soon as the
engine starts.
Excessive cranking
could damage the starter.
Note: If the engine does not start within five
seconds on the first try, turn the key to 3 (OFF),
wait 10 seconds and try again. If the engine still fails
to start, press the accelerator to the floor and try
again; this will allow the engine to crank with the
fuel shut off in case the engine is flooded with fuel.
Using the engine block heater (if equipped)
An engine block heater warms the engine coolant
which aids in starting and heater/defroster
performance. Use of an engine block heater is
strongly recommended if you live in a region where
temperatures reach -23° C (-10° F) or below. For
best results, plug the heater in at least three hours
before starting the vehicle. The heater can be
plugged in the night before starting the vehicle.
To reduce the risk of electrical shock, do not
use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you smell
exhaust fumes.
3
2
1
5
4
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
103
Important ventilating information
If the engine is idling while the vehicle is stopped
for a long period of time, open the windows at least
2.5 cm (one inch) or adjust the heating or air
conditioning to bring in fresh air.
BRAKES
Occasional brake noise is normal. If a metal-to-metal,
continuous grinding or continuous squeal sound is
present, the brake linings may be worn-out and
should be inspected by a qualified service
technician. If the vehicle has continuous vibration or
shudder in the steering wheel while braking, the
vehicle should be inspected by a qualified service
technician.
Refer to Brake system
warning light in the
Instrument Cluster
chapter for information
on the brake system warning light.
Four-wheel anti-lock brake system (ABS)
(if equipped)
Your vehicle may be equipped with an Anti-lock
Braking System (ABS). This system helps you
maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the
ABS pump motor and brake pedal pulsation may be
observed during ABS braking; any pulsation or
mechanical noise you may feel or hear is normal.
ABS warning lamp
ABS
The ABS lamp in the
instrument cluster
momentarily illuminates
when the ignition is
turned to ON. If the light does not illuminate during
start up, remains on or flashes, the ABS may be
disabled and may need to be serviced.
P!
BRAKE
ABS
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
104
Even when the ABS is
disabled, normal
braking is still effective.
(If your BRAKE
warning lamp illuminates with the parking brake
released, have your brake system serviced
immediately.)
Using ABS
When hard braking is required, apply continuous
force on the brake pedal; do not pump the brake
pedal since this will reduce the effectiveness of the
ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately,
allowing you to retain full steering control during
hard braking and on slippery surfaces. However, the
ABS does not decrease stopping distance.
Hydraulic brake booster system (Hydroboost)
(if equipped)
The Hydroboost system receives fluid pressure from
the power steering pump to provide power assist
during braking.
For Hydroboost-equipped vehicles operating under
normal conditions, the noise of the fluid flowing
through the booster may be heard whenever the
brake is applied. This condition is normal; vehicle
service is not required.
If braking performance or pedal response becomes
very poor, even when the pedal is strongly
depressed, it may indicate the presence of air in the
hydraulic system or leakage of fluid. Stop the vehicle
safely as soon as possible and seek service
immediately.
P!
BRAKE
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
105
Parking brake
To set the parking
brake (1), pull the
parking brake handle
up as far as possible.
The BRAKE warning
lamp will illuminate and
will remain illuminated
until the parking brake
is released.
To release, press and hold the button (2), pull the
handle up slightly, then push the handle down.
Always set the parking brake fully and make
sure that the gearshift is securely latched in
P (Park) (automatic transmission) or in 1 (First)
(manual transmission).
If the parking brake is fully released, but the
brake warning lamp remains illuminated, the
brakes may not be working properly. See your
dealer or a qualified service technician.
STEERING
To prevent damage to the power steering system:
• Never hold the steering wheel at its furthest
turning points (until it stops) for more than a few
seconds when the engine is running.
• Do not operate the vehicle with a low power
steering pump fluid level (below the MIN mark on
the reservoir).
If the power steering system breaks down (or if the
engine is turned off), you can steer the vehicle
manually, but it takes more effort.
If the steering wanders or pulls, check for:
• an improperly inflated tire
1
2
P!
BRAKE
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
106
• uneven tire wear
• loose or worn suspension components
• loose or worn steering components
• improper steering alignment
A high crown in the road or high crosswinds may
also make the steering seem to wander/pull.
TRACTION CONTROL姟 (IF EQUIPPED)
Your vehicle may be equipped with a Traction
Control娂 system. This system helps you maintain
the stability and steerability of your vehicle,
especially on slippery road surfaces such as snow- or
ice-covered roads and gravel roads. The system will
allow your vehicle to make better use of available
traction in these conditions.
During Traction
Control娂 operation,
the traction control
active light will
illuminate, you may hear an electric motor type of
sound coming from the engine compartment and the
engine will not “rev-up” when you push further on
the accelerator. This is normal system behavior and
should be no reason for concern.
The Traction Control娂
switch, located below
the radio, illuminates
when the system is off.
The Traction Control娂
system will
automatically turn on every time the ignition is
turned OFF and ON.
If you should become stuck in snow or ice or on a
very slippery road surface, try switching the Traction
Control娂 system off. This may allow excess wheel
spin to “dig” the vehicle out and enable a successful
“rocking” maneuver.
The traction control on/off status is shown by an
indicator lamp on the traction control switch. If the
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
107
system is off, the indicator will be illuminated. If a
system fault is detected while the traction control
system in on, the indicator lamp on the traction
control switch will be illuminated and your vehicle
should be serviced.
Aggressive driving in any road conditions
can cause you to lose control of your vehicle
increasing the risk of severe personal injury or
property damage. The occurrence of a Traction
Control娂 event is an indication that at least some
of the tires have exceeded their ability to grip the
road; this may lead to an increased risk of loss of
vehicle control, vehicle rollover, personal injury
and death. If you experience a severe road event,
SLOW DOWN.
TRACTION-LOK AXLE (IF EQUIPPED)
This axle provides added traction on slippery
surfaces, particularly when one wheel is on a poor
traction surface. Under normal conditions, the
Traction-Lok axle functions like a standard rear axle.
Extended use of other than the manufacturer’s
specified size tires on a Traction-Lok rear axle could
result in a permanent reduction in effectiveness.
This loss of effectiveness does not affect normal
driving and should not be noticeable to the driver.
AUTOMATIC TRANSMISSION OPERATION
(IF EQUIPPED)
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock
feature that prevents the gearshift lever from being
moved from P (Park) when the ignition is in the ON
position unless the brake pedal is depressed.
If you cannot move the gearshift lever out of P
(Park) with ignition in the ON position and the
brake pedal depressed:
1. Apply the parking brake, turn ignition key to
LOCK, then remove the key.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
108
2. Insert the key and turn it to OFF. Apply the
brake pedal and shift to N (Neutral).
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
3. Start the vehicle.
If it is necessary to use the above procedure to
move the gearshift lever, it is possible that a fuse
has blown or the vehicle’s brakelamps are not
operating properly. Refer to Fuses and relays in the
Roadside emergencies chapter.
Do not drive your vehicle until you verify
that the brakelamps are working.
Always set the parking brake fully and make
sure the gearshift is latched in P (Park).
Turn the ignition to the LOCK position and remove
the key whenever you leave your vehicle.
If the parking brake is fully released, but the
brake warning lamp remains illuminated, the
brakes may not be working properly. See your
dealer or a qualified service technician.
Driving with an automatic overdrive
transmission with console gearshift and O/D off
switch
Your transmission is equipped with an adaptive
learning strategy found in the vehicle computer. This
feature is designed to increase durability and
provide consistent shift feel over the life of the
vehicle. A new vehicle or transmission may have firm
and/or soft shifts. This operation is considered
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
109
normal and will not affect function or durability of
the transmission. Over time, the adaptive learning
process will fully update transmission operation.
Additionally, whenever the battery is disconnected
or a new battery installed, the strategy must be
relearned.
Your automatic
overdrive transmission
provides fully
automatic operation in
either D (Overdrive) or
with the O/D OFF
switch depressed.
Driving with the
gearshift lever in D
(Overdrive) gives the
best fuel economy for
normal driving
conditions. For manual control, start in 1 (First) and
then shift manually.
To put your vehicle in gear, start the engine, depress
the brake pedal, then move gearshift lever out of P
(Park). Once you place the gearshift lever securely
into position, gradually release the brake pedal and
use the accelerator as necessary.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
110
Understanding the gearshift positions of the
4–speed automatic transmission
P (Park)
This position locks the transmission and prevents
the rear wheels from turning.
To put your vehicle in gear:
• Start the engine
• Depress the brake pedal
• Move the gearshift lever into the desired gear
To put your vehicle in P (Park):
• Come to a complete stop
• Move the gearshift lever and securely latch it in P
(Park)
Always set the parking brake fully and make
sure the gearshift is latched in P (Park).
Turn the ignition to the LOCK position and remove
the key whenever you leave your vehicle.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
111
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle
will move backward. Always come to a complete
stop before shifting into and out of R (Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle
can be started and is free to roll. Hold the brake
pedal down while in this position.
D (Overdrive)
The normal driving
position for the best
fuel economy.
Transmission operates
in gears one through
four.
D (Overdrive) can be
deactivated by pressing
the transmission
control switch on the
end of the gearshift
lever.
This will illuminate the
O/D OFF lamp and
activate Drive.
Drive (not shown)
Drive is activated when the transmission control
switch is pressed.
• This position allows for all forward gears except
overdrive.
• O/D OFF lamp is illuminated.
• Provides engine braking.
O/D
OFF
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
112
• Use when driving conditions cause excessive
shifting from O/D to other gears. Examples: city
traffic, hilly terrain, heavy loads, trailer towing
and when engine braking is required.
• To return to O/D (overdrive mode), press the
transmission control switch. The O/D OFF lamp
will not be illuminated.
• O/D (Overdrive) is automatically returned each
time the key is turned off.
2 (Second)
This position allows for second gear only.
• Provides engine braking.
• Use to start-up on slippery roads.
• To return to D (Overdrive), move the gearshift
lever into the D (Overdrive) position.
• Selecting 2 (Second) at higher speeds will cause
the transmission to downshift to second gear at
the appropriate vehicle speed.
1 (First)
• Provides maximum engine braking.
• Allows upshifts by moving gearshift lever.
• Will not downshift into 1 (First) at high speeds;
allows for 1 (First) when vehicle reaches slower
speeds.
Forced downshifts
• Allowed in D (Overdrive) or Drive.
• Depress the accelerator to the floor.
• Allows transmission to select an appropriate gear.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be
rocked out by shifting from forward and reverse
gears, stopping between shifts in a steady pattern.
Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at
normal operating temperature or damage to
the transmission may occur.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
113
Do not rock the vehicle for more than a minute
or damage to the transmission and tires may
occur, or the engine may overheat.
MANUAL TRANSMISSION OPERATION
(IF EQUIPPED)
Using the clutch
The manual transmission has a starter interlock that
prevents cranking the engine unless the clutch pedal
is fully depressed.
To start the vehicle:
1. Make sure the parking brake is fully set.
2. Press the clutch pedal to the floor, then put the
gearshift lever in the neutral position.
3. Start the engine, then press the brake pedal and
release the parking brake.
4. Move the gearshift lever to the desired gear, then
slowly release the clutch pedal while slowly pressing
on the accelerator.
During each shift, the clutch pedal must be fully
depressed to the floor. Failure to fully depress the
clutch pedal to the floor may cause increased shift
efforts and prematurely wear components in the
transmission. Make sure the floor mat is properly
positioned so it doesn’t interfere with the full
extension of the clutch pedal.
Do not drive with your foot resting on the clutch
pedal or use the clutch pedal to hold your vehicle at
1
35
24
R
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
114
a standstill while waiting on a hill. These actions will
reduce the life of the clutch.
Recommended shift speeds
Do not downshift into 1 (First) when your
vehicle is moving faster than 24 km/h (15 mph).
This will damage the clutch.
Upshift according to the following chart:
Upshifts when accelerating (recommended for best
fuel economy)
Shift from:
1 - 2 18 km/h (11 mph)
2 - 3 31 km/h (19 mph)
3 - 4 48 km/h (30 mph)
4 - 5 64 km/h (40 mph)
Reverse
1. Make sure that your vehicle is at a complete stop
before you shift into R (Reverse). Failure to do so
may damage the transmission.
2. Move the gearshift lever into the neutral position
and wait at least three seconds before shifting into R
(Reverse).
• The gearshift lever can only be moved into R
(Reverse) by moving it from left of 3 (Third) and
4 (Fourth) before shifting into R (Reverse). This
is a lockout feature that protects the transmission
from accidentally being shifted into R (Reverse)
from 5 (Overdrive).
Parking your vehicle
1. Apply the brake and shift into the neutral
position.
2. Fully apply the parking brake, then shift into 1
(First).
3. Turn the ignition off.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
115
Do not park your vehicle in Neutral, it may
move unexpectedly and injure someone. Use
1 (First) gear and set the parking brake fully.
Removing the key
Turn the ignition off,
push the release lever
(located above the
ignition), then turn the
key toward you and
remove the key.
DRIVING THROUGH WATER
Do not drive quickly through standing water,
especially if the depth is unknown. Traction or brake
capability may be limited and if the ignition system
gets wet, your engine may stall. Water may also
enter your engine’s air intake and severely damage
your engine.
If driving through deep or standing water is
unavoidable, proceed very slowly. Never drive
through water that is higher than the bottom of the
hubs (for trucks) or the bottom of the wheel rims
(for cars).
Once through the water, always try the brakes. Wet
brakes do not stop the vehicle as effectively as dry
brakes. Drying can be improved by moving your
vehicle slowly while applying light pressure on the
brake pedal.
Driving through deep water where the
transmission vent tube is submerged may allow
water into the transmission and cause internal
transmission damage. Have the fluid checked
and, if water is found, replace the fluid.
PU
SH
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
116
VEHICLE LOADING – WITH AND WITHOUT A
TRAILER
This section will guide you in the proper loading of
your vehicle and/or trailer, to keep your loaded
vehicle weight within its design rating capability,
with or without a trailer. Properly loading your
vehicle will provide maximum return of vehicle
design performance. Before loading your vehicle,
familiarize yourself with the following terms for
determining your vehicle’s weight ratings, with or
without a trailer, from the vehicle’s Safety
Certification Label and Tire and Load Information
Label:
Base Curb Weight – is the weight of the vehicle
including a full tank of fuel and all standard
equipment. It does not include passengers, cargo, or
optional equipment.
Vehicle Curb Weight – is the weight of your new
vehicle when you picked it up from your dealer plus
any aftermarket equipment.
Cargo Weight – includes all weight added to the
Base Curb Weight, including cargo and optional
equipment. When towing, trailer tongue load or king
pin weight is also part of cargo weight.
GAW (Gross Axle Weight) – is the total weight
placed on each axle (front and rear) – including
vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating) – is the
maximum allowable weight that can be carried by a
single axle (front or rear). These numbers are
shown on the Safety Compliance Certification
Label located on the driver’s door or door
pillar. The total load on each axle must never
exceed its GAWR.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
117
Exceeding the Safety Certification Label
axle weight rating limits could result in
substandard vehicle handling, performance, engine,
transmission and/or structural damage, serious
damage to the vehicle, loss of control and personal
injury.
Note: For trailer towing information refer to Trailer
Towing found in this chapter or the RV and Trailer
Towing Guide provided by your dealership.
GVW (Gross Vehicle Weight) – is the Vehicle Curb
Weight + cargo + passengers.
GVWR (Gross Vehicle
Weight Rating) – is
the maximum allowable
weight of the fully
loaded vehicle
(including all options,
equipment, passengers
and cargo). The
GVWR is shown on
the Safety
Compliance
Certification Label
located on the
driver’s door or door pillar. The GVW must
never exceed the GVWR.
Exceeding the Safety Certification Label
axle weight rating limits could result in
substandard vehicle handling, performance, engine,
transmission and/or structural damage, serious
damage to the vehicle, loss of control and personal
injury.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
118
GCW (Gross Combined Weight) – is the weight
of the loaded vehicle (GVW) plus the weight of the
fully loaded trailer.
GCWR (Gross Combined Weight Rating) – is the
maximum allowable weight of the vehicle and the
loaded trailer – including all cargo and passengers –
that the vehicle can handle without risking damage.
(Important: The towing vehicle’s braking system is
rated for operation at GVWR, not at GCWR. Separate
functional brakes should be used for safe control of
towed vehicles and for trailers weighing more than
680 kg [1,500 lbs]). The GCW must never exceed
the GCWR.
Maximum Loaded Trailer Weight – is the highest
possible weight of a fully loaded trailer the vehicle
can tow. It assumes a vehicle with only mandatory
options, no cargo (internal or external), a tongue
load of 10–15% (conventional trailer) or king pin
weight of 15–25% (fifth wheel trailer), and driver
only (68 kg [150 lbs]). Consult your dealership
(or the RV and Trailer Towing Guide provided
by your dealership) for more detailed
information.
Tongue Load or Fifth Wheel King Pin Weight –
refers to the amount of the weight that a trailer
pushes down on a trailer hitch.
Examples: For a 2268 kg (5000 lbs.) conventional
trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 227 to 340 kg (500 to
750 lbs.). For an 5216 kg (11,500 lbs.) fifth wheel
trailer, multiply by 0.15 and 0.25 to obtain a proper
king pin load range of 782 to 1304 kg (1,725 to
2,875 lbs.)
Do not exceed the GVWR or the GAWR
specified on the certification label.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
119
Do not use replacement tires with lower
load carrying capacities than the originals
because they may lower the vehicle’s GVWR and
GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR
and GAWR limitations.
Exceeding any vehicle weight rating
limitation could result in serious damage to
the vehicle and/or personal injury.
TRAILER TOWING
Your vehicle is not equipped to tow. No towing
packages are available through Ford or
Lincoln/Mercury dealers.
RECREATIONAL TOWING (ALL WHEELS ON
THE GROUND)
Follow these guidelines for your specific powertrain
combination to tow your vehicle with all four wheels
on the ground (such as behind a recreational
vehicle).
These guidelines are designed to ensure that your
transmission is not damaged due to insufficient
lubrication.
All Rear Wheel Drive (RWD) vehicles:
This applies to all cars and 4x2 trucks/sport utilities
with rear wheel drive capability.
• Place the transmission in N (Neutral)
• Maximum speed is 56 km/h (35 mph)
• Maximum distance is 80 km (50 miles)
If a distance of 80 km (50 miles) or a speed of
56 km/h (35 mph) must be exceeded, you must
disconnect the driveshaft. Ford recommends the
driveshaft be removed/installed only by a qualified
technician. See your local dealer for driveshaft
removal/installation.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
120
Improper removal/installation of the driveshaft
can cause transmission fluid loss, damage to
the driveshaft and internal transmission
components.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Driving
121
GETTING ROADSIDE ASSISTANCE
To fully assist you should you have a vehicle
concern, Ford Motor Company offers a
complimentary roadside assistance program. This
program is separate from the New Vehicle Limited
Warranty. The service is available:
• 24–hours, seven days a week
• for the New Vehicle Limited Warranty period of
three years or 60,000 km (36,000 miles),
whichever occurs first on Ford and Mercury
vehicles, and four years or 80,000 km
(50,000 miles) on Lincoln vehicles.
Roadside assistance will cover:
• changing a flat tire
• jump-starts
• lock-out assistance
• limited fuel delivery
• towing of your disabled vehicle to the nearest
Ford Motor Company dealership, or your selling
dealer if within 56.3 km (35 miles) of the nearest
Ford Motor Company dealership (one tow per
disablement). Even non-warranty related tows,
like accidents or getting stuck in the mud or
snow, are covered (some exclusions apply, such as
impound towing or repossession).
Canadian customers refer to your Owner
Information Guide for information on:
• coverage period
• exact fuel amounts
• towing of your disabled vehicle
• emergency travel expense reimbursement
• travel planning benefits
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
122
USING ROADSIDE ASSISTANCE
Complete the roadside assistance identification card
and place it in your wallet for quick reference. In the
United States, this card is found in the Owner Guide
portfolio in the glove compartment in Ford vehicles
and is mailed to you if you own a Mercury or
Lincoln. In Canada, the card is found in the Owner
Information Guide in the glove compartment.
U.S. Ford or Mercury vehicle customers who require
roadside assistance, call 1–800–241–3673; Lincoln
vehicle customers call 1–800–521–4140.
Canadian customers who require roadside assistance,
call 1–800–665–2006.
If you need to arrange roadside assistance for
yourself, Ford Motor Company will reimburse a
reasonable amount. To obtain reimbursement
information, U.S. Ford or Mercury vehicles
customers call 1-800-241-3673; Lincoln vehicle
customers call 1–800–521–4140.
Canadian customers who need to obtain
reimbursement information, call 1–800–665–2006.
ROADSIDE COVERAGE BEYOND BASIC
WARRANTY
In the United States, you may purchase additional
roadside assistance coverage beyond this period
through the Ford Auto Club by contacting your Ford
or Lincoln Mercury dealer.
Similarly in Canada, for uninterrupted Roadside
Assistance coverage, you may purchase extended
coverage prior to your Basic Warranty’s Roadside
Assistance expiring. For more information and
enrollment, contact 1–877–294–2582 or visit our
website at www.ford.ca.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
123
HAZARD FLASHER
The hazard flasher is
located on the steering
column, just behind the
steering wheel. The
hazard flashers will
operate when the
ignition is in any
position or if the key is
not in the ignition.
Push in the flasher control and all front and rear
direction signals will flash. Press the flasher control
again to turn them off. Use it when your vehicle is
disabled and is creating a safety hazard for other
motorists.
Note: With extended use, the flasher may run down
your battery.
FUEL PUMP SHUT-OFF SWITCH
FUEL
RESET
This device stops the electric fuel pump from
sending fuel to the engine when your vehicle has
had a substantial jolt.
After an accident, if the engine cranks but does not
start, this switch may have been activated.
The fuel pump shut-off
switch is located on
the left side of the
trunk between the left
rear tail light and the
trunk liner, and to the
left of the hole in the
trunk liner
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the switch by
pushing in on the reset button.
4. Turn the ignition ON.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
124
5. Wait a few seconds and return the key to OFF.
6. Make another check of leaks.
FUSES AND RELAYS
Fuses
If electrical components
in the vehicle are not
working, a fuse may
have blown. Blown fuses
are identified by a
broken wire within the fuse. Check the appropriate
fuses before replacing any electrical components.
Note: Always replace a fuse with one that has the
specified amperage rating. Using a fuse with a higher
amperage rating can cause severe wire damage and
could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
rating
Mini
fuses
Standard
fuses
Maxi
fuses
Cartridge
maxi
fuses
Fuse
link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue — Yellow
70A — — Tan — Brown
80A — — Natural — Black
15
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
125
Passenger compartment fuse panel
The fuse panel is located below and to the left of
the steering wheel by the brake pedal. Remove the
panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided
on the fuse panel cover.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment
Fuse Panel Description
1 20A Cigar lighter
2 20A Engine controls
3 — Not used
4 10A Right-hand low beam
headlamp
5 15A Instrument cluster, Traction
control switch
6 20A Starter motor relay
7 15A GEM, Interior lamps
8 20A Engine controls
9 30A Mach 460 subwoofers
10 10A Left-hand low beam
headlamp
SEE OWNERS MANUAL FOR FUSE INFO
42
1 2 3 4 5
76 8 9 10 11
1312 14 15 16 17
1918 20 21 22 23
2524 26 27 28 29
3130 32 33 34 35
3736 38 39 40 41
4344
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
126
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment
Fuse Panel Description
11 15A Back-up lamps
12 2A Heated PCV
13 15A Electronic flasher
14 — Not used
15 15A Power lumbar
16 — Not used
17 15A Speed control servo, Shift
lock actuator
18 15A Electronic flasher
19 15A Power mirror switch, GEM,
Anti-theft relay, Power door
locks, Door ajar switches
20 15A Convertible top switch
21 5A Instrument cluster and
engine control memory
22 — Not used
23 15A A/C clutch, Defogger switch
24 30A Climate control blower
motor
25 25A Luggage compartment lid
release
26 30A Wiper/Washer motor, Wiper
relays
27 20A Radio
28 15A GEM, Overdrive cancel
switch
29 15A Anti-lock Brake System
(ABS) module
30 15A Daytime Running Lamps
(DRL) module
31 10A Data link connector
32 15A Radio, GEM
33 15A Stop lamp switch, Speed
control deactivation switch
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
127
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment
Fuse Panel Description
34 20A Instrument Cluster, CCRM,
Data link connector,
Securilock transceiver
module
35 15A Shift lock actuator,
Powertrain Control Module
(PCM), Speed control servo,
ABS module
36 15A Air bag control module
37 5A Adjustable illumination
38 20A High beams
39 5A GEM
40 — Not used
41 15A Brake lamp
42 — Not used
43 20A CB Power windows
44 — Not used
Power distribution box
The power distribution box is located in the engine
compartment. The power distribution box contains
high-current fuses that protect your vehicle’s main
electrical systems from overloads.
Always disconnect the battery before
servicing high current fuses.
Always replace the cover to the power
distribution box before reconnecting the
battery or refilling fluid reservoirs
If the battery has been disconnected and
reconnected, refer to the Battery section of the
Maintenance and specifications chapter.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
128
The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
Relay 1 — Fog lamp interrupt
Relay 2 — Interval wiper
Relay 3 — Wiper HI/LO
Relay 4 — Starter
Relay 5 — Fog lamps
1 50A** (4.6L),
30A CB
(3.8L)
Electric cooling fan motor
2 30A** Headlamps
3 40A** Starter motor relay, Ignition
switch
4 40A** Ignition switch
5 40A** Ignition switch
6 40A** Instrument cluster,
Powertrain Control Module
(PCM)
7 — Not used
8 50A** Anti-lock Brake System
(ABS) module
9 20A** Auxiliary power point
10 30A** Parklamps
11 30A** Rear window defrost control
12 40A** Power locks
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
129
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
13 30A* MACH 1000 left amplifiers
14 20A* Fuel pump
15 30A* MACH 1000 right amplifiers
16 20A* Horn
17 20A* ABS
18 30A* Power seats
19 10A* Intercooler pump (Cobra
only)
20 20A* Alternator
21 — Not used
22 — Not used
23 — Not used
24 20A* A/C pressure
25 — Not used
26 30A** PCM
27 20A** Daytime Running Lamps
(DRL) module, Foglamp
relay
28 25A CB Convertible top circuit
breaker
29 — Not used
* Mini Fuses ** Maxi Fuses
CHANGING A FLAT TIRE
If you get a flat tire while driving:
• do not brake heavily.
• gradually decrease the vehicle’s speed.
• hold the steering wheel firmly.
• slowly move to a safe place on the side of the
road.
The use of tire sealants may damage your
tires.
Temporary spare tire information
Your vehicle may have a temporary spare tire which
is labeled as such. It is smaller than a regular tire
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
130
and is designed for emergency use only. Replace this
tire with a full-size tire as soon as possible.
Installing a tire on either or both sides of the driven
axle that is of a different size than the original road
tire is not recommended since this will affect the
accuracy of the speedometer and odometer. If
different size tires must be installed, it is important
that all four be the same size.
If one or more tires of the four are of a
different size, the ABS and traction control
system (if equipped) may not function correctly or
may not function at all. The temporary spare
supplied with the vehicle is the only different size
tire that should ever be installed.
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing you to lose
control of the vehicle, possibly injuring yourself or
others.
When driving with the temporary spare tire do not:
• use more than one temporary spare tire at a time
• exceed 80 km/h (50 mph) or drive further than
3,200 km (2,000 miles) total under any
circumstances
• load the vehicle beyond maximum vehicle load
rating listed on the tire pressure label on the
driver’s side b-pillar
• tow a trailer
• use tire chains
• drive through an automatic car wash, because of
the vehicle’s reduced ground clearance
• try to repair the temporary spare tire or remove it
from its wheel
• use the wheel for any other type of vehicle
Use of a temporary spare tire at any one wheel
location can lead to impairment of the following:
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
131
• handling, stability and braking performance
• comfort and noise
• ground clearance and parking at curbs
• Winter driving capability
How to change a flat tire
When one of the front wheels is off the
ground, the transmission alone will not
prevent the vehicle from moving or slipping off the
jack, even if the vehicle is in P (Park) (automatic
transmission) or R (Reverse) (manual
transmission).
To help prevent the vehicle from moving
when you change a tire, be sure the parking
brake is set, then block (in both directions) the
wheel that is diagonally opposite (other side and
end of the vehicle) to the tire being changed.
If the vehicle slips off the jack, you or
someone else could be seriously injured.
Do not attempt to change a tire on the side
of the vehicle close to moving traffic. Pull
far enough off the road to avoid the danger of
being hit when operating the jack or changing the
wheel.
Before changing the tire:
1. Park on a level surface.
2. Activate the hazard flashers.
3. Place the gearshift lever in P (Park) (automatic
transmission) or R (Reverse) (manual transmission).
4. Set the parking brake.
5. Turn off the ignition.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
132
To change the tire:
Note: Passengers should not remain in the vehicle
when the vehicle is being jacked.
1. Block both the front
and rear of the wheel
diagonally opposite the
flat tire. For example,
if the left front tire is
flat, block the right rear wheel.
2. Remove the spare
tire, jack and lug
wrench.
3. Remove the center
ornament (if equipped)
from the wheel. Loosen
each wheel lug nut
one-half turn counter-
clockwise but do not
remove them until the
wheel is raised off the
ground.
4. Put the jack in the
jack notch next to the
tire you are changing.
Turn the jack handle
clockwise until the
wheel is completely off
the ground.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
133
Never use the rear
differential as a
jacking point.
To lessen the risk of personal injury, do not
put any part of your body under the vehicle
while changing a tire. Do not start the engine
when your vehicle is on the jack. The jack is only
meant for changing the tire.
5. Remove the lug nuts with the lug wrench.
6. Replace the flat tire with the spare tire, making
sure the valve stem is facing outward. Reinstall lug
nuts until the wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel has been
lowered.
If you are using the temporary tire, the lug nut
washers will not appear to be flush with the rim. This
is normal only when using the temporary spare tire.
7. Lower the wheel by turning the jack handle
counterclockwise.
8. Remove the jack and
fully tighten the lug
nuts in the order
shown.
9. Put flat tire, wheel
ornament (if
equipped), jack and lug
wrench away. Make
sure jack is fastened so it does not rattle when you
drive.
10. Unblock the wheels.
Anti-theft lug nuts (if equipped)
If your vehicle is equipped with this feature, one of
the lug nuts on each wheel must be removed and
1
43
25
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
134
replaced with a special key. The key and registration
card are attached to the lug wrench and stored with
the spare tire. If you lose the key, send the
registration card to the manufacturer (not the
dealer) to get a replacement key. If the lug
wrench/lug nut key assembly is lost, see your
nearest Ford or Lincoln Mercury dealer who has
access to the master set of keys. Do not use an
impact wrench with the anti-theft key.
To remove the
anti-theft lug nut:
1. Insert the key over
the locking lug nut.
Make sure you hold the key square to the lug nut. If
you hold the key at an angle, you could damage the
key and the lug nut.
2. Place the lug nut wrench over the lug nut key and
apply pressure on the key with the wrench.
3. Turn the wrench in a counterclockwise direction
to remove the lug nut.
To install the anti-theft lug nut:
1. Insert the key over the locking lug nut.
2. Place the lug nut wrench over the lug nut key and
apply pressure on the key with the wrench.
3.
Install the lug nut by turning the wrench clockwise.
Wheel lug nut torque specifications
Retighten the lug nuts to the specified torque at
800 km (500 miles) after any wheel disturbance
(tire rotation, changing a flat tire, wheel removal,
etc.).
Bolt size Wheel lug nut torque*
Nm Lb-ft
1
⁄
2
x 20 120-147 88-108
* Torque specifications are for nut and bolt threads free of
dirt and rust. Use only Ford recommended replacement
fasteners.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
135
When a wheel is installed, always remove
any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or
the surface of the front disc brake hub and rotor
that contacts the wheel. Installing wheels without
correct metal-to-metal contact at the wheel
mounting surfaces can cause the wheel nuts to
loosen and the wheel to come off while the vehicle
is in motion, resulting in loss of control.
JUMP STARTING YOUR VEHICLE
The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An
explosion could result in injury or vehicle damage.
Batteries contain sulfuric acid which can
burn skin, eyes and clothing, if contacted.
Do not attempt to push-start your vehicle.
Automatic transmissions do not have
push-start capability; doing so may damage the
catalytic converter.
Preparing your vehicle
When the battery is disconnected or a new battery is
installed, the transmission must relearn its shift
strategy. As a result, the transmission may have firm
and/or soft shifts. This operation is considered
normal and will not affect function or durability of
the transmission. Over time, the adaptive learning
process will fully update transmission operation.
1.
Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled
vehicle as this could damage the vehicle’s electrical
system.
3. Park the booster vehicle close to the hood of the
disabled vehicle making sure the two vehicles do
not touch. Set the parking brake on both vehicles
and stay clear of the engine cooling fan and other
moving parts.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
136
4. Check all battery terminals and remove any
excessive corrosion before you attach the battery
cables. Ensure the vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect
any electrical surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the
positive (+) terminal of the discharged battery.
Note: In the illustrations, lightning bolts are used
to designate the assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to
the positive (+) terminal of the assisting battery.
+
–
+
–
+
–
+
–
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
137
3. Connect the negative (-) cable to the negative (-)
terminal of the assisting battery.
4. Make the final connection of the negative (-)
cable to an exposed metal part of the stalled
vehicle’s engine, away from the battery and the
carburetor/fuel injection system. Do not use fuel
lines, engine rocker covers or the intake manifold as
grounding points.
Do not connect the end of the second cable
to the negative (-) terminal of the battery to
be jumped. A spark may cause an explosion of the
gases that surround the battery.
5. Ensure that the cables are clear of fan blades,
belts, moving parts of both engines, or any fuel
delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run
the engine at moderately increased speed.
2. Start the engine of the disabled vehicle.
+
–
+
–
+
–
+
–
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
138
3. Once the disabled vehicle has been started, run
both engines for an additional three minutes before
disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order
that they were connected.
1. Remove the jumper cable from the ground metal
surface.
Note: In the illustrations, lightning bolts are used
to designate the assisting (boosting) battery.
2. Remove the jumper cable on the negative (-)
connection of the booster vehicle’s battery.
+
–
+
–
+
–
+
–
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
139
3. Remove the jumper cable from the positive (+)
terminal of the booster vehicle’s battery.
4. Remove the jumper cable from the positive (+)
terminal of the disabled vehicle’s battery.
After the disabled vehicle has been started and the
jumper cables removed, allow it to idle for several
minutes so the engine computer can relearn its idle
conditions.
+
–
+
–
+
–
+
–
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
140
WRECKER TOWING
If you need to have your vehicle towed, contact a
professional towing service or, if you are a member
of a roadside assistance program, your roadside
assistance service provider.
It is recommended that your vehicle be towed with
flatbed equipment. Do not tow with slingbelt or
wheel lift equipment. Ford Motor Company has not
approved a slingbelt or wheel lift equipment towing
procedure.
If the vehicle is towed by other means or
incorrectly, vehicle damage may occur.
Ford Motor Company produces a towing manual for
all authorized tow truck operators. Have your tow
truck operator refer to this manual for proper
hook-up and towing procedures for your vehicle.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
141
GETTING THE SERVICES YOU NEED
At home
You must take your Ford vehicle to an authorized
Ford dealer for warranty repairs. While any Ford
dealership handling your vehicle line will provide
warranty service, we recommend you return to your
selling dealer who wants to ensure your continued
satisfaction. Please note that certain warranty
repairs require special training and/or equipment, so
not all dealers are authorized to perform all warranty
repairs. This means that, depending on the warranty
repair needed, you may have to take your vehicle to
another dealer. A reasonable time must be allowed
to perform a repair after taking your vehicle to the
dealership. Repairs will be made using Ford or
Motorcraft parts, or remanufactured or other parts
that are authorized by Ford.
If you have questions or concerns, or are unsatisfied
with the service you are receiving, follow these
steps:
1. Contact your Sales Representative or Service
Advisor at your selling/servicing dealership.
2. If your inquiry or concern remains unresolved,
contact the Sales Manager, Service Manager or
Customer Relations Manager.
3. If you require assistance or clarification on Ford
Motor Company policies or procedures, please
contact the Ford Customer Relationship Center at
the number below.
Away from home
If you own a Ford or Mercury vehicle and are away
from home when your vehicle needs service, or if
you need more help than the dealership could
provide, after following the steps described above,
contact the Ford Customer Relationship Center to
find an authorized dealership to help you.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
142
In the United States:
Ford Motor Company
Customer Relationship Center
P.O. Box 6248
Dearborn, MI 48121
1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
www.customersaskford.com
In Canada:
Customer Relationship Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-565-3673 (FORD)
www.ford.ca
If you own a Lincoln vehicle and are away from
home when your vehicle needs service, or if you
need more help than the dealership could provide,
after following the steps described above, contact
the Ford Customer Relationship Center to find an
authorized dealership to help you.
In the United States:
Ford Motor Company
Customer Relationship Center
P.O. Box 6248
Dearborn, MI 48121
1-800-521-4140
(TDD for the hearing impaired: 1-800-232-5952)
www.customersaskford.com
In Canada:
Lincoln Centre
Ford Motor Company of Canada, Limited
P.O. Box 2000
Oakville, Ontario L6J 5E4
1-800-387-9333
www.lincolncanada.com
In order to help you service your Lincoln vehicle,
please have the following information available when
contacting the Lincoln Centre:
• Your telephone number (home and business)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
143
• The name of the dealer and the city where the
dealership is located
• The year and make of your vehicle
• The date of vehicle purchase
• The current odometer reading
• The vehicle identification number (VIN)
If you still have a complaint involving a warranty
dispute, you may wish to contact the Dispute
Settlement Board (U.S.).
In some states (in the U.S.) you must directly notify
Ford in writing before pursuing remedies under your
state’s warranty laws. Ford is also allowed a final
repair attempt in some states.
In the United States, a warranty dispute must be
submitted to the Dispute Settlement Board before
taking action under the Magnuson-Moss Warranty
Act, or to the extent allowed by state law, before
pursuing replacement or repurchase remedies
provided by certain state laws. This dispute handling
procedure is not required prior to enforcing state
created rights or other rights which are independent
of the Magnuson-Moss Warranty Act or state
replacement or repurchase laws.
FORD EXTENDED SERVICE PLAN
You can get more protection for your new car or
light truck by purchasing Ford Extended Service
Plan (Ford ESP) coverage. Ford ESP is an optional
service contract which is backed by Ford Motor
Company or Ford Motor Service Company (in the
U.S.) and Ford of Canada (in Canada). It provides
the following:
• Benefits during the warranty period depending on
the plan you purchase (such as: reimbursement
for rentals; coverage for certain maintenance and
wear items).
• Protection against covered repair costs after your
Bumper-to-Bumper Warranty expires.
You may purchase Ford ESP from any participating
Ford and Lincoln Mercury and Ford of Canada
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
144
dealer. There are several plans available in various
time, distance and deductible combinations which
can be tailored to fit your own driving needs. Ford
ESP also offers reimbursement benefits for towing
and rental coverage.
When you buy Ford ESP, you receive Peace-of-Mind
protection throughout the United States and Canada,
provided by a network of more than 5,000
participating Ford or Lincoln Mercury and Ford of
Canada dealers.
If you did not take advantage of the Ford Extended
Service Plan at the time of purchasing your vehicle,
you may still be eligible. Since this information is
subject to change, please ask your dealer for
complete details about Ford Extended Service Plan
coverage options, or visit the Ford ESP website at
www.ford-esp.com.
THE DISPUTE SETTLEMENT BOARD
(U.S. ONLY)
The Dispute Settlement Board is:
• an independent, third-party arbitration program
for warranty disputes.
• available free to owners and lessees of qualifying
Ford Motor Company vehicles.
The Dispute Settlement Board may not be available in
all states. Ford Motor Company reserves the right to
change eligibility limitations, modify procedures and/or
to discontinue this service without notice and without
incurring obligations per applicable state law.
What kinds of cases does the Board review?
Unresolved warranty repair concerns or vehicle
performance concerns as on Ford and Lincoln
Mercury cars and Ford and Lincoln Mercury light
trucks which are within the terms of any applicable
written new vehicle warranty are eligible for review,
except those involving:
• a non-Ford product
• a non-Ford dealership
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
145
• sales disputes between customer and dealer
except those associated with warranty repairs or
concerns with the vehicle’s performance as
designed
• a request for reimbursement of consequential
expenses unless a service or product concern is
being reviewed
• items not covered by the New Vehicle Limited
Warranty (including maintenance and wear items)
• alleged personal injury/property damage claims
• cases currently in litigation
• vehicles not used primarily for family, personal or
household purposes (except in states where the
Dispute Settlement Board is required to review
commercial vehicles)
• vehicles with non-U.S. warranties
Concerns are ineligible for review if the New Vehicle
Limited Warranty has expired at receipt of your
application and, in certain states eligibility is
dependent upon the customer’s possession of the
vehicle.
Eligibility may differ according to state law. For
example, see the unique brochures for California,
West Virginia, Georgia and Wisconsin
purchasers/lessees.
Board membership
The Board consists of:
• Three consumer representatives
• A Ford or Lincoln Mercury dealership
representative
Consumer candidates for Board membership are
recruited and trained by an independent consulting
firm. The dealership Board member is chosen from
Ford and Lincoln Mercury dealership management,
recognized for their business leadership qualities.
What the Board needs
To have your case reviewed you must complete the
application in the DSB brochure and mail it to the
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
146
address provided on the application form. Some
states will require you to use certified mail, with
return receipt requested.
Your application is reviewed and, if it is determined
to be eligible, you will receive an acknowledgment
indicating:
• The file number assigned to your application.
• The toll-free phone number of the DSB’s
independent administrator.
Your dealership and a Ford Motor Company
representative will then be asked to submit
statements.
To properly review your case, the Board needs the
following information:
• Legible copies of all documents and maintenance
or repair orders relevant to the case.
• The year, make, model, and Vehicle Identification
Number (VIN) listed on your vehicle ownership
license.
• The date of repair(s) and mileage at the time of
occurrence(s).
• The current mileage.
• The name of the dealer(s) who sold or serviced
the vehicle.
• A brief description of your unresolved concern.
• A brief summary of the action taken by the
dealer(s) and Ford Motor Company.
• The names (if known) of all the people you
contacted at the dealership(s).
• A description of the action you expect to resolve
your concern.
You will receive a letter of explanation if your
application does not qualify for Board review.
Oral presentations
If you would like to make an oral presentation,
indicate YES to question 6 on the application. While
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
147
it is your right to make an oral presentation before
the Board, this is not a requirement and the Board
will decide the case whether or not an oral
presentation is made. An oral presentation may be
requested by the Board as well.
Making a decision
Board members review all available information
related to each complaint, including oral
presentations, and arrive at a fair and impartial
decision. Board review may be terminated at any
time by either party.
Every effort is made to decide the case within 40
days of the date that all requested information is
received by the Board. Since the Board generally
meets once a month, it may take longer for the
Board to consider some cases.
After a case is reviewed, the Board mails you a
decision letter and a form on which to accept or
reject the Board’s decision. The decisions of the
Board are binding on Ford (and, in some cases, on
the dealer) but not on consumers who are free to
pursue other remedies available to them under state
or federal law.
To request a DSB Brochure/Application
For a brochure/application, speak to your dealer or
write/call to the Board at the following
address/phone number:
Dispute Settlement Board
P.O. Box 5120
Southfield, MI 48086–5120
1–800–428–3718
You may also contact the North American Customer
Relationship Center at 1-800-392-3673 (Ford), TDD
for the hearing impaired: 1-800-232-5952 or by
writing to the Center at the following address:
Ford Motor Company
Customer Relationship Center
P.O. Box 6248
Dearborn, Michigan 48121
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
148
UTILIZING THE MEDIATION/ARBITRATION
PROGRAM (CANADA ONLY)
In those cases where you continue to feel that the
efforts by Ford and the dealer to resolve a
factory-related vehicle service concern have been
unsatisfactory, Ford of Canada participates in an
impartial third party mediation/arbitration program
administered by the Canadian Motor Vehicle
Arbitration Plan (CAMVAP).
The CAMVAP program is a straight-forward and
relatively speedy alternative to resolve a
disagreement when all other efforts to produce a
settlement have failed. This procedure is without
cost to you and is designed to eliminate the need for
lengthy and expensive legal proceedings.
In the CAMVAP program, impartial third-party
arbitrators conduct hearings at mutually convenient
times and places in an informal environment. These
impartial arbitrators review the positions of the
parties, make decisions and, when appropriate,
render awards to resolve disputes. CAMVAP
decisions are fast, fair, and final; the arbitrator’s
award is binding both to you and Ford of Canada.
CAMVAP services are available in all territories and
provinces. For more information, without charge or
obligation, call your CAMVAP Provincial
Administrator directly at 1-800-207-0685.
GETTING ASSISTANCE OUTSIDE THE U.S. AND
CANADA
Before exporting your vehicle to a foreign country,
contact the appropriate foreign embassy or
consulate. These officials can inform you of local
vehicle registration regulations and where to find
unleaded fuel.
If you cannot find unleaded fuel or can only get fuel
with an anti-knock index lower than is
recommended for your vehicle, contact a district or
owner relations/customer relationship office.
The use of leaded fuel in your vehicle without
proper conversion may damage the effectiveness of
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
149
your emission control system and may cause engine
knocking or serious engine damage. Ford Motor
Company/Ford of Canada is not responsible for any
damage caused by use of improper fuel.
In the United States, using leaded fuel may also
result in difficulty importing your vehicle back into
the U.S.
If your vehicle must be serviced while you are
traveling or living in Central or South America, the
Caribbean, or the Middle East, contact the nearest
Ford dealership. If the dealership cannot help you,
write or call:
FORD MOTOR COMPANY
WORLDWIDE DIRECT MARKET OPERATIONS
1555 Fairlane Drive
Fairlane Business Park #3
Allen Park, Michigan 48101
U.S.A.
Telephone: (313) 594-4857
FAX: (313) 390-0804
If you are in another foreign country, contact the
nearest Ford dealership. If the dealership employees
cannot help you, they can direct you to the nearest
Ford affiliate office.
If you buy your vehicle in North America and then
relocate outside of the U.S. or Canada, register your
vehicle identification number (VIN) and new address
with Ford Motor Company Worldwide Direct Market
Operations.
ORDERING ADDITIONAL OWNER’S
LITERATURE
To order the publications in this portfolio, contact
Helm, Incorporated at:
HELM, INCORPORATED
P.O. Box 07150
Detroit, Michigan 48207
Or call:
For a free publication catalog, order toll free:
1-800-782-4356
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
150
Monday-Friday 8:00 a.m. - 6:00 p.m. EST
Helm, Incorporated can also be reached by their
website: www.helminc.com.
(Items in this catalog may be purchased by credit
card, check or money order.)
Obtaining a French owner’s guide
French Owner’s Guides can be obtained from your
dealer or by writing to Ford Motor Company of
Canada, Limited, Service Publications, P.O. Box
1580, Station B, Mississauga, Ontario L4Y 4G3.
IN CALIFORNIA (U.S. ONLY)
California Civil Code Section 1793.2(d) requires that,
if a manufacturer or its representative is unable to
repair a motor vehicle to conform to the vehicle’s
applicable express warranty after a reasonable
number of attempts, the manufacturer shall be
required to either replace the vehicle with one
substantially identical or repurchase the vehicle and
reimburse the buyer in an amount equal to the
actual price paid or payable by the consumer (less a
reasonable allowance for consumer use). The
consumer has the right to choose whether to receive
a refund or replacement vehicle.
California Civil Code Section 1793.22(b) presumes
that the manufacturer has had a reasonable number
of attempts to conform the vehicle to its applicable
express warranties if, within the first 18 months of
ownership of a new vehicle or the first 29,000 km
(18,000 miles), whichever occurs first:
1. Two or more repair attempts are made on the
same nonconformity likely to cause death or serious
bodily injury OR
2. Four or more repair attempts are made on the
same nonconformity (a defect or condition that
substantially impairs the use, value or safety of the
vehicle) OR
3. The vehicle is out of service for repair of
nonconformities for a total of more than 30 calendar
days (not necessarily all at one time)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
151
In the case of 1 or 2 above, the consumer must also
notify the manufacturer of the need for the repair of
the nonconformity at the following address:
Ford Motor Company
16800 Executive Plaza Drive
Mail Drop 3NE-B
Dearborn, MI 48126
REPORTING SAFETY DEFECTS (U.S. ONLY)
If you believe that your
vehicle has a defect
which could cause a
crash or could cause injury or death, you should
immediately inform the National Highway Traffic
Safety Administration (NHTSA) in addition to
notifying Ford Motor Company.
If NHTSA receives similar complaints, it may open
an investigation, and if it finds that a safety defect
exists in a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA cannot
become involved in individual problems between
you, your dealer, or Ford Motor Company.
To contact NHTSA, you may either call the Auto
Safety Hotline toll-free at 1–800–424–9393 (or
366–0123 in the Washington D.C. area) or write to:
NHTSA
400 Seventh Street
U.S. Department of Transportation
Washington, D.C. 20590
You can also obtain other information about motor
vehicle safety from the Hotline.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Customer Assistance
152
WASHING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm
water and a neutral Ph shampoo, such as Motorcraft
Detail Wash (ZC-3–A), which is available from your
dealer.
• Never use strong household detergents or soap,
such as dish washing or laundry liquid. These
products can discolor and spot painted surfaces.
• Never wash a vehicle that is “hot to the touch” or
during exposure to strong, direct sunlight.
• Always use a clean sponge or carwash mitt with
plenty of water for best results.
• Dry the vehicle with a chamois or soft terry cloth
towel in order to eliminate water spotting.
• It is especially important to wash the vehicle
regularly during the winter months, as dirt and
road salt are difficult to remove and cause
damage to the vehicle.
• Immediately remove items such as gasoline, diesel
fuel, bird droppings and insect deposits because
they can cause damage to the vehicle’s paintwork
and trim over time.
• Remove any exterior accessories, such as
antennas, before entering a car wash.
• Suntan lotions and insect repellents can
damage any painted surface; if these
substances come in contact with your
vehicle, wash off as soon as possible.
WAXING
Applying a polymer paint sealant to your vehicle
every six months will assist in reducing minor
scratches and paint damage.
• Wash the vehicle first.
• Do not use waxes that contain abrasives.
• Do not allow paint sealant to come in contact with
any non-body (low-gloss black) colored trim, such
as grained door handles, roof racks, bumpers, side
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
153
moldings, mirror housings or the windshield cowl
area. The paint sealant will “gray” or stain the
parts over time.
PAINT CHIPS
Your dealer has touch-up paint and sprays to match
your vehicle’s color. Take your color code (printed
on a sticker in the driver’s door jam) to your dealer
to ensure you get the correct color.
• Remove particles such as bird droppings, tree sap,
insect deposits, tar spots, road salt and industrial
fallout before repairing paint chips.
• Always read the instructions before using the
products.
ALUMINUM WHEELS AND WHEEL COVERS
Aluminum wheels and wheel covers are coated with
a clearcoat paint finish. In order to maintain their
shine:
• Clean weekly with Motorcraft Wheel and Tire
Cleaner (ZC-37–A), which is available from your
dealer. Heavy dirt and brake dust accumulation
may require agitation with a sponge. Rinse
thoroughly with a strong stream of water.
• Never apply any cleaning chemical to hot or warm
wheel rims or covers.
• Some automatic car washes may cause damage to
the finish on your wheel rims or covers.
Chemical-strength cleaners, or cleaning chemicals,
in combination with brush agitation to remove
brake dust and dirt, could wear away the
clearcoat finish over time.
• Do not use hydrofluoric acid-based or high
caustic-based wheel cleaners, steel wool, fuels or
strong household detergent.
• To remove tar and grease, use Motorcraft Bug and
Tar Remover (ZC-42), available from your dealer.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
154
ENGINE
Engines are more efficient when they are clean
because grease and dirt buildup keep the engine
warmer than normal. When washing:
• Take care when using a power washer to clean
the engine. The high-pressure fluid could
penetrate the sealed parts and cause damage.
• Do not spray a hot engine with cold water to
avoid cracking the engine block or other engine
components.
• Spray Motorcraft Engine Shampoo and Degreaser
(ZC-20) on all parts that require cleaning and
pressure rinse clean.
• Cover the highlighted areas to prevent water
damage when cleaning the engine.
• OHV V6 engine
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
155
• 4.6L SOHC V8 engine
• 4.6L 4V engine (Mach I)
• Never wash or rinse the engine while it is
running; water in the running engine may cause
internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts.
These products are available from your dealer.
• For routine cleaning, use Motorcraft Detail Wash
(ZC-3–A).
• If tar or grease spots are present, use Motorcraft
Bug and Tar Remover (ZC-42).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
156
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the
wiper blades should be cleaned regularly. If the
wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause.
These may include hot wax treatments used by
commercial car washes, tree sap, or other organic
contamination. To clean these items, please follow
these tips:
• The windshield, rear windows and side windows
may be cleaned with a non-abrasive cleaner such
as Motorcraft Ultra Clear Spray Glass Cleaner
(ZC-23), available from your dealer.
• Do not use abrasives, as they may cause
scratches.
• Do not use fuel, kerosene, or paint thinner to
clean any parts.
• Wiper blades can be cleaned with isopropyl
(rubbing) alcohol or windshield washer solution.
Be sure to replace wiper blades when they appear
worn or do not function properly.
CONVERTIBLE TOP AND PADDED MOLDING
Wash with Motorcraft Triple Clean (ZC-13), which is
available from your dealer.
• Do not use stiff bristle brushes or abrasive
materials or cleaners.
• Hot waxes applied by commercial car washes can
affect the cleanability of vinyl material.
• Using high water pressure or wand-type car
washes against the convertible top and windows
may cause water leaks and possible seal damage.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then
dry with a dry cloth.
• Avoid cleaners or polish that increase the gloss of
the upper portion of the instrument panel. The
dull finish in this area helps protect the driver
from undesirable windshield reflection.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
157
Do not use chemical solvents or strong
detergents when cleaning the steering wheel
or instrument panel to avoid contamination of the
air bag system.
• Be certain to wash or wipe your hands clean if
you have been in contact with certain products
such as insect repellent and suntan lotion in order
to avoid possible damage to the interior painted
surfaces.
INTERIOR
For fabric, carpets, cloth seats and safety belts:
• Remove dust and loose dirt with a vacuum
cleaner.
• Remove light stains and soil with Motorcraft Extra
Strength Upholstery Cleaner (ZC-41).
• If grease or tar is present on the material,
spot-clean the area first with Motorcraft Spot and
Stain Remover (ZC-14).
• Never saturate the seat covers with cleaning
solution.
• Do not use household cleaning products or glass
cleaners, which can stain and discolor the fabric
and affect the flame retardant abilities of the seat
materials.
Do not use cleaning solvents, bleach or dye
on the vehicle’s seatbelts, as these actions
may weaken the belt webbing.
LEATHER SEATS (IF EQUIPPED)
Your leather seating surfaces have a clear, protective
coating over the leather.
• To clean, use a soft cloth with Motorcraft Deluxe
Leather and Vinyl Cleaner (ZC-11–A). Dry the
area with a soft cloth.
• To help maintain its resiliency and color, use the
Motorcraft Deluxe Leather Care Kit (ZC-11–D),
available from your authorized dealer.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
158
• Do not use household cleaning products, alcohol
solutions, solvents or cleaners intended for
rubber, vinyl and plastics, or oil/petroleum-based
leather conditioners. These products may cause
premature wearing of the clear, protective
coating.
Note: In some instances, color or dye transfer can
occur when wet clothing comes in contact with
leather upholstery. If this occurs, the leather should
be cleaned immediately to avoid permanent staining.
UNDERBODY
Flush the complete underside of your vehicle
frequently. Keep body and door drain holes free
from packed dirt.
FORD, LINCOLN AND MERCURY CAR CARE
PRODUCTS
Your Ford, Lincoln or Mercury dealer has many
quality products available to clean your vehicle and
protect its finishes. These quality products have
been specifically engineered to fulfill your
automotive needs; they are custom designed to
complement the style and appearance of your
vehicle. Each product is made from high quality
materials that meet or exceed rigid specifications.
For best results, use the following products or
products of equivalent quality:
Motorcraft Custom Clearcoat Polish (ZC–8–A)
Motorcraft Custom Vinyl Protectant (not available in
Canada) (ZC-40–A)
Motorcraft Vinyl Cleaner (Canada only) (CXC-93)
Motorcraft Vinyl Conditioner (Canada only)
(CXC-94)
Motorcraft Deluxe Leather and Vinyl Cleaner (not
available in Canada) (ZC-11–A)
Motorcraft Bug and Tar Remover (ZC-42)
Motorcraft Extra Strength Upholstery Cleaner (not
available in Canada) (ZC-41)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
159
Motorcraft Custom Bright Metal Cleaner (ZC-15)
Motorcraft Wheel and Tire Cleaner (ZC-37–A)
Motorcraft Dash and Vinyl Cleaner (ZC-38–A)
Motorcraft Car Care Kit (ZC-26)
Ford Premium Car Wash Concentrate
(F2SZ-19523–WC)
Motorcraft Carlite Glass Cleaner (Canada only)
(CXC-100)
Motorcraft Spot and Stain Remover (ZC-14)
Motorcraft Detail Wash (ZC-3–A)
Motorcraft Tire Clean and Shine (ZC-28)
Motorcraft Triple Clean (ZC-13)
Motorcraft Ultra-Clear Spray Glass Cleaner (not
available in Canada) (ZC-23)
Motorcraft Engine Shampoo and Degreaser (ZC-20)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Cleaning
160
SERVICE RECOMMENDATIONS
To help you service your vehicle:
• We highlight do-it-yourself items in the engine
compartment for easy location.
• We provide a scheduled maintenance guide which
makes tracking routine service easy.
If your vehicle requires professional service, your
dealership can provide the necessary parts and
service. Check your Warranty Guide/Owner
Information Guide to find out which parts and
services are covered.
Use only recommended fuels, lubricants, fluids and
service parts conforming to specifications. Motorcraft
parts are designed and built to provide the best
performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR
VEHICLE
• Do not work on a hot engine.
•
Make sure that nothing gets caught in moving parts.
• Do not work on a vehicle with the engine running
in an enclosed space, unless you are sure you
have enough ventilation.
• Keep all open flames and other burning
(cigarettes) material away from the battery and
all fuel related parts.
Working with the engine off
• Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Turn off the engine and remove the key.
3. Block the wheels.
• Manual transmission:
1. Set the parking brake, depress the clutch and
place the gearshift in 1 (First).
2. Turn off the engine and remove the key.
3. Block the wheels.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
161
Working with the engine on
• Automatic transmission:
1. Set the parking brake and shift to P (Park).
2. Block the wheels.
• Manual transmission:
1. Set the parking brake, depress the clutch and
place the gearshift in N (Neutral).
2. Block the wheels.
Note: Do not start your engine with the air cleaner
removed and do not remove it while the engine is
running.
OPENING THE HOOD
1. Inside the vehicle,
pull the hood release
handle located under
the bottom left corner
of the instrument
panel.
2. Go to the front of the vehicle and release the
auxiliary latch that is located under the front center
of the hood.
HOOD
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
162
3. Lift the hood and secure it with the prop rod.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
163
IDENTIFYING COMPONENTS IN THE ENGINE
COMPARTMENT
OHV V6 engine
1. Engine oil filler cap
2. Engine oil dipstick
3. Brake fluid reservoir
4. Power distribution box
5. Windshield washer fluid reservoir
6. Battery
7. Power steering fluid reservoir
8. Engine coolant reservoir
9. Air filter assembly
10. Automatic transmission fluid dipstick (if
equipped)
6
10
2 3
4
5
7
8
9
1
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
164
4.6L SOHC V8 engine
1. Engine oil dipstick
2. Brake fluid reservoir
3. Power distribution box
4. Windshield washer fluid reservoir
5. Battery
6. Engine coolant reservoir
7. Power steering fluid reservoir
8. Engine oil filler cap
9. Air filter assembly
10. Automatic transmission fluid dipstick (if
equipped)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
165
4.6L 4V V8 (Mach 1) engine
1. Engine oil filler cap
2. Brake fluid reservoir
3. Engine oil dipstick
4. Power distribution box
5. Windshield washer fluid reservoir
6. Battery
7. Engine coolant reservoir
8. Power steering fluid reservoir
9. Air filter assembly
10. Automatic transmission fluid dipstick (if
equipped)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
166
WINDSHIELD WASHER FLUID
Add fluid to fill the
reservoir if the level is
low. In very cold
weather, do not fill the
reservoir completely.
Only use a washer fluid
that meets Ford
specification
WSB-M8B16–A2. Refer to Lubricant specifications
in this chapter.
State or local regulations on volatile organic
compounds may restrict the use of methanol, a
common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze
agents should be used only if they provide cold
weather protection without damaging the vehicle’s
paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures
below 4.5° C (40° F), use washer fluid with
antifreeze protection. Failure to use washer fluid
with antifreeze protection in cold weather could
result in impaired windshield vision and increase
the risk of injury or accident.
Note: Do not put washer fluid in the engine coolant
reservoir. Washer fluid placed in the cooling system
may harm engine and cooling system components.
ENGINE OIL
Checking the engine oil
Refer to the scheduled maintenance guide for the
appropriate intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait 5 to 10 minutes for
the oil to drain into the oil pan.
3. Set the parking brake and ensure the gearshift is
securely latched in P (Park) (automatic
transmissions) or 1 (First) (manual transmissions).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
167
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the engine oil level
indicator (dipstick).
• OHV V6 engine
• 4.6L SOHC V8
engine
• 4.6L 4v V8 engine
(Mach 1)
6. Wipe the indicator clean. Insert the indicator fully,
then remove it again.
•
If the oil level is between the MIN—MAX marks,
the oil level is acceptable. DO NOT ADD OIL.
MAXMIN
MAXMIN
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
168
• If the oil level is below the MIN mark, add enough
oil to raise the level within the MIN—MAX range.
• OHV V6 engine
• 4.6L SOHC V8 engine
• 4.6L 4v V8 engine
(Mach 1)
• Oil levels above the MAX mark may cause engine
damage. Some oil must be removed from the
engine by a service technician.
7. Put the indicator back in and ensure it is fully
seated.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
169
Adding engine oil
1. Check the engine oil. For instructions, refer to
Checking the engine oil in this chapter.
2. If the engine oil level is not within the normal
range, add only certified engine oil of the
recommended viscosity. Remove the engine oil filler
cap and use a funnel to pour the engine oil into the
opening.
3. Recheck the engine oil level. Make sure the oil
level is not above the MAX mark on the engine oil
level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the
filler cap clockwise 1/4 of a turn until three clicks
are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the
vehicle with the engine oil level indicator
and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this
certification trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the
American Petroleum Institute (API). To protect your
engine’s warranty use Motorcraft SAE 5W-20 or an
equivalent 5W-20 oil meeting Ford specification
WSS-M2C153–H. SAE 5W-20 oil provides
optimum fuel economy and durability
performance meeting all requirements for your
vehicle’s engine.
Do not use supplemental engine oil additives,
cleaners or other engine treatments. They are
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
170
unnecessary and could lead to engine damage that is
not covered by Ford warranty.
Change your engine oil according to the appropriate
schedule listed in the scheduled maintenance guide.
Ford production and aftermarket (Motorcraft) oil
filters are designed for added engine protection and
long life. If a replacement oil filter is used that does
not meet Ford material and design specifications,
start-up engine noises or knock may be experienced.
It is recommended you use the appropriate
Motorcraft oil filter (or another brand meeting Ford
specifications) for your engine application.
BATTERY
Your vehicle is
equipped with a
Motorcraft
maintenance-free
battery which normally
does not require
additional water during
its life of service.
However, for severe usage or in high temperature
climates, check the battery electrolyte level. Refer to
the scheduled maintenance guide for the service
interval schedules.
Keep the electrolyte level in each cell up to the
“level indicator”. Do not overfill the battery
cells.
If the electrolyte level in the battery is low, you can
add plain tap water to the battery, as long as you do
not use hard water (water with a high mineral or
alkali content). If possible, however, try to only fill
the battery cells with distilled water. If the battery
needs water often, have the charging system
checked.
If your battery has a cover/shield, make sure it
is reinstalled after the battery has been
cleaned or replaced.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
171
For longer, trouble-free operation, keep the top of
the battery clean and dry. Also, make certain the
battery cables are always tightly fastened to the
battery terminals.
If you see any corrosion on the battery or terminals,
remove the cables from the terminals and clean with
a wire brush. You can neutralize the acid with a
solution of baking soda and water.
Batteries normally produce explosive gases
which can cause personal injury. Therefore,
do not allow flames, sparks or lighted substances
to come near the battery. When working near the
battery, always shield your face and protect your
eyes. Always provide proper ventilation.
When lifting a plastic-cased battery,
excessive pressure on the end walls could
cause acid to flow through the vent caps, resulting
in personal injury and/or damage to the vehicle or
battery. Lift the battery with a battery carrier or
with your hands on opposite corners.
Keep batteries out of reach of children.
Batteries contain sulfuric acid. Avoid contact
with skin, eyes or clothing. Shield your eyes when
working near the battery to protect against
possible splashing of acid solution. In case of acid
contact with skin or eyes, flush immediately with
water for a minimum of 15 minutes and get
prompt medical attention. If acid is swallowed, call
a physician immediately.
Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after handling.
Because your vehicle’s engine is electronically
controlled by a computer, some control conditions
are maintained by power from the battery. When the
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
172
battery is disconnected or a new battery is installed,
the engine must relearn its idle and fuel trim
strategy for optimum driveability and performance.
To begin this process:
1. With the vehicle at a complete stop, set the
parking brake.
2. Put the gearshift in P (Park) (automatic
transmission) or the neutral position (manual
transmission), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating
temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for
at least one minute.
6. Drive the vehicle to complete the relearning
process.
• The vehicle may need to be driven 16 km
(10 miles) or more to relearn the idle and fuel
trim strategy.
• If you do not allow the engine to relearn its
idle trim, the idle quality of your vehicle may
be adversely affected until the idle trim is
eventually relearned.
When the battery is disconnected or a new battery
installed, the transmission must relearn its adaptive
strategy. As a result of this, the transmission may
shift firmly. This operation is considered normal and
will not affect function or durability of the
transmission. Over time the adaptive learning
process will fully update transmission operation to
its optimum shift feel.
If the battery has been disconnected or a new
battery has been installed, the clock and the preset
radio stations must be reset once the battery is
reconnected.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
173
• Always dispose of
automotive batteries
in a responsible
manner. Follow your
local authorized
standards for
disposal. Call your
local authorized
recycling center to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should
be checked at the mileage intervals in the scheduled
maintenance guide. The coolant concentration
should be maintained at 50/50 coolant and water,
which equates to a freeze point of -36° C (-34° F).
Coolant concentration testing is possible with a
hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060).
The level of coolant should be maintained at the
“cold full” of “cold fill range” level in the coolant
reservoir. If the level falls below, add coolant per the
instructions in the Adding Engine Coolant section.
Your vehicle was factory-filled with a 50/50 engine
coolant and water concentration. If the
concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not
work properly. A50–50 mixture of coolant and
water provides the following:
• freeze protection down to -36° C (-34° F)
• boiling protection up to 129° C (265° F)
• protection against rust and other forms of
corrosion
• enables calibrated gages to function properly
LEAD
RETURN
RECYCLE
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
174
• OHV V6 engine
• 4.6L SOHC V8 / 4.6L
4v V8 (Mach 1)
engines
When the engine is cold, check the level of the
engine coolant in the reservoir.
• The engine coolant should be at the “cold fill
level” as listed on the engine coolant reservoir.
• Refer to the scheduled maintenance guide for
service interval schedules.
• Be sure to read and understand Precautions
when servicing your vehicle in this chapter.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
175
If the engine coolant has not been checked at the
recommended interval, the engine coolant reservoir
may become low or empty. If the reservoir is low or
empty, add engine coolant to the reservoir. Refer to
Adding engine coolant in this chapter.
Note: Automotive fluids are not interchangeable; do
not use engine coolant, antifreeze or windshield
washer fluid outside of its specified function and
vehicle location.
Adding engine coolant
When adding coolant, make sure it is a 50/50
mixture of engine coolant and distilled water. Add
the mixture to the coolant reservoir, when the
engine is cool, until the appropriate fill level is
obtained.
Do not add engine coolant when the engine
is hot. Steam and scalding liquids released
from a hot cooling system can burn you badly.
Also, you can be burned if you spill coolant on hot
engine parts.
Do not put engine coolant in the windshield
washer fluid container. If sprayed on the
windshield, engine coolant could make it difficult
to see through the windshield.
•
Add Motorcraft Premium Gold Engine Coolant
(yellow-colored), VC-7–A (VC-7–B in Oregon),
meeting Ford Specification WSS-M97B51–A1
Note: Use of Motorcraft Cooling System Stop Leak
Pellets, VC-6, may darken the color of Motorcraft
Premium Gold Engine Coolant from yellow to golden
tan.
•
Do not add/mix an orange-colored, extended
life coolant such as Motorcraft Speciality
Orange Engine Coolant, VC-2 (US) or CXC-209
(Canada), meeting Ford specification
WSS-M97B44–D with the factory-filled coolant.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
176
Mixing Motorcraft Speciality Orange Engine Coolant
or any orange-colored extended life product with
your factory filled coolant can result in degraded
corrosion protection.
• A large amount of water without engine coolant
may be added, in case of emergency, to reach a
vehicle service location. In this instance, the
cooling system must be drained and refilled with a
50/50 mixture of engine coolant and distilled
water as soon as possible. Water alone (without
engine coolant) can cause engine damage from
corrosion, overheating or freezing.
• Do not use alcohol, methanol or brine or any
engine coolants mixed with alcohol or
methanol antifreeze (coolant). Alcohol and
other liquids can cause engine damage from
overheating or freezing.
• Do not add extra inhibitors or additives to
the coolant. These can be harmful and
compromise the corrosion protection of the
engine coolant.
To reduce the risk of personal injury, make
sure the engine is cool before unscrewing
the coolant pressure relief cap. The cooling system
is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or
radiator cap (depending upon engine application),
follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off
and let it cool.
2. When the engine is cool, wrap a thick cloth
around the cap. Slowly turn cap counterclockwise
until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been
released, use the cloth to turn it counterclockwise
and remove the cap.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
177
Engine coolant refill procedure- OHV V6 engine
Note: Use the following procedure when refilling the
cooling system of a vehicle equipped with a 3.8L V6
engine. Failure to follow this procedure may result
in damage to the engine and engine cooling system.
The following procedure should be used when
refilling the cooling system of a 3.8L V6 engine after
it has been drained or become extremely low.
1. Remove the cap
from the engine
coolant reservoir.
2. Open the cooling
system vent plug.
3. Remove the radiator
cap as previously
outlined.
4. Add a 50/50 mixture of engine coolant and
distilled water to the radiator until full.
5. Add a 50/50 mixture of engine coolant and
distilled water to the engine coolant reservoir until
the coolant level is at the “cold fill level” as listed on
the reservoir.
6. Close the cooling system vent plug.
7. Reinstall the engine coolant reservoir cap.
8. Reinstall the radiator cap.
9. Start the engine and run it at 2000–2500 rpm
until the upper radiator hose is warm (this indicates
the thermostat is open and coolant is flowing
through the entire system).
10. Shut the engine off and allow it to cool.
11. Wrap a thick cloth around the radiator cap and
cautiously remove the radiator cap.
12. Add a 50/50 mixture of engine coolant and
distilled water to the radiator until full.
13. Reinstall the radiator cap.
14. Check the coolant level in the reservoir before
you drive your vehicle the next few times (with the
engine cool).
2
3
1
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
178
15. If necessary, add a 50/50 mixture of engine
coolant and distilled water to the engine coolant
reservoir until the coolant level is at the “cold fill
level” as listed on the reservoir.
If you are unsure of how to operate the cooling
system vent plug when adding engine coolant to the
3.8L V6 engine, contact your dealer.
Engine coolant refill procedure-4.6L V8 engine
The following procedure should be used when
refilling the cooling system of a 4.6L V8 engine after
it has been drained or become extremely low.
1. Remove the pressure relief cap from the engine
coolant reservoir as previously outlined.
2. Slowly add a 50/50 mixture of engine coolant
and distilled water to the engine coolant reservoir
until the coolant level is at the “cold fill level” as
listed on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator
hose is warm (this indicates the thermostat is open
and coolant is flowing through the entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the engine
coolant reservoir as previously outlined.
7. Add a 50/50 mixture of engine coolant and
distilled water to the engine coolant reservoir until
the coolant level is at the “cold fill level” as listed on
the reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before
you drive your vehicle the next few times (with the
engine cool).
10. If necessary, add a 50/50 mixture of engine
coolant and distilled water to the engine coolant
reservoir until the coolant level is at the “cold fill
level” as listed on the reservoir.
After any coolant has been added, check the coolant
concentration see Checking Engine Coolant section).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
179
If the concentration is not 50/50 (protection to
–34° F/–36° C), drain some coolant and adjust the
concentration. It may take several drains and
additions to obtain a 50/50 coolant concentration.
Whenever coolant has been added, the coolant level
in the coolant reservoir should be checked the next
few times you drive the vehicle. If necessary, add
enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper
level.
If you have to add more than 1.0 liter (1.0 quart) of
engine coolant per month, have your dealer check
the engine cooling system. Your cooling system may
have a leak. Operating an engine with a low level of
coolant can result in engine overheating and possible
engine damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use
of recycled engine coolant in vehicles originally
equipped with Motorcraft Premium Gold Engine
Coolant since a Ford-approved recycling process is
not yet available.
Used engine coolant should be disposed of in
an appropriate manner. Follow your community’s
regulations and standards for recycling and disposing
of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling
system can hold, refer to Refill capacities in this
chapter.
Fill your engine coolant reservoir as outlined in
Adding engine coolant in this chapter.
Severe climates
If you drive in extremely cold climates (less than
–36° C[–34° F]):
• It may be necessary to increase the coolant
concentration above 50%.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
180
• NEVER increase the coolant concentration
above 60%.
• Increased engine coolant concentrations
above 60% will decrease the overheat
protection characteristics of the engine
coolant and may cause engine damage.
• Refer to the chart on the coolant container
to ensure the coolant concentration in your
vehicle will provide adequate freeze
protection at the temperatures in which you
drive in the winter months.
If you drive in extremely hot climates:
• It is still necessary to maintain the coolant
concentration above 40%.
• NEVER decrease the coolant concentration
below 40%.
• Decreased engine coolant concentrations
below 40% will decrease the corrosion
protection characteristics of the engine
coolant and may cause engine damage.
• Decreased engine coolant concentrations
below 40% will decrease the freeze
protection characteristics of the engine
coolant and may cause engine damage.
• Refer to the chart on the coolant container
to ensure the coolant concentration in your
vehicle will provide adequate protection at
the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates
should use a 50/50 mixture of engine coolant and
distilled water for optimum cooling system and
engine protection.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
181
WHAT YOU SHOULD KNOW ABOUT
AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in
an overfilled tank may cause leakage and
lead to fuel spray and fire.
The fuel system may be under pressure. If
the fuel filler cap is venting vapor or if you
hear a hissing sound, wait until it stops before
completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
If you do not use the proper fuel filler cap,
excessive pressure or vacuum in the fuel
tank may damage the fuel system or cause the fuel
cap to disengage in a collision, which may result in
possible personal injury.
Automotive fuels can cause serious injury or
death if misused or mishandled.
Gasoline may contain benzene, which is a
cancer-causing agent.
Observe the following guidelines when handling
automotive fuel:
• Extinguish all
smoking materials
and any open flames
before fueling your
vehicle.
• Always turn off the vehicle before fueling.
• Automotive fuels can be harmful or fatal if
swallowed. Fuel such as gasoline is highly toxic
and if swallowed can cause death or permanent
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
182
injury. If fuel is swallowed, call a physician
immediately, even if no symptoms are immediately
apparent. The toxic effects of fuel may not be
visible for hours.
• Avoid inhaling fuel vapors. Inhaling too much fuel
vapor of any kind can lead to eye and respiratory
tract irritation. In severe cases, excessive or
prolonged breathing of fuel vapor can cause
serious illness and permanent injury.
• Avoid getting fuel liquid in your eyes. If fuel is
splashed in the eyes, remove contact lenses (if
worn), flush with water for 15 minutes and seek
medical attention. Failure to seek proper medical
attention could lead to permanent injury.
• Fuels can also be harmful if absorbed through the
skin. If fuel is splashed on the skin and/or
clothing, promptly remove contaminated clothing
and wash skin thoroughly with soap and water.
Repeated or prolonged skin contact with fuel
liquid or vapor causes skin irritation.
• Be particularly careful if you are taking
“Antabuse” or other forms of disulfiram for the
treatment of alcoholism. Breathing gasoline
vapors, or skin contact could cause an adverse
reaction. In sensitive individuals, serious personal
injury or sickness may result. If fuel is splashed
on the skin, promptly wash skin thoroughly with
soap and water. Consult a physician immediately
if you experience an adverse reaction.
When refueling always shut the engine off
and never allow sparks or open flames near
the filler neck. Never smoke while refueling. Fuel
vapor is extremely hazardous under certain
conditions. Care should be taken to avoid inhaling
excess fumes.
The flow of fuel through a fuel pump nozzle
can produce static electricity, which can
cause a fire if fuel is pumped into an ungrounded
fuel container.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
183
Use the following guidelines to avoid static build-up
when filling an ungrounded fuel container:
• Place approved fuel container on the ground.
• DO NOT fill a fuel container while it is in the
vehicle (including the cargo area).
• Keep the fuel pump nozzle in contact with the
fuel container while filling.
• DO NOT use a device that would hold the fuel
pump handle in the fill position.
Fuel Filler Cap
Your fuel tank filler cap has an indexed design with
a 1/8 turn on/off feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise 1/8
of a turn until it stops.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with
the notches on the filler pipe.
5. Turn the filler cap clockwise 1/8 of a turn until it
stops.
“Check Fuel Cap” illuminates when the ignition is
turned to the ON position to ensure your bulb is
working. When this light turns on, check the fuel
filler cap. Continuing to operate the vehicle with the
Check Fuel Cap light on, can activate the Service
Engine Soon warning. When the fuel filler cap is
properly re-installed, the light(s) will turn off after a
period of normal driving. It may take a long
period of time for the system to detect an
improperly installed fuel filler cap.
If you must replace the fuel filler cap, replace
it with a fuel filler cap that is designed for
your vehicle. The customer warranty may be
void for any damage to the fuel tank or fuel
system if the correct genuine Ford or
Motorcraft fuel filler cap is not used.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
184
The fuel system may be under pressure. If
the fuel filler cap is venting vapor or if you
hear a hissing sound, wait until it stops before
completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
If you do not use the proper fuel filler cap,
excessive pressure or vacuum in the fuel
tank may damage the fuel system or cause the fuel
cap to disengage in a collision, which may result in
possible personal injury.
Choosing the right fuel
Use only UNLEADED FUEL. The use of leaded fuel
is prohibited by law and could damage your vehicle.
Do not use fuel containing methanol. It can damage
critical fuel system components.
Your vehicle was not designed to use fuel or fuel
additives with metallic compounds, including
manganese-based additives.
Repairs to correct the effects of using a fuel for
which your vehicle was not designed may not be
covered by your warranty.
Octane recommendations
Your vehicle is
designed to use
“Regular” unleaded
gasoline with pump
(R+M)/2 octane rating of 87. We do not recommend
the use of gasolines labeled as “Regular” that are
sold with octane ratings of 86 or lower in high
altitude areas.
Do not be concerned if your engine sometimes
knocks lightly. However, if it knocks heavily under
most driving conditions while you are using fuel with
the recommended octane rating, see your dealer or
a qualified service technician to prevent any engine
damage.
87
(R+M)/2 METHOD
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
185
Mach 1
Your vehicle is
designed to use
“Premium” unleaded
gasoline with an
(R+M)/2 octane rating of 91 or higher for optimum
performance. The use of gasolines with lower octane
ratings may degrade performance. We do not
recommend the use of gasolines labeled as
“Premium” in high altitude areas that are sold with
octane ratings of less than 91.
If your engine knocks under most driving conditions
while you are using fuel with the recommended
octane rating, see your dealer or a qualified service
technician to prevent any engine damage.
Fuel quality
If you are experiencing starting, rough idle or
hesitation driveability problems during a cold start,
try a different brand of unleaded gasoline.
“Premium” unleaded gasoline is not recommended
for vehicles designed to use “Regular” unleaded
gasoline because it may cause these problems to
become more pronounced. If the problems persist,
see your dealer or a qualified service technician.
It should not be necessary to add any aftermarket
products to your fuel tank if you continue to use
high quality fuel of the recommended octane rating.
Aftermarket products could cause damage to the
fuel system. Repairs to correct the effects of using
an aftermarket product in your fuel may not be
covered by your warranty.
Many of the world’s automakers approved the
World-wide Fuel Charter that recommends gasoline
specifications to provide improved performance and
emission control system protection for your vehicle.
Gasolines that meet the World-wide Fuel Charter
should be used when available. Ask your fuel
supplier about gasolines that meet the World-wide
Fuel Charter.
91
(R+M)/2 METHOD
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
186
Cleaner air
Ford endorses the use of reformulated
“cleaner-burning” gasolines to improve air quality.
Running out of fuel
Avoid running out of fuel because this situation may
have an adverse affect on powertrain components.
If you have run out of fuel:
• You may need to cycle the ignition from OFF to
ON several times after refueling, to allow the fuel
system to pump the fuel from the tank to the
engine.
• Your “Service Engine Soon” indicator may come
on. For more information on the “Service Engine
Soon” indicator, refer to the Instrument cluster
chapter.
Fuel Filter
For fuel filter replacement, see your dealer or a
qualified service technician. Refer to the scheduled
maintenance guide for the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized
Motorcraft part. The customer warranty may
be void for any damage to the fuel system if an
authorized Motorcraft fuel filter is not used.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel
economy is you, the driver. You must gather
information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel
gauge readings are NOT accurate as a measure of
fuel economy. We do not recommend taking fuel
economy measurements during the first 1,600 km
(1,000 miles) of driving (engine break-in period).
You will get a more accurate measurement after
3,000 km–5,000 km (2,000 miles-3,000 miles).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
187
Filling the tank
The advertised fuel capacity of the fuel tank on your
vehicle is equal to the rated refill capacity of the fuel
tank as listed in the Refill capacities section of this
chapter.
The advertised capacity is the amount of the
indicated capacity and the empty reserve combined.
Indicated capacity is the difference in the amount of
fuel in a full tank and a tank when the fuel gauge
indicates empty. Empty reserve is the small amount
of fuel remaining in the fuel tank after the fuel
gauge indicates empty.
The amount of usable fuel in the empty reserve
varies and should not be relied upon to
increase driving range. When refueling your
vehicle after the fuel gauge indicates empty,
you might not be able to refuel the full amount
of the advertised capacity of the fuel tank due
to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
• Turn the engine/ignition switch to the off position
prior to refueling, an error in the reading will
result if the engine is left running.
• Use the same filling rate setting (low — medium
— high) each time the tank is filled.
• Allow no more than 2 automatic click-offs when
filling.
• Always use fuel with the recommended octane
rating.
• Use a known quality gasoline, preferably a
national brand.
• Use the same side of the same pump and have
the vehicle facing the same direction each time
you fill up.
• Have the vehicle loading and distribution the
same every time.
Your results will be most accurate if your filling
method is consistent.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
188
Calculating fuel economy
1. Fill the fuel tank completely and record the initial
odometer reading (in kilometers or miles).
2. Each time you fill the tank, record the amount of
fuel added (in liters or gallons).
3. After at least three to five tank fill-ups, fill the
fuel tank and record the current odometer reading.
4. Subtract your initial odometer reading from the
current odometer reading.
5. Follow one of the simple calculations in order to
determine fuel economy:
Calculation 1: Multiply liters used by 100, then
divide by total kilometers traveled.
Calculation 2: Divide total miles traveled by
total gallons used.
Keep a record for at least one month and record the
type of driving (city or highway). This will provide
an accurate estimate of the vehicle’s fuel economy
under current driving conditions. Additionally,
keeping records during summer and winter will show
how temperature impacts fuel economy. In general,
lower temperatures give lower fuel economy.
Driving style — good driving and fuel economy
habits
Give consideration to the lists that follow and you
may be able to change a number of variables and
improve your fuel economy.
Habits
• Smooth, moderate operation can yield up to 10%
savings in fuel.
• Steady speeds without stopping will usually give
the best fuel economy.
• Idling for long periods of time (greater than one
minute) may waste fuel.
• Anticipate stopping; slowing down may eliminate
the need to stop.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
189
• Sudden or hard accelerations may reduce fuel
economy.
• Slow down gradually.
• Driving at reasonable speeds (traveling at 88 km/h
[55 mph] uses 15% less fuel than traveling at
105 km/h [65 mph]).
• Revving the engine before turning it off may
reduce fuel economy.
• Using the air conditioner or defroster may reduce
fuel economy.
• You may want to turn off the speed control in
hilly terrain if unnecessary shifting between third
and fourth gear occurs. Unnecessary shifting of
this type could result in reduced fuel economy.
• Warming up a vehicle on cold mornings is not
required and may reduce fuel economy.
• Resting your foot on the brake pedal while driving
may reduce fuel economy.
• Combine errands and minimize stop-and-go
driving.
Maintenance
• Keep tires properly inflated and use only
recommended size.
• Operating a vehicle with the wheels out of
alignment will reduce fuel economy.
• Use recommended engine oil. Refer to Lubricant
specifications in this chapter.
• Perform all regularly scheduled maintenance
items. Follow the recommended maintenance
schedule and owner maintenance checks found in
your vehicle scheduled maintenance guide.
Conditions
• Heavily loading a vehicle or towing a trailer may
reduce fuel economy at any speed.
• Carrying unnecessary weight may reduce fuel
economy (approximately 0.4 km/L [1 mpg] is lost
for every 180 kg [400 lb] of weight carried).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
190
• Adding certain accessories to your vehicle (for
example bug deflectors, rollbars/light bars,
running boards, ski/luggage racks) may reduce
fuel economy.
• Using fuel blended with alcohol may lower fuel
economy.
• Fuel economy may decrease with lower
temperatures during the first 12–16 km
(8–10 miles) of driving.
• Driving on flat terrain offers improved fuel
economy as compared to driving on hilly terrain.
• Transmissions give their best fuel economy when
operated in the top cruise gear and with steady
pressure on the gas pedal.
• Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window
sticker. Contact your dealer if the window sticker is
not supplied with your vehicle. The EPA window
sticker should be your guide for the fuel economy
comparisons with other vehicles.
It is important to note the box in the lower left
corner of the window sticker. These numbers
represent the Range of L/100 km (MPG) expected
on the vehicle under optimum conditions. Your fuel
economy may vary depending upon the method of
operation and conditions.
EMISSION CONTROL SYSTEM
Your vehicle is equipped with various emission
control components and a catalytic converter which
will enable your vehicle to comply with applicable
exhaust emission standards. To make sure that the
catalytic converter and other emission control
components continue to work properly:
• Use only the specified fuel listed.
• Avoid running out of fuel.
• Do not turn off the ignition while your vehicle is
moving, especially at high speeds.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
191
• Have the items listed in your scheduled
maintenance guide performed according to the
specified schedule.
The scheduled maintenance items listed in the
scheduled maintenance guide are essential to the life
and performance of your vehicle and to its emissions
system.
If other than Ford, Motorcraft or Ford-authorized
parts are used for maintenance replacements or for
service of components affecting emission control,
such non-Ford parts should be equivalent to genuine
Ford Motor Company parts in performance and
durability.
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine compartment
and exhaust system, which can start a fire.
Illumination of the “Service Engine Soon” light,
charging system warning light or the temperature
warning light, fluid leaks, strange odors, smoke or
loss of engine power, could indicate that the
emission control system is not working properly.
Exhaust leaks may result in entry of harmful
and potentially lethal fumes into the
passenger compartment.
Do not make any unauthorized changes to your
vehicle or engine. By law, vehicle owners and anyone
who manufactures, repairs, services, sells, leases,
trades vehicles, or supervises a fleet of vehicles are
not permitted to intentionally remove an emission
control device or prevent it from working.
Information about your vehicle’s emission system is
on the Vehicle Emission Control Information Decal
located on or near the engine. This decal identifies
engine displacement and gives some tune up
specifications.
Please consult your Warranty Guide for complete
emission warranty information.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
192
On board diagnostics (OBD-II)
Your vehicle is equipped with a computer that
monitors the engine’s emission control system. This
system is commonly known as the On Board
Diagnostics System (OBD-II). This OBD-II system
protects the environment by ensuring that your
vehicle continues to meet government emission
standards. The OBD-II system also assists the
service technician in properly servicing your vehicle.
When the Check Engine/Service Engine Soon light
illuminates, the OBD-II system has detected a
malfunction. Temporary malfunctions may cause
your Check Engine/Service Engine Soon light to
illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may
misfire or run poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been securely
tightened.
These temporary malfunctions can be corrected by
filling the fuel tank with good quality fuel and/or
properly tightening the fuel cap. After three driving
cycles without these or any other temporary
malfunctions present, the Check Engine/Service
Engine Soon light should turn off. (A driving cycle
consists of a cold engine startup followed by mixed
city/highway driving.) No additional vehicle service is
required.
If the Check Engine/Service Engine Soon light
remains on, have your vehicle serviced at the first
available opportunity.
Readiness for Inspection/Maintenance (I/M)
testing
In some localities, it may be a legal requirement to
pass an I/M test of the on-board diagnostics system.
If your “Check Engine/Service Engine Soon” light is
on, refer to the description in the Warning lights
and chimes section of the Instrument cluster
chapter. Your vehicle may not pass the I/M test with
the “Check Engine/Service Engine Soon” light on.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
193
If the vehicle’s powertrain system or its battery has
just been serviced, the on-board diagnostics system
is reset to a “not ready for I/M test” condition. To
ready the on-board diagnostics system for I/M
testing, a minimum of 30 minutes of city and
highway driving is necessary as described below:
• First, at least 10 minutes of driving on an
expressway or highway.
• Next, at least 20 minutes driving in stop-and-go,
city-type traffic with at least four idle periods.
Allow the vehicle to sit for at least eight hours
without starting the engine. Then, start the engine
and complete the above driving cycle. The engine
must warm up to its normal operating temperature.
Once started, do not turn off the engine until the
above driving cycle is complete.
CHECKING AND ADDING POWER STEERING
FLUID
Check the power steering fluid. Refer to the
scheduled maintenance guide for the service interval
schedules. If adding fluid is necessary, use only
MERCON威 ATF.
If your vehicle is
equipped with the
OHV V6 engine,
check the power
steering fluid level with
the engine at normal
operating temperature.
1. Start the engine and
let it run until it
reaches normal
operating temperature
(the engine coolant
temperature gauge
indicator will be near
the center of the
normal area between H
and C).
FILL
HOT
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
194
2. While the engine idles, turn the steering wheel
left and right several times.
3. Turn the engine off.
4. Check the fluid level on the dipstick. It should be
within the FULL HOT range. Do not add fluid if the
level is within this range.
5. If the fluid is low, add fluid in small amounts,
continuously checking the level until it reaches the
correct operating range. Be sure to put the cap back
on the reservoir.
If your vehicle is
equipped with a 4.6L
V8 engine, check the
power steering fluid
level with the engine at
ambient temperature.
Allow at least one-half
hour after driving for
the power steering
fluid to cool.
1. Start the engine and
allow the engine to
idle.
2. Turn the steering
wheel left and right
several times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be
between the MIN and MAX lines. Do not add fluid if
the level is within this range.
5. If the fluid is low, add fluid in small amounts,
continuously checking the level until it reaches the
correct operating range. Be sure to put the cap back
on the reservoir.
M
A
X
M
I
N
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
195
BRAKE FLUID RESERVOIR
The fluid level will drop
slowly as the brakes
wear, and will rise
when the brake
components are
replaced. Fluid levels below the “MAX” line that do
not trigger the brake system warning lamp are
within the normal operating range, there is no need
to add fluid. If the fluid levels are outside of the
normal operating range, the performance of your
brake system could be compromised, seek service
from your dealer immediately.
CLUTCH ADJUSTMENT (IF EQUIPPED)
Check the clutch
adjustment. Refer to
the scheduled
maintenance guide for
the service interval
schedules.
The clutch on your
vehicle is operated by a
cable. As necessary, adjust the clutch as described
below.
1. Turn the engine off and shift into 1 (First).
2. Put your foot under the clutch pedal and gently
pull it up until the pedal stops.
3. Push the clutch pedal down slowly. You will hear a
click as the clutch adjusts itself.
TRANSMISSION FLUID
Checking automatic transmission fluid
(if equipped)
Refer to your scheduled maintenance guide for
scheduled intervals for fluid checks and changes.
Your transmission does not consume fluid. However,
the fluid level should be checked if the transmission
is not working properly, i.e., if the transmission slips
or shifts slowly or if you notice some sign of fluid
leakage.
M
A
X
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
196
Automatic transmission fluid expands when warmed.
To obtain an accurate fluid check, drive the vehicle
until it is at normal operating temperature
(approximately 30 km [20 miles]). If your vehicle has
been operated for an extended period at high
speeds, in city traffic during hot weather or pulling a
trailer, the vehicle should be turned off for about 30
minutes to allow fluid to cool before checking.
1. Drive the vehicle 30 km (20 miles) or until it
reaches normal operating temperature.
2. Park the vehicle on a level surface and engage the
parking brake.
3. With the parking brake engaged and your foot on
the brake pedal, start the engine and move the
gearshift lever through all of the gear ranges. Allow
sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the
engine running.
5. Remove the dipstick, wiping it clean with a clean,
dry lint free rag. If necessary, refer to Identifying
components in the engine compartment in this
chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in
the filler tube.
7. Remove the dipstick and inspect the fluid level.
The fluid should be in the designated area for
normal operating temperature or ambient
temperature.
Low fluid level
Do not drive the
vehicle if the fluid level
is at the bottom of the
dipstick and the ambient temperature is above 10°C
(50°F).
Correct fluid level
The transmission fluid should be checked at normal
operating temperature 66°C-77°C (150°F-170°F) on
a level surface. The normal operating temperature
can be reached after approximately 30 km (20 miles)
of
driving.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
197
You can check the fluid without driving if the
ambient temperature is above 10°C (50°F). However,
if fluid is added at this time, an overfill condition
could result when the vehicle reaches normal
operating temperature.
The transmission fluid
should be in this range
if at normal operating
temperature (66°C-77°C [150°F-170°F]).
The transmission fluid
should be in this range
if at ambient
temperature (10°C-35°C [50°F-95°F]).
High fluid level
Fluid levels above the
safe range may result
in transmission failure.
An overfill condition of transmission fluid may cause
shift and/or engagement concerns and/or possible
damage.
High fluid levels can be caused by an overheating
condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type
is used. The type of fluid used is normally indicated
on the dipstick and also in the Lubricant
specifications section in this chapter.
Use of a non-approved automatic transmission
fluid may cause internal transmission
component damage.
If necessary, add fluid in 250 ml (1/2 pint)
increments through the filler tube until the level is
correct.
If an overfill occurs,
excess fluid should be
removed by a qualified
technician.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
198
An overfill condition of transmission fluid may
cause shift and/or engagement concerns and/or
possible damage.
Do not use supplemental transmission fluid
additives, treatments or cleaning agents. The use of
these materials may affect transmission operation
and result in damage to internal transmission
components.
Checking and adding manual transmission fluid
(if equipped)
1. Clean the filler plug.
2. Remove the filler
plug and inspect the
fluid level.
3. Note: There are two different manual
transmissions used in this vehicle and they have
different fluid levels. For vehicles equipped with a
V6 engine and Cobra the correct manual
transmission fill level is at the lower edge of the
filler hole. For vehicles equipped with a V8 engine
(except Cobra) the correct manual transmission fill
level is 1.3 cm (1/2 inch) below the edge of the filler
hole.
• Fill level for V6 and
Cobra
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
199
• Fill level for V8
(except Cobra)
4. Add enough fluid through the filler opening to
bring the fluid up to the recommended levels.
5. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer
to Lubricant Specifications in this chapter.
INFORMATION ABOUT UNIFORM TIRE QUALITY
GRADING
New vehicles are fitted
with tires that have a
rating on them called
Tire Quality Grades.
The Quality grades can
be found where
applicable on the tire sidewall between tread
shoulder and maximum section width. For example:
• Treadwear 200 Traction AA Temperature A
These Tire Quality Grades are determined by
standards that the United States Department of
Transportation has set.
Tire Quality Grades apply to new pneumatic tires for
use on passenger cars. They do not apply to deep
tread, winter-type snow tires, space-saver or
temporary use spare tires, tires with nominal rim
diameters of 10 to 12 inches or limited production
tires as defined in Title 49 Code of Federal
Regulations Part 575.104(c)(2).
U.S. Department of Transportation-Tire quality
grades: The U.S. Department of Transportation
requires Ford to give you the following information
about tire grades exactly as the government has
written it.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
200
Treadwear
The treadwear grade is a comparative rating based
on the wear rate of the tire when tested under
controlled conditions on a specified government test
course. For example, a tire graded 150 would wear
one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may depart
significantly from the norm due to variations in
driving habits, service practices, and differences in
road characteristics and climate.
Traction AA A B C
The traction grades, from highest to lowest are AA,
A, B, and C. The grades represent the tire’s ability to
stop on wet pavement as measured under controlled
conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have
poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cornering,
hydroplaning or peak traction characteristics.
Temperature A B C
The temperature grades are A (the highest), B and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive
temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal
Motor Vehicle Safety Standard No. 109. Grades B
and A represent higher levels of performance on the
laboratory test wheel than the minimum required by
law.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
201
The temperature grade for this tire is
established for a tire that is properly inflated
and not overloaded. Excessive speed,
underinflation, or excessive loading, either
separately or in combination, can cause heat
buildup and possible tire failure.
TIRES
Tires are designed to give many thousands of miles
of service, but they must be maintained in order to
get the maximum benefit from them.
Glossary of tire terminology
• Tire label: A label showing the OE (Original
Equipment) tire sizes, recommended inflation
pressure and the maximum weight the vehicle can
carry.
• Tire Identification Number (TIN): A number
on the sidewall of each tire providing information
about the tire brand and manufacturing plant, tire
size and date of manufacturer.
• Inflation pressure: A measure of the amount of
air in a tire.
• Standard load: A class of P-metric or Metric
tires designed to carry a maximum load at 35 psi
[37 psi (2.5 bar) for Metric tires]. Increasing the
inflation pressure beyond this pressure will not
increase the tires load carrying capability.
• Extra load: A class of P-metric or Metric tires
designed to carry a heavier maximum load at 41
psi [43 psi (2.9 bar) for Metric tires]. Increasing
the inflation pressure beyond this pressure will
not increase the tires load carrying capability.
• kPa: Kilopascal, a metric unit of air pressure.
• PSI: Pounds per square inch, a standard unit of
air pressure.
• B-pillar: The structural member at the side of
the vehicle behind the front door.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
202
• Bead area of the tire: Area of the tire next to
the rim.
• Sidewall of the tire: Area between the bead
area and the tread.
• Tread area of the tire: Area of the perimeter of
the tire that contacts the road when mounted on
the vehicle.
• Rim: The metal support (wheel) for a tire or a
tire and tube assembly upon which the tire beads
are seated.
INFORMATION CONTAINED ON THE TIRE
SIDEWALL
Federal law requires tire manufacturers to place
standardized information on the sidewall of all tires.
This information identifies and describes the
fundamental characteristics of the tire and also
provides a tire identification number for safety
standard certification and in case of a recall.
Information on “P” type tires
P215/65R15 95H is an
example of a tire size,
load index and speed
rating. The definitions
of these items are
listed below. (Note that
the tire size, load index
and speed rating for
your vehicle may be
different than this
example.)
1. P: Indicates a tire, designated by the Tire and Rim
Association (T&RA), that maybe used for service on
cars, SUVs, minivans and light trucks.
Note: If your tire size does not begin with a letter
this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or
JATMA (Japan Tire Manufacturing Association).
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
203
2. 215: Indicates the nominal width of the tire in
millimeters from sidewall edge to sidewall edge. In
general, the larger the number, the wider the tire.
3. 65: Indicates the aspect ratio which gives the
tire’s ratio of height to width.
4. R: Indicates a “radial” type tire.
5. 15: Indicates the wheel or rim diameter in inches.
If you change your wheel size, you will have to
purchase new tires to match the new wheel
diameter.
6. 95: Indicates the tire’s load index. It is an index
that relates to how much weight a tire can carry.
You may find this information in your owner’s guide.
If not, contact a local tire dealer.
Note: You may not find this information on all tires
because it is not required by federal law.
7. H: Indicates the tire’s speed rating. The speed
rating denotes the speed at which a tire is designed
to be driven for extended periods of time under a
standard condition of load and inflation pressure.
The tires on your vehicle may operate at different
conditions for load and inflation pressure. These
speed ratings may need to be adjusted for the
difference in conditions. The ratings range from
159 km/h (99 mph) to 299 km/h (186 mph). These
ratings are listed in the following chart.
Note: You may not find this information on all tires
because it is not required by federal law.
Letter rating Speed rating - km/h (mph)
Q 159 km/h (99 mph)
R 171 km/h (106 mph)
S 180 km/h (112 mph)
T 190 km/h (118 mph)
U 200 km/h (124 mph)
H 210 km/h (130 mph)
V 240 km/h (149 mph)
W 270 km/h (168 mph)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
204
Letter rating Speed rating - km/h (mph)
Y 299 km/h (186 mph)
Note: For tires with a maximum speed capability over
240 km/h (149 mph), tire manufacturers sometimes use the
letters ZR. For those with a maximum speed capability over
299 km/h (186 mph), tire manufacturers always use the
letters ZR.
8. U.S. DOT Tire Identification Number (TIN):
This begins with the letters “DOT” and indicates that
the tire meets all federal standards. The next two
numbers or letters are the plant code where it was
manufactured, the next two are the tire size code
and the last four numbers represent the week and
year the tire was built. For example, the numbers
317 mean the 31st week of 1997. After 2000 the
numbers go to four digits. For example, 2501 means
the 25th week of 2001. The numbers in between are
marketing codes used at the manufacturer’s
discretion. This information is used to contact
customers if a tire defect requires a recall.
9. M+S or M/S: Mud and Snow. or
AT: All Terrain. or
AS: All Season.
10. Tire Ply Composition and Material Used:
Indicates the number of plies or the number of
layers of rubber-coated fabric in the tire tread and
sidewall. Tire manufacturers also must indicate the
ply materials in the tire and the sidewall, which
include steel, nylon, polyester, and others.
11. Maximum Load: Indicates the maximum load in
kilograms and pounds that can be carried by the
tire. Refer to the tire label or the safety certification
label, located on the B-Pillar or the driver’s door, for
the correct tire pressure for your vehicle
12. Treadwear, Traction and Temperature
Grades
• Treadwear: The treadwear grade is a
comparative rating based on the wear rate of the
tire when tested under controlled conditions on a
specified government test course. For example, a
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
205
tire graded 150 would wear one and one-half
(1
1
⁄
2
) times as well on the government course as a
tire graded 100.
• Traction: The traction grades, from highest to
lowest are AA, A, B, and C. The grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified
government test surfaces of asphalt and concrete.
A tire marked C may have poor traction
performance.
• Temperature: The temperature grades are A
(the highest), B and C, representing the tire’s
resistance to the generation of heat and its ability
to dissipate heat when tested under controlled
conditions on a specified indoor laboratory test
wheel.
13. Maximum Permissible Inflation Pressure:
Tire manufactures maximum permissible pressure
and/or the pressure at which the maximum load can
be carried by the tire. This pressure is normally
higher than the manufacturer’s recommended cold
inflation pressure which can be found on either the
tire label or certification label which is located on
the structure by the trailing edge of the driver’s door
or the edge of the driver’s door. The cold inflation
pressure should never be set lower than the
recommended pressure on the label.
Note: You may not find this information on all tires
because it is not required by federal law.
The tire suppliers may have additional markings,
notes or warnings such as standard load, radial
tubeless, etc.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
206
Additional information contained on the tire
sidewall for “LT” type tires
“LT” type tires have
some additional
information than those
of “P” type tires; these
differences are
described below:
1. LT: Indicates a tire,
designated by the Tire
and Rim Association
(T&RA), that is
intended for service on
light trucks.
2. Load Range/Load Inflation Limits: Indicates
the tires load-carrying capabilities and its inflation
limits.
3. Maximum Load Dual kg (lbs.) at kPa (psi)
cold: Indicates the maximum load and tire pressure
when the tire is used as a dual; a dual is defined as
when four tires are put on the rear axle (a total of
six or more tires on the vehicle).
4. Maximum Load Single kg (lbs.) at kPa (psi)
cold: Indicates the maximum load and tire pressure
when the tire is used as a single; a single is defined
as when two tires (total) are put on the rear axle.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
207
Information on “T” type tires
T145/80D16 is an
example of a tire size.
Note: The temporary
tire size for your
vehicle may be
different than this
example.
1. T: Indicates a type
of tire, designated by
the Tire and Rim
Association (T&RA),
that is intended for
temporary service on
cars, SUVs, minivans and light trucks.
2. 145: Indicates the nominal width of the tire in
millimeters from sidewall edge to sidewall edge. In
general, the larger the number, the wider the tire.
3. 80: Indicates the aspect ratio which gives the
tires ratio of height to width. Numbers of 70 or
lower indicate a short sidewall.
4. D: Indicates a “diagonal” type tire.
R: Indicates a “radial” type tire.
5. 16: Indicates the wheel or rim diameter in inches.
If you change your wheel size, you will have to
purchase new tires to match the new wheel
diameter.
Location of the tire label
You will find a tire label containing tire inflation
pressure by tire size and other important
information located on the B-Pillar or the driver’s
door.
TIRE CARE
Improper or inadequate vehicle maintenance can
also cause tires to wear abnormally. Here are some
of the important maintenance items
S
P
A
R
E
T
I
R
E
T
E
M
P
O
R
A
R
Y
U
S
E
O
N
L
Y
I
N
F
L
A
T
E
T
O
6
0
P
.
S
.
I
.
T
T
1
4
5
/
8
0
D
1
6
1
0
5
M
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
208
Tire inflation pressure
Use a tire gauge to check the tire inflation pressure,
including the spare, at least monthly and before long
trips. You are strongly urged to buy a reliable tire
pressure gauge, as automatic service station gauges
may be inaccurate.
Use the recommended cold inflation pressure for
optimum tire performance and wear. Under-inflation
or over-inflation may cause uneven treadwear
patterns.
Under-inflation is the most common cause of
tire failures and may result in severe tire
cracking, tread separation or ⬙blowout⬙, with
unexpected loss of vehicle control and increased
risk of injury. Under-inflation increases sidewall
flexing and rolling resistance, resulting in heat
buildup and internal damage to the tire. It also
may result in unnecessary tire stress, irregular
wear, loss of vehicle control and accidents. A tire
can lose up to half of its air pressure and not
appear to be flat!
When weather temperature changes occur, tire
inflation pressures also change. A 10 degree
temperature change causes a corresponding drop of
7 kPa (1 psi) in inflation pressure. Check your tire
pressures frequently and adjust them to the proper
pressure which can be found on the tire label or
certification label.
If checking tire pressure when the tire is hot, (i.e.
driven more than 1.6 km [1mile]), never “bleed” or
reduce air pressure. The tires are hot from driving
and it is normal for pressures to increase above
recommended cold pressures. A hot tire at or below
recommended cold inflation pressure could be
significantly under-inflated.
To check the pressure in your tire(s):
1. Make sure the tires are cool, meaning they are not
hot from driving even a mile.
Note: If you have to drive a distance to get air for
your tire(s), check and record the tire pressure first
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
209
and add the appropriate air pressure when you get
to the pump. It is normal for tires to heat up and
the air pressure inside to go up as you drive. Never
“bleed” or reduce air pressure when tires are hot.
2. Remove the cap from the valve on one tire, then
firmly press the tire gauge onto the valve.
3. Add air to reach the recommended air pressure
Note: If you overfill the tire, release air by pushing
on the metal stem in the center of the valve. Then
recheck the pressure with your tire gauge.
4. Replace the valve cap.
5. Repeat this procedure for each tire, including the
spare.
Note: Some spare tires require higher inflation
pressure than the other tires.
6. Visually inspect the tires to make sure there are
no nails or other objects embedded that could poke
a hole in the tire and cause an air leak.
7. Check the sidewalls to make sure there are no
gouges, cuts, bulges or other irregularities.
Tire and wheel alignment
A bad jolt from hitting a curb or pothole can cause
the front end of your vehicle to become misaligned
or damage to your tires. If your vehicle seems to pull
to one side, vibrate or shake when you’re driving,
the wheels may be out of alignment. Have a qualified
technician at a reputable repair facility check the
wheel alignment periodically.
Wheel misalignment in the front or the rear can
cause uneven and rapid treadwear of your tires and
should be corrected by a qualified technician at a
reputable repair facility. Front wheel drive (FWD)
vehicles, and those with independent front
suspension require alignment of all four wheels.
The tires should also be balanced periodically. An
unbalanced tire and wheel assembly may result in
irregular tire wear.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
210
Tire rotation
Rotating your tires at the recommended interval (as
indicated in the Service Maintenance Guide that
comes with your vehicle) will help your tires wear
more evenly providing better tire performance and
longer tire life. Unless otherwise specified, rotate the
tires approximately every 8,000 km (5,000 miles).
• Front Wheel Drive
(FWD) vehicles
(front tires at top of
diagram)
• Rear Wheel Drive
(RWD) vehicles/Four
Wheel Drive (4WD)
vehicles (front tires
at top of diagram)
Sometimes irregular tire wear can be corrected by
rotating the tires.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
211
Note: If your tires show uneven wear ask a qualified
technician at a reputable repair facility to check for
and correct any wheel misalignment, tire imbalance
or mechanical problem involved before tire rotation.
Tire wear
Measure and inspect the tire tread on all your tires
periodically. Advanced and unusual tire wear can
reduce the ability of tread to grip the road in
adverse (wet, snowy, etc.) conditions. Visually check
your tires for uneven wear, looking for high and low
areas or unusually smooth areas. Also check for
signs of tire damage.
When the tread is worn
down to 4 mm (1/16th
of an inch), tires must
be replaced to prevent
your vehicle from
skidding and
hydroplaning. Built-in treadwear indicators, or “wear
bars”, which look like narrow strips of smooth
rubber across the tread will appear on the tire when
the tread is worn down to 4mm (1/16th of an inch).
When you see these “wear bars”, the tire is worn out
and should be replaced.
Inspect your tires frequently for any of the following
conditions and replace them if one or more of the
following conditions exist:
• Fabric showing through the tire rubber
• Bulges in the tread or sidewalls
• Cracks or cuts on the sidewalls
• Cracks in the tread groove
• Impact damage resulting from use
• Separation in the tread
• Separation in the sidewall
• Severe abrasion on the sidewall
If your vehicle has a leak in the exhaust system, a
road tire or the spare tire may be exposed to hot
exhaust temperatures requiring the tire to be
replaced.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
212
Safety practices
Driving habits have a great deal to do with your tire
mileage and safety.
• Observe posted speed limits
• Avoid fast starts, stops and turns
• Avoid potholes and objects on the road
• Do not run over curbs or hit the tire against a
curb when parking
If you vehicle is stuck in snow, mud, sand, etc., do
not rapidly spin the tires; spinning the tires can tear
the tire and cause an explosion. A tire can explode
in as little as three to five seconds.
Tire explosions can cause death, personal
injury or property damage. Do not allow
anyone to stand near, or directly ahead or behind
the spinning tire.
Never spin the tires in excess of the 55 km/h
(35 mph) point indicated on the speedometer.
Highway hazards
No matter how carefully you drive there’s always the
possibility that you may eventually have a flat tire on
the highway. Drive slowly to the closest safe area
out of traffic. This may further damage the flat tire,
but your safety is more important.
If you feel a sudden vibration or ride disturbance
while driving or you suspect your tire or vehicle has
been damaged, immediately reduce your speed.
Drive with caution until you can safely pull off the
road. Stop and inspect the tire for damage. If the
tire is under-inflated or damaged, deflate it, remove
wheel and replace it with your spare tire and wheel.
If you cannot detect a cause, have the vehicle towed
to the nearest repair facility or tire dealer to have
the vehicle inspected.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
213
SNOW TIRES AND CHAINS
Driving too fast for conditions creates the
possibility of loss of vehicle control. Driving
at very high speeds for extended periods of time
may result in damage to vehicle components.
Snow tires must be the same size and grade
as the tires you currently have on your
vehicle.
The tires on your vehicle have all weather treads to
provide traction in rain and snow. However, in some
climates, you may need to use snow tires and
chains. Use chains on the tires only in an emergency
or if the law requires them.
Follow these guidelines when using snow tires and
chains:
• Chains may damage aluminum wheels.
• Use only Cable Type chains with size P225/55R16
or 245/45ZR17 tires. Use of SAE Class S chains
may damage your vehicle.
• Install chains securely, verifying that the chains do
not touch any wiring, brake lines or fuel lines.
• Drive cautiously. If you hear the chains rub or
bang against your vehicle, stop and re-tighten the
chains. If this does not work, remove the chains
to prevent damage to your vehicle.
• If possible, avoid fully loading your vehicle.
• Remove the tire chains when they are no longer
needed. Do not use tire chains on dry roads.
• The suspension insulation and bumpers will help
prevent vehicle damage. Do not remove these
components from your vehicle when using snow
tires and chains.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
214
MOTORCRAFT PART NUMBERS
Component
OHV V6
engine
4.6L SOHC
V8 engine
4.6L 4v V8
engine
(Mach 1)
Air filter
element
FA-1611 FA-1634 FA-1634
Fuel filter FG-986 FG-986 FG-986
Battery BXT-59 BXT-59 BXT-59
Oil filter FL-400S FL-820S FL-820S
PCV valve EV-152 EV-261 EV- 261
Spark plugs* AGSF-42FM** AGSF-32PM AGSF-32WM
* Refer to Vehicle Emissions Control Information
(VECI) decal for spark plug gap information.
**If a spark plug is removed for inspection, it must
be reinstalled in the same cylinder. If a spark plug
needs to be replaced, use only spark plugs with the
same service part number suffix letter as shown on
the engine decal.
REFILL CAPACITIES
Fluid Ford Part
Name
Application Capacity
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
All Fill to line on
reservoir
Engine oil
(includes
filter
change)
6
Motorcraft
SAE 5W-20
Premium
Synthetic
Blend Motor
Oil (US)
Motorcraft
SAE 5W-20
Super
Premium
Motor Oil
(Canada)
OHV V6
engine
4.7 L
(5.0 quarts)
4.6L SOHC
V8 engine
5.7L
(6.0 quarts)
4.6L 4v V8
(Mach 1)
5.7L
(6.0 quarts)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
215
Fluid Ford Part
Name
Application Capacity
Engine
coolant
1
Motorcraft
Premium
Gold Engine
Coolant
(yellow-
colored)
OHV V6
engine
11.2L
(11.8 quarts)
4.6L SOHC
V8 engine
13.3L
(14.1 quarts)
4.6L 4v V8
(Mach 1)
with
Automatic
Transmission
15.2L
(16.1 quarts)
4.6L 4v V8
(Mach 1)
with Manual
Transmission
15.2L
(16.1 quarts)
Power
steering fluid
Motorcraft
MERCON威
ATF
OHV V6
engine
Keep in
FULL HOT
range on
dipstick
4.6L SOHC
V8/4.6L 4v V8
(Mach 1)
engine
Fill to
between MIN
and MAX
lines on
reservoir
Rear axle
lubricant
2
Motorcraft
SAE 80W-90
Premium
Rear Axle
Lubricant
7 .5 inch axle 1.5L
(3.25 pints)
Motorcraft
SAE 75W-140
Synthetic
Rear Axle
Lubricant
8.8 inch axle 2.0L
(4.25 pints)
Fuel tank N/A All 59.4L
(15.7 gallons)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
216
Fluid Ford Part
Name
Application Capacity
Transmission
fluid
(4R70/75
E-W)
3
Motorcraft
MERCON威V
ATF
Automatic
with OHV V6
engine
13.1L
(13.9 quarts)
4
Automatic
with 4.6L
SOHC
V8/4.6L 4v V8
(Mach 1)
engine
12.0L
(12.8 quarts)
4
Motorcraft
MERCON威
ATF
Manual with
OHV V6
engine
2.6L
(5.6 pints)
5
Motorcraft
MERCON威
ATF
Manual with
4.6L SOHC
V8/4.6L 4v V8
(Mach 1)
engine
3.7L
(7.8 pints)
5
Windshield
washer fluid
Motorcraft
Premium
Windshield
Washer
Concentrate
All 3.8L
(4.0 quarts)
1
Add the coolant type originally equipped in your
vehicle.
2
Rear axle lubricants do not need to be checked or
changed unless a leak is suspected, service is
required or the axle assembly has been submerged
in water. The axle lubricant should be changed any
time the rear axle has been submerged in water. Fill
6 mm to 14 mm (1/4 inch to 9/16 inch) below
bottom of fill hole. Add 118 ml (4 oz.) of Additive
Friction Modifier XL-3 or equivalent meeting Ford
specification EST-M2C118–A for complete refill of
Traction-Lok axles.
3
Ensure the correct automatic transmission fluid is
used. Transmission fluid requirements are indicated
on the dipstick or on the dipstick handle. MERCON威
and MERCON威 V are not interchangeable. DO NOT
mix MERCON威 and MERCON威 V. Refer to your
scheduled maintenance guide to determine the
correct service interval.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
217
4
Indicates only approximate dry-fill capacity. Some
applications may vary based on cooler size and if
equipped with an in-tank cooler. The amount of
transmission fluid and fluid level should be set by
the indication on the dipstick’s normal operating
range.
5
Service refill capacity is determined by filling the
transmission to the bottom of the filler hole with the
vehicle on a level surface.
6
Use of synthetic or synthetic blend motor oil is not
mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C153–H
and the API Certification mark.
LUBRICANT SPECIFICATIONS
Item Ford part
name
Ford part
number
Ford
specification
Brake fluid Motorcraft
High
Performance
DOT 3 Motor
Vehicle Brake
Fluid
PM-1
ESA-M6C25-A
and DOT 3
Door
weatherstrips
Silicone
Lubricant
XL-6
ESR-M13P4-A
Door latch,
hood latch,
auxiliary
hood latch,
door hinges,
striker plates,
seat tracks
and fuel filler
door hinge
Multi-Purpose
Grease
XG-4 or XL-5
ESR-M1C159-A
or
ESB-M1C93-B
Engine
coolant
Motorcraft
Premium
Gold Engine
Coolant
(yellow-
colored)
VC-7–A
WSS-M97B51
–A1
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
218
Item Ford part
name
Ford part
number
Ford
specification
Engine oil Motorcraft
SAE 5W-20
Super
Premium
Motor Oil
(US)
Motorcraft
SAE 5W-20
Super
Premium
Motor Oil
(Canada)
XO-5W20-QSP
(US)
CXO-5W20
–LSP12
(Canada)
WSS-M2C153-H
with API
Certification
Mark
Lock
cylinders
Penetrating
and Lock
Lubricant
Motorcraft
XL-1
none
Power
steering fluid
and
convertible
top fluid (if
equipped)
Motorcraft
MERCON威
ATF
XT-2-QM
MERCON威
Rear Axle
Lubricant
Motorcraft
SAE 80W-90
Premium
Rear Axle
Lubricant
XY-80W90-QL
WSP-M2C197-A
Motorcraft
SAE 75W-140
Synthetic
Rear Axle
Lubricant
1
XY-75W140-QL
WSP-M2C192-A
Automatic
transmission
fluid
(4R70/75
E-W)
Motorcraft
MERCON威V
ATF
2
XT-5-QM
MERCON威V
OHV V6
engine -
Manual
transmission
fluid
Motorcraft
MERCON威
ATF
XT-2-QDX
MERCON威
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
219
Item Ford part
name
Ford part
number
Ford
specification
4.6L - Manual
transmission
fluid
Motorcraft
MERCON威
ATF
XT-2–QM
MERCON威
Disc brake
caliper rails
Motorcraft
Silicone
Brake Caliper
Grease and
Dielectric
Compound
XG-3
ESE-M1C171-A
Windshield
washer fluid
Motorcraft
Premium
Windshield
Washer
Concentrate
ZC-32–A
WSB-M8B16
–A2
1
Add 118 ml (4 oz.) of Additive Friction Modifier
XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok
axles.
Ford design rear axles contain a synthetic lubricant
that does not require changing unless the axle has
been submerged in water.
2
Ensure the correct automatic transmission fluid is
used. Transmission fluid requirements are indicated
on the dipstick or on the dipstick handle. MERCON威
and MERCON威 V are not interchangeable. DO NOT
mix MERCON威 and MERCON威 V. Refer to your
scheduled maintenance guide to determine the
correct service interval.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
220
ENGINE DATA
Engine OHV V6
engine
4.6L SOHC
V8 engine
4.6L 4v V8
engine
(Mach 1)
Cubic inches 232 281 281
Required fuel 87 octane 87 octane 91 Octane
Firing order 1-4-2-5-3-6
1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug
gap
1.3-1.4 mm
(0.052-00.056
inch)
1.3-1.4 mm
(0.052-00.056
inch)
1.3-1.4 mm
(0.052-00.056
inch)
Ignition
system
EDIS Coil on plug Coil on plug
Compression
ratio
9.4:1 9.4:1 10.1 :1
VEHICLE DIMENSIONS
Vehicle
dimensions
Coupe mm (in) Convertible mm
(in)
(1) Overall length 4653.3 (183.2) 4653.3 (183.2)
(2) Overall width 1856.7 (73.1) 1856.7 (73.1)
(3) Overall height 1348.7 (53.1) 1351.3 (53.2)
(4) Wheelbase 2571.2 (101.2) 2571.2 (101.2)
(5) Track - Front 1521.5 (59.9) 1521.5 (59.9)
(5) Track - Rear 1526.5 (60.1) 1526.5 (60.1)
2
5
3
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
221
IDENTIFYING YOUR VEHICLE
Vehicle identification number (VIN)
The vehicle
identification number is
attached to a metal tag
and is located on the
driver side instrument
panel. (Please note
that in the graphic
XXXX is representative
of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the
vehicle identification number) is stamped on the
engine block and transmission.
XXXXXXXXXXXXXXXXX
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
222
Transmission/Transaxle code designations
You can find a transmission/transaxle code on the
vehicle certification label which is located on the
door pillar. The following table tells you which
transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
223
Passenger car application:
Code Transmission/Transaxle
Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic
transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic
transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Maintenance and Specifications
224
FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are
available for your vehicle through your local
authorized Ford or Ford of Canada dealer. These
quality accessories have been specifically engineered
to fulfill your automotive needs; they are custom
designed to complement the style and aerodynamic
appearance of your vehicle. In addition, each
accessory is made from high quality materials and
meets or exceeds Ford’s rigorous engineering and
safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied
materials or workmanship during the warranty
period, as well as any component damaged by the
defective accessory. The accessory will be warranted
for whichever provides you the greatest benefit:
• 12 months or 20,000 km (12,000 miles)
(whichever occurs first), or
• the remainder of your new vehicle limited
warranty.
This means that genuine Ford accessories purchased
along with your new vehicle and installed by the
dealer are covered for the full length of your New
Vehicle’s Limited Warranty — 3 years or 60,000 km
(36,000 miles) (whichever occurs first). Contact
your dealer for details and a copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory
products. Not all accessories are available for all
models. To find out what accessories are available
for your vehicle, please contact your dealer or visit
our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
225
Grille inserts
Headlamps, fog lights and Daytime Running Lamps
(DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior
mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers
and luggage to your vehicle, do not exceed the
total weight capacity of the vehicle or of the front
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
226
or rear axle (GVWR or GAWR as indicated on the
Safety Compliance Certification label). Consult
your dealer for specific weight information.
• The Federal Communications Commission (FCC)
and Canadian Radio Telecommunications
Commission (CRTC) regulate the use of mobile
communications systems — such as two-way
radios, telephones and theft alarms - that are
equipped with radio transmitters. Any such
equipment installed in your vehicle should comply
with FCC or CRTC regulations and should be
installed only by a qualified service technician.
• Mobile communications systems may harm the
operation of your vehicle, particularly if they are
not properly designed for automotive use.
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Accessories
227
A
Air bag supplemental
restraint system .. 79–80
and child safety
seats ......................... 81
description .............. 80
disposal .................... 84
driver air bag .......... 82
indicator light ......... 83
operation ................. 82
passenger air bag ... 82
Air cleaner filter ..... 215
Antifreeze (see
Engine coolant) ...... 174
Anti-lock brake system
(see Brakes) .... 104–105
Audio system
(see Radio) .... 18, 20, 25
Automatic
transmission ............ 108
driving an automatic
overdrive ............... 111
fluid, adding .......... 196
fluid, checking ...... 196
fluid, refill
capacities ............... 215
fluid,
specification .......... 221
Auxiliary power
point ........................... 45
Axle
lubricant
specifications
. 218, 221
refill capacities ...... 215
traction lok ............ 108
B
Battery ..................... 171
acid, treating
emergencies .......... 171
jumping a disabled
battery ................... 136
maintenance-free .. 171
replacement,
specifications ........ 215
servicing ................ 171
BeltMinder ................. 74
Brakes .............. 104–105
anti-lock ......... 104–105
anti-lock brake
system (ABS)
warning light ......... 104
fluid, checking and
adding .................... 196
fluid, refill
capacities ............... 215
fluid,
specifications
. 218, 221
lubricant
specifications 218, 221
parking .................. 106
shift interlock ........ 108
Bulbs .......................... 38
C
Capacities for
refilling fluids .......... 215
Cargo net ................... 44
Cassette tape
player ................... 18, 25
CD-single premium ... 20
Cell phone use .......... 49
Child safety
restraints ................... 85
child safety belts .... 85
Child safety seats ...... 88
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
228
attaching with
tether straps ........... 93
in front seat ............ 90
in rear seat .............. 90
Cleaning your vehicle
engine
compartment ......... 155
instrument panel .. 157
interior ................... 158
plastic parts .......... 156
safety belts ............ 158
washing .................. 153
waxing ................... 153
wheels .................... 154
wiper blades .......... 157
Clock adjust
6-CD in dash ........... 30
MACH MP3 ............. 23
Clutch
adjusting ................ 196
operation while
driving ................... 114
recommended
shift speeds ........... 115
Console ...................... 49
Controls
power seat ............... 65
Convertible ................ 50
cleaning ................. 157
installation of the
boot .......................... 51
lowering the
convertible top ........ 50
raising the
convertible top ........ 52
Coolant
checking and
adding .................... 174
refill
capacities ....... 180, 215
specifications
. 218, 221
Cruise control (see
Speed control) .......... 46
Customer
Assistance ................ 122
Ford accessories
for your vehicle .... 159
Ford Extended
Service Plan .......... 144
Getting assistance
outside the U.S.
and Canada ........... 149
Getting roadside
assistance .............. 122
Getting the
service you need .. 142
Ordering additional
owner’s literature . 150
The Dispute
Settlement Board . 145
Utilizing the
Mediation/Arbitration
Program ................. 149
D
Daytime running lamps
(see Lamps) .............. 35
Dipstick
automatic
transmission fluid . 196
engine oil ............... 167
Doors
lubricant
specifications ........ 218
Driving under
special conditions ... 113
through water ....... 116
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
229
E
Emergencies, roadside
jump-starting ........ 136
Emergency Flashers 124
Emission control
system ...................... 191
Engine ...................... 221
cleaning ................. 155
coolant ................... 174
idle speed control . 171
lubrication
specifications
. 218, 221
refill capacities ...... 215
service
points ............. 164–166
Engine block
heater ....................... 103
Engine oil ................ 167
checking and
adding .................... 167
dipstick .................. 167
filter,
specifications
. 170, 215
recommendations . 170
refill capacities ...... 215
specifications
. 218, 221
Exhaust fumes ........ 103
F
Floor mats ................. 50
Fluid capacities ....... 215
Foglamps ................... 35
Fuel .......................... 182
calculating fuel
economy ................ 187
cap ......................... 184
capacity ................. 215
choosing the
right fuel ................ 185
comparisons with
EPA fuel economy
estimates ............... 191
detergent in fuel ... 187
filling your vehicle
with fuel
. 182, 184, 188
filter,
specifications
. 187, 215
improving fuel
economy ................ 187
octane
rating ..... 185–186, 221
quality .................... 186
running out of fuel 187
safety information
relating to automotive
fuels ....................... 182
Fuses ................ 125–126
G
Gas cap (see
Fuel cap) ................. 184
Gas mileage (see
Fuel economy) ........ 187
Gauges ....................... 14
H
Hazard flashers ....... 124
Head restraints ......... 64
Headlamps ................. 35
aiming ...................... 37
bulb specifications .. 39
daytime running
lights ........................ 35
flash to pass ............ 36
high beam ............... 36
replacing bulbs ....... 40
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
230
turning on and off .. 35
Heating
heating and air
conditioning system
.33
Hood ........................ 162
I
Ignition ............... 99, 221
Infant seats (see
Safety seats) ............. 88
Inspection/maintenance
(I/M) testing ............ 193
Instrument panel
cleaning ................. 157
cluster ...................... 10
lighting up panel
and interior ............. 36
J
Jump-starting your
vehicle ...................... 136
K
Keys
positions of the
ignition .................... 99
L
Lamps
bulb replacement
specifications
chart ........................ 39
daytime running
light .......................... 35
fog lamps ................. 35
headlamps ......... 35, 40
headlamps, flash
to pass ..................... 36
instrument panel,
dimming ................... 36
interior lamps ... 38–39
replacing
bulbs ............ 38, 40–42
Lane change indicator
(see Turn signal) ...... 38
Lights, warning and
indicator .................... 10
anti-lock brakes
(ABS) .................... 104
Limited slip axle
(see Traction Loc) .. 108
Load limits ............... 117
Locks
doors ........................ 54
Lubricant
specifications ... 218, 221
Lug nuts, anti-theft . 134
Lumbar support,
seats ........................... 65
M
Manual transmission
. 114
fluid capacities ...... 215
lubricant
specifications ........ 221
reverse ................... 115
Mirrors
side view mirrors
(power) ................... 46
Motorcraft
parts ................. 187, 215
O
Octane rating .. 185–186
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
231
Oil (see
Engine oil) ............... 167
Overdrive ................. 109
P
Parking brake .......... 106
Parts (see Motorcraft
parts) ....................... 215
Power distribution box
(see Fuses)
............. 128
Power door locks
...... 54
Power mirrors
........... 46
Power point
............... 45
Power steering
........ 106
fluid, checking and
adding
.................... 194
fluid, refill
capacity
................. 215
fluid,
specifications
. 218, 221
Power Windows
......... 45
R
Radio
.............. 18, 20, 25
Relays
...................... 125
Remote entry
system
........................ 57
illuminated entry
.... 60
locking/unlocking
doors
........................ 54
opening the trunk
... 57
Roadside
assistance
................ 122
S
Safety Belt
Maintenance .............. 78
Safety belts (see Safety
restraints) ............ 68–72
Safety defects,
reporting .................. 152
Safety restraints .. 68–72
belt minder ............. 74
extension
assembly .................. 78
for adults ........... 69–72
for children ....... 84–85
safety belt
maintenance ............ 78
warning light and
chime ................. 73–74
Safety seats for
children ...................... 88
Seat belts (see Safety
restraints) .................. 68
Seats .......................... 64
child safety seats .... 88
front seats ............... 64
Servicing your
vehicle ...................... 161
Setting the clock
AM/FM/In-dash
6 CD ......................... 30
MACH MP3
system ..................... 23
Spare tire (see
Changing the Tire) . 130
Spark plugs,
specifications ... 215, 221
Specification chart,
lubricants ......... 218, 221
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
232
Speed control ............ 46
Starting your
vehicle ........ 99–100, 103
jump starting ........ 136
Steering wheel
tilting ....................... 44
T
Tilt steering wheel .... 44
Tires ................. 200–201
changing 130–132, 135
snow tires and
chains .................... 214
tire grades ............. 201
treadwear .............. 201
Towing ..................... 120
recreational
towing .................... 120
trailer towing ........ 120
wrecker .................. 141
Traction control ...... 107
Traction-lok rear
axle .......................... 108
Transmission
automatic
operation ............... 108
brake-shift interlock
(BSI) ...................... 108
fluid, checking
and adding
(automatic) ........... 196
fluid, checking and
adding (manual) ... 199
fluid, refill
capacities ............... 215
lubricant
specifications
. 218, 221
manual operation .. 114
Trunk ......................... 54
remote release .. 50, 57
Turn signal ................ 38
V
Vehicle dimensions . 221
Vehicle Identification
Number (VIN) ......... 222
Vehicle loading ........ 117
Ventilating your
vehicle ...................... 104
W
Warning lights
(see Lights) ............... 10
Washer fluid ............ 167
Water, Driving
through .................... 116
Windows
power ....................... 45
Windshield washer
fluid and wipers ........ 43
checking and
adding fluid ........... 167
replacing wiper
blades ...................... 43
Wrecker towing ....... 141
2004 Mustang (mus)
Owners Guide (post-2002-fmt)
USA English (fus)
Index
233
234
235
236
237
238
239
240
