Blaze Appliance Insulated Jacket
PREMIUM LTE SERIES PRODUCT MANUAL
SCAN TO REGISTER
2
Blaze Insulated Jacket
BlazeGrills.com
Do not use power tools to assemble. Only
use hand tools, as power tools can damage
or loosen the nutsert.
(12) M5 x 25 mm

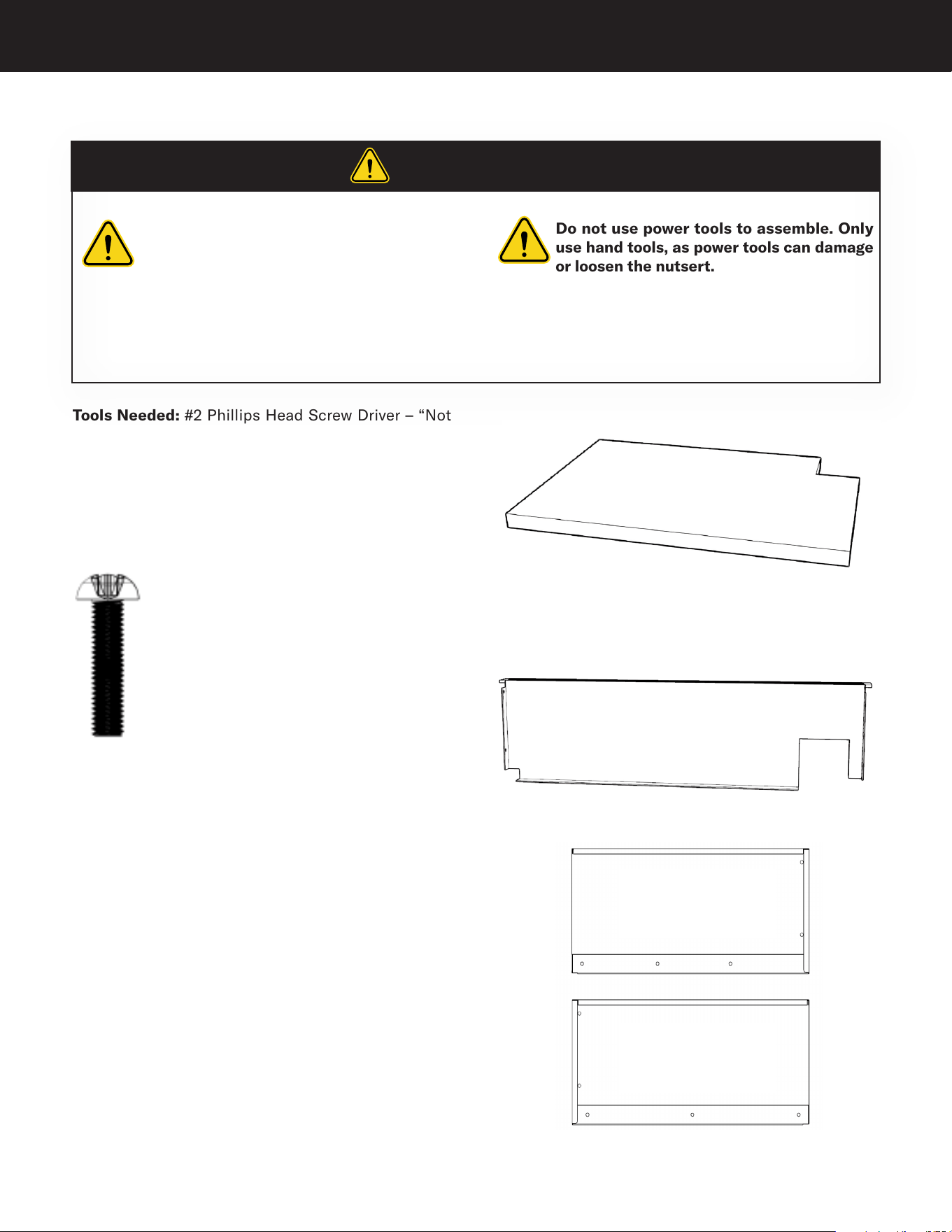

Before getting started:
Unpack and lay out all of the included parts.
Most of the stainless steel pieces come with
a protective film. Remove all of the plastic
film and pay no attention to the print on the
film as it has nothing to do with the assembly
instructions.
Take caution with the stainless steel
components as to not scratch them during
the assembly process. Use a non-aressive
surface and protect the stainless steel as best
as possible. The foam and box can be used to
place the stainless steal parts on to prevent
scratching.
Tools Needed: #2 Phillips Head Screw Driver – “Not
Included”
hardware needed "included"
WARNING
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals
including Chromium (hexavalent
compounds), which are known to the State
of California to cause cancer and birth
defects or other reproductive harm. For
more information go to: www.P65Warnings.
ca.gov
Bottom Panel
Back Panel
Right Side Panel
Left Side Panel
3

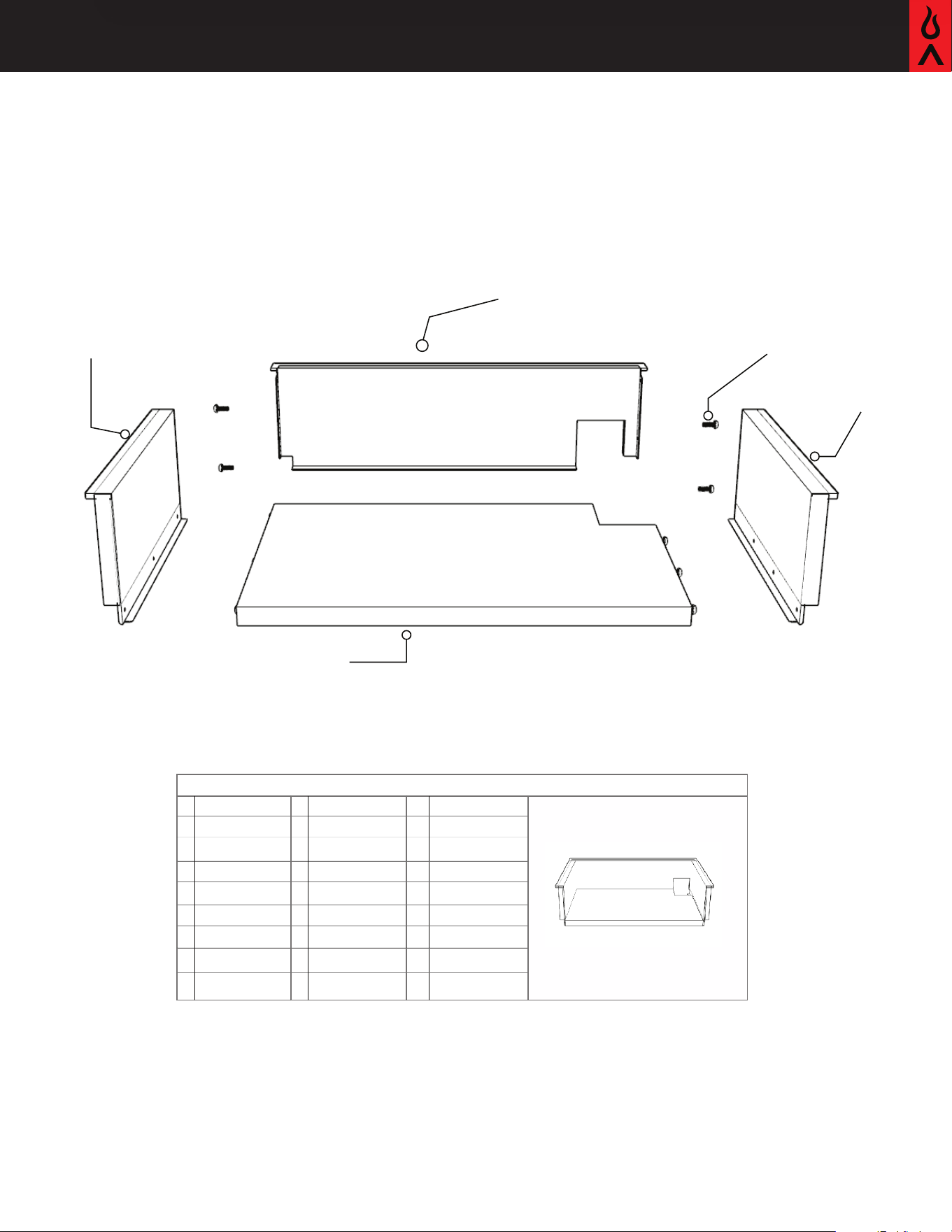

32" LTE Grill Insulated Jacket
17.
16.
15.
14.
13.
12.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
1.
Blaze Part Number: Reference Guide
1.
2.
4.
3.
5.
BLZ-4IJ2-004
BLZ-4IJ2-001
BLZ-4IJ-005
BLZ-4IJ2-002
BLZ-4IJ2-003
4 Blaze Insulated Jacket
BlazeGrills.com

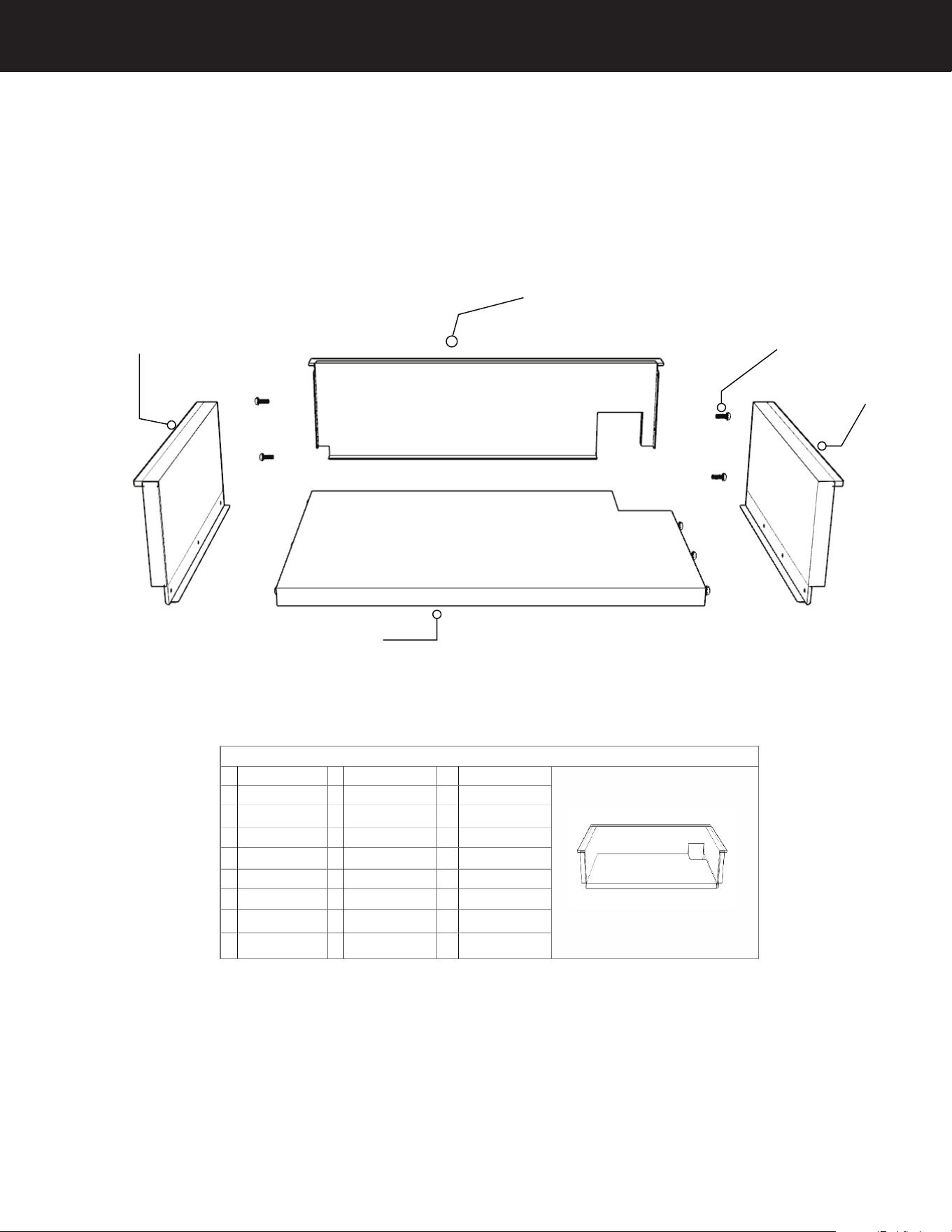

40" LTE Pro Grill Insulated Jacket
17.
16.
15.
14.
13.
12.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
1.
Blaze Part Number: Reference Guide
1.
2.
4.
3.
5.
BLZ-5IJ2-004
BLZ-5IJ2-001
BLZ-4IJ-005
BLZ-5IJ2-002
BLZ-5IJ2-003
5

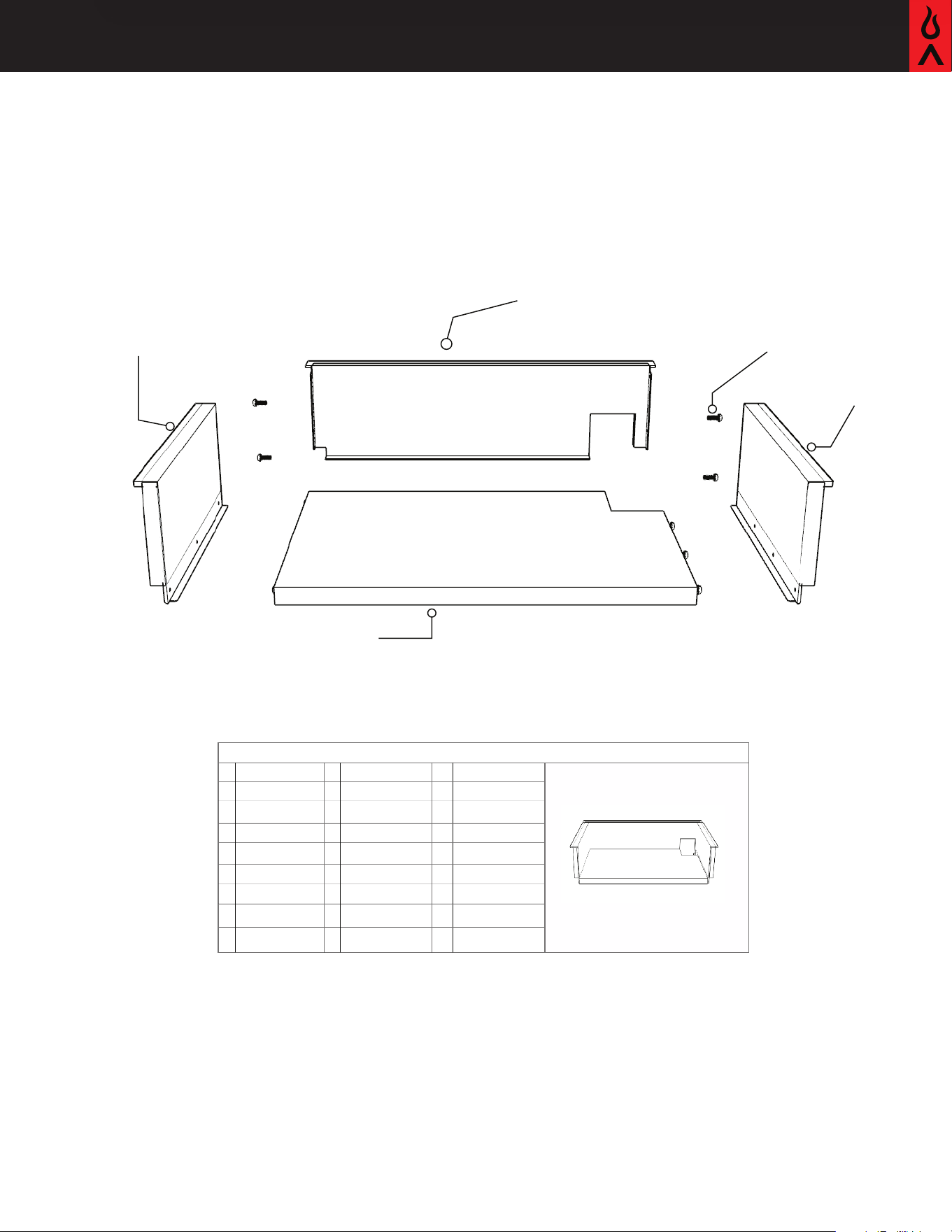

30" LTE Griddle Insulated Jacket
17.
16.
15.
14.
13.
12.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
1.
Blaze Part Number: Reference Guide
1.
2.
4.
3.
5.
BLZ-GRIDDLEIJ-003
BLZ-GRIDDLEIJ-002
BLZ-4IJ-005
BLZ-GRIDDLEIJ-004
BLZ-GRIDDLEIJ-001
6 Blaze Insulated Jacket
BlazeGrills.com

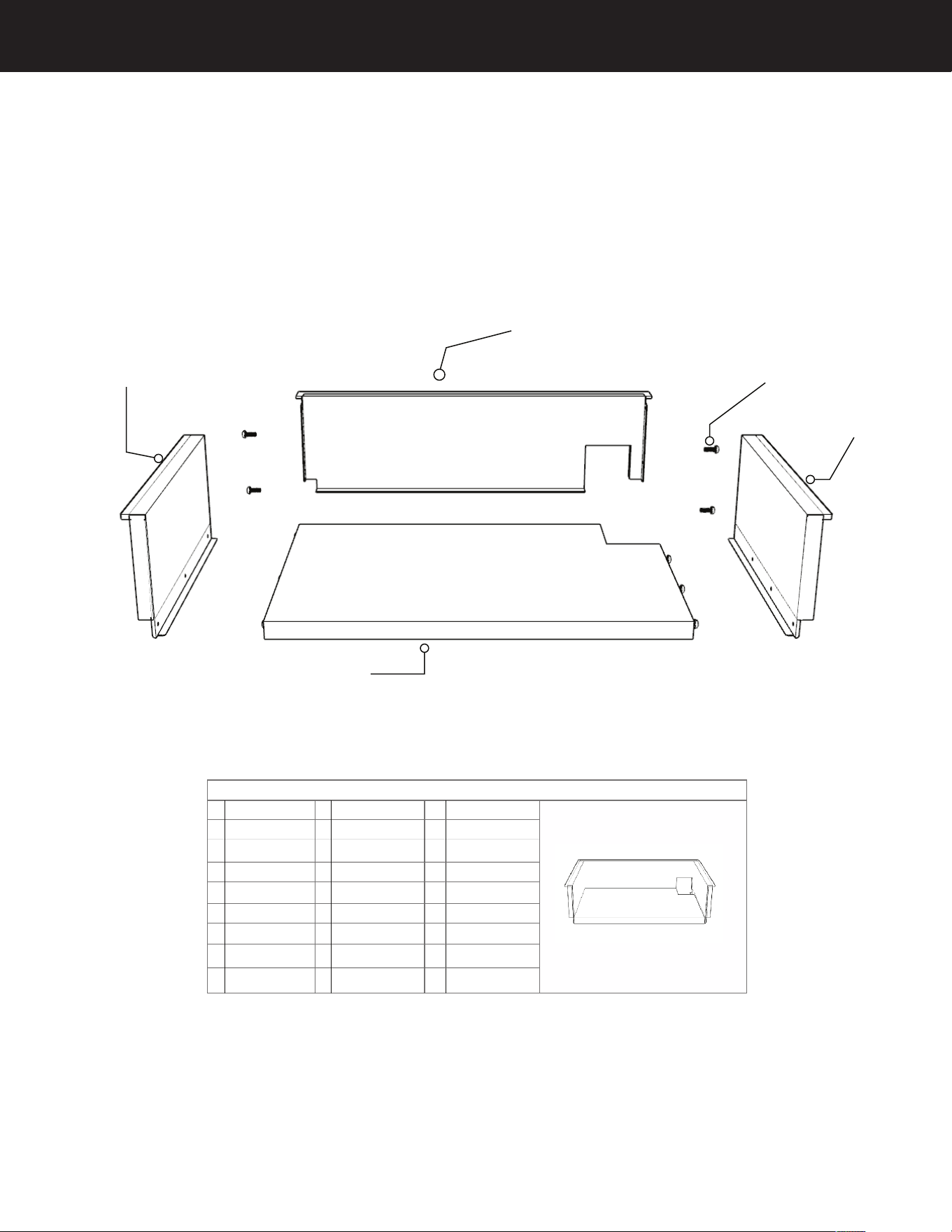

40" LTE Pro Griddle Insulated Jacket
17.
16.
15.
14.
13.
12.
11.
10.
9.
8.
7.
6.
5.
4.
3.
2.
1.
Blaze Part Number: Reference Guide
1.
2.
4.
3.
5.
BLZ-GRIDDLE40IJ-004
BLZ-GRIDDLE40IJ-001
BLZ-4IJ-005
BLZ-GRIDDLE40IJ-002
BLZ-GRIDDLE40IJ-003
7

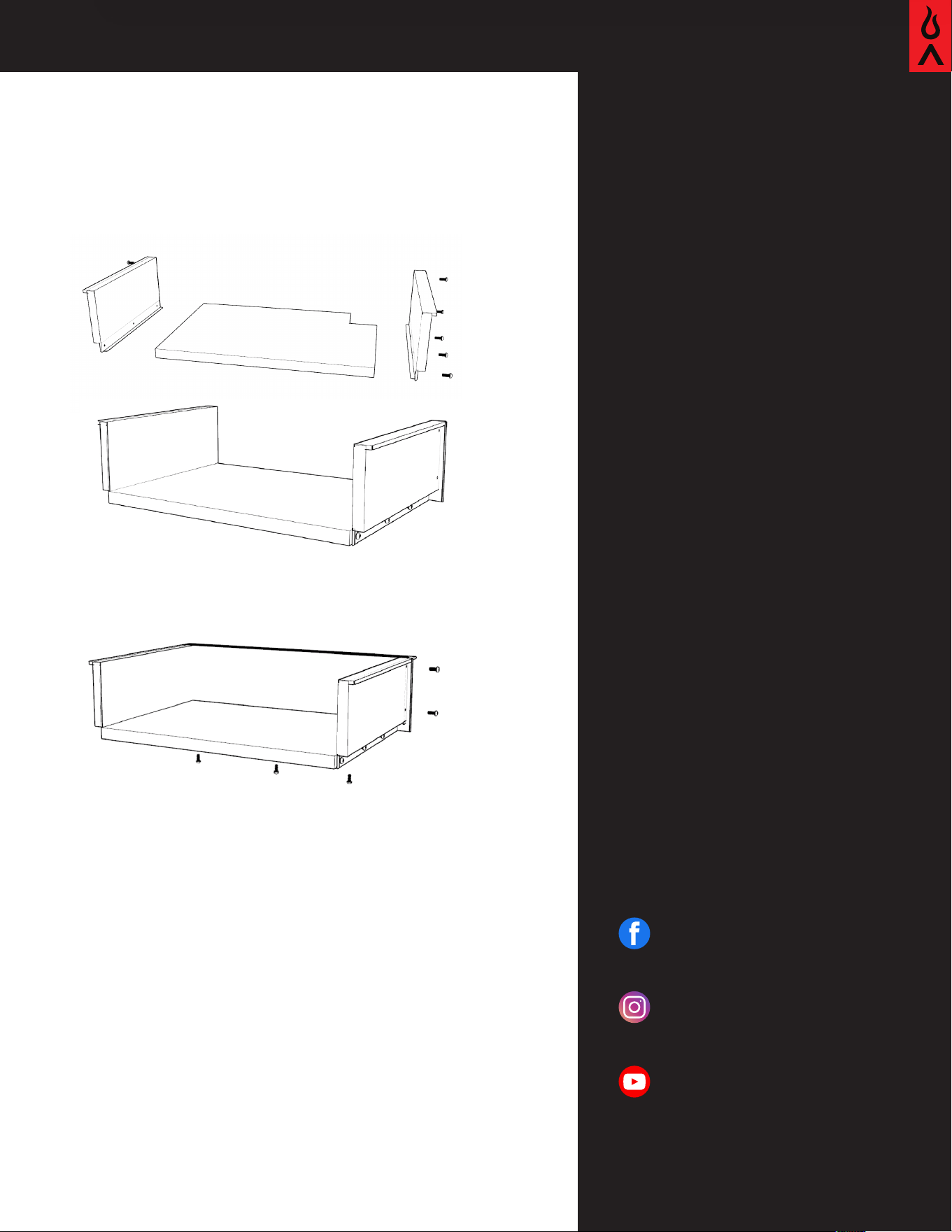

STEP 1:
Align the right side panel up with the
bottom panel so the holes in each panel are
aligned. Using (6) M5x 12 screws , attach the
two panels. Repeat for step for left side panel.
STEP 2:
Align the back panel up with the bottom
panel and two side panels. Align the holes and
fasten with provided (7) M5 x 12 screws.
STEP 3: The (2) M5 x 25 screws are used to
secure the grill head to the provided holes on
the inside of each side panel of the insulated
jacket
Please leave these
instructions with the
consumer.
Please read and retain
these instructions for
future reference and
before installation or
operation.
