Dryer
User Manual
C HD C82 WWGD UK
C HD C82 BBGD UK
C HD C82 GGGD UK
EN
2960314189_EN/010824.0856
Please read these instructions first
before using your appliance
Thank you for choosing an HOTPOINT
appliance.
Please take some time to read this user manual
before using your appliance, to ensure you
know how to safely operate the controls and
functions.
Carefully follow all unpacking and installation
instructions to ensure the appliance is correctly
connected and fitted prior to use.
Please write your product model and serial
number on the last page of this user manual,
and store in a safe location close to the
appliance for easy future reference.
This user manual may also be applicable for
several other models. Differences between
models will be listed.
If you have any questions or concerns,
please call our contact centre or find help
and information online at www.hotpoint.com/
register
Explanation of symbols used
throughout this User Manual
• Read the instructions.
B
DANGER!
• Warning against electric shock.
DANGER!
• Warning against fire hazard.
This product was manufactured using the latest technology in environmentally friendly conditions.
A
WARNING!
• Warning for hazardous situations with regard
to life and property.
WARNING!
• Warning against hot surfaces.
WARNING!
• Warning against scalding hazard.
C
NOTE
• Important information or useful hints about
usage.
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations.
Do not dispose of the packaging wastes with
the domestic waste or other wastes, discard
them to the dedicated collection points
designated by the local authorities.
3
Dryer / User Manual
This symbol reminds you to
read this instruction manual.
Before using the appliance, read
these safety instructions. Keep them
nearby for future reference. These
instructions and the appliance itself
provide important safety warnings,
to be observed at all times. The
manufacturer declines any liability
for failure to observe these safety
instructions, for inappropriate use of
the appliance or incorrect setting of
controls.
AVery young children (0-3
years) should be kept away from the
appliance. Young children (3-8 years)
should be kept away from the
appliance unless continuously
supervised. Children from 8 years
old and above and persons with
reduced physical, sensory or mental
capabilities or lack of experience
and knowledge can use this
appliance only if they are supervised
or have been given instructions
on safe use and understand the
hazards involved. Children must not
play with the appliance. Cleaning
and user maintenance must not
be carried out by children without
supervision.
AWARNING: Never stop a
tumble dryer before the end of the
drying cycle unless all items are
quickly removed and spread out so
that the heat is dissipated.
AItems that have been soiled
with substances such as cooking oil,
acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes
and wax removers and items
such as foam rubber (latex foam),
shower caps, waterproof textiles,
rubber-backed articles and clothes
or pillows fi tted with foam rubber
pads should not be dried in the
tumble dryer. Remove all objects
from pockets, such as lighters and
matches. Do not use the tumble
dryer if industrial chemicals have
been used to clean it.
AOil-soaked items should not
be dried in the tumble dryer due to
their high fl ammability.
ANever open the door forcibly
or use it as a step.
PERMITTED USE
CAUTION: The appliance is not
intended to be operated by means
of an external switching device,
such as a timer, or separate remote
controlled system.
AThis appliance is intended to
be used in household and similar
applications such as: staff kitchen
areas in shops, offices and other
working environments; farm houses;
by clients in hotels, motels, bed
& breakfast and other residential
environments.
4
Dryer / User Manual
AThis appliance is not for
professional use. Do not use the
appliance outdoors.
ADo not store explosive or fl
ammable substances (e.g. gasoline
or aerosol cans) inside or near the
appliance - risk of fire.
ADo not load the machine
above the maximum capacity
(kg of dry cloth) indicated in the
programme table.
ADo not dry unwashed items in
the tumble dryer.
ATake care that no lint or dust
has accumulated around the dryer.
AFabric softeners, or similar
products, should be used as specifi
ed by the fabric softener instructions
ADo not overdry the laundry.
INSTALLATION
AThe appliance must be
handled and installed by two or
more persons - risk of injury. Use
protective gloves to unpack and
install - risk of cuts.
AInstallation, including water
supply (if any), electrical connections
and repairs must be carried out by
a qualifi ed technician. Do not repair
or replace any part of the appliance
unless specifi cally stated in the user
manual. Keep children away from
the installation site. After unpacking
the appliance, make sure that it has
not been damaged during transport.
In the event of problems, contact
the dealer or your nearest After-sales
Service. Once installed, packaging
waste (plastic, styrofoam parts
etc.) must be stored out of reach
of children - risk of suffocation. The
appliance must be disconnected
from the power supply before any
installation operation - risk of electric
shock. During installation, make sure
the appliance does not damage the
power cable - risk of fi re or electric
shock. Only activate the appliance
when the installation has been
completed.
AInstall the dryer in rooms with
adequate ventilation (open door,
ventilation grid or slot larger than
500 cm2) in order to avoid the
backfl ow of gases into the room
from appliances burning other fuels,
including open fi res. If the dryer is
installed under a worktop, provide
a distance of 10 mm between
the upper panel of the dryer and
any objects above it, and 15 mm
between the sides of the appliance
and the walls or furniture units
adjacent to it.
5
Dryer / User Manual
AIf the dryer is installed near to
a gas or coal stove, provide a heat
insulating plate (85 cm x 57 cm)
in between, as the side facing the
stove is covered with aluminium foil.
AExhaust air must not be
discharged into a fl ue which is
used for discharging fumes from
appliances burning gas or other
fuels.
AThe appliance must not be
installed behind a lockable door, a
sliding door or a door with a hinge
on the opposite side to that of the
tumble dryer, in such a way that a
full opening of the tumble dryer door
is restricted.
AThe appliance shall be placed
against the wall to limit access to its
rear side.
ATake care not to use a carpet
which obstructs ventilation openings
in the base of the dryer.
AIf you want to stack the
dryer on a washing machine, first
contact our After-Sales Service or
your specialist dealer to verify the
complete list of suitable models.
The stacking is only possible
if the dryer is attached to the
washing machine by means of the
appropriate stacking kit available
through our After-Sales Service or
your specialist dealer. Instructions
for the correct assembly are
supplied with the stacking kit.
ELECTRICAL WARNINGS
AIt must be possible to
disconnect the appliance from the
power supply by unplugging it if
plug is accessible, or by a multi-pole
switch installed upstream of the
socket in accordance with the wiring
rules and the appliance must be
earthed in conformity with national
electrical safety standards.
ADo not use extension leads,
multiple sockets or adapters. The
electrical components must not
be accessible to the user after
installation. Do not use the appliance
when you are wet or barefoot. Do
not operate this appliance if it has
a damaged power cable or plug, if
it is not working properly, or if it has
been damaged or dropped.
AIf the supply cord is damaged,
it must be replaced with an identical
one by the manufacturer, its service
agent or similarly qualifi ed persons
in order to avoid a hazard - risk of
electric shock.
6
Dryer / User Manual
CLEANING AND MAINTENANCE
AWARNING: Ensure that the
appliance is switched off and
disconnected from the power supply
before performing any maintenance
operation. To avoid risk of personal
injury use protective gloves (risk of
laceration) and safety shoes (risk of
contusion); be sure to handle by two
persons (reduce load); never use
steam cleaning equipment (risk of
electric shock).
Non-professional repairs not
authorized by the manufacturer
could result in a risk to health and
safety, for which the manufacturer
cannot be held liable. Any defect
or damage caused from non-
professional repairs or maintenance
will not be covered by the
guarantee, the terms of which are
outlined in the document delivered
with the unit.
AMake sure that all lint traps
are cleaned before starting any
drying cycle.
DISPOSAL OF PACKAGING
MATERIALS
The packaging material is 100%
recyclable and is marked with the
recycle symbol.
The various parts of the packaging
must therefore be disposed of
responsibly and in full compliance
with local authority regulations
governing waste disposal.
DISPOSAL OF HOUSEHOLD
APPLIANCES
This appliance is manufactured with
recyclable or reusable materials.
Dispose of it in accordance with
local waste disposal regulations. For
further information on the treatment,
recovery and recycling of household
electrical appliances, contact your
local authority, the collection service
for household waste or the store
where you purchased the appliance.
This appliance is marked in
compliance with European Directive
2012/19/EU, Waste Electrical
and Electronic Equipment (WEEE)
and with the Waste Electrical and
Electronic Equipment regulations
2013 (as amended). By ensuring
this product is disposed of correctly,
you will help prevent negative
consequences for the environment
and human health.
The symbol on the product
or on the accompanying
documentation indicates
that it should not be
treated as domestic waste
but must be taken to an appropriate
collection center for the recycling of
electrical and electronic equipment.
7
Dryer / User Manual
Technical Specifications
EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,7 cm
Depth 56,8 cm
Capacity (max.) 8 kg**
Net weight (± %10) 34,5 kg
Voltage
See type label***Rated power input
Model code
* Min. height: Height with adjustable feet are
closed.
Max. height: Height with adjustable feet are
opened maximum.
** Dry laundry weight before washing.
*** Type label is located behind the loading
door.
• Technical specifications of the dryer are
subject to specification without notice to
improve the quality of the product.
• Figures in this manual are schematic and
may not match the product exactly.
• Values stated on markers on the dryer
or in the other published documentation
accompanying with the dryer are
obtained in laboratory in accordance with
the relevant standards. Depending on
operational and environmental conditions
of the dryer, these values may vary.
Standard conformity and test
information EU declaration of
conformity / UK declaration of
conformity
The development, manufacturing
and sales phases of this product is
conducted in conformity with the
safety rules specified in all related
.instructions of the European Union
The development, manufacturing
and sales phases of this product is
conducted in conformity with the
safety rules specified in all related
.instructions of the Great Britian
Policies, standard
documentation,
ording of spare
parts and additional
product information
can be foundy by:
Visiting our vebsite
doscs.hotpoint.eu
and parts-selfservice.
europeanappliances.
com
Using QR Code
Alternatively,contact
our After-sales
Service (See phone
number in the
warranty booklet).
When contacting our
After-sales Service,
please state the codes
provided on your
product’s identification
plate.
xxxxxxxxxxxx
8
Dryer / User Manual

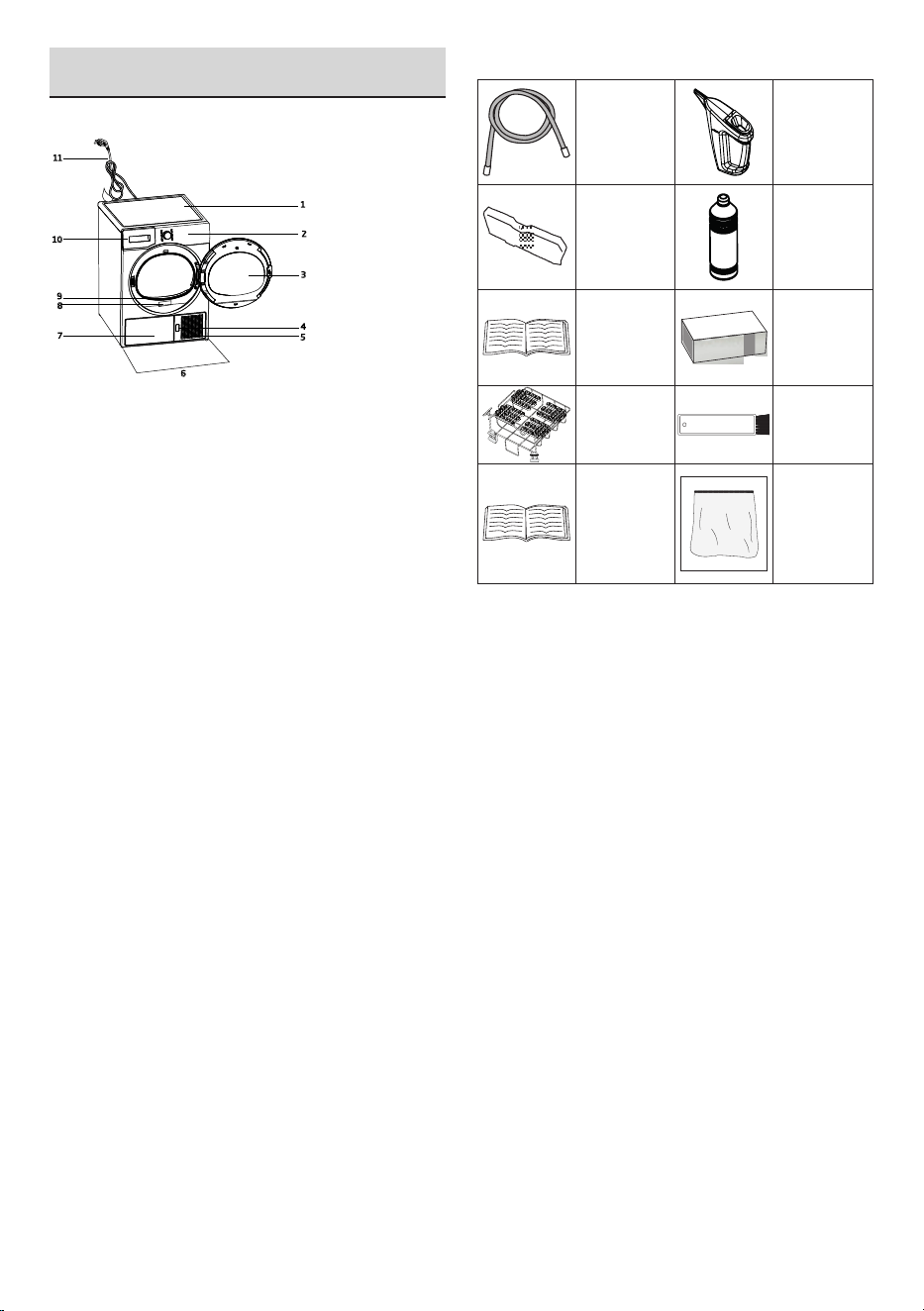

2 Your Dryer
11
10
1
2
3
4
5
6
7
8
9
1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. In models where the tank is placed
below, the water tank is inside the toe board
8. Type label
9. Lint filter
10. Water tank drawer (in models where the
tank is placed above)
11. Power cord
2.1 Overview
2.2 Package Contents
1. Water
drain
hose *
6. Water
Filling
Container*
2. Filter
drawer
spare
sponge*
7. Pure
Water*
3. User
Manual
8.
Fragrance
Capsules
Group*
4. Drying
basket*
9. Brush*
5. Drying
basket
user
manual*
10. Filter
cloth*
*Optional - may not be included, depends on
model.
9
Dryer / User Manual
3 Installation
Before the calling the nearest Authorized
Service for the installation of the dryer, ensure
that electrical installation and water drain is
appropriate referring to the user’s manual.
If they are not suitable, contact a qualified
electrician and technician to make necessary
arrangements.
C
NOTE
• Preparation of the dryer’s location
as well as the electrical and waste
water installations is under customer’s
responsibility.
A
WARNING!
• Prior to installation, visually check if the
dryer has any defects on it. If the drier
is damaged, do not have it installed.
Damaged products cause risks for your
safety.
3.1 Appropriate installation location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer will
be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer shall
be placed against a wall.
• This dryer is not able to be wall-mounted
as it would be too too heavy for the walls
B
DANGER!
• Do not place the dryer on the power
cable.
3.2 Removing the transportation
safety assembly
A
WARNING!
• Remove the
transportation
safety assembly
before using the
dryer for the first
time.
• If the door swing
side of your
appliance can
be modified, see
the reversible
door mounting
instructions.
10
Dryer / User Manual

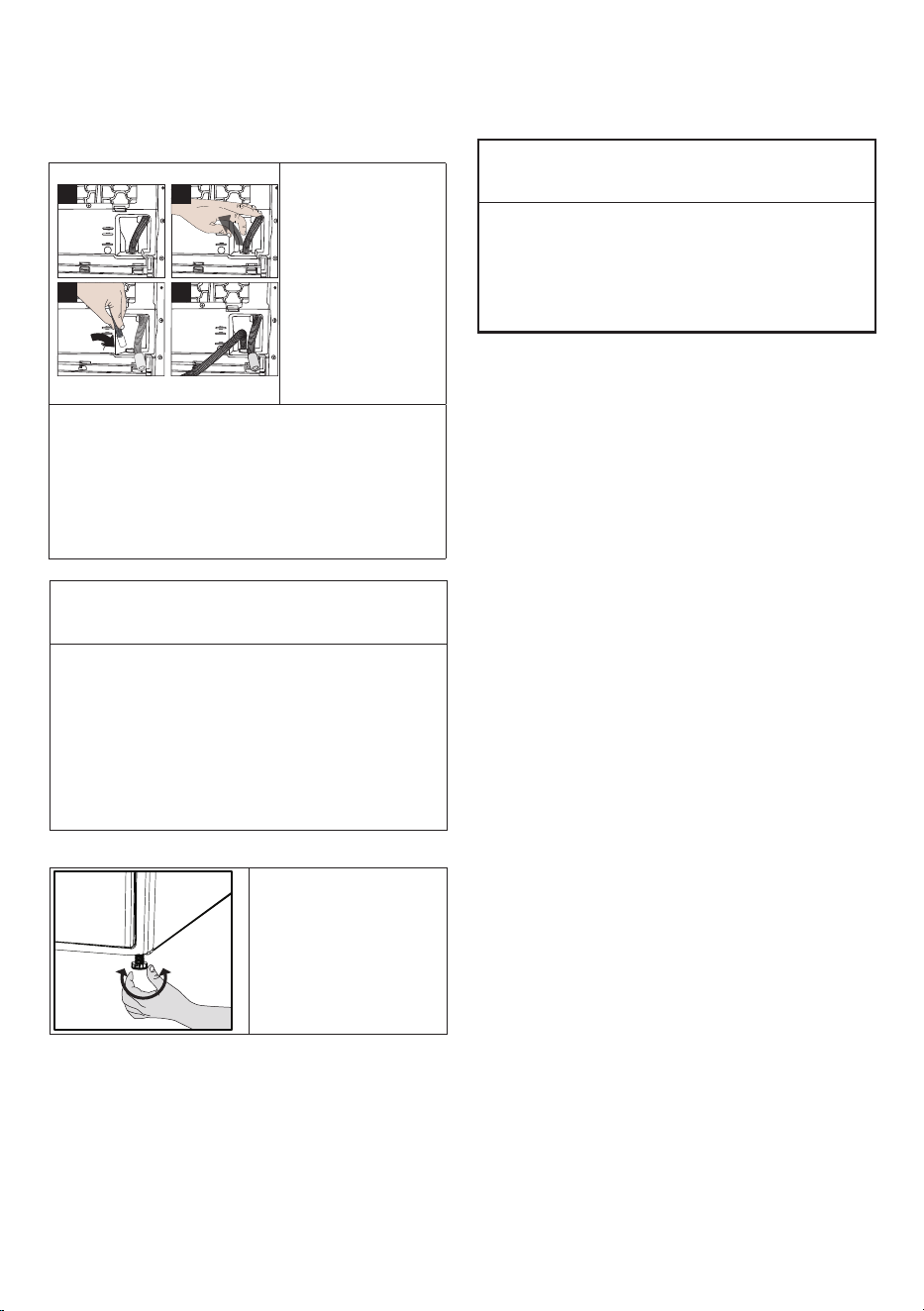

3.3 Connecting to the drain
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining the
water collected in the water tank.
1
3 4
2
1-2 Pull hose at
the behind of
the dryer by
hand in order
to disconnect
it from where it
is connected.
Do not use
any tools to
remove the
hose.
3 Connect one end of the drain hose
supplied with the dryer to the connection
point from where you removed the hose of
the product in previous step.
4 Connect the other end of the drain hose
directly to the wastewater drain or to the
washbasin.
C
NOTE
• Water drain hose should be attached to a
height of maximum 80 cm.
• Make sure that the water drain hose
is not stepped on and it is not folded
between the drain and the machine.
• If there is an accessories pack supplied
with your product, please see the
detailed description.
3.4 Adjusting the feet
Turn the feet to left
or right until the
dryer stands level
and firmly.
3.5 Transportation of the dryer
Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.
A
WARNING!
• We recommend carrying the dryer in
upright position. If it is not possible to
carry the machine in the upright position,
we recommend carrying it by tilting
towards the right side when looked from
the front.
3.6 Changing the illumination lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.The lamp(s) used in this
appliance is not suitable for household room
illumination. The intended purpose of this
lamp is to assist the user to place laundry in
the tumble dryer in a comfortable way. The
lamps used in this appliance have to withstand
extreme physical conditions such as vibrations
and temperatures above 50 °C
11
Dryer / User Manual

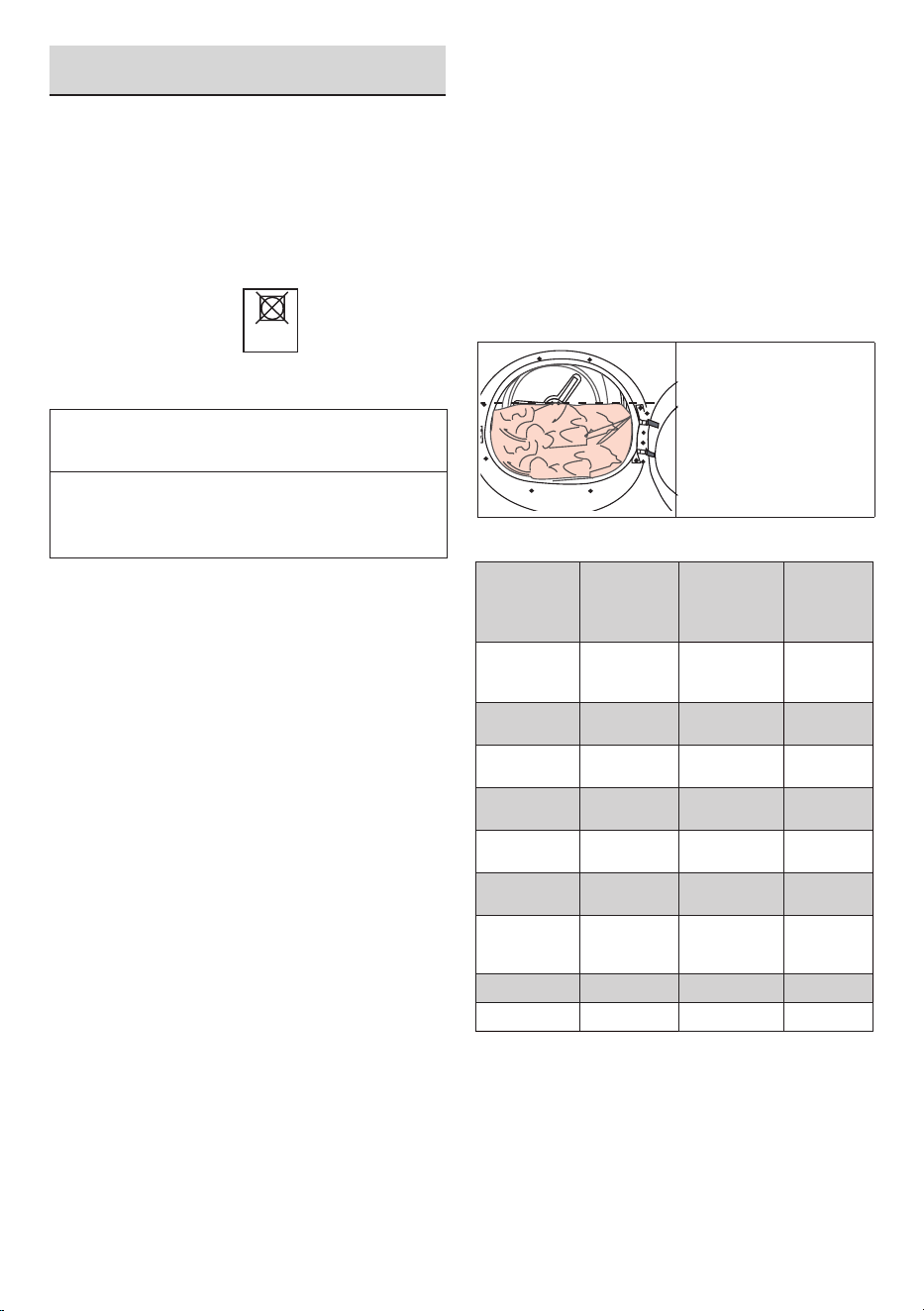

4 Preparation
• For models with a condenser unit: clean
the condenser once in a month or after
every 30 operations regularly. .
• Clean the filter periodically.Read the
Maintenance and cleaning of filters for
detalied information.
• For models with flue unit: comply with the
flue connection instructions and clean the
flue.
• During the drying process, air the room
well where your tumble dryer is operating.
4.5 Correct load capacity
Follow the instructions
in the “Programme
selection and
consumption table”.
Do not load more than
the capacity values
stated in the table.
Following weights are given as examples.
Laundry
Approximate
weights (g)*
Laundry
Approximate
weights (g)*
Cotton
quilt covers
(double)
1500 Blouses 150
Cotton quilt
covers (single)
1000 Cotton shirts 300
Bed sheets
(double)
500 Shirts 250
Bed sheets
(single)
350
Cotton
dresses
500
Large
tablecloths
700 Dresses 350
Small
tablecloths
250 Jeans 700
Tea napkins 100
Handkerchiefs
(10 pieces)
100
Bath towels 700 T-Shirts 125
Hand towels 350
*Dry laundry weight before washing.
4.1 Laundry suitable for drying in the
dryer
Always obey the instructions given on the
garment tags. Dry only the laundry having a
label stating that they are suitable for drying in
a dryer.
4.2 Laundry not suitable for drying in
the dryer
Items with this symbol
Do not dry
with dryer
should not be
dried in the dryer.
C
NOTE
• Delicate embroidered fabrics, woollen,
silk garments, delicate and valuable
fabrics, airtight items and tulle curtains
are not suitable for machine drying.
4.3 Preparing laundry for drying
• Laundry may be tangled with each other
after washing. Separate the laundry items
before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for energy
saving
• Spin your laundry at the highest speed
possible when washing them. Thus,
the drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type of
laundry together. For example thin kitchen
towels and tableclothes dries earlier than
thick bathroom towels.
• Follow the instructions in the user manual
for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.
• Do not add wet laundry while the dryer is
in operation
12
Dryer / User Manual

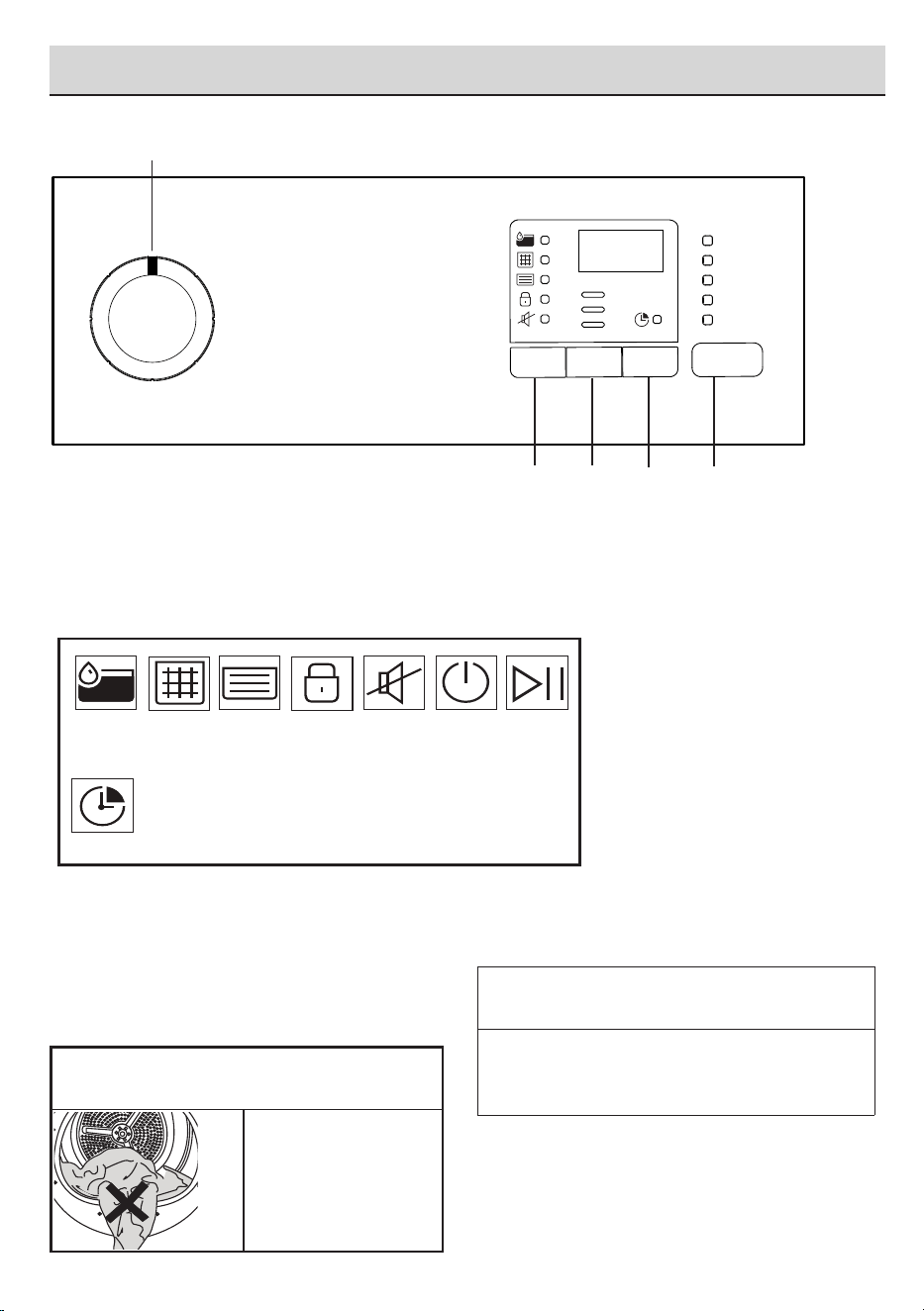

5 Operating the product
5.1 Control Panel
1. On/Off / Program selection button
2. Start / Stand-by button
3. End Time button
4. Drying Level Button
5. Buzzer volume / Time programs selection
button
On/O
Start / Pause
Filter
cleaning
Tank
full
Child-proof
lock
Mute
Time Delay
Filter
drawer /
Heat exchanger
cleaning
5.2 Symbols
5.3. Preparation of drying machine
• Plug the drying machine.
• Open the loading door.
• Place the laundry to the drying machine
without jamming them.
• Push and close the loading door.
A
WARNING!
• Ensure that no
laundry is jammed
to the loading
door.
Select the desired program using the On/Off/
Program selection knob, the machine will turn
on.
C
NOTE
• Selecting a program using the On/Off/
Program selection button does not mean
that the program started. Press the Start
/ Stand-by button to start the program.
3
4
5
2
1
13
Dryer / User Manual
5.4 Program selection and consumption chart
EN
Programmes Programme Description
Capacity (kg)
Spin speed in washing
machine (rpm)
Drying Time (minutes)
Cotton Iron Dry
You may dry your cotton laundry to be ironed in
this program to have them slightly damp for ease
of ironing. (Shirt, T-shirt, tablecloth, etc.)
8 1000 107
Cotton Eco
It dries single layer, casual cotton textiles in the
most economical way.
8 1000 142
Cotton Cupboard Dry
You may use this program for extra dryness in
thick laundry such as pants, tracksuit. You can
put your dry laundry that doesn’t require ironing
directly in the wardrobe.
8 1000 147
Cotton Extra Dry
You may dry your thick cotton laundry in this
program such as towels, bathrobe, etc.
8 1000 152
Synthetics Iron Dry
You may dry your synthetic laundry to be ironed
in this program to have them slightly damp for
ease of ironing. (Shirt, T-shirt, tablecloth, etc.)
4 800 40
Synthetics Cupboard Dry
You may dry all your synthetic laundry in this
program. (Shirt, T-shirt, underwear, tablecloth,
etc.) You can put your dry laundry that doesn’t
require ironing directly in the wardrobe.
4 800 50
Timed Drying
You may select from time programmes
between 10 and 160 minutes to achieve the
desired drying level at low temperature. In this
programme, tumble drier’s operation lasts for
the set time independently from the dryness of
laundry. This product is available to be used with
a drying basket as option. For products that are
sold without a basket, you can obtain a basket
from an authorized service and use the drying
programs specified above. For details of use, see
the drying basket user guide.
- - -
Refresh
Ventilates for 10 minutes without blowing hot air.
You can ventilate the cotton and linen clothes
that have been enclosed for a long time with this
program to remove their odour. You can use this
program to ventilate and soften wool laundry that
can be washed in a washing machine. Do not
use for full drying.
- - 10
Shirts
It dries the shirts in a more sensitive manner, and
causes less creasing and easier ironing.
2 1200 40
Jeans
You may dry denim pants, skirts, shirts or jackets
in this program.
4 1200 80
Fitness
Use it to dry your clothes made of synthetics,
cotton or mixed fabrics or waterproof products
such as functional jacket, raincoat etc. Turn them
inside out prior to drying.
2 1000 70
14
Dryer / User Manual
Mixed
You can dry both cotton and synthetic laundry
with this programme.Sports and fitness clothes
may be dried with this program.
4 1000 83
Hygiene
It is a longer program that you can use for the
clothes (baby clothes, towels, underwear, etc.
cotton) you require hygeine. Hygiene is provided
with high temperature. It is especially suitable for
durable fabrics. (This program is identified and
approved by England’s “The British Foundation”
(Allergy UK).
5 800 110
Delicates
You may dry your delicate laundry or laundry
with hand wash symbol (silk blouses, thin
underwear, etc.) at low temperature in this
program.
2 600 50
Rapid 14’
You can use this program to dry your cotton
laundry that you have spun at high speeds in
your washing machine.
0,5 1200 14
Energy consumption values
Programmes Capacity (kg)
Spin speed in washing
machine (rpm)
Approximate amount of
remaining humidity
Energy consumption
value kWh
Cottons Eco* 8 1000 60% 4,75
Cottons Iron dry 8 1000 60% 3,80
Synthetics Cupboard Dry
4 800 40% 1,80
"Cottons Eco programme" used at full and partial load is the standard drying programme
to which the information in the label and the fiche relates, that this programme is suitable for
drying normal wet Cottons laundry and that it is the most efficient programme in terms of
energy consumption for Cottons.
* : Energy Label standard program (EN 61121) All values in the table are determined according
to EN 61121 standard. Consumption values may vary from the values in the chart depending on
laundry type, wringing speed, ambient conditions and voltage levels.
15
Dryer / User Manual
Allergy UK is the brand of the
British Allergy Association. Seal
of Approval is created to guide
people that require
recommendation about a
product that the related
product restricts / reduces / eliminates the
allergens or reduces the allergen content
significantly in the ambient where allergy
patients exist. It aims to provide assurance
that the products are tested scientifically or
examined in a way to provide measurable
results.
5.5 Auxiliary functions
Buzzer / time
Drying machine makes an audible warning
when the program is completed. If you don’t
want the machine to make an audible warning,
press the “Buzzer / Time” button. When you
press the Buzzer/Time button, a light will
illuminate and no audible warning will be made
when the program ends.
C
NOTE
• You can select this function before or
after the program starts.
Buzzer/Time button is used to adjust program
duration while the Rack/Time programs are
selected.
Drying Level
Drying Level button is used for adjusting to
desired dryness level. Program duration may
change depending on the selection.
C
NOTE
• You can activate this function only prior
to start of program.
Ending In
You can delay the end time of the program up
to 24 hours with Ending In function.
1. Open the loading door and place the
laundry.
2. Select the drying program.
3. Press the Ending In button and set the
delay time you wish. Ending In LED will
illuminate. (When pressed and hold the
button, Ending In proceeds non-stop).
4. Press the Start / Stand-by button. End
Time countdown starts. “:” Separator in
the middle of displayed delay time flashes.
C
NOTE
• You can add or remove laundry within
end time. Displayed time is the sum of
normal drying time and end time. End
Time LED will turn off at the end of
countdown, drying starts and drying LED
will illuminate.
Changing the end time
If you want to change the duration during the
countdown:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and repeat the End Time selection
process.
Cancelling the end time function
If you want to cancel the end time countdown
and start the program immediately:
Cancel the program by turning the On/Off/
Program selection knob. Select the program
you want and press the Start/Stand-by button.
5.6 Warning indicators
C
NOTE
• Warning indicators may vary depending
on the model of your dryer.
Filter cleaning
When the program is completed, the warning
indicator for filter cleaning turns on.
Water tank
When the program is completed, the warning
indicator to empty the water tank turns on.
If the water tank fills up while the program
continues, the warning indicator starts flashing
and the machine goes into stand-by. In this
case, empty the water tank and start the
program by pressing the Start / Stand-by
button. Warning indicator turns off and program
resumes.
Filter drawer /Heat exchanger cleaning
When the programme is finished, the cleaning
symbol of the heat exchanger or filter drawer
may light up.
5.7 Starting the program
Press the Start/Stand-by button to start the
program.
Start/Stand-by and Drying indicators will
illuminate to indicate that program started.
16
Dryer / User Manual
5.8 Child Lock
The drying machine has a child lock which
prevents the program flow from being
interrupted when the buttons are pressed
during a program. When the child lock is
activated, all buttons on the panel except
the On/Off/Program selection knob are
deactivated.
Press the Ending In and Buzzer buttons
simultaneously for 3 seconds to activate the
child lock.
The child lock has to be deactivated to be
able to start a new program after the current
program is finished or to be able to interfere
with the program. To deactivate the child lock,
keep the same buttons pressed for 3 seconds.
C
NOTE
• When the child lock is activated, the child
lock warning indicator on the screen
turns on.
• Child lock deactivates when the drying
machine is turned off and on by the On/
Off/Cancel knob.
C
NOTE
• When the drying machine runs and
the child lock is active, it beeps twice
when the program selection knob is
turned. If the child lock is deactivated
without returning the program selection
knob to its previous position, program
will terminate due to the change in the
program selection knob position.
5.9 Changing the program after it is
started
You can change the program you selected to
dry your laundry with a different program after
the drying machine starts running
• For instance, select Extra Dry program
by turning the On/Off/Program selection
knob to select Extra Dry instead of Iron
Dry.
• Press the Start/Stand-by button to start
the program.
Adding and removing clothes during
stand-by
If you want to add or remove clothes to/from
the drying machine after the drying program
starts:
• Press the Start/Stand-by button to put
the drying machine in Stand-by state. The
drying operation stops.
• Open the loading door while in Stand-
by state, and close the door after you
remove or add laundry.
• Press the Start/Stand-by button to start
the program.
C
NOTE
• Adding laundry after the drying operation
starts may cause the dried laundry inside
the machine to mix with wet laundry and
leave the laundry damp at the end of
operation.
• Adding or removing laundry during drying
may be repeated as many times as you
wish. But this operation continuously
interrupts the drying operation, and thus
increases program duration and energy
consumption. So, it is recommended to
add laundry before the program starts.
• If a new program is selected by turning
the program selection knob while the
drying machine is in stand-by, the
running program terminates.
WARNING!
17
Dryer / User Manual
• Do not touch the inner surface of the
drum while adding or removing clothes
during a continuing program. The drum
surface is hot.
5.10 Cancelling the program
If you want to cancel the program and
terminate the drying operation for any reason
after the drying machine starts running, turn
the On/Off/Cancel knob, the program will be
cancelled.
A
WARNING!
• The inside of the drying machine shall
be extremely hot when you cancel the
program during machine operation, so
run the refresh program to allow it to cool
down.
5.11 End of program
When the program ends, the Fibre Filter
Cleaning and Water Tank warning symbols
on the program observation indicator turn on.
Loading door may be opened and the dryer
machine becomes ready for another run.
Bring the On/Off/Program selection knob to
On/Off position to turn the drying machine off.
C
NOTE
• If the laundry is not removed after the
program is completed, the wrinkle
prevention function activates for 2 hours
to prevent the laundry inside the machine
to get wrinkled. The program tumbles
the laundry with 10-minute intervals to
prevent them from wrinkling.
C
NOTE
• The time shown in the display will change
depending on the type of laundry, the spin
cycle, and the ambient conditions.
• The machine detects how dry the laundry
throughout the program, calculates the
drying time, and continually updates it.
• The dryer’s operating time can be
increased or decreased and repeated
several times before completing the
program. This is normal.
18
Dryer / User Manual
6 Maintenance and cleaning
Service life of the product extends and
frequently faced problems decrease if cleaned
at regular intervals.
6.1 Lint Filter / Loading Door Inner
Surface
Lint and fiber released from the laundry to the
air during the drying cycle are collected in the
Lint Filter.
A
WARNING!
• Always clean the lint filter and the inner
surfaces of the loading door after each
drying process.
C
NOTE
• You can clean the lint filter housing with a
vacuum cleaner.

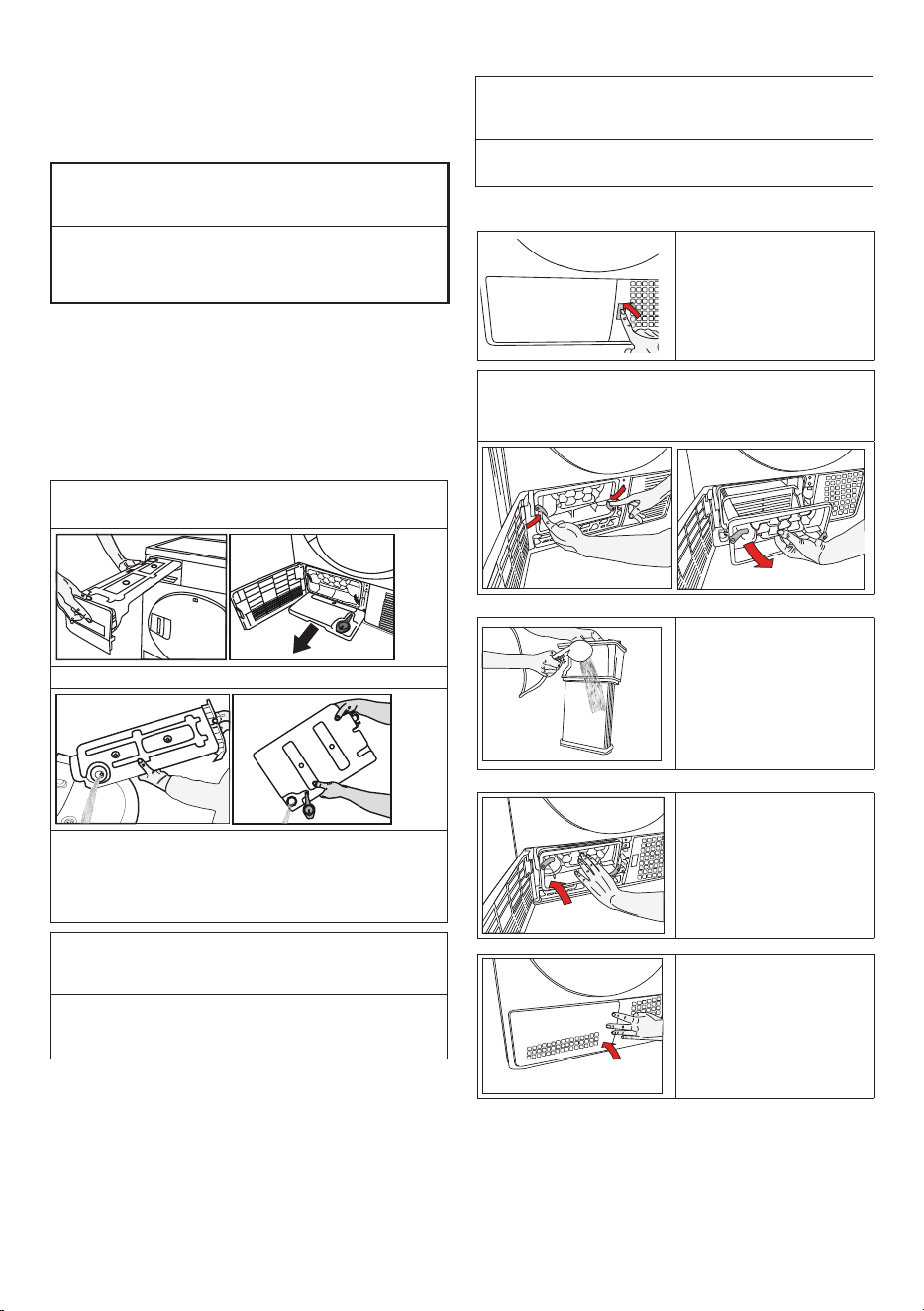

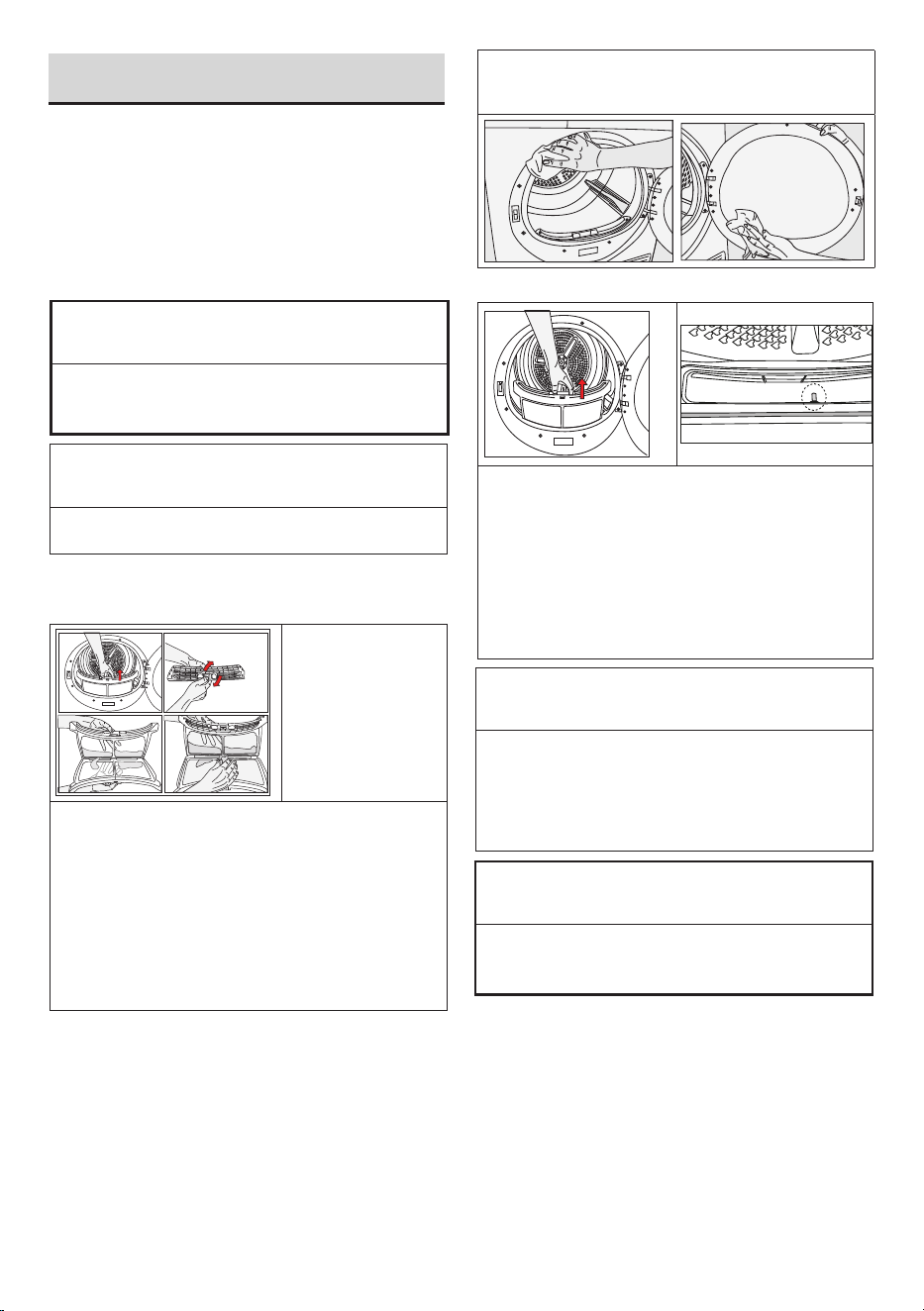

To clean the lint filter:
• Open the
loading door.
• Remove the
lint filter by
pulling it up
and open the
lint filter.
• Take out the filters and clean them by
removing the lint from their surfaces with
your hand or a cloth or using a vacuum
cleaner, then put them back in place.
• The lint should be thrown in the garbage
bin and not washed through the drain in
order to avoid spreading microplastics in
the used water system.
• Clean the entire inner surface of the
loading door and loading door gasket
with a soft damp cloth.
6.2 Cleaning the sensors
• There are temperature sensor in the
dryer that detect whether the laundry is
dry or not.
To clean the sensors:
• Open the loading door of the dryer.
• Remove the lint filter by pulling it up.
• Clean the sensor with your hand if any
fluff accumulation on it.
C
NOTE
• Clean the sensor 4 times a year.
• Do not use metal tools when cleaning the
sensor.
• Allow the machine to cool down if it is still
hot due the drying process.
A
WARNING!
• Never use solvents, cleaning agents or
similar substances for cleaning due to the
risk of fire and explosion!
19
Dryer / User Manual
6.3 Draining the water tank
Dampness of the laundry is removed and
condensed during drying process and the
water that arise accumulates in the water tank.
Drain the water tank after each drying cycle.
A
WARNING!
• Condensed water is not drinkable!
• Never remove the water tank when the
programme is running!
If you forget to drain the water tank, the
machine will stop during the subsequent drying
cycles when the water tank is full and the Water
Tank warning symbol will flash. If this is the
case, drain the water tank and press Start /
Pause button to resume the drying cycle.
To drain the water tank:
1. Remove the water tank in the drawer or
container carefully.
2. Drain the water in the tank.
• If there is lint accumulation in the funnel
of the water tank, clean it under running
water.
• Place the water tank into its seat.
C
NOTE
• If the direct water draining is used as an
option, there is no need to empty the
water tank.
6.4 For the condenser;
C
NOTE
• Clean the condenser after every 30
drying cycles or once a month.
To clean the condenser:
• If a drying
process has been
carried out, open
the door of the
machine and wait
until it cools down
• Unlock the 2 condenser locks after
opening the kick plate
• Pull out the condenser.
Clean the condenser
by applying
pressurized water with
a shower armature
and wait until the
water drains.
Place the condenser in
its housing. Fasten the
2 locks and make sure
that they are seated
securely.
Close the kick plate
cover.
20
Dryer / User Manual
7 Troubleshooting
Drying operation takes too long.
Fibre filter pores might be clogged. >>> Wash the filter with warm
water.
Filter drawer might be clogged. >>> Clean the sponge and filter
cloth (if any) in the filter drawer. (for the products with a heat pump)
The condenser might be blocked. >>> Wash the condenser.(for
the products with a condenser )
The ventilation grills in front of the machine may be closed. >>>
Remove any objects in front of the ventilation grills that blocks air.
Ventilation may be inadequate because the area the machine is
installed in is too small. >>> Open the door or windows to prevent
the room temperature from rising very high.
A lime layer may have accumulated on the humidity or temperature
sensors. >>> Clean the humidity or temperature sensors.
Excessive amount of laundry might be loaded. >>> Do not load
the drying machine excessively.
Laundry might not have been wrung adequately. >>> Perform a
higher speed wringing on the washing machine.
Clothes come out damp after drying.
A program not suitable for the laundry type may have been
used.>>> Check the maintenance labels on the clothes and select
a program suitable for the clothes’ type or use time programs as
extra.
Fibre filter pores might be clogged. >>> Clean the filter. Refer to
the Maintenance and cleaning section.
The condenser might be blocked. >>> Wash the condenser. (for
the products with a condenser)
Filter drawer might be clogged. >>> Clean the sponge and filter
cloth (if any) in the filter drawer.(For the products with a heat pump)
Excessive amount of laundry might be loaded. >>> Do not load
the drying machine excessively.
Laundry might not have been spun adequately. >>> Perform a
higher spin speed setting on the washing machine.
Drying machine does not turn on or program cannot be started.
Drying machine does not run after it is configured.
Power plug might be unplugged. >>> Make sure the power cord
is plugged in.
Loading door might be open. >>> Ensure that the loading door is
properly closed.
A program might not be set or Start/Stand-by button might not be
pressed. >>> Check that the program is set and it is not in Stand-
by position.
Child lock may be activated. >>> Turn off the child lock.
Program terminated prematurely for no reason.
Loading door might not be closed completely. >>> Ensure that the
loading door is properly closed.
There might be a power outage. >>> Press the Start/Stand-by
button to start the program.
Water tank may be full. >>> Empty the water tank.
Clothes have shrunk, hardened or spoiled.
A program not suitable with the laundry type might have been
used. >>> Check the maintenance labels on the clothes and
select a program suitable for the clothes.
The lighting inside the drying machine does not turn on. (For
models with a lamp)
Drying machine might not be turned on with the On/Off button or
program might not be selected for machines without an On/Off
button. >>> Make sure that the drying machine is turned on.
Lamp might be malfunctioning. >>> Contact Authorized Service to
replace the lamp.
Filter cleaning warning symbol/LED is on/flashing.
Fibre filter might not be cleaned. >>> Clean the filter.
The filter slot might be clogged with lints. >>> Clean the filter slot.
A layer of fluff might have accumulated clogging up the lint filter
pores. >>> Clean the filter. Refer to the Maintenance and cleaning
section.
The condenser might be blocked. >>> Wash the condenser.
Water drips from the loading door.
Fibres might have gathered on the inner sides of the loading door
and the loading door gasket. >>> Clean the inner surfaces of the
loading door and the loading door gasket surfaces.
Loading door opens by itself.
Loading door might not be closed completely. >>> Push the
loading door until the closing sound is heard.
Water tank warning symbol / led is on/flashing.
Water tank may be full. >>> Empty the water tank.
Water discharge hose might have collapsed. >>> If the product is
connected directly to the water drain check the water discharge
hose.
Steam symbol is flashing.(For the products with a steam function)
Steam tank may be empty => Fill the steam tank with distilled or
condensed water.
Steam programs do not start (For the products with a steam
function)
Steam tank may be empty, steam tank warning icon may light up
on the screen => Fill the steam tank until the steam icon goes off.
Wrinkles are not removed with wrinkle removing program. (For the
products with a steam function)
Excess amount of laundry may have been placed => Place
specified amount of laundry.
Steam application time may be selected in low level => Choose a
program with high amount of steam.
After completion of the program, the laundry may have stayed in
the machine for a long time => Take the laundry out as soon as the
program finishes, and hang it out.
Laundry odour not lessened with the odour removal program.(For
the products with an odour removal program)
Excess amount of laundry may have been placed => Place
specified amount of laundry.
Steam application time may be selected in low level => Choose a
program with high amount of steam.
A
WARNING!
• If the problem persists after following the
instructions in this section, contact your vendor
or an Authorized Service. Never try to repair your
product yourself.
C
NOTE
• In an event that you encounter an issue on
any part on your appliance, you can ask for a
replacement by contacting the authorized service
with the appliance model number.
• Operating the appliance with non-authentic parts
may lead the appliance to malfunction.
• Manufacturer and distributor are not liable for
malfunctions resulting from using non-authentic
parts.
21
Dryer / User Manual
8 Electrical Connection
Make sure that you have an earthed power
outlet socket rated at 13 amps (minimum).
8.1 Attention!
When installed, the socket must be reachable
after installation, or a separate switch (which
can disconnect the two poles) must be used
in the installation. Check for suitability.For a
permanent connection, a master switch with at
least 3mm contact clearance and minimum 13
A rating must be used.
8.2 Electrical requirements
Before you insert the plug into the wall socket
make sure that the voltage and the frequency
shown in the rating label corresponds to your
electricity supply.
We recommend that this appliance be
connected to the mains supply via a suitable
switched and fused socket in a readily
accessible position. Should the mains lead
of the appliance become damaged or need
replacing at any time, it must be replaced by a
special purpose made mains lead which can
only be obtained from a Authorised Service
Agent.
A
WARNING!
This appliance must be earthed
If the fitted moulded plug is not suitable for
your socket, then the plug should be cut off
and an appropriate plug fitted.
The moulded plug on this appliance
incorporates a 13A fuse. Should the fuse need
to be replaced an ASTA approved BS1362
fuse of the same rating must be used. Do not
forget to refit the fuse cover. In the event of
losing the fuse cover, the plug must not be
used until a replacement fuse cover has been
fitted. Colour of the replacement fuse cover
must be the same colour as that visible on the
pin face of the plug. Fuse covers are available
from any good electrical store.
In order to avoid hazards, damaged supply
cord should be replaced by the manufacturer,
its service agent or similarly qualified people.
Built-under installation
This appliance can be installed under a
worktop.
A
WARNING!
Do not operate without the top cover fitted.
Risk of injury.
A
IMPORTANT!
8.3 Fitting a different plug
As the colours of the wires in the mains lead
of this appliance may not correspond with the
coloured markings identifying the terminals on
your plug, proceed as follows:
1 Connect the green - yellow or green (earth)
wire to the terminal in the plug marked ‘E’ or
with the symbol or coloured green and yellow
or green.
2 Connect the blue (neutral) wire to the terminal
in the plug marked ‘N’ or coloured black.
3 Connect the brown (live) wire to the terminal
in the plug marked ‘L’ or coloured red.
With the alternative plugs a 13A fuse must
be fitted either in the plug or adaptor or in the
main fuse box. If in doubt contact a qualified
electrician.
Green and yellow
or green
N
Blue or black
L
Brown or red
8.4 Washer/dryer combination
Do not stack washing machine on top of
the tumble dryer. This would damage both
appliances and guarantees would become
void. It is also unsafe to stack an appliance
on top of another without using a suitable
and approved stacking kit obtained from the
manufacturer of the appliances.
• A special stacking kit is required as an
optional extra please contact customer service.
22
Dryer / User Manual
(4) Scale from G (lest efficient) to A (most efficient)
(5) Weighted average value — L
WA
expressed in dB(A) re 1 pW
(1) Scale from A+++ (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of
the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the
label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient
programme in terms of energy consumption for cotton
: Yes - : No
Supplier name or trademark
Model name
Rated capacity (kg)
Type of Tumble Dryer
Condenser
Air Vented
Energy efficiency class
(1)
Annual Energy Consumption (kWh)
(2)
Type of Control
Energy consumption of the standard cotton programme at full load (kWh)
Energy consumption of the standard cotton programme at partial load (kWh)
Power consumption of the off-mode for the standart cotton programme at full load, P
O
(W)
Power consumption of the left-on mode for the standart cotton programme at full load, P
L
(W)
The duration of the left on mode (min)
Standard cotton programme
(3)
Programme time of the standard cotton programme at full load, T
dry
(min)
Programme time of the standard cotton programme at partial load, T
dry1/2
(min)
Weighted programme time of the standard cotton programme at full and partial load (T
t
)
Condensation efficiency class
(4)
Average condensation efficiency of the standard cotton programme at full load, C
dry
Average condensation efficiency of the standard cotton programme at partial load, C
dry1/2
Weighted condensation efficiency of the standard cotton programme at full load and partial load, C
t
Sound power level for the standard cotton programme at full load
(5)
Built-in
PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Non-automatic
Automatic
-
8.0
-
B
561,1
-
4,75
2,53
0,50
1,00
30
142
107
B
81%
81%
81%
66
80
HOTPOINT
CHDC82WWGDUK / 7182483690
CHDC82BBGDUK / 7182483710
CHDC82GGGDUK / 7182483740
