Please read this manual carefully before operating your set and retain it for future
reference.
1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufcient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance, contact
an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure. To prevent
direct exposure to laser beam, do not try to open the
enclosure.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating.
The openings should never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
Getting Started 3
Getting Started
1
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specication page of this owner’s manual
to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or re. Periodically
examine the cord of your device, and if its appearance
indicates damage or deterioration, unplug it,
discontinue use of the device, and have the cord
replaced with an exact replacement part by an
authorized service center. Protect the power cord
from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the device.
CAUTION: Be careful to make sure children do not
put their hands or any objects into the *speaker duct.
* speaker duct: A hole for plentiful bass sound on
speaker cabinet. (enclosure)
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
~
Refers to alternating current (AC).
0
Refers to direct current (DC).
Refers to class II equipment.
1
Refers to stand-by.
!
Refers to “ON” (power).
Refers to dangerous voltage.
Table of Contents4
Table of Contents
3 Operating
19 Basic Operations
19 – CD/USB Operations
19 – Auto Play
20 – Selecting a folder and an MP3/WMA file
21 – Deleting a file/folder or format
21 Playback Effect
21 – DJ EFFECT
22 – DJ SCRATCHER
23 – AUTO DJ
23 – DJ PAD
24 – DJ LOOP
24 – PARTY ACCELERATOR
25 – MIX
25 – TEMPO
25 – AUTO SYNC
26 – DJ STAR
26 – REAL SCRATCHER
26 – CUE
27 Using BLUETOOTH® wireless technology
27 – Listening to music stored on the Bluetooth
devices
30 Using the LG XBOOM App
30 – About “LG XBOOM” App
30 – Install “LG XBOOM” App onto Your
Bluetooth Device
31 – Activate Bluetooth with “LG XBOOM” App
1 Getting Started
2 Safety Information
6 Unique Features
7 Playable file Requirement
7 – Music file requirement
7 – Compatible USB Devices
7 – USB device requirement
8 Remote control
10 Top panel
12 Front panel / Rear panel
13 Carrying the unit
2 Connecting
14 AC Power Cord Connection
14 Optional Equipment Connection
14 – AUX IN 1 Connection
15 – AUX IN 2 Connection
15 – Listening to music from your portable player
or external device
16 – OPTICAL IN Connection
16 LG Sound Sync
18 – USB Connection
18 – Antenna Connection
Table of Contents 5
1
2
3
4
5
32 Radio Operations
32 – Listening to the radio
32 – Improving poor FM reception
32 – Presetting the Radio Stations
32 – Deleting all the saved stations
33 Sound adjustment
33 – Setting the sound mode
33 – Setting the USER EQ
34 Advanced Operations
34 – Recording to USB
36 – JUKE BOX Playback
37 Other Operations
37 – Turn off the sound temporarily
37 – DRC (Dynamic range control)
37 – CHILDSAFE Mode
37 – DEMO
37 – Resume stop
38 – Using your TV remote control
38 – Using Microphone
40 – Using H/P MODE
41 – LIGHTING
41 – Sleep Timer Setting
41 – Dimmer
42 – AUTO POWER On
43 – Auto function change
44 Setting the Clock
44 – Setting the Clock through “LG XBOOM” App
44 – Using your player as an alarm clock
45 WIRELESS PARTY LINK Connection
4 Troubleshooting
47 Troubleshooting
47 – General
48 – NOTES to release Demo mode
5 Appendix
49 General specifications
50 Trademarks and licenses
51 Maintenance
51 – Notes on Discs
51 – Handling the Unit
Getting Started6
Getting Started
1
Unique Features
BLUETOOTH®
Listens to music stored on your Bluetooth device.
Optical In
Listens to music from your optical device.
Playback effects
Listens to music with various sound and playback
effects.
USB Direct Recording
Records music to your USB device.
LG XBOOM
LG XBOOM is an app designed to let you take
control of some of LG’s latest audio devices. (Page
30-31)
LG Sound Sync
Controls volume level of this unit by the remote
control of your LG TV that is compatible with LG
Sound Sync.
Getting Started 7
Getting Started
1
Playable file
Requirement
Music file requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y Sampling frequency: within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y Bit rate: within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y Maximum les: Data CD: 999 / USB: 2,000
y Maximum folders: Data CD: 99 / USB: 200
y File extensions: “.mp3”/ “.wma”
y Certain MP3/WMA les may not be played
depending on the type or format of the le.
y CD-ROM le format: ISO 9660/ JOLIET
y We recommend that you use Easy-CD Creator,
which creates an ISO 9660 le system.
y A protected le by DRM (Digital rights
management) cannot be played on the unit.
y The DTS disc is not supported.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot use
it on LG players.
(Mastered/Live File System: Disc format system for
Windows Vista)
Compatible USB Devices
y MP3 Player: Flash type MP3 player.
y USB Flash Drive:
Devices that support USB2.0 or USB1.1.
y The USB function of this unit does not support all
USB devices.
USB device requirement
y Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take longer than a
few minute to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
y This unit recognizes up to 2,000 les.
y External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y Some USB may not work with this unit.
Getting Started8
Getting Started
1

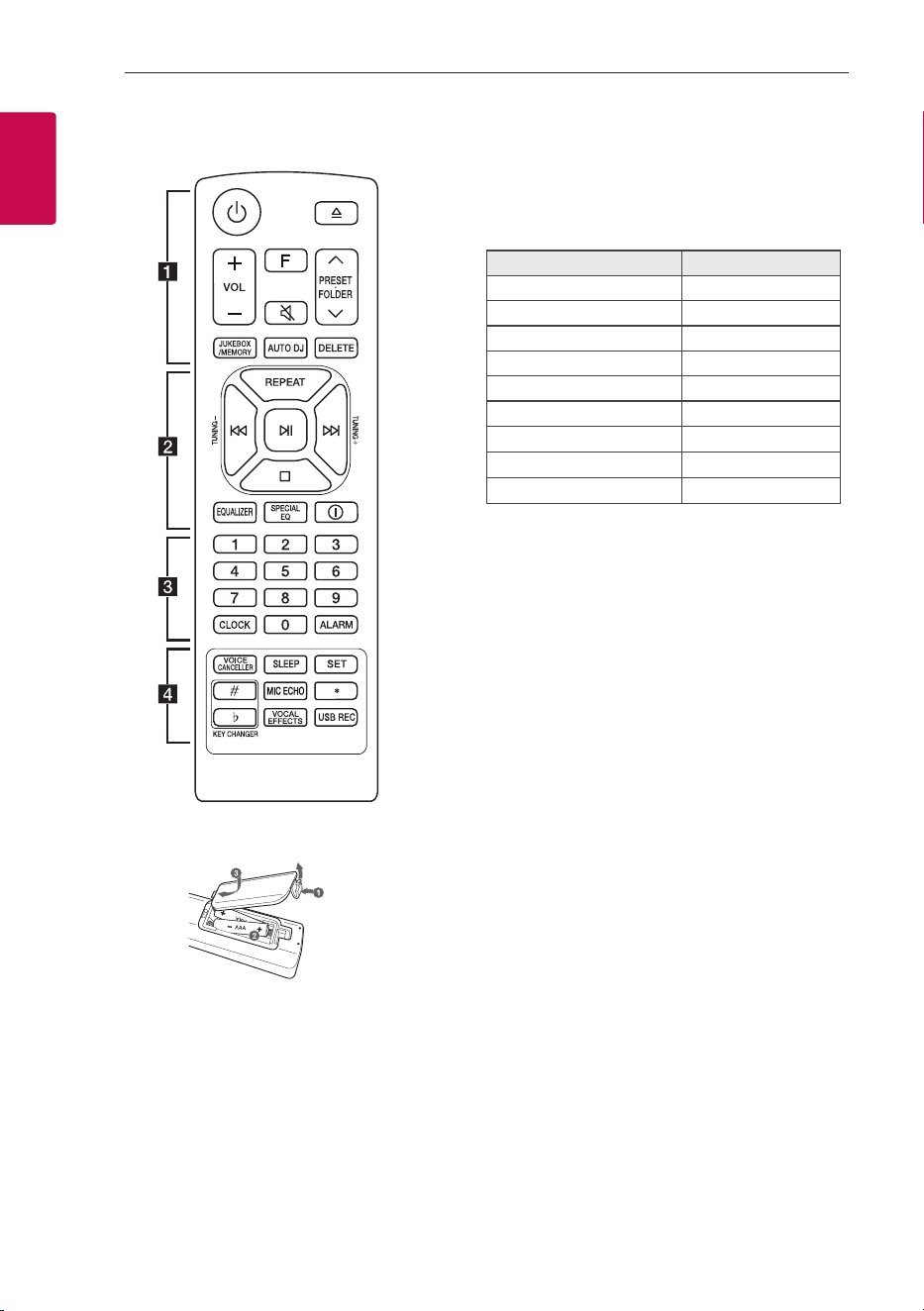

Remote control
Replacement of battery
(R03)
(R03)
Remove the battery cover on the rear of the remote
control, and insert the battery with 4 and 5
matched correctly.
• • • • • • • • • • • • • • a • • • • • • • • • • • • •
1 (Standby): Turns the power on or off.
B (Open/Close): Opens and closes the disc tray.
VOL (Volume) +/-: Adjusts speaker volume.
F (Function): Selects the function and input source.
Input source / Function Display
Disc CD
USB USB1 / USB2
Optical OPTICAL
LG Sound Sync (Optical) LG OPTICAL
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BLUETOOTH
LG Sound Sync (Wireless) LG TV
Radio RADIO
[ (Mute):
- Mutes the sound.
- Controls this unit using TV remote. (Page 38)
PRESET·FOLDER W/S:
- Chooses a preset number for a radio station.
(Page 32)
- Searches for a folder of MP3/WMA les. When
a CD/USB containing MP3/WMA les in several
folders is being played, press PRESET·FOLDER
W/S to select the folder you want to play.
JUKEBOX/MEMORY:
- Stores radio stations. (Page 32)
- Selects JUKE BOX mode. (Page 36)
- Makes JUKE BOX list.
AUTO DJ: Selects the AUTO DJ mode. (Page 23)
DELETE:
- Deletes MP3/WMA les. (USB only). (Page 21)
- Deletes a song on the JUKE BOX list.
- Deletes all the saved stations.
Getting Started 9
Getting Started
1
• • • • • • • • • • • • • • b • • • • • • • • • • • • •
REPEAT: Listens to your tracks/les repeatedly or
randomly.
TUNING-/+: Selects the radio stations.
C/V (Skip/Search):
- Skips backward or forward.
- Searches for a section within a track/le.
N (Play/Pause):
- Starts or pauses playback.
- Selects stereo/mono.
Z (Stop):
- Stops playback.
- Cancels DELETE function.
EQUALIZER: Chooses sound impressions.
SPECIAL EQ: Chooses special equalizer.
J (Information):
- Sees information about your music. An MP3 le
often come with ID3 tag. The tag gives the Title,
Artist, Album or Time information.
- Sees optical source information in OPTICAL mode.
- Sees Bluetooth device name of the unit in
BLUETOOTH READY.
- Sees the name of connected all Bluetooth device

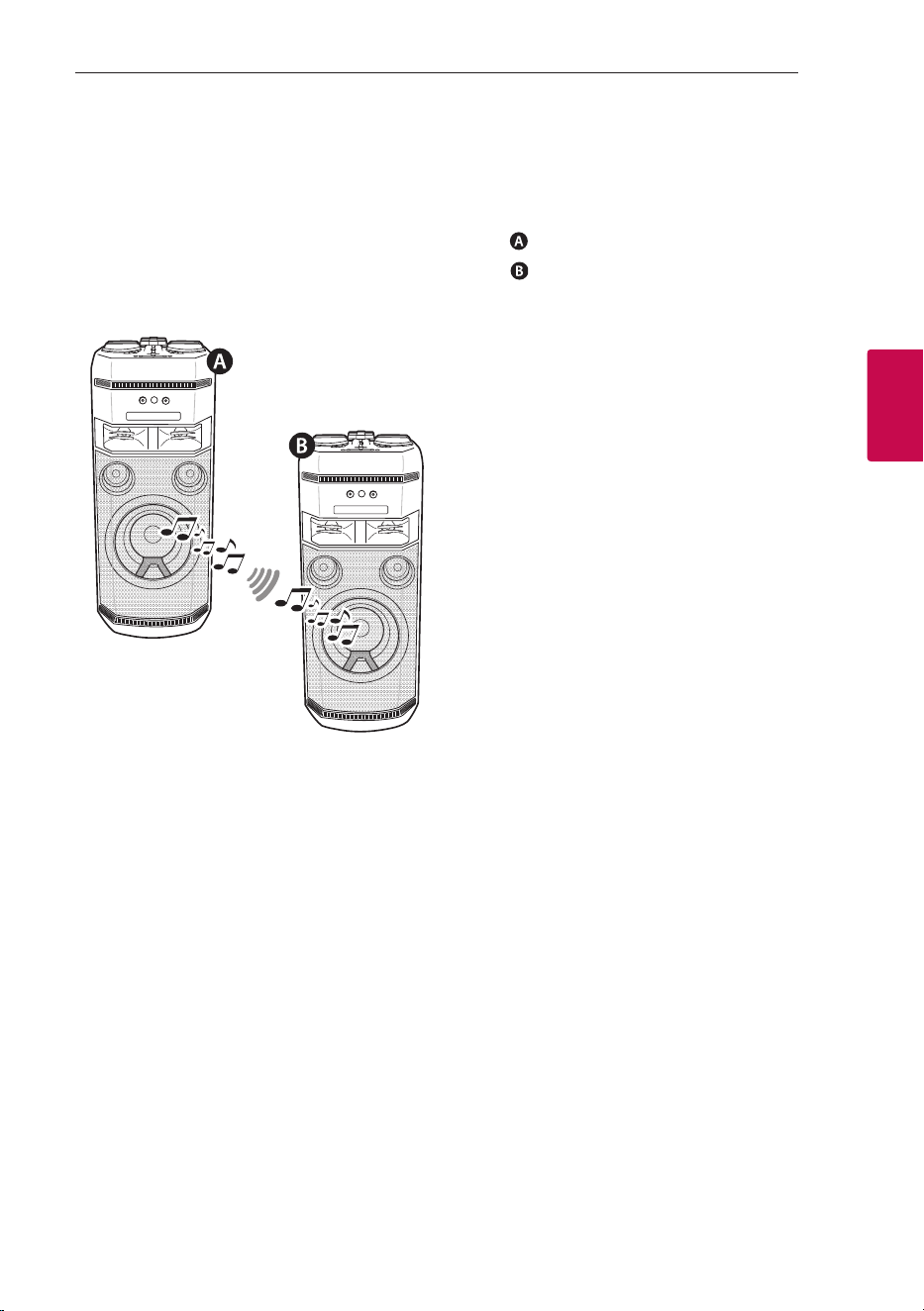

in Bluetooth mode.
- When these units are successfully connected each
other in WIRELESS PARTY LINK mode, each of
connected device names appears in the each unit.
• • • • • • • • • • • • • • c • • • • • • • • • • • • •
0 to 9 numerical buttons: Selects numbered tracks,
les, or preset number.
CLOCK: Sets a clock and checks a time.
ALARM: With the ALARM function you can turn on
CD, USB play and tuner reception at a desired time.
• • • • • • • • • • • • • • d • • • • • • • • • • • • •
VOICE CANCELLER: You can reduce the vocal tones
during music playback from various input sources.
SLEEP: Sets the system to turn off automatically at
a specified time.
(Dimmer: The display window will be darkened by
half.)
SET: Conrms the setting.
KEY CHANGER (L/l): Changes the key to suit your
vocal range.
MIC (Microphone) ECHO: Selects ECHO mode.
?: This button is not available.
VOCAL EFFECTS: Selects various vocal effects
mode.
USB REC:
- Records to USB.
- Stops recording.
Getting Started10
Getting Started
1

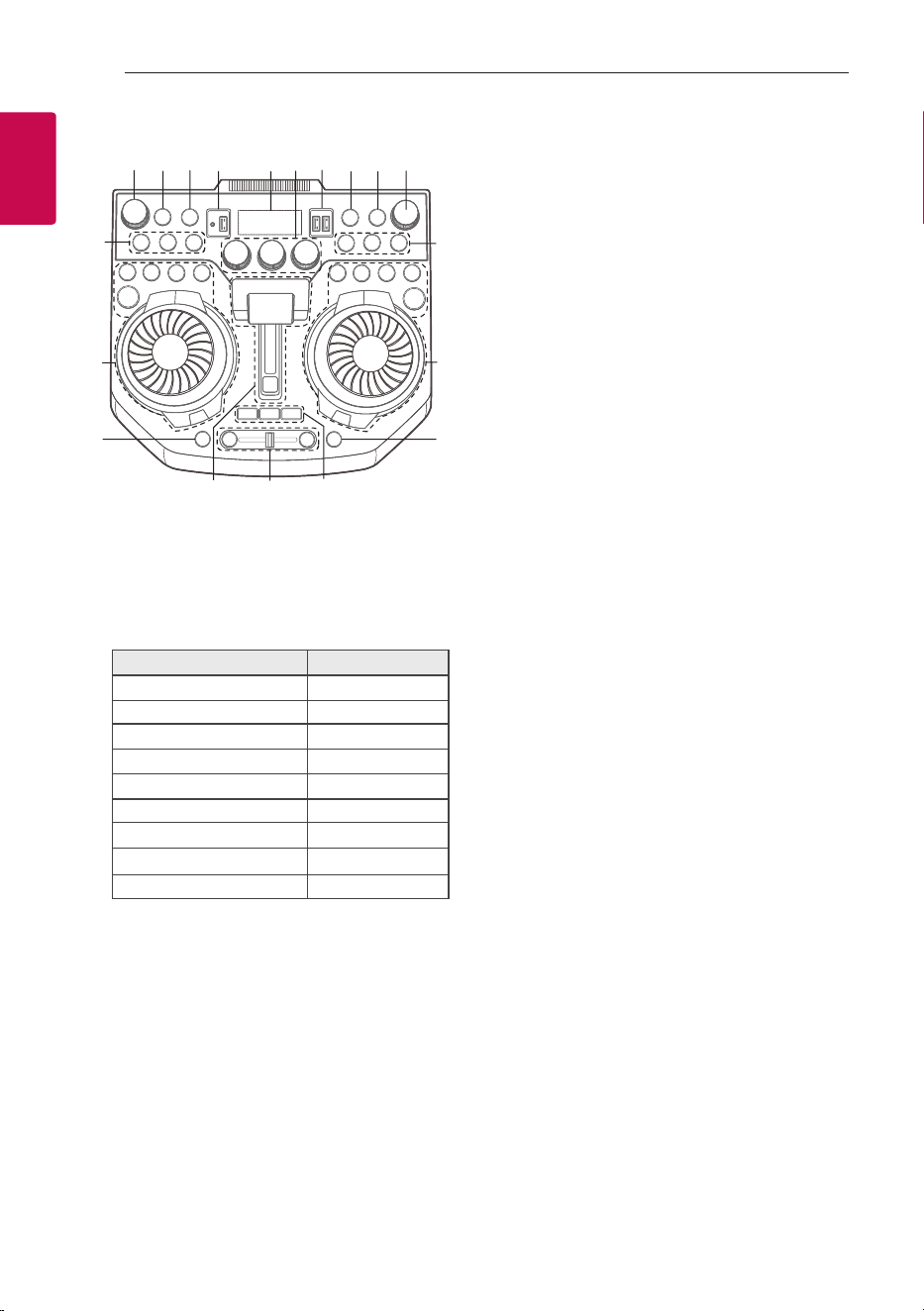

Top panel
l
h
a
o
p
m
k
i
j
b
c
d
e
q
r
f
g
n
s
a H/P (Headphone) VOLUME -/+
Adjusts headphone volume.
b 1 (Standby)
Turns the power on or off.
c F (Function)
Selects the function and input source.
Input source / Function Display
Disc CD
USB USB1 / USB2
Optical OPTICAL
LG Sound Sync (Optical) LG OPTICAL
AUX (3.5 mm) input AUX 1
AUX input AUX 2
Bluetooth BLUETOOTH
LG Sound Sync (Wireless) LG TV
Radio RADIO
d HEADPHONE IN jack

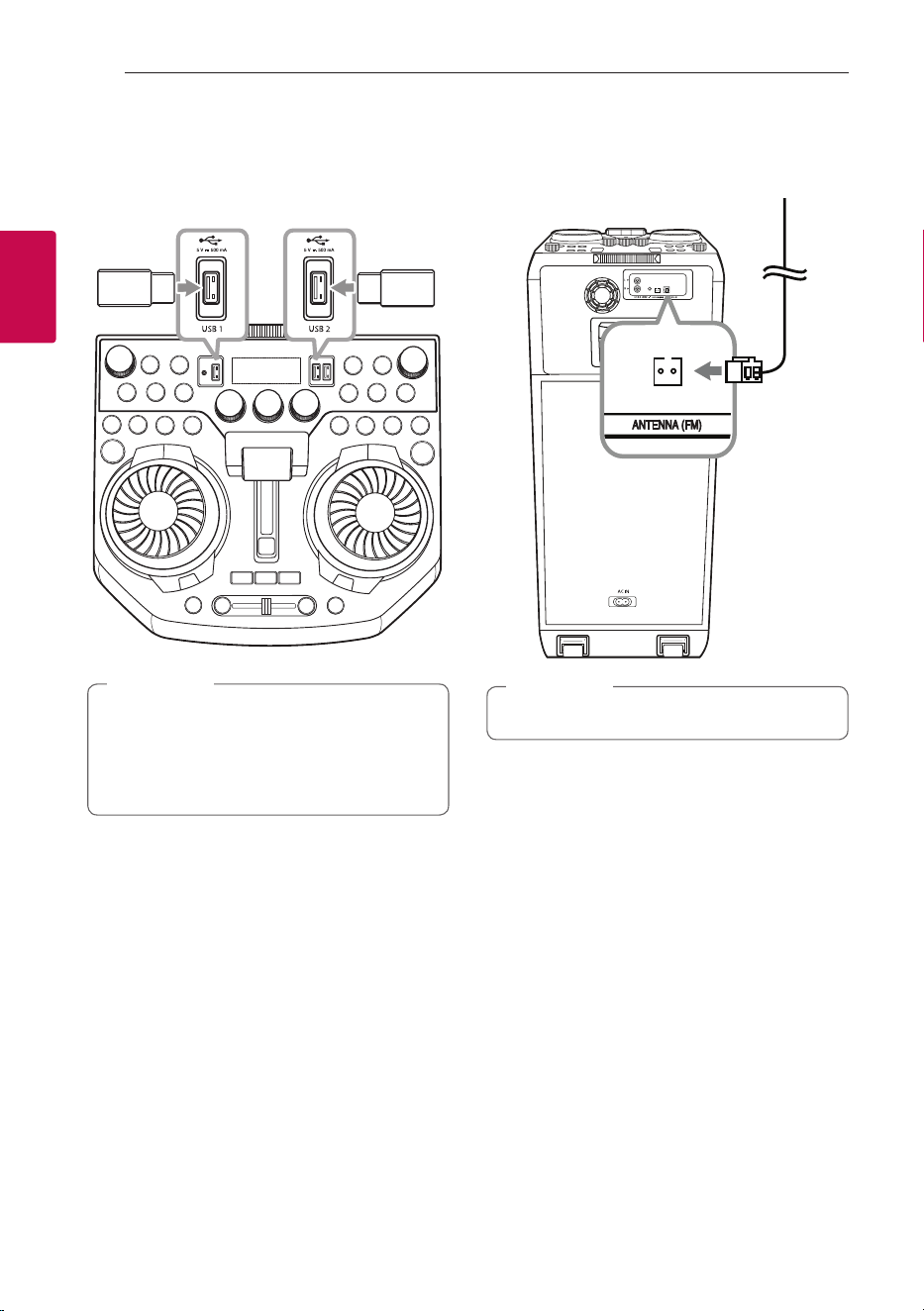

USB 1 Port
You can play sound les by connecting the USB
device.
e Display window
f TEMPO A -/+
Adjusts TEMPO in USB 1 function.
MASTER VOLUME -/+
Adjusts speaker volume.
TEMPO B -/+
Adjusts TEMPO in USB 2 function.
g USB 2 Port
You can play sound les by connecting the USB
device.
RECORD PORT
You can record les from various sources.
h USB REC / DEMO
- Records to USB.
- Stops recording.
- In power off status, if you press USB REC /
DEMO, show demo mode.
i MIC (Microphone) ECHO
Selects ECHO mode.
j MIC (Microphone) VOLUME -/+
Adjusts microphone volume.
k VOCAL EFFECTS
Selects various vocal effects mode.
VOICE CANCELLER
You can reduce the vocal tones during music
playback from various input sources.
KEY CHANGER
Changes the key to suit your vocal range with
rotating MIC VOLUME.
l Side 2 / Basic controls (USB 2 only)
Z (Stop)
Stops playback or cancels DELETE function.
C/V (Skip/Search)
- Skips backward or forward.
- Searches for a section within a track/file.
N (Play/Pause)
Starts or pauses playback.
CUE
Sets cue point on DJ STAR mode.
SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
REAL SCRATCHER / SEARCH & MULTI
- Turns clockwise or counterclockwise to make
scratch sound.
- Turns clockwise or counterclockwise to control
playback point on DJ STAR mode.
- Searches a folder or a file.
- Selects the lighting effects.
Getting Started 11
Getting Started
1
SPECIAL EQ / BASS BLAST (or BASS BLAST+)
- Chooses special equalizer.
- Press and hold to select BASS BLAST (or BASS
BLAST+) effect directly.
DJ LOOP
Selects DJ LOOP mode.
(DJ LOOP mode can use during USB playback.)
LIGHTING
Selects the lighting mode.
m B (Open/Close)
Opens and closes the disc tray.
n CLUB, DRUM, USER (DJ PAD)
Selects CLUB, DRUM or USER sound effect to
mix.
(If you want to use USER, you have to register a
source with “LG XBOOM” app.)
1, 2, 3 (DJ PAD)
Press a desired sound pad.
o AUTO SYNC
When using MIX/DJ STAR, you can synchronize
the tempo of audio files being played in USB 1
and USB 2 by pressing AUTO SYNC.
MIX
Mixes audio sound.
Cross fader
Move the cross fader to adjust the sound volume
of mixed sound when using MIXER/DJ STAR ON.
p PARTY ACCELERATOR lever
Slide the lever to create a party atmosphere.
PARTY ACCELERATOR MODE
Selects PARTY ACCELERATOR MODE.
q MERIDIAN EQ
You can directly select premium MERIDIAN
equalizer.
r Side 1 / Basic controls (CD / USB 1 / BLUETOOTH
/ RADIO only)
Z (Stop)
Stops playback or cancels DELETE function.
C/V (Skip/Search)
- Skips backward or forward.
- Searches for a section within a track/file.
- Selects the radio stations.
N (Play/Pause)
- Starts or pauses playback.
- Selects stereo/mono.
CUE
Sets cue point on DJ STAR mode.
SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
REAL SCRATCHER / SEARCH & LEVEL
CONTROL
- Turns clockwise or counterclockwise to make
scratch sound.
- Turns clockwise or counterclockwise to control
playback point on DJ STAR mode.
- Turns clockwise or counterclockwise to control
the USER EQ level.
- Searches a folder or a file.
- Adjusts DJ EFFECT level.
- Selects vocal effects.
DJ EFFECT
Selects a desired DJ EFFECT.
DJ LOOP
Selects DJ LOOP mode.
(DJ LOOP mode can use during CD/USB
playback.)
USER EQ
Selects the equalizer created by your own.
s H/P (Headphone) MODE
Press to select a headphone monitor mode.
3TWIN
Connects two speakers for TWIN mode in
WIRELESS PARTY LINK.
DJ STAR
Turns on or off the DJ STAR mode.
Getting Started12
Getting Started
1

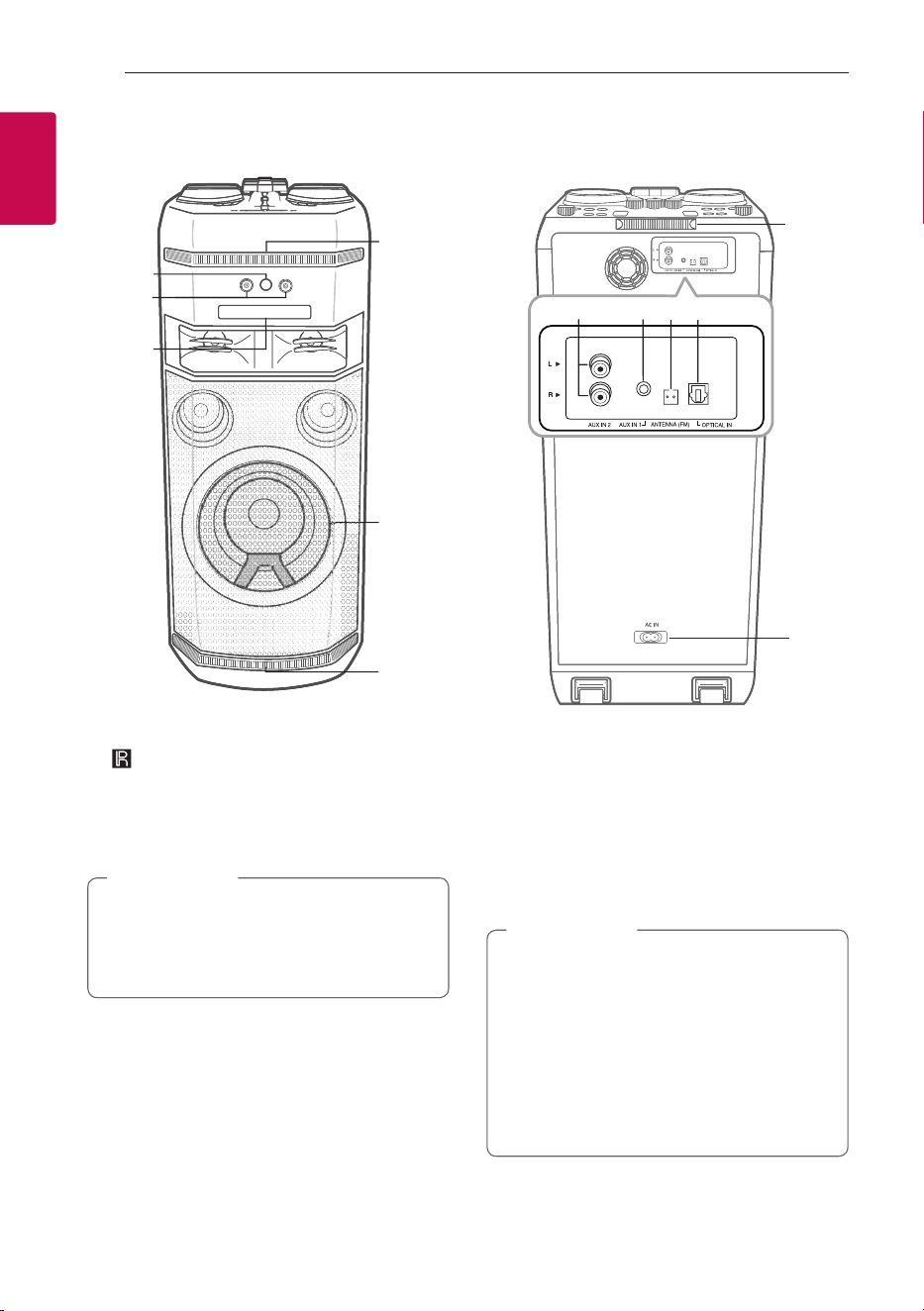

Front panel / Rear panel
a
b
c
d
d
d
j
e
fg
h
i
a (Remote sensor)
b MIC (Microphone) 1/2 jack
c Disc tray
d Lighting
Place the speaker at a safe distance from the
child’s reach. Otherwise it may result in the
speaker falling down and causing personal injury
and/or property damage.
>
Caution
e Lighting
f AUX IN 2 (L/R): Connect an auxiliary device.
g AUX IN 1: Connect a portable device.
h ANTENNA (FM)
i OPTICAL IN: Connect an optical device.
j AC IN socket
y Connect the power cord to wall outlet
directly if possible. Or when you use an
extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A
or 230 V / 15 A, otherwise the unit may
not operate properly because of the lack of
power supply.
y Do not overload the extension cord with
excessive electrical load.
>
Caution
Getting Started 13
Getting Started
1
Useful functions for using the unit
Function Description To do Do this
TV Remote On/
Off
(Page 38)
It allows you to control the
volume of this unit by your TV
remote control even by other
company’s product.
Initial setting of this function
was set to on.
ON
Press and hold [ on the remote control for
3 seconds in Optical function.
OFF
Press and hold [ on the remote control for
3 seconds in Optical function.
BT Lock On/Off
(Page 29)
It allows you to connect a
Bluetooth device only on
BLUETOOTH and LG TV
functions.
Initial setting of this function
was set to off.
ON
Press and hold N on the remote control or
N on the side 1 of the unit for 5 seconds in
BLUETOOTH function.
OFF
Press and hold N on the remote control or
N on the side 1 of the unit for 5 seconds in
BLUETOOTH function.
Auto Power On
(Page 42)
It allows the unit to turn on
automatically by input signals:
Optical, LG TV or
BLUETOOTH
ON
Turn off the unit by pressing 1 on the unit
for 5 seconds.
OFF
Turn off the unit by pressing 1 on the unit
for 5 seconds.
Carrying the unit
The unit has wheels and handles so you can easily
move the unit.
Handles
y Do not roll the unit on an unpaved road or
the stairs.
y When carrying the unit, be careful not to
drop it.
y Disconnect all connected cables before
carrying the unit.
y Do not place the unit on anything unstable.
Place the unit at a safe distance from a child’s
reach.
y Be careful so that the unit does not fall
down. Otherwise it may result in malfunction
or cause personal injury and/or property
damage.
>
Caution
2 Connecting
Connecting14
Connecting
2
AC Power Cord
Connection

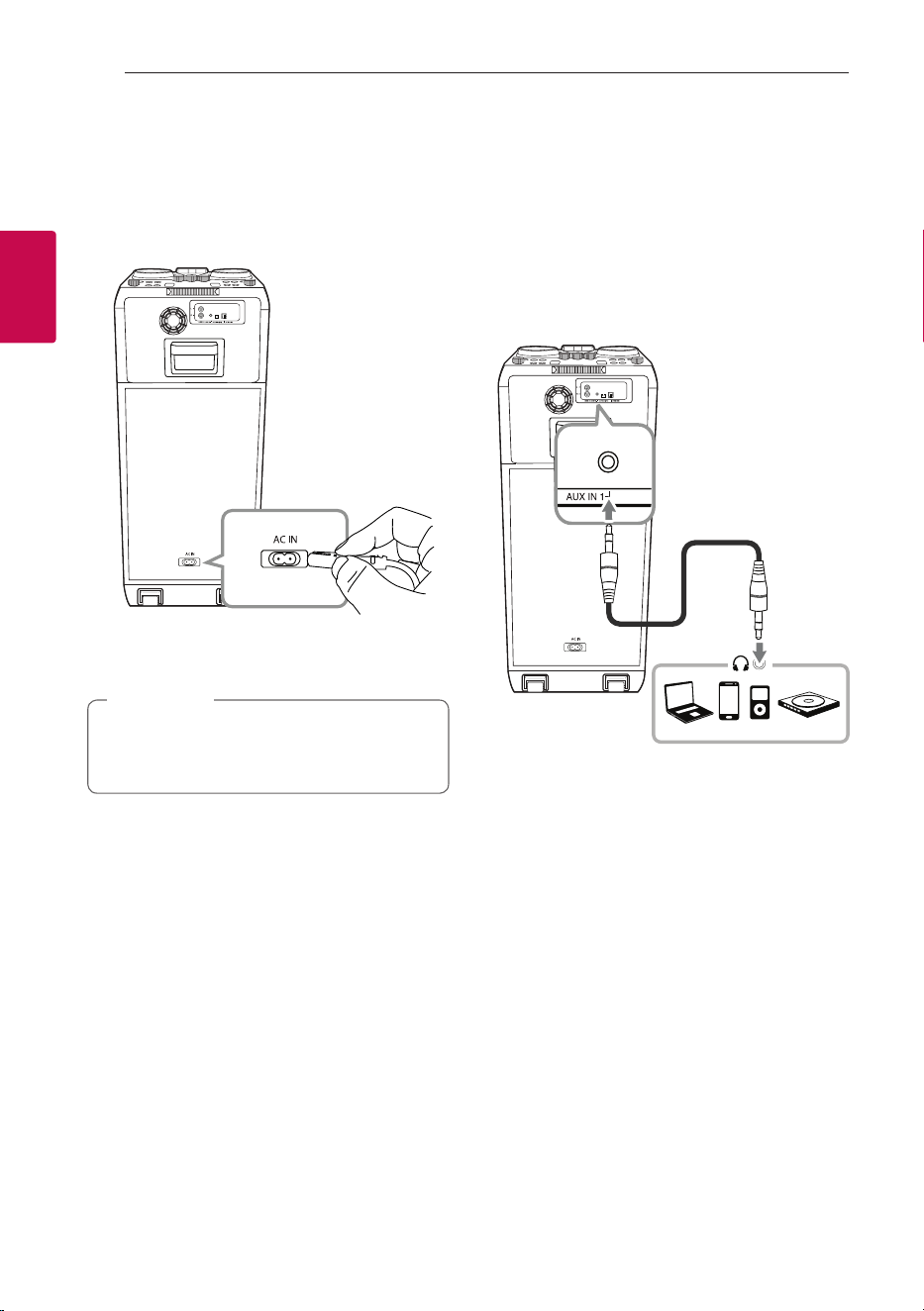

1. Connect one end of the AC power cord (included)
to the AC IN socket.
2. Plug the other end into the wall outlet.
Unplug the AC power cord from the wall outlet
if you do not to use for an extended period of
time.
,
Note
Optional Equipment
Connection
AUX IN 1 Connection
Connect an output (earphone or line out) of portable
device (MP3 or PMP etc.) to the AUX IN 1 (3.5 mm)
connector.
3.5 mm stereo
cable
MP3 player etc.
Connecting 15
Connecting
2

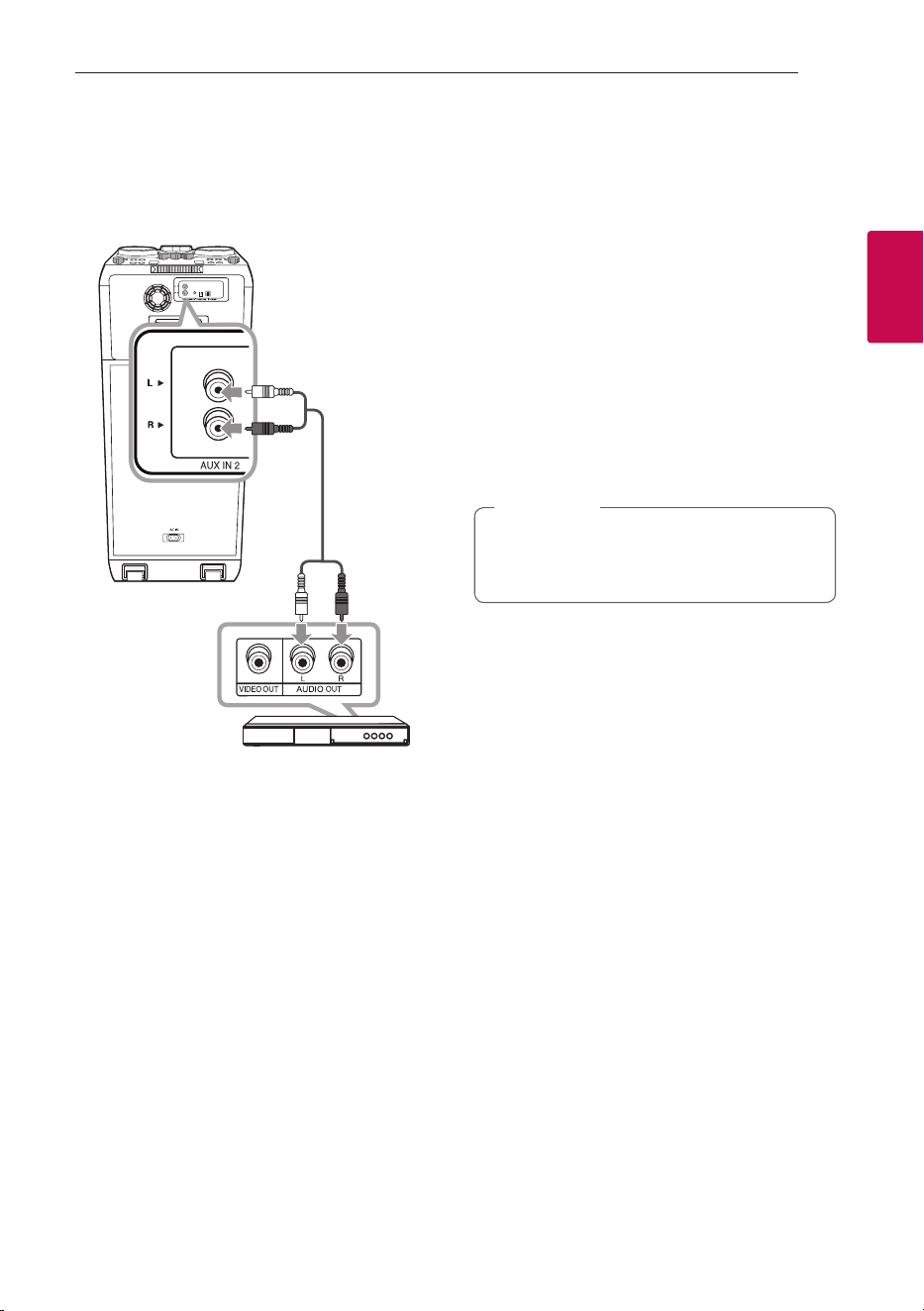

AUX IN 2 Connection
Connect an output of auxiliary device (Camcorder, TV,
Player, etc) to the AUX IN 2 (L/R) connector. If your
device has only one output for audio (mono), connect
it to the left (white) audio jack on the unit.
DVD, Blu-ray player etc.
Audio cable
White
Red
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the AUX IN 1
connector of the unit.
Or
Connect the external device to the AUX IN 2
connector of the unit.
2. Turn the power on by pressing 1.
3. Press F to select AUX 1 or AUX 2 function.
4. Turn on the portable player or external device and
start it playing.
Automatically switches to the AUX 1 function
when you connect the portable device to the
AUX IN 1 connector.
,
Note
Connecting16
Connecting
2

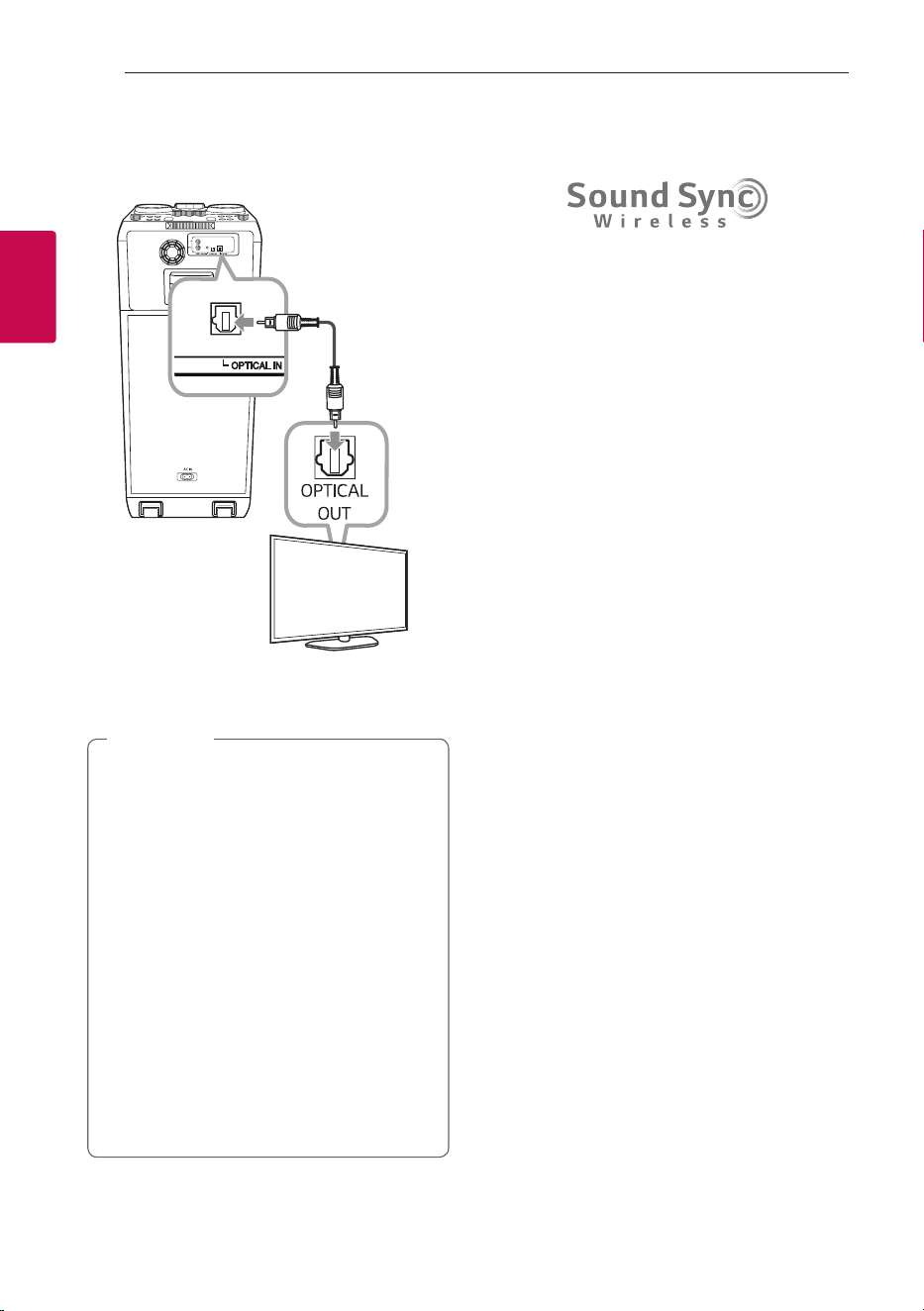

OPTICAL IN Connection
1. Connect an optical output jack of external
devices to the OPTICAL IN jack.
TV or digital device etc.
Optical cable
2. Press F
until OPTICAL function is selected.
y Before connecting the optical cable, be sure
to remove the protection plug cover if your
cable has the cover.
y You can enjoy the TV audio through the
speakers of this unit. In the case of some TV
models, you must select the external speaker
option from the TV menu. (For details,
reference your TV user manual.)
y Set up the sound output of TV to listen
to the sound through this unit: TV setting
menu [ [Sound] [ [TV Sound output] [
[External speaker (Optical)]
y Details of TV setting menu vary depending on
models of your TV.
y Playback effects, MIC function and H/P mode
do not operate on OPTICAL or LG OPTICAL
function.
,
Note
LG Sound Sync
You can control some functions of this unit by
your TV’s remote control with LG Sound Sync. It is
compatible with LG TV that supports LG Sound Sync.
Make sure your TV has the LG Sound Sync logo.
Controllable function by LG TV’s remote control:
Volume up/down, mute
Refer to the TV’s instruction manual for the details of
LG Sound Sync.
LG Sound Sync with wired connection
1. Connect your LG TV to the unit by using an
optical cable.
2. Set up the sound output of TV to listen to the
sound through this unit:
TV setting menu [ [Sound] [ [TV Sound
output] [ [LG Sound Sync (Optical)]
3. Turn on the unit by pressing 1
4. Press F
until OPTICAL function is selected.
You can see “LG OPTICAL” on the display window
if connecting normally between this unit and your
TV.
Connecting 17
Connecting
2
LG Sound Sync with wireless
connection
1. Turn on the unit by pressing 1.
2. Press F
until LG TV function is selected.
3. Set up the sound output of TV to listen to the
sound through this unit:
TV setting menu [Sound]
[TV Sound output]
[LG Sound Sync (Wireless)]
You can see “LG TV PAIRED” on the display
window if connecting normally between this unit
and your TV.
y You can also use the remote control of
this unit while using LG Sound Sync. If you
use TV’s remote control again, the unit
synchronizes with the TV. (According to TV
Specifications, the volume and mute of this
unit synchronize with TV.)
y If the connection fails, check the conditions of
this unit and your TV: power, function.
y Make sure of the condition of this unit and
the connection in the cases below when
using LG Sound Sync.
- The unit is turned off.
- Changing to a different function.
- Disconnecting the wireless connection
caused by interference or a distance.
- Disconnecting the optical cable.
y If you try to change the function on using
the LG TV function, volume will be change
according to the LG TV volume level.
y Details of TV setting menu vary depending on
models of your TV.
y If you turned off the unit directly by pressing
1, LG Sound Sync will be disconnected.
To use this function again, you should
reconnect the TV and the unit.
y The volume may be increased when the TV
and this unit is connected by LG Sound Sync.
Decrease the TV volume and then connect
with this unit.
y When you turn on your LG TV connected
by LG Sound Sync or enter LG TV function,
this unit changes the function to LG TV
automatically.
y You should set the TV Sound output manually
depending on the TV version.
y If you control TV volume when this unit and
TV are connected by LG Sound Sync, this unit
may louder the volume due to synchronizing
volume with TV’s.
,
Note
Connecting18
Connecting
2
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB ports on the unit.
USB device
Removing the USB device from the unit:
1. Choose a different function/mode or
press Z twice in a row.
2. Remove the USB device from the unit.
,
Note
Antenna Connection
Connect the supplied FM antenna for listening to
the radio.
FM antenna
Be sure to fully extend the FM wire antenna.
,
Note
3 Operating
Operating 19
Operating
3
Basic Operations
CD/USB Operations
1. Insert the disc by pressing B.
Or connect the USB device to the USB port.
2. Select CD or USB function by pressing F.
To Do this
Stop Press
Z
.
Playback Press
N
.
Pause Press
N
during playback.
Searching for a
section within
a track/le
Press and hold
C
/
V
during
playback and release it at the point
you want to listen to.
Selecting
a track/le
directly
Press 0 to 9 numerical buttons on
the remote control to go to the
desired le or track directly.
Skipping to the
next/previous
track/le
- In stop status,
Press
C
/
V
to go to the next/
previous track/le.
- During playback,
(1) By using
C
/
V
buttons:
Press
V
to go to the next track/
le.
Playing in less than 3 seconds, press
C
to go to the previous track/le.
Playing after 3 seconds, press
C
to
go to the beginning of the track/le.
(2) By using SEARCH:
Rotate REAL SCRATCHER /
SEARCH & LEVEL CONTROL on
the side 1 of the unit
(or REAL SCRATCHER / SEARCH &
MULTI
on the side 2 of the unit)
or C/V and press N to play the
track/le.
Playing
repeatedly or
randomly
Press REPEAT on the remote
control repeatedly. Refer to the note
for details about the display change.
y Repeat/Shufe playback operates as follows.
On Display
Description
OFF
Plays songs in order, and stops
the playback.
ONE Plays a same song repeatedly.
FOLDER
Plays songs in a folder
repeatedly. (Except AUDIO CD)
ALL Plays all the songs repeatedly.
SHUFFLE
Plays all the songs once
randomly, and stops the
playback.
y When you play JUKE BOX list, only ONE and
ALL are available.
y Even after restarting the unit or switching
one function to another, you can listen to
music from the point where it’s last been
played.
y If you leave the disc tray open for 5 minutes,
it will close automatically.
,
Note
Auto Play
- AUDIO/MP3/WMA CD is played automatically
after disc tray is open and then closed.
- Automatically switches to the CD function if disc
tray is open and then closed even when there is no
disc in disc tray.
- When CD or USB is inserted
- If you press N on the side 1 of the unit,
the function is changed to CD or USB 1 and
playback starts. (Except BLUETOOTH, RADIO,
OPTICAL function)
- If you press N on the side 2 of the unit, the
function is changed to USB 2 and playback
starts. (Except MIXER/DJ STAR ON mode)
Operating20
Operating
3
.
When CD or USB is inserted
- Function is changed to CD or USB 1
if C
/V, Z, SEARCH on the side 1 of the
unit is pressed. (Except BLUETOOTH, RADIO
function)
- Function is changed to USB 2
if C
/V, Z, SEARCH on the side 2 of the
unit is pressed. (Except MIXER/DJ STAR ON
mode)
,
Note
Selecting a folder and an MP3/
WMA file
On the unit
1. Press SEARCH and rotate REAL SCRATCHER /
SEARCH & LEVEL CONTROL on the side 1 (or
rotate REAL SCRATCHER / SEARCH & MULTI
on the side 2) or C/V until a desired file
appears. You can also search a folder if you press
SEARCH again.
2. Press OK or N to play the selected file. When
you search a folder, press OK to select a file in the
folder, then press OK or N again. The selected
file is played.
On the remote control
1. Press PRESET·FOLDER W/S repeatedly until a
desired folder appears.
2. Select the file you want by using C
/V.
3. Press N to play it.
y CD / USB Folders/Files are recognized as
below.
*
y If there is no le in a folder, the folder will not
appear.
y Folders will be presented as the following
order;
ROOT
FOLDER 1 FOLDER 3
FOLDER 7 FOLDER 8 FOLDER 5
FOLDER 6
y File will be played from $ le No.1 to $ le
No.14 one by one.
y Files and folders will be presented in order
recorded and may be presented differently
according to the record circumstances.
*ROOT: The rst screen you can see when a
computer recognize the CD/USB is “ROOT”.
,
Note
Operating 21
Operating
3
Deleting a file/folder or format
You can delete le, folder on your USB or format the
USB.
1. Select USB function by pressing F.
2. Press DELETE on the remote control repeatedly,
the display changes as followings.
DEL FILE ?
DEL FOLDER ? FORMAT ?
On Display Description
DEL FILE ?
Select the le you want to
delete.
DEL
FOLDER ?
Select the folder you want to
delete.
FORMAT ?
Select to format the USB
device.
If you want to exit the current mode, press Z.
3. To delete file/folder or format, press and hold
DELETE on the remote control.
y Do not extract the USB device during
operation. (play, delete, etc.)
y Regular back up is recommended to prevent
data loss.
y The delete function may not be supported
according to the USB status. (lock, etc.)
>
Caution
Playback Effect
The unit supports various sound and playback
effects: DJ EFFECT, DJ SCRATCHER, AUTO DJ, DJ PAD,
DJ LOOP, PARTY ACCELERATOR, MIX, TEMPO, AUTO
SYNC, REAL SCRATCHER, CUE.
DJ EFFECT
It allows you to enjoy DJ EFFECT such as FLANGER/
PHASER/WAH/DELAY/VCF/ROLLING/BIT CRUSH
sound effect.
1. Press DJ EFFECT on the unit to select a desired
DJ EFFECT.
Normal mode
(FLANGER, PHASER, WAH, DELAY, OFF)
DJ STAR mode
(VCF, PHASER, FLANGER, DELAY, ROLLING, BIT
CRUSH, OFF)
2. Turn REAL SCRATCHER / SEARCH &
LEVEL CONTROL on the unit clockwise or
counterclockwise to adjust the DJ EFFECT level
between 0 to 15.
Operating22
Operating
3
On Display Description
FLANGER
As an audio effect using phase
difference, it gives delay effect to
the sound signal.
PHASER
As an audio effect using phase
difference, it gives feeling of
distance or wavelength to original
sound by detecting position of
sound.
WAH
The effect of creating a ‘wah-
wah’ sound using frequency lter.
DELAY
As an audio effect, using echo
effect.
VCF
An effect that makes a difference
in tone using audio source that
has passed a specic frequency
band.
ROLLING
Creates a loop effect using
the played audio source before
setting the rolling effect.
BIT CRUSH
Changes the bit depth of an
audio source to create a digital
distortion effect.
y The DJ EFFECT mode is displayed for 3
seconds when a DJ EFFECT key on the unit
is inputted.
y The current gage level is displayed when
adjusting gage.
y If the function changed or the unit is turned
off and on, DJ EFFECT mode with DJ EFFECT
is turned off.
y If the DJ STAR mode is turned on or off, DJ
EFFECT mode is turned off.
y According to effect level and application time,
the DJ EFFECT may not effect when the DJ
effect cover the original sound.
y Even though the same DJ EFFECT, the effect
may different due to the DJ STAR mode.
,
Note
DJ SCRATCHER
You can output and mix the sound effects of the DJ
SCRATCHER.
Rotating REAL SCRATCHER / SEARCH & LEVEL
CONTROL or REAL SCRATCHER / SEARCH &
MULTI on the unit to mix the scratch sound.
- You can hear effect of scratch sound depending
on the direction in which you rotate REAL
SCRATCHER / SEARCH & LEVEL CONTROL or
REAL SCRATCHER / SEARCH & MULTI on the
unit.
DJ SCRATCHER function does not work on the
DJ STAR mode.
,
Note
Operating 23
Operating
3
AUTO DJ
Auto DJ blends the end of one song into the
beginning of another for seamless playback.
It equalizes volume across tracks/les for
uninterrupted playback.
Press AUTO DJ on the remote control repeatedly, the
display changes as followings.
SHUFFLE
SEQUENTIAL OFF
On Display Description
OFF -
SHUFFLE
The music is played randomly on
this mode.
SEQUENTIAL
The music is played repeatedly on
this mode.
y AUTO DJ mode does not support searching
for a section within a track/le or to play
repeatedly or randomly.
y If you move to other functions or stop the
music using Z on AUTO DJ mode, AUTO DJ
will be disabled.
y AUTO DJ is not supported in the music le
whose length is less than 60 seconds.
y Only SEQUENTIAL is selected when played
JUKE BOX list.
,
Note
DJ PAD
It allows you to mix CLUB, DRUM or USER sound
effect. Each mode has up to 3 sounds effect.
1. Press and hold DJ PAD (CLUB, DRUM or USER)
on the unit to select a desired DJ PAD sound
effect.
2. Press a DJ PAD (1, 2, 3) of desired sound on the
unit.
y If you want to use USER, you have to register
a source with “LG XBOOM” app. If the
source is not register to USER, “USER MODE
EMPTY” or “DJ PAD NO SOUND” appears on
the display window.
y Initial DJ PAD mode is CLUB sound effect.
y DJ PAD mode is displayed for 3 seconds
when you press DJ PAD (CLUB, DRUM or
USER) on the unit.
y The DJ PAD sound is mixed when you press a
DJ PAD (1, 2, 3) on the unit.
y The currently playing DJ PAD sound is
stopped and the selected DJ PAD sound
outputs if you press a different DJ PAD (1, 2,
3) on the unit while DJ PAD sound is playing.
,
Note
Operating24
Operating
3
DJ LOOP
The certain section (about 1 sec) of sound is
repeatedly played. (CD, USB Only)
During playback, press and hold DJ LOOP on the unit
at the point you want. And you can cancel DJ LOOP
function by releasing it.
This function is released after operating 10
times or releasing DJ LOOP on the unit.
,
Note
PARTY ACCELERATOR
It allows you to create a party atmosphere.
1. Select the mode by pressing PARTY
ACCELERATOR MODE on the unit.
The sound effect will react differently according
to the mode.
PARTY ACCEL MODE 1
PARTY ACCEL MODE
2 PARTY ACCEL USER
2. After selecting the mode, slide up the lever of
PARTY ACCELERATOR on the unit to create a
party atmosphere.
The lighting on the speakers, the LED lighting and
the sound effect will react according to moving
the lever of PARTY ACCELERATOR on the unit.
PARTY ACCEL OFF
PARTY ACCEL 1
PARTY ACCEL 2 PARTY ACCEL CLIMAX
If you want to use USER, you have to register
a source with “LG XBOOM” app. If the source is
not register to USER, “PARTY ACCEL EMPTY”
or “PARTY ACCEL NO SOUND” appears on the
display window.
,
Note
Operating 25
Operating
3
MIX
You can mix audio sounds.
1. Press MIX on the unit.
“MIXER ON” is displayed. Select a desired
function for side 1 and play it. Mix is available in
all functions except USB 2 and Optical.
2. During playback, insert a USB device in USB 2
port and play it. side 2 is fixed as USB 2 function.
3. Move the cross fader to adjust the sound volume
of mixed sound.
Move it to the left to lower the volume of
side 2 and move it to the right to lower the
volume of side 1.
y In MIXER ON mode,
- You can adjust the Tempo for USB function
1 or 2.
- If you press C/V, Z or N on the unit,
it works only for each side.
- If you press C/V, Z or N on the
remote control, it works for both side 1
and side 2.
- For operating, it is recommended to use
C/V, Z or N on the unit instead of
remote controls.
- Numerical, DELETE buttons do not work.
- You can use H/P MODE. (Page 40)
y If you turn off the unit in the middle of mixing
process, MIX mode turns to OFF.
,
Note
TEMPO
You can adjust the Tempo for USB function from 50
(MIN) to 150 (MAX).
Rotate TEMPO A on the unit to adjust the tempo for
USB 1. Rotate TEMPO B on the unit to adjust the
tempo for USB 2.
y The tempo is set as 100 if you turn the unit
on/off or fully stop.
y The tempo is kept when you pause and
resume play.
,
Note
AUTO SYNC
When using Mixing, you can synchronize the tempo
of audio les being played in USB 1 and USB 2 by
pressing AUTO SYNC on the unit.
To stop it, press AUTO SYNC on the unit twice.
y The tempo of music being played in USB 1 is
synchronized to that in USB 2.
y TEMPO A doesn’t work when AUTO SYNC
is on.
y If USB 2 fully stops or function is changed,
AUTO SYNC function is cancelled.
y In case of below, AUTO SYNC error may occur
depending on the sound source.
- The silent section in the beginning of the
track.
- Intro or bridge section in which few
musical instruments appear.
- In cases where playback speed or tempo
of the song changes.
- In case that the data for BPM is provided
in real time, not the beginning of the song.
y If the song is being played too fast or slow,
press and hold AUTO SYNC.
‘AUTO SYNC RE-ANALYZING’ is displayed.
y AUTO SYNC is available only when USB 1 is
selected for side 1 and USB 2 is selected for
side 2 in MIXER/DJ STAR ON mode and both
are being played.
,
Note
Operating26
Operating
3
DJ STAR
DJ STAR mode combines various effect mode to
experience professional DJ effect.
1. Press DJ STAR on the unit.
“DJ STAR ON” is displayed.
2. Insert the USB devices in USB 1/USB 2 port and
play the music.
3. Control the various sound effect.
To turn off the DJ STAR mode, press DJ STAR on the
unit again.
y In DJ STAR mode,
- Automatically enter the USB 1 & USB 2 &
MIX mode.
- REAL SCRATCHER and CUE function work
on the DJ STAR mode.
- You can enjoy more DJ effects (VCF,
PHASER, FLANGER, DELAY, ROLLING, BIT
CRUSH) on the DJ STAR mode.
- DJ STAR mode only recognizes USB 1 or
USB 2 music les.
y DJ SCRATCHER function does not work on
the DJ STAR mode.
y DJ STAR mode releases when you turn off
the unit, change the function or turn off the
Mix.
,
Note
REAL SCRATCHER
You can control playback point to backward or
forward in DJ STAR mode.
Rotating REAL SCRATCHER / SEARCH & LEVEL
CONTROL or REAL SCRATCHER / SEARCH &
MULTI on the unit to control playback point.
y This function works on the DJ STAR mode.
y You can’t move to previous music le using
this function.
,
Note
CUE
You can set cue point in DJ STAR mode.
1. During playback, pause or resume stop status,
press CUE on the unit at the point you want.
2. Press CUE on the unit when you want to start
music from cue point.
To delete cue point, press and hold CUE on the unit.
y This function works on the DJ STAR mode.
y You can set only 1 cue point at current
selected music.
y The Cue point will be deleted when USB is
removed, music is changed or full stop on
playback.
,
Note
Operating 27
Operating
3
Using BLUETOOTH®
wireless technology
About Bluetooth
Bluetooth is wireless communication technology for
short range connection.
The sound may be interrupted when the connection
interfered by the other electronic wave or you
connect the Bluetooth in the other rooms.
Connecting individual devices under Bluetooth
wireless technology does not incur any charges.
A mobile phone with Bluetooth wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth wireless technology.
y Available Devices: Smart phone, MP3, Notebook,
etc.
y Version: 4.0
y Codec: SBC, AAC
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on the
Bluetooth devices
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make
sure the Bluetooth feature is activated on your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed, it
does not need to be performed again.
1. Turn on the unit.
When Bluetooth connection lock is activated,
you can search Bluetooth device in BLUETOOTH
function.
,
Note
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device display
depending on the type of Bluetooth device. Your
unit appears as “LG OL100 (XX)”.
y XX means the last two digits of
Bluetooth address. For example, if your
unit has a Bluetooth address such as
9C:02:98:4A:F7:08, you will see
“LG OL100 (08)” on your Bluetooth device.
y Depending on the Bluetooth device type,
some devices have a different pairing way. For
details about Bluetooth pairing, refer to your
Bluetooth device manual.
y You can connect this unit with up to 3
Bluetooth devices simultaneously using the
same method as described above, only in the
Bluetooth function.
y The multi phone pairing connection is only
supported on Android devices. (Multi phone
pairing connection may not be supported
depending on the connected device
specications.)
y Removable/detachable Bluetooth devices
(Ex: Dongle etc.) will not support multi phone
pairing.
,
Note
Operating28
Operating
3
3. When this unit is successfully connected with
your Bluetooth device, “BLUETOOTH PAIRED”
appears on the display window and change to
Bluetooth device name soon.
y “BLUETOOTH PAIRED” will momentarily
appear on the display when you connect
other devices for multi phone pairing.
y If the device name is unavailable, “_” will be
displayed.
,
Note
4. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
y When using Bluetooth technology, you have
to make a connection between the unit and
the Bluetooth device as close as possible and
keep the distance.
However, it may not work well in certain
situations as described below:
- There is an obstacle between the unit and
the Bluetooth device.
- There is a device using same frequency
with Bluetooth technology such as a
medical equipment, a microwave or a
wireless LAN device.
y If Bluetooth connection does not work well,
try pairing it again.
y Even if this unit is connected to up to 3
Bluetooth devices in the Bluetooth mode,
you can play and control music by using only
one of the connected devices.
,
Note
y The sound may be interrupted when the
connection has interference from other
electronic devices.
y Depending on the type of the device, you may
not be able to use the Bluetooth function.
y You can enjoy wireless system using phone,
MP3, Notebook, etc.
y The more distance between the unit and the
Bluetooth device, the lower the sound quality
becomes.
y Bluetooth connection will be disconnected
when the unit is turned off or the Bluetooth
device gets too far from the unit.
y When Bluetooth connection is disconnected,
connect the Bluetooth device to the unit
again.
y When a Bluetooth device is not connected,
“BLUETOOTH READY” appears on the display
window.
y When you use the Bluetooth function,
adjust the volume to a proper level on the
Bluetooth device.
y When you connect Bluetooth device (iOS
device etc.) to this unit or operate the device,
the volume level can be synchronized with
each other.
y Bluetooth connection will be disconnected
when you change the Bluetooth function
to some other function. In “LG XBOOM” app
connection, only one device which you are
playing keeps Bluetooth connection. You can
control the Bluetooth device with this unit
but you cannot use sound output.
y When entering the Bluetooth function,
this unit automatically connects to the last
connected Bluetooth device or the device
which played back last.
(Auto connection may not be supported
depending on the connected device
specications.)
,
Note
Operating 29
Operating
3
Controls connected Bluetooth device
You can control connected Bluetooth device by the
unit; play, pause, stop, skip.
y Only Android OS and iOS is available to use
this function.
y This function may not be supported
depending on the Bluetooth device, or
operated differently.
,
Note
Bluetooth connection lock (BT LOCK)
You can limit Bluetooth connection to only
BLUETOOTH and LG TV function to prevent
unintended Bluetooth connections.
To turn this function on, press and hold N on the
remote control or N on the side 1 of the unit for
about 5 seconds in BLUETOOTH function.
“BLUETOOTH LOCK ON” appears then you can limit
Bluetooth connection.
To turn this function off, press and hold N on the
remote control or N on the side 1 of the unit for
about 5 seconds in BLUETOOTH function.
“BLUETOOTH LOCK OFF” appears.
Even if you set up Bluetooth connection lock to
On, this unit turns on by Auto Power function.
Turn off Auto Power function to prevent it.
(Page 42)
,
Note
Operating30
Operating
3
Using the LG XBOOM
App
y Only Android OS is available to use “LG
XBOOM” app with this unit.
y It is recommended to use the latest version
of app.
,
Note
About “LG XBOOM” App
“LG XBOOM” app brings a suite of new features to
this unit.
To enjoy more features, you are recommended to
download and install free “LG XBOOM” app.
Below introduces you to a few of the many features
of “LG XBOOM” app.
Multi Juke box: Your entertainment increases three
fold when you connect up to 3 Bluetooth phones
at the same time. Play music from both phones and
create a customized playlist from all phones.
Sampler Creator: Record effects on your
smartphone and very simply sync them via
Bluetooth to the system. Be as creative as you can
be.
Install “LG XBOOM” App onto
Your Bluetooth Device
There are two ways to install “LG XBOOM” App onto
Your Bluetooth Device.
Install “LG XBOOM” App through QR
code
1. Install “LG XBOOM” app through QR code. Use
the scanning software to scan the QR code.
2. Tap an icon for installation.
y Make sure that your Bluetooth device is
connected to the Internet.
y Make sure that your Bluetooth device
has a scanning software application. If you
don’t have one, download one from “Google
Android Market (Google Play Store)”.
y Depending on the area, QR code may not
work.
,
Note
Operating 31
Operating
3
Install “LG XBOOM” App through
“Google Android Market (Google Play
Store)”
1. Tap the “Google Android Market (Google Play
Store)” icon.
2. In the search bar, type in the “LG XBOOM” and
search it.
3. In the search result list, find and tap “LG XBOOM”
to start downloading Bluetooth app.
4. Tap an icon for installation.
y Make sure that your Bluetooth device is
connected to the Internet.
y Make sure that your Bluetooth device is
equipped with “Google Android Market
(Google Play Store)”.
,
Note
Activate Bluetooth with “LG
XBOOM” App
“LG XBOOM” app helps to connect your Bluetooth
device to this unit.
Tap “LG XBOOM” app icon on the home screen to
open “LG XBOOM” app, and go to the main menu.
y “LG XBOOM” app will be available in the
software version as follow;
- Android O/S: Ver 5.0 (or later)
y If you use “LG XBOOM” app for operation,
there would be some differences between
“LG XBOOM” app and the supplied remote
control. Use the supplied remote control as
necessary.
y Depending on the Bluetooth device, “LG
XBOOM” app may not work.
y After connection of “LG XBOOM” app, music
may be output from your Bluetooth device. In
this case, try connecting procedure again.
y If you operate the other applications or
change the settings on your Bluetooth
device while using “LG XBOOM” app, “LG
XBOOM” app may operate abnormally.
y When “LG XBOOM” app operates abnormally,
check your Bluetooth device and the
connection of “LG XBOOM” app and then try
to connect again.
y Depending on the smart phone's operating
system, you have some differences for “LG
XBOOM” operation.
y Check Bluetooth setting on your Bluetooth
device if “LG XBOOM” app connection does
not work well.
,
Note
Operating32
Operating
3
Radio Operations
Be sure that FM antenna is connected. (Page 18)
Listening to the radio
1. Press F until RADIO appears in the display
window.
The last received station is tuned in.
2. Auto tuning:
Press and hold TUNING -/+ on the remote
control or C/V on the side 1 of the unit until
the frequency indication starts to change, then
release. Scanning stops when the unit tunes in
a station.
Or
Manual tuning:
Press TUNING -/+ on the remote control or
C/V on the side 1 of the unit repeatedly.
3. Adjust the volume by pressing VOL +/- on the
remote control or by rotating MASTER VOLUME
knob on the unit repeatedly.
Improving poor FM reception
Press N on the remote control or N on the side 1
of the unit. This will change the tuner from stereo to
mono and usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for RADIO.
Before tuning, make sure to turn down the volume.
1. Press F until RADIO appears in the display
window.
2. Select the desired frequency by pressing
TUNING -/+ on the remote control or C/V
on the side 1 of the unit.
3. Press JUKEBOX/MEMORY on the remote
control. A preset number will blink in the display
window.
4. Press PRESET·FOLDER W/S on the remote
control to select the preset number you want.
5. Press JUKEBOX/MEMORY on the remote
control. The station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
PRESET·FOLDER W/S or 0 to 9 numerical
buttons on the remote control.
Deleting all the saved stations
1. Press DELETE on the remote control.
“DELETE ALL?” will flash up on the display
window
2. Press DELETE on the remote control to erase all
the saved radio stations.
“DELETED ALL” will flash up on the display
window.
Operating 33
Operating
3
Sound adjustment
Setting the sound mode
This system has a number of pre-set equalizers. The
displayed items for the equalizer may be different
depending on sound sources and effects.
You can select a desired sound mode by using
EQUALIZER on the remote control.
On Display Description
MERIDIAN
You can enjoy premium
sound with MERIDIAN
technology.
BASS (BASS BLAST)
or
BASS+ (BASS BLAST+)
Reinforces the bass
and powerful sound.
POP
CLASSIC
ROCK
JAZZ
This program lends
an enthusiastic
atmosphere to the
sound, giving you the
feeling you are at an
actual rock, pop, jazz or
classic concert.
FOOTBALL
You can enjoy the
equalizer FOOTBALL
STADIUM.
STANDARD
You can enjoy
optimized sound.
You can directly select MERIDIAN equalizer by
pressing MERIDIAN EQ on the unit.
,
Note
You can select a desired sound mode by using
SPECIAL EQ on the remote control or SPECIAL EQ /
BASS BLAST (or BASS BLAST+) on the unit.
On Display Region Description
FUNK, REGUETON,
SAMBA,
MERENGUE, AXE,
SALSA, SERTANEJO,
FORRO
Latin
America
Optimized
sound effect
for the
music genre
preferred in
each region.
ARABIC Middle East
DANGDUT Indonesia
AFRO Africa
INDIA India
By pressing and holding SPECIAL EQ / BASS
BLAST (or BASS BLAST+) on the unit for 3
seconds, you can directly select BASS (BASS
BLAST) or BASS+ (BASS BLAST+) effect.
,
Note
Setting the USER EQ
You can adjust the sound level of Bass, Middle and
Treble as your preference.
1. Press USER EQ on the unit. “USER EQ” is
displayed.
2. Press USER EQ on the unit repeatedly until
desired setting appears in the display window.
3. Rotate REAL SCRATCHER / SEARCH & LEVEL
CONTROL on the unit to adjust the value.
Operating34
Operating
3
Advanced Operations
Recording to USB
You can record a various sound source to USB.
(CD, USB 1, USB 2, AUX 1, AUX 2, RADIO)
1. Connect the USB device to RECORD PORT on the
unit.
2. Press F to select a function you want to record.
3. Start the recording by pressing USB REC on the
remote control or USB REC / DEMO on the unit.
Function
/Mode
Status Result
CD, USB 1,
USB 2
Play/Pause Recorded until stop.
Resume stop
(Page 37)
Quick recorded the latest
song.
Full stop
Quick recorded All songs
In case below, scope is
limited.
- After File search
(Page 20), quick
recorded an indexed song.
- Only while the Folder
name is displayed on the
display window, quick
recording All songs on
Folder. (Folder Search
Mode is released when
there is no button input
for a few seconds after
entering the folder search
mode.) (Page 20)
- After JUKE BOX On
(Page 36), quick
recorded All songs of
JUKE BOX.
AUX 1,
AUX 2,
RADIO,
MIXER ON,
DJ STAR
ON
mode
- Recorded until stop.
To stop recording
To stop recording, press USB REC on the remote
control or USB REC / DEMO on the unit.
To select recording bit rate
1. Press and hold USB REC on the remote control
or USB REC / DEMO on the unit for 3 seconds.
2. Press C/V on the remote control or C/V
on the side 1 of the unit to select a bit rate.
3. Press USB REC on the remote control or
USB REC / DEMO on the unit to finish the
setting.
The making of unauthorized copies of
copy-protected material, including computer
programs, les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
Operating 35
Operating
3
y For stable recording, the output sound level
goes down on its own when you record music
from CD to USB.
y You can only change volume level between
MIN and 30 during recording. (Only CD
function)
y When you stop recording, the le that has
been recorded at that time will be stored.
(Except when recording MP3/ WMA les
that are in stop status.)
y Do not remove the USB device or turn off
the unit during USB recording. If does not, an
incomplete le may be made and not deleted
on PC.
y If USB recording does not work, the message
like “NO USB”, “ERROR”, “USB FULL”, “NOT
SUPPORT” or “FILE MAX” is displayed on the
display window.
y Multi card reader device or external HDD can
not be used for USB recording.
y A le is recorded by about 512 Mbyte when
you record for a long term.
,
Note
y You can record various sound using DJ
EFFECT, DJ SCRATCHER, DJ PAD, REAL
SCRATCHER, CUE or MIC.
(In MIXER/DJ STAR OFF mode, except when
USB/CD that are in stop status.)
y You can control recorded microphone sound
according to microphone volume.
y You may not store more than 2,000 les.
y In case of the unsupported MP3/WMA le,
the le recording may be stopped.
y When you are recording during playback, the
sound now playing is output.
y When function is set to BLUETOOTH or LG
TV, recording is available in MIXER ON mode.
y VOICE CANCELLER or KEY CHANGER
will be reset, if you use recording function
during operating VOICE CANCELLER or KEY
CHANGER.
y VOICE CANCELLER or KEY CHANGER can
not be operated during recording.
y It’ll be stored as follows.
Play or pause status
Play or pause status
The other statusThe other status
AUDIO CD MP3/WMA
53"$,@
53"$,@
"6%*0@
$%@3&$
$%@3&$
"6%*0@
1MBZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
"#$'JMFOBNF
%&''JMFOBNF
"6%*0@
"6%*0@
'*-&@3&$
'*-&@3&$
1MBZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
53"$,@
53"$,@
"6%*0@
$%@3&$
$%@3&$
"6%*0@
1MB
ZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
"#$'JMFOBNF
%&''JMFOBNF
"6%*0@
"6%*0@
'*-&@3&$
'*-&@3&$
1MB
ZPSQBVTFTUBUVT
5IFPUIFSTUBUVT
The other source* Tuner
05)&34@3&$
"6%*0@
"6%*0@
%+@.*9@3&$
.*9@
.*9@
56/&3@3&$
"6%*0@@'.
MIXER / DJ STAR ON mode
05)&34@3&$
"6%*0@
"6%*0@
%+@.*9@3&$
.*9@
.*9@
*: AUX and the like.
Tuner: The current recording frequency is shown.
,
Note
Operating36
Operating
3
JUKE BOX Playback
JUKE BOX function enables you to make a playlist of
your favorite tracks/les from a disc. A playlist of up
to 100 tracks/les can be entered.
Making JUKE BOX list
1. Press and hold JUKEBOX/MEMORY on the
remote control to enter the edit mode.
(Playing will be stopped when you press
JUKEBOX/MEMORY on the remote control.)
2. Select a track/file by pressing C/V on the
remote control.
3. Press JUKEBOX/MEMORY on the remote
control to save the track/file.
4. Repeat steps 2 - 3 to store other tracks/files.
(You can modify the list by pressing
PRESET·FOLDER W/S on the remote control to
select the JUKE BOX program number.)
5. Press JUKEBOX/MEMORY on the remote
control once again.
To play the JUKE BOX list, press N on the remote
control after you make the list.
When making or modifying the JUKE BOX list,
REPEAT mode is off.
,
Note
Enjoying JUKE BOX
Press JUKEBOX/MEMORY on the remote control
once. “JUKEBOX ON” appears on the display window.
To play JUKE BOX list, press N on the remote
control.
To cancel it, press JUKEBOX/MEMORY on the
remote control once.
“JUKEBOX OFF” appears on the display window.
Editing JUKE BOX
1. Press and hold JUKE BOX/MEMORY on the
remote control to enter the edit mode.
(Playing will be stopped when you press
JUKEBOX/MEMORY on the remote control.)
2. Press PRESET·FOLDER W/S on the remote
control to select a track/file to edit.
3. Press C/V on the remote control.
4. Press JUKEBOX/MEMORY on the remote
control.
5. Repeat 2 to 4 to store the other tracks/files.
6. Press JUKEBOX/MEMORY on the remote
control once again.
To play the JUKE BOX list, press N on the remote
control after you edit the list.
Deleting JUKE BOX list
Deleting function only works in the edit mode.
1. Press and hold JUKEBOX/MEMORY on the
remote control to enter the edit mode.
Or
Press DELETE on the remote control while JUKE
BOX is played to enter the edit mode.
2. Select a song by pressing PRESET·FOLDER
W
/
S
on the remote control repeatedly.
3. Press DELETE on the remote control while a
song is selected.
y If there is no JUKE BOX list, “JUKEBOX NO
PROGRAM” appears on the display window
when you press JUKEBOX/MEMORY on the
remote control.
y JUKE BOX is switched off in the case below.
- Changing to a different function.
- Turning off and on the unit.
- Operating the numerical buttons on the
remote control.
- Playing a le by using SEARCH and
REAL SCRATCHER / SEARCH & LEVEL
CONTROL on the unit.
y JUKE BOX list is cleared in the case below.
- Removing the disc.
,
Note
Operating 37
Operating
3
Other Operations
Turn off the sound temporarily
Press [ on the remote control to mute your sound.
You can mute your unit, for example, to answer
the telephone, the “Q” will appear in the display
window.
To cancel it, press [ on the remote control again or
change the volume level.
DRC (Dynamic range control)
Make the sound clear when the volume is turned
down and prevent a sudden sound increase (Dolby
Digital only).
Press N in OPTICAL function to turns on or off this
function.
On Display Description
DRC ON DRC function is turned on.
DRC OFF
DRC function is turned off.
This function only operates on OPTICAL
function.
,
Note
CHILDSAFE Mode
This function helps to prevent you from being
surprised when you turn on the unit in case that the
volume of the unit is set at a high level.
To turn on CHILDSAFE mode, press and hold OK on
the unit when the volume of the unit is “MIN”.
In CHILDSAFE mode, the volume increase gradually.
To turn off CHILDSAFE mode, press and hold OK on
the unit when the volume of the unit is “MIN” and
this mode is turned on.
In case of CD, USB or BLUETOOTH function,
CHILDSAFE mode does not work after about
2 minutes from power on the unit even if this
mode is enabled.
,
Note
DEMO
In the power off state, press USB REC / DEMO on
the unit once. The unit will power on and display the
each of functions with demo sound in the display
window.
To cancel the DEMO function, press USB REC /
DEMO on the unit once more.
Resume stop
The unit records the point where you pressed
Z
depending on the disc or USB.
If you press
Z
twice, the unit will clear the stopped
point.
Operating38
Operating
3
Using your TV remote control
You can control some functions of this unit by your
TV remote control even by other company’s product.
Controllable functions are volume up/down and
mute.
Press and hold
[
on the remote control for about 3
seconds in OPTICAL function to turn on or off this
function.
On Display Description
TV REMOTE ON
TV REMOTE function is
turned on.
TV REMOTE OFF
TV REMOTE function is
turned off.
y Supported TV brands
LG Panasonic Philips Samsung
Sharp Sony Toshiba Vizio
y Make sure that the sound output of your TV
is set to [External speaker].
y Depending on the remote control, this
function may not work well.
y This function does not operate on LG TV's
magic remote control.
y This function only operates on the OPTICAL
function.
,
Note
Using Microphone
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment. Adjust the
microphone volume by rotating MIC VOLUME
clockwise or counterclockwise on the unit.
y When not using the microphone, set the MIC
volume to minimum or turn off the MIC and
remove the microphone from the MIC jack.
y If the microphone is set too near the speaker,
a howling sound may be produced. In this
case, move the microphone away from the
speaker or decrease the sound level by using
the MIC VOLUME on the unit.
y If sound through the microphone is extremely
loud, it may be distorted. In this case, rotate
MIC VOLUME on the unit.
y You can give an echo effect to the sound
from the microphones by pressing MIC
ECHO.
,
Note
Operating 39
Operating
3
VOICE CANCELLER
You can reduce the vocal tones during music
playback from various input sources.
Press the VOICE CANCELLER and “VOICE
CANCELLER ON” will appear in display window.
To cancel it, press VOICE CANCELLER again.
The quality of the VOICE CANCELLER may be
different depending on the recording conditions of
music les.
y This function is available in the CD, USB or
BLUETOOTH Function.
y If the function is not available, “NOT
SUPPORT” appears in the display window.
y This function is available to use only when a
microphone is connected.
y If a microphone is not connected, “PLEASE
INSERT MIC” appears in the display window.
y It is not available on the mono source.
y To initialize it, change the function or
disconnect the microphone.
y This function may not be initialized depending
on the status of connected devices.
,
Note
KEY CHANGER
You can adjust the key to 9 steps (4 steps higher, 4
steps lower and the original key).
y
To make the key more sharp, one by one, press
the KEY CHANGER (
L
) on the remote control
repeatedly or press KEY CHANGER on the unit
and clockwise MIC VOLUME during playback.
y
To make the key more atten, one by one, press
the KEY CHANGER (
l
) on the remote control
repeatedly or press KEY CHANGER on the unit
and counter clockwise MIC VOLUME during
playback.
y This function is available in the CD, USB or
BLUETOOTH Function.
y To initialize it, change the function, disconnect
the microphone or change the music.
y This function may not be initialized depending
on the status of connected devices.
y If the function is not available, “NOT
SUPPORT” appears in the display window.
y If a microphone is not connected, “PLEASE
INSERT MIC” appears in the display window.
,
Note
Operating40
Operating
3
VOCAL EFFECTS
When you connect your microphone to the MIC jack,
you can enjoy karaoke function by changing voice in
the various source.
To select various vocal effects mode, pressing VOCAL
EFFECTS repeatedly or pressing VOCAL EFFECTS
and then turning REAL SCRATCHER / SEARCH &
LEVEL CONTROL on the unit when vocal effects
mode appears in the display window.
BASS
SOPRANO HELIUM ROBOT
DUET MAN
DUET WOMAN BASS ECHO1
SOPRANO ECHO1 HELIUM ECHO1
ROBOT ECHO1 DUET MAN1 DUET
WOMAN1
BASS ECHO2 SOPRANO
ECHO2
HELIUM ECHO2 ROBOT ECHO2
DUET MAN2 DUET WOMAN2 OFF
y If a microphone is not connected, “PLEASE
INSERT MIC” appears in the display window.
y If you press KEY CHANGER, DJ EFFECT or
MIC ECHO on the unit on VOCAL EFFECTS
mode, after backing up current VOCAL
EFFECTS, turn off VOCAL EFFECTS mode
and operate KEY CHANGER, DJ EFFECT or
ECHO mode.
y To turn off VOCAL EFFECTS mode, press and
hold VOCAL EFFECTS on the unit.
,
Note
ECHO
When you connect your microphone to the MIC jack,
you can give an echo effect to the sound from the
microphones by pressing MIC ECHO.
ECHO MODE 1
ECHO MODE 2 ECHO OFF
y If a microphone is not connected, “PLEASE
INSERT MIC” appears in the display window.
y If you press VOCAL EFFECTS button on
ECHO mode, after backing up current ECHO,
turn off ECHO mode and operate VOCAL
EFFECTS mode.
To operate ECHO mode, press MIC ECHO
again, after backing up current VOCAL
EFFECTS.
,
Note
Using H/P MODE
Headphone monitoring is available.
Press H/P MODE on the unit to listen to music using
headphone. Rotate H/P VOLUME on the unit to
adjust the volume.
When mixing, press H/P MODE on the unit to select
a monitoring mode. You can listen to the music being
mixed or playing in Source A or Source B.
y It is not compatible with a 4 pole jack.
y If you select one source output in MIXER / DJ
STAR ON mode, the playback effects (Except
TEMPO) are not applied to the output
through the headphone.
y If you power off or switch to MIXER /
DJ STAR OFF, the selected H/P MODE is
cancelled.
,
Note
Operating 41
Operating
3
LIGHTING
This function offers a party atmosphere by operating
the lighting on the unit.
Press LIGHTING on the unit repeatedly or press
LIGHTING on the unit and then turn REAL
SCRATCHER / SEARCH & MULTI on the unit.
PARTY
WATER FOREST (MY STYLE) OFF
y Lighting function is available in all functions.
y Lighting mode retains in its previous mode
when you first press LIGHTING on the unit,
press again to change modes.
y If you want to use MY STYLE, you have to
register a source with “LG XBOOM” app.
y Do not look directly at the light emitting part
when the LIGHTING is turned on.
y If the illumination brightness is glaring, switch
on the room lights or turn off the LIGHTING
of the unit.
y To turn on or off upper and lower lighting
LED, press and hold LIGHT ING on the unit
for 3 seconds.
On Display Description
FLASH ON
Upper and lower lighting
LED is turned on.
FLASH OFF
Upper and lower lighting
LED is turned off.
,
Note
Sleep Timer Setting
Press SLEEP on the remote control repeatedly to
select delay time between 10 and 180 minutes.
After the delay time, the unit will be turned off.
To cancel the sleep function, press SLEEP on the
remote control repeatedly until “SLEEP OFF” appears.
y You can check the remaining time before the
unit is turned off. Press SLEEP on the remote
control to check or change the remaining
time.
y You can edit the remain time when the
remaining time or “DIMMER ON” is displayed.
,
Note
Dimmer
Press SLEEP on the remote control once.
The display window will be darkened by half.
To cancel it, press SLEEP on the remote control
repeatedly until “SLEEP OFF” appears.
All the lighting turns off when Dimmer is being
operated.
,
Note
Operating42
Operating
3
AUTO POWER On
This unit automatically turns on by an input source:
LG TV, Bluetooth or Optical.
When you turn on your TV connected to this unit,
this unit recognizes the input signal and selects the
suitable function. You can hear the sound from the
unit.
If you try to connect your Bluetooth device, this unit
turns on and connects your Bluetooth device.
You can play your music.
When you turn off this unit by pressing
1
on the
unit for 5 seconds each time, you can turn on or off
the AUTO POWER function.
On Display Description
AUTO POWER ON
AUTO POWER function is
turned on.
AUTO POWER OFF
AUTO POWER function is
turned off.
y Depending on the connected device, this
function may not operate.
y Depending on the connected device, the unit
turns on but Bluetooth function may not be
connected.
y If you disconnect Bluetooth connection by
this unit, some Bluetooth devices try to
connect to the unit continually. Therefore it is
recommended to disconnect the connection
before turning off the unit.
y If you try to connect to the “LG XBOOM” app,
Bluetooth function of this unit is turned on.
y If you turn on the unit using LG TV or
Bluetooth function, proper function of this
unit is turned on.
y If you have already paired with this unit, this
unit can automatically turn on by an input
source when this unit is turned off.
y If you turned off the unit directly, it cannot
be turned on automatically by AUTO POWER
function. However the unit can be turned
on by AUTO POWER function when optical
signal comes in after 5 seconds of no signal.
,
Note
Operating 43
Operating
3
Auto function change
This unit recognizes input signals such as Optical,
Bluetooth, LG TV and Aux 1 and then automatically
changes to the suitable function.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, Bluetooth function is selected. Play your
music on the Bluetooth device.
When AUX IN 1(3.5 mm stereo cable)
is connected
When you connect the portable device to the
AUX IN 1 connector, AUX 1 function is selected. Play
your music on the portable device.
When optical signal comes in
When you turn on the external device connected to
this unit by an optical cable, this unit changes the
function to optical. You can hear the sound from your
device.
When LG TV is connected
When you turn on your LG TV connected by LG
Sound Sync (Wireless connection), this unit changes
the function to LG TV. You can hear the sound from
your TV.
y This function is not available during recording
or deleting.
y This function only works with devices that
were previously connected.
y If the Bluetooth connection lock function
is set, Bluetooth and LG TV connection will
be only available on Bluetooth and LG TV
function. (Page 29)
y LG Sound Sync (Optical) changes as same as
OPTICAL function.
,
Note
Operating44
Operating
3
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK on the remote control.
3. Select time mode by pressing
C/V
on the
remote control.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4. Press SET on the remote control to confirm your
selection.
5. Select the hours by pressing
C/V
on the
remote control.
6. Press SET on the remote control.
7. Select the minutes by pressing
C/V
on the
remote control.
8. Press SET on the remote control.
Setting the Clock through “LG
XBOOM” App
Install “LG XBOOM” app on your Android device.
(Page 30-31)
Your unit’s clock will be automatically synchronized
with your device by activating Bluetooth connection
through “LG XBOOM” app.
Using your player as an alarm
clock
1. Turn the unit on.
2. Press and hold ALARM on the remote control.
3. Press
C/V
on the remote control to change
the hours and minutes and press SET on the
remote control to save.
4. Press
C/V
on the remote control to select
function and press SET on the remote control to
save.
- Press
C/V
on the remote control to select
a preset number when you select tuner and
then, press SET on the remote control.
If there is no preset number, this step is skipped.
5. Press
C/V
on the remote control to change
the volume and press SET on the remote control
to save.
y If you set the clock time, you can check the
time by pressing CLOCK on the remote
control even when the player is turned off.
y You can set alarm after you set the clock
time.
y If you set the clock time and alarm, you
can check the alarm icon ”(” by pressing
CLOCK on the remote control even when the
unit is turned off.
y If you set the clock time and alarm, you can
check the alarm icon ”(” and alarm setting
information by pressing ALARM on the
remote control even when the unit is turned
off.
y You can select ALARM ON/OFF mode by
pressing ALARM on the remote control.
,
Note
Operating 45
Operating
3
WIRELESS PARTY LINK
Connection
You can enjoy the sound by using two speakers.
For enjoying WIRELESS PARTY LINK, you need to
purchase another speaker.
It is compatible with unit that supports WIRELESS
PARTY LINK.
1. Press
3
TWIN on the unit.
TWIN MODE ROLE SELECT appears in the display
window.
2. Press
3
TWIN on the unit to select MAIN or
OTHER.
-
unit: Selects MAIN.
-
unit: Selects OTHER.
Two units try to connect with each other.
3. When these units are successfully connected
each other, each of connected device names
appears in the each unit.
Operating46
Operating
3
y If you are using the LG Sound Sync or
OPTICAL connection, this function is not
available.
- If you try to connect WIRELESS PARTY
LINK when using LG Sound Sync function
or OPTICAL function, “NOT SUPPORT”
appears in the display window.
- If you change the function from any other
to OPTICAL or connected LG Sound Sync
/OPTICAL when using WIRELESS PARTY
LINK, the WIRELESS PARTY LINK will be
released.
y You can use microphone in the OTHER unit
only. In case of OTHER unit, some functions
are supported only.
y When WIRELESS PARTY LINK is
disconnected, OTHER unit is changed to
BLUETOOTH function.
y If the connection is failed, “FAILED” appears in
the display window.
y Mute function is synchronized with each
other.
y WIRELESS PARTY LINK connection will be
disconnected when you turn off the unit or
press
3 TWIN on the unit.
y Sound of MAIN unit and OTHER unit may be
different depending on playback status or
source.
,
Note
y Check the following information when
connecting to Bluetooth.
- You can connect only one Bluetooth
device in the MAIN unit. You cannot
connect Bluetooth device to the OTHER
unit.
- WIRELESS PARTY LINK connection
is only supported on Android devices.
(WIRELESS PARTY LINK connection
may not be supported depending on the
connected device specications or OS.)
- Removable/detachable Bluetooth
devices (ex. Dongle etc.) will not support
WIRELESS PARTY LINK connection.
- When WIRELESS PARTY LINK is
connected, Bluetooth connection is not
available in status of recording or deleting.
- If you connect WIRELESS PARTY LINK wh
ile you are playing connected Bluetooth
device, it may be reconnected again,
depending on phone specication.
,
Note
4 Troubleshooting
Troubleshooting 47
Troubleshooting
4
Troubleshooting
General
Problem Cause & Solution
The unit does not work
properly.
y Turn off the power of this unit and the connected external device (TV, Woofer,
DVD-player, Amplier, etc.) and turn them on again.
y Disconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and then try connecting again.
y Previous setting may not be saved when device power is shut off.
No Power.
y The power cord is not plugged in. Plug in the power cord.
y Check whether electricity failed.
Check the condition by operating electronic devices using the same AC outlet.
No sound.
y Check whether you select right function.
Press function button and check if you have selected the right function.
The unit does not start
playback.
y An unplayable disc is inserted. Check the playable disc.
y No disc is inserted. Insert a disc.
y The disc is dirty. Clean the disc. (Page 51)
y The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
Radio stations cannot be
tuned in properly.
y The antenna is positioned or connected poorly.
Connect the antenna securely.
y The signal strength of the radio station is too weak.
Tune to the station manually.
y No stations have been preset or preset stations have been cleared (when tuning
by scanning preset channels).
Preset some radio stations, see page 32 for details.
Troubleshooting48
Troubleshooting
4
Problem Cause & Solution
The remote control does
not work properly.
y The remote control is too far from the unit.
Operate the remote control within about 7 m (23 feet).
y There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
y The batteries in the remote control are exhausted.
Replace the batteries with new ones.
No speaker light.
y Check the light effects by pressing LIGHTING. (Page 41)
LG Sound Sync does not
work.
y Check whether your LG TV supports LG Sound Sync.
y Check connection of LG Sound Sync.
y Check sound setting of your TV and this unit.
The AUTO POWER
function does not work.
y Check connection of the external device such as TV or Bluetooth device.
y Depending on the connected device, this function may not operate.
NOTES to release Demo mode
Problem Cause & Solution
Can not change input source with ‘F’ key such as
BLUETOOTH, USB etc. and only DEMO mode is
showing in the display.
y Press ‘DEMO’ Key on the unit for 15 seconds.
Remote Control does not work properly.
5 Appendix
Appendix 49
Appendix
5
General specifications
General
Power requirements Refer to the main label on the unit.
Power consumption Refer to the main label on the unit.
Dimensions (W x H x D) Approx. 430.0 mm x 1,050.0 mm x 400.0 mm
Operating temperature 5 °C to 35 °C
Operating humidity 5 % to 60 % RH
Inputs
Digital audio in (OPTICAL IN) 3.3 V (p-p), Optical jack x 1
Analog audio in (AUX IN 2) 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
Portable in (AUX IN 1) 1.0 Vrms (3.5 mm stereo jack) x 1
Microphone (MIC 1/2) Sensitivity 20 mV (1 kHz), 6.3 mm jack x 2
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
System
Frequency Response 100 to 20,000 Hz
Signal-to-noise ratio More than 75 dB
Dynamic range More than 80 dB
Bus Power Supply (USB)
5 V 0 500 mA
Available Digital Input Audio
Sampling Frequency
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Available Digital Input Audio format Dolby Audio, PCM
Amplier (RMS Output power)
Total output 2,000 W RMS
HIGH 550 W RMS × 2 (6 Ω at 1 kHz, 25 % THD)
LOW 900 W RMS (12 Ω at 200 Hz, 15 % THD)
y Design and specications are subject to change without notice.
Appendix50
Appendix
5
Trademarks and licenses
All other trademarks are trademarks of their
respective owners.
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, and the double-D
symbol are trademarks of Dolby Laboratories.
The Bluetooth® word mark and logos are
registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by LG
Electronics is under license.
Other trademarks and trade names are those of
their respective owners
Appendix 51
Appendix
5
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for old vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally
packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period
of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not use
strong solvents such as alcohol, benzine, or thinner,
as these might damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If the optical
pick-up lens and disc drive parts are dirty or worn,
the picture quality could be diminished. For details,
please contact your nearest authorized service
center.
