9.800-340.0 (03/20)
High pressure cleaner
Electric motor - Cold water
Register
your product
www.kaercher.com/welcome
English..... 3
MODELS:
1.107-084.0
HD 5.0/50 Eb Cage
1.107-087.0
HD 5.0/50 Eb Cage
1
CONTENTS
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ___________________________
The model and serial numbers will be found on a decal attached
to the pressure washer. You should record both serial number and
date of purchase and keep in a safe place for future reference.
Important Safety Information ................................................................3-4
Component Identification ......................................................................... 5
Assembly Instructions .............................................................................. 6
Operating Instructions.............................................................................. 7
Applying Detergent & General Washing Techniques ............................... 8
Shutdown and Cleanup ........................................................................... 9
Troubleshooting ..................................................................................... 10
Preventative Maintenance ..................................................................... 11
Oil Change Record ................................................................................ 11
Hose & Spray Gun Assembly & Parts List ............................................. 12
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
3
PRESSURE WASHER
OPERATOR’S MANUAL
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement parts.
This machine is to be used only by trained operators.

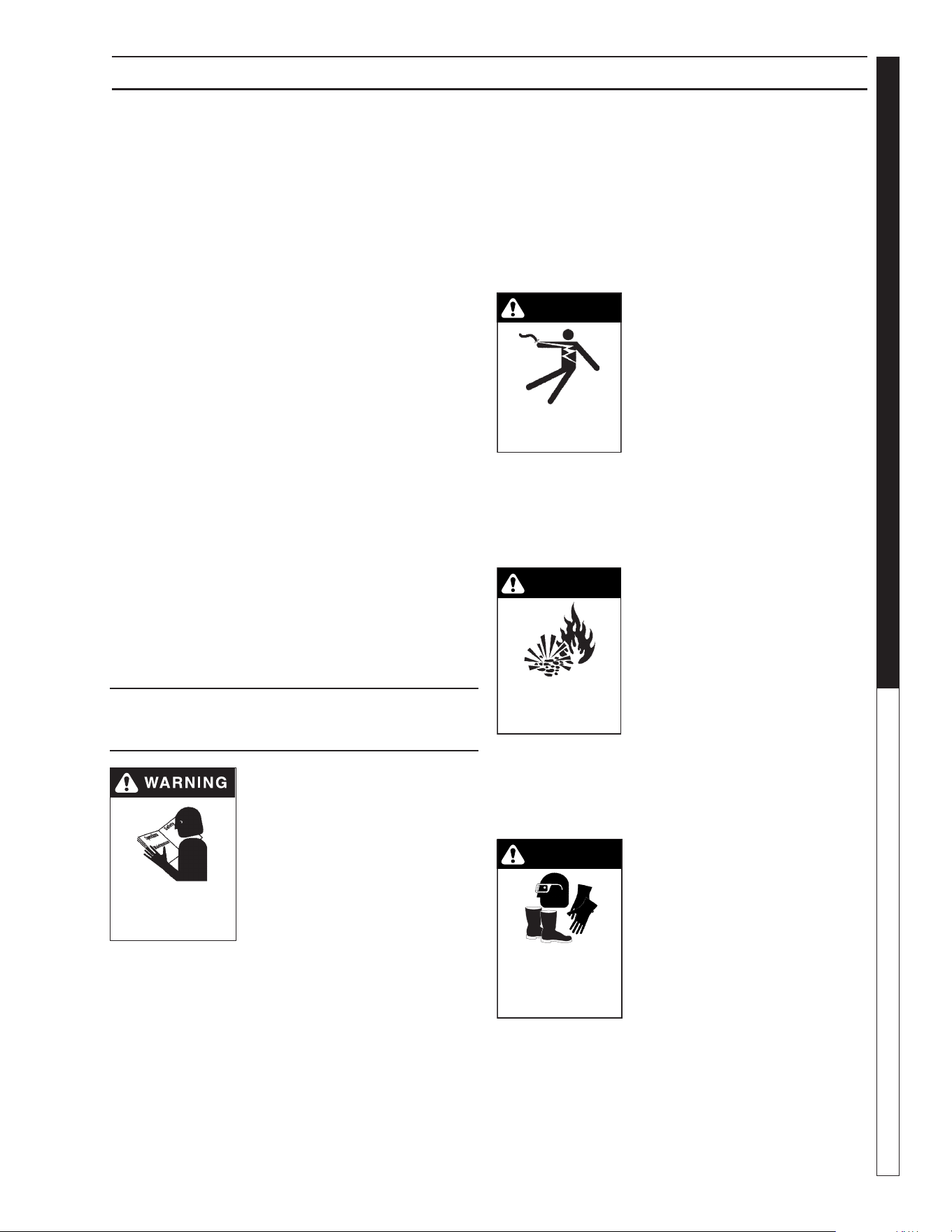

IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUAL THOROUGH-
LY PRIOR TO USE.
WARNING: To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow
instructions could cause mal-
function of the machine and
result in death, serious bodily
injury and/or property damage.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling distributor for specific details. If your
machine is rated 250 volts or less, single phase will
be provided with a ground fault circuit interrupter
(GFCI). If rated more than 250 volts, or more than
single phase this product should only be connected
to a power supply receptacle protected by a GFCI.
DANGER: Improper connection of the equipment-
grounding conductor can result in a risk of elec-
trocution. Check with a qualied electrician or
service personnel if you are in doubt as to whether
the outlet is properly grounded. Do not modify the
plug provided with the product - if it will not t the
outlet, have a proper outlet installed by a qualied
electrician. Do not use any type of adaptor with
this product
WARNING
KEEP WATER
SPRAY AWAY FROM
ELECTRICAL WIRING.
WARNING: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
5. To protect the operator from
electrical shock, the machine
must be electrically grounded.
It is the responsibility of the
owner to connect this machine
to a UL grounded receptacle of proper voltage and
amperage ratings. Do not spray water on or near
electrical components. Do not touch machine with
wet hands or while standing in water. Always dis-
connect power before servicing.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE LIQ-
UIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can ig-
nite, causing property damage
or severe injury.
WARNING: Risk of explosion —
Do not spray ammable liquids.
6. Do not allow acids, caustic or
abrasive fluids to pass through the pump.
7. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
8. Keep operating area clear of all persons.
WARNING
USE PROTECTIVE
EYE WEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and y at high speeds. To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
9. Eye, hand, and foot protection
must be worn when using this
equipment.
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
OPERATOR’S MANUAL
PRESSURE WASHER
4

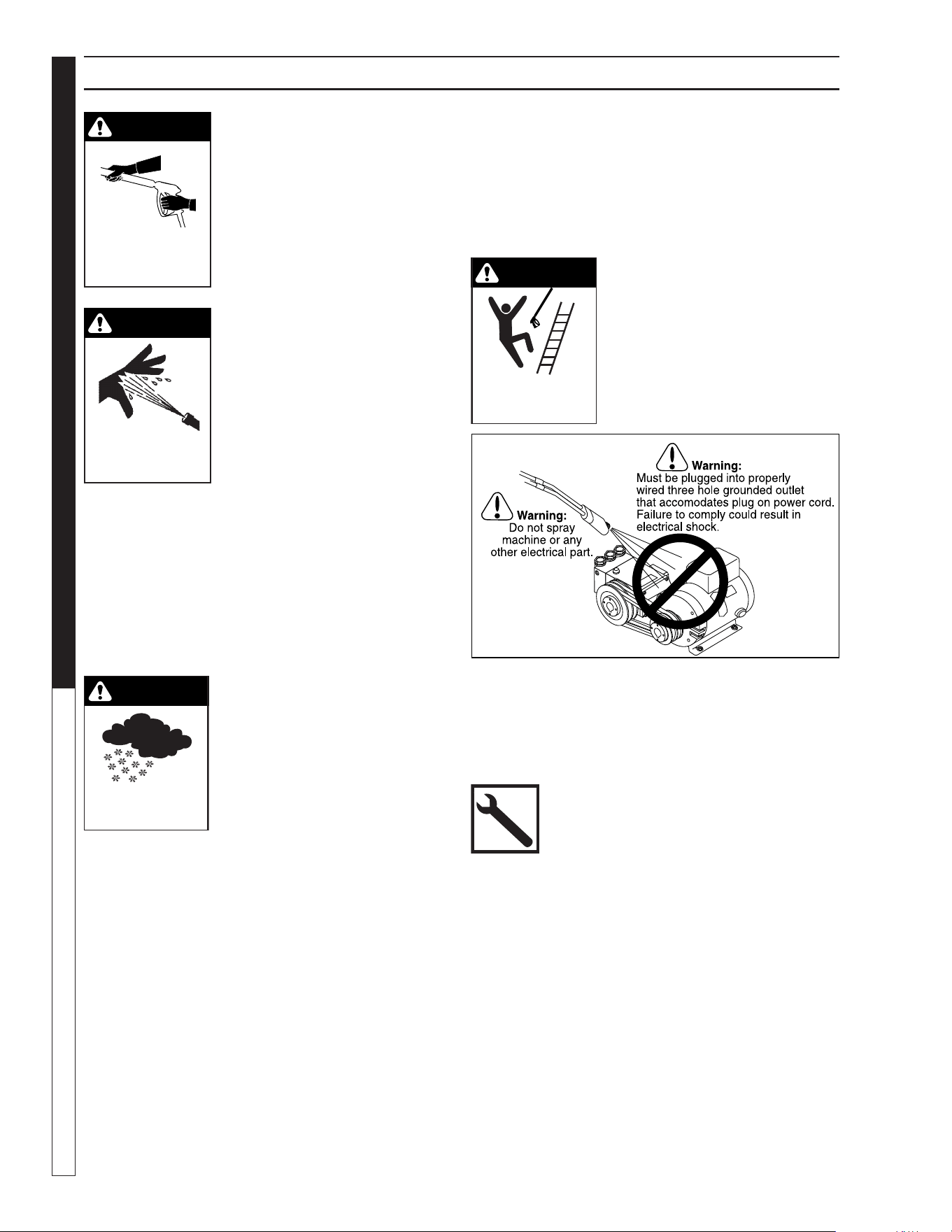

IMPORTANT SAFETY INFORMATION
TRIGGER GUN KICKS
BACK - HOLD WITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING: High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
10. To reduce the risk of injury, close supervision is
necessary when a machine is used near children.
Do not allow children to operate the pressure
washer. This machine must be attended during
operation.
11. Never make adjustments on machine while in op-
eration.
12. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING: Protect machine from
freezing.
13. To keep machine in best
operating conditions, it is
important you protect machine
from freezing. Failure to protect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage. Fol-
low storage instructions specified in this manual.
14. Inlet water must be clean fresh water and no hotter
then 90°F.
15. Manufacturer will not be liable for any changes
made to our standard machines or any components
not purchased from us.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING: Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or under
the influence of alcohol, prescription medications,
or drugs.
Follow the maintenance instructions
specied in the manual.
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
5
PRESSURE WASHER
OPERATOR’S MANUAL

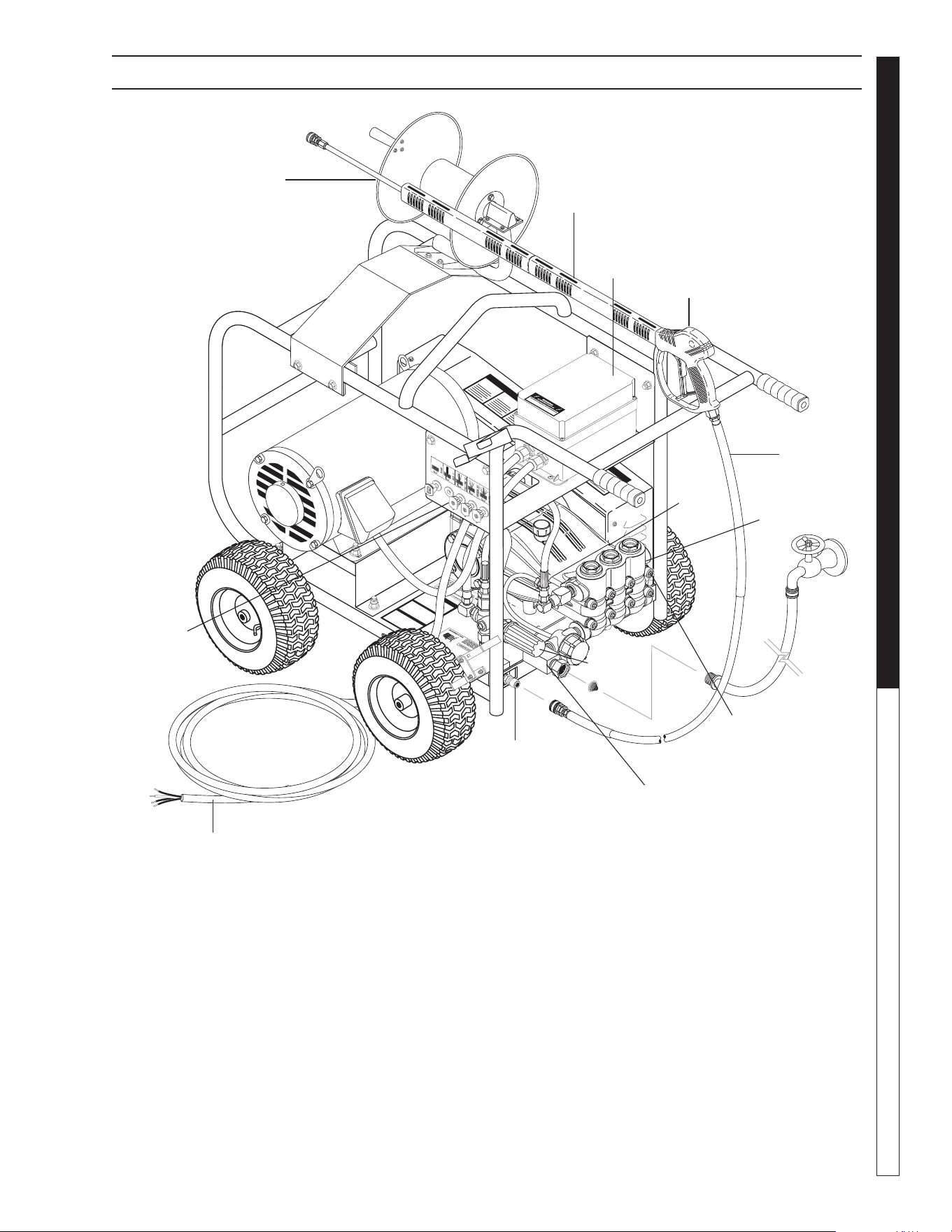

COMPONENT IDENTIFICATION
Pump — Delivers a specific gpm to the high pressure
nozzle which develops pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents (Not Shown).
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump high pressure discharge nipple and the other
end to spray gun.
Rupture Disk — Secondary pressure release in the
unlikely event the unloader valve fails.
Unloader Valve — Safety device which, when the
spray gun closes, prevents over pressurization.
Note: If trigger on spray gun is released for more
than 1-2 minutes, water will leak from the pump
protector. Warm water will discharge from pump
protector onto oor. This system prevents internal
pump damage.
Optional
Hose Reel
& Mount
Electrical
Box
High
Pressure
Outlet
Cold Water
Inlet
Unloader
Valve
Pump
Protector
Rupture
Disk
Power
Cord
High
Pressure
Nozzles
(Nozzles
Brass
(Black) and
Red sold
separately)
Pump
Spray Gun
Wand
High
Pressure
Hose
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
OPERATOR’S MANUAL
PRESSURE WASHER
6

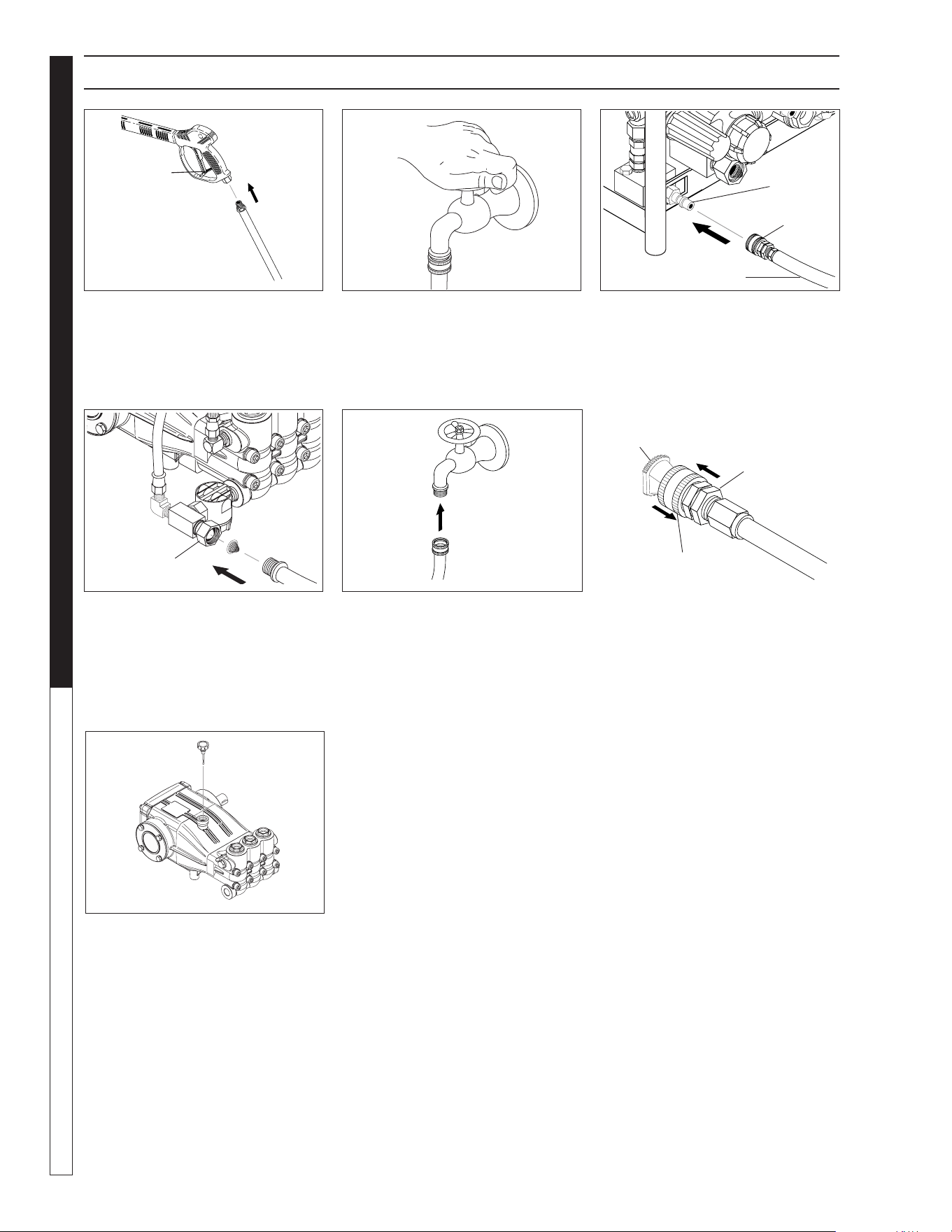

ASSEMBLY INSTRUCTIONS
STEP 2: Before installing nozzle,
turn on water supply and run
machine allowing water to flush
through the system until clear.
STEP 5: Connect garden hose to
the cold water source.
Cold
Water
Source
Garden
Hose
STEP 6: Pull the spring-loaded
collar of the wand coupler back
to insert your choice of pressure
nozzle. Release the coupler collar
and push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
Pressure
Nozzle
Wand
Coupler
Wand
Collar
STEP 1: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
Safety
Latch
Spray
Gun
High Pressure
Hose
DipStick
STEP 7: Remove shipping cap and
install oil dipstick. Check pump oil
level by using dipstick or observe
oil level in oil window (if equipped).
Use 40 wt. (non detergent) oil.
STEP 4: Connect the garden hose
to pump water inlet. Inspect inlets.
CAUTION: Do not run the pump
without water or pump damage
will result.
Pump
Water Inlet
Garden
Hose
STEP 3: Connect the high pressure
hose to the high pressure outlet.
Push coupler collar forward until
secure.
High
Pressure
Outlet
High Pressure Hose
Coupler
Collar
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
7
PRESSURE WASHER
OPERATOR’S MANUAL

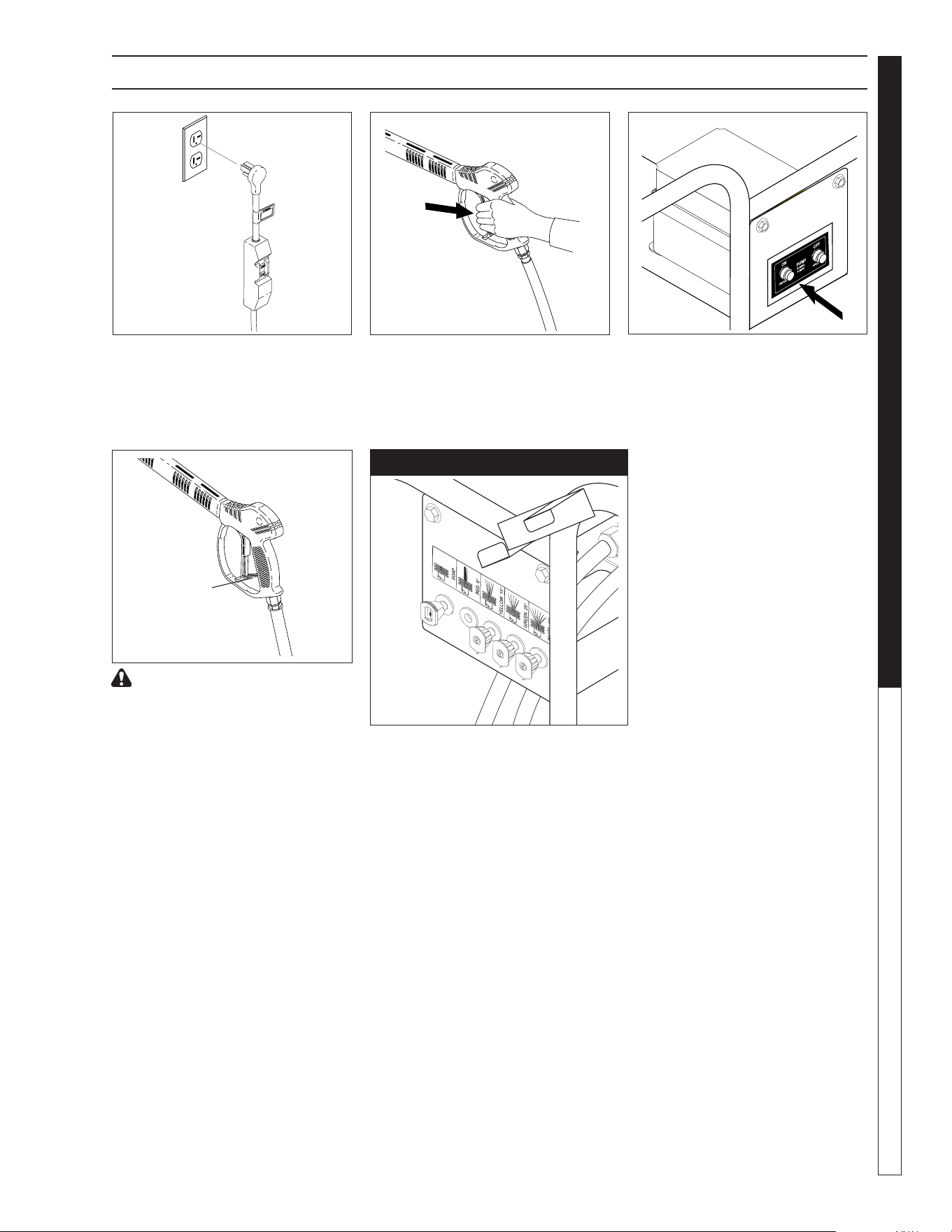

OPERATING INSTRUCTIONS
STEP 2: Trigger the spray gun to
eliminate trapped air then wait for a
steady flow of water to emerge from
the spray wand. Then install nozzle.
WARNING! Never replace noz-
zles without engaging the safety
latch on the spray gun trigger.
Safety
Latch
W
A
R
NIN
G
STEP 1: Connect machine to ad-
equate power source. Push reset
button on GFCI if equipped.
STEP 3: Turn machine on.
The four color-coded quick con-
nect nozzles provide a wide array
of spray widths from 15° to 40°
and are easily accessible when
placed in the convenient rubber
nozzle holder, which is provided
on the front of the machine.
NOTE: For a more gentle rinse,
select the white 40° or green 25°
nozzle. To scour the surface,
select the yellow 15° nozzle. To
apply detergent select the black
soap nozzle.
*Nozzles Brass (Black) sold
separately.
NOZZLES
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
OPERATOR’S MANUAL
PRESSURE WASHER
8
WARNING: Some detergents
may be harmful if inhaled or
ingested, causing severe nau-
sea, fainting or poisoning. The
harmful elements may cause
property damage or severe
injury.

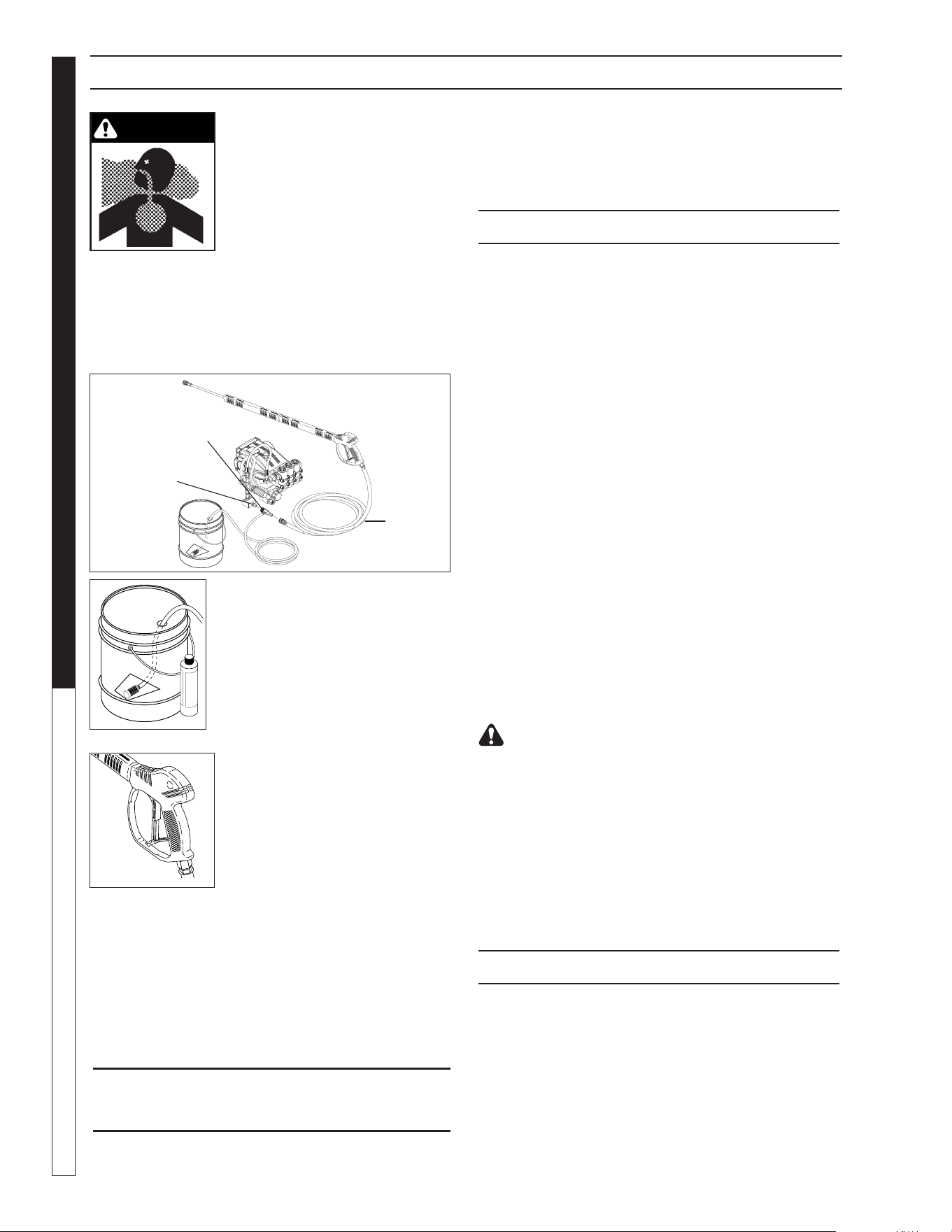

STEP 1: Connect detergent injector to high pressure
outlet on machine, Connect high pressure hose
to injector with quick coupler. (Check to make sure
locking coupler sleeves are in proper position before
applying water pressure.)
STEP 2: Use detergent designed
specifically for pressure washers.
Household detergents could dam-
age the pump. Prepare detergent
solution as required by the manu-
facturer. Fill a container with pres-
sure washer detergent. Place the
filter end of detergent suction tube
into the detergent container.
STEP 3: With safety latch on spray
gun engaged, secure black deter-
gent nozzle into quick coupler.
NOTE: Detergent cannot be ap-
plied using yellow, green or white
nozzles.
STEP 4: With the motor running,
pull trigger to operate machine. Liquid detergent is
drawn into the machine and mixed with water. Apply
detergent to work area. Do not allow detergent to dry
on surface.
IMPORTANT: You must ush the detergent injec-
tion system after each use by placing the suction
tube into a bucket of clean water, then run the
pressure washer in low pressure for 1-2 minutes.
THERMAL PUMP
PROTECTOR
If you run the engine on your pressure washer for
1-2 minutes without pressing the trigger on the spray
gun, circulating water in the pump can reach high
temperatures. When the water reaches this tempera-
ture, the pump protector engages and cools the pump
by discharging the warm water onto the ground. This
thermal device prevents internal damage to the pump.
CLEANING TIPS
Pre-rinse cleaning surface with fresh water. Place de-
tergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6 feet square
and always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not
allow detergent to dry on surface. If surface appears
to be drying, simply wet down surface with fresh water.
If needed, use brush to remove stubborn dirt. Rinse at
high pressure from top to bottom in an even sweeping
motion keeping the spray nozzle approximately 1 foot
from cleaning surface. Use overlapping strokes as you
clean and rinse any surface. For best surface cleaning
action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping,
use extreme caution as pressure washer may
remove the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure washing.
CAUTION - Never use:
• Bleach, chlorine products and other corrosive
chemicals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desired high pressure nozzle. NOTE: You can also stop
detergent from flowing by simply removing detergent
siphon tube from bottle.
APPLYING DETERGENT & GENERAL OPERATING TECHNIQUES
Detergent Injector
*Kit sold separately.
High
Pressure
Outlet
High
Pressure
Hose
WARNING
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
9
PRESSURE WASHER
OPERATOR’S MANUAL
Water
Inlet

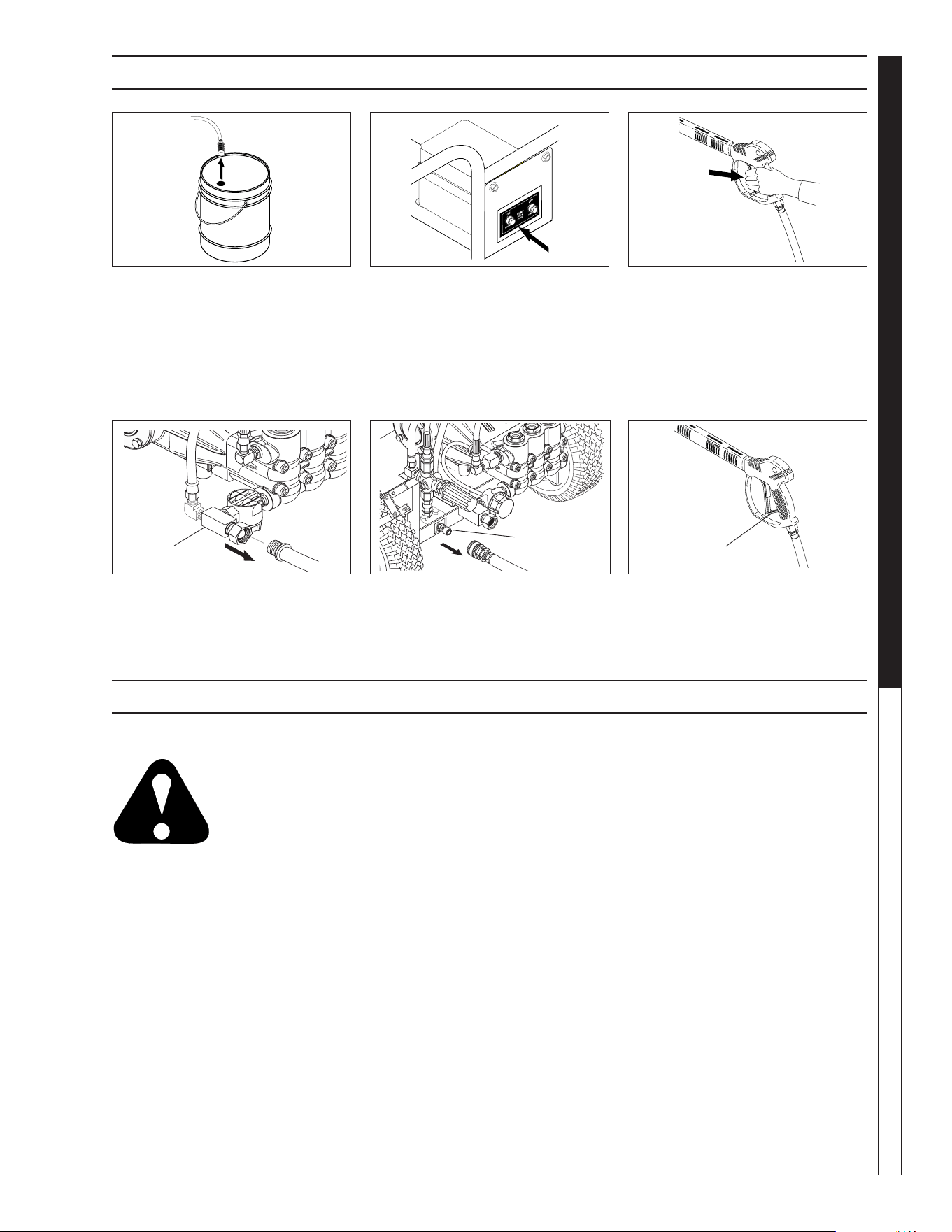

SHUT DOWN AND CLEAN-UP
STEP 1: Remove detergent suc-
tion tube from container and insert
into one gallon of fresh water. For
low pressure connect the black
detergent nozzle. Pull trigger on
spray gun and siphon water for one
minute.
STEP 2: Turn off the motor.
STEP 4: Disconnect the garden
hose from the water inlet on the
machine.
STEP 5: Disconnect the high pres-
sure hose from high pressure outlet.
STEP 6: Engage the spray gun
safety lock.
STEP 3: Press trigger to release
water pressure.
STORAGE
On-Off
Switch
High Pressure
Outlet
Safety
Latch
CAUTION
Pump Storage
CAUTION: Always store your pres-
sure washer in a location where the
temperature will not fall below 32° F
(0° C). The pump in this machine is
susceptible to permanent damage if
frozen.
FREEZE DAMAGE IS NOT COVERED BY WAR-
RANTY.
If you must store your pressure washer in a location
where the temperature is below 32° F, you can minimize
the chance of damage to your machine by draining your
machine as follows:
1. Stop the pressure washer and detach supply hose
and high pressure hose. Squeeze the trigger of the
spray gun to drain all water from the wand and
hose.
2. Restart pressure washer and let it run briefly (about
5 seconds) until water no longer discharges from
the high pressure outlet.
In temperatures below 32° you may connect a bulkhead
fitting to the bottom of a bucket then attach a garden
hose to siphon anti-freeze into the pump.
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
PRESSURE WASHER Troubleshooting Guide
10
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
PUMP RUNNING
NORMALLY BUT
PRESSURE LOW
ON INSTALLATION
Pump sucking air Check water supply and possibility of air
seepage.
Check valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary.
Worn piston packing Check and replace if necessary.
FLUCTUATING
PRESSURE
Valves worn Check and replace if necessary.
Blockage in valve Check and clean out if necessary.
Faulty or misadjusted
unloader valve
Tampering with the factory setting may
cause personal injury and/or property
damage, and will void the
manufacturer's warranty.
Pump sucking air Check water supply connections.
Worn piston packing Check and replace if necessary.
Insufficient water Check filter and hose for breakage.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Check and replace if necessary.
Suction or delivery valves worn Check and replace if necessary.
Suction or delivery valves blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Worn piston package Check and replace if necessary.
PUMP NOISY
Air in suction line Check water supply and connections on
suction line.
Broken or weak suction or delivery
valve spring
Check and replace if necessary.
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and replace if necessary.
Excessive temperature of water Reduce to below 140°F.
PRESENCE OF WATER
IN PUMP OIL
Oil seal worn Check and replace if necessary.
High humidity in air Check and change oil twice as often.
Piston packing worn Check and replace if necessary.
WATER DRIPPING
FROM UNDER PUMP
Piston packing worn Check and replace if necessary.
O-Ring plunger retainer worn Check and replace if necessary.
WATER DRIPPING
FROM PUMP
PROTECTOR
Water supply pressure too high
(over 90 psi)
Lower water supply pressure using a
regulator.
Spray gun is in the off position for
over 1-2 minutes
Turn machine off if not in use for over 1-2
minutes.
OIL DRIPPING
Oil seal worn Check and replace if necessary.
EXCESSIVE VIBRA-
TION IN HIGH-PRES-
SURE HOSE
Irregular functioning of the pump
valves
Check and replace if necessary
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
11
PRESSURE WASHER Troubleshooting Guide
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative
maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for
maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform
maintenance more often under severe conditions.
OIL CHANGE RECORD
Check pump oil and engine oil level before first use of your new pressure washer.
Pump Oil
(Non foaming)
SAE 10W-40
Inspect Daily inspect the oil level
Change After first 50 hours, then every 500 hours or annually
Replace high pressure nozzle Every 6 months
Replace quick connects Annually
Clean water screen/filter Weekly
Replace HP hose Annually if there is any sign of wear
Grease motor Every 10,000 hour
Belt Tension/Inspection Daily
Check Air Pressure in Tires Daily
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last
Oil Change
8.914-000.0 • 8.917-410.0 • 9.800-340.0 • 8.919-014.0 • Rev. 03/20
OPERATOR’S MANUAL
PRESSURE WASHER
12
9.800-415.0-4

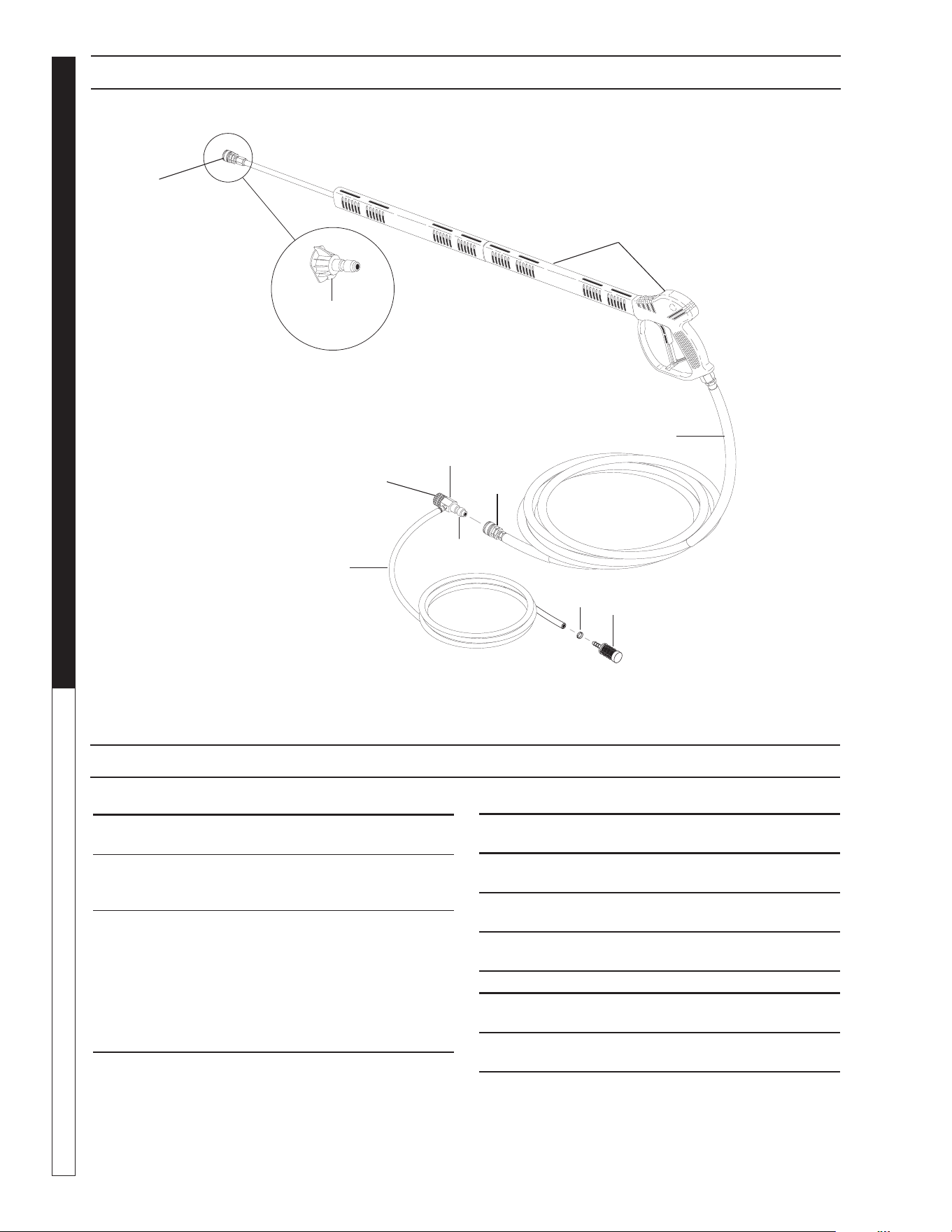

HOSE & SPRAY GUN ASSEMBLY
HOSE & SPRAY GUN ASSEMBLY PARTS LIST
2
4
6
6
7
8
5
9
3
1
10
ITEM PART NO. DESCRIPTION QTY
1 9.802-228.0 Gun w/Wand (5000 PSI),
w/Coupler 1
2 8.918-088.0 Hose, 3/8" x 50', 2W, TS,SO-
SW,HIGH PRESS CP (MPE,
BDE,BRE and HD) 1
3 9.803-811.0 Nozzle, SAQCMEG 15045,
Yellow 1
9.803-812.0 Nozzle, SAQCMEG 25045,
Green 1
9.803-813.0 Nozzle, SAQCMEG 4004.5,
White 1
9.802-311.0 Nozzle COMPL, QCEM-6540
Brass 1
ITEM PART NO. DESCRIPTION QTY
4 9.802-251.0 Hose, 1/4" x 1/2" 6 ft.
Clear Vinyl
5 9.802-160.0 Strainer, Plastic, 1
1/4" Hose Barb
6 9.802-167.0 Coupler, 3/8" Fem, 1
11,000 PSI, Snap-Tite
7 9.802-168.0 Nipple, 3/8" Fem, 1
11,000 PSI
8 6.390-126.0 Clamp, Hose, .46-.54 ST 2
9 9.802-167.0 Injector, SS, Non Adj, 1
2.0-4.0 GPM, 5500 PSI
10 8.756-030.0 Coupler. 1/4" Socket, 1
Male, Brass
advantages.
vielen Vorteilen.
avantages.
Registre su producto y aproveche de muchas ventajas.
Bewerten Sie Ihr Produkt und sagen Sie uns Ihre Meinung.
Rate your product and tell us your opinion.
Évaluer votre produit et dites-nous votre opinion.
Reseñe su producto y díganos su opinión.
www.kaercher.com/welcome
www.kaercher.com/dealersearch
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
DANKE!
THANK YOU!
MERCI!
GRACIAS!
!
