Models
FS-1001MLH-C with SRC-10H
FS-1022MLH-C with SRC-10H
FS-1500MLH-C with SRC-14H
Modular Cubelet
Serenity Series
Instruction Manual
Issued: 6-13-2014
Revised: 8-18-2017
hoshizakiamerica.com
2
WARNING
Only qualied service technicians should install and service the appliance. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizaki.com. No installation or service should be
undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the appliance until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: 1-800-233-1940; (770) 487-2331
Fax: 1-800-843-1056; (770) 487-3360
E-mail: techsuppor[email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.
3
CONTENTS
Important Safety Information ................................................................................................. 5
I. Specications ...................................................................................................................... 7
A. Electrical and Refrigerant Data ..................................................................................... 7
1. F S ............................................................................................................................ 7
2. SRC ......................................................................................................................... 7
B. Dimensions/Connections .............................................................................................. 8
1. FS-1001MLH-C ........................................................................................................ 8
2. FS-1022MLH-C ........................................................................................................ 9
3. FS-1500MLH-C...................................................................................................... 10
4. SRC-10H ................................................................................................................11
5. SRC-14H ............................................................................................................... 12
II. Installation and Operating Instructions ............................................................................ 13
A. Location ...................................................................................................................... 13
1. Icemaker ................................................................................................................ 13
2. Remote Condensing Unit ....................................................................................... 14
B. Checks Before Installation ........................................................................................... 15
1. Icemaker ................................................................................................................ 15
2. Remote Condensing Unit ....................................................................................... 15
C. How to Remove Panels ............................................................................................... 16
1. Icemaker ................................................................................................................ 16
2. Remote Condensing Unit ....................................................................................... 16
D. Installation of the Icemaker ......................................................................................... 17
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup ............................................. 17
2. Icemaker Electrical Connection ............................................................................. 18
3. Water Supply and Drain Connections .................................................................... 19
E. Installation of the Remote Condensing Unit ................................................................ 21
1. Remote Condensing Unit Setup ............................................................................. 21
2. Line Set Size and Refrigerant Charge ................................................................... 21
3. Line Set Installation ............................................................................................... 23
a) Factory Line Set Installation ............................................................................... 23
b) Field Fabricated Line Set Installation.................................................................. 24
4. Remote Condensing Unit Electrical Connection .................................................... 26
F. Final Checklist .............................................................................................................. 27
G. Startup ........................................................................................................................ 28
H. Bin Control Check ....................................................................................................... 29
1. Infrared Sensor Check ........................................................................................... 29
2. Mechanical Backup Bin Control Check .................................................................. 31
3. Infrared Sensor Shutdown Delay ........................................................................... 32
a) Standard Ice Storage Bin ................................................................................... 32
b) Dispenser Unit .................................................................................................... 32
I. Operation Notes ........................................................................................................... 32
IMPORTANT
This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they
provide essential information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may be necessary.
4
III. Maintenance ................................................................................................................... 33
A. Maintenance Schedule ................................................................................................ 34
B. Cleaning and Sanitizing Instructions ........................................................................... 35
1. Cleaning Solution ................................................................................................... 35
2. Cleaning Procedure ............................................................................................... 35
3. Sanitizing Solution ................................................................................................. 36
4. Sanitizing Procedure - Initial .................................................................................. 36
5. Sanitizing Procedure - Final ................................................................................... 37
IV. Preparing the Appliance for Periods of Non-Use ............................................................ 39
V. Disposal ........................................................................................................................... 40
5
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the
appliance or property.
IMPORTANT Indicates important information about the use, installation, and
care of the appliance.
WARNING
The appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting from
improper, incorrect, and unreasonable use. Failure to install, operate, and maintain the
appliance in accordance with this manual will adversely affect safety, performance,
component life, and warranty coverage and may result in costly water damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the appliance.
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• To reduce the risk of electric shock, do not touch the icemaker power switch or plug
with damp hands. Make sure the icemaker power switch is in the "OFF" position
before plugging in or unplugging the icemaker.
• Before Servicing: FS: Move the icemaker's power switch to the "OFF" position.
Unplug the icemaker from the electrical outlet. SRC: Turn off the power supply to
the remote condensing unit. Place the disconnect (if applicable) in the off position.
Lockout/Tagout to prevent the power supply from being turned back on inadvertently.
• Do not make any alterations to the icemaker or condensing unit. Alterations could
result in electric shock, injury, re, or damage to the appliance.
FS
• The icemaker requires an independent power supply of proper capacity. See the
nameplate for electrical specications. Failure to use an independent power supply of
proper capacity can result in a tripped breaker, blown fuse, damage to existing wiring,
or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. The icemaker is equipped with a
NEMA5-15 three-prong grounding plug to reduce the risk of potential shock
hazards. It must be plugged into a properly grounded, independent 3-prong wall outlet.
If the outlet is a 2-prong outlet, it is your personal responsibility to have a qualied
electrician replace it with a properly grounded, independent 3-prong wall outlet. Do not
remove the ground prong from the power cord and do not use an adapter plug. Failure
to properly ground the icemaker could result in death or serious injury.
6
WARNING, continued
FS continued
• Do not use an extension cord.
• Do not use an icemaker with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could result
in electric shock or re. To unplug the icemaker, be sure to pull the plug, not the cord,
and do not jerk the cord.
• Do not place ngers or any other objects into the ice discharge opening.
SRC
• Electrical connection must be hard-wired to the remote condensing unit and must
meet national, state, and local electrical code requirements. Failure to meet these
code requirements could result in death, electric shock, serious injury, re, or damage.
• The remote condensing unit requires an independent power supply of proper capacity.
See the nameplate for electrical specications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker, blown fuse, damage to
existing wiring, or component failure. This could lead to heat generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
NOTICE
• Follow the instructions in this manual carefully to reduce the risk of costly water
damage.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Install the icemaker in a location that stays above freezing. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C).
• Do not leave the icemaker on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the icemaker for
these occasions, follow the instructions in "IV. Preparing the Appliance for Periods of
Non-Use."
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• Do not place objects on top of the appliance.
• The dispenser unit/ice storage bin is for ice use only. Do not store anything else in the
dispenser unit/ice storage bin.
7
I. Specications
A. Electrical and Refrigerant Data
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
The rating label (FS) and nameplate (FS and SRC) provide electrical and refrigerant
data. The rating label can be seen by removing the front panel of the FS. The nameplate
is located on the rear panel of the FS and on the side panel of the SRC. For certication
marks, see the nameplate.
We reserve the right to make changes in specications and design without prior notice.
1. FS
Model Number FS-1001MLH-C FS-1022MLH-C FS-1500MLH-C
AC Supply Voltage 115-120/60/1 115-120/60/1 115-120/60/1
Amperes 3.0A 3.0A 3.6A
Design Pressure HI-427PSI LO-230PSI HI-427PSI LO-230PSI HI-427PSI LO-230PSI
Total Refrigerant
Charge
404A
Total Refrigerant Charge
with Hoshizaki Remote
Condensing Unit SRC-10H:
8 LB. 6 OZ.
404A
Total Refrigerant Charge
with Hoshizaki Remote
Condensing Unit SRC-10H:
8 LB. 6 OZ.
404A
Total Refrigerant Charge
with Hoshizaki Remote
Condensing Unit SRC-14H:
11 LB. 0 OZ.
2. SRC
Model Number SRC-10H SRC-14H
AC Supply Voltage 208-230/60/1 (3 Wire with
Neutral for 115V)
208-230/60/1 (3 Wire with
Neutral for 115V)
Compressor 208-230V 6.5RLA 46LRA 208-230V 6.9RLA 56LRA
Fan Motor 115V 1.3FLA 65W 115V 1.45FLA 65W (EACH)
Other 120V 0.2A 120V 0.2A
Maximum Fuse Size 20 AMPS 20 AMPS
Max. HACR Breaker
(USA Only)
20 AMPS 20 AMPS
Max. Circuit Breaker
(Canada Only)
20 AMPS 20 AMPS
Minimum Circuit
Ampacity
20 AMPS 20 AMPS
Design Pressure HI-427PSI LO-230PSI HI-427PSI LO-230PSI
Refrigerant 404A
Total Refrigerant Charge
with Hoshizaki Icemaker
FS-1001MLH-C or
FS-1022MLH-C: 8 LB. 6 OZ.
404A
Total Refrigerant Charge
with Hoshizaki Icemaker
FS-1500MLH-C:
11 LB. 0 OZ.
8
B. Dimensions/Connections

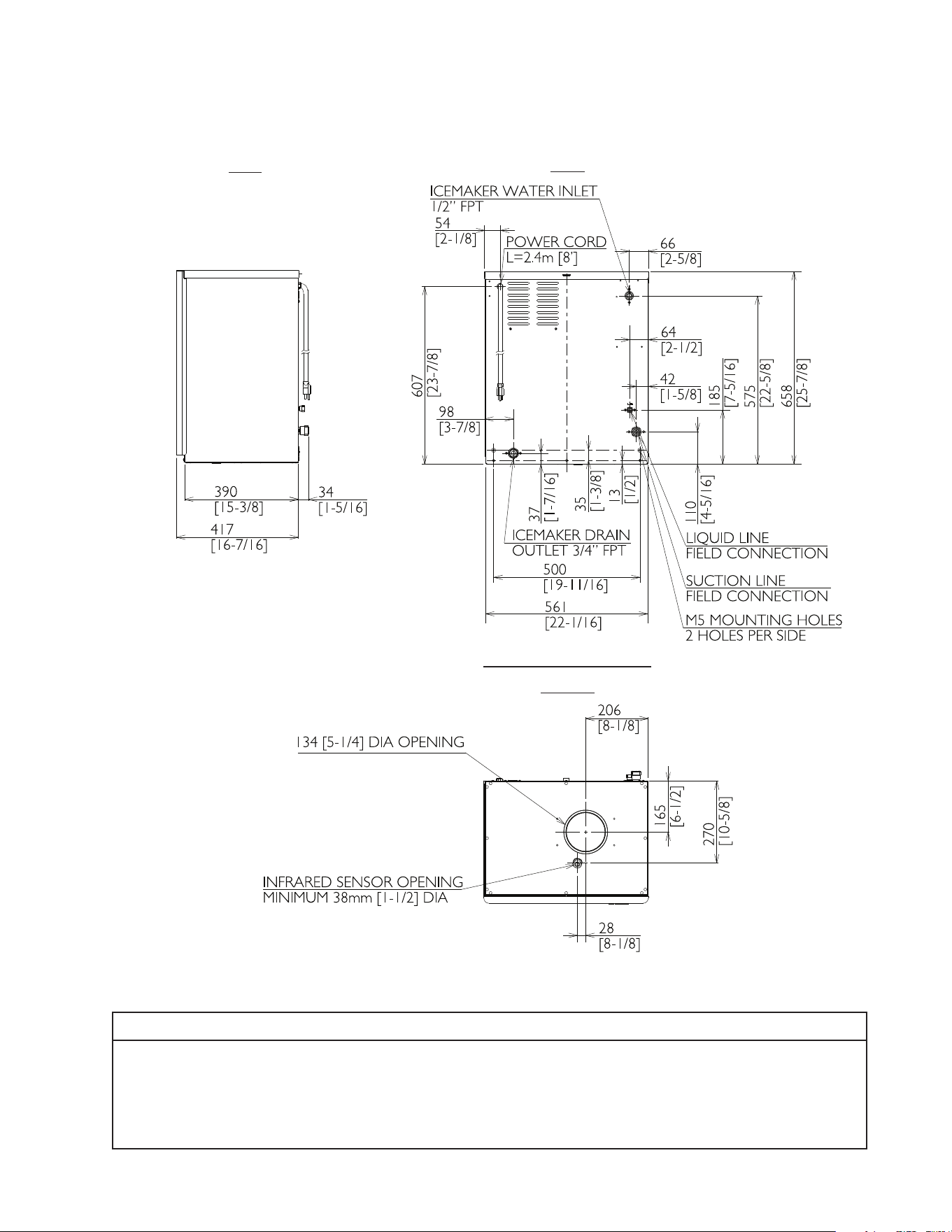

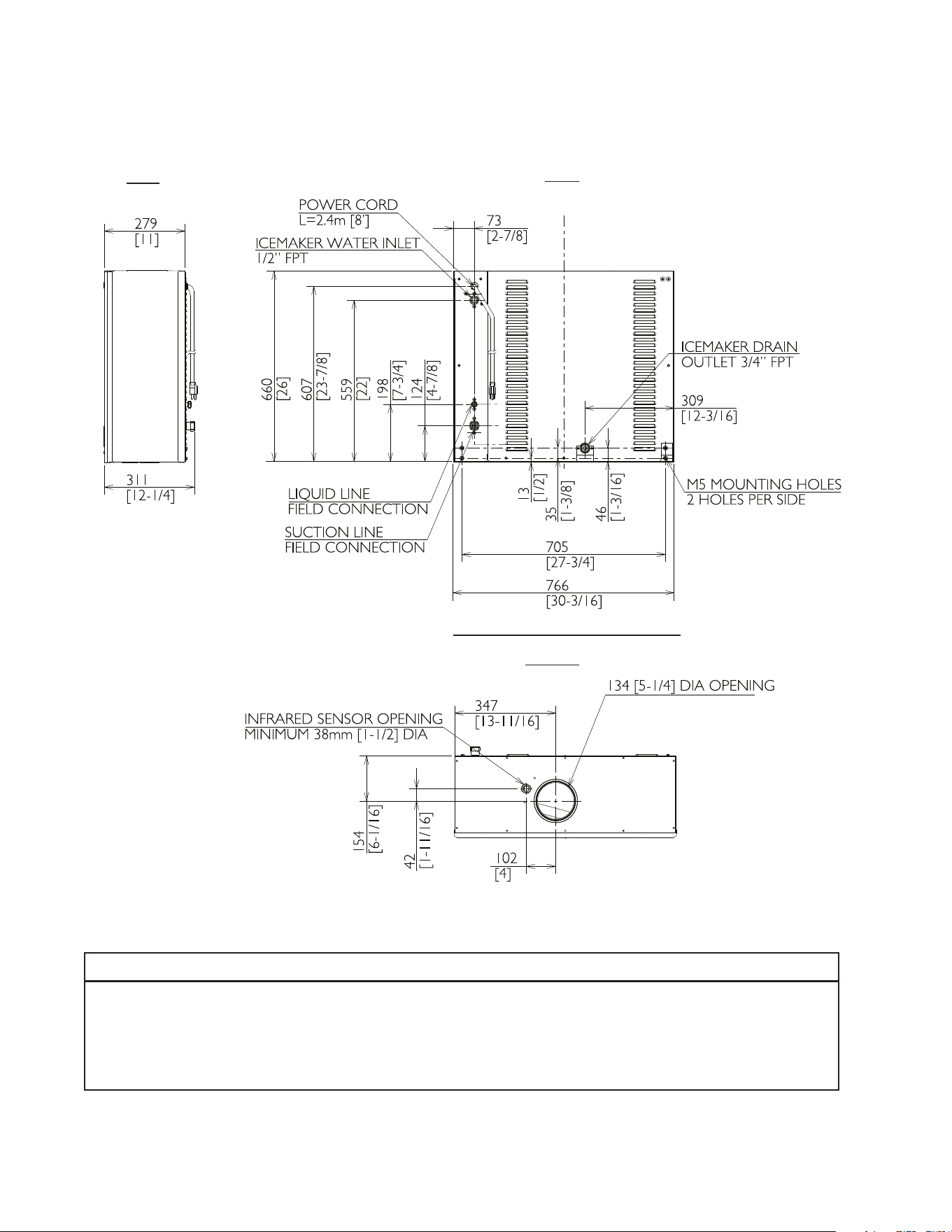

1. FS-1001MLH-C
Units: mm [in.]
Rear
Side
Bottom
Model Shown: FS-1001MLH-C
NOTICE
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61 cm) clearance at
top to allow for removal of the auger.
• The storage bin opening must match the bottom opening as in the illustration.
9

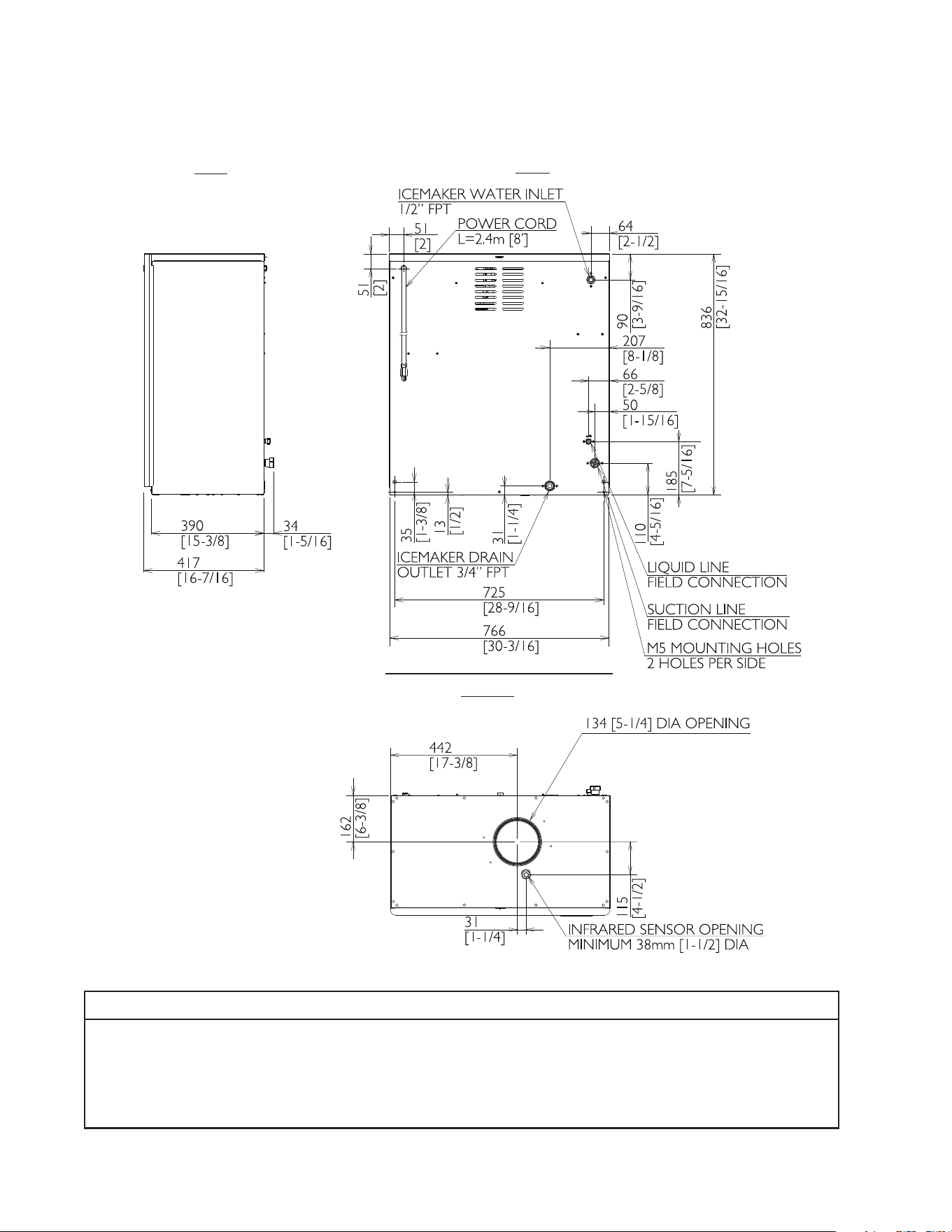

2. FS-1022MLH-C
Units: mm [in.]
Rear
Side
Bottom
Model Shown: FS-1022MLH-C
NOTICE
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61 cm) clearance at
top to allow for removal of the auger.
• The storage bin opening must match the bottom opening as in the illustration.
10
3. FS-1500MLH-C
Units: mm [in.]
Rear
Side
Bottom
Model Shown: FS-1500MLH-C
NOTICE
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61 cm) clearance at
top to allow for removal of the auger.
• The storage bin opening must match the bottom opening as in the illustration.
11

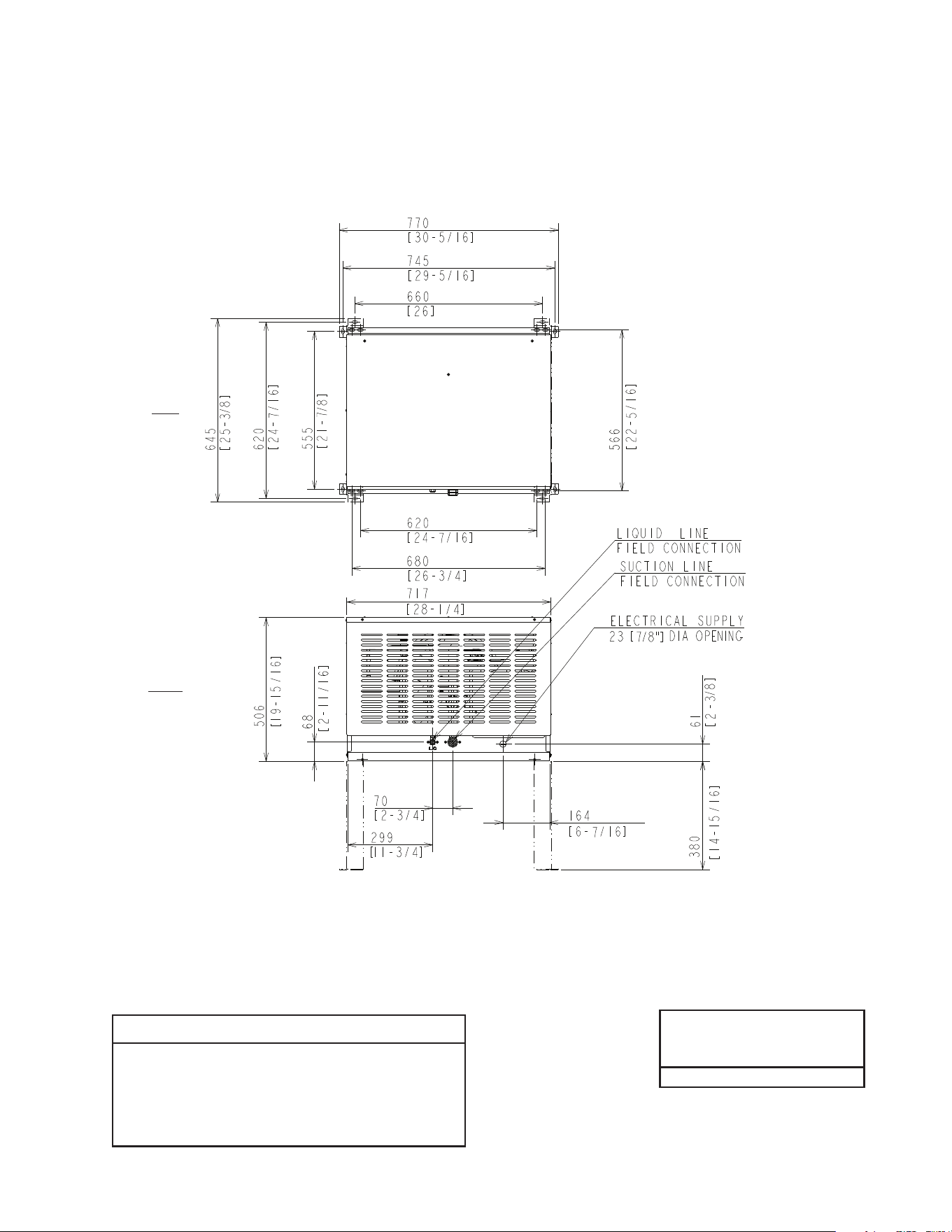

4. SRC-10H
Unit: mm [in.]
Note: Legs are included with condensing unit.
Leg height is 380 mm (14-15/16 in.).
Rear
Top
SRC-10H Heat of Rejection
AT 90°F (32°C)
WT 70°F (21°C)
10,500 BTU/hr
NOTICE
Allow 24" (61cm) clearance at front
and rear for proper air circulation and
ease of maintenance and/or service
should they be required.
12

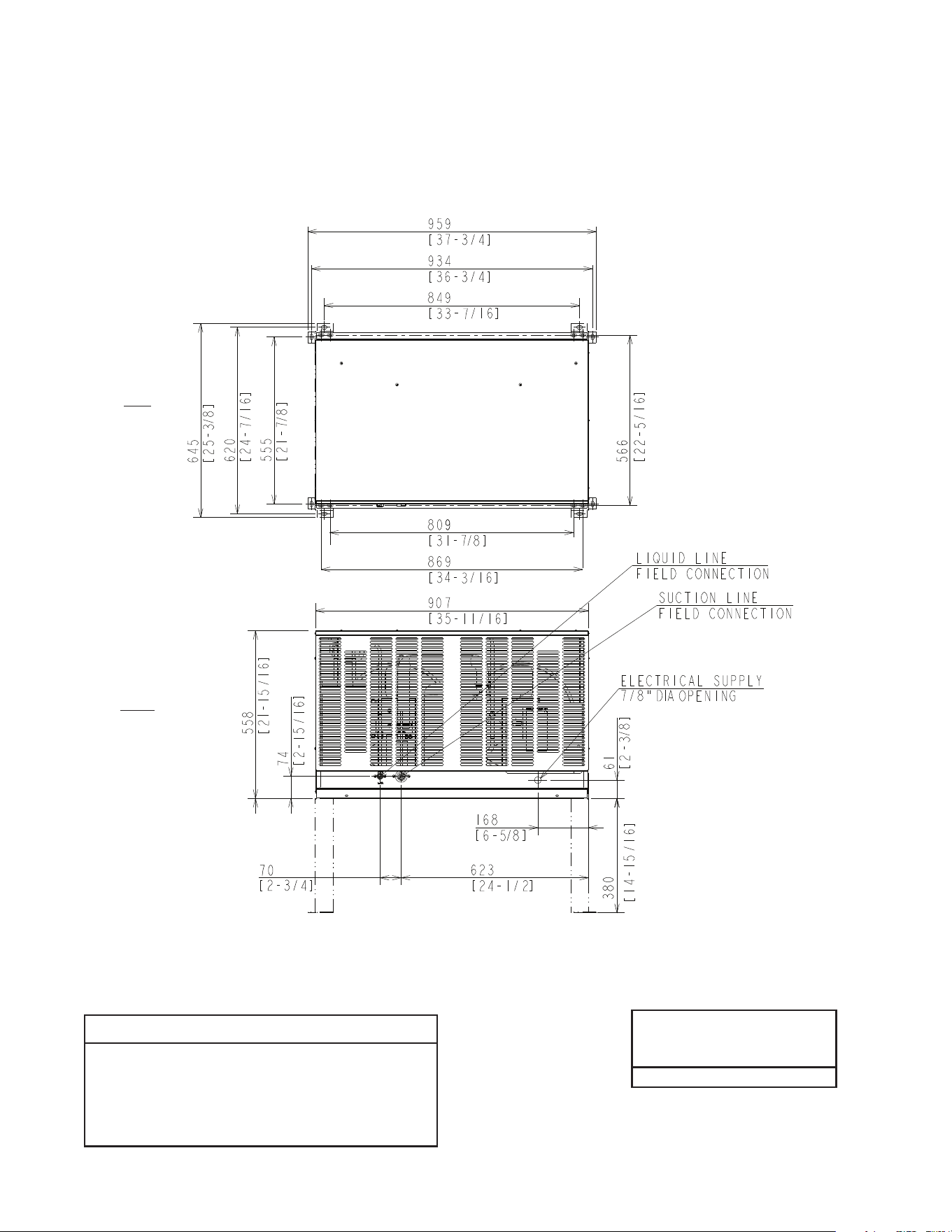

5. SRC-14H
Unit: mm [in.]
Note: Legs are included with condensing unit.
Leg height is 380 mm (14-15/16 in.).
Rear
Top
SRC-14H Heat of Rejection
AT 90°F (32°C)
WT 70°F (21°C)
17,700 BTU/hr
NOTICE
Allow 24" (61cm) clearance at front
and rear for proper air circulation and
ease of maintenance and/or service
should they be required.
13
II. Installation and Operating Instructions
WARNING
• The icemaker and remote condensing unit must be installed in accordance with
applicable national, state, and local codes and regulations.
• Failure to install, operate, and maintain the icemaker and remote condensing
unit in accordance with this manual will adversely affect safety, performance,
component life, and warranty coverage and may result in costly water damage.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
dispenser unit/ice storage bin.
A. Location
1. Icemaker
NOTICE
• The icemaker is not intended for outdoor use. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature must be within 45°F to 90°F (7°C to 32°C). Operation of the
icemaker, for extended periods, outside of these normal temperature ranges may
affect icemaker performance.
• The icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to go
below 32°F (0°C). See "IV. Preparing the Appliance for Periods of Non-Use."
• The icemaker should not be located next to ovens, grills, or other high heat producing
equipment.
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61 cm) clearance at top to
allow for removal of the auger.
• The location must provide a rm and level foundation for the appliance.
14
2. Remote Condensing Unit
NOTICE
• The remote condensing unit is intended for outdoor use. Normal operating ambient
temperature must be within -4°F to 122°F (-20°C to 50°C). Operation of the remote
condensing unit, for extended periods, outside of this normal temperature range
may affect icemaker performance.
• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 1.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
The remote condensing unit must be positioned in a permanent site under the following
guidelines:
• A rm and at site.
• A dry and well ventilated area with 24" (61 cm) clearance in both front and rear for proper
air circulation and ease of maintenance and/or service should they be required. See Fig. 2.

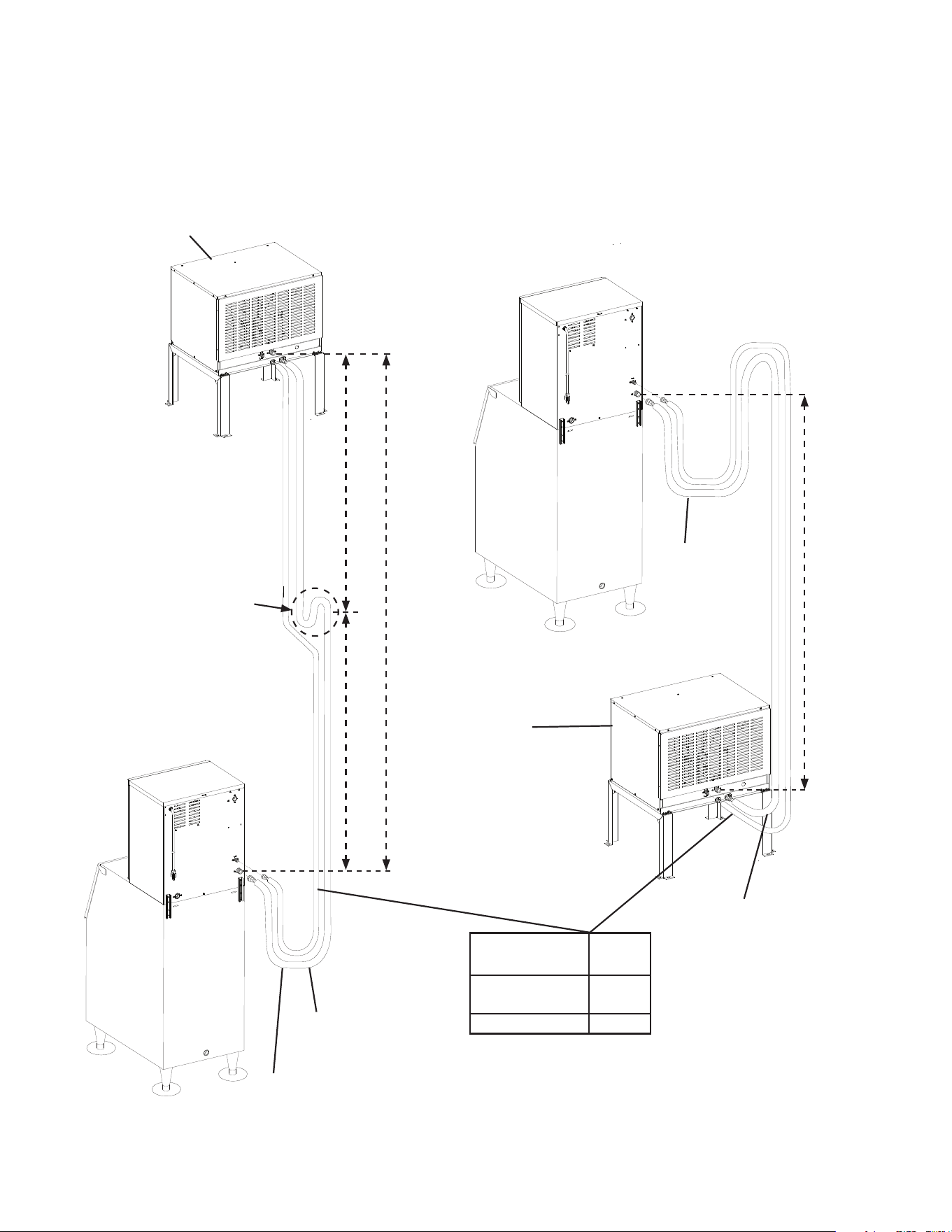

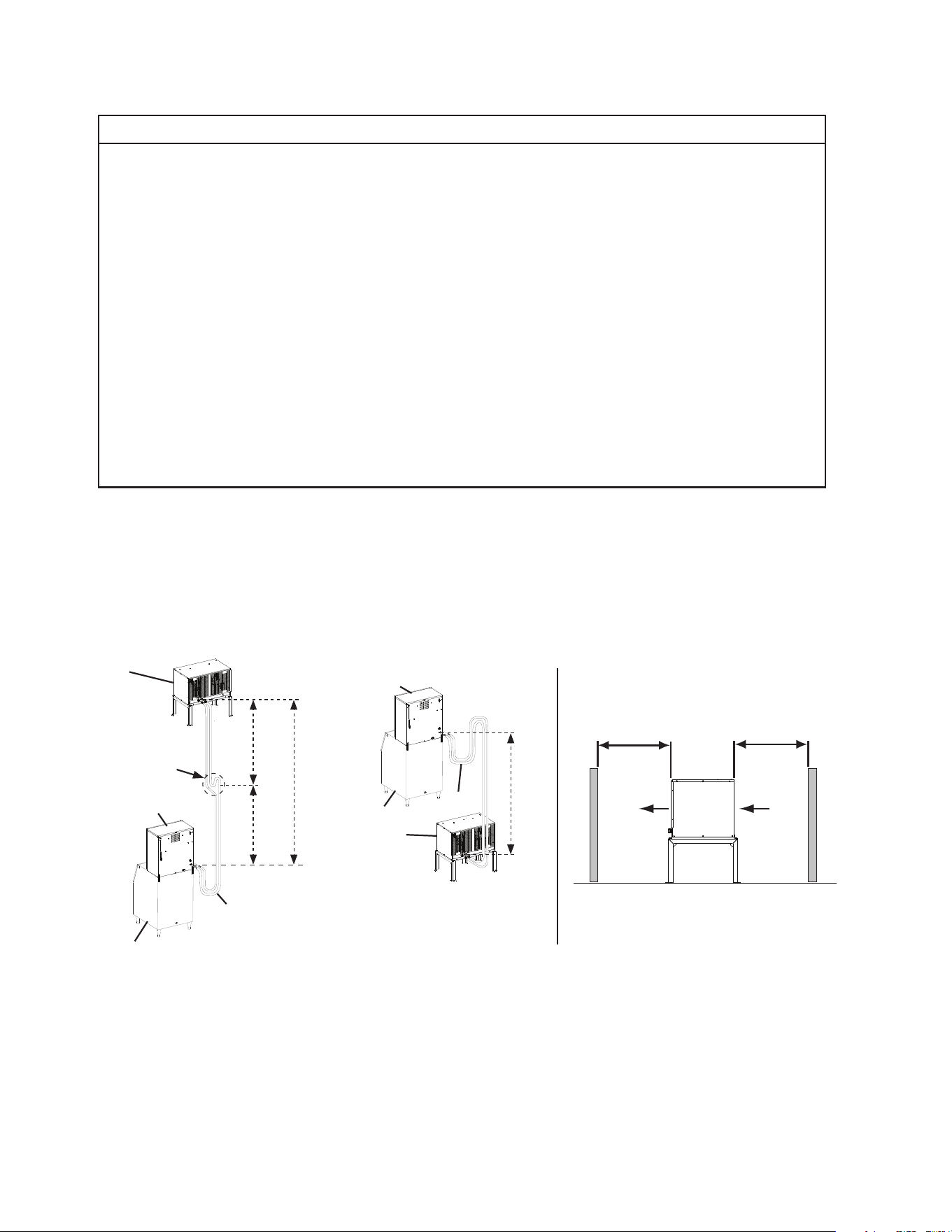

Fig. 1
Fig. 2
24"
(61 cm)
Min. 24" (61 cm) Clearance
Air
Air
24"
(61 cm)
Icemaker
Remote
Condensing
Unit
Suction Line
"S" Oil-Trap
Service Loop
Icemaker
Service
Loop
Remote
Condensing
Unit
Model Shown: FS-1500MLH-C with SRC-14H
Max. 33' (10 m)
Max.
16.5'
(10 m)
Max.
16.5'
(10 m)
Max. 10' (3 m)
Ice Storage Bin
Ice Storage Bin
15
B. Checks Before Installation
• Visually inspect the exterior of the shipping containers and immediately report any
damage to the carrier. Upon opening the containers, any concealed damage should
also be immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the icemaker
or remote condensing unit, they will not work properly.
1. Icemaker
• See the nameplate on the rear panel. Check that your voltage supplied corresponds
with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the icemaker. See "II.C. How to
Remove Panels."
• Remove the package containing the accessories.
• Remove the protective plastic lm from the panels. If the icemaker is exposed to the sun
or to heat, remove the lm after the icemaker cools.
• Check that the refrigerant lines do not rub or touch lines or other surfaces.
• The icemaker can be installed on a dispenser unit or ice storage bin as listed below:
Hoshizaki Icemaker Dispenser Unit or Ice Storage Bin Width
FS-1001MLH-C
FS-1500MLH-C
30" wide or wider
FS-1022MLH-C 22" wide or wider
For further options, contact your local Hoshizaki distributor.
• NOTICE! The icemaker must be connected to the appropriate Hoshizaki Remote
Condensing Unit listed below. Connection to another remote condensing unit will
void the warranty.
Hoshizaki Icemaker
Hoshizaki Remote
Condensing Unit
FS-1001MLH-C
FS-1022MLH-C
SRC-10H
FS-1500MLH-C SRC-14H
2. Remote Condensing Unit
• See the nameplate on the remote condensing unit. Check that your voltage supplied
corresponds with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the remote condensing unit. See
"II.C. How to Remove Panels."
• Remove the package containing the accessories.
• Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the
fan blade(s) turn freely.
• Check that the compressor is snug on all mounting pads.
16

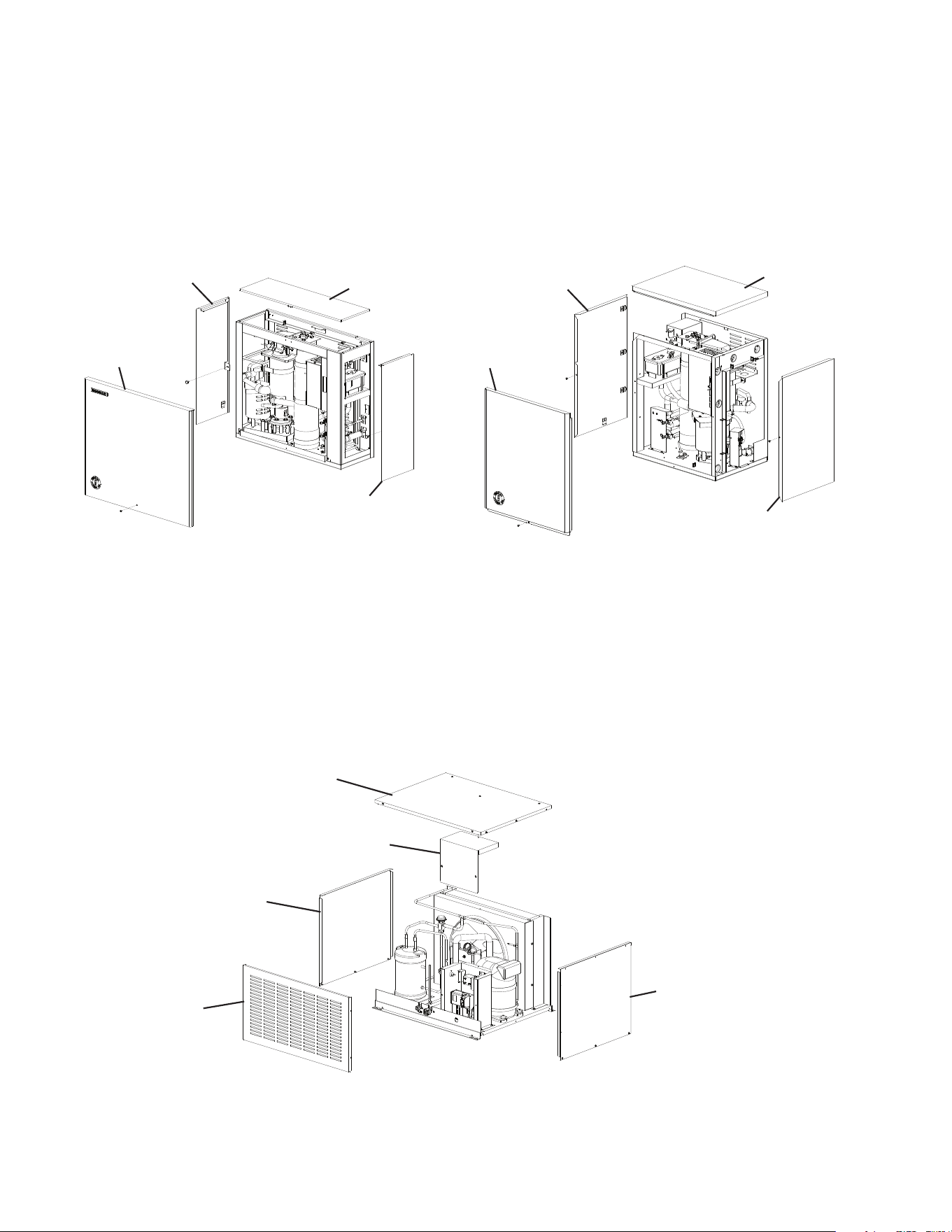

C. How to Remove Panels
1. Icemaker
• Front Panel: Remove the screw. Lift up and towards you.
• Top Panel: Lift up at front slightly, push rearward and lift off.
• Left Side Panel and Right Side Panel: Remove the thumbscrew (FS-1001MLH-C) or
screw (FS-1022MLH-C and FS-1500MLH-C). Slide forward slightly and lift off.
2. Remote Condensing Unit
• Top Panel: Remove the screws and lift off.
• Louver Panel: Remove the screws and lift off.
• Left Side Panel and Right Side Panel: Remove the screws and lift off.
• Control Box Cover: Remove the screws and lift off.
Left Side Panel
Fig. 4
Top Panel
Right Side Panel
Louver Panel
Left Side Panel
Remote Condensing Unit
Right Side Panel
Fig. 3
Top Panel
Front Panel
FS-1022MLH-C or FS-1500MLH-C Icemaker
Control Box Cover
Model Shown: FS-1022MLH-C
Model Shown: SRC-10H
FS-1001MLH-C Icemaker
Top Panel
Front Panel
Left Side Panel
Right Side Panel
17
D. Installation of the Icemaker
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup
WARNING
The installer must ensure the dispenser unit/ice storage bin is compatible with
the icemaker, and the dispenser unit/ice storage bin and icemaker are properly
attached and secured.
1) If mounting the icemaker on top of a dispenser unit, follow the dispenser unit's setup
procedure. If mounting the icemaker on top of an ice storage bin, unpack the ice storage
bin, and attach the 4 adjustable legs provided (bin accessory) to the bottom of the ice
storage bin.
2) Position the dispenser unit/ice storage bin in its permanent location.
3) If required, install an adapter kit or top kit. Contact your local Hoshizaki distributor for
recommendations.
4) Level the dispenser unit/ice storage bin in both the left-to-right and front-to-rear
directions. Ifusing an ice storage bin, adjust the ice storage bin legs to level.
5) Place the icemaker on top of the dispenser unit/ice storage bin.
6) Follow the dispenser unit/ice storage bin, adapter kit, or top kit instructions for securing
the icemaker. If no instructions are available, secure the icemaker using the mounting
brackets provided. Secure the mounting brackets to the icemaker with the 5×12
machine bolts provided. See Fig. 5. Secure the mounting brackets to the dispenser unit
with the self-tapping bolts provided. NOTICE! Use care to avoid damage to dispenser
unit/ice storage bin components when attaching the mounting brackets.
Icemaker

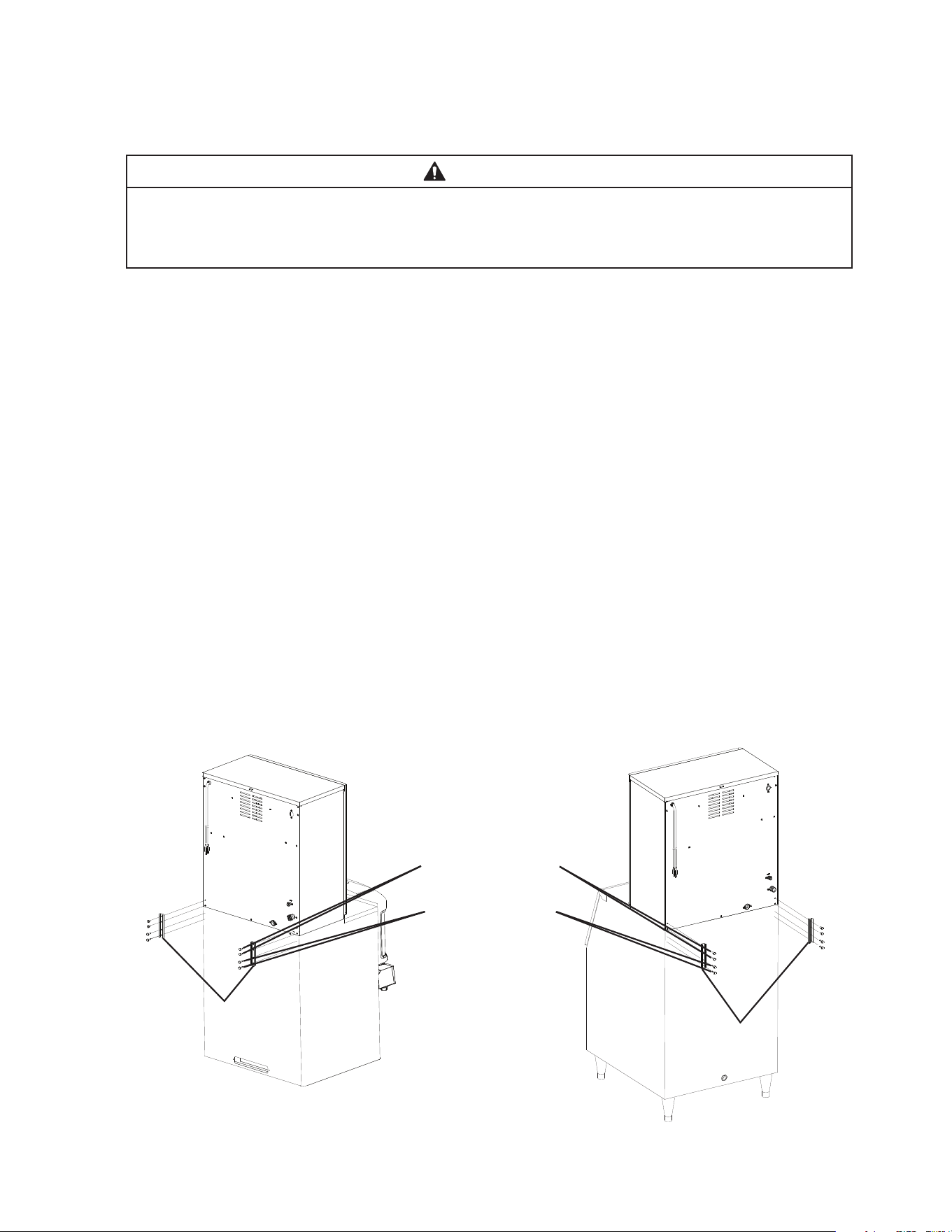

Fig. 5
Self-Tapping Bolts
Mounting
Brackets
5×12 Machine Bolts
Model Shown: FS-1500MLH-C
Dispenser
Unit
Ice
Storage
Bin
Model Shown: FS-1500MLH-C
Mounting
Brackets
Icemaker
18

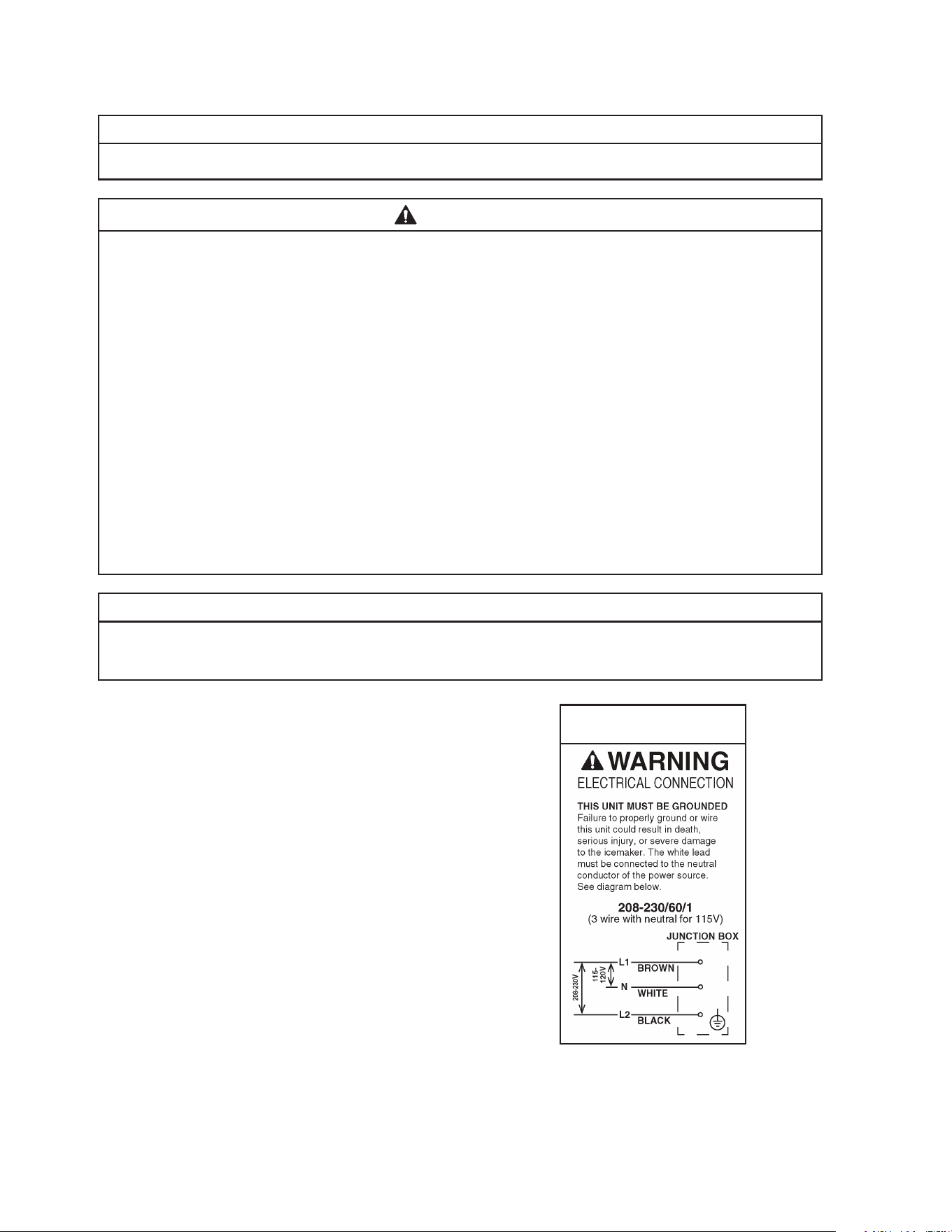

2. Icemaker Electrical Connection
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
WARNING
• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or damage.
• The icemaker requires an independent power supply of proper capacity. See the
nameplate for electrical specications. Failure to use an independent power supply
of proper capacity can result in a tripped breaker, blown fuse, damage to existing
wiring, or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. The icemaker is equipped with a
NEMA5-15 three-prong grounding plug to reduce the risk of potential shock
hazards. It must be plugged into a properly grounded, independent 3-prong wall
outlet. If the outlet is a 2-prong outlet, it is your personal responsibility to have
a qualied electrician replace it with a properly grounded, independent 3-prong
wall outlet. Do not remove the ground prong from the power cord and do not use
an adapter plug. Failure to properly ground the icemaker could result in death or
serious injury.
• Do not use an extension cord.
• To reduce the risk of electric shock, do not touch the icemaker power switch or plug
with damp hands. Make sure the icemaker power switch is in the "OFF" position
before plugging in or unplugging the icemaker.
• Do not use an icemaker with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could
result in electric shock or re. To unplug the icemaker, be sure to pull the plug, not
the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected to the
icemaker. If it becomes necessary to remove or replace the power cord, be sure
to connect the power cord's ground wire.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.
19
3. Water Supply and Drain Connections
See Fig. 6
WARNING
Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.
NOTICE
• Normal operating water temperature should be within 45°F to 90°F (7°C to
32°C). Operation of the appliance, for extended periods, outside of this normal
temperature range may affect performance.
• To prevent damage to the appliance, do not operate the appliance when the water
supply is off, or if the pressure is below 10 PSIG. Do not run the appliance until
the proper water pressure is reached.
• A plumbing permit and services of a licensed plumber may be required in some areas.
• External lters, strainers, or softeners may be required depending on water quality. Contact
your local Hoshizaki Certied Service Representative or local Hoshizaki distributor for
recommendations.
• Water supply pressure must be a minimum of 10 PSIG and a maximum of 113 PSIG. If the
pressure exceeds 113 PSIG, the use of a pressure reducing valve is required.
• The icemaker drain line and dispenser unit/ice storage bin drain line must be run
separately.
• Drain lines must have 1/4" fall per foot (2 cm per 1 m) on horizontal runs to get a good
ow. A vented tee connection is also required for proper ow.
• Drain lines should not be piped directly to the sewer system. An air gap of a minimum of
2 vertical inches (5 cm) should be between the end of the drain pipe from the icemaker
and dispenser unit/ice storage bin and the oor drain.
20
1. Icemaker
Icemaker Water
Supply Inlet
Minimum Icemaker
Water Supply Line Size
Icemaker Drain
Outlet
Minimum Icemaker
Drain Line Size
1/2" Female Pipe
Thread (FPT)
1/4" Nominal ID
Copper Water Tubing or
Equivalent
3/4" Female Pipe
Thread (FPT)
3/4" Nominal
ID Hard Pipe or
Equivalent
• An icemaker water supply line shut-off valve and drain valve must be installed.
• Be sure there is sufficient extra water supply line and drain line for the appliance to be
pulled out for service.

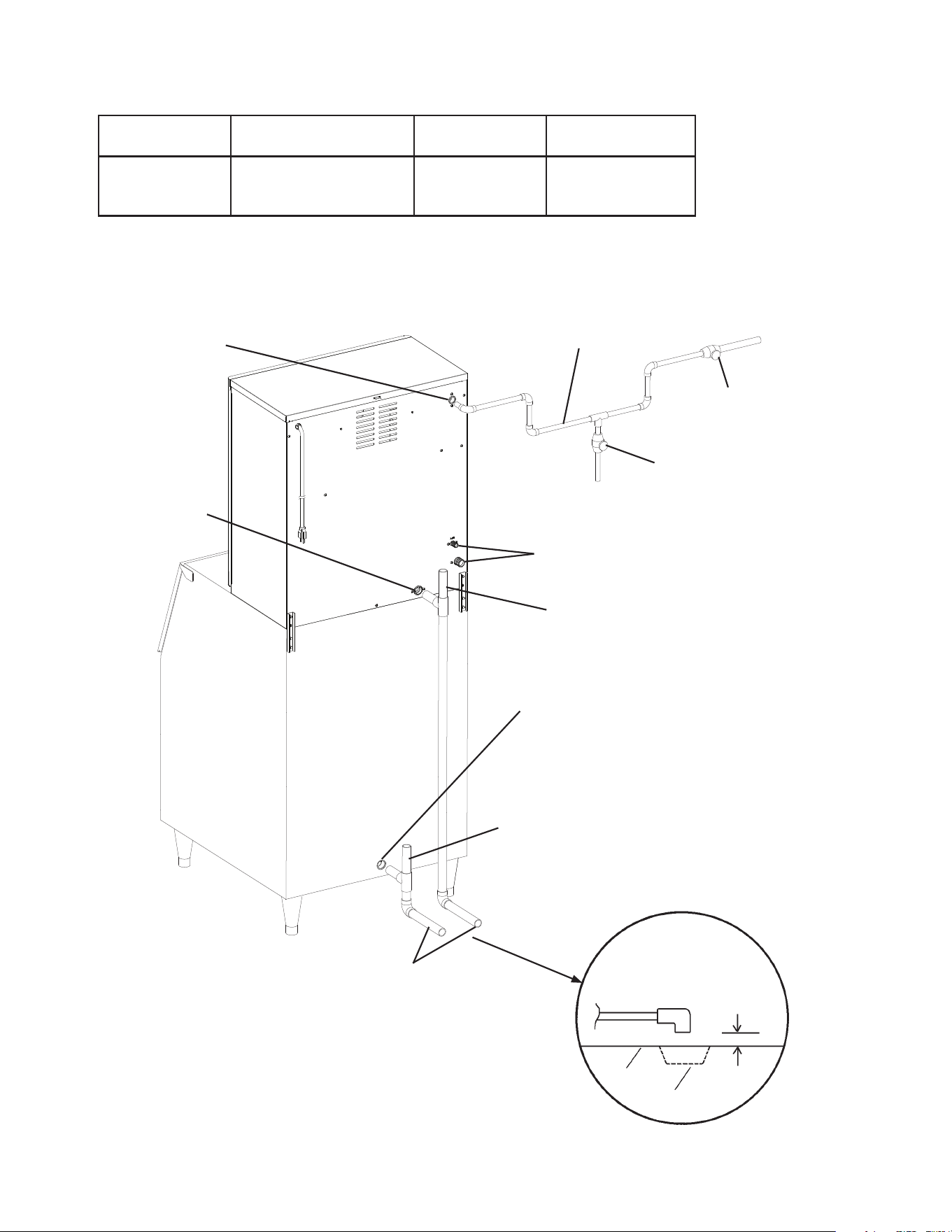

Fig. 6
2-inch
(5-cm)
air gap
Floor
Drain
Icemaker Water
Supply Inlet
1/2" FPT
Shut-Off Valve
Drain Valve
Icemaker Drain
Outlet 3/4" FPT
Bin Drain Outlet
3/4" FPT
Ice
Storage
Bin
Icemaker
Vent Tube
Minimum 1/4" Nominal ID Copper
Water Tubing or Equivalent
Minimum 3/4" Nominal ID Hard Pipe
or Equivalent
Vent Tube
Remote Condensing Unit
Line Set Connections
Model Shown: FS-1500MLH-C
Separate piping to
approved drain. Leave a
two-inch (5 cm) vertical air
gap between the end of
each pipe and the drain.
Be sure there is sufficient
extra water supply line and
drain line for the appliance
to be pulled out for service.
21
E. Installation of the Remote Condensing Unit
WARNING
Installation must be performed by properly trained and EPA-certied service
personnel.
1. Remote Condensing Unit Setup

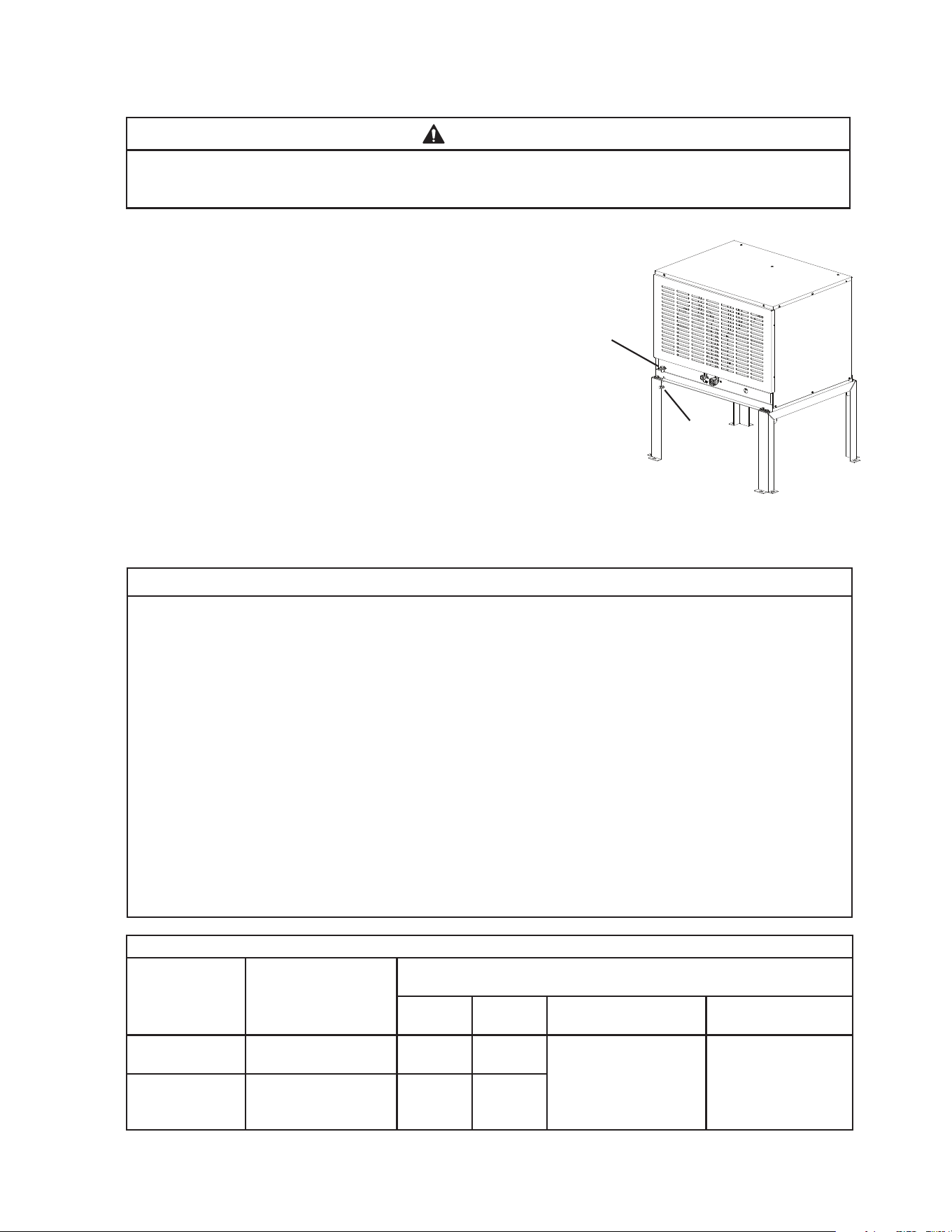

1) Secure the legs to the remote condensing
unit with the 8 bolts and nuts provided.
See Fig. 7.
2) The legs have 8 mounting holes. Secure
the legs to the permanent site with 8 bolts
(not included).
2. Line Set Size and Refrigerant Charge
NOTICE
• The icemaker, line set, and remote condensing unit must contain the same type
of refrigerant. Mixing of refrigerants will result in improper operation and possible
damage to the refrigeration system.
• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 8.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
Line Set Size and Refrigerant Charge
Hoshizaki
Icemaker
Hoshizaki Remote
Condensing Unit
Line Set
Maximum 55' (17 m)
Liquid
Line
Suction
Line
Factory Line Set
Lengths
Charge
Adjustment
FS-1001MLH-C
FS-1022MLH-C
SRC-10H 1/4" OD 5/8" OD
20' (6 m), 35' (11 m),
55' (17 m)
Not Applicable:
Factory Charge
is Sufficient to
Maximum Line Set
Length of 55' (17 m)
FS-1500MLH-C SRC-14H 3/8" OD 5/8" OD
Model Shown: SRC-10H
Nut
Fig. 7
Bolt with
Split Lock
Washer and
Flat Washer
22
Max.
16.5'
(10 m)
Max.
16.5'
(10 m)
Line Set Connections
Fig. 8
Remote
Condensing Unit
(with compressor)
Icemaker
Service Loop
Icemaker
Suction Line
"S" Oil-Trap
Service Loop
Remote
Condensing Unit
(with compressor)
5/8" OD Suction Line
(insulated)
Model Shown: FS-1022MLH-C with SRC-10H
Hoshizaki
Icemaker
Liquid
Line
FS-1001MLH-C
FS-1022MLH-C
1/4" OD
FS-1500MLH-C 3/8" OD
Ice
Storage
Bin
Ice
Storage
Bin
Max. 33' (10 m)
Max. 10' (3 m)
5/8" OD Suction Line
(insulated)
23
3. Line Set Installation
Precharged factory line sets, available as optional equipment from Hoshizaki America,
are recommended. For installation details see "II.E.3.a) Factory Line Set Installation."
Field fabricated line sets are allowed. For installation details, see "II.E.3.b) Field
Fabricated Line Set Installation."
a) Factory Line Set Installation
1) Route the factory line set (see "II.E.2 Line Set Size and Refrigerant Charge" for
details) from the remote condensing unit to the icemaker. Leave a service loop behind
the icemaker to allow the icemaker to be pulled out for service. See Fig. 8. Factory
fabricated line sets are precharged and do not need to be evacuated. If the line set is
too long or too short, see "II.E.3.a)(1) Factory Line Set Modication."
NOTICE
• Ensure that there are no traps and no kinks in the line set. The service loop is not
considered an oil trap.
• Do not coil extra line set.
2) Connect the refrigerant lines to the appropriate male ttings on the icemaker rst and
then at the remote condensing unit. Make a proper connection as follows:
a. Remove the protective covers from the male tting and female coupling.
b. Apply Polyol Ester (POE) refrigerant oil or Parker Super O Lube to the entire male
tting, including O-ring, diaphragm, and threads before making the connection.
See Fig. 9. NOTICE! Do not use thread sealant on the ttings. Use POE
refrigerant oil or Parker Super O Lube only.
c. Make sure the male tting and female coupling are properly aligned, then start the
connection by hand to ensure that it is not cross threaded.
d. Tighten the connection with a wrench until it is tight. At this point, the nut has
covered most of the threads on the male tting.
e. Mark a reference line on the female coupling and the remote condensing unit or
icemaker panel. Using a backup wrench on the back of the female coupling, tighten
the six-sided nut of the female coupling an additional 1/6 turn. See Fig. 10.
(1) Factory Line Set Modication
1) Recover the line set charge through the Schrader access ports on the Parker quick
connect couplings and store it in an approved container. Do not discharge the
refrigerant into the atmosphere. Remove the extra line set length or add extra tubing.
When adding extra tubing, insulate the additional copper tubes separately.
2) Add a trace of refrigerant to the lines through the Schrader access ports on the
Parker quick connect couplings (if using an electronic leak detector), and then raise
the pressure using nitrogen gas (140 PSIG). Use an electronic leak detector or soap
bubbles to check for leaks. WARNING! Do not use R-404A as a mixture with
pressurized air for leak testing.
3) Evacuate through the Schrader access ports on the Parker quick connect couplings and
charge with R-404A refrigerant vapor to a pressure of 15 to 30 PSIG. Go to step 2 in
"II.E.3.a) Factory Line Set Installation."
24
b) Field Fabricated Line Set Installation
1) Route the copper tube liquid line and copper tube suction line (see "II.E.2 Line Set Size
and Refrigerant Charge" for details) from the remote condensing unit to the icemaker.
Leave a service loop behind the icemaker to allow the icemaker to be pulled out for
service. See Fig. 8.
NOTICE
• Ensure that there are no traps and no kinks in the line set. The service loop is not
considered an oil trap.
• Do not coil extra line set. Fabricate the line set to the proper length.
2) Insulate the two copper tubes separately.
3) Install Parker quick connect couplings on each end. OS-QUICK, a universal quick
connect coupling kit available as optional equipment from Hoshizaki America, is
recommended. NOTICE! Before brazing, remove the Schrader valve core from the
access port. When brazing, protect the coupling by using a wet cloth to prevent
the coupling from overheating. Do not use silver alloy or copper alloy containing
arsenic.
4) Allow the coupling to cool, then replace the Schrader valve core.
5) Add a trace of refrigerant to the lines through the Schrader access ports on the
Parker quick connect couplings (if using an electronic leak detector), and then raise
the pressure using nitrogen gas (140 PSIG). Use an electronic leak detector or soap
bubbles to check for leaks. WARNING! Do not use R-404A as a mixture with
pressurized air for leak testing.
6) Evacuate through the Schrader access ports on the Parker quick connect couplings and
charge with R-404A refrigerant vapor to a pressure of 15 to 30 PSIG.
7) Connect the refrigerant lines to the appropriate male ttings on the icemaker rst and
then at the remote condensing unit. Make a proper connection as follows:
a. Remove the protective covers from the male tting and female coupling.
b. Apply Polyol Ester (POE) refrigerant oil or Parker Super O Lube to the entire male
tting, including O-ring, diaphragm, and threads before making the connection.
See Fig. 9. NOTICE! Do not use thread sealant on the ttings. Use POE
refrigerant oil or Parker Super O Lube only.
c. Make sure the male tting and female coupling are properly aligned, then start the
connection by hand to ensure that it is not cross threaded.
d. Tighten the connection with a wrench until it is tight. At this point, the nut has
covered most of the threads on the male tting.
e. Mark a reference line on the female coupling and the remote condensing unit or
icemaker panel. Using a backup wrench on the back of the female coupling, tighten
the six-sided nut of the female coupling an additional 1/6 turn. See Fig. 10.
25

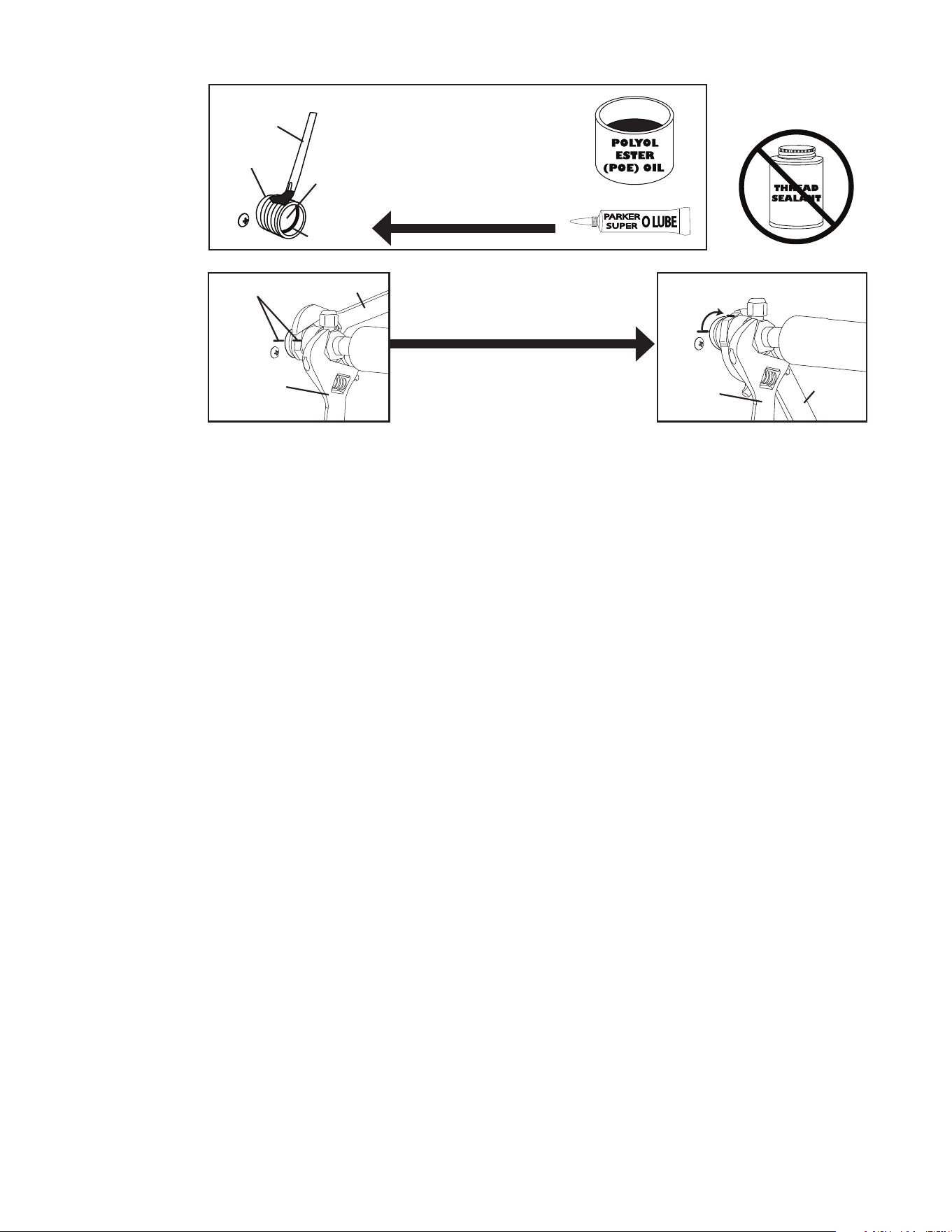

Fig. 9
Apply POE Oil or
Parker Super O Lube
to Entire Male Fitting
Threads
Diaphragm
O-Ring
Brush
Male Fitting
DO NOT USE
THREAD SEALANT
Fig. 10
Backup
Wrench
Reference
Line
1/6
Tu r n
Wrench
Wrench
After Tight, Tighten an
Additional 1/6 Turn
Backup
Wrench
26
4. Remote Condensing Unit Electrical Connection
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
WARNING
• Electrical connection must be hard-wired to the remote condensing unit and must
meet national, state, and local electrical code requirements. Failure to meet these
code requirements could result in death, electric shock, serious injury, re, or
damage.
• The remote condensing unit requires an independent power supply of proper
capacity. See the nameplate for electrical specications. Failure to use an
independent power supply of proper capacity can result in a tripped breaker, blown
fuse, damage to existing wiring, or component failure. This could lead to heat
generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
• Electrical connection must be made in accordance with the instructions on the
"WARNING" tag, provided with the pig tail leads in the remote condensing unit
control box. See Fig. 11.
NOTICE
The remote condensing unit should have power for a minimum of 4 hours prior to
startup to prevent compressor damage.
• Usually an electrical permit and services of a
licensed electrician are required.
• The maximum allowable voltage variation is
±10 percent of the nameplate rating.
• The white lead must be connected to the
neutral conductor of the power source.
NOTICE! Miswiring may result in damage
to the appliance.
• The opening for the power supply connection
is 7/8" DIA to t a 1/2" trade size conduit.
SRC-10H
SRC-14H
Fig. 11
27
F. Final Checklist
WARNING
CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
dispenser unit/ice storage bin.
1) Is the icemaker level?
2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?
3) Is there at least 6" (15 cm) clearance at rear and sides of the icemaker for proper
air circulation and ease of maintenance and service? Is there at least 24" (61 cm)
clearance at the top of the icemaker to allow for removal of the auger?
4) Is the remote condensing unit in a site where the ambient temperature is within -4°F to
122°F (-20°C to 50°C) all year around?
5) Is there at least 24" (61 cm) clearance around the remote condensing unit for proper air
circulation and ease of maintenance and service?
6) Have the shipping carton, tape, and packing material been removed from the icemaker
and remote condensing unit?
7) Have all electrical and water connections been made? Do electrical and water
connections meet all national, state, and local code and regulation requirements?
8) Has the icemaker power supply voltage been checked or tested against the nameplate
rating? Is the icemaker power supply a properly grounded, independent 3-prong wall
outlet?
9) Has the remote condensing unit power supply voltage been checked or tested against
the nameplate rating? Has a proper ground been installed to the remote condensing
unit?
10) Has the electrical power supply been on to the remote condensing unit for a minimum of
4 hours?
11) Are the water supply and drain lines sized as specied? Are the water supply line
shut-off valve and drain valve installed? Has the water supply pressure been checked to
ensure a minimum of 10 PSIG and a maximum of 113 PSIG?
12) Are the compressor hold-down bolts snug? Have the refrigerant lines been checked to
make sure they do not rub or touch other lines or surfaces? Have the fan blade(s) been
checked to make sure they turn freely?
13) Is the line set free of leaks and kinks? If needed, has an "S" oil-trap been installed?
14) Are all components, fasteners, and thumbscrews securely in place?
15) Has the end user been given the instruction manual, and instructed on how to operate
the icemaker and the importance of the recommended periodic maintenance?
16) Has the end user been given the name and telephone number of an authorized service
agent?
17) Has the warranty card been lled out and forwarded to the factory for warranty
registration?
28
G. Startup
WARNING
All parts are factory-adjusted. Improper adjustments may adversely affect safety,
performance, component life, and warranty coverage.
NOTICE
• At startup, conrm that all internal and external connections are free of leaks.
• The remote condensing unit must have power for a minimum of 4 hours prior to
startup to prevent compressor damage.
1) Make sure the remote condensing unit has had power for a minimum of 4 hours.
2) Open the water supply line shut-off valve.
3) If removed, replace all panels except the front panel in their correct positions. If not
already removed, remove the front panel.
4) Make sure the icemaker power switch is in the "OFF" position. Plug the icemaker into
the electrical outlet. Move the control switch to the "ICE" position, then move the power
switch to the "ON" position to start the automatic icemaking process.
5) Replace the front panel in its correct position.
6) Once the icemaker starts to produce ice, allow it to run for another 30 minutes.
7) Remove the front panel.
8) Move the power switch to the "OFF" position. Move the control switch to the "DRAIN"
position, then move the power switch back to the "ON" position. Replace the front panel
in its correct position. Allow the water system to drain for 5 minutes.
9) Remove the front panel.
10) Move the power switch to the "OFF" position, then unplug the icemaker from the
electrical outlet.
11) Pour warm water into the dispenser unit/ice storage bin and melt any remaining ice.
Clean the dispenser unit/ice storage bin liner using a neutral cleaner. Rinse thoroughly
after cleaning.
12) Conrm bin control operation. See "II.H. Bin Control Check."
29
H. Bin Control Check
An infrared sensor is used as the primary bin control to control the level of ice in the
dispenser unit/ice storage bin. A mechanical bin control is used as a backup bin control.
IMPORTANT
• Make sure the icemaker has been installed as outlined in this manual and that the
water supply is on.
• Conrm S1 dip switch 7 is in the "ON" position. This allows the control board to
monitor the infrared sensor along with the mechanical backup bin control.
1. Infrared Sensor Check
1) Remove the front panel.
2) Move the power switch to the "OFF" position, then unplug the icemaker from the
electrical outlet.
3) Remove the control box cover.
4) Conrm that control board S1 dip switch 1, 2, 3 are in the proper position for your
application. See "II.H.3. Infrared Sensor Shutdown Delay."
5) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position.
6) The green LED on the infrared sensor turns on. This LED conrms 20VDC power to the
sensor.
7) 30 seconds after the upper oat switch closes, the control board "GM" LED turns on.
See Fig. 12. After "GM" LED turns on, press the "SERVICE" button on the control board
to bypass the 5-minute compressor delay. WARNING! Risk of electric shock. Care
should be taken not to touch live terminals.

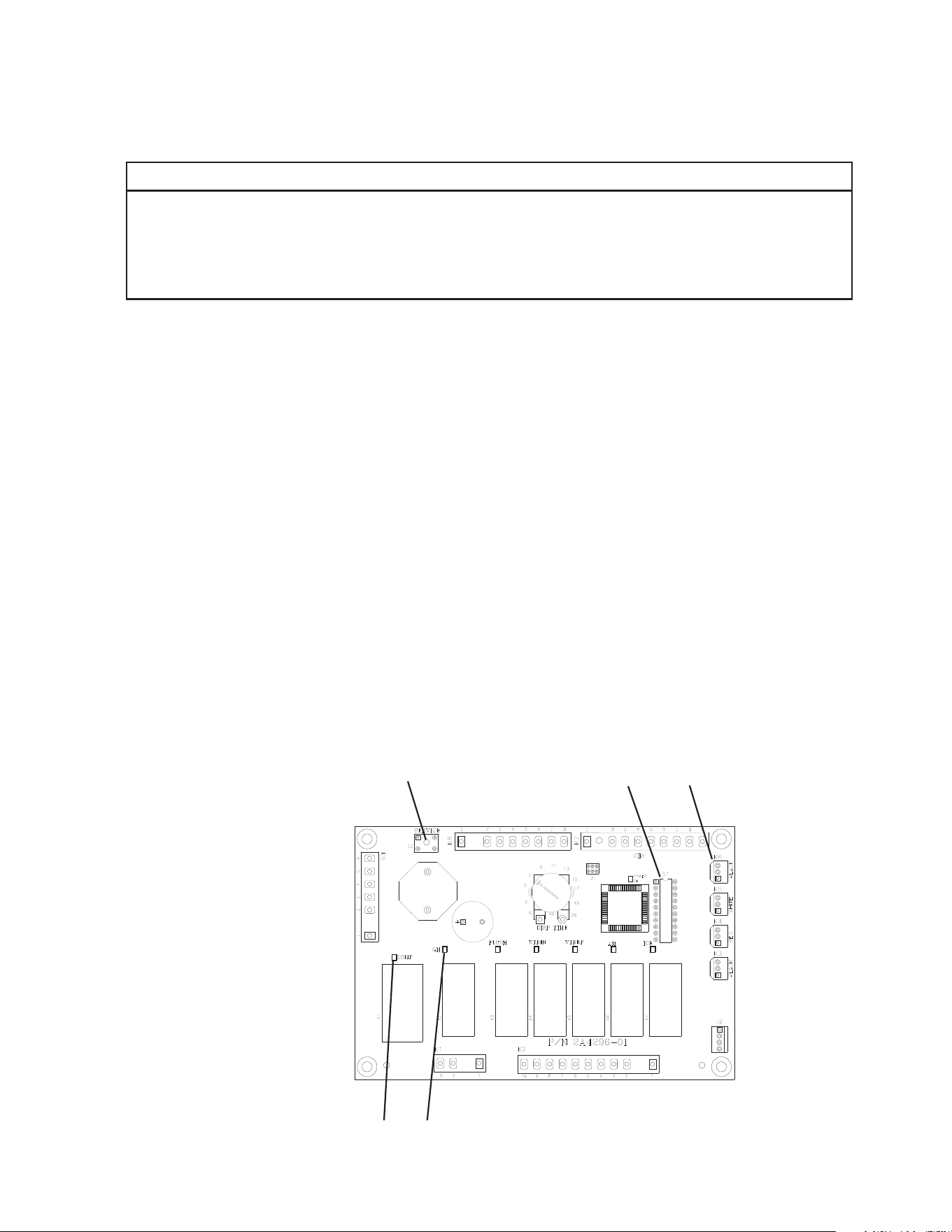

"SERVICE" Button
S1 Dip Switch
"GM" LED
"COMP" LED
K6 - Connector for
Infrared Sensor
Fig. 12
30
8) "GM" LED and "COMP" LED are on. Use an object to cover the infrared sensor lens
at the bottom of the icemaker. If the bottom of the icemaker is not accessible in your
application, remove the thumbscrew securing the infrared sensor housing, remove the
housing from the base, then cover the infrared sensor lens. See Fig. 13. The yellow LED
on the infrared sensor turns on. The yellow LED ashes when ice is at the outer limit
of its range and turns steady as ice nears. After the yellow LED turns on (ashing or
steady), the infrared sensor shutdown delay timer starts (S1 dip switch 1, 2, 3; factory
default is 100 sec.). "COMP" LED turns off after the shutdown delay timer terminates.
5minutes later, "GM" LED turns off.
9) Remove the object covering the infrared sensor. If you removed the infrared sensor
housing from the base, replace it in its correct position and secure it with the
thumbscrew.
10) Move the power switch to the "OFF" position, then unplug the icemaker from the
electrical outlet. Proceed to "II.H.2. Mechanical Backup Bin Control Check."

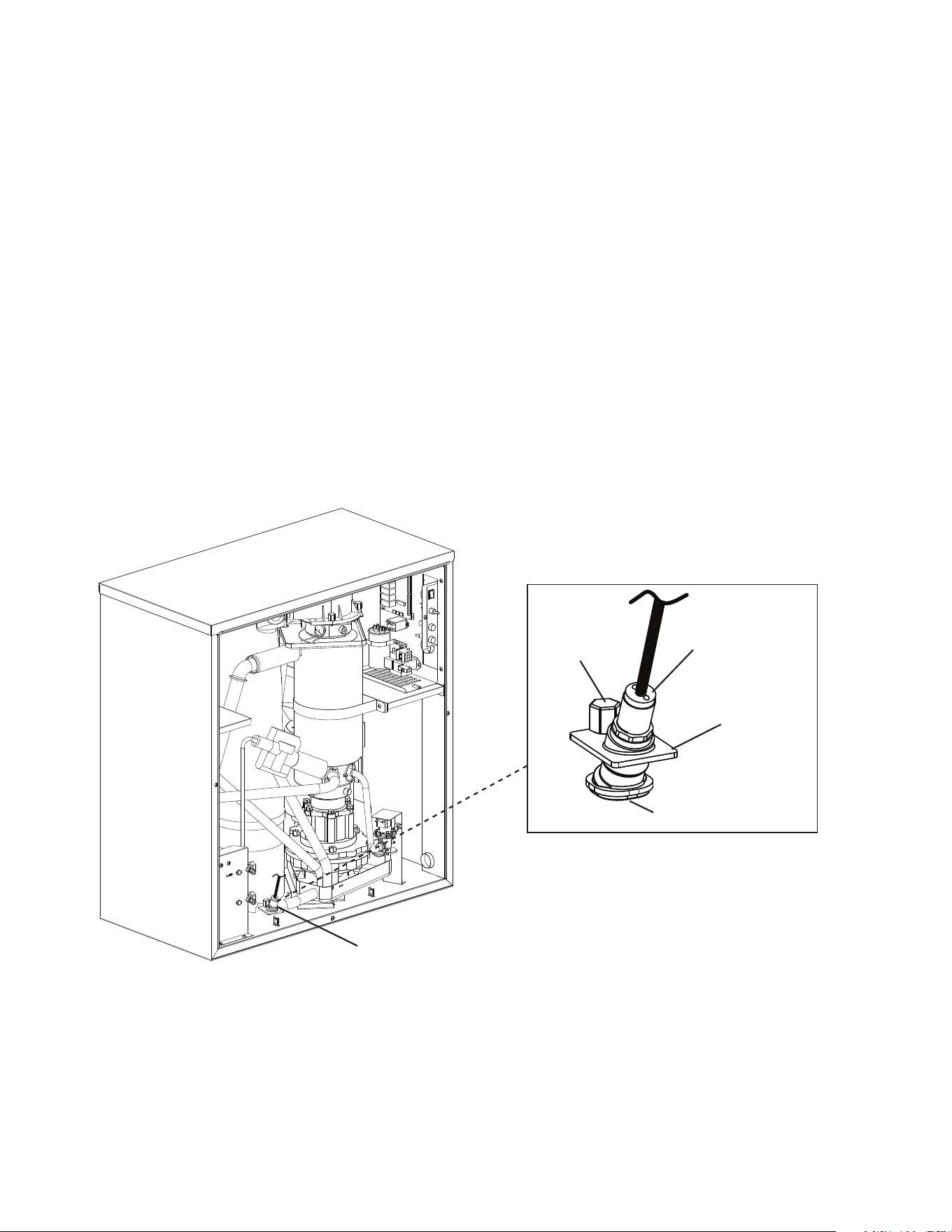

Infrared Sensor
Fig. 13
Infrared
Sensor
Infrared Sensor
Housing
Lens
Thumbscrew
Model Shown: FS-1500MLH-C
31
2. Mechanical Backup Bin Control Check
1) Make sure the power switch is in the "OFF" position and that the icemaker is unplugged
from the electrical outlet.
2) Remove the top panel.
3) Remove the strap connecting the spout to the chute assembly. See Fig. 14. Pull up the
chute assembly slightly so that you can access the actuator located in the top of the
chute.
4) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position.

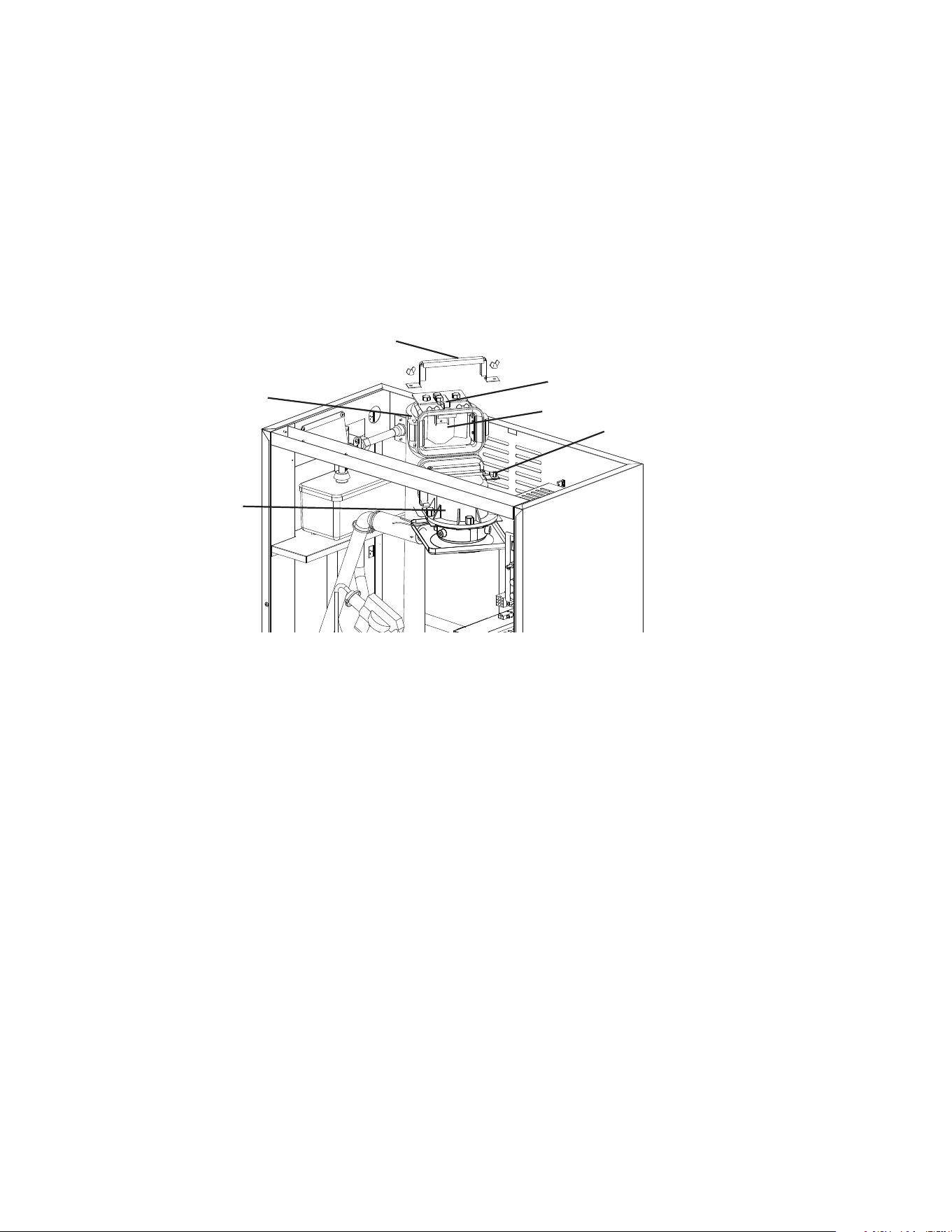

Fig. 14
Chute Assembly
Actuator
Spout
Strap
Proximity Switch
Strap
5) 30 seconds after the upper oat switch closes, the control board "GM" LED turns on.
After "GM" LED turns on, press the "SERVICE" button on the control board to bypass
the 5-minute compressor delay. WARNING! Risk of electric shock. Care should be
taken not to touch live terminals.
6) "GM" LED and "COMP" LED are on. Press the actuator located in the top of the chute.
"COMP" LED and "GM" LED turn off within 10 seconds and the control board sounds a
9 beep alarm. Release the actuator.
7) Turn the power switch off and then on again to reset the control board alarm.
8) Move the power switch to the "OFF" position, then unplug the icemaker from the
electrical outlet.
9) Replace the chute assembly and strap in their correct positions.
10) Replace the control box cover and top panel in their correct positions.
11) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position to start the automatic icemaking process.
12) Replace the front panel in its correct position.
Model Shown: FS-1500MLH-C
32
3. Infrared Sensor Shutdown Delay
This is the delay between the infrared sensor detecting ice and the start of the shutdown
sequence. The infrared sensor shutdown delay is factory-adjusted to 100 seconds and
no adjustment is required for most dispenser unit/ice storage bin applications.
a) Standard Ice Storage Bin
When installed on a standard ice storage bin, any shutdown delay setting is acceptable.
b) Dispenser Unit
For typical dispenser unit applications, a 100-second shutdown delay is recommended.
However, on some dispenser unit applications, the ice level at shutoff may need to be
adjusted depending on the dispenser agitation or dispense method. Should a different
shutdown delay be desired, adjust S1 dip switch 1, 2, 3 to obtain the shutdown delay
needed. See the table below. For further details, contact Hoshizaki Technical Support at
1-800-233-1940.
Note: When the shutdown sequence begins, the pump-down solenoid valve
de-energizes immediately to allow the low-side pressure to drop and open the
control low-pressure switch in the remote condensing unit. 5 minutes later the
gear motor de-energizes.
WARNING
Increasing the shutdown delay allows a higher level of ice in the dispenser unit/
ice storage bin before shutdown. This could lead to icemaker movement or ice
overow.
S1 Dip Switch
Shutdown Delay
NO. 1 NO. 2 NO. 3
OFF OFF OFF
0 seconds
ON OFF OFF
100 seconds (1.6 minutes)
OFF ON OFF
1100 seconds (18.3 minutes)
OFF OFF ON
1650 seconds (27.5 minutes)
ON ON OFF
2200 seconds (36.7 minutes)
OFF ON ON
0 seconds
ON ON ON
0 seconds
I. Operation Notes
The appliance utilizes a pump-down solenoid valve in the icemaker and a control
low-pressure switch in the remote condensing unit to control operation of the magnetic
contactor in the remote condensing unit. This eliminates the need for an electrical
connection between the icemaker and remote condensing unit.
Control Low-Pressure Switch Settings:
Cut-Out: 9 PSIG. Differential: 20 PSIG. Cut-In: 29 PSIG.
33
III. Maintenance
The appliance must be maintained in accordance with the instruction manual and labels
provided. Consult with your local Hoshizaki Certied Service Representative about
maintenance service.
WARNING
• Only qualied service technicians should service the appliance.
• To reduce the risk of electric shock, do not touch the icemaker power switch or plug
with damp hands. Make sure the icemaker power switch is in the "OFF" position
before plugging in or unplugging the icemaker.
• Before Servicing: FS: Move the icemaker's power switch to the "OFF" position.
Unplug the icemaker from the electrical outlet. SRC: Turn off the power supply
to the remote condensing unit. Place the disconnect (if applicable) in the off
position. Lockout/Tagout to prevent the power supply from being turned back on
inadvertently.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after any maintenance is done to the unit. Make sure that none
have fallen into the storage bin.

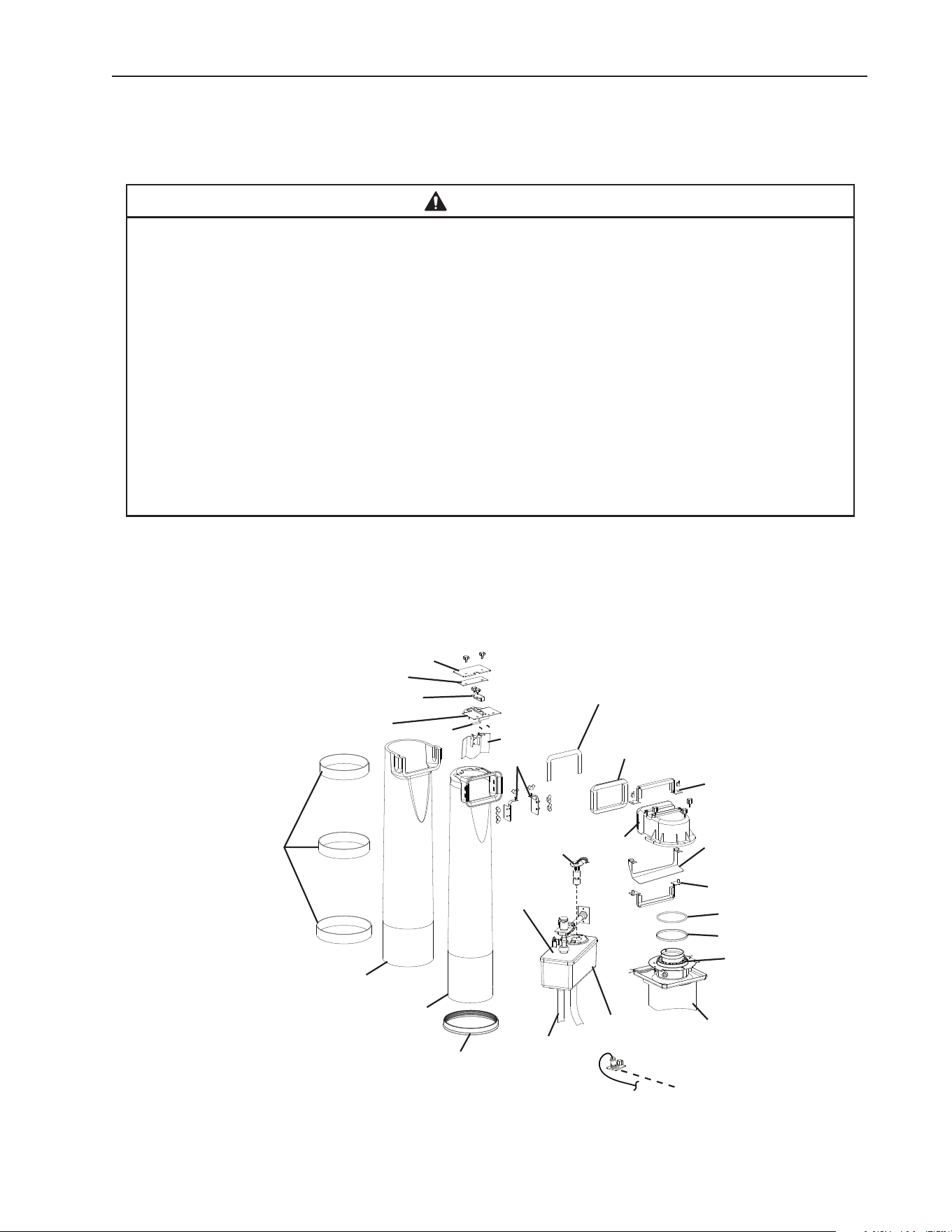

Fig. 15
Strap
Spout
Chute
Rubber O-Ring
Packing
Proximity Switch
Packing
Ties
(Hook and Loop)
Chute Insulation
Baffles
Plate
Packing
Backup Bin Control Assembly Mount
Actuator
Shaft
Extruding Head
Evaporator Assembly
Nylon O-Ring
Reservoir
Infrared Sensor Lens
Float Switch
Assembly
Reservoir
Cover
Reservoir
Hose
Drip Guide
(FS-1500 and larger)
Strap
Chute Bracket
(FS-1022 and smaller)
Model Shown: FS-1500MLH-C
34
A. Maintenance Schedule
The maintenance schedule below is a guideline. More frequent maintenance may be
required depending on water quality, the appliance's environment, and local sanitation
regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the ice scoop using a neutral cleaner. Rinse thoroughly after
cleaning.
Monthly External Water
Filters
Check for proper pressure and change if necessary.
Icemaker Exterior Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up. Clean any chlorine staining (rust
colored spots) using a non-abrasive cleaner.
Infrared Sensor
Lens; Underside of
Icemaker and Top
Kits; Bin Door and
Snout (if applicable)
Wipe down with clean cloth and warm water.
Every 6
Months
Icemaker and
Dispenser Unit/Ice
Storage Bin
Clean and sanitize per the cleaning and sanitizing instructions provided in
this manual.
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Wipe down with clean cloth and warm water. Slowly pour one cup of
sanitizing solution (prepare as outlined in the sanitizing instructions in
this manual) into the evaporator condensate drain pan. Be careful not to
overow the pan. The solution will ow down to the gear motor drain pan
and out the drain line to sanitize these areas. Repeat with a cup of clean
water to rinse.
Icemaker and
Dispenser Unit/Ice
Storage Bin Drains
Check to make sure they are clear.
Extruding Head
Seal Bolts
Inspect for leakage around seal bolts. Tighten (see torque values below) or
replace as necessary. Seal bolts must be replaced once removed because
seal material is one-time use only. If new seal bolts do not have preapplied
threadlocker, apply Loctite243 or equivalent threadlocker to seal bolt
threads.
• Torque for FS-1022 and Smaller: 11.1 ft-lb/15 N·m
• Torque for FS-1500 and Larger: 25.8 ft-lb/35 N·m
Tighten 2 times. Allow at least 5 sec. in between each tightening.
Yearly Inlet Water Valve
and Drain Valve
Close the water supply line shut-off valve and drain the water system. Clean
the inlet water valve screen and clean and inspect the drain valve.
Water Hoses Inspect the water hoses and clean/replace if necessary.
Condenser Inspect. Clean if necessary by using a brush or vacuum cleaner.
Icemaker Inspect for oil spots, loose components, fasteners, and wires.
Upper Bearing
(extruding head)
Check for wear using .02" round stock or pin gauge. Replace both upper
bearing and lower bearing if wear exceeds factory recommendations. See
the Service Manual for details.
After
3 Years,
then Yearly
Upper Bearing
(extruding head);
Lower Bearing
and O-Ring
(lower housing);
Mechanical
Seal; Evaporator
Cylinder; Auger
Inspect. Replace both upper bearing and lower bearing if wear exceeds
factory recommendations. Replace the mechanical seal if the seal's contact
surfaces are worn, cracked, or scratched.
35
B. Cleaning and Sanitizing Instructions
The icemaker must be cleaned and sanitized at least twice a year. More frequent
cleaning and sanitizing may be required in some conditions.
WARNING
• To prevent injury to individuals and damage to the icemaker, do not use ammonia
type cleaners.
• Carefully follow any instructions provided with the bottles of cleaning and
sanitizing solution.
• Always wear liquid-proof gloves and goggles to prevent the cleaning and sanitizing
solutions from coming into contact with skin or eyes.
• After cleaning and sanitizing, do not use ice made from the cleaning and sanitizing
solutions. Be careful not to leave any solution on the parts or in the dispenser
unit/ice storage bin.
1. Cleaning Solution
Dilute 9.6 . oz. (0.29 l) of Hoshizaki "Scale Away" with 1.6 gal. (6.0 l) of warm water.
IMPORTANT! For safety and maximum effectiveness, use the solution immediately
after dilution.
2. Cleaning Procedure
1) Close the water supply line shut-off valve.
2) Remove the front panel, then move the power switch to the "OFF" position. Move the
control switch to the "DRAIN" position, then move the power switch back to the "ON"
position. Replace the front panel in its correct position.
3) Allow the water system to drain for 5 minutes.
4) Remove the front panel. Move the power switch to the "OFF" position, then unplug the
unit from the electrical outlet. Remove the top panel.
5) Remove all of the ice from the dispenser unit/ice storage bin.
6) Remove the strap connecting the spout to the chute assembly, then remove the spout.
See Fig. 15.
7) Pour the cleaning solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to overow into the drain pan.
Note: If there is excess scale on the extruding head, ll the evaporator assembly and
reservoir as described above, then use a clamp on the reservoir hose between
the reservoir and evaporator assembly to block ow. Pour additional cleaning
solution over the extruding head until the evaporator assembly is completely full.
8) Replace the spout and strap in their correct positions.
9) Allow the icemaker to sit for about 10 minutes before operation. If you placed a clamp on
the reservoir hose in step 7, remove it before operation.
36
10) In bad or severe water conditions, clean the oat switch assembly as described below.
Otherwise, continue to step 11.
a. Remove the oat switch assembly from the reservoir cover.
b. Wipe down the oat switch assembly with the cleaning solution.
c. Rinse the oat switch assembly thoroughly with clean water.
d. Replace the oat switch assembly in its correct position.
11) Wipe down the infrared sensor lens, (located on the bottom of the icemaker) with the
cleaning solution. Next, rinse the cleaning solution off of the infrared sensor lens with a
clean, damp cloth.
Note: If the bottom of the icemaker is not accessible in your application, remove the
thumbscrew securing the infrared sensor housing, then remove the housing from
the base. After cleaning and rinsing the lens, replace the housing in its correct
position and secure it with the thumbscrew.
12) Replace the top panel in its correct position. Move the control switch to the "ICE"
position, then plug in the icemaker. Move the power switch to the "ON" position, then
replace the front panel in its correct position. Make ice using the solution until the
icemaker stops making ice.
13) Remove the front panel, then move the power switch to the "OFF" position. Move the
control switch to the "DRAIN" position, then move the power switch back to the "ON"
position. Replace the front panel in its correct position.
14) Allow the water system to drain for 5 minutes.
15) Remove the front panel. Move the control switch to the "ICE" position, then replace the
front panel in its correct position.
16) Open the water supply line shut-off valve to supply water to the reservoir.
17) After the gear motor starts, remove the front panel. Move the power switch to the "OFF"
position. Move the control switch to the "DRAIN" position, then move the power switch
back to the "ON" position. Replace the front panel in its correct position.
18) Allow the water system to drain for 5 minutes.
Note: If you do not sanitize the unit, go to step 14 in "III.B.5. Sanitizing
Procedure - Final."
19) Remove the front panel. Move the power switch to the "OFF" position, then unplug the
unit from the electrical outlet. Close the water supply line shut-off valve.
3. Sanitizing Solution
Dilute 2.5 . oz. (74 ml or 5 tbs) of a 5.25% sodium hypochlorite solution (chlorine bleach)
with 5 gal. (19 l) of warm water. IMPORTANT! For safety and maximum effectiveness,
use the solution immediately after dilution.
4. Sanitizing Procedure - Initial
1) Make sure the power switch is in the "OFF" position, the unit is unplugged from the
electrical outlet, and the water supply line shut-off valve is closed. Remove the panels.
2) Remove the strap connecting the spout to the chute assembly, then remove the spout.
Remove the rubber O-ring and nylon O-ring at the top of the cylinder and also remove
the packing and chute bracket (FS-1022 and smaller) or drip guide (FS-1500 and
larger) between the spout and chute.
37
3) Pour the sanitizing solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to overow into the drain pan.
4) Remove the proximity switch from the chute assembly, then remove the chute assembly
from the icemaker.
5) Remove the packing at the bottom of the ice chute. Remove the 3 ties and the chute
insulation.
6) Remove the 2 baffles.
7) Remove the plate and the packing from the top of the ice chute, then remove the
backup bin control assembly by sliding it slightly towards the chute opening and lifting it
off.
8) Disassemble the backup bin control assembly by removing the 2 snap pins, shaft, and
actuator.
9) Soak the spout, O-ring, packings, chute bracket (FS-1022 and smaller), drip guide
(FS-1500 and larger), chute, baffles, plate, and backup bin control assembly in the
sanitizing solution for 10 minutes then wipe them down.
10) Rinse the parts thoroughly with clean water. NOTICE! If the solution is left on these
parts, they will rust.
11) Replace all parts in their correct positions. IMPORTANT! When installing the baffles,
make sure that the bent surface (the one without the studs) faces the actuator so
that the bent surface can guide the ice to the center of the actuator.
12) Replace all panels except the front panel in their correct positions. Move the control
switch to the "ICE" position, then plug in the icemaker. Move the power switch to the
"ON" position, then replace the front panel in its correct position. Make ice using the
solution until the icemaker stops making ice.
13) Remove the front panel, then move the power switch to the "OFF" position. Move the
control switch to the "DRAIN" position, then move the power switch back to the "ON"
position. Replace the front panel in its correct position.
14) Allow the water system to drain for 5 minutes.
15) Remove the front panel. Move the power switch to the "OFF" position, then unplug the
unit from the electrical outlet.
5. Sanitizing Procedure - Final
1) Mix a new batch of the sanitizing solution.
2) Make sure the power switch is in the "OFF" position, the unit is unplugged from the
electrical outlet, and the water supply line shut-off valve is closed. Remove the top
panel.
3) Remove the strap connecting the spout to the chute assembly, then remove the spout.
4) Pour the sanitizing solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to overow into the drain pan.
5) Replace the spout and strap in their correct positions.
6) Allow the icemaker to sit for about 10 minutes before operation.
38
7) Replace the top panel in its correct position. Move the control switch to the "ICE"
position, then plug in the icemaker. Move the power switch to the "ON" position, then
replace the front panel in its correct position. Make ice using the solution until the
icemaker stops making ice.
8) Remove the front panel, then move the power switch to the "OFF" position. Move the
control switch to the "DRAIN" position, then move the power switch back to the "ON"
position. Replace the front panel in its correct position.
9) Allow the water system to drain for 5 minutes.
10) Remove the front panel. Move the control switch to the "ICE" position, then replace the
front panel in its correct position.
11) Open the water supply line shut-off valve to supply water to the reservoir.
12) After the gear motor starts, remove the front panel. Move the power switch to the "OFF"
position. Move the control switch to the "DRAIN" position, then move the power switch
back to the "ON" position. Replace the front panel in its correct position.
13) Allow the water system to drain for 5 minutes.
14) Remove the front panel. Move the control switch to the "ICE" position, then replace the
front panel in its correct position.
15) Allow the icemaker to run for about 30 minutes, then remove the front panel. Move the
power switch to the "OFF" position, then unplug the unit from the electrical outlet.
16) Pour warm water into the dispenser unit/ice storage bin and melt any remaining ice.
Clean the dispenser unit/ice storage bin liner using a neutral cleaner. Rinse thoroughly
after cleaning.
17) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position to start the automatic icemaking process.
39
IV. Preparing the Appliance for Periods of Non-Use
NOTICE
When storing the icemaker for an extended time or in sub-freezing temperatures,
follow the instructions below to prevent damage.
When the icemaker is not used for two or three days under normal conditions, it is
sufficient to only move the power switch to the "OFF" position. When storing the icemaker
for extended time or in sub-freezing temperatures, follow the instructions below.
1. Remove the water from the icemaker water supply line:
1) Remove the front panel.
2) Move the power switch to the "OFF" position.
3) Close the icemaker water supply line shut-off valve, then open the icemaker water
supply line drain valve.
4) Allow the line to drain by gravity.
5) Attach a compressed air or carbon dioxide supply to the icemaker water supply line
drain valve.
6) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position.
7) Blow the icemaker water line out using the compressed air or carbon dioxide supply.
8) Close the icemaker water supply line drain valve.
2. Drain the evaporator:
1) Move the power switch to the "OFF" position. Move the control switch to the "DRAIN"
position, then move the power switch back to the "ON" position. Replace the front panel
in its correct position.
2) Allow the water system to drain for 5 minutes.
3) Remove the front panel, then move the power switch to the "OFF" position.
4) Remove the evaporator drain line hose from the evaporator and attach a compressed air
or carbon dioxide supply to the hose.
5) Move the power switch to the "ON" position. Blow out the evaporator drain line using the
compressed air or carbon dioxide supply until water stops coming out.
6) Move the power switch to the "OFF" position, then reconnect the evaporator drain line
hose.
7) Move the control switch to the "ICE" position. Replace the front panel in its correct
position, then unplug the unit from the electrical outlet.
8) Remove all ice from the dispenser unit/ice storage bin. Clean the dispenser unit/ice
storage bin liner using a neutral cleaner. Rinse thoroughly after cleaning.
3. Turn off the power supply to the remote condensing unit:
1) Turn off the power supply to the remote condensing unit.
2) When restarting, follow the instructions in "II.G. Startup." The remote condensing unit
should have power for a minimum of 4 hours prior to startup to prevent compressor
damage.
40
V. Disposal
The icemaker and remote condensing unit contain refrigerant and must be disposed of in
accordance with applicable national, state, and local codes and regulations. Refrigerant
must be recovered by properly certied service personnel.
41
618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com 1A2970-011
