Bosch KDD46XI30I/04 Serie 6 Free-standing larder fridge

User Manual - Transcript

• Page 2 - English - : en Table of contents Safety and warning information 3 Environmental protection 6 Scope of delivery 7 Ambient temperature and ventilation 7 Connecting the appliance 8 Getting to know your appliance 8 Switching the appliance on 9 Setting the temperature 10 Energy saving mode 10 Alarm function 11 Usable capacity 11 Refrigerator compartment 12 Super cooling 13 Freezer compartment 13 Max freezing capacity 14 Freezing and storing food 14 Freezing fresh food 14 Super freezing 15 Thawing frozen food 16 Water dispenser 16 Interior fittings 17 Sticker OK 17 Switching off and disconnecting the appliance 18 Defrosting 18 Cleaning the appliance 18 Light LED 19 Tips for saving energy 19 Operating noises 20 Eliminating minor faults yourself 21 Customer service 23
• Page 3 - English - : en enTable of contents enInstructions for useFridgefreezer Safety and warning information Before you switch ON the appliance Please read the operating and installation instructions carefully They contain important information on how to install use and maintain the appliance The manufacturer is not liable if you fail to comply with the instructions and warnings Retain all documents for subsequent use or for the next owner Technical safety Fire hazard The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant R600a It does not damage the ozone layer and does not increase the greenhouse effect If refrigerant escapes it may injure your eyes or ignite If damage has occurred Keep naked flames andor ignition sources away from the appliance thoroughly ventilate the room for several minutes switch off the appliance and pull out the mains plug inform customer service The more refrigerant an appliance contains the larger the room must be in which the appliance is situated Leaking refrigerant can form a flammable gasair mixture in rooms which are too small The room must be at least 1 m³ per 8 g of refrigerant The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance When installing the appliance ensure that the mains cable is not trapped or damaged If the power cord of this appliance is damaged it must be replaced by the manufacturer Customer Service or a similarly qualified person Improper installations and repairs may put the user at considerable risk
• Page 4 - English - : en Repairs may be performed by the manufacturer customer service or a similarly qualified person only Only original parts supplied by the manufacturer may be used The manufacturer guarantees that only these parts satisfy the safety requirements Do not use multiple sockets extension leads or adapters Fire hazard Portable multiple outlets or power supplies may overheat causing a fire Never leave portable multiple outlets or portable power supplies behind the appliance Important information when using the appliance Never use electrical appliances inside the appliance eg heaters electric ice makers etc Risk of explosion Never defrost or clean the appliance with a steam cleaner The steam may penetrate electrical parts and cause a shortcircuit Risk of electric shock Do not use additional means to accelerate the defrosting process other than those recommended by the manufacturer Risk of explosion Do not use pointed and sharp edged implements to remove frost or layers of ice You might damage the refrigerant tubesLeaking refrigerant may cause eye injuries or ignite Do not store products which contain flammable propellant eg spray cans or explosive substances in the appliance Risk of explosion Do not stand on or lean heavily against the base of the appliance drawers doors etc For cleaning pull out mains plug or switch off fuse Do not pull out the mains plug by tugging on the power cord Store highpercentage alcohol tightly sealed and in an upright position Keep plastic parts and the door seal free of oil and grease Otherwise plastic parts and the door seal will become porous Never cover or block the ventilation openings of the appliance
• Page 5 - English - : en Avoiding placing children and vulnerable people at risk At risk here are children people who have limited physical mental or sensory abilities as well as people who have inadequate knowledge concerning safe operation of the appliance Check that children and vulnerable people have understood the hazards A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance Only children aged 8 years and above may use the appliance Supervise children while the appliance is being cleaned or maintained Never allow children to play with the appliance Do not store bottled or canned liquids especially carbonated drinks in the freezer compartmentBottles and cans may burst Never put frozen food straight from the freezer compartment in your mouth Risk of lowtemperature burns Avoid prolonged touching of frozen food ice or the evaporator pipes etc Risk of lowtemperature burns Children in the household Keep children away from packaging and its parts Danger of suffocation from folding cartons and plastic film Do not allow children to play with the appliance If the appliance features a lock keep the key out of the reach of children General regulations The appliance is suitable for refrigerating and freezing food for making ice for dispensing drinking water This appliance is intended for use in the home and the home environment The refrigeration circuit has been checked for leaks This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression This appliance is intended for use up to a maximum height of 2000 metres above sea level
• Page 6 - English - : en Environmental protection Packing All the materials are environmentally friendly and can be recycled Dispose of packing in an environmentally responsible manner Contact your appliance retailer or your local authority for information about the available disposal methods and sites Endoflife appliances Valuable raw materials can be recovered by environmentallyfriendly disposal m Warning Children can become trapped inside the appliance and suffocate To make it more difficult for children to climb into the appliance the shelves and containers should be left in place inside the appliance Keep children away from the disused appliance m Caution Risk of refrigerant and harmful gases escaping Do not damage the refrigeration circuit pipes or the insulation 1 Unplug the mains plug 2 Cut through the mains power cord 3 Have the appliance properly disposed of Disposal of your old appliance as per e waste Rules 1 When this crossed out wheeled bin symbol is depicted on the product and its operators manual it means the product is covered by the ewaste Management and Handling Rules 2016 and are meant to be recycled dismantled refurbished or disposed off by properly qualified personnel and technology 2 Dos The product is required to be handed over only to the authorized recycler for disposal wwwboschhomecominabout bosch responsibilityhtml See also Contact No 180042535287 toll free Email recycleewasteindiacom Online website wwwewasteindiacom Keep the product in isolated area after it becomes nonfunctionalun repairable so as to prevent its accidental breakage
• Page 7 - English - : en Dont The product should not be opened by the user himselfherself but only by authorized service personnel The product is not meant for resale to any unauthorized agenciesscrap dealerkabariwalah The product is not meant for mixing into household waste stream Do not keep any replaced spare parts from the product in exposed area 3 Any disposal through unauthorized agenciesperson will attract action under Environment Protection Act 1986 Note This product doesnt use any hazardous substances as specified in the Ewaste Management Rules 2016 Scope of delivery After unpacking all parts check for any damage in transit If you have any complaints please contact the dealer from whom you purchased the appliance or our customer service The delivery consists of the following parts Freestanding appliance Interior fittings depending on model Bag containing installation materials Operating instructions Installation manual Customer service booklet Warranty enclosure Information on the energy consumption and noises Ambient temperature and ventilation Ambient temperature The appliance is designed for a specific climate class Depending on the climate class the appliance can be operated at the following temperatures The climate class can be found on the rating plate Fig Note The appliance is fully functional within the room temperature limits of the indicated climatic class If an appliance of climatic class SN is operated at colder room temperatures the appliance will not be damaged up to a temperature of 5 C Ventilation Fig The air on the rear panel and on the side panels of the appliance heats up Conduction of the heated air must not be obstructed Otherwise the refrigerating unit must work harder This increases power consumption Therefore Never cover or block the ventilation openings Climate class Permitted ambient temperature SN 10 C to 32 C N 16 C to 32 C ST 16 C to 38 C T 16 C to 43 C
• Page 8 - English - : en Connecting the appliance After installing the appliance wait at least 1 hour until the appliance is switched on During transportation the oil in the compressor may have flowed into the refrigeration system Before switching on the appliance for the first time clean the interior of the appliance see chapter Cleaning the appliance Electrical connection The socket must be near the appliance and also freely accessible following installation of the appliance m Warning Risk of electric shock If the length of the mains cable is inadequate never use multiple sockets or extension leads Instead please contact Customer Service for alternatives The appliance complies with protection class I Connect the appliance to 220 240 V50 Hz alternating current via a correctly installed socket with protective conductor The socket must be protected by a 10 A to 16 A fuse For appliances operated in non European countries check whether the indicated voltage and current type match the values of your electricity supply This information can be found on the rating plate Fig m Warning Never connect the appliance to electronic energy saver plugs Our appliances can be used with mains and sinecontrolled inverters Mains controlled inverters are used for photovoltaic systems which are connected directly to the national grid Sinecontrolled inverters must be used for isolated applications eg on ships or in mountain lodges which are not connected directly to the national grid Getting to know your appliance Please fold out the illustrated last page These operating instructions refer to several models The features of the models may vary The diagrams may differ Fig Not all models A Freezer compartment B Refrigerator compartment 110 Controls 11 Light switch for freezer compartment 12 OnOff button 13 Fast freezer compartment
• Page 9 - English - : en Controls Fig quot Switching the appliance on Fig quot Switch on the appliance with the OnOff button 12 A warning signal sounds The temperature display 1 flashes and the alarm display 5 is lit Press the alarm button 5 The warning signal switches off and the temperature display 1 stops flashing Display alarm goes out when the appliance has reached the set temperature The factory has recommended the following temperatures Refrigerator compartment 4 C Freezer compartment 18 C 14 Ice maker 15 Ice cube container 16 Light switch for refrigerator compartment 17 Extendable glass shelf 18 Air outlet opening 19 Light LED 20 Shelf in the refrigerator compartment 21 Cold storage compartment 22 Vegetable container 23 Heightadjustable feet 24 Door shelf 25 Water dispenser 26 Can holder 27 Door shelf 28 Shelf for large bottles 1 Temperature display freezer compartment The numbers correspond to the set freezer compartment temperatures in C 2 Display super freezing Illuminates when super freezing is on 3 Temperature display refrigerator compartment The numbers correspond to the set refrigerator compartment temperatures in C 4 super display Illuminates if the super cooling is in operation 5 Alarm button Used to switch off the warning signal see chapter Alarm function 6 Energy saving mode display It is lit when the appliance is not in use 7 Temperature selection buttons freezer compartment These buttons set the temperature in the freezer compartment 8 Super button freezer compartment Switches super freezing on and off 9 Temperature selection buttons refrigerator compartment These buttons set the temperature in the refrigerator compartment 10 Super button refrigerator compartment Switches super cooling on and off
• Page 10 - English - : en Operating tips When the appliance has been switched on it may take several hours until the set temperatures have been reached The fully automatic NoFrost system ensures that the freezer compartment remains free of ice Defrosting is no longer required The sides of the housing are sometimes heated slightly This prevents condensation in the area of the door seal If the freezer compartment door cannot be immediately reopened after it has been closed wait until the resulting low pressure has equalised Setting the temperature Fig quot Refrigerator compartment The temperature can be set from 2 C to 8 C Keep pressing temperature setting button 9 until the required refrigerator compartment temperature is set The value last selected is saved The set temperature is indicated on temperature display 3 We recommend a factory setting of 4 C in the refrigerator compartment Perishable food should not be stored above 4 C Freezer compartment The temperature can be set from 14 C to 22 C Keep pressing temperature setting button 7 until the required freezer compartment temperature is set The value last selected is saved The set temperature is indicated on display 1 Energy saving mode When the appliance is not used the display on the controls switches to energy saving mode Energy saving mode display Fig quot 6 illuminates The luminosity of the temperature displays is reduced When the Super function is switched on the corresponding super display is lit Super cooling display Fig quot4 or Super freezing display Fig quot2 As soon as you operate the appliance eg open door or press any button the display switches to normal illumination
• Page 11 - English - : en Alarm function In the following cases an alarm may be actuated Door opening alarm The door alarm continuous sound switches on and the Alarm quot5 display is lit if the appliance is left open for too long Close the appliance to switch off the door alarm Temperature alarm The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing The temperature display 1 flashes and the alarm button 5 is lit When the alarm button 5 is pressed the temperature display 1 indicates for five seconds the warmest temperature reached in the freezer compartment Then this value is deleted and the temperature display 1 indicates the set temperature The alarm may switch on without any risk to the frozen food when the appliance is switched on when large quantities of fresh food are placed in the appliance if the freezer compartment door is open too long Note Do not refreeze thawing or thawed food Only ready meals boiled or fried may be refrozen No longer store the frozen produce for the max storage period Switching off the alarm Fig quot Press the alarm button 5 to switch off the warning signal Usable capacity Information on the usable capacity can be found inside your appliance on the rating plate Fig Fully utilising the freezer volume The maximum amount of food can be placed in the freezer by removing the following fittings Removing the fittings The door shelf can be taken out Fig If appliances feature an ice maker the latter can be taken out Fig amp
• Page 12 - English - : en Refrigerator compartment The refrigerator compartment is the ideal storage location for meat sausage fish dairy products eggs ready meals and pastries Storing food Store fresh undamaged food The quality and freshness will then be retained for longer In the case of readymade products and bottled goods observe the best before date or useby date specified by the manufacturer To retain aroma colour and freshness pack or cover food well before placing in the appliance This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment Allow warm food and drinks to cool down before placing in the appliance Note Avoid contact between food and rear panel Otherwise the air circulation will be impaired Food or packaging could freeze to the rear panel Note the chill zones in the refrigerator compartment The air circulation in the refrigerator compartment creates different chill zones Coldest zone is on the rear panel inside the appliance and in the chiller container Fig 21 Note Store perishable food eg fish sausage meat in the coldest zones Warmest zone is at the very top of the door Note Store eg hard cheese and butter in the warmest zone Cheese can then continue to release its flavour and the butter will still be easy to spread Vegetable container with humidity controller Fig To create the optimum storage climate for fruit and vegetables you can set the air humidity in the vegetable container depending on the quantity stored smaller quantities of fruit and vegetables high air humidity large quantities of fruit and vegetables low air humidity
• Page 13 - English - : en Notes Fruit sensitive to cold eg pineapple banana papaya and citrus fruit and vegetables sensitive to cold eg aubergines cucumbers zucchini peppers tomatoes and potatoes should be stored outside the refrigerator at temperatures of approx 8 C to 12 C for optimum preservation of quality and flavour Condensation may form in the vegetable container depending on the type and quantity of products stored Remove condensation with a dry cloth and adjust air humidity in the vegetable container with the humidity controller Chiller container Fig 21 Temperatures in the chiller container are lower than in the refrigerator compartment Even temperatures below 0 C may occur Ideal for storing fish meat and sausage Not suitable for lettuce vegetables and produce sensitive to cold Super cooling Super cooling sets the refrigerator temperature to the coldest temperature setting for approx 6 hours Then the appliance automatically switches to the temperature set prior to super cooling mode Switch on super cooling mode eg before placing large quantities of food in the refrigerator compartment for the fast cooling of drinks Switching on and off Fig quot Press super button 10 The button is lit when super cooling is switched on Freezer compartment Use the freezer compartment To store deepfrozen food To make ice cubes To freeze food Note Ensure that the freezer compartment door has been closed properly If the door is open the frozen food will thaw The freezer compartment will become covered in thick ice Also waste of energy due to high power consumption
• Page 14 - English - : en Max freezing capacity Information about the max freezing capacity within 24 hours can be found on the rating plate Fig Freezing and storing food Purchasing frozen food Packaging must not be damaged Use by the use by date Temperature in the supermarket freezer must be 18 C or lower If possible transport deepfrozen food in an insulated bag and place quickly in the freezer compartment Note when loading products Freeze large quantities of food in the fast freezer compartment where food freezes particularly quickly and therefore also gently Food which is already frozen must not come into contact with the food which is to be frozen Freezing fresh food Freeze fresh and undamaged food only To retain the best possible nutritional value flavour and colour vegetables should be blanched before freezing Aubergines peppers zucchini and asparagus do not require blanching Literature on freezing and blanching can be found in bookshops Note Keep food which is to be frozen away from food which is already frozen The following foods are suitable for freezing Cakes and pastries fish and seafood meat game poultry vegetables fruit herbs eggs without shells dairy products such as cheese butter and quark ready meals and leftovers such as soups stews cooked meat and fish potato dishes soufflés and desserts The following foods are not suitable for freezing Types of vegetables which are usually consumed raw such as lettuce or radishes eggs in shells grapes whole apples pears and peaches hardboiled eggs yoghurt soured milk sour cream crème fraîche and mayonnaise
• Page 15 - English - : en Packing frozen food To prevent food from losing its flavour or drying out place in airtight containers 1 Place food in packaging 2 Remove air 3 Seal the wrapping 4 Label packaging with contents and date of freezing Suitable packaging Cling wrap tubular film made of polyethylene aluminium foil freezer containers These products are available from specialist outlets Unsuitable packaging Wrapping paper greaseproof paper cellophane bin liners and used shopping bags Items suitable for sealing packaged food Rubber bands plastic clips string cold resistant adhesive tape etc Bags and tubular film made of polyethylene PE can be sealed with a film heat sealer Shelf life of frozen food Storage duration depends on the type of food At a temperature of 18 C Fish sausage ready meals and cakes and pastries up to 6 months Cheese poultry and meat up to 8 months Vegetables and fruit up to 12 months Super freezing Food should be frozen solid as quickly as possible in order to retain vitamins nutritional value appearance and flavour Several hours before placing fresh food in the freezer compartment switch on super freezing to prevent an unwanted temperature rise As a rule 46 hours is adequate This appliance runs constantly and the freezer compartment drops to a very low temperature If the max freezing capacity is to be used super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment Smaller quantities of food up to 2 kg can be frozen without super freezing Note When super freezing is switched on increased operating noises may occur Switching on and off Fig quot Press super button 8 If the super freezing has been switched on the button is lit Super freezing automatically switches off after approx 2½ days
• Page 16 - English - : en Thawing frozen food Depending on the type and application select one of the following options at room temperature in the refrigerator in an electric oven withwithout fan assisted hotair in the microwave m Caution Do not refreeze thawing or thawed food Only ready meals boiled or fried may be refrozen No longer store the frozen produce for the max storage period Water dispenser You can remove cold water from the appliance via the water dispenser Note If the refrigerator is in a warm room with high air humidity condensation will form on the water dispenserThis will not damage the appliance Observing drinking water quality All materials used in the water dispenser are odourless and tasteless If the water has an aftertaste this may be caused by Mineral and chlorine content of the drinking water Freshness of the drinking water If water has not been dispensed for a long time the water may have a stale taste In this case empty water container and fill with fresh water Dispensing water Fig 1 Open the filling device on the water container 2 Pour fresh water up to the mark in the water container max 2 litres Note Fill the water container with water only 3 Press the glass against the dispenser pad Note The water dispenser can be closed To do this press the lever over the dispenser pad to the left Change the active carbon filter Fig Not all models There is an activatedcarbon filter in the cover of the water container This filter prevents the water from absorbing odours from the food We recommend that the filter is to be changed every 2 years Replacement filters are available from customer service

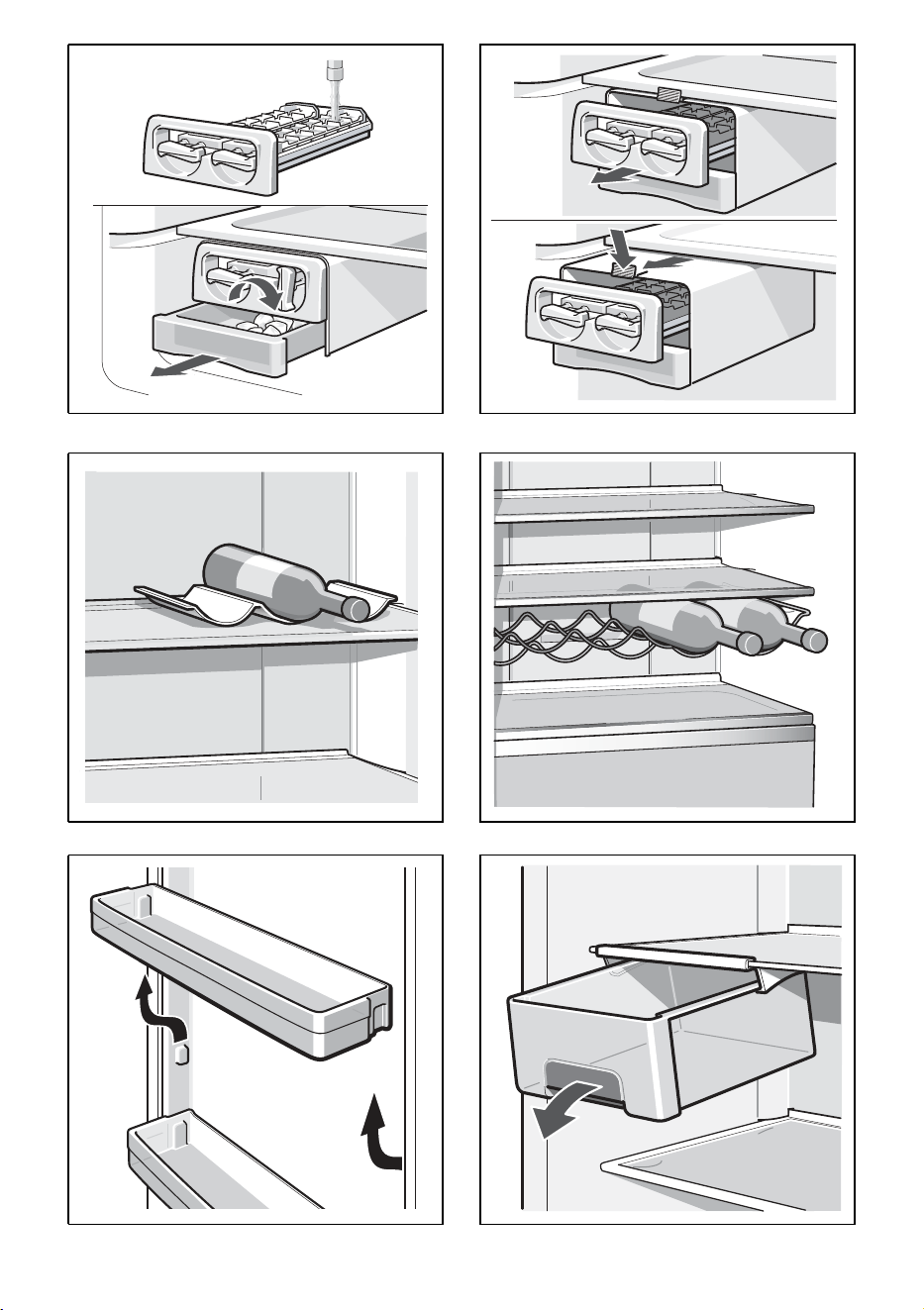

• Page 17 - English - : en Interior fittings You can reposition the shelves inside the appliance and the door shelves as required Pull shelf forwards lower and swing out to the side Raise the door shelf and remove Special features not all models Taking out the extendable glass shelf Fig 17 The glass shelf can be removed for cleaning To do this pull out shelf lift at the front and take out Bottle shelf Fig AB Bottles can be stored securely on the bottle shelf Ice maker Fig 1 Remove the ice cube tray fill ¾ full of drinking water and reinsert 2 When the ice cubes are frozen rotate the knobs on the ice cube trays several times to the right and release The ice cubes loosen and fall into the storage container 3 Remove ice cubes from the storage container Ice cube tray Fill the ice cube tray ¾ full of drinking water and place in the freezer compartment If the ice tray is stuck to the freezer compartment loosen with a blunt implement only spoonhandle To loosen the ice cubes twist the ice tray slightly or hold briefly under flowing water Pullout container Bild You can take out the container for loading and unloading To do this lift the container and pull out The holder of the container is variable Sticker OK not all models The sticker OK lets you check whether the refrigerator compartment achieves the safe temperature ranges of 4 C or colder recommended for food If the sticker does not indicate OK gradually reduce the temperature Note When the appliance is switched on it may take up to 12 hours until the set temperature is reached Correct setting
• Page 18 - English - : en Switching off and disconnecting the appliance Switching off the appliance Fig Press the OnOff button 12 Refrigerating unit and light switch off Disconnecting the appliance If you do not use the appliance for a prolonged period 1 Switch off the appliance 2 Pull out mains plug or switch off fuse 3 Clean the appliance 4 Leave the appliance door open Defrosting Refrigerator compartment Defrosting is actuated automatically The condensation runs through the drainage hole into an evaporation pan on the rear of the appliance Freezer compartment The fully automatic NoFrost system ensures that the freezer compartment remains free of ice Defrosting is no longer required Cleaning the appliance m Caution Do not use abrasive chloride or acidic cleaning agents or solvents Do not use scouring or abrasive sponges The metallic surfaces could corrode Never clean shelves and containers in the dishwasher The parts may become deformed Water used for cleaning must not drip into the slots in the front base area in the freezer compartment controls and light Proceed as follows 1 Before cleaning Switch off the appliance 2 Pull out mains plug or switch off fuse 3 Take out the frozen food and store in a cool location Place the ice pack if enclosed on the food 4 Wait until the layer of frost has thawed 5 Clean the appliance with a soft cloth lukewarm water and a little pH neutral washingup liquid The rinsing water must not run into the light 6 Wipe the door seal with clear water only and then wipe dry thoroughly 7 After cleaning reconnect and switch the appliance back on 8 Put the frozen food back into the appliance

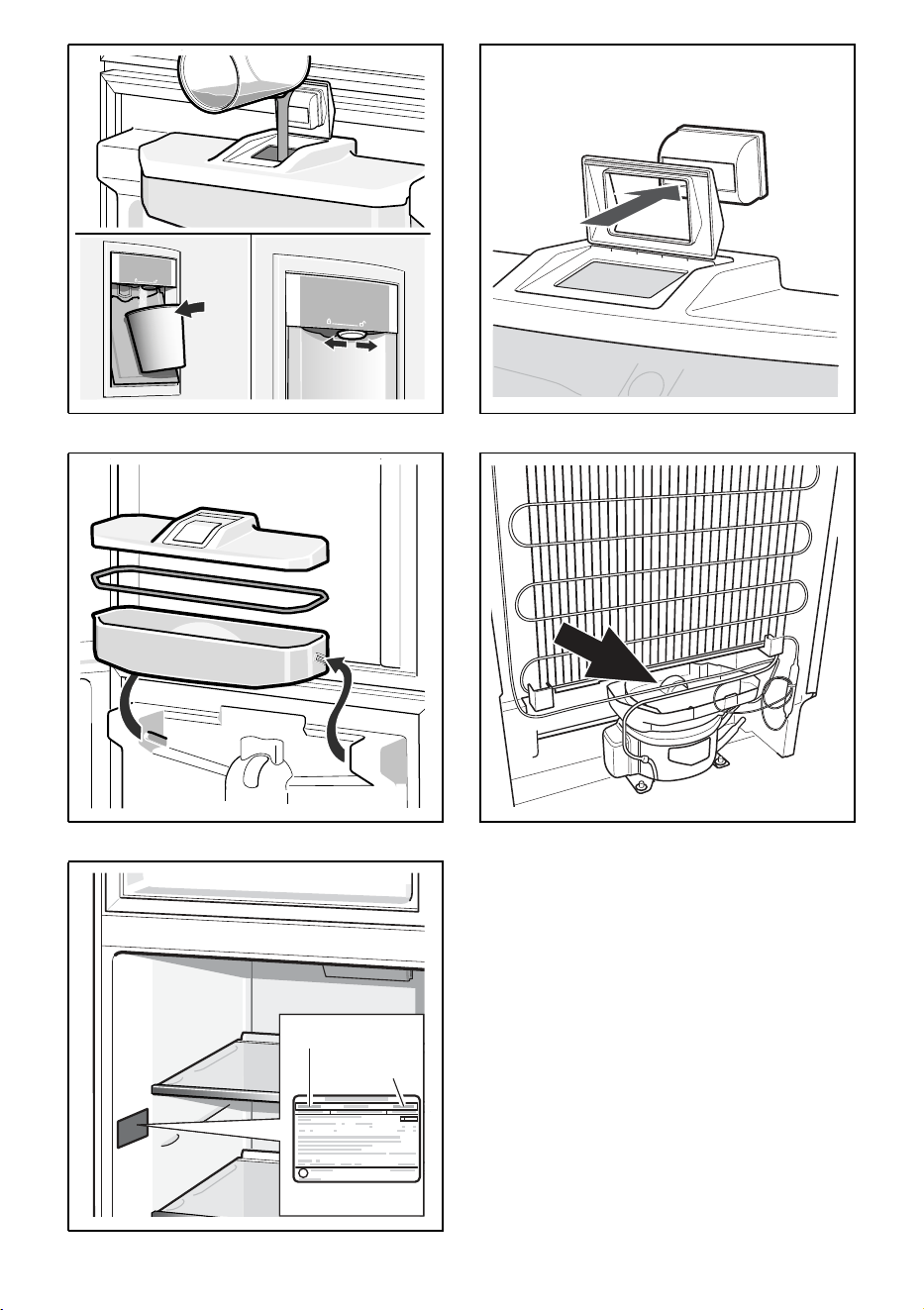

• Page 19 - English - : en Interior fittings All variable parts of the appliance can be taken out for cleaning Take out glass shelves Pull the glass shelves forwards and take out Taking out the water container Fig Note Do not clean the activatedcarbon filter Remove activatedcarbon filter beforehand Fig 1 Take out the water container 2 Remove cover from the water container and empty water container 3 Clean individual parts of the water container with clear water and wipe dry with a cloth Note To prevent water from running out ensure that the water container is inserted with the water outlet positioned exactly on the water supply of the door Light LED Your appliance features a maintenance free LED light These lights may be repaired by customer service or authorised technicians only Tips for saving energy Install the appliance in a dry well ventilated room The appliance should not be installed in direct sunlight or near a heat source eg radiator cooker If required use an insulating plate Allow warm food and drinks to cool down before placing in the appliance Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food Open the appliance as briefly as possible To avoid increased power consumption occasionally clean the back of the appliance If available Fit wall spacers to obtain the indicated energy rating of the appliance see Installation instructions A reduced wall gap will not restrict the function of the appliance The energy rating may then increase slightly The gap of 75 mm must not be exceeded The arrangement of the fittings does not affect the energy rating of the appliance
• Page 20 - English - : en Operating noises Quite normal noises Note When super freezing is switched on increased operating noises may occur Droning Motors are running eg refrigerating units fan Bubbling humming or gurgling noises Refrigerant is flowing through the tubing Clicking Motor switches or solenoid valves are switching onoff Cracking Automatic defrosting is running Preventing noises The appliance is not level Please align the appliance with a spirit level Use the heightadjustable feet or place packing underneath them The appliance is not freestanding Please move the appliance away from adjacent units or appliances Containers or storage areas wobble or stick Please check the removable parts and reinsert them correctly if required Bottles or receptacles are touching each other Move the bottles or receptacles slightly away from each other
• Page 21 - English - : en Eliminating minor faults yourself Before you call customer service Please check whether you can eliminate the fault yourself based on the following information Customer service will charge you for advice even if the appliance is still under guarantee Fault Possible cause Remedial action Temperature differs greatly from the set value In some cases it is adequate to switch off the appliance for 5 minutes If the temperature is too high wait a few hours and check whether the temperature has approached the set value If the temperature is too low check the temperature again the next day The light does not function The LED light is defective See chapter Light LED section Appliance was open too long Light is switched off after approx 10 min When the appliance is closed and opened the light is on again Controls have reduced luminosity When the appliance is not used for some time the display on the fascia switches to energy saving mode As soon as the appliance is again used eg the door is opened the display switches back to normal illumination Displays do not illuminate Power failure the fuse has been switched off the mains plug has not been inserted properly Connect mains plug Check whether the power is on check the fuses
• Page 22 - English - : en Fault Possible cause Remedial action Warning signal sounds The alarm button is lit Fig quot5 Fault the freezer compartment is too warm To switch off the warning signal press the alarm button 5 Appliance is open Close the appliance Ventilation openings have been covered Ensure that there is adequate ventilation Too much food was placed in the freezer compartment at once Do not exceed max freezing capacity When the fault has been eliminated the alarm button goes out shortly afterwards The temperature in the freezer compartment is too warm Appliance opened frequently Do not open the appliance unnecessarily The ventilation openings have been covered Remove obstacles Large quantities of fresh food are being frozen Do not exceed max freezing capacity Freezer compartment door was open for a long time temperature is no longer reached The evaporator refrigeration generator in the NoFrost system is covered in thick ice and can no longer be defrosted fully automatically To defrost the evaporator remove the frozen food with the compartments insulate well and store in a cool location Switch off the appliance and move it away from the wall Leave the appliance door open After approx 20 min the condensation begins to run into the evaporation pan at the rear of the appliance Fig To prevent the evaporation pan from overflowing in this case mop up the condensation with a sponge The evaporator is defrosted when the water stops running into the evaporation pan Clean the interior Switch the appliance back on again Condensation forms on the water dispenser Normal behaviour in warm rooms with high air humidity This will not damage the appliance
• Page 23 - English - : en Customer service Your local customer service can be found in the telephone directory or in the customerservice index Please provide customer service with the appliance product number ENr and production number FDNr This information can be found on the rating plate Fig To prevent unnecessary callouts please assist customer service by quoting the product and production numbers This will save you additional costs Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list GB 0344 892 8979 Calls charged at local or mobile rate IE 01450 2655 003 per minute at peak Off peak 00088 per minute US 800 944 2904 tollfree
