X7502341701
© 3/2018 ECHO Inc.
ENGLISH
Operator’s
Manual
SRM-2620
GRASS TRIMMER
/ BRUSH CUTTER
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.
TABLE OF CONTENTS SRM-2620
2 X7502341701
© 3/2018 ECHO Inc.
TABLE OF CONTENTS
Table of Contents ........................................................................................ 2
Introduction ................................................................................................. 4
Servicing Information .................................................................................. 4
Parts/Serial Number ............................................................................ 4
Service................................................................................................. 5
Echo Consumer Product Support ........................................................ 5
Product Registration ............................................................................ 5
Additional or Replacement Manuals .................................................... 5
Safety .......................................................................................................... 5
Manual Safety Symbols and Important Information............................. 5
International Symbols .......................................................................... 6
Personal Condition and Safety Equipment .......................................... 8
Equipment.......................................................................................... 12
Emission Control (Exhaust & Evaporative) .............................................. 14

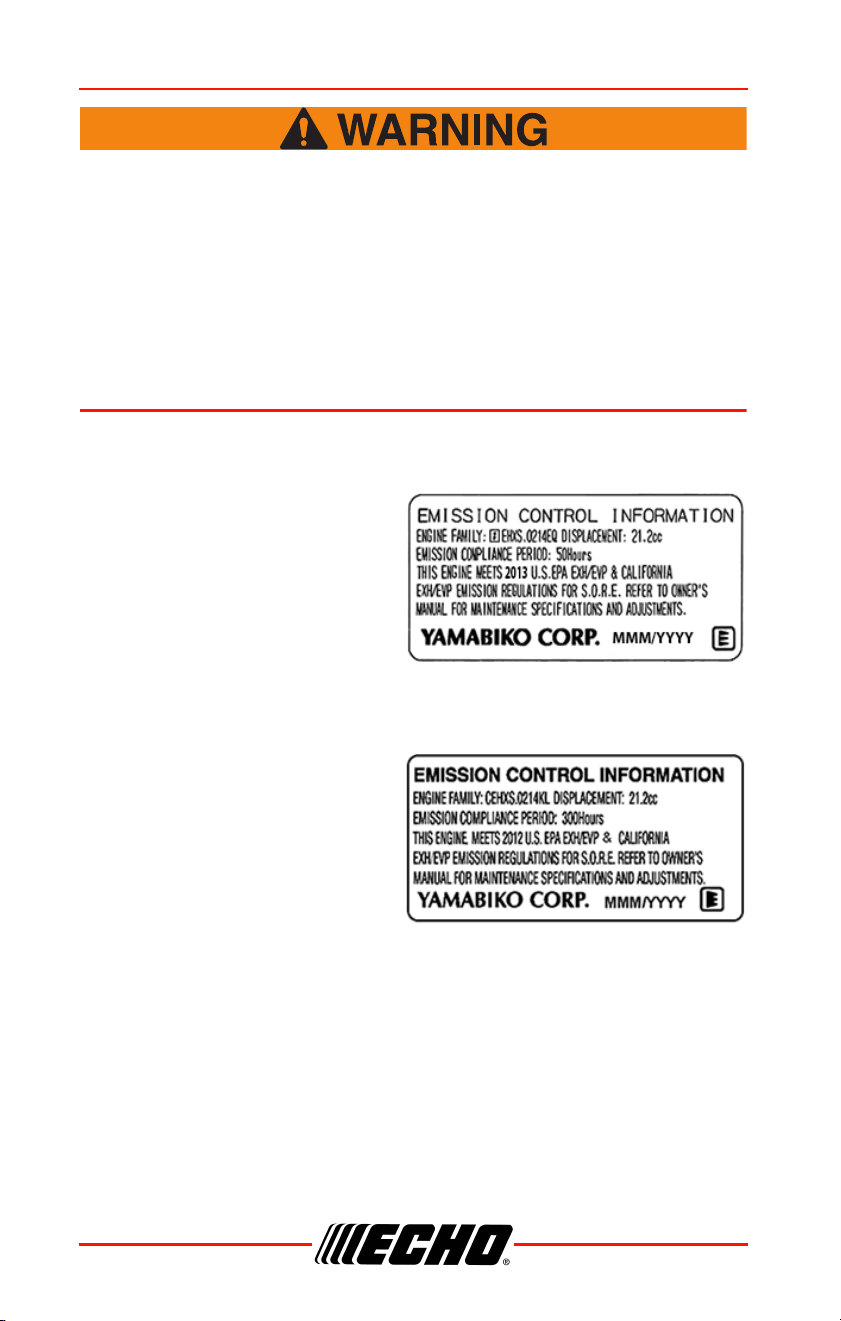

CARB And EPA Emissions Control Information................................. 14
Description ................................................................................................ 15
Contents.................................................................................................... 17
Assembly................................................................................................... 18
Support Handle Installation................................................................ 18
Operation .................................................................................................. 18
Operation With Blades ....................................................................... 19
Blade Selection.................................................................................. 20
Fuel.................................................................................................... 21
Starting Cold Engine.......................................................................... 24
Starting Warm Engine........................................................................ 25
Stopping Engine ................................................................................ 27
Maintenance ............................................................................................. 27
Skill Levels ......................................................................................... 28
Maintenance Intervals........................................................................ 28
Air Filter ............................................................................................. 29
Fuel Filter........................................................................................... 30

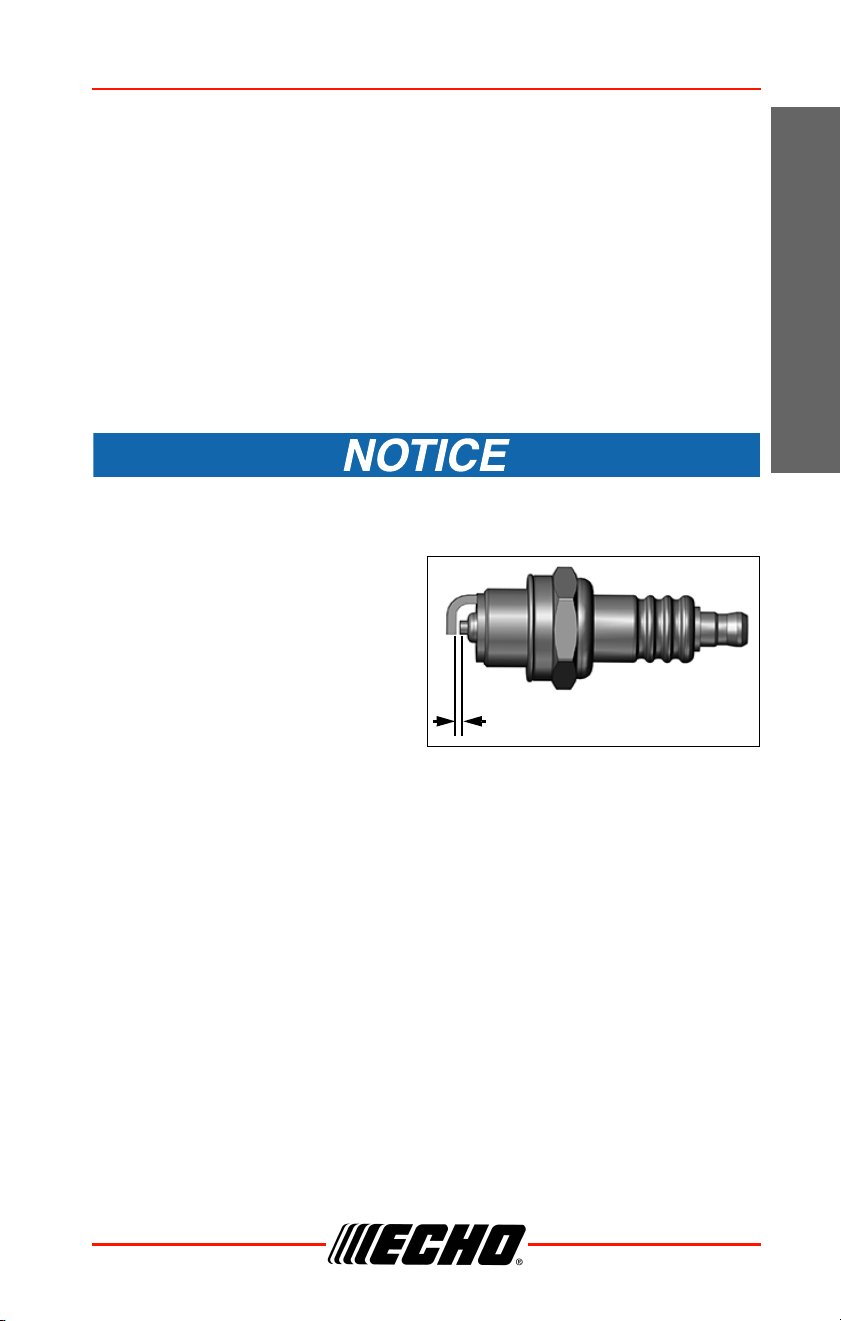

Spark Plug ......................................................................................... 31
Cooling System.................................................................................. 32

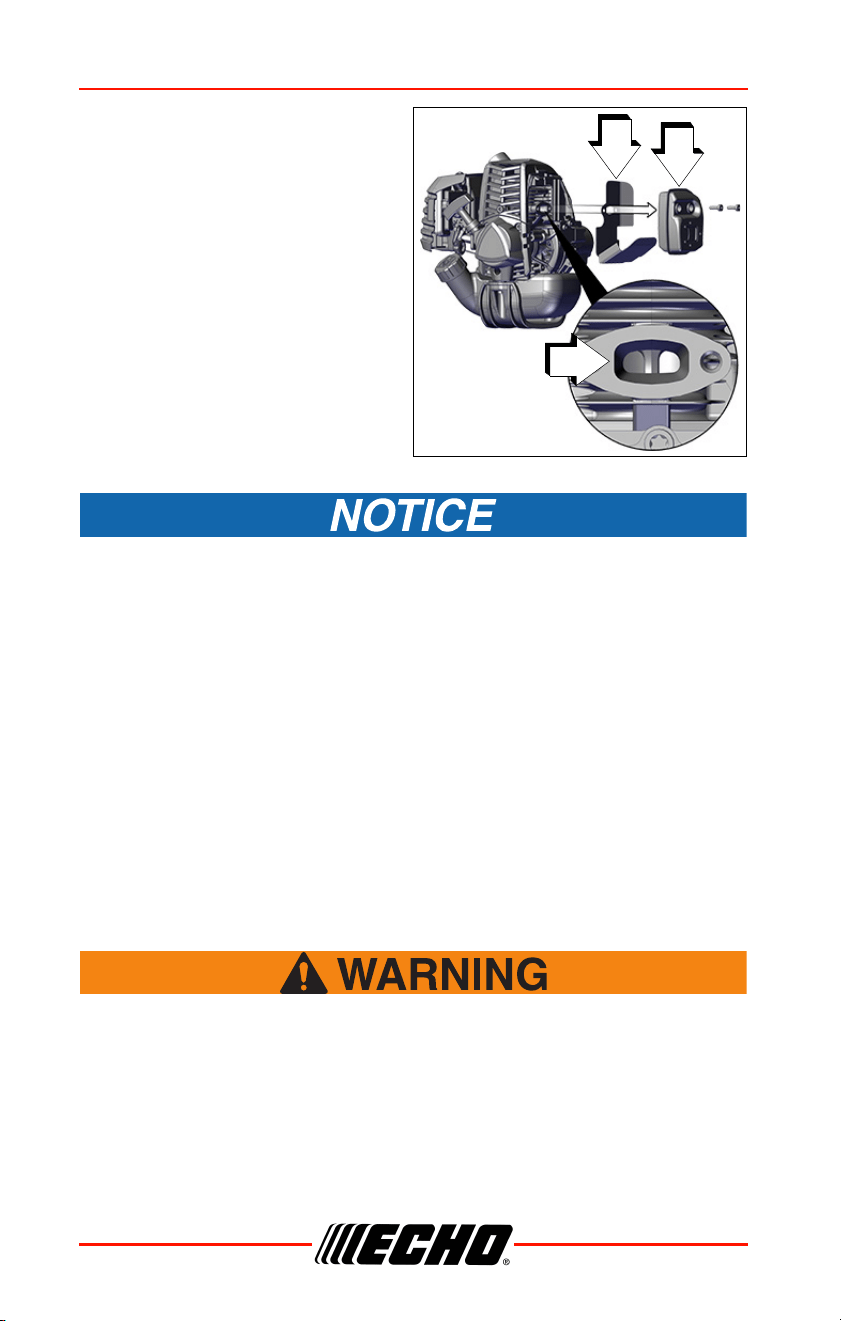

Exhaust System................................................................................. 33
Carburetor Adjustment....................................................................... 35

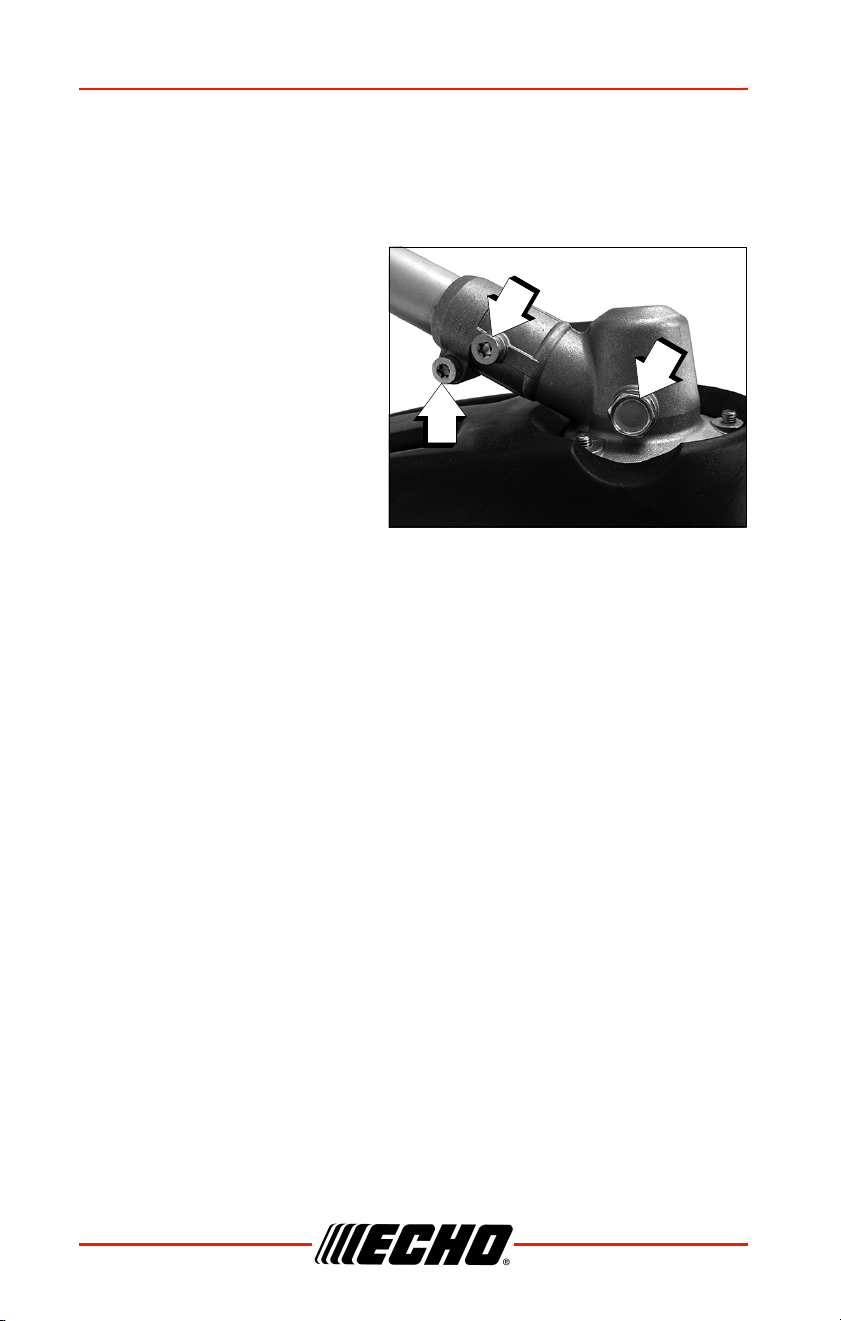

Lubrication ......................................................................................... 36

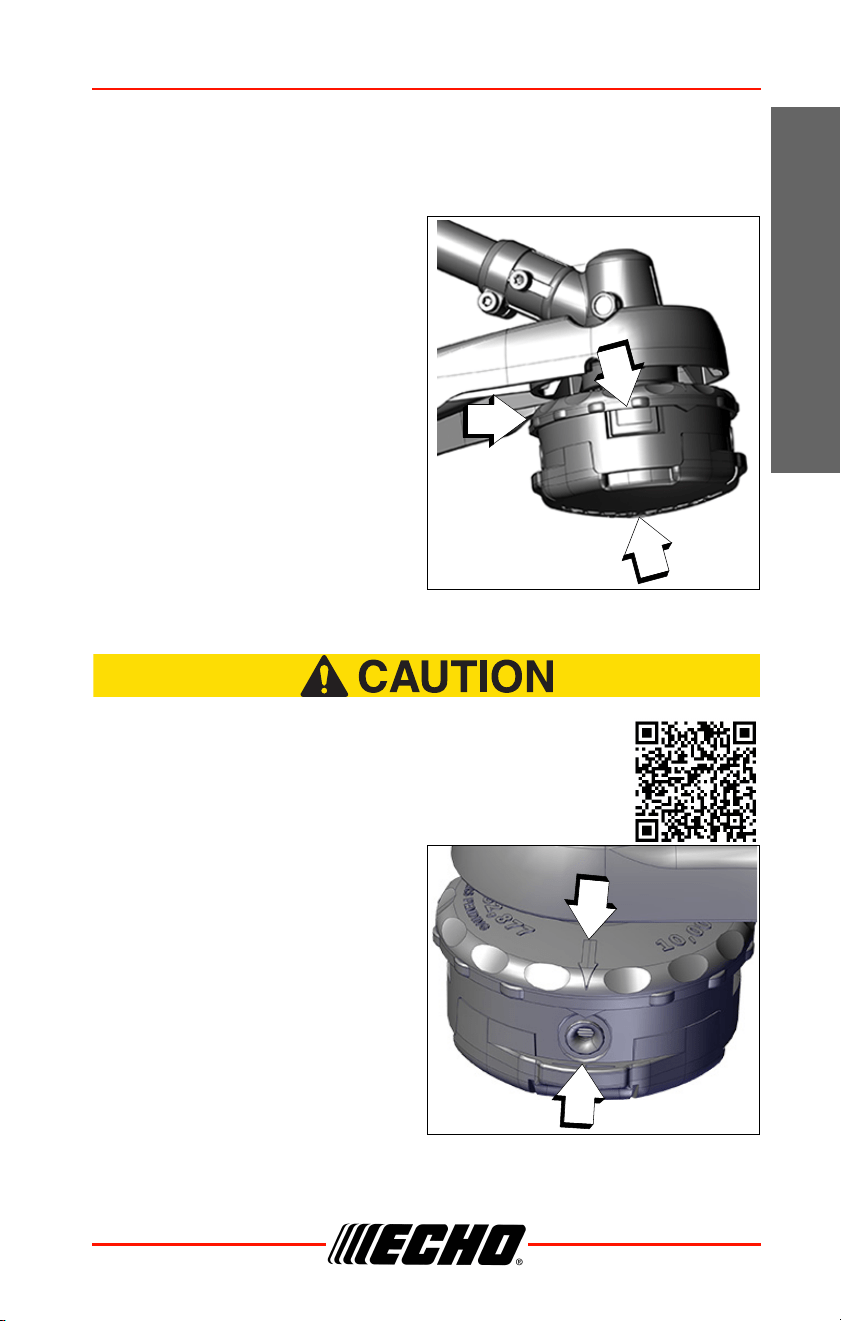

Nylon Line Head Disassembly Instructions........................................ 37

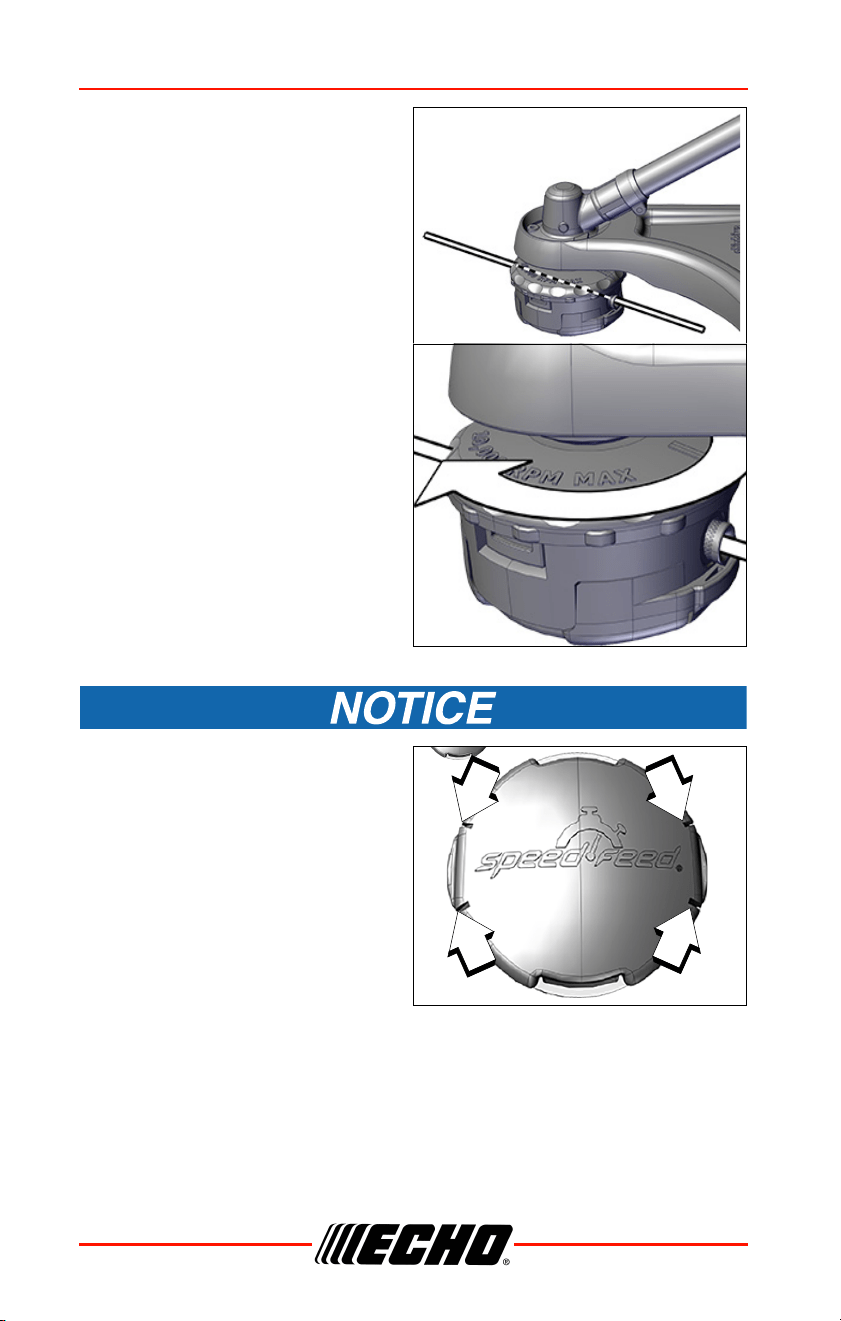

Nylon Line Replacement.................................................................... 37
Sharpening Metal Blades................................................................... 39
Troubleshooting......................................................................................... 40
Storage...................................................................................................... 41
Long Term Storage (Over 30 Days) ................................................... 41
SRM-2620 TABLE OF CONTENTS
X7502341701 3
© 3/2018 ECHO Inc.
ENGLISH
Specifications ........................................................................................... 42
Product Registration ................................................................................. 44
Notes ........................................................................................................ 46
INTRODUCTION SRM-2620
4 X7502341701
© 3/2018 ECHO Inc.
INTRODUCTION
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
This product was designed and manufactured to provide long life and on-
the-job dependability. Read and understand all provided literature. Keep
manuals in a safe place for future reference. Literature contains
specifications and information for safety, operation, maintenance, storage
and assembly specific to this product. Scan QR codes for more information.
For questions regarding terms used in this manual, visit:
https://www.echo-usa.com/Support-Help/Technical-
Documents
OR
https://www.shindaiwa-usa.com/Tech-Support/Technical-
Documents
SERVICING INFORMATION

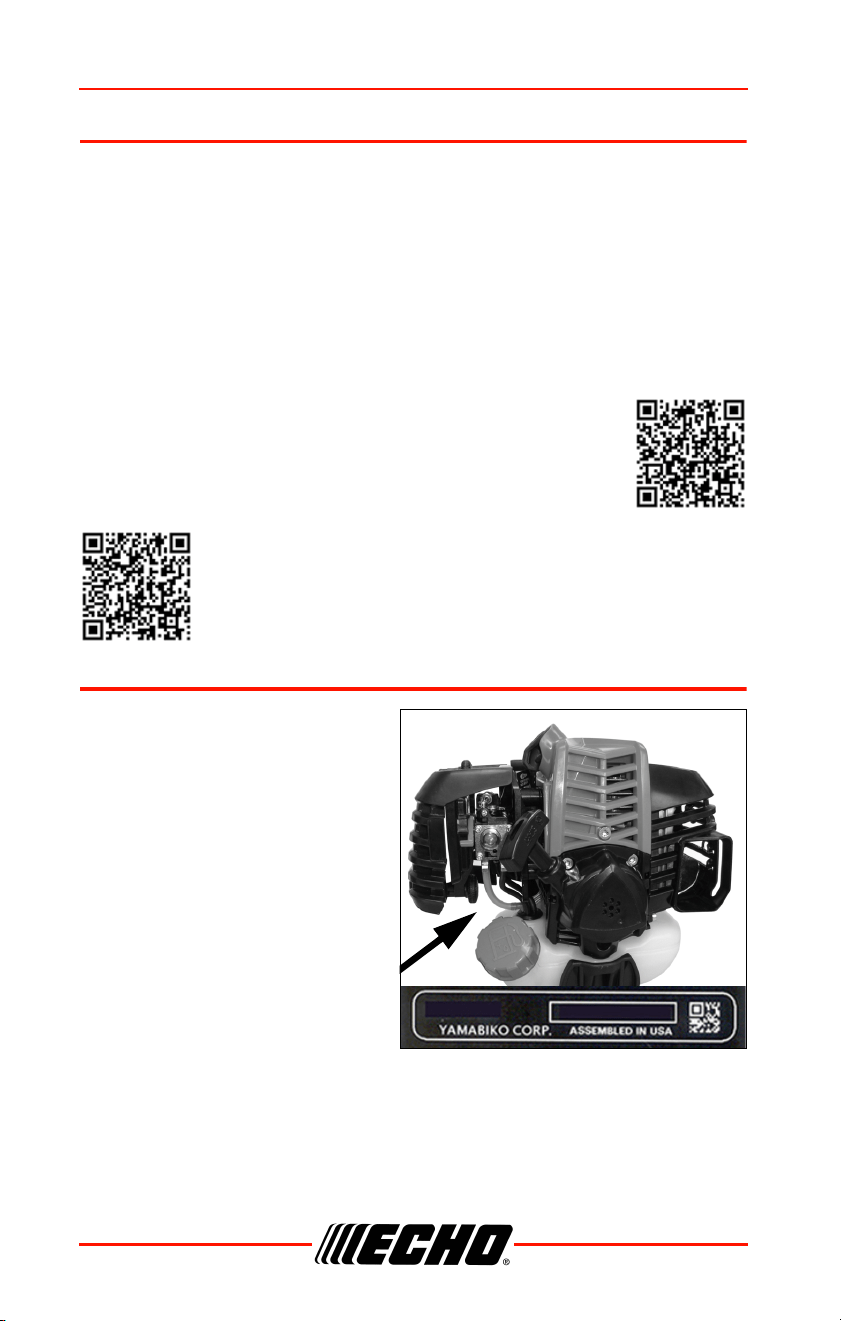

Parts/Serial Number
Genuine ECHO Parts and
Assemblies for your ECHO
products are available only from
an Authorized ECHO Dealer.
When you do need to buy parts
always have the Model Number
and Serial Number of the unit with
you. For future reference write
them in the space provided below.
Model No. _______________
Serial No. _______________
SRM-2620 SAFETY
X7502341701 5
© 3/2018 ECHO Inc.
ENGLISH
Service
Service of this product during the warranty period must be performed by an
Authorized ECHO Service Dealer. For the name and address of the
Authorized ECHO Service Dealer nearest you, ask your retailer or call:
1-800-432-ECHO (3246). Dealer information is also available on our Web
Site www.echo-usa.com. When presenting your unit for Warranty service/
repairs, proof of purchase is required.
ECHO Consumer Product Support
If you require assistance or have questions concerning the application,
operation, or maintenance of this product, call the ECHO Consumer
Product Support Department at 1-800-673-1558 from 8:00 am to 5:00 pm
(Central Standard Time) Monday through Friday. Before calling, please
know the model and serial number of your unit.
Product Registration
Register your ECHO equipment on-line at www.echo-usa.com or by filling
out the product registration sheet included in this manual. Registering your
product confirms warranty coverage and provides a direct link to ECHO if
we find it necessary to contact you.
Additional or Replacement Manuals
Replacement Manuals and Parts Catalogs, are available from your
Authorized ECHO Service Dealer, or at www.echo-usa.com, or by
contacting ECHO Inc., 400 Oakwood Road, Lake Zurich, IL 60047 (800-
673-1558). Always check www.echo-usa.com for updated information.
Safety Videos are available from your Authorized ECHO Service Dealer. A
$5.00 shipping charge is required for each video.
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
SAFETY SRM-2620
6 X7502341701
© 3/2018 ECHO Inc.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.
International Symbols
Symbol Description Symbol Description
Warning, See
Operator’s Manual
Carburetor
Adjustment - High
Speed Mixture
Wear Eye, Ear
and Head
Protection
Carburetor
Adjustment - Idle
Speed
Wear Hand and
Foot Protection
Carburetor
Adjustment - Low
Speed Mixture
H
T
L
SRM-2620 SAFETY
X7502341701 7
© 3/2018 ECHO Inc.
ENGLISH

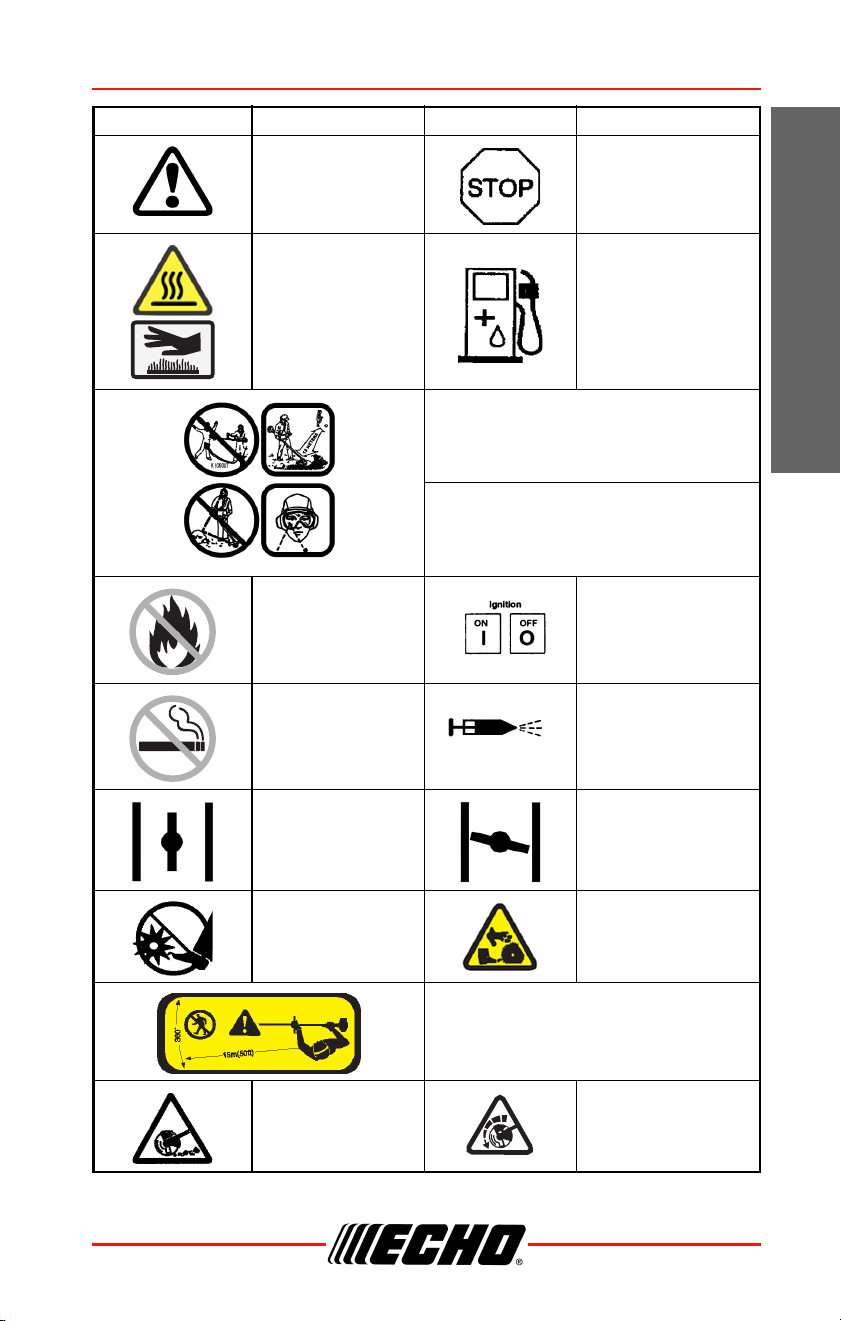

Safety/Alert Emergency Stop
Hot Surface Fuel and Oil Mixture
AVOID KICKOUT
Keep Bystanders At Least 15 m (50
ft.) Away.
Beware Thrown Objects Wear Eye
Protection
DO NOT Allow
Flames or Sparks
Near Fuel
Ignition
ON / OFF
DO NOT Smoke
Near Fuel
Primer Bulb
Choke Control
“RUN” Position
(Choke Open)
Choke Control
“COLD START”
Position (Choke
Closed)
Keep Feet Away
From Blade
Rotating Cutting
Attachment
Keep Bystanders and Helpers
Away 15 m (50 ft.)
Thrown Objects Direction of Blade
Symbol Description Symbol Description
SAFETY SRM-2620
8 X7502341701
© 3/2018 ECHO Inc.
Personal Condition and Safety Equipment
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
The muffler or catalytic muffler and surrounding cover
may become extremely hot. Always keep clear of
exhaust and muffler area, otherwise serious personal
injury may occur.
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.
SRM-2620 SAFETY
X7502341701 9
© 3/2018 ECHO Inc.
ENGLISH
Eye Protection
◆ Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
◆ For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.

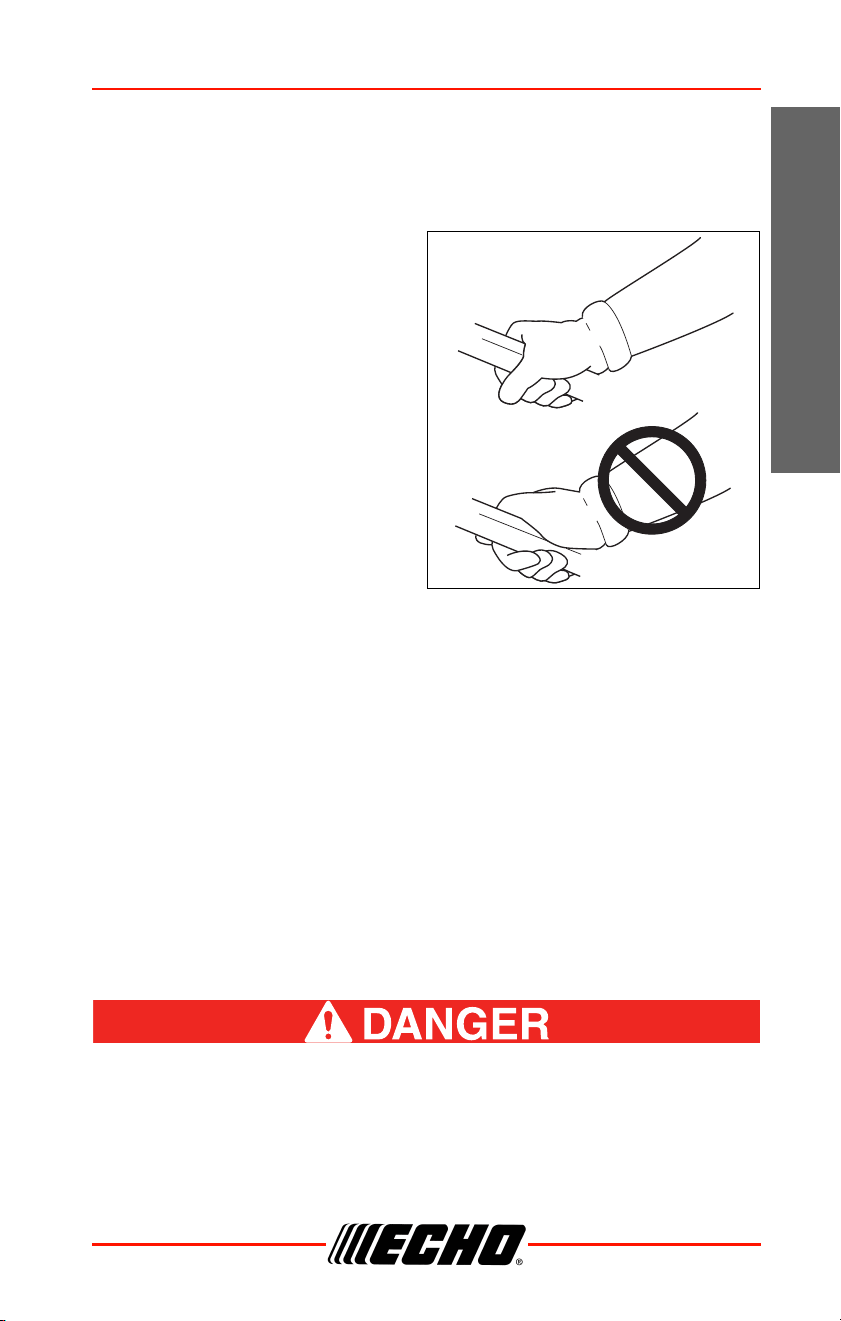

Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing hearing protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
SAFETY SRM-2620
10 X7502341701
© 3/2018 ECHO Inc.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.
The components of this machine generate an electromagnetic
field during operation, which may interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in
injury. Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions may result
in painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially
the head, neck, feet, ankles,
hands, and wrists.
• Maintain good blood circulation by
performing vigorous arm
exercises during frequent work
breaks, and also by not smoking.
• Limit the hours of operation. Try to
fill each day with jobs where
operating the unit or other hand-
held power equipment is not
required.
SRM-2620 SAFETY
X7502341701 11
© 3/2018 ECHO Inc.
ENGLISH
• If you experience discomfort, redness, and swelling of the fingers followed
by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibration.
Repetitive Stress Injuries (RSI)
It is believed that overusing the
muscles and tendons of the fingers,
hands, arms, and shoulders may
cause soreness, swelling,
numbness, weakness, and extreme
pain in those areas. Certain
repetitive hand activities may put
you at a high risk for developing a
Repetitive Stress Injury (RSI). An
extreme RSI condition is Carpal
Tunnel Syndrome (CTS), which
could occur when your wrist swells
and squeezes a vital nerve that runs
through the area. Some believe that
prolonged exposure to vibration may
contribute to CTS. CTS can cause
severe pain for months or even
years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended, or twisted position. Instead try
to maintain a straight wrist position. Also, when grasping, use your whole
hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death may result.
SAFETY SRM-2620
12 X7502341701
© 3/2018 ECHO Inc.
Do not operate this product indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous emissions
and can cause serious injury or death.
Read Manuals
• Provide all users of this equipment with literature for instructions on safe
operation.
Clear The Work Area
• Always clear the work area of foreign objects, and check for any hidden
hazards. spectators and fellow workers must be warned, and children and
animals prevented from coming nearer than 50 ft. (15 m) while the unit is
in use.
Keep A Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep A Solid Stance
• Maintain footing and balance at all times. do not stand on slippery, uneven
or unstable surfaces. do not work in odd positions or on ladders. do not
over reach.
Avoid Hot Surfaces
• Keep exhaust area clear of flammable debris. avoid
contact during and immediately after operation.
Equipment
Use only ECHO INC. attachments. Serious injury may result
from the use of a non-approved attachment combination. ECHO
INC. will not be responsible for the failure of cutting devices,
attachments or accessories which have not been tested and
approved by ECHO INC. Read and comply with all safety
instructions.
◆ Check unit for loose or missing nuts, bolts, and screws.
Tighten or replace as needed.
SRM-2620 SAFETY
X7502341701 13
© 3/2018 ECHO Inc.
ENGLISH
◆ Inspect shield for damage and ensure that shield is
properly installed, and that that the cut-off knife is
securely in place. Replace if either is damaged or missing.
◆ Check that the cutting attachment is firmly attached and in
safe operating condition.
◆ Assure that throttle trigger, throttle trigger lockout, and
stop switch all work properly.
◆ Check that handle and harness (if included) are
adjusted for safe, comfortable operation. See
Assembly Section for proper adjustment.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
◆ ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
assembling unit, removing obstructions, clearing debris, or
servicing unit.
◆ Do not connect spark plug lead to spark plug unitl unit is
ready for use.
◆ DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
◆ NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.
◆ Position wiring safely to prevent snagging, separation of
connectors, or breakage during operation. Gather excess
wire, and secure with wiring clamp if provided on
equipment, or tuck behind the air filter area. Do not place
wiring directly against hot engine components.
◆ Check wiring and connectors for nicks, cuts, exposed wire,
or other damage, and repair or replace as needed. Exposed
wire or connectors can cause shocks, sparks, and risk of
fire or explosion, resulting in serious injury.
◆ Checkwire terminals for secrure connections.
EMISSION CONTROL SRM-2620
14 X7502341701
© 3/2018 ECHO Inc.
Periodically Check fuel system (fuel lines, vent, grommet, fuel
tank, and fuel cap) for leaks especially if the unit is dropped. If
damage or leaks are found, do not use unit, otherwise serious
personal injury or property damage may occur. Have unit
repaired by an authorized servicing dealer before using.
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for
the engine is EM (engine
modification) and, if the second to
last character of the Engine Family
on the Emission Control
Information label (sample below) is
“B”, “C”, “K”, or “T”, the emission
control system is EM and TWC (3-
way catalyst). The fuel tank/fuel
line emission control system is EVAP (evaporative emissions). Evaporative
emissions for California models are only applicable to fuel tanks.
An Emission Control Label is
located on the engine. (This is an
EXAMPLE ONLY, information on
label varies by engine FAMILY).
Product Emission Durability
(Emission Compliance
Period)
The 50 or 300 hour emission compliance period is the time span selected by
the manufacturer certifying the engine emissions output meets applicable
emissions regulations, provided that approved maintenance procedures are
followed as listed in the Maintenance Section of this manual.
SRM-2620 DESCRIPTION
X7502341701 15
© 3/2018 ECHO Inc.
ENGLISH

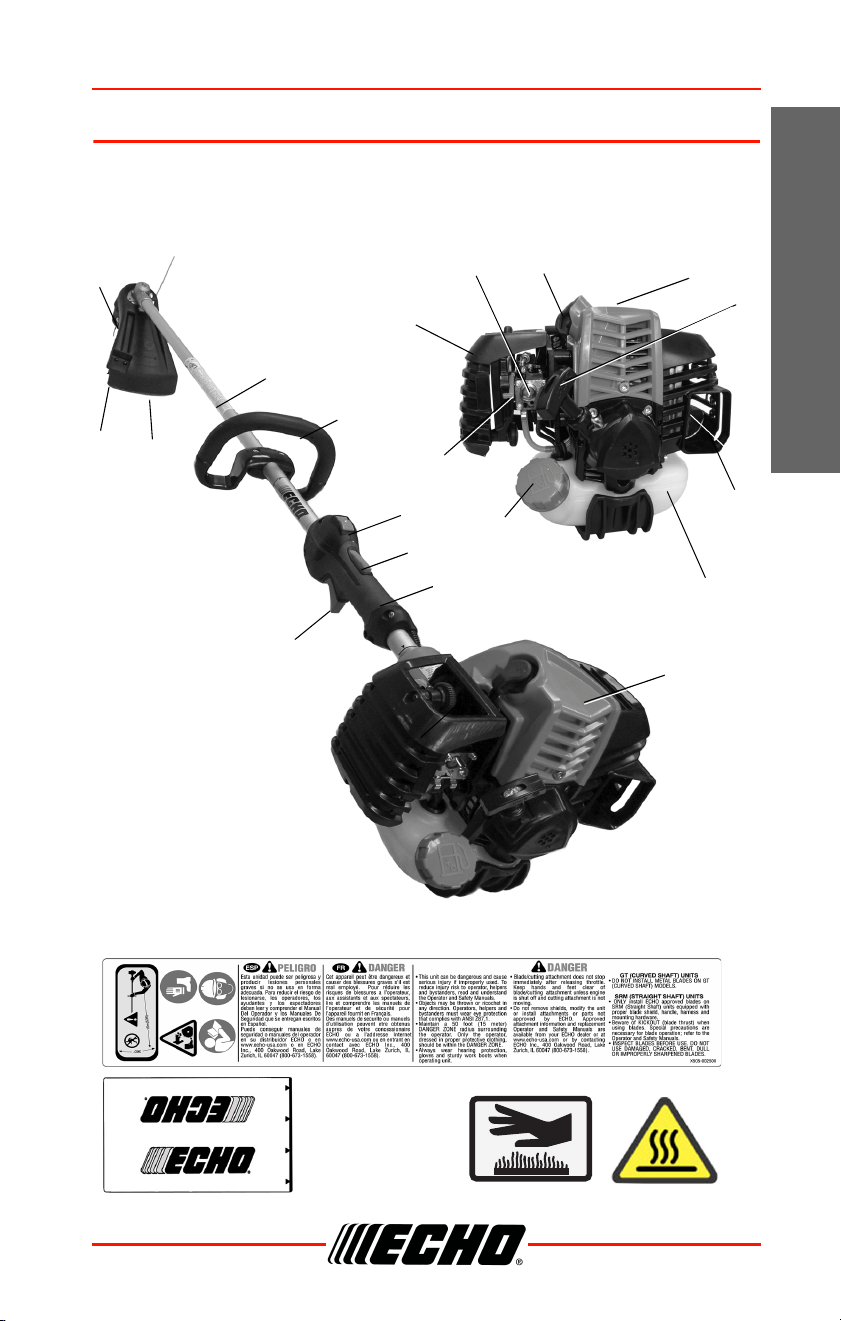

DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your ECHO dealer.
1
2
5
6
9
10
4
3
2
10
8
7
11
12
15
18
19
16
17
13
14
Shaft Label
Hot Label
CONTENTS SRM-2620
16 X7502341701
© 3/2018 ECHO Inc.
CONTENTS
The ECHO product you purchased has been factory pre-assembled for your
convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or ECHO Dealer of damaged or missing parts. Use the contents list to check
for missing parts.
1. POWER HEAD
2. THROTTLE HANDLE - FOR RIGHT HAND
3. THROTTLE TRIGGER LOCKOUT
4. STOP SWITCH
5. SUPPORT HANDLE - FOR LEFT HAND
6. DRIVE SHAFT ASSEMBLY
7. NYLON CUTTER HEAD
8. CUT-OFF KNIFE
9. DEBRIS SHIELD with CUT-OFF KNIFE
10. THROTTLE TRIGGER
11. SPARK PLUG
12. ARM REST
13. RECOIL STARTER HANDLE
14. SPARK ARRESTOR MUFFLER OR SPARK ARRESTOR MUFFLER
WITH CATALYST
15. FUEL TANK
16. FUEL TANK CAP
17. CHOKE
18. AIR CLEANER
19. PURGE BULB
____1 Power Head / Drive Shaft Assembly
____1 Operator’s Manual
____1 Warranty Statement
SRM-2620 ASSEMBLY
X7502341701 17
© 3/2018 ECHO Inc.
ENGLISH
ASSEMBLY

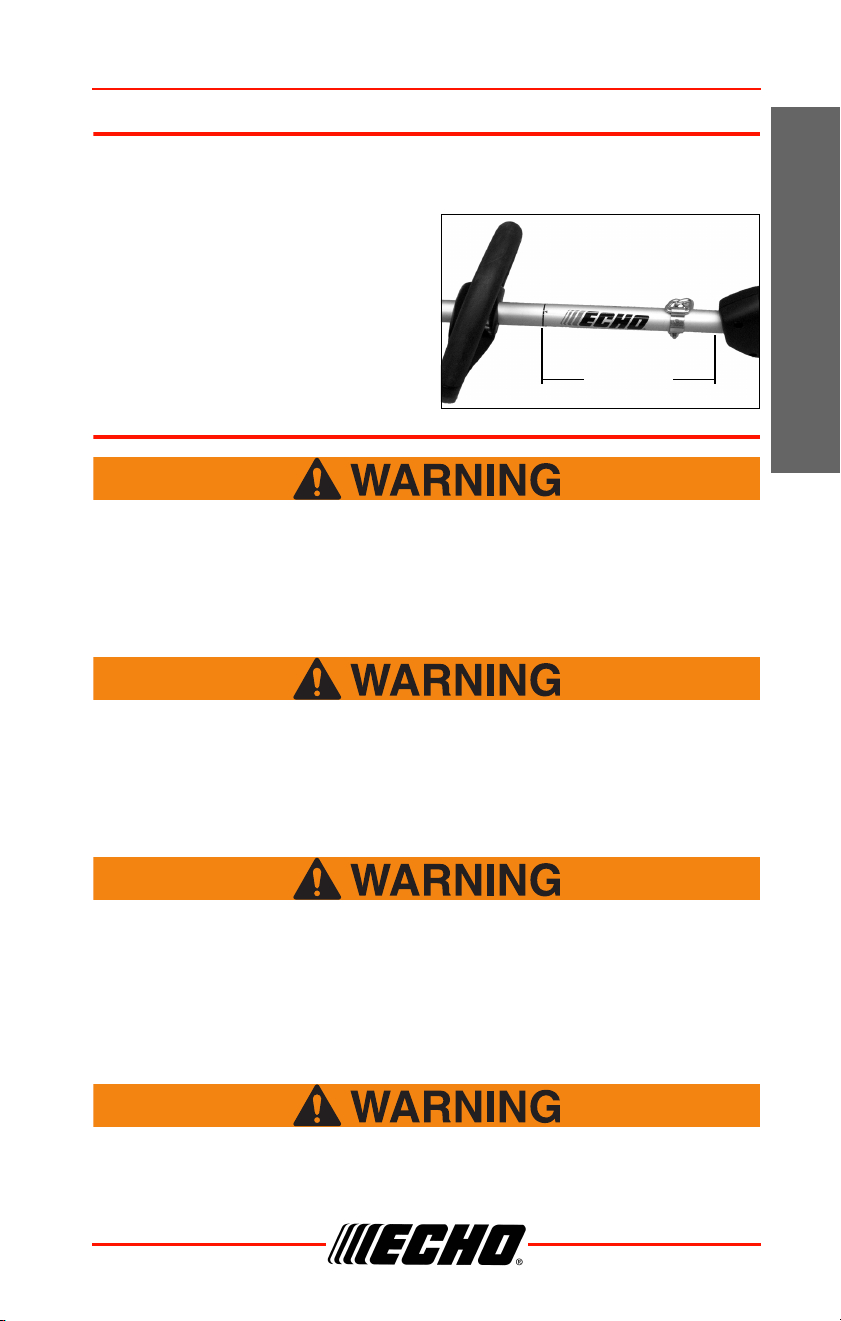

Support Handle Installation
Note: Label shows minimum
spacing for support handle
location.
1. If necessary, position support
handle for comfortable operation
and securely tighten screws.
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit.
Engine exhaust is HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face
and body.
Operation of this equipment may create sparks that can start
fires around dry vegetation. This unit is equipped with a spark
arrestor to prevent discharge of hot particles from the engine.
Metal cutters can also create sparks if the cutter strikes rocks,
metal, or other hard objects. Contact local fire authorities for
laws or regulations regarding fire prevention requirements.
◆ Always maintain a direct, clear line of site to the unit and
the work being performed.
MINIMUM
SPACING
OPERATION SRM-2620
18 X7502341701
© 3/2018 ECHO Inc.
◆ Always be alert for changes in operation of unit.
◆ Always shut engine off before transporting unit to new
location.
Operation With Blades
Metal blades are very sharp and can cause severe
injuries, even if engine is off and blades are not
moving. Avoid contact with blades. Wear gloves to
protect hands.
Blade use demands specific brush cutter configuration.
Operation without specified shield, barrier bar or U-handle, and
harness can result in serious personal injury. Follow installation
instructions.
*ANSI standards require brush cutters be equipped with a barrier bar or
restrictive harness. U-Handle ensures a higher safety factor.
Do Not install blades on GT (Curved Shaft) model trimmers.
• Arbor diameter of upper blade plate must match arbor diameter of blades.
Pro Maxi-Cut
Grass/Weed
Blade
Tri-Cut Grass/
Weed Blade
Metal Grass /
Weed Blade
Metal Brush /
Clearing
Blades
Support
Handle, with or
without Barrier
Bar
U-Handle or Support Handle with
Barrier Bar
U-handle*
Shield with
cutoff knife
Shield without cutoff knife
Harness
Upper Plate &
Flat Washer
Upper/Lower Blade Plates
Hex Nut
New Cotter Pin
SRM-2620 OPERATION
X7502341701 19
© 3/2018 ECHO Inc.
ENGLISH
• A new cotter pin is required each time a blade is installed.
• Brushcutters over 7.5 kg (16.5 lbs.) dry weight (without fuel) require a
double shoulder harness.
Note: The barrier bar is used to restrict rearward movement of
the unit. The barrier bar is not a handle and should not
be gripped when using or carrying the unit.

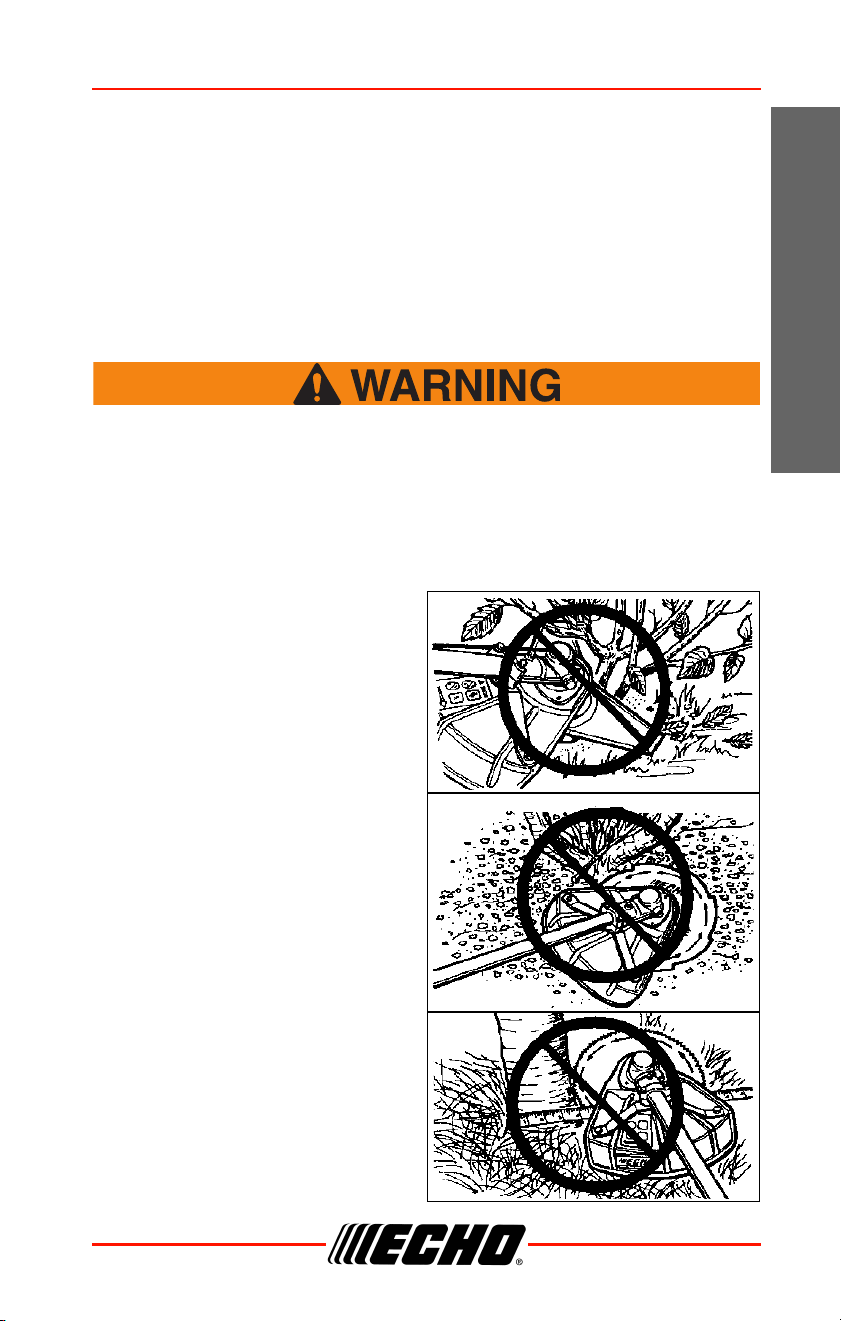

Blade Selection
The type of blade used MUST be matched to the type and size of
material cut. An improper or dull blade can cause serious
personal injury. Blades MUST be sharp. Dull blades increase the
chance of kick-out and injury to yourself and bystanders. Never
use an edging blade, circular saw blade, or any other type of
unapproved blade.
3-Tooth Grass/Weed Blades may
be used wherever the nylon line
head is used. DO NOT use this
blade for heavy weeds or brush.
8 Tooth Weed/Grass Blade is
designed for grass, garden debris
and thick weeds up to 19 mm
(0.75 in.) diameter. DO NOT use
this blade for brush or heavy woody
growth.
80 Tooth Brush Blade is designed
for cutting brush and woody growth
up to 13 mm (0.5 in.) diameter.
22 Tooth Clearing Blade is
designed for dense thickets and
saplings up to 64 mm (2.5 in.)
diameter.
OPERATION SRM-2620
20 X7502341701
© 3/2018 ECHO Inc.
A trimmer-brushcutter with a metal blade can cause serious
injuries if handled improperly.

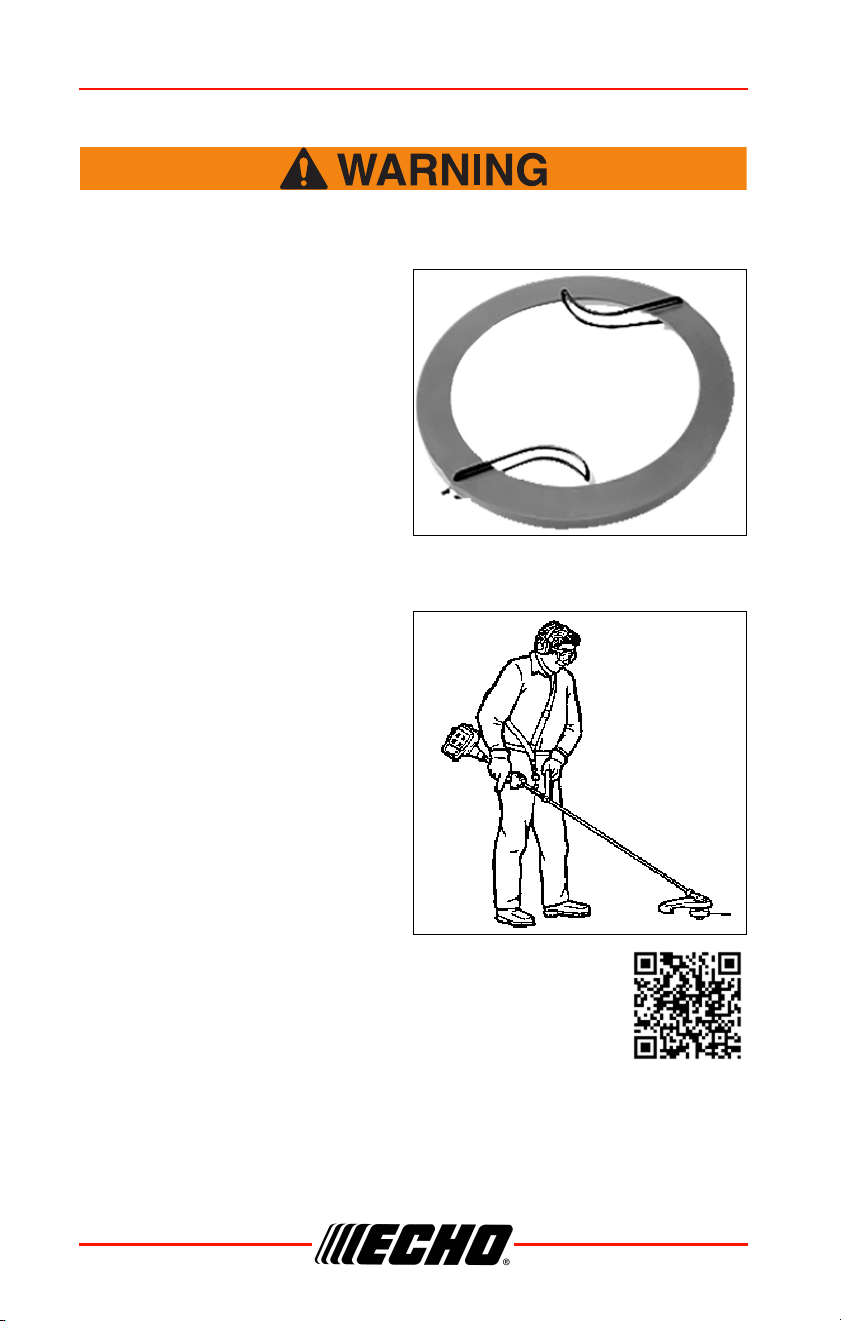

Always use extreme care when
carrying or handling the equipment
to avoid contact with the cutting
edges of the blade. Use the optional
blade cover (A) when unit is not in
use.
Keep blades in protective packaging
until ready to install. Store blades
safely after removal to prevent injury
from accidental contact.
Use blade protectors to protect
blade teeth during unit
transportation.
Use Shoulder/Waist Harness
Use of the shoulder/waist harness is
recommended for ALL Trimmer/
brushcutter use, not just blade
operation. The shoulder/waist
harness when used in a trimming
operation with nylon line head
suspends the trimmer from the
operator's shoulder and reduces
operator fatigue.
During blade operation, the same fatigue reduction is
achieved. Safety to the operator is also enhanced by
reducing the possibility of blade contact with the operator's
hands and feet by restricting trimmer movement.
Make sure the warning sign on the back of the shoulder
harness can be read easily.
Note: In case of Emergency, disconnect the trimmer from the
harness.
SRM-2620 OPERATION
X7502341701 21
© 3/2018 ECHO Inc.
ENGLISH

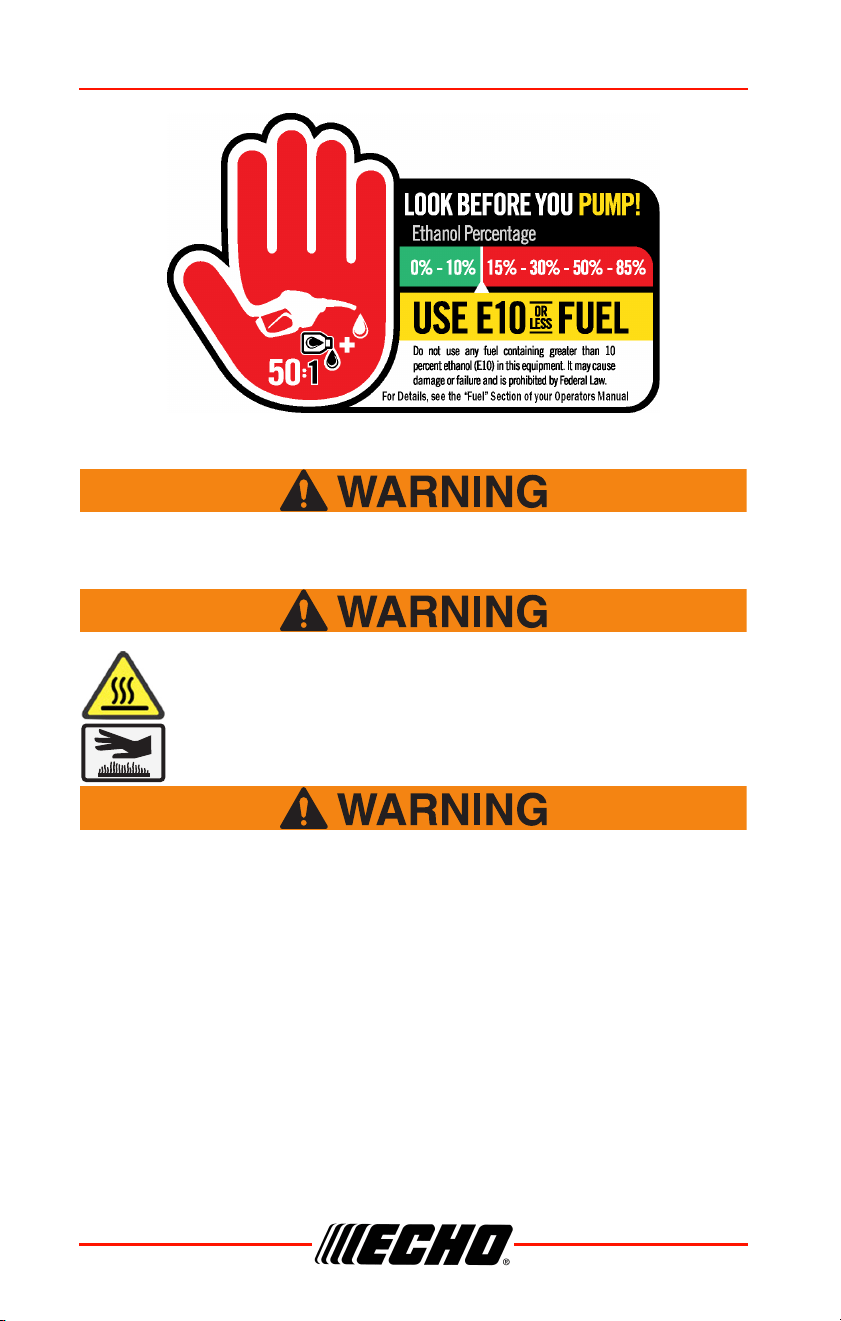

Fuel
Diesel fuels and alternative fuels, such as E-15 (15% ethanol),
E -85 (85% ethanol) or any fuels not meeting ECHO
requirements are NOT approved for use in ECHO 2-stroke
gasoline engines. Use of diesel or alternative fuels may cause
performance problems, loss of power, overheating, fuel vapor
lock, and unintended machine operation, including, but not
limited to, improper clutch engagement. Diesel or alternative
fuels may also cause premature deterioration of fuel lines,
gaskets, carburetors and other engine components.
Fuel Requirements
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to
be good quality. Gasoline may contain up to 10% Ethanol (grain alcohol) or
15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol
(wood alcohol) is NOT approved. ECHO Red Armor
™
Fuel (Power Fuel
™
) is
93 octane, ethanol-free fuel premixed with ECHO Red Armor
™
engine oil at
50:1 ratio. Use of ECHO Red Armor
™
Fuel (Power Fuel
™
) is recommended
to extend engine life in all air-cooled 2-stroke and 2/4-stroke hybrid engines.
Two Stroke Oil - A two-stroke engine oil meeting ISO-L-EGD (ISO/CD
13738) and J.A.S.O. FD Standards must be used. ECHO brand 2-stroke oils
meet these standards. Engine problems due to inadequate lubrication
caused by failure to use an ISO-L-EGD (ISO/CD 13738) and J.A.S.O.
M345-FD
certified oil, such as ECHO brand 2-stroke oils, will void the two-
stroke engine warranty.
2-Stroke engine oil contains petroleum distillates and other
additives that may be harmful if swallowed. Heated oil can
release vapors that can cause flash fire, or ignite with explosive
force. Read and follow the oil manufacturer’s instructions, and
observe all safety warnings and precautions for handling
flammable liquids. For more detailed safety and first aid
information, visit www.echo-usa.com for a copy of the Material
Safety Data Sheet.
◆ KEEP OUT OF REACH OF CHILDREN.
◆ If swallowed, do not induce vomiting. CALL PHYSICIAN OR
A POISON CONTROL CENTER IMMEDIATELY.
◆ WEAR SAFETY GLASSES when mixing or handling.
OPERATION SRM-2620
22 X7502341701
© 3/2018 ECHO Inc.
◆ AVOID repeated or prolonged skin contact
◆ AVOID inhaling oil mists or vapors.
ECHO brand 2-stroke oils may be mixed at 50:1 ratio for application
in all ECHO engines sold in the past regardless of ratio specified in
those manuals.
Handling Fuel
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
◆ Use an approved fuel container. Mark fuel containers as
containing 2-stroke mixture fuel.
◆ DO NOT smoke near fuel.
◆ DO NOT allow flames or sparks near fuel.
◆ Fuel tanks/cans may be under pressure. Always loosen
fuel caps slowly allowing pressure to equalize.
◆ NEVER refuel a unit when the engine is HOT or RUNNING!
◆ DO NOT fill fuel tanks indoors. ALWAYS fill fuel tanks
outdoors over bare ground.
◆ DO NOT overfill fuel tank. Wipe up spills immediately.
◆ Securely tighten fuel tank cap and close fuel container
after refueling.
◆ Inspect for fuel leakage. If fuel leakage is found, do not
start or operate unit until leakage is repaired.
◆ Move at least 3 m (10 ft.) from refueling location before
starting the engine.
Gasoline vapor is heavier than air, and can travel along the
ground to nearby sources of ignition such as electrical motors,
pilot lights, and hot or running engines. Vapors ignited by an
ignition source can flash back to the fuel container, resulting in
an explosion, fire, serious or fatal injuries, and extensive
property damage.
SRM-2620 OPERATION
X7502341701 23
© 3/2018 ECHO Inc.
ENGLISH
Mixing Instructions
1. Fill an approved fuel container
with half of the required
amount of gasoline.
2. Add the proper amount of
2-stroke oil to gasoline.
3. Close container and shake to
mix oil with gasoline.
4. Add remaining gasoline, close
fuel container, and remix.
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage.
• Empty the fuel tank prior to storing the unit. Return unused fuel to an
approved fuel storage container.
Storage - Fuel storage laws vary by locality. Contact your
local government for the laws affecting your area. As a
precaution, store fuel in an approved, airtight container.
Store in a well-ventilated, unoccupied building, away from
sparks and flames.
Stored fuel ages. Do not mix more fuel than you expect to use in 30
days, 90 days when a fuel stabilizer is added.
Stored two-stroke fuel may separate. ALWAYS shake fuel container
thoroughly before each use.
Fuel to Oil Mix – 50:1 Ratio
US Metric
Gas Oil Gas Oil
gal. fl.oz. L cc
12.65100
2 5.2 10 200
51325500
OPERATION SRM-2620
24 X7502341701
© 3/2018 ECHO Inc.
Used oil and gasoline, and soiled towels are hazardous waste
materials. Disposal laws vary by locality.

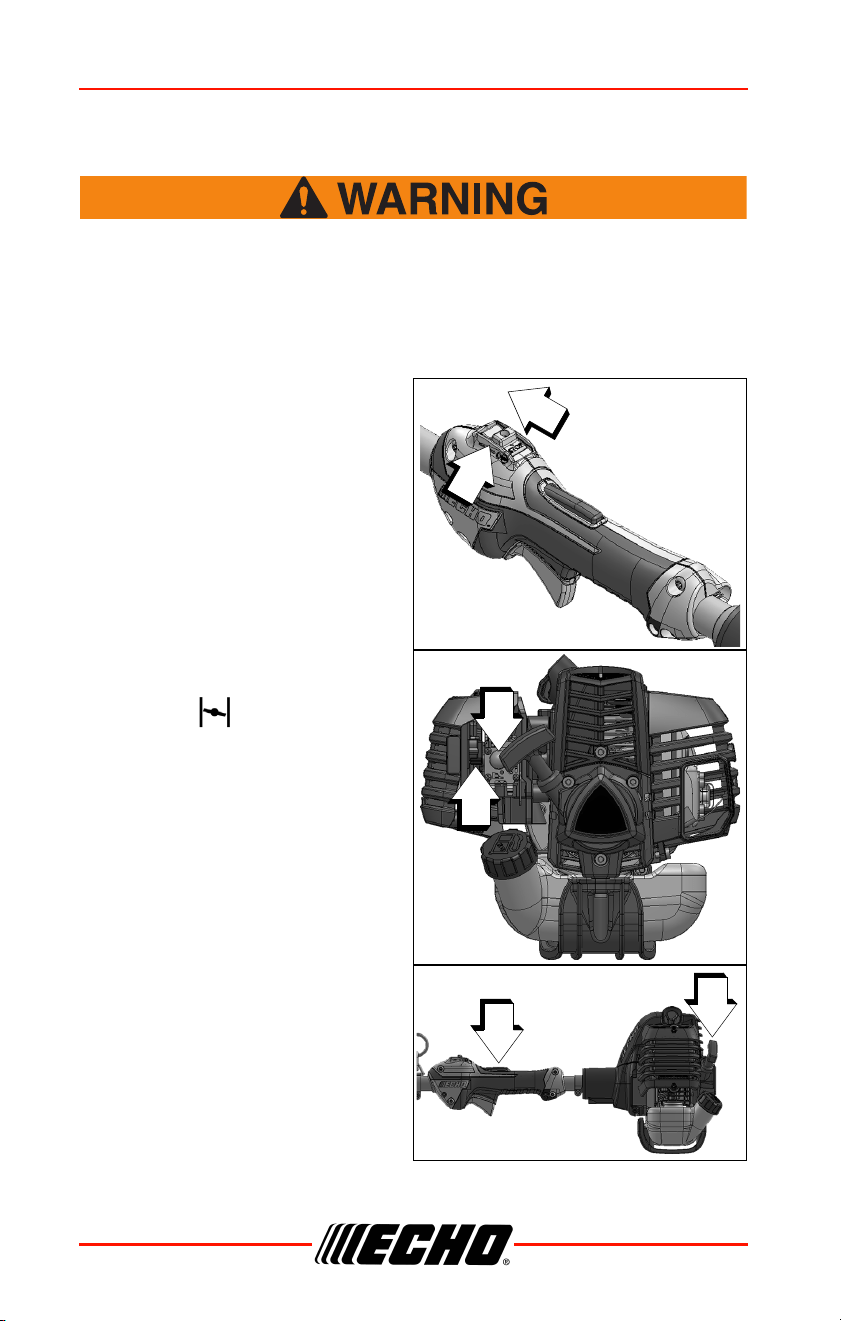

Starting Cold Engine
The attachment will operate immediately when the engine
starts, and could result in possible serious injury. Keep
movable parts of the attachment away from objects that could
become entangled or thrown, and surfaces that could cause
loss of control.

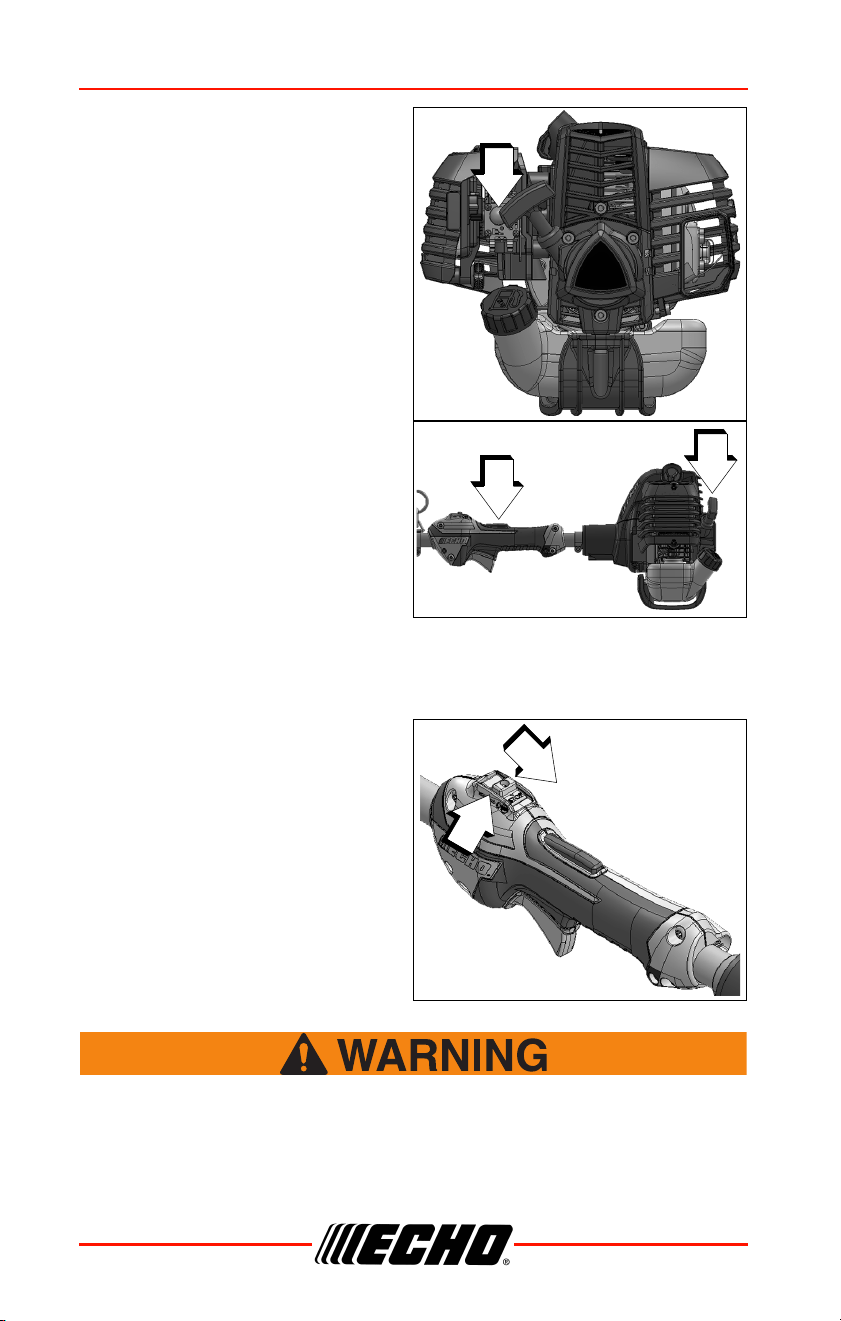

1. Stop Switch
Move stop switch button (A)
forward, away from the STOP
position.
2. Choke
Move choke lever (B) to COLD
START ( ) position.
3. Purge Bulb
Pump purge bulb (C) until fuel is
visible and flows freely in the
clear fuel tank return line. Pump
bulb an additional 4 or 5 times.
4. Recoil Starter
A
B
C
D
SRM-2620 OPERATION
X7502341701 25
© 3/2018 ECHO Inc.
ENGLISH
Lay the unit on a flat area and keep movable attachment parts clear of all
obstacles. Firmly grasp throttle handle and throttle trigger lockout with left
hand and fully depress throttle trigger to wide open position. Rapidly pull
recoil starter handle/rope (D) until engine fires (or maximum five [5] pulls).
5. Choke
After engine fires (or 5 pulls), move choke to the RUN ( ) (open)
position. Firmly grasp throttle handle and throttle trigger lockout with left
hand and fully depress throttle trigger to wide open position. Pull starter
handle/rope (D) until engine starts and runs. Release throttle trigger and
allow unit to warm up at idle for several minutes.
Note: If engine does not start with choke in “RUN” position after 5
pulls, repeat instructions 2 - 5.

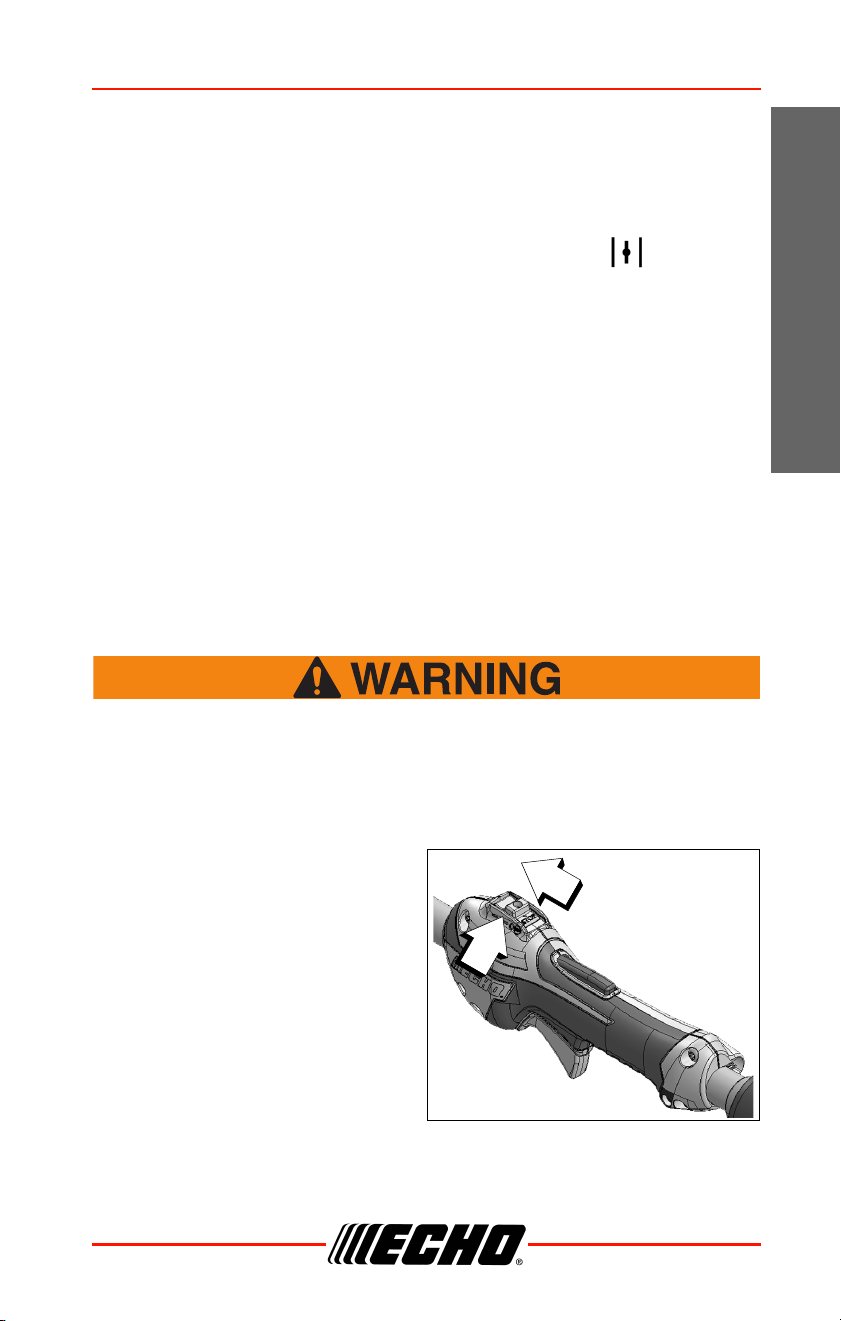

6. Throttle Trigger
After engine warm-up, grip throttle handle and support handle. Depress
the throttle trigger lockout, and gradually depress throttle trigger to
increase engine RPM to operating speed.
Starting Warm Engine
The starting procedure is the same as Cold Start except DO NOT close the
choke, and do not hold throttle trigger fully depressed.
The attachment should not move at idle, otherwise serious
personal injury may result.
Note: If attachment moves, readjust carburetor according to
“Carburetor Adjustment” instructions in this manual or see
your ECHO Dealer.
1. Stop Switch
Move stop switch button (A)
forward away from the STOP
position.
A
OPERATION SRM-2620
26 X7502341701
© 3/2018 ECHO Inc.
2. Purge Bulb
Pump purge bulb (B) until fuel is
visible in the “Clear” fuel return
line. Pump bulb an additional 4
or 5 times.
3. Recoil Starter
Lay the unit on a flat area and
keep movable attachment parts
clear of all obstacles. Firmly grip
throttle handle and throttle
trigger lockout with left hand.
Rapidly pull recoil starter
handle/rope (D) until engine
fires.
Note: If engine does not start after 5 pulls, use Cold Start
Procedure.
Stopping Engine
1. Throttle
Release throttle trigger and
allow engine to return to idle
before shutting off engine.
2. Stop Switch
Move stop switch button (A)
backward to STOP position.
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using unit
again.
B
D
A
SRM-2620 MAINTENANCE
X7502341701 27
© 3/2018 ECHO Inc.
ENGLISH
MAINTENANCE
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit. Allow unit to
cool before performing service. Wear gloves to protect hands
from sharp edges and hot surfaces.
Operating a poorly maintained unit can result in serious injuries
to operator or bystanders. Always follow all maintenance
instructions as written, otherwise serious personal injury may
result.
Your unit is designed to provide many hours of trouble free service. Regular
scheduled maintenance will help your unit achieve that goal. If you are
unsure or are not equipped with the necessary tools, we recommend that
you take your unit to a Servicing Dealer for maintenance. To help you decide
whether you want to DO-IT-YOURSELF or have the Dealer do it, each
maintenance task has been graded. If the task is not listed, see your Dealer
for repairs.
Skill Levels
Level 1 = Easy to do. Common tools may be required.
Level 2 = Moderate difficulty. Some specialized tools may be required.
Level 3 = See your dealer.
Click HERE or go to http://www.echo-usa.com/products/maintenance-kit
or
HERE https://www.shindaiwa-usa.com/you-can.aspx
MAINTENANCE SRM-2620
28 X7502341701
© 3/2018 ECHO Inc.
For information about maintenance kits.Maintenance Intervals
IMPORTANT NOTE - Time intervals shown are maximum. Actual use and
your experience will determine the frequency of required maintenance.
MAINTENANCE PROCEDURE NOTES:
1. Apply lithium based grease every 25 hours of use.
2. Apply lithium based grease every 50 hours of use.
3. Low evaporative fuel tanks DO NOT require regular maintenance to
maintain emission integrity.
*Replacement is recommended based on the finding of damage or wear
during inspection.
COMPONENT/SYSTEM
MAINTENANCE
PROCEDURE
SKILL
LEVEL
Daily or Before Use
Air Filter
Inspect/Clean*
1
Choke Shutter
Fuel System
Inspect
3
Cooling System
Inspect/Clean 2
Recoil Starter Rope
Inspect/Clean*
1
Screws/Nuts/Bolts
Inspect/Tighten/Replace*
Every Refuel
Fuel System
Inspect
3
1
3 Months
Air Filter
Replace*
1
Fuel Filter
Inspect*
Fuel Cap Gasket
Spark Plug
Inspect/Clean/Replace*
Muffler Spark Arrestor
2
Cylinder Exhaust Port
Inspect/Clean/De-carbon
Drive Shaft (Flex Cable Models)
Grease
1
Gear Housing
Grease
2
Yearly
Fuel Filter
Inspect/Replace*
1
Fuel Cap Gasket
Replace*
SRM-2620 MAINTENANCE
X7502341701 29
© 3/2018 ECHO Inc.
ENGLISH

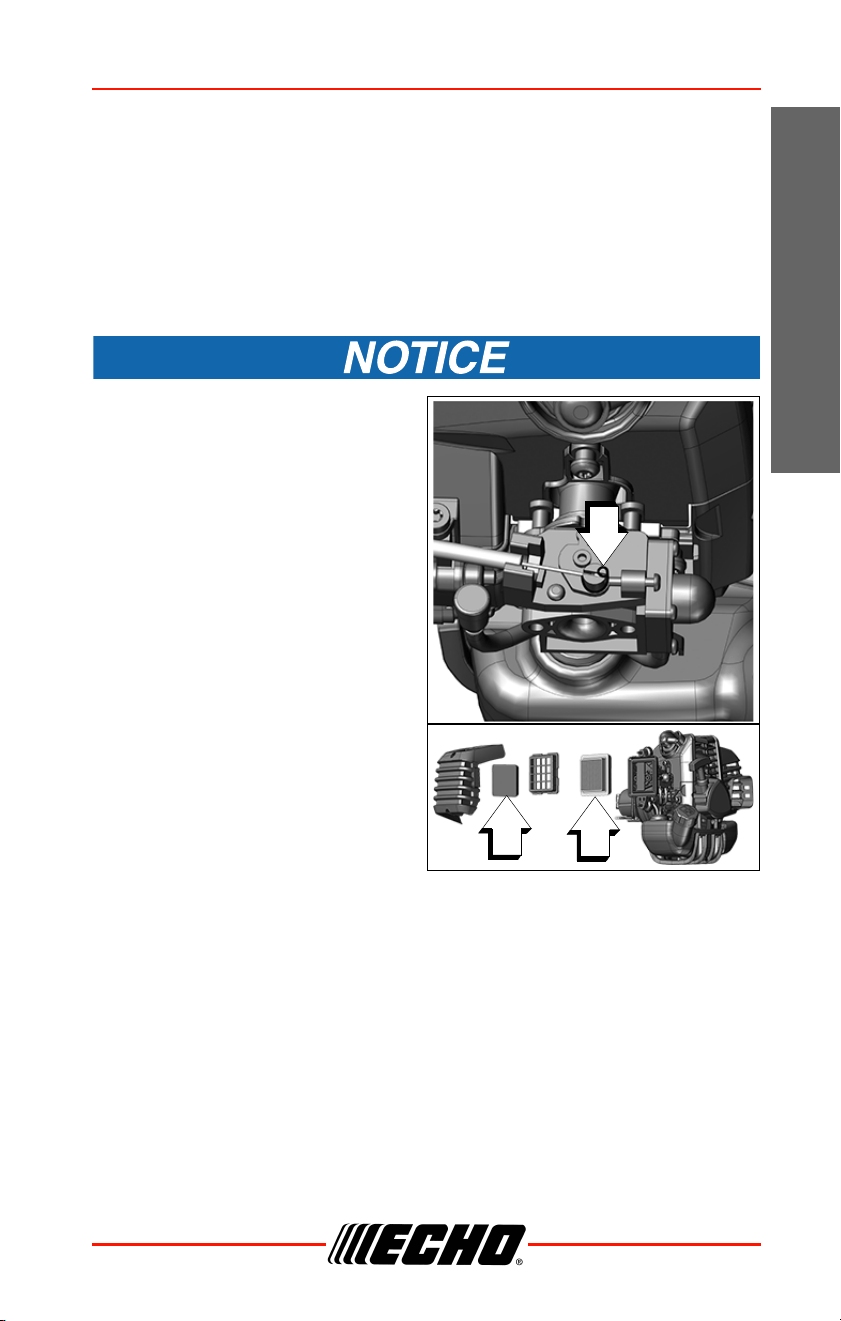

Air Filter
Level 1
Parts Required:Tune Up Kit.
1. Close choke (COLD START position). This prevents dirt from entering
the carburetor throat when the air filter is removed. Brush accumulated
dirt from air cleaner area.
2. Remove air filter cover. Brush dirt from inside cover.
Assure throttle wire retaining clip
(A) remains in place as shown
when removing or installing air
filter cover.
3. Remove foam pre-filter (B) and
air filter (C) and clean as
indicated below:
4. Foam Pre-filter.
• Clean foam filter in water/
detergent solution and rinse
with clean water.
• Wrap the filter in a clean, dry cloth and squeeze (do not wring) dry.
Allow to dry completely before reuse. Do not oil.
Air Filter
• Lightly brush debris from filter. Replace filter if it is damaged, fuel
soaked, very dirty, or the rubber sealing edges are deformed.
5. Assemble components in reverse order.
A
B
C
MAINTENANCE SRM-2620
30 X7502341701
© 3/2018 ECHO Inc.

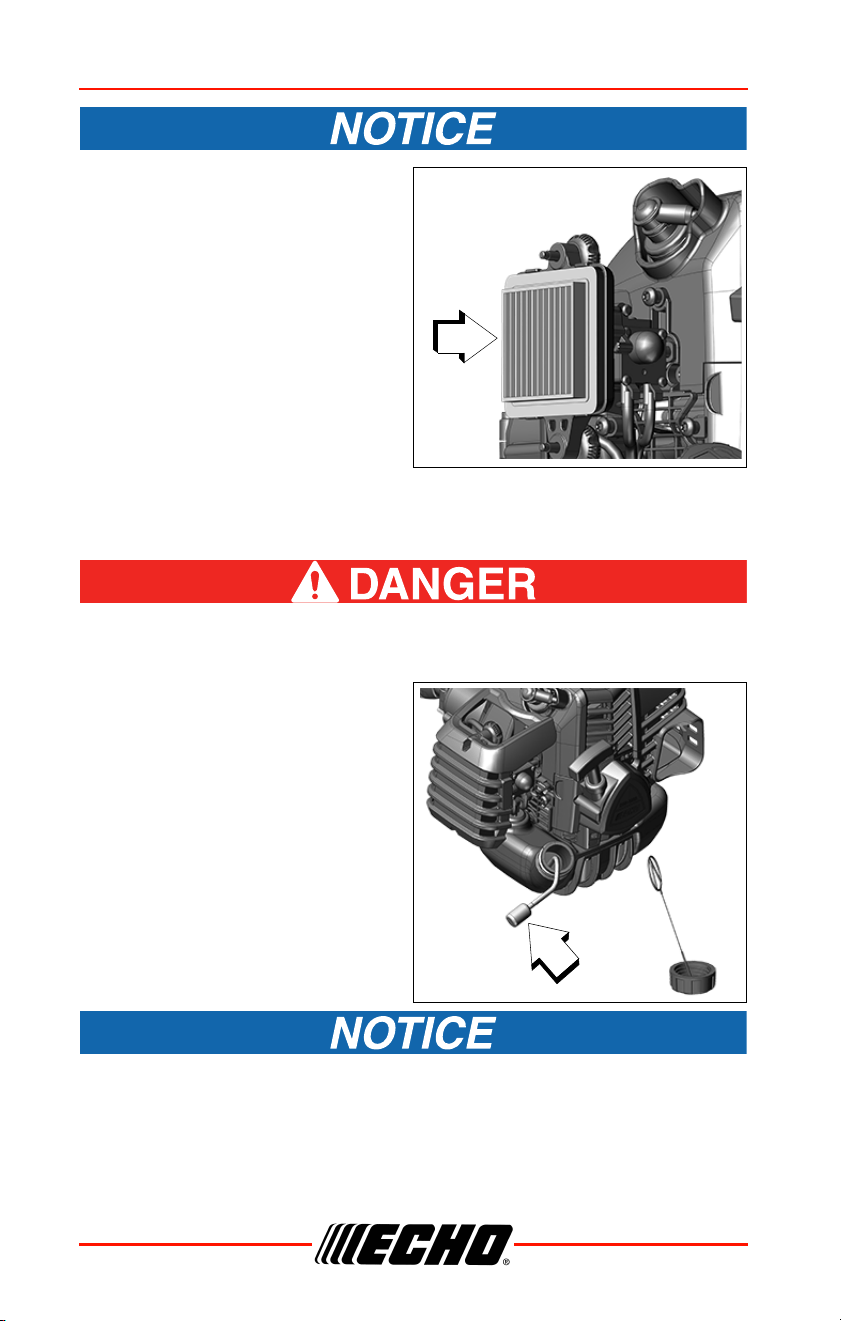

Assure air filter is assembled
with pleats oriented vertically.
Fuel Filter
Level 1.
Parts Required:Tune Up Kit.
Fuel is VERY flammable. Use extreme care when mixing, storing
or handling, or serious personal injury may result.
1. Use a clean rag to remove
loose dirt from around fuel cap
and empty fuel tank.
2. Pull the fuel filter from the fuel
tank.
Do not damage fuel line while removing fuel filter from tank.
3. Remove the filter from the line and install the new filter.
SRM-2620 MAINTENANCE
X7502341701 31
© 3/2018 ECHO Inc.
ENGLISH
Note: Federal EPA regulations require all model year 2012 and later
gasoline powered engines produced for sale in the United
States to be equipped with a special low permeation fuel
supply hose between the carburetor and fuel tank. When
servicing model year 2012 and later equipment, only fuel
supply hoses certified by EPA can be used to replace the
original equipment supply hose. Fines up to $37,500 may be
enforced for using an un-certified replacement part.
Spark Plug
Level 2.
Parts Required:Tune Up Kit.
Use only NGK CMR7H spark plug otherwise severe engine damage
may occur.
1. Remove spark plug and check
for fouling, worn and rounded
center electrode.
2. Clean the plug or replace with a
new one. DO NOT sand blast to
clean. Remaining sand will
damage engine.
3. Adjust spark plug gap by
bending outer electrode.
4. Tighten spark plug to 102-153 kgf•cm (89-133 in•lbf).
Cooling System
Level 2.
0.65 mm (0.026 in.)
MAINTENANCE SRM-2620
32 X7502341701
© 3/2018 ECHO Inc.

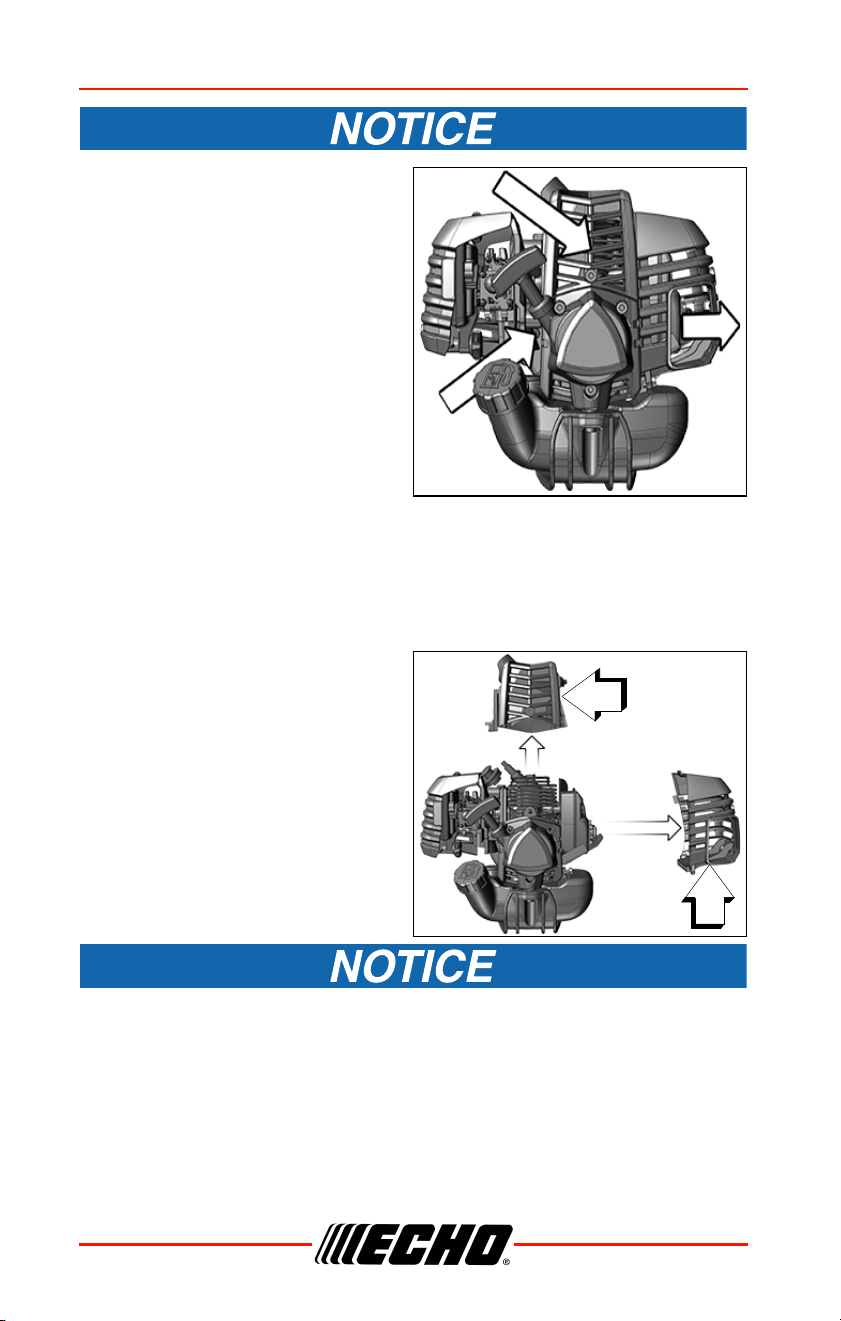

To maintain proper engine
operating temperatures, cooling
air must pass freely through the
cylinder fin area. This flow of air
carries combustion heat away
from the engine.
Overheating and engine seizure can
occur when:
• Air intakes are blocked,
preventing cooling air from
reaching the cylinder.
• Dust and grass build up on the
outside of the cylinder. This build
up insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance.” Any failure attributed to lack of
maintenance is not warranted.
1. Remove spark plug lead.
2. Remove muffler cover (A).
3. Remove engine cover (B).
DO NOT use a metal scraper to remove dirt from the cylinder fins.
4. Use brush to remove dirt from the cylinder fins.
A
B
SRM-2620 MAINTENANCE
X7502341701 33
© 3/2018 ECHO Inc.
ENGLISH

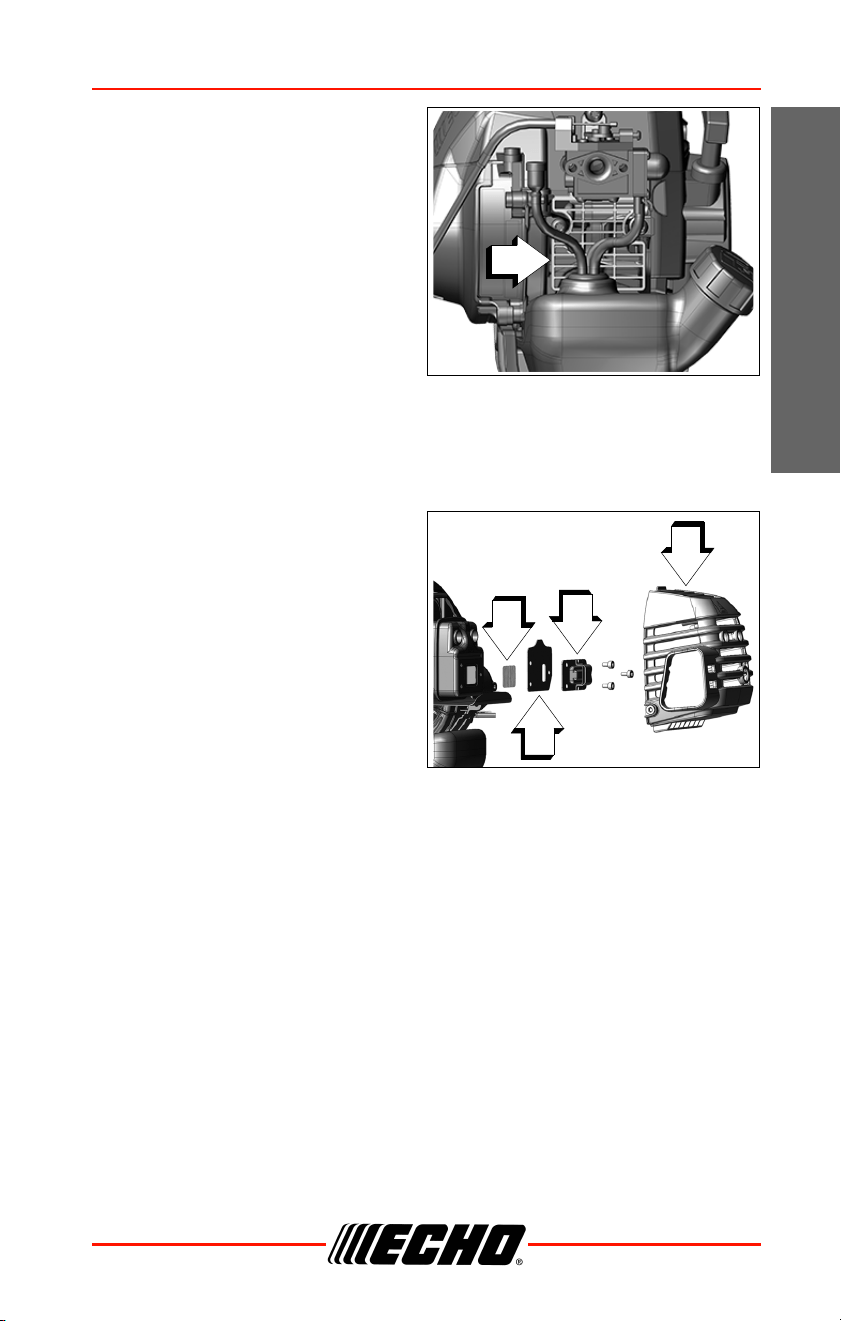

5. Remove grass and leaves from
the grid (C) between the recoil
starter and fuel tank.
6. Assemble components in
reverse order.
Exhaust System
Spark Arrestor Screen
Level 2.
Parts Required: Spark Arrestor Screen, Gasket
1. Remove spark plug lead.
2. Remove muffler cover (A).
3. Place piston at Top Dead
Center (TDC) to prevent carbon
or dirt from entering cylinder.
4. Remove spark arrestor screen
cover (B), gasket (C), and
screen (D), from muffler body.
5. Clean carbon deposits from
muffler components.
Note: When cleaning carbon
deposit, be careful not to damage the catalytic element inside
muffler.
6. Replace screen if it is cracked, plugged, or has holes burned through.
7. Assemble components in reverse order.
Exhaust Port Cleaning
Level 2.
Parts Required: Heat Shield (as needed)
C
A
B
C
D
MAINTENANCE SRM-2620
34 X7502341701
© 3/2018 ECHO Inc.
1. Remove spark plug lead from
spark plug, and remove muffler
cover.
2. Place piston at top dead center.
Remove muffler (A) and heat
shield (B).
3. Use a wood or plastic scraping
tool to clean deposits from
cylinder exhaust port (C).
Never use a metal tool to scrape carbon from the exhaust port. Do
not scratch the cylinder or piston when cleaning the exhaust port. Do
not allow carbon particles to enter the cylinder.
4. Inspect heat shield, and replace if damaged.
5. Install heat shield and muffler.
6. Tighten muffler mounting bolts (or nuts) to 90-110 kgf•cm (80-95
in•lbf).
7. Install muffler cover and attach spark plug lead.
8. Start engine, and warm to operating temperature.
9. Stop engine, and re-tighten mounting bolts (or nuts) to specifications.
Carburetor Adjustment
Level 2.
When carburetor adjustment is completed, the cutting
attachment should not move at idle, otherwise serious personal
injury may result.
B
A
C
SRM-2620 MAINTENANCE
X7502341701 35
© 3/2018 ECHO Inc.
ENGLISH

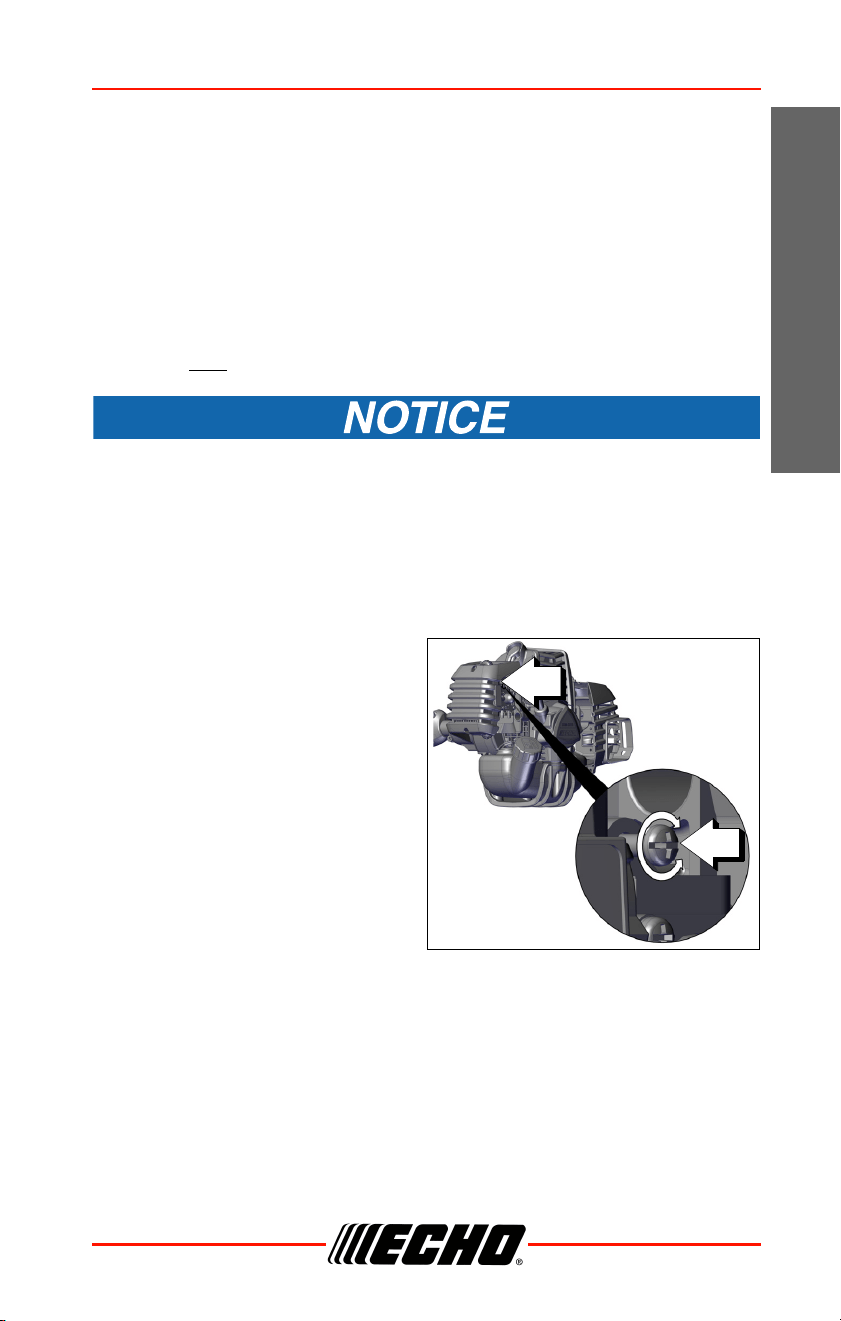

Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Operation
This engine has been factory adjusted to maintain satisfactory starting and
durability performance up to 330 m (1100 ft.) above sea level (ASL) (96.0
kPa). To maintain proper engine operation above 330 m (1100 ft.) ASL the
carburetor may
need to be adjusted by an authorized service dealer.
If the engine is adjusted for operation above 330 m (1100 ft.) ASL, the
carburetor must be re-adjusted when operating the engine below
330 m (1100 ft.) ASL, otherwise severe engine damage may result.
Note: Every unit is run at the factory and the carburetor is set in
compliance with emission regulations. Carburetor
adjustments, other than idle speed, must be performed by an
authorized dealer.
1. Check idle speed and reset if
necessary. If a tachometer is
available, idle speed screw (A)
should be set to the
specifications found on
“Specifications” page of this
manual. Turn idle screw (A)
clockwise to increase idle
speed; counterclockwise to
decrease idle speed.
A
A
MAINTENANCE SRM-2620
36 X7502341701
© 3/2018 ECHO Inc.
Lubrication
Level 1.
Gear Housing
1. Clean all loose debris from
gear case.
2. Remove plug (A) and check
level of grease.
3. Add grease if necessary. DO
NOT over-fill.
Drive Shaft
1. Loosen screw (B) and
remove locating screw (C).
Pull gear case and shield
from drive shaft housing.
2. Pull flexible cable from the drive shaft housing, wipe clean and re-coat
with a thin coating [15 ml (1/2 oz.)] of grease.
3. Slide the flexible cable back in the drive housing. DO NOT get dirt on
the flex cable.
4. Install the gear housing and shield assembly.
Parts Required: Lithium Based Grease.
A
C
B
SRM-2620 MAINTENANCE
X7502341701 37
© 3/2018 ECHO Inc.
ENGLISH
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
®
head disassembly is not
necessary. However, if circumstances require disassembly,
follow these instructions.
1. Press top of locking tabs (A) on
both sides of Speed Feed
®
head to release cover (B) from
eyelet carrier (C).
2. Remove cover from eyelet
carrier.
Nylon Line Replacement
Wear gloves or personal injury may result:
◆ Cutoff knife is sharp.
◆ Gearcase and surrounding area may be hot.
1. Cut one piece of line to
recommended length.
2.0 mm (0.080 in.) diameter
6 m (20 ft.).
2.4 mm (0.095 in.) diameter
6 m (20 ft.).
2. Align arrows on top of knob with
openings in eyelets.
B
A
C
MAINTENANCE SRM-2620
38 X7502341701
© 3/2018 ECHO Inc.
3. Insert one end of trimmer line
into an eyelet, and push line
equal distance through trimmer
head.
4. Hold trimmer head while
turning knob clockwise to wind
line onto spool until about 13
cm (5 in.) of each line remains
exposed.
Trimmer head is now fully loaded
and ready for operation.
When the wear indicators
located at the bottom of the
Speed-Feed® head are worn
smooth, or if holes appear,
replacement of the cover or the
entire Speed-Feed® head is
required.
SRM-2620 MAINTENANCE
X7502341701 39
© 3/2018 ECHO Inc.
ENGLISH
Sharpening Metal Blades
Several styles of metal blades are
approved for use on the Brush
Cutter. The 8-tooth blade can be
sharpened during normal
maintenance. The clearing blade
and 80-tooth blade require
professional service.

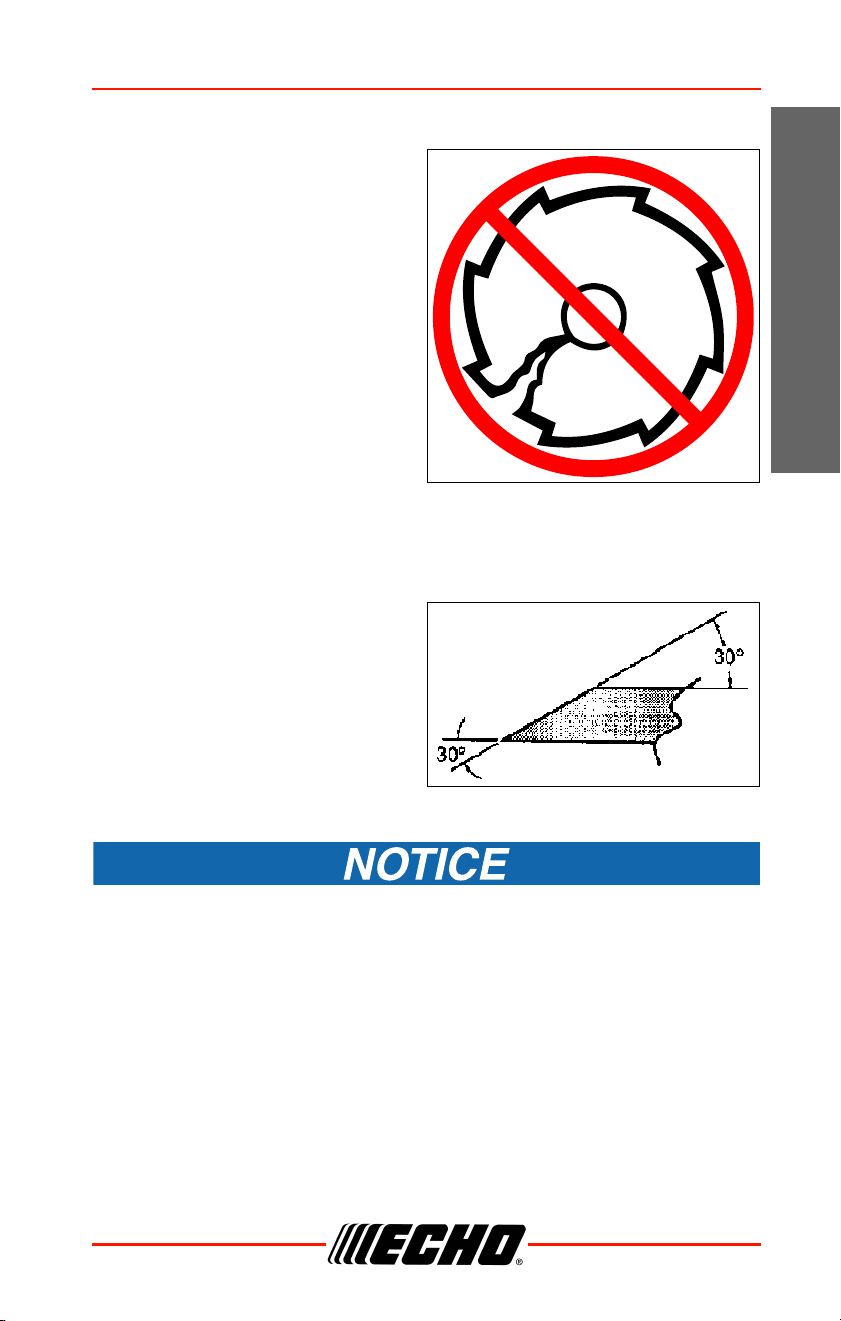

Before sharpening, CLOSELY
inspect blade for cracks (look at the
bottom of each tooth and the center
mounting hole closely), missing
teeth and bending. If ANY of these
problems are discovered, replace
the blade.
When sharpening a blade, always
remove the same amount of materials from each tooth to maintain balance.
A blade that is not balanced will cause unsafe handling due to vibration and
can result in blade failure.
1. File each tooth at a 30° angle a
specific number of times, e.g.,
four strokes per tooth. Work
your way around the blade until
all teeth are sharp.
2. DO NOT file the ‘gullet’ (radius)
of the tooth with the flat file. The
radius must remain. A sharp
corner will lead to a crack and
blade failure.
If an electric grinder is used, use care not to overheat teeth, do not
allow tips/tooth to glow red or turn blue. DO NOT place blade in
cooling water. This will change the temper of the blade and could
result in blade failure.
TROUBLESHOOTING SRM-2620
40 X7502341701
© 3/2018 ECHO Inc.
3. After sharpening teeth, check
each tooth radius for evidence
of a square (sharp) corner. Use
the round (rat tail) file to renew
the radius.
TROUBLESHOOTING
Fuel vapors are extremely flammable and may cause fire and/or
explosion. Never test for ignition spark by grounding spark plug
near cylinder plug hole, otherwise serious personal injury may
result.
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
Engine
starts
hard
or Engine
does not
start
Fuel at
carburetor
No fuel at
carburetor
Fuel strainer or
fuel line
obstructed
Clean or replace
See your dealer
Engine
starts
hard
or
Engine
does not
start
Fuel at
cylinder
No fuel at
cylinder
Carburetor See your dealer
Muffler wet
with fuel
Fuel mixture
too rich
OPEN choke
Clean or replace
air filter
Adjust carburetor
See your dealer
Spark at
end of plug
wire
No spark
Stop switch
OFF - Electrical
problem - Inter-
lock switch
Turn switch to ON
See your dealer
Spark at
plug
Incorrect gap -
Covered with
carbon - Fouled
with fuel - Plug
defective
Adjust to 0.65mm
(0.026 in.)
Clean or replace
plug
SRM-2620 STORAGE
X7502341701 41
© 3/2018 ECHO Inc.
ENGLISH
STORAGE
During operation the muffler or catalytic muffler and
surrounding cover become hot. Always keep exhaust area clear
of flammable debris during transportation or when storing,
otherwise serious property damage or personal injury may
result.
Long Term Storage (Over 30 Days)
Do not store your unit for a prolonged period of time (30 days or longer)
without performing protective storage maintenance which includes the
following:
1. Store unit in a dry, dust free place, out of the reach of children.
Do not store in enclosure where fuel fumes may accumulate or
reach an open flame or spark.
Engine
runs, but
dies
or
Engine
does not
acceler-
ate
properly
Air filter Air filter dirty Normal wear Clean or replace
Fuel filter Fuel filter dirty
Contaminants
or residue in
fuel
Replace filter or
replace fuel
Fuel vent
Fuel vent
plugged
Contaminated
fuel
Clean or replace
Spark plug
Plug dirty or
worn
Normal wear
Clean and adjust
or replace
Carburetor
Improper
adjustment
Vibration Adjust
Cooling
system
Cooling
system dirty
or plugged
Extended oper-
ation in dirty or
dusty locations
Clean
Spark arres-
tor screen
Spark arres-
tor screen
plugged
Normal wear Replace
Engine
does not
crank
N/A
Internal engine
problem
See your dealer
ENGINE PROBLEM TROUBLESHOOTING CHART
Problem Check Status Cause Remedy
SPECIFICATIONS SRM-2620
42 X7502341701
© 3/2018 ECHO Inc.
2. Place the stop switch in the “OFF” position.
3. Remove accumulation of grease, oil, dirt and debris from exterior of
unit.
4. Perform all periodic lubrication and services that are required.
5. Tighten all the screws and nuts.
6. Drain fuel tank completely. Press purge bulb 6-7 times to remove
remaining fuel from carburetor then drain the tank again. Close choke,
start and run the engine until it stops due to lack of fuel.
7. Allow engine to cool. Remove the spark plug lead from the spark plug.
Remove the spark plug. Pour 7 cc (0.25 oz.) of fresh, clean, two-stroke
engine oil into the cylinder through the spark plug hole.
8. Pull the recoil starter handle 2-3 times to distribute the oil inside the
engine.
9. Observe the piston location through the spark plug hole. Pull the recoil
handle slowly until the piston reaches the top of its travel and leave it
there.
10. Install the spark plug. Connect the spark plug lead to the spark plug.
SPECIFICATIONS
MODEL SRM-2620
Length w/o cutter head 1799 mm (70.8 in.)
Width 273mm (10.7 in.)
Height 336mm (13.2 in.)
Weight (dry) w/o cutter
head
5.1 kg (11.2 lb.)
Engine Type
Air cooled, two-stroke, single cylinder gasoline
engine
Bore 34 mm (1.34 in.)
Stroke 28 mm (1.10 in.)
Displacement 25.4cc (1.55 cu. in.)
Exhaust
Spark arrestor muffler or spark arrestor muffler
with catalyst
Carburetor Diaphragm w/purge pump
Ignition System
Flywheel magneto, capacitor discharge
ignition type
Spark Plug NGKCMR7H Gap 0.6 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
SRM-2620 SPECIFICATIONS
X7502341701 43
© 3/2018 ECHO Inc.
ENGLISH
Fuel/Oil Ratio
50 : 1 Power Blend X
TM
or ECHO Red Armor
®
ISO-L-EGD (ISO/CD 13738) and J.A.S.O.
M345- FD, two-stroke, air-cooled engine oil.
Gasoline
Use 89 Octane unleaded. Do not use fuel
containing methyl alcohol, more than 10%
ethyl alcohol or 15% MTBE. Do not use
alternative fuels such as E15 or E85.
Oil
Power Blend X
TM
or ECHO Red Armor
®
Premium Universal 2-Stroke Oil
Fuel Tank Capacity 0.61 L (20.6 US fl. oz.)
Starter System Automatic Rewind Starter
Clutch Centrifugal Type
Vibration Isolated System
Rubber cushion on engine mount (heavy duty).
Rubber grip on front handle.
Operating Rod 25.0 mm aluminum Tube
Drive Shaft 6.15 mm flexible shaft (.24 in)
Gear Case Ratio 1.62 Reduction
Rotating Direction Counterclockwise; viewed from top
Cutter Head
Speed Feed
®
400 LH Nylon line head, Line
capacity 6.0 m (20 ft.)
Handle Front - loop, Rear handle
Shoulder Harness Optional
Idle Speed 3,000 RPM
Clutch Engagement
Speed
4,100 RPM
Wide Open Throttle
Speed (W.O.T.)
10,300 RPM
MODEL SRM-2620
PRODUCT REGISTRATION SRM-2620
44 X7502341701
© 3/2018 ECHO Inc.
PRODUCT REGISTRATION
Thank you for choosing ECHO Power Equipment
Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to
register your new product on-line. It's FAST and EASY! NOTE: your
information will never be sold or misused by ECHO, Inc. Registering your
purchase enables us to contact you in the unlikely event of a service update
or product recall, and verifies your ownership for warranty consideration.
If you do not have access to the Internet, you can complete the form below
and mail to:
ECHO Inc., Product Registration, PO Box 1139, Lake Zurich IL 60047.
