User Manual
Outdoor Fireplace
Model No: RS-R43001
Item No:46R43-BLACK
2
TABLE OF CONTENTS
•
Table of Contents......................................................................................2
• Warning and Cautions.............................................................................. 3-5
• Tools and Parts
...........................................................................................
6-9
• Assembly.......................................................................................10-11
• Lighting Operation
..................................................................................
12-13
• Maintenance and Storage
....................................................................
14-15
•
Troubleshooting.......................................................................................... 16
REMINDER
BEFORE ASSEMBLY
Verify that all parts are included with your gas fire pit BEFORE you begin assembly by
checking the Parts and Hardware List. For your convenience, some parts may be pre-
assembled or attached to heater components.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until
unit is completely assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference - It contains important instruction and
procedures for safety and maintenance.
3
WARNING
Do not try to light this appliance
without reading the "LIGHTING"
instructions section of this
manual.
Do not store or use gasoline or
other flammable liquids or vapors
in the vicinity of this or any other
appliance. An LP cylinder not
connected for use must not be
stored in the vicinity of this or
any other appliance. Failure to
strictly follow the information in
this manual may result in a fire or
explosion, causing property
damage, personal injury, or death.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause property damage,
injury or death. Read the
installation, operation and
maintenance instructions
thoroughly before installing or
servicing this gas appliance.
WARNING
FOR OUTDOOR USE ONLY!
WARNING: FUELS USED IN
LIQUEFIED PROPANE GAS APPLIANCES,
AND THE PRODUCTS OF COMBUSTION
OF SUCH FUELS, CAN EXPOSE YOU TO
CHEMICALS INCLUDING BENZENE,
WHICH IS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER AND
CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. For more
information go to:
www.P65Warnings.ca.gov.
Read the instructions before use. This appliance must be installed in accordance
with enforced regulations and the following instructions.
CAUTION
Installer: Leave the manual with
the user for future use.
Consumer: Please keep this
manual for future
reference.
DANGER
IF YOU SMELL GAS:
•
Shut off gas to the appliance.
•
Extinguish any open flame.
•
If odor continues, keep away
from the appliance and
immediately call your gas supplier
or fire department.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide, which has no
odor. Using it in an enclosed
space can cause injury or death.
Never use this appliance in an
enclosed space such as a
camper, tent, or building.
WARNING
Never leave the fire pit unattended
when it is hot or in use.
Keep out of reach of children.
WARNINGS AND CAUTIONS
4

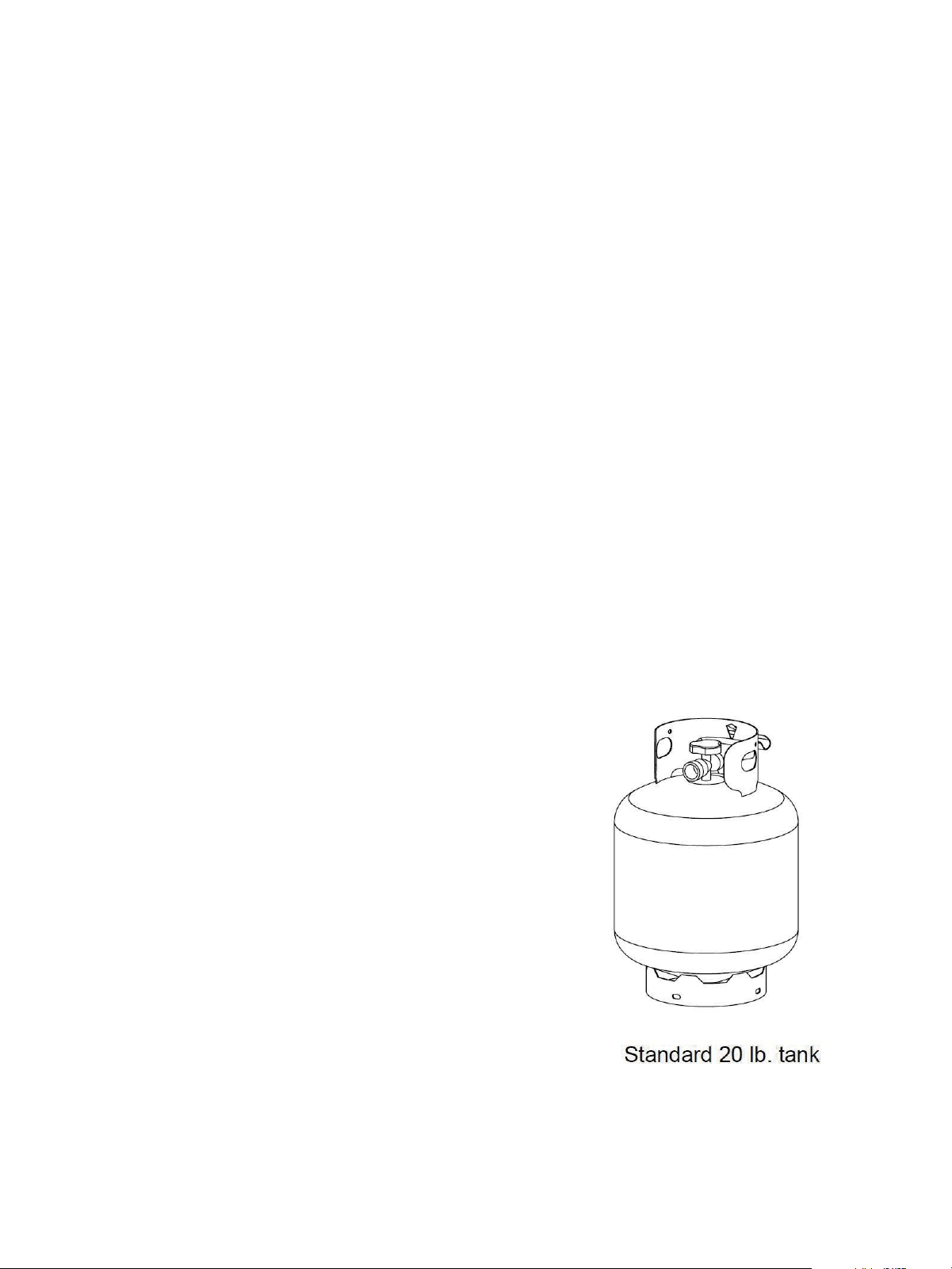

You must provide propane gas and a propane cylinder. Use a standard 20 lb.
propane
cylinder only.
Use this appliance only with a propane vapor withdrawal supply system. See Chapter
5 of the Standard for Storage and Handling of Liquefied Petroleum Gas, ANSI/NFPA
58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with
National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be
checked byyour cylinder supplier. Never use a propane cylinder with a damaged
valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the
U.S. Department of Transportation (D.O.T) Specifications for LP-Gas Cylinders
,
or the
standard for Cylinders,Spheres and Tubes for Transportation of Dangerous Good
andCommission, CAN/CSA -8339,as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device
compatible with the connection for the appliance.
The cylinder used must include a collar to
protect the cylinder valve.
The LP-gas supply cylinder must be
providedwith a listed overfill protection
device (OPD).
Do not store a spare LP Gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA
No.791 QCC connection.
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use.
Other types of caps or plugs may result in
leakage of propane.
Note: Gas supply pressure: 25 to 250 PSI.
5
PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
The appliance is not for use with solid fuels.
The installation must conform with local
codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI
Z223. 1/NFPA 54, NFPA58 Natural Gas and
Propane Installation Code,
CSA B149.1, or Propane Storage and
Handling CODE, B149.2.
The appliance, when installed, must be
electrically grounded in accordance with
local codes or, in the absence of local
codes, with the National Electrical Code,
ANSI/ NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Before use, check for damaged parts such
as hoses, regulators, pilot, or burner.
Inspect the fuel supply connection for
signs of leakage (including the hose for LP
models) before each use of the appliance.
All leak tests should be done with a soapy
solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised
when they are in the area of the appliance.
Any guard or other protective device
removed for servicing the appliance
must be replaced prior to operating
the appliance.
Installation and repair should be done by
a qualified service person. The appliance
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment, burners, and circulating air
passageways of the appliance be kept
clean.
Keep the appliance area clear and free
from combustible materials, gasoline
and other flammable vapors and
liquids.
DO NOT OBSTRUCT the flow of
combustion and ventilation air.
Keep the ventilation opening(s) of the
cylinder enclosure free and clear from
debris.
The appliance shall be used only in a
well-ventilated space and shall not
be used in a building, garage or any
other enclosed area.
An appliance may be installed with
shelter no more inclusive than: With
walls on all sides，but with no
overhead cover.
Clothing or other flammable materials should
Within a partial enclosure which includes
not be hung from the appliance, or placed
on or near the appliance.
an overhead cover and no more than two
side walls, these side walls may be Parallel, as
in a breezeway, or at right angles to each
other.
6
W

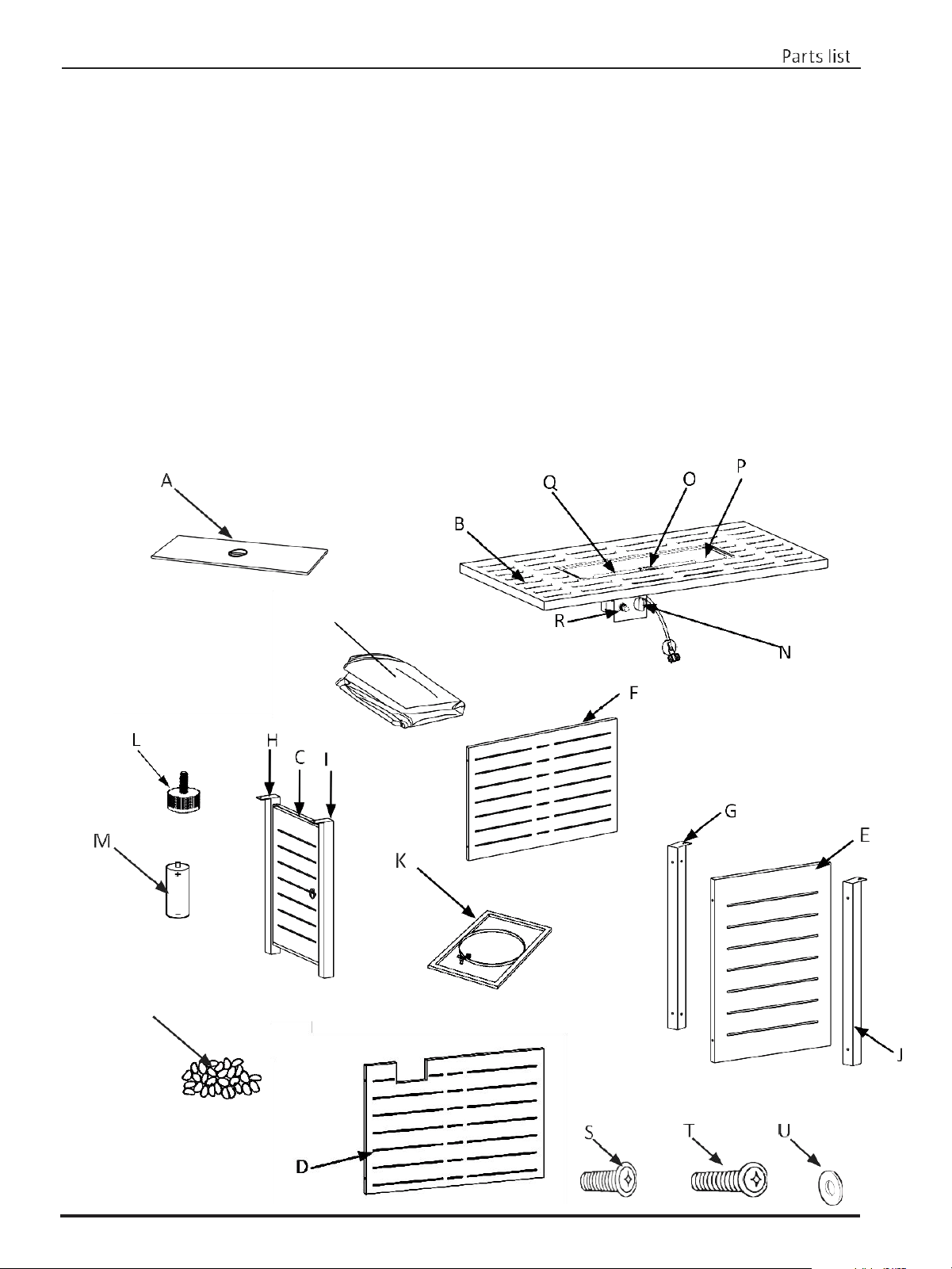

Main Parts
W
V
A. Table lid
B. Table top
C. Door
D. Front panel
E. Side panel
F. Back panel
G. Right back leg
H. Left back leg
I. Left front leg
J. Right front leg
K. Metal stand
L. Foot pad (*4)
M. Battery (AAA)
N. Control knob (preassembled)
O. Firepit glass wind guard (preassembled)
P. Fire bowl (preassembled)
Q. Burner (preassembled)
R. Electronic igniter (preassembled)
S. M6 × 16 screw (*4)
T. M6 × 25 screw (*16)
U. Washer (*20)
V. Glass stones
W. Protective cover
7

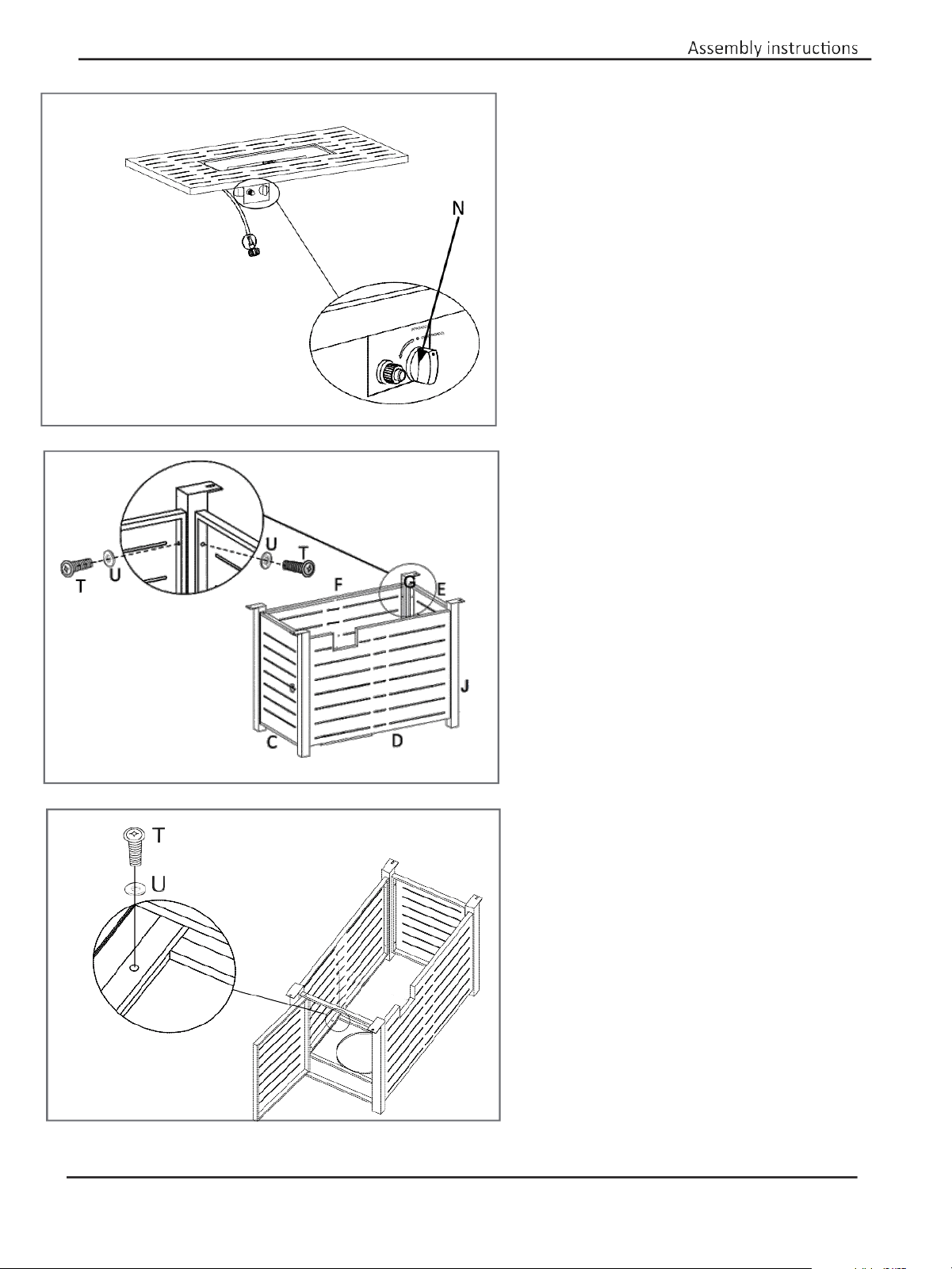

Checking the gas control
1. Check that the control knob (N) for the gas
supply system is turned to the “OFF” position
before starting any assembly.
Attaching the back, front and side
panels.
2. Attach the back panel(F), side panel(E) and
front panel(D) to the parts(C) and legs(G,J)
with 12 pcs M6*25 screws(T) and 12 pcs
washers(U).
Attaching the metal stand
3. Attach the back panel(F) and front panel(D)
to the metal stand(K) with 4 pcs M6*25
screws(T) and 4 pcs washers(U).
F
K
D
8

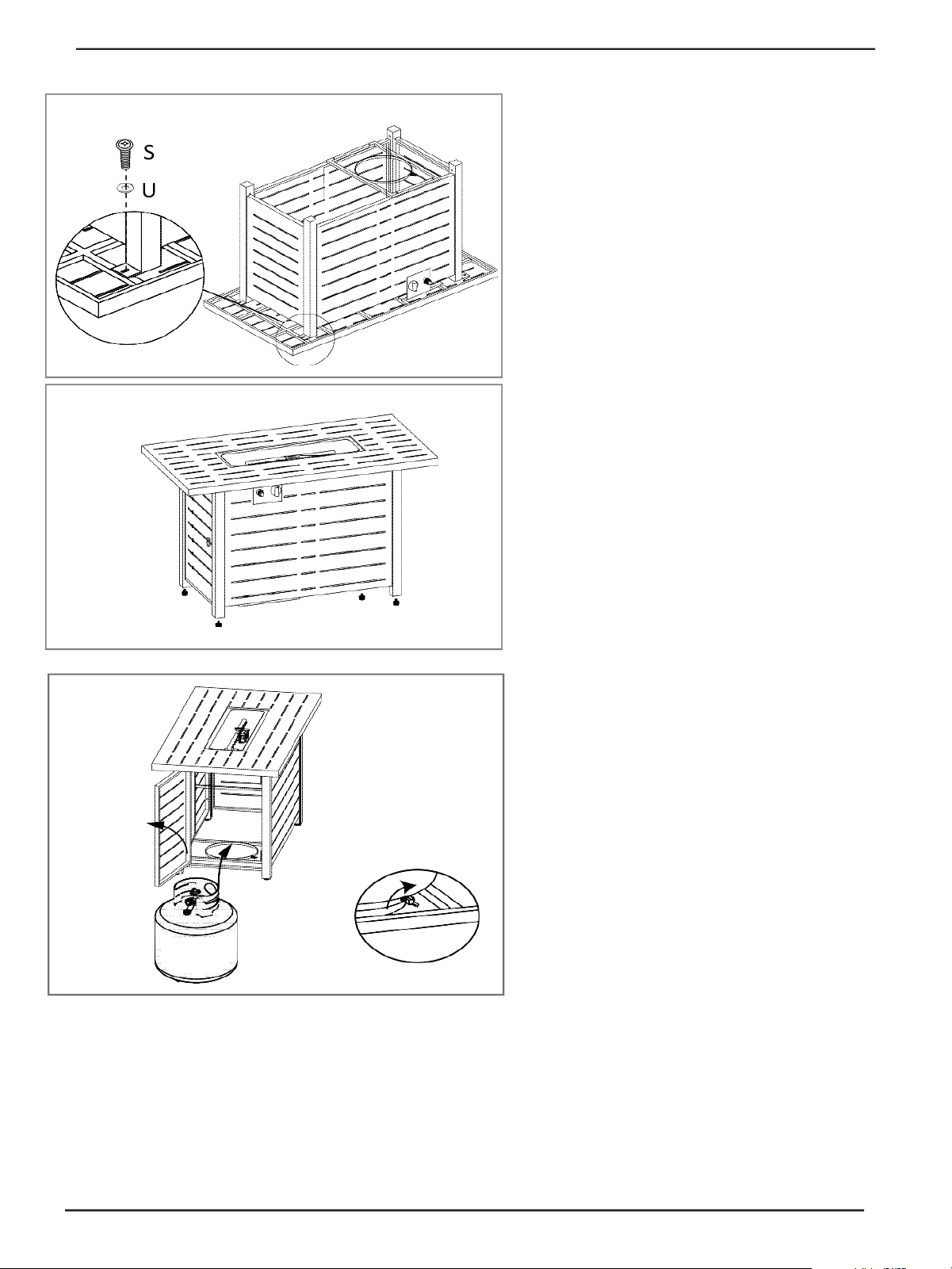

Attaching the tabletop
4. Attach the table top(B) to the legs
(G)(H)(I)(J) using 4 pcs M6*16 screws(S) and
4 pcs washers(U).
Attaching the foot pads
5. Attach the 4 pcs foot pads(L) to
the legs (G,H,I,J).
Securing the propane tank
6. Place the propane gas tank (not included)
into the metal stand(K). Make sure that the gas
tank sits on the metal stand completely. Turn
the preassembled wing screw on the outer part
of metal stand(K) clockwise to secure the
propane gas tank tightly.
B
J
I
G
H
L
Assembly instructions
9

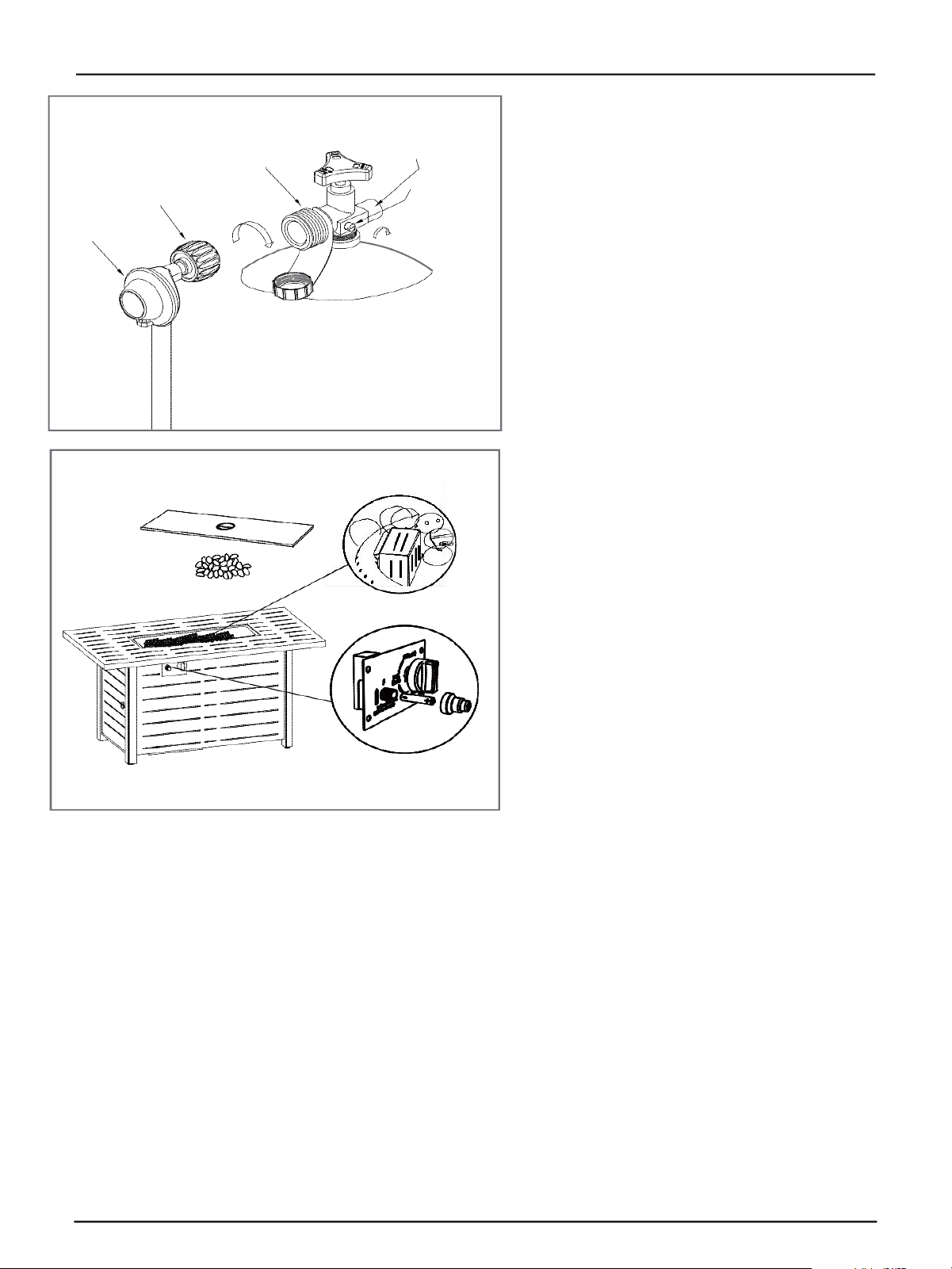

Attaching the regulator.
7. Turn the cylinder valve on the tank
clockwise to close the propane tank. Attach the
preassembled regulator from the table top (B)
to the cylinder valve by turning the regulator
coupling nut clockwise .Make sure that it is
fastened securely and tighten connections by
hand only. Finally fix the gas hose to the
bracket that is inside the front panel.
Putting the glass stones and AAA battery.
8. Open the igniter cover and put the AAA
battery(M) into it, then tighten the igniter cover
completely. Pour the glass stones around the
burner. Ensure that the glass stones are not
placed on the ignition portion of the burner.
Place the lid(A) over the fire bowl. The lid must
be removed when the burner is in operation.
Wait until the unit cools completely before
placing the lid.
PRESSURE
RELIEF VALVE
CYLINDER VALVE
BLACK COUPLING NUT
turn clockwise to connect
BLEED-OFF
VALVE
REGULATOR
turn clockwise to
reseal
Assembly instructions
10

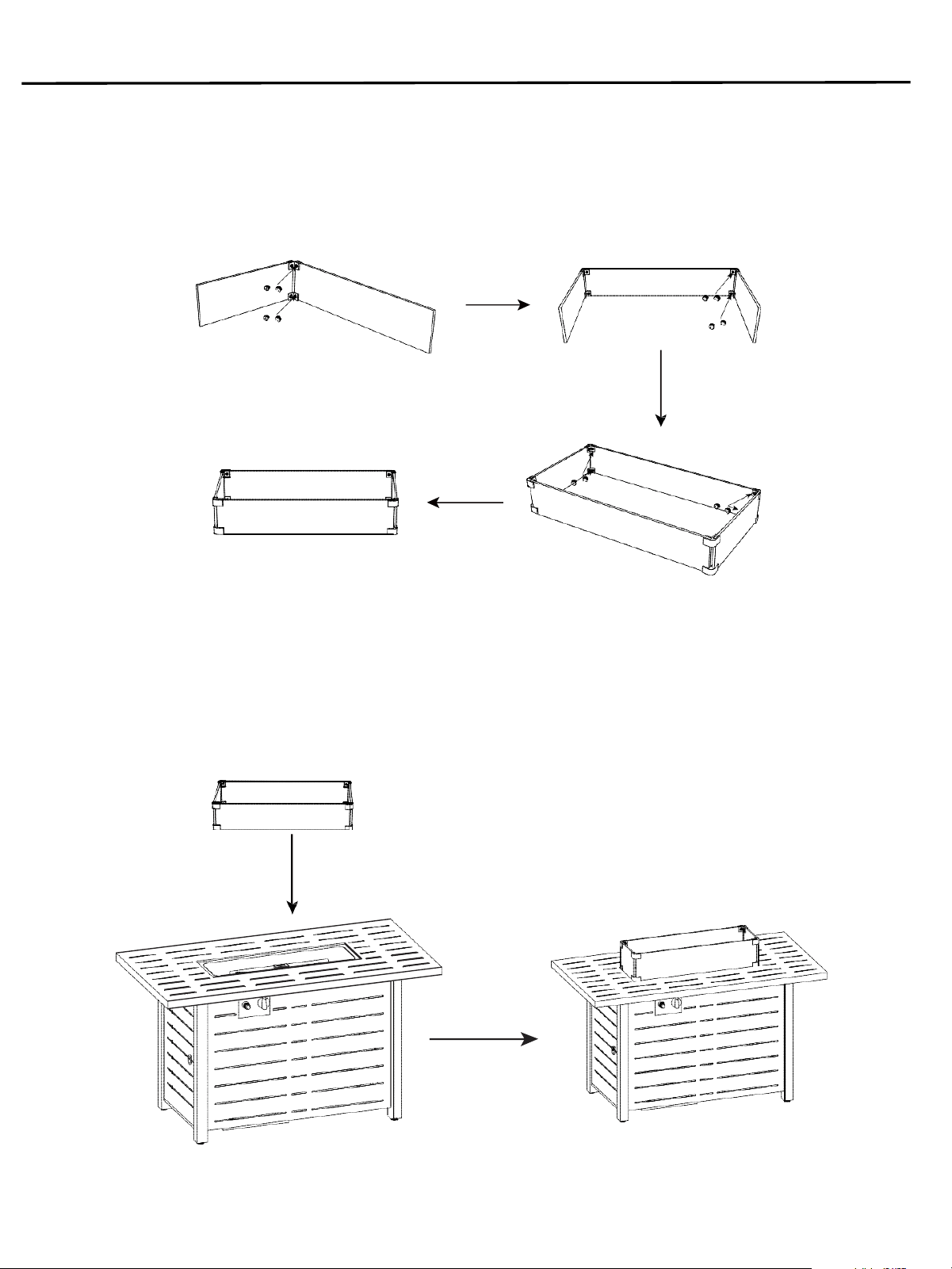

Assembly
1 Assembling the glass
Unscrew all preassembled screws on the glass clamps.
Next, assemble one glass panel to the other glass panel, and repeat this step for the rest of the
two glass panels. Then, assemble the two glass panel pieces together with the final glass
clamps as shown below.
2
Putting on the glass
Insert the glass assembly made in step 1 into the ridge on the top of the fire table body.
11
Assembly
3 Placing the protective cover
When the gas furnace is not used outside, it should be covered with a protective cover(W) to
prevent the product from oxidization caused by exposure to sun and rain.
12
OPERATION
WARNING: This appliance should not be used for any purpose other than the
intended use. Do not use this appliance to prepare food.
Initial Lighting: When lit for the first time, the appliance emits a slight odor. This is a
normal, temporary condition caused by the "burn-in" of the internal paints and
lubricants used in the manufacturing process and will not occur again. Turn on the
main burner to “high” position and let it burn for about half an hour.
WARNING:
• Children and adults should be alerted to the hazards of high surface temperatures and
should stay away from the appliance to avoid burns or clothing ignition.
•
Children should be carefully supervised when they are in the area of the appliance.
•
Clothing or other flammable materials should not be hung from the appliance, or
placed on or near the appliance. The area above the enclosure may be extremely hot.
Direct contact with these surfaces should be avoided in order to prevent burns or
clothing ignition.
•
Any guards or protective devices removed for servicing the appliance must be replaced
prior to operating the appliance.
•
Installation and maintenance should be done by a qualified service person.
•
The appliance should be inspected before each use and at least annually by a
qualified service person. More frequent cleaning may be required necessary. It is
imperative that the control compartment, burners, and circulating air passageways of
the appliance be kept clean.
WARNING:
•
Never use the appliance while it is raining. Always turn the appliance off when raining.
•
Never use the appliance if the burner is damaged. Inspect the burner before each use.
•
Ensure that no debris such as leaves; grass or other objects have entered or are on the
appliance. If the burner is damaged, it must be replaced with the manufacturer's specified
burner before using the equipment.
•
Inspect the hose assembly before each use. If there is evidence of excessive
abrasion or wear, or if the hose is damaged it must be replaced prior to using the
appliance with a replacement hose assembly specified by your manufacturer.
WARNING: Any modification to the appliance may compromise the safety
of this appliance. Special concerns
Do not bypass thermocouple safety.
are as follows:
Do not operate the appliance if any parts have been underwater. Call a qualified
service technician immediately to check the equipment and replace any flooded
control systems and gas control components.
13
Lighting Instructions
1.
Press and hold electronic igniter
button.
2.
Turn the burner control to the high
position; press and hold in. When
the burner lights, release the
electronic igniter button.
3.
Continue to depress the burner
control knob for 30 seconds and
then release. If the flame goes out,
repeat the procedure.
4.
Adjust the flame to the desired
height with the burner control
knob.
5.
If the burner will not light with the
electronic igniter, hold a lit long
match or lit long butane lighter to
the ignition area of the burner and
continue with step 2.
6.
To shut down the burner, turn the
burner control knob clockwise to
the off position. Then turn the gas
off at the source (propane cylinder
valve or natural gas supply valve).
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped
with an excess flow device.
Unless burners are turned off
prior to turning the cylinder on,
only small flames and low heat
will be achievable.
WARNING
FOR YOUR SAFETY:
Keep your face and body away
from burner area when lighting.
Ensure burner controls are in
the off position. Slowly turn on
the gas supply valve.
WARNING
FOR YOUR SAFETY:
If the burner does not light
within 10 seconds, turn the valve
off and wait for 5 minutes for
any gas to dissipate before
repeating the procedure.
14
MAINTENANCE AND STORAGE
MAINTENANCE:
To enjoy years of outstanding performance from your appliance, make sure you perform the
following maintenance activities on a regular basis:
• At least once a year, the unit should be inspected for spiders, cobwebs, or other
insects.
• Air flow must be unobstructed. Keep controls, burner, and circulating air passageways
clean. Signs of possible blockage include:
Gas odor with extremely tilted yellow flames.
Appliance does NOT reach the desired temperature.
Excessive unevenness of heat.
Popping sounds when heating.
Spiders and insects can nest in burner or orifices. This dangerous condition can
damage appliance and render it unsafe for use. Clean burner holes by using the
liquid clog remover. Compressed air may help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean reflector, thermocouple, and
emitter screen with a dry cloth if any carbon deposits develop.
The burner is made of stainless steel, but extreme heat and a corrosive environment
can cause surface corrosion to occur. Inspect the burner at least annually for cracks,
insect nests, excessive corrosion, or any other damage. If the burner is damaged, it
must be replaced with a burner specified by the manufacturer before the appliance is
put into operation.
15
STORAGE:
Between use
Turn the control knob to the "OFF" position.
Disconnect the LP source.
Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow and dust ).
Cover the appliance to protect exterior surfaces and to help prevent build-up in air
passages.
NOTE: Wait until the appliance has cooled down before covering it.
During periods of extended inactivity or when transporting
Turn the control knob to the "OFF" position.
Disconnect the LP source and move to a secure, well ventilated, and outdoor
location. DO NOT store in a location that will exceed 125°F.
Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow and dust ).
Cover the appliance to protect exterior surfaces and to help prevent build-up in air
passages.
NOTE: Wait until the appliance has cooled down before covering it.
16
TROUBLESHOOTING
PROBLEM
PROBABLE CAUSE
SOLUTION
Low heat / Low flame
when valve turned to
high.
Incorrect lighting operation.
Ensure the lighting procedure is followed carefully.
The valve must be in the off position when the tank
valve is turned on. Turn the tank on slowly to allow
the pressure to equalize. See “lighting instructions”.
Pipe must be sized according to installation code.
Burners burn with
yellow flame,
accompanied by the
smell of gas.
Possible cobwebs or other
debris.
Thoroughly clean the burner venturi. See general
maintenance instructions.
Burners will not light
with the igniter, but will
light with a match.
Loose electrode wire or switch
terminal wires.
Check whether the electrode wire is firmly pushed
onto the terminal on the back of the igniter. Check
that the lead wires from the module to the ignition
switch (if equipped) are firmly pushed onto their
respective terminals.
Burners will not stay lit
when the control knob
is released.
1.Knob not being held in long
enough.
1.Thermocouple mush have time to heat up - hold
the knob in for 30 seconds after the burner lights,
then release.
2.Too windy.
2.If the wind speed is greater than 10 mph (16
km/h), the unit will shut down automatically. Either
place it in a different area or use it when the wind is
low.
3.Lava glass or debris in
ignition area of the burner
preventing thermocouple from
being fully engulfed in flame.
3.Ensure that there are no lava glass or other debris
in the ignition area, and that the small hole below
the thermocouple is unobstructed.
4.Dirty thermocouple or
thermocouple connection.
4.Clean the thermocouple and clean the connection
between the valve and thermocouple. Ensure the
connection is properly tightened.
5.Faulty thermocouple or valve.
5.Replace thermocouple and / or valve.
Humming regulator.
Normal occurrence on hot
days.
This is not a defect. It is caused by internal
vibrations in the regulator and does not affect the
performance or safety of the appliance.
Humming regulators will not be replaced.
Burner output on "high"
setting is too low.
(Rumbling noise and
fluttering blue flame at
burner surface.)
1.Lack of gas.
1.Check gas level in the propane cylinder.
2.Supply hose is pinched.
2.Reposition the supply hose to suit needs.
3.Dirty or clogged orifice.
3.Clean the burner orifice.
4.Cobwebs or other substances
in the venturi tube.
4.Clean out the venturi tube.
5.Propane regulator in "low
flow” state.
5.Ensure the lighting procedure is followed carefully.
All valves must be in the off position when the tank
valve is turned on. Turn the tank on slowly to allow
pressure to equalize. See lighting instructions.
Thank you for purchasing this product! If you have any questions
about the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message
or customer service number: 213-4467172 or 661-4358826.
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA
SERVICIO BAJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
