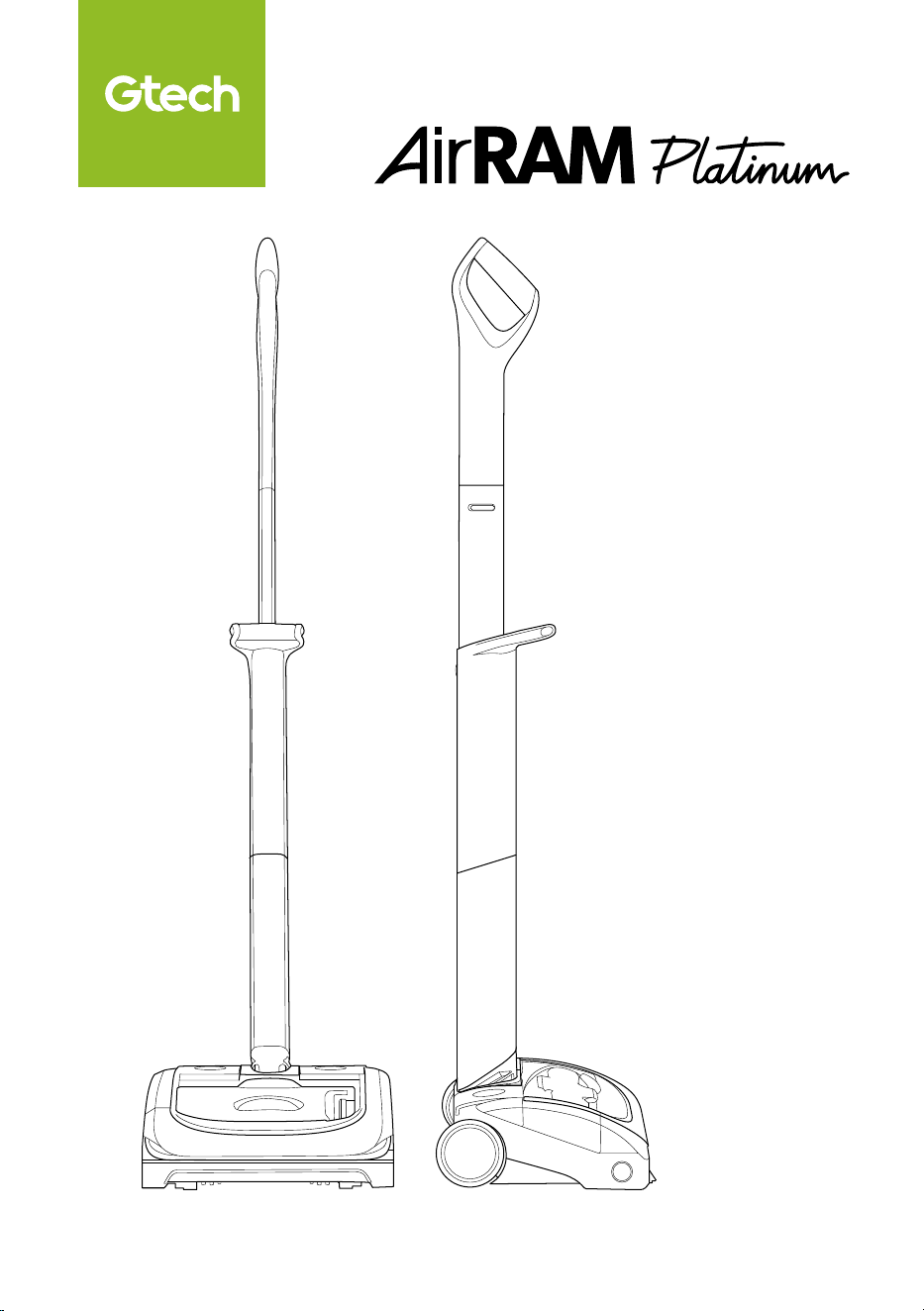

OPERATING MANUAL
Model number:
AR Series
2
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst raining.
WARNING: Basic safety precautions should always be observed when us-
ing an electrical appliance, including the following to reduce the risk of fire,
electrical shock, or injury:
Personal Safety:
• Store indoors in a dry place out of the
reach of children.
• Always use responsibly. This appliance
can be used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards involved.
• Don’t let children play with the appliance;
supervise children using or maintaining
the appliance.
• Use only manufacturer’s recommended
attachments as described in this
manual; misuse or use of any accessory
or attachment other than those
recommended, may present a risk of
personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliances openings
or hinder air flow; keep openings free of
any objects including dust, lint, clothing,
fingers (and all parts of the body).
• Particularly keep hair away from openings
and moving parts.
Electrical safety:
• Only use batteries and chargers supplied
by Gtech.
• Never modify the charger in any way.
• The charger has been designed for a
specific voltage. Always check that the
mains voltage is the same as that stated on
the rating plate.
A charger that is suitable for one type of
battery pack may create a risk of fire when
used with another battery pack; never
use the charger with another appliance
or attempt to charge this product with
another charger.
• Before use, check the charger cord for
signs of damage or ageing. A damaged or
entangled charger cord increases the risk
of fire and electric shock.
• Do not abuse the charger cord.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from
a socket; grasp the plug and pull to
disconnect.
• Don’t wrap the cord around the charger
when storing.
• Keep the charger cord away from hot
surfaces and sharp edges.
• The supply cord cannot be replaced. If the
cord is damaged the charger should be
discarded and replaced.
• Do not handle the charger or the
appliance with wet hands.
• Do not store or charge the appliance
outdoors.
• The charger must be removed from the
socket before removing the battery,
cleaning or maintaining the appliance.
Battery safety:
• This appliance includes Li-Ion batteries; do
not incinerate batteries or expose to
high temperatures, as they may explode.
• Liquid ejected from the battery may cause
irritation or burns.
• In an emergency situation contact
professional help immediately!
3
• Leaks from the battery cells can occur
under extreme conditions. Do not touch
any liquid that leaks from the battery. If the
liquid gets on the skin wash immediately
with soap and water. If the liquid gets into
the eyes, flush them immediately with
clean water for a minimum of 10 minutes
and seek medical attention. Wear gloves
to handle the battery and dispose of
immediately in accordance with local
regulations.
• Shorting the battery terminals may cause
burns or fire.
• When the battery pack is not in use, keep
it away from paper clips, coins, keys,
nails, screws or other small metal objects
that could make a connection from one
terminal to another.
• Store the battery away from any liquids
and chemicals that may damage the
battery and cause a risk of fire.
• When you dispose of the appliance
remove the battery and dispose of the
battery safely in accordance with local
regulations.
Service:
• Before using the appliance and aer any
impact, check for signs of wear or damage
and repair as necessary.
• Do not use the appliance if any part
is damaged or defective.
• Repairs should be carried out by a
service agent or a suitably qualified
person in accordance with relevant
safety regulations. Repairs by unqualified
persons could be dangerous.
• Never modify the appliance in any way as
this may increase the risk of personal injury.
• Only use replacement parts or accessories
provided or recommended by Gtech.
Intended use:
• This appliance has been designed for
domestic dry vacuum cleaning only.
• Do not pick up liquids or use on wet
surfaces.
• Do not pick up anything that is flammable,
burning or smoking.
• Use only as described in this manual.
• Don’t use on concrete, tarmacadam
or other rough surfaces.
• The brush bar may damage certain floor
surfaces. Before vacuuming flooring,
rugs or carpets, check the flooring
manufacturer’s recommended
cleaning instructions.
• The product may damage delicate fabrics
or upholstery. Care should be taken on
loose-weave carpets and coverings or
where there are loose threads. It is advised
to test on an inconspicuous area first
before use.
• The product has been designed to clean
a wide variety of floor surfaces without the
need to change settings. However some
surfaces such as delicate loose-pile rugs or
carpets, tasselled rug edges or damaged
carpets with exposed threads are not
suitable for cleaning with a rotary brush.
• The product has a constantly rotating
brush bar. Never leave the cleaning head
in one spot for an extended period of time
as this may damage the floor surface.
• Particularly for hard flooring, before
vacuuming check the area being cleaned
is free of any hard debris or objects that
could damage the flooring if caught
underneath the product, and that the
underside of the product is free from
foreign objects that could mark the
surface.
WARNING:
• Do not use water, solvents, or polishes to
clean the outside of the appliance; wipe
clean with a dry cloth.
• Never immerse the unit in water and do
not clean in a dish washer.
• Never use the appliance without the
filter fitted.
Thank you for choosing Gtech
“Welcome to the Gtech family. I started Gtech to create sensible, easy
to use products that do a great job, and hope you get many years of
trouble-free performance from your new product.”
Nick Grey – Inventor, owner of Gtech
4
What’s in the box
2
2
1
1
3
4
4
5
5
6
6
7
7
Head full assembly
Lower Handle
X 2 components
Upper Handle
X 2 components
Charger
Spare filter
5 x spare scented
cartridges
Hair removal tool
Make a note of your product serial number code for future reference. You can find this on
the underside of item
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
3
5
Ensure the lower handle is sitting completely
flush against the pivot yoke. Firmly push the
purple locking clip until it clicks fully into place.
The clip can be pulled out to unlock the lower
handle should it need to be removed.

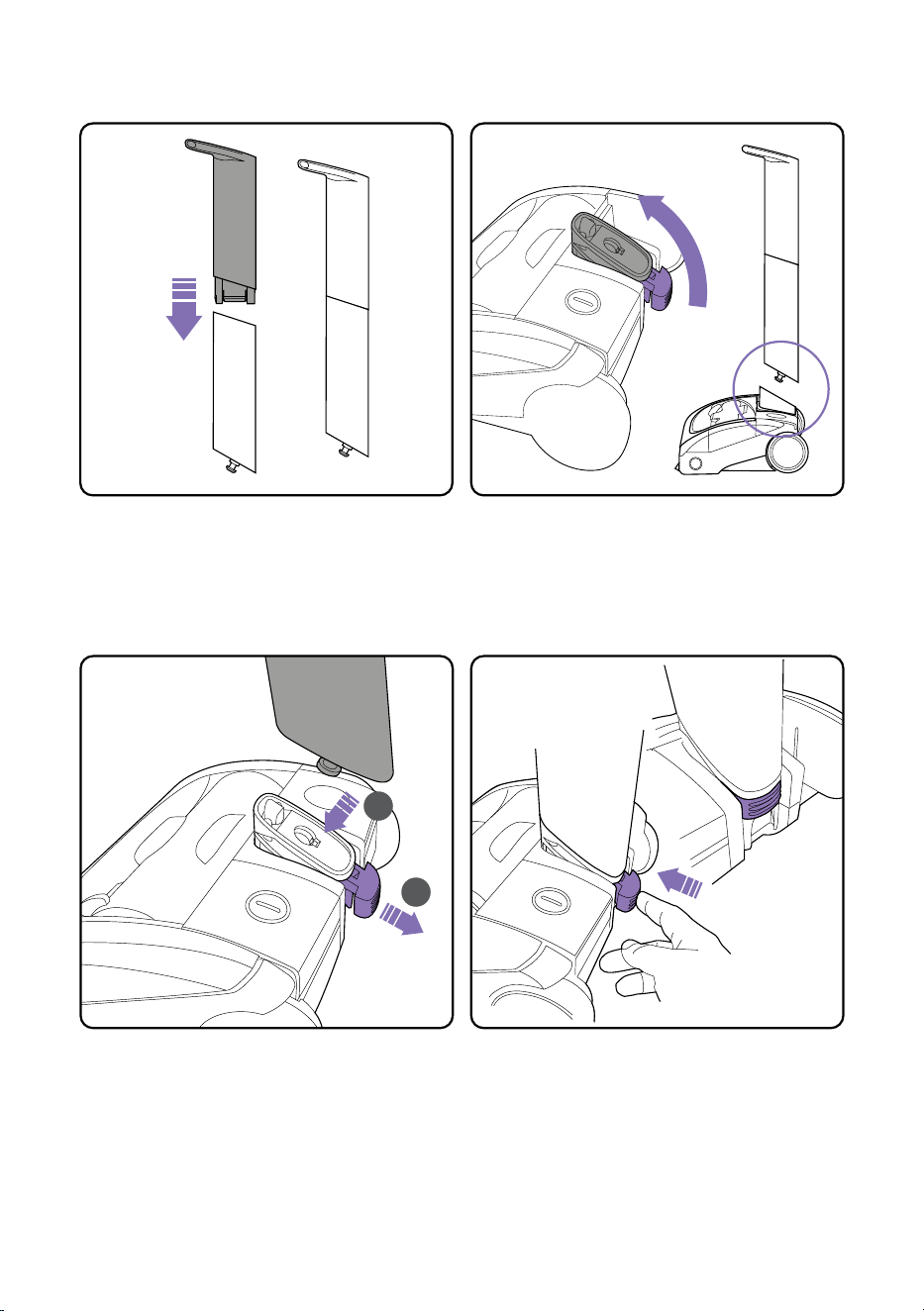

Assembly
Push the pivot yoke to the upright position.
This might require some force.
Attach the lower handle to the head assembly
(See next step)
Pull out the purple locking clip to allow the
lower handle to fit (the clip remains attached
to the head) Insert the metal pin on the lower
handle into the hole in the pivot yoke.
Push the two parts of the lower handle
together in the orientation shown above. They
will only fit one way. They will click into place
and remain permanently fixed.
1
2

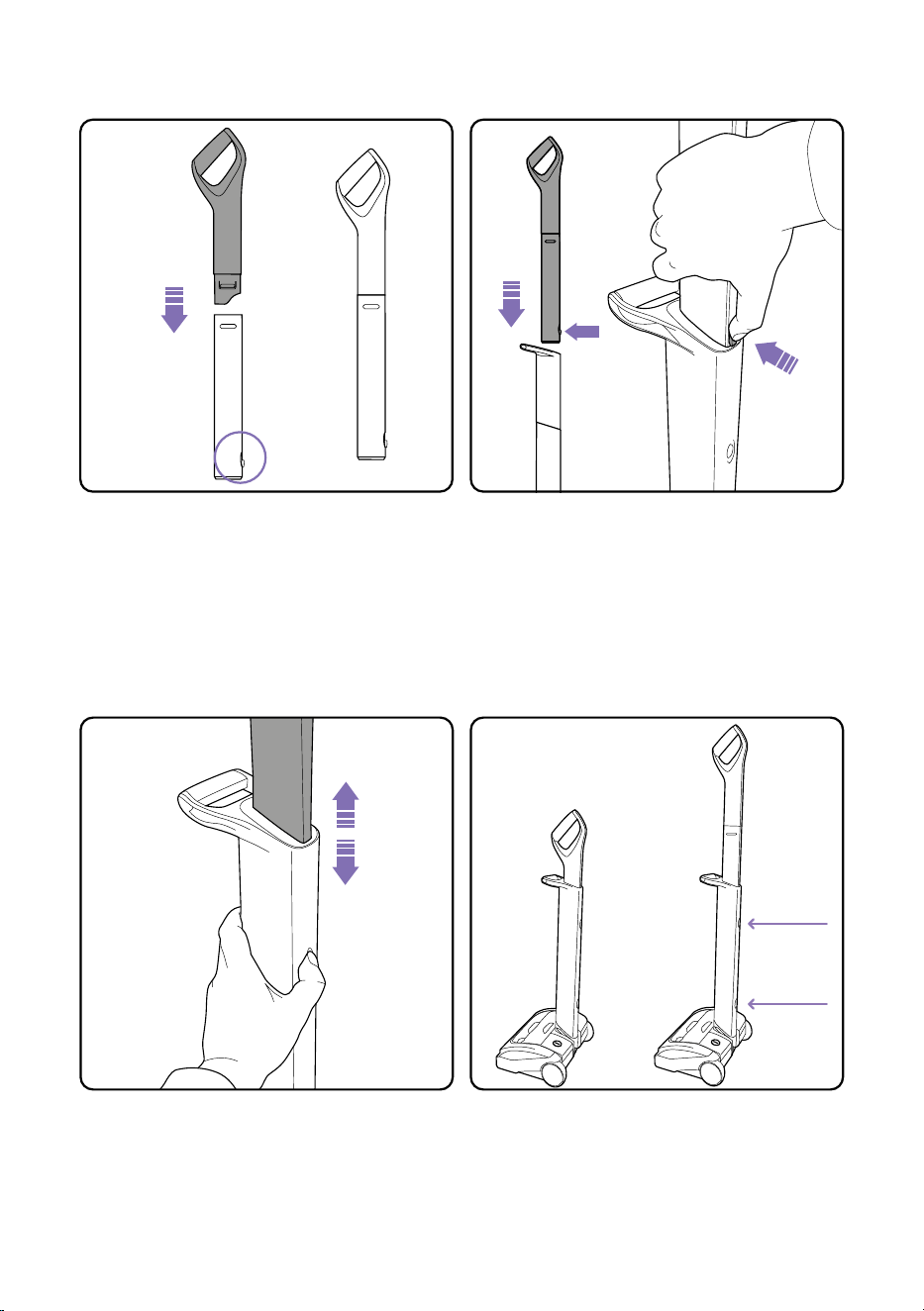

To stow or extend the upper handle simply
press the button on the lower handle to
unlock the upper handle.
The upper handle will now slide up or down
depending on required position.
6
Storage
The upper handle can be set in two positions:
Lowered for storage and raised for use. To
lower the handle, release the upper button.
To raise the handle from the stored position,
release the lower button.
Upper Button
Lower Button
Assembly (continued)
Insert the upper handle into the lower handle.
You will need to press the button on the upper
handle to fit it in. Once it slides down you will
hear it click into place.
Push the two parts of the upper handle
together in the orientation shown above. They
will only fit one way. They will click into place
and remain permanently fixed.
7

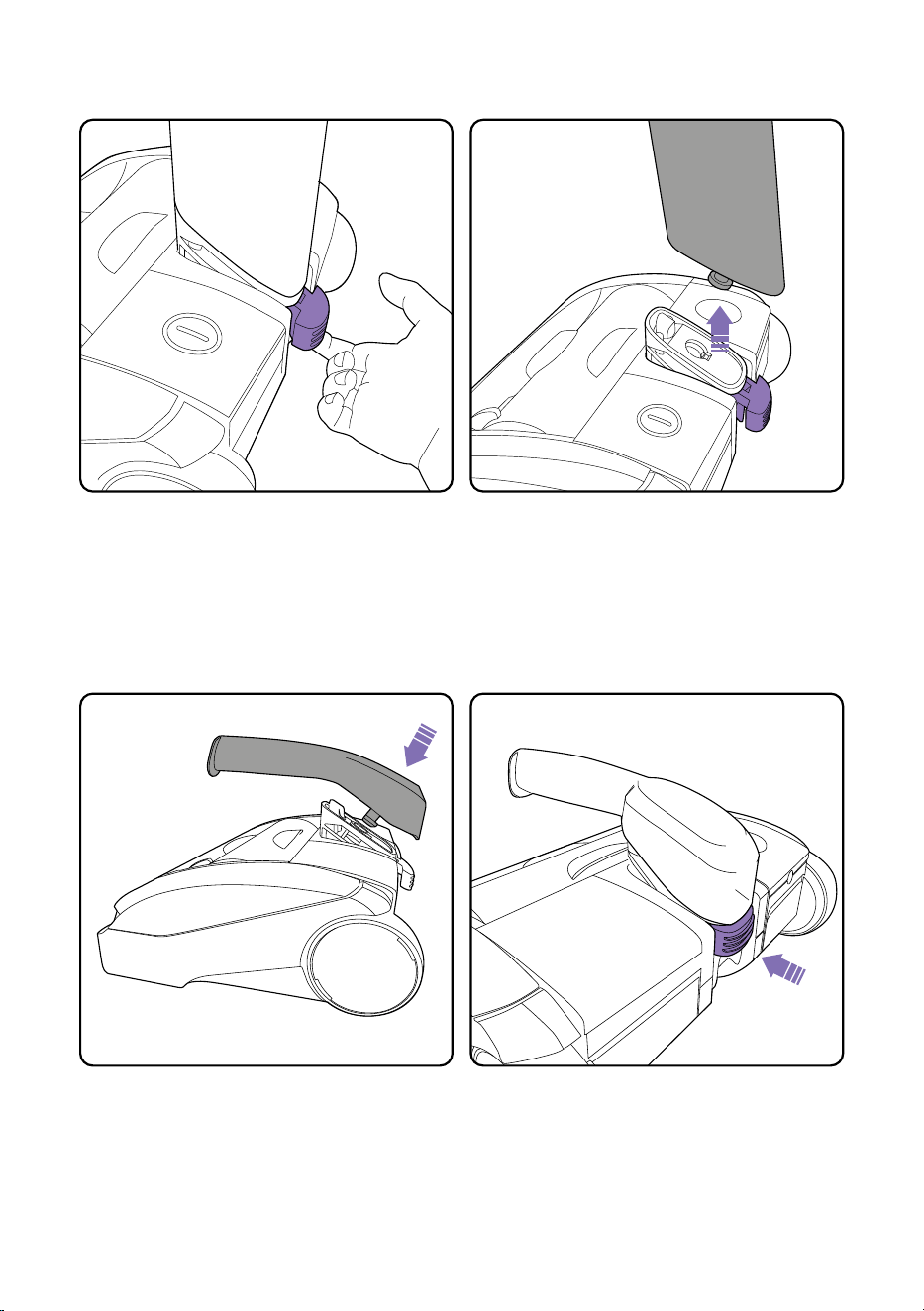

Remove the AirRAM handle by pulling out the
purple locking clip (at the base of the lower
handle) until you feel it come loose.
The clip should not be removed completely as
it remains part of the lower body assembly.

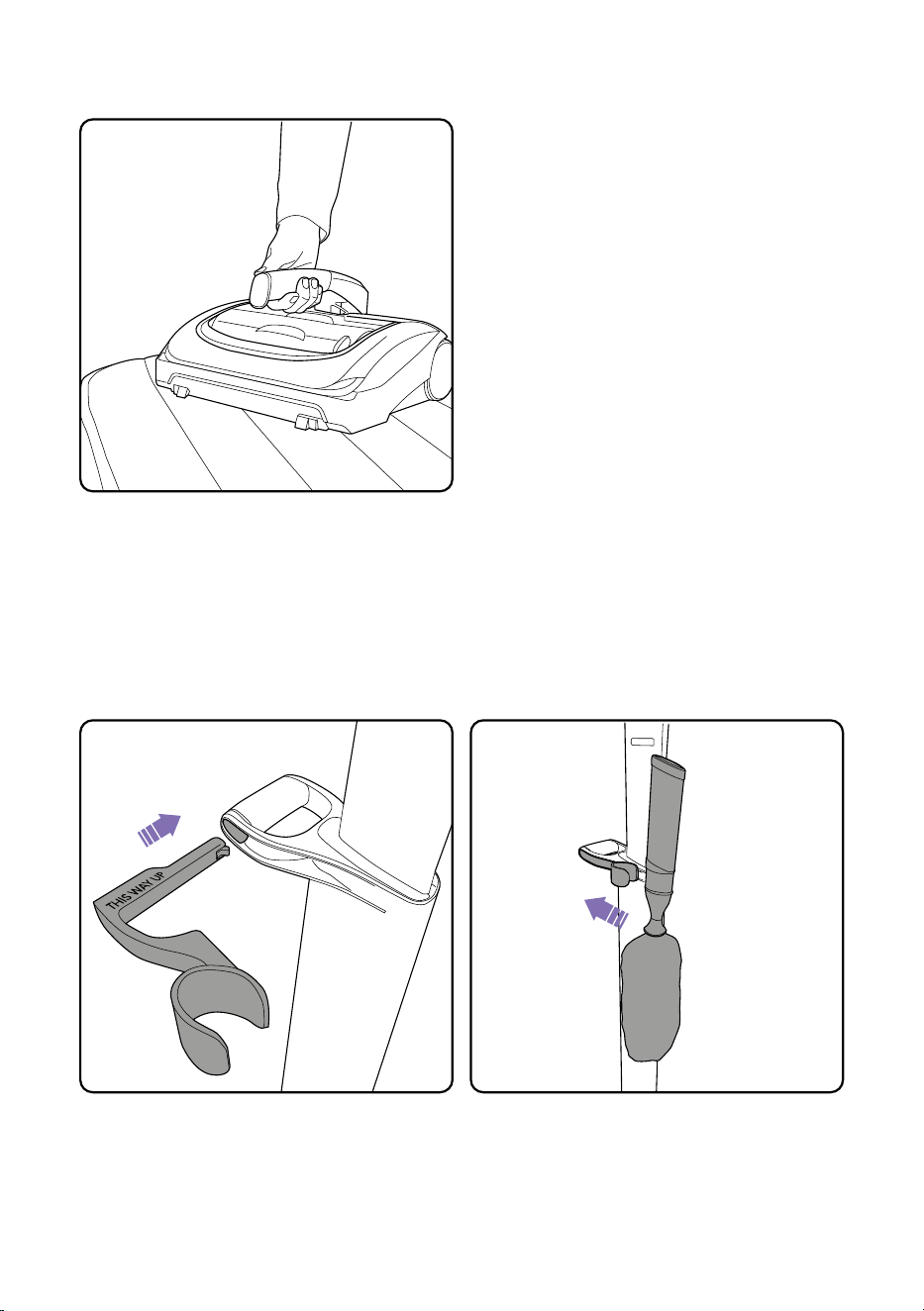

Speed clean handle (Speed clean kit sold separately)
To attach the speed clean handle, insert the
pin into the yoke (hole) on the AirRAM head.
Push the purple locking clip back into the
head to secure the handle.
8
You can now use the AirRAM to clean
mattresses and stairs with ease.
Using speed clean handle
Slide the duster’s clip into the middle handle. Slot the duster into the clip.
Duster and clip (Speed clean kit sold separately)
Scented Cartridge
Scented cartridge refills: Keep out of the reach of
children. People suffering from perfume sensitivities
should be cautious when using this product as it may
produce an allergic reaction or cause sensitisation
by skin contact. If swallowed, seek medical advice
immediately and show this container or label. Toxic to
aquatic organisms, may cause long-term adverse effects
in the aquatic environment. Scented refills contain:
Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil,
Vanillin, Borneol, Polysorbate 20
9

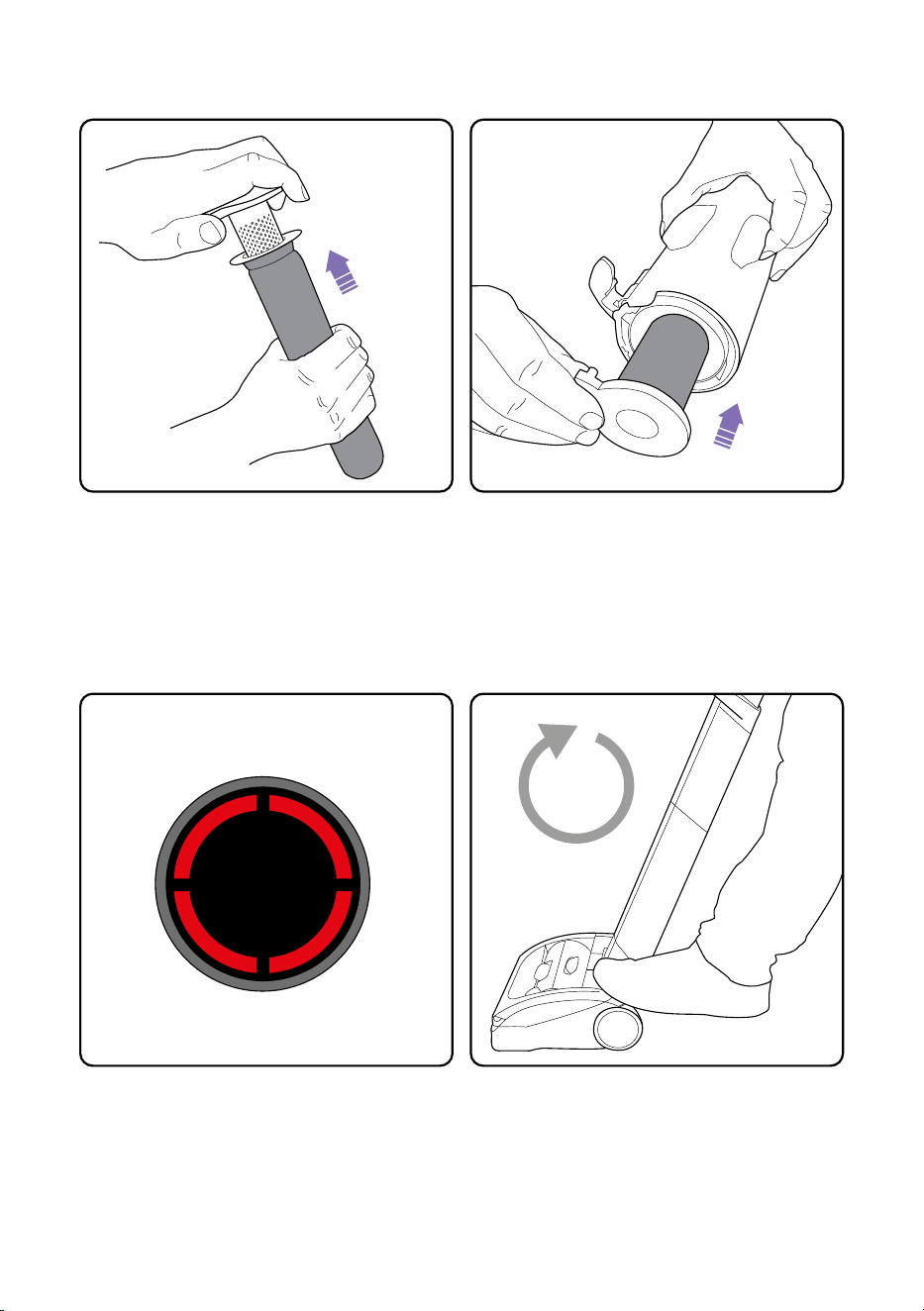

Slide scented cartridge into the end of the
shroud. Replace filter and return to filter
housing.
Remove the scented cartridge from its box
then slide the plastic sleeve off.
Slide the filter and inner shroud out of the filter
housing.
Installing scented cartridge
Remove the filter from the inner shroud, by
twisting and pulling.
10

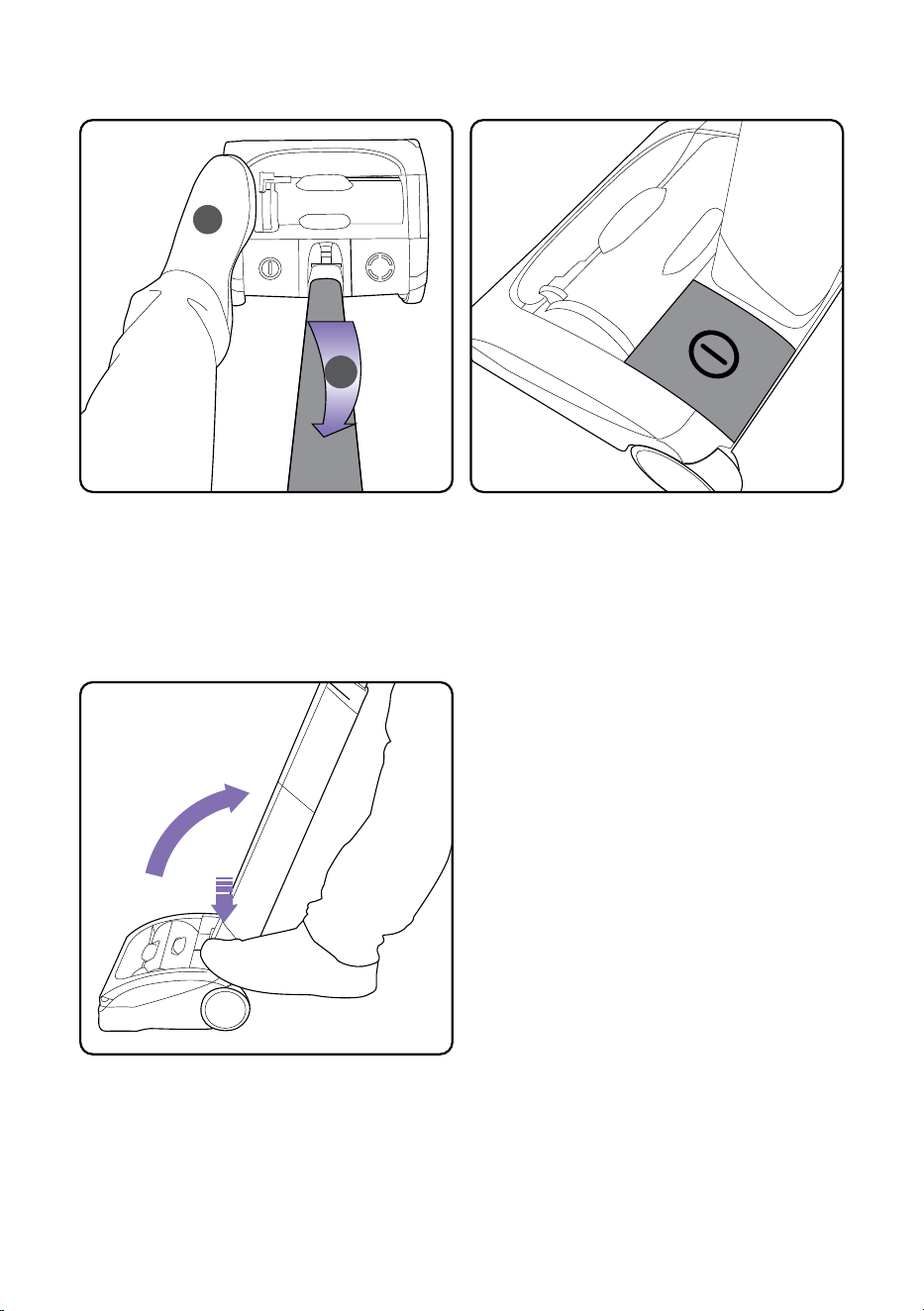

Operation
Press the power button with your foot to turn
the product on.
The power button is located on the le hand
side of the head assembly.
Without pressing the power button, place
your foot on the le side of the head (1) and
pull the handle back (2).
1
2

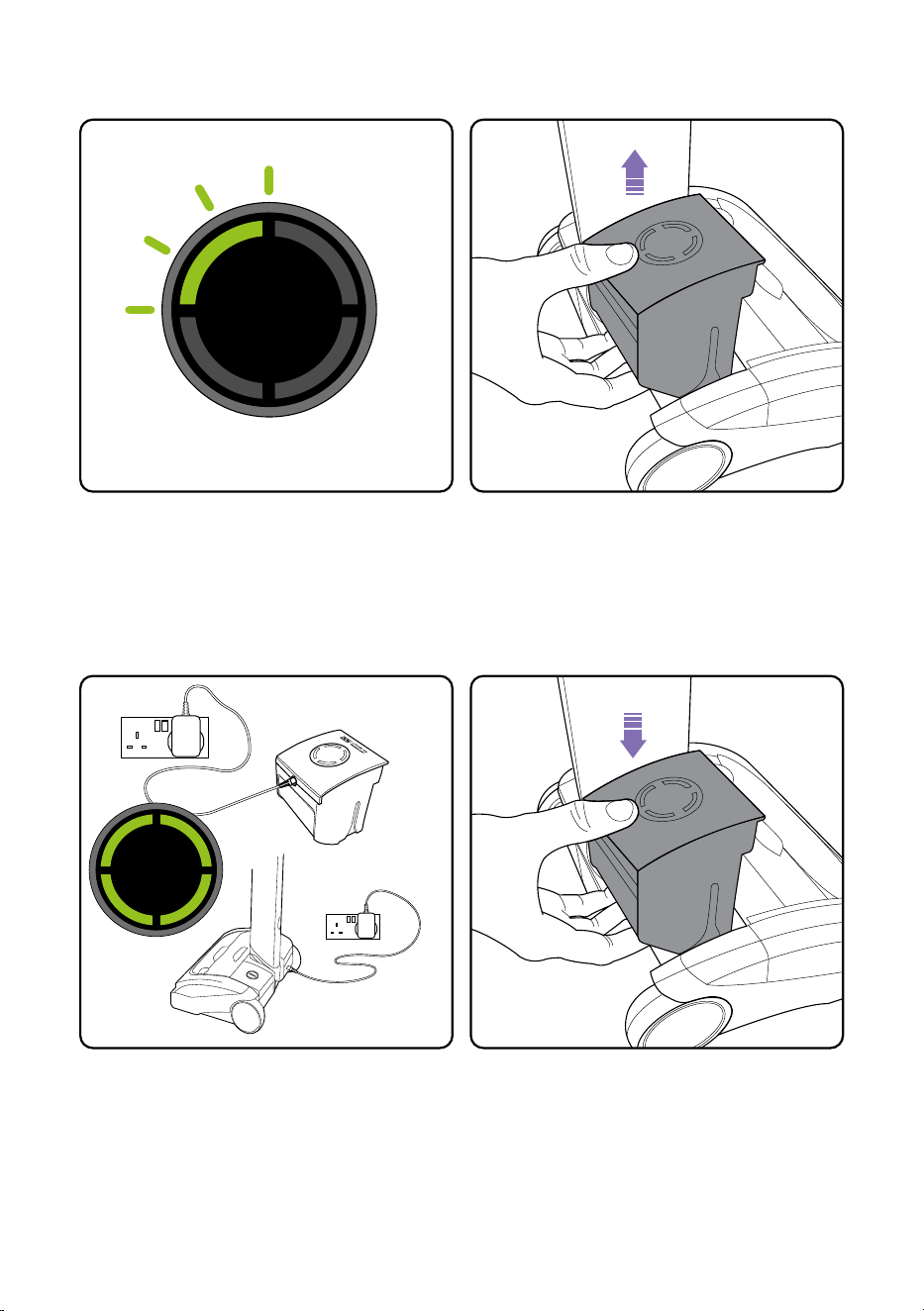

When the state of charge indicator starts to
flash one green LED, recharge the battery.
It is OK to charge for 1 hour for a burst of
cleaning. Replace the battery by sliding it
down into the head assembly. It will click into
place.
To remove the battery, squeeze the latch
underneath and pull upwards.
Battery charging
11
The battery can be charged whilst it’s in the
product, or when it’s off the product. The
battery can be charged from flat in 3 hours.
The state of charge indicator will show 4 solid
green lights when it is charged.
3
hours

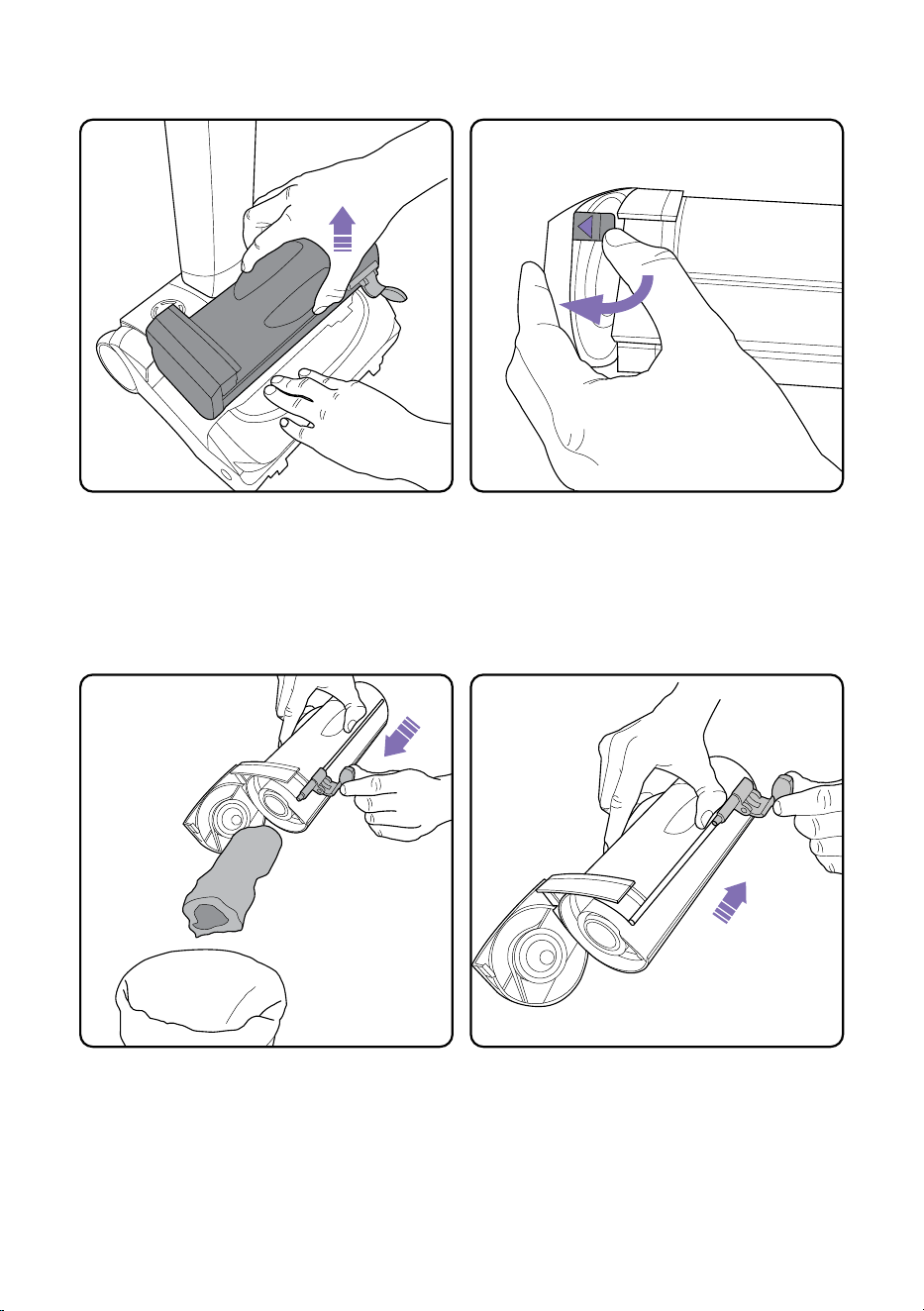

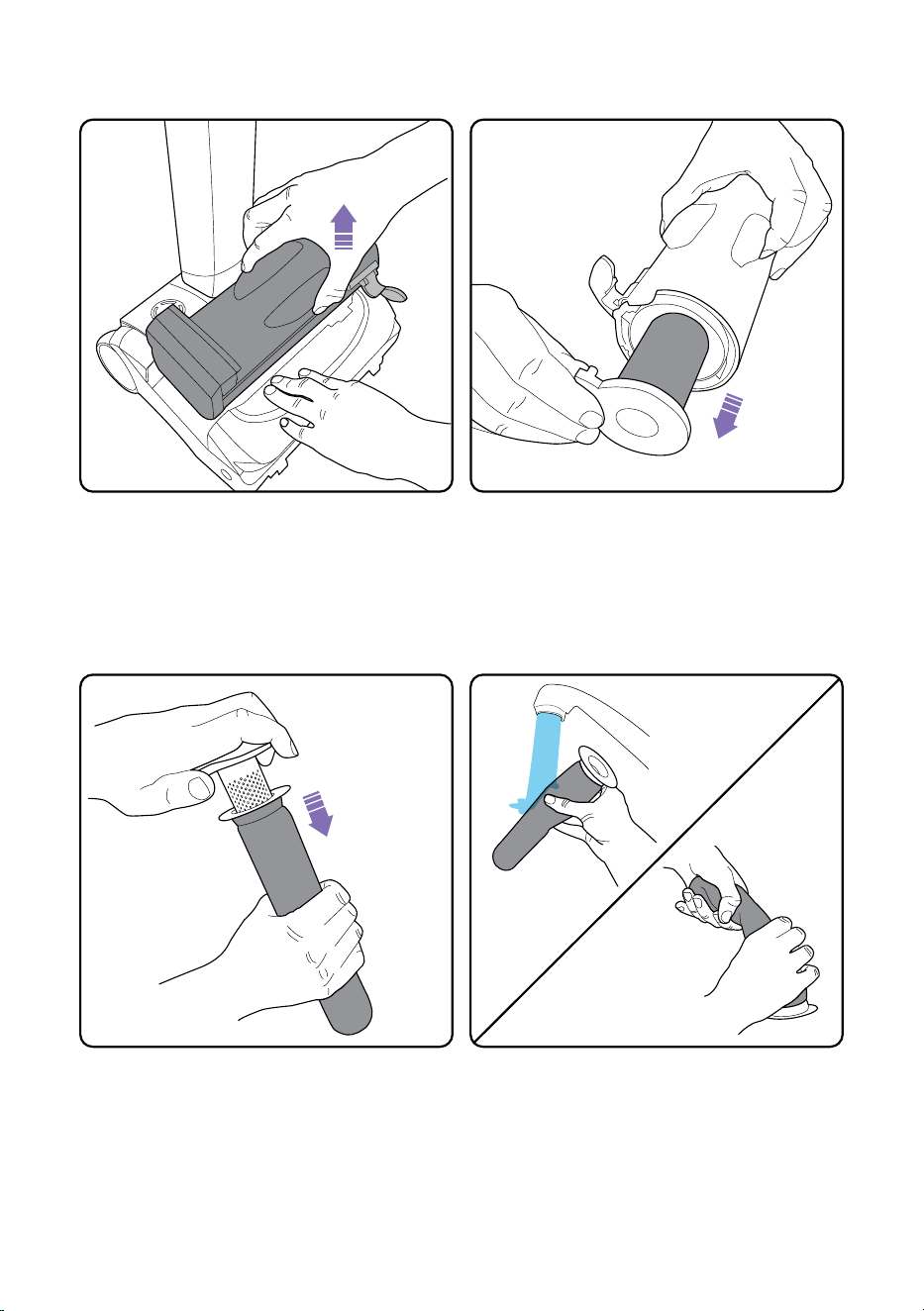

Holding onto the product with one hand, pull
the bin handle and li the bin out of
the product.
Hold the product’s bin over a rubbish bin
and push the silver lever towards the lid to
empty the dirt.
Pull the silver lever back towards the bottom of
the bin. Close the bin lid and reinsert the bin
into the product.
Li and release the latch marked with the
purple arrow to pull open the lid.
Emptying the bin
12
Holding onto the product with one hand,
pull the bin handle and li the bin out of
the product.
Remove the filter from the inner shroud,
by twisting and pulling.
Tap the inner shroud over a bin to remove any
excess dirt.
Wash the filter under a tap. Squeeze out any
excess water then let it dry completely before
reinserting into the product. Recommended
water temperature 40°C. Do not use
detergent or soaps. Never put bin back
without filter inside. You could damage
the motor.
Pull the filter out of the filter housing.
Tap the dirt from the filter and tip any
dirt from the filter housing.
Wash the filter if necessary.
13
Cleaning the filters - do this once a month or more frequently depending on use.
Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter
housing.
14
Replacing the filters
If the brush bar jams during use, the product
will stop and the LEDs will appear red. You will
need to remove and clean the brush bar.
The product will not re-start until the red lights
go out. This will take ten seconds.
If the problem persists, follow the
troubleshooting instructions on page 17.
Removing and cleaning the brush bar / jam or fault
10
seconds
15
The brush bar can now be removed, starting at
the button end.
To remove hair from the brush bar, run the hair
removal tool down the groove to cut the hair.
Before checking for a blockage, remove the
battery.
Rest the product on its side and locate
the brush bar button on the right hand side.
Press the button inwards and then pull
the brush bar out from the bottom of
the product.
16

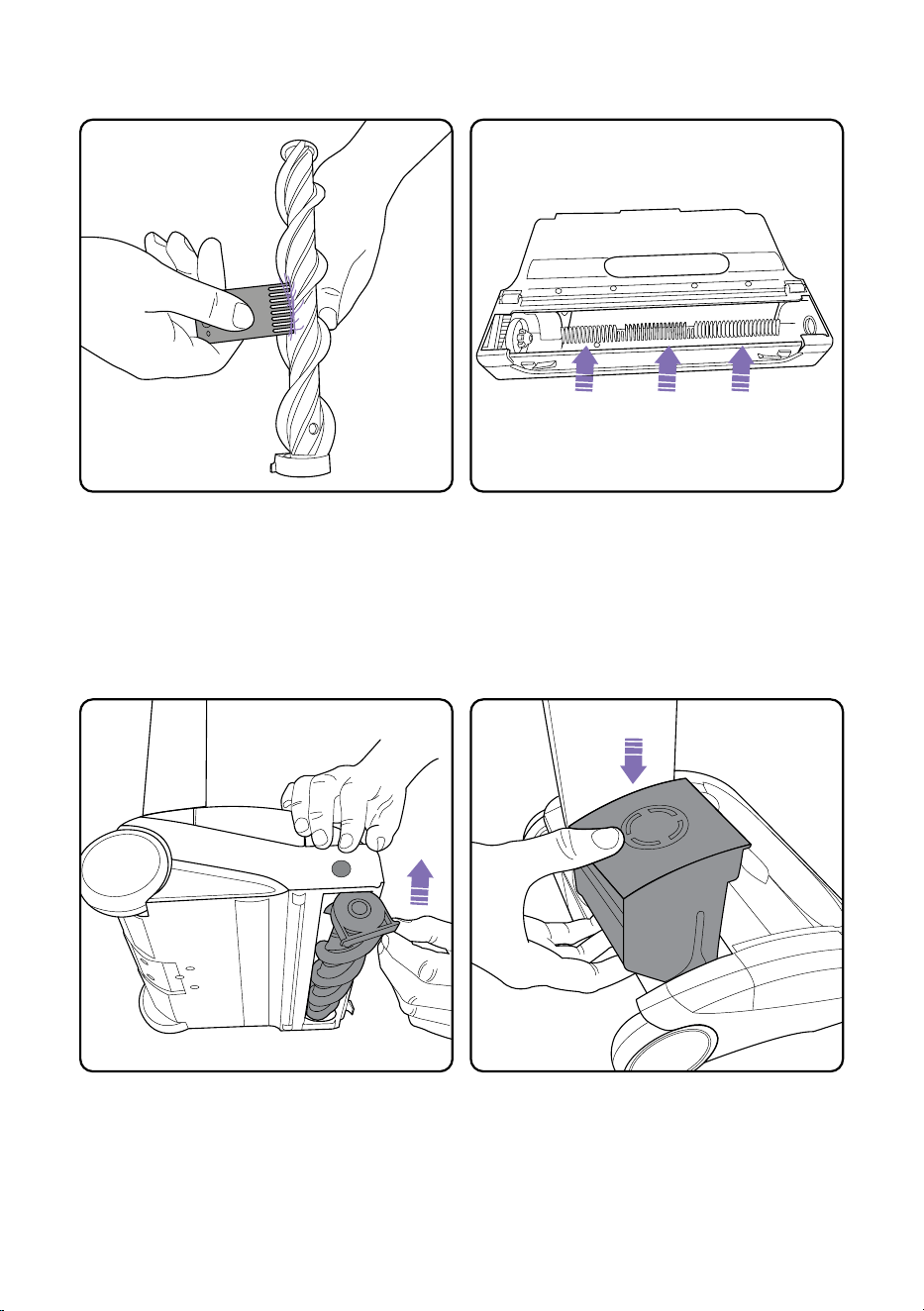

Re-insert the brush bar, starting by the end
furthest away from the button. Then line up
and push the brush bar into the product until it
clicks into place.
Replace the battery by sliding it down into the
head assembly.
It will click into place.
Use the comb to remove any hair.
Never operate the product without the brush
bar in place.
While the brush bar is removed you can take
the opportunity to remove any hair from the
brush bar housing comb as indicated.
17
Product care
Your product doesn’t need much maintenance: keep the filters clean, keep the brush bar tangle-free
and charge the battery. Wipe it with a dry cloth if it gets dirty, including under the bin.
support@gtech.co.ukLive chat supportOnline How to Videos
Product support
If these initial tips do not solve your problem we please visit our support area where you can find
troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine
spares and replacement parts compatible with your product.
Visit: www.gtech.co.uk/support
Troubleshooting
Product is not cleaning well 1. Empty the bin
2. Check bin is correctly fitted
3. Check filter is correctly fitted
4. Clean and/or replace filter
5. Check brush bar fitment
Product has stopped or won’t work 1. Charge battery
2. Clear debris from brush bar
Battery will not charge 1. Check the charger is correctly
connected to the battery and mains
supply
2. Check wall socket
The symbol indicates that this product is
covered by legislation for waste electrical and
electronic products (2012/19/EU)
When the vacuum has reached the end of its life, it and
the Li-Ion battery it contains should not be disposed of
with general household waste. The
battery should be removed from the vacuum and both
should be disposed of properly at a
recognised recycling facility.
Call your local council, civic amenity site, or
recycling centre for information on the disposal
and recycling of electrical products.
Alternatively visit www.recycle-more.co.uk
for advice on recycling and to find your nearest
recycling facilities.
FOR HOUSEHOLD USE ONLY
TECHNICAL SPECIFICATION
Battery model 103A022-C
Battery 22V Li-Ion
Charging period 3 hours
Battery charger output 27V DC 1.2A
Weight 3.3kg
18
19
Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all
the information required to provide you with quick and efficient support.
You will need your product’s serial number.
WARRANTY – REGISTRATION
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
If your product is within its warranty and has a fault that cannot be resolved from the
troubleshooting section or online support, please do the following:
• Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any
troubleshooting with you to identify the fault.
• If your fault can be resolved by a replacement part, this will be sent to you free of charge.
• Following troubleshooting, if your product needs to be replaced, we will arrange collection of
your faulty product for inspection, and delivery of a replacement product free of charge.
Your product is guaranteed against material or manufacturing faults for 2 years from the date of
purchase (or the delivery date if this is later) subject to the following terms and conditions:
WHAT ISN’T COVEREDSUMMARY
The guarantee becomes effective at
the date of purchase (or the date of
delivery if this is later). If a product
is repaired or replaced during the
warranty period, the warranty period
is not started again.
• You must provide proof of delivery/
purchase before any work can be
carried out on the product. Without
this proof, any work carried out will be
chargeable. Please keep your receipt or
delivery note.
• All work will be carried out by Gtech or
its authorised agents.
• Any parts which are replaced will
become the property of Gtech.
• The repair or replacement of your
product is under guarantee and will not
extend the period of guarantee.
• The guarantee provides benefits which
are additional to and do not affect your
statutory rights as a consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. drive belt, brush bar, batteries) .
• Use of consumables (e.g dust bags and cartridges)
• Accidental damage, faults caused by negligent use or lack of care
and maintenance, misuse, neglect, careless operation or handling of
the product which is not in accordance with operating manual.
• Blockages. Please refer to the operating manual for details of how to
unblock your product.
• Use of the product for anything other than the normal domestic
household purposes.
• Use of parts and accessories which are not Gtech genuine
components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its
authorised agents.
• Purchasing your product from an unofficial third party (i.e not from
Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please
call the Gtech Customer Care Helpline on UK: 08000 308 794
International orders are subject to a delivery charge for both faulty and
non faulty products.
WARRANTY – TERMS AND CONDITIONS
If you purchased directly from Gtech, your
details are already registered and your 2-year
warranty will start automatically.
If you purchased from an authorised Gtech retailer,
please register your warranty within 3 months.
You will need to provide proof of purchase to
support any claim(s) against your warranty.
CPN05254
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB, UK
email: support@gtech.co.uk
telephone: 08000 308 794
www.gtech.co.uk
