WX542L WX542L.X
20V Cordless Brushless Jigsaw EN
Scie sauteuse sans fil F
Sierra de vaivén inalámbrica ES
P06
P12
P20
21
11
10
9
5
7
6
8
3
4
13
12
14
B3
B2
A3 B1
A2A1
1
2
1
2
1
2
E1
D
E2
F1
C
B4
1
2
H2
2
H1
1
G
F3
F2
6
20V Cordless
Brushless Jigsaw
EN
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS

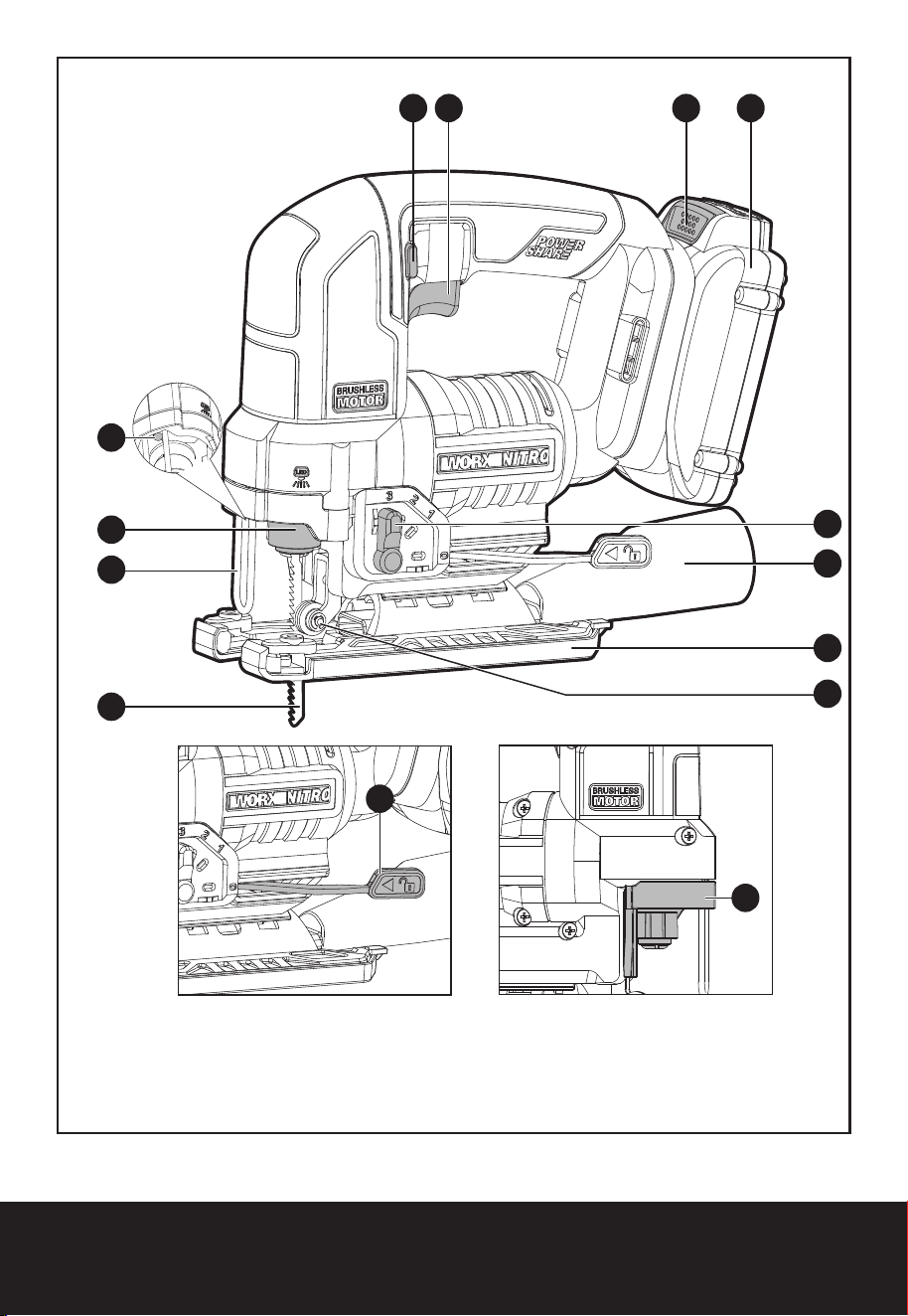

2. COMPONENT LIST
3. TECHNICAL DATA
4. OPERATING INSTRUCTIONS
5. WORKING HINTS FOR YOUR JIGSAW
6. MAINTENANCE
7. FOR BATTERY TOOLS
8. TROUBLESHOOTING
1. SAFTY INTRODUCTIONS
PRODUCT SAFETY
WARNING: Some dust created by power
sanding, sawing, grinding, drilling and
other construction activities contains chemicals
known to the State of California to cause cancer,
birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and
other masonry products;
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic
particles.
WARNING: This product can expose
you to chemicals including lead and Di
(2-ethylhexyl) phthalate (DEHP) which are
known to the State of California to cause cancer
and birth defects or other reproductive harm.
For more information go to www.P65Warnings.
ca.gov.
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool.
Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term power tool in the warnings refers to your electric
(corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust.
Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts.
Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply.
Use of an RCD reduces the risk of
electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication.
A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection.
Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on.
A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times.
This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
7
20V Cordless
Brushless Jigsaw
EN
moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used.
Use of dust collection
can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles.
A careless action can cause
severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power
tool for your application.
The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off.
Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use.
Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed.
Use of the power tool for operations different
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and
free from oil and grease.
Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer.
A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
b) Use power tools only with specifically designated
battery packs.
Use of any other battery packs may create
a risk of injury and fire.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a fire.
d) Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help.
Liquid ejected from the
battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or
modified.
Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk
of injury.
f) Do not expose a battery pack or tool to fire or
excessive temperature.
Exposure to fire or temperature
above 266 °F(130 °C) may cause explosion.
g) Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions.
Charging
improperly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This
will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs.
Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
JIGSAW SAFETY WARNINGS
1. Hold jig saw by insulated gripping surfaces,
when performing an operation where the cutting
accessory may contact hidden wiring.
Cutting
accessory contacting a “live” wire may make exposed
metal parts of the power tool “live” and could give the
operator an electric shock.
2. Use clamps or another practical way to secure and
support the workpiece to a stable platform.
Holding
the workpiece by hand or against your body leaves it
unstable and may lead to loss of control.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or fire. Avoid
storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer where
they may short-circuit each other or be short-
circuited by other metal objects. When battery pack is
not in use, keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small metal objects,
that can make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or fire.
8
20V Cordless
Brushless Jigsaw
EN
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid
to come in contact with the skin or eyes. If contact
has been made, wash the affected area with copious
amounts of water and seek medical advice.
f) Do not use any battery pack which is not designed
for use with the equipment.
g) Keep battery pack out of the reach of children.
h) Always purchase the battery pack recommended by
the device manufacturer for the equipment.
i) Keep battery pack clean and dry.
j) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
k) Battery pack need to be charged before use.
Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual
for proper charging instructions.
l) Do not leave battery pack on prolonged charge when
not in use.
m) After extended periods of storage, it may be
necessary to charge and discharge the battery pack
several times to obtain maximum performance.
n) Recharge only with the charger specified by
WorxNITRO. Do not use any charger other than that
specifically provided for use with the equipment.
o) Retain the original product literature for future
reference.
p) Use only the battery pack in the application for
which it was intended.
q) Remove the battery pack from the equipment when
not in use.
r) Dispose of properly.
s) Do not mix cells of different manufacture, capacity,
size or type within a device.
t) Keep the battery away from microwaves and high
pressure.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Li-I on
Li-Ion battery, battery must be
recycled.
Make sure the battery is removed prior
to changing accessories or making
any adjustments to the tool.
Wear protective gloves
Wood
Metal
Aluminium
Plastic
Incorrect
Correct
Batteries may enter water cycle if
disposed improperly, which can be
hazardous for ecosystem. Do not
dispose of waste batteries as unsorted
municipal waste.
Do not burn
High speed
Low speed
Lock
Unlock
9
20V Cordless
Brushless Jigsaw
EN
POSITEC Inc. has established a partnership with the
RBRC Corporation to recycle any Positec batteries with
the RBRC-call2recycle seal. For environmental protection,
please do not discard batteries in the trash. After the
batteries’ life cycle is ended, then please call 1-800-822-
8837 for a free service that will properly dispose of the
battery.
2. COMPONENT LIST
1. LOCK-OFF BUTTON
2. VARIABLE SPEED TRIGGER
3. BATTERY PACK RELEASE BUTTON *
4. BATTERY PACK *
5. PENDULUM ACTION CONTROL LEVER
6. VACUUM ADAPTER
7. BASE PLATE
8. ROLLER GUIDE
9. SAW BLADE
10. CONTACT PROTECTOR
11. TOOL-FREE BLADE HOLDER
12. LED LIGHT
13. BASE PLATE ADJUSTMENT SWITCH
14. BLADE RELEASE LATCH
* Not all the accessories illustrated or described
are included in standard delivery.
3. TECHNICAL DATA
Type WX542L WX542L.X (5- designation of
machinery, representative of Saw)
WX542L
WX542L.X**
Voltage 20V Max***
No-load speed 0-3500 spm
Stroke length 1’’(26mm)
Cutting
capacity
Wood 4-23/32’’(120mm)
Steel 25/64’’(10mm)
PVC 25/32’’(20mm)
Bevel capacity ±45°
Machine weight (Bare tool) 4.2lbs(1.9kg)
** X may be followed by one or two characters. All
models are the same except model number and
trademark.The suffix in models may be number from
“1” to “999” or English letter “A” to “Z” or “M1” to” M9”
which means different package or the various of
accessories packed in the package.
*** Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal voltage
is 18 volts.
Category
Type Capacity
20V Battery
WA3578 4.0Ah
WA3525 2.0Ah
WA3520 1.5Ah
WA3575 2.0Ah
20V Charger
WA3881 2.0A
WA3742 0.4A
WA3875 2.0A
We recommend that you purchase your accessories
listed in the above list from the same store that sold
you the tool. Refer to the accessory packaging for
further details. Store personnel can assist you and
offer advice.
4.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction
book carefully.
INTENDED USE
The machine is intended for sawing wood, plastic,
metal and building materials while resting firmly on the
workpiece. It is suitable for straight and curved cuts. The
saw blade recommendations are to be observed.
10
20V Cordless
Brushless Jigsaw
EN
ASSEMBLY AND OPERATION
ACTION FIGURE
BEFORE OPERATION

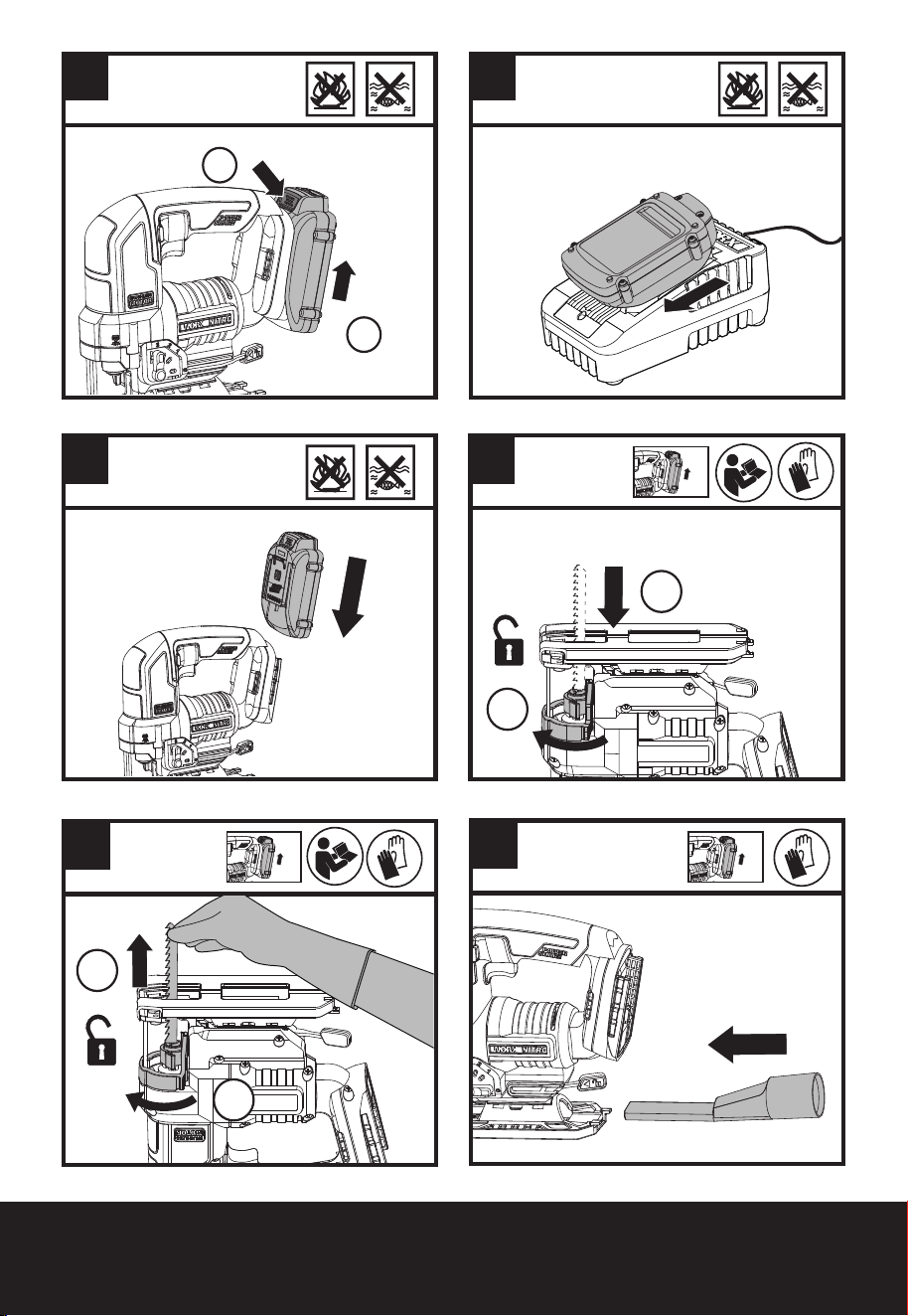

Removing the battery pack See Fig. A1
Charging the battery See Fig. A2
Installing the battery pack See Fig. A3
ASSEMBLY
Blade Installation
Note: Remove the battery pack
during blade installation and
blade removal
See Fig. B1
Blade Removal
Note: Remove the battery pack
and allow the blade to cool.
Rotate the tool-free blade holder
and remove the blade.
See Fig. B2
Vacuum Adapter Installation See Fig. B3

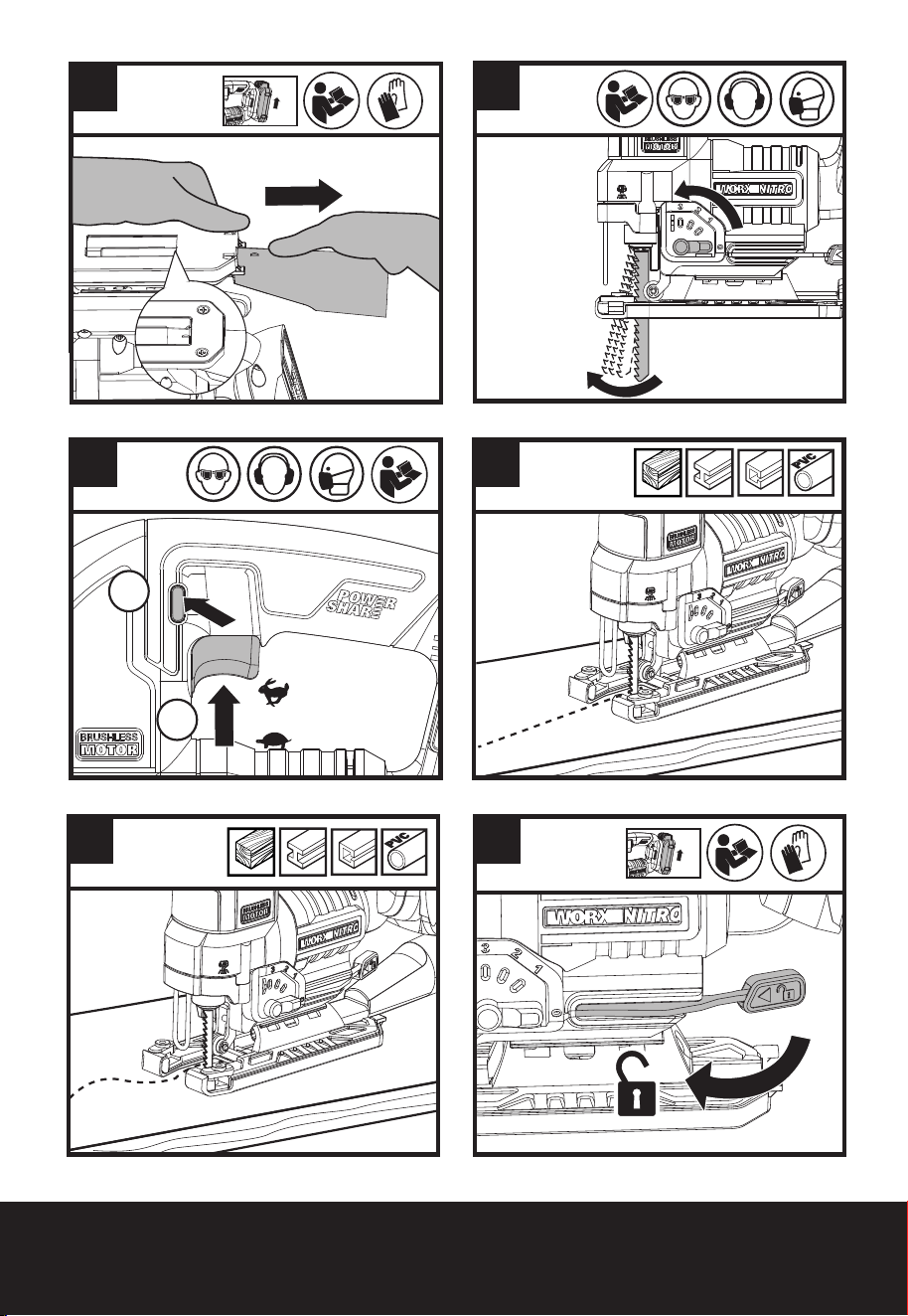

Vacuum Adapter Removal
Note: Press and hold the
projection on the bottom of the
vacuum adapter before pulling it
out of the machine.
See Fig. B4
OPERATION
Pendulum Function
Note: The amount of pendulum
action may be adjusted with the
pendulum action control lever.
In general, a large orbital action
(3) should be used with soft
materials and a no orbital action
(0) should be used with hard
materials. When a smooth cut is
required, no orbit (0) should be
used.
See Fig. C
Variable Speed Trigger
Note: For safety reasons the
trigger of the machine cannot be
locked; it must remain pressed
during the entire operation.
To vary the speed, increase or
decrease pressure on the trigger.
The further the trigger is pulled,
the greater the speed.
See Fig. D
Straight Cut and Curve Cut See Fig. E1, E2

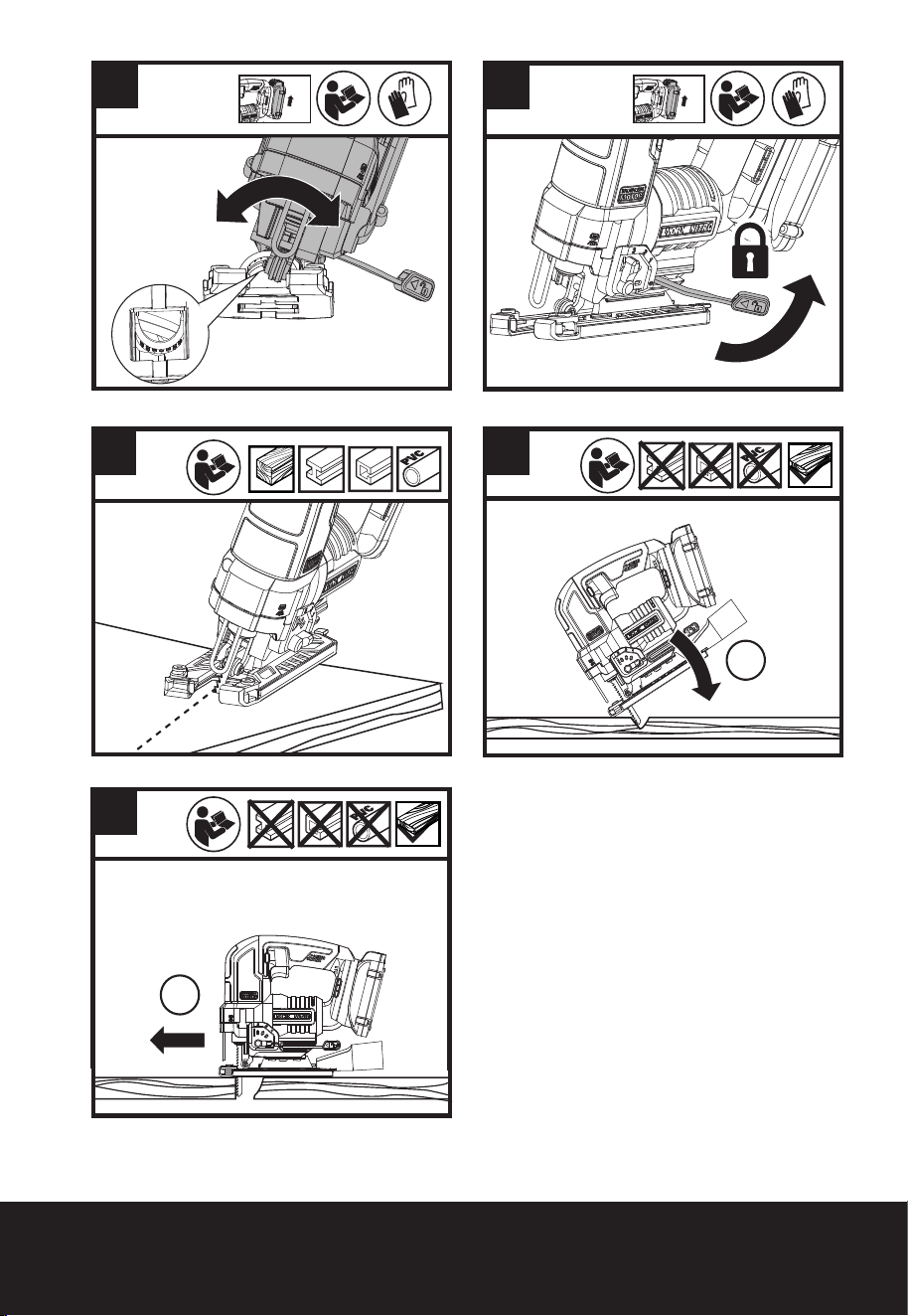

Bevel Cut
Note: Remove the vacuum
adapter before adjusting the
base plate.
Note: Rotate the base plate to
the desired position according
to the scale. Ensure the blade
is engaged between the blade
positioning wheel.
See Fig. F1-
F3&G
Plunge Cut
Note: Plunge cuts can be made
into soft materials without a
pre-drilled hole. Harder materials
require a starter hole with a
diameter slightly over the width of
the blade. To make a plunge cut:
1. Set the pendulum action control
lever to 0.
2. Make sure nothing below
the intended cut area will be
damaged.
3. Without turning the tool on,
place the front edge of the shoe
solidly on workpiece.
4. Align the blade with the
intended cut line, but keep it
above the workpiece.
5. Using the front edge of the
shoe as a pivot, turn on the tool
and gradually lower the blade
into the workpiece.
6. When the shoe is flat against
the workpiece, normal cutting
may take place.
See Fig. H1&H2
5. WORKING HINTS FOR
YOUR JIGSAW
If your power tool becomes too hot, please run your
jigsaw no load for 2-3 minutes to cool the motor. Avoid
prolonged usage at very low speeds.
Always use a blade suited to the material and material
thickness to be cut. For tight curves it is best to use
a narrow saw blade. When sawing metal or similar
materials, apply coolant/lubricant alongside the cutting
line.
Always ensure the workpiece is firmly held or clamped
to prevent movement. Any movement of the material
may affect the quality of the cut. The blade cuts on the
upward stroke and may chip the uppermost. Ensure your
uppermost surface is a non-visible surface when your
work is finished.
For easier control, use low speed to start cutting and
then increase to correct speed.
In order to avoid operation malfunctions, do not saw
gypsum board from below or overhead.
11
20V Cordless
Brushless Jigsaw
EN
The guide roller should occasionally be checked for wear
and lubricated with a drop of oil. If it is worn, it must be
replaced.
6. MAINTENANCE
Remove the battery pack from the tool before
carrying out any adjustment, servicing or
maintenance.
There are no user serviceable parts in your power tool.
Never use water or chemical cleaners to clean your
power tool. Wipe clean with a dry cloth. Always store
your power tool in a dry place. Keep the motor ventilation
slots clean. Keep all working controls free of dust. Only
genuine WorxNITRO batteries, accessories and parts
should be used with this product. Failure to do so, will
void all warranty claims.
7. FOR BATTERY TOOLS
The ambient temperature range for the use and storage
of tool and battery is 32°F-113°F(0°C-45°C).
The recommended ambient temperature range for the
charging system during charging is 32°F-104°F(0°C-40°C).
8. TROUBLESHOOTING
Symptom Possible Causes Possible Solution
The tool
suddenly
stops during
operation.
Overload
Battery
temperature too
high
Relieve the load
on the machine
immediately and
allow cooling for
approx. 30 sec-
onds by running
the machine on
no-load.
Low battery
capacity
Charge the bat-
tery pack.
