EN (GB) (IE)
INSTRUCTIONS FOR USE
OF A REFRIGERATOR WITH
FREEZER
THANK YOU FOR WELCOMING OUR APPLIANCE INTO YOUR HOME
We are happy that you have chosen a Hisense appliance. Hisense is here to empower
you and all your adventures with our cutting-edge technology and modern home
appliances made of high-quality materials. Because we are working tirelessly on energy
efficiency, by purchasing our appliance, you too are contributing to more sustainable
future.
For full use of our services, warranty and other important information, please consider
to register your Hisense appliance online on our website:
https://www.hisense-europe.com
We hope our appliance will meet and exceed your expectations.
Link to the EU EPREL database
The QR code on the energy label supplied with the appliance provides a web link to
the registration of this appliance in the EU EPREL database. Keep the energy label for
reference together with the user manual and all other documents provided with this
appliance. It is possible to find information related to the performance of the product
in the EU EPREL database using the link https://eprel.ec.europa.eu and the model name
and product number that you can find on the rating plate of the appliance. For more
detailed information about the energy label, visit www.theenergylabel.eu.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of frozen food
(up to one year, depending on the type of food).
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning – general danger
ELECTRIC SHOCK!
Warning – danger of electric shock
DANGER OF FIRE!
Warning – danger of fire
Contents
5Important notes and precautions ..........................................................................................
5Before using the appliance for the first time .............................................................................
5Important safety instructions ....................................................................................................
7Important information on the use of appliance .........................................................................
9Advice for saving power with refrigeration appliances .......................................................
10Installation and connection ....................................................................................................
10Selecting the room ....................................................................................................................
10Appliance placement ................................................................................................................
11Connecting the appliance .........................................................................................................
12Reversing the door opening direction ..................................................................................
17Description of the appliance ..................................................................................................
18Operating the appliance .........................................................................................................
18Switching the appliance on/off .................................................................................................
19Adjusting the temperature in the appliance ..............................................................................
20Intensive freezing (freezer compartment) ..................................................................................
20Intensive cooling (refrigerator compartment) ............................................................................
21Eco function(Recommended setting ) .......................................................................................
21Wi-Fi function (Only in some models)) ......................................................................................
23High temperature alarm ............................................................................................................
23Open door alarm .......................................................................................................................
24Appliance interior equipment ................................................................................................
24AdaptTech ................................................................................................................................
24Air distribution system * ...........................................................................................................
24Slider for converting the low-temperature drawer into a fruit and vegetables drawer * ..........
24Low-temperature drawer * .......................................................................................................
25Fruit and vegetable drawer with humidity control * .................................................................
26Bottle rack * .............................................................................................................................
26Shelf ..........................................................................................................................................
26Door racks ................................................................................................................................
27Recommended distribution of food in the appliance ..........................................................
28Storing food in the refrigerator ..............................................................................................
28Important warnings regarding food storage .............................................................................
28Avoid contamination of food .....................................................................................................
29Freezing and storing frozen food ..........................................................................................
29Freezing procedure ...................................................................................................................
29Important warnings on freezing ................................................................................................
29Storing industrially frozen food .................................................................................................
29Frozen food storage time ..........................................................................................................
30Thawing frozen food .................................................................................................................
31Defrosting the appliance (Total NoFrost) .............................................................................
32Cleaning the appliance ...........................................................................................................
33Troubleshooting ......................................................................................................................
3
36Information about appliance noise .......................................................................................
37Environment protection ..........................................................................................................
38Compliance information .........................................................................................................
39Spare parts ..............................................................................................................................
4
Important notes and precautions
Before using the appliance for the first time
Before connecting the appliance to the power mains, please read carefully the instructions for use
which describe the appliance and its correct and safe use. The instructions apply to several appliance
types/models; thus, settings or equipment may be described herein which is not available in your
appliance. We recommend saving this instruction manual for future reference and attach it to the
appliance if it is sold in the future.
Check for any damage or irregularities on your appliance. If you find your appliance is damaged, notify
the retailer from which you have purchased the appliance.
Before connecting the appliance to the power mains, let the appliance rest in a vertical position for a
minimum of 2 hours. This will reduce the possibility of operation faults due to the effect of transport
on the cooling system.
Important safety instructions
DANGER OF FIRE!
WARNING! Risk of fire/flammable materials.
The appliance must be connected to the power mains and grounded in compliance with the effective
standards and regulations.
WARNING! Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall
outlet).
ELECTRIC SHOCK!
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
ELECTRIC SHOCK!
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
ELECTRIC SHOCK!
If LED lighting does not work, call a service technician. Do not attempt a repair of the LED lighting
yourself, as there is danger of contact with high voltage!
WARNING!
WARNING! Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
5
WARNING!
WARNING! Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING!
WARNING! To avoid any hazard resulting from poor stability
of the appliance, make sure it is installed as instructed.
Freeze burn hazard
To avoid freeze burn, never put frozen food in your mouth and do not touch frozen food.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Remove the packaging intended to protect the appliance or
particular parts during transport and keep it outside the reach
of children. It presents danger of injury or suffocation.
When removing a used appliance, disconnect the power cord,
remove the door, and leave the shelves in the appliance. This
will prevent children from locking themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
6
Cleaning and user maintenance shall not be made by children
without supervision.
Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an environmentally
friendly yet flammable gas R600a. Make sure that no parts of
the cooling system are damaged. A gas leak is not hazardous
to the environment, but it could cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly, disconnect
the appliance from the power mains, and call a service
technician.
Important information on the use of appliance
WARNING! This appliance is intended to be used in household
and similar applications such as:
• staff kitchen areas in shops, offices and other working
environments;
• farm houses and by clients in hotels, motels and other
residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
WARNING!
WARNING! Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
The appliance may not be used outdoors and it may not be exposed to rain.
Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of time, switch it off using the relevant button,
and unplug it from the power mains. Empty the appliance, defrost it, clean it, and leave the door ajar.
In case of an error or power supply failure, do not open the freezer compartment unless the freezer
has not operated for over 16 hours. After this period, use the frozen food or provide sufficient cooling
(e.g. a replacement appliance).
7
Technical information on the appliance
Rating plate can be found in the appliance interior. It indicates data on voltage, gross and net volume,
type and amount of refrigerant, and information on the climate classes.
If the language on the rating plate is not the language of your choice or the language of your country,
replace it with the one supplied.
WARNING!
WARNING! Do not damage the refrigerant circuit.
8
Advice for saving power with refrigeration
appliances
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason, have it replaced as
soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove some of the drawers as
described in the instruction manual.
• Make sure the layout of shelves in the compartment is uniform and that the food is placed so that
the air can freely circulate in the appliance interior (observe the recommended placement of food
as described in the instructions).
9
Installation and connection
Selecting the room
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the
environment temperature is in the interval specified in the table. The appliance class is indicated
on the rating plate / label with the basic information on the appliance.
Relative humidity
Ambient temperature range
°C
ClassDescription
≤75%
+10 to +32SN
Extended
temperate
+16 to +32NTemperate
+16 to +38STSubtropical
+16 to +43TTropical
INFORMATION!
This appliance is not intended to be used as a build-in appliance.
INFORMATION!
Do not place an appliance in a room where temperature can drop to below 5 °C as this may
cause abnormal appliance operation or failure!
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as a cooker, a stove,
a radiator, water heater etc., and do not expose it to direct sunlight. The appliance should stand
at least 3 cm away from an electric or gas cooker or at least 30 cm away from an oil or solid fuel
stove. If the distance between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a sufficiently large room. There should be at least 1 m
3
of space per 8
grams of refrigerant. Amount of refrigerant is indicated on the rating plate in the appliance interior.
Appliance placement
Appliance installation should be carried out by at least two persons to avoid any personal injury or
damage to the appliance.
• The appliance must stand level or tilted slightly to the back. It should be stable and placed a solid
base. At the front, the appliance is fitted with two adjustable feet that can be used to level the
appliance. At the rear side, casters allow for easier installation of the appliance (only with some
models).
• Do not expose the appliance to direct sunlight and do not place it near sources of heat. If this
cannot be avoided, install an insulation panel.
10
• The appliance is intended for free-standing installation. To achieve optimum power consumption,
always provide 50 mm of clearance between the wall and the back of the appliance and above
the appliance. Also ensure sufficient air circulation next to and above the appliance.
• Take into account the space or clearance required to open the appliance door, in order to allow
the drawers and shelves to be pulled out or removed (see installation diagram).
Connecting the appliance
• Connect the appliance to the power mains using the power cord.
The wall outlet should be fitted with a ground contact (safety socket).
Nominal voltage and frequency are indicated on the rating plate/label
with basic information on the appliance.
• The appliance must be connected to the power mains and grounded
in compliance with the effective standards and regulations. The
appliance will withstand short-term deviations from the nominal
voltage, but not more than +/- 6%.
11
Reversing the door opening direction
The direction in which the appliance door opens can be reversed.
Note: Disconnect the appliance from the power mains before reversing the door opening direction.
Tools required:
Socket wrench No. 8,
Cross-point screwdriver
Flat screwdriver
Spanner No. 8
Torx T25
Note:
• If the appliance has to be tilted to allow access to parts on the bottom, ask another person for
assistance or gently place the appliance on some soft padding to prevent damaging it. To reverse
the opening direction, proceed as follows.
1. Place the appliance in an upright position.
Open the top door and remove the door
racks (to prevent damaging them during
the procedure). Close the door.
2. Remove the covers on each side of the
upper door.
3. Then remove the covers on each side of
the control unit. To do this, hold it up and
pull it hard towards you. Put the covers
away for future reference.
12
4. Unscrew the two screws on the left and
right sides of the cover strip and remove it.
5. Disconnect the connector.
* depending on the model
6. Then unscrew the top hinge and put it away
for future reference.
7. Remove the top door from the middle hinge
by carefully lifting it straight up. Lay the
door onto a smooth surface.
8. Changing the soft closing mechanism:
unscrew the screw (1), remove the door
latch (2) and the hinge bushing (3). Then
unscrew the screw (4) and remove the door
limiter (5). Then install all these components
in reverse order on the opposite side of the
door.
13
9. Undo the screws from the middle hinge and
remove it. Then, remove the bottom door
from the bottom hinge.
10. Repeat the process of changing the soft
closing mechanism on the lower door, too.
Unscrew the screw (1), remove the door
latch (2) and the hinge bushing (3). Then
unscrew the screw (4) and remove the door
limiter (5). Then install all these components
in reverse order on the opposite side of the
door.
11. Remove the middle hinge cap and replace
it on the opposite side.
12. Tilt the appliance slightly backwards, unscrew the foot (1) and the two screws (2) with which the
lower hinge (3) is attached and remove it. Then remove the extra foot (4) from the lower hinge and
unscrew the cap (5). Rotate the hinge (3) by 180° and refasten the cap (5) and the extra foot (4).
Attach the hinge and the foot to the opposite side.
INFORMATION!
The extra foot (4) serves only to stabilise the appliance and is not intended to carry the weight
of the appliance. When adjusting the foot (1) so that the appliance stands straight, lower the
extra foot (4) only so that it touches the floor.
14
13. Place the bottom door onto the bottom
hinge and hold them in place. Rotate the
middle hinge by 180°. Place the washer in
the correct position and adjust the position
of the middle hinge so that you can install
and fix the bottom door.
14. Place the top door in the correct position
and use the screws to attach the upper
hinge, which you can find in the bag with
documentation. Hold the top door in place
while positioning them.
15. Connect the connector and reattach the
cover strip.
* depending on the model
15
16. Install the upper door covers first, then the
covers on each side of the cover strip and
lastly the cover of the lower hinge holes,
which you can find in the bag with
documentation.
17. Open the top door and replace the door rack; then, close the door.
Note: If your model has a handle, then move it
to the opposite side by following the
instructions below.
Remove the caps (1) and undo the two screws
(2) as shown in the figure. Rotate the handle (3)
by 180° and replace it on the opposite side.
Then, fasten the screws (2) and replace the
caps (1).
16
Description of the appliance
Appliance interior equipment may change according to the appliance model.
This product contains a light source of energy efficiency class G.
A Refrigerator
1. Control panel
2. LED lighting
3. Air distribution system
4. Bottle rack *
5. Glass shelves
6. Slider for converting the low-temperature
drawer into a fruit and vegetables drawer *
7. Low-temperature drawer *
8. Fruit and vegetable drawer with humidity
control *
9. Low door racks
10. Bottle shelf
B Freezer
11. Top freezing and storage drawer
12. Deep SpaceBox drawer for freezing and
storage
13. Bottom storage drawer
* Only in some models
• The drawers are fitted with a system that prevents them from being unintentionally pulled out. To
remove a drawer from the appliance, pull it out as far as it will go, then lift at the front and pull out
completely.
17

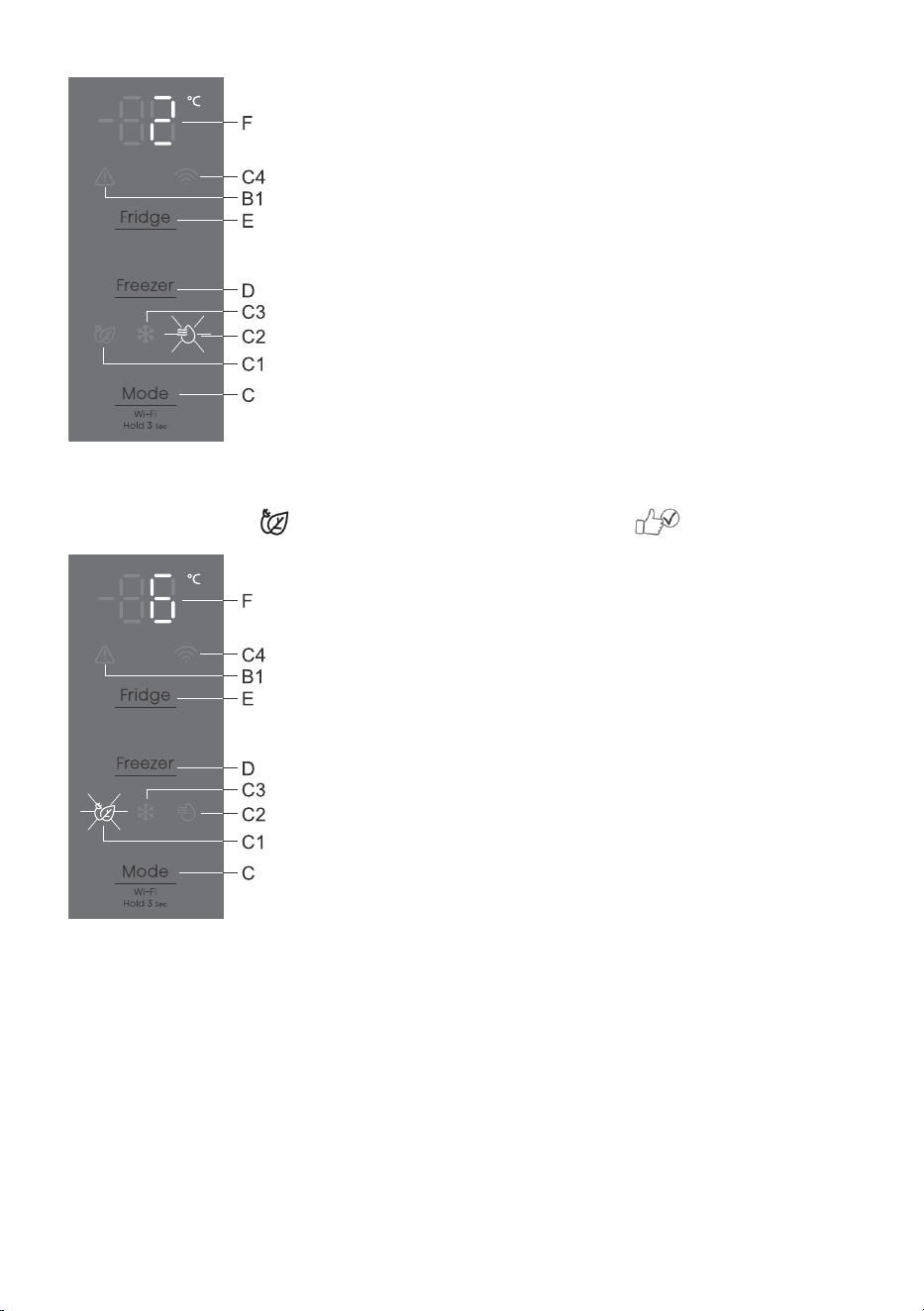

Operating the appliance
Appliance on/off keyA
Appliance operation indicatorA1
Acoustic alarm off keyB
Alarm operation indicatorB1
Additional functions on/off keyC
Eco function indicatorC1
Intensive cooling (super cool) function indicatorC2
Intensive freezing (fast freeze) function indicatorC3
Wi-Fi function indicator (Only available in some models)C4
Key for setting the freezer compartment temperatureD
Refrigerator compartment temperature setting keyE
DisplayF
Switching the appliance on/off
When you connect the appliance to the power mains for the first time, the appliance will be in standby
mode (switched off, but powered).
To switch on the appliance press A key for 3 seconds.
Switching off the appliance: switch off the appliance by pressing the
A key and holding it (for 3 seconds). The appliance will switch to standby
mode (it remains powered).
18
Adjusting the temperature in the appliance
INFORMATION!
• Appliance temperature is preset at the factory to the recommended setting, i.e. 4°C for the
refrigerator compartment and -18°C for the freezer compartment.
• After the appliance is switched on, it may take several hours for the set temperature to be
reached. Do not place any food into the refrigerator before the temperature drops to the
selected setting.
The temperature in the refrigerator compartment can be set with the
E key. Press the E key until the F display shows the desired temperature.
• The temperature in the refrigerator compartment can be set in the range from +2 °C to + 8 °C.
• Each time you press the E key you reduce the setting by 1 °C. After three seconds of inactivity,
the setting is automatically saved as the last set temperature of the refrigerator compartment.
• Recommended temperature setting is 4°C.
The temperature in the freezer compartment can be set with the D key.
Press the D key until the F display shows the desired temperature.
• The temperature in the freezer compartment can be set in the range from -14°C to -24°C.
• Each time you press the D key you reduce the setting by 1 °C. After three seconds of inactivity,
the setting is automatically saved as the last set temperature of the freezer compartment.
• Recommended temperature setting is -18°C.
19
Intensive freezing (freezer compartment) ( )
• Use this setting after switching on the appliance for the first time, before cleaning, or before
inserting a large amount of food.
Power on: switch on the intensive freezing mode by pressing the key C
as many times as it takes for the display to show C3. The display shows
-24.
Power off: switch off the intensive freezing mode by pressing the C key
again until the symbol C3 turns off. The function will also be deactivated
when you change the freezer compartment temperature setting, or when
you activate any of the other extra functions.
If the setting is not deactivated manually, it will be deactivated
automatically (after about 52. hours). The setting returns to the last saved
state.
INFORMATION!
• When the intensive freezing (fast freeze) function is activated, the appliance will operate with
maximum power. During this time, operation may be temporarily somewhat louder.
INFORMATION!
• When the intensive freezing (super freeze) function is activated, temperature may be lower
both in the refrigerator and the freezer compartment.
Intensive cooling (refrigerator compartment) ( )
INFORMATION!
Use this setting after switching on the appliance for the first time, before cleaning, or before
inserting a large amount of food.
20
Power on: switch on the intensive cooling mode by pressing the C key
as many times as it takes for the display to show C2. The display shows
2.
Power off: switch off the intensive cooling mode by pressing the C key
again until the symbol C2 turns off. The function will also be deactivated
when you change the refrigerator compartment temperature setting, or
when you activate any of the other extra functions.
If the setting is not deactivated manually, it will be deactivated
automatically (after about six hours). The setting returns to the last saved
state.
Eco function ( ) (Recommended setting )
Power on: turn on the Eco function by pressing the C key as many times
as it takes for the display to show C1. By turning on the Eco function,
the refrigerator compartment is set to +6 °C and the freezer compartment
to -17 °C.
Power off: the Eco function can be switched off by pressing the C key
again until the symbol C1 goes out.
The Eco function will also be deactivated when you change the
refrigerator or freezer compartment temperature setting, or when you
activate any of the other extra functions.
Wi-Fi function (Only in some models))
You can control this device remotely with your smartphone. If the device is not connected to your
home network, it functions in the same way as a conventional device.
21
Connecting your appliance to the application ConnectLife
ConnectLife it is a smart home platform that connects people, devices, and services. The ConnectLife
application includes advanced digital services and carefree solutions that allow users to monitor and
control appliances, receive notifications from a smartphone, and update software (supported features
vary depending on your appliance and your region/country).
To connect your smart device, you need a home Wi-Fi network (only 2.4 GHz networks are supported)
and a smartphone with the application ConnectLife.
To download the ConnectLife application, scan the QR code or search
for ConnectLife in your favorite app store.
1. Install the ConnectLife application and create an account.
2. In the ConnectLife application, go to the "Add device" menu and select the appropriate type of
device. Then scan the QR code (it can be found on the rating plate of the appliance; you can also
enter the AUID/SN code manually).
3. The application then guides you through the entire process of connecting the appliance to your
smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.
Cancelling all pairings
By activating this function, the appliance will be removed from all paired app user accounts.
• Press the C key and hold it (6 seconds) until the appliance beeps
twice. The following symbol starts to flash C4.
• The function will terminate automatically after successful removal of
all pairings in the cloud. The symbol C4 will turn off.
22
High temperature alarm
If the temperature inside the appliance is too high, an acoustic alarm will
be activated (intermittent tone) and the display will show B1.
• Every time the appliance is switched on with the A key, there is a
24-hour delay in high temperature alarm operation. If the appliance
does not reach the sufficiently low temperature in this period, the
alarm will be activated.
Switching off the alarm:
• To acknowledge and switch off the acoustic alarm, press the B key.
• When the appliance reaches an adequate temperature, the display B1 will turn off.
Open door alarm
If the refrigerator compartment door is open for too long, an acoustic alarm (repetitive beep) will be
activated.
To switch off the alarm: to switch off the alarm, close the appliance door.
23
Appliance interior equipment
( * Equipment depends on the model)
AdaptTech
This smart system has been designed to maintain a constant temperature in the refrigerator, regardless
of how often its doors are opened. It constantly monitors the use of your refrigerator and manages
the temperature to prevent possible temperature increases, thus ensuring the long-term freshness of
your food and reducing energy consumption.
Air distribution system *
The advanced ventilation system evenly distributes the air and equalises the temperature throughout
the entire cooling section. It also ensures optimal air circulation and the best conditions for storing
your food.
Slider for converting the low-temperature drawer into a
fruit and vegetables drawer *
• If you find you need extra space for your fruit and vegetables, you can turn your low-temperature
drawer into a fruit and vegetables drawer.
• To do this, use the slider as follows:
- to use the drawer as a low-temperature drawer: push the slider
to the right.
- To use the drawer as a fruit and vegetables drawer: move the
slider to the left.
Low-temperature drawer *
(Only in some models)
The compartment allows storing a wide variety of fresh food for up to three times longer than in a
conventional refrigerator. The food stays fresh longer, retaining its flavour and nutrients. The temperature
in this drawer depends on the temperature settings in the refrigerator compartment, ambient
temperature, frequency of door opening, and amount of food placed in it.
For a temperature around 0 °C in the drawer, we recommend setting the refrigerator compartment
temperature to 4 °C or lower. Temperature in the drawer may fall below 0 °C. Therefore, place the
temperature-sensitive food in the upper parts of the refrigerator.
For optimum performance, the drawer should be fully closed.
• When buying food, make sure it is fresh as this will determine the quality of the food, as well as
how long it will keep in the fridge.
• Store the food in closed containers or appropriate packaging to prevent them from emitting or
receiving odours and humidity.
• Take the food from the drawer 30 to 60 minutes before use to allow the aroma and flavour develop
at room temperature.
24
• Foods sensitive to low temperature that are not appropriate for storage in the drawer include the
following: pineapples, avocado, bananas, olives, potatoes, eggplant, cucumbers, beans, peppers
(capsicum), melons, watermelons, squash...
• To remove the drawer:
Pull out the drawer until it is blocked.-
- Lift it at the front and pull out completely.
Fruit and vegetable drawer with humidity control *
• The drawer at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides
humidity and prevents the food from drying out. The drawer has a humidity regulator which allows
setting the humidity level.
Position of the button towards High Humidity: higher humidity in the
drawer.
Position of the button towards Low Humidity: lower humidity in the
drawer.
If you observe droplets accumulating below the glass shelf, open the
vents and wipe the shelf (see chapter TROUBLESHOOTING).
• Pulling out the bin:
- Pull out the bin as far as it will go. Then, lift the front part and
pull it out completely.
25
Bottle rack *
• Some models also feature a bottle holder. It is protected against
being inadvertently pulled out. It can only be pulled out when it is
empty. To pull it out, lift it slightly at the rear, pull it towards you,
apply some downward pressure at the front and pull the holder out
of the appliance.
• Cans may also be placed on the bottle rack (lengthwise or crosswise).
Shelf
Empty shelves can be rearranged as you see fit across the guides in the
appliance interior. To move or remove them from the appliance, slightly
lift them at the back, pull them towards you, push them down at the front
and then move or pull them out of the appliance. Store quickly perishable
food at the back of the shelf where the temperature is the lowest.
Door racks
Interior side of the refrigerator door is fitted with shelves intended for
storing cheese, butter, eggs, yoghurt, and other smaller packages, tubes,
cans etc.
You may lay out the racks as desired by lifting them slightly from the
grooves that hold them in place and moving them to the desired spot,
making sure to fit them in the grooves there.
The bottom rack is intended for storing bottles.
Maximum load on each door shelf is 5 kg.
26
Recommended distribution of food in the
appliance
Sections in the refrigerator compartment:
• upper part: canned food, bread, wine, pastry ...
• middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc.
• low-temperature drawer: meat, meat produce, delicatessen...
• fruit and vegetable bin: fresh fruit, vegetables, lettuce, root vegetables, onions, garlic, sauerkraut,
turnips...
Sections in the refrigerator compartment
door:
• upper/middle door bins: eggs, butter,
cheese, etc.
• lower door bins: beverages, cans,
bottles, etc.
INFORMATION!
Do not store fruit (bananas, pineapples,
papaya, citruses) and vegetables
(zucchini, eggplant, cucumbers, bell
peppers, tomatoes, and potatoes)
sensitive to low temperatures in the
refrigerator.
Freezer sections:
• freezing, storing frozen food (see chapter Freezing and storing frozen food).
INFORMATION!
Do not store the following in the freezer: lettuce, eggs, apples, pears, grapes, peaches, yoghurt,
soured milk, sour cream, and mayonnaise.
27
Storing food in the refrigerator
Important warnings regarding food storage
INFORMATION!
Correct use of the appliance, appropriate packaging, maintaining the right temperature, and
observing the food hygiene standards have a decisive impact on the quality of food storage.
Observe the expiry dates for the food, indicated on the packaging.
Food stored in the refrigerator should be kept in closed containers or in appropriate packaging
to prevent it from emitting or receiving odours and humidity.
Do not store inflammable, volatile, and explosive substances in the refrigerator.
Bottles with high alcohol content should be tightly sealed and stored in an upright position.
Some organic solutions, essential oils in lemon and orange peel, butter acid, etc. may damage
the plastic surfaces in case of a prolonged contact, causing damage and premature ageing of
these materials.
Unpleasant odour warns of lacking cleanliness of the appliance or perished contents (see chapter
Cleaning the Appliance).
If you are leaving home for a longer period of time, remove perishables from the refrigerator.
Avoid contamination of food
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with
or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave
the door open to prevent mould developing within the appliance.
28
Freezing and storing frozen food
Freezing procedure
INFORMATION!
Maximum amount of fresh food that may be inserted at once is specified on the appliance rating
plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing
will be inferior; in addition, the quality of the food already frozen will deteriorate.
• Activate the super freeze function 24 hours before freezing fresh food:
- switch on the intensive freezing mode by pressing F.
• To make sure the food freezes as quickly as possible, lay out the packages as described below:
- Pack fresh food in smaller packages (1 kg). Place four packages in the top drawer, one in
each corner of the drawer, and one package in the bottom drawer, centred against the back
wall.
Make sure the fresh food is not in contact with the food that is already frozen.
• When freezing smaller amounts of food (1-2 kilograms), activating the super freeze function is not
required.
Important warnings on freezing
INFORMATION!
Only use the freezer to freeze food appropriate for freezing. Always use quality and fresh food.
Select the most suitable packaging for the food and use the packaging correctly.
Make sure the packaging is air and water tight so that the food does not dry out and loose its
vitamins.
Indicate the type of food, amount, and date of freezing on the packaging.
It is important that the food freezes quickly. Therefore, smaller packages are recommended.
Refrigerate the food before freezing.
Storing industrially frozen food
• When storing and using frozen food, observe the manufacturer's instructions. Temperature and
expiry date are indicated on the packaging.
• Only choose food with undamaged packaging, stored in freezers at temperatures of –18 °C or
lower.
• Do not purchase food covered in frost as this indicates it has been partly thawed several times
and that it is of inferior quality.
• Protect the food from thawing during transport. In case of an increase in temperature, storage
time will be shorter and quality will deteriorate.
Frozen food storage time
Recommended storage time in the freezer
Storage lifeType of food
from 10 to 12 monthsFruit, beef
29
Table continued from last page
Storage lifeType of food
from 8 to 10 monthsVegetables, veal, poultry
from 6 to 8 monthsVenison
from 4 to 6 monthsPork
4 monthsFinely chopped or minced meat
3 monthsBread, pastas, cooked dishes, whitefish
2 monthsOffal
1 monthSmoked sausage, bluefish
Thawing frozen food
• Thawing is an important step in storing food preserved by freezing. Food must be thawed in the
correct way.
• Suitable methods of thawing food are:
- in the refrigerator;
- in cold water;
- in a microwave or conventional oven with a suitable thaw program.
• Some frozen products can be prepared without needing to thaw them first. The manufacturer will
state this on the packaging.
• The food needs to be packed in small portions. In this way the food thaws faster.
• Use partially or completely thawed food as quickly as possible. The bacteria in thawed food are
reactivated and the food will spoil rapidly. This applies in particular to fruit, vegetables and
ready-made food.
• Do not refreeze partially or completely thawed food.
30
Defrosting the appliance (Total NoFrost)
The modern Total NoFrost technology in the freezer compartment prevents the formation of ice and
the accumulation of frost on foods, thus enabling economical operation, greater transparency and full
use of space.
In the refrigerator compartment, it prevents food from drying out, as it maintains its humidity and
freshness.
Defrosting of the refrigerator and freezer compartment is automatic, eliminating the need for
time-consuming manual defrosting and cleaning.
31
Cleaning the appliance
WARNING!
Before cleaning, unplug the appliance from the power mains – switch off the appliance (see
chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet.
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents
are not suitable for cleaning as they may damage the surface.
Clean the appliance exterior with water or a mild solution of suds.
Lacquer-coated and aluminium surfaces may be cleaned with lukewarm water to which you have
added a mild detergent. Use of cleaners with low alcohol content is allowed (e.g. window cleaners).
Do not use cleaners containing alcohol for cleaning plastic materials.
Appliance interior can be cleaned with lukewarm water to which you can add some vinegar.
• Do not wash the parts of appliance interior equipment in a dishwasher as they may be damaged.
• After cleaning, switch the appliance back on and insert the food.
32
Troubleshooting
Cause or remedy:Problem:
Appliance is connected to
the power mains but it does
not work.
• Make sure there is voltage in the power outlet and that the
appliance is switched on.
Cooling system operates
continuously for a long
period of time:
• Too high environment temperature.
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on the seal,
misaligned door, damaged seal etc.).
• Too much fresh food inserted at once.
• Sensor in the refrigerator (A) blocked by fresh food. Make sure the
air can circulate around the sensor (only with some models).
Excessive build-up of ice
on the back wall of
refrigerator interior can be
a result of the following:
• door opened too frequently or too long.
• Warm food placed in the refrigerator.
• Food or containers in contact with the back interior wall of the
refrigerator.
• Poor door sealing.
• If the seal is dirty or damaged, clean or replace it.
Build-up of ice or frost in
the freezer interior:
• The door has been opened for too long or too frequently.
• The door is not properly closed.
• The door has a poor seal (the gasket is dirty, the door is not
properly aligned, the gasket is damaged etc.).
• Manually defrost the appliance.
Condensate (dew) on the
shelf above the drawers:
• This is transient phenomenon which cannot be entirely avoided in
periods of high environment temperature and humidity. It subsides
when temperature and humidity are normalized. We recommend
cleaning the drawers more frequently and wiping the droplets
occasionally.
• Open the humidity control slider.
• Put food in bags or other packaging with a good seal.
Droplets on the refrigerator
compartment back wall.
• This is normal. The refrigerator compartment is defrosted
automatically, which results in droplets of water that flows through
an opening in the refrigerator compartment back wall into a tray
above the compressor unit, from which it evaporates.
33
Table continued from last page
Cause or remedy:Problem:
• Clogged water discharge opening or water dripping past the water
gutter.
• Clean the blocked opening, e.g. using a plastic straw.
• If a thick layer of ice builds up, defrost the appliance manually (see
Defrosting the Appliance).
Water is dripping/leaking
from the refrigerator:
Door is difficult to open:
• If you are trying to open the freezer door after just having closed
it, this could be difficult to do. As you open the door, some cool
air escapes from the appliance and it is replaced by warm air from
the environment. When this air is cooled, negative pressure is
generated which results in problems as you try to open the door.
After a few minutes, the condition is normalized and the door can
be easily opened again.
Appliance sides are warm:
• This is normal. There are pipes and tubes installed in the appliance
sides, which tend to heat up during appliance operation.
LED lighting does not work:
• If LED lighting does not work, call a service technician.
• Do not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
The display shows C1:
• The error C1 is displayed if the freezer compartment door is open
for more than 10 minutes. To eliminate the error, close the door.
If, despite the door being closed, the error C1 is still displayed, a
door sensor failure has occurred. Call a service centre to fix the
problem.
The display shows C2:
• The error C2 is displayed if the refrigerator compartment door is
open for more than 10 minutes. To eliminate the error, close the
door. If, despite the door being closed, the error C2 is still
displayed, a door sensor failure has occurred. Call a service centre
to fix the problem.
The display shows C3:
• The error C3 is displayed if the refrigerator and freezer
compartment doors are open for more than 10 minutes. To
eliminate the error, close the door. If, despite the door being closed,
the error C3 is still displayed, a door sensor failure has occurred.
Call a service centre to fix the problem.
Er or Ec will appear on the
display unit:
• Sensor keys are not responding. Call a service centre for repair.
• Until the appliance is repaired by a service technician, the appliance
will operate in safe mode. The appliance will automatically preserve
the most suitable temperature for each compartment.
34
Table continued from last page
Cause or remedy:Problem:
E0 will appear on the
display unit:
• Ambient temperature sensor is malfunctioning. Call a service center
to fix the problem. The appliance will operate in safe mode until it
is repaired by a service technician. The appliance will automatically
maintain the most suitable temperature for each compartment.
E1 will appear on the
display unit:
• The temperature sensor of the refrigerator is defective. Call a
service centre to fix the problem. The appliance will operate in
safe mode until it is repaired by a service technician. The appliance
will automatically maintain the most suitable temperature for each
compartment.
E2 will appear on the
display unit:
• Evaporator sensor of the refrigerator is defective. Call a service
center to fix the problem. The appliance will operate in safe mode
until it is repaired by a service technician. The appliance will
automatically maintain the most suitable temperature for each
compartment.
E3 appears on the display
unit:
• The temperature sensor of the freezer is defective. Call a service
centre to fix the problem. The appliance will operate in safe mode
until it is repaired by a service technician. The appliance will
automatically maintain the most suitable temperature for each
compartment.
E4 appears on the display
unit:
• The evaporator sensor of the freezer compartment is defective.
Call a service centre to fix the problem. The appliance will operate
in safe mode until it is repaired by a service technician. The
appliance will automatically maintain the most suitable temperature
for each compartment.
En will appear on the
display unit:
• The WiFi module is defective. Call a service centre to fix the
problem.
F0 will appear on the
display unit:
• The condenser fan is defective. Call a service centre to fix the
problem. The appliance cannot operate normally. Transfer the food
to a cool place and switch off the appliance.
F1 or F2 appears on the
display unit:
• Compartment fan failure. Call a service centre for repair. The
appliance cannot operate normally. Transfer the food to a cool
place and switch off the appliance.
If the above tips do not resolve your problem, call the nearest authorized service centre and state the
type, model, and serial number indicated on the appliance rating plate or label located in the appliance
interior.
35
Information about appliance noise
Cooling in refrigerators and freezers is made possible by a refrigeration system with a compressor
(and, in some appliances, fans and air dampers), which also generates some noise. The intensity of
noise depends on the installation, correct use and age of the appliance.
• After the appliance is started, the compressor operation or the coolant flow during operation may
be louder (buzzing, humming and liquid noises). This is not a sign of malfunction and does not
affect the service life of the appliance. Over time, with the operation of the appliance, the volume
of these noises decreases.
• NoFrost appliances periodically melt ice, and there may be knocking and squeaking noises due
to ice falling into the drain chute and water dripping onto the defrost heater. Cracking noises may
also occur due to expansion and contraction of various components due to major temperature
changes. All these sounds are normal and do not affect the service life of the appliance.
• When closing the door, there may be a humming noise due to the pressure in the appliance
equalising.
• Sometimes, unusual or loud noises may appear during appliance operation; these are mostly the
result of improper installation:
- The appliance must stand level and stable on a solid base.
- The appliance may not be in contact with a wall or adjacent furniture.
- Make sure the interior equipment sits firmly in its place and that the noise is not caused by
rattling cans, bottles or other containers placed next to each other.
• Due to the higher workload on the cooling system when the door is opened more frequently or
for a longer time, when a large amount of fresh food is introduced or when intensive freezing or
cooling functions are activated, the appliance can temporarily generate more noise.
36
Environment protection
Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed
without any hazard to the environment.
Removing an obsolete appliance
To protect the environment, take the obsolete appliance to an authorized home appliance collection
centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
The symbol on the product or its packaging indicates that the product should not be treated as
normal household waste. The product should be taken to an authorized collection centre for waste
electric and electronic equipment processing. Correct disposal of the product will help prevent any
negative effects on the environment and health of people which could occur in case of incorrect
product removal. For detailed information on removal and processing of the product, please contact
the relevant municipal body in charge of waste management, your waste disposal service, or the store
where you bought the product.
37
Compliance information
MWB414C.07
MWB414S.12
Radio equipment type:
Wi-Fi
2,412 GHz - 2,472 GHzOperating frequency range:
≤10 dBm/MHz ( EIRP) (Antenna gain 10 dBi)Maximum output power:
Gain: -1,53 dBiMaximum antenna gain:
Bluetooth
2,402 GHz - 2,480 GHzFrequency range:
4 dBm (≤10 dBm)Carrier Output:
F1DEmission type:
Declaration of conformity
The company declares that the device with the function Connectlife complies with the essential
requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of
Conformity can be found at the web address https://auid.connectlife.io on the page of your device
among the additional documents.
38
Spare parts
Spare parts for the appliance you have purchased are available for 10 years. During this time, original
spare parts will be available to ensure the correct operation of your appliance.
The list of spare parts is available on the website:
https://partners.gorenje.com/GSD/gsd_public.aspx
39
937979-a1
