IMPORTANT SAFETY RULES ........................................................................ 3
PARTS & FEATURES ...................................................................................... 5
IMPORTANT SAFETY INSTRUCTIONS .......................................................... 6
INSTALLATION INSTRUCTIONS .................................................................... 6
Before Using the Beverage Center ............................................................................. 6
Installation of the Beverage Center ............................................................................. 6
Built-in Cabinet Instructions ......................................................................................... 7
Electrical Connection ................................................................................................... 7
Powerbar with Surge Protection .................................................................................. 7
Extension Cord ............................................................................................................ 7
Installing the Handles .................................................................................................. 8
OPERATING YOUR BEVERAGE CENTER ..................................................... 9
Recommended Temperature Settings ........................................................................ 9
Control Panels ............................................................................................................. 9
Setting the Temperature .............................................................................................. 9
Storage Capacity ......................................................................................................... 10
Door Lock .................................................................................................................... 10
Shelves ........................................................................................................................ 10
Cleaning the Beverage Center .................................................................................... 10
Power Failure............................................................................................................... 10
Moving the Beverage Center ....................................................................................... 10
Energy Saving Tips ..................................................................................................... 11
TROUBLESHOOTING GUIDE ......................................................................... 12
3
IMPORTANT SAFETY RULES
Before the appliance is used, it must be properly positioned and installed as described in this manual,
so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the
appliance, follow basic precaution, including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and
do not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or
explosion. And do not store or use gasoline or other flammable vapours and liquids in the vicinity
of this or any other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the
unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result
in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified technician.
Use two or more people to move and install appliance. Failure to do so can result in back or other
injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and below
90°F (32°C). This unit must be installed in an area protected from the element, such as wind, rain,
water spray or drips.
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the appliance to be levelled in order to work properly. You may need to make
several adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may
damage or discolour the interior.
Do not use this apparatus for other than its intended purpose.
4
FLAMMABLE REFRIGERANT GAS
For your safety, observe the following recommendations.
This appliance contains a small quantity of R600a refrigerant which is environmentally
friendly, but flammable. It does not damage the ozone layer, nor does it increase the
greenhouse effect.
During transportation and installation, ensure that the tubing of the refrigerant circuit is
not damaged.
Avoid using or manipulating sharp objects near by the appliances.
Leaking refrigerant can ignite and may damage the eyes.
In the event any damage does occur, avoid exposure to open fires and any device
which creates a spark. Disconnect the appliance from the main power.
Thoroughly ventilate the room in which the appliance is located for several minutes.
Notify Customer Service for necessary action and advice.
The room for installing the appliance must be at least 1 cubic metre per 8 grams of
refrigerant.
Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
Risk of fire or explosion: Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be
followed.
Risk of fire or explosion: Dispose of property in accordance with federal or local
regulations.
Risk of fire or explosion due puncturing of the refrigerant tubing. Follow handling
instructions carefully.
To prevent a child from being entrapped, keep out of reach of children.
5

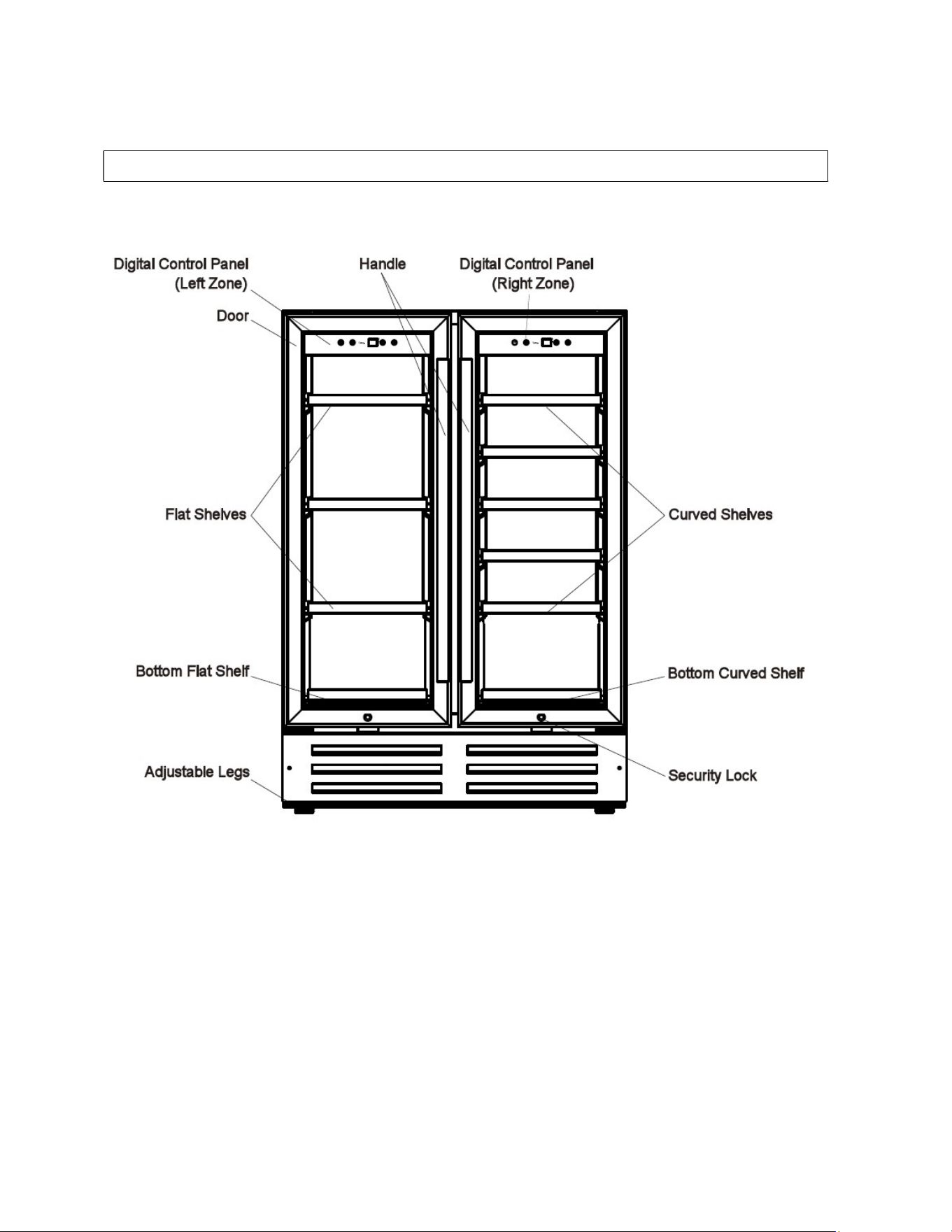

PARTS & FEATURES
6
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury when
using yo
ur appliance, follow these basic precautions:
Read all instructions before using the beverage center.
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still
dangerous.
Before you throw away your old beverage center, take off the door but leave the shelves in place
so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or
explosion.
Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or
any other appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
INSTALLATION INSTRUCTIONS
Before Using the Beverage Center
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
o 1 Instruction Manual
o 6 Wine Bottle Shelves
o 4 Beverage Shelves (metal)
o 2 Keys
Before connecting the beverage center to the power source, let it stand upright for approximately 2
hours. This will reduce the possibility of a malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
Installation of the Beverage Center
This appliance is designed to be for free standing installation or built-in (fully recessed).
Place your beverage center on a floor that is strong enough to support it when it is fully loaded. To
level your beverage center, adjust the front levelling legs at the bottom of the beverage center.
Locate the beverage center away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
Plug the Beverage center into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any questions
concerning power and/or grounding should be directed toward a certified electrician or an
authorized Products service center.
7
Built-In Cabinet Instructions
This unit is designed for either built-in or free-standing installation. If you plan to use this unit in a built-
in application, please follow the requirements shown to the right.
Cabinet opening dimensions
Minimum Width: 24’’ (61 cm)
Minimum Depth: 25’’ (63.5 cm)
Minimum Height: 35’’ (88.9 cm)
Electrical Connection
WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized CAVAVIN service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is
equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the
possibility of electrical shock. Do not under any circumstances cut or remove the third ground prong
from the power cord supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation
to have it replaced with a properly grounded 3-prong wall outlet. The cord should be secured behind
the appliance and not left exposed or dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the rating label on the appliance. This provides the best performance and also
prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never
unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from
the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the appliance, be careful not to damage the power cord.
Powerbar with Surge Protection (recommended)
Most electrical appliances use a series of electric control boards to operate. These boards are very
susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices / appliances you
use. The surge protector that you select must have a surge block high enough to protect the
appliance it is connected to. If you have any questions regarding the type and size of surge protector
needed contact a licensed electrician in your area.
.
Extension Cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do
not use an extension cord with this appliance. However, if you must use an extension cord it is
absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord
having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at
least 10 amperes.
8
Installing the Handles
This beverage center includes 2 stainless steel handles. To install the handle please follow the below
instructions:

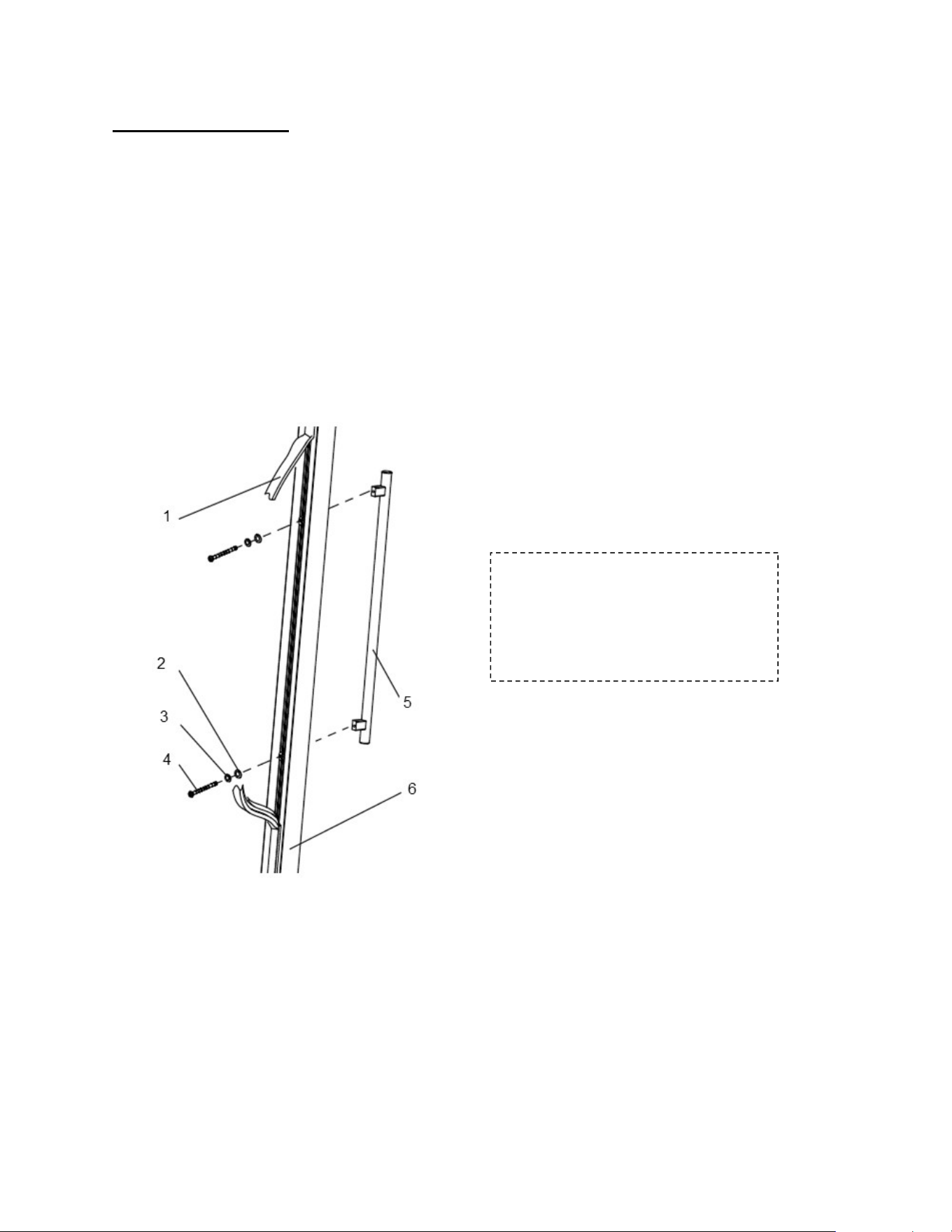

1. Remove the door gasket where the handle should be installed on the left side of the door, as
shown below. You won't need tool since the gasket can be removed by hand. You can start
with a corner if you can't remove it from the center.
2. Use the two handle screws, lock washer and flat washer included in the bag containing the
instruction manual and insert them into the side of the door from the inside to the outside.
3. Align the holes in the handle with the screws, tighten the screws using the screwdriver until the
base of the handle is at the level of the door and that the handle is tight but not too tight to
damage the assembly.
4. Replace the gasket the door in place.
1. Gasket
2. Flat washer
3. Lock washer
4. Screw
5. Handle
6. Door frame
9
OPERATING YOUR BEVERAGE CENTER
It is recommended you install the beverage center in a place where the ambient temperature is
between 19ºC-24ºC (66ºF-75ºF). If the ambient temperature is above or below recommended
temperatures, the performance of the unit may be affected. For example, placing your unit in extreme
cold or hot conditions may cause interior temperatures to fluctuate. The range of 4ºC-18ºC (39ºF-
65ºF) may not be reached.
The left side (beverage center) can be set between 1-18°C (33-64°F). The right side (cellar) can be set
between 5-18°C (40-64°F)
Recommended Temperature Settings
Wine conservation: 12°C-14ºC (53°F-57ºF)
Rose and sparkling wines: 5°C-8ºC (41°F-46ºF)
Dry/white wines: 9°C-12ºC (48°F-53ºF)
Red wines: 14°C-18ºC (58°F-65ºF)

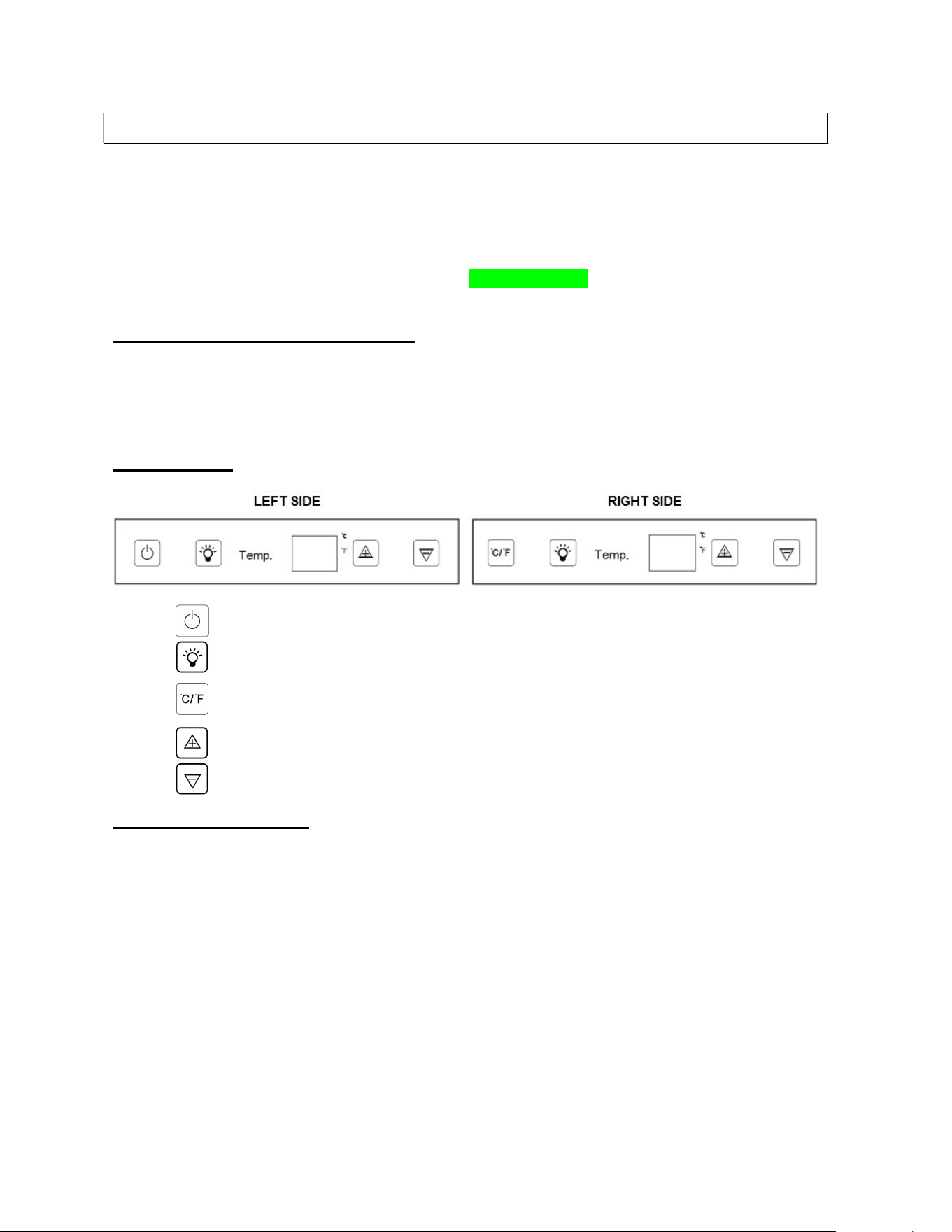

Control Panels
ON/OFF: To turn on or off the unit, press this button for 5 seconds.
INSIDE LIGHTING: To turn on or off the lighting, press on the light button.
TEMPERATURE DISPLAY: To display the temperature to your preference (°C or °F),
press on this button
[+] BUTTON: To increase the temperature by 1°C or 1°F
[ - ] BUTTON: To decrease the temperature by 1°C or 1°F
Setting the Temperature
The left zone can be set between 1-18°C (33-64°F) while the right zone can be set between 5-18°C
(40-64°F)
The temperature will increase by 1°C or 1°F if you touch UP once, or the temperature will decrease by
1°C or 1°F if you touch DOWN once. To view the set temperature at any time, touch the UP or DOWN
marks. The set temperature will temporarily flash in the LED display for 5 seconds. The internal
storage temperature will appear in blue on the temperature display window.
Note: If the unit is unplugged, power lost, or turned off you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay the unit will not start. When you use the unit for
the first time or restart the unit after having been shut off for a long time, there could be a few degrees
variance between the temperature you select and the one indicated on the LED readout. This is
normal and it is due to the length of the activation time. Once the unit is running for a few hours
everything will normalize.
10
Storage Capacity
Bottles may differ in size and dimensions. The actual number of bottles you are able to store may vary.
You can place 19 standard bottles in the cellar section and 58 12 oz.-cans in the beverage zone.
Bottle capacities are approximate maximums when storing traditional Bordeaux 750 ml bottles.
Door Lock
Your unit is provided with a lock and key. The keys are located inside the plastic bag that contains the
Instruction Manual. Insert the key into the lock and turn it counter clockwise to unlock the door. To lock
the door, do the reverse operation making sure metal pin is engaged completely. Remove the key and
place it in a secure place for safekeeping.
Shelves
To prevent damaging the door gasket, make sure to have the door completely opened when pulling
the shelves out of the rail compartment. For easy access to the storage content, you must pull the
shelf conservatively out of the rail compartment; however this unit was designed with a plastic post on
each side of the shelf track to prevent bottles from falling. When removing the shelf out of the inner
rail, make sure to remove all items first. Then move the shelf to the position where the notch of the
shelf is exactly under the plastic post and lift the shelf. In order to replace the shelf, repeat these
directions in reverse.
Cleaning the Beverage Center
Turn off the power, unplug the appliance, and remove all items including shelves. Wash the inside
surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of
baking soda to 1 cup of water.
Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth when
cleaning area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth. Do not use steel wool or steel brush on the stainless steel. These will contaminate the
stainless steel with steel particles and rusting may occur.
Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel
with steel particles and rusting may occur. Do not connect or disconnect the electric plug when your
hands are wet. Never clean appliance parts with flammable fluids. These fumes can create a fire
hazard or explosion. Do not use solvent-based cleaning agents or abrasives on the interior. These
cleaners may damage or discolour the interior.
Power Failure
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times the door is opened. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your contents.
Moving the Beverage Center
Remove all items (bottles)
Tape down securely all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
11
Be sure the appliance stays secure in the upright position during transportation. If you absolutely need
to transport the beverage center horizontally, transport the beverage center on its back (door on top).
Also protect outside of appliance with a blanket, or similar item.
Energy Saving Tips
The beverage center should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Ensure that the unit has proper allowances on all sides for proper ventilation. Never cover any air
vents.
Only open the cooler door for as long as necessary. Frequent opening of the door will affect internal
temperature.
12
TROUBLESHOOTING GUIDE
You can solve many common beverage center problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the servicer.
PROBLEM POSSIBLE CAUSE SOLUTION
Beverage center does
not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
Plug the unit.
Press the power button to turn on the unit.
Check the breaker and/or fuses.
Beverage center is not
cold enough.
External environment may require a higher
setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Check the temperature control setting.
Close the door properly.
Check the door gasket.
The compressor turns
on and off frequently.
The room temperature is hotter than normal.
A large amount of contents has been added to
the unit.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
Close the door properly.
Check the door gasket.
The light does not
work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The light button is “OFF”.
Plug the unit.
Check the breaker and/or fuses.
Vibrations.
The unit is not level.
The bottles are vibrating.
There is an object under th
e unit.
Check to assure that the unit is level.
Make sure the bottles don’t touch each other.
Remove the object.
The beverage center
seems to make too
much noise.
The unit is not level.
Level the unit.
The rattling noise may come from the flow of
the refrigerant, which is normal. As each cycle
ends, you may hear gurgling sounds caused
by the flow of refrigerant in your unit.
Contraction and expansion of the inside walls
may cause popping and crackling noises.
The door will not close
properly.
The unit is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
The shelves are out of position.
Level the unit.
Close the door properly.
Clean the door gasket.
Place the shelves properly.
Turns on an off
frequently
The room temperature is hotter than normal. A
large amount of contents has been added tot he
appliance. The door is opened too often. The
door is not closed completely. The temperature
control is not set correctly. The door gasket
does not seal properly
Check if the door is well close
Check if the gasket is ok.
Error Code:
E0-E1-E2
A sensor has failed. Contact us for a service call.
