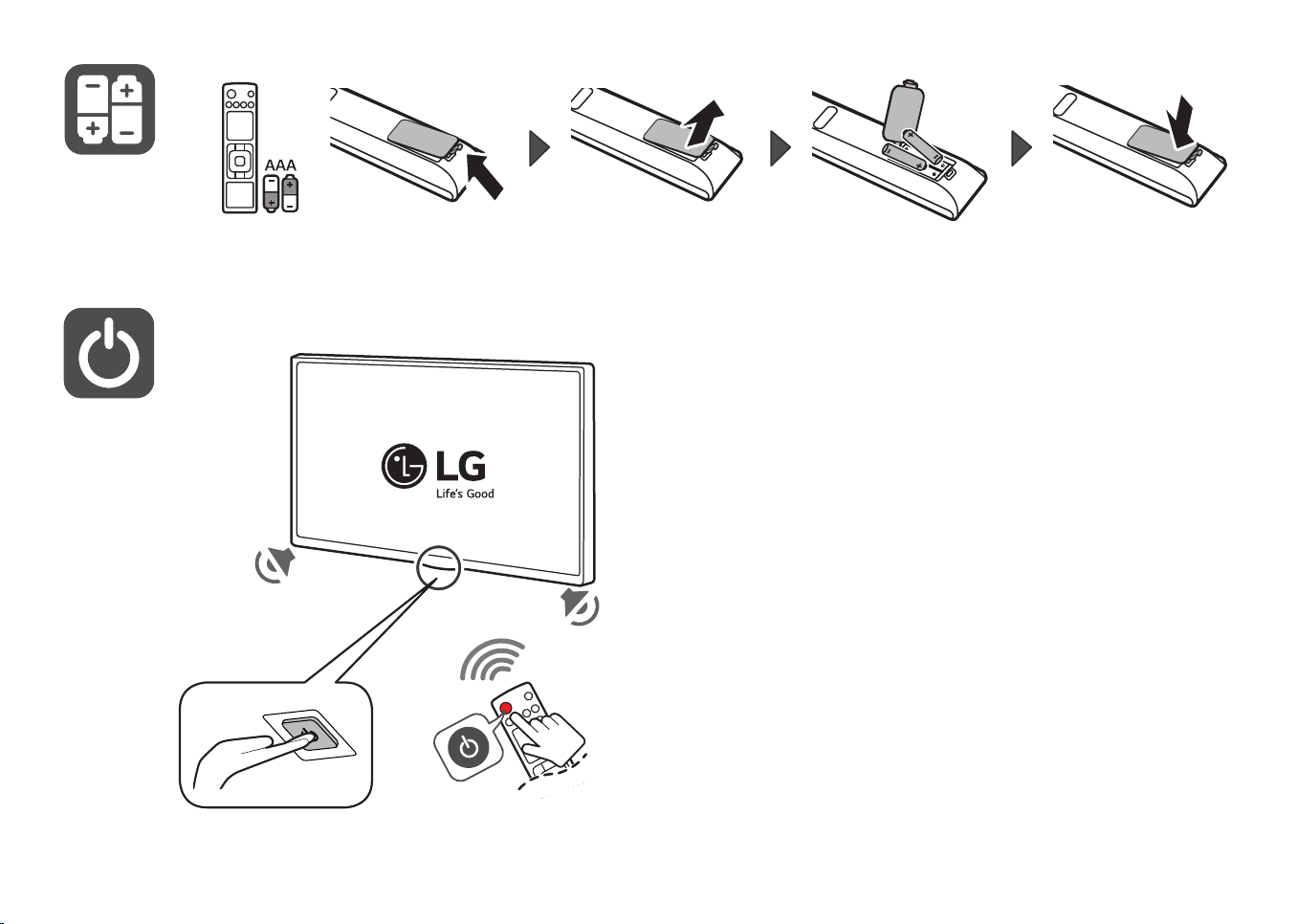

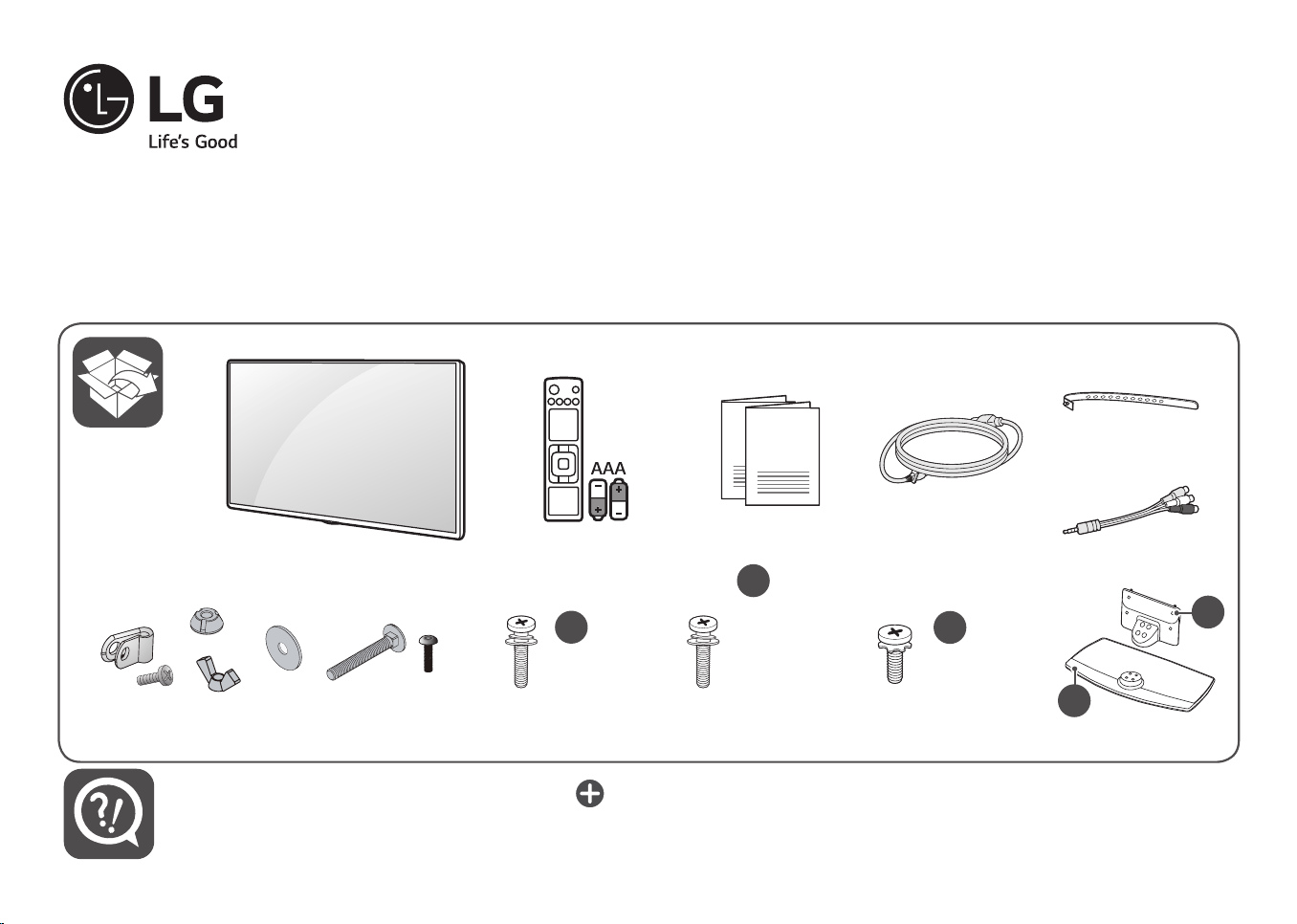

AAA AAA
X 2
X 2
X 2
X 2

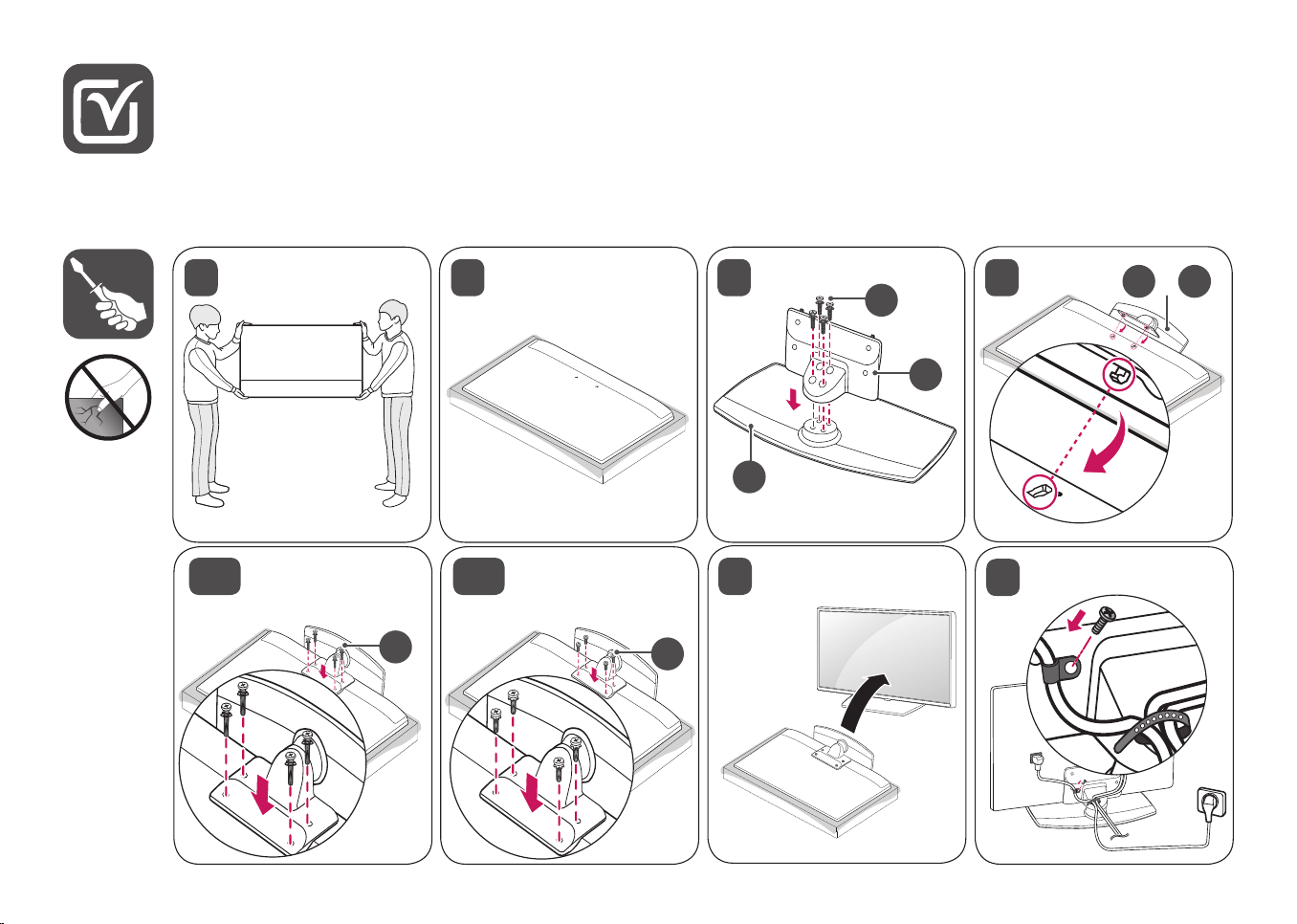

12 14 16 20
c
X 4
(M4 X L20)
12 14 16 20
c
X 4
(M4 X L20)
UT570H*
UT670H*
UT560H*
12 14 16 20
d
X 4
(M4 x L12)
UT770H*
a
b
www.lg.com
LED TV
43UT570H0UA
49UT570H0UA
50UT570H0UA
55UT570H0UA
43UT670H0UA
49UT670H0UA
55UT670H0UA
49UT770H0UA
55UT770H0UA
43UT570H9UA
50UT570H9UA
55UT570H9UA
43UT560H9UA
50UT560H9UA
55UT560H9UA
ENGLISH Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
Printed in Korea / Imprimé en Corée
Depending upon model / Según el modelo / Selon le modèle
21
+
a
b
4
a
b
3
7
65-A 5-B
ENGLISH Read Safety and Reference.
WARNING : To prevent injury, this apparatus must be securely attached to the desk/wall in accordance with the Safety and Reference.
ESPAÑOL Leer Seguridad y Consultas.
ADVERTENCIA : Para prevenir daños, este aparato debe ser instalado a la mesa/pared de acuerdo a la guía de Seguridad y Consultas.
FRANÇAIS Lisez Sécurité et références.
AVERTISSEMENT : Pour éviter les blessures, cet appareil doit être solidement xé au bureau ou au mur, conformément aux directives du
manuel Sécurité et références.
UT570H*
UT670H*
UT560H*
UT770H*
c
c
d

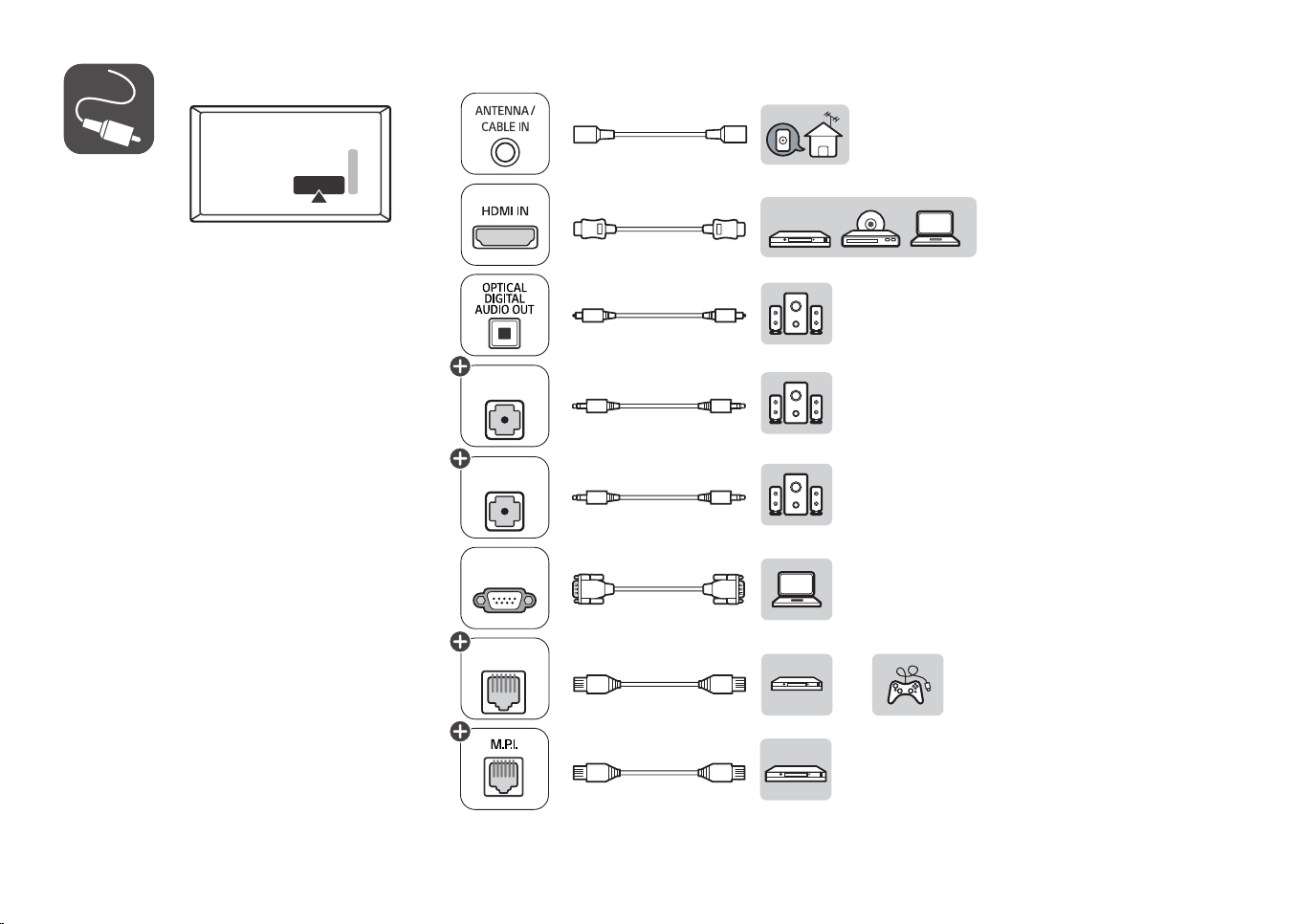

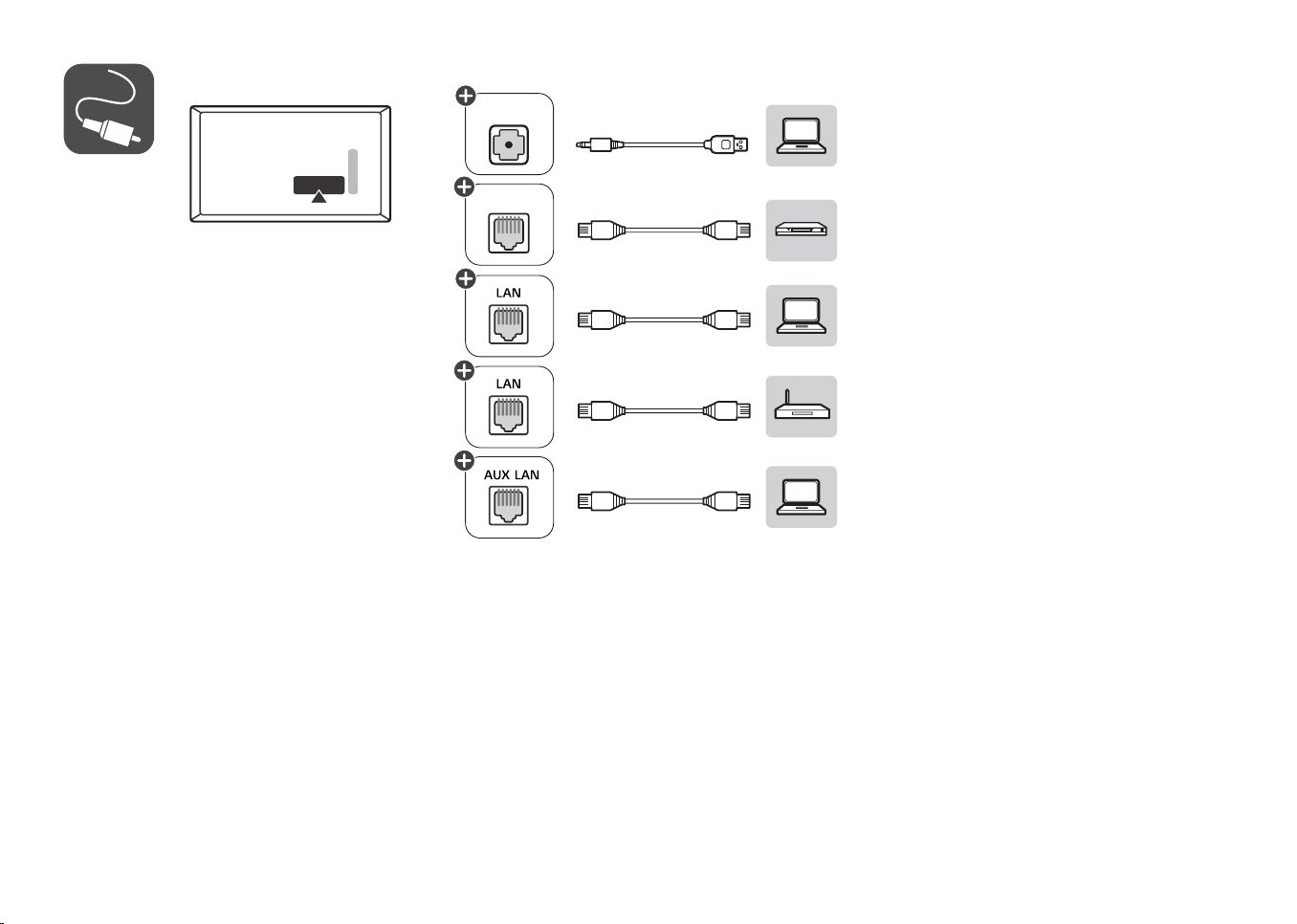

GAME CONTROL

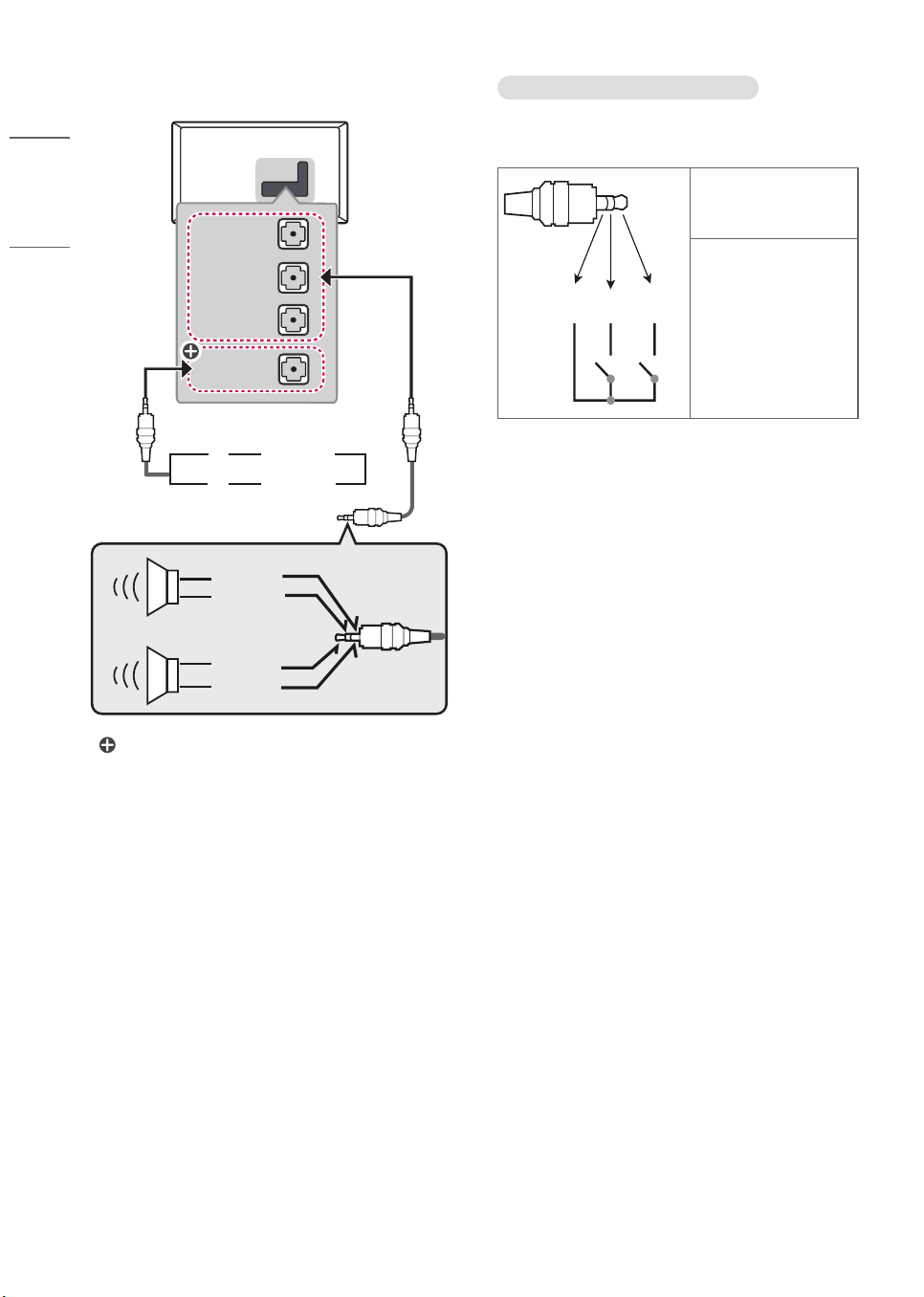

SPEAKER OUT
LINE OUT
/ M.P.I.
/
RJP Use Only
TV-LINK CFG

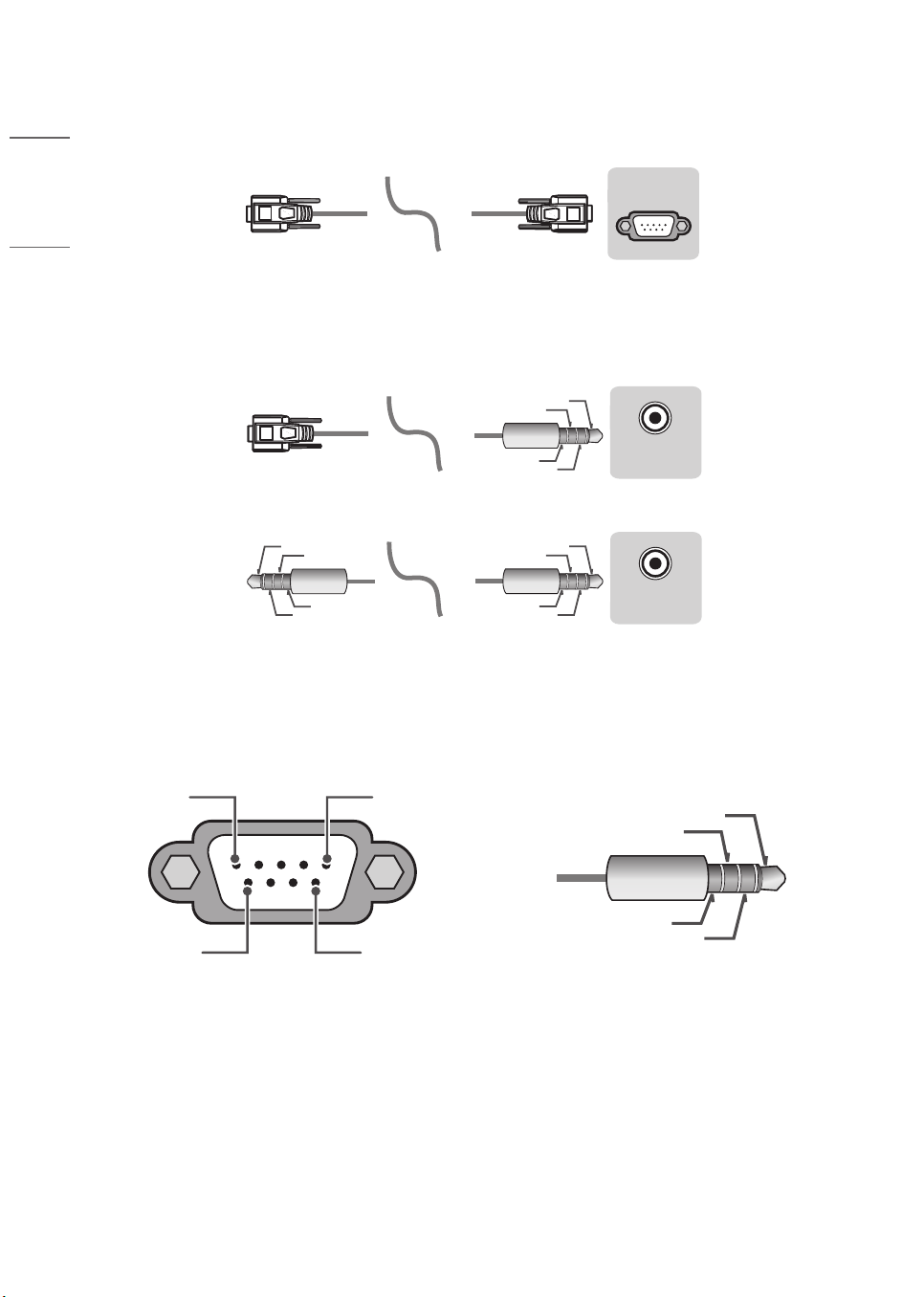

RS-232C IN
(CONTROL&SERVICE)
AUDIO
LINE OUT
GAME CONTROL
SPEAKER OUT
LINE OUT
/ M.P.I.
/
RJP Use Only
TV-LINK CFG
RS-232C IN
(CONTROL&SERVICE)
AUDIO
LINE OUT
GAME CONTROL
SPEAKER OUT
LINE OUT
/ M.P.I.
/
RJP Use Only
TV-LINK CFG
RS-232C IN
(CONTROL&SERVICE)
AUDIO
LINE OUT
GAME CONTROL
SPEAKER OUT
LINE OUT
/ M.P.I.
/
RJP Use Only
TV-LINK CFG
RS-232C IN
(CONTROL&SERVICE)
AUDIO
LINE OUT
*MFL71382512*
(2212-REV05)

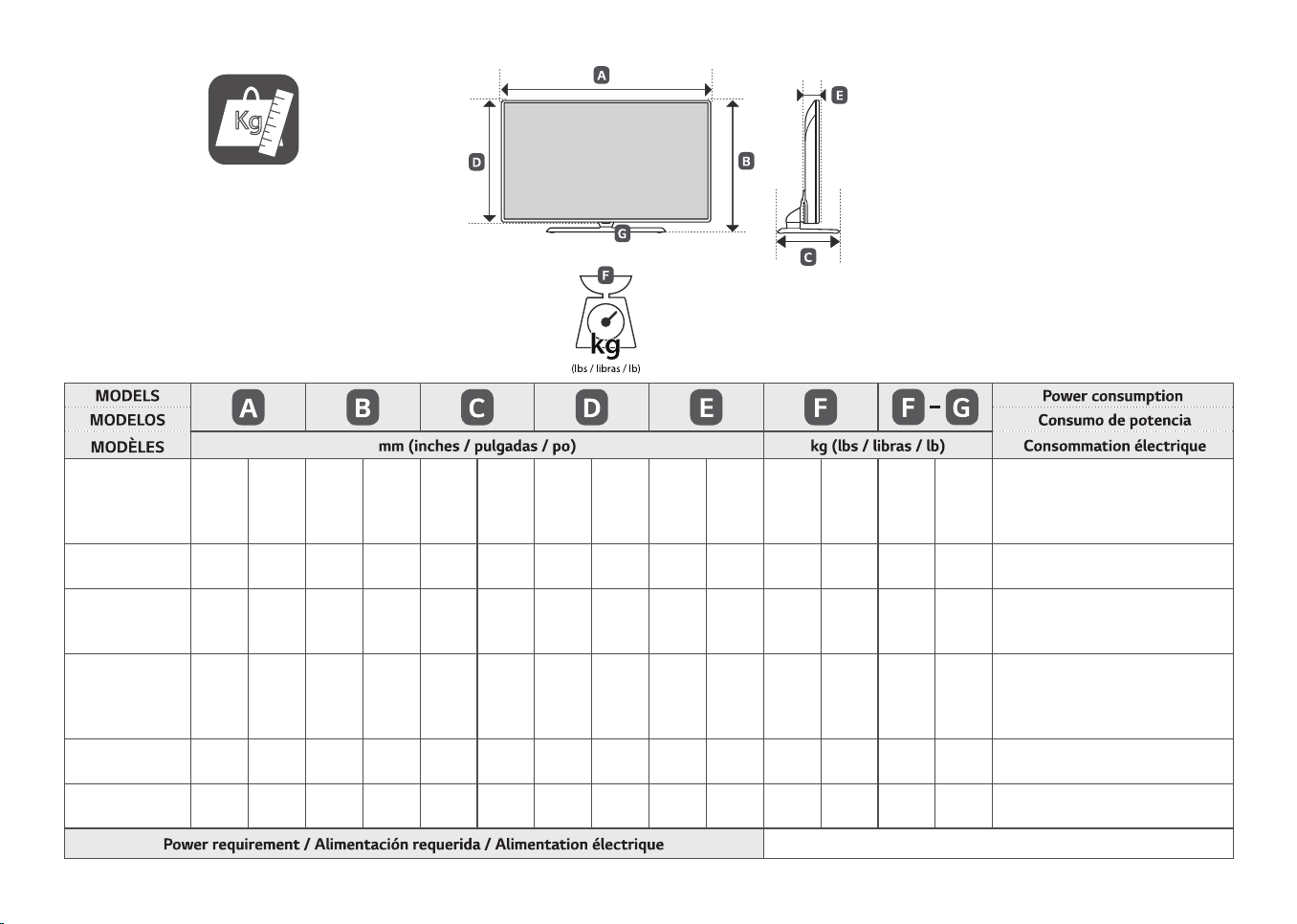

Kg
43UT570H0UA
43UT670H0UA
43UT570H9UA
43UT560H9UA
973
(38.3)
973
(38,3)
626
(24.6)
626
(24,6)
303
(11.9)
303
(11,9)
572
(22.5)
572
(22,5)
85.0
(3.3)
85,0
(3,3)
11.2
(24.6)
11,2
(24,6)
8.0
(17.6)
8,0
(17,6)
120 W
49UT570H0UA
49UT670H0UA
1,110
(43.7)
1 110
(43,7)
705
(27.7)
705
(27,7)
303
(11.9)
303
(11,9)
650
(25.5)
650
(25,5)
81.1
(3.1)
81,1
(3,1)
14.3
(31.5)
14,3
(31,5)
11.1
(24.4)
11,1
(24,4)
120 W
50UT570H0UA
50UT570H9UA
50UT560H9UA
1,130
(44.4)
1 130
(44,4)
722
(28.4)
722
(28,4)
303
(11.9)
303
(11,9)
663
(26.1)
663
(26,1)
86.3
(3.3)
86,3
(3,3)
14.5
(31.9)
14,5
(31,9)
11.3
(24.9)
11,3
(24,9)
140 W
55UT570H0UA
55UT670H0UA
55UT570H9UA
55UT560H9UA
1,244
(48.9)
1 244
(48,9)
780
(30.7)
780
(30,7)
303
(11.9)
303
(11,9)
726
(28.5)
726
(28,5)
87.1
(3.4)
87,1
(3,4)
17.5
(38.5)
17,5
(38,5)
14.3
(31.5)
14,3
(31,5)
160 W
49UT770H0UA
1,096
(43.1)
1 096
(43,1)
697
(27.4)
697
(27,4)
303
(11.9)
303
(11,9)
640
(25.1)
640
(25,1)
63.6
(2.5)
63,6
(2,5)
17.2
(37.9)
17,2
(37,9)
14.0
(30.8)
14,0
(30,8)
135 W
55UT770H0UA
1,232
(48.5)
1 232
(48,5)
773
(30.4)
773
(30,4)
303
(11.9)
303
(11,9)
716
(28.1)
716
(28,1)
63.6
(2.5)
63,6
(2,5)
20.4
(44.9)
20,4
(44,9)
17.2
(37.9)
17,2
(37,9)
155 W
AC 120 V~ 50 / 60 Hz
*MFL714020122403REV10*
OWNER’S MANUAL
Safety and Reference
LED TV*
43UT570H0UA
49UT570H0UA
50UT570H0UA
55UT570H0UA
65UT570H0UB
43UT670H0UA
49UT670H0UA
55UT670H0UA
49UT770H0UA
55UT770H0UA
65UT770H0UB
75UT770H0UA
43UT570H9UA
50UT570H9UA
55UT570H9UA
65UT570H9UB
43UT560H9UA
50UT560H9UA
55UT560H9UA
65UT560H9UB
www.lg.com
Copyright © 2019 LG Electronics Inc.
All Rights Reserved.
Printed in Korea
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future
reference.
2
ENGLISH
Important Safety Instruction
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade
or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3
ENGLISH
Warning! Safety instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
The symbol is intended to alert the user to
the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the device.
WARNING : TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
• TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES
OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM
THIS PRODUCT AT ALL TIMES.
• Do not place the TV and/or remote control in the
following environments:
- Keep the product away from direct sunlight.
- An area with high humidity such as a bathroom
- Near any heat source such as stoves and other
devices that produce heat.
- Near kitchen counters or humidifiers where they
can easily be exposed to steam or oil.
- An area exposed to rain or wind.
- Do not expose to dripping or splashing and
do not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g., on
shelves above the unit).
- Near flammable objects such as gasoline
or candles, or expose the TV to direct air
conditioning.
- Do not install in excessively dusty places.
Otherwise, this may result in fire, electric shock,
combustion/ explosion, malfunction or product
deformation.

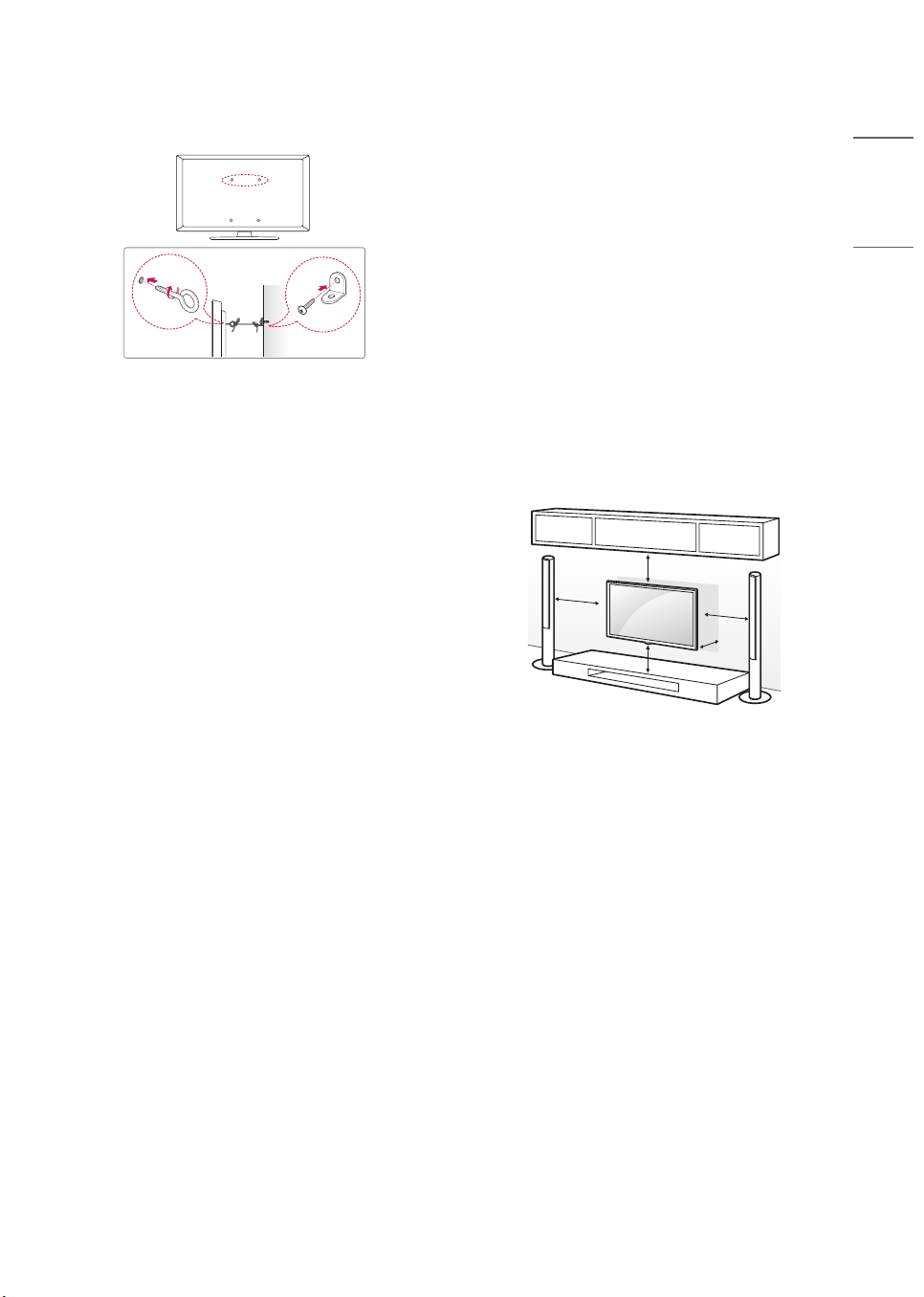

• Ventilation
- Install your TV where there is proper ventilation.
Do not install in a confined space such as a
bookcase.
- Do not install the product on a carpet or cushion.
- Do not block or cover the product with cloth or
other materials while unit is plugged in.
• Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot.
• Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular
attention to plugs, wall outlets, and the point where
the cord exits the device.
• Do not move the TV whilst the Power cord is
plugged in.
• Do not use a damaged or loosely fitting power cord.
• Be sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
• Do not connect too many devices to the same AC
power outlet as this could result in fire or electric
shock.
• Disconnecting the Device from the Main Power
- The power plug is the disconnecting device.
In case of an emergency, the power plug must
remain readily accessible.
• Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause
serious injury.
4
ENGLISH
• Outdoor Antenna Grounding (Can differ by
country):
- If an outdoor antenna is installed, follow the
precautions below. An outdoor antenna system
should not be located in the vicinity of overhead
power lines or other electric light or power
circuits, or where it can come in contact with
such power lines or circuits as death or serious
injury can occur. Be sure the antenna system is
grounded to provide some protection against
voltage surges and built-up static charges Section
810 of the National Electrical Code (NEC) in the
U.S.A. provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection
to grounding electrodes and requirements for
the grounding electrode. Antenna grounding
according to the National Electrical Code, ANSI/
NFPA 70
• Grounding (Except for devices which are not
grounded.)
- TV with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet.
Ensure that you connect the earth ground wire to
prevent possible electric shock.
• Never touch this apparatus or antenna during a
lightning storm. You may be electrocuted.
• Make sure the power cord is connected securely to
the TV and wall socket if not secured damage to the
Plug and socket may occur and in extreme cases a
fire may break out.
• Do not insert metallic or inflammable objects into
the product. If a foreign object is dropped into the
product, unplug the power cord and contact the
customer service.
• Do not touch the end of the power cord while it is
plugged in. You may be electrocuted.
• If any of the following occur, unplug the product
immediately and contact your local customer
service.
- The product has been damaged.
- If water or another substance enters the product
(like an AC adapter, power cord, or TV).
- If you smell smoke or other odors coming from
the TV.
- When lightning storms or when unused for long
periods of time.
Even the TV is turned off by remote control or
button, AC power source is connected to the unit if
not unplugged in.
• Do not use high voltage electrical equipment
near the TV (e.g., a bug zapper). This may result in
product malfunction.
• Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Accidental fire or electric shock can occur. Contact
your local customer service for service or repair.
Unauthorized modification could void the user’s
authority to operate this product.
• Use only an authorized attachments / accessories
approved by LG Electronics. Otherwise, this may
result in fire, electric shock, malfunction, or product
damage.
• Never disassemble the AC adapter or power cord.
This may result in fire or electric shock.
• Handle the adapter carefully to avoid dropping or
striking it. An impact could damage the adapter.
• To reduce the risk of fire or electrical shock, do not
touch the TV with wet hands. If the power cord
prongs are wet or covered with dust, dry the power
plug completely or wipe dust off.
• Batteries
- Store the accessories (battery, etc.) in a safe
location out of the reach of children.
- Do not short circuit, disassemble, or allow the
batteries to overheat. Do not dispose of batteries
in a fire. Batteries should not be exposed to
excessive heat.
- Caution: Risk of fire or explosion if the battery is
replaced by an incorrect type.
5
ENGLISH
• Moving
- When moving, make sure the product is turned
off, unplugged, and all cables have been removed.
It may take 2 or more people to carry larger TVs.
Do not press or put stress on the front panel of
the TV. Otherwise, this may result in product
damage, fire hazard or injury.
• Keep the packing anti-moisture material or vinyl
packing out of the reach of children.
• Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto
the screen.
• Do not press strongly upon the panel with a hand
or a sharp object such as a nail, pencil, or pen,
or make a scratch on it. It may cause damage to
screen.
• Cleaning
- When cleaning, unplug the power cord and wipe
gently with a soft/dry cloth. Do not spray water or
other liquids directly on the TV. Do not clean your
TV with chemicals including glass cleaner, any
type of air freshener, insecticide, lubricants, wax
(car, industrial), abrasive, thinner, benzene, alcohol
etc., which can damage the product and/or its
panel. Otherwise, this may result in electric shock
or product damage.
Preparing
• When the TV is turned on for the first time after
being shipped from the factory, initialization of the
TV may take approximately one minute.
• Image shown may differ from your TV.
• Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
• The available menus and options may differ from
the input source or product model that you are
using.
• New features may be added to this TV in the future.
• The device must be easily accessed to a location
outlet near the access. Some devices are not made
by turning on / off button, turning off the device
and unplugging the power cord.
• The items supplied with your product may vary
depending upon the model.
• Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
• For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm (0.39
inches) thick and 18 mm (0.7 inches) width.
• Use an extension cable that supports USB 2.0 if the
USB cable or USB flash drive does not fit into your
TV’s USB port.
• Use a certified cable with the HDMI logo attached.
• If you do not use a certified HDMI cable, the screen
may not display or a connection error may occur.
(Recommended HDMI cable types)
- Ultra High Speed HDMI®/™ cable (3 m (9.84 feet)
or less)
A
B
A
B
* A 10 mm
(0.39 inches)
* B 18 mm
(0.7 inches)
• Do not use any unapproved items to ensure the
safety and lifespan of the product.
• Any damages or injuries by using unapproved items
are not covered by the warranty.
6
ENGLISH
Optional Extras
Optional extras can be changed or modified for
quality improvement without any notification.
Contact your dealer for buying these items.
These devices work only with certain models.
The model name or design may be changed due to
the manufacturer’s circumstances or policies.
(Depending upon model)
Magic Remote Control
AN-MR18HA
Check whether your TV model supports Bluetooth in
the Wireless Module Specification to verify whether it
can be used with the Magic Remote.

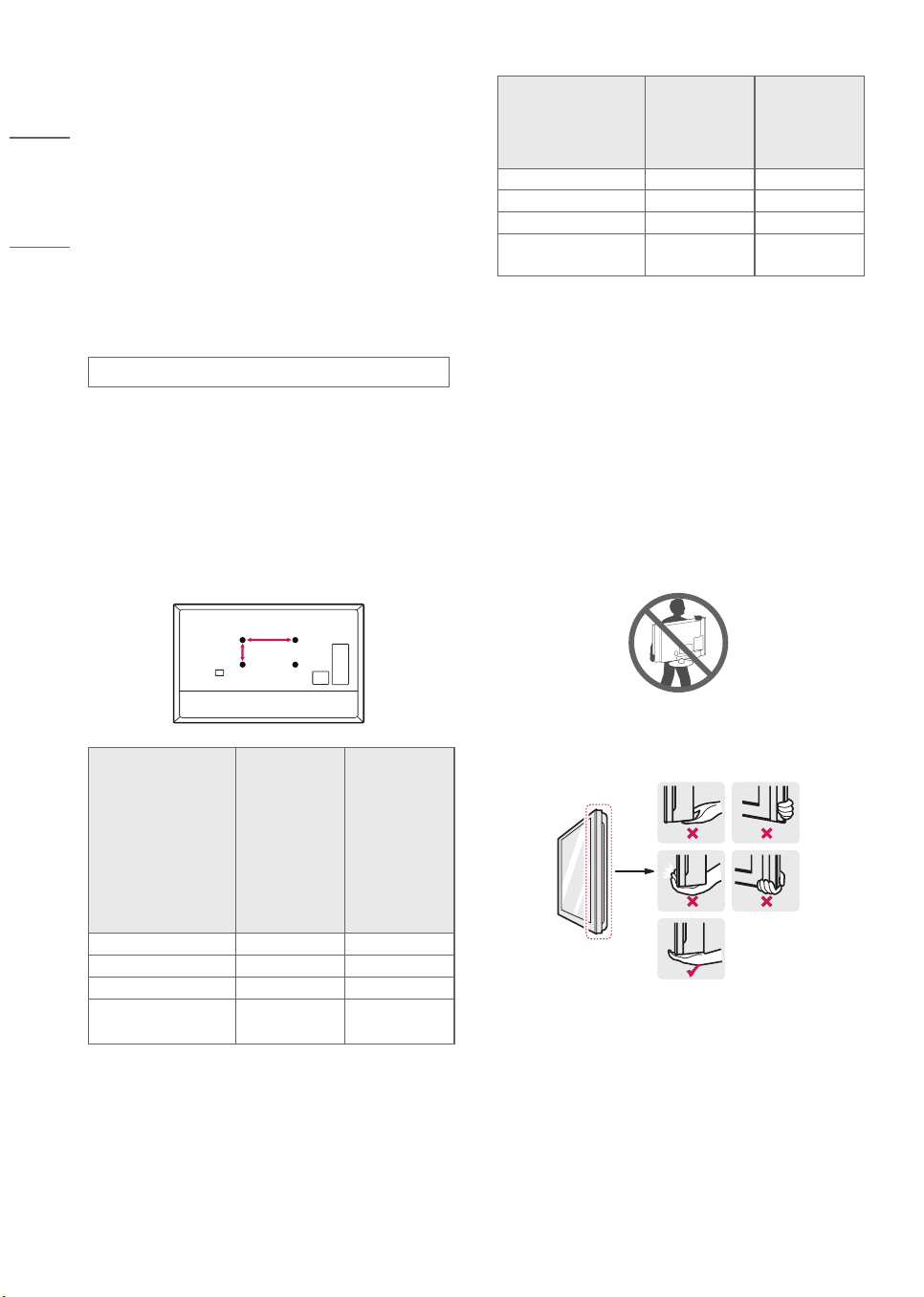

Wall Mounting Bracket
Make sure to use screws and wall mounts that meet
the VESA standard. Standard dimensions for the wall
mount kits are described in the following table.
A
B
Model
43UT570H0UA
43UT670H0UA
49UT770H0UA
50UT570H0UA
43UT570H9UA
50UT570H9UA
43UT560H9UA
50UT560H9UA
49UT570H0UA
55UT570H0UA
49UT670H0UA
55UT670H0UA
55UT770H0UA
55UT570H9UA
55UT560H9UA
VESA (A x B) 200 x 200 300 x 300
Standard screw M6 M6
Number of screws 4 4
Wall mount bracket
(optional)
LSW240B
MSW240
OLW480B
MSW240
Model
65UT570H0UB
65UT770H0UB
65UT570H9UB
65UT560H9UB
75UT770H0UA
VESA (A x B) 300 x 300 600 x 400
Standard screw M6 M8
Number of screws 4 4
Wall mount bracket
(optional)
OLW480B LSW640B
Lifting and Moving the TV
When moving or lifting the TV, read the following to
prevent the TV from being scratched or damaged and
for safe transportation regardless of its type and size.
• It is recommended to move the TV in the box or
packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the
power cord and all cables.
• When holding the TV, the screen should face away
from you to avoid damage.
• Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grille area.
• Use at least two people to move a large TV.
7
ENGLISH
• When transporting the TV by hand, hold the TV as
shown in the following illustration.
• When transporting the TV, do not expose the TV to
jolts or excessive vibration.
• When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the left
or right.
• When handling the TV, be careful not to damage
the protruding buttons.
• Avoid touching the screen at all times, as
this may result in damage to the screen.
• Do not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to
the screen.
• Do not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur. (Depending upon model)
• When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Mounting on a Table
1 Lift and tilt the TV into its upright position on a
table.
- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
(4 inches)
(Depending upon model)
2 Connect the power cord to a wall outlet.
• Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
• If you install the TV on a stand, you need to
take actions to prevent the product from
overturning. Otherwise, the product may
fall over, which may cause injury.
• Do not use any unapproved items to ensure
the safety and product life span.
• Any damage or injuries caused by using
unapproved items are not covered by the
warranty.
• Make sure that the screws are fastened
tightly. (If they are not fastened securely
enough, the TV may tilt forward after being
installed.)
• Do not fasten the screws with excessive
force otherwise they may be worn out and
become loose.
8
ENGLISH

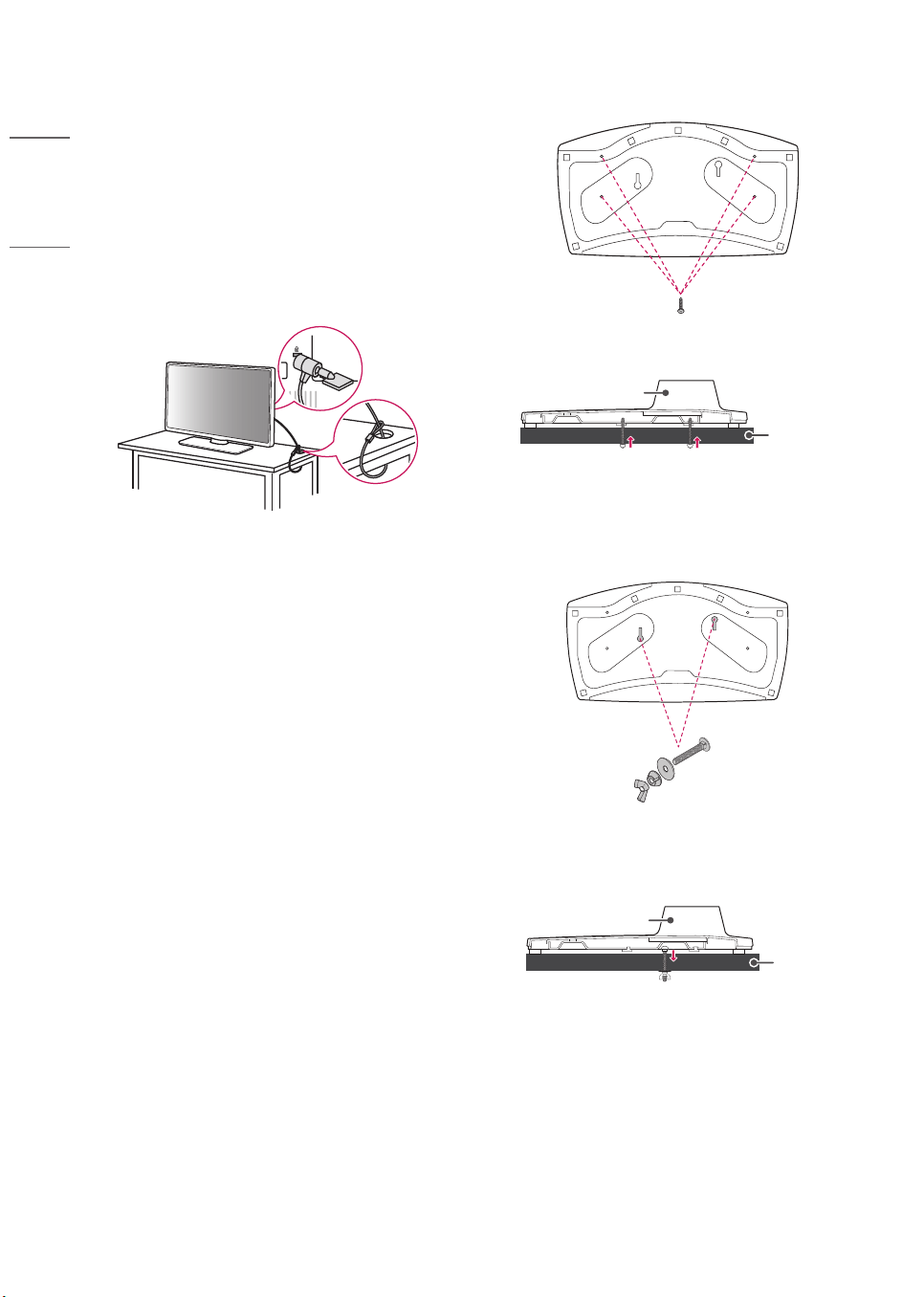

Using the Kensington Security
System (optional)
(Depending upon model)
The Kensington security system connector is located
at the rear of the TV. For more information of
installation and using, refer to the manual provided
with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington
security system cable between the TV and a table.
• The Kensington security system is optional. You can
obtain additional accessories from your local dealer.
Attaching the TV to a Desk
(Depending upon model)
The TV should be attached to a desk so it cannot be
pulled in a forward/backward direction, potentially
causing injury or damaging the product.
(TYPE A)
4-Screws
(Not supplied with TV)
Desk
Stand
• Screw : M5 x L (*L: Table depth + 8~10 mm)
ex) Table depth: 15 mm, Screw: M5 x L25
(TYPE B)
2-Screws for Stand Fixing,
2-Washers for Stand Fixing,
2-Nuts for Stand Fixing
(Supplied with TV)
Desk
Stand
9
ENGLISH
Securing TV to the Wall
(Depending upon model)
1 Insert and tighten the eye-bolts or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope or cable. Make sure to keep the
rope parallel to the flat surface.
• Use a platform or cabinet that is strong and large
enough to support the TV securely.
• Brackets, bolts, and ropes are optional. You can
obtain additional accessories from your local dealer.
Mounting on a Wall
An optional wall mount can be used with your LG
Television. Consult with your local dealer for a wall
mount that supports the VESA standard used by your
TV model. Carefully attach the wall mount bracket
at the rear of the TV. Install the wall mount bracket
on a solid wall perpendicular to the floor. If you are
attaching the TV to other building materials, please
contact qualified personnel to install the wall mount.
Detailed instructions will be included with the wall
mount. We recommend that you use an LG brand
wall mount. The LG wall mount is easy to adjust or to
connect the cables. When you do not use LG’s wall
mount bracket, use a wall mount bracket where the
device is adequately secured to the wall with enough
space to allow connectivity to external devices. If you
are using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
10 cm
10 cm
10 cm
10 cm
10 cm
(4 inches)
(Depending upon model)
10
ENGLISH
• Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
• For more information of screws and wall
mount bracket, refer to the Separate
purchase.
• If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product.
When you install the set to use the wall
mounting bracket (optional parts), fix it
carefully so as not to drop.
• When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
• Do not install this product on a wall if it
could be exposed to oil or oil mist. This may
damage the product and cause it to fall.

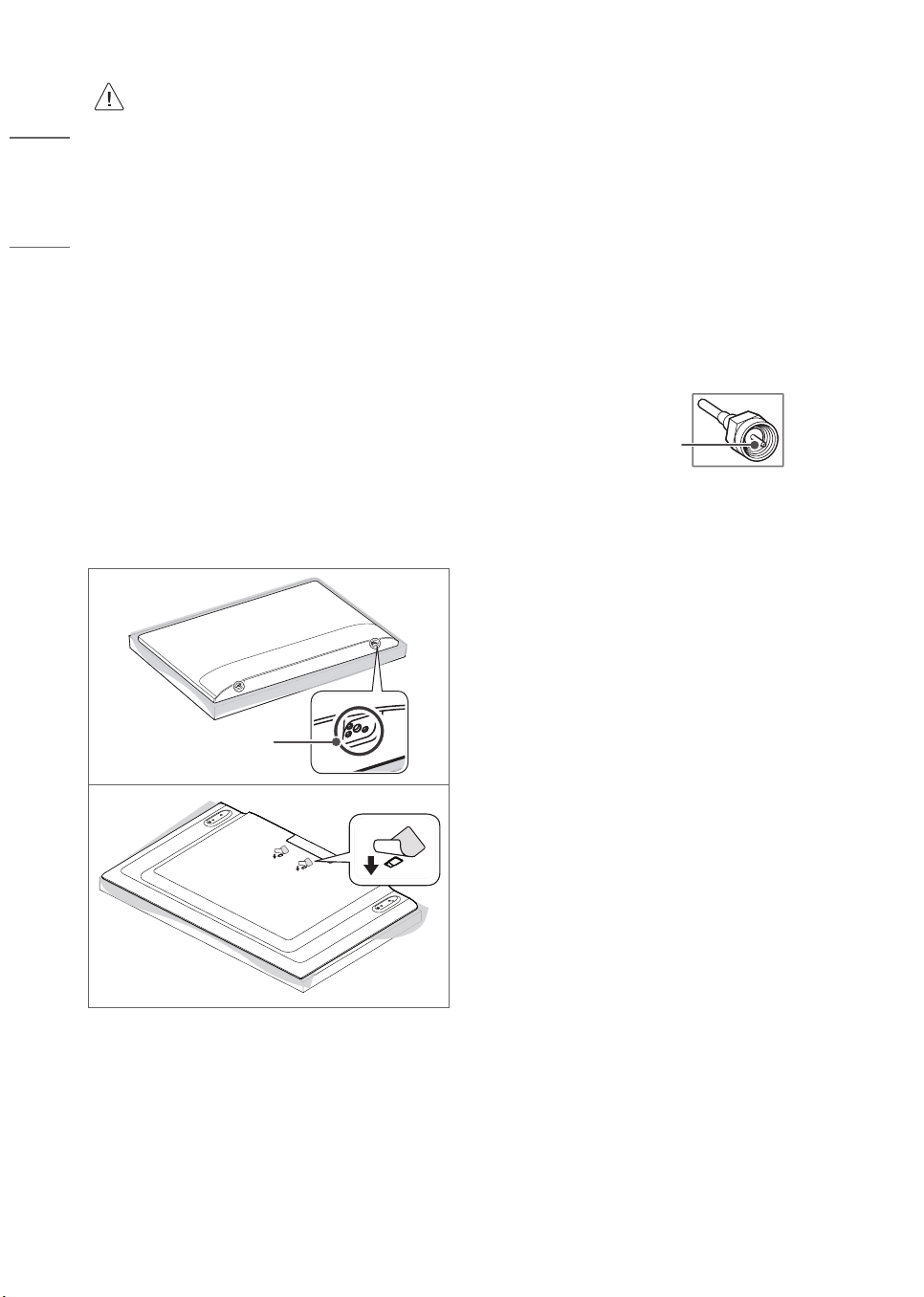

• When installing the wall mounting bracket, it is
recommended to cover the stand hole using tape,
in order to prevent the influx of dust and insects.
(Depending upon model)
Stand hole
Connections
You can connect various external devices to the TV.
For more information on external device’s connection,
refer to the manual provided with each device.
Antenna/Cable
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is
optional.
• Make sure not to bend the copper wire of the RF
cable.
Copper wire
• Complete all connections between devices, and
then connect the power cord to the power outlet to
prevent damage to your TV.
• Use a signal splitter to use 2 TVs or more.
• This TV cannot receive ULTRA HD (3840 x 2160
pixels) broadcasts directly because the related
standards have not been confirmed.
(Depending upon model)
11
ENGLISH

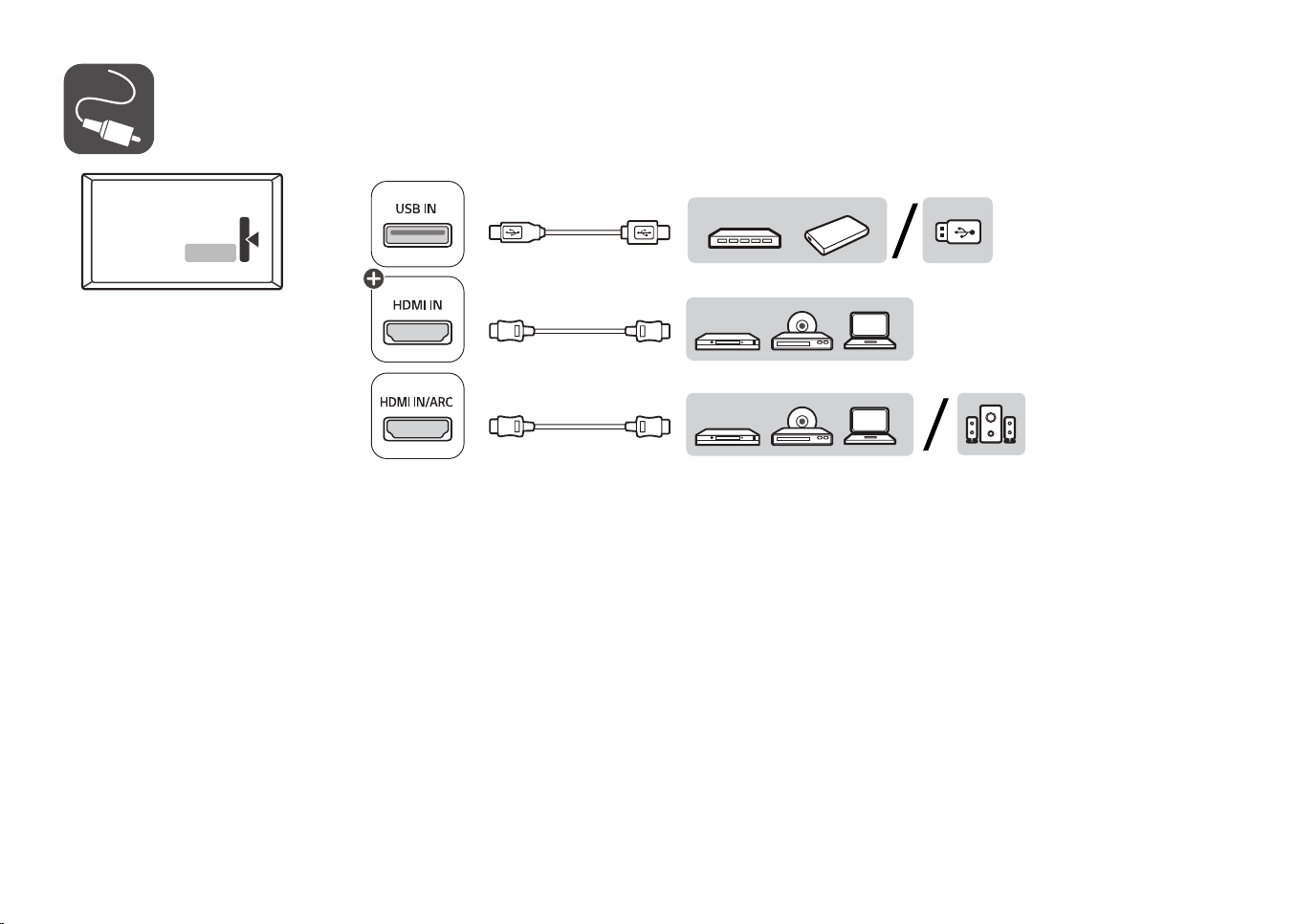

Other connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external device
and the TV with the HDMI cable.
HDMI
• Supported HDMI Audio format :
(Depending upon model)
DTS (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz),
DTS HD (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4
kHz / 192 kHz),
Dolby Digital / Dolby Digital Plus (32 kHz / 44.1 kHz
/ 48 kHz),
PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz / 192 kHz)
• DTV Audio Supported Codec: MPEG, Dolby Digital
• ( ) [Picture]
[Additional Settings] [HDMI ULTRA HD Deep
Color]
- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)
- Off : Support 4K @ 60 Hz 8 bit (4:2:0)
If the device connected to Input Port also supports
ULTRA HD Deep Color, your picture may be clearer.
However, if the device doesn’t support it, it may not
work properly. In that case, change the TV’s [HDMI
ULTRA HD Deep Color] setting to off.
- This feature is available only on certain models
which support HDMI ULTRA HD Deep Color.
USB
• Some USB Hubs may not work. If a USB device
connected through a USB Hub is not detected,
connect it directly to the USB port on the TV.
• It is recommended that you use a USB hub or USB
HDD with a power supply. (If the power supplied is
not sufficient, the USB storage device may not be
detected properly.)
• It is recommended that you use an external USB
HDD with a rated voltage of 5 V of less and a rated
current of 500 mA or less.
External Devices
Supported external devices are: Blu-ray player, HD
receivers, DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
• The external device connections shown may differ
slightly from illustrations in a manual.
• Connect external devices to the TV regardless about
the order of the TV port.
• If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
• Refer to the external equipment’s manual for
operating instructions.
• In PC mode, there may be noise associated with the
resolution, vertical pattern, contrast or brightness.
If noise is present, change the PC output to another
resolution, change the refresh rate to another
rate or adjust the brightness and contrast on the
[Picture] menu until the picture is clear. Depending
upon the graphics card, some resolution settings
may not allow the image to be positioned on the
screen properly.
• When connecting via a wired LAN, it is
recommended to use a CAT 7 cable.
12
ENGLISH
External Speakers
VOLUME
CONTROL
+
-
SPEAKER OUT
LINE OUT
AUDIO
LINE OUT
EXTERNAL
SPEAKER OUT
UP
DOWN
Control port for Speaker out
RIGHT
LEFT
GND
GND
or
: Depending upon model
• Use only with the 3 pole 3.5 mm stereo jack.
• Do not connect your headphones or earphones to
the port for connecting an external speaker.
Method of volume control port
(Depending upon model)
• Cable Spec.
VOLUME CONTROL
+
-
GND / UP / DOWN
Each Up / Down pin
is pulled to 3.3 V with
CPU GPIO.
CPU detects transition
from 3.3 V to GND
level for volume
control.
or
13
ENGLISH
Network setup
(Depending upon model)

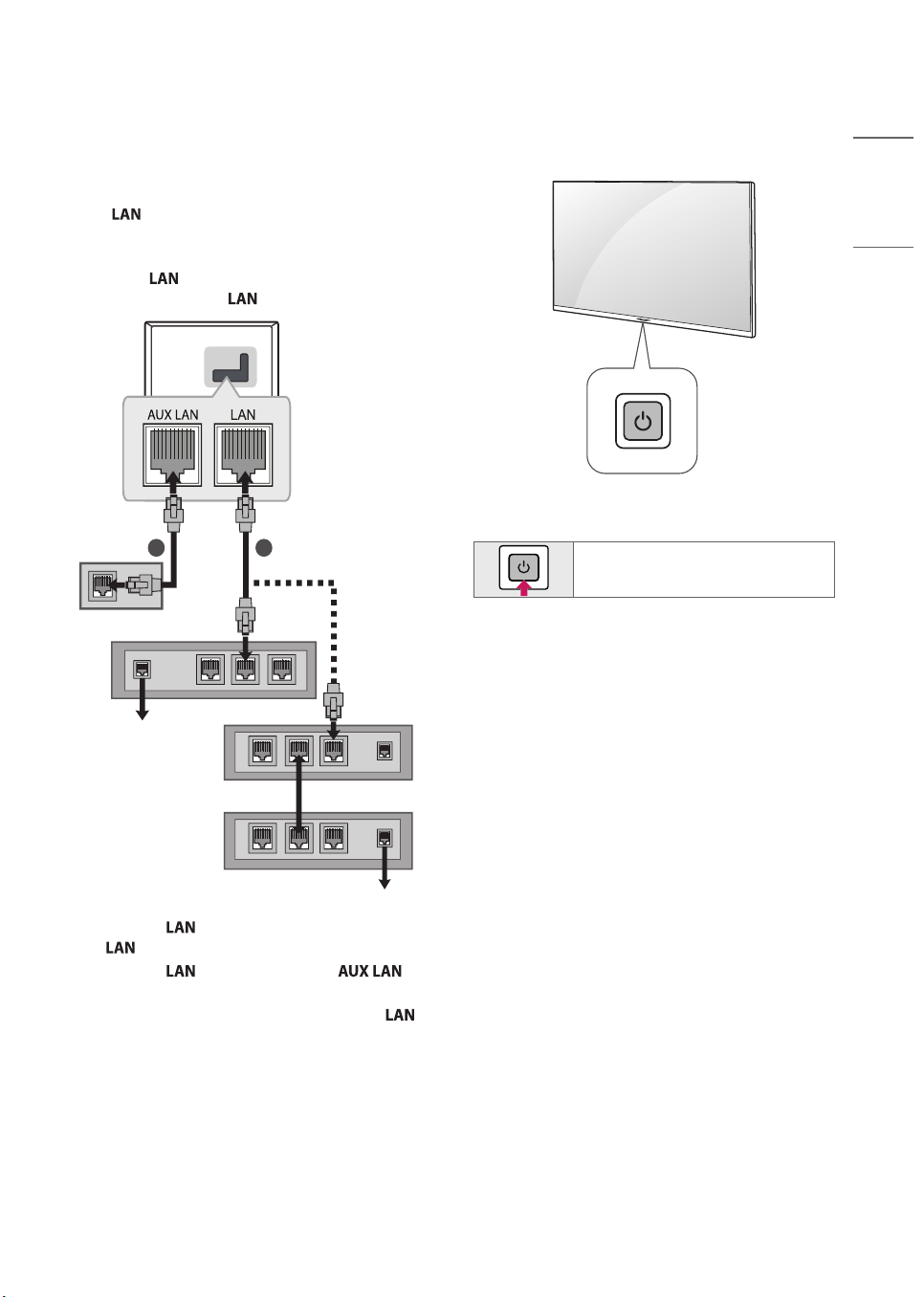

Wired network connection
This TV can be connected to a Pro:Centric server
via the port. After making the physical
connection, the TV needs to be set up for network
communication.
Connect the port of the Modem or Router from
Pro:Centric server to the port on the TV.
2 1
Broadband Modem
Pro:Centric Server
Broadband Modem
Pro:Centric Server
Router
Broadband Modem
1 Connect the port of the Modem or Router to
the port on the TV.
2 Connect the port of the PC to the
port on the TV. (Depending upon model)
• Do not connect a modular phone cable to the
port.
• Since there are various connection methods, please
follow the specifications of your telecommunication
carrier or internet service provider.
Using the Button
You can simply operate the TV functions, using the
button.
Basic Functions
Power On (Press)
Power Off
1
(Press)
1 All running apps will close.
14
ENGLISH

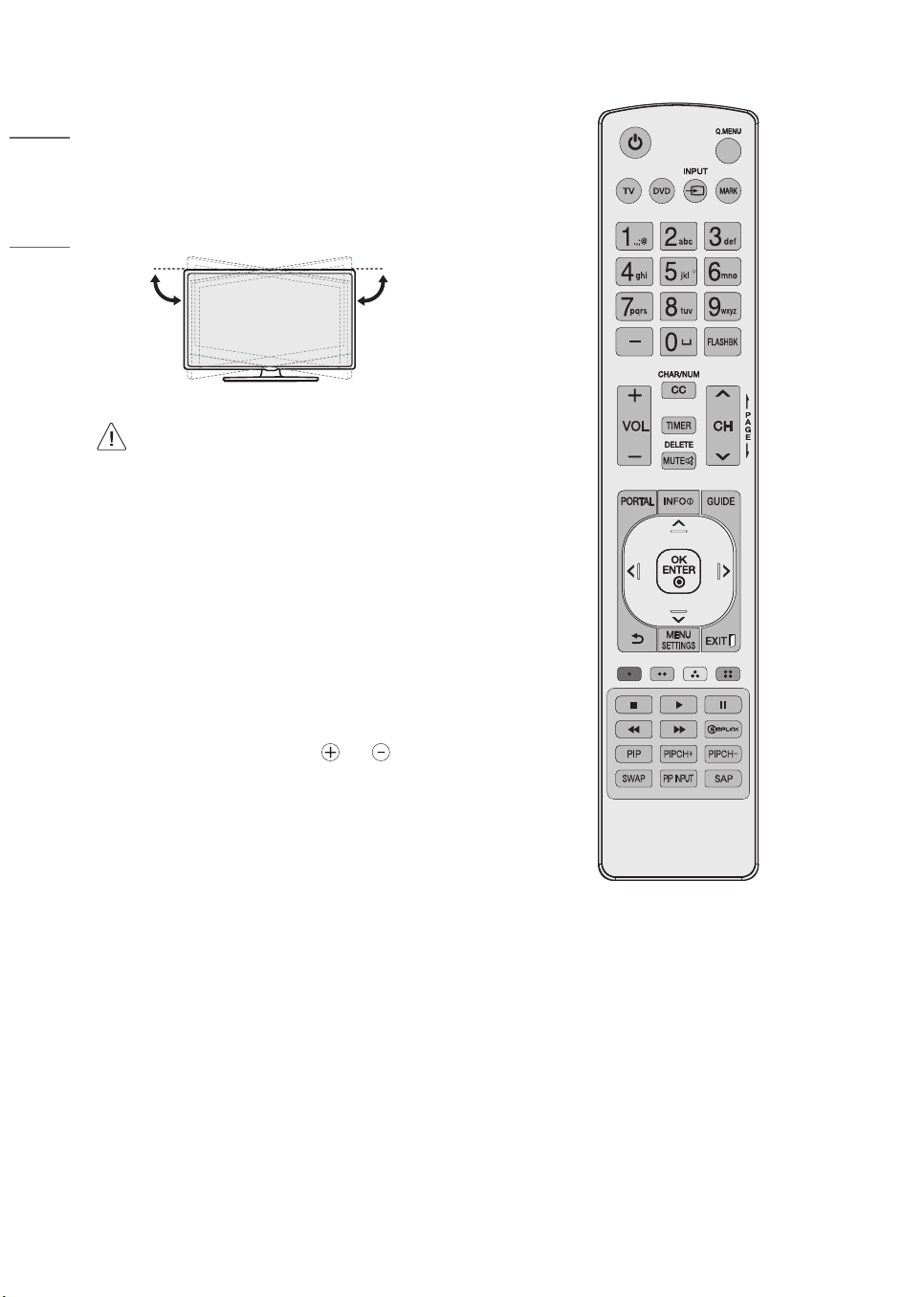

Adjusting the Angle of the
TV to suit view
(Depending on model)
Swivel 20 degrees to the left or right and adjust the
angle of the TV to suit your view.
20˚
20˚
• When adjusting the angle of the product,
watch out for your fingers.
- Personal injury may occur if hands or
fingers are pinched. If the product is tilted
too much, it may fall, causing damage or
injury.
Using Remote Control
The descriptions in this manual are based on the
buttons on the remote control. Please read this
manual carefully and use the TV correctly.
To install batteries, open the battery cover, replace
batteries(1.5VAAA)matching the and ends
to the label inside the compartment, and close the
battery cover.
To remove the batteries, perform the installation
actions in reverse. This remote uses infrared light.
When in use, it should be pointed in the direction of
the TV’s remote sensor.

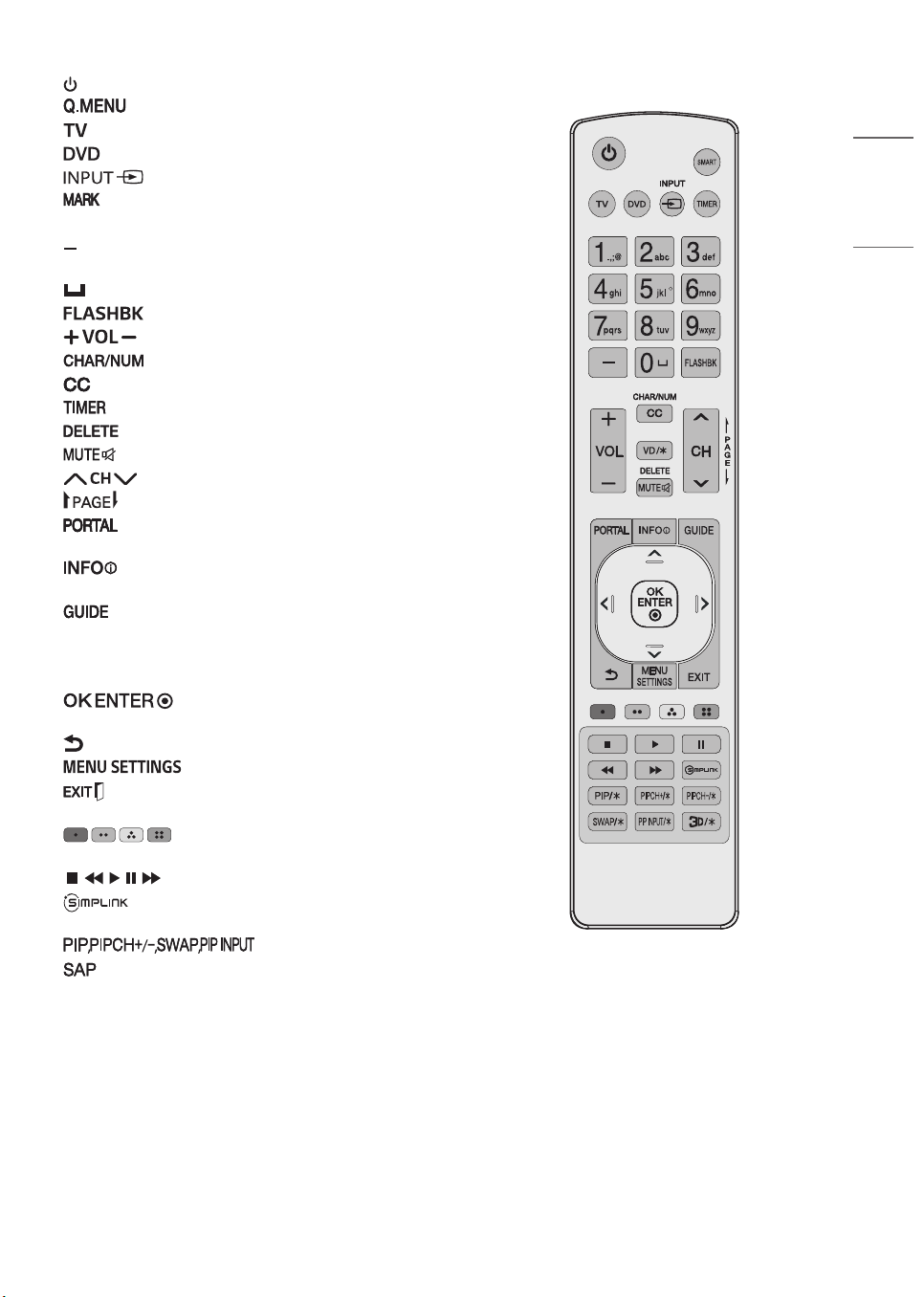

(TYPE A)
(Some buttons and services may not be provided
depending upon models or regions.)
15
ENGLISH
(Power) Turns the TV on or off.
Not functional.
Selects the remote’s operating mode: TV.
Selects the remote’s operating mode: DVD.
Changes the input source.
Not functional.
Number button Enters numbers.
(Dash) Inserts a dash between numbers such as
2-1 and 2-2.
(Space) Not functional.
Tunes to the last channel or input viewed.
Adjusts the volume level.
Not functional.
Selects a closed caption.
Turns the TV off in a set amount of time.
Not functional.
Mutes all sounds.
Scrolls through the saved channels.
Moves to the previous or next screen.
Displays and removes Pro:Centric
Application.
Shows the information of the current
program.
Displays and removes the electronic program
guide of Pro:Centric Application.
Navigation button (up / down / left / right) Scrolls
through menus or options.
Selects menus or options and
confirms your input.
(Back) Returns to the previous screen.
Accesses the quick settings.
Clears all on-screen displays and returns to TV
viewing.
These access special functions in
some menus.
, , , , Control buttons for media contents
Accesses the AV devices connected to the
TV; Opens the SIMPLINK menu.
Not functional.
Analog mode: Selects MTS sound (Mono, Stereo
or SAP) DTV mode: Changes the audio language.

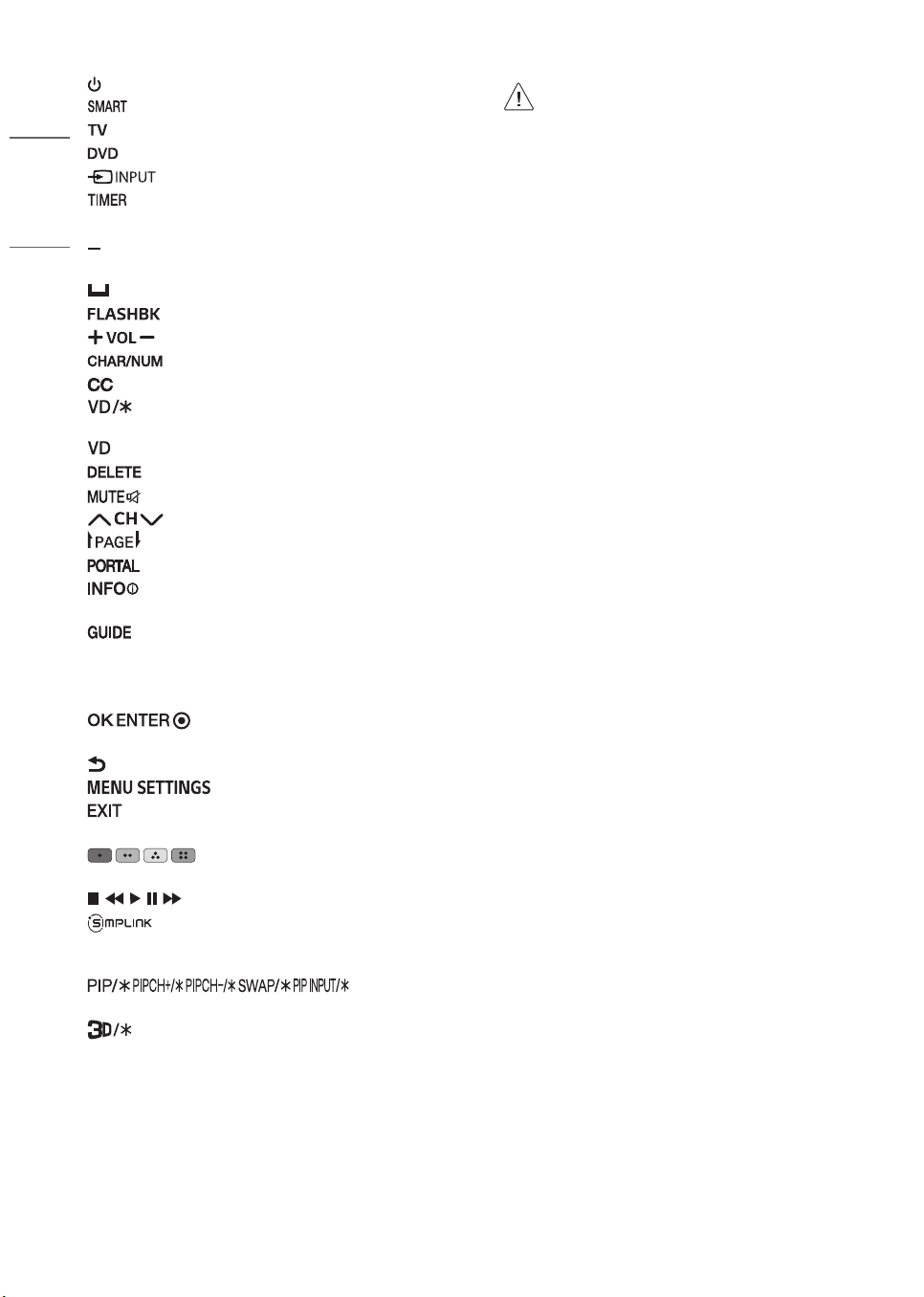

(TYPE B)
(Some buttons and services may not be provided
depending upon models or regions.)
16
ENGLISH
• Do not mix new batteries with old batteries.
This may cause the batteries to overheat
and leak.
• Failure to match the correct polarities of
the battery may cause the battery to burst
or leak, resulting in fire, personal injury, or
ambient pollution.
• This apparatus uses batteries. In your
community there might be regulations
that require you to dispose of these
batteries properly due to environmental
considerations. Please contact your
local authorities for disposal or recycling
information.
• Batteries inside or inside the product shall
not be exposed to excessive heat such as
sunshine, fire or the like.
Troubleshooting
The software may be updated for improvement in
performance. The customer is responsible to ensure
the compatibility of their equipment with any LG
Electronics software. If needed, please consult with
LG Electronics and update new software versions
according to the guidance provided by LG Electronics.
• Cannot control the TV with the remote control.
- Check if anything such as tape has been placed
over the receiver.
- Check if there is any obstacle between the
product and the remote control.
- Replace the batteries with new fresh ones.
• No image display and no sound is produced.
- Check if the product is turned on.
- Check if the power cord is connected to a wall
outlet.
- Check if there is a problem in the wall outlet by
connecting other products.
(Power) Turns the TV on or off.
Accesses the Smart menu.
Selects the remote’s operating mode: TV.
Selects the remote’s operating mode: DVD.
Changes the input source.
Turns the TV off in a set amount of time.
Number button Enters numbers.
(Dash) Inserts a dash between numbers such as
2-1 and 2-2.
(Space) Not functional.
Tunes to the last channel or input viewed.
Adjusts the volume level.
Not functional.
Selects a closed caption.
Enables VD function. SAP (Secondary Audio
Program) feature can also be enabled by pressing the
key.
Not functional.
Mutes all sounds.
Scrolls through the saved channels.
Moves to the previous or next screen.
Displays and removes Pro:Centric Application.
Shows the information of the current
program.
Displays and removes the electronic program
guide of Pro:Centric Application.
Navigation button (up / down / left / right) Scrolls
through menus or options.
Selects menus or options and
confirms your input.
(Back) Returns to the previous screen.
Accesses the quick settings.
Clears all on-screen displays and returns to TV
viewing.
These access special functions in
some menus.
, , , , Control buttons for media contents
Feature can only be enabled or disabled by
installer menu settings. Configuration of this feature
is not supported on TV remote control.
, , , , Not
functional.
Used for viewing 3D video. (For 3D models)
17
ENGLISH
• The TV turns off suddenly.
- Check the power control settings. The power
supply may be interrupted.
- Check if the auto-off function is activated on the
settings related time.
- If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
• When connecting to the PC (HDMI), no signal is
detected.
- Turn the TV off/on using the remote control.
- Reconnect the HDMI cable.
- Restart the PC with the TV on.
• Abnormal Display
- If the TV feels cold to the touch, there may be a
small flicker when it is turned on. This is normal;
there is nothing wrong with TV. Some minute dot
defects may be visible on the screen, appearing
as tiny red, green, or blue spots. However, they
have no adverse effect on the TV’s performance.
Avoid touching the LCD screen or holding your
finger(s) against it for long periods of time. Doing
so may produce some temporary distortion
effects on the screen.
- This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and
do not affect the performance and reliability of
the TV.
- Displaying a still image for a prolonged period
of time may cause an image sticking. Avoid
displaying a fixed image on the TV screen for a
extended length of time.
• Generated Sound
- Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction due to
temperature and humidity. This noise is common
for products where thermal deformation is
required.
- Electrical circuit humming/panel buzzing
A low level noise is generated from a high-
speed switching circuit, which supplies a large
amount of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
• When cleaning the product, be careful not
to allow any liquid or foreign objects to
enter the gap between the upper, left or
right side of the panel and the guide panel.
(Depending upon model)
• Make sure to wring any excess water or
cleaner from the cloth.
• Do not spray water or cleaner directly onto
the TV screen.
• Make sure to spray just enough of water or
cleaner onto a dry cloth to wipe the screen.
18
ENGLISH
Settings
To select Picture Mode
( ) [Picture] [Picture
Mode Settings] [Picture Mode]
Select the picture mode optimized for the viewing
environment or the program.
• [Vivid] Heightens contrast, brightness and
sharpness to display vivid images.
• [Standard] Displays images in standard levels of
contrast, brightness and sharpness.
• [APS] APS (Auto power saving) mode reduces power
consumption by dimming control.
• [Cinema] / [Game] Displays the optimum picture for
a movie or a game.
• [Sports] Optimized picture mode for sports
matches. The pitch and kits are presented in vibrant
colors, with crystal-clear images even for fast
movements.
• [HDR Effect] This feature lets you enjoy a more
dynamic, clearer image by correcting the light
and dark areas of the display. This feature provides
a realistic image, even when the source image’s
gradation level is high. If you set Picture Mode to
HDR Effect, you will not be able to use some of
Picture Mode Settings.
• [Expert] Menu for adjusting picture quality that
allows experts and amateurs to enjoy the best TV
viewing. This menu for adjustment is provided
for ISF-certified picture tuning professionals. (ISF
logo can be used only on ISF-certified TVs.) ISFccc:
Imaging Science Foundation Certified Calibration
Control
• Depending upon input signal, the available range
of picture modes may differ.
• [Expert] mode is for picture tuning professionals
to control and fine-tune using a specific image. For
normal images, the effects may not be drastic.
• [Picture Mode] change may modify [Motion Eye
Care] settings and it can affect energy consumption.
To set additional picture options
( ) [Picture] [Picture
Mode Settings] [Picture Options]
Adjusts detailed setting for images.
• [Noise Reduction] Eliminates noise in the picture.
• [MPEG Noise Reduction] Eliminates noise generated
while creating digital picture signals.
• [Smooth Gradation] It removes the contour noise of
the part with gradation to show a softer gradation.
• [Black Level] Adjusts the brightness and contrast of
the screen to suit the black level of the input picture
by using the blackness (black level) of the screen.
• [Real Cinema] Optimizes the screen for movie
viewing.
• [Motion Eye Care] Saves power consumption by
adjusting the brightness corresponding to the
movement of the image on the screen.
• [TruMotion] Corrects- images to display smoother
motion sequences. Auto means juddering and
blurring range that depend on input video status is
controlled by TruMotion mode.
• Depending upon input signal or other picture
settings, the range of detailed items for adjustment
may differ.
19
ENGLISH
Specifications
Product specifications may be changed without prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test
Procedures for Television Sets (USA only).
The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).
Broadcasting Specifications
Television system ATSC, NTSC-M, 64 & 256 QAM
Program coverage (Band) VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135
External antenna impedance 75 Ω
Environment condition
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity Less than 85 %
For UT670H0U, UT770H0U series
Wireless module(LGSBWAC92)Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz
5150 to 5725 MHz
5725 to 5850 MHz
18 dBm
18 dBm
18 dBm
Bluetooth
Frequency Range Output Power (Max.)
2400 to 2483.5 MHz 8 dBm
As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
For consideration of the user, this device should be installed and operated with a minimum distance of
20cm(7.8inches) between the device and the body.
FCC ID: BEJLGSBWAC92
IC: 2703H-LGSBWAC92
20
ENGLISH
HDMI (PC) supported mode
• Use HDMI IN 1 for PC mode.
(Dependinguponmodel)
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 350 31.46 70.09
720 x 400 31.46 70.08
640 x 480 31.46 59.94
800 x 600 37.87 60.31
1024 x 768 48.36 60.00
1360 x 768 47.71 60.01
1152 x 864 54.34 60.05
1280 x 1024 63.98 60.02
1920 x 1080
67.50
134.86
135.00
60.00
119.88
120.00
2560 x 1440 88.78 59.95
2560 x 1440
1
182.99 119.99
3840 x 2160
53.95
54.00
56.25
61.43
67.50
112.50
134.86
135.00
23.98
24.00
25.00
29.97
30.00
50.00
59.94
60.00
4096 x 2160
53.95
54.00
56.25
61.43
67.50
112.50
134.86
135.00
23.98
24.00
25.00
29.97
30.00
50.00
59.94
60.00
1 For 75UT770H0UA
HDMI (DTV) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 480p
31.46
31.50
59.94
60.00
720 x 480p
31.47
31.50
59.94
60.00
720 x 576p 31.25 50.00
1280 x 720p
44.96
45.00
37.50
59.94
60.00
50.00
1920 x 1080i
28.12
33.72
33.75
50.00
59.94
60.00
1920 x 1080p
26.97
27.00
33.71
33.75
56.25
67.43
67.50
112.50
134.86
135.00
23.97
24.00
29.97
30.00
50.00
59.94
60.00
100.00
119.88
120.00
3840 x 2160p
53.95
54.00
56.25
61.43
67.50
112.5
134.86
135.00
23.98
24.00
25.00
29.97
30.00
50.00
59.94
60.00
4096 x 2160p
53.95
54.00
56.25
61.43
67.50
112.50
134.86
135.00
23.98
24.00
25.00
29.97
30.00
50.00
59.94
60.00
21
ENGLISH

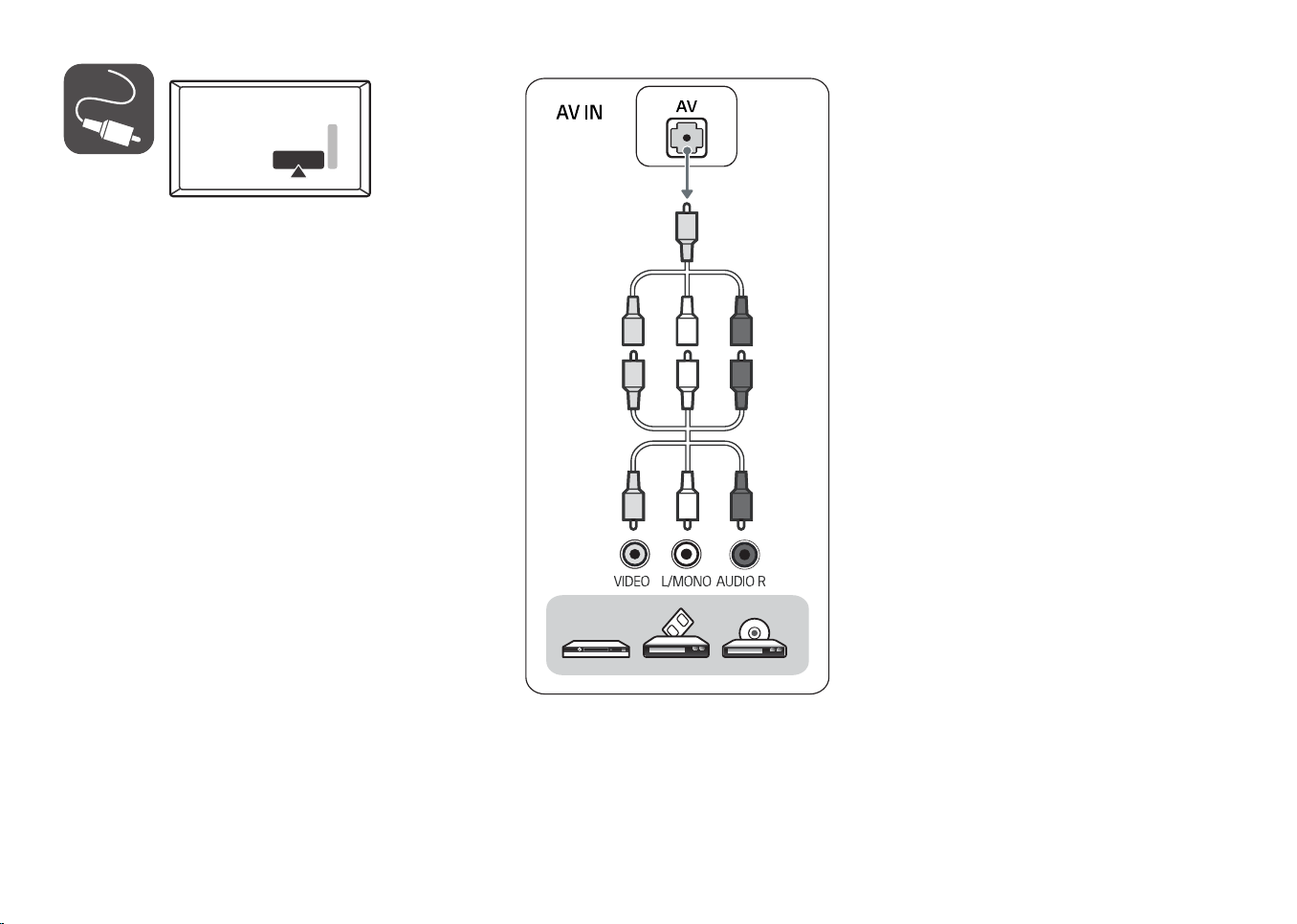

Composite, AV Supported Mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720 x 480i
15.73
15.75
59.94
60.00
Supported Photo Formats
File
Format
Format Resolution
.jpeg
.jpg
.jpe
JPEG
Minimum : 64 (W) x 64 (H)
Maximum :
- Normal Type :
15360 (W) x 8640 (H)
- Progressive Type :
1920 (W) x 1440 (H)
.png PNG
Minimum : 64 (W) x 64 (H)
Maximum : 5760 (W) x 5760 (H)
.bmp BMP
Minimum : 64 (W) x 64 (H)
Maximum : 1920 (W) x 1080 (H)
Supported Audio Formats
File Format Info
.mp3
(Bit rate) 32 Kbps - 320 Kbps
(Sample freq.) 16 kHz - 48 kHz
(Support) MPEG1, MPEG2
(channels) mono, stereo
.wav
(Bit rate) -
(Sample freq.) 8 kHz ~ 96 kHz
(Support) PCM
(channels) mono, stereo
.ogg
(Bit rate) 64 Kbps - 320 Kbps
(Sample freq.) 8 kHz ~ 48 kHz
(Support) Vorbis
(channels) mono, stereo
.wma
(Bit rate) 128 Kbps ~ 320 Kbps
(Sample freq.) 8 kHz ~ 48 kHz
(Support) WMA
(channels) up to 6 ch
.flac
(Bit rate) -
(Sample freq.) 8 kHz ~ 96 kHz
(Support) FLAC
(channels) mono, stereo
22
ENGLISH
Supported Video Formats
File
Format
Codec
.asf
.wmv
Video
VC-1 Advanced Profile
(except for WMVA), VC-1
Simple and Main Profiles
Audio
WMA Standard (except for
WMA v1/ WMA Speech)
.avi
Video
Xvid (except for 3 warp-point
GMC), H.264/AVC, Motion
Jpeg, MPEG-4
Audio
MPEG-1 Layer I, II, MPEG-1
Layer III (MP3), Dolby Digital,
LPCM, ADPCM, DTS
.mp4
.m4v
.mov
Video H.264/AVC, MPEG-4, HEVC
Audio
Dolby Digital, Dolby Digital
Plus, AAC, MPEG-1 Layer III
(MP3), Dolby AC-4
.3gp
.3g2
Video H.264/AVC, MPEG-4
Audio AAC, AMR-NB, AMR-WB
.mkv
Video
MPEG-2, MPEG-4, H.264/AVC,
VP8, VP9, HEVC
Audio
Dolby Digital, Dolby Digital
Plus, AAC, PCM, DTS, MPEG-1
Layer I, II, MPEG-1 Layer III
(MP3)
.ts
.trp
.tp
.mts
Video H.264/AVC, MPEG-2, HEVC
Audio
MPEG-1 Layer I, II, MPEG-1
Layer III (MP3), Dolby Digital,
Dolby Digital Plus, AAC, PCM,
Dolby AC-4
.mpg
.mpeg
.dat
Video MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, II, MPEG-1
Layer III (MP3)
.vob
Video MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I,
II, DVD-LPCM
Cautions for Video Playback
• ULTRA HD Video : 3840 x 2160, 4096 x 2160
• Some HEVC encoded ULTRA HD videos other than
the content officially provided by LG Electronics
may not be played.
• Some codecs can be supported after a software
upgrade.
File
Format
Codec
.mkv
.mp4
.ts
Video H.264/AVC, HEVC
Audio
Dolby Digital, Dolby Digital
Plus, AAC
Supported External Subtitles
Subtitle Format
External
Subtitle
*.smi, *.srt, *.sub (MicroDVD,
SubViewer 1.0/2.0), *.ass, *.ssa, *.txt
(TMPlayer), *.psb (PowerDivX), *.dcs
(DLP Cinema)
Embedded
Subtitle
Matroska(mkv) : Sub Station
Alpha(SSA), Advanced Sub Station
Alpha(ASS), SRT
MP4 : Timed Text
23
ENGLISH

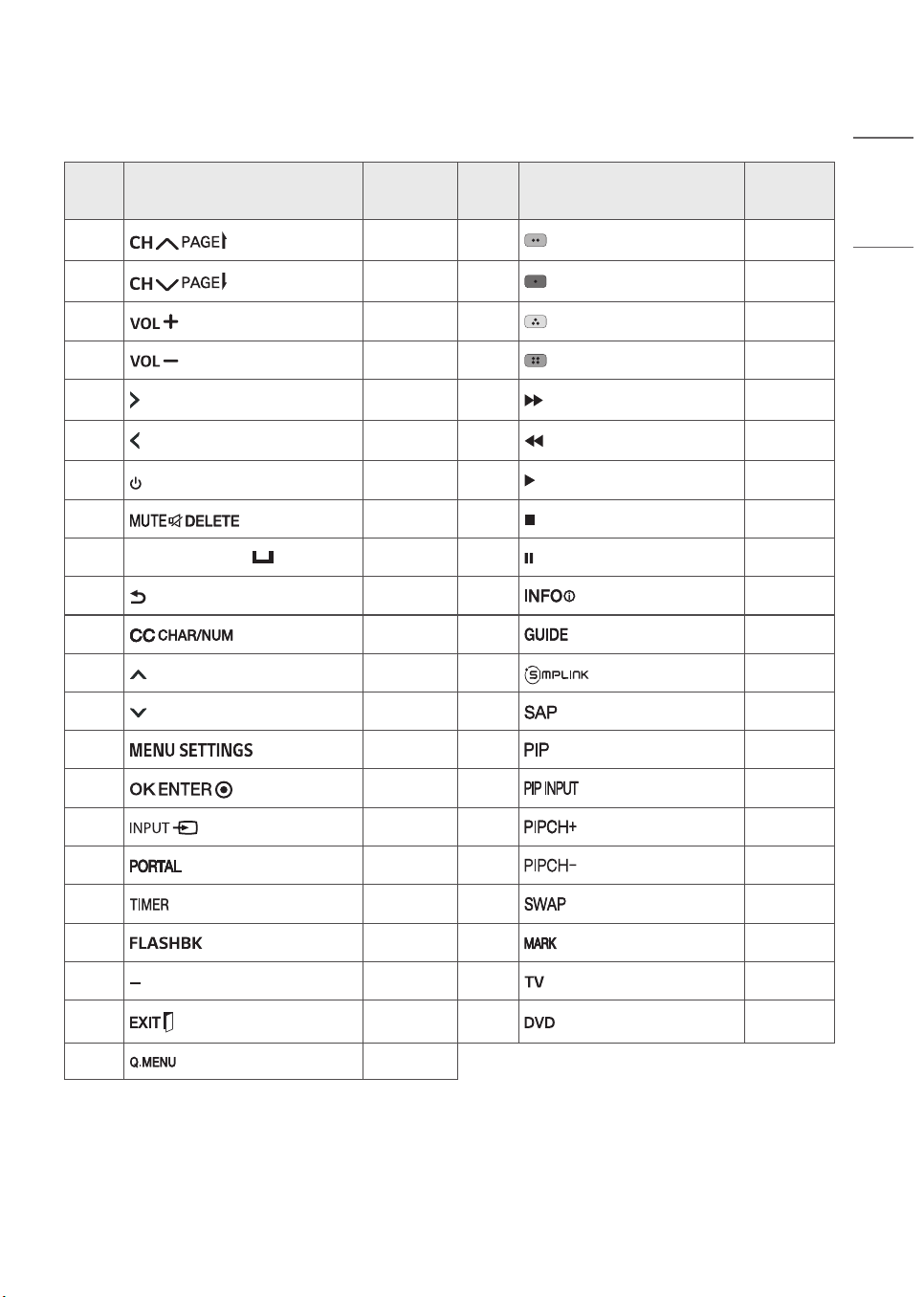

KEY CODES (TYPE A)
* This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00
R/C Button C0 (Green) R/C Button
01
R/C Button C1 (Red) R/C Button
02
R/C Button C2 (Yellow) R/C Button
03 R/C Button C3 (Blue) R/C Button
06 R/C Button 8E R/C Button
07 R/C Button 8F R/C Button
08 (Power) R/C Button B0 R/C Button
09 R/C Button B1 R/C Button
10 - 19 Number Key 0 - 9, (Space) R/C Button BA R/C Button
28 (Back) R/C Button AA R/C Button
39 R/C Button AB R/C Button
40 R/C Button 7E R/C Button
41 R/C Button 0A R/C Button
43 R/C Button 60 R/C Button
44
R/C Button 61 R/C Button
0B R/C Button 71 R/C Button
0C R/C Button 72 R/C Button
0E R/C Button 63 R/C Button
1A R/C Button 1E R/C Button
4C (Dash) R/C Button - R/C Button
5B R/C Button - R/C Button
45 R/C Button
• Key code 4C (0 x 4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan,
North America, Latin America except Colombia models)
24
ENGLISH

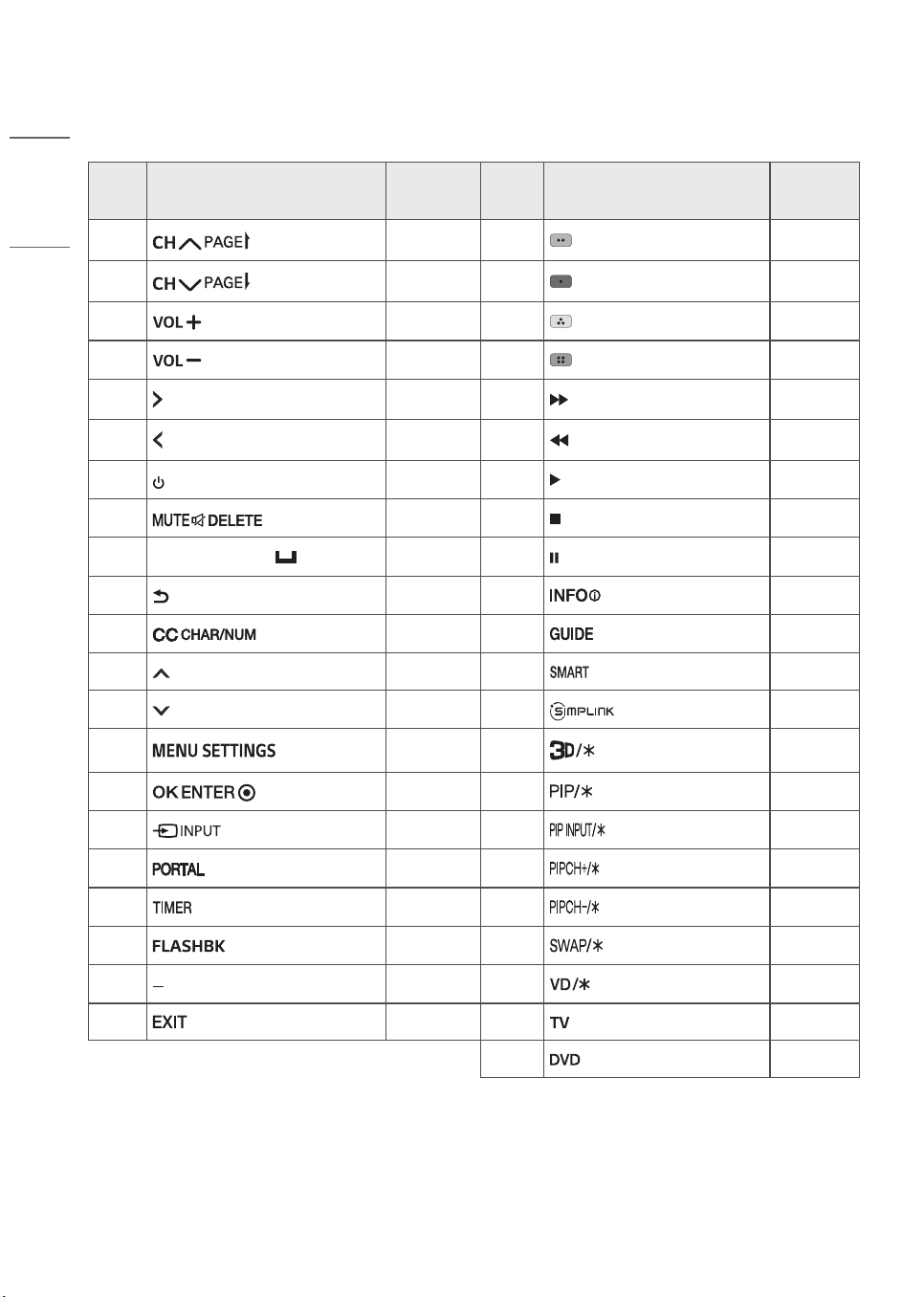

KEY CODES (TYPE B)
* This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00
R/C Button C0 (Green) R/C Button
01
R/C Button C1 (Red) R/C Button
02
R/C Button C2 (Yellow) R/C Button
03 R/C Button C3 (Blue) R/C Button
06 R/C Button 8E R/C Button
07 R/C Button 8F R/C Button
08 (Power) R/C Button B0 R/C Button
09 R/C Button B1 R/C Button
10 - 19 Number Key 0 - 9, (Space) R/C Button BA R/C Button
28 (Back) R/C Button AA R/C Button
39 R/C Button AB R/C Button
40 R/C Button 7C R/C Button
41 R/C Button 7E R/C Button
43 R/C Button DC R/C Button
44
R/C Button 60 R/C Button
0B R/C Button 61 R/C Button
0C R/C Button 71 R/C Button
0E R/C Button 72 R/C Button
1A R/C Button 63 R/C Button
4C (Dash) R/C Button 91 R/C Button
5B R/C Button - R/C Button
- R/C Button
• Key code 4C (0 x 4C) is available on ATSC/ISDB models which use major/minor channel. (For South Korea, Japan,
North America, Latin America except Colombia models)
25
ENGLISH
EXTERNAL CONTROL DEVICE SETUP
* Image shown may differ from your TV.
* Cable is not provided.
* The connection interface may differ from your TV.
RS-232C Setup
• Connect the USB to Serial converter/RS-232C input
jack to an external control device (such as a computer
or an A/V control system) to control the product’s
functions externally.
• Connect the serial port of the control device to the
RS-232C jack on the product back panel.
NOTE
• The type of control port on the TV can be different
between model series.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
(PC)
(TV)
• LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is
not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
26
ENGLISH
RS-232C with RS-232C Cable
DE9 (D-Sub 9pin) Type
(PC)
(TV)
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
• You need to purchase the RS-232C (DE9, D-Sub 9 pin female-to-female type) to RS-232C cable required for the
connection between the PC and the TV, which is specified in the manual.
Phone jack Type (75UT770H0UA Only)
(PC)
(TV)
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
(STB)
(TV)
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
• You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV,
which is specified in the manual.
Connector type: D-Sub 9-pin male Connector Type: 4-Pin Phone-Jack
(75UT770H0UA Only)
1
6
5
9
USB IN
(TV)
(PC)
(PC)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
(TXD)
(RXD)
(GND)
(IR-OUT)
RS-232C (Serial port)
27
ENGLISH
RS-232C configurations
7-Wire Configurations
(Standard RS-232C cable)
3-Wire Configurations
(Not standard)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
RS-232C configurations (75UT770H0UA Only)
7-Wire or 3-Wire Configuration
PC TV
RXD 2 2 RXD
TXD 3 1 TXD
GND 5 4 GND
DTR 4 3 IR-OUT
DSR 6
RTS 7
CTS 8
D-Sub 9 Phone-Jack
Set ID
For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”.
1 Press to access the main menus.
2 Press the navigation buttons to scroll to ([General] [Set ID]) and press button.
3 Scroll left or right to select a set ID number and select (Back). The adjustment range is 1-99.
4 When you are finished, press / .
28
ENGLISH
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
* (Depending upon model)
COMMAND1 COMMAND2 DATA (Hexadecimal)
1 Power k a 00 to 01
2 [Aspect Ratio] k c (page 30)
3 Screen Mute k d (page 30)
4 Volume Mute k e 00 to 01
5 Volume Control k f 00 to 64
6 [Contrast] k g 00 to 64
7 [Brightness] k h 00 to 64
8 [Color] k i 00 to 64
9 [Tint] k j 00 to 64
10 [Sharpness] k k 00 to 32
11 OSD Select k l 00 to 01
12 Remote Control Lock Mode k m 00 to 01
13 [Balance] k t 00 to 64
14 [Color Temperature] x u 00 to 64
15 [Equalizer] j v (page 32)
16 Tune Command m a (page 32)
17 [Channel] Skip/Add m b 00 to 01
18 Key m c Key Codes
19 Control [Backlight] m g 00 to 64
20 Input select x b (page 35)
• During playing media, all commands except Power (ka) and Key (mc) are not executed and treated as NG. With
RS232C cable, TV can communicate “ka command” in power-on or power-off status. but with USB-to-Serial
converter cable, the command works only if TV is on.
29
ENGLISH
TRANSMISSION / RECEIVING PROTOCOL
* (Depending upon Model)
Transmission
(Command1)(Command2)( )([Set ID])( )(Data)(Cr)
(Command 1) : First command to control the TV. (j, k, m or x)
(Command 2) : Second command to control the TV.
([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to
99. When selecting Set ID ‘0’, every connected set is controlled. Set ID is indicated as decimal (1 to 99) on menu and
as Hexa decimal (0 x 0 to 0 x 63) on transmission/receiving protocol.
(Data) : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
(Cr) : Carriage Return - ASCII code ‘0 x 0D’
( ) : Space – ASCII code ‘0 x 20’
OK Acknowledgement
(Command2)( )([Set ID])( )(OK)(Data)(x)
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
(Command2)( )([Set ID])( )(NG)(Data)(x)
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-viable
functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal : Decimal)
* When you enter the (Data) in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value(Data) to select channel number.
00 : Step 0 32 : Step 50 ([Set ID] 50) FE : Step 254
01 : Step 1 ([Set ID] 1) 33 : Step 51 ([Set ID] 51) FF : Step 255
... ... ...
0A : Step 10 ([Set ID] 10) 63 : Step 99 ([Set ID] 99) 01 00 : Step 256
... ... ...
0F : Step 15 ([Set ID] 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 ([Set ID] 16) C8 : Step 200 27 0F : Step 9999
... ... ...
30
ENGLISH
1 Power (Command: k a)
► To control power on or off of the set.
Transmission
(k)(a)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(a)( )([Set ID])( )(OK/NG)(Data)(x)
► To show TV is power on or off
Transmission
(k)(a)( )([Set ID])( )(FF)(Cr)
Ack
(a)( )([Set ID])( )(OK/NG)(Data)(x)
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
* OK Ack., Error Ack. and other message may display
on the screen when TV is power on.
2 [Aspect Ratio] (Command: k c) (Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
picture settings.
Transmission
(k)(c)( )([Set ID])( )(Data)(Cr)
Data 01 : [4:3] (Normal screen - Just Scan Off)
Data 02 : [16:9] (Wide screen - Just Scan Off)
Data 06 : [Original] (Just Scan Off )
Data 09 : [Just Scan]
Ack
(c)( )([Set ID])( )(OK/NG)(Data)(x)
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV, AV
partially.
3 Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission
(k)(d)( )([Set ID])( )(Data)(Cr)
Data 00 : Screen mute off (Picture on) / Video mute off
Data 01 : Screen mute on (Picture off)
Data 10 : Video mute on
Ack
(d)( )([Set ID])( )(OK/NG)(Data)(x)
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute on,
TV will not display OSD.
4 Volume Mute (Command: k e)
► To control volume mute on/off. You can also adjust
mute using the mute button on remote control.
Transmission
(k)(e)( )([Set ID])( )(Data)(Cr)
Data 00 : Volume mute on (Volume off )
Data 01 : Volume mute off (Volume on)
Ack
(e)( )([Set ID])( )(OK/NG)(Data)(x)
5 Volume Control (Command: k f)
► To adjust volume. You can also adjust volume with
the volume buttons on remote control.
Transmission
(k)(f)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(f)( )([Set ID])( )(OK/NG)(Data)(x)
6 [Contrast] (Command: k g)
► To adjust screen contrast. You can also adjust
contrast in the picture settings.
Transmission
(k)(g)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(g)( )([Set ID])( )(OK/NG)(Data)(x)
31
ENGLISH
7 [Brightness] (Command: k h)
► To adjust screen brightness. You can also adjust
brightness in the picture settings.
Transmission
(k)(h)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(h)( )([Set ID])( )(OK/NG)(Data)(x)
8 [Color] (Command: k i)
► To adjust the screen color. You can also adjust color
in the picture settings.
Transmission
(k)(i)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(i)( )([Set ID])( )(OK/NG)(Data)(x)
9 [Tint] (Command: k j)
► To adjust the screen tint. You can also adjust color
in the picture settings.
Transmission
(k)(j)( )([Set ID])( )(Data)(Cr)
Data Red : 00 to Green : 64
Ack
(j)( )([Set ID])( )(OK/NG)(Data)(x)
10 [Sharpness] (Command: k k)
► To adjust the screen sharpness. You can also adjust
sharpness in the picture settings.
Transmission
(k)(k)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 32
Ack
(k)( )([Set ID])( )(OK/NG)(Data)(x)
11 OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission
(k)(l)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(l)( )([Set ID])( )(OK/NG)(Data)(x)
12 Remote Control Lock Mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission
(k)(m)( )([Set ID])( )(Data)(Cr)
Data 00 : [Off]
Data 01 : [On]
Ack
(m)( )([Set ID])( )(OK/NG)(Data)(x)
* If you are not using the remote control, use this
mode. When main power is off & on (plug-off and
plug-in, after 20 - 30 seconds), external control lock
is released.
* In the standby mode (DC off by off timer or ‘ka’, ‘mc’
command), and if key operation is on, TV will not
turn on by power on key of IR & Local Key.
32
ENGLISH
13 [Balance] (Command: k t)
► To adjust balance. You can also adjust balance in
the audio settings.
Transmission
(k)(t)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(t)( )([Set ID])( )(OK/NG)(Data)(x)
14 [Color Temperature] (Command: x u)
► To adjust color temperature. You can also adjust
color temperature in the picture settings.
Transmission
(x)(u)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(u)( )([Set ID])( )(OK/NG)(Data)(x)
15 [Equalizer] (Command : j v)
► Adjust EQ of the set.
Transmission
(j)(v)( )([Set ID])( )(Data)(Cr)
0 0 0 0 0 0 0 0
MSB
Frequency Data
LSB
7 6 5 Frequency 4 3 2 1 0 Step
0 0 0 1st Band 0 0 0 0 0 0(decimal)
0 0 1 2nd Band 0 0 0 0 1 1(decimal)
0 1 0 3rd Band ... ... ... ... ... ...
0 1 1 4th Band 1 0 0 1 1 19(decimal)
1 0 0 5th Band 1 0 1 0 0 20(decimal)
Ack
(v)( )([Set ID])( )(OK/NG)(Data)(x)
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
16 Tune Command (Command: m a)
* This command may work differently Depending
upon model and signal.
* For Europe, Mid-East, Colombia, Asia except South
Korea and Japan Model
► Select channel to following physical number.
Transmission
(m)(a)( )([Set ID])( )(Data 00)( )(Data 01)
( )(Data 02)(Cr)
• Analog Antenna/Cable
(Data 00)(Data 01) Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
• Digital Antenna/Cable/Satellite
(Data 00)(Data 01): Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
33
ENGLISH
• Tune Command Examples:
1 Tune to the Analog antenna (PAL) Channel 10.
[Set ID] = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2 Tune to the digital antenna (DVB-T) Channel 01.
[Set ID] = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3 Tune to the satellite (DVB-S)
Channel 1000.
[Set ID] = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack
(a)( )([Set ID])( )(OK)(Data 00)(Data 01)
(Data 02)(x)(a)( )([Set ID])( )(NG)(Data 00)(x)
* For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission
(m)(a)( )(0)( )(Data 00)( )(Data 01)( )
(Data 02)( )(Data 03)( )(Data 04)( )(Data 05)(Cr)
- Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number
that the channel should be mapped to, and the
Minor is the sub-channel. Since the ATSC tuner
automatically maps the channel from the Major /
Minor number, the Physical number is not required
when sending a command in Digital.
• Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1,
14~125)
(Data 01 ~ 04): Major/Minor Channel Number
Data 01 & 02: xx (Don’t care)
Data 03 & 04: xx (Don’t care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
• Digital Antenna/Cable
Data 00 : xx (Don’t care)
(Data 01)(Data 02): Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
(Data 03)(Data 04): Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical
Channel Number
- 06 : Cable TV (CADTV) – Use Physical
Channel Number
- 22 : Antenna TV (DTV) – Don’t Use
Physical Channel Number
- 26 : Cable TV (CADTV) - Don’t Use
Physical Channel Number
- 46 : Cable TV (CADTV) – Use Major
Channel Number Only (One Part
Channel)
* Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
34
ENGLISH
• Digital Antenna/Satellite
Data 00 : xx (Don’t care)
(Data 01)(Data 02) : Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
(Data 03)(Data 04) : Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
• Tune Command Examples:
1 Tune to the digital antenna (ISDB-T) channel 17-1.
[Set ID] = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
2 Tune to the BS (ISDB-BS) channel 30.
[Set ID] = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack
(a)( )([Set ID])( )(OK)(Data 00)(Data 01)
(Data 02)(Data 03)(Data 04)(Data 05)
(x)(a)( )([Set ID])( )(NG)(Data 00)(x)
• Tune Command Examples:
1 Tune to the Analog cable (NTSC) channel 35.
[Set ID] = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2 Tune to the digital antenna (ATSC) channel 30-3.
[Set ID] = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack
(a)( )([Set ID])( )(OK)(Data 00)(Data 01)(Data 02)
(Data 03)(Data 04)(Data 05)(x)(a)( )([Set ID])( )
(NG)(Data 00)(x)
* For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission
(m)(a)( )(0)( )(Data 00)( )(Data 01)( )(Data 02)
( )(Data 03)( )(Data 04)( )(Data 05)(Cr)
35
ENGLISH
17 [Channel] Skip/Add (Command: m b)
► To skip current channel for next time.
Transmission
(m)(b)( )([Set ID])( )(Data)(Cr)
Data 00 : Del(ATSC,ISDB)/Skip(DVB)
Data 01 : Add
Ack
(b)( )([Set ID])( )(OK/NG)(Data)(x)
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
18 Key (Command: m c)
► To send IR remote key code.
Transmission
(m)(c)( )([Set ID])( )(Data)(Cr)
Data : Key code - page 23, 24
Ack
(c)( )([Set ID])( )(OK/NG)(Data)(x)
19 Control [Backlight] (Command: m g)
► To control the backlight.
Transmission
(m)(g)( )([Set ID])( )(Data)(Cr)
Data Min : 00 to Max : 64
Ack
(g)( )([Set ID])( )(OK/NG)(Data)(x)
20 Input select (Command: x b) (Main Picture Input)
► To select input source for main picture.
Transmission
(x)(b)( )([Set ID])( )(Data)(Cr)
Data 00 : DTV
Data 01 : CADTV
Data 02 : Satellite DTV ISDB-BS (Japan)
Data 03 : ISDB-CS1 (Japan)
Data 04 : ISDB-CS2 (Japan)
Data 10 : ATV
Data 11 : CATV
Data 20 : AV or AV1
Data 21 : AV2
Data 40 : Component1
Data 41 : Component2
Data 60 : RGB
Data 90 : HDMI1
Data 91 : HDMI2
Data 92 : HDMI3
Data 93 : HDMI4
Ack
(b)( )([Set ID])( )(OK/NG)(Data)(x)
* This function depends on model and signal.
36
ENGLISH
IR OUT Using Guide
Suitable / Not Recommend remote-controller data format
Item Data format code Note
Suitable Data Format
NEC, Toshiba Full Repeat Code Format
Single : Enable
Repeat : Enable
Philips RC5, RC6 Code Format
Zenith Code Format
Not Recommend Data Format
Matsushita, RCA Code Format
Single : Enable
Repeat : Disable
Sony 12/15/20 bit, Mitsubishi Code Format
Sharp, JVC, R-step, Philips RCMM, RECS-80, XMP
Code Format
Single : Disable
Repeat : Disable
IR Receiver specifications
Carrier frequency 37.9 KHz
Peak Wavelength 940 nm
Minimum burst length Min. 300 us
Minimum gap time is required of Min. 350 us
Data word length Max. 100 ms
Minimum gap time in the data stream is needed of Min. 50 ms
Parameter Symbol Conditions Min Typ Max Unit
High Level Out Pulse Width Twh
Burst Wave = 600
Period = 1.2
400 - 800
Low Level Out Pulse Width Twl 400 - 800
If not use the remote-controller with data formats recommended, IR output signals will be suppressed
automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this
matter, here are two methods as below.
• Use the remote-controller with suitable data formats.
• Use the IR dongle receiver of the set-top box.
37
ENGLISH
Open Source Software
Notice Information
To obtain the source code that is contained in this
product, under GPL, LGPL, MPL, and other open
source licenses that have the obligation to disclose
source code, and to access all referred license terms,
copyright notices and other relevant documents,
please visit https://opensource.lge.com.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
This offer is valid to anyone in receipt of this
information for a period of three yearsafter our last
shipment of this product.
Updating Firmware
(Depending upon model)
You can update the firmware for the product by
downloading the latest firmware.
1 Download the latest firmware at partner.lge.com.
(Signing up for a membership and log-in required)
2 Create a folder named “LG_DTV” or “lg_dtv” on a
USB memory device.
3 Move the downloaded file to the folder that you
have created on the USB memory device.
4 Connect the USB memory device to the USB port
on your TV.
5 When a pop-up window appears, start the update
by following the instructions.
Licenses
Supported licenses may differ by model. For more
information about licenses, visit www.lg.com.
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Vision, Dolby Vision
IQ, Dolby Audio, Dolby Atmos, and the double-D
symbol are trademarks of Dolby Laboratories
Licensing Corporation.
The terms HDMI, HDMI High-Definition Multimedia
Interface, HDMI trade dress and the HDMI Logos
are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together, DTS 2.0 Channel, DTS 2.0+Digital Out,
DTS-HD, and DTS Virtual:X are registered trademarks
or trademarks of DTS, Inc. in the United States and/
or other countries. © DTS, Inc. All Rights Reserved.
(Depending upon model)
38
ENGLISH
Regulatory
FCC Notice
(For USA)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and the receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference
and (2) this device must accept any interference
received, including interference that may cause
undesired operation. Any changes or modifications
in construction of this device which are not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
FCC Radio Frequency Interference
Requirements (for UNII devices)
(For USA)
High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with and/
or damage this device. This device cannot be co-
located with any other transmitter.
FCC RF Radiation Exposure
Statement
(For USA)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This equipment should be installed and operated
with minimum distance 20 cm (7.8 inches) between
the antenna and your body. Users must follow the
specific operating instructions for satisfying RF
exposure compliance.
39
ENGLISH
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
IC Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20cm (7.8inches) between the
antenna & your body.
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
RSS-247 Requirement
(For Canada)
[For product having the wireless function using 5 GHz
frequency bands]
(1) The device for operation in the band 5150–5250
MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite
systems;
(2) For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall be
such that the equipment still complies with the e.i.r.p.
limit;
(3) For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits as
appropriate; and
(4) [For devices operating in the band 5250-5350
MHz having an e.i.r.p. greater than 200 mW] Antenna
type(s), antenna models(s), and worst-case tilt
angle(s) necessary to remain compliant with the
e.i.r.p. elevation mask requirement set forth in section
6.2.2.3 of RSS-247 shall be clearly indicated.
Users should also be advised that high-power radars
are allocated as primary users (i.e. priority users) of
the bands 5250-5350 MHz and 5650-5850 MHz and
that these radars could cause interference and/or
damage to LE-LAN devices.
40
ENGLISH
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines
for proper grounding and, in particular, specifies
that the cable ground shall be connected to the
grounding system of the building, as close to the
point of the cable entry as practical.
WARNING!
Never place a television set in an unstable location. A
television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the
manufacturer of the television set.
• Only using furniture that can safely support the
television set.
• Ensuring the television set is not overhanging the
edge of the supporting furniture.
• Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television set
to a suitable support.
• Not placing the television set on cloth or other
materials that may be located between the
television set and supporting furniture.
• Educating children about the dangers of climbing
on furniture to reach the television set or its
controls.
If your existing television set is being retained and
relocated, the same considerations as above should
be applied.

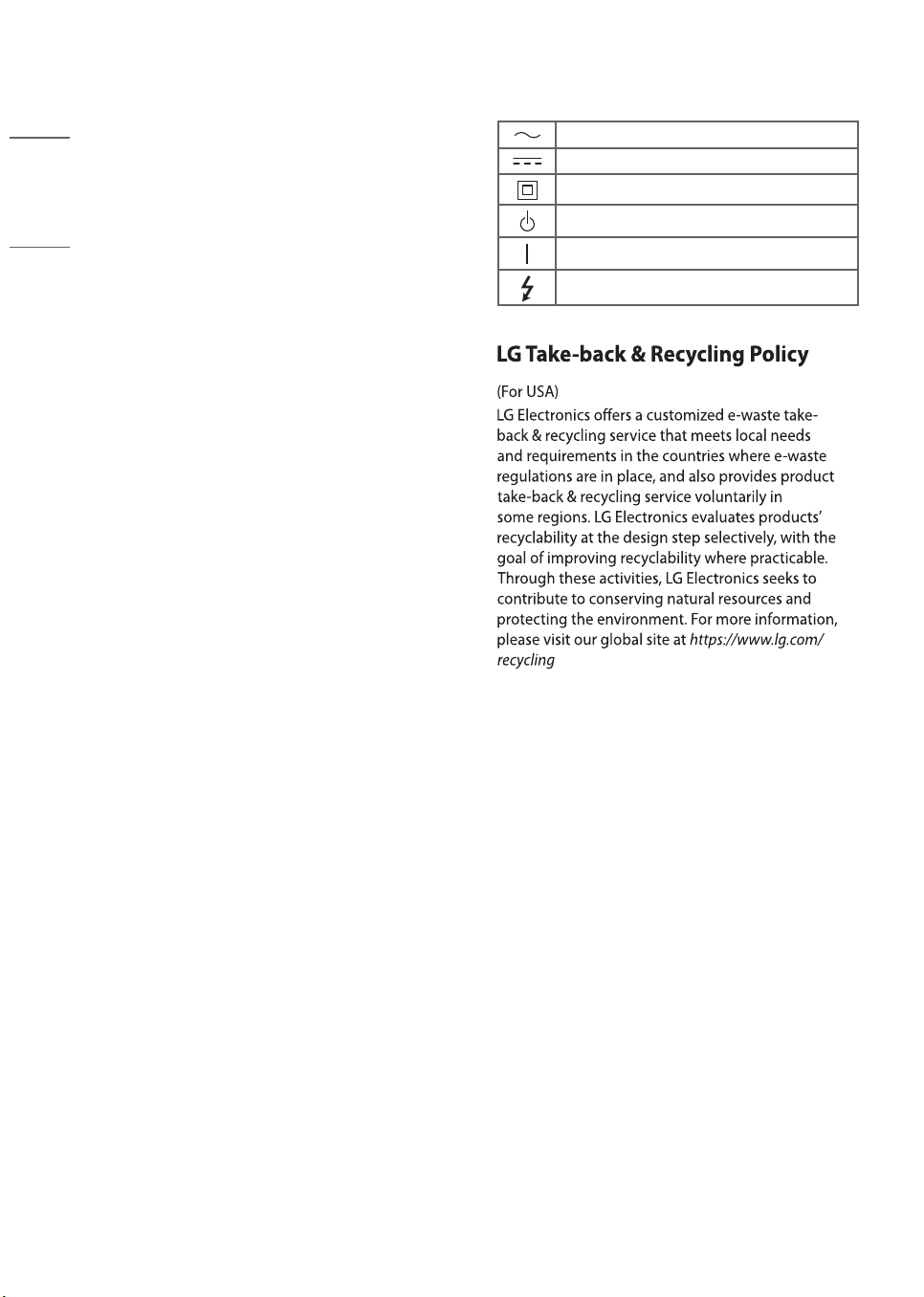

Symbols
Refers to alternating current (AC).
Refers to direct current (DC).
Refers to class II equipment.
Refers to stand-by.
Refers to “ON” (power).
Refers to dangerous voltage.
Dominican Republic only
WEEE
Disposal of your old appliance
1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE)
should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance
will help prevent potential negative consequences for the environment and human health. Your
old appliance may contain reusable parts that could be used to repair other products, and other
valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance to any of the authorized centers for collection, If you want to know an
updated list of countries that have this service, visit the page https://www.lg.com/global/take-back-
recycling-global-network-south-america
Eliminación de su viejo electrodoméstico
1 El símbolo del contenedor de basura tachado con un aspa indica que la recogida separada de
aparatos eléctricos y electrónicos (AEE) debe realizarse de manera separada.
2 Los aparatos eléctricos antiguos pueden contener sustancias peligrosas, de modo que la correcta
eliminación del antiguo aparato ayudará a evitar posibles consecuencias negativas para el medio
ambiente y para la salud humana. El antiguo aparato puede contener piezas reutilizables que
podrían utilizarse para reparar otros productos y otros materiales valiosos que pueden reciclarse
para conservar los recursos limitados.
3 Puedes llevar tu aparato a cualquiera de los centros autorizados de recoleccion de residuos
electricos y electronicos. Si deseas conocer una lista actualizada de los paises que cuentan con
este servicio, visite la pagina https://www.lg.com/global/take-back-recycling-global-network-south-
america
41
ENGLISH
42
ENGLISH
THE CONSUMER TECHNOLOGY INDUSTRY CARES
Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you
enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the
manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests,
carts, etc., may fall over, resulting in injury.
CHILD SAFETY:
CTA.tech
PROPER TELEVISION PLACEMENT MATTERS
TUNE IN TO SAFETY
• NEVER allow children to climb on or play on the television or the furniture on which the
television is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your
television.
• ALWAYS read and follow all instructions for proper use of your television.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about
your ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by a Nationally Recognized Testing Laboratory (NRTL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is
appropriate. Use proper anchoring systems for different wall or ceiling types (e.g. wood,
concrete, metal, etc.). If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN YOUR HOME
• REMEMBER Special care should be made in the placement of older CRT/flat-panel televisions.
Many new television buyers move their older CRT/flat-panel televisions into a secondary room
after the purchase of a flat-panel television.
• NEVER place your older CRT/flat-panel television on a dresser where children may be tempted
to use the drawers to climb.
• ALWAYS place your older CRT/flat-panel television on furniture that is sturdy and appropriate
for its size and weight.
• ALWAYS make sure your older CRT/flat-panel television does not hang over the edge of your
furniture.
43
ENGLISH
MODEL
SERIAL NO.
The model and serial number of the product are
located on the back and on one side of the product.
Record them below in case you ever need service.
Supplier’s Declaration of Conformity
Trade Name LG
Responsible Party LG Electronics USA, Inc.
Address 111 Sylvan Avenue, North Building,
Englewood Cliffs, NJ 07632
E-mail [email protected]om
LG Customer Information Center
For inquires or comments,
visit www.lg.com or call;
1-888-865-3026
USA, Commercial User
1-855-286-2456
CANADA
