INSTALLATION GUIDE
for the
SB-T-4RNRG5/10TW3
SKU# 94685
2010 & Up Toyota 4Runner
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
2 HOURS
3
5
OUT
OF
INCLUDED HARDWARE
6
8
2
3
5
8
4
32
3
2
3 6
3
2
7
5
2
6
9
1
6
3
3
2
2
6
3
1
21
Continued on Next Page
Page 2 • JL Audio, Inc., 2021
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555

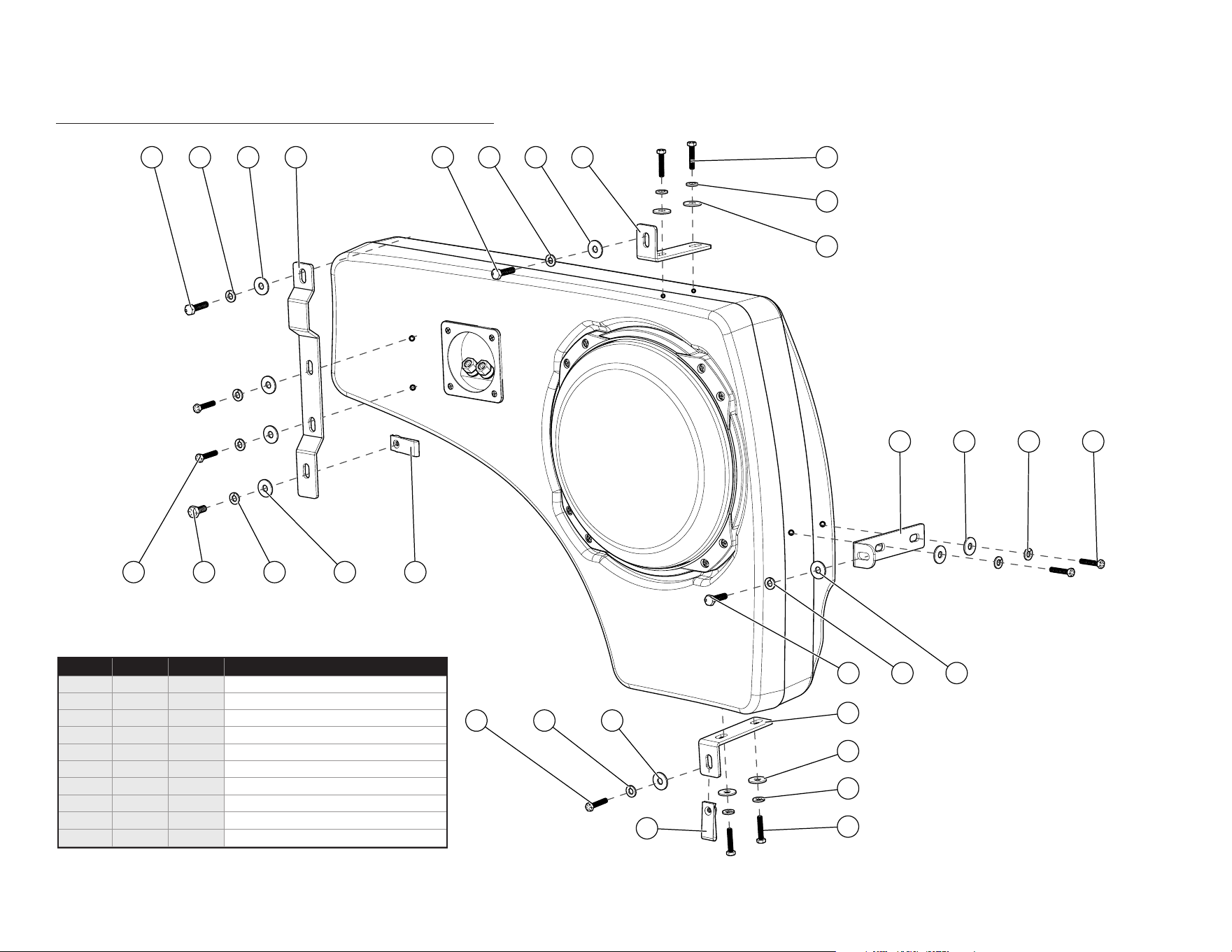

BOM ID Qty SKU Description
1 3 154188 M6 x 1 mm, 25 mm Hex Head Screw
2 13 150066
1/4” Split Lock Washer
3 13 150068 1/4” Flat Washer
4 1 154190 Front Bracket
5 2 152191 Top/Bottom Bracket
6 9 151137 1/4” - 20 x 1” Hex Head Screw
7 1 154189 1/4” - 20 x 3/4” Hex Head Screw
8 2 151164 1/4 - 20 U-Nut
9 1 154192 Side Bracket
10 1 154187 Grille Panel (not shown)

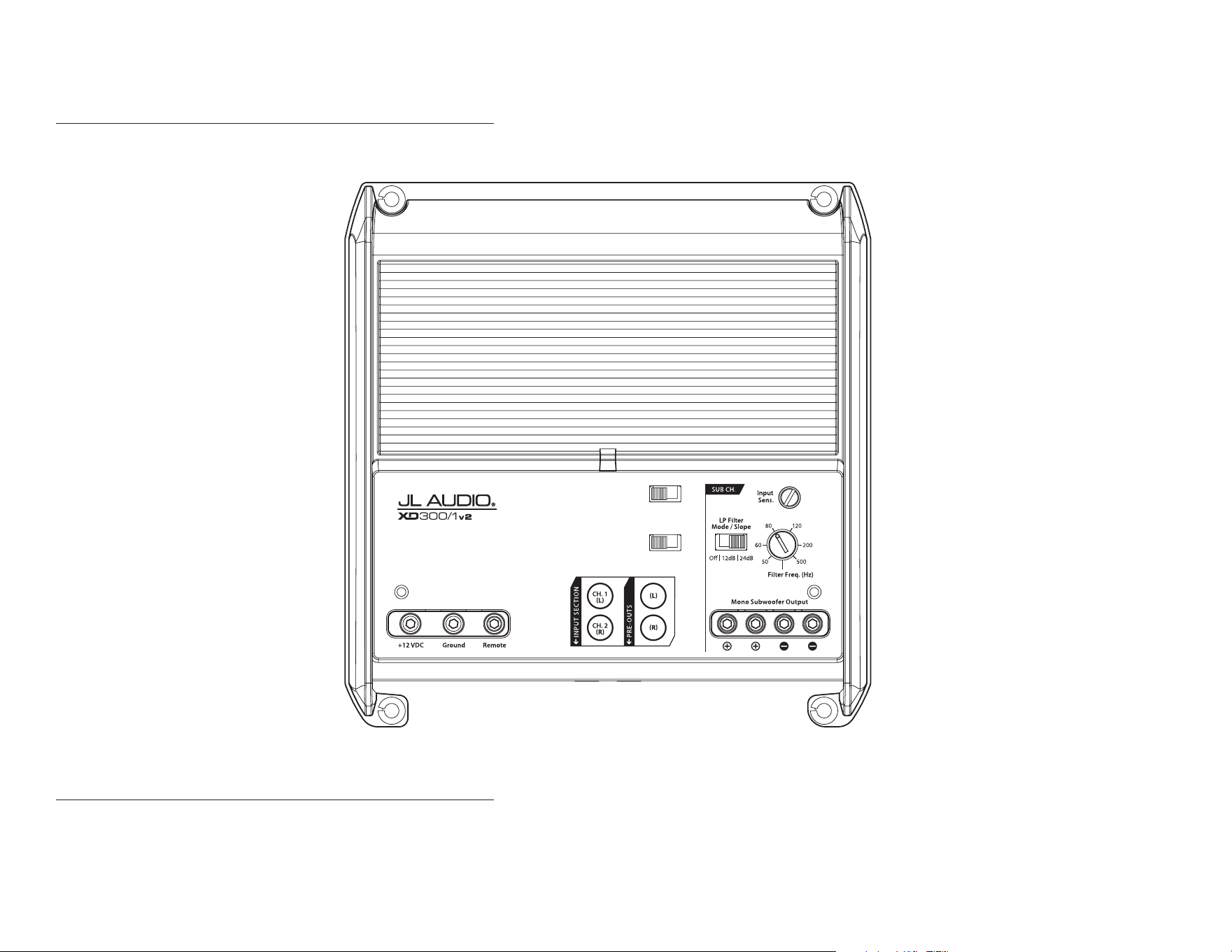

POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
Rem.
|
Oset
|
Signal
Input Voltage
Low
|
High
Turn-On Mode
Monoblock Subwoofer Amplifier
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2021
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555
Page 4 • JL Audio, Inc., 2021 Continued on Next Page

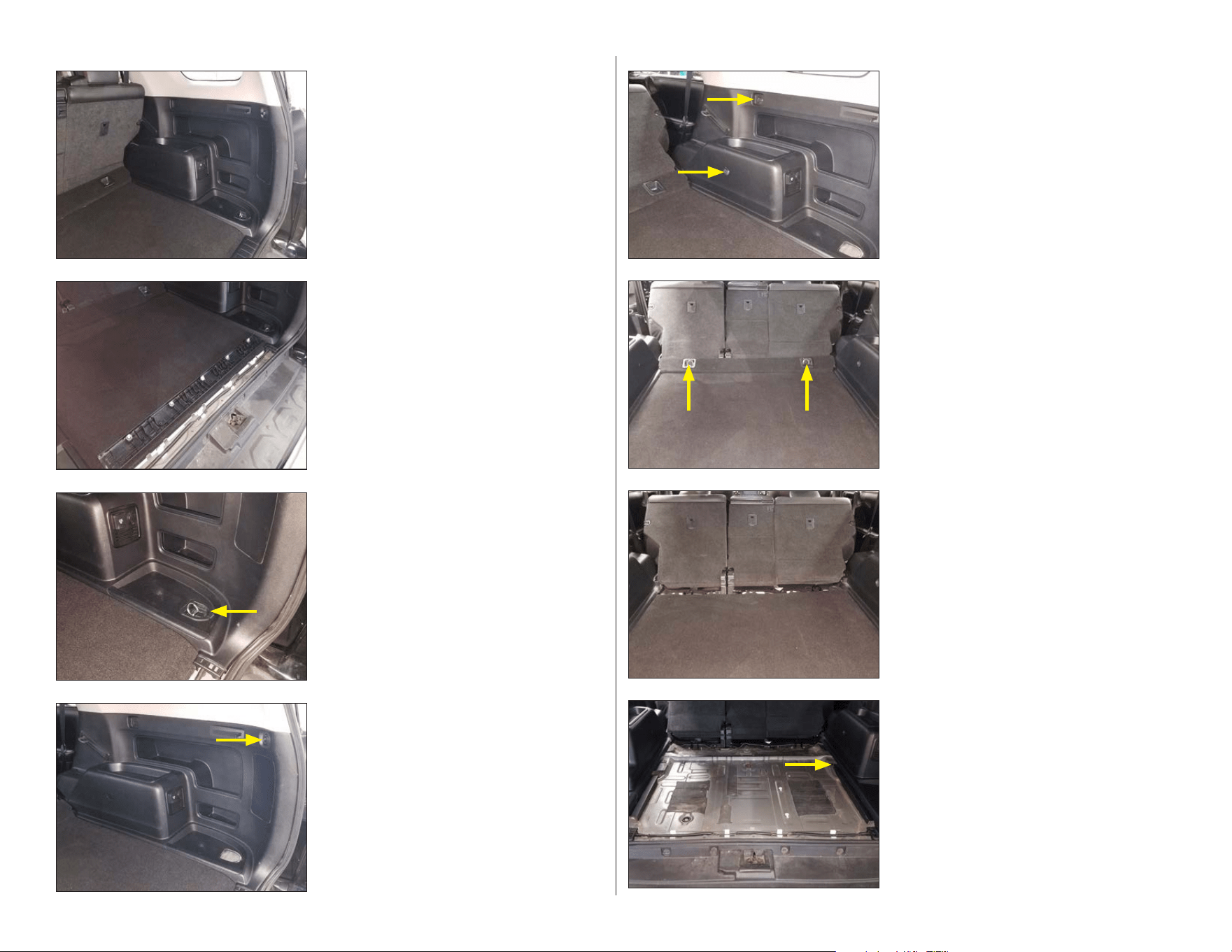

STEP 8
Carefully unclip and remove the carpeted floor
panel. There are four (4) clips that secure the
floor panel to the vehicle.
Lift and remove the exposed Styrofoam
subfloor panel.
Remove the single exposed Phillips screw from
the location indicated on the floor.
STEP 7
Remove the lower rear seat carpeted
trim panel from the vehicle.
STEP 6
Open the two indicated plastic covers and
remove the two exposed 10 mm bolts.
STEP 5
Use a panel removal tool to remove the
two indicated trim covers. Remove the two
exposed 10 mm bolts.
STEP 4
Turn the cargo net retaining hook clockwise
to release and remove the hook. Remove the
exposed Phillips screw.
STEP 3
Open the indicated plastic cover and remove
the exposed 10 mm bolt.
STEP 2
Carefully unclip and remove the center cargo
door sill panel.
STEP 1
Clear the rear cargo area.
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555
Page 5 • JL Audio, Inc., 2021 Continued on Next Page

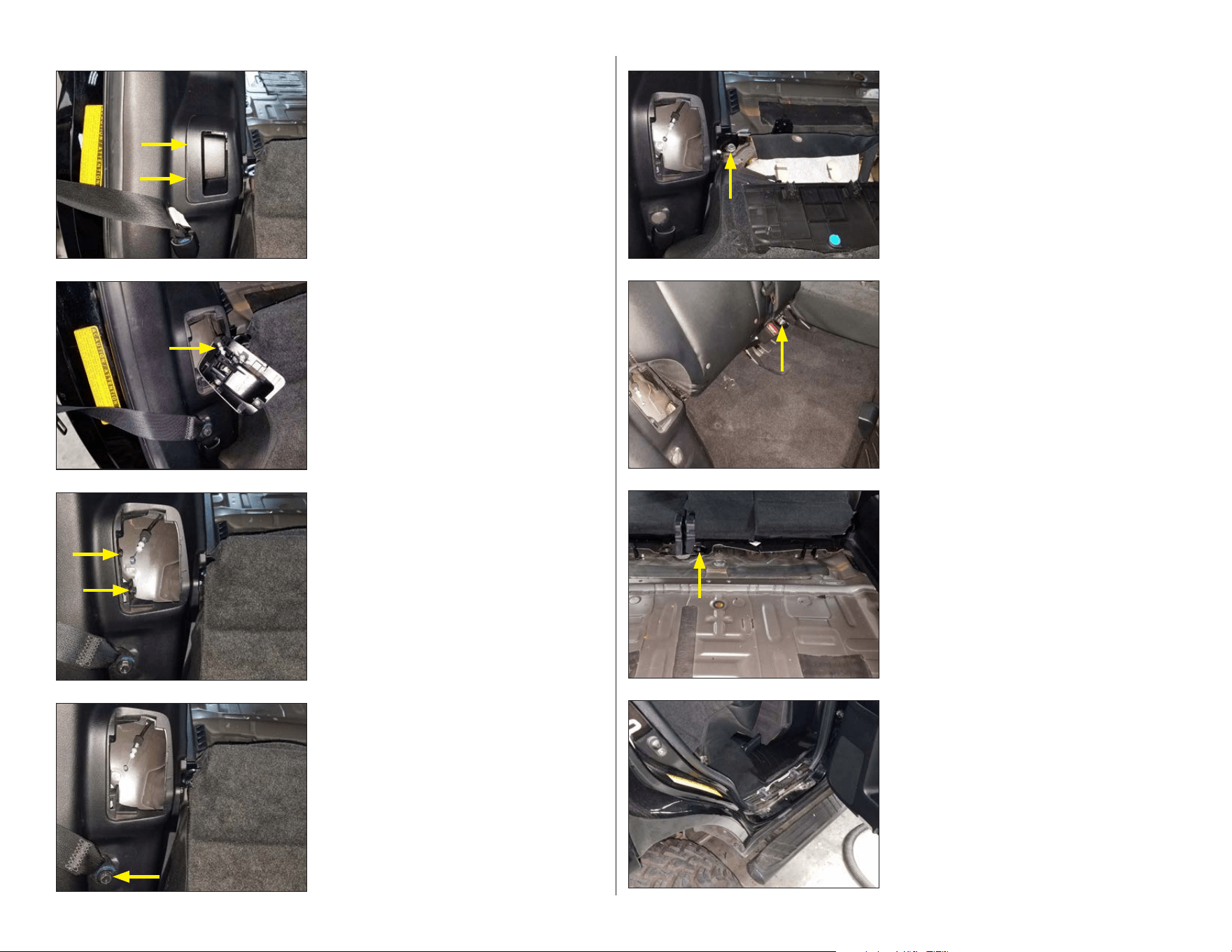

STEP 16
Carefully unclip and remove the rear passenger
side door sill trim panel.
STEP 15
From behind the rear passenger seat, remove
the indicated 14 mm bolt and move the rear
passenger seat back aside.
STEP 14
With the passenger rear seat back upright,
remove the indicated 14 mm bolt.
STEP 13
Flip the carpeted flap at the bottom of the rear
seat forward and remove the exposed
14 mm bolt.
STE P 11
Remove the two exposed 10 mm bolts.
STEP 10
After removing the passenger rear seat recline
lever assembly, disconnect the metal pull cable
from the back of the handle.
STEP 9
Use a panel removal tool to carefully remove
the passenger rear seat recline lever assembly.
The lever assembly must be pried towards the
center of the vehicle to remove.
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555
STEP 12
Open the plastic cover over the seat belt bolt
and remove the exposed 14 mm bolt.
Page 6 • JL Audio, Inc., 2021 Continued on Next Page

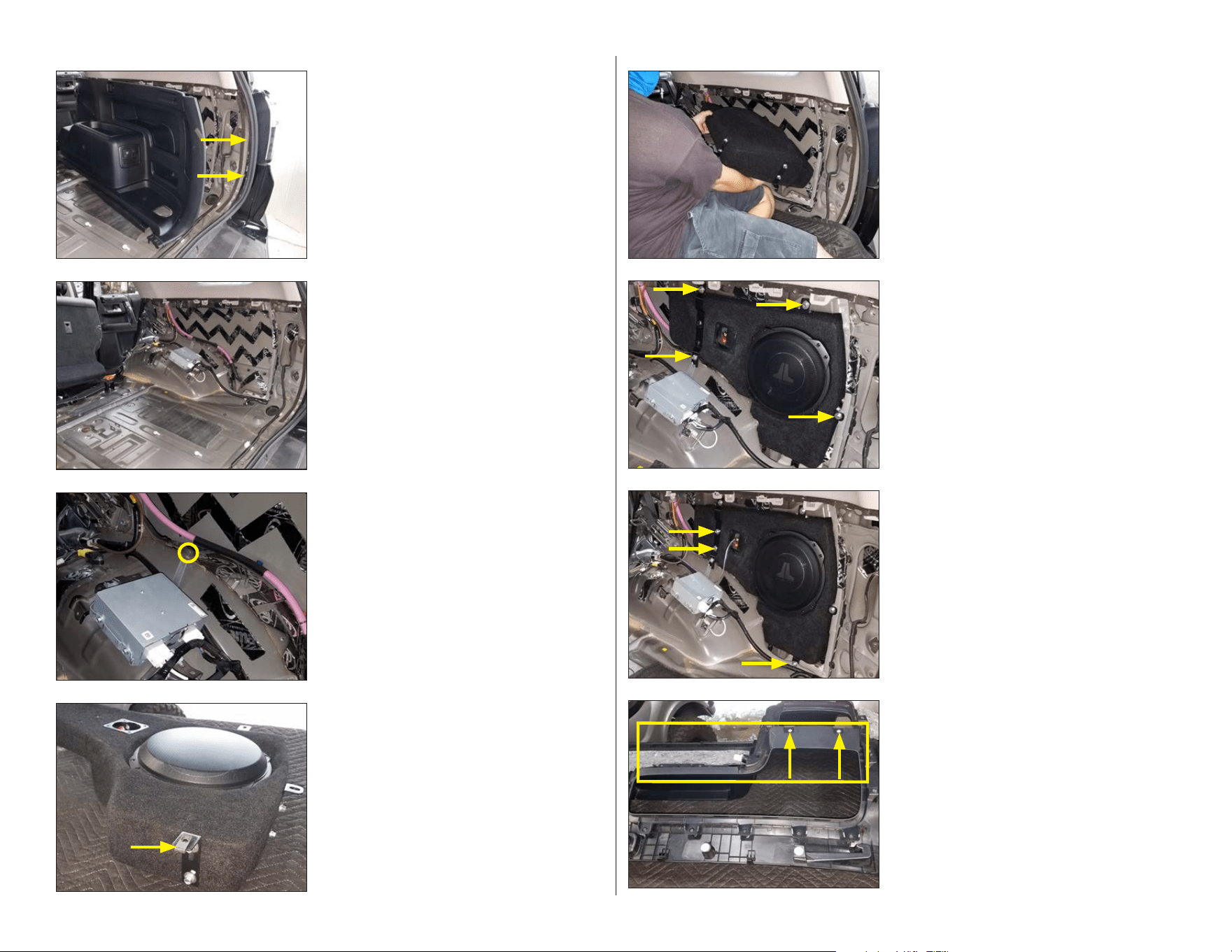

STEP 24
Flip the OEM rear panel over and lay it on a
flat surface. Use a screwdriver to remove the
15 Phillips screws around the perimeter of the
cargo pocket. Remove the cargo pocket from
the panel.
After removing the cargo pocket, use a
screwdriver to remove the two indicated
Phillips screws, then remove the indicated trim
piece from the rear of the panel.
STEP 23
Slide a 1/4” Split Lock Washer and a 1/4” Flat
Washer over each of three 1/4” - 20 x 1” Hex
Head Screws. Use these assemblies to secure
the Front Bracket to the threaded holes on the
Stealthbox® and the Bottom Bracket to the
OEM metal mounting point.
Route the speaker cable and connect to the
terminal cup on the Stealthbox®.
STEP 22
Slide a 1/4” Split Lock Washer and a 1/4” Flat
Washer over each of three M6 x 1mm, 25mm
Hex Head Screws. Use these assemblies to
secure the top hole of the Front Bracket, the
Top Bracket, and the Side Bracket to the OEM
metal mounting points. Slide a 1/4” Split Lock
Washer and a 1/4” Flat Washer over one
1/4” - 20 x 3/4” Hex Head Screw and use it to
secure the bottom hole of the Front Bracket to
the OEM metal mounting point.
STEP 21
Starting from the bottom of the opening, insert
the Stealthbox® into the mounting location,
aligning each Bracket to the OEM metal
mounting points.
The Bottom Bracket sits behind the OEM
bottom metal mounting point, whereas the
other mounting brackets will sit in front of the
remaining OEM metal mounting points.
STEP 20
Slide a 1/4” Split Lock Washer and a 1/4” Flat
Washer over each of six 1/4” - 20 x 1” Hex Head
Screws. Referring to Page 2 as a guide, use
two assemblies per Bracket to attach the Top
Bracket, Bottom Bracket, and Side Bracket to
the Stealthbox®. Center each assembly in the
Bracket Slots, then fully tighten them into the
Stealthbox® threaded inserts. Install one
1/4 - 20 U-Nut onto the Bottom Bracket
as indicated.
STEP 19
Use a tool to cut the OEM plastic leg where
indicated by the yellow circle in the image.
Install one of the supplied 1/4 – 20 U-Nuts onto
the exposed OEM metal mounting tab.
STEP 18
From the rear of the OEM rear panel,
disconnect the power harnesses from the AC
and DC power sockets.
Remove the OEM rear panel from the vehicle.
STEP 17
Lift the weatherstripping from the rear edge of
the OEM rear panel.
Carefully unclip the OEM rear panel and
remove it from the vehicle.
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555
Page 7 • JL Audio, Inc., 2021
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
SB-T-4RNRG5/10TW3 INSTR_SKU# 011555

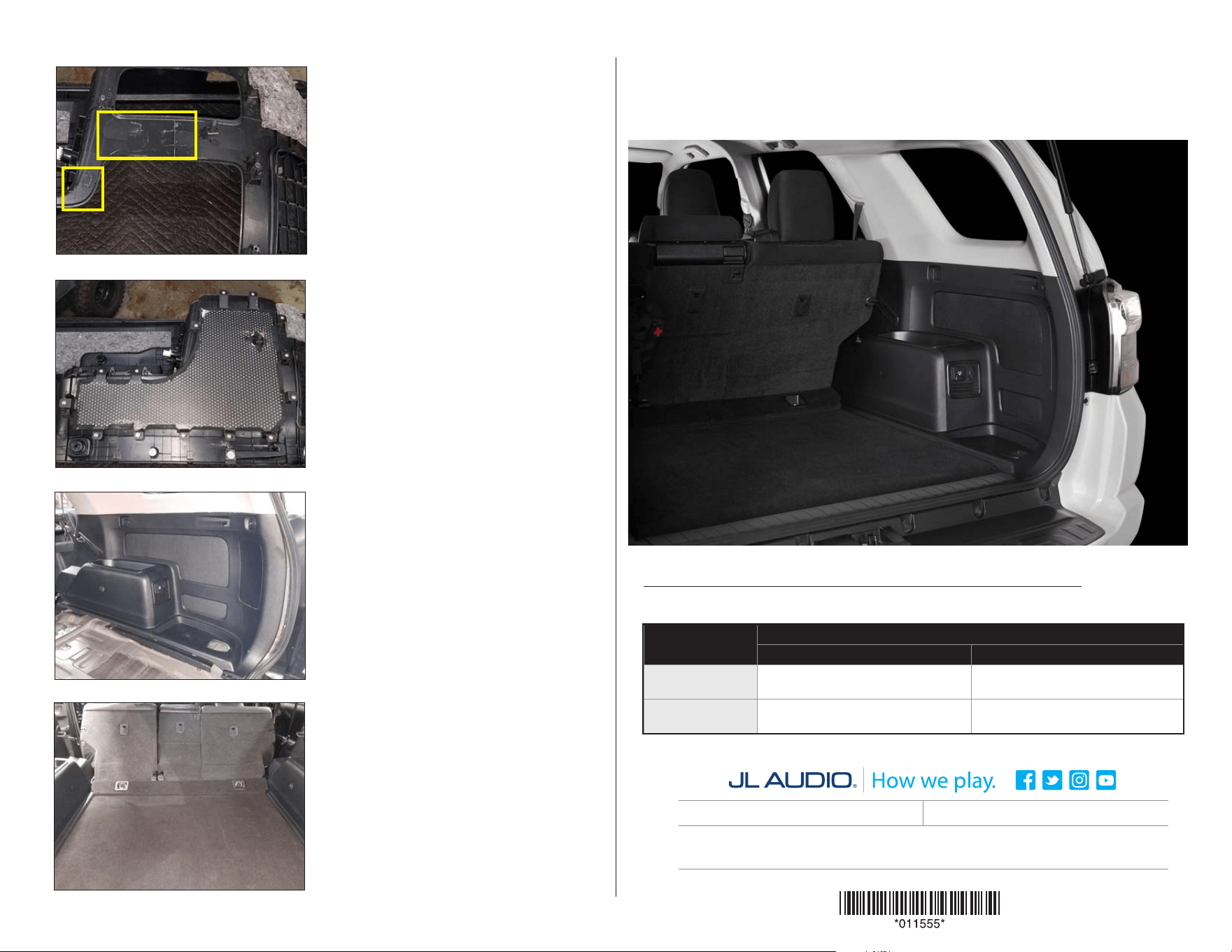

STEP 25
Remove the plastic protrusions from the back
of the OEM rear panel within the
indicated areas.
(Note: The plastic protrusions have already
been removed in this image.)
All specifications are subject to change without notice. “JL Audio®” and “How we play®” are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo are trademarks
of JL Audio, Inc.
Printed in USA • ©2021 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011489 • ver. 10.12.2021 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
®
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front Doors /
6 x 9-inch
C1-690x
(1)
, C1-690tx
(1)
, C2-690tx
(1)
C2-650x
(1)
, C5-650x
(1)
C1-690
(1)
, C1-650
(1)
,
C2-650
(1)
,
C3-650
(1)
, C5-650
(1)
, C7-650cw
(1,2)
Rear Doors /
6.5-inch
C1-650x, C2-650x, C5-650x
C1-650, C2-650, C3-650,
C5-650, C7-650cw
(2)
1 - Installation may require adaptor, 2 - Component woofer only
STEP 26
Place the Stealthbox® Grille Panel over the
panel opening with the grille cloth facing
down. Use a screwdriver to hand tighten 14 of
the Phillips screws removed in STEP 20 around
the Grille Panel’s perimeter.
After hand tightening the screws, work back
around the perimeter of the Grille Panel and
fully tighten each screw. Do not overtighten
the screws.
STEP 27
Reinstall the OEM rear panel.
STEP 28
Reinstall the remainder of the OEM panels
and parts.
