48-22-1997 HARDLINE™ 2-1/2" Smooth Blade Pocket Knife
HARDLINE™ POCKET KNIFE
May 2016
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Body Screw
4
2 --------------- Barrel Nut Hinge 1
3 --------------- Nut Bushing 2
4 --------------- Belt Clip 1
5 --------------- Spacer 1
6 --------------- Race Bearing 2
7 --------------- Belt Clip Screw 2
8 --------------- HARDLINE™ Blade 1
9 --------------- Handle Assembly - Right 1
10 --------------- Liner - Left 1
11 --------------- Washer Screw 1
12 --------------- Handle Left 1
13 --------------- Stop Pin 1
14 --------------- Hinge Screw 1
15 --------------- Washer 1
17 14-46-0048 Service Kit for the 48-22-1997
HARDLINE™ 2-1/2" Smooth Blade Pocket Knife 1
54-49-3167
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

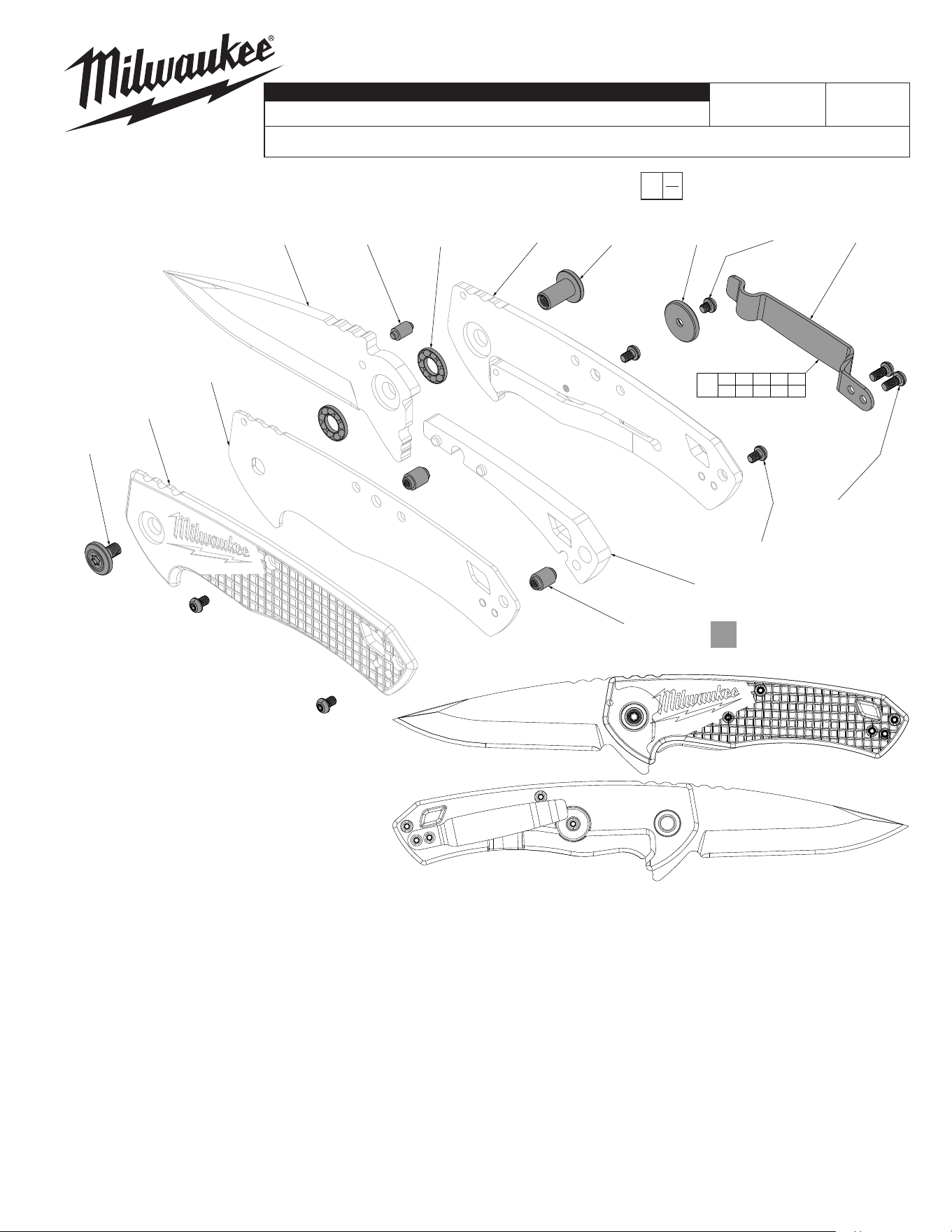

Drwg. 1
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
8 13 6(2x) 9 2 15 11 4
14
12
10
1(4x)
5
3(2x)
7(2x)
17
1 2 3 4 6
7 11 13 14 15
= Components of Service Kits
