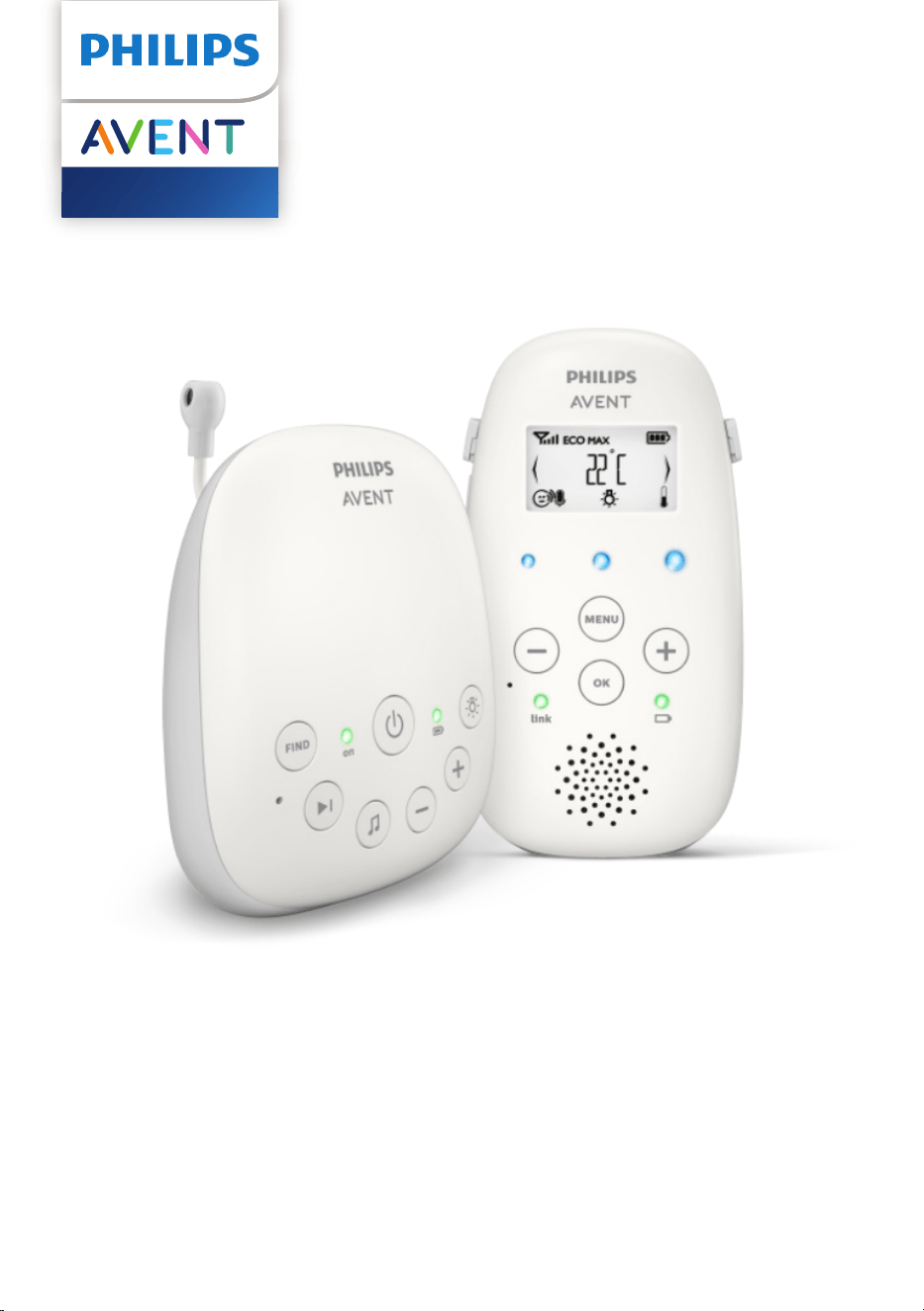

Philips SCD715/26 DECT-baby monitor User Manual

SCD710, SCD711

SCD713, SCD715

User manual

Table of Contents

Important safety information �� 3

IMPORTANT �� 3

Introduction �� 6

Display of the parent unit (Fig� 1) �� 6

Preparing for use �� 7

Baby unit�� 7

Parent unit �� 7

Using the baby monitor �� 7

Positioning the baby monitor �� 7

Linking parent unit and baby unit �� 8

Functions and feedback on the baby unit �� 9

Nightlight �� 9

Lullaby function �� 9

Paging the parent unit ��10

Battery status light ��10

Functions and feedback on the parent unit �� 10

Volume ��10

Talk function �� 11

Battery status indications ��11

Menu of the parent unit �� 11

Navigating the menu ��11

Sensitivity ��12

Eco Max mode ��13

Nightlight ��14

Lullaby �� 14

Feed timer ��14

Room temperature ��15

Clock ��15

Language ��16

Environmental information �� 16

Recycling �� 16

Support �� 16

- 3 -

Important safety information

Read this important information carefully before you use the appliance,

and save it for future reference�

IMPORTANT

This baby monitor is intended as an aid� It is not a substitute for

responsible and proper adult supervision and should not be used as

such�

Never leave your baby alone in your home� Always make sure there is

someone present to look after the baby and take care of its needs�

Disclaimer

Please note that you use this baby monitor at your own risk� Koninklijke

Philips N�V� and its subsidiary companies are not responsible for the

operation of this baby monitor or your use of it and therefore do not

accept any liability in connection with your use of this baby monitor�

Danger

- Never immerse any part of the baby monitor in water or any other

liquid� Do not place the appliance where water or any other liquid can

drip or splash onto it� Never use the baby monitor in moist places or

close to water�

- Never put any object on top of the baby monitor and do not cover

it� Do not block any ventilation openings� Install according to the

manufacturer’s instructions�

Warning

- Long cable� Strangulation hazard!

- Check if the voltage indicated on the adapter corresponds to the local

mains voltage before you connect the appliance�

- Only use the adapter supplied�

- Model: S005Bxy0600050

- xy=NV(EU plug) or xy=NB(UK plug)

- Rating: Input 100-240V~ 50/60Hz, 0.15 A

Output: 6�0 V 0�5 A, 3 W

- Average active eciency: 74.38%

- No-load power consumption (W): 0�1 W LEVEL VI

- O mode power consumption: Baby unit: < 0.3W. Parent unit:

<0.5W (< 1 min).

- Do not modify or cut o any part of the adapter and its cord, as this

causes a hazardous situation�

- If the adapter is damaged, always have it replaced with one of the

original type in order to avoid a hazard�

- This appliance can be used by children aged from 8years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and

understand the hazards involved� Children shall not play with the

appliance� Cleaning and user maintenance shall not be made by

children without supervision�

- 4 -

- Protect the mains cord from being walked on or pinched particularly

at plugs, and the point where they exit from the appliance�

- Make sure that you place the baby monitor in such a way that its cord

does not obstruct a doorway or passage� If you place the baby monitor

on a table or low cabinet, do not let the mains cord hang over the

edge of the table or cabinet� Make sure the cord does not lie on the

oor where it presents a tripping hazard.

- Keep the packaging materials (plastic bags, cardboard buers, etc.)

out of the reach of children, as they are not a toy�

- To prevent electric shock, do not open the housing of the baby unit or

parent unit�

Battery safety instructions

- Only use the product for its intended purpose� Read this information

carefully before you use the product and its batteries and accessories,

and save it for future reference� Misuse can lead to hazards or serious

injuries. Accessories supplied may vary for dierent products.

- Charge, use and store the product at a temperature between 0 °C and

40 °C�

- Make sure to use the following batteries for SCD710/SCD711/

SCD713/SCD720/SCD721/SCD723/SCD730/SCD731:

- Parent Unit: use by pack batteries (Philips 130AAHC 1.2V,

1300mAh).

- Baby Unit: use certied batteries (1.5V AA R6 alkaline non-

rechargeable batteries, or 1.2V AA HR6 Ni-HM type 1300 mAh

(maximum) rechargeable batteries)�

- Make sure to use the following batteries for SCD715/SCD725/

SCD733/SCD734/SCD735:

- Parent Unit: use by pack batteries (GP 180AAHC 1.2V, 1800 mAh).

- Baby Unit: use certied batteries (1.5V AA R6 alkaline non-

rechargeable batteries, or 1.2V AA HR6 Ni-HM type 1800 mAh

(maximum) rechargeable batteries)�

- For Parent Unit, only use the rechargeable battery provided with

parent unit� Do not recharge non-rechargeable batteries in the parent

unit�

- For Baby Unit, recharge the rechargeable batteries in a separate

battery charger�

- Keep product and batteries away from re and do not expose them to

direct sunlight or high temperatures�

- Always keep coin/button cell batteries out of reach of children.

Swallowing these batteries can result in serious injury or death�

- If the product becomes abnormally hot or smelly, changes colour or if

charging takes longer than usual, stop using and charging the product

and contact Philips�

- Do not place products and their batteries in microwave ovens or on

induction cookers�

- Do not open, modify, pierce, damage or dismantle the product or

battery to prevent batteries from heating up or releasing toxic or

hazardous substances� Do not short-circuit, overcharge or reverse

charge batteries�

- 5 -

- If batteries are damaged or leaking, avoid contact with the skin or eye�

If this occurs, immediately rinse well with water and seek medical care�

- When you handle batteries, make sure that your hands, the product

and the batteries are dry�

- Insert batteries with the + and - poles pointing in the direction

indicated in the battery compartment or holder�

- Do not mix dierent brands and types of batteries, do not mix new

and used batteries and do not use batteries with dierent date codes.

- Remove batteries from the product if you are not going to use it for

some time�

- To avoid accidental short-circuiting of batteries after removal, do not

let battery terminals come into contact with metal objects (e�g� coins,

hairpins, rings)� Do not wrap batteries in aluminium foil� Tape battery

terminals or put batteries in a plastic bag before you discard them�

- Do not leave empty disposable batteries inside the product�

- Rechargeable batteries have a limited number of charge cycles� Battery

life and number of charge cycles vary by use and settings�

- Replace the rechargeable battery when the battery capacity declines

signicantly.

Caution

- Do not install the appliance near any heat sources such as radiators,

heat registers, stoves or other apparatus (including ampliers) that

produce heat�

- Make sure that your hands are dry when you handle adapters, plugs

and the mains cord�

- All required markings on the baby unit, parent unitand power adapter

are located on the bottom of the baby unit, parent unit and power

adapter�

Declaration of conformity

Hereby, Philips Consumer Lifestyle B.V. declares that this product is in

compliance with the essential requirements and other relevant provisions

of Directive 2014/53/EU. Acopy of the EC Declaration of Conformity

(DoC) is available online at www�philips�com/support�

Compliance with EMF

This product complies with all applicable standards and regulations

regarding exposure to electromagnetic elds.

- 6 -

1 2 3 4

98765

Introduction

Go to www�philips�com/welcome to register your product and to

read the detailed user manual�

Display of the parent unit (Fig. 1)

1 Signal strength indicator

2 Eco Max indicator

3 Mute symbol

4 Battery status indicator

5 Microphone sensitivity indicator

6 Lullaby symbol

7 Nightlight symbol

8 Timer symbol

9 Temperature symbol

10 Navigation arrow

- 7 -

Preparing for use

IMPORTANT: Read the important safety information carefully before

you use the baby monitor and keep them for future reference.

Baby unit

We advise you to use the baby unit connected to the mains� To guarantee

automatic power backup in case of mains failure, you can insert four 1�5V

AA alkaline batteries (not included)�

Recharge the rechargeable batteries in a separate battery charger� The

baby unit does not have a charging function and rechargeable batteries

discharge slowly when they are not in use�

Parent unit

The parent unit runs on two rechargeable batteries that are supplied with

the baby monitor. Charge the parent unit before you use it for the rst

time and when the batteries are low�

Please note that for the SCD710/SCD711/SCD713, you have to

charge the parent unit for the full 10 hours to have a cordless

operating time of 18 hours. (For the SCD715: the charging time is

14hours and the operating time is 25 hours.

Note: When you start using the baby monitor, it takes 4 charge and

discharge cycles before the rechargeable batteries reach their full

capacity�

Using the baby monitor

Positioning the baby monitor

Keep the baby unit out of the reach of the baby. Never place

the baby unit inside the baby’s bed or playpen.

- Because the cord of the baby unit presents a potential strangulation

hazard, make sure that the baby unit and its cord are at least

1metre/3.5feet away from your baby.

- To prevent a high-pitched sound from one or both units, make sure

that the parent unit is at least 1 metre/3.5 feet away from the baby

unit�

- 8 -

Linking parent unit and baby unit

1 Press and hold the button on the baby unit for 2 seconds until the

power-on light goes on�

2 Press and hold the button on the parent unit for 2 seconds until the

display lights up. The 'link' light on the parent unit starts ashing red

and the message 'LINKING' appears on the display�

When the parent unit and baby unit are linked, the 'link' light turns

solid green� The signal strength indicator and the message 'LINKED'

appear on the display�

If no connection is established, the message 'NOT LINKED' is displayed

and the parent unit starts and the parent unit starts to beep�

What to do if no link is established

- If the parent unit is out of range, place it closer to the baby unit, but

not closer than 1 metre/3.5 feet.

- If the baby or parent unit is too close, <2 m/6.5 ft away from another

DECT appliance (e.g. a cordless phone), switch o this appliance or

move the unit away from this appliance�

- If the baby unit is switched o, switch it on.

Operating range

- The operating range is 330 metres/1000 feet outdoors and up to

50metres/150 feet indoors.

- The operating range of the baby monitor varies depending on the

surroundings and factors that cause interference� Wet and moist

materials cause so much interference that the range loss is up to

100%. For interference from dry materials, see the table below.

Dry materials Material thickness Loss of range

Wood, plaster, cardboard, glass

(without metal, wires or lead)

< 30 cm (12 in) 0-10 %

Brick, plywood < 30 cm (12 in) 5-35 %

Reinforced concrete < 30 cm (12 in) 30-100 %

Metal grilles or bars < 1 cm (0.4 in) 90-100 %

Metal or aluminium sheets < 1 cm (0.4 in) 100 %

- 9 -

Functions and feedback on the baby unit

Nightlight

The nightlight produces a soft glow that comforts your baby�

1 Press the button on the baby unit to switch the nightlight on or o.

Lullaby function

1 Press the button on the baby unit to play the last selected lullaby�

The selected lullaby repeats for 15 minutes�

2 Press the button to select another lullaby from the list�

3 To adjust the sound level of the lullaby, press the volume + or the

volume – button the baby unit�

Note: You can only set the loudspeaker volume on the baby unit when

a lullaby is playing� If you set the volume for the lullaby higher, the

sound will also be louder when you use the talk function on the parent

unit�

4 To stop lullaby playing, press the button on the baby unit�

- 10 -

Paging the parent unit

If you have lost the parent unit, you can use the FIND button on the baby

unit to locate the parent unit� This function only works when the parent

unit is switched on and within range�

1 Press FIND on the baby unit� The parent unit produces a paging alert

tone�

2 To stop the paging alert tone, press FIND on the baby unit again or

press any button on the parent unit� The paging alert tone stops

automatically after 2 minutes�

Battery status light

1 The battery status light is solid green when the baby unit is operating

on battery power and the batteries contain enough energy�

2 The battery status light ashes red quickly when the batteries run

low while the baby unit is operating on battery power� Replace the

batteries when they run low�

Functions and feedback on the parent unit

Volume

The volume can be set if the menu is not active� There are seven volume

levels and a 'volume o' setting.

Setting the volume level

1 Press the + button or the - button once�

The current volume level appears on the display�

2 Press the + button to increase the volume or press the - button to

decrease the volume�

If no button is pressed for more than 2 seconds, the volume level

indication disappears from the display and the volume setting is saved�

Volume o

Below the lowest volume setting, there is a ‚volume o‘ setting.

1 Press the + button or the - button once�

The current volume level appears on the display�

2 Press and hold the - button for more than 2 seconds to set the volume

to o.

The message ‚MUTE‘ and the mute symbol appear on the display. Only

the sound level lights show that the baby produces sounds�

- 11 -

Talk function

1 If you want to comfort your baby, press TALK on the parent unit and

talk clearly into the microphone on the front from a distance of 15-

30cm (0.5-1ft).

The ‚link‘ light starts ashing green and ‚TALK‘ appears on the display.

Note: If you have set the volume of the lullaby higher on the baby unit,

the sound will also be louder when you use the talk function on the

parent unit�

2 Release TALK when you have nished talking.

Battery status indications

Battery low

When the rechargeable batteries are low, 'BATTERY LOW' appears on

the display, the status indicator is empty and ashes, and the parent unit

beeps� The remaining operating time is at least 30 minutes�

Battery empty

1 If the rechargeable batteries are almost empty, the battery status light

ashes red quickly.

2 If you do not connect the parent unit to the mains, it switches o.

Menu of the parent unit

Navigating the menu

Note: Some menu functions only work when the baby unit and the parent

unit are linked�

1 Press the MENU button to open the menu and to make the rst menu

option appear�

- 12 -

2 Use the + button to go to the next option or the - button to go to the

previous option� The arrow on the display indicates in which direction

you can navigate�

3 Press OK to conrm your selection.

Note: Press the MENU button if you want to leave the menu without

making any changes� If there is no input in the menu for more than

20seconds, the menu closes automatically.

Sensitivity

This option in the parent unit menu allows you to set the microphone

sensitivity of the baby unit�

The microphone sensitivity determines what noise level the baby unit

picks up, e�g� you will want to hear when your baby cries, but you may be

less interested in its babbling�

1 Select ‘Sensitivity’ in the menu with the + and - buttons and press OK

to conrm.

2 Use the + and - buttons to increase or decrease the microphone

sensitivity. The number of lled segments shows the sensitivity level

selected. Press OK to conrm the setting.

Sensitivity levels and indications

Icon Sensitivity Description

highest Hear everything from your baby. The

speaker of the parent unit is continuously

on�

high Hear all sounds from soft babbling and

louder� If your baby does not make any

sound, the speaker of the parent unit is o.

medium Hear sounds from soft cries and louder.

If your baby makes softer sounds, the

speaker of the parent unit does not go on�

low The speaker of the parent unit only goes

on if the baby makes loud sounds, for

instance because it is crying�

- 13 -

Eco Max mode

Smart Eco is a standard feature on this baby monitor� It automatically

reduces the DECT signal from the baby unit to save energy� To save even

more energy, activate the Eco Max mode� In this mode, the DECT signal of

the baby unit is switched o as long as the baby does not make a sound.

Caution: In Eco Max mode, the parent unit receives feedback

from the baby unit with a delay. When your baby makes a

sound, the baby unit rst has to reactivate radio transmission

before it can send feedback to the parent unit.

Please note the following:

- In Eco Max mode you do not receive feedback when the parent unit is

out of range of the baby unit� You can check the link by pressing any

button on the parent unit�

- The Eco Max mode cannot be activated if the microphone sensitivity is

set to the highest level�

Activating Eco Max mode

1 Select 'Eco Max' in the menu with the + and - buttons and press OK to

conrm.

2 When the display shows 'Turn On', press OK to switch on the Eco Max

mode�

3 The warning message 'No alert if out of range, OK' appears on the

display. Press OK to conrm.

Note: The warning message scrolls across the display twice� If you do

not press OK, the parent unit leaves the menu and the Eco Max mode

remains o.

4 The Eco Max indication ashes on the display. The ‚link‘ light ashes

green slowly when the baby unit does not transmit any signals to the

parent unit�

5 When the parent unit receives a signal from the baby unit because

radio transmission has been reactivated, the ‚link‘ light turns solid

green�

Deactivating Eco Max mode

1 Press the MENU button�

2 Use the + and - buttons to select ‘Eco Max’ and press OK to conrm.

3 When the display shows ‘Turn O’, press OK to conrm.

- 14 -

Nightlight

1 To switch the nightlight on the baby unit on, select 'Nightlight' in the

menu with the + and - buttons and press OK to conrm.

2 Press OK to choose 'Turn On'� The nightlight symbol appears on the

display�

3 When the nightlight is on and you want to switch it o, select

'Nightlight' in the menu and press OK to choose 'Turn O'. The

nightlight symbol disappears from the display�

Lullaby

1 To play one or more lullabies on the baby unit, select 'Lullaby' in the

menu with the + and - buttons. Press OK to conrm.

2 Press OK again to play the rst lullaby. Use the + and - buttons to select

one of the lullabies or 'Play all'�

The display shows the lullaby symbol and the number of the

lullaby that is playing� The selected lullaby repeats continuously for

15minutes, unless you select 'stop' in the menu.

If you select 'Play all', all pre-stored lullabies are played for 15 minutes�

The display shows the number of the lullaby that is playing�

3 To stop playing, select 'Stop' in the menu and press OK to conrm.

Feed timer

You can set the feed timer to alert you that it is time to feed your baby�

The timer can be set from 1 minute to 23 hours and 59 minutes�

1 To open the feed timer submenu, select 'Feed Timer' in the menu�

Press OK to conrm.

2 Select 'Set Timer' in the feed timer submenu� Press OK to start setting

the timer�

3 Set the hour and the minutes and press OK to conrm.

4 To start the feed timer, select ‚xx:xx Start‘ in the feed timer submenu.

Press OK to conrm. The timer symbol appears on the display and the

timer starts counting down�

5 When the timer has reached 00:00, the feed timer alert goes o, the

timer symbol starts ashing on the display and the message ‚TIMER

END‘ scrolls across the display.

6 To stop the timer, select ‚Stop & Reset‘ in the feed timer submenu and

press OK to conrm.

- 15 -

Setting the feed timer repeat

1 To make the feed timer go o after the same set time, select ‘Timer

repeat’ in the feed timer submenu after you have set the timer� Press

OK to conrm.

2 Choose ‘Repeat ON’ or ‘Repeat OFF’ and press OK to conrm. The

timer repeat symbol appears on the display�

3 If ‘Repeat ON’ is set, the feed timer starts counting down again after

you stop the alert�

Room temperature

A baby sleeps comfortably at a temperature between 16°C / 61°F and

20°C / 68°F. You can set a minimum and a maximum temperature range.

You can also set a temperature alert�

1 To open the temperature submenu, select 'Temperature' in the menu�

Press OK to conrm.

2 Select 'Temp Range' in the temperature submenu and press OK to

conrm.

3 Use the + and - buttons to set the minimum temperature range

between 10°C / 50°F and 19°C / 66°F and the maximum

temperature range between 22°C / 72°F and 37°C / 99°F. Press OK

to conrm.

4 Select 'Alert' in the temperature submenu. Press OK to conrm.

5 Select 'Alert ON' or or 'Alert OFF'. Press OK to conrm.

6 Select 'Temp Scale' in the temperature submenu. Press OK to conrm.

7 Select ‚Celsius‘ or ‚Fahrenheit‘ and press OK to conrm. The

temperature in the set scale appears on the display�

If the temperature is outside the set range, the temperature alert

symbol on the display ashes and the message ‚TOO COLD‘ or ‚TOO

HOT‘ appears on the display. If you set the alert to ‚ON‘, the parent

unit also beeps�

Clock

The default setting for the clock is hidden� You can choose to show the

clock and set the clock time in the menu of the parent unit�

1 Select 'Clock' in the menu with the + and - buttons� Press OK to

conrm.

2 Select 'Show Time' and press OK to conrm.

3 Select 'Set Time' and press OK to conrm.

4 Set the hour and the minutes and press OK to conrm.

The clock time alternates with other indications in the message eld of

the display�

- 16 -

Language

You can use this menu option to change the language setting�

1 Select 'Language' in the menu with the + and - buttons� Press OK to

conrm.

2 Use the + and - buttons to select your language and press OK to

conrm.

Environmental information

All unnecessary packaging has been omitted� We have tried to make

the packaging easy to separate into two materials: cardboard box and

polyethylene (bags, protective foam sheet)�

Recycling

This symbol means that electrical products and batteries shall not be

disposed of with normal household waste�

Follow your country’s rules for the separate collection of electrical

products and batteries�

Support

For all product support such as frequently asked questions, please visit

www�philips�com/support�

- 17 -

<> >

Sensitivity

Eco Max

Feed Timer

Te mperature

Set Clock

Language

Press OK =

< =

Turn ON

Turn OFF

xx:xx Start

Set Timer

Repeat

Temp Range

Temp Alert

Temp Scale

Show/Hide

Set Time

English

Русский

Minimum x

!No alert if…

Hr 00:00

Repeat ON

Repeat OFF

Alert ON

Alert OFF

Play 1

Play 2

...

Play 5

Play All

Celsius

Fahrenheit

Show Clock

Hide Clock

Maximum y

00:30 Min

00:00 Min

Nightlight

Lullaby

Turn ON

Turn OFF<

SCD710

SCD711

SCD713

SCD715

(

)

> =

14/04/2025

Philips SCD715/26 DECT-baby monitor

Product's Documents

User manual

Specifications

Philips SCD715/26 Questions and Answers
