Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
Freezer
use & care
A12735808 (August 2023)
Introduction ................................................................2
Important Safety information..............................3
Features
(Units with Temperature Control Inside).........6
Features
(Units with Temperature Control Outside) .....7
Installation ..................................................................8
Door Removal/Reversal
(Units with Temperature Control Inside).........9
Door Removal/Reversal
(Units with Temperature Control Outside) ... 13
Door Handle Installation (some models) .......17
Controls and Settings
(Units with Temperature Control Inside)....... 18
Controls and Settings
(Units with Temperature Control Outside) ..20
Storage Features ................................................... 23
Care and Cleaning ................................................ 24
Troubleshooting ................................................... 26
Limited Warranty ...................................................27
2
INTRODUCTION
Doors
Handles are secure and tight
(some models)
Door seals completely to cabinet on
all sides
Door is level from side to side across
the top
Leveling
Appliance is level, side-to-side and
tilted ¼" (6 mm) front-to-back
Cabinet is setting solid on all corners
Anti-tip bracket set in front
(both sides)
Electrical Power
House power turned on
Appliance plugged in
Final Checks
Shipping material removed
Registration card sent in
Installation Checklist
Welcome to our family
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home
accessories are available at Frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number ____________________
Serial Number ____________________
Purchase Date ____________________
3
WARNING
WARNING indicates a potentially haz-
ardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, oper-
ation or maintenance information which
is important but not hazard-related.
DANGER
DANGER indicates an imminently haz-
ardous situation which, if not avoided,
will result in death or serious injury.
CAUTION
CAUTION indicates a potentially haz-
ardous situation which, if not avoided,
may result in minor or moderate injury.
Safety Definitions
This is the safety alert symbol. It is used
to alert of potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
WARNING
Please read all instructions before using
this appliance.
IMPORTANT SAFETY INFORMATION
WARNING
CALIFORNIA RESIDENTS ONLY
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigera-
tor. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be re-
paired only by trained service person-
nel. Use only manufacturer-authorized
service parts. Any repair equipment
used must be designed for flammable
refrigerants. Follow all manufacturer
repair instructions. Do not puncture
refrigerant tubing.
CAUTION
CAUTION Risk of fire or explosion.
Dispose of refrigerator properly
in accordance with the applicable
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
4
IMPORTANT SAFETY INFORMATION
WARNING
These guidelines must be followed to
ensure that safety mechanisms in this
appliance will operate properly.
Electrical information
• Plug the appliance into its own ded-
icated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord
of the appliance is equipped with a
3-prong grounding plug for your pro-
tection against electrical shock haz-
ards. Plug it directly into a properly
grounded 3-prong receptacle. Install
the receptacle in accordance with
local codes and ordinances. Consult a
qualified electrician. Avoid connect-
ing the appliance to a Ground Fault
Interrupter (GFI) circuit. Do not use
an extension cord or adapter plug.
• If the power cord is damaged, an
authorized service technician should
replace it to prevent any risk.
Proper Disposal of your Appliance
Risk of child entrapment
Child entrapment and suocation are not
problems of the past. Junked or aban-
doned appliances are still dangerous –
even if they will sit for “just a few days”. If
you are getting rid of your old appliance,
please follow the instructions below to
help prevent accidents.
We strongly encourage responsible
appliance recycling/disposal methods.
Check with your utility company or visit
energystar.gov/recycle for more
information on recycling
your old appliance.
Before you throw away your
old appliance:
• Remove door.
• Leave shelves in place
so children may not
easily climb inside.
• Have refrigerant removed by a
qualified service technician.
Safety Instructions
• DO NOT store or use gasoline, or
other flammable liquid within or in the
vicinity of this appliance. Read Product
Label for warnings regarding flamma-
bility and other hazards.
• DO NOT store explosive substances
such as aerosol cans with a flammable
propellant in this appliance.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
Child Safety
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
Destroy or recycle the carton, plastic
bags, and any exterior wrapping mate-
rial immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
5
IMPORTANT
CFC/HCFC Disposal
Your old appliance may have a cooling
system that used CFCs or HCFCs (chlo-
rofluorocarbons or hydrochlorofluoro-
carbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released
to the atmosphere. Other refrigerants
may also cause harm to the environ-
ment if released to the atmosphere.
If you are throwing away your old
appliance, make sure the refrigerant
is removed for proper disposal by a
qualified technician. If you intentionally
release refrigerant, you may be subject
to fines and imprisonment under provi-
sions of environmental legislation.
IMPORTANT
Turning the appliance controls to o
will disable your appliance’s cooling
system, but does not disconnect the
power to the light bulb and other elec-
trical components. To turn o power
to your appliance you must unplug the
power cord from the electrical outlet.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
• Never unplug the appliance by pull-
ing on the power cord. Always grip
the plug firmly, and pull straight out
from the receptacle to prevent dam-
aging the power cord.
• Unplug the appliance before clean-
ing and before replacing the AC LED
light bulb to avoid electrical shock.
Use only a 5-watt or less AC LED
light bulb.
• Performance may be aected if the
voltage varies by 10% or more. Oper-
ating the appliance with insucient
power can damage the compressor.
Such damage is not covered under
your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or
pull cord to prevent the appliance
from being turned o accidentally.
IMPORTANT SAFETY INFORMATION
6
*Features may vary according to model
A Green LED Power On Light and
Magnetic Door Switch
*B Wire Freezer Basket
C Freezer Control (Internal)
*D Freezer Shelf
E 5-Watt AC LED Light Bulb
*F Fixed Door Bins
G Magnet (Door Open Sensor)
IMPORTANT
Cleaning your Appliance
Remove tape and glue residue from surfaces before turning on the appliance. Rub
a small amount of liquid dish soap over the adhesive with your fingers. Rinse with
warm water and dry with a soft cloth.
Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners
to remove tape or glue. These products can damage the surface of your appliance.
After you remove all of the package materials, clean the inside of your appliance
before using it. See the CARE AND CLEANING section in this manual.
See important information about cleaning glass shelves and covers in the STORAGE
FEATURES section of this manual.
A
G
B
C
D
D
D
E
F
F
F
F
F
C
FEATURES
(UNITS WITH TEMPERATURE CONTROL INSIDE)
7
FEATURES
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
*Features may vary according to model
A Magnetic Door Switch
B Wire Freezer Basket
*C Freezer Shelf
D 5-Watt AC LED Light Bulb
*E Fixed Door Bins
F Magnet (Door Open Sensor)
*G Freezer Control (External)
A F
B
C
C
C
C
D
E
E
E
E
E
G
IMPORTANT
Moving your Appliance
Your appliance is heavy. When moving
the appliance for cleaning or service, raise
the anti-tip bracket (see Setting the an-
ti-tip bracket). Be sure to cover the floor
with cardboard or hardboard to avoid
floor damage. Always pull the appliance
straight out when moving it. Do not wig-
gle or “walk” the appliance when trying
to move it as floor damage could occur.
IMPORTANT
Accessories are available for your appli-
ance and may be purchased at
Frigidaire.com or by calling 1-800-374-
4432 (Frigidaire.ca or 1-800-265-8352
in Canada) or from an authorized seller.
8
WARNING
The anti-tip device must be
installed according to the
instructions in your Use &
Care Manual. Failure to do
so may result in injury.
NOTE
If your appliance is placed with the door
hinge side against a wall, you may have
to allow additional space for the handle
so the door can be opened wider.
This Use & Care Manual provides general
operating instructions for your model. Use
the appliance only as instructed in this Use
& Care Manual. Before starting the appli-
ance, follow these important first steps.
Guidelines for final positioning of
your appliance:
• All 4 corners of the cabinet must rest
firmly on the floor.
• The cabinet should be level at the
front and rear.
• The door should be level.
WARNING
DO NOT install the appliance where
the temperature will drop below 0°F
(-18°C) or rise above 110°F (43°C). The
compressor will not be able to maintain
proper temperatures inside the unit.
Setting the anti-tip bracket:
Models are equipped with an anti-tip
bracket. The anti-tip brackets are located
on the lower front corners of the cabinet.
Lower the anti-tip on each side clockwise
until they contact the floor. Do not raise
the cabinet.
Location
Lower
Anti-tip Bracket
INSTALLATION
CAUTION
Do not block the lower front of your ap-
pliance. Sucient air circulation is essen-
tial to operate your appliance properly.
WARNING
This appliance is intended for use in
residential household and similar
interior applications such as:
• a kitchen/kitchenette
• a pantry room
• a basement
• an enclosed garage
• other interior residential-type
environments
• Choose a place that is near a ground-
ed electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the appliance out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• Install the appliance on a floor that is
level and strong enough to support a
fully loaded appliance.
WARNING
Installation
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜ in. (10 mm)
Back 1 in. (25 mm)
9
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL INSIDE)
NOTE
The direction in which your appliance doors open (door swing) can be reversed,
from left to right or right to left, by moving the door hinges from one side to the
other. A qualified person should reverse the door swing.
IMPORTANT
Before you begin, turn the appliance temperature control to o and remove the
electrical power cord from the wall outlet. Remove any food from door shelves.
or
Tools Necessary:
Socket
Wrench Set
5/16"
(8mm)
Fixed
Wrench
Flathead
Screwdriver
and
or
Phillips
TM
Head or
#2 Square
Drive Head
Door Closer
#2 Phillips
Hinge
Screw
5/16"
(8mm)
Pan Head
MSX12
1. Unplug your freezer.
2. Remove the top hinge cover (see
Figure 1A).
3. Remove the 3 screws from the top
hinge using a Phillips™ screwdriver
or 5/16" wrench. Set the hinge and
screws aside (see Figure 1B).
Figure 1
A
B
10
NOTE
Place the door on a padded surface to
prevent damage.
4. Gently pry the hinge bearing out
from the top of the freezer door
with a flathead screwdriver (See
Figure 2A).
5. Install the hinge bearing on the op-
posite side of the door (see Figure
2B). Remove the door from the unit
by lifting the door up.
6. Flip the door over to access the bot-
tom. Using a Phillips™ screwdriver
remove the screws from the hinge
bearing and the door closer (see
Figure 3A).
7. Using a flat head screwdriver, gently
pry the closer/bearing assembly out
of the door (see Figure 3B).
8. Separate the door closer and hinge
bearing (see Figure 3C).
9. Flip the door closer over 180º and
reinstall the closer onto the hinge
bearing (see Figure 3D).
10. Using a Phillips™ screwdriver, attach
the door closer/bearing assembly to
the opposite side of the door (see
Figure 3E).
11. Remove the hinge cover by gently
bending the tabs of the cover out
while pulling the cover toward the
front of the unit (see Figure 4).
Figure 2
A
B
Figure 3
Bottom
C
B
A
DE
Figure 4
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL INSIDE)
11
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL INSIDE)
12. Using a Phillips™ screwdriver, re-
move the screw from the door stop
(see Figure 5A).
13. Using a flat head screwdriver, gently
pry the door stop o the bottom
hinge pin (see Figure 5B).
14. Using a ratchet with a 12 mm socket,
remove the bottom hinge pin (see
Figure 5C).
15. Reinstall the hinge pin into the outer
hole and tighten with a ratchet and a
12 mm socket (see Figure 6A).
16. Flip door stop over 180° (see Figure 6B)
and reinstall onto the opposite hinge
over the hinge pin (see Figure 6C).
With the assistance of another
person, tilt the appliance back, to
have access to the bottom hinge.
Loosen the hinge screws slightly.
flip the door stopper, and place it
on top of the bottom hinge, making
adjustments until the stopper is flush
against the unit. Tighten all screws.
(See Figure 7)
17. Secure the door stop with a screw
(see Figure 6D).
Door
Stop
Door
Stop
Screw
Bottom
Hinge
Pin
Figure 5
A
B
C
Figure 6
A
B
C
D
Figure 7
12
Figure 10
90°
Figure 9
18. Reinstall the hinge cover by gently
bending the cover tabs outward,
while sliding the cover over the
hinge until it clicks into place (see
Figure 8).
19. Slide the door onto the bottom hinge
pin at 90° to the freezer cabinet and
close the door (see Figure 9).
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL INSIDE)
Figure 8
20. Using a Phillips™ screwdriver or a
5/16" wrench, secure the top hinge
using three 5/16" screws. Replace
the top hinge cover (see Figure 10).
21. Plug the freezer power cord back
into the electrical outlet, and turn
the freezer temperature control to
the Recommended setting.
13
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
1. Lay the unit down on its back.
2. Disconnect the small blue and white
connectors located in the channel in
the bottom of the door (see Figure
1A).
3. Remove the gray cable from
underneath the 2 harness retaining
clips (see Figure 1B).
4. Pull the gray cable and connectors
through the hinge hole located on
the bottom of the cabinet using a
flat-head screwdriver.
5. Route the gray cable and the con-
nectors out from under the wheel
axle and the wheel spacer (see
Figure 2).
A
B
Figure 1
CAUTION
This procedure will require 2 people to
safely perform.
Figure 2
+
Figure 3
IMPORTANT
Before you begin, remove the electrical power cord from the wall outlet. Remove
any food from door shelves.
6. Slide the gray cable and connectors
out of the plastic channel located on
the bottom right side of the cabinet
(see Figure 3).
14
7. Remove the bottom hinge using
5/16" (8mm) wrench (see Figure 4).
8. Using a Phillips™ screwdriver,
remove the screws from the hinge
bearing and the door closer (see
Figure 5A).
9. Using a flathead screwdriver, gently
pry the door closer/hinge bearing
assembly out of the door (see Fig-
ure 5B).
10. Separate the door closer and hinge
bearing (see Figure 5C).
11. Flip the door closer over 180° and
reinstall the door closer onto the
hinge bearing (see Figure 5D).
12. Using a Phillips™ screwdriver, attach
the door closer/hinge bearing as-
sembly to the opposite side of the
door (see Figure 5E).
13. Remove the screw from the door
stop located on the bottom hinge,
using a Phillips™ screwdriver (see
Figure 6A).
14. Using a flathead screwdriver, gently
pry the door stop o the bottom
hinge pin (see Figure 6B)
15. Using a ratchet with a 12 mm socket,
remove the bottom hinge pin and in-
stall into the left hole (see Figure 6C) .
16. Flip the door stop over 180° and
reinstall onto the bottom hinge pin.
Secure the door stop with the screw
(see Figure 6D).
Figure 5
Bottom
C
B
A
DE
Figure 4
Figure 6
A
B
C
D
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
15
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
17. Remove the left bottom hinge using
5/16" (8 mm) wrench and install on
the right side. Figure 7.
18. Reattach the bottom hinge (with the
door stop) to the left side of the cab-
inet and add the wheel spacer on the
left side of the wheel axle. Adjust the
bottom hinge so the door stopper is
flush with the front of the unit.
Figure 7
19. Route the gray cable and connectors
through the left side plastic channel
(see Figure 8A).
20. Route the gray cable and connectors
under the left side wheel axle and
wheel spacer (see Figure 8B).
21. Route the connectors and gray ca-
ble through the left side hole in the
hinge (see Figure 8C).
22. Insert the gray cable into the left
side door channel in the bottom of
the door (see Figure 8D).
23. Route the gray cable underneath the
2 harness retaining clips on the left
side of the door channel.
24. Reconnect the blue and
white connectors.
25. Remove the hinge cover (see Figure
9A) and use a 5/16" wrench to re-
move the top hinge (see Figure 9B).
Figure 9
A
B
+
Figure 8
A
B
C
D
16
DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
26. Pry out the hinge bearing from
the top of the freezer door with a
flathead screwdriver (see Figure
10A). Install the hinge bearing on
the opposite side of the door (see
Figure 10B).
Figure 10
A
B
27. Reattach the top hinge (B) onto the
left side of the cabinet, using a 5/16"
wrench. Replace the top hinge cover
(A) (see Figure 11).
Figure 11
A
B
CAUTION
Raise the freezer to the upright position
and allow 1 hour before plugging the
unit back into electrical outlet.
28. Plug the freezer power cord back
into the electrical outlet.
17
DOOR HANDLE INSTALLATION (SOME MODELS)
IMPORTANT
To ensure proper installation of handle,
please review these instructions and il-
lustrations thoroughly prior to installing
the handle.
Additionally, before installing the door
handle, make sure the door swing is
correct. Your model will have either
a right-hand or left-hand door swing.
Follow DOOR REVERSAL instructions,
if necessary.
CAUTION
Wear gloves and use extreme CAUTION
when installing these handles. The round-
ed end of the handles may be sharp.
1. Remove handle from carton and any
other protective packaging.
2. Position freezer handle end caps over
upper and lower pre-installed shoulder
bolts (A) that are fastened into door,
ensuring the holes for the set screws
are facing towards the hinge.
3. While holding handle firmly against
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
Freezer
Upper
End Cap
Door
Freezer
Lower
End Cap
Door
18
NOTE
When first turning appliance on, adjust
control to Recommended. After 24
hours, adjust the controls as needed.
IMPORTANT
Adjusting the appliance temperature
control to OFF turns o the compressor
and prevents the appliance from cooling
but does not disconnect the power
to the light bulb and other electrical
components. To turn o power to your
appliance, you must unplug the power
cord from the wall outlet.
Cool Down Period
To ensure safe food storage, allow the ap-
pliance to operate with the door closed for
at least 8 hours before loading it with food.
Appliance Control
Temperature Adjustment
Adjust the temperature gradually: adjust
the knob in small increments, allowing the
temperature to stabilize.
• For colder temperatures, adjust the
knob toward Coldest.
• For warmer temperatures, adjust the
knob toward Cold.
Appliance Control
Alarms
High Temp Alert
If the temperature increases above
freezing your food, the LED light at the
bottom of the cabinet flashes and the
alarm sounds. You can reset the alarm by
opening and then closing the door. The
LED continues to flash until the cabinet
temperature is below 23°F (-5°C). If the
internal temperature remains high for 15
minutes and there has not been a power
failure, call Frigidaire at 1-800-374-4432
for assistance.
Door Ajar Alert
This alert sounds to alert you the door
has been open for 5 minutes or more. The
audible alert sounds until you close the door.
Power On Light
The green LED Power On light indicates
the appliance is properly connected
to electrical power. The light glows
even when the temperature control is
turned to OFF. If the light goes out,
refer to Appliance does not run in
TROUBLESHOOTING.
CONTROLS AND SETTINGS
(UNITS WITH TEMPERATURE CONTROL INSIDE)
19
CONTROLS AND SETTINGS
(UNITS WITH TEMPERATURE CONTROL INSIDE)
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the appliance and its controls
in accordance with observance of the weekly Sabbath and religious holidays within
the Orthodox Jewish community.
The Sabbath Mode disables the temperature control knob and mutes all sounds
(except the High Temp alert). The LED light at the botton of the cabinet flashes and
the High Temp alert sounds until you deactivate the Sabbath Mode.
To enter Sabbath Mode
Rotate the temperature control knob to OFF, and then between Recommended and
OFF 3 times within 10 seconds. A beep sounds indicating the unit is in Sabbath Mode.
Rotate the temperature control knob to the desired temperature setting. The interior
light will not illuminate while in Sabbath Mode when the door is open.
NOTE
The temperature setting is not aected by the Sabbath Mode. For food safety, the
High Temp alert sounds for 10 minutes if the internal temperature increases. After 10
minutes, the alarm stops, but the LED light at the bottom of the cabinet continues
to flash until you deactivate the Sabbath Mode.
NOTE
While in the Sabbath Mode, the lights will not work until you deactivate
Sabbath Mode.
The appliance stays in Sabbath Mode after power failure recovery. You must deacti-
vate it with the temperature control knob.
For further assistance, guidelines for proper use and a complete list of models
with the Sabbath feature, please visit star-k.org.
To exit Sabbath Mode, repeat the steps above.
IMPORTANT
Delay 1 second after each rotation of temperature control knob.
OFF Recommended OFF Recommended OFF Recommended
20

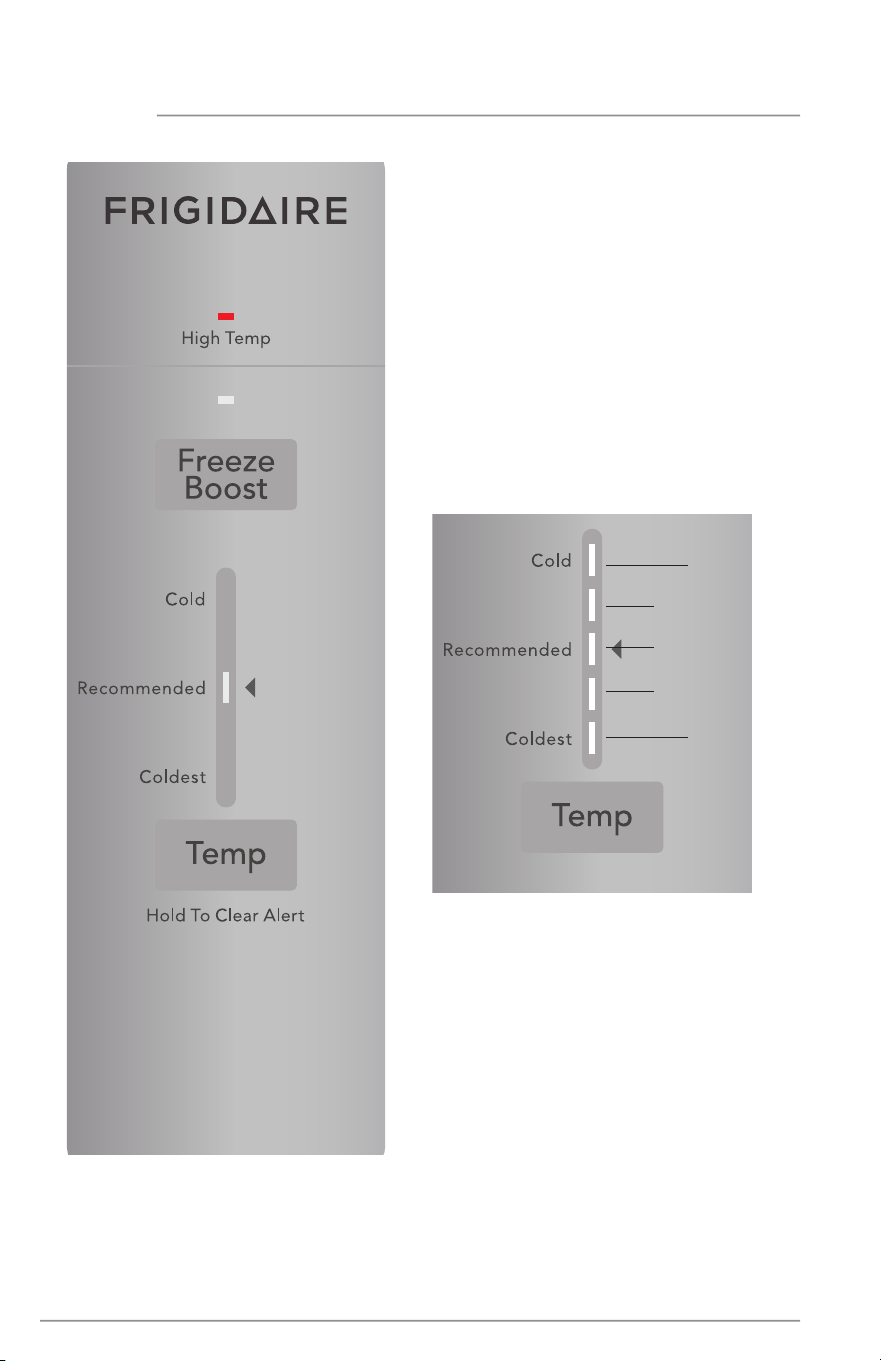

Power On
Plugging in the appliance for the first
time causes an audible alert and the
Recommended temp setting LED
to illuminate.
Cold
Coldest
Colder 1
Colder 2
Recommended
Temp
Pressing Temp* allows you to scroll
through the 5 temperature settings from
Cold (top) to Coldest (bottom), and then
loop back to Cold.
Cool Down Period
To ensure safe food storage, allow the ap-
pliance to operate with the door closed for
at least 8 hours before loading it with food.
CONTROLS AND SETTINGS
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
21
CONTROLS AND SETTINGS
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
Freeze Boost
Prior to grocery shopping, activate Freeze Boost so upon
returning you can ensure your newly purchased frozen food will
be preserved as quickly as possible.
Turning on Freeze Boost cools the appliance down to a target
temperature and remains active for up to 24 hours before
automatically deactivating or being manually exited.
To turn the function o, press Freeze Boost. When you turn
the function o, it automatically resets the freezer back to the
previous temperature setting.
Alarms
High Temp Alert
If the temperature increases above freezing your food, the red
High Temp LED light illuminates and the alarm sounds. Reset the
alarm by pressing and holding Temp for 3 seconds.
Power Failure
In the event of a power failure, where the temperature increases
above freezing your food, once you restore power, the red High
Temp LED light illuminates, and the alarm sounds. Reset the alarm
by pressing and holding Temp for 3 seconds.
IMPORTANT
If the high temp condition has not im-
proved after a period of time, the alert
displays again. In this event, repeat steps
for resetting the alert and call Frigidaire at
1-800-374-4432 for assistance
Door Ajar Alert
If the door is open for 5 minutes or more, an alert sounds until you close the door.
NOTE
If a power failure occurs, frozen foods
stay frozen longer if you keep the appli-
ance closed. If the power failure contin-
ues, pack 7 or 8 lbs of dry ice into the
unit every 24 hours. Look in the Yellow
Pages under “Dry Ice,” “Dairies,” or “Ice
Cream Manufacturers” for local dry ice
suppliers. Always wear gloves and use
caution when handling dry ice.
22
Sabbath Mode
The Sabbath Mode is a feature that disables portions of the appliance and its controls
in accordance with observance of the weekly Sabbath and religious holidays within
the Orthodox Jewish community.
All buttons are disabled, and all sounds (except the High Temp alert*) are muted. Only
the High Temp alert will illuminate until you deactivate the Sabbath Mode.
To exit Sabbath Mode, repeat the steps above.
NOTE
While in Sabbath Mode, neither the
lights nor the control panel will work
(except to exit Sabbath Mode) until Sab-
bath Mode is deactivated.
The appliance stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
For further assistance, guidelines
for proper use and a complete
list of models with the Sabbath
feature, please visit star-k.org.
NOTE
The temperature setting is not aected by the Sabbath Mode. For food safety, the
High Temp alert will sound for 10 minutes if the internal temperature increases. After
10 minutes, the alarm will stop, but the High Temp LED will remain lit until you deac-
tivate the Sabbath Mode.
To enter Sabbath Mode
Press and hold the Temp and Freeze Boost buttons simultaneously for 5 seconds. One
LED on each side of Recommended setting will be lit while the unit is in Sabbath mode.
Sabbath Mode
activated
Sabbath Mode
turned o
CONTROLS AND SETTINGS
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
23
STORAGE FEATURES
Shelves (vary by model)
Easily adjust appliance shelves to suit
individual needs. Before adjusting the
shelves, remove all food.
To adjust shelves, lift the front of the
shelf and pull forward.
To replace shelves, insert the rear of
the shelf into any pair of shelf rails and
carefully push the shelf back into posi-
tion, making sure the shelf clips go in the
notch in the liner.
Door Storage
Door bins and shelves conveniently store
jars, bottles, and cans. You can quickly
select frequently used items.
To remove the door bin:
1. Push in on each side of the door bin
to release it from the locking tabs.
2. Lift up on the bin and pull it
straight out.
Wire Shelf
Freezer Basket (some models)
The freezer basket is ideal for large items or
items that do not store well on the shelves.
To install the door bins:
1. Push the bin back and down into the
locking tabs.
2. The bin sides will lock into the tabs.
Glass Shelf
A
24
Protecting your investment
Keeping your appliance clean maintains ap-
pearance and prevents odor build-up. Wipe
up any spills immediately and clean the ap-
pliance at least twice a year. When cleaning,
take the following precautions:
• Always unplug the electrical power cord
from the wall outlet before cleaning.
• Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
• Do not wash any removable parts in
a dishwasher.
• Remove adhesive labels by hand. Do not
use razor blades or other sharp instruments
which can scratch the appliance surface.
• Do not remove the serial plate.
CAUTION
• Pull the appliance straight out to move
it. Shifting it from side to side may
damage flooring.
• Damp objects stick to cold metal
surfaces. Do not touch refrigerated
surfaces with wet or damp hands.
NOTE
If you set your temperature controls
to turn o cooling, power to lights and
other electrical components will contin-
ue until you unplug the power cord from
the wall outlet.
Do not use abrasive cleaners such as window
sprays, scouring cleansers, brushes, flam-
mable fluids, cleaning waxes, concentrated
detergents, bleaches or cleansers containing
petroleum products on plastic parts, interior
doors, gaskets or cabinet liners. Do not use
paper towels, metallic scouring pads, or
other abrasive cleaning materials or strong
alkaline solutions.
CAUTION
Damp objects stick to cold metal
surfaces. Do not touch interior metal
surfaces with wet or damp hands.
Some upright freezers are frost-free and
defrost automatically, but should be
cleaned occasionally.
CARE AND CLEANING
25
CARE AND CLEANING
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior &
Door Liner
• Soap and water
• Baking soda
and water
Use 2 tbsp of baking soda in 1 qt of warm
water. Be sure to wring excess water out
of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Door
Gasket
• Soap and water Wipe gaskets with a clean soft cloth.
Exterior
(Stainless
Steel
Models
Only)
• Soap and water
• Stainless Steel
Cleaners
Never use CHLORIDE or cleaners with bleach to
clean stainless steel.
Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth. Rinse
with clean water and a soft cloth. Use a non-
abrasive stainless steel cleaner. These cleaners
can be purchased at Frigidaire.com or major
department stores. Always follow manufacturer’s
instructions. Do not use household cleaners
containing ammonia or bleach.
NOTE: Always clean, wipe and dry with the
grain to prevent scratching. Wash the rest of
the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean
soft cloth.
Replacing
Light
Bulbs
• Unplug appliance
• Wear gloves
• Remove light cover
• Replace old bulb
• Replace light cover
• Plug in the appliance
CAUTION: Wear gloves when replacing AC
LED light bulbs to avoid getting cut. Use same
wattage when replacing bulb.
CAUTION: Use only a 5-watt or less AC LED
light bulb.
26
1-800-265-8352 (Canada)
Frigidaire.ca
1-800-374-4432 (United States)
Frigidaire.com
TROUBLESHOOTING
Let us help you troubleshoot your concern! This section will help you with common
issues. If you need us, visit our website, chat with an agent, or call us. We may be able
to help you avoid a service visit. If you do need service, we can get that started for you!
Common Occurrences
Before calling for service, review this list. It may save
you time and expense. This list includes common
occurrences that are not the result of defective
workmanship or materials in this appliance.
Appliance does not run. • Ensure plug is tightly pushed into electrical outlet.
• Check/replace fuse with a 15-amp time-delay fuse.
Reset circuit breaker.
• The appliance control is turned to OFF.
• Appliance may be in defrost cycle. Wait 20 minutes
and check again.
Appliance temperature
is unsatisfactory.
• Check freezer temperatures and adjust the
temperature control as needed.
Appliance temperature is
warmer than preferred.
• Set control to a colder setting until appliance
temperature is satisfactory. Allow 24 hours for the
temperature to stabilize.
Appliance is noisy or vibrates.
• The cabinet is not level.
• Adjust the anti-tip bracket. See Setting the anti-tip
bracket in the INSTALLATION section.
• Floor is weak.
Appliance seems to
run continuosly.
• Your variable speed compressor is designed to run
100% of the time except during the defrost cycle. At
times it will run faster, such as after a defrost cycle.
Odors in appliance. • Interior needs to be cleaned.
• Foods that produce odors should be covered
or wrapped.
Cabinet light not working. • Replace AC LED light bulb. Caution: Use only a
5-Watt AC LED light bulb.
• Ensure plug is tightly pushed into electrical outlet.
• Refer to Sabbath Mode according to your model.
Green LED power light is
not on.
• LED may be burned out.
• NO electric current is reaching the appliance. See
“Appliance does not run” above.
• LED may be burned out. Contact Frigidaire for
assistance inding a qualiied service dealer.
• Refer to Sabbath Mode according to your model.
27
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your date of
delivery, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and
maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be
readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the
USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use
your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other
than genuine Electrolux parts or parts obtained from persons other than authorized service
companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or
acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT
NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES,
SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or
add to any obligations under this warranty. Obligations for service and parts under this warranty must
be performed by Electrolux or an authorized service company. Product features or specifications as
described or illustrated are subject to change without notice.
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
welcome home
