PARALLEL KIT
SAVE THESE INSTRUCTIONS
Important safety instructions
are included in this manual.
MADE IN CHINA
REV 100319-20230728
OWNER’S MANUAL
100319
MODEL NUMBER
L
I
M
I
T
E
D
W
A
R
R
A
N
T
Y
1
Y
E
A
R
•
A
ñ
o
•
A
N
a
d
a
t
i
m
i
L
a
í
t
n
a
r
a
G
E
É
T
I
M
I
L
E
I
T
N
A
R
A
G
Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
Parts Ordering:
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
100319

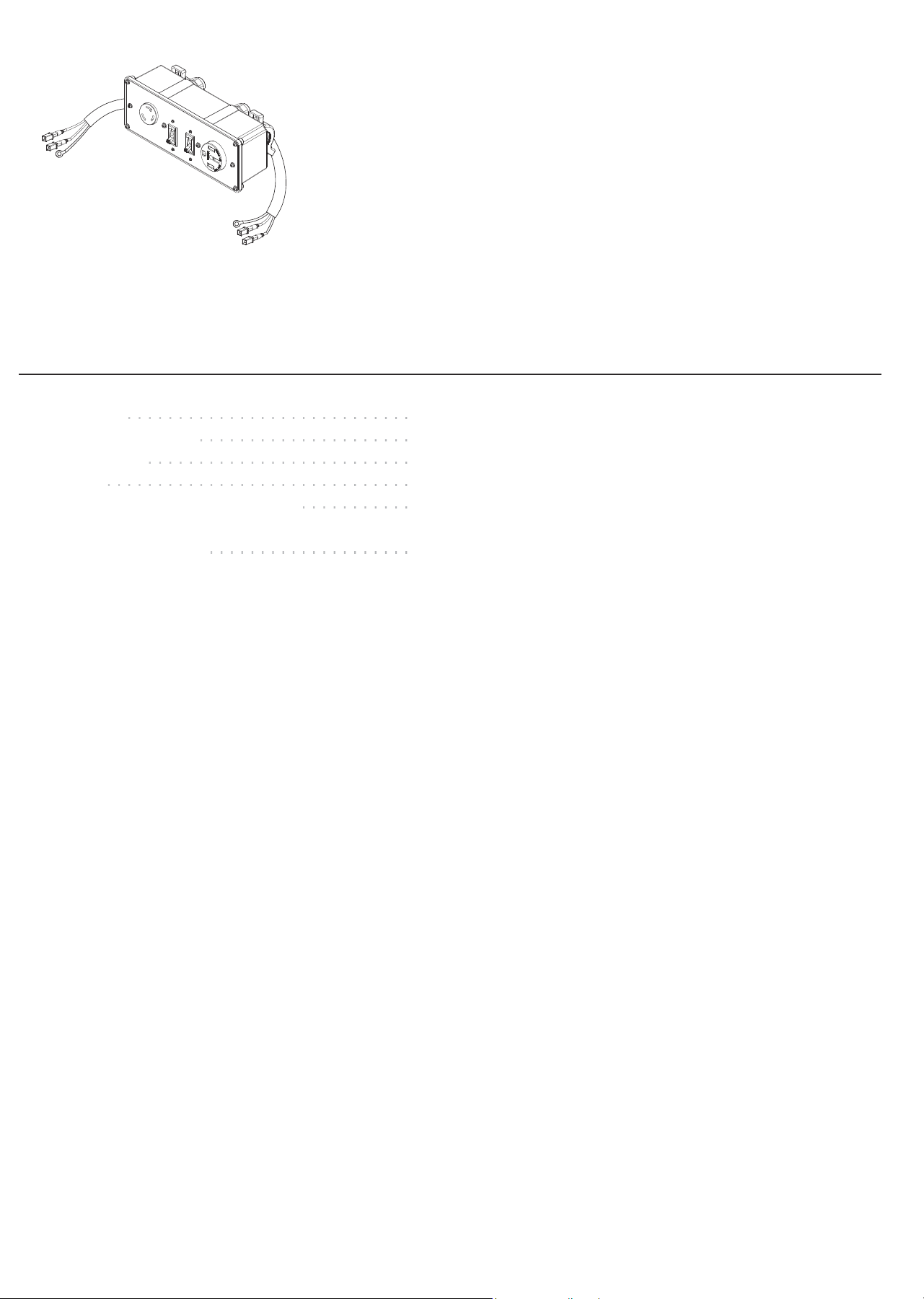

Inverter Generator Parallel Kit
TABLE OF CONTENTS
Introduction 1
Controls and Features 2
Power Panel 2
Operation 3
Paralleling Two 2800W+ Inverters 3
Paralleling One 2800W+ Inverter and
One 2000W Inverter 3
1
ENGLISH 100319
INTRODUCTION
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and
Champion Engine Technology designs, builds, and supports all of our products to strict specications and guidelines.
With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying
service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we
reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also
highly value your safety and the safety of others, we would like you to take the time to review this product manual
and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please
always exercise common sense and always error on the side of caution when operating the product to ensure no
accidents, property damage, or injury occurs. We want you to continue to use and be satised with your CPE/CET
product for years to come.
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
100319
Champion Power Equipment Support
2
100319 ENGLISH

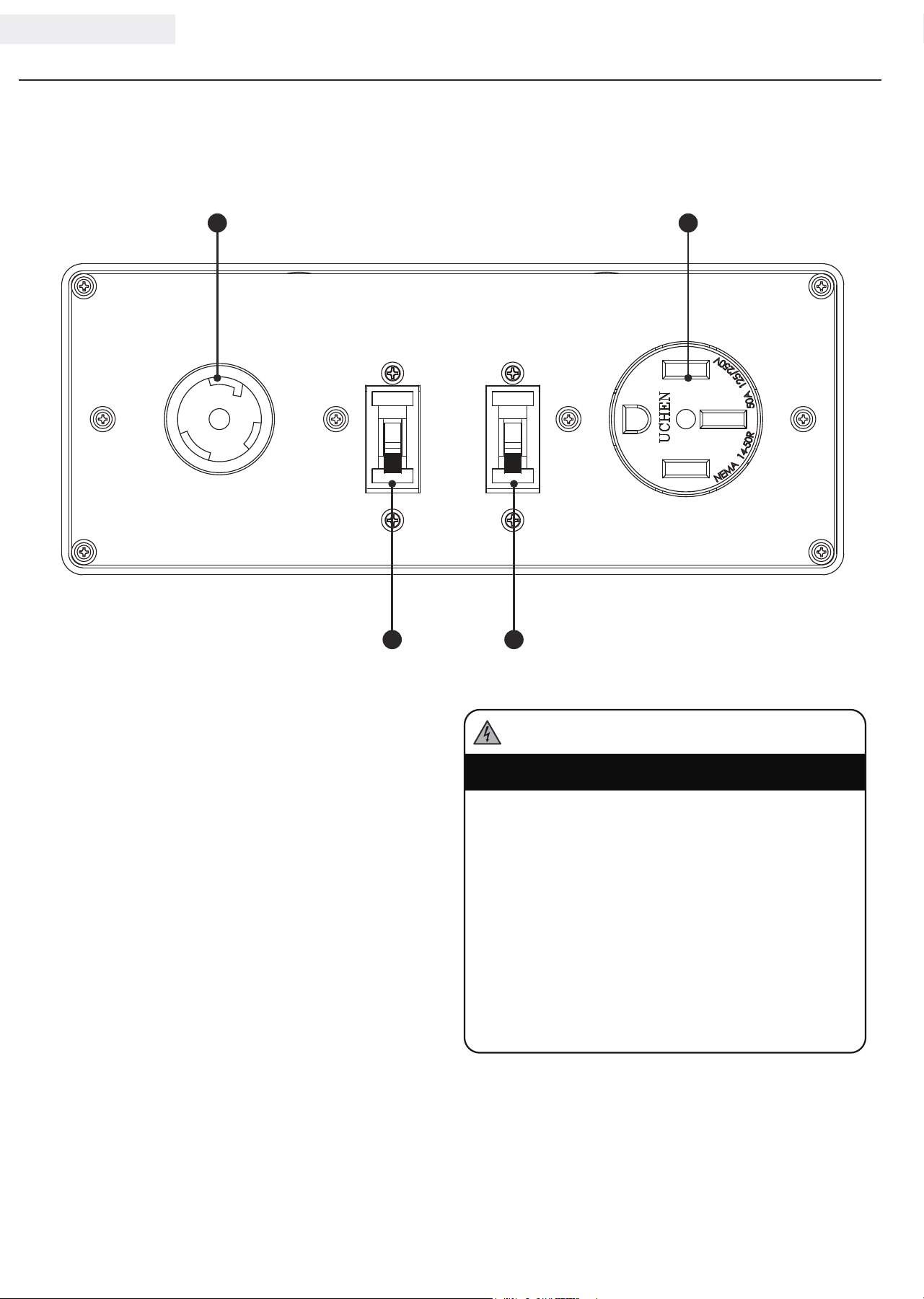

Power Panel
1. 120 Volt, 30 Amp Twist-Lock Receptacle –
(Nema L5-30R) This receptacle powers 120 Volt
AC, 60 Hz, single phase loads.
2. Circuit Breaker 30 Amp – Protects against electrical
overload.
3. Circuit Breaker 50 Amp – Protects against electrical
overload.
4. 120 Volt, 50 Amp Receptacle (14-50R) – This
receptacle powers 120 Volt AC, 60 Hz, single phase
loads. 240V AC not available.
CONTROLS AND FEATURES
1
2 3
4
Generators produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn,
damaged or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualied persons to
operate or service the generator
Always inspect your parallel kit, outlets, wires, parts
prior to use.
DO NOT use if any part or wire is frayed, exposed,
or broken.
DANGER
3
ENGLISH 100319
OPERATION
Paralleling Two 2800W+ Inverters
1. Inverters to be turned off and all electrical loads
disconnected before installing parallel kit.
2. Align the inverters in the same direction in a “V”
conguration at a minimum of 18 in. [45 cm] apart.
3. Clamp the parallel kit to the left handle of the
inverter on the left of the “V”.
4. On each inverter, remove the connector end cap
and insert the RED power lead into the RED
receptacle and the BLACK power lead into the
BLACK receptacle.
5. On each inverter, connect the grounding wire to the
grounding terminal on the inverter.
6. Start engine of both inverters according to inverter
Owner’s Manual. Observe the green output indicator
light on both inverter panels. The light will blink
during start up and will be solid when loads may be
connected.
7. Connect devices to parallel or inverter panels up to
the receptacles rated amperage. Never exceed the
specied capacity of the receptacle.
8. Follow the instructions in the inverter Owner’s
Manual for turning off the inverter.
This kit is intended for the use with Champion Power
Equipment inverters with a least one inverter being
2800W or larger (2800+), and with the ability to
parallel. Please refer to your inverter Owner’s Manual
for safety rules, start up, and shut down procedures,
specications, and troubleshooting.
The total output of this kit will depend on the size of the
inverters connected to it. The maximum output of the
parallel kit is the total amperage of the circuit breakers.
If not spaced apart, the exhaust heat from one unit
may discolor or melt the plastic on the other unit.
WARNING
Paralleling One 2800W+ Inverter and One
2000W Inverter
1. Inverters to be turned off and all electrical loads
disconnected before installing parallel kit.
2. Align the inverters in the same direction in a “V”
conguration at a minimum of 18 in. [45 cm] apart.
3. Clamp the parallel kit to the left handle of the
inverter on the left of the “V”.
4. Connect the 2800W+ inverter.
5. Connect the 2000W inverter by removing the
connector end cap and insert the RED power lead
into the RED receptacle and the BLACK power lead
into the BLACK receptacle.
6. Start engine of both inverters according to inverter
Owner’s Manual. Observe the green output indicator
light on both inverter panels. The light will blink
during start up and will be solid when loads may be
connected.
7. Connect electrical loads to parallel or inverter
panels up to the receptacles rated amperage. Never
exceed the specied capacity of the receptacle.
8. Follow the instructions in the inverter Owner’s
Manual for turning off the inverter.

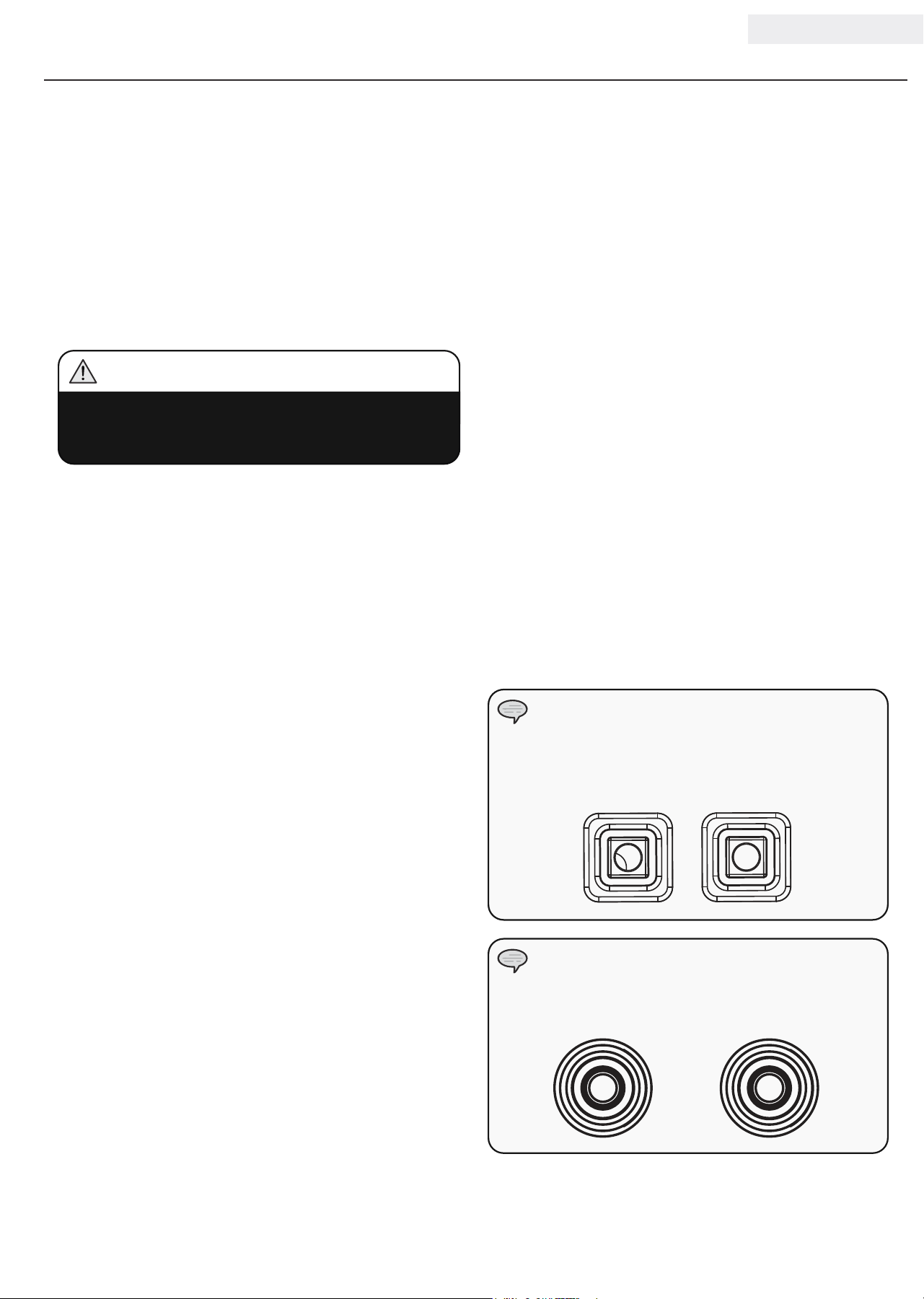

This parallel kit is meant to parallel two ParaLINK
compatible inverters together. Both inverters must
have ParaLINK parallel receptacles:
NOTICE
This unit should NOT be used to connect inverters
without ParaLINK receptacles:
NOTICE
WARRANTY*
CHAMPION POWER EQUIPMENT
1 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of one year (parts and labor) from
the original date of purchase and 90 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage
covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
