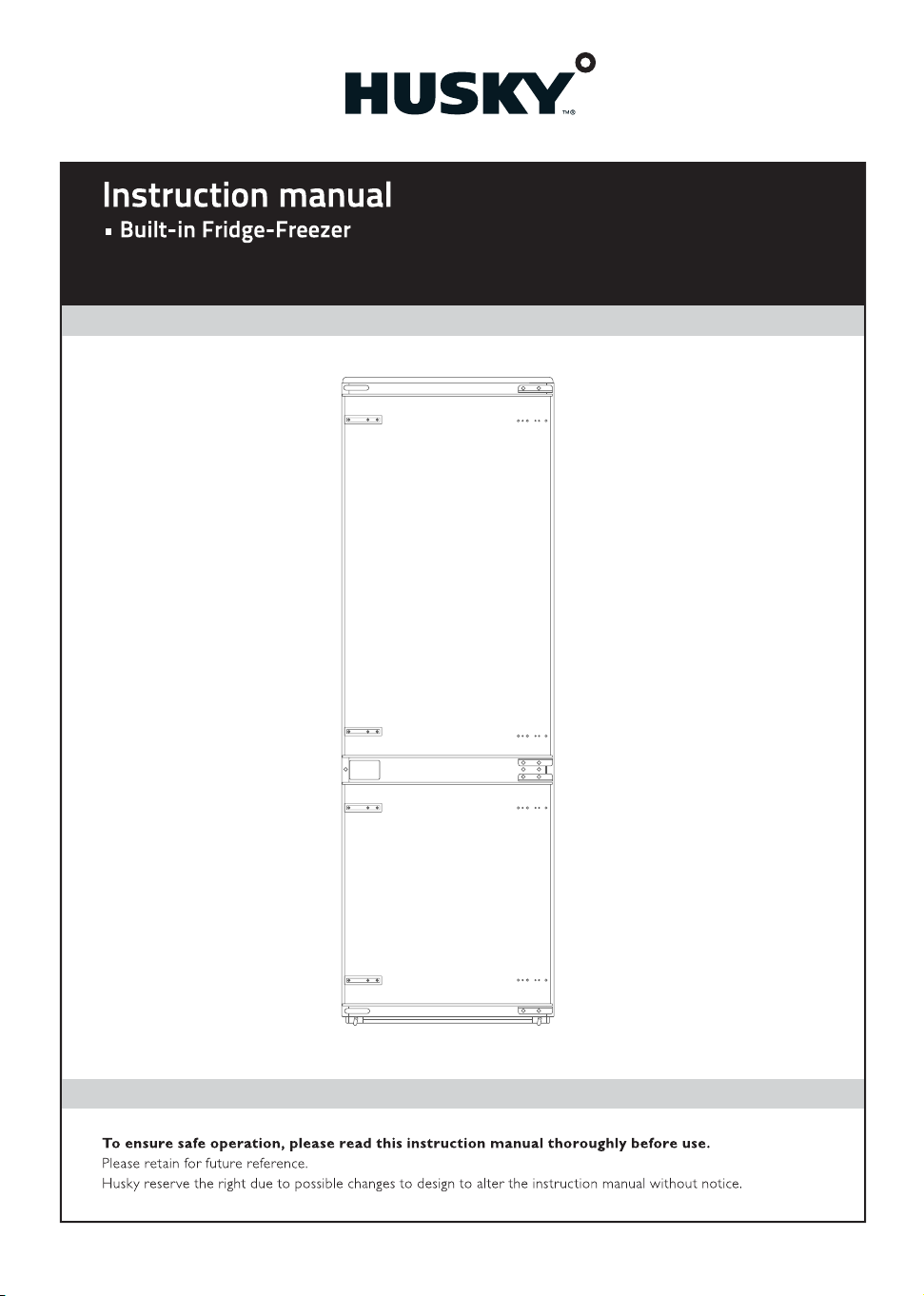

Husky HUS403INBM.1 403L Integrated Fridge/Freezer User Manual

HUS403INMB.1

Contents

Important safety instructions ....................................................................... 2

Environmental protection

............................................................................. 5

Install Instruction

............................................................................................. 6

Installation in cabinet ............................................................................................................7

Doors reversal

........................................................................................................................... 10

Changing the light...................................................................................................................12

Moving the appliance

............................................................................................................12

Tips for energy saving

........................................................................................................... 12

Product overview ............................................................................................ 13

Parts and functions ................................................................................................................13

Operation Instructions ................................................................................... 14

Use and functions ....................................................................................................................14

Storing food

............................................................................................................................... 17

Maintenance and cleaning ............................................................................. 18

Troubleshooting .............................................................................................. 20

Appendix ........................................................................................................... 22

Special for new European standard ................................................................................22

Before switching on the appliance for the first time read the following safety hints!

> This appliance is intended to be used in household and similar applications such

as staff kitchen areas in shops, offices and other working environments; farm

houses and by clients in hotels, motels and other residential type environments;

bed and breakfast type environments; catering and similar non-retail

applications.

> This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Explanation of terms/symbols

DANGER

This symbol indicates that there are dangers to the life and health of

persons due to extremely flammable gas.

WARNING

The signal word indicates a hazard with a medium level of risk which, if

not avoided, may result in death or serious injury.

CAUTION

The signal word indicates a hazard with a low degree of risk which, if not

avoided, may result in minor or moderate injury.

ATTENTION

The signal word indicates important information (e.g. damage to

property), but not danger.

IMPORTANT: Pay particular attention to messages that contain the words DANGER,

WARNING or CAUTION. These words are used to alert you to a potential hazard that

can seriously injure you and others.

The instructions will tell you how to reduce the chance of injury and let you know

what can happen if the instructions are not followed.

ATTENTION：These operating instructions are general. This means that certain

functions apply to your refrigerator/freezer , while others do not.

We are constantly working on the further development and improvement of our

appliance types and models. Therefore, we reserve the right to make changes to the

design, equipment and accessories of all types and models without prior notice.

Important safety instructions

IMPORTANT SAFETY INSTRUCTIONS

READ AnD sAvE ThEsE InsTRuCTIOns!

WARNING: Risk of fire / flammable material

Refrigerant and cyclopentane foaming material used for the

appliance are flammable. Therefore, when the appliance is scrapped,

it shall be kept away from any fire source and be recovered by a

special recovering company with corresponding qualification other

than be disposed by combustion, so as to prevent damage to the

environment or any other harm

WARNING

General safety

> Children should be supervised to

ensure that they do not play with

the appliance.

> If the supply cord is damaged,

it must be replaced by the

manufacturer, its service agent or

similarly qualified persons in order

to avoid a hazard.

> Do not store explosive substances

such as aerosol cans with a

flammable propellant in this

appliance.

> The appliance has to be unplugged

after use and before carrying out

user maintenance on the appliance.

> WARNING: Keep ventilation

openings, in the appliance

enclosure or in the built-in

structure,clear of obstruction.

> WARNING: Do not use mechanical

devices or other means to

accelerate the defrosting process,

other than those recommended by

the manufacturer.

> WARNING: Do not damage the

refrigerant circuit.

> WARNING: Do not use electrical

appliances inside the food storage

compartments of the appliance,

unless they are of the type

recommended by the manufacturer.

> WARNING: Please abandon the

refrigerator according to local

regulators for it use flammable

blowing gas and refrigerant.

> WARNING: When positioning the

appliance, ensure the supply cord is

not trapped or damaged.

> WARNING: Do not locate multiple

portable socket-outlets or portable

power supplies at the rear of the

appliance.

> Do not use extension cords or

ungrounded (two prong)adapters.

> To avoid a hazard due to instability

of the appliance, it must be fixed in

accordance with the instructions.

> The refrigerator must be

disconnected from the source of

electrical supply before attempting

the installation of accessory. Ensure

that the power cable is not trapped

by the refrigerator. Do not step on

the power cable.

Important safety instructions

CAUTION

Daily use

> Do not pull the power cord when

pulling the power plug of the

refrigerator. Please firmly grasp the

plug and pull out it from the socket

directly.

> To ensure safe use, do not damage

the power cord or use the power

cord when it is damaged or worn.

> Please use a dedicated power

socket and the power socket shall

not be shared with other electrical

appliances.

> The power plug should be firmly

contacted with the socket or else

fires might be caused.

> Please ensure that the grounding

electrode of the power socket is

equipped with a reliable grounding

line.

> Please turn off the valve of the

leaking gas and then open the

doors and windows in case of

leakage of gas and other flammable

gases.

> Do not unplug the refrigerator

and other electrical appliances

considering that spark may cause

a fire.

> Do not use electrical appliances on

the top of the appliance,unless they

are of the type recommended by

the manufacturer.

> The gaps between refrigerator

doors and between doors and

refrigerator body are small, be

noted not to put your hand in these

areas to prevent from squeezing the

finger. Please be gentle when close

the refrigerator door to avoid falling

articles.

> Do not pick foods or containers

with wet hands in the freezing

chamber when the refrigerator is

running, especially metal containers

in order to avoid frostbite.

> Do not allow any child to get into

or climb the refrigerator; otherwise

suffocation or falling injury of the

child may be caused.

> Do not place heavy objects on the

top of the refrigerator considering

that objectives may fall when close

or open the door, and accidental

injuries might be caused.

> Do not put flammable, explosive,

volatile and highly corrosive items in

the refrigerator to prevent damages

to the product or fire accidents.

> Do not place flammable items near

the refrigerator to avoid fires.

> The refrigerator is intended for

household use, such as storage of

foods; it shall not be used for other

purposes, such as storage of blood,

drugs or biological products, etc.

> Do not store beer, beverage or

other fluid contained in bottles or

enclosed containers in the freezing

chamber of the refrigerator; or

otherwise the bottles or enclosed

containers may crack due to

freezing to cause damages.

WARNING

> Connect to potable water supply

only. (Suitable for ice cube maker)

(*)

> To prevent children from being

entrapped, the keys must be

keptout of reach of children and not

in the vicinity of chest freezer (or

refrigerator) (suitable for products

with locks).(*)

(*): This feature varies depending on the

model purchased.

Important safety instructions

WARNING

For EU standard:

This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance. Cleaning

and user maintenance shall not be made

by children without supervision.

To avoid contamination of food, please

respect the

following instructions:

– Opening the door for long

periods can cause a signiﬁcant

increase of the temperature in the

compartments of the appliance.

– Clean regularly surfaces that can

come in contact with food and

accessible drainage systems.

– Clean water tanks if they have not

been used for 48h; ﬂush the water

system connected to a water supply

if water has not been drawn for 5

days.

(Note 1)(*)

– Store raw meat and ﬁsh in suitable

containers in the refrigerator, so that

it is not in

contact with or drip onto

other food.

– Two-star frozen-food compartments

are suitable for storing pre-frozen

food, storing or making ice-cream

and making ice cubes.

(Note 2)(*)

– 1 star, 2 star and 3 star

compartments are not suitable for

the freezing of fresh food.

(note 3)(*)

– For appliances without a 4-star

compartment: this refrigerating

appliance is not suitable for freezing

foodstus.

(note 4)(*)

– If the refrigerating appliance is left

empty for long periods, swi

tch

o, defrost, clean, dry, and leave

the door open to prevent mould

developing within the appliance.

Note 1,2,3,4: Please confirm whether it

is applicable according to your product

compartment type.

(*): This feature varies depending on the

model purchased.

"4 star" symbol: Freezer at –18 °C or

colder，and it has the ability of quick

freezing a certain amount of food

"3 star" symbol: Freezer compartment at

–18 °C or colder

"2 star" symbol: Freezer compartment at

–12 °C or colder

"1 star" symbol: Freezer compartment

with a target temperature and storage

conditions of –6 °C

CAUTION

This product is not recommended for use

with sockets or main switch with the AFCI/

GFCI function, otherwise it may cause false

tripping.

1. It’s not pose a safety risk when tripped.

2. If tripping persists, it is recommended

to replace the sockets or main switch

without AFCI/GFCI function.

WARNING

Risk of child entrapment.Before you throw

away your old refrigerator or freezer:

> Take o the doors.

> Leave the shelves in place so that

children may not easily climb inside.

Environmental protection

ENVIRONMENTAL PROTECTION

Disposing of old electrical devices in an

environmentally-friendly manner

This crossed-out wheeled bin

symbol indicates that waste

electrical and electronic

products (WEEE) should be

disposed of separately from

the municipal waste stream.

Old electrical products can contain

hazardous substances so correct disposal

of your old appliance will help prevent

potential negative consequences for the

environment and human health. Your old

appliance may contain reusable parts that

could be used to repair other products,

and other valuable materials that can be

recycled to conserve limited resources.

CAUTION

Refrigerant and cyclopentane foaming material

used for the refrigerator are ﬂammable. Therefore,

when the refrigerator is scrapped, it shall be kept

away from any ﬁre source and be recovered by a

special recovering company with corresponding

qualiﬁcation other than be disposed by

combustion, so as to prevent damage to the

environment or any other harm.

Package information

Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations. Do not dispose of the

packaging materials together with the

domestic or other wastes. Take them to

the packaging material collection points

designated by the local authorities.

Install Instruction

INSTALL INSTRUCTION

Before first use

Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry cloth and

the inside with a wet, lukewarm cloth.

Before connecting your refrigerator to the power supply, check that the voltage stated on the

rating label of your appliance corresponds to the voltage in your home. A different voltage could

damage the appliance.

The appliance must be grounded. The manufacturer is not responsible for damages that may

occur as a result of usage without grounding.

space requirement diagram

A B C D E F G

690 1953 515 550 1937 1161 621.5

Notice: All dimensions in mm.

The range of product width dimension is 690mm to 695mm.

Ambient Temperature

Depending on the climate class, this

refrigerator is intended to be used at an

ambient temperature range as specified in

the following table.

The product may not operate properly at

temperatures outside of the specific range.

You can find the climate class on the

product label.

Climate Class Ambient Temperature

SN +10 °C to +32 °C

N +16 °C to +32 °C

ST +16 °C to +38 °C

T +16 °C to +43 °C

If you have any doubts regarding installation, please

turn to the vendor, to our customer service or to the

nearest Authorised Service Centre.

Install Instruction

Installation in cabinet

Steps:

1. Cabinet size requirement.

≥

570

min40

714

1940

H+4

≥

696

Cabinet󵿎vent󵿎󵿎󵿎󵿎󵿎󵿎200󵿎cm

≥

1955+A

696+A

A󵿎-󵿎Thinckness󵿎of󵿎cabinet󵿎plank󵿎

min.

200󵿎cm

min.

200󵿎cm

2. Install the 4 fixed blocks in the accessory package on the corresponding sliding rail of the

door body. Push the refrigerator into the cabinet and adjust it to ensure that the edges of the

top plate fully touch the top edge of the cabinet and the limiting hooks of the support legs

fully touch the bottom edge of the cabinet.

3. Fix the supporting leg with screws, then install the screw caps.

Install Instruction

limit hook

Edge fold of top baffle

screw

screw cap

4. Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps.

Screw

5. Open the lower door of cabinet the maximum angle, and open the lower door of the

refrigerator to the corresponding position. Sliding the block to make sure inner edge align

with the lower door edge of refrigerator, then fix the block to the door of cabinet with screw

and install screw caps. Fix the upper refrigerator door to the cabinet door in the same way.

Exchange the fixed position of the adjustable foot and the bottom hinge , then fix them again.

Install Instruction

6. Take out the sealing strip from accessory bag, and press it in the gap between the cabinet and

the refrigerator. Installation is completed.

ATTENTION

Precautions before installation: Information in the Instruction Manual is only for reference. The physical

product may dier. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is

disconnected from power.

Install Instruction

Doors reversal

Parts already mounted on the refrigerator (as shipped):

R: Bottom hinge Hole cap R: Upper hinge Sliding rail F:Upper hinge

F:Bottom hinge Hole cap Hole cap Spacer

steps:

1. Power off the refrigerator, and remove all objects from the door trays.

2. Remove the upper hinge and hole caps of refrigerator door.

3. Remove the refrigerator door, the bottom hinge spacer and the hole cover.

R:Upper hinge

Hole cap

R:Bottom hinge

Spacer

Hole cap

4. Exchange the R:bottom hinge and R:upper hinge ,then install them according to below steps,

and install the top hole caps.

5. Remove the two fixed blocks of refrigerator door and rotate them for 180° and install them on

other side of refrigerator door.

R:Bottom hinge

R:Upper hinge

Hole cap

Fixed block

Spacer

Install Instruction

6. Remove the the upper hinge of freezer door.

7. Remove the freezer door, the bottom hinge spacer and the hole caps.

Upper hinge

Hole cap

F:Bottom hinge

Spacer

8. Exchange the F:bottom hinge and F:upper hinge ,then install them according to below steps,

and install the top hole cover and lower hole caps.

9. Remove the two fixed blocks of freezer door and rotate them for 180° and install them on

other side of freezer door.

F:Bottom hinge

F:Upper hinge

Hole cap

Fixed block

Spacer

ATTENTION

Differences: Due to technical changes and dierent models, some of the illustrations in this manual may

dier from your model.

Install Instruction

Changing the light

Any replacement

or maintenance of the

LED lamps is intended to be made by the

manufacturer, its service agent or similar

qualified person.

After connecting the power supply cord (or plug)

to the outlet, wait 2 or 3 hours before you put

food into the appliance. If you add food before

the appliance has cooled completely, your food

may spoil.

Moving the appliance

1. Remove all items from the appliance.

2. Pull the power plug out, insert and fix it

into the power plug hook at the rear or on

top of the appliance.

3. Tape parts such as shelves and the door

to prevent from falling off while moving

the appliance.

4. Move the appliance with more than two

people carefully. When transporting the

appliance over a long distance, keep the

appliance upright.

Tips for energy saving

Do not place the appliance near cookers,

radiators or other heat sources. If the

ambient temperature is high, the compressor

will run more frequently and for longer,

resulting in increased energy consumption.

Ensure that there is sufficient ventilation at

the base of the appliance, on the sides of the

appliance and at the back of the appliance.

Please also observe the spacing dimensions

in the chapter “Installation”.

The arrangement of drawers, shelves and

trays as shown in the product overview

offers the most efficient use of energy and

should be retained as far as possible.

To obtain a larger storage space (e.g. for

large refrigerated/frozen goods), the middle

drawers and shelves can be removed. The

top and bottom drawers and shelves should

be removed last if necessary.

An evenly filled refrigerator/freezer

compartment contributes to optimal energy

use.

Allow warm food to cool before placing it in

the refrigerator/freezer compartment. Food

that has already cooled down increases

energy efficiency.

Allow frozen food to defrost in the

refrigeration compartment The coldness

of the frozen food reduces the energy

consumption in the refrigerator

compartment and thus increases the energy

efficiency.

Open the door only as briefly as necessary

to minimise cold loss. Opening the door

briefly and closing it properly reduces

energy consumption.

Setting the temperature no colder than

necessary contributes to optimal energy use.

The door gaskets of your appliance must

be perfectly intact so that the doors close

properly and energy consumption is not

increased unnecessarily.

Product overview

PRODUCT OVERVIEW

Parts and functions

1 Temperatre control 2 Glass shelf

3 Fruits and vegetables box

Drawer

Door tray

> For the most efficient use of energy, please keep the all internal items such as trays, drawers,

shelves and ice cube box on the position supplied by manufacturer.

ATTENTION

Differences: Due to technical changes and dierent models, some of the illustrations in this manual may

dier from your model.

Operation Instructions

OPERATION INSTRUCTIONS

use and functions

Feature panel

1 2 3 4

Display screen

Super freeze mode indicator

B Standby indicator

Vacation mode indicator

Super cooling mode indicator

Button

SUPER FRZ Button 2 FREEZER Button

3 FRIDGE Button

SUPER COOL Button

ATTENTION

Do not use sharp objects to operate the control panel. They can scratch or damage the control panel.

Display

When the refrigerator is powered on for the first time, the display are fully displayed for 3

seconds, the power-on bell ringing at the same time. The digital display area enters the normal

operation display. The default temperature of the refrigerator compartment is 5°C, and the

default temperature of the freezer compartment is -20°C.

When adjusting the temperature or setting the mode, the setting takes effect after no operation

for 15 seconds, and the digital display area lights off after no operation for another 15 seconds.

When the digital display area lights off, open the door of refrigerator compartment or press any

button can illuminate the digital display area.

Temperature setting

Press the FRIDGE button to adjust the temperature of the refrigerator compartment. The digital

display area shows the set temperature of the refrigerator compartment (2 ~ 8°C). Each time you

press the button, the temperature value is reduced by 1°C. After reaching the lowest temperature,

press the button again to cycle to the highest temperature.

Operation Instructions

8°C

7°C ······ 2°C

Press the FREEZER button to adjust the temperature of the freezer compartment. The digital

display area shows the set temperature of the freezer compartment (-24 ~ -16°C). Each time you

press the button, the temperature value is reduced by 1°C. After reaching the lowest temperature,

press the button again to cycle to the highest temperature.

-16°C

-17°C ······ -24°C

standby mode

Press and hold the FREEZER button 10s to enter the standby mode, and the Standby indicator

lights up, others off. The refrigerator stops working.

In standby mode, press and hold the FREEZER button 10s to exit the standby mode, and the

digital display area returns to the display state before the standby mode is set.

super cool mode

Press the SUPPER COOL button to enter the super cooling mode, and the Super cooling mode

indicator lights up. The digital display area shows 2°C.

In the super cooling mode, after pressing the SUPPER COOL button or the FRIDGE button or

running for 6 hours, the Super cooling mode indicator lights off and the super cooling mode

is exited, the set temperature of the refrigerating chamber will automatically return to that set

before entering Super cool mode.

super freeze mode

Press the SUPPER FRZ button to enter the super freeze mode, the Super freeze mode indicator

lights up, and the digital display area shows -24°C.

In the super freeze mode, press the SUPPER FRZ button or the FREEZER button or run for 40

hours, the Super freeze mode indicator lights off, and the super freeze mode is exited, the set

temperature of the freezer chamber will automatically return to that set before entering Super

freeze mode.

vacation mode

Press and hold the FRIDGE button 3s to enter the vacation mode, and the Vacation mode

indicator lights up. The refrigerator compartment is closed, and the digital display area shows

“--”. The freezer compartment is set to -20°C. The temperature adjustment is not available, and

super cooling/super freeze mode cannot be set.

Press and hold FRIDGE button 3s, the Vacation mode indicator lights off, and the vacation mode

is exited. The digital display area returns to the display state before the vacation mode is set.

Door open timeout alarm

When the door of the refrigerator compartment is open for 120s without closing, the buzzer

alarms. Close the door or press any button to release the alarm.

Operation Instructions

Fault indication

The following warnings appearing on the display indicate corresponding faults of the refrigerator.

Though the refrigerator may still have a freezing function with the following faults, the user shall

contact maintenance specialist for maintenance, so as to ensure normal use of the refrigerator.

Fault Code Fault Description

E1 Temperature sensor fault of the refrigerator compartment

E2 Temperature sensor fault of the freezer compartment

E5 Freezer frost sensor fault

E6 Main control PCB and Display PCB Communication fault

E7 Ambient temperature sensor fault

L4 Abnormal freezing fan speed fault

L5 Condenser fan fault

L6 Abnormal condenser fan speed fault

Operation Instructions

storing food

Freezer compartment

The freezer compartment is designated

for the low-temperature freezing of food,

long-term storage of frozen food, and for the

production of ice cubes.

Pay attention to the star classifications

(4 star, 2 star and 1 star) in the freezer

compartment and the resulting storage

periods for frozen food.

Do not put fresh and frozen food next to

each other. The frozen food may thaw.

When freezing large amounts of fresh food

(such as meat, fish or chopped meat), please

divide them into several small pieces before

putting in, so that they can be quickly frozen

and pick up easily.

Abide by the storage times recommended

by food manufacturers on the packages,

there is no information on the packaging,

food should not be stored frozen for

longer than three months from the date of

purchase.

When purchasing frozen food, make sure

that it was frozen at a suitable temperature

and that the packaging is not damaged.

Frozen food should be kept in suitable

individual packages to ensure that adjacent

food cannot be contaminated.Consume

thawed and defrosted foods immediately, do

not refreeze them.

In case of prolonged power failure or

malfunction of the appliance, remove the

stored frozen food and check whether

they are still edible, then store them in

a sufficiently cool place or in another

appliance.

To defrost food, remove it from the freezer

and let it defrost at room temperature or

in the refrigerator. To defrost food quickly,

you can use the defrost function on your

microwave, for example.

If you only want to defrost part of a

pack, remove the portion you need and

immediately close the rest of the pack. In

this way, you will avoid “freezer burn” and

will reduce ice formation on the remaining

foods.

Cooling compartment

To reduce moisture and subsequent ice

build-up, never put liquid into the fridge

compartment in unsealed containers.

Frost tends to concentrate in the coolest

parts of the evaporator. Storing uncovered

liquids results in a more frequent need for

defrosting.

Never put warm foods in the fridge

compartment. These should first cool down

at room temperature and then be placed so

as to ensure adequate air circulation in the

fridge compartment.

Foods or food containers should not

touch the back wall of the fridge because

they could freeze to the wall. Do not

keep regularly opening the door of the

refrigerator.

Meat and clean fish (packed in a package

or plastic foil) can be placed in the fridge

compartment, which can be used in 1–2 days.

Fruit and vegetables without packaging can

be placed in the part designated for fresh

fruit and vegetables

ATTENTION

Storage of too much food during operation after

the initial connection to power may adversely

aect the freezing eect of the refrigerator.

storage times and temperature

Note: Overlong storage or storage at

inappropriate freezing temperature may

cause a quality loss or spoiled foods, which

causes food waste, is inedible and may cause

food poisoning. The minimum temperature

in most cases should be -18°C or colder.

Follow the maximum recommended storage

times below:

> Stew, ice cream, sausages, bread: 2-6

months.

> Fish, shrimp, lamb, meat: 4-8 months.

> Vegetables, fruits, poultry, beef: 6-12

months.

Maintenance and cleaning

MAINTENANCE AND CLEANING

CAUTION

Disconnect the appliance from the electrical

supply before ndertaking any routine

maintenance. Allow at least 5 minutes before

restarting the appliance, as frequent starting

may damage the compressor.

Hold the plug, not the cable, when

unplugging the appliance.

Do not scrape off frost and ice with sharp

objects. Do not use sprays, electric heaters

like heater, hair dryer, steam cleaners or

other sources of heat in order to avoid

damage to the plastic parts.

Eliminate the dust on the back of the unit at

least once in the year to avoid hazard by fire,

as well as increased energy consumption.

Check the door gasket regularly to make

sure there are no debris. Clean the door

gasket with a soft cloth dampened with

soapy water or diluted detergent.

The interior of the product should be

cleaned regularly to avoid odor.

Use a soft cloth or sponge to clean the

inside of the product, with two tablespoons

of baking soda and a quart of warm water.

Then rinse with water and wipe clean.

After cleaning, open the door and let it dry

naturally before turning on the power.

For areas that are difficult to clean in the

product (such as narrow sandwiches, gaps

or corners), it is recommended to wipe them

regularly with a soft rag, soft brush, etc.

and when necessary, combined with some

auxiliary tools (such as thin sticks) to ensure

no contaminants or bacterials accumulation

in these areas.

Do not use soap, detergent, scrub powder,

spray cleaner, etc., as these may cause

odors in the interior of the product or

contaminated food.

Wipe the outer surface of the product with

a soft cloth dampened with soapy water,

detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel

balls, wire brushes, abrasives (such as

toothpastes), organic solvents (such as

alcohol, acetone, banana oil, etc.), boiling

water, acid or alkaline items, which may

damage the fridge surface and interior.

Boiling water and organic solvents such as

benzene may deform or damage plastic

parts.

Do not rinse directly with water or other

liquids during cleaning to avoid short circuits

or affect electrical insulation after immersion.

ATTENTION

The appliance shall run continuously once it is

started. Generally, the operation of the appliance

shall not be interrupted;otherwise the service life

may be impaired

Defrosting

Although this appliance automatically

defrosts, a layer of frost may occur on the

freezer compartment’s interior walls if the

freezer door is opened frequently or kept

open too long. If the frost is too thick, choose

a time when the supply of food stocks are

low and proceed as follows:

1. Remove existing food and accessories

baskets, unplug the appliance from

the mains power and leave the doors

open. Ventilate the room thoroughly to

accelerate the thawing process.

2. When defrosting is completed, clean your

freezer as described above.

CAUTION! Don’t use sharp objects to remove

frost from the freezer. Only after the interior

completely dry should the appliance be switched

back on and plugged back into the mains socket.

Maintenance and cleaning

Cleaning of door tray

According to the direction arrow in the

figure below, use both hands to squeeze the

tray, and push it upward, then you can take

it out.

After washing the tray having been taken

out, you can adjust its installing height in

accordance with your requirement.

Cleaning of glass shelf

As the innermost part of the refrigerator

liner where contacting the shelves has a

backstop, you shall raise the shelves upward,

then you can be able to take it out.

Adjust or clean the shelves according to your

requirement.

Cleaning the vegetable drawer

Remove the contents of the drawer. Hold the

handle of the vegetable drawer and pull it

out completely until it stops.

Lift the vegetable drawer up and remove it

by pulling it out.

ATTENTION

Differences: Due to technical changes and

dierent models, some of the illustrations in this

manual may dier from your model.

Troubleshooting

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale

service department if the issues are not solved.

Problem Possible Causes solution

Not operate

• The power supply is not turned on and

the plug is not firmly inserted.

• Low voltage, power failure or part of

the circuit tripped.

• Insert the power cord plug firmly.

• Check the power supply at home.

Light not on

• The appliance is not powered on.

• The light is broken.

• Unplug and re-plug the power cord.

• Replace the light with a new one.

Fruits or vegetables

are frozen

• Has the food been placed at the back

of the fridge? The area near the back

wall is where the temperatures are

coldest.

• Fruits or vegetables are stored in the

Fresh/Chill zone.

• Not placing food which may freeze

easily at the back of the fridge

compartment.

• The Fresh/Chill zone is only for meat/

fish.

Fridge/freezer is over-

cooling

• Temperature control is not set

correctly.

• Set the temperature higher.

Compressor working

for a long time

• High ambient temperature causing

long working time.

• Putting too much food in at one time.

• Food is put in before it has cooled

down.

• Opening the door too often.

• The frost layer inside is too thick.

• This is normal.

• Do not put too much food in at one

time.

• Wait until the food has cooled down

before putting it in.

• Do not open the door too often.

• Need to defrost.

Door does not close

properly

• Door is stuck with objects.

• Too much food in.

• Door gasket deformed.

• Do not put in too much food.

• Place the appliance stably.

• Heat the door gasket, then cool it for

restoration (with an electrical drier or

hot water for heating).

Outer wall is hot

• When the appliance is operating, heat

is dissipated to the outside through the

metal tubes inside the cabinet.

• Higher ambient temperatures in the

summer cause the temperature of the

outer wall to rise.

• Higher temperature on the outer wall

is normal.

• Increase the heat dissipation space, or

put the appliance in a ventilated and

cool place.

Cross or vertical

beams are hot

• There are metal tubes inside the

beams, and the heat released from the

tubes prevents condensation.

• This is normal.

Odors

• Spoiled food

• Food with strong odors

• The interior compartment is dirty.

• Clean and remove any spoiled food.

• Make sure strong smelling food is

wrapped airtight.

• Clean the interior compartment.

Condensation forms

on the outside

• Condensation may form when the

humidity in the room is high.

• This is normal. Wipe off the

condensation using a dry cloth.

Condensation forms

inside the fridge and

drawers

• The fridge maintains a high humidity

to keep vegetables and other food

items fresh.

• Humidity is too high in the room and

doors have been opened frequently.

• The door gasket are not tight.

• Wipe off the condensation using a

dry cloth.

• Do not open doors as frequently or do

not keep them open too long.

• Check the door gasket, clean or

correct position.

Troubleshooting

Certain sounds can be heard during normal use of the refrigerator, which do not

affect its correct operation.

sounds, which can be easily prevented:

> Noise caused by the appliance which is not level - adjust the position with the adjustable

turn-in front feet. Alternatively, place pads made of soft material under the rear rollers,

especially when the appliance is placed on tiles.

> Touching the adjacent piece of furniture - move the refrigerator away.

> Creaking of the drawers or shelves - take out and put back the drawer or shelf.

> Sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the compressor (switching on)

and cooling, system (thermal expansion and contraction of the radiator caused by flow of the

cooling agent).

note:

> Specified power consumption is based on a cabinet depth of 575 mm. The product also

works normally in a cabinet depth of less than 570mm, which consumes more energy.

Defrosting interval claim

Environmental

temperature

Interval between two

defrosting cycles

Time specific conditions

32℃

Minimum two defrosting

intervals（△td-min）

12h

Heavy use, frequent opening of

doors

Maximum two defrosting

intervals（△td-max）

96h

Under low humidity conditions,

there is no door opening action and

no special mode is set

Appendix

APPENDIX

special for new European standard

The ordered parts in the following table can be acquired from service provider

channel

Ordered part Provided by Minimum time required for Provision

Thermostats Professional maintenance personnel
