COMFORT DC-GC9S801005CN 100,000 BTU Furnace, 80% User Manual

Installation Instructions for

*M9S80 & *C9S80*

Gas Furnace

CATEGORY I

CATÉGORIE I

These furnaces comply with requirements embod-

ied in the American National Standard / National

Standard of Canada ANSI Z21.47·CSA-2.3 Gas Fired

Central Furnaces.

Installer:

Affix all manuals

adjacent to the unit.

As a professional installer you have an obligation to know

the product better than the customer. This includes all safety

precautions and related items.

Prior to actual installation, thoroughly familiarize yourself

with this Instruction Manual. Pay special attention to all safe-

ty warnings. Often during installation or repair it is possible

to place yourself in a position which is more hazardous than

when the unit is in operation.

Remember, it is your responsibility to install the product

safely and to know it well enough to be able to instruct a

customer in its safe use.

Safety is a matter of common sense...a matter of thinking

before acting. Most dealers have a list of specic good safe-

ty practices...follow them.

The precautions listed in this Installation Manual are intend-

ed as supplemental to existing practices. However, if there is

a direct conict between existing practices and the content of

this manual, the precautions listed herein take precedence.

TABLE OF CONTENTS

Safety Considerations ................................................... 2

Product Application ....................................................... 4

Location Requirements & Considerations ................... 5

Combustion & Ventilation Air Requirements .............. 8

Masonry Chimneys ........................................................ 10

Electrical Connections ............................................... 10

Gas Supply and Piping ................................................... 11

Circulating Air ............................................................... 14

Electrical ....................................................................... 16

Airflow Tables ............................................................... 21

Status Codes .................................................................. 29

Troubleshooting Codes ............................................... 31

Wiring Diagram .............................................................. 33

Maintenance ................................................................... 34

Media Air Filter or Electronic Air

Cleaner Removal ...................................................... 34

Before Leaving an Installation ................................... 35

Repair and Replacement Parts ................................... 35

Only personnel that have been trained to install, adjust, service

or repair(hereinafter, “service”) the equipment specied in this

manual should service the equipment. The manufacturer will

not be responsible for any injury or property damage arising

from improper service or service procedures. If you service this

unit, you assume responsibility for any injury or property dam-

age which may result. In addition, in jurisdictions that require

one or more licenses to service the equipment specied in this

manual, only licensed personnel should service the equipment.

Improper installation, adjustment, servicing or repair of the

equipment specied in this manual, or attempting to install,

adjust, service or repair the equipment specied in this manual

without proper training may result in product damage, property

damage, personal injury or death.

WARNING

RECOGNIZE THIS SYMBOL

AS A SAFETY PRECAUTION.

*NOTE: Please contact your distributor or our website for the

applicable Specication Sheet referred to in this manual.

IOG-2030A

08/2021

19001 Kermier Rd., Waller, TX 77484

www.goodmanmfg.com • www.amana-hac.com

is a registered trademark of Maytag Corporation or its related companies and is used under license.

80% HEX

DO NOT LIFT

PRODUCT USING

HEAT EXCHANGER

Safety Considerations

Adhere to the following warnings and cautions when install-

ing,adjusting, altering, servicing, or operating the furnace.

To ensure proper installation and operation, thoroughly read

this manual for specics pertaining to the installation and

application of this product.

AVERTISSEMENT

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow the safety warnings exactly could result

in serious injury, death or property damage.

Never test for gas leaks with an open flame.

Use a commercially available soap solution made

specifically for the detection of leaks to check all

connections. A fire or explosion may result causing

property damage, personal injury or loss of life.

RISQUE D'INCENDIE OU D'EXPLOSION

Si les consignes de sécurité ne sont pas suivies à la lettre,

cela peut entraîner la mort, de graves blessures ou des

dommages matériels.

Ne jamais vérifier la présence de fuites de gaz au moyen

d'une flamme nue. Vérifier tous les raccords en utilisant

une solution savonneuse commerciale conçue

spécialement pour la détection de fuites. Un incendie ou

une explosion risque de se produire, ce qui peut entraîner

la mort, des blessures ou des dommages matériels.

This furnace is manufactured for use with natural gas. It

may be eld converted to operate on L.P. gas by using the

appropriate L.P. conversion kit listed in the PROPANE GAS/

HIGH ALTITUDE INSTALLATIONS section of this manual

Install this furnace only in a location and position as specied

in LOCATION REQUIREMENTS & CONSIDERATIONS

section and INSTALLATION POSITIONS section of this

manual.

Provide adequate combustion and ventilation air to the fur-

nace as specied in COMBUSTION & VENTILATION AIR

REQUIREMENTS section of this manual.

Combustion products must be discharged to the outdoors.

Connect this furnace to an approved vent system only, as

specied in Category 1 Venting section of this manual.

Never test for gas leaks with an open ame. Use a com-

mercially available soap solution made specically for the

detection of leaks to check all connections, as specied in

GAS SUPPLY AND PIPING section of this manual.

Always install a furnace to operate within the furnace’s

intended temperature-rise range with a duct system which

has external static pressure within the allowable range, as

specied on the furnace rating plate and OPERATIONAL

CHECKS section of these instructions.

When furnace duct(s) supply air outside the space contain-

ing the furnace, a return air duct must terminate in the same

space as the supply duct and be sealed to the furnace casing.

A gas-red furnace for installation in a residential garage

must be installed as specied in the LOCATION REQUIRE-

MENTS AND CONSIDERATIONS section of this manual.

This furnace may be used as a construction site heater only

if certain conditions are met. These conditions are listed in

the PRODUCT APPLICATION section of this manual.

WARNING

To prevent personal injury or death due to improper instal-

lation, adjustment, alteration, service, or maintenance, refer

to this manual. For additional assistance or information,

consult a qualified installer, servicer agency or the gas

supplier.

WARNING

If the information in these instructions is not followed

exactly, a fire or explosion may result causing property dam-

age, personal injury or loss of life.

– Do not store or use gasoline or other flammable vapors

and liquid in the vicinity of this or any other appliance.

– What to do if you smell gas:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions. If you can

not reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

WARNING

This product contains or produces a chemical or chemicals

which may cause serious illness or death and which are

known to the State of California to cause cancer, birth de-

fects or other reproductive harms.

B10259-216

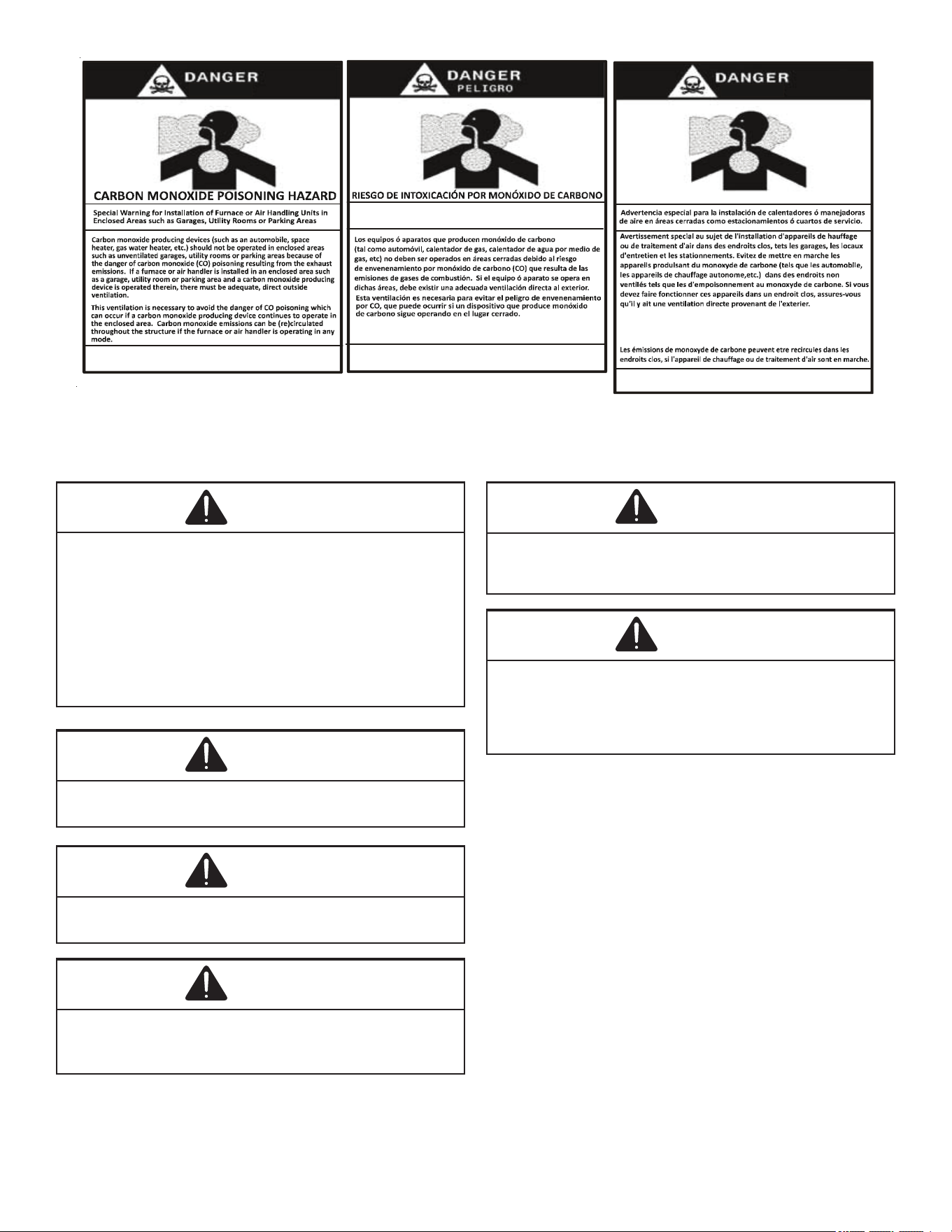

CO can cause serious illness including permanent brain

damage or death.

Advertencia especial para la instalación de calentadores ó manejadoras

de aire en áreas cerradas como estacionamientos ó cuartos de servicio.

B10259-216

El monóxido de carbono puede causar enfermedades severas

como daño cerebral permanente ó muerte.

Las emisiones de monóxido de carbono pueden circular a través

del aparato cuando se opera en cualquier modo.

B10259-216

RISQUE D'EMPOISONNEMENT AU

MONOXYDE DE CARBONE

Le monoxyde de

des

carbone peut causer des maladies graves telles que

dommages permanents au cerveau et meme la mort.

Ce�e ven�la�on est nécessaire pour éviter le danger d'intoxica�on

au CO pouvant survenir si un appareil produisant du monoxyde

de carbone con�nue de fonc�onner au sein de la zone conﬁnée.

WARNING

Heating unit should not be utilized without reasonable rou-

tine, inspection, maintenance and supervision. If the building

in which any such device is routinely inspected, maintained

and monitored. In the event that the building may be exposed

to freezing temperatures and will be vacant, all water-bear-

ing pipes should be drained. The building should be properly

winterized and the water source closed. In the event that

the building may be exposed to freezing temperatures and

will be vacant, any hydronic coil units should be drained as

well and, in such case, alternative heat sources should be

utilized.

WARNING

To prevent possible property damage, personal injury or

death due to electrical shock, the furnace must be located

to protect the electrical components from water.

WARNING

Should overheating occur or the gas supply fail to shut off,

turn off the manual gas shutoff valve external to the fur-

nace before turning off the electrical supply.

WARNING

Possible property damage, personal injury or death due to

fire, explosion, smoke, soot, condensation, electrical shock,

or carbon monoxide may result from improper installation,

repair operation, or maintenance of this product.

WARNING

To prevent personal injury or death due to improper installa-

tion, adjustment, alteration, service or maintenance, refer to

this manual. For additional assistance or information, consult

a qualified installer, servicer agency or the gas supplier.

WARNING

To prevent personal injury or death due to asphyxiation, this

furnace must be Category I vented. Do not vent using Catego-

ry III Venting.

Provisions must be made for venting combustion products

outdoors through a proper venting system. This length of

flue pipe could be a limiting factor in locating the furnace.

Additional Safety Considerations

• This furnace is approved for Category I Venting only.

• Provisions must be made for venting combustion

products outdoors through a proper venting system. The

length of ue pipe could be a limiting factor in locating

the furnace.

Shipping Inspection

All units are securely packed in shipping containers tested

according to International Safe Transit Association speci-

cations. The carton must be checked upon arrival for exter-

nal damage. If damage is found, a request for inspection by

carrier’s agent must be made in writing immediately.

The furnace must be carefully inspected on arrival for damage

and bolts or screws which may have come loose in transit.

In the event of damage the consignee should:

1. Make a notation on delivery receipt of any visible

damage to shipment or container.

2. Notify carrier promptly and request an inspection.

3. With concealed damage, carrier must be notied as soon

as possible - preferably within ve days.

4. File the claim with the following support documents

within a nine month statute of limitations.

• Original or certied copy of the Bill of Lading, or

indemnity bond.

• Original paid freight bill or indemnity in lieu thereof.

• Original or certied copy of the invoice, showing trade

and other discounts or reductions.

• Copy of the inspection report issued by carrier’s

representative at the time damage is reported to carrier.

The carrier is responsible for making prompt inspection of

damage and for a thorough investigation of each claim. The

distributor or manufacturer will not accept claims from deal-

ers for transportation damage.

Keep this literature in a safe place for future refer ence.

Electrostatic Discharge (ESD) Precautions

NOTE: Discharge body’s static electricity before touching

unit. An electrostatic discharge can adversely a󰀨ect electri-

cal components.

Use the following precautions during furnace installation and

servicing to protect the integrated control module from dam-

age. By putting the furnace, the control, and the person at

the same electrostatic potential, these steps will help avoid

exposing the integrated control module to electrostatic dis-

charge. This procedure is applicable to both installed and

non-installed (ungrounded) furnaces.

1. Disconnect all power to the furnace. Do not touch the

integrated control module or any wire connected to the

control prior to discharging your body’s electrostatic

charge to ground.

2. Firmly touch a clean, unpainted, metal surface of the

furnaces near the control. Any tools held in a person’s

hand during grounding will be discharged.

3. Service integrated control module or connecting wiring

following the discharge process in step 2. Use caution

not to recharge your body with static electricity; (i.e., do

not move or shu󰀪e your feet, do not touch ungrounded

objects, etc.). If you come in contact with an ungrounded

object, repeat step 2 before touching control or wires.

4. Discharge your body to ground before removing a new

control from its container. Follow steps 1 through 3 if

installing the control on a furnace. Return any old or

new controls to their containers before touching any

ungrounded object.

To The Installer

Before installing this unit, please read this manual thoroughly

to familiarize yourself with specic items which must be ad-

hered to, including but not limited to: unit maximum external

static pressure, gas pressures, BTU input rating, proper elec-

trical connections, circulating air temperature rise, minimum

or maximum CFM, and motor speed connections, and vent-

ing. These furnaces are designed for Category I venting only.

WARNING

To prevent property damage, personal injury, or death due to

fire, do not install this furnace in a mobile home, trailer, or

recreational vehicle.

Product Application

This furnace is primarily designed for residential home-heat-

ing applications. It is NOT designed or certied for use in

mobile homes, trailers or recreational vehicles. Neither is it

designed or certied for outdoor applications. The furnace

must be installed indoors (i.e., attic space, crawl space, or

garage area provided the garage area is enclosed with an

operating door).

This furnace can be used in the following non-industrial

commercial applications:

Schools, O󰀩ce Buildings, Churches, Retail Stores,

Nursing Homes, Hotels/Motels, Common or O󰀩ce Areas

In such applications, the furnace must be installed with the

following stipulations:

• It must be installed per the installation instructions

provided and per local and national codes.

• It must be installed indoors in a building constructed

on site.

• It must be part of a ducted system and not used in a free

air delivery application.

• It must not be used as a “make-up” air unit.

• All other warranty exclusions and restrictions apply.

This furnace may be used as a construction site heater

ONLY if all of the following conditions are met:

• The vent system is permanently installed per these

installation instructions.

• A room thermostat is used to control the furnace. Fixed

jumpers that provide continuous heating CANNOT be

used and can cause long term equipment damage.

Bi-metal thermostats, or any thermostat a󰀨ected by

vibration must not be used during construction.

• Return air ducts are provided and sealed to the furnace.

• A return air temperature range between 60ºF (16ºC) and

80ºF (27ºC) is maintained.

• Air lters are installed in the system and replaced daily

during construction and upon completion of construction.

• The input rate and temperature rise are set per the

furnace rating plate.

• 100% outside air must be used for combustion during

construction. Temporary ducting may be used to supply

outside air to the furnace for combustion – do not connect

this duct directly to the furnace. Size this duct according

to NFPA 54/ANSI Z223.1 section for Combustion and

Ventilation Air.

• The furnace heat exchanger, components, duct system,

air lters and evaporator coils are thoroughly cleaned

following final construction clean up by a qualified

person.

• All furnace operating conditions (including ignition,

input rate, temperature rise and venting) are veried

by a qualied person according to these installation

instructions.

• Furnace doors must be in place on the furnace while the

furnace is operating in any mode.

• Damage or repairs due to failure to comply with these

requirements are not covered under the warranty.

NOTE: The Commonwealth of Massachusetts requires that

the following additional requirements must also be met:

• Gas furnaces must be installed by a licensed plumber

or gas tter.

• A T-handle gas cock must be used.

• If the unit is to be installed in an attic, the passageway to

and the service area around the unit must have ooring.

WARNING

To prevent property damage, personal injury, or death due to

fire, do not install this furnace in a mobile home, trailer, or

recreational vehicle.

To ensure proper furnace operation, install, operate and

maintain the furnace in accordance with these installation

and operation instructions, all local building codes and

ordinances. In their absence, follow the latest edition of the

National Fuel Gas Code (NFPA 54/ANSI Z223.1) and/or local

plumbing or waste water codes, and other applicable codes.

A copy of the National Fuel Gas Code (NFPA 54/ANSI Z223.1)

can be obtained from any of the following:

American National Standards Institute

25 West 43rd Street, 4th Floor

New York, NY 10036

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley

Independence, OH 44131

The rated heating capacity of the furnace should be greater

than or equal to the total heat loss of the area to be heated.

The total heat loss should be calculated by an approved

method or in accordance with “ASHRAE Guide” or “Manual

J-Load Calculations” published by the Air Conditioning Con-

tractors of America.

In the USA, this furnace MUST be installed in accordance

with the latest edition of the ANSI Z223.1 booklet entitled

“National Fuel Gas Code” (NFPA 54), and the requirements

or codes of the local utility or other authority having jurisdic-

tion. Additional helpful publications available from the NFPA

are, NFPA 90A - Installation of Air Conditioning and Venti-

lating System and NFPA 90B - Warm Air Heating and Air

Conditioning System.

All venting shall be in accordance with the National Fuel Gas

Code, ANSI Z223.1, or applicable local building and/or air

conditioning codes.

NOTE: Furnaces with NOx screens meet the California NOx

emission standards and California seasonal e󰀩ciency stan-

dards. ANNUAL inspections of the furnace and its vent sys-

tem is strongly recommended.

Location Requirements and Considerations

Your unit model type determines which installation proce-

dures must be used. For *M9S80 models, you must follow

instructions for Horizontal Left, Horizontal Right or Upow

installations only. These furnaces are not approved for Down-

ow installations.

*C9S80 models may be installed in the Downow position as

well as Horizontal Left & Horizontal Right positions.

WARNING

To prevent possible equipment damage, property damage,

personal injury, or death, the following bullet points must

be observed when installing this unit.

Follow the instructions listed below when selecting a furnace

location. Refer also to the guidelines provided in the Com-

bustion and Ventilation Air Requirements.

• Centrally locate the furnace with respect to the proposed

or existing air distribution system.

• Ensure the temperature of the return air entering the

furnace is between 55°F and 100°F when the furnace

is heating.

• Provisions must be made for venting combustion products

outdoors through a proper venting system. The length of

ue pipe could be a limiting factor in locating the furnace.

• Ensure adequate combustion air is available for

the furnace. Improper or insu󰀩cient combustion air

can expose building occupants to gas combustion

products that could include carbon monoxide. Refer to

Combustion and Ventilation Air Requirements section.

• The furnace must be level. If the furnace is to be set

on a oor that may become wet or damp at times,

the furnace should be supported above the oor on a

concrete base sized approximately 1-½” larger than the

base of the furnace.

• Ensure upow or horizontal furnaces are not installed

directly on carpeting, or any other combustible material.

The only combustible material allowed is wood.

• Exposure to contaminated combustion air will result in

safety and performance-related problems. Do not install

the furnace where the combustion air is exposed to the

following substances:

chlorinated waxes or cleaners

chlorine-based swimming pool chemicals

water softening chemicals

deicing salts or chemicals

carbon tetrachloride

halogen type refrigerants

cleaning solutions (such as perchloroethylene)

printing inks

paint removers

varnishes

hydrochloric acid

cements and glues

antistatic fabric softeners for clothes dryers

and masonry acid washing materials

• If the furnace is used in connection with a cooling unit,

install the furnace upstream or in parallel with the cooling

unit coil. Premature heat exchanger failure will result if

the cooling unit coil is placed ahead of the furnace.

• For vertical applications, the minimum cooling coil

width shall not be less than furnace width minus 1”.

Additionally, a coil installed above an upow furnace or

under a counterow furnace may be the same width as

the furnace or may be one size larger than the furnace.

Example: a “C” width coil may be installed with a “B”

width furnace.

• For upow applications, the front of the coil and furnace

must face the same direction.

• If the furnace is installed in a residential garage, position

the furnace so that the burners and ignition source are

located not less than 18 inches (457 mm) above the oor.

Protect the furnace from physical damage by vehicles.

• If the furnace is installed horizontally, the furnace access

doors must be vertical so that the burners re horizontally

into the heat exchanger. Do not install the unit with the

access doors on the “up/top” or “down/bottom” side of

the furnace.

• Do not connect this furnace to a chimney ue that serves

a separate appliance designed to burn solid fuel.

• Counterow installation over a noncombustible oor.

Before setting the furnace over the plenum opening,

ensure the surface around the opening is smooth and

level. A tight seal should be made between the furnace

base and floor by using a silicon rubber caulking

compound or cement grout.

• Counterow installation over a combustible oor. If

installation over a combustible oor becomes necessary,

use an accessory subbase (see Specication Sheet

applicable to your model for details). A special accessory

subbase must be used for upright counterow unit

installations over any combustible material including

wood. Follow the instructions with the subbase for proper

installations.

• Do not install the furnace directly on carpeting, tile, or

other combustible material other than wood ooring.

(NOTE: The subbase will not be required if an air

conditioning coil is installed between the supply air

opening on the furnace and the oor. The air conditioning

coil must be downstream from the heat exchanger of

the furnace.

Top - 1"

Side

Clearance - 1"

Back - 0"

Front Clearance - 3"

Vent Pipe Clearance to Combustibles-

6" using Single Wall Connector or 1"

using B-1 vent.

Figure 1

• Adequate combustion/ventilation air must be supplied

to the closet.

• Furnace must be completely sealed to oor or base.

Combustion/ventilation air supply pipes must terminate

12” from top of closet and 12” from oor of closet. DO

NOT remove solid base plate for side return.

• Return air ducts must be completely sealed to the

furnace and terminate outside the enclosure surfaces.

Clearances and Accessibility

Unobstructed front clearance of 24” for servicing is

recommended.

TOP

B1-VENT SINGLE

(PLENUM)

1" 6" 1" 3" 0" 1"

VENT

SIDES

FRONT

BACK

Top clearance for horizontal conguration - 1”

Installation Positions

*M9S80 model furnaces may be installed vertically (upow)

or horizontally with left or right side down. *C9S80 model

furnaces may be installed vertically (downow) or horizon-

tally with left or right side down. Do not install this furnace

on its back. For vertically installed upow furnaces, return

air ductwork may be attached to the side panel(s) and/or

basepan. For horizontally installed upow furnaces, return

air ductwork must be attached to the basepan. For coun-

terow furnaces, return ductwork must be attached to the

blower compartment end of the furnace.

NOTE: Ductwork must never be attached to the back of the

furnace.

Horizontal Installation

Line contact to framing is permitted when installed in the hor-

izontal conguration. Line contact is dened as the portion

of the cabinet that is formed by the intersection of the top

and side. ACCESSIBILITY CLEARANCE, WHERE GREAT-

ER, SHOULD TAKE PRECEDENCE OVER MINIMUM FIRE

PROTECTION CLEARANCE. A gas-red furnace for instal-

lation in a residential garage must be installed so that the

ignition source and burners are located not less than eigh-

teen inches (18”) above the oor and is protected or located

to prevent physical damage by vehicles. A gas furnace must

not be installed directly on carpeting, tile, or other combusti-

ble materials other than wood ooring.

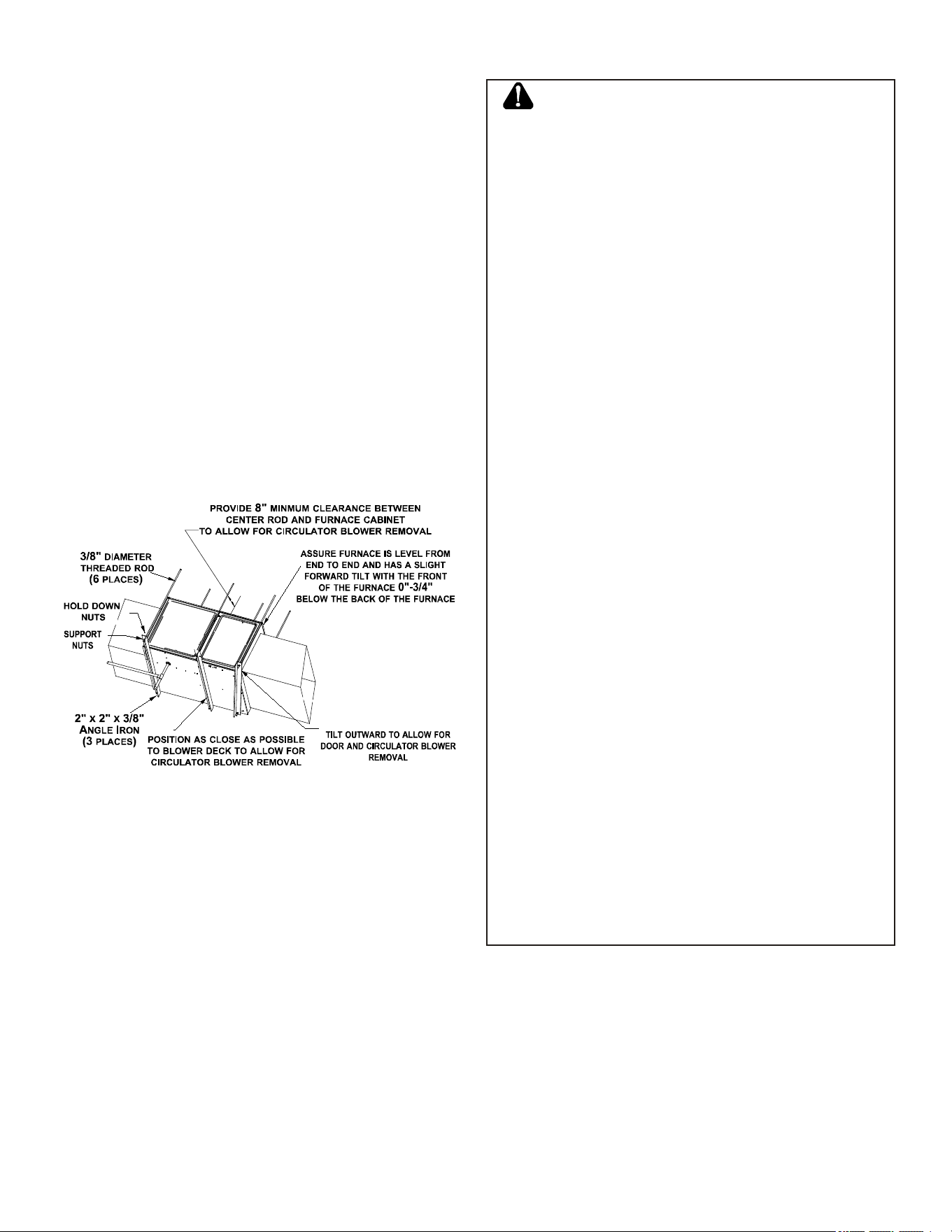

Furnace Suspension

If suspending the furnace from rafters or joist, use 3/8”

threaded rod and 2”x2”x3/8” angle iron as shown below. The

length of rod will depend on the application and the clear-

ances necessary.

Suspended Furnace

Figure 2

Existing Furnace Removal

WARNING

CARBON MONOXIDE POISONING HAZARD

Failure to follow the steps outlined below for each

appliance connected to the venting system being placed

into operation could result in carbon monoxide poisoning or

death.

The following steps shall be followed for each appliance

connected to the venting system being placed into

operation, while all other appliances connected to the

venting system are not in operation:

1) Seal any unused openings in the venting system.

2) Inspect the venting system for proper size and horizontal

pitch, as required in the National Fuel Gas Code, ANSI

Z223.1/NFPA 54 or the Natural Gas and Propane

Installation Code, CSA B149.1 and these instructions.

Determine that there is no blockage or restriction,

leakage, corrosion and other deficiencies which could

cause an unsafe condition.

3) As far as practical, close all building doors and windows

and all doors between the space in which the

appliance(s) connected to the venting system are located

and other spaces of the building.

4) Close fireplace dampers.

5) Turn on clothes dryers and any appliance not connected

to the venting system. Turn on any exhaust fans, such as

range hoods and bathroom exhausts, so they are

operating at maximum speed. Do not operate a summer

exhaust fan.

6) Follow the lighting instructions. Place the appliance being

inspected into operation. Adjust the thermostat so

appliance is operating continuously.

7) Test for spillage from draft hood equipped appliances at

the draft hood relief opening after 5 minutes of main

burner operation. Use the flame of a match or candle.

8) If improper venting is observed during any of the above

tests, the venting system must be corrected in

accordance with the National Fuel Gas Code, ANSI

Z223.1/NFPA 54 and/or Natural Gas and Propane

Installation Code, CSA B149.1.

9) After it has been determined that each appliance

connected to the venting system properly vents when

tested as outlined above, return doors, windows, exhaust

fans, fireplace dampers and any other gas-fired burning

appliance to their previous conditions of use.

RISQUE D'INTOXICATION AU MONOXYDE DE CARBONE

Si les étapes décrites ci-dessous ne sont pas suivies pour

chacun des appareils raccordés au système de ventilation

au moment de sa mise en marche, cela peut entraîner une

intoxication au monoxyde de carbone ou la mort. Les

étapes suivantes doivent être suivies pour chacun des

appareils raccordés au système de ventilation au moment

de sa mise en marche, alors que tous les autres appareils

raccordés au système de ventilation ne sont pas en marche:

1) Sceller toutes les ouvertures inutilisées du système

de ventilation.

2) Inspecter le système de ventilation afin de vérifier si la

taille et l'inclinaison par rapport à l'horizontale sont

conformes aux exigences du National Fuel Gas Code,

ANSI Z223.1/NFPA 54 ou du Code d'installation du gaz

naturel et du propane, CSA B149.1 et à ces instructions.

Vérifier qu'il n'y a pas d'obstruction ou de restriction, de

fuite, de corrosion et d'autres problèmes qui pourraient

entraîner une situation dangereuse.

3) Si possible, fermer toutes les portes et fenêtres du

bâtiment ainsi que toutes les portes séparant l'endroit

où se trouvent les appareils raccordés au système de

ventilation et les autres zones du bâtiment.

4) Fermer le registre des foyers.

5) Mettre les sécheuses en marche ainsi que tous les

autres appareils qui ne sont pas raccordés au système de

ventilation. Mettre en marche tous les ventilateurs de

tirage, comme celui des hottes de cuisine et des salles de

bains, et les régler à la puissance maximale. Ne pas

mettre en marche les ventilateurs d'été.

6) Suivre les instructions d'allumage. Mettre en marche

l'appareil soumis à l'inspection. Régler le thermostat

de manière à ce que l'appareil fonctionne en continu.

7) Vérifier la présence de fuite au niveau de l'ouverture

du coupe-tirage des appareils qui en sont dotés après 5

minutes de fonctionnement du brûleur principal. Utiliser

la flamme d'une allumette ou d'une bougie.

8) Si un problème de ventilation est observé pendant

l'un des essais décrits ci-dessus, des correctifs doivent

être apportés au système de ventilation conformément

au National Fuel Gas Code, ANSI Z223.1/NFPA 54 et (ou)

au Code d'installation du gaz naturel et du propane, CSA

B149.1.

9) Une fois qu'il a été déterminé que chaque appareil

raccordé au système de ventilation fonctionne

correctement au moyen des essais décrits ci-dessus,

les portes, les fenêtres, les ventilateurs, les registres

de foyer et tous les autres appareils de combustion

alimentés au gaz doivent être remis dans leur état

initial.

AVERTISSEMENT

Corrections must be in accordance with the latest edition of

the National Fuel Gas Code NFPA 54/ANSI Z223.1 and/or

CAN/CSA B149 Installation Codes.

If resizing is required on any portion of the venting system,

use the appropriate table in the latest edition of the National

Fuel Gas Code ANSI Z223.1.

Thermostat Location

In an area having good air circulation, locate the thermostat

about ve feet high on a vibration-free inside wall. Do not

install the thermostat where it may be inuenced by any of

the following:

• Drafts, or dead spots behind doors, in corners, or under

cabinets.

• Hot or cold air from registers.

• Radiant heat from the sun.

• Light xtures or other appliances.

• Radiant heat from a replace.

• Concealed hot or cold water pipes, or chimneys.

• Unconditioned areas behind the thermostat, such as

an outside wall.

Consult the instructions packaged with the thermostat for

mounting instructions and further precautions.

Combustion and Ventilation

Air Requirements

WARNING

To avoid property damage, personal injury or death, suffi-

cient fresh air for proper combustion and ventilation of

flue gas must be supplied. Most homes require outside air be

supplied into the furnace area.

Improved construction and additional insulation in build-

ings have reduced heat loss by reducing air inltration and

escape around doors and windows. These changes have

helped in reducing heating/cooling costs but have created

a problem supplying combustion and ventilation air for gas

red and other fuel burning appliances. Appliances that pull

air out of the house (clothes dryers, exhaust fans, replaces,

etc.) increase the problem by starving appliances for air.

House depressurization can cause back drafting or improp-

er combustion of gas-red appliances, thereby exposing

building occupants to gas combustion products that could

include carbon monoxide.

If this furnace is to be installed in the same space with other

gas appliances, such as a water heater, ensure there is an

adequate supply of combustion and ventilation air for all ap-

pliances. Refer to the latest edition of the National Fuel Gas

Code NFPA 54/ANSI Z223.1 or CAN/CSA B149 Installation

Codes or applicable provisions of the local building codes

for determining the combustion air requirements for the ap-

pliances.

This furnace must use indoor air for combustion. It cannot be

installed as a direct vent (i.e., sealed com bustion) furnace.

Most homes will require outside air be supplied to the fur-

nace area by means of ventilation grilles or ducts connecting

directly to the outdoors or spaces open to the outdoors such

as attics or crawl spaces.

Category I Venting (Vertical Venting)

WARNING

To prevent possible personal injury or death due to asphyx-

iation, this furnace must be Category I vented. Do not vent

using Category III venting.

Category I Venting is venting at a non-positive pressure. A

furnace vented as Category I is considered a fan-assisted

appliance and the vent system does not have to be “gas

tight”. NOTE: Gas furnaces with induced draft blowers draw

products of combustion through a heat exchanger allowing,

in some instances, common venting with natural draft appli-

ances (i.e. water heaters). All installations must be vented

in accordance with National Fuel Gas Code NFPA 54/ANSI

Z223.1 - latest edition.

NOTE: The vertical height of the Category I venting system

must be at least as great as the horizontal length of the vent-

ing system.

WARNING

To prevent possible personal injury or death due to asphyx-

iation, common venting with other manufacturer’s induced

draft appliances is not allowed.

The minimum vent diameter for the Category I venting sys-

tem is as shown:

UPFLOW

COUNTERFLOW

060

4 inch

080

4 inch

100

5 inch

4 inch

MINIMUM VENT

MODEL

Under some conditions, larger vents than those shown

above may be required or allowed. When an existing fur-

nace is removed from a venting system serving other appli-

ances, the venting system may be too large to properly vent

the remaining attached appliances.

Furnaces are shipped with the induced draft blower dis-

charging from the top of the furnace. (“Top” is as viewed for

an upow installation.) The induced draft blower on *M9S80

models can be rotated 90 degrees for Category I venting.

For furnaces installed vertically or horizontally, a four-inch

single wall pipe can be used to extend the induced draft

blower outlet ½” beyond the furnace cabinet. On *M9S80

furnaces installed upow or horizontally with left side down,

the draft inducer may be rotated to discharge from the right

side of the cabinet. When rotating the inducer a chimney

transition bottom kit (part # 4053501S) is needed for prop-

er alignment of the inducer outlet and the vent exit hole in

the side of the cabinet. The inducer may NOT be rotated on

*C9S80 model furnaces regardless of installation position.

THIS PRODUCT IS NOT DESIGNED FOR COUNTER-

CLOCKWISE INDUCED DRAFT BLOWER ROTATION.

Vent the furnace in accordance with the National Fuel Gas

Code NFPA 54/ANSI Z223.1 - latest edition.

Venting

THIS FURNACE IS NOT DESIGN CERTIFIED TO BE HOR-

IZONTALLY VENTED.

To rotate the induced draft blower clockwise, you will need

to purchase one (4053501S) chimney transition bottom kit.

1. Disconnect electrical power from the furnace.

2. Disconnect the induced draft blower power leads, ue

pipe, and pressure switch tubing.

3. Remove the round cutout from the right side of the

wrapper.

4. Remove and save the four screws that fasten the

induced draft blower to the ue collector box.

5. Remove and save the three screws that hold the

chimney assembly to the induced draft blower.

6. Remove and save the four screws that fasten the

chimney top to the chimney bottom.

7. Remove the chimney transition bottom from the

transition bottom kit.

8. Install the chimney top with the four screws retained from

step 6 onto the new chimney transition bottom from the

transition bottom kit.

9. Install chimney assembly with the three screws retained

from step 5 onto the induced draft blower.

10. Reinstall the induced draft blower rotating it 90 degrees

clockwise from the original upow conguration using the

four screws retained in step 3. Ensure the gasket located

between the induced draft blower and the collector box

is rotated accordingly.

11. Reconnect the induced draft blower power leads. NOTE:

If the wires are not long enough, pull extra wire from the

wire bundle in the blower compartment.

12. Reconnect the ue pipe, and the pressure switch tubing.

Ensure that all wires and the pressure switch tubing is at

least one inch from the ue pipe, or any other hot surface.

13. Restore power to furnace.

Counterow units are shipped with the induced draft blow-

er discharging from the top of the furnace. (“Top” as viewed

for a counterow installation.)

Vent the furnace in accordance with the National Fuel Gas

Code NFPA54/ANSI Z223.1 - latest edition.

WARNING

Never allow the products of combustion, including carbon

monoxide, to enter the return ductwork or circulation air

supply.

Masonry Chimneys

WARNING

Possibility of property damage, personal injury or death

damaging condensation can occur inside masonry chimneys

when a single fan-assisted Category I appliance (80% AFUE

furnace) is vented without adequate dilution air. Do not

connect an 80% furnace to a masonry chimney unless the fur-

nace is common vented with a draft hood equipped appliance

or the chimney is lined with a metal liner or Type B metal

vent. All installations using masonry chimneys must be sized

in accordance with appropriate venting tables. If an 80% fur-

naces common vented with a draft hood equipped appliance,

the potential for condensation damage may still exist with

extremely cold conditions, long vent connectors, exterior

chimneys, or any combination of these conditions. The risk

of condensation damages is best avoided by using masonry

chimney as a pathway for properly sized metal liner or Type B

metal vent.

Masonry Chimney Terminations

A masonry chimney used as a vent for gas red equipment

must extend at least three feet above the highest point

where it passes through the roof. It must extend at least two

feet higher than any portion of a building within a horizontal

distance of 10 feet. In addition, the chimney must terminate

at least three feet above any forced air inlet located within

10 feet. The chimney must extend at least ve above the

highest connected equipment draft hood outlet or ue collar.

Electrical Connections

WARNING

HIGH VOLTAGE!

To avoid the risk of electrical shock, wiring to

the unit must be polarized and grounded.

CAUTION

Label all wires prior to disconnection when servicing

controls. Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing.

WARNING

HIGH VOLTAGE!

To avoid risk of injury, electrical shock or death,

the furnace must be electrically grounded in

accordance with local codes or in their absence,

with the latest edition of the National Electric

Code.

WARNING

Edges of sheet metal holes may be sharp. Use gloves as a

precaution when removing hole plugs.

Wiring Harness

The wiring harness is an integral part of this furnace. Field

alteration to comply with electrical codes should not be re-

quired. Wires are color coded for identication purposes.

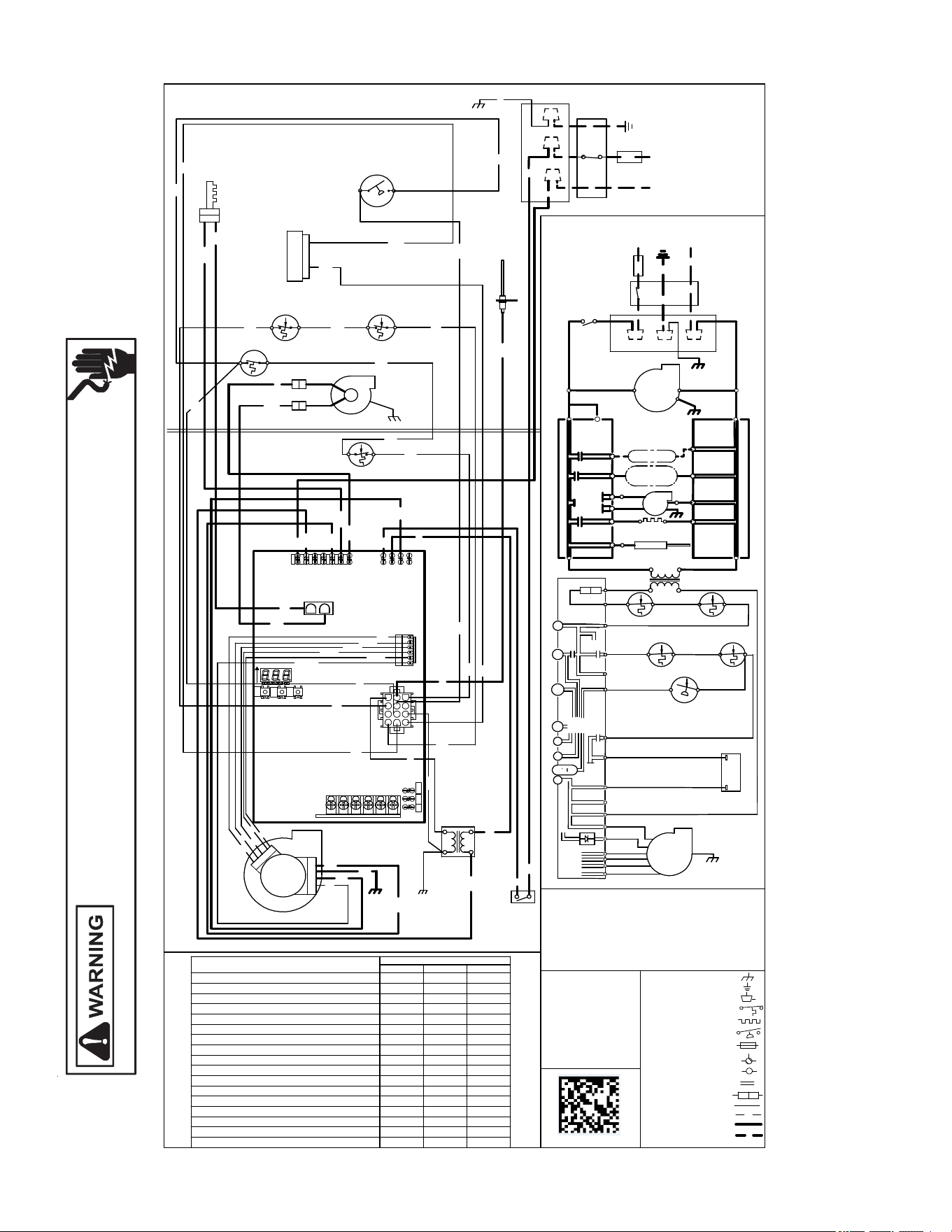

Refer to the wiring diagram for wire routings. If any of the

original wire as supplied with the furnace must be replaced,

it must be replaced with wiring material having a tempera-

ture rating of at least 105°C. Any replacement wiring must

be a copper conductor.

115 Volt Line Connections

Before proceeding with electrical connections, ensure that

the supply voltage, frequency, and phase correspond to that

specied on the unit rating plate. Power supply to the fur-

nace must be NEC Class 1, and must comply with all appli-

cable codes. The furnace must be electrically grounded in

accordance with local codes or, in their absence, with the

latest edition of The National Electric Code, ANSI NFPA 70

and/or The Canadian Electric Code CSA C22.1.

Use a separate fused branch electrical circuit containing

properly sized wire, and fuse or circuit breaker. The fuse or

circuit breaker must be sized in accordance with the max-

imum overcurrent protection specied on the unit rating

plate. An electrical disconnect must be provided at the fur-

nace location.

Connect hot, neutral, and ground wires as shown in the wir-

ing diagram located on the unit’s blower door. Metal conduit

is not considered a substitute for an actual ground wire to

the unit.

Line polarity must be observed when making eld connec-

tions. Line voltage connections can be made through either

the right or left side panel. The furnace is shipped congured

for a right side electrical connection with the junction box lo-

cated inside the burner compartment (blower compartment

for downows). To make electrical connections through the

opposite side of the furnace, the junction box must be relo-

cated to the other side of the burner (or blower) compart-

ment prior to making electrical connections. To relocate the

junction box, follow the steps shown below.

NOTE: Wire routing must not to interfere with circulator

blower operation, lter removal, or routine maintenance.

Junction Box Relocation

WARNING

Edges of sheet metal holes may be sharp. Use gloves as a

precaution when removing hole plugs.

WARNING

To prevent personal injury or death due to electric shock,

disconnect electrical power before installing or servicing

this unit.

1. Remove both doors from the furnace.

2. Remove and save the screws holding the junc tion box

to the right side of the furnace.

3. Attach the junction box to the left side of the fur nace,

using the screws removed in step 2.

4. Check the location of the wiring. Conrm that it will not be

damaged by heat from the burners or by the rotation of

the fan. Also conrm that wiring location will not interfere

with l ter removal or other maintenance.

IMPORTANT NOTE: To avoid possible equipment malfunc-

tion, route the low voltage wires to avoid interference with

lter removal or other maintenance.

WARNING

HIGH VOLTAGE!

To avoid risk of injury, electrical shock or death,

the furnace must be electrically grounded in

accordance with local codes or in their absence,

with the latest edition of the National Electric

Code.

To ensure proper unit grounding, the ground wire should run

from the furnace ground screw located inside the furnace

junction box all the way back to the electrical panel. NOTE:

Do not use gas piping as an electrical ground. To conrm

proper unit grounding, turn o󰀨 the electrical power and per-

form the following check.

1. Measure resistance between the neutral (white)

connection and one of the burners.

2. Resistance should measure 10 ohms or less.

This furnace is equipped with a blower door interlock switch

which interrupts unit voltage when the blower door is opened

for servicing. Do not defeat this switch.

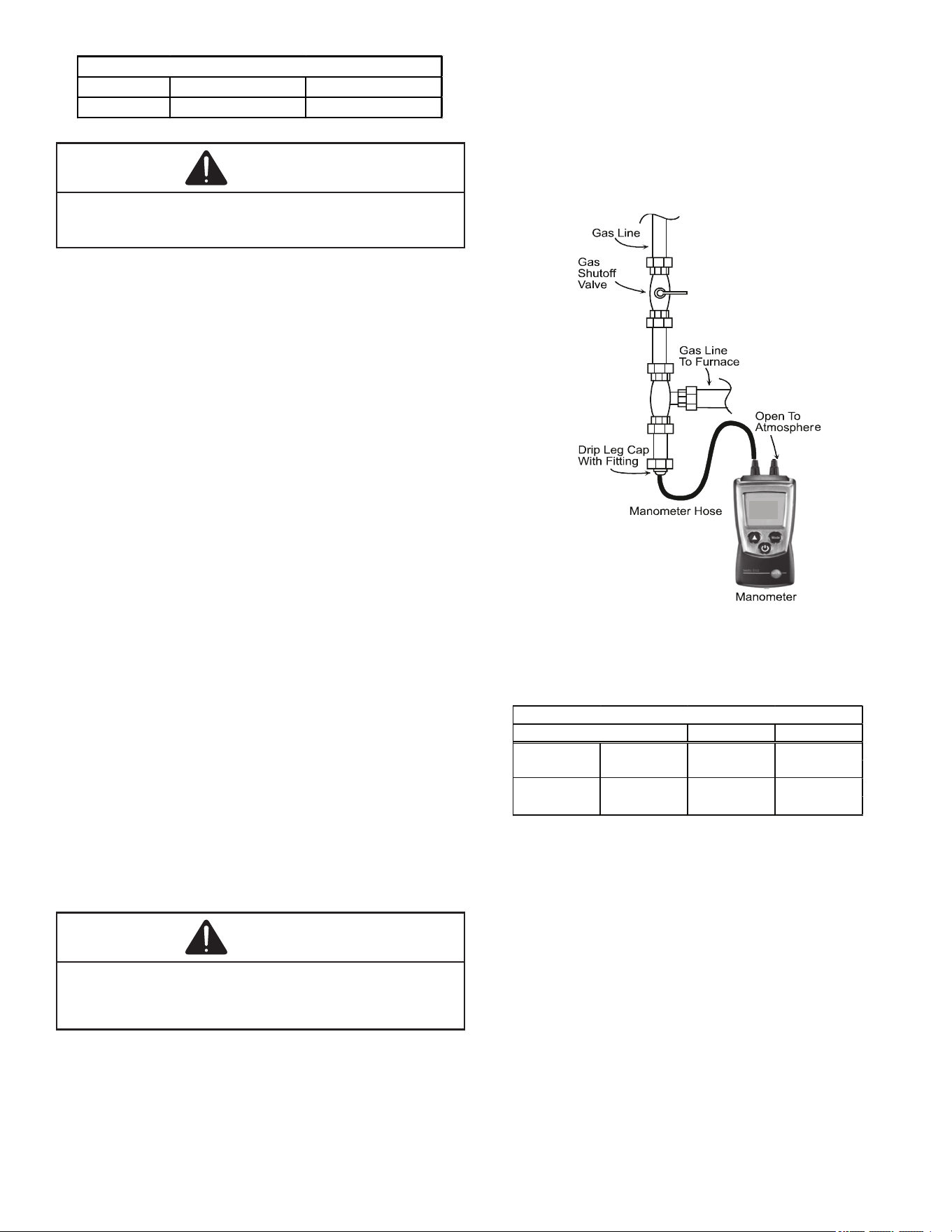

Gas Supply and Piping

The furnace rating plate includes the approved furnace gas

input rating and gas types. The furnace must be equipped to

operate on the type of gas applied. This includes any con-

version kits required for alternate fuels and/or high altitude.

CAUTION

To prevent unreliable operation or equipment damage, the

inlet gas supply pressure must be as specified on the unit

rating plate with all other household gas fired appliances

operating.

Inlet gas supply pressures must be maintained within the

ranges specied in the following table. The supply pressure

must be constant and available with all other household gas

red appliances operating. The minimum gas supply pres-

sure must be maintained to prevent unreliable ignition. The

maximum must not be exceeded to prevent unit overring.

NOTE: Do not remove the gas valve inlet plug before the

gas line is installed. Replace if water or debris has been

introduced.

Natural Gas Minimum: 4.5" w.c. Maximum: 10.0" w.c.

Propane Gas Minimum: 11.0" w.c. Maximum: 13.0" w.c.

INLET GAS SUPPLY PRESSURE

NOTE: Adjusting the minimum supply pressure below the

limits in the above table could lead to unreliable ignition.

Gas input to the burners must not exceed the rated input

shown on the rating plate. Overring of the fur nace can re-

sult in premature heat exchanger failure. Gas pressures in

excess of 13 inch es water column can also cause perma-

nent damage to the gas valve.

At all altitudes, the manifold pressure must be within 0.3

inches w.c. of that listed in the Specication Sheet applica-

ble to your model for the fuel used. At all altitudes and with

either fuel, the air tempera ture rise must be within the range

listed on the furnace nameplate. Should this appliance be

converted to LP, refer to the instructions included in the fac-

tory authorized LP conversion kit.

High Altitude Derate

When this furnace is installed at high altitude, the appropri-

ate High Altitude orice kit must be applied. This is required

due to the natural reduction in the density of both the gas

fuel and combustion air as altitude increases. The kit will

provide the proper design certied input rate within the spec-

ied altitude range.

High altitude kits are purchased according to the installation

altitude and usage of either natural or propane gas. Consult

the furnace Specication Sheet for appropriate kits.

Do not derate the furnace by adjusting the manifold pressure

to a lower pressure than specied on the furnace rating plate.

The combination of the lower air density and a lower manifold

pressure will prohibit the burner orice from drawing the prop-

er amount of air into the burner. This may cause incomplete

combustion, ashback, and possible yellow tipping.

In some areas the gas supplier may articially derate the

gas in an e󰀨ort to compensate for the e󰀨ects of altitude.

If the gas is articially derated, the appropriate orice size

must be determined based upon the BTU/ft

content of the

derated gas and the altitude. Refer to the National Fuel Gas

Code, NFPA 54/ANSI Z223.1, and information provided by

the gas supplier to determine the proper orice size.

A di󰀨erent pressure switch may be required at high altitude

regardless of the BTU/ft

content of the fuel used. Consult

the furnace Specication Sheet for pressure switch.

WARNING

Possible property damage, personal injury or death may

occur if the correct conversion kits are not installed. The

appropriate kits must be applied to ensure safe and proper

furnace operation. All conversions must be performed by a

qualified installer or service agency.

Consult the furnace Specication Sheet for appropriate

manufacturer’s kits for propane gas and/or high altitude in-

stallations. The indicated kits must be used to insure safe

and proper furnace operation. All conversions must be per-

formed by a qualied installer, or service agency.

Propane Gas Conversion

WARNING

Possible property damage, personal injury or death may

occur if the correct conversion kits are not installed. The

appropriate kits must be applied to ensure safe and proper

furnace operation. All conversions must be performed by a

qualified installer or service agency.

This unit is congured for natural gas. The appropriate man-

ufacturer’s propane gas conversion kit must be applied for

propane gas installations.

High

Stage

Low

Stage

Natural None

#45 3.5" w.c. 1.9" w.c. None

Propane

LPM-07*

1.25mm 10.0" w.c. 6.0" w.c. None

Gas

Altitude

Kit

Orifice

Manifold Pressure

Pressure

Switch

Change

0-7000

LPM-07* supports both Honeywell and White-Rodgers 1-stage valves

NOTE: In Canada, gas furnaces are only certified to 4500 feet.

If converting to LP gas, it is recommended that an LPLP0* kit

also be installed. The use of this kit will prevent the furnace

from ring when the LP gas supply pressure is too low to

support proper combustion.

Gas Valve

This unit is equipped with a 24 volt gas valve controlled

during furnace operation by the integrated control module.

As shipped, the valve is congured for natural gas. The valve

is eld convertible for use with propane gas by replacing the

regulator spring with a propane gas spring from an appro-

priate manufacturer’s propane gas conversion kit. Taps for

measuring the gas supply pressure and manifold pressure

are provided on the valve.

The gas valve has a manual ON/OFF control located on the

valve itself. This control may be set only to the “ON” or “OFF”

position. Refer to the lighting instructions label or Startup

Procedure & Adjustment for use of this control during start

up and shut down periods.

Gas Piping Connections

When sizing gas lines, be sure to include all appliances

which will operate simultaneously.

The gas piping supplying the furnace must be properly sized

based on the gas ow required, specic gravity of the gas,

and length of the run. The gas line installation must comply

with local codes, or in their absence, with the latest edition of

the National Fuel Gas Code, NFPA 54/ANSI Z223.1.

Natural Gas Capacity of Pipe

In Cubic Feet of Gas Per Hour (CFH)

Length of Nominal Black Pipe Size

Pipe in Feet 1/2" 3/4" 1" 1 1/4" 1 1/2"

10 132 278 520 1050 1600

20 92 190 350 730 1100

30 73 152 285 590 980

40 63 130 245 500 760

50 56 115 215 440 670

60 50 105 195 400 610

70 46 96 180 370 560

80 43 90 170 350 530

90 40 84 160 320 490

100 38 79 150 305 460

(Pressure 0.5 psig or less and pressure drop of 0.3" W.C.; Based on

0.60 Specif ic Gravity Gas)

CFH =

BTUH Furnace Input

Heating Value of Gas (BTU/Cubic Foot)

To connect the furnace to the building’s gas piping, the in-

staller must supply a ground joint union, drip leg, manual

shuto󰀨 valve, and line and ttings to connect to gas valve.

In some cases, the installer may also need to supply a tran-

sition piece from ½” pipe to a larger pipe size.

The following stipulations apply when connecting gas piping.

• Gas piping must be supported external to the furnace

cabinet so that the weight of the gas line does not distort

the burner rack, manifold or gas valve.

• Use black iron or steel pipe and ttings for the building

piping.

• Use pipe joint compound on male threads only. Pipe

joint compound must be resistant to the action of the

fuel used.

• Use ground joint unions.

• Install a drip leg to trap dirt and moisture before it can

enter the gas valve. The drip leg must be a minimum of

three inches long.

• Use two pipe wrenches when making connection to

the gas valve to keep it from turning. The orientation of

the gas valve on the manifold must be maintained as

shipped from the factory.

• Install a manual shuto󰀨 valve between the gas meter and

unit within six feet of the unit. If a union is installed, the

union must be downstream of the manual shuto󰀨 valve,

between the shuto󰀨 valve and the furnace.

• Tighten all joints securely.

• Connect the furnace to the building piping by one of the

following methods:

– Rigid metallic pipe and ttings.

– Semi-rigid metallic tubing and metallic ttings. Alu-

minum alloy tubing must not be used in exterior loca-

tions.

– Use listed gas appliance connectors in accordance

with their instructions. Connectors must be fully in the

same room as the furnace.

– Protect connectors and semi-rigid tubing against

physical and thermal damage when installed. Ensure

aluminum-alloy tubing and connectors are coated to

protect against external corrosion when in contact

with masonry, plaster, or insulation, or subjected to re-

peated wetting by liquids such as water (except rain

water), detergents, or sewage.

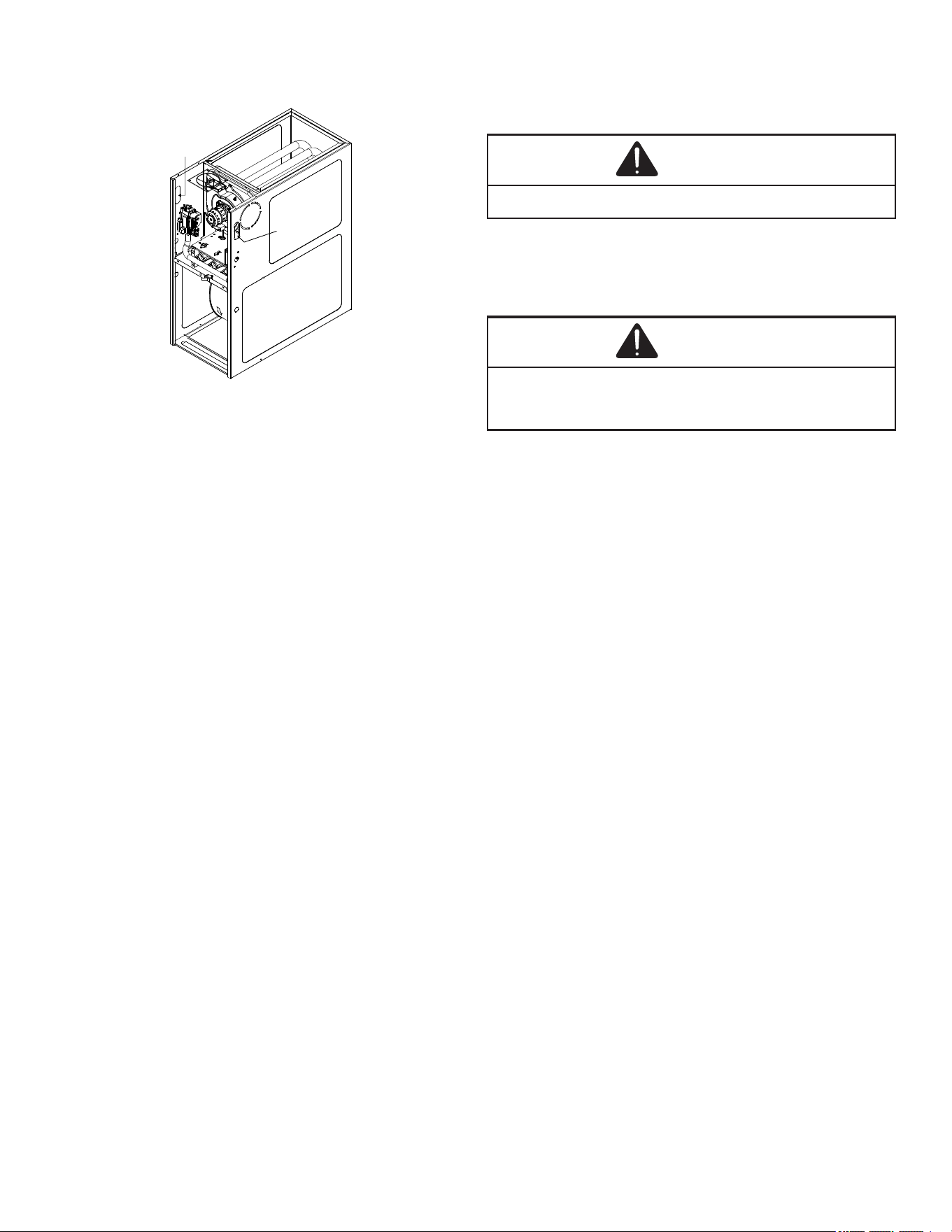

Gas line

entrance

Right side

gas entrance

(alternate)

General Furnace Layout

Figure 3

Upflow Installations

When the gas piping enters through the side of the furnace,

the installer must supply the following t tings (starting from

the gas valve):

• Close nipple.

• 90 degree elbow.

• Straight pipe to reach the exterior of the furnace.

A ground joint union, drip leg, and manual shuto󰀨 valve must

also be supplied by the installer. In some cases, the installer

may also need to supply a transition piece from ½” to anoth-

er pipe size.

When the gas piping enters through the left side of the fur-

nace, the installer must supply the following ttings (starting

from the gas valve):

• 90 degree elbow.

• Straight pipe to reach the exterior of the furnace.

• A ground joint union, drip leg, and manual shuto󰀨 valve

must also be supplied by the installer. In some cases,

the installer may also need to supply a transition piece

from ½ inch to another pipe size.

Counterflow Installations

When the gas piping enters through the left side of the fur-

nace, the installer must supply a straight pipe and a 90 de-

gree elbow to reach the exterior of the furnace.

A ground joint union, drip leg and manual shuto󰀨 valve must

also be supplied by the installer. In most cases, the installer

may also need to supply a transition piece from ½” to anoth-

er pipe size. When the gas piping enters through the right

side of the furnace, the installer must supply the following

ttings (starting at the gas valve):

• Close Nipple

• 90 Degree Elbow

• Straight Pipe to Reach Exterior of Furnace.

Gas Piping Checks

Before placing unit in operation, leak test the unit and gas

connections.

WARNING

To avoid the possibility of explosion or fire, never use a

match or open flame to test leaks.

Check for leaks using an approved chloride-free soap and

water solution, an electronic combustible gas detector, or

other approved testing methods.

WARNING

To prevent property damage or personal injury due to fire,

the following instructions must be performed regarding gas

connections, pressure testing, location of shutoff valve and

installation of gas piping.

NOTE: Never exceed specied pressures for testing. Higher

pressure may cause gas valve failure.

Disconnect this unit and shuto󰀨 valve from the gas supply

piping system before pressure testing the supply piping sys-

tem with pressures in excess of ½ psig (3.48 kPa).

This unit must be isolated from the gas supply system by

closing its manual shuto󰀨 valve before pressure testing of

gas supply piping system with test pressures equal to or less

than ½ psig (3.48 kPa).

Propane Gas Tanks and Piping

A gas detecting warning system is the only reliable way to

detect a propane gas leak. Rust can reduce the level of

odorant in propane gas. Do not rely on your sense of smell.

Contact a local propane gas supplier about installing a gas

detecting warning system. If the presence of gas is suspect-

ed, follow the instructions on Page 3 of this manual.

All propane gas equipment must conform to the safety stan-

dards of the National Board of Fire Underwriters, NBFU

Manual 58.

For satisfactory operation, propane gas pressure must be

10 inch WC at the furnace manifold with all gas appli ances

in operation. Maintaining proper gas pressure depends on

three main factors:

1. Vaporization rate, depending on temperature of the

liquid, and “wetted surface” area of the con tainer or

containers.

2. Proper pressure regulation (Two-stage regulation is

recommended for both cost and e󰀩ciency).

3. Pressure drop in lines between regulators, and between

second stage regulator and the appliance. Pipe size

will depend on length of pipe run and total load of all

appliances.

Complete information regarding tank sizing for vaporiza tion,

recommended regulator settings, and pipe sizing is avail-

able from most regulator manufacturers and propane gas

suppliers.

Use a pipe thread compound that is approved for natural

gas and LP Gas.

Refer to the following illustration for typical propane gas in-

stallations and piping.

200 PSIG

Maximum

5 to 15 PSIG

(20 PSIG Max.)

Continuous

11" W.C.

Second Stage

Regulator

First Stage

Regulator

Propane Gas Installation (Typ.)

Figure 4

Propane Gas Piping Charts

3/8" 1/2" 5/8" 3/4" 7/8" 1/2" 3/4"

10 730 1,700 3,200 5,300 8,300 3,200 7,500

20 500 1,100 2,200 3,700 5,800 2,200 4,200

30 400 920 2,000 2,900 4,700 1,800 4,000

40 370 850 1,700 2,700 4,100 1,600 3,700

50 330 770 1,500 2,400 3,700 1,500 3,400

60 300 700 1,300 2,200 3,300 1,300 3,100

80 260 610 1,200 1,900 2,900 1,200 2,600

100 220 540 1,000 1,700 2,600 1,000 2,300

125 200 490 900 1,400 2,300 900 2,100

150 190 430 830 1,300 2,100 830 1,900

175 170 400 780 1,200 1,900 770 1,700

200 160 380 730 1,100 1,800 720 1,500

Sizing Between First and Second Stage Regulator*

Maximum Propane Capacities listed are based on 2 psig pressure drop at 10 psig setting.

Capacities in 1,000 BTU/hour.

Nominal Pipe Size

Schedule 40

Tubing Size, O.D. Type L

Pipe or

Tubing

Length,

Feet

3/8" 1/2" 5/8" 3/4" 7/8" 1-1/8" 1/2" 3/4" 1" 1-1/4" 1-1/2"

10 39 92 199 329 501 935 275 567 1,071 2,205 3,307

20 26 62 131 216 346 630 189 393 732 1,496 2,299

30 21 50 107 181 277 500 152 315 590 1,212 1,858

40 19 41 90 145 233 427 129 267 504 1,039 1,559

50 18 37 79 131 198 376 114 237 448 910 1,417

60 16 35 72 121 187 340 103 217 409 834 1,275

80 13 29 62 104 155 289 89 185 346 724 1,066

100 11 26 55 90 138 255 78 162 307 630 976

125 10 24 48 81 122 224 69 146 275 567 866

150 9 21 43 72 109 202 63 132 252 511 787

200 8 19 39 66 100 187 54 112 209 439 665

250 8 17 36 60 93 172 48 100 185 390 590

Pipe or

Tubing

Length,

Feet

Nominal Pipe Size

Schedule 40

Tubing Size, O.D. Type L

Sizing Between Second Stage and Appliance Regulator*

Maximum Propane Capacities listed are based on 2 psig pressure drop at 10 psig setting.

Capacities in 1,000 BTU/hour.

Circulating Air

WARNING

Never allow the products of combustion, including carbon

monoxide, to enter the return duct work or circulation air

supply.

Duct systems and register sizes must be properly designed

for the CFM and external static pressure rat ing of the fur-

nace. Ductwork should be designed in accor dance with the

recommended methods of “Air Conditioning Contractors of

America” Manual D.

A duct system must be installed in accordance with Stan-

dards of the National Board of Fire Underwriters for the In-

stallation of Air Conditioning, Warm Air Heating and Ventilat-

ing Systems. Pamphlets No. 90A and 90B.

A closed return duct system must be used, with the return

duct connected to the furnace. NOTE: Ductwork must nev-

er be attached to the back of the furnace. For installations

requiring more than 1800 CFM, use a bottom return or two

sided return. Supply and return con nections to the furnace

may be made with exible joints to reduce noise transmis-

sion. To prevent the blower from inter fering with combustion

air or draft when a central return is used, a connecting duct

must be installed between the unit and the utility room wall.

A room, closet, or alcove must not be used as a return air

chamber.

When the furnace is used in connection with a cooling unit,

the furnace should be installed in parallel with or on the

upstream side of the cooling unit to avoid condensa tion in

the heating element. With a parallel ow arrange ment, the

dampers or other means used to control the ow of air must

be adequate to prevent chilled air from entering the furnace

and, if manually operated, must be equipped with means to

prevent operation of either unit unless the damper is in the

full heat or cool position.

When the furnace is installed without a cooling coil, it is rec-

ommended that a removable access panel be provided in

the outlet air duct. This opening shall be accessible when

the furnace is installed and shall be of such a size that the

heat exchanger can be viewed for visual light inspection

or such that a sampling probe can be inserted into the air

stream. The access panel must be made to prevent air leaks

when the furnace is in operation.

When furnace duct(s) supply air outside the space contain-

ing the furnace, a return air duct must terminate in the same

space as the supply duct and be sealed to the furnace casing.

When the furnace is heating, the temperature of the return

air entering the furnace must be between 55°F and 100°F.

Checking Duct Static

Refer to your furnace rating plate for the maximum ESP (ex-

ternal duct static) rating.

Total external static refers to static pressure created by all

components external to the furnace cabinet. Cooling coils,

lters, ducts, grilles, registers must all be considered when

reading your total external static pressure. The supply duct

pressure must be read between the furnace and the cool-

ing coil. This reading is usually taken by removing the “A”

shaped block o󰀨 plate from the end on the coil; drilling a

test hole in it and reinstalling the block o󰀨 plate. Take a duct

static reading at the test hole. Tape up the test hole after

your test is complete. The negative pressure must be read

between the lter and the furnace blower.

Too much external static pressure will result in insu󰀩cient air

that can cause excessive temperature rise. This can cause

limit switch tripping and heat exchanger failure.

To determine total external duct static pressure, proceed as

follows:

4. With clean lters in the furnace, use a manometer to

measure the static pressure of the return duct at the

inlet of the furnace. (Negative Pressure)

5. Measure the static pressure of the supply duct. (Positive

Pressure)

6. The di󰀨erence between the two numbers is .4” w.c.

Example:

static reading from return duct = -.1” w.c.

static reading from supply duct = .3” w.c.

total external static pressure on this system = .4” w.c.

NOTE: Both readings may be taken simultaneously and

read directly on the manometer if so desired. If an air

conditioner coil or Electronic Air Cleaner is used in con-

junction with the furnace, the readings must also include

these components, as shown in the following drawing.

7. Consult proper tables for the quantity of air.

If the total external static pressure exceeds the maximum

listed on the furnace rating plate, check for closed dampers,

registers, undersized or poorly laid out duct work.

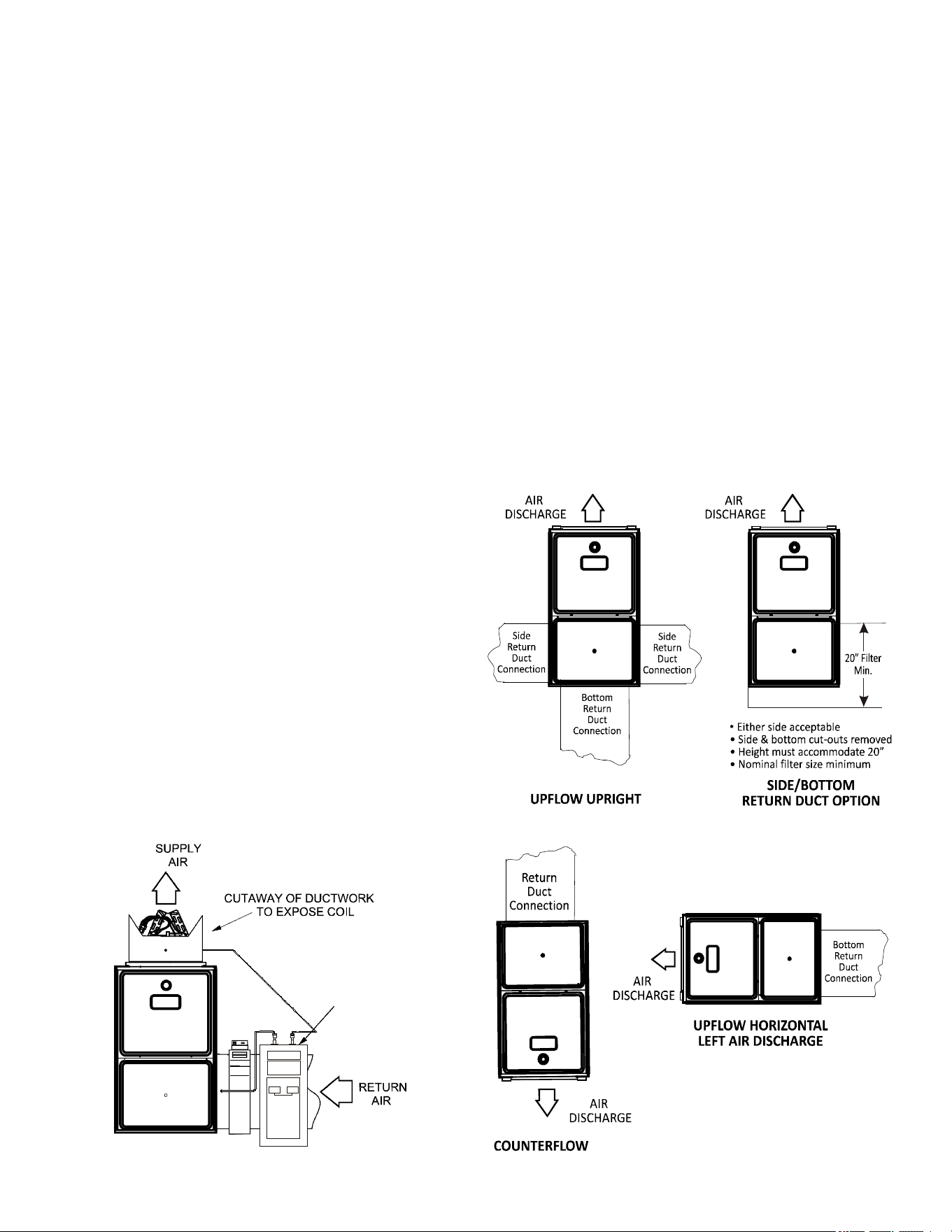

Digital

Manometer

Checking Static Pressure

Figure 5

Filters - Read This Section Before Installing The

Return Air Ductwork

Filters must be used with this furnace. Discuss lter main-

tenance with the building owner. Filters do not ship with this

furnace, but must be provided by the installer. Filters must

comply with UL900 or CAN/ULCS111 standards. Damage or

repairs due to the installation of the furnace without lters is

not covered under the warranty.

Upright Installations

Depending on the installation and/or customer preference,

di󰀨ering lter arrangements can be applied. Filters can be

installed in the central return register or a side panel external

lter rack kit (upows), or the ductwork above a downow

furnace. As an alternative, a media air lter or electronic air

cleaner can be used as the primary lter.

Horizontal Installations

Filters must be installed in either the central return register

or in the return air duct work.

Circulation Air Filters

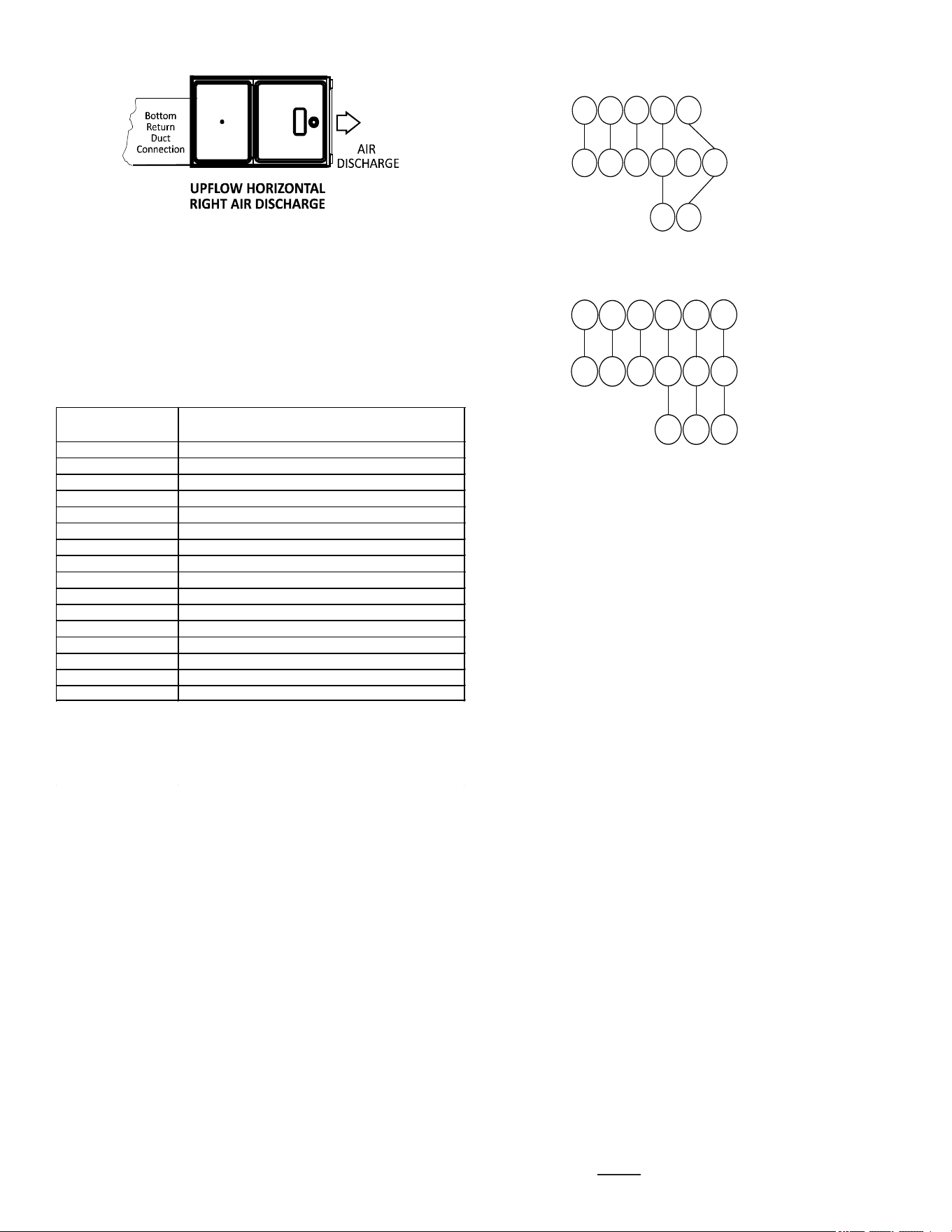

Figure 6 Figure 7

Figure 8 Figure 9

Figure 10

One of the most common causes of a problem in a forced

air heating system is a blocked or dirty lter. Circulating air

lters must be inspected monthly for dirt accumulation and

replaced if necessary. Failure to maintain clean lters can

cause premature heat exchanger failure.

A new home may require more frequent replacement until all

construction dust and dirt is removed.

Upflow Models Minimum Recommended Filter Size

*0403A* 1 - 16 X 25 Side or 1 - 14 X 24 Bottom Return

*0603A* 1 - 16 X 25 Side or 14 X 24 Bottom Return

*0603B* 1 - 16 X 25 Side or Bottom Return

*0604B* 1 - 16 X 25 Side or Bottom Return

*0803B* 1 - 16 X 25 Side or Bottom Return

*0804B* 1 - 16 X 25 Side or Bottom Return

*0804C* 1 - 16 X 25 Side or Bottom Return

*0805C*

1 - 16 X 25 Side or Bottom Return¹

*1005C* 2 - 16 X 25 Side or 1 - 20 X 25 Bottom Return¹

*1205D* 2 - 16 X 25 Side or 1 - 24 X 24 Bottom Return¹

Downflow Models

*0403A* 2 - 10 X 20 or 1 - 14 X 25 Top Return

*0603A* 2 - 10 X 20 or 1 - 14 X 25 Top Return

*0804B* 2 - 14 X 20 or 1 - 16 X 25 Top Return

*0805C* 2 - 14 X 20 or 1 - 20 X 25 Top Return

*1005C* 2 - 14 X 20 or 1 - 20 X 25 Top Return

¹ = Use 2 - 16 X 25 filters and two side returns or 20 X 25 filter on

bottom return if furnace is connected to a cooling unit over 4 tons

nominal capacity

Larger filters may be used, filters may also be centrally located

A combination of one side & bottom may be used instead of both sides

Electrical

24 Volt Thermostat Wiring

Important Note: Wiring routing must not interfere with circu-

lator blower operation, lter removal or routine maintenance.

Low voltage connections can be made through either the

right or left side panel. Thermostat wiring entrance holes

are located in the blower compartment. The following gure

shows connections for a “heat/cool system”.

This furnace is equipped with a 40 VA transformer to facili-

tate use with most cooling equipment. Consult the wiring di-

agram, located on the blower compartment door, for further

details of 115 Volt and 24 Volt wiring.

Thermostat Wiring Diagrams

Y/Y1

ROOM THERMOSTAT

INTEGRATED FURNACE

CONTROL MODULE

REMOTE COOLING UNIT

(SINGLE STAGE)

Thermostat - Single-Stage Heating with Single-Stage Cooling

Figure 11

Y1C

Y/Y1

ROOM THERMOSTAT

INTEGRATED FURNACE

CONTROL MODULE

REMOTE COOLING UNIT

(TWO STAGE)

Thermostat - Single-Stage Heating with Two-Stage Cooling

Figure 12

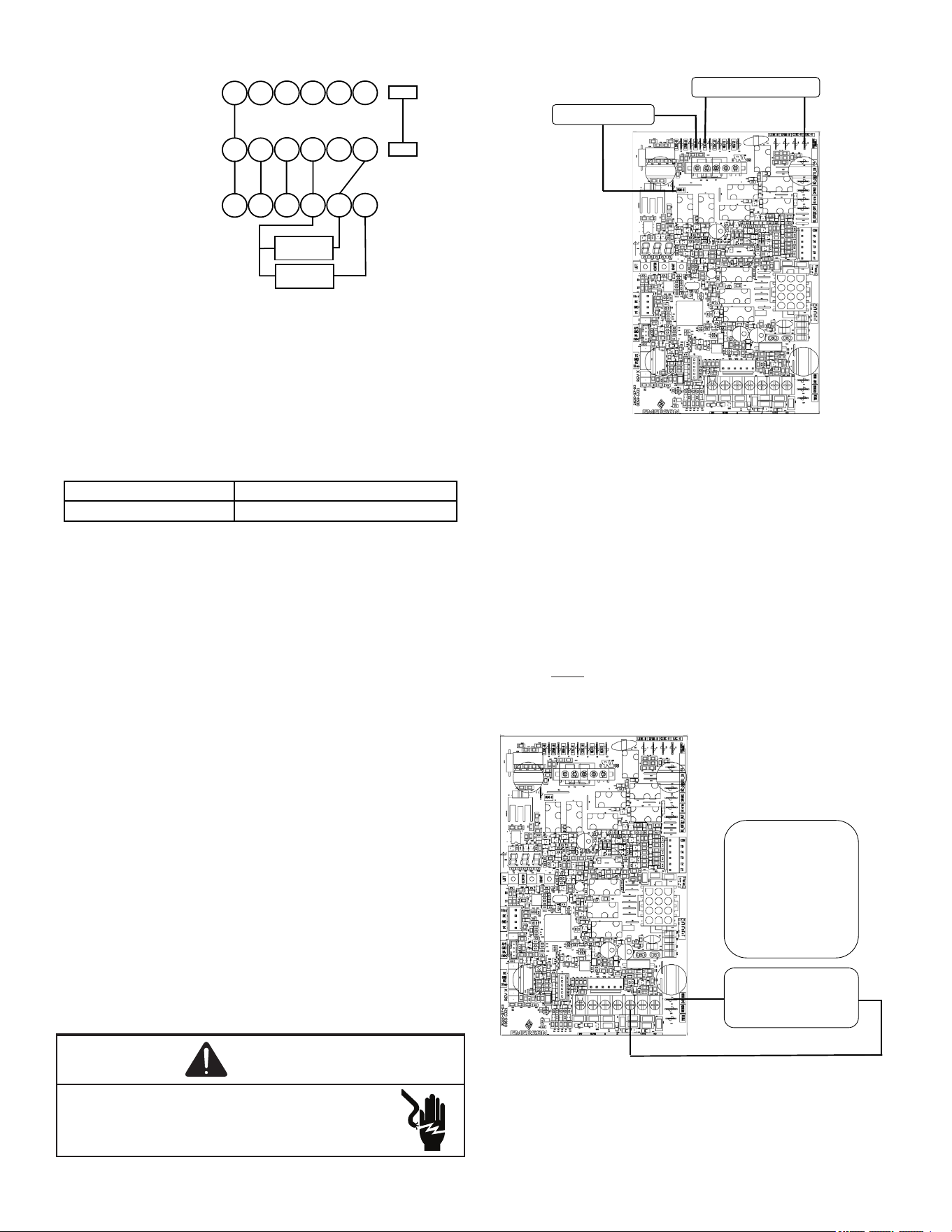

Fossil Fuel Applications

This furnace can be used in conjunction with a heat pump

in a fossil fuel application. A fossil fuel application refers to

a combined gas furnace and heat pump installation which

uses an outdoor temperature sensor to determine the most

cost e󰀩cient means of heating (heat pump or gas furnace).

A heat pump thermostat is required to properly use a sin-

gle-stage furnace in conjunction with a heat pump. Refer to

the fossil fuel kit installation instructions for additional ther-

mostat requirements.

Strictly follow the wiring guidelines in the fossil fuel kit instal-

lation instructions. All furnace connections must be made

to the furnace two-stage integrated control module and the

“FURNACE” terminal strip on the fossil fuel control board.

Twinning

Two furnaces of the same model may be twinned. The in-

tegrated control board has a 3/16” terminal labeled “TWIN”

located beside the low voltage thermostat connection strip.

Twinning allows simultaneous operation of two furnaces and

forces the indoor blower motors of each furnace to operate

synchronously into a common duct system. Using the twin-

ning function will require only eld installed wiring with no

external kits or parts. The staging and speed tap options

must be set the same on both furnaces.

NOTE: Each furnace must be connected to it’s own 115 VAC

power supply. The L1 connection to each furnace must be in

phase (connected to circuit breakers on the same 115 VAC

service panel phase leg). To verify that the furnaces are in

phase, check from L1 to L1 on each furnace with a voltme-

ter. If the furnaces are in phase, the voltage between both

furnaces will be ZERO.

ROOM THERMOSTAT

Y/Y1

TWIN

COND UNIT

CONTACTOR

COND UNIT

CONTACTOR

FURNACE 1

FURNACE 2

Figure 13

115 Volt Line Connection of Accessories (Humidifi-

er and Electronic Air Cleaner)

The furnace integrated control module is equipped with line

voltage accessory terminals for controlling power to an op-

tional eld-supplied humidier and/or electronic air cleaner.

The accessory load specications are noted in the chart:

Humidifier

1.0 Amp maximum at 120 VAC

Electronic Air Cleaner

1.0 Amp maximum at 120 VAC

Turn OFF power to the furnace before installing any acces-

sories. Follow the humidier or air cleaner manufacturers’ in-

structions for locating, mounting, grounding, and controlling

these accessories. Accessory wiring connections are to be

made through the 1/4” quick connect terminals provided on

the furnace integrated control module. The humidier and

electronic air cleaner hot terminals are identied as HUM H

and EAC H. The humidier and electronic air cleaner neutral

terminals are identied as NEUTRAL. All eld wiring must

conform to applicable codes. Connections should be made

as shown.

If it is necessary for the installer to supply additional line

voltage wiring to the inside of the furnace, the wiring must

conform to all local codes, and have a minimum temperature

rating of 105°C. All line voltage wire splices must be made

inside the furnace junction box.

The integrated control module humidier terminal (HUM

H) is energized with 115 volts whenever the induced draft

blower is energized. The integrated control module electron-

ic air cleaner terminal (EAC H) is energized with 115 volts

whenever the circulator blower is energized. This terminal

can also be used to provide 115 volt power to a humidier

transformer. The remaining primary transformer wire would

be connected to the Line N on the control board.

WARNING

HIGH VOLTAGE!

To avoid personal injury or death due to electri-

cal shock, disconnect electrical power before

servicing or changing any electrical wiring.

115 VAC EAC

115 VAC HUM

W R G C Y

Accessories - Accessories Wiring

Figure 14

Low Voltage Humidifier

The furnace integrated control module is equipped with

a low voltage terminal for providing power to an optional

eld-supplied 24 volt humidier. The 24V HUM terminal is

energized any time the draft inducer is powered. See con-

nection diagram below.

NOTE: This is a 24 volt circuit only, the common connec-

tion must be on C terminal of the low voltage terminal strip

(where thermostat wires are connected). Wiring for this cir-

cuit must NOT be connected to the line N location where line

voltage neutral wires are connected.

24 VOLT HUM. &

HUMIDISTAT

W R G C Y

24V HUM Terminal is

energized when pressure

switch is closed

24 Volt Humidier Connection

Figure 15

Furnace Startup

1. Close the manual gas shuto󰀨 valve external to the

furnace.

2. Turn o󰀨 the electrical power to the furnace.

3. Set the room thermostat to the lowest possible setting.

4. Remove the burner compartment door.

NOTE: This furnace is equipped with an ignition device

which automatically lights the burner. Do not try to light the

burner by hand.

5. Move the furnace gas valve manual control to the OFF

position.

6. Wait ve minutes then smell for gas. Be sure check near

the oor as some types of gas are heavier than air.

7. If you smell gas after ve minutes, immediately follow

the safety instructions in the Safety Considerations on

page 2 of this manual. If you do not smell gas after ve

minutes, move the furnace gas valve manual control to

the ON position.

8. Replace the burner compartment door.

9. Open the manual gas shuto󰀨 valve external to the

furnace.

10. Turn on the electrical power to the furnace.

11. Adjust the thermostat to a setting above room

temperature.

12. After the burners are lit, set the thermostat to desired

temperature.

Gas Heat Sequence of Operation

Call for Heat

• On a call for heat, the thermostat contacts close & the

control board receives 24 VAC on the W terminal.

• The control board microcomputer runs its self-check

routine.

• The control veries the limit switch is closed (24 VAC on

Pin 8 of the 12 Pin connector).

• The control veries that pressure switch circuit is open

(0 VAC on Pin 5).

• The control module performs a gas valve circuitry check

to verify gas valve relay state and presence of voltage

at the valve.

• The system will energize the Induced draft blower.

• The pre-purge period begins once the pressure switch

is detected closed (24 VAC on Pin 5).

• After the completion of pre-purge, the control will

energize the igniter.

• After completion of the ignitor warm-up period:

• The gas valve is energized.

• The ignitor is de-energized as soon as ame is sensed.

• After 30 seconds the indoor blower is energized on

heating speed.

• When the thermostat is satised:

• The gas valve is de-energized.

• The inducer remains energized for the post purge period

(15 seconds).

• The indoor blower runs for the selected o󰀨 delay period

(90 seconds by default, adjustable from 30 – 180

seconds).

Heating Mode Speed Selection

To change the main blower speed in HEATING mode, follow

the following steps:

1. Press left or right button till LED displays “gA1 “(for single

stage HEATING). Press center button and LED will

display the selected speed number as Fxx (xx: Blower

speed number).

2. The control shall rotate available speed number every

time Left/Right switches are pressed. Table below shows

the available speeds for Low & High heat mode.

3. When the center switch is pressed, the current displayed

speed shall be selected, and control shall apply the

newly selected speed in next heating call.

NOTE: Always refer to the Heating Chart to choose from

available heating speeds

THERMOSTAT CALL AVAILABLE SPEEDS

W/W1

F01

F03

F04

F02 (DEFAULT)

Heating Speed Table for 1 Stage IFC

Continuous Fan Mode Speed Selection

To change the main blower speed in circulation mode, follow

the following steps:

1. Press the left or right switch until LED displays “FSd”.

Press the center switch and LED will display the selected

speed number as Fxx (xx: Blower speed number from 1

to 9). F01 is the default speed for circulation.

2. The control will rotate available speed number every

time left/right switches are pressed. All 9 speeds are

available for circulation.

3. When the center switch is pressed, the current displayed

speed will be selected, and control will immediately apply

that speed setting.

THERMOSTAT

CALL

AVAILABLE

SPEEDS

F01

F02

F03

(DEFAULT)

F04

F05

F06

F07

F08

F09

Circulation Speed Table

Cooling Mode Sequence of Operation

Low Stage Cooling Mode Sequence:

On a call for low stage cooling, the Y/Y1 or Y/Y1 and G ther-

mostat contacts close signaling the furnace control board

with 24 VAC on Y/Y1 or Y/Y1 and G terminals.

• The 7-Segment will display the cool mode:1 A C

• The compressor and condenser fan are energized.

• The circulator fan is energized at low cool speed after

a cool on delay. The electronic air cleaner will also be

energized.

• After the thermostat is satised, the compressor is de-

energized and the Cool Mode Fan O󰀨 Delay period begins.

• Following the Cool Mode Fan O󰀨 Delay period, the cool

circulator and air cleaner relay are de-energized.

2nd Stage Cooling Mode Sequence:

On a call for 2nd stage cooling, the Y2 or Y2 and G thermo-

stat contacts close signaling the furnace control board with

24 VAC on Y2 or Y2 and G terminals.

• The 7-Segment will display the cool mode: 2 A C

• The compressor and condenser fan are energized.

• The circulator fan is energized at cool speed after a

cool on delay. The electronic air cleaner will also be

energized.

• After the thermostat is satised, the compressor is

de-energized and the Cool Mode Fan O󰀨 Delay period

begins.

• Following the Cool Mode Fan O󰀨 Delay period, the cool

circulator and air cleaner relay are de-energized

Cooling Mode Speed Selection

To change the main blower speed in COOLING mode, follow

the following steps:

1. Press the left or right switch until LED displays “AC1

“(for single stage COOLING) or “AC2 “(for two-stage

COOLING). Press the center switch and LED will display

the selected speed number as Fxx (xx: Blower speed

number from 1 to 9).

2. The control will rotate available speed number every time

left/right switches are pressed. All 9 speeds are available

for both Single and Two Stage cooling.

3. When the center switch is pressed, the current displayed

speed will be selected, and control will apply the newly

selected speed in next cooling call.



THERMOSTATCALL AVAILABLESPEEDS



Y/Y1

F01

F02

F03

F04(DEFAULT)

F05

F06

F07

F08

F09





Single-Stage Cooling Speed Table for 2 Stage IFC

THERMOSTATCALL AVAILABLESPEEDS



Y2

F01

F02

F03

F04

F05(DEFAULT)

F06

F07

F08

F09



Two-Stage Cooling Speed Table for 2 Stage IFC

Furnace Shutdown

1. Set the thermostat to the lowest setting. The integrated

control will close the gas valve and extinguish ame.

Following a 15 second delay, the induced draft blower

will be de-energized. After the blower o󰀨 delay time

expires, the blower de-energizes.

2. Remove the burner compartment door and move the

furnace gas valve manual control to the OFF position.

3. Close the manual gas shuto󰀨 valve external to the

furnace.

4. Replace the burner compartment door.

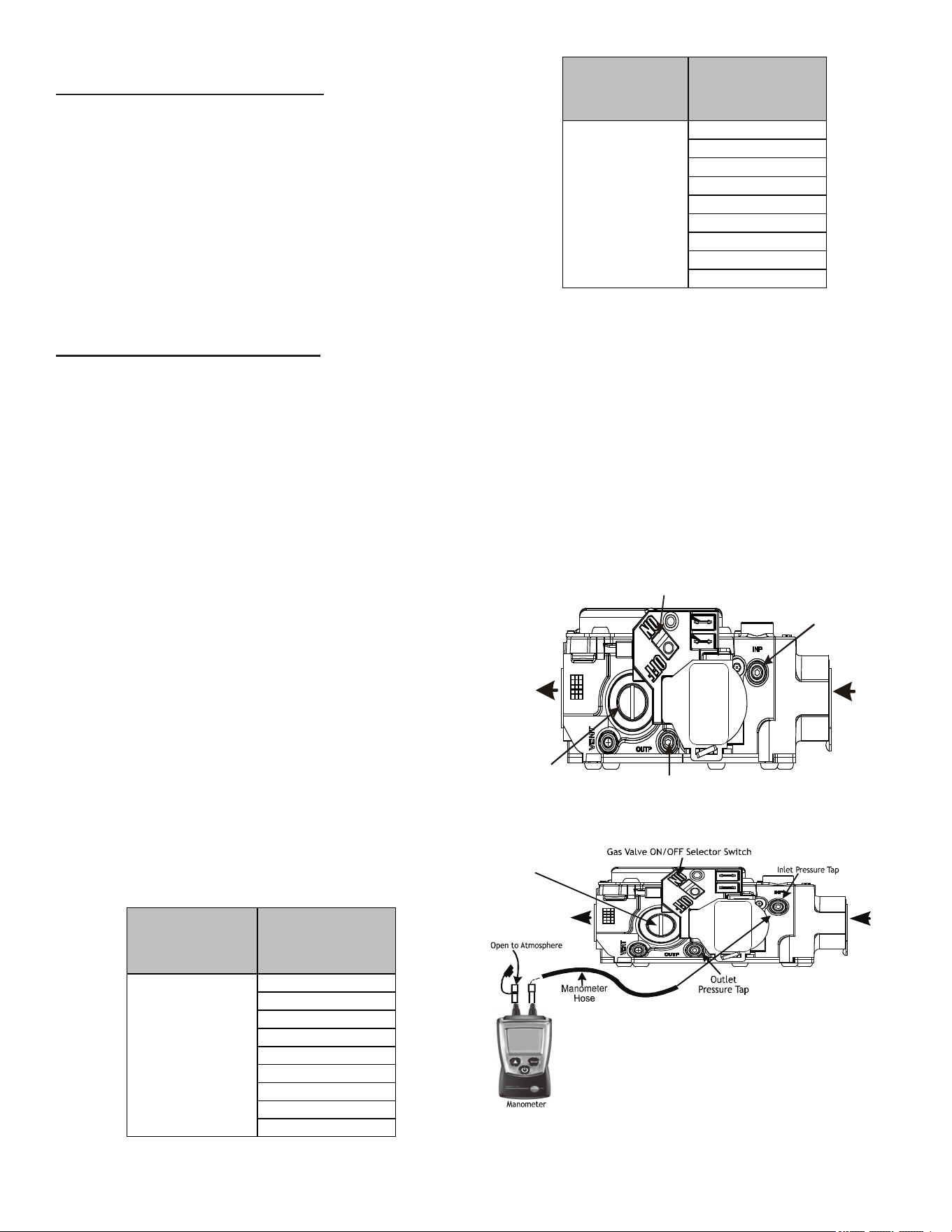

Gas Supply Pressure Measurement

OU TLET

INLET

Gas Valve ON/OFF Selector Switch

Outlet Pressure

Inlet Pressure

Regulator

Cover Screw

White-Rogers Model 36J22Y-204

Figure 16

.

Regulator Cover

Screw

White-Rogers Model 36J22Y-204 Connected to Manometer

Figure 17

Natural Gas Minimum: 4.5" w.c. Maximum: 10.0" w.c.

Propane Gas Minimum: 11.0" w.c. Maximum: 13.0" w.c.

INLET GAS SUPPLY PRESSURE

CAUTION

To prevent unreliable operation or equipment damage, the gas

manifold pressure must be as specified on the unit rating plate

with all other household gas fired appliances operating.

The line pressure supplied to the gas valve must be within

the range specied below. The supply pressure can be mea-

sured at the gas valve inlet pressure tap or at a hose tting

installed in the gas piping drip leg. The supply pressure must

be measured with the burners operating. To measure the

gas supply pressure, use the following procedure.

1. Turn OFF gas to furnace at the manual gas shuto󰀨 valve

external to the furnace.

2. Connect a calibrated manometer (or appropriate gas

pressure gauge) at either the gas valve inlet pressure

tap or the gas piping drip leg. See White-Rodgers 36J54

gas valve (Figure 17) to locate the inlet pressure tap.

NOTE: If using the inlet pressure tap on the White-Rodgers

36J54 gas valve, then use the 36G/J Valve Pressure Check

Kit, Part No. 0151K00000S.

3. Turn ON the gas supply and operate the furnace and

all other gas consuming appliances on the same gas

supply line.

4. Measure furnace gas supply pressure with burners ring.

Supply pressure must be within the range specied in

the Inlet Gas Supply Pressure table.

If supply pressure di󰀨ers from table, make the necessary

adjustments to pressure regulator, gas piping size, etc., and/

or consult with local gas utility.

5. Turn OFF gas to furnace at the manual shuto󰀨 valve and

disconnect manometer. Reinstall plug before turning on

gas to furnace.

6. Turn OFF any unnecessary gas appliances stated in

step three.

Gas Manifold Pressure Measurement

and Adjustment

CAUTION

To prevent unreliable operation or equipment damage, the

gas manifold pressure must be as specified on the unit rating

plate. Only minor adjustments should be made by adjusting

the gas valve pressure regulator.

Only small variations in gas pressure should be made by

adjusting the gas valve pressure regulator. The manifold

pressure must be measured with the burners operating. To

measure and adjust the manifold pressure, use the following

procedure.

1. Turn OFF gas to furnace at the manual gas shuto󰀨 valve

external to the furnace.

2. Turn o󰀨 all electrical power to the system.

3. Outlet pressure tap connections:

White-Rodgers 36J54 valve: Back outlet pressure

test screw (inlet/outlet pressure tap) out one turn

(counterclockwise, not more than one turn).

4. Attach a hose and manometer to outlet pressure tap.

5. Turn ON the gas supply.

.

Measuring Inlet Gas Pressure (Alt. Method)

Figure 18

NOTE: When converting from natural gas to L.P. consult

your distributor for proper conversion kit.

Range Nominal

High Stage 3.2 - 3.8" w.c. 3.5" w.c.

High Stage 9.7 - 10.3" w.c. 10.0" w.c.

Manifold Gas Pressure

Gas

Natural

Propane

Airflow Tables

0.1

0.2

0.3

0.4

0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01

658

585

545

495

444 390 332 151

F02

749 697 652 607

554 509 459 406

F03

925

881 840 800 760 721 681 645

F04^

882

841

800

760

719 678 641 602

F05

1330 1295 1273 1251 1223 1195 1168 1142

F06

1130

1090

1059

1022

991 957 926 895

F07

1158

1113

1090

1057

1024 996 964 935

F08

1270 1235 1208 1179 1147 1119 1088 1060

F09

1417

1380

1359

1336

1314 1288 1261 1238

F01

659 599 542 490 437 383 320 N/A

F02

1268 1221 1188 1154

1122 1091 1060 1029

F03

1087

1044 1008 973 938 905 871 841

F04^

1118

1070

1033

997

963 929 896 865

F05

1308 1262 1224 1197 1167 1141 1117 1089

F06

868

823

780

741

699 662 624 584

F07

922

877

835

795

757 718 679 642

F08

1382 1341 1311 1291 1263 1234 1206 1177

F09

1492

1448

1409

1381

1354 1332 1310 1288

F01

720 660 614 542 468 413 359 313

F02

1289 1260 1232 1194 1161 1125 1087 1073

F03

1125

1089

1052

1013

973 947 909 863

F04^

1252

1198

1153

1110

1069 1028 990 953

F05

922 872 830 786 736 683 616 565

F06

1146 1113 1076 1039 1002 969 933 891

F07

1370

1345

1317

1286

1260 1224 1187 1168

F08

1413 1386 1360 1330 1302 1270 1242 1211

F09

1544

1500

1459

1419

1387 1349 1317 1286

F01

764 695 630 559 485 415 358 N/A

F02

1287

1235

1191 1147 1104 1062 1020 979

F03

1339

1301

1258

1217

1174 1131 1090 1048

F04^

1396

1346

1298

1257

1217 1175 1135 1098

F05

1185 1135 1088 1040 992 947 901 855

F06

1500

1460

1420

1360

1380 1294 1256 1219

F07

1591 1539 1493 1454 1416 1379 1347 1311

F08 1675 1622 1583 1545 1510 1474 1440 1402

F09 1790 1741 1701 1668 1631 1599 1567 1532

F01 710 646 580 515 432 367 314 274

F02 1298 1255 1216 1178 1140 1102 1067 1028

F03 1209 1166 1124 1083 1045 1005 964 923

F04^ 1138 1091 1045 1001 959 920 876 832

F05 1391 1352 1314 1278 1241 1209 1175 1140

F06 977 931 880 836 785 734 683 626

F07 1036 985 940 895 848 799 751 705

F08 1456 1414 1376 1341 1302 1270 1238 1200

F09 1533 1488 1452 1415 1383 1350 1317 1286

F01 841 657 595 522 439 367 315 N/A

F02 1141 1089 1045 1001 958 914 869 823

F03 1311 1267 1226 1189 1150 1114 1072 1034

F04^ 1395 1347 1309 1270 1233 1199 1164 1125

F05 1490 1447 1407 1373 1336 1303 1269 1237

F06 1553 1510 1469 1435 1401 1368 1335 1300

F07 1593 1548 1508 1474 1440 1409 1376 1343

F08 1776 1735 1695 1661 1628 1601 1570 1542

F09 1853 1812 1773 1739 1708 1679 1650 1623

F01 831 750 671 588 501 405 348 300

F02 1214 1158 1103 1045 989 936 883 823

F03 1303 1249 1191 1136 1081 1028 974 928

F04^ 1426 1375 1324 1277 1229 1177 1124 1078

F05 1518 1465 1418 1372 1328 1284 1237 1195

F06 1588 1539 1494 1447 1401 1358 1313 1267

F07 1710 1666 1632 1595 1554 1512 1473 1431

F08 1785 1751 1717 1675 1639 1596 1557 1516

F09 1845 1805 1771 1733 1695 1655 1618 1576

F01 837 752 671 576 501 426 361 315

F02 1316 1270 1218 1166 1114 1061 1000 962

F03 1353 1323 1286 1235 1183 1131 1085 1040

F04^ 1587 1544 1506 1459 1416 1372 1323 1281

F05 1731 1673 1632 1587 1546 1506 1463 1421

F06 1794 1744 1709 1671 1632 1591 1555 1513

F07 1861 1805 1761 1720 1681 1642 1603 1565

F08 1910 1873 1839 1798 1761 1723 1686 1648

F09 2110 2055 2035 2003 1973 1946 1907 1890

F01 802 724 637 551 468 389 342 294

F02 1405 1356 1308 1262 1210 1182 1155 1102

F03 1574 1531 1484 1440 1392 1357 1306 1256

F04^ 1619 1575 1526 1489 1446 1404 1355 1313

F05 1688 1641 1600 1557 1513 1477 1428 1381

F06 1811 1769 1730 1686 1649 1610 1572 1525

F07 1857 1812 1774

1733 1697 1662 1622 1586

F08 1892 1850 1805 1774 1735 1692 1658 1621

F09 2116 2073 2039 2005 1981 1945 1909 1879

F01 851 774 692 615 535 470 411 359

F02 1677 1629 1583 1540 1498 1449 1399 1349

F03 1537 1489 1444 1404 1365 1322 1272 1211

F04^ 1416 1365 1315 1267 1220 1163 1106 1048

F05 1154 1098 1043 983 932 874 819 755

F06 1806 1764 1729 1688 1654 1615 1578 1535

F07 1869 1816 1773 1731 1693 1661 1629 1589

F08 1947 1903 1865 1833 1802 1769 1743 1708

F09 2107 2066 2030 1996 1963 1932 1899 1867

*M9S801205D*

Y/Y1

NOTE:

^ Default Speed

Y/Y1

*M9S800803B*

Y/Y1

*M9S800804B*

Y/Y1

LOW STAGE COOLING AIFLOW

*M9S800603A*

Y/Y1

*M9S800603B*

Y/Y1

*M9S800604B*

Y/Y1

MODEL

THERMOSTAT

CALL

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

*M9S800403A*

Y/Y1

*M9S800804C*

*M9S800805C*

*M9S801005C*

GM9S80

Airflow Tables

GM9S80

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01 658 585 545 495 444 390 332 151

F02 749 697 652 607 554 509 459 406

F03 925 881 840 800 760 721 681 645

F04 882 841 800 760 719 678 641 602

F05^ 1330 1295 1273 1251 1223 1195 1168 1142

F06 1130 1090 1059 1022 991 957 926 895

F07 1158 1113 1090 1057 1024 996 964 935

F08 1270 1235 1208 1179 1147 1119 1088 1060

F09 1417 1380 1359 1336 1314 1288 1261 1238

F01 659 599 542 490 437 383 320 N/A

F02 1268 1221 1188 1154 1122 1091 1060 1029

F03 1087 1044 1008 973 938 905 871 841

F04 1118 1070 1033 997 963 929 896 865

F05^ 1308 1262 1224 1197 1167 1141 1117 1089

F06 868 823 780 741 699 662 624 584

F07 922 877 835 795 757 718 679 642

F08 1382 1341 1311 1291 1263 1234 1206 1177

F09 1492 1448 1409 1381 1354 1332 1310 1288

F01 720 660 614 542 468 413 359 313

F02 1289 1260 1232 1194 1161 1125 1087 1073

F03 1125 1089 1052 1013 973 947 909 863

F04 1252 1198 1153 1110 1069 1028 990 953

F05^ 922 872 830 786 736 683 616 565

F06 1146 1113 1076 1039 1002 969 933 891

F07 1370 1345 1317 1286 1260 1224 1187 1168

F08 1413 1386 1360 1330 1302 1270 1242 1211

F09 1544 1500 1459 1419 1387 1349 1317 1286

F01 764 695 630 559 485 415 358 N/A

F02 1287 1235 1191 1147 1104 1062 1020 979

F03 1339 1301 1258 1217 1174 1131 1090 1048

F04 1396 1346 1298 1257 1217 1175 1135 1098

F05^ 1185 1135 1088 1040 992 947 901 855

F06 1500 1460 1420 1360 1380 1294 1256 1219

F07 1591 1539 1493 1454 1416 1379 1347 1311

F08 1675 1622 1583 1545 1510 1474 1440 1402

F09 1790 1741 1701 1668 1631 1599 1567 1532

F01 710 646 580 515 432 367 314 274

F02 1298 1255 1216 1178 1140 1102 1067 1028

F03 1209 1166 1124 1083 1045 1005 964 923

F04 1138 1091 1045 1001 959 920 876 832

F05^ 1391 1352 1314 1278 1241 1209 1175 1140

F06 977 931 880 836 785 734 683 626

F07 1036 985 940 895 848

799 751 705

F08 1456 1414 1376 1341 1302 1270 1238 1200

F09 1533 1488 1452 1415 1383 1350 1317 1286

F01 841 657 595 522 439 367 315 N/A

F02 1141 1089 1045 1001 958 914 869 823

F03 1311 1267 1226 1189 1150 1114 1072 1034

F04 1395 1347 1309 1270 1233 1199 1164 1125

F05^ 1490 1447 1407 1373 1336 1303 1269 1237

F06 1553 1510 1469 1435 1401 1368 1335 1300

F07 1593 1548 1508 1474 1440 1409 1376 1343

F08 1776 1735 1695 1661 1628 1601 1570 1542

F09 1853 1812 1773 1739 1708 1679 1650 1623

F01 831 750 671 588 501 405 348 300

F02 1214 1158 1103 1045 989 936 883 823

F03 1303 1249 1191 1136 1081 1028 974 928

F04 1426 1375 1324 1277 1229 1177 1124 1078

F05^ 1518 1465 1418 1372 1328 1284 1237 1195

F06 1588 1539 1494 1447 1401 1358 1313 1267

F07 1710 1666 1632 1595 1554 1512 1473 1431

F08 1785 1751 1717 1675 1639 1596 1557 1516

F09 1845 1805 1771 1733 1695 1655 1618 1576

F01 837 752 671 576 501 426 361 315

F02 1316 1270 1218 1166 1114 1061 1000 962

F03 1353 1323 1286 1235 1183 1131 1085 1040

F04 1587 1544 1506 1459 1416 1372 1323 1281

F05^ 1731 1673 1632 1587 1546 1506 1463 1421

F06 1794 1744 1709 1671 1632 1591 1555 1513

F07 1861 1805 1761 1720 1681 1642 1603 1565

F08 1910 1873 1839 1798 1761 1723 1686 1648

F09 2110 2055 2035 2003 1973 1946 1907 1890

F01 802 724 637 551 468 389 342 294

F02 1405 1356 1308 1262 1210 1182 1155 1102

F03 1574 1531 1484 1440 1392 1357 1306 1256

F04 1619 1575 1526 1489 1446 1404 1355 1313

F05^ 1688 1641 1600 1557 1513 1477 1428 1381

F06 1811 1769 1730 1686 1649 1610 1572 1525

F07 1857 1812 1774 1733 1697 1662 1622 1586

F08 1892 1850 1805 1774 1735 1692 1658 1621

F09 2116 2073 2039 2005 1981 1945 1909 1879

F01 851 774 692 615 535 470 411 359

F02 1677 1629 1583 1540 1498 1449 1399 1349

F03 1537 1489 1444 1404 1365 1322 1272 1211

F04 1416 1365 1315 1267 1220 1163 1106 1048

F05^ 1154 1098 1043 983 932 874 819 755

F06 1806 1764 1729 1688 1654 1615 1578 1535

F07

1869 1816 1773 1731 1693 1661 1629 1589

F08 1947 1903 1865 1833 1802 1769 1743 1708

F09 2107 2066 2030 1996 1963 1932 1899 1867

*M9S800603B*

*M9S800804C*

*M9S800805C*

*M9S801005C*

*M9S800604B*

*M9S800803B*

*M9S800804B*

*M9S801205D*

NOTE:

^ Default Speed

HIGH STAGE COOLING AIFLOW

MODEL

THERMOSTAT

CALL

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

*M9S800403A*

*M9S800603A*

Airflow Tables

GM9S80

0.1

0.2

0.3

0.4

0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01 658 585 545 495 444 390 332 151

F02 749 697 652 607 554 509 459 406

F03 925 881 840 800 760 721 681 645

F04 882 841 800 760 719 678 641 602

F05 1330 1295 1273 1251 1223 1195 1168 1142

F06 1130 1090 1059 1022 991 957 926 895

F07 1158 1113 1090 1057 1024 996 964 935

F08 1270 1235 1208 1179 1147 1119 1088 1060

F09 1417 1380 1359 1336 1314 1288 1261 1238

F01 659 599 542 490 437 383 320 N/A

F02 1268 1221 1188 1154 1122 1091 1060 1029

F03 1087 1044 1008 973 938 905 871 841

F04 1118 1070 1033 997 963 929 896 865

F05 1308 1262 1224 1197 1167 1141 1117 1089

F06 868 823 780 741 699 662 624 584

F07 922 877 835 795 757 718 679 642

F08 1382 1341 1311 1291 1263 1234 1206 1177

F09 1492 1448 1409 1381 1354 1332 1310 1288

F01 720 660 614 542 468 413 359 313

F02 1289 1260 1232 1194 1161 1125 1087 1073

F03 1125 1089 1052 1013 973 947 909 863

F04 1252 1198 1153 1110 1069 1028 990 953

F05 922 872 830 786 736 683 616 565

F06 1146 1113 1076 1039 1002 969 933 891

F07 1370 1345 1317 1286 1260 1224 1187 1168

F08 1413 1386 1360 1330 1302 1270 1242 1211

F09 1544 1500 1459 1419 1387 1349 1317 1286

F01 764 695 630 559 485 415 358 N/A

F02 1287 1235 1191 1147 1104 1062 1020 979

F03 1339 1301 1258 1217 1174 1131 1090 1048

F04 1396 1346 1298 1257 1217 1175 1135 1098

F05 1185 1135 1088 1040 992 947 901 855

F06 1500 1460 1420 1360 1380 1294 1256 1219

F07 1591 1539 1493 1454 1416 1379 1347 1311

F08 1675 1622 1583 1545 1510 1474 1440 1402

F09 1790 1741 1701 1668 1631 1599 1567 1532

F01 710 646 580 515 432 367 314 274

F02 1298 1255 1216 1178 1140 1102 1067 1028

F03 1209 1166 1124 1083 1045 1005 964 923

F04 1138 1091 1045 1001 959 920 876 832

F05 1391 1352 1314 1278 1241 1209 1175 1140

F06 977 931 880 836 785 734 683 626

F07 1036 985 940 895 848

799 751 705

F08 1456 1414 1376 1341 1302 1270 1238 1200

F09 1533 1488 1452 1415 1383 1350 1317 1286

F01 841 657 595 522 439 367 315 N/A

F02 1141 1089 1045 1001 958 914 869 823

F03 1311 1267 1226 1189 1150 1114 1072 1034

F04 1395 1347 1309 1270 1233 1199 1164 1125

F05 1490 1447 1407 1373 1336 1303 1269 1237

F06 1553 1510 1469 1435 1401 1368 1335 1300

F07 1593 1548 1508 1474 1440 1409 1376 1343

F08 1776 1735 1695 1661 1628 1601 1570 1542

F09 1853 1812 1773 1739 1708 1679 1650 1623

F01 831 750 671 588 501 405 348 300

F02 1214 1158 1103 1045 989 936 883 823

F03 1303 1249 1191 1136 1081 1028 974 928

F04 1426 1375 1324 1277 1229 1177 1124 1078

F05 1518 1465 1418 1372 1328 1284 1237 1195

F06 1588 1539 1494 1447 1401 1358 1313 1267

F07 1710 1666 1632 1595 1554 1512 1473 1431

F08 1785 1751 1717 1675 1639 1596 1557 1516

F09 1845 1805 1771 1733 1695 1655 1618 1576

F01 837 752 671 576 501 426 361 315

F02 1316 1270 1218 1166 1114 1061 1000 962

F03 1353 1323 1286 1235 1183 1131 1085 1040

F04 1587 1544 1506 1459 1416 1372 1323 1281

F05 1731 1673 1632 1587 1546 1506 1463 1421

F06 1794 1744 1709 1671 1632 1591 1555 1513

F07 1861 1805 1761 1720 1681 1642 1603 1565

F08 1910 1873 1839 1798 1761 1723 1686 1648

F09 2110 2055 2035 2003 1973 1946 1907 1890

F01 802 724 637 551 468 389 342 294

F02 1405 1356 1308 1262 1210 1182 1155 1102

F03 1574 1531 1484 1440 1392 1357 1306 1256

F04 1619 1575 1526 1489 1446 1404 1355 1313

F05 1688 1641 1600 1557 1513 1477 1428 1381

F06 1811 1769 1730 1686 1649 1610 1572 1525

F07 1857 1812 1774 1733 1697 1662 1622 1586

F08 1892 1850 1805 1774 1735 1692 1658 1621

F09 2116 2073 2039 2005 1981 1945 1909 1879

F01 851 774 692 615 535 470 411 359

F02 1677 1629 1583 1540 1498 1449 1399 1349

F03 1537 1489 1444 1404 1365 1322 1272 1211

F04 1416 1365 1315 1267 1220 1163 1106 1048

F05 1154 1098 1043 983 932 874 819 755

F06 1806 1764 1729 1688 1654 1615 1578 1535

F07

1869 1816 1773 1731 1693 1661 1629 1589

F08 1947 1903 1865 1833 1802 1769 1743 1708

F09 2107 2066 2030 1996 1963 1932 1899 1867

CIRCULATION AIRFLOW

*M9S800604B*

*M9S800803B*

*M9S800804B*

*M9S800804C*

*M9S800603A*

*M9S800603B*

*M9S800805C*

*M9S801005C*

*M9S801205D*

MODEL

THERMOSTAT

CALL

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

*M9S800403A*

Airflow Tables

GM9S80

0.6 0.7 0.8

CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM

F01^^ 658 N/A 585 N/A 545 N/A 495 N/A 444 N/A 390 332 151

F02^ 749 40 697 42 652 45 607 49 554 53 509 459 406

F03 925 32 881 34 840 35 800 37 760 39 721 681 645

F04 882 34 841 35 800 37 760 39 719 41 678 641 602

F01^^

659 N/A 599 N/A 542 N/A 490 N/A 437 N/A 383 320 N/A

F02^ 1268 35 1221 36 1188 37 1154 38 1122 40 1091 1060 1029

F03 1087 41 1044 43 1008 44 973 46 938 47 905 871 841

F04 1118 40 1070 42 1033 43 997 45 963 46 929 896 865

F01^^

720 N/A 660 N/A 614 N/A 542 N/A 468 N/A 413 359 313

F02^ 1289 34 1260 35 1232 36 1194 37 1161 38 1125 1087 1073

F03 1125 40 1089 41 1052 42 1013 44 973 46 947 909 863

F04 1252 36 1198 37 1153 39 1110 40 1069 42 1028 990 953

F01^^ 764 N/A 695 N/A 630 N/A 559 N/A 485 N/A 415 358 N/A

F02^ 1287 35 1235 36 1191 37 1147 39 1104 40 1062 1020 979

F03 1339 33 1301 34 1258 35 1217 37 1174 38 1131 1090 1048

F04 1396 32 1346 33 1298 34 1257 35 1217 37 1175 1135 1098

F01^^ 710 N/A 646 N/A 580 N/A 515 N/A 432 N/A 367 314 274

F02^ 1298 46 1255 47 1216 49 1178 50 1140 52 1102 1067 1028

F03 1209 49 1166 51 1124 53 1083 55 1045 57 1005 964 923

F04 1138 52 1091 54 1045 57 1001 59 959 62 920 876 832

F01^^

841 N/A 657 N/A 595 N/A 522 N/A 439 N/A 367 315 N/A

F02^ 1141 52 1089 54 1045 57 1001 59 958 62 914 869 823

F03 1311 45 1267 47 1226 48 1189 50 1150 52 1114 1072 1034

F04 1395 42 1347 44 1309 45 1270 47 1233 48 1199 1164 1125

F01^^

831 N/A 750 N/A 671 N/A 588 N/A 501 N/A 405 348 300

F02^ 1214 49 1158 51 1103 54 1045 57 989 60 936 883 823

F03 1303 45 1249 47 1191 50 1136 52 1081 55 1028 974 928

F04 1426 42 1375 43 1324

45 1277 46 1229 48 1177 1124 1078

F01^^

837 N/A 752 N/A 671 N/A 576 N/A 501 N/A 426 361 315

F02^ 1316 45 1270 47 1218 49 1166 51 1114 53 1061 1000 962

F03 1353 44 1323 45 1286 46 1235 48 1183 50 1131 1085 1040

F04 1587 37 1544 38 1506 39 1459 41 1416 42 1372 1323 1281

F01^^

802 N/A 724 N/A 637 N/A 551 N/A 468 N/A 389 342 294

F02^ 1405 53 1356 55 1308 57 1262 59 1210 61 1155 1102 1057

F03 1574 47 1531 48 1484 50 1440 51 1392 53 1357 1306 1256

F04 1619 46 1575 47 1526 49 1489 50 1446 51 1404 1355 1313

F01^^ 851 N/A 774 N/A 692 N/A 615 N/A 535 N/A 470 411 359

F02^ 1677 53 1629 55 1583 56 1540 58 1498 59 1449 1399 1349

F03 1537 58 1489 60 1444 62 1404 63 1365 65 1322 1272 1211

F04^^ 1416 N/A 1365 N/A 1315 N/A 1267 N/A 1220 N/A 1163 1106 1048

20-50

35-65

40-70

W/W1

*M9S800603A*

W/W1

*M9S800603B*

W/W1

*M9S800604B*

W/W1

*M9S800803B*

W/W1

*M9S800804B*

W/W1

TEMP

RANGE

25-55

W/W1

*M9S800403A*

MODEL

THERMOSTAT

CALL

^DEFAULT & RECOMMENDED

^^NOT RECOMMENDED FOR HEATING

NOTE:

HEATING AIFLOW

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

0.1

0.2

0.3

0.4

0.5

*M9S800804C*

W/W1

*M9S800805C*

W/W1

*M9S801005C*

W/W1

*M9S801205D*

Airflow Tables

GC9S80

0.1

0.2 0.3

0.4 0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01

712

663

610 559

514 462 395 337

F02

1120

1081

1053 1022 990 955 918 887

F03

929 891 858

815

772 737 699 664

F04^

1073

1031

1003

969

922 891 854 822

F05

1212

1198

1161 1138 1103 1076 1037 1007

F06

871

830

789 743 702 665 628 583

F07

825

784

741 694 650 609 563 520

F08

1274

1252

1220

1195

1169 1145 1110 1084

F09

1362

1342

1307 1273 1252 1237 1211 1185

F01

706

655

604 555 505 455 395 328

F02

1035

991

951 913 876 844 807 770

F03

932

887

844 806 767 728 689 651

F04^

897

851

808 764 725 686 646 603

F05

1123

1077

1041 1006 973 941 907 875

F06

1155

1113

1074 1039 1006 974 945 913

F07

1255 1214 1181

1147

1116 1087 1056 1028

F08

1388

1331

1298

1266 1235 1207 1179 1151

F09

1421

1380

1348

1318

1289 1262 1233 1207

F01

760 697

636 569

481 402 349 300

F02

1286 1238 1196 1157 1117 1077 1036 998

F03

1393 1348

1308 1270

1230 1196 1158 1123

F04^

1459

1414

1371

1336 1297 1264 1229 1193

F05

1753

1713

1677 1642

1611 1576 1549 1518

F06

1309 1261

1218

1182 1142 1103 1064 1025

F07

1580

1534 1495

1459 1429 1390 1356 1324

F08

1523

1483

1438

1403

1370 1336 1299 1266

F09

1643

1599

1562

1525 1491 1462 1431 1394

F01

1022

813 674

585

511 431 334 282

F02

1453 1407 1332 1259 1190 1143 1064 1003

F03

1176

1105

1020

935

864 797 729 673

F04^

1710

1660

1613

1560 1505 1424 1353 1296

F05

1843

1786 1747

1690

1643 1575 1497 1435

F06

1859 1819 1779 1734 1691 1641 1593 1520

F07

2028 1982

1946

1907 1861 1814 1749 1683

F08

2096

2045

2006

1974

1927 1882 1818 1765

F09

2203

2170 2138

2113

2074 2032 1990 1948

F01

956 777

675 587

468 377 324 296

F02

1460

1404

1350 1299

1251 1203 1150 1098

F03 1561 1499 1441 1385 1336 1289 1243 1197

F04^ 1628 1571 1521 1472 1425 1380 1337 1291

F05 1714 1659 1611 1564 1519 1473 1432 1387

F06 1833 1784 1735 1688 1645 1605 1562 1520

F07 1899 1853 1804 1761 1720 1681 1640 1602

F08 1926 1894 1849 1807 1764 1720 1683 1642

F09 2222 2174 2132 2090 2053 2013 1976 1944

Y/Y1

THERMOSTAT

CALL

LOW STAGE COOLING AIFLOW

MODEL

*C9S801005C*

Y/Y1

*C9S800403A*

*C9S800603A*

*C9S800804B*

*C9S800805C*

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

Y/Y1

NOTE:

^ Default Speed

Airflow Tables

GC9S80

0.1 0.2 0.3

0.4 0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01 712 663 610 559 514 462 395 337

F02 1120 1081 1053 1022 990 955 918 887

F03 929 891 858 815 772 737 699 664

F04 1073 1031 1003 969 922 891 854 822

F05^ 1212 1198 1161 1138 1103 1076 1037 1007

F06 871 830 789 743 702 665 628 583

F07 825 784 741 694 650 609 563 520

F08 1274 1252 1220 1195 1169 1145 1110 1084

F09 1362 1342 1307 1273 1252 1237 1211 1185

F01 706 655 604 555 505 455 395 328

F02 1035 991 951 913 876 844 807 770

F03 932 887 844 806 767 728 689 651

F04 897 851 808 764 725 686 646 603

F05^ 1123 1077 1041 1006 973 941 907 875

F06 1155 1113 1074 1039 1006 974 945 913

F07 1255 1214 1181 1147 1116 1087 1056 1028

F08 1388 1331 1298 1266 1235 1207 1179 1151

F09 1421 1380 1348 1318 1289 1262 1233 1207

F01 760 697 636 569 481 402 349 300

F02 1286 1238 1196 1157 1117 1077 1036 998

F03 1393 1348 1308 1270 1230 1196 1158 1123

F04 1459 1414 1371 1336 1297 1264 1229 1193

F05^ 1753 1713 1677 1642 1611 1576 1549 1518

F06 1309 1261 1218 1182 1142 1103 1064 1025

F07 1580 1534 1495 1459 1429 1390 1356 1324

F08 1523 1483 1438 1403 1370 1336 1299 1266

F09 1643 1599 1562 1525 1491 1462 1431 1394

F01 1022 813 674 585 511 431 334 282

F02 1453 1407 1332 1259 1190 1143 1064 1003

F03 1176 1105 1020 935 864 797 729 673

F04 1710 1660 1613 1560 1505 1424 1353 1296

F05^ 1843 1786 1747 1690 1643 1575 1497 1435

F06 1859 1819 1779 1734 1691 1641 1593 1520

F07 2028 1982 1946 1907 1861 1814 1749 1683

F08 2096 2045 2006 1974 1927 1882 1818 1765

F09 2203 2170 2138 2113 2074 2032 1990 1948

F01 956 777 675 587 468 377 324 296

F02 1460 1404 1350 1299 1251 1203 1150 1098

F03 1561 1499 1441 1385 1336 1289 1243 1197

F04 1628 1571 1521 1472 1425 1380 1337 1291

F05^ 1714 1659 1611 1564 1519 1473 1432 1387

F06 1833 1784 1735 1688 1645 1605 1562 1520

F07 1899 1853 1804 1761 1720

1681 1640 1602

F08 1926 1894 1849 1807 1764 1720 1683 1642

F09 2222 2174 2132 2090 2053 2013 1976 1944

*C9S800603A*

THERMOSTAT

CALL

*C9S800403A*

*C9S800804B*

MODEL

*C9S800805C*

*C9S801005C*

NOTE:

HIGH STAGE COOLING AIFLOW

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

^ Default Speed

Airflow Tables

GC9S80

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

CFM CFM CFM CFM CFM CFM CFM CFM

F01 712 663 610 559 514 462 395 337

F02 1120 1081 1053 1022 990 955 918 887

F03 929 891 858 815 772 737 699 664

F04 1073 1031 1003 969 922 891 854 822

F05 1212 1198 1161 1138 1103 1076 1037 1007

F06 871 830 789 743 702 665 628 583

F07 825 784 741 694 650 609 563 520

F08 1274 1252 1220 1195 1169 1145 1110 1084

F09 1362 1342 1307 1273 1252 1237 1211 1185

F01 706 655 604 555 505 455 395 328

F02 1035 991 951 913 876 844 807 770

F03 932 887 844 806 767 728 689 651

F04 897 851 808 764 725 686 646 603

F05 1123 1077 1041 1006 973 941 907 875

F06 1155 1113 1074 1039 1006 974 945 913

F07 1255 1214 1181 1147 1116 1087 1056 1028

F08 1388 1331 1298 1266 1235 1207 1179 1151

F09 1421 1380 1348 1318 1289 1262 1233 1207

F01 760 697 636 569 481 402 349 300

F02 1286 1238 1196 1157 1117 1077 1036 998

F03 1393 1348 1308 1270 1230 1196 1158 1123

F04 1459 1414 1371 1336 1297 1264 1229 1193

F05 1753 1713 1677 1642 1611 1576 1549 1518

F06 1309 1261 1218 1182 1142 1103 1064 1025

F07 1580 1534 1495 1459 1429 1390 1356 1324

F08 1523 1483 1438 1403 1370 1336 1299 1266

F09 1643 1599 1562 1525 1491 1462 1431 1394

F01 1022 813 674 585 511 431 334 282

F02 1453 1407 1332 1259 1190 1143 1064 1003

F03 1176 1105 1020 935 864 797 729 673

F04 1710 1660 1613 1560 1505 1424 1353 1296

F05 1843 1786 1747 1690 1643 1575 1497 1435

F06 1859 1819 1779 1734 1691 1641 1593 1520

F07 2028 1982 1946 1907 1861 1814 1749 1683

F08 2096 2045 2006 1974 1927 1882 1818 1765

F09 2203 2170 2138 2113 2074 2032 1990 1948

F01 956 777 675 587 468 377 324 296

F02 1460 1404 1350 1299 1251 1203 1150 1098

F03 1561 1499 1441 1385 1336 1289 1243 1197

F04 1628 1571 1521 1472 1425 1380 1337 1291

F05 1714 1659 1611 1564 1519 1473 1432 1387

F06 1833 1784 1735 1688 1645 1605 1562 1520

F07 1899 1853 1804 1761 1720

1681 1640 1602

F08 1926 1894 1849 1807 1764 1720 1683 1642

F09 2222 2174 2132 2090 2053 2013 1976 1944

CIRCULATION AIFLOW

MODEL

THERMOSTAT

CALL

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

*C9S800403A*

*C9S800805C*

*C9S801005C*

*C9S800603A*

*C9S800804B*

Airflow Tables

GC9S80

0.6

0.7

0.8

CFM RISE CFM RISE CFM RISE CFM RISE CFM RISE CFM CFM CFM

F01^^ 712 N/A 663 N/A 610 N/A 559 N/A 514 N/A 462 395 337

F02^ 1120 26 1081 27 1053 28 1022 29 990 30 955 918 887

F03 929 32 891 33 858 35 815 36 772 38 737 699 664

F04 1073 28 1031 29 1003 30 969 31 922 32 891 854 822

F01^^

706 N/A 655 N/A 604 N/A 555 N/A 505 N/A 455 395 328

F02^ 1035 43 991 45 951 47 913 49 876 51 844 807 770

F03 932 48 887 50 844 53 806 55 767 58 728 689 651

F04^^ 897 N/A 851 N/A 808 N/A 764 N/A 725 N/A 686 646 603

F01^^

760 N/A 697 N/A 636 N/A 569 N/A 481 N/A 402 349 300

F02^ 1286 46 1238 48 1196 50 1157 51 1117 53 1077 1036 998

F03 1393 43 1348 44 1308 45 1270 47 1230 48 1196 1158 1123

F04 1459 41 1414 42 1371 43 1336 44 1297 46 1264 1229 1193

F01^^

1022 N/A 813 N/A 674 N/A 585 N/A 511 N/A 431 334 282

F02^ 1453 41 1407 42 1332 45 1259 47 1190 50 1143 1064 1003

F03^^ 1176 N/A 1105 N/A 1020 N/A 935 N/A 864 N/A 797 729 673

F04 1710 35 1660 36 1613 37 1560 38 1505 39 1424 1353 1296

F01^^ 956 N/A 777 N/A 675 N/A 587 N/A 468 N/A 377 324 296

F02^ 1460 51 1404 53 1350 55 1299 57 1251 59 1203 1150 1098

F03 1561 47 1499 49 1441 51 1385 53 1336 55 1289 1243 1197

F04 1628 46 1571 47 1521 49 1472 50 1425 52 1380 1337 1291

^^NOT RECOMMENDED FOR HEATING

W/W1

25-55

W/W1

30-60

NOTE:

^DEFAULT & RECOMMENDED

MODEL

THERMOSTAT

CALL

TAP #

EXTERNAL STATIC PRESSURE, (INCHES WATER COLUMN)

TEMP

RANGE

0.1

0.2

0.3

0.4

0.5

*C9S800403A*

*C9S800603A*

40-70

W/W1

35-65

W/W1

35-65

*C9S800804B*

*C9S800805C*

*C9S801005C*

HEATING AIFLOW

1 Stage Status Codes

Main

Option Menu

Active Alaram menu

  xx

( xx: code numbers )

Last 6 Faults

 xx

( xx: code numbers )

Code Release Number



CR Number

Reset to Factory Default

  yes, no

Blower Speed for Continous Fan Mode

 xx

( xx: Blower Speed Number F01, F02.. )

Blower Speed for 1st Stage

Compressor Mode

 xx

( xx: Blower Speed Number F01, F02.. )

Blower Speed for 2nd Stage

Compressor Mode

 xx

( xx: Blower Speed Number F01, F02.. )

Cool On Delay



Delay, Seconds

Default set at 7 Secs, Adjustments can

be made in 7 Secs increments from 0 to

35 Secs

Cool Off Delay

 

Delay, Seconds

Default set at 65 Secs, Adjustments

can be made in 5 Secs increments from

0 to 120 Secs

Blower Speed for Gas Heat Mode

 xx

( xx: Blower Speed Number F01, F02.. )

Gas Heat On Delay



Delay, Seconds

Default set at 30 Secs, Adjustments

can be made in 5 Secs increments from

5 to 30 Secs

Gas heat Off Delay



Delay, Seconds

Default set at 90 Secs, Adjustments

can be made in 30 Secs increments fro

30 to 180 Secs

Automatic Heat Staging - For Two

Stage Control



no, 10, 20, 30,

60, AUt

Refer to Section " CHANGING

HEATING MODE SETTING"

Menu Description

LED Display

Notes

1 Stage Status Codes Status Menu

Idle



Continous Fan



Compressor Cooling, Low

Stage



Compressor Cooling, High

Stage



Gas heat - Single Stage

Control



OEM test Mode



Mode

Main



1 Stage Troubleshooting Codes

Symptom

LED

Status

Fault Description Corrective Actions

Normal operation   Normal operation None

Locate and correct gas interruption

Replace or realign igniter

Check flame sense signal, clean sensor if coated or

oxidized

Check flue piping for blockage, proper length, elbows, and

termination

Verify proper induced draft blower performance

Pressure switch circuit is closed at start of

heating cycle

Pressure switch contacts sticking

Short in pressure switch circuit wiring

Pressure switch circuit is not closed

Pressure switch hose blocked pinched, or

connected improperly

Inspect flue piping for blockage, proper

length, elbows, and termination

Check induced draft blower performance, correct as

necessary

Incorrect pressure switch set point or

malfunctioning switch contacts

Check pressure switch operation, replace as needed

Loose or improperly connected wiring Tighten or correct wiring connection

Primary limit circuit is open

Check filters and ductwork for blockage Clean filters or

remove obstruction

Insufficient conditioned air over the heat

exchanger

Check circulator blower speed and performance

Blocked filters, restrictive ductwork, improper

circulator blower speed, or failed circulator

blower motor

Correct speed or replace blower motor if necessary

Loose or improperly connected wiring in high

limit circuit

Tighten or correct wiring connection

Flame sensed with no call for heat Correct short at flame sensor or in flame sensor wiring

Short to ground in flame sense circuit

Lingering burner flame Slow closing gas

valve

Open fuse Replace fuse

Short in low voltage wiring Locate and correct short in low voltage wiring

TROUBLESHOOTING CHART

Furnace fails to operate 

Furnace lockout due to an excessive number

of ignition “retries” (3 total)

Failure to establis h flame

Loss of flame after establishment

Furnace fails to operate  Replace low stage pressure switch Repair short in wiring

Induced draft blower runs

continuously with no furnace

operation



Inspect pressure switch hose, repair/replace if necessary

Blocked flue and/or inlet air pi

pe, blocked

drain system or weak induced draft blower

Circulator blower runs

continuously

No furnace operation



Induced draft blower and

circulator blower runs

continuously

No furnace operation



Check for lingering or lazy flame Verify proper operation of

gas valve

No furnace operation 

To View & Clear Fault Codes

• Press either the Left or Right switch until L 6 F is displayed.

• Press the center switch to view stored faults.

• Press and hold the center switch for 5 to 30 seconds.

• All stored faults will be erased, and the display will ash - - - three times and return to L 6 F.

1 Stage Troubleshooting Codes

Symptom

LED

Status

Fault Description Corrective Actions

Flame sense micro amp signal is minimal

Flame sensor is coated/oxidized

Flame sensor incorrectly positioned in burner

fame

Compare current gas pressure to rating plate and adjust

as needed

Problem with igniter circuit

Check and correct wiring from integrated control module to

igniter

Improperly connected or shorted igniter

Poor unit ground

Igniter relay fault on integrated control module

Check igniter output from control, replace if necessary

Polarity of 115 volt AC is reversed Correct polarity, check and correct wiring if necessary

Poor unit ground Verify proper ground, correct if necessary

Gas valve is not energized when it should be Check wiring in gas valve circuit

External Gas Valve Error Replace integrated control board

Gas valve is energized when it should not be Check wiring in gas valve circuit

Internal gas valve error Replace integrated

control board

Furnace fails to operate.

No 115 power to furnace or no 24 volt power

to integrated control module.

Restore high voltage power to furnace and integrated

control module.

Blown fuse or tripped circuit breaker

Correct condition which caused fuse to open, replace fuse

Integrated control module is non- functional

Replace non-functional integrated control module.

Furnace fails to operate 

Grounding fault

Poor neutral connection

Verify neutral wire connection to furnace & continuity to

ground source

Furnace fails to operate  Open roll out switch

Check for correct gas pressure Check for correct burner

alignment

Check for and correct burner restriction

Furnace fails to operate  Ignitor Open

Check for Ignitor wiring.

Replace Damaged Ignitor

Furnace fails to operate



Inducer relay Error Replace integrated control board

Twinning feature not working  TWIN Error

Check for wiring connections.

Replace integrated control board

Furnace fails to operate  Internal Faults or IRQ Loss in Control Board Replace integrated control board

TROUBLESHOOTING CHART

Furnace fails to operate 

Diagnose and replace shorted igniter as needed Verify and

correct unit ground wiring if needed

Normal furnace operation 

Clean flame sensor if coated or oxidized Inspect for proper

flame sensor alignment

Lazy burner flame due to improper gas

pressure or combustion air

Furnace fails to operate 

None

Integrated control module

LED display provides no

signal

Furnace fails to operate 

Furnace fails to operate 

Wiring Diagram

HIGH VOLTAGE!

Disconnect ALL power before servicing or installing this unit. Multiple

power sources may be present. Failure to do so may cause property

damage, personal injury or death.

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

VAC

115

VAC

GRD

INTEGRATED CONTROL MODULE

40 VA

TRANSFORMER

JUNCTION BOX

)

(

BLOWER

CIRCULATOR

CHASSIS

GROUND

ECM MTR

HARNESS

POWER BEFORE

PROPERLY PO

LARIZED

NOTES:

1. SET HEAT ANTICIPATOR ON ROOM THERMOSTAT AT 0.7 AMPS.

2. MANUFACTURER'S SPECIFIED REPLACEMENT PARTS MUST BE USED

WHEN SERVICING.

3. IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE FURNACE

MUST BE REPLACED IT MUST BE REPLACED WITH WIRING MATERIAL

HAVING A TEMPERATURE RATING OF AT LEAST 105

C. USE COPPER

CONDUCTORS ONLY.

4. UNIT MUST BE PERMANENTLY GROUNDED AND CONFORM TO N.E.C.

AND LOCAL CODES.

5. TO RECALL THE LAST 6 FAULTS, MOST RECENT TO LEAST RECENT,

DEPRESS SW ITCH FOR MORE THAN 2 SECONDS WHILE IN STANDBY

(NO THERMOSTAT INPUTS)

COLOR CODES:

PK PINK

BR BROWN

WH WHITE

BL BLUE

GY GRAY

RD RED

YL YELLOW

OR ORANGE

PU PURPLE

GN GREEN

BK BLACK

READ CODES FROM LEFT TO RIGHT

EAC-H

XFMR-H

CIRC-H

LINE-H

E20

E39

E15

LEFT

CENTER

RIGHT

TWIN DEHUM 24V HUM

E21

E34

E24

W/W1 R G R Y/Y1 Y2

NEUT2

NEUT1

CIRC-N

EAC-N

HUM-N

XFMR-N

LINE-N

TR (7)

TH (3)

24V THERMOSTAT CONNECTIONS N.E.C. CLASS 2 WIRE

TRANS

FORMER

HLI (8)

(

)

MV (10)

PS1(5)

MVC (11)

BLWR

AIR

INDOOR

CIRCULATOR

MICRO

40 VA

INTERGRATED CONTROL MODULE

RLI (12)

HLO (1)

Seven Segment Display

Error Code Status

Seg#3 Seg#2 Seg#1

Internal Faults or IRQ Loss

EEE

Lockout Due to Excessive Retries or Recycles E E 0

Pressure Switch Stuck Closed E E 1

Pressure Switch Open

E E 2

Open High Limit Switch E E 3

Flame Detected When no Flame Should be Present E E 4

Open Fuse E E 5

Low Flame Signal E E 6

Ignitor Relay Fault E E L

Reversed Line Polarity or Grounding Error E E A

Internal Gas Valve Error

E E b

External Gas Valve Error E E C

Open Rollout Switch E 1 1

Ignitor Open

E E n

Inducer Relay Error E E j

TWIN Error E E H

Grounding Error E10

21 43

SWITCH (PRESS.)

FIELD SPLICE

FIELD GND

EQUIPMENT G

INTERNAL TO

PROT. DEVICE

INTEGRATED CONTROL

PLUG CONNE

CTION

SWITCH (TEMP.)

JUNCTION

LOW VOLTAGE (24V)

OVERCURRENT

TERMINAL

IGNITER

LOW VOLTAGE FIELD

HI VOLTAGE (115V)

HI VOLTAGE FIELD

Maintenance

WARNING

To avoid electric shock, injury or death, discon-

nect electrical power before performing any

maintanence. If you must handle the igniter, handle

with care. Touching the igniter element with bare

fingers, rough handling or vibration could damage

the igniter resulting in premature failure. Only a

qualified servicer should ever handle the igniter.

Annual Inspection

The furnace should be inspected by a qualied installer, or

service agency at least once per year. This check should be

performed at the beginning of the heating season. This will

ensure that all furnace components are in proper working or-

der and that the heating system functions appropriately. Pay

particular attention to the following items. Repair or service

as necessary.

• Flue pipe system. Check for blockage and/or leakage.

Check the outside termination and the connections at

and internal to the furnace.

• Heat exchanger. Check for corrosion and/or buildup

within the heat exchanger passageways.

• Burners. Check for proper ignition, burner ame, and

ame signal.

• Wiring. Check electrical connections for tightness and/

or corrosion. Check wires for damage.

• Filters.

Filters

CAUTION

To ensure proper unit performance, adhere to the filter

sizes given in the recommended Minimum Filter Size Table or

Specification Sheet applicable to your model.

Filter Maintenance

Improper lter maintenance is the most common cause of in-

adequate heating or cooling performance. Filters should be

cleaned (permanent) or replaced (disposable) as required.

Filter Removal

Depending on the installation, di󰀨ering lter arrangements

can be applied. Filters can be installed in either the cen-

tral return register or a side panel external lter rack (upow

only). A media air lter or electronic air cleaner can be used

as an alternate lter. Follow the lter sizes given in the Rec-

ommended Minimum Filter size table to ensure proper unit

performance.

To remove lters from an external lter rack in an upright up-

ow installation, follow the directions provided with external

lter rack kit.

Horizontal Unit Filter Removal

Filters in horizontal installations are located in the central

return register or the ductwork near the furnace.

To remove:

1. Turn OFF electrical power to furnace.

2. Remove filter(s) from the central return register or

ductwork.

3. Replace lter(s) by reversing the procedure for removal.

4. Turn ON electrical power to furnace.

Media Air Filter or Electronic

Air Cleaner Removal

Follow the manufacturer’s directions for service.

Burners

Visually inspect the burner ames periodically during the

heating season. Turn on the furnace at the thermostat and

allow several minutes for ames to stabilize, since any dis-

lodged dust will alter the ames normal appearance. Flames

should be stable, quiet, soft, and blue (dust may cause or-

ange tips but they must not be yellow). They should extend

directly outward from the burners without curling, oating, or

lifting o󰀨. Flames must not impinge on the sides of the heat

exchanger ring tubes.

Induced Draft and Circulator Blowers

The bearings in the induced draft blower and circulator blow-

er motors are permanently lubricated by the manufacturer.

No further lubrication is required. Check motor windings for

accumulation of dust which may cause overheating. Clean

as necessary.

Flame Sensor (Qualified Servicer Only)

Under some conditions, the fuel or air supply can create a

nearly invisible coating on the ame sensor. This coating

acts as an insulator causing a drop in the ame sense sig-

nal. If the ame sense signal drops too low the furnace will

not sense ame and will lock out. The ame sensor should

be carefully cleaned by a qualied servicer using steel wool.

Following cleaning, the ame sense signal should be as in-

dicated in the Specications Sheet.

Flue Passages (Qualified Servicer Only)

The heat exchanger ue passageways should be inspected

at the beginning of each heating season.

Before Leaving an Installation

• Cycle the furnace with the thermostat at least three

times. Verify cooling and fan only operation.

• Review the Owner’s Manual with the homeowner and

discuss proper furnace operation and maintenance.

• Leave literature packet near furnace.

Repair and Replacement Parts

• When ordering any of the listed functional parts, be sure

to provide the furnace model, manufacturing, and serial

numbers with the order.

• Although only functional parts are shown in the parts

list, all sheet metal parts, doors, etc. may be ordered

by description.

• Parts are available from your distributor.

Functional Parts List

Gas Valve Blower Motor

Gas Manifold Blower Wheel

Natural Gas Orice Blower Mounting Bracket

Propane Gas Orice Blower Cuto󰀨

Igniter Blower Housing

Flame Sensor Inductor

Rollout Limit Switch Heat Exchanger

Primary Limit Switch Auxiliary Limit Switch

Pressure Switch Integrated Control Module

Induced Draft Blower Transformer

Door Switch

Furnace

ELECTRICAL

Line Voltage (Measure L1 to N and N to Ground Voltage) L - N

N - G

Secondary Voltage (Measure Transformer Output Voltage) R - C

Blower Amps

BLOWER EXTERNAL STATIC PRESSURE

Return Air Static Pressure IN. W.C.

Supply Air Static Pressure IN. W.C.

Total External Static Pressure (Ignoring +/- from the reading above, add total here) IN. W.C.

TEMPERATURES

Return Air Temperature (Dry bulb / Wet bulb) DB °F WB °F

DB °F WB °F

Heating Supply Air Temperature DB °F

Temperature Rise DB °F

Delta T (Difference between Supply and Return Temperatures) DB °F

GAS PRESSURES

Gas Inlet Pressure IN. W.C.

Gas Manifold Pressure (Low Fire) IN. W.C.

Gas Manifold Pressure (High Fire) IN. W.C.

Gas Type (NG) = Natural Gas / (LP) = Liquid Propane

Additional Checks

Check wire routings for any rubbing

Check for kinked pressure switch tubing.

Check flue elbow for alignment and clamp tightness.

Check screw tightness on blower wheel.

Check factory wiring and wire connections.

Check product for proper clearances as noted by installtion instructions

°F to °C formula: (°F - 32) divided by 1.8 = °C °C to °F formula: (°C multiplied by 1.8) + 32 = °F

Model Number

Serial Number

Cooling Supply Air Temperature (Dry bulb / Wet bulb)

THIS PAGE IS LEFT INTENTIONALLY BLANK.

GOODMAN® BRAND

AMANA® BRAND

CUSTOMER FEEDBACK

We are very interested in all product comments.

Please ll out the feedback on one of the following links:

Goodman® Brand Products: (http://www.goodmanmfg.com/about/contact-us).

Amana® Brand Products: (http://www.amana-hac.com/about-us/contact-us).

You can also scan the QR code on the right for the product brand

you purchased to be directed to the feedback page.

GOODMAN® BRAND

AMANA® BRAND

Product Registration

Thank you for your recent purchase. Though not required to get the protection of

the standard warranty, registering your product is a relatively short process, and

entitles you to additional warranty protection, except that failure by California ad Quebec

residents to register their product does not diminish their warranty rights.

For Product Registration please register by following this link:

Goodman® Brand Products: (https://www.goodmanmfg.com/product-registration).

Amana® Brand Products: (http://www.amana-hac.com/product-registration).

You can also scan the QR code on the right to be directed to the Product Registration Page.

Our continuing commitment to quality products may mean a change in specications without notice.

19001 Kermier Rd., Waller, TX 77484

COMFORT DC-GC9S801005CN 100,000 BTU Furnace, 80% Efficiency, Single-Stage Burner, 2000 CFM

Product's Documents

Goodman GM9S8 GC9S8 Installation Manual

Specifications

Direct Comfort COMFORT DC-GC9S801005CN Questions and Answers
