BIG AMERICAN GRILL™ - 240V/208V
OWNERS MANUAL
Contents
IMPORTANT SAFETY INSTRUCTIONS
Product Specications
Before Using the Grill
Quick Start Tips
Grilled Flank Steak (Recipe)
Operation

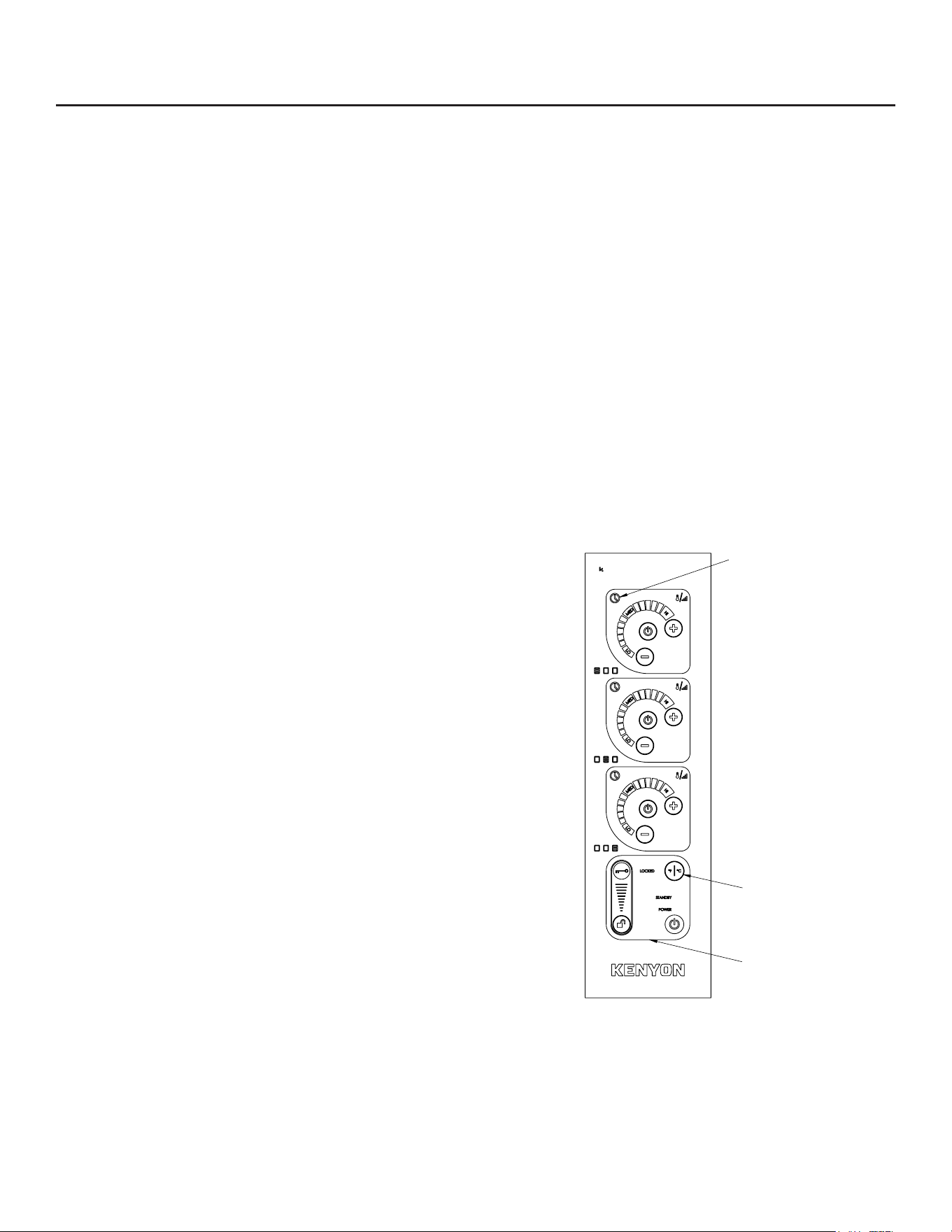

Indicator Lights
Turning On

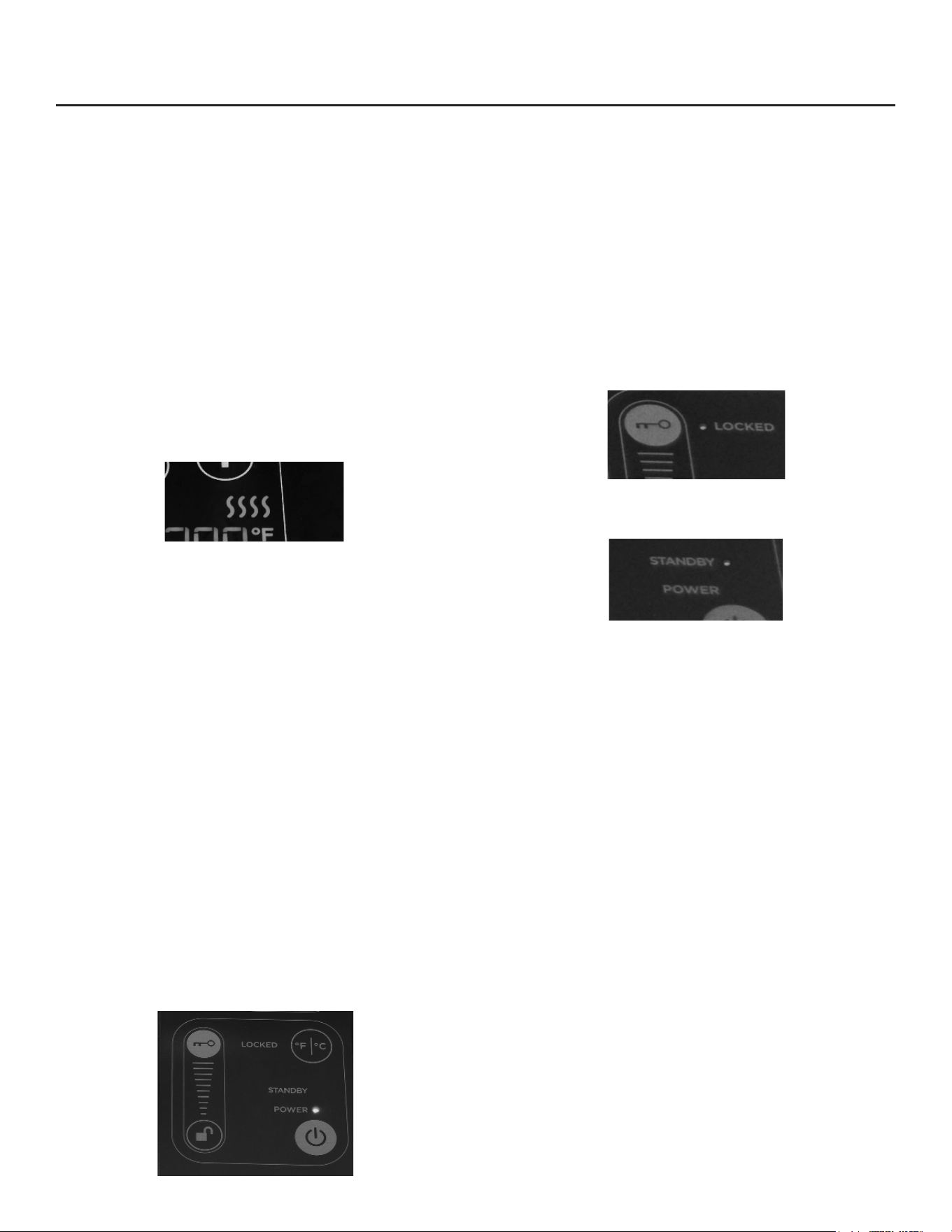

Safety Lock Feature
Cooking Mode Options
Heat Level Cooking Mode
Temperature Cooking Mode
Changing Temperature Units
Timer Options
Automatic Shut-Off Time
Temperature Guide
Error Code Readout

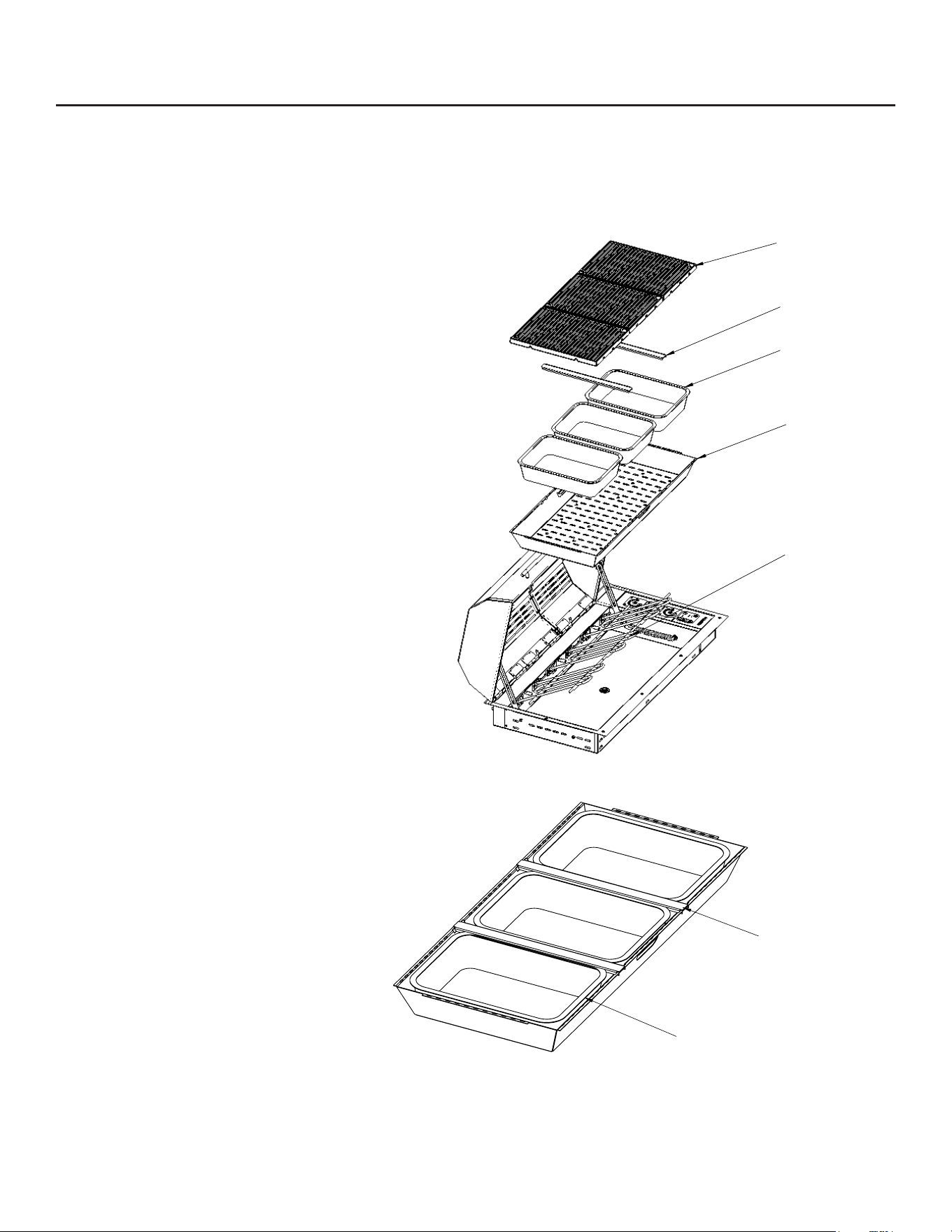

Grill Parts

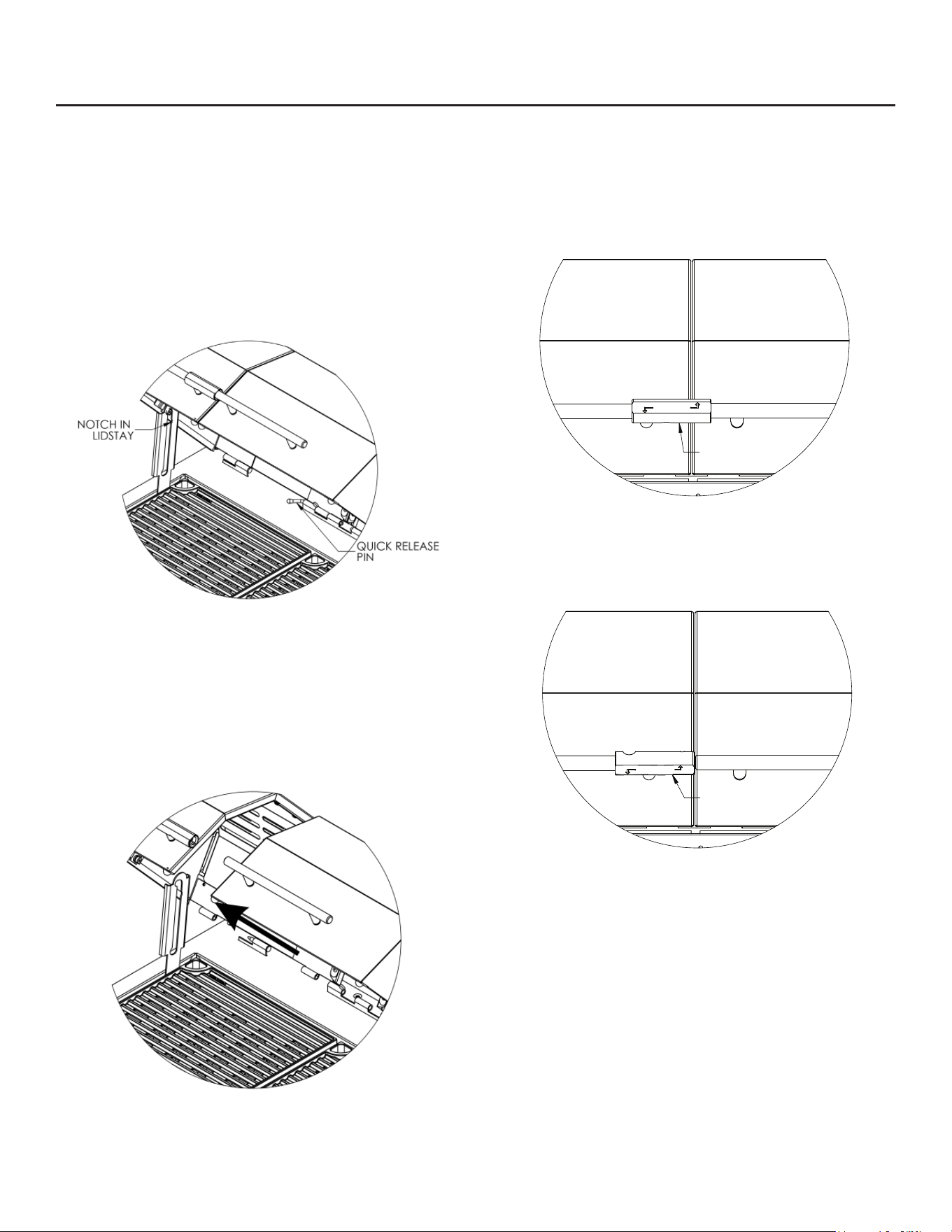

Lid Removal
Handle Lock
Installation
Unpacking the Grill
Check Electrical Supply Requirements

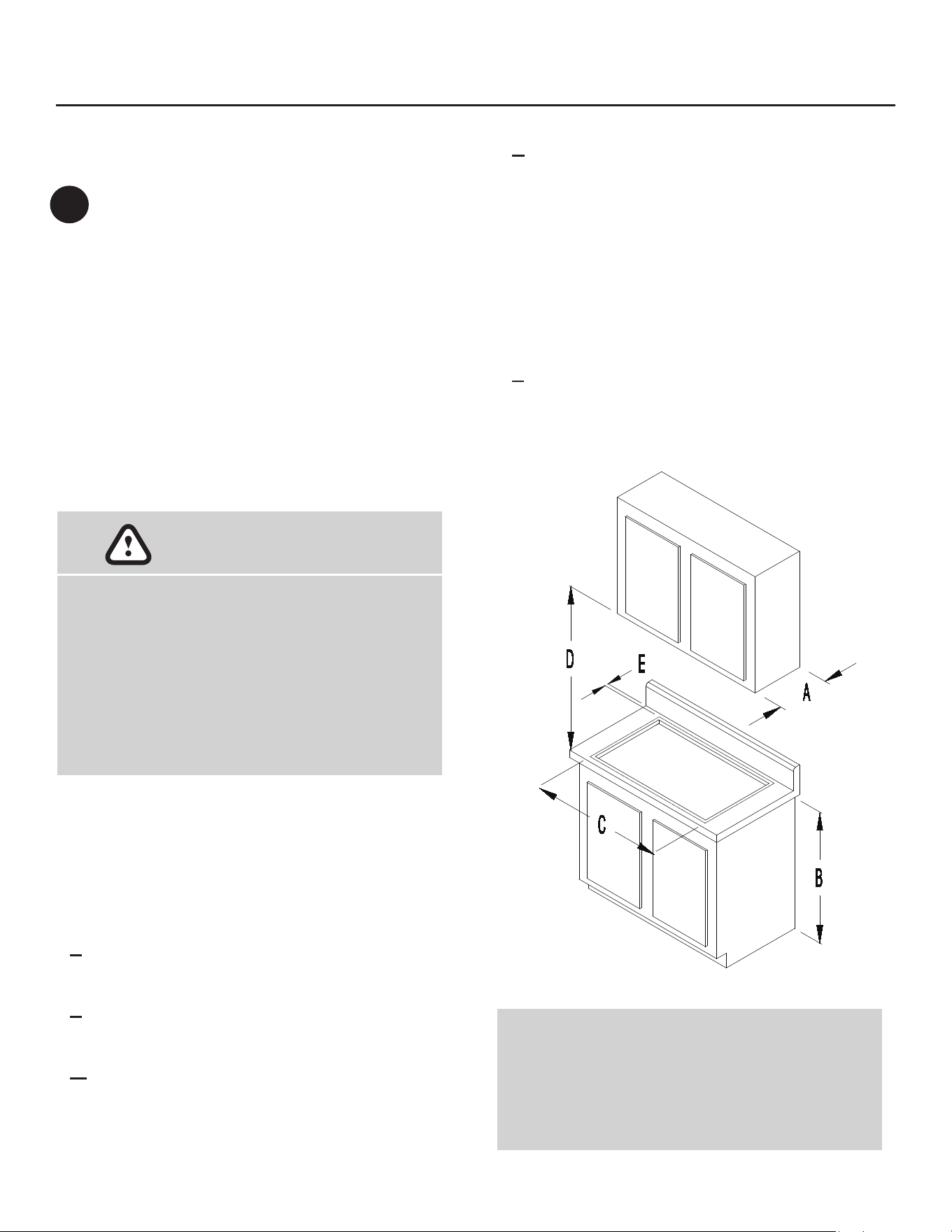

Countertop Preparation
Drain Connection
Final Preparations Prior to Use
Warranty
3
5
6
7
9
9
9
9
10
10
10
11
12
12
13
14
15
15
16
16
17
19
19
20
Please read & save
these instructions
Thank you for choosing Kenyon,
the world’s leading manufacturer
of specialty cooking appliances.
By following the instructions in
this owners manual, your grill will
provide you with many years of
reliable service.
To ensure our ability to continue
serving you, please use this page
to record important product
information.
For quick reference
please keep a
record here:
Purchase date
Model number
Serial number
Name plate location
NAME PLATE
LABEL LOCATION
Read this section BEFORE operating the grill.
The following information applies to all
KENYON Grills.
IMPORTANT SAFETY INSTRUCTIONS
THIS GRILL, LIKE ALL APPLIANCES, HAS THE POTENTIAL TO
CREATE SAFETY PROBLEMS THROUGH CARELESS AND
IMPROPER USE. PLEASE OBSERVE ALL OF THE
FOLLOWING SAFETY PRECAUTIONS.
Read ALL instructions prior to using
product.
CAUTION
Do not touch hot surfaces. Use handles or
knobs.
To protect against electrical shock,
do not immerse cord or plugs in water or other
liquid.
Allow to cool before putting on or taking off
parts.
Warning: If the surface is cracked, switch off
the appliance to avoid the possibility of electric
shock, for hob surfaces of glass-ceramic or
similar material which protect live parts.
Do not operate appliance with a damaged
power cord or plug. If the appliance
malfunctions, discontinue use. Contact
KENYON Customer Care immediately at
(860) 664-4906.
The use of accessory attachments not
supplied by the manufacturer of the
appliance may cause injuries.
Suitable shelter must be provided to
prevent direct exposure to rain. Covers
available.
Do not let cord hang over edge of table or
counter, or touch hot surfaces.
Always place a minimum of two (2) cups of
water in the drip trays prior to grilling.
Never leave children alone - children should
not be left unattended around the grill at any
time.
Close supervision is necessary when any
appliances are used near children.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved.
Cleaning and user maintenance shall not
be made by children without supervision.
Allow the grill to cool before taking off
cooking grates, disposable drip trays or lids.
Fuel, such as charcoal briquettes, are not to
be used with this appliance.
3
IMPORTANT SAFETY INSTRUCTIONS
Do not place on or near a hot gas or electric
burner, or in a heated oven.
Extreme caution must be used when
moving an appliance containing hot oil or other
hot liquids.
Ensure grill is installed per instructions
and properly grounded by a qualied
electrician.
Do not use water to extinguish a grease
re, use dry chemical re extinguisher.
Do not use appliance for other than
intended use.
Do not replace or attempt to repair any part
of the grill, unless otherwise noted in this
manual. All other service is to be performed
by a factory authorized technician.
Do not store ammable materials near
the grill.
Do not wear loose tting or hanging apparel
when using the grill.
DO NOT DISCARD THESE INSTRUCTIONS, KEEP
THEM WITH THE KENYON GRILL FOR FUTURE REFERENCE.
4
WARNING!
Charcoal or similar combustible fuels must not be used with this appliance.
Point your phone’s camera at the
QR Code to view our Quick Start
Tips video for the Electric Grill.
Product Specications
5

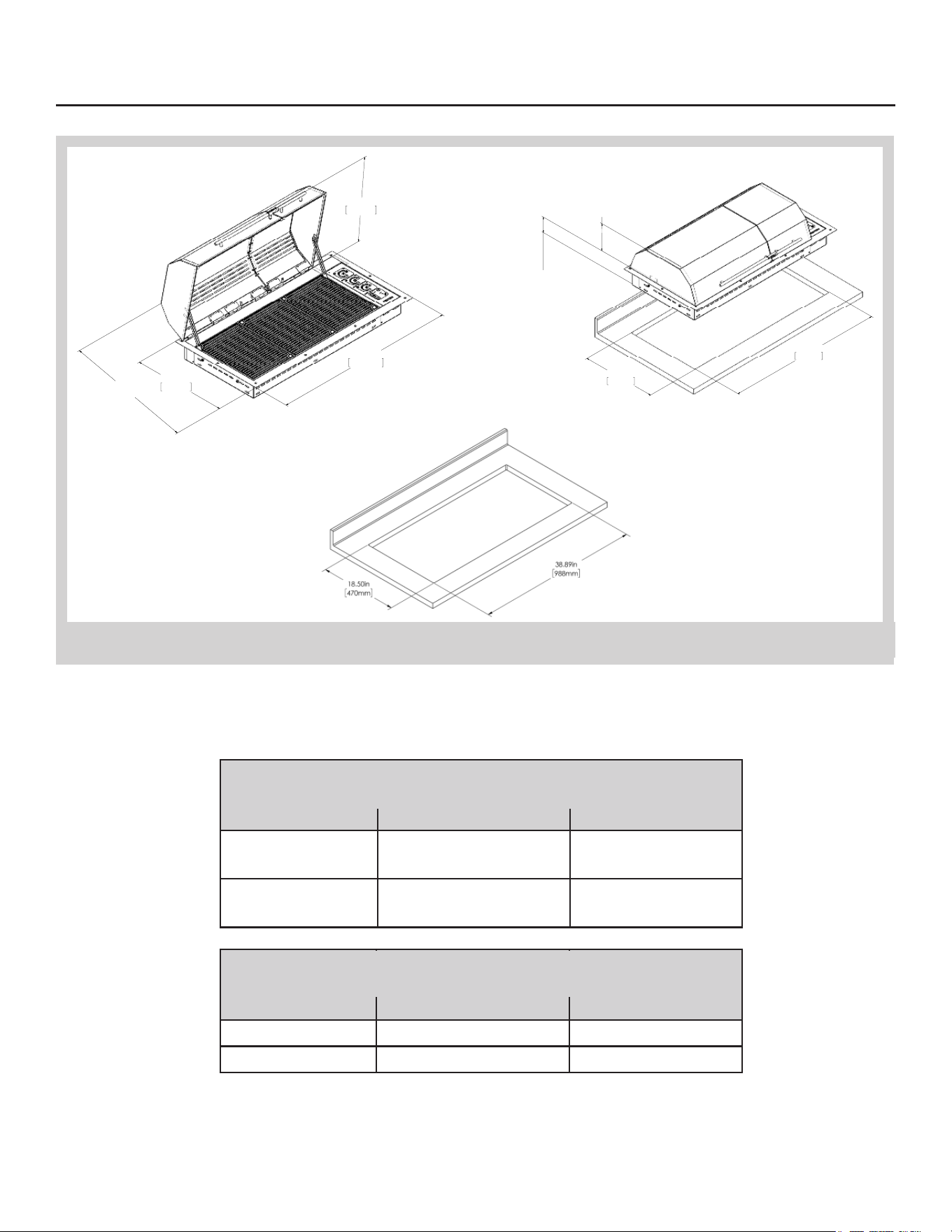

Overall & Cutout Dimensions
38.89in
988mm
18.50in
470mm
3.90in [99mm]
5.43in [138mm] WITH DRAIN FITTING
7.25in
[184mm]
21.00in
533mm
40.91in
1039mm
25.67in
[652mm]
20.00in
508mm
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
E
big american w countertop2
REV
big american w countertop2
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:5
WEIGHT:
REV
DWG. NO.
E
SIZE
TITLE:
KENYON INTERNATIONAL
8 HERITAGE PARK - PO BOX 925
CLINTON, CT 06413
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER
ANSI/ASME Y14.5M-2009
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
0.50
BEND
1.00
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.005"
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KENYON INTERNATIONAL. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
KENYON INTERNATIONAL IS PROHIBITED.
38.89in
988mm
18.50in
470mm
3.90in [99mm]
5.43in [138mm] WITH DRAIN FITTING
7.25in
[184mm]
21.00in
533mm
40.91in
1039mm
25.67in
[652mm]
20.00in
508mm
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
E
big american w countertop2
REV
big american w countertop2
SHEET 1 OF 1
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:5
WEIGHT:
REV
DWG. NO.
E
SIZE
TITLE:
KENYON INTERNATIONAL
8 HERITAGE PARK - PO BOX 925
CLINTON, CT 06413
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER
ANSI/ASME Y14.5M-2009
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
0.50
BEND
1.00
TWO PLACE DECIMAL
.010"
THREE PLACE DECIMAL
.005"
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
KENYON INTERNATIONAL. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
KENYON INTERNATIONAL IS PROHIBITED.
WIDTH DEPTH HEIGHT
40.91” 21” 5.5”
(12.5” with lid)
1039mm 533mm 139.7mm
(317.5mm with lid)
PRODUCT DIMENSIONS
WIDTH DEPTH RADIUS
38.89” 18.5” .25”
988mm 470mm 6mm
CUTOUT DIMENSIONS
Before Using the Grill
Remove the cooking
grates and drip trays
from the grill. Wash the
grill with warm soapy water
using a non-abrasive cloth.
USE ONLY HIGH TEMP
PLASTIC UTENSILS
WHEN GRILLING. Visit
our web site to purchase a
set of high quality stainless
steel/high temp plastic grill
utensils, www.cookwithkenyon.com.
Make sure the drip trays are inserted all
the way into the bottom of grill and electric
element brackets are resting on the element
support bracket.
Cover the bottom of the drip trays with a
liquid. Water
is ne. PLEASE
DO NOT USE A
FLAMMABLE
LIQUID! Doing so
would ruin your
cookout. Using
apple juice if you
are grilling pork
adds a nice avor
to the meat. A can
of lime soda is
wonderful if you are grilling sh. Just remember
always add liquid to the drip trays prior to
grilling.
To keep your grill smoke free, always clean
the grilling surfaces after each use. Simply
wash with warm soapy water using
a non-abrasive cloth or place in your
dishwasher. Empty the drip trays and
wipe with a damp paper towel.
Place your cooking grates or optional
griddles (part #B96000) onto the element
with drip trays installed. Use the griddles for
foods such as eggs, pancakes or my favorite -
stuffed french toast!
Preheat grill with the lid closed for 5 - 7
minutes on desired heat setting for type of
food:
• Steak - Temp setting 550˚F/ Power setting 16
• Burgers - Temp setting 500˚F/ Power setting 9
• Pork and Fish - Temp setting 400˚F/ Power setting 5
• Vegetables - Temp setting 350˚F/ Power setting 4
Close the lid(s) and cook. Enjoy the best
grilled food you have ever tasted!
Clean up. After the grill has cooled to the
touch, take a few pieces of paper towel and
place on the grilling surface. Pour about one
ounce of water on the towel and then using your
high temperature nylon tongs, swab the paper
toweling back and forth to loosen up the residue
from your grilling. Throw the paper towel away
and wipe the grates off with a dry paper towel.
Once the grates have cooled sufciently,
remove the grates and place in your
dishwasher for a thorough cleaning.
With the grates removed, lift up the electric
elements and remove the drip trays. Empty
the contents of the drip trays in an appropriate
place. Wipe the trays out with a dry paper towel
and reuse the trays.
After you have used your grill many times,
you may want to wash the lids. They can be
placed in your dishwasher and run on the pots
& pans cycle. This will restore your grill to its
original pristine look.
To clean the grill, rst be sure the cooking
surface has cooled enough to handle. Then
remove the grates, lift up the electric elements
until they lock in the up position, remove the
middle grate support cross bar, then the drip
trays. The grate support cross bar is removed
by lifting the rear and pulling the front notch off of
the supporting tab. To install the support reverse
the procedure. Do not cook on the grill without
the support cross bar in place!
1
2
3
4
5
6
7
8
9
10
11
12
6
Before Using the Grill
Wipe the stainless steel surfaces with a damp
cloth to remove any residue from previous
grilling sessions.
Use stainless steel cleaner once a month to
keep your grill looking like new. Cerama Bryte
Stainless Steel Polish Kit (A70045) available at
www.cookwithkenyon.com.
The touch control area is ceramic glass
which is sealed from the effects of rain,
snow and ice. To clean the glass, use a glass
cleaner and soft towel. If stains appear, use a
ceramic glass cleaner which can be found in
your local grocery store.
13
14
15
7
8
Operation
DO NOT USE WATER ON GREASE FIRES
Smother re or ame or use dry chemical or
foam-type extinguisher.
USE ONLY DRY POT HOLDERS
Moist or damp pot holders on hot surfaces
may result in burns from steam. Do not let pot
holder touch the grate or element of the grill.
Do not use a towel or other bulky cloth in place
of a pot holder.
DO NOT COOK ON BROKEN GRILL GRATE
OR GRIDDLE
If the grate should break, grease and oils
may come into direct contact with the electric
element and create a risk of electric shock or
re. Contact an authorized service center or
KENYON Customer Care immediately at
(860) 664-4906.
CLEAN GRILL WITH CAUTION
If a wet sponge or cloth is used to wipe spills
on a hot cooking surface, be careful to avoid
steam burns. Some cleaners produce noxious
fumes if applied to a hot surface. Read the
cleaner label for details prior to using.
DO NOT TOUCH HEATING ELEMENT
OR GRATE
The heating element and grate will be hot for
some time after cooking. These components
should be allowed to cool and then be handled
with care and caution while cleaning, as they
may be hot enough to cause severe burns.
Do not operate appliance with a damaged
power cord or plug. If the appliance
malfunctions, discontinue use and contact the
nearest authorized appliance dealer or the
factory examination, repair or adjustment.
CLEAN GRILL AFTER EACH USE
This appliance is equipped with removable,
disposable drip trays. The drip trays MUST be
removed and cleaned after each and EVERY
use. Do not allow grease to accumulate
between cooking. The drip trays and bafe
tray MUST be used when cooking on the
grill. Excessive grease may spill over into the
interior of the grill, voiding your warranty and
posing a re hazard.
NEVER LEAVE GRILL UNATTENDED AT
HIGH HEAT SETTINGS
High heat setting may cause heavy smoking
and ignite grease.
DO NOT CLEAN UNIT WITH PRESSURIZED
WATER
Never clean the grill with any form of
pressurized water or other types of cleaners.
Doing so will void the warranty and may pose
a serious risk of electric shock. Always clean
the grill with a cloth and a stainless steel or
glass surface cleaner.
STORAGE
Suitable shelter must be provided to prevent
direct exposure to rain. Covers available at
www.cookwithkenyon.com.
TO PREVENT SMOKE
To prevent the contents of the drip trays from
smoking, place 2 cups of water (or enough to
cover the bottom of the pan) in the drip trays
before cooking.
DO NOT USE POTS OR OTHER
BAKEWARE ON THE GRILL
KEEP THESE INSTRUCTIONS WITH THE GRILL
FOR FUTURE REFERENCE
Turning On
Touch the controls rmly with the at part of
your ngertips.
With the unit unlocked, touch the POWER
button in the main control frame. Activate
either element by holding the element power
button in the control frame for 2 seconds and
choosing a cooking option. If an element is not
activated within 15 seconds, the grill will
de-power by itself.
Safety Lock Feature
When the LOCKED LED is illuminated in
the main power control frame, the grill touch
control power settings can’t be adjusted from
the current setting. Pressing either the zone
power button or the master power button
however, can turn off the grill. The LED arc
light array will no longer illuminate when in the
lock mode. The lock feature can be
activated at any time as a safety measure,
whether the unit power is on or off.
When the unit has power the STANDBY light
will illuminate.
To unlock the grill, swipe the LOCK
feature with your ngertip along the gradient
surface, from the LOCK to the UNLOCK
position as indicated by the key and open
padlock graphics or touch and hold the
UNLOCK graphic for 3 seconds.
To LOCK the grill, swipe from the
UNLOCK to the LOCK position or touch and
hold the LOCK button for 3 seconds.
9
Operation
Cooking Mode Options
The grill elements can be independently
operated by either a heating level ranging from
low to high, or by setting a specic cooking
temperature.
Indicator Lights
There are a series of lights that provide
indications of element operation and hot
surfaces.
These lights are located adjacent to the control
panels. When the control is ON, a LED light
array will illuminate indicating which element is
on.
For your safety, we have incorporated a “HOT”
indicator light. When lit, this light indicates that
some part of the cooking grate is too warm to
touch or place articles upon.
Do not place articles on the cooking surface
while this light is glowing.
After turning off the element, the “HOT”
indicator light will remain illuminated until the
cooking grate is safe to touch.
10
Operation
Temperature Cooking Mode
Select the temperature cooking mode by
touching the thermometer/gradient graphic
within the chosen element control frame.
Select the desired cooking temperature,
ranging from 150° to 550°F (65° to 287°C),
in 10°F (12°C) increments. The selection can
be made by pressing + or – buttons for each
increment change, or swiping the arc. The
selected cooking temperature value will
illuminate and ash in the control frame while
the selection is in progress. The value will
ash until the temperature is reached. After
the temperature has been reached the value
will illuminate steady, and the cooking
temperature will remain set unless it is
changed. The default temperature setting is
always 150°F (65°C) upon startup in
temperature cooking mode.
Changing Temperature
Units
The temperature units can be changed from
Fahrenheit to Celsius by touching the °F/°C
button in the main power control frame. All
active elements will change accordingly. The
chosen default units will remain with every use
unless changed.
Heat Level Cooking Mode
With the main power on and the element
powered on, swipe your nger along the
temperature control arc and release at the
desired setting. The settings range from
LOW-MED-HIGH in 16 increments, as
indicated by the LED light array that
illuminates along the control sweep. Also, the
arc + and – signs can be toggled to select the
desired heat level. The LED light array will
indicate the selected setting.
The default heat level upon starting any
element is 0. If the element is set or remains at
0 for 15 seconds of inactivity, the element will
de-power.
ELEMENT CONTROL FRAME
COOKING TEMPERATURE
READOUT
+ BUTTON
- BUTTON
TEMPERATURE COOKING MODE BUTTON
16 LED LIGHT ARRAY
LED LIGHT ARRAY
HEATING LEVEL CONTROL SWEEP
11
Operation
Timer Options
Kitchen Timer
The kitchen timer is a general timer that has
many uses around the kitchen, independent of
cooking activity on the grill.
Activate the main power and touch the timer
clock graphic within either element control
frame. Set the desired time duration by
touching the + and – buttons, holding the
button to increase or decrease the setting.
A beep will sound at the start of the setting and
the set time will display in the control fame.
The time increments will run from 1-10
minutes in 1 minute increments, and then
change to 5 minute increments. The time
reading will speed up as the touch is held.
Touch the timer button again to start. If no time
is set, the timer will deactivate after 20
seconds.
As the set time elapses, the display will show
the time remaining in minutes until it reaches
one minute, after which the display changes
to seconds remaining to zero. The display
will ash and a double beep alarm will sound
every ten seconds until the power button is
touched or after 3 minutes, the ashing display
and alarm will deactivate.
The time reading will speed up as the touch is
held. Touch the timer button to start. If no time
is set, the timer will deactivate after 20
seconds and normal cooking will resume.
As the set time elapses, the display will show
the time remaining in minutes until it reaches
one minute, after which the display changes to
seconds remaining to zero. The burner will
automatically shut-off and stop cooking at the
end of the set time. The display will ash and
a single beep alarm will sound every ve
seconds until the power button is touched,
within 30 seconds. After 30 seconds of no
activity after the time has elapsed, the timer
will shut off.
KITCHEN AND
COOKING TIMER
MAIN POWER
CONTROL FRAME
TEMPERATURE UNIT
SELECTOR BUTTON
Cooking Timer
Each element has its own cooking timer that
can be activated to shut the heating element
off at the end of the set time.
At any time during cooking for each element,
set the desired time duration by rst
touching the clock graphic then touching the +
and – buttons, holding the button to increase
or decrease the setting. A beep will sound at
the start of the setting and the set time will
display in the control fame. The time
increments will run from 1-10 minutes in
1 minute increments, and then change to 5
minute increments.
Automatic Shut-Off Time
The table below displays the automatic shut-off
time corresponding to each heat setting.
SETTING
AUTOMATIC
SHUT-OFF (min)
1 90
2 90
3 90
4 90
5 70
6 70
7 70
8 70
9 70
10 70
11 60
12 60
13 60
14 60
15 60
16 60
Temperature Guide
The following is meant to be a guideline.
Individual results may vary depending on
conditions. Factors such as wind, and outside
temperatures, food temperature when placed on
grill can affect cooking times. The grill is
designed and engineered for optimal cooking
performance with the lid down or closed.
SETTING FOOD TYPES
1-2
Fried eggs on griddle
3-4
Pancakes - French toast on griddle
5-6
Vegetables
7-8
Vegetables - Fish
9-10
Fish - Chicken
11-12
Chicken - Hamburgers
13-14
Hamburgers - Steaks
15-16
Steaks
12
Operation
ERROR CODE DESCRIPTION ACTION TO REMEDY ERROR
E04
Unit operating at high
temperature.
Allow unit to cool. Ensure
correct cooking utensil type is
used. Lower the cooking level or
temperature setting.
E06
E07
E08
E09
Internal electronic control issue. Refer to Kenyon Customer
Care.
E10
More than two control functions
activated at the same time for
three seconds, unit de-powered.
Re-power unit and command
one control input at a time.
TROUBLESHOOTING INDEX
The Kenyon Big American Grill™ is a sealed unit that does not require regular maintenance.
Please follow our operating instructions as mentioned above. If your grill requires service,
this must be preformed by Authorized Personnel only. Please call Kenyon Customer Care
at 860-664-4906.
BIG AMERICAN GRILL™ MAINTENANCE
De-power and re-start the unit to clear the
display. Allow the unit to cool as necessary.
Lock out the main power supply to the unit by
closing the breaker before performing any
wiring operations. If the problem persists,
please call Kenyon Customer Care at
860-664-4906, M-F, 8AM – 5PM EST or email
Error Code Readout
In the event that the Big American Grill™is
not operating correctly, the control readout will
display an error code that will identify the
problem. If an error code is shown on the
display, identify the code in the
Troubleshooting Index below and take
action as noted.
13
Operation
14
Grill Parts
Heating Elements
The heating elements are designed to pivot as
shown to remove/replace the bafe tray and drip
trays. They will stay in the up position. To put
down apply slight downward pressure.
Bafe Tray
The bafe tray supports the drip trays, heating
elements and grates and must always be used
when operating the grill. The cross bar must
also be installed to support the elements and
grates.
Drip Trays
The drip trays collect all the fat and juices
created during the cooking process. The drip
trays must be emptied after each use. When
replacing the drip trays, position the drip trays
so that they are completely contained inside the
bafe tray and insuring that the side or the rim
of the drip trays do not protrude outside of the
bafe tray.
To prevent the contents of the drip trays
from smoking, place 2 cups of water (or
enough to cover the bottom of the pan) in
the drip trays before cooking.
Grates
Grates must be cleaned after every use. The
grates have a nonstick coating for ease of
cleaning. Wash grates after each use in warm
soapy water.
Operation
CROSS BAR MUST
BE IN PLACE AS SHOWN
DRIP TRAYS MUST BE CONTAINED
INSIDE OF HEAT BAFFLE AS SHOWN
GRATES
CROSS BAR
DRIP TRAYS
BAFFLE TRAY
HEATING
ELEMENT
15
Operation
Lid Removal
The grill lids are removable for cleaning.
To remove the lids, open it so the bearing
is aligned with the notch in the lidstay. Pull
the lidstay toward the center of the grill, over
the bearing, releasing the lid from the lidstay
mechanism. Then slide the quick release pin
out of the middle hinge.
With the quick release pin removed, grasp the
lid, pushing back on the center to clear the
middle hinge and slide the lid away from the
center of the grill until the outer hinge is free of
it’s pivot pin. Once the lid(s) have been removed
they can be washed in warm, soapy water.
Installation is reverse of removal.
Handle Lock
The handle lock allows the user to lock both lids
together for ease of opening and accessing the
entire grilling surface.
The lids can also be unlocked and opened
individually for access to either half of the grilling
surface.
This is a great feature allowing the user to
access a small section of the grill, allowing the
other section to continue cooking uninterrupted.
Handles Locked
Slide & Twist
Unlock Lock
Handles Unlocked
Slide & Twist
Unlock Lock
16
Installation
Unpacking the Grill
1
Carefully unpack the grill from its
shipping container.
Verify and identify the package contents.
The following items should be included in the
carton. If any components are missing or
damaged, call KENYON immediately.
2
This product must be installed in accordance
with national, state and local electric codes.
The following table provides the correct voltage,
amperage and frequency that must be supplied
to the grill. The means for disconnection must
be incorporated in the xed wiring in accordance
with the wiring rules.
Check the Electrical Supply
Requirements
PARTS INCLUDED
Big American Grill™
3 feet of drain hose
with brass tting
(11) Mounting
screws
KENYON
PART NUMBER
MAX CONNECTED
LOAD
POWER SUPPLY
INPUT
PLUG
TYPE
B70430 4500 Watts 240V AC 20A 50/60Hz 3 wire cord no plug
B70432 4500 Watts 240V AC 20A 50/60Hz 3 wire cord no plug
B70480 4500 Watts 208V AC 22A 50/60Hz 3 wire cord no plug
B70480NH 4500 Watts 208V AC 22A 50/60Hz 3 wire cord no plug
ELECTRICAL SUPPLY REQUIREMENTS
The supply must be from an individual grounded circuit that is protected by a circuit breaker and rated
per the specications for the model as shown in this table.
IMPORTANT!
If the electrical supply does not meet the product specications, consult
with a licensed electrician before proceeding with installation!
17
Installation
Countertop Preparation
3
Your Big American Grill™ is supplied with a
factory installed polished stainless steel ange
that accepts eleven oval head wood screws for
mounting. The trim ange of the grill is designed
to hold the unit rmly in place in the countertop.
If desired, you may seal the edge of the
countertop beneath the trim ange. We
recommend a NON-ADHESIVE such as
plumbers putty. This will help reduce the chance
of damage to the trim ange should the unit
need to be removed from the countertop. Should
you need to remove the unit from the countertop
after installation simply take a piece of shing
line and run back and forth under the trim ange
to break the caulk bond.
D - 30 inches minimum clearance between the
top of the cooking surface and the bottom of an
unprotected wood or metal cabinet or 24 inch
minimum clearance when the bottom of the
wood or metal cabinet is protected by not less
than 1/4-inch-thick ame retardant millboard
covered with not less than No. 28 MSG
sheet steel, 0.015-inch-think stainless steel,
0.024-inch-thick aluminum or 0.020-inch-thick-
copper.
E - 1-inch minimum from backsplash of
countertop to edge of grill(refer to page 5 for
overall grill dimensions). 1-1/2 inches minimum
from front of counter to grill.
It is important to plan ahead for installation of
the grill, keeping the following dimensions in
mind.
A - 13 inches maximum depth of overhead
cabinets
B - 36 inches is minimum height of
countertop above oor
C - The minimum at countertop surface that the
grill will rest upon must be equal to or greater
than the overall grill dimensions (refer to page 5
for overall grill dimensions).
FOR INSTALLATIONS IN CANADA:
“Do Not Install Closer Than 1/2 Inch
(12mm) From Any Adjacent Surface”, and
NE PAS INSTALLER A’MDINS DE 12MM
DETOUTE SURFACE ADJACENTE.
WARNING!
Allow a 2 inch (2”) minimum clearance
between the bottom of the grill and
combustible surface located below, ie:
the upper edge of a drawer installed
below the grill (see page 18). Failure
to provide proper clearances and
ventilation may result in a re hazard.
PLEASE READ THIS SECTION PRIOR TO
MAKING CUTOUT FOR THE GRILL.
18
Installation
WARNING!
To eliminate the risk of burns by
reaching over heated surface units,
cabinet storage space located above
surface units should be avoided. If
cabinet storage is to be provided, the
risk can be reduced by installing a
range hood that projects horizontally
a minimum of 5” beyond the bottom of
the cabinets.
Before making the countertop cutout, check for
clearance. Check to see if the grill will clear
the front and side walls of the base cabinet. It
is also important to provide enough ventilation.
Adequate ventilation of the space below the
countertop must be provided to ensure proper
operation of the grill. Heat transferred from
the grill bottom pan during operation will over-
heat an improperly ventilated area.
2 INCH (51mm) MINIMUM
Since the appliance requires a sufcient supply
of fresh air to operate at maximum performance,
the cabinet must be designed accordingly. The
following is required for this:
• The cabinet must have a minimum of two
openings; one to allow fresh air to enter and the
other for hot air to escape the cabinet.
• Opening sizes must be equal to 8 square
inches each. This is for ambient temperatures
of 85ºF / 30ºC and below. If the ambient
temperature around the appliance is above 85ºF
/ 30ºC then larger ventilation opening sizes may
be required.
When making countertop cutout, radius the
corner to help prevent cracking of the countertop
material. A 1/4 inch radius is typical, but follow
the countertop manufacturer’s instructions
regarding the minimum radius and any
reinforcements required to prevent damage to
the countertop over time.
If your countertop is made of solid surface
material you will need to check with the
manufacturer for specic recommendations for
cooktop & grill installation instructions. Most
solid surface countertop manufacturers require
additional corner supports to prevent damage
to the countertop. Use the included screws to
secure the grill to the countertop. Be careful not
to over-tighten the screws. Use plumbers putty
to seal the ange to the countertop.
If your countertop is made of stone you will
need to use an acrylic latex to mount the grill
in place. Put a large bead of caulk around the
cutout opening and place the grill in place. Wipe
away any excess caulk, use water to remove
the excess caulk. Allow the caulk to dry for a
minimum of 24 hours without any moisture being
allowed to come in contact with the caulk. Do
not use the screws that came with your grill. The
caulk will hold the grill securely. Do not use a
caulk which contains silicone as this will stain the
stone.
19
Installation
Drain Connection
4
For your convenience, the grill is equipped
with a 1/2” NPT brass pipe tting and 90º
brass elbow which you can attach the 5/8” ID
exible hose that came with your grill.
Drain fitting for 5/8” ID hose
5
Remove the protective plastic lm from the
lid, trim ange and glass panel. Clean the grill
before you use it for the rst time. A thorough
cleaning with a stainless steel or glass cleaner
will remove any traces of plastic lm adhesives
and manufacturing oils.
Wash the nonstick coated grates in warm
soapy water before using the grill.
Final Preparations Prior
to Use
20
KENYON
StatementofWarranty
Form-F-11-18,StatementofWarranty,Rev.-.docx Page1of1 1/27/2019
PW MW
Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in
materials and workmanship subject to the conditions and limitations below.
Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the
Company.
In order for product to be covered under this warranty it must be returned to the Company for evaluation. Please
contact [email protected] for return instructions.
This warranty covers certain products built by the Company and is subject to the following conditions and
limitations:
1. The Company’s liability shall be limited to repair or replacement (choice of remedy at Company’s option) of
electronic components as may be defective in materials or workmanship. This liability is limited to three years from
the date of original installation or 42 months from invoice date, whichever comes first; this warranty covers parts
and labor at pre-approved rates. Stainless steel is warranted with a lifetime guarantee to be rust free when cared
for monthly as outlined in owner’s manual. If corrosion begins, contact the Company with photo evidence of
corrosion for replacement components.
2. Determination of suitability of the product for the use contemplated by the Buyer is the sole
responsibility of the Buyer and the Company shall have no responsibility in connection with such
suitability.
3. The Company shall not be liable for any damage resulting from:
• failures due to use of the product in applications for which they are not intended;
• failures due to corrosion, wear and tear, abuse, neglect, improper installation or maintenance;
• failures due to breakage of glass, accidental or otherwise.
4. The Company shall be responsible for ground shipping charges to the location of the appliance (home)
within the Continental United States and Canada. Any duties, express or special shipping charges are
at the expense of the Buyer.
5. All labor allowed by the Company under this warranty must be pre-authorized and performed by an Authorized
Kenyon International Service Center, unless otherwise specified in writing by the Company.
THERE ARE NO OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE OR ANY
OTHER KIND, EXPRESSED OR IMPLIED AND NONE SHALL BE IMPLIED BY LAW. The duration of any such warranties
that are nevertheless implied by law for the benefit of a consumer, shall be limited to a period of three years from original
purchase by the user. Some countries do not allow limitations on how long an implied warranty lasts, so this limitation may
not apply to you.
THE COMPANY SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE
BREACH OF THIS WARRANTY, WHETHER EXPRESSED, IMPLIED OR STATUTORY. Some countries or states do not
allow exclusion or limitation of consequential or incidental damages so this limitation or exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT
MAY VARY FROM COUNTRY TO COUNTRY AND STATE TO STATE.
Kenyon International, Inc.
P.O. Box 925 • 8 Heritage Park Road • Clinton, CT 06413 USA
Phone (860) 664-4906 FAX: (860) 664-4907
SAVE THESE INSTRUCTIONS
