INSTRUCTION MANUAL
FOR CIGAR CABINET
MODEL: JC-85A / JC-145A
This manual
contains important information including safety and installation instructions
of the
appli
ances. Please read it carefully before use and follow all safety information
&
instructions. It
is
recommended to keep this manual for easy reference so that you can
be familiar with the operation of the
appliance.
Add: 9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172
2
Security considerations
Please read the following before using the cigar cabinet
Please read the instructions carefully and operate carefully.
There is a potential danger in any electrical operation. For the sake of safety, please
read the instructions carefully and operate carefully when operating this product.
⚫ Do not use power sources other than 110V or access multiple appliances on the
same wiring board.
The cigar cabinet shall use a separate power outlet and the voltage shall match
the nameplate.
Ensure separate and effective grounding of the cigar cabinet.
- This will ensure the best performance and prevent indoor circuit overload,
which may cause the wire overheating and cause fire.
⚫ Do not unplug by pulling the power cord. Please hold the plug tightly and unplug it
directly from the power plug.
- Power cord damage may cause short circuit, fire or electric shock.
⚫ Make sure the power cord plug is not squeezed or damaged by the back of the
cigar cabinet.
⚫ Do not fold the power cord in half or place heavy objects on the power cord.
- There is a fire hazard.
⚫ Do not use loose sockets or power cord with cracks or surface wear.
⚫ If the power cord is damaged, please contact the manufacturer or other agent
immediately for repair or replacement.
⚫ Please be careful not to crush or damage the power cord when moving the cigar
cabinet. Do not touch the power plug with wet hands.
⚫ Remove foreign matter and dust from power plug.
- Otherwise there is a fire hazard.
⚫ After the cigar cabinet is out of power, wait at least ten minutes before
reconnecting.
⚫ If the wall socket is loose, please do not plug into the power plug.
- Otherwise there will be fire or electric shock risk.
⚫ This machine must be placed in a suitable place so that it is easy to connect or
unplug the power plug after installation.
⚫ Be sure to use a separate, reliable grounding power supply, do not share sockets
with other electrical appliances, to ensure safe use, sockets and their connecting
wires must be able to withstand more than 10A of current.
⚫ The cigar cabinet must be grounded.
- To prevent leakage of electricity or electricity from the cigar cabinet.
⚫ Never use gas pipes, telephone lines or other hidden lightning rods for grounding.
- Improper grounding may lead to electric shock.
⚫ Do not disassemble or repair the cigar cabinet by yourself.
- This can lead to fire, machine failure or personal injury.
- If the cigar cabinet can not be used normally due to self-disassembly, cigar
cabinet will no longer bear the warranty policy and other losses caused by the
inability of the cigar cabinet to work.
⚫ The product passes through the back plate for heat dissipation, in order to achieve
the necessary heat dissipation effect please provide the necessary ventilation
conditions.
- Do not cover the product back with cloth or other material.
- Do not put this machine on the bedside to avoid the sleep effect caused by the
sound of the machine running.
3
- Do not place this machine in restricted spaces such as: bookcases or
embedded cabinets unless properly ventilated. Or contact the merchant to
consult the solution before purchase.
- Be careful to keep the distance between the back and the wall more than 5CM
when placing the product.
⚫ Do not place this machine near an electric heater or radiator, or in direct sunlight.
⚫ Do not place any heat-producing items such as candles, ashtrays, aromatherapy,
combustible gas or explosive materials near the product.
⚫ Do not place containers containing water on this machine, as this may lead to the
risk of fire or electric shock.
⚫ Do not expose this machine to rain or near water (e.g. near bathtub, sink, kitchen
sink, or laundry pool, wet basement, or near swimming pool and balcony). If this
machine is accidentally wet, unplug the power immediately and dry with a dry rag.
When cleaning, please use more than 75% medical alcohol to wipe, do not use
water-containing rag to wipe, so as not to cause wood structure mildew and
bacteria breeding.
⚫ All parts of this machine are not running with battery.
⚫ Do not allow children to climb this product.
⚫ The front of the machine is a whole tempered glass, do not use sharp products
bump, so as not to cause glass door breakage.
⚫ Do not place this product in unstable positions such as rocking shelves, tilted
ground or positions affected by external vibrations.
⚫ Do not cause the product to fall or be impacted. If the product is damaged, please
disconnect the power supply and contact the service center.
⚫ Unplug the power cord from the power outlet and wipe it with a soft dry cloth. Do
not use any chemicals such as wax, benzene, alcohol, diluent, insecticide, air
cleaner, lubricant or cleaner to wipe the power after cleaning. This may cause
short circuit of power contact and fire.
Before Installation and Use
Please strictly follow the relevant steps of installing the cigar cabinet on
the instructions so that you can use your cigar cabinet safely.
Removal of cigar cabinet packaging
⚫ Open the package of the cigar cabinet and check if the cigar cabinet is damaged
during shipment. Also check if all accessories are complete. If the cigar cabinet is
damaged during shipment or the accessories are incomplete, please contact the
dealer immediately.
⚫ The three sides of the whole machine will contain protective film, which can be
torn off or retained before use. Will not affect the use of cabinets and heat
dissipation.
⚫ Product as a whole machine, no need to install accessories can be used.
⚫ Be sure to stand still for 4 hours or more before re-electrification.
- Because the product contains compressor accessories, the compressor is in
need of lubricant protection during operation, during the cigar cabinet
transportation, after a period of turbulence, the compressor lubricating oil is
likely to flow into the middle of the heat exchange coil. Therefore, after placing
the cigar cabinet, wait for four hours to allow the lubricating oil in the
compressor to sink and reuse.
⚫ Later, if the tilt moves also need to rest for 4 hours before the use of electricity.
4
⚫ If you feel bad smell after opening the glass door of the cigar cabinet, it is because
of the smell of cedar wood and the new product itself, use alcohol to wipe the
inside cedar wood shelf and open the door for more than 12 hours to remove the
smell inside the product.
⚫ The product needs to run 24 hours after the power operation before putting into
the cigar.
- Cedar wood shelf in cigar cabinet needs to absorb enough moisture and the
inner duct board needs to be wet enough to achieve the desired operating
effect.
Set-up and Use of Cigar Cabinet
When the cigar cabinet is ready, you can set up and enjoy the full function of the cigar
cabinet.
Your cigar cabinet can run safely by the following steps. If you can not run, check the
power or try troubleshooting behind the user guide.

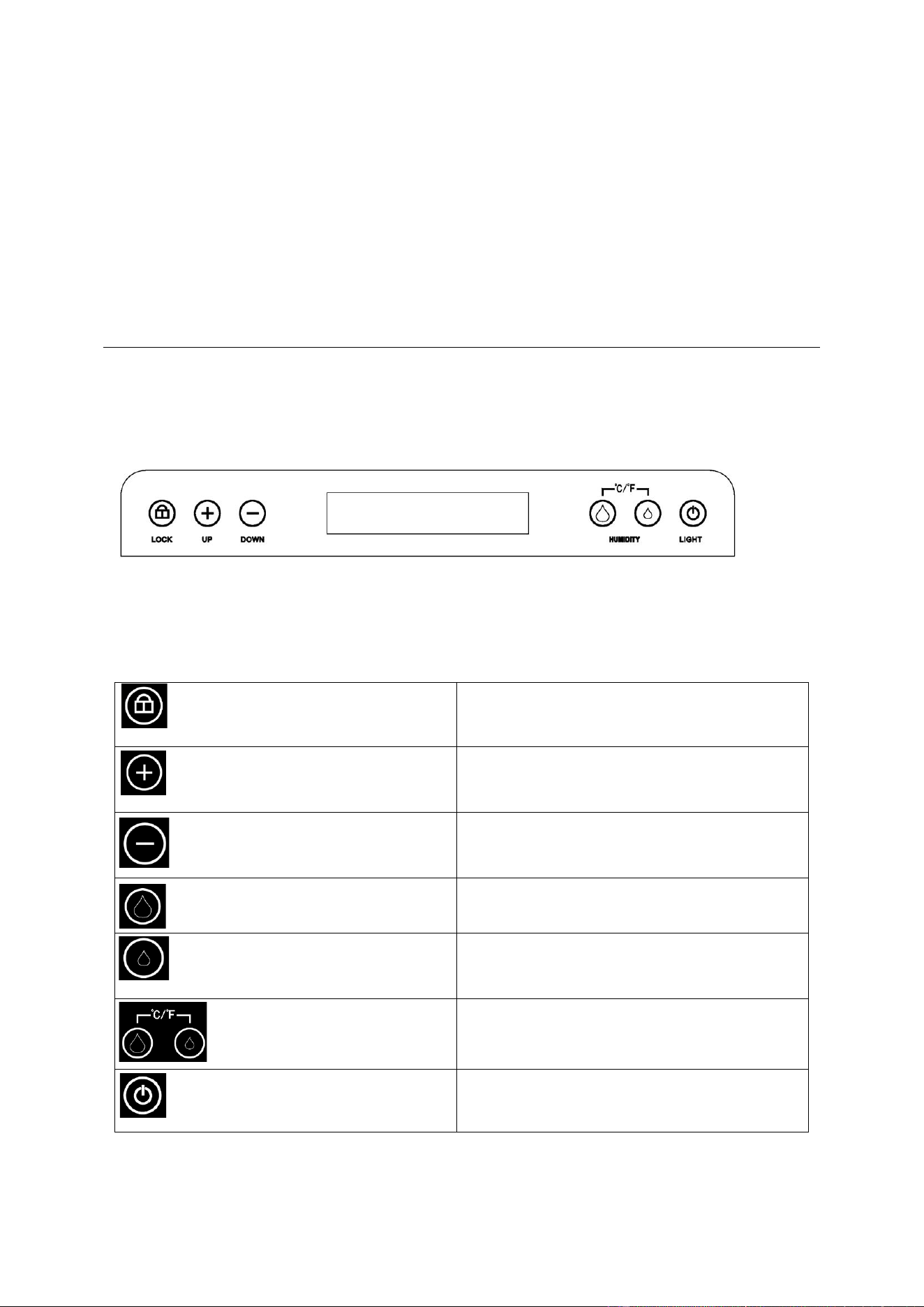

Control panel key instructions
Temperature control range 16-22℃(62-72℉)
Humidity control range 50-80%
Lock key
Lock for 3 seconds
Up button
When setting temperature and humidity
values, add values
Press down
When setting temperature and humidity
values, reduce values
Humidity Up Press
Set humidity key, add value
Humidity Down button
Set humidity key to reduce value
Combination key
At the same time press the combination
key 3 seconds, C/F conversion
Lamp/switch power key
Press to turn on the light; press to turn
off the power for 3 seconds
After the temperature or humidity of the cigar cabinet is set up, the system flashes for
5 seconds and automatically confirms, without the need of keystroke confirmation.
5
⚫ Cigar cabinet cigar maintenance temperature and humidity setting.
- Recommended temperature setting 16-22℃(62-72℉). Cigar eggs over 25℃
hatch easily.
- Recommended humidity setting 50-80%.
⚫ Temperature and humidity display calibration function.
- Because each temperature and humidity meter shows that the temperature
and humidity will be deviated, so the cabinet provides calibration function.
- When the temperature and humidity display of the cigar cabinet comes with a
deviation from your temperature and humidity meter display, the following
operation can be carried out to calibrate the temperature and humidity display.
- It is recommended that the cigar cabinet run at least 3 days before calibration.
⚫ Cigar cabinet calibration operation.
- Press the button up and down at the same time, after 5 seconds the display
panel temperature or humidity will show a number "0", if the temperature
display is temperature calibration. Press the temperature and humidity setting
key again to go to the humidity calibration.
⚫ Calibration principle.
- Such as cigar cabinet humidity setting and display 65 when your thermometer
shows humidity 70.You can enter the humidity calibration option and add 5
when the humidity calibration shows 0. Equivalent to cabinet display needs 5
degrees higher to match your thermometer display.
- Conversely, if the cigar cabinet humidity shows 70, your thermometer shows
humidity 65, you need to reduce 5 in the humidity calibration option.
- Temperature calibration is equally available.
⚫ Water tank.
- The bottom of the cigar cabinet is the cigar cabinet plus water tank, the cigar
cabinet belongs to the temperature and humidity double control product, so it
needs to add water before it can be used normally. If the tank water shortage
may cause cigar cabinet humidity can not reach the set value phenomenon.
- The water tank general water quantity is suggested to be 1/3 to 1/2 of the
water tank capacity. The more water is added, the longer the water tank is
used, otherwise it needs to be added frequently. But do not add too much, lest
cause water overflow phenomenon.
- Please add pure water or distilled water to the water tank. Do not add tap
water to avoid contamination of scale and impurities.
- A circle of white mesh items inside the water tank belongs to the water tank
plus wet cotton, do not discard. Please add water directly in place.
- It is recommended to clean the water tank once every 15 days to a month and
replace the water in the water tank.
- The cigar cabinet adopts the working principle of internal circulation, that is,
the condensed water produced by refrigeration will return back to the water
tank, so it is normal phenomenon if the water quantity of the water tank is not
reduced in the process of reuse.
- Humidifying cotton if yellowing or blackening, due to impurities and scale
pollution. Take it out and use white vinegar, baking soda and water to soak it
together.
⚫ Light on.
- Snowboard built-in lighting for the top cold light LED lamp tube and left and
right embedded cold light LED lamp. The light opening needs the key to open,
can not realize to open the cabinet door to open automatically.
6
- Built-in lighting for lighting, no other features and effects. The light on and off
does not affect the temperature and humidity operation in the cabinet.
⚫ Complete the above operation and start the cigar maintenance tour.
⚫ It is not recommended to put cigars naked for a long time.
- The stable cigar cabinet works through the fan, the cigar naked for a long time
by the fan direct blow will cause the external dry internal wet condition.
- Cigar cabinet opening and closing will also cause temperature and humidity
fluctuations in the cabinet, naked cigars will be affected by large fluctuations.
Working and Principle of Cigar Cabinet
All work information is displayed on the display board when the cigar cabinet is
running; you can understand the work meaning represented by the following symbols.

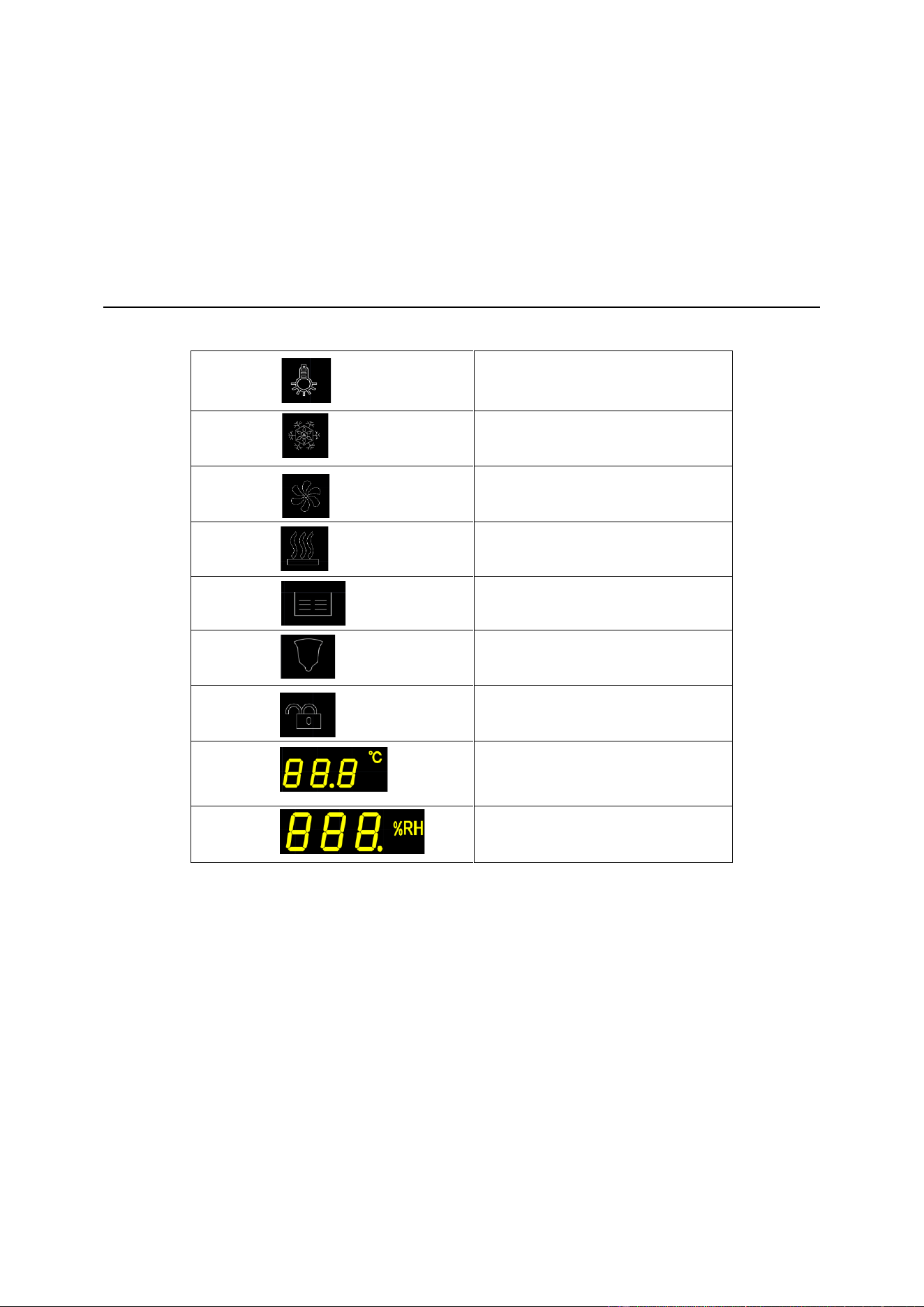

Cabinet lighting display icon
Compressor opening
refrigeration icon/wetting
Fan Startup icon
Temperature and humidity in
cabinet
Machine defrosting display
Machine alarm notification
Machine lock/unlock icon
Current Real Time
Temperature in Display
Cabinet
Current Real Time Humidity
in Display Cabinet
⚫ Because the temperature and humidity are interrelated, the cooling and heating
icons are lit up at the same time when the cigar cabinet is working.
⚫ If the display board displays other characters and icons. Do not self-install to avoid
personal injury.
⚫ Cigar cabinet refrigeration.
- For the cigar cabinet, the air cooling mode of compressor is adopted, and the
R600a is environment friendly no need to add freon during use.
- Air cooling mode snow eggplant cabinet will not appear back frosting
phenomenon.
⚫ The cigar cabinet is heated.
- Cigar cabinet has heating compensation function, temperature compensation
maximum 10-15 degrees. If the ambient temperature is too low, the cigar
cabinet can not reach the set temperature, please move the product to a
higher temperature environment for use.
7
- Cigar cabinet heating mode is PTC heater, through the entire rear duct plate for
hot air heating. So there will be no damage to the cigar at part of the
temperature.
⚫ Cigar cabinet humidified.
- The cigar cabinet converts the bottom water tank moisture into humidity by
humidifying fan to replenish to the cabinet. Therefore, it is recommended to use
pure water or distilled water to avoid impurities contaminating cigars.
⚫ The cigar cabinet dehumidifies.
- The compressor starts the refrigeration to condense the air humidity into water
droplets, and then the water droplets are recovered to the bottom water tank
through the reflux pipe to form an internal circulation. Reduce water use.
GUIDE TO COMMON
TROUBLESHOOTING OF CIGAR
CABINET
Troubleshooting Notes
Failure
Possible causes
The cigar cabinet is not
responding
Not plugged in.
The equipment is off.
Circuit breaker trip or fuse.
Insufficient cooling of
cigar cabinet
Check temperature control settings.
The external environment may require higher settings.
The door often opens.
The door is not completely closed.
The door cushion can not be sealed correctly.
Frequent Switching Machine
Room temperature is higher than normal temperature.
Overload of cabinets
The door often opens.
The door is not completely closed.
The temperature control setting is incorrect.
The door cushion can not be sealed correctly.
LED lights are not working
No plug.
Circuit breaker trip or fuse.
The light bulb burned out.
OFF "light button
Vibration
Check the red wine cabinet/drink cabinet for level.
The noise is too loud
The rattling noise may come from the flow of refrigerant,
which is normal.
As each cycle ends, you may hear grunts.
Shrinkage and expansion of the inner wall may result in
burst sound and crackling sound.
Red wine cabinet/drink cabinet is not horizontal.
The door doesn't shut
properly
Red wine cabinet/drink cabinet is not horizontal.
The door was reversed and not properly installed.
The gasket is dirty.
The layer frame is not suitable.
8
Before disposal of the appliance:
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Correct Disposal of this product：
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the retailer
where the product was purchased. They can take this product for environmental safe recycling.
9
Thank you for purchasing this product! If you have questions about assembly or operation
of this product, are missing parts, or if the product is damaged, please contact us via
Amazon Message or call customer serve Phone: 213-4467172.
IMPORTANT
Do not return this product to the store.
Simply call our customer service department for any questions or concerns:
213-4467172
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
AVIS
Ne pas retourner ce produit au magasin.
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
No devuelva este producto a la tienda.
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA.
Add: 9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: 213-4467172
