: K I R H
INSTALLATION MANUAL
his type of cooker hood must be fixed to the ceiling. Very heavy product, hood handling and
installaon must be carried out by at least two persons. Before beginning installaon: Expansion wall
plug (metal dowel ) are provided to secure the hood to most types of walls/ceilings. However a qualified
technicians must verify suitability of the materials in accordance with the type of the ceiling.
The ceiling/wall must be strong enough to take the weight of the hood.
1. Fix upper trellis by nr 6 metal dowels S6 model
2. Leaving the upper chimney on the hood (a), (b) fix the lower trellis already mounted on the hood
to the trellis previously mounted on the ceiling by fastening it to the hooking holes shown in the images.

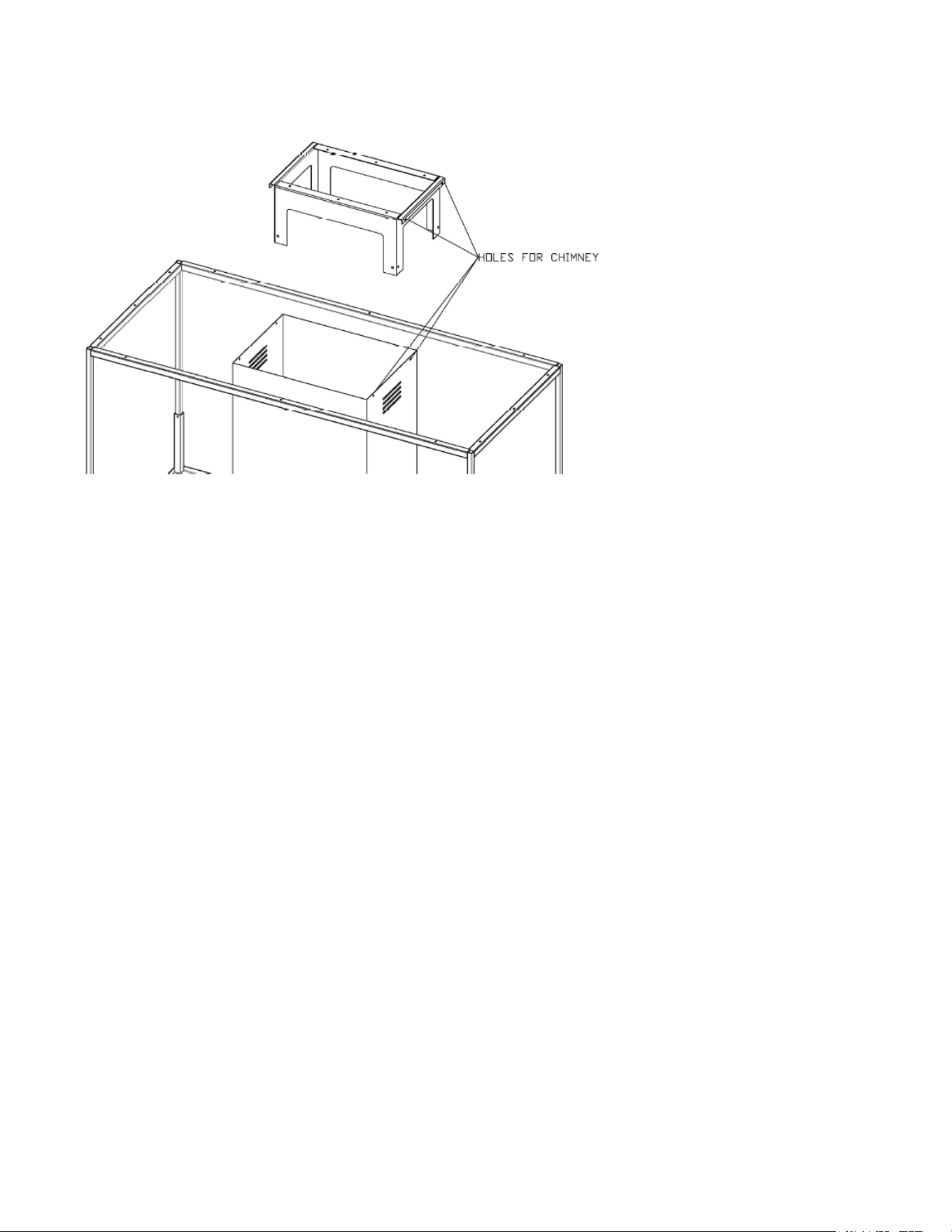

3. At the end it’ possible to fasten the upper chimney as shown in the picture3. At the end it’ possible to fasten the upper chimney as shown in the picture
