LN™1063
Column ARRAY
Specications
$
%
2
Features and specifications are subject to change without notice.
Peavey Electronics Corporation • 711 A Street • Meridian, MS 39301
(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com
© 2015
EX000030
FCC/ICES Compliancy Statement
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s). Operation
is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, that may cause undesired operation.
Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2)
I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement.
Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s
authority to use the equipment.
Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con
-
nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
The equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi-
ronment.
3
FCC Radiation Exposure Statement
is equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. is
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
IC Radiation Exposure Statement
is equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. e an-
tenna should be installed and operated with minimum distance of 20 cm between the radiator and your body.
is transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC pour un environnement non
contrôlé. L'antenne doit être installé de façon à garder une distance minimale de 20 centimètres entre la source
de rayonnements et votre corps. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre
antenne ou autre émetteur.
4
• Bluetooth audio input for streaming music from any Bluetooth device
• 6 Channel mixer
• 2 Combi inputs with Guitar Channel selectability
• 2 Onboard guitar channels
• 1 1/4” Stereo input channel
• 3.5 mm input
Description:
e LN™1063 is a compact, powerful, lightweight and low prole portable column-array. Utilizing 500 watts of poten-
tial maximum power, the unit contains 6 2.75” custom drivers for the mid-high column and a custom 8” driver for the
subwoofer. Completely self contained, the unit has no visible cables in mono operation. Its clean design is well suited for
applications where speakers should be heard and not seen. Coming in at 10lbs lighter than our nearest competitor, the
LN1063 is extremely easy to carry: an entire PA system that can be moved by one person in one trip.
e satellite speakers feature rugged housing and quick attachment design. e subwoofer is both durable and light-
weight.
e onboard mixer features 2 combo inputs, each with the option of selecting a guitar input, making this the rst column
array designed specically with the acoustic guitar performer in mind. Two additional media channels feature stereo 1/4”
inputs and streaming audio Bluetooth in. Perfect for church, convention, DJ or club applications, the LN1063 oers the
best-in-class feature-to-value and performance in the industry.
LN™1063
Column Array Powered Speaker System
Congratulations on purchasing the Peavey LN™1063
Column Array Powered Speaker System. is compact, portable
and powerful system is a perfect solution for the weekend warrior, singer songwriter or DJ.
FEATURES:
ENGLISH
Installation Note:
is unit must have the following clearances from any combustible surface: top: 8", sides: 12", back: 12"
• Mix out for additional units

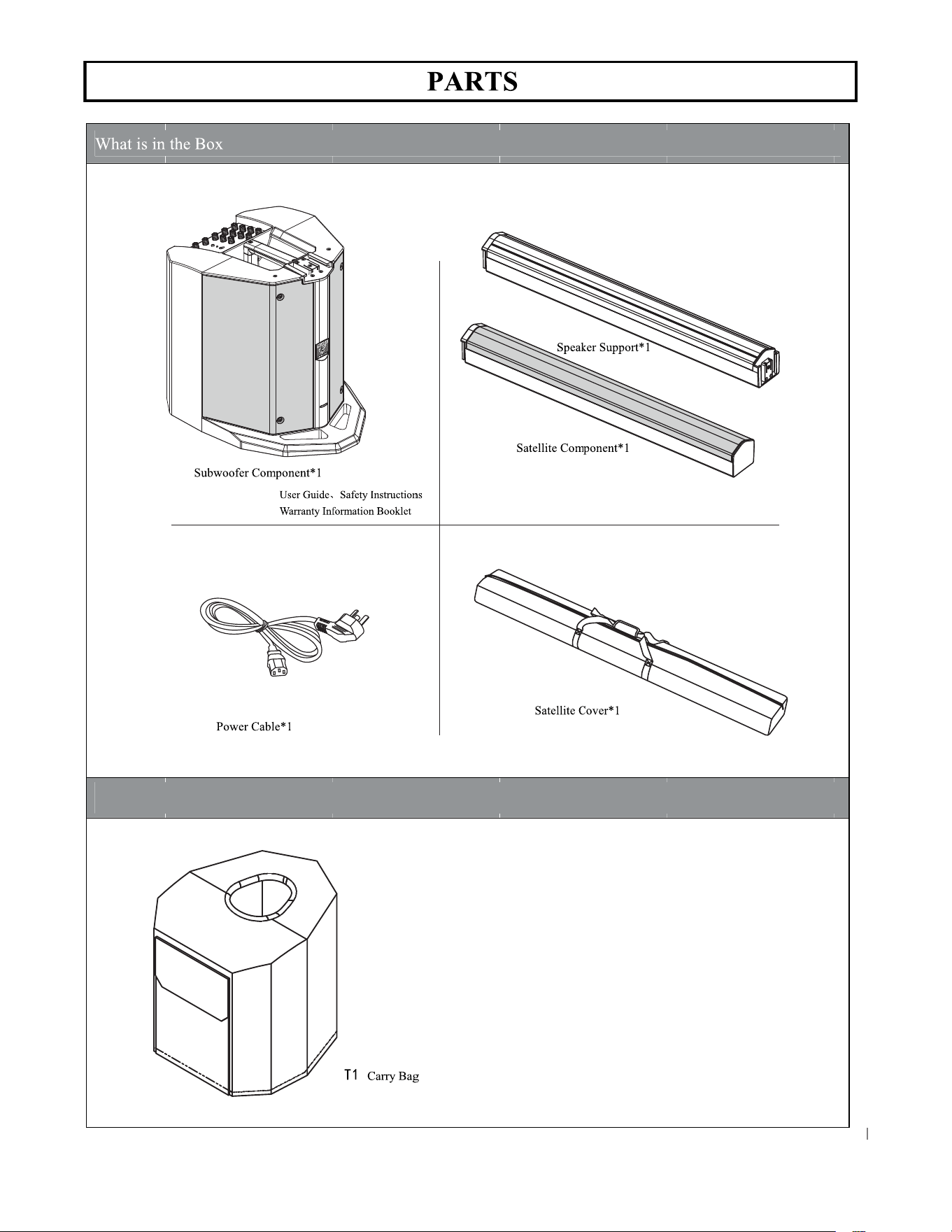

• Satellite speaker carrying bag included
• 500 Watts maximum power
• 120 dB maximum SPL
• Frequency response 55 Hz - 18 kHz
5
T5 AL/250V 100-240V~ 50/60Hz
FUSE
Power Consumption : 40W
Consumo de energia 40Wh
M/N: LN1063
Electronics Corp.
Peavey
LN1063
Peavey Electronics Corp.
5022 Hartley Peavey Drive
Meridian, MS 39305
(601) 483-5365
www.peavey.com
POWER
CH1
AUX
PAIR
POWER/LIMIT
CH2 CH3/4 CH5/6 MASTER
REVERB
ON
Designed and Engineered in U.S.A.
Made in China
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
--Apparatets stikprop skal tilsluttes en stikkontakt med jord,
som giver forbindelse til stikproppens jord. (For Denmark Only)
--Laite on liitettävä suojamaadoituskoskettimilla varustettuun
pistorasiaan. (For Finland Only)
--Apparatet må tilkoples jordet stikkontakt. (For Norway Only)
--Apparaten skall anslutas till jordat uttag. (For Sweden Only)
CAUTION
AVIS:
VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
WARNING:
SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN
OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS
REMPLI DE LIQUIDE, TEL QU’UN VASE, NE DOIT ETRE POSE
SUR CELUI-CI.
DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE
OU DE DECHARGE ELECTRIQUE, CET APPREIL NE DOIT PAS
ETRE EXPOSE A LA PLUIE OU A L’HUMIDITE ET AUCUN OBJET
AVIS:
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
REVERB
MIN MAXMIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
LEVEL
MIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
I4S-LN1063
3642A-LN1063

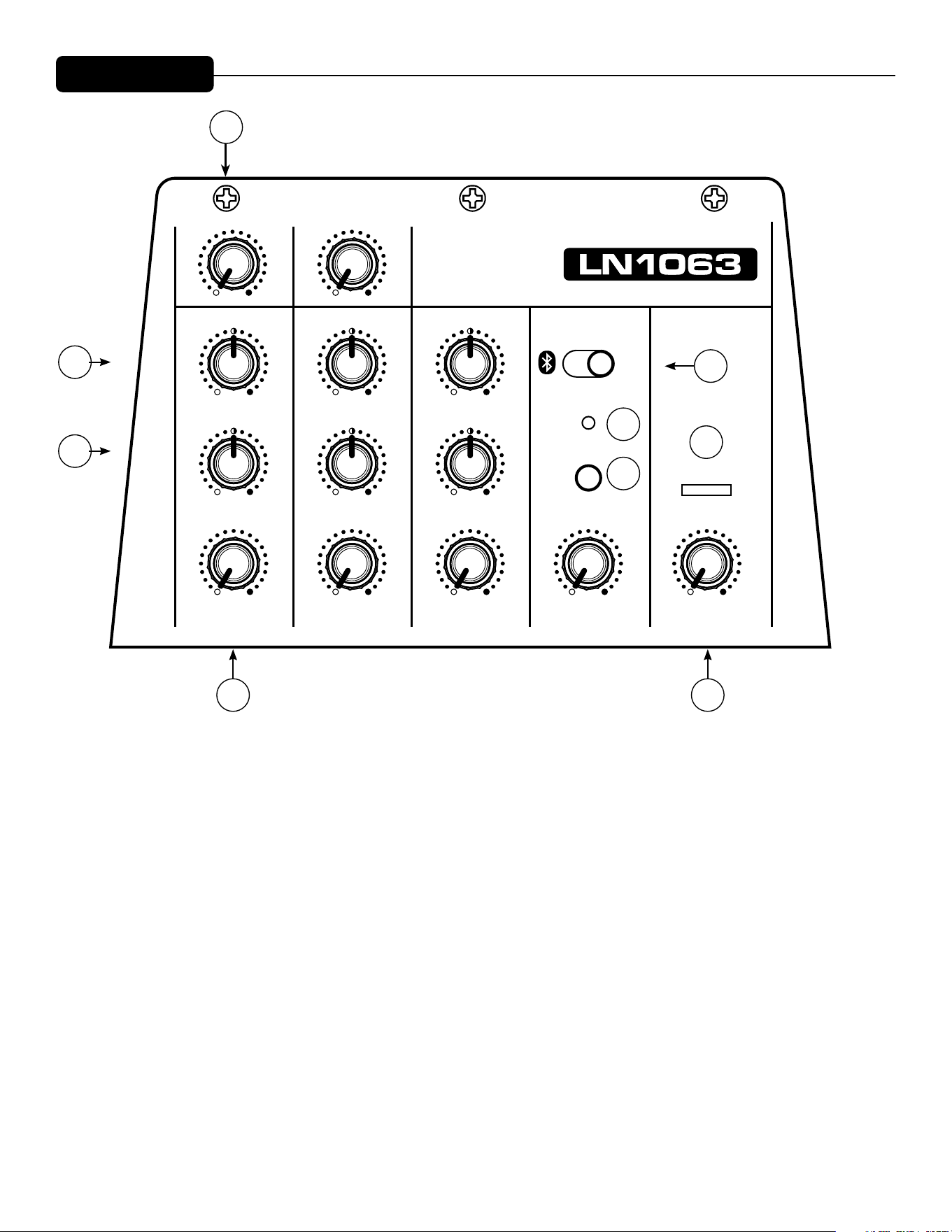

Top Panel
1
2
3
8
4
5
7
6
(1) Channel Reverb Control
is knob controls the amount of reverb for the corresponding channel (channels 1-2).
(2) High EQ (treble) Control
is is an active tone control (shelving type: +/-15dB) that varies the level of the high frequency range.
(3) Low EQ (Bass) Control
is is an active tone control (shelving type: +/-15dB) that varies the level of the low frequency range.
(4) Channel Level
is knob controls the level of the specic channels audio in the mix.
(5) Bluetooth/Aux Input Switch
is switch selects the audio source for channel 5/6. Push to the le to route the Bluetooth signal to the channel.
Push to the right to route the Aux input from the 3.5mm Stereo Jack (12) to the channel.
(6) Pair Button/LED
is button is used to pair a phone or Bluetooth source to the speaker. e LED will indicate if it is in discovery
mode (blinking) or paired to a Bluetooth source (solid). Pushing the button turns on the Bluetooth and places the
speaker in discovery mode (blinking LED). Now you should be able to connect any Bluetooth audio source to the
6
6

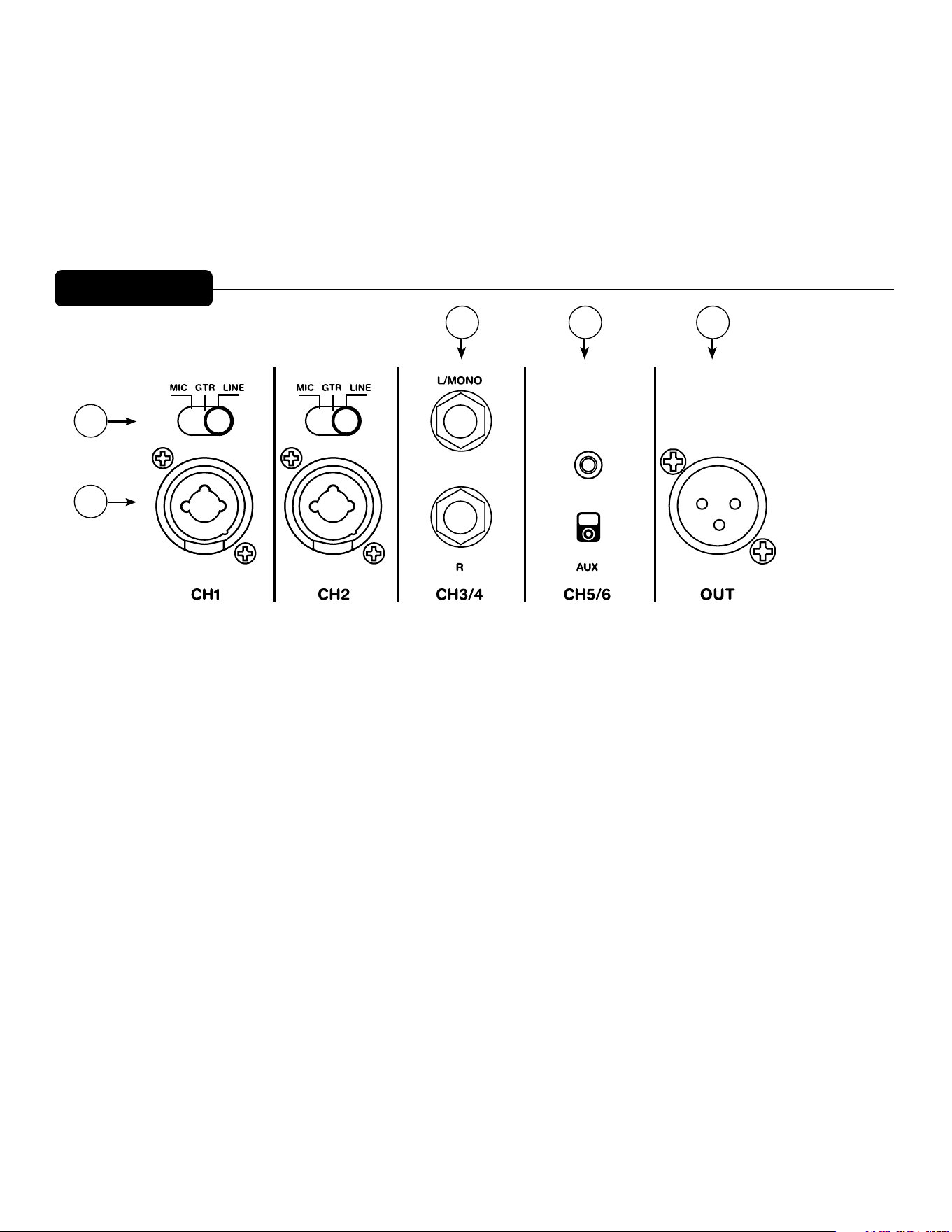

Input Panel
9
10
11 12 13
speaker. To disconnect, press the button again, it will turn the Bluetooth o (LED dark).
(7) Master Level
Use to control the overall volume of the speaker system.
(8) Power/Limit LED
e Power/Limit LED will illuminate blue when there is power applied to the speaker and the power switch (14)
is in the "on" position. It will turn RED when the system has reached its maximum output.
(9) XLR Mic Input (Ch 1&2)
Use this XLR connector to connect a microphone to the LN1063 mixer.
(10) Input Select Switch (Ch 1&2)
e Power/Limit LED will illuminate blue when there is power applied to the speaker and the power switch (14)
is in the "on" position. It will turn RED when the system has reached its maximum output.
(11) 1/4" Stereo Inputs (Ch 3&4)
- Channels 3 and 4 are a stereo pair of 1/4" jacks (TRS) that can be used for a stereo or mono line level source. If
only one jack (L/Mono) is used, it behaves as a mono source. Once both jacks are connected, it becomes a stereo
source; 3 is Le and 4 is Right.
(12) 3.5mm Stereo Inputs (Ch 5&6)
Channels 5 and 6 is a stereo 3.5mm jack that can accept a stereo line input from the output of an MP3 player,
phone or other similar device.
(13) XLR Line Output
is is a non-powered XLR output at line level that can be used to link systems together or feed additional speak-
ers.
T5 AL/250V 100-240V~ 50/60Hz
FUSE
Power Consumption : 40W
Consumo de energia 40Wh
M/N: LN1063
Electronics Corp.
Peavey
LN1063
Peavey Electronics Corp.
5022 Hartley Peavey Drive
Meridian, MS 39305
(601) 483-5365
www.peavey.com
POWER
CH1
AUX
PAIR
POWER/LIMIT
CH2 CH3/4 CH5/6 MASTER
REVERB
ON
Designed and Engineered in U.S.A.
Made in China
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
--Apparatets stikprop skal tilsluttes en stikkontakt med jord,
som giver forbindelse til stikproppens jord. (For Denmark Only)
--Laite on liitettävä suojamaadoituskoskettimilla varustettuun
pistorasiaan. (For Finland Only)
--Apparatet må tilkoples jordet stikkontakt. (For Norway Only)
--Apparaten skall anslutas till jordat uttag. (For Sweden Only)
CAUTION
AVIS:
VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
WARNING:
SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN
OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS
REMPLI DE LIQUIDE, TEL QU’UN VASE, NE DOIT ETRE POSE
SUR CELUI-CI.
DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE
OU DE DECHARGE ELECTRIQUE, CET APPREIL NE DOIT PAS
ETRE EXPOSE A LA PLUIE OU A L’HUMIDITE ET AUCUN OBJET
AVIS:
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
REVERB
MIN MAXMIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
LEVEL
MIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
I4S-LN1063
3642A-LN1063
7
Rear Panel
16
15
14
T5 AL/250V 100-240V
~ 50/60Hz
FUSE
Power Consumption : 40W
Consumo de energia 40Wh
M/N: LN1063
Electronics Corp.
Peavey
LN1063
Peavey Electronics Corp.
5022 Hartley Peavey Drive
Meridian, MS 39305
(601) 483-5365
www.peavey.com
POWER
CH1
AUX
PAIR
POWER/LIMIT
CH2 CH3/4 CH5/6 MASTER
REVERB
ON
Designed and Engineered in U.S.A.
Made in China
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
--Apparatets stikprop skal tilsluttes en stikkontakt med jord,
som giver forbindelse til stikproppens jord. (For Denmark Only)
--Laite on liitettävä suojamaadoituskoskettimilla varustettuun
pistorasiaan. (For Finland Only)
--Apparatet må tilkoples jordet stikkontakt. (For Norway Only)
--Apparaten skall anslutas till jordat uttag. (For Sweden Only)
CAUTION
AVIS:
VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
WARNING:
SHOCK, THIS APPARATUS SHOULD NOT BE EXPOSED TO RAIN
OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS
REMPLI DE LIQUIDE, TEL QU’UN VASE, NE DOIT ETRE POSE
SUR CELUI-CI.
DANS LE BUT DE REDUIRE LES RISQUES D’INCENDIE
OU DE DECHARGE ELECTRIQUE, CET APPREIL NE DOIT PAS
ETRE EXPOSE A LA PLUIE OU A L’HUMIDITE ET AUCUN OBJET
AVIS:
RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
REVERB
MIN MAXMIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
LEVEL
MIN MAX
LEVEL
MIN MAX
LEVEL
MIN MAX
HIGH
-12 +12
LOW
-12 +12
I4S-LN1063
3642A-LN1063
(14) Power Switch
e power switch is used to turn the speaker on and o
(15)Fuse
is is the main safety fuse for the AC line voltage. Only replace with a fuse of the exact type and rating. If the
fuse continues to fail, do not replace the fuse again. Take the unit to an authorized Peavey service center.
(16) AC Power Inlet
is is the receptacle for an IEC line cord, which provides AC power to the unit. Connect the line cord to
this connector to provide power to the unit. Damage to the equipment may result if improper line voltage is
used. (See line voltage marking on unit).
Never break o the ground pin on any equipment. It is provided for your safety. If the outlet used does not
have a ground pin, a suitable grounding adapter should be used and the third wire should be grounded
properly. To prevent risk of shock or re hazard, always make sure that the amplier and all associated
equipment is properly grounded.
8
Optional Accessoires

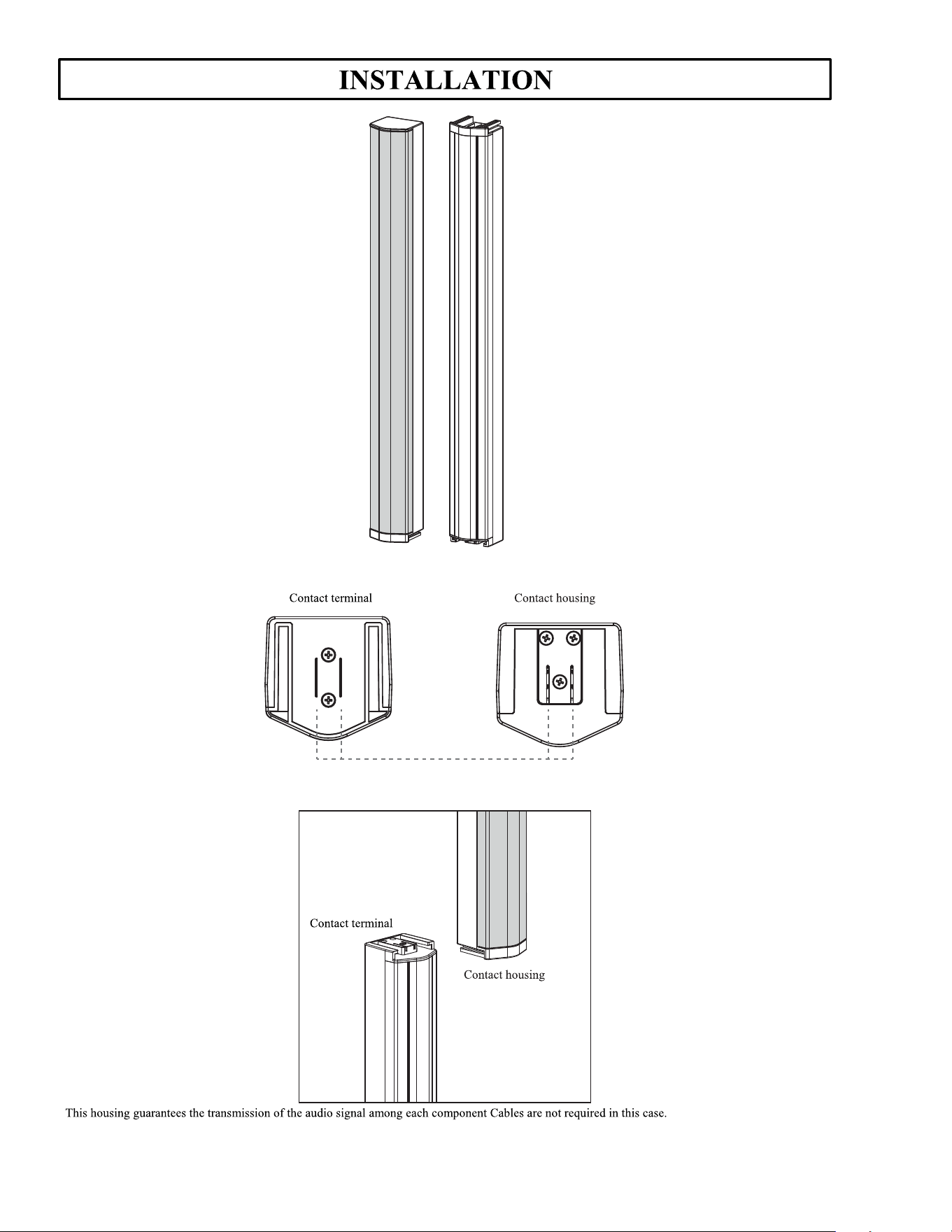

9
$
%
$
%

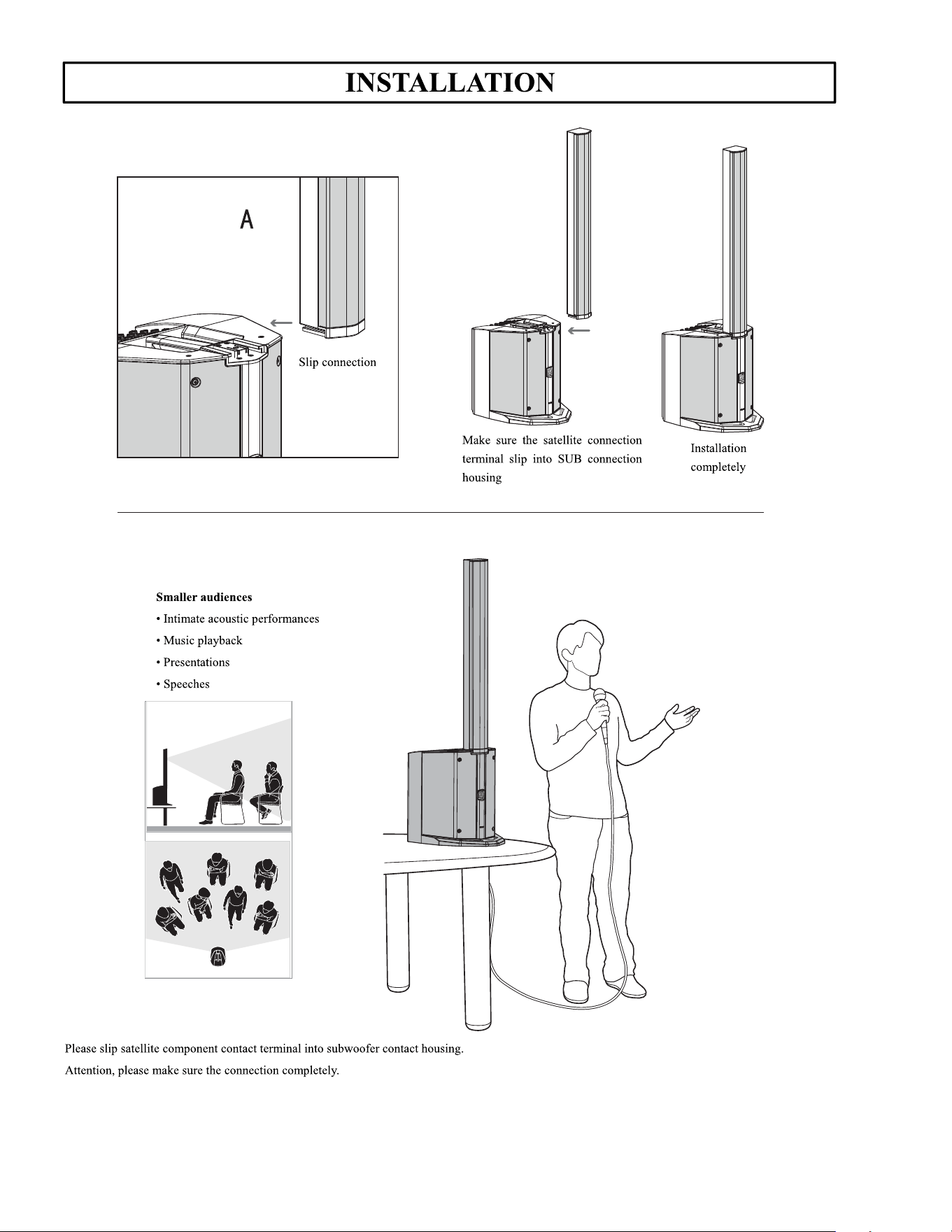

10

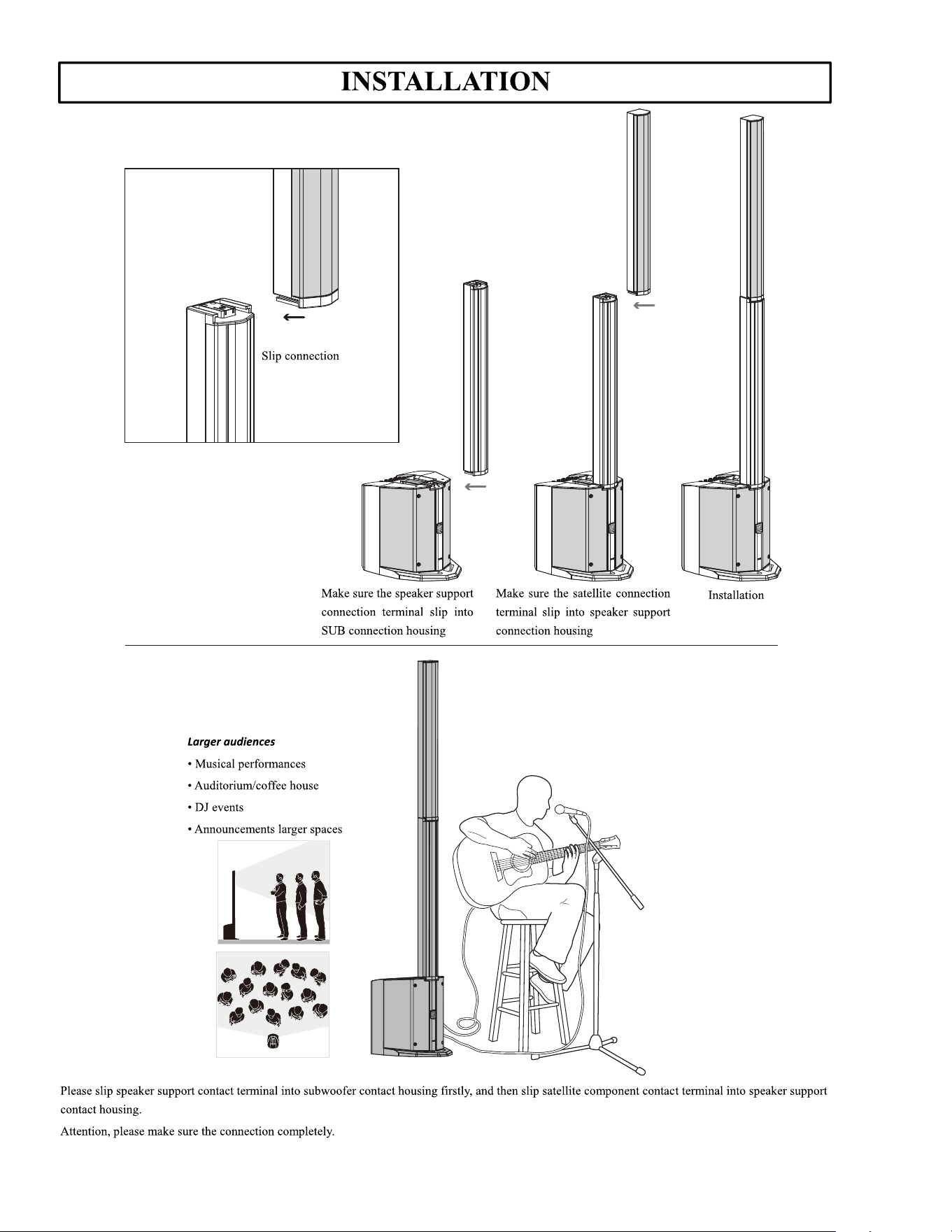

11
$
%
12
Channel 1-2 Input Mic/Line/Guitar
XLR and 1/4-inch
TRS (balanced)
Channel 3 Le/Mono Input Mono/Stereo
1/4-inch
TRS (unbalanced)
Channel 4 Right Input. Mono/Stereo
1/4-inch
TRS (unbalanced)
Channel 5 Input Stereo
3.5mm
TRS (unbalanced)
Mix Out +4dBu XLR
(balanced)
Power/Clip LED Blue/Red
Peak Power 500 Watts
Frequency Response. 55-18kHz
Max Output SPL 120 dB
Upper Column (speakers)
Column Speaker. 6 x 2.75" drivers
Weight 5.17lbs. (2.3 kgs)
Dimensions 32.1 x 3.25 x 3.25 inches
815 x 82.55 x 82.55mm
length x width x height
Lower Column (no speakers)
Weight 2.53 lbs. (1.15 kgs)
Dimensions 32.63 x 3.25 x 3.25 inches
829 x 82.55 x 82.55 mm
length x width x height
Sub Speaker 8" woofer, 1.5" voice coil
Sub/Mixer Weight 20.4 lbs. (9.25 kgs)
Sub/Mixer Dimensions 16 x 13.5 x 17 inches
406 x 343 x 432 mm
length x width x height
Power Input (switchable) 100-120V, 50/60Hz, 40 W
220-240V, 50/60Hz, 40 W
LN™1063 Specifications
13
Logo referenced in Directive 2002/96/EC Annex IV
(OJ(L)37/38,13.02.03 and defined in EN 50419: 2005
The bar is the symbol for marking of new waste and
is applied only to equipment manufactured after
13 August 2005
www.peavey.com
Warranty registration and information for U.S. customers available online at
www.peavey.com/warranty
or use the QR tag below
Features and specications subject to change without notice.
Peavey Electronics Corporation 5022 Hartley Peavey Drive Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278
