VonShef.com

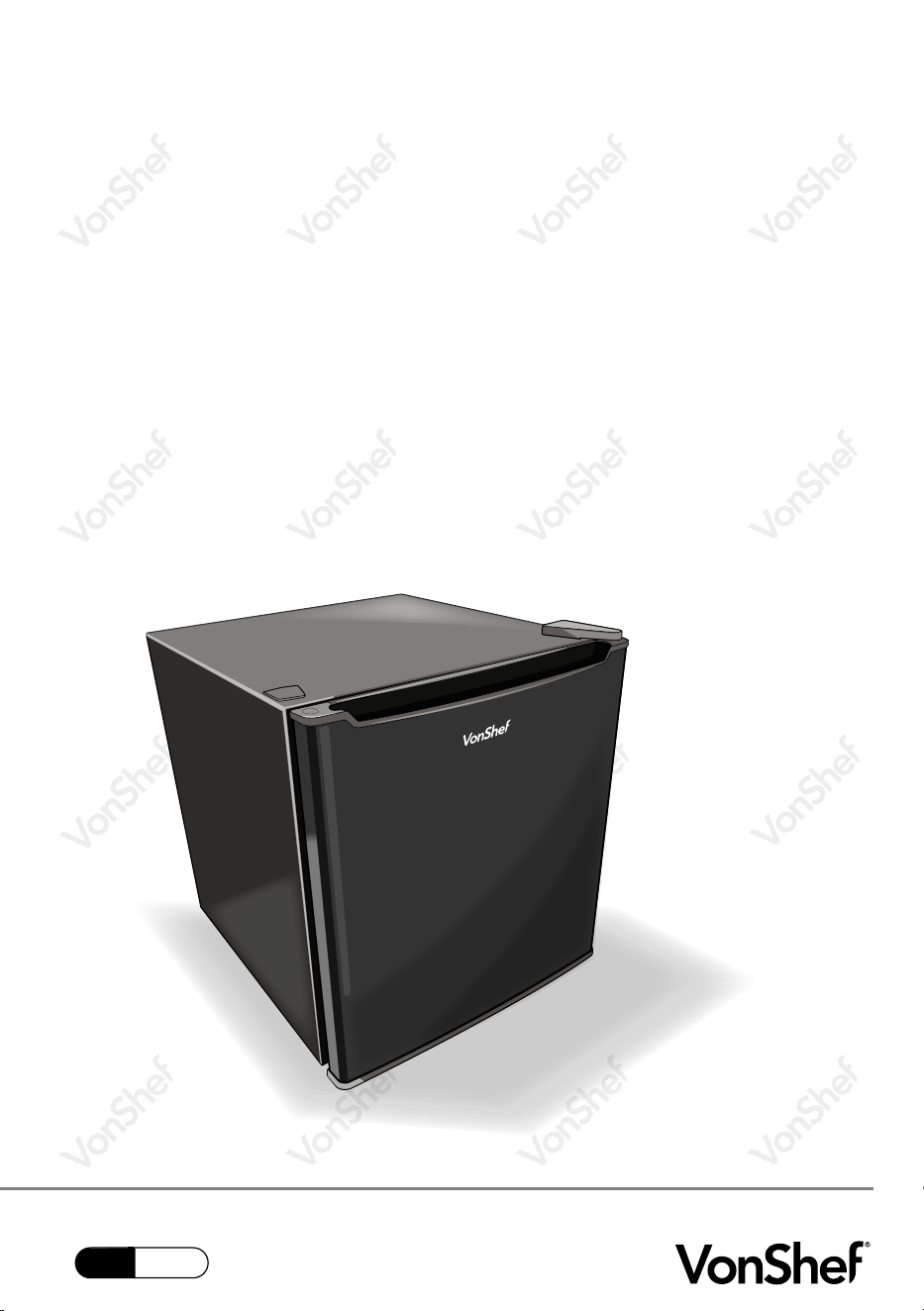

47L MINI FRIDGE
2013291 - Instruction Manual
VonShef.com
01
0418
CONTENTS
Safety Instructions
Safety Instructions
Specification
2
1
Before First Use, Placement
3
Troubleshooting
Warranty
5
6
7
Height Adjustment, Defrosting, Cleaning & Maintenance
4
VonShef.com
SAFETY INSTRUCTIONS
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.
INTENDED USE.
Only operate the VonShef
®
47L Mini
Fridge for its intended purpose and within
the parameters specified in this manual.
This Mini Fridge is intended for indoor,
domestic use only. Do not use outdoors,
on wet surfaces, or for commercial
purposes.
CABLES AND PLUGS.
Check to ensure your electricity supply
matches that shown on the rating plate.
This product should only be used as rated.
Preferably, the socket outlet should be
protected by a Residual Current Device
(RCD).
Do not use with a damaged cable or plug.
If the supply cable is damaged, it must be
replaced by a qualified engineer in order
to avoid a hazard.
The use of an extension cable is not
recommended.
Do not handle the plug or appliance with
wet hands.
Keep the cable away from heated
surfaces.
Do not let the cable hang over the edge
of the table or countertop where it could
be pulled on inadvertently by children or
pets.
Do not pull the cable around sharp edges
or corners.
Do not leave unattended when plugged
in. Unplug from outlet when not in use.
Turn off all controls before unplugging.
Do not unplug by pulling on the cable. To
unplug, grasp the plug, not the cable.
Always unplug before performing user
maintenance, connecting or disconnecting
attachments, or changing accessories.
Ensure the cable is stored safely to
prevent hazards.
ENERGY SAVING TIPS.
Try not to open the door too often,
especially when the weather is humid and
hot. Once you open the door, close it as
soon as possible.
Every now and then check if the appliance
is sufficiently ventilated (adequate air
circulation around the appliance).
Set thermostat from higher to lower
settings as soon as possible (depends
on how loaded the appliance is ambient
temperature etc).
SAFETY INSTRUCTIONS
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.
2
GENERAL PRECAUTIONS.
When using an electrical appliance, basic
Precautions should always be followed,
including the following:
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
This appliance is designed to be free-
standing. Do not install into recess’s.
If the Mini Fridge is not functioning
properly, has been dropped, damaged,
left outdoors, or immersed in liquid,
do not use, contact DOMU Customer
Services.
Do not use the Mini Fridge if any parts
appear to be faulty, missing or damaged.
Do not touch the cooled surfaces while
the appliance operates, especially not
with wet hands, because the skin may
stick to the cold surfaces.
Do not place the appliance under the
direct sun light, high temperature and
high humidity.
Do not place the appliance next to a
major appliance that emits large amounts
of heat, such as a dishwasher, microwave,
toaster oven, ovens or barbecue, etc.
Do not place any object near upper back
of the appliance which will affect the
cooling of refrigerator.
Do not get the back of the appliance wet.
Do not position any heavy objects on top
of the appliance.
Children should be supervised to ensure
that they do not play with the appliance.
Do not store explosive substances such as
aerosol cans with a flammable propellant
in this appliance.
If the appliance is not being used for a
long period of time ie on vacation, empty
the contents and disconnect to reserve
energy consumption and leave the door
open.
WARNING!
To avoid the possibility of child
entrapment, when disposing of
the appliance, ensure the door is
removed from the unit. Keep the
racks in place so that children can
not easily climb inside.
VonShef.com
1. TEMPERATURE CONTROL DIAL.
2. ICE MAKING COMPARTMENT/STORAGE.
3. WATER COLLECTION TRAY.
4. SHELF.
5. ADJUSTABLE FEET.
PRODUCT SPECIFICATION
220-240
V
VOLTAGE
50
W
RATED
POWER
50 A+
Hz -
RATED
FREQUENCY
ENERGY
RATING
TEMP CONTROL
6. HINGE COVER.
7. MAGNETIC SEAL
8. SMALL STORAGE SECTION
9. LARGE STORAGE SECTION.
10. DOOR.
1
5
3
6
4
7
8
9
10
2
1
OFF
4
7
TEMP CONTROL
REFRIGERATOR PLACEMENT
• The Mini Fridge should be located on a
completely flat and level surface.
• Ensure you leave 5-10cm between each side of
the appliance and the wall.
IMPORTANT: Choose a location where the
appliance is not exposed to direct sunlight or
high temperatures.
• If the Mini Fridge begins to make noise during
operation, this may indicate the appliance is not
level. Adjust the feet accordingly to level the
Mini Fridge.
4
BEFORE FIRST USE
Before using this appliance for the first time, please ensure you complete the following
steps:
• Clean the appliance, and all parts thoroughly as described in the cleaning and maintenance section.
• Insert the power cord into the socket.
NOTE: Turn the TEMPERATURE CONTROL DIAL to the COOL setting, close the door, and let the
refrigerator operate for 15-20 minutes to acclimatise.
• The temperature can then be adjusted once items have been added to the compartments.
TEMP CONTROL
OFF
1
10
7
4
5-10cm
5-10cm
5-10cm
1
OFF
4
7
VonShef.com
HEIGHT ADJUSTMENT
DEFROSTING
• Ensure the appliance is unplugged from the
mains and all contents have been removed
before adjusting the legs.
• Slightly raise the appliance to gain access to the
front feet. Turn them clockwise to heighten or
counter clockwise to lower.
WARNING! Avoid tipping the Mini Fridge onto
its back as this can damage the compressor.
TIP: Have the front of the appliance raised
slightly higher than the rear. This will ensure the
door shuts securely when closing.
• If the appliance has been set to the ‘COLDEST’
setting, frost may begin to appear in the
ICE MAKING COMPARTMENT which will
influence the refrigerating and increase energy
consumption.
• To defrost the appliance, simply turn the
TEMPERATURE CONTROL DIAL to the ‘OFF’
position then empty all of the contents (ensuring
you store them in a suitable area so as not to
expire). Disconnect from the mains and leave
disconnected for several hours if necessary until
the frost has melted.
• The water will be collected in the WATER
COLLECTION TRAY. Remove this and discard
before reconnecting to the mains and adding
food contents.
CLEANING & MAINTENANCE
Before using this appliance for the first time, please ensure you complete the following
steps:
• Never use abrasive cleaners, heavy-duty cleaners, or solvents on any surface.
IMPORTANT: Disconnect from the mains and remove all contents before cleaning.
• Clean exterior with a warm, damp and soapy cloth.
• Wash shelves and other removable parts in warm and soapy water. Rinse and dry.
• Ideally, wipe down the interior with a baking soda solution on a regular basis.
TEMP CONTROL
1
OFF
4
7
TROUBLESHOOTING
PROBLEM
SOLUTION
• Check the appliance is connected to a suitable
mains socket.
• Check and replace the fuse if required.
• Ensure the appliance has been placed on a
flat and level surface.
• The door may not have been closed properly
or has been opened frequently. Ensure the
door is always shut after adding contents.
Adjust the temperature control to a cooler
setting.
• Food with a strong odour should be packed
tightly in saleable bags or containers before
being placed inside of the appliance.
• Ensure no food items have expired.
• Clean the interior regularly using a cloth
soaked in warm water and mild detergent.
• This is completely normal during high
humidity periods.
• The door may have been left open for a
prolonged period of time. Ensure the door is
shut when not in use.
• Inspect the MAGNETIC SEAL for damage.
THE APPLIANCE IS NOT
OPERATING.
THE APPLIANCE IS VIBRATING.
CONTENTS APPEAR TO BE TOO
WARM.
STRONG ODOR INSIDE THE
REFRIGERATOR.
THERE IS MOISTURE ON THE
INTERIOR AND EXTERIOR
SURFACES.
6
VonShef.com
DISPOSAL INFORMATION
COPYRIGHT
DECLARATION
WARRANTY
Please recycle where facilities exist. Check with your local authority for recycling advice.
All material in this instruction manual are copyrighted by DOMU Brands Ltd.
Any unauthorized use may violate worldwide copyright, trademark, and other laws.
We:
DOMU Brands Ltd
4th, 5th, 6th Floor The Tower
Deva City Office Park
Manchester
M3 7BF
Declare under our sole responsibility that the product:
SKU: 13/291
Description: VonShef 47L Mini Fridge
To which this declaration relates is in conformity with the following directives:
2006/95/EC, 2011/65/EU, 2014/30/EU EC No 643/2009, 1060/2010.
If you are having difficulty using your product and require support, please contact [email protected]
CUSTOMER SERVICES
To register your product and find out if you qualify for a free extended warranty, go to:
www.VonShef.com/warranty
Please retain a proof of purchase receipt or statement as proof of the purchase date.
The warranty only applies if the product is used solely in the manner indicated in this manual and all instructions
have been followed accurately. Any abuse of the product or the manner in which it is used will invalidate the
warranty.
Returned goods will not be accepted unless re-packaged in its original packaging and accompanied by a
relevant and completed returns form. This does not affect your statutory rights.
No rights are given under this warranty to a person acquiring this appliance second-hand or for commercial or
communal use.
Thank you for purchasing the 47L Mini Fridge.
VonShef
®
is a registered trademark of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW.
