OWNER'S MANUAL
WASHING
MACHINE
Please read this manual carefully before operating
washing machine and retain it for future reference
MFL68486520
Rev.00_150720
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com
T65SJ
*
T70SJ
*
T65SP
*
T70SP
*
T80SJ
*
T90SJ
*
T10SJ
*
T65SN
*
T70SN
*
T80SN
*
T7288
*
ontents
C
Introduction
Installation
Before Starting to Wash
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your washer
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your washer. You will find many answers to common problems
in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you
may not need to call for service at all.
* Product feature may vary according to different models. Refer page 35 for modelwise
features for your purchased model.
Washing Programs
Page No
2
Additional Function
Program
Care and Maintenance
Troubleshooting
Features & Specifications
Terms of Warranty
Installation Check sheet
Safety Information
Product Feature
Identification of Parts
Placing, Leveling & Installation

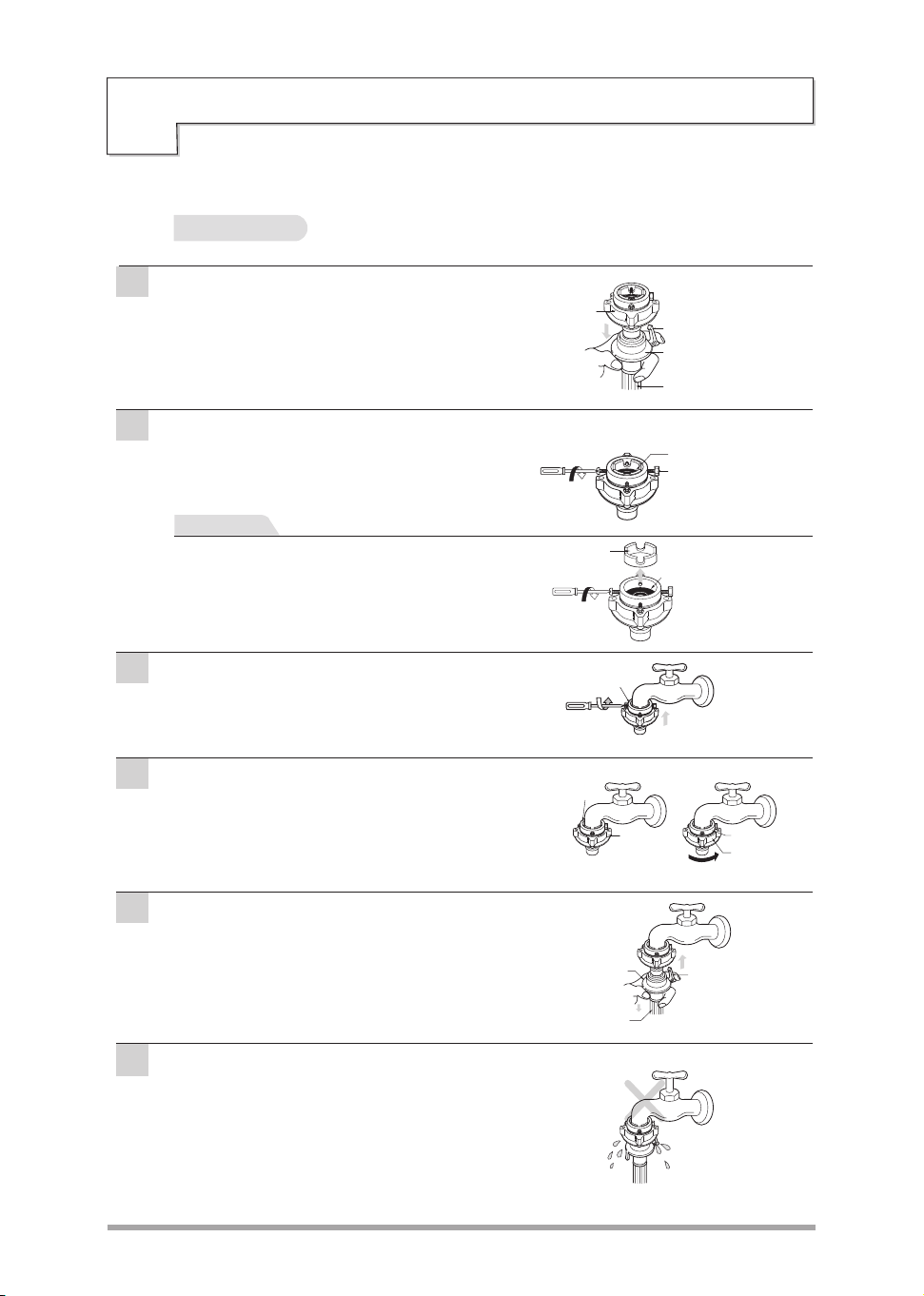

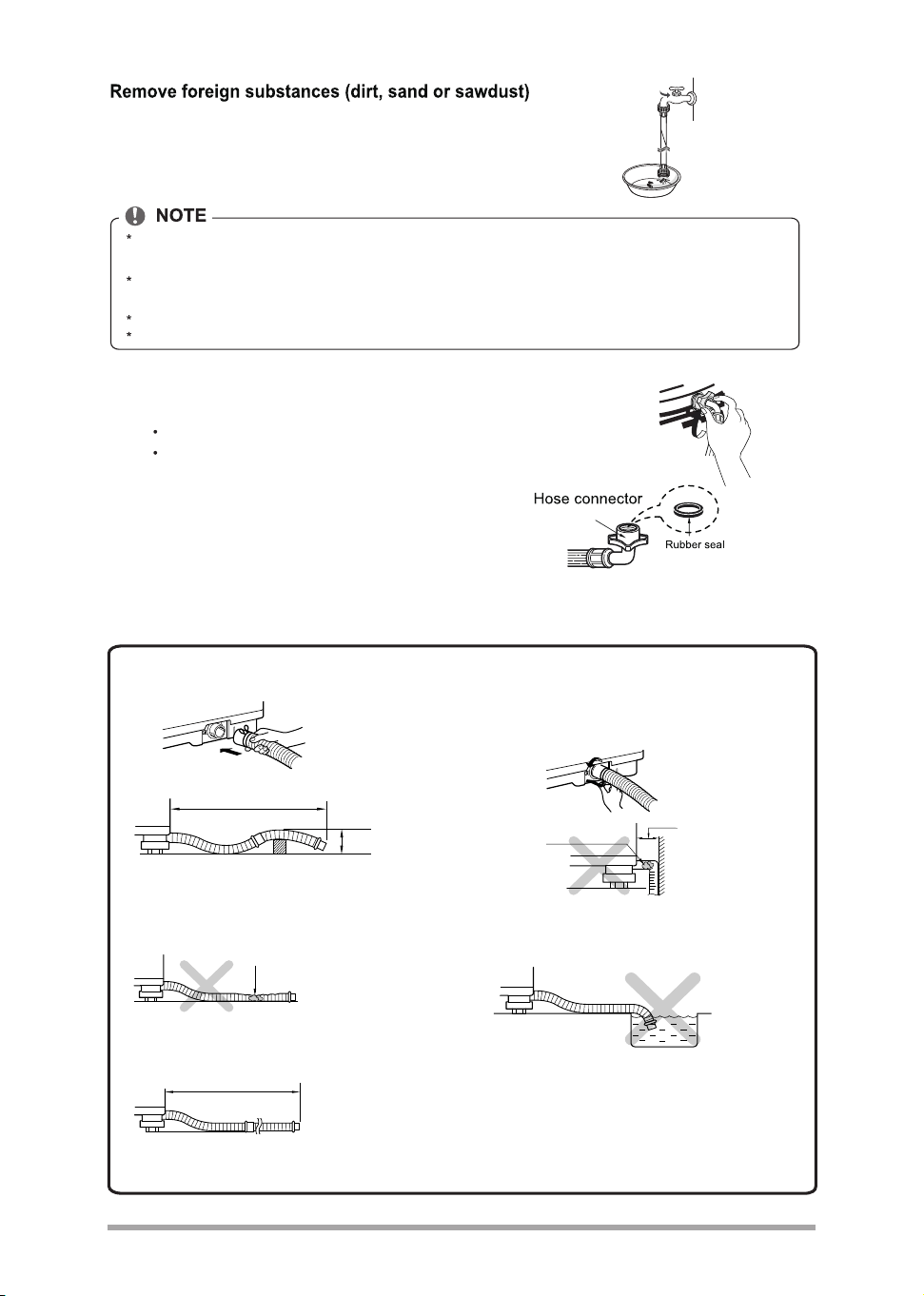

Connecting water supply Hose & Drain Hose
Preparation Before Washing
Use of Water, Detergent, Bleach and Softener
Special Guide for Stain Removal 15
Control Panel

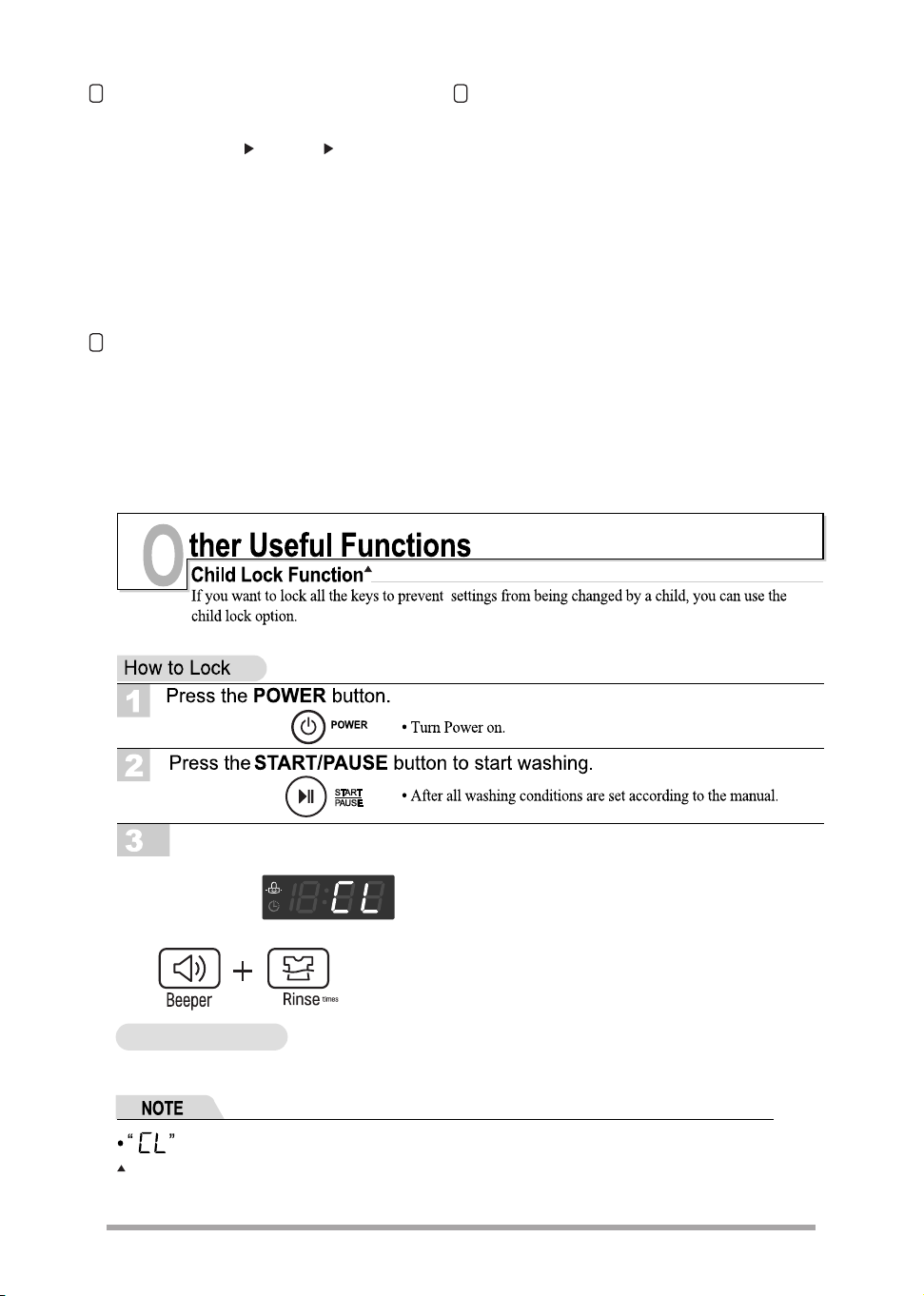

Other Useful Functions
Normal
Quick Wash
Gentle (Wool/Saree)
Turbo Wash
Strong ( Jeans)
Tub Clean
Aqua Reserve Wash
+
Pre Wash Normal Wash
Favourite Wash
AIR DRY
ENERGY SAVING GUIDE
Smart Closing Door
Soak Wash
Option Washing

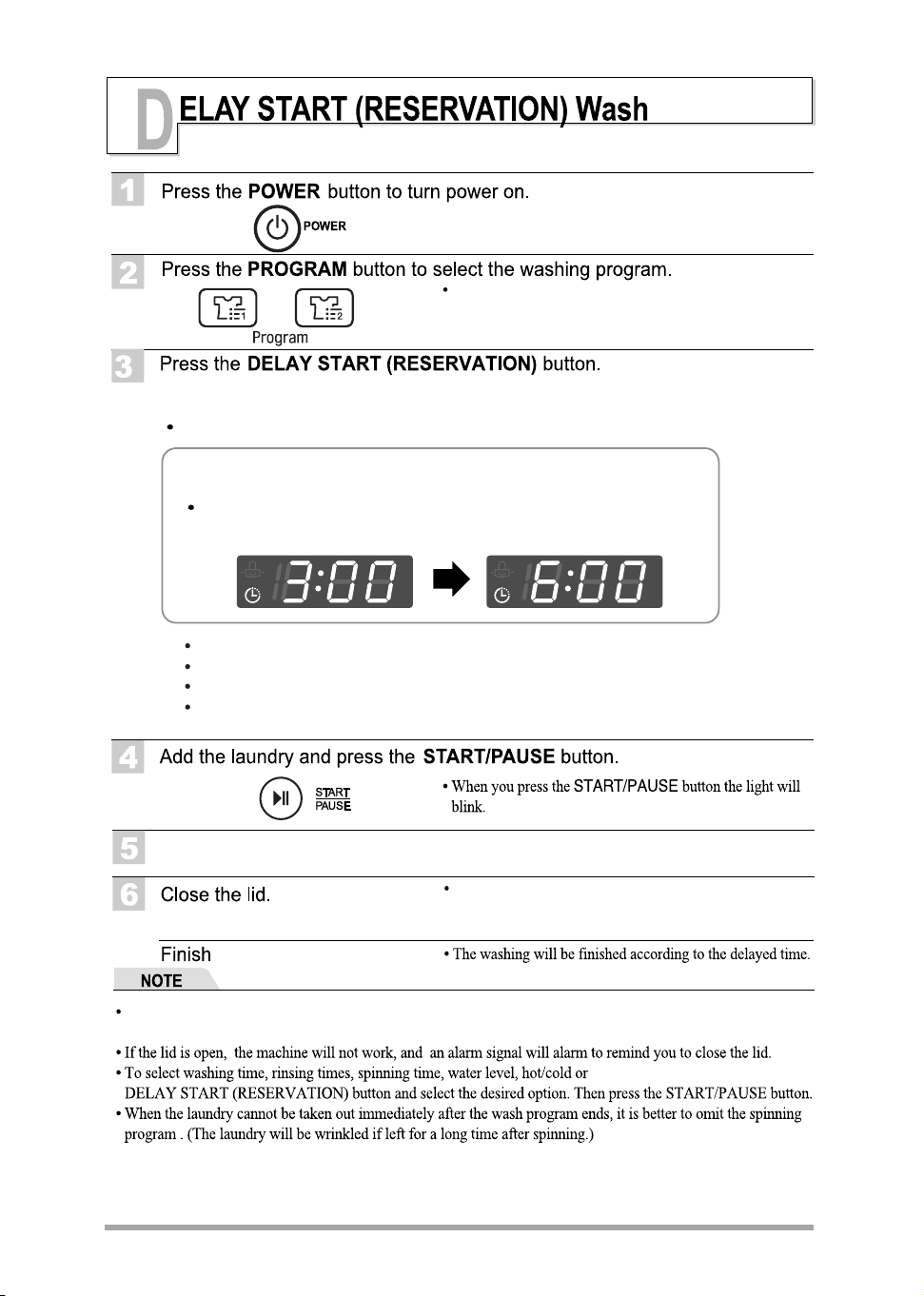

DELAY START (RESERVATION) Wash

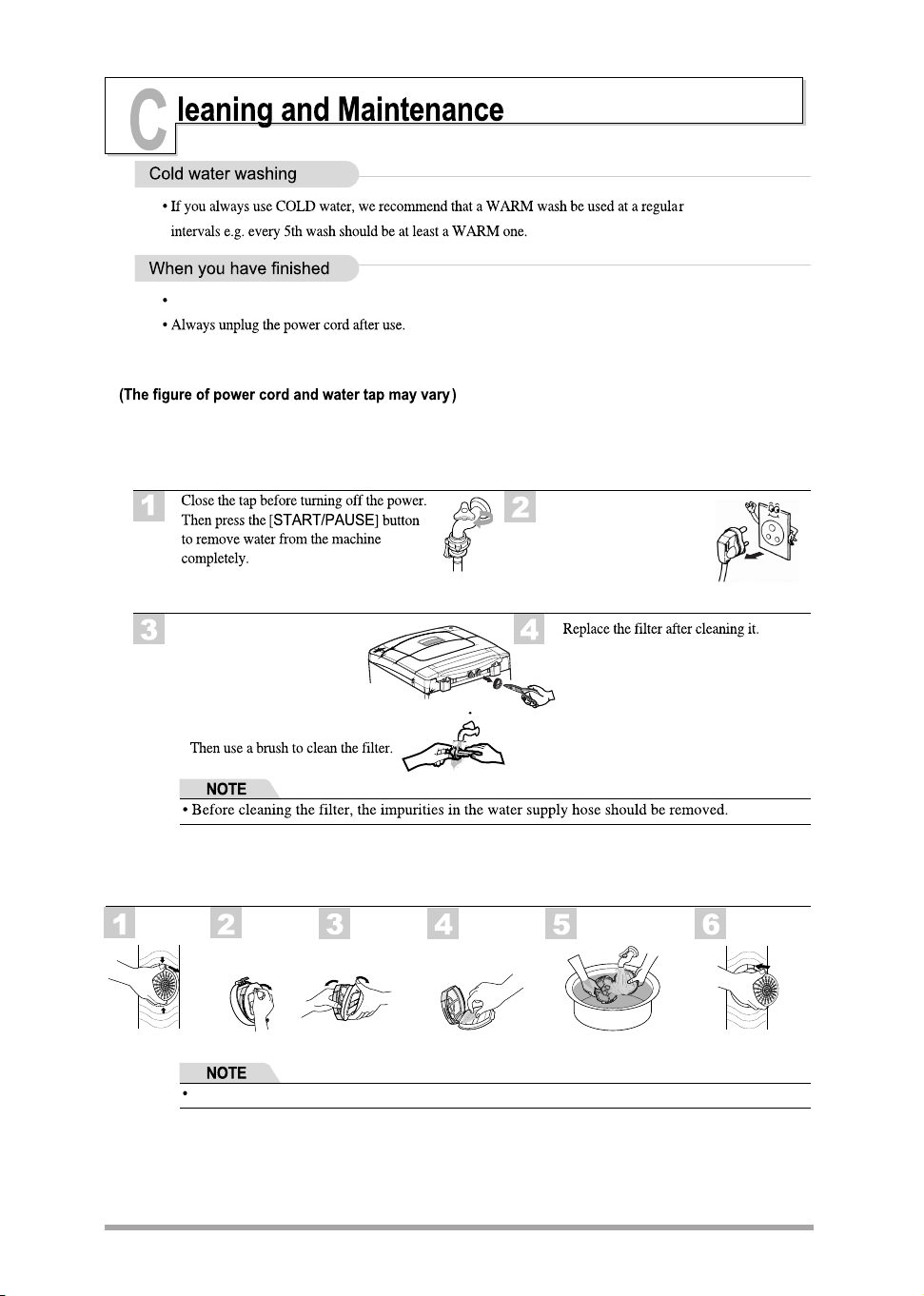

Cleaning and Maintenance
Common Washing Problems
Troubleshooting
Earthing
TM
Smart Diagnosis
Disposal of old appliance
Installation Check sheet
Warranty
Features & Specifications
3
6
7
8
9
11
12
16
17
18
18
19
19
19
19
19
20
20
20
21
22
22
23
24
25
27
28
29
29
31
32
33
35

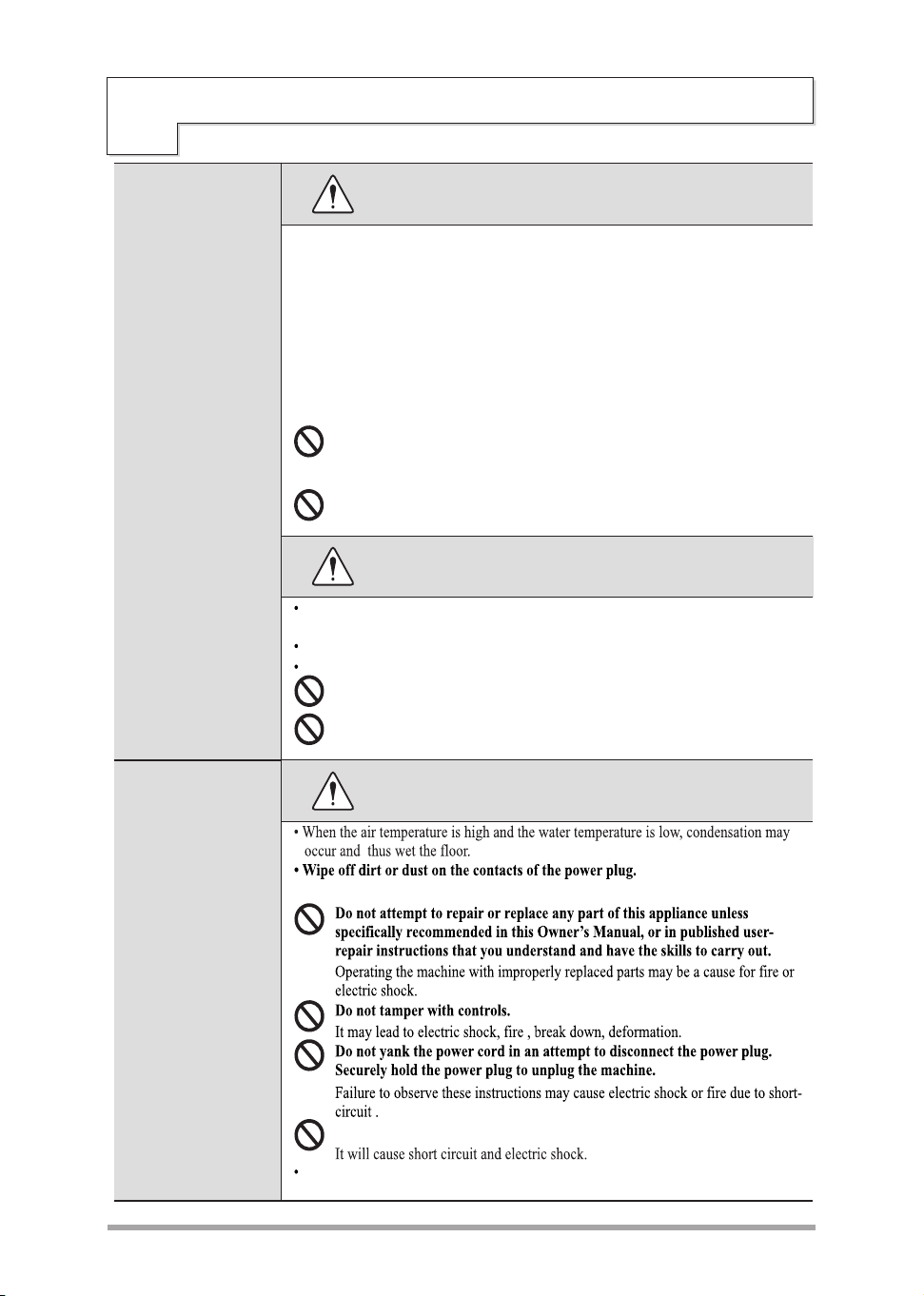

afety Information
S
Read carefully and thoroughly go through this booklet as it contains important safety information
that will protect the user from unexpected dangers and prevent potential damages to the product.
This booklet is divided into 2 parts : Warning and Caution.
: This is a warning sign specifying user’s applications which might be dangerous.
: This is a sign specifying ‘Strictly Forbidden’ applications.
WARNING
:
Failure to comply with the instructions under this
sign may result in major physical injuries or death.
CAUTION
: Failure to comply with the instructions under this
sign may result in minor physical injuries or
damages to the product.
Install or store where it will not be exposed to temperature below freezing or exposed to the
weather (Rain/Water Splash/ Direct Sunlight).
If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.
•
Machine must be positioned so that the plug is accessible.
If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or
electric shock.
•
Make sure the plug is completely pushed into the outlet.
Failure to do so may cause electric shock and fire due to overheating.
CAUTION
PROPER
INSTALLATION
WARNING
3
•
Washer shall be placed in dry areas specifically during rainy season.
Humid conditions may cause rusting which may result in product failure.
•
Washer shall be placed in dry areas specifically during rainy season.
•
•
•
The base opening must not be obstructed by carpeting when the washing machine is installed on
a carpeted floor.
Disclaimer : The user should follow the instructions as per the owner’s manual to avoid
any malfunctioning of the product, accident or damage.
The manufacturer is not liable for any accident or consequential or resulting liability, damage
or loss to property or life arising directly or indirectly from the product. The manufacturer's
liability is limited only to the extent of repair or replacement of the product as per the terms and
condition mentioned elsewhere in the document.

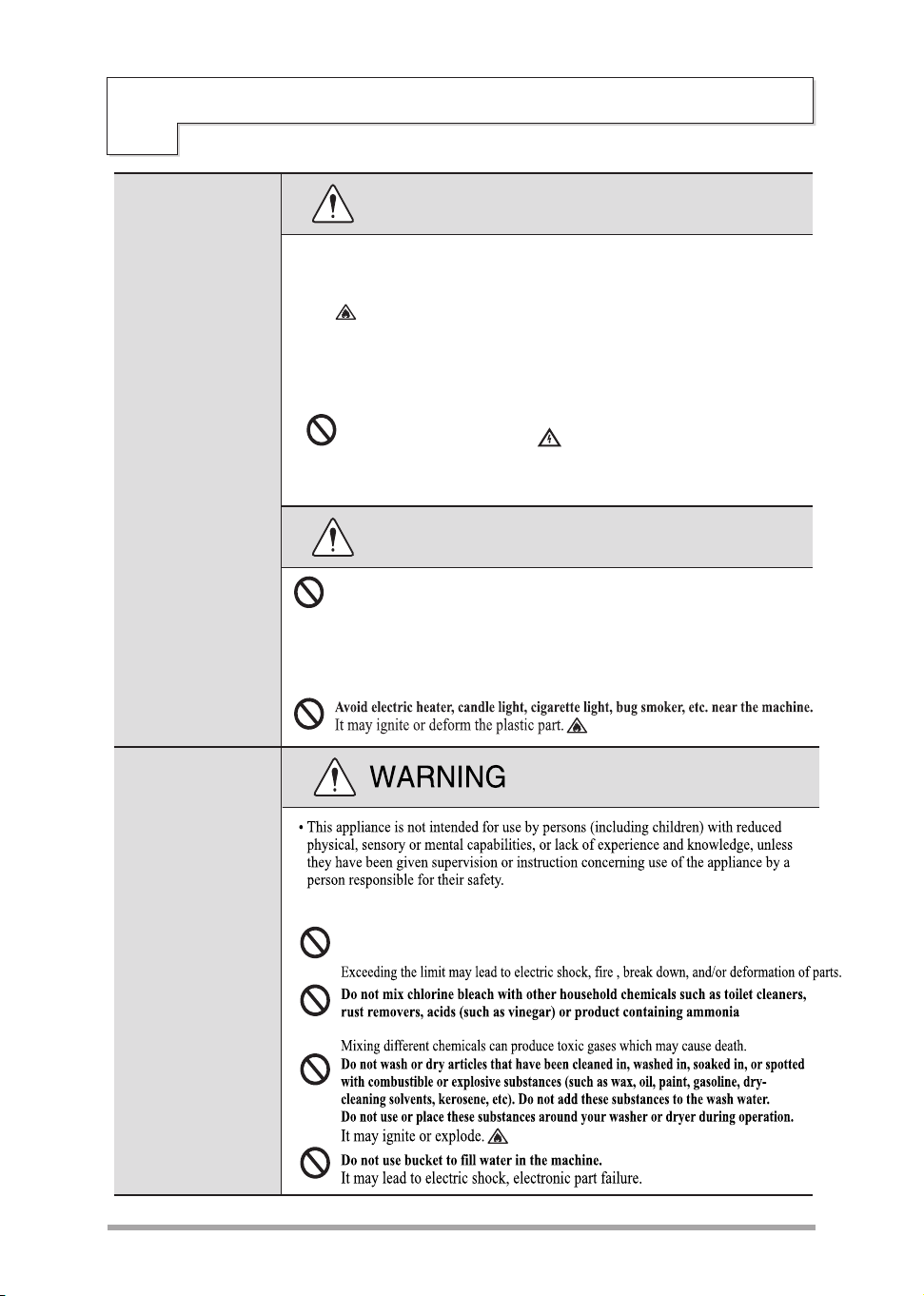

afety Information
S
WARNING
• Keep the area underneath and around your appliances free of combustible
materials such as lint, paper, rags, chemical, etc.
Operating with such materials around the machine may trigger explosion or
fire.
• Close supervision is necessary if this appliance is used by or near children.
Do not allow children to play on, with, or inside this or any other appliance.
There is potential danger that children might drown in the tub.
Do not touch the Power Plug with a wet hand.
It will cause electric shock
4
Do not put your hand, foot or anything under the washing machine
while the washing machine is in operation.
There is a rotating mechanism under the machine, so you could be injured.
CAUTION
YOUR
LAUNDRY
AREA
• Do not put or keep any magnet near Lid of Washer, it will result in
Malfunctioning of the Product.
Children should be supervised to ensure that they
do not operate or play with the appliance. Inconstancy to this may damage machine,
serious injury and electrical shock.
for laundry
or Tub Wash.
WHEN USING
THE WASHER
Do not use power plug, power socket outlet and wiring equipment for
more than their rated capacity.
afety Information
S
• Make sure that drainage is working properly.
If water is not drained properly, your floor may get flooded.
Flooded floors may induce electricity leakage, further resulting in electric shock or fire.
• If, during spinning, opening the lid does not stop the tub within about 15 second,
immediately discontinue operating the machine.
Call for repair. A machine that spins with its door open may cause injuries.
• Disconnect the Washer from the household distribution panel by removing the Power
Plug from Power Socket outlet before attempting any maintenance or cleaning
Inconstancy to this may Cause electrical shock
WARNING
Never reach into the machine while it is running.
Wait until the machine has completely stopped before opening the lid.
Even slow rotation can cause injury.
Never attempt to operate this appliance if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts, including a damaged cord or plug.
Operating with a damaged plug may cause electric shock.
5
CAUTION
WHEN USING
THE WASHER
Use of excessively hot water may cause damage to fabrics or cause
leakage of water.
Ensure No water logging near or below washer to prevent rusting.
Rusting on certain parts may result in product failure
Do not connect washer to hot water supply.
Turn off the water faucets to relieve pressure on hoses; they may need Replacement after
5 Years Inconstancy to this may rupture hose which leads to water Leakage.
Do not use wet cloth to clean the machine, Always use dry cotton cloth.
Using unclean power socket plug may cause fire.
Customer may Slip too.
Do not use washer for any other purpose other than its intended purpose.
- Use this appliance only for household purpose.
Do not use water hotter than 60°C.
WARNING
WHEN NOT
IN USE

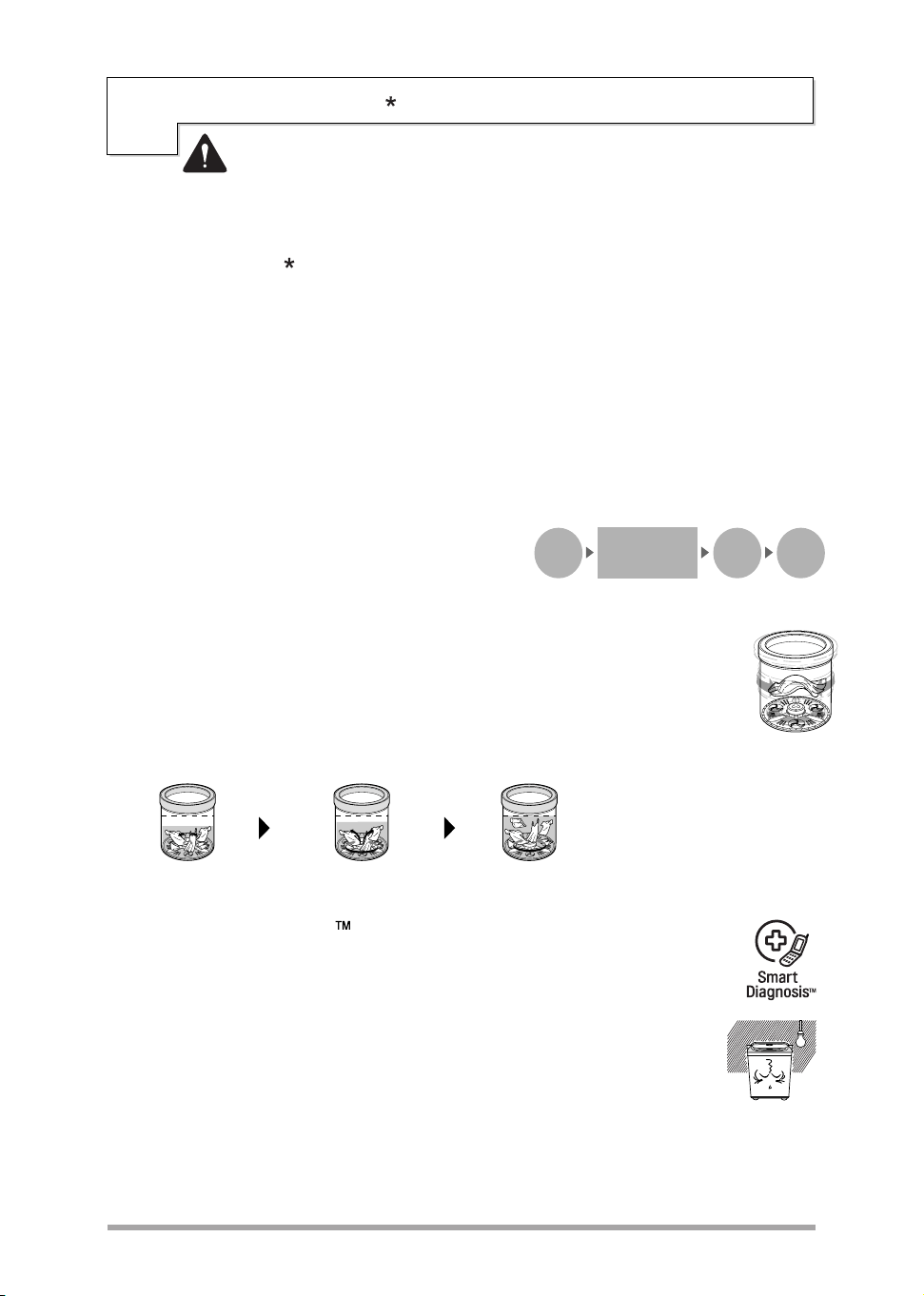

roduct Features
P
3 Step washing
3 step washing makes the best washing performance with low tangling.
Normal logic control
A built-in load sensor automatically detects the laundry
load and a microprocessor optimizes washing conditions
such as ideal WATER LEVEL and washing time.
Advanced technology is built into the Electronic Control System which ensures the best washing result.
START
WASHING
AUTO
POWER
OFF
SENSING
Laundry Sensor
Water Level Sensor
SETTING
Optimum
Washing
Condition
Rubbing
Rubbing and
Shaking
Shaking and
Disentangling
+
Pre Wash Normal
The purpose of this program is to deliver best Wash Performance by adding extra 8 min of uniquely
designed washing pattern before the main wash cycle.
Washer doesn't operate while the lid is opened. If the lid is opened during the wash, rinse
or spin cycles, the operation stops for safety.
Smart Diagnosis
It is the technology to transmit the anomalies to the service center when there
is a problem with the washer. It provides the service that gives faith and trust
to the customers through precise and fast analysis.
Auto Restart
Auto Restart allows the program to restart all by itself in case of power failure. It resumes
from stage where it stopped, however, the wash cycle time may vary.
#
Jet Spray+
A technology uniquely designed to spray inlet water with greater force to penetrate deep into the
clothes to bring out the best washing and rinsing performance.
Product feature may vary according to different models. Refer page 35 for modelwise features for your purchased model.
*
# Works during Wash cycle in Normal, Pre Wash+ Normal, Turbo Wash & Aqua Reserve from WL1 to 7 and during Rinse cycle
in Normal, Pre Wash+ Normal, Turbo Wash & Aqua Reserve Programs at all water levels.
Jet Spray performance may vary with Inlet water pressure, for optimum results pressure should be > 0.9 Bar
6
Smart Closing Door
Smart hinge prevents sudden closing of the door. Gives you a soft and safe door closing.
TurboDrum washing
When "Punch + 3" washing wings turn, the washing tub turns in the opposite direction.
This makes the both sides current of water which improve wash-performance by rubbing
clothes strongly.
Turbowash*
Turbowash program delivers high wash performance in least cycle time using revolutionary Jetspray+
technology which optimizes water & energy consumption.
dentification of Parts
I

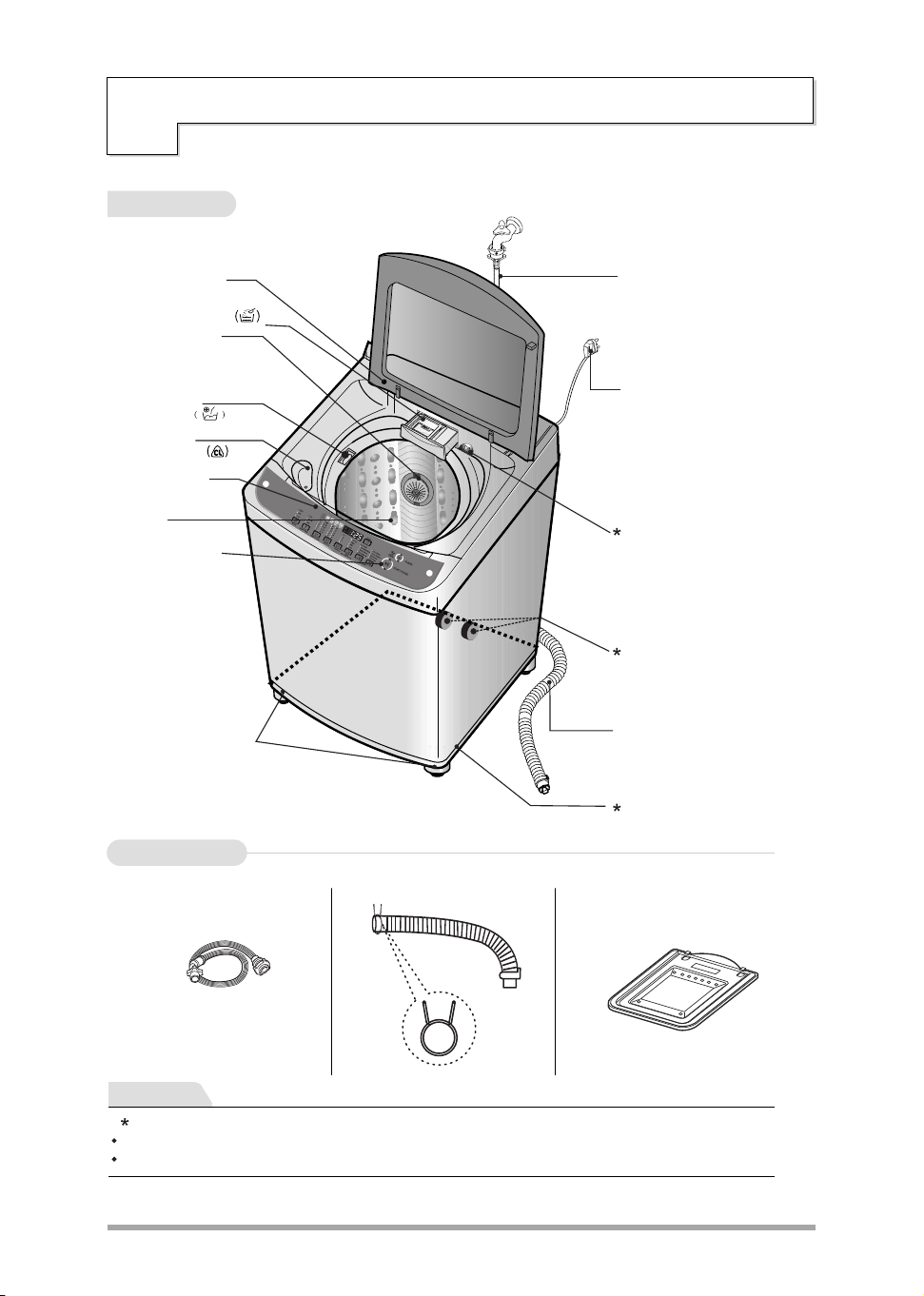

WATER SUPPLY
HOSE
BLEACH
DISPENSER
FUNCTION
SELECTOR
TUB
BASE
ADJUSTABLE LEGS
DRAIN HOSE
POWER PLUG
START/PAUSE
BUTTON
Use to start or
stop the washing
machine
temporarily.
Make sure the
water does not
leak.
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.
Keep the drain hose
flipped down while
washing is in progress.
Use to level the washing
machine for correct
balance & spin
operation.
MAGIC FILTER
Clean regularly to
stop linting on the
clothes load.
Body
POWDER
DETERGENT BOX
NOTE
CASTORS
Use for easy
translocation
(at rear bottom edge)
Accessories
NOTE
Water supply hose
Drain hose
Anti-rat cover
Snap Ring
SOFTENER
INLET
Do not open
For Cold Water
7
“ ” Parts can be different as per purchased model.
Please do not match this figure with model as it may be different from your model .These are schematic diagrams only.
Due to continuous improvements at LG, specification of washing machine are subject to change without prior notice.
Smart Hinge
JET SPRAY NOZZLE
Depending upon the Inlet
Water Pressure, performance
of Jet Spray may vary.
(Works in Normal, Turbo Wash,
+
Pre Wash Normal & Aqua
Reserve Wash Programs).
Casters

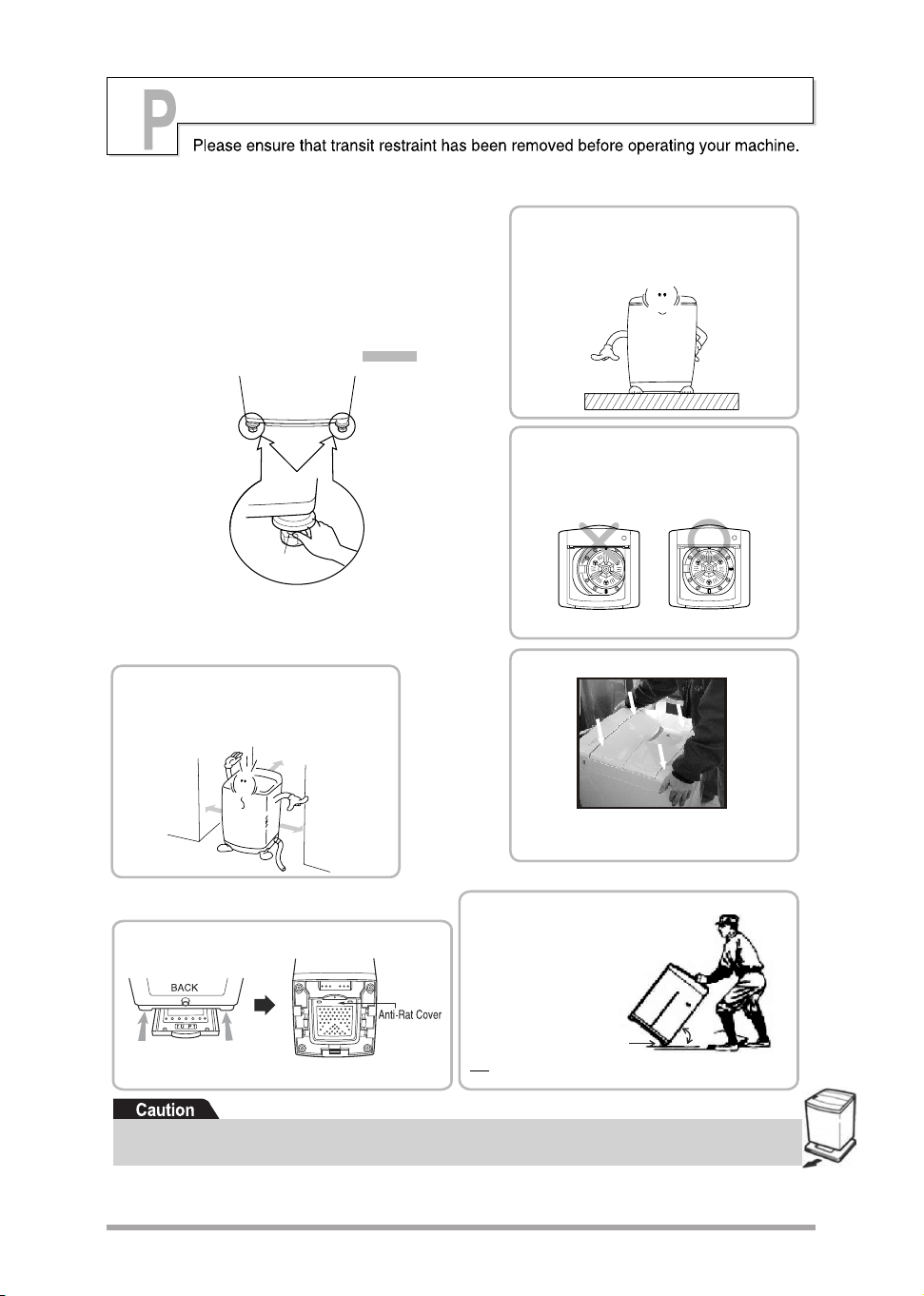

How to adjust leveling
Turn the adjustable legs to set the washer
horizontal (Both the front legs).
Install the washer on flat and firm surface.
1
Installation area
Adjustable leg
Improper installation of the washer may cause noise and malfunctioning.
1.
2.
3. Handle all packaging materials (such as plastic
bags and thermacol) to keep away from children.
The packaging materials can cause suffocation.
2
Checking level
The Basement is not flat, fill the water just touching the
Pulsator and see uniform distribution. If not, adjust the
legs as shown in the figure.
Top View
Press the corners of the machine diagonally
as shown in the figure, If any movement is observed,
adjust the legs for proper leveling.
3
Checking Proper placement
Anti-rat cover installation
Insert the Anti rat cover firmly from back side side of washing machine.
# Moving of the Machine
Note : * Be careful that you should not drop the machine.
* Never move the machine on casters when there is load inside.
Casters are provided for easy translocation of your machine
* Grip the machines properly as shown in fig.
* Tilt the machine towards your side at a angle
45 ~ 55 .
O O
The ventilating openings in the base area must not be obstructed by carpeting when the washing machine is
installed on a carpeted floor.
Install the washing machine on a level and firm
surface.
More than 10cm
More than 2cm
More than 2cm
Distance between drain hose and the wall
Distance between drain hose and the wall should be more
than 10cm, and the distance between the other part or the
rear part and the wall should be more than 2 cm.
.
Don't add anything under back side legs.
lacing, Leveling and Installation
Note :
8
# Product feature may vary according to different models. Refer page 35 for model wise features for your purchased model.
Please do not match the figures with model as it may be different from your model. These are schematic diagrams only.
Be sure to remove the product from the carton base, otherwise the machine will not be able to operate
properly.
C
onnecting Water Supply Hose & Drain Hose
Rubber packing
Rubber packing
screw
Guide plate
Connector
Connector
Middle
Connector
Middle
Connector
Water Supply Hose
Pressing rod
Pressing handle
Connector
Middle
connector
Pressing Handle
Pressing Rod
Water Supply Hose
Separate Middle connector from Water Supply Hose
Separate
Middle
connector from the
Water
Supply Hose by pulling the Pressing Rod and the
Pressing Handle that is
attached to the
Water
Supply Hose
.
Loosen the fixed nuts to connect the connector to the tap
Untighten the
screw of the
connector so that the
tap can be placed in the middle.
Fixing Connectors to the Tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws
.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the
Upper
and Middle
Connectors. Tighten the
connectors
by holding one
connector and twist middle
connector to the right.
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the
Water Supply
Hose
which was
separated from middle
connector
(refer to Step1) and then join it to the middle
connector.
If the tap diameter is too large or is
square,
untighten the 4 screws
and remove the guide
plate. Then follow step1
.
In case tap is too large.
NOTE
Normal Type
(Normal tap without thread & one touch type inlet hose.)
1
2
3
4
5
Check for water leakage
After connecting the
If the
connection leaks, close the tap and start
again from step 1.
If you skip step 1, water leakage may occur.
6
Water Supply Hose
other end of hose to machine open the tap to
check for any water leakage.
9
Drain Hose
Less than 2m
Less than 6cm
Connecting the Drain Hose to Washer
The hose is placed
over a doorsill.
If Extension hose is used
should be less than 3m
Less than 3m
Make sure that the
hose is not crushed.
Make sure that the hose is
not crushed between the
wall and the washer
Avoid submerging
the end of hose.
1 2
Insert the drain hose to the connect-
ing area at the body.
1.
2.
3.
The hose is clogged by
alien substances.
Less than 10cm
Press the hose clip.
While pressing, push the hose towards
the body.
Release the hose clip after pushing the
hose.
10
After connecting inlet hose to water faucets, turn on the water faucets to
flush out foreign substances (dirt, sand, or sawdust) in the water lines. Let
water drain into a bucket, and check the water condition.
For your safety and for extended product life, use only authorized components. The manufacturer is not responsible
for product malfunction or accidents caused by the use of separately purchased unauthorized parts.
Use new hoses when you install the washing machine. Do not reuse old hoses. Use only the inlet hoses provided with
the washer . LG does not recommend the use of aftermarket hoses.
Periodically check the hoses for cracks, leaks and wear, and replace the hoses every 5 years.
Do not stretch the water hoses intentionally, and make sure that they are not crushed by other objects.
Check to see if there is a rubber seal inside the connector.
Connect the water supply hose to inlet valve of the washing machine,
and then lock it by turning the hose connecting part.
Connecting Water Supply Hose to Washer

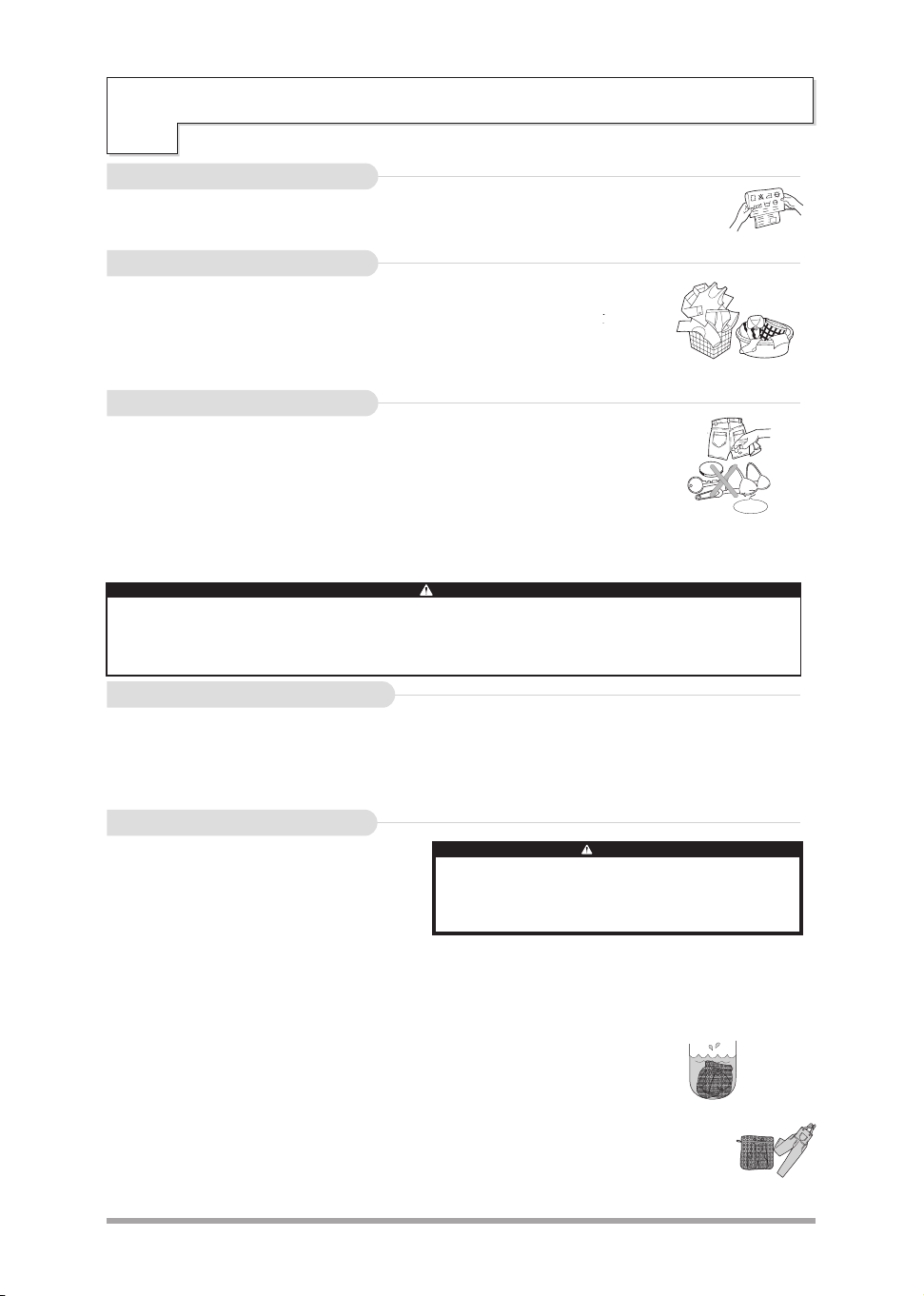

reparation Before Washing
P
• Check all pockets to make sure that they are emtpy. Things such as nails, hairclips, matches,
pens, coins, and keys can damage both your washer and your clothes.
• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
•
Make
sure the
clothes
are
washable in water.
•
Check the
washing instructions.
•
Remove tissue from pockets.
To get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light)
COLOR (Whites, Lights, Darks)
LINT (Lint Producers, Collectors)
Separate clothes according to th e type and amount of soil.
Separate white fabrics from colored fabrics.
Separate lint producers and lint collectors.
•
•
WIRE
Sorting
Check before Loading
Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it
should be washed.
Sort clothes into lo ads that can be washed with the same wash cycle.
Care Labels
Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent
tangling during washing.
Fasten zippers, hook, and strings to make
sure that these items don't snag on other clothes.
Nylon net is not supplied by LG.
Clothes like downs
and woollens
are light weight, large
and float easily. Use
a nylon net and
wash them in a
small amount of water. If the laundry floats during the
wash cycle, it may
become damaged. Use dissolved Detergent to prevent the
Detergent from clumping.
Light and Large-sized clothing
Long laundry items
Do not wash fabrics
containing flammable materials
(waxes
,
cleaning fluids
,
etc
.
)
Load Size
The WATER LEVEL should just cover the clothes.
Adjust the load size accordingly. Loosely load
clothes not higher than the top row of holes in the
washer tub. To add items after washer has started,
press Start button and submerge additional items.
Close the lid and press Start button again to restart.
Loading
• Pretreat shirt collars
and cuffs
with a pre-wash product or liquid Detergent when placing them in the
washer.
Before
washing treat special stains
with bar soaps, liquid Detergent or a paste of water and granular Detergent.
•
Use
a pretreat soil and stain remover.
Treat stains
AS SOON
AS POSSIBLE. The longer they are left the harder they are to remove.
(For more detail refer to page15)
Pretreatment on stains or heavy soil
Lint Producers
Lint Collectors
Terry cloth, Towels, Nappies, Diapers
Synthetics, Socks
*
WARNING
Fire Hazard
Never place items in the washer that are dampened with gasoline
or other flammable fluids. No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including
cooking oils). Doing so can result in death, explosion, or fire.
*
*
CAUTION
Do not wash or spin any item labeled or known to be water-proof or water-resistant, even if the product care label on the item
permits machine washing. Failure to follow these instructions could result in severe damage to your laundry, your washer and/or
property damage as a result of abnormal vibration of the washer.
- Examples of water-proof or water-resistant items include certain mattress pads, mattress covers, rain gear, camping gear, skiing apparel, outdoor
gear and similar items.
11
se of
Water, Detergent, Bleach and Softener
U
Using Water
•
This machine automatically detects desired water level
according to quantity of laundry inside tub.
•
Manual selection of Water level is also possible by pressing
Water level key.
•
While selecting Water level, selected Water level lamp will
glow for each pressing of Water level key.
Amount of WATER LEVEL
NOTE
Using Detergent
Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems.
Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
Choosing the right Detergent
We recommend the use of domestic
Detergent, (powder, liquid or concentrated). Soap flakes or granulated
soap powders
should not be used in your washing machine. When washing woolens remember to us
e
Detergent suitable for washing woolens.
12
se of
Water, Detergent, Bleach and Softener
U
•
•
•
Amount of WATER LEVEL (WL)*
NOTE
Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems.
Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
Choosing the right Detergent
We recommend the use of domestic
Detergent, (powder, liquid or concentrated). Soap flakes or granulated
soap powders
should not be used in your washing machine. When washing woolens remember to us
e
Detergent suitable for washing woolens.
• When washing in COLD water additional steps may be needed;
• Adjust Detergent amount and pre-dissolve Detergent in WARM water
• Pre-treat spot and stains
• Soak heavily soiled items
• Use appropriate bleach
* Temperature below 18°C... (65°F) will not activate laundry additives and may cause lint, residue, poor
cleaning etc.
In addition, Detergent manufactures and care labels is define COLD water as 26-29°C... (80-85°F).
If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and
clean effectively.
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange
spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.
Water level selection table may differ as per purchased model .
For 6 WL Models For 10 WL Models
•
Check clothing care label for special instructions
and separate the
laundry to be bleached.
•
Dilute liquid chlorine bleach.
•
Measure
the
recommended
amount
of
liquid
bleach
carefully
following instructions on the bottle.
•
Before
starting the
washer, pour measured amount of bleach directly
into bleach dispenser. Avoid splashing or overfilling. Powdered
bleach should be mixed with water before pouring
.
Using Liquid Bleach
Bleach dispenser
NOTE
Never pour undiluted liquid bleach directly onto clothes or into the
wash basket.
This may cause change of color or damage the laundry
.
Do not pour powdered bleach into bleach dispenser.
Water Level and Amount of Detergent
Concentrated detergent: 20g approx. per 30 liters of water.
Regular synthetic detergent: 30g approx. per 30 liters of water.
When sensing water levels automatically, the amount of
detergent can differ according to the amount of laundry
even at the same water level.
For synthetic detergent, use one that generates less
bubbles. This type of detergent is specially designed
for washers
.
In case of using liquid detergent, dissolve it with water
(detergent: water=1:1) and deposit it through the bleach
deposit hole
.
Note : To check you are using the correct amount of Detergent, lift the lid of your machine about half-
way through the wash. There should be a thin layer of foam over the surface of the water. Lots of
foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough
Detergent has been used, soil and lint can settle back on the clothes or the washing machine.
If excess Detergent is used, the rinse will not be efficient. Also, it could cause environmental
pollution, so use it accordingly.
Adding the detergent
Add measured detergent to the detergent compartment of the dispenser drawer.
We recommend the use of powdered detergent in the dispenser only when using
a delay wash function.
Detergent is flushed through the dispenser at the beginning of the wash phase.
Detergent usage may need to be adjusted for water temperature, water hardness,
size and soil level of the load.
Avoid using too much detergent in your washer, as it can lead to oversudsing and
detergent residue being left on the clothes.
Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remove Mixing can release
a toxic gas which may cause death.
Do not open
Images used here are only for representation purpose. Actual Features/parts may vary from model to model.
OR
The correct amount of detergent will vary depending
on the amount of soil in your clothes. (Jeans and work
clothes may need more detergent, while bath towels
usually need less.)
For liquid and concentrated detegants, follow the
recommondations of the detergent manufacturer.
Rated Capacity of Model
Applicable for models
8.0kg and lesser
se of
Water, Detergent, Bleach and Softener
U
se of
Water, Detergent, Bleach and Softener
U
Amount
of Water
Amount
of laundry
85 l
80 l
68 l
66 l
62 l
52 l
49 l
42 l
Less than
Less than 6.0 kg
Less than 5.3 kg
Less than 4.6 kg
Less than 3.9 kg
Less than 3.2 kg
Less than 2.5 kg
Less than 1.8 kg
34 l
32 l
Less than 1.1 kg
Less than 0.5 kg
10
9
8
7
6
5
4
3
2
1
Applicable for models
9.0kg and above
Amount
of Water
Amount
of laundry
Less than
Less than 5.0 kg
Less than 3.5 kg
Less than 3.0 kg
Less than 2.5 kg
Less than 2.0 kg
Less than 1.5 kg
Less than 1.0 kg
62 l
59 l
51 l
50 l
48 l
42 l
39 l
34 l
29 l
26 l
Less than 0.6 kg
Less than 0.4 kg
10
9
6
5
8
7
6
5
4
3
2
1
6 WL
Model
4
3
2
1
Water Level
(WL)
Water
Level
13
10 WL
Model
se of
Water, Detergent, Bleach and Softener
U

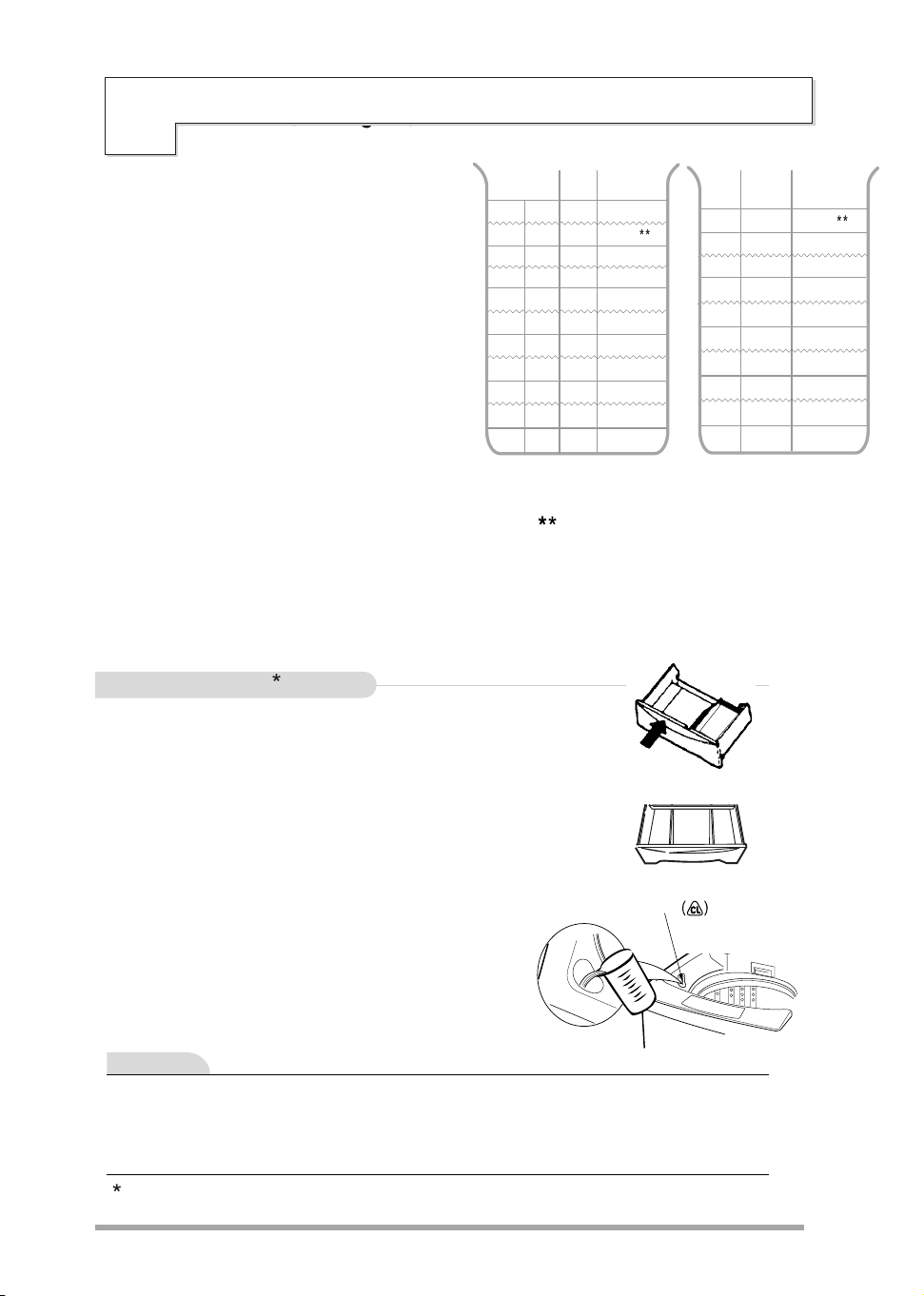

If you wish to use fabric softener we recommend
Scrud (Waxy Build up)
Scrud is the name given to the
waxy build-up that can occur within any washer when the fabric
softener
comes into contact with Detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your
clothes or an unpleasant
smell in your
washer.
•
Using fabric
softener sparingly.
•
When filling the dispenser, do not splash or overfill.
•
Clean dispenser as
soon as the
cycle is finished.
•
Clean your machine regularly.
(refer to page 19 or 26)
•
Cold water washing increases the
chance of this build-up occurring. We recommend a regular WARM
wash e.g. every 5th wash should be
at least a
warm one.
• Fabric
softener of thinner consistency is less likely to leave residue on the dispenser and contribute to
a
build-up.
Softener dispenser( )
Attention
Do not mix with detergent or bleach.
Never pour fabric
softener directly on clothes. It may stain them.
Do not stop the
washer during the first spin for timely dispensing.
Option washing is not designed to be used with fabric
softener dispenser.
•
•
•
•
Using Fabric Softener
• Dilute fabric
softener with water.
Undiluted fabric
softener may result in spots that look like oil stains.
• Do not overfill. The dispenser hold max 35ml.
Never add more than 35ml.
Overfilling can cause
early dispensing of the fabric
softener which could result in stained clothes.
A
cup with a pouring spout will help you avoid spilling.
• The
effect of adding fabric
softener may vary according to its viscosity. The
stickier
fabric
softener makes
its
effect the lower. For a
sticky fabric
softener it is recommended that it be diluted with
water, then be
manually correct time to dispense manually is optionally applied to some models. Please keep it in
mind that
fabric
softener has to be diluted with water before dispensed and never poured directly on clothes.
• Measure
and add the recommended amount of fabric
softener into the
compartment marked with this
symbol( ).
Follow manufacturer’s direction.
Fabric
softener is
automatically dispensed in the final rinse
with
indication beep.
If you want extra rinse, you must add fabric
softener manually
when indication beep rings in the final rinse.
This maximize the fabric
softener function.
14
pecial Guide
for Stain Removal
S
•
To remove Stains efficiently determine the kind of stain, then follow the recommened
treatment given in the stain removal chart below:-
• To pretreat stains, use
a prewash product, liquid Detergent, or a paste made from
granular Detergent and water.
•
Use
COLD
water on unknown stains because
warm water can set stains.
•
Check care label instructions for treatments to avoid on specific fabrics.
•
Check for color f
astness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
For successful stain removal:
Follow fabric care label
instructions
Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
Read and comply with all instructions on stain removal products.
Keep stain removal products in their original labeled containers and out of children's reach
Thoroughly wash any utensil used.
Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry
cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.
Never use highly flammable solvents, such as gasoline, inside and near Washer. Vapours can explode on contact with flames or
sparks.
WARNING
15
Stain Removal
STAIN
Adhesive tape, chewing gum,
rubber cement
Baby formula, dairy products, egg
Beverages (coffee, tea, soda, juice,
alcoholic beverages)
Blood
Candle
wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats, salad
dressing, cooking oils, car grease,
motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place
stain face down on paper towels. Saturate
with prewash stain remover or
nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash
using COLD
water and bleach safe for fabric.
Rinse
with COLD
water. Rub
with bar soap. Or pretreat or soak with
product containing enzymes. Wash using
bleach safe for fabric.
Scrape off surface
wax. Place
stain face
down between paper towels.
Press
with warm iron until wax is absorbed.
Replace paper towels frequently.
Treat
remaining stain
with prewash stain remover or nonflammable dry cleaning
fluid. Hand wash
to remove
solvent. Wash
using bleach safe for
fabric.
Pretreat or soak in
WARM water using product containing enzymes
.
Wash using
bleach safe for fabric.
Pretreat with prewash stain remover
or rub with bar soap.
Use packaged color remover. Wash
using bleach safe
for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash
using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest
water safe for fabric. For heavy stains and tar, apply
nonflammable dry cleaning fluid
to
back of
stain. Replace
towels under stain frequently. Rinse throughly. Wash
using hottest water safe for fabric
.
Some inks may be impossible to remove.
Washing may set some
inks. Use prewash stain remover, denatured
alcohol or nonflammable dry cleaning fluid
.
Wash with chlorine bleach if
safe for fabric, or soak in oxygen bleach and warm water before washing. Badly
mildewed fabrics ma
y b
e
p
ermanentl
y
dama
g
ed.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed.
OIL BASED & VARNISH : Use solvent recommended on can label. Rinse thoroughly before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and
nonchlorine bleach
.
Do not use chlorine bleach because it may intensify discoloration.
LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat with
prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach
safe for fabric.
TREATMENT
#
C

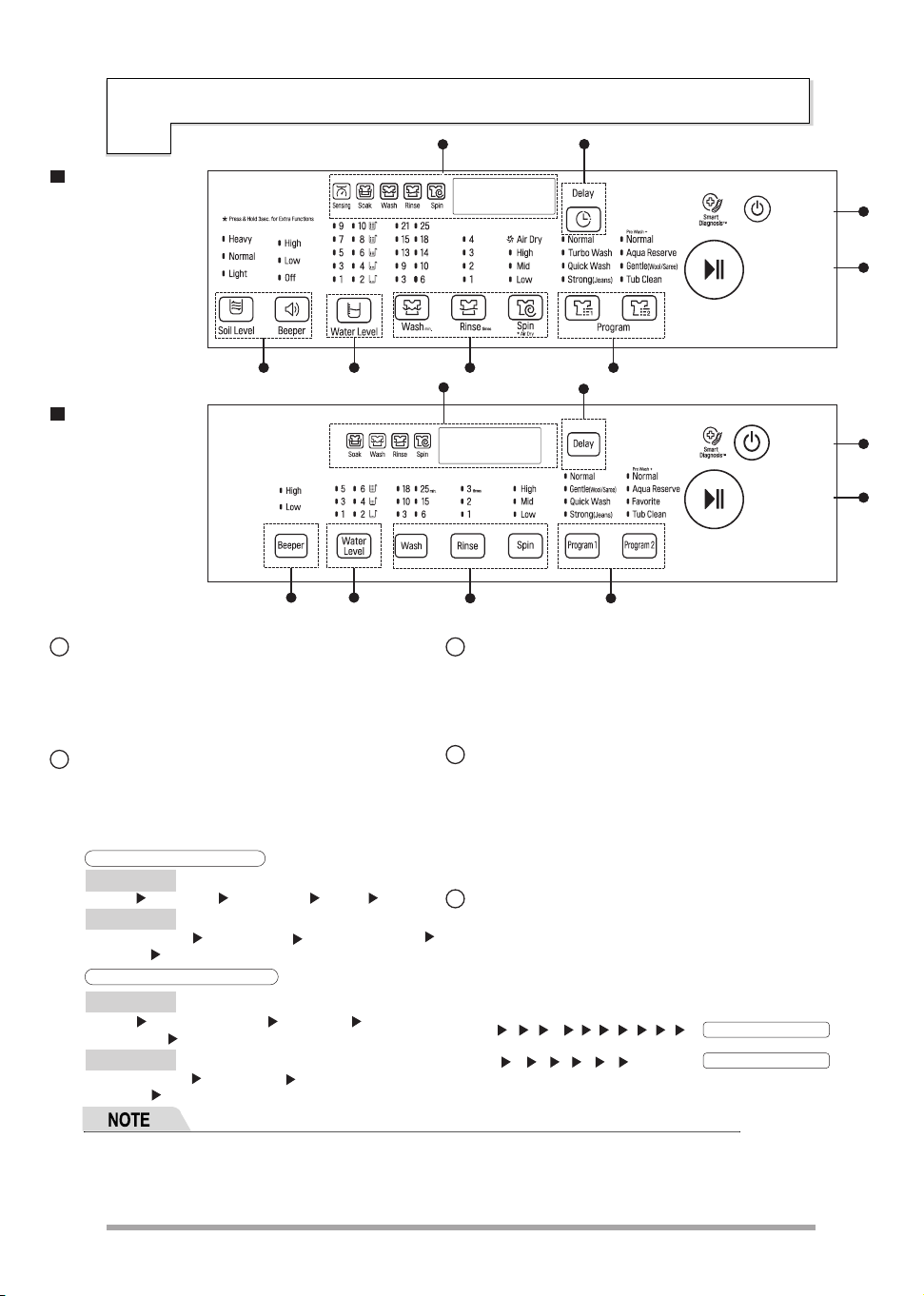

ontrol Panel
3
PROGRAM BUTTON
• Use for selecting wash program.
• This button allows you to select 8 different
programs for different kinds of laundry and dirtiness.
•
Program selection light up in sequence as follows:
Program 1:
Program 1:
Program 2:
Program 2:
Normal Turbowash Quick Wash Strong Normal
Prewash+Normal Aqua Reserve Gental(Wool/Saree)
Tub Clean Prewash+Normal
Normal Gental(Wool/Saree) Quick Wash
Strong(Jeans) Normal
Prewash+Normal Aqua Reserve Favorite
Tub Clean Pre wash+Normal
WASH, RINSE, SPIN BUTTON
• Use when wash, rinse, spin, time need to be adjusted.
• The time increases when the button is pressed.
• If adjustment are needed during the wash, press the
[start/pause] button before making any changes.
• When the button is pressed during washing, total
remaining cycle time is displayed.
4
For 10 Water Level Model
For 6 Water Level Model
For models having Jet Spray Feature
11
22
POWER
START/PAUSE
1
1
7
8
1
6
1
5
1
4
1
3
* Do not press any three or four buttons simultaneously, it may cause malfunctioning.
# Picture (control Panel) given here is only for representation purpose. Actual Features may vary from model to model.
Product feature may very according to different models. Refer page 35 for model wise features for your purchase model.
WATER LEVEL BUTTON
• Use to select the proper amount of water in relation to the
to the weight and type of laundry.
• Automatically controlled, but can be selected manually by
pressing the WATER Button.
• Water Level is automatically selected for normal program.
The following setting are indicated as the button is pushed.
7 8 9 10 1 2 3 4 5 6 7
4 5 6 1 2 3 4
5
For 10 Water Level Model
For 6 Water Level Model
11
22
POWER
START/PAUSE
1
7
1
8
1
6
1
5
1
4
1
3
For models not having Jet Spray Feature
11
POWER BUTTON
• Press the Power button to
turn the washing Machine on.
• The appliance will automatically turn off
once a certain time has passed after the
wash has completed
2
• Press the Start/Pause button to
start the wash cycle or pause the wash cycle
• If a temporary stop of the Wash cycle is
needed, press the Start/Pause button.
START/PAUSE BUTTON
16
TM
SMART DIAGNOSIS Function Display
• It makes the place to put the phone to receive
signal when when a problem occurs.
( refer to page 29)
DELAY START BUTTON
•
•
•
Use to set a delayed finishing time.
To cancel delay time, turn the power switch off or
press Start/Pause button & then keep pressing delay
button until delay LED turn off.
(refer to page 24)
The time increase when the button is pushed.
& the remaining time are alternatively shown on the display while they are locked.
Power On/Off button can operate while Child Lock function is activated.
•
Time Left- During operation, the remaining time is indicated.
• DELAY START INDICATION(RESERVATION)-
When Delay Start (Reservation) Program is selected, it
indicates the finishing time. (RES. = DELAY)
• Alarm Indication- When an error occurs, an error
message appears to indicate the abnormality.
For Example- DE indicates that the lid is open.
TIME LEFT, DELAY START
( RESERVATION ), ALARM INDICATION
* Do not press any three or four buttons simultaneously,
it may cause malfunctioning.
7
SOIL LEVEL*
• Use this feature based on soil/ dirt level of the cloth.
selected soil level for low, medium or high soil/ dirt
level respectively.
• This feature cannot be selected for courses: Tub clean,
Wool, Air Dry & Turbo Wash.
• This feature can not be selected when only spin option is
selected.
BEEPER BUTTON
•
If you want to use the washing machine without
alarm signalsounds.pressing Beeper button allow
you to select : High Off , Low High respectively
default setting is high.
6
8
•
The child lock is set, it will not be released automatically
even if the cycle is terminated.
•
How to Unlock
To unlock, press & hold the Beeper and Rinse Button simultaneously for 3 second again.
Press and hold Beeper and Rinse Button simultaneously for 3 second.
Thus, you should turn power on washing machine
and then terminate function by pressing "Beeper
and Rinse" button simultaneously for 3 second.
* Product feature may very according to different models. Refer page 35 for model wise
features for your purchase model.
17
Wash cycles are designed for the best wash performance for each type of load. Select
the Program that best matches the load contents for maximum wash performance and
fabric care.
Step Action
1
2
3
4
End
• Press the Power Button
• Add laundry
• Select the desired wash program by Pressing Program Key.
• Close the Lid
• Press Start/Pause Button
Wash tub rotates twice to detect the laundry load.
Water Level will be selected automatically and water will be
supplied.
• Open the lid and add appropriate quantity of detergent as shown
on water level indicator or follow the detergent manufacture's
instructions.
• Close the Lid
• When the Wash Program Ends, the Buzzer will ring and the
Power goes off automatically after 15 Second.
Use this program for washing every day
Normal clothes. e.g. sheets, towels, T-shirts.
This mode automatically selects the most
appropriate conditions and completes the
sequence in one operation. The built-in sensor
detects the size of the load and ideal wash power
& wash, rinse and spin times are set
accordingly.
Note :
•
Normal program is set by default.
•
If water or wet laundry is already in the drum
before starting, the water level will be
increased.
•
For lightweight bulky loads, the water level
may be too low and should be increased
manually.
Normal
Use this Program to wash lightly soiled clothes
for a short time. This Program’s recommended
laundry amount is under 2.0 kg.
Quick Wash
START/ PAUSE
POWER
AUTO OFF
18
Note :
• When static pressure of water is more than
196.13 kPa, the QUICK WASH course will be
finished.
# 23 min : Model 8.0kg or lesser.
# 27 min : Model 9.0kg or more.
•
Changes to water level is possible, only after
pressing START/PAUSE button during
operation.
Use this program for washing delicate fabrics
such as lingerie, woolens, Saree, Etc. (wash
only "water washable" clothes).
Note :
• When setting the WATER LEVEL manually,
do not set to medium to prevent damage to
laundry. It should always be high.
• Most hand-knitted garments are not machine
washable, so recommend you to hand wash
them.
• For the washing instruction, check the
clothing label before wash.
• A neutral detergent is recommended for the
woolens or Saree.
• Do not use a tumble dryer to prevent damage.
• To avoid direct sunlight, cover up the clothes
with towels during natural dry.
• Some woolens or sweater may clog the drain
hose by their lint, so recommend you to use
spin only after hand-wash them.
• In order to avoid damage to laundry, the spin
cycle may appear slow. This also avoids
Wrinkles and laundry may still contain some
water at the end of the cycle. This is normal.
Gentle (Wool)*
Tub Clean
Use this program to save Time with efficient
Water & Energy consumption
Note:
For Optimum Turbo wash performance
we recommend to use 1 to 7 water Level
with default selections.
Turbo Wash*
Use this Program for heavily soiled durable
garments e.g. overalls, jeans. Thick and heavy
clothes or those which are excessively dirty like
working uniforms can be washed.
Note :
• Spread Jeans / Heavy loads evenly in the tub to
avoid Unbalancing issues.
Strong (Jeans)
If scrud is allowed to build-up in the machine it
can result in stains on your clothes or unpleasant
smell in your washer. In these case,use this
program to clean inner tub and outer tub.
a) After 10 min of water supplement add the
oxygenated bleach (about 300ml).
Note:- 1. Do not use detergent box.
2. Do not place any laundry inside tub.
b) Close the lid.
Note:- 1. When the lid is open, machine will not
operate, and an alarm signal will remind you to
close the lid.
Note:-
• Before using this program remove lint inside
lint filter.
• When using this program, do not place any
laundry inside tub.
• This program takes about 2hours to be
completed.
• Do not pour bleach into the tub directly.
It might cause damage to the tub.
• Do not leave diluted oxygenated bleach
inside tubfor long ,time as it may rust the
tub.
• After using this program, remove dirt inside
filter.
• After finishing this program, open the lid to
remove irritant odor.
• Do not use this program repeatedly.
Use this program once in every month.
Aqua Reserve
Use this program to reuse the water for second
round of wash load. Water will not Drain at the
end of the cycle and can be reused for washing
another lot.
* Product feature may very according to different models. Refer page 35 for model wise features
for your purchase model.
19
Note :
• Do not keep water hold for long time after the
end of cycle. This may cause bad odour and
damage the laundry.
• SPIN function cannot be done in AQUA
RESERVE wash program.
Press the POWER button to turn power on.
Press the START/PAUSE button.
When the cycle ends, the buzzer will ring and the Power goes off
automatically after 15 second.
Press Spin for 3 second to select Air Dry.
Other function cannot be selected during Air Dry.
Automatically set to 30 min upon selection.
Press Spin button again to select duration (30min 1h 1:30h 2h)
.
To deselect Air Dry press power button.
When you select Air Dry for more than 1 hour
1) You can reduce the drying time by minimizing the moisture in the laundry.
2) Always keep the laundry amount to 2kg or less and make sure to spread it out evenly.
3) Select 1 hour for cotton laundry and 2 hours for synthetic fiber laundry for
effective Moisture removal.
*
Use this program it will allow you to
store your Favourite wash conditions in the
normal cycle memory and then recall it for
use at a later time.
To select your FAVORITE wash
conditions.
• Press the WATER LEVEL button to
select WATER LEVEL. • Press the
WASH button, the RINSE button & the
SPIN button to select wash time, rinse times
& spin time respectively you want to store.
Press the START/PAUSE button to store
& start your FAVORITE wash cycle.
power turns off automatically after wash.
Note:
To recall your favourite cycle,
1. Press Power ON.
2. Select the FAVOURITE cycle by
pressing the program.
3. Press the START /PAUSE but
.
t
on
the
Wash cycle starts.
20
Pre Wash+ Normal
Use as pre-treatment to wash heavily soiled,
shirt neck collar & sleeves, kids soccer/sports
wear. 8 min of unique pre washing operation
will be performed before main wash.
Wash(2min) Sock(2min) Wash(2min)
Sock(2min)
Note:
If water or wet laundry is already in the
drum before starting, the water level will
be increased.
For lightweight bulky loads, the water
level may be too low and should be
increased manually.
Changes to water level is possible, only
after pressing START/PAUSE button
during operation.
Favourite Wash*
* Product feature may very according to different models. Refer page 35 for model wise features
for your purchase model.
E
NERGY SAVING GUIDE
Set the Soil Level - Heavy, Water Level - 10, Wash - 25min, Rinse - 2times, Spin - High.
Set The Water Level - 6, Wash - 25min, Rinse - 2times, Spin - High.
Set the Water Level - 10, Wash - 25min, Rinse - 2times, Spin - High.
Follow Step 3 as per your purchased model.
a) T65SJ , T70SJ , T80SJ
* * *
b) T65SP , T70SP
* *
c) T65SN , T70SN , T80SN
* * *
d) T90SJ , T10SJ
* *
Set the Soil Level - Heavy, Water Level - 10, Wash - 18min, Rinse - 2times, Spin - High.
• Under test conditions, When tested accordance with standards IEC 60456 : 2010 & BEE schedule – 12 (Revision - 3) .
Actual performance of machine will depend on how the appliance is being used.
• We recommend the use of powdered detergent in the dispenser only when using a delay wash function.
• For best washing result we recommend to mix the detergent powder in warm water and pour directly into the drum
before putting the clothes.(Rated Capacity Load)
To enter into the Energy Saving mode follow bellow guide:
Press the Power button to turn power on.
Close the lid & press the START/PAUSE button.
Press the PROGRAM button to select the STRONG (Jeans) Program.
Washing process can be seen inside the tub through tempered safety glass.
Smart hinge prevents sudden closing of the door.
Door is heavy, be careful while closing of the door. Do not let your hands or any other material
to caught below door. It might cause injury or damage.
•
•
•
•
•
•
Door closing time is dependent on ambient temperature.
Higher the ambient temperature, lower the door closing time and vice versa.
Smart Closing Door performs best when lid is closed from full open condition.
S
MART CLOSING DOOR
21
22

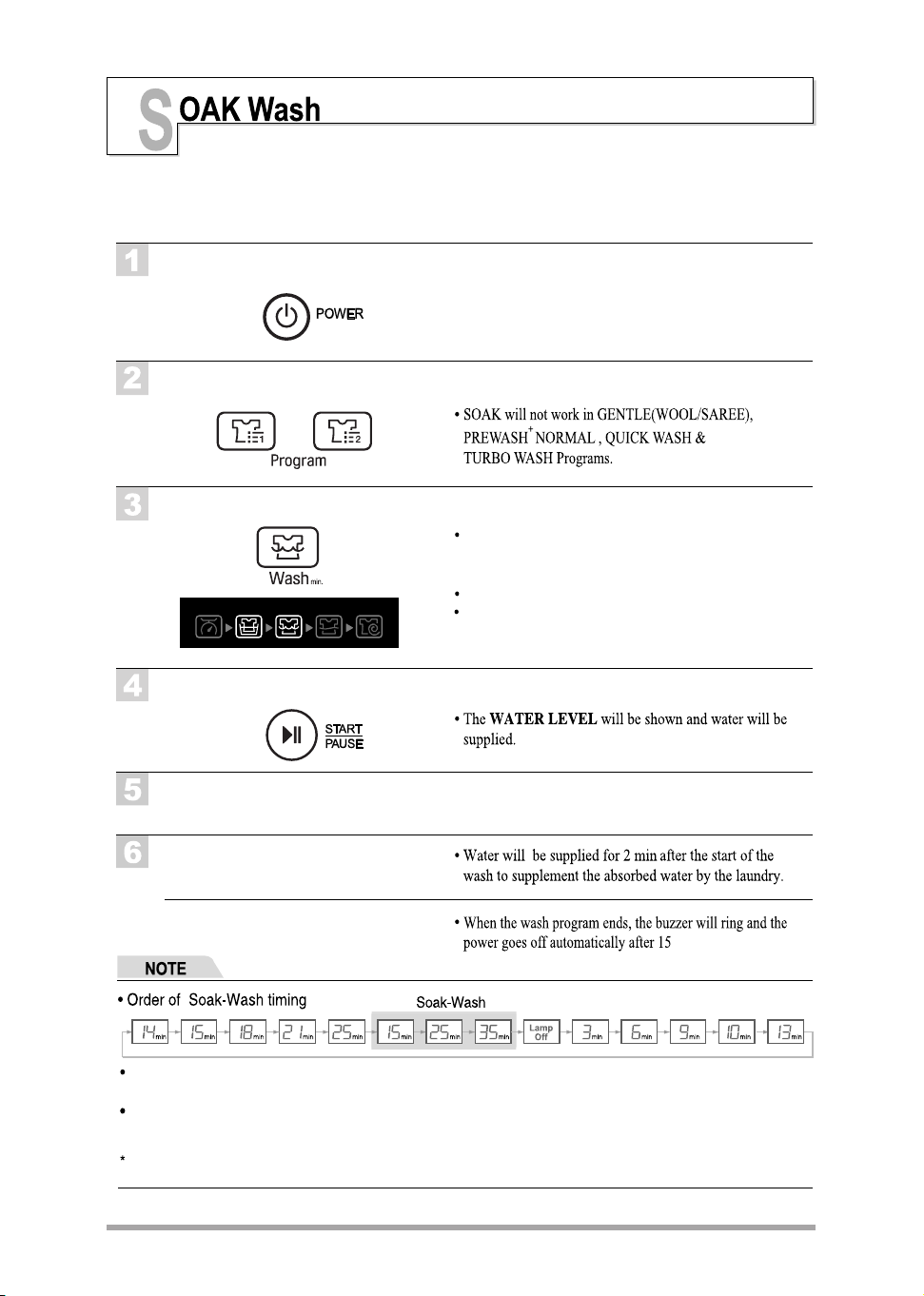

Keep pressing the WASH button again & again until
the light turns on ‘SOAK’ and ‘WASH’ simultaneously
as next image.
Segment display total cycle time.
For e.g. After wash selection of 25 min, each
consecutive wash button press, sets soak wash for
15, 25, 35 min respectively.
Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty.
SOAK mode can be used with NORMAL or STRONG (JEANS) or AQUA RESERVE WASH
Program.
Select soaking time 15 min, 25 min, or 35 min ( excluding washing time) by pressing the wash button
repeatedly.
If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or spin buttons till
you reach the desired times.
Starting time in Order of Soak-Wash timing may vary model to model.
Press the POWER button to turn power on
Press the PROGRAM button to select the washing program.
Press the WASH button, to select SOAK program.
Add the laundry and press the START/PAUSE button.
Add the Detergent.
Close the lid.
Finish
second.

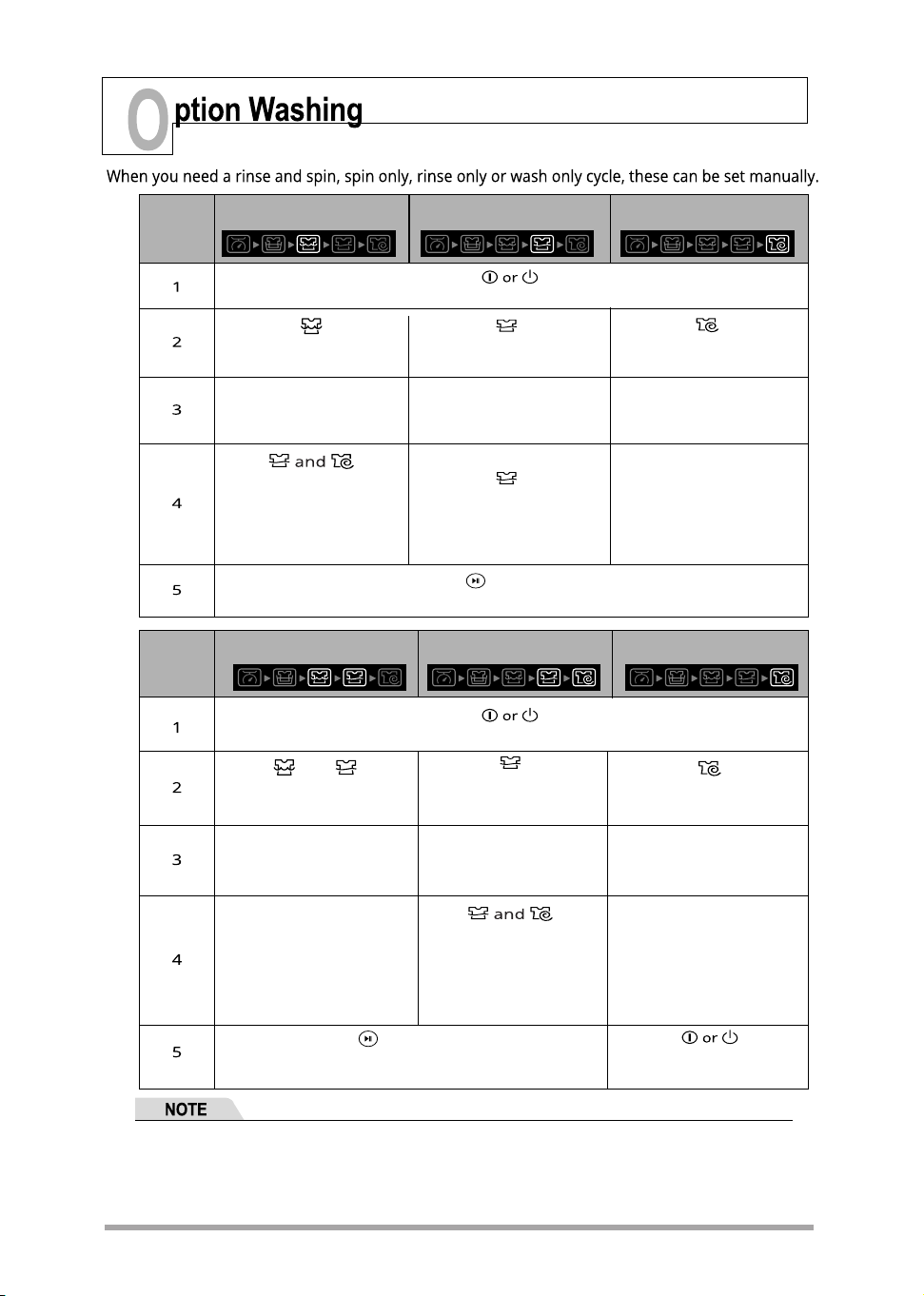

• When you set a washing cycle manually such as rinse only, wash only or wash and rinse, the water will not be drained out after
the wash is completed. If you wish to drain the water, select a spin only cycle after the wash has completed.
• If a rinse only cycle is selected, the water supply begins after detecting the load and the cycle will start.
However the water will still fill to the selected water level even if there is water already in the tub.
• If you do not select or change the Water Level, the water level will be set automatically.
Press the POWER button.
Press the POWER button.
DrainOnlyWashandRinse
Press the Wash
button.
Press the Spin
button.
Press the Start/Pause
button.
Press the Spin button
until the spin function
is cancelled.
Press the Wash & spin
button to select the
desires Wash & Rinse
cycles.
Wait until the
water in the
washing tub drains
completely.
Press the START/PAUSE buttons to start
the cycle(s).
and
Press the Rinse or
Spin buttons to
select the desired no.
of rinse and spin
cycle.
RinseandSpin
Press the Rinse
button.
Rinse and spin are
automatically
selected.
Press the Rinse
and Spin buttons
until the rinse
and spin functions
are cancelled.
Press the Wash
button.
Rinse and spin are
automatically
selected.
SpinOnly
Press the Spin
button.
Press the Spin button
to adjust spin
strength.
Press the START/PAUSE buttons to start the cycle(s).
WashOnly
RinseOnly
Press the Rinse
button.
Press the Spin
button untill the spin
function is cancelled.
Press the Rinse
button to adjust the
number of rinses.
23
Press POWER button
to turn off washer.
Select the program for laundry on the Control panel.
This program will not work in GENTLE (WOOL/SAREE)
and TUB CLEAN Program.
DELAY START (RESERVATION) Wash is used to delay the finishing time of the operation. The hours to be
delayed can be set by the user accordingly. The time on the display is the finishing time, not the start time.
wash program manually, press the
Press Time Delay (Reservation) button to set reservation time.
If reservation button is pressed, it will turn on reservation lamp and show up 3:00.
Reservation can be made up to 3~18 hours.
For 3~12 hours, reservation can be set in 1 hour interval
For 12~18 hours, reservation can be set in 2 hour interval.
Less than 3 hour is cannot be reserved.
ex) It is 1:00 PM and if you want to finish laundry by 7:00 PM
Keep press reservation button to set desired laundry ending time.
(7:00-1:00=6hours)
and from 12~18 hours in 2 hour time intervals.
Finishing time can be delayed from 3~18 hours. Delaying from 3~12 hours can be done in 1 hour time intervals
Water Refill will be checked & water will be supplied as per
requirement after the start of the wash to supplement the
absorbed water by the laundry.
Add the Detergent in the dispenser drawer.
24
To Clean the Magic Filter
If the magic filter is damaged, purchase a new one from LG Authorised Service Center.
(BA
CK SIDE)
After Stopping the water supply,
Remove inlet hose connected
to the machine and pull out
the filter as shown.
25
#
To Clean the Filter in the Inlet Valve
# Product feature may vary according to different models. Refer page 35 for model wise features for your
purchased model.
# Please do not match the figures with model as it may be different from your model. These are schematic
diagrams only.
Turn off tap to prevent the chance of flooding in case of Hose Burst.
Turn off Electric Supply before
pulling out power plug.
When water supply into the tub is not clear or the filter is clogged with particles (such as sand),
clean the filter in the inlet valve occasionally.
leaning and Maintenance
C
Cleaning the inside of your Washer
If you use fabric softener or do regular COLD water washing, it is very important that you
occasionally clean the inside of your washer.
•
Fill your washer with WARM water.
•
Add about two cups of a powdered Detergent that contains phosphate.
•
Run Wash Program for 25 min approx.
•
•
Stop the washer, open the lid and leave it to soak overnight.
•
•
After soaking, drain the washer and run it through a normal cycle.
Or use TUB CLEAN PROGRAM periodically.
We do not recommend that you wash clothes during this procedure.
•
•
Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components
of your washer.
•
•
Hydrocarbon solvents i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic
and blister paint (Be careful when washing garments stained with these solvents as they are
flammable DO NOT put them in washer or dryer.)
•
•
Some pretreatment sprays or liquids can damage your washer’s control panel.
•
•
Use of dyes in your washer may cause staining of the plastic components. The dye will not
damage the machine but we suggest you thoroughly clean your washer afterwards. We do not
recommend the use of dye strippers in your washer.
• Do not use your washer lid as a work surface.
26
Wash Inner-tub
Inlet Hoses
Exterior
Long Vacations
•
Close the water taps and remove the Water Supply Hose.
•
Remove the water which remains in the water supply.
•
Lower the drain hose and drain the water in the bowl and the drain hose by spinning.
•
Remove the water supply hose, and immerse it in warm water at approx. 40 C.
•
Connect the water supply hose to the water tap and confirm that the washing machine
performs the supply and drainage of water.
•
Pour approx. 2 liters of WARM water at approx. 40 C, into the bowl and let it stand for
10 min.
°
°
When there is a fear of freezing
If Frozen
Leave the lid open after washing to allow moisture to evaporate. If
you want to clean the inner-tub use a clean soft cloth dampened
with liquid Detergent, then rinse.(Do not use harsh or gritty
cleaners.)
Hoses connecting washer to faucet should be replaced every 5 years.
Immediately wipe off any spills. Wipe with damp cloth. Try not to
hit surface with sharp objects.
Be sure water supply is shut off at faucets. Drain all water from
hoses if weather will be below freezing.
Products that might damage your washing machine
ommon washing problems
C
Many
washing
problems
involve
poor
soil
&
stain
removal,
residues
of
lint
and
scum,
and
fabric damage. For satisfactory washing results, follow these instructions.
WASH PROBLEM
Possible
Causes
Problems
Solutions
& Preventive
Measure
s
•
Use
correct amount of Detergent for load size, amount of
soil and water hardness.
•
Use
WARM water for normal soil.
Different Water Temperature may be required according t
o
soil type.
(refer to page 12)
•
Reduce load size.
• Wash with STRONG (JEANS) or SOAK & STRONG
(JEANS) wash cycle for heavy soiled laundry.
•
Separate heavily soiled items from lightly soiled ones.
•
Pretreat stain and heavy soil according to directions
shown
on page
11.
•
Rub the
stain with bar soap.
•
Do not overfill fabric
softener dispenser and do not pour
liquid fabric
softener directly onto fabric.
See page14 &15 for more instructions.
•
Keep the recommendations
against Scrud(waxy buildup).
(refer to scrud page14.)
•
Use
correct amount of Detergent for load size, amount of soil
and water hardness.
•
To restore discolored load of whites, use rust remover safe
for fabric.
•
Install nonprecipitating water softener or an iron filter in
your water supply system for an ongoing problem.
•
Before
washing, run water for a few min
to clear lines.
•
Wash lint givers
eg. towels, flannelette sheets, separately
from lint collectors
eg. synthetic fabrics and remove tissues
in pockets before wash. See page 11 for sorting and caring
before loading.
•
Do not overload the
washer
•
Do not overload the
washer.
• Some
Detergents need to be
pre-dissolved, check the
Detergent
instructions. Try pre-dissolving the
Detergent.
• Increase
Water Temperature using
HOT water safe for fabric.
•
Use proper amount of Detergent.
•
Never pour chlorine bleach directly on fabric.
See page 13 for adding liquid bleach.
• Fasten zippers, hooks, and buckles.
•
Remove objects in pockets. See page 11 for caring before
loading.
•
Do not overload the
washer.
Poor soil
removal
Not enough
Detergent
Wash Water Temperature
too low.
Overloading the washer
Incorrect wash cycle
Incorrect sorting
Pretreat stain not done
Undiluted fabric softener
dispensed directly onto
fabric
•
A buildup caused by the
interaction of fabric softener
and Detergent can flake off
and mark clothes
• Not enough Detergent
•
Iron or mangane se in
water supply, water pipes,
or water heater
• Incorrect sorting
• Tissues left in pocket
•
Overloading the washer
•
Overloading the washer
•
Undissolved Detergent
•
Use too much Detergent
•
Incorrect use of chlorine
bleach.
•
Unfastened zippers,
hooks, buckles
•
Ribs, tears and broken
threads
•
Overloading the washer
• Degradation of fabric
Blue Stains
Holes, tears,
or snags
Black or gray
marks on
clothes
Yellow or
brown rust
stains
Lint
Residue or
Detergent
27
roubleshooting
T
Symptom Error Display
Checkup
•
Is the
water tap shut off?
•
Is the
water supply cut off ?
•
Is the tap or water supply hose frozen ?
•
Is the water pressure low or is the filter
of the inlet valve clogged with
impurities?
•
Drainage Failure
Water Supply
Failure
•
Is the drain hose positioned correctly?
•
Is the drain hose bent or placed too high?
•
Check if electric power has gone off ?
Spin Failure
•
Is the laundry evenly balanced?
•
Is the washing machine placed on a flat
surface?
Door(Lid) Open
Internal sensing
failure
Power failure
Overflow failure
•
Please call your nearest LG Electronics
service center for help.
Self-diagnostic error mode
The machine will display and playback the error messages if there is any error in machine
for your suitable action.
28
Child Lock
•
Motor Error
Once Child Lock is applied, it will not deactivate
automatically after Power Turn Off and again Turn
On. To deactivate Child Lock, Press & Hold Beeper
and Rinse key simultaneously for 3 Second.
• Is the lid closed?
- Close the lid properly.
- Press Start button to remove dE error.
- Press Start button again to resume the
machine operation.
Is the hose connected to Inlet & tap?

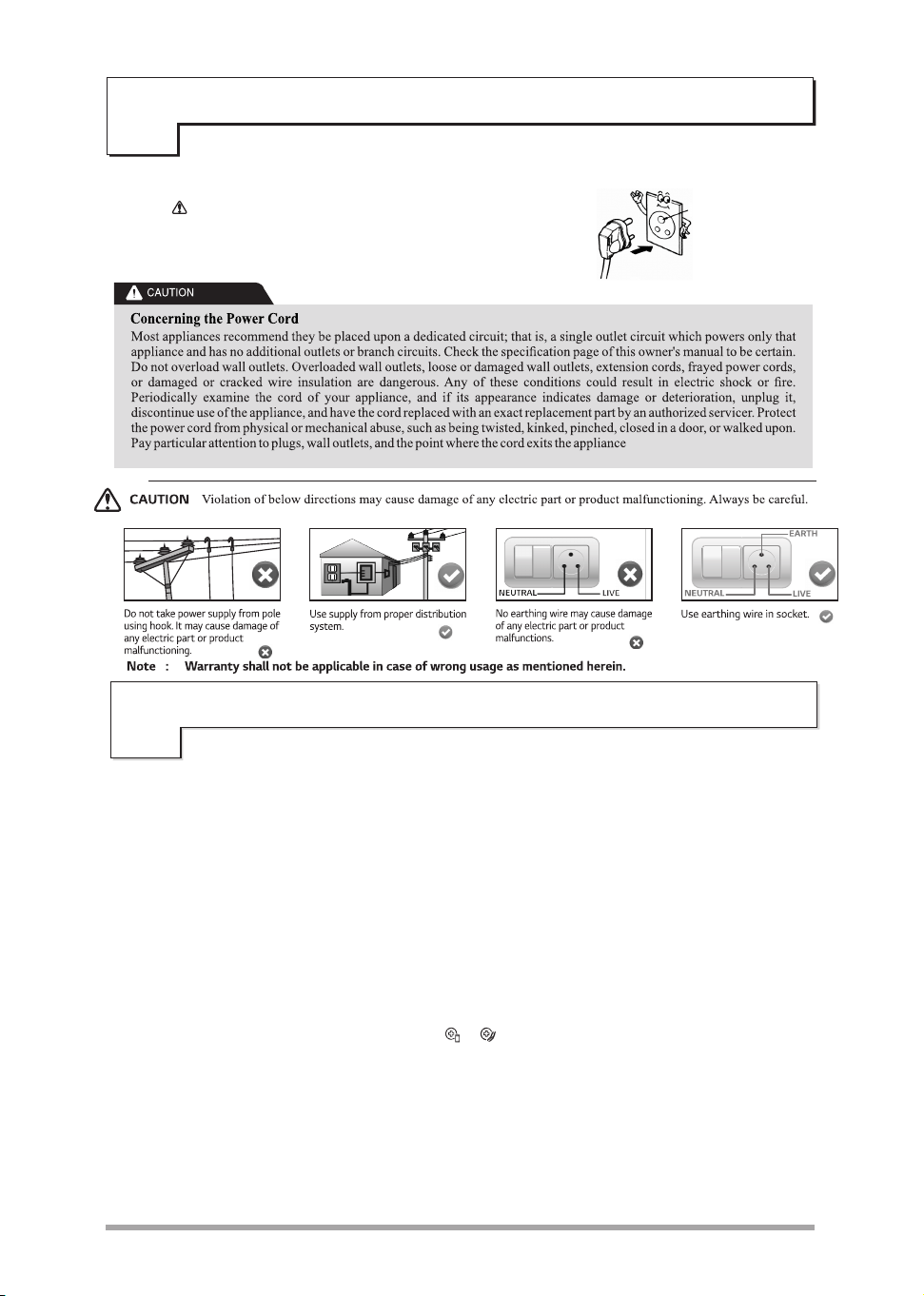

E
arthing
Earthing wire should be connected to earthing Pin.
If earthing Wire is not connected there is possiblity of Electric Shock caused by the
currect Leakage.
Earth terminal
TM
mart Diagnosis
S
LG ThinQ Application
Installing the LG ThinQ Application
Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone.
Follow instructions to download and install the application.
LG ThinQ Application Features
Smart Diagnosis
This function provides useful information for diagnosing and solving issues with the appliance based on
the pattern of use.
Smart Diagnosis
This feature is only available on models with the or logo.
Use this feature to help you diagnose and solve problems with your appliance.
NOTE
• The feature may be subject to change without p rior notice and may have a different form
depending
on where you are located.
• For reasons not attributable to LGE’s negligence, the service may not operate due to e xternal factors
such as, but not limited to, Wi-
Fi unavailability, Wi-Fi disconnection, local app
store policy, or app
unavailability.
29
Insert the power plug into the power socket outlet with
proper Earthing.Inconstancy to this may damage machine
and electrical shock.
Max.
10 mm
1
1
Press the Power button to turn on the appliance.
• Do not press any other buttons.
2
Place the mouthpiece of your smartphone close to the or logo.
3
Press and hold the Water Level button for 3 second or longer while holding the smartphone mouthpiece to the
• Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer
is displayed.
4
After the data transfer is complete, the diagnosis will be displayed in the application.
NOTE:-
For best results, do not move the smartphone w hile the tones are being transmitted.
Using Smart Diagnosis to Diagnose Issues
Follow the instructions below to use the audible diagnosis method.
• Launch the application and select the feature in the menu. LG ThinQ Smart Diagnosis
Only use this feature when instructed to do so by the LG Customer Service Call Center. The
transmission sound is similar to a fax machine, and so has no meaning except to the call center.
TM
SmartDiagnois cannot be activated if the washer does not power up. If this happens, then
TM
troubleshooting must be done without SmartDiagnosis .
If you experience problems with your washer, call to Customer information center. Follow the call
center agent’s instruction, and do the following steps when requested.
Press the POWER button to turn on the washer. Do not press any other buttons on turn the cycle
selector knob.
When instructed to do so by the call center, place the mouthpiece of your phone very close to the
POWER button.
Follow the instructions for audible diagnosis provided in the LG ThinQ application.
Press and hold the Water level button for three second, while holding the phone mouthpiece to the
icon or POWER button.
Keep the phone in place until the tone transmission has finished. This takes about 6 second, and
the display will count down the time.
For best result, do not move the phone while the tones are being transmitted.
If the call center agent is not able to get an accurate recoding of the data, you may be asked to
try again.
Once the countdown is over and the tones have stopped, resume your conversation with the
call center agent, who will then be able to assist you using the information transmitted for
analysis at the call center.
Smart Diagnosis is troubleshooting feature designed ti assist, not replace, the traditional method of
troubleshooting through service calls.
The effectiveness of this feature depends upon various factors, including, but not limited to, the
reception of the cellular phone being used for transmission, any external noise that may be present
during the transmission and the acrostics of the room where the machine is located.
Accordingly, LG does not guarantee that Smart Diagnosis would accurately troubleshoot any given
issue.
1
2
3
4
5
TM
Using Smart Diagnosis
30
logo until the data transfer is complete.
isposal of old appliance
D
1++- tc bl dkVs x;s ifg;s okys fcu dk fpº+u fdlh midj.k vkSj
blds vkWijsVj dh iqfLrdk ds lkFk layXu gksrk gSa rks bldk
eryc gS fd bls bZ&vif'k"V ¼izca/ku vkSj gFkkyu½ fu;e 2011
ds vUrxZr lfEefyr fd;k x;k gSA vkSj bls uohuhdj.k]
fo?kVu vkSj fuiVku ds fy, cuk;k x;k gSA
2- djsa %
d- midj.k dks flQZ vf/kd`r iqu% uohuhdj.kdrkZ dks gh fuiVkj.k djus gsrq
gLrkukUrfjr djsaA
[k- tc midj.k dk;kZjr u gks bls vyx {ks= esa j[ks rkfd midj.k ls gksus
okyh nq?kZVukvks ls cpk tk ldsA
uk djsa %
d- bl midj.k dks Lo;a/[kqn ugh [kksyuk pkfg,] midj.k dks dsoy vf/kd`r
vf/kdkjh ds }kjk gh [kksyk tkuk pkfg,A
[k- bl midj.k dks iqu% fcØh ds fy, fdlh Hkh dckM+hokyk@Hkaxkj
okyk@vukf/kd`r laLFkk dks u nsaA
x- bl midj.k dks fdlh ?kjsyw vif'k"V lkeku ds lkFk feykdj u j[ksaA
?k- midj.k ds cnys gq, ;k vkrfjd iwtksZ dks [kqys {ks= esa u j[ksaA
3- ;fn fdlh vukf/kd`r foHkkx ;k O;fDr ds }kjk fuiVkj.k fd;k tkrk gS rks ;g
i;kZoj.k ¼lqj{kk½ /kkjk 1986 ds vUrxZr vkrk gSA
4- ;g mRikn bZ&vif'k"V ¼izca/ku vkSj gFkkyu½ fu;e 2011 ds vUrxZr 13¼1½ ,oa
¼2½ ds rgr fufnZ"V [krjukd inkFkksZa dh vko';drk dk ikyu djrk gSA
5- mijksDr inkFkksZ ds fuiVkju ds fy, utnhdh fuiVkju laLFkku ¼ladh.kZ {ks=½ esa
dkWy djsaA vf/kd tkudkjh ds fy, gekjs Vksy Ýh uEcj 1800-315-9999 /
1800-180-9999 ij dkWy djsaA lHkh laxzg.k dsUnz o fid-vi dh lqfo/kk,a
fdlh FkMZ-ikVhZ tks LG Electronics India Pvt. Ltd. dks viuh lsok,a iznku
dj jgh gksa] ls djok,aA
vf/kd tkudkjh ds fy, ns[ksa osclkbV % http://www.lg.com/in
1. When this crossed out wheeled bin symbol is depicted on
the product and its operator’s manual, it means the product
is covered by the e-waste Management and Handling Rules ,
2011 and are meant to be recycled, dismantled, refurbished
or disposed off.
2. Do’s :
a. The product is required to be handed over only to the
authorized recycler for disposal.
b. Keep the product in isolated area, after it becomes non-functional/un-
repairable so as to prevent its accidental breakage.
Don’t :
a. The product should not be opened by the user himself/herself, but only by
authorized service personnel.
b. The product is not meant for re-sale to any unauthorized agencies/scrap
dealer/kabariwalah.
c. The product is not meant for mixing into household waste stream.
d. Do not keep any replaced spare part(s) from the product in exposed area.
3. Any disposal through unauthorized agencies/person will attract action
under Environment (Protection) Act 1986.
4. “This product is complied with the requirement of Hazardous Substances
as specified under Rule 13 (1) & (2) of the E-Waste (Management &
Handling) Rules, 2011”.
5. To locate a nearest collection centre or call for pick-up (limited area only)
for disposal of this appliance, please contact Toll Free No. 1800-315-9999 /
1800-180-9999 for details. All collection centre and pick up facilities are
done by third parties with LG Electronics India Pvt. Ltd. Merely as a
facilitator.
For more detailed information , please visit : http://www.lg.com/in
Disposal of your old appliance (as per e-waste Rules)
vius iqjkus midj.k dk fuiVku ¼bZ&vif’k"V fu;e ds vuqlkj½
(LG WhatsApp No.)
(LG WhatsApp No.)
31
Installation Check sheet
Customer Copy
Company Copy
Machine :_______________ Job No : ________________ Dt. of pur.:_______________________
Machine :_______________ Job No : ________________ Dt. of pur.:_______________________
Name Of Customer.: _______________________________ M/C. S.No.:_____________________
Name Of Customer.: _______________________________ M/C. S.No.:_____________________
Address:________________________________________ Tel/Mob.:________________________
Address:________________________________________ Tel/Mob.:________________________
Tick Appropriate (by Service Engineer)
Customer Remarks If Any :_________________________________________
________________________________________________________________
I Here by certified by above Checks & Demo have been done to me with full of satisfaction and
I am fully satisfied with the machine installation and performance of washing machine and I
agree to take care of machine, suggestions (If Any) in respect of safety.
Signature Of Customer
Signature Of Customer
Date :
Date :
Time:
Time:
S.No.
S.No.
Check Point
Check Point
Yes/No
Yes/No
Remarks
Remarks
1
1
Physical condition of the Machine is satisfied?
Physical condition of the Machine is satisfied?
2
2
Electrical condition of household wiring / earthing for washing
machine is proper?
Electrical condition of household wiring / earthing for washing
machine is proper?
3
3
Advised to turn off machine after use?
Advised to turn off machine after use?
4
4
Explained Fixing of Inlet Hose Adapter to Tap?
Explained Fixing of Inlet Hose Adapter to Tap?
Explained Leg Adjustment & Common Conditions when Levelling
Required?
Explained Leg Adjustment & Common Conditions when Levelling
Required?
Explained not to use trolley/stand during the washing process?
(It can cause excessive Vibrations/Noise)
Explained not to use trolley/stand during the washing process?
(It can cause excessive Vibrations/Noise)
8
8
Explained regular check-up & Safety Instructions?
Explained regular check-up & Safety Instructions?
10
10
After installation check Inlet Hose, Drain Hose leakage & Machine
Leveling?
After installation check Inlet Hose, Drain Hose leakage & Machine
Leveling?
11
11
Explain clothes balancing & proper clothes separation for best wash?
Explain clothes balancing & proper clothes separation for best wash?
12
12
Demo of all features and specifications given to customer?
Demo of all features and specifications given to customer?
13
13
Explained all types of errors?(IE,OE,UE,dE,PE,AE,FE,etc)
Explained all types of errors?(IE,OE,UE,dE,PE,AE,FE,etc)
14
14
Warranty terms explained?
Warranty terms explained?
FATL
For Best Use, Please Read the User’s Manual Properly.
5
5
6
6
Explained cleaning of Lint, Inlet Valve Filter & Tub and the respective
required cleaning frequencies?
Explained cleaning of Lint, Inlet Valve Filter & Tub and the respective
required cleaning frequencies?
7
7
Anti Rat Cover Installed?
Anti Rat Cover Installed?
9
9
Name of ASC :____________ Installation Dt : __________________ Installed by : _____________
WARRANTY
The Washing Machine (hereinafter referred as product) comes with 2 year warranty on all parts (except Plastic parts,
Consumables, Loose Plastic Parts, Filters, Inlet/outlet hose and top cover) and thereafter a 8 years additional warranty
only on the inverter motor from the date of purchases on producing the tax paid invoice of the product provided always
that the warranty card bears the rubber stamp, date and signature of our authorized dealer.
8 YEAR ADDITIONAL WARRANTY ON THE INVERTER MOTOR
The 8 Year warranty on the Inverter
Motor
will continue even after the expiry of 2
year period from the date of purchase.
This warranty covers Motor.
During the additional warranty period, it does not cover parts such as PCB Controller
Assembly, Clutch assembly, Inlet Valve, Drain Motor
etc. The standard visiting charges will be applicable within
municipal limit of town where LG Electronics India Pvt. Ltd. (LGEIL) has its Authorized Service Centre, Service Outside
municipal limit will attract to and fro travelling, other incidental expense in addition to standard visiting charges, as per
the prevailing from time to time. During the additional warranty period only the parts replaced or repaired shall be free
of costs, but service charges shall always be payable by the customer.
Common TERMS & CONDITIONs applicable for warranties as mentioned above:
1. The warranty is confined to the first purchaser of the Washing Machine
only & is non-transferable.
2. Repairs & replacements will be carried out through the Authorized Service Centres of LG Electronics India Pvt
Ltd. (hereinafter referred as LG or LGEIL). Customer may place their service call through the LG customer care or
through the dealer from whom the product has been purchased. In case the customer shifts the place of
residence during warranty period, it is advised to contact our helpline.
3. Repair under warranty shall be carried out by an authorized service personnel only. The details of centralized
helplines are attached.
4. For units installed beyond municipal limits of the jurisdiction of company's Authorized Service Centre, it is
responsibility of the purchaser to contact the nearest authorized service centre
and bring the unit to the authorized
service at its own cost and risk. All expense incurred in collecting the units or parts thereof from the company's
authorized service centre, as well as expenses incurred with deputing of service personnel/technician toward
conveyance and other incidentals etc. will be borne by the customer. Local charges for transportation and handling
charges may vary from location to location. Customers are advised to verify before. In case the customer desires
to bring the unit on its own to the Authorized Service Centre, the same shall be at its own risks & consequences.
5. The concerned authorized service centre will advise the customer whether to effect the repairs at site or at the
authorized service centre.
6. Call registered with the centralized helpline/Authorized service centre, wherein only cleaning of the unit/parts in the
unit due to dust accumulation on portions of the units are not to be considered as defects.
7. In case of repairs or replacement of any part/s of the unit, this warranty will thereafter continue and remain in force
only for the unexpired period of the warranty. LGEIL may use parts that are new or refurbished and equivalent to
new in performance and reliability. Replacement of parts would be purely at the discretion
of LGEIL alone. In case
the replacement of the entire unit is being made, (subject to the sole discretion of LGEIL), the same model shall be
replaced and in the event such model has been discontinued, it shall be replaced with the model price equivalent
at the time of purchase.
8. In case of any damage to the product/customer abuse/repairs by un-authorized personnel’s/ misuse detected/ by
the Authorized Service Centre personnel, the warranty conditions are not applicable and repairs will be done subject
to availability of parts and on a chargeable basis only.
9. This warranty shall not cover any consequential or resulting liability, damage or loss to property or life arising directly
or indirectly out of any defect being noticed in the equipment during warranty
period of the Washing Machine. The
company's obligation under this warranty shall be limited to repair or providing replacement of defective parts only
under the warranty period.
10.The company or its Authorized Service Centre reserves the right to retain any part/s or component replaced its
discretion, in the event of defect being noticed in the equipment during warranty period.
11. While the company will make every effort to carry out repairs at the earliest, it however is made expressly clear that
the company is under no obligation to do so in a specified period of time.
12.Warranty does not cover accessories external to the equipment supplied by the dealer
13.In the event of any unforeseen circumstance, and spares not being available, the company's prevailing depreciation
rules may apply on the
purchaser to accept as a commercial solution in lieu of repairs.
14.If any coloured internal or external components are replaced, there will be commitment to ensure that the shades
match with the original or other components. The replaced shades, patterns, tints may vary from the customer's
unit due to continuous usage of the unit. Any matching components changed at customer's request will be
chargeable basis except the component which actually needed.
15.Free Installation or Demo of the product, can be availed only once & within 3 months from the date of purchase.
16.Any extended warranty offered by LGEIL has to be supported by relevant proof.
17.Warranty shall expire after the warranty period as mentioned above even if the Washing Machine may not be in
use for any time during the warranty period for any reason.
18.Only courts in state of Delhi and places where LGEIL has its branch office shall have the jurisdiction for settling any
claims, disputes arising under the warranty.
CUSTOMER’S DETAILS
a) The warranty card is not completed properly at the time of purchase.
b) The completed warranty card is not presented to authorized service personnel at the time of service of the
product.
c) Theproduct is not operated according to instructions given in the Operating Instruction Booklet/Owner’s
Manual.
d) The product is used for commercial purposes
e) The product is used at any places such as public bathroom, lodging house, training center, dormitory etc.)
f ) The product has failed under certain conditions like waterlogging , flood , fire , misuse etc.
g) Defects/malfunction are caused by improper or reckless use, which shall be determined by the company
personnel.
h) Any repair work is carried out by persons other than authorized service personnel.
i ) Defect/malfunction are caused which are beyond control like lightening, abnormal voltage, Acts of God, virus
etc.
board etc.
j) Any issue caused by usage of third party product like voltage stablizer,power socket-outlet, MCB, extension
k) Defects/malfunction caused while in transit to service centre or purchaser's residence.
l
) Defects caused by rodents bite or by
pests and vermin
ants/Insects/animals/birds etc.
m) The serial number is deleted, defected or altered.
n) Damage
is caused to the product or any part/s due to transportation or shifting
o) Any accessory external to the equipment are supplied by dealer or LG.
19.Warranty is not applicable in any of the following cases where :
eatures & Specifications
F
35
Water Tap Pressure should be between 50 -800 kPa.
Feature and Specification
Model
Normal
(Y/N)
Pre
+
Wash
Normal
(Y/N)
Air
Dry
(Y/N)
Child
Lock
(Y/N)
Inlet Water
Temperature
(Option)
Water
Level
Selection
Castors
(Y/N)
Aqua
Reserve
(Y/N)
Turbo
Wash
(Y/N)
Delay
(Y/N)
Quick
Wash
(Y/N)
Strong
(Jeans)
(Y/N)
Tub
Clean
(Y/N)
Soak
Wash
(Y/N)
Soil
Level
(Y/N)
Gentle
(Wool/Saree)
(Y/N)
Weight
(kg)
Dimension
(W X D X H) mm
540 X 560 X 925
540 X 560 X 885
540 X 560 X 925
540 X 560 X 925
540 X 560 X 885
540 X 560 X 885
590 X 625 X 965
540 X 560 X 885
540 X 560 X 925
Y
Y
Y
Y
N
N
N
N
Y
N
N
6.5
9.0
7.0
10.0
6.5
8.0
7.0
8.0
6.2
7.0
6.5
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
N
N
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Cold
Cold
Cold
Cold
Cold
Cold
Cold
Cold
Cold
Cold
Cold
10
10
10
10
10
10
10
10
6
6
6
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
N
Y
N
N
N
N
N
31.5
39
32
39
31.5
32
32
32
31.5
32
31.5
Wash Capacity - means maximum amount of dry cotton clothes that can be washed.
Y
Y
N
Y
N
N
N
N
N
Y
Y
T65SJ
*
T70SJ
*
T80SJ
*
T90SJ
*
T10SJ
*
T65SP
*
T70SP
*
T65SN
*
T70SN
*
T80SN
*
T7288
*
Wash
Capacity
(kg)
MFL68486520
A-24/6, Mohan Cooperative Industrial Estate, Mathura Road, New Delhi-110044 CIN NO. U32107DL1997PTC220109
