EN User Manual | Fridge Freezer
Welcome to our family
Thank you for bringing Frigidaire into your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and care of your product. Please read it
before using your appliance. Keep it handy for quick reference. If something doesn’t
seem right, the troubleshooting section will help you with common issues.
FAQ, helpful tips and videos, cleaning products, and kitchen and home accessories
are available at http://www.frigidaire.com.
We are here for you! Visit our website, chat with an agent, or call us if you need
help. We may be able to help you avoid a service visit. If you do need service, we
can get that started for you.
Let’s make it official! Be sure to register your product.
CONTENTS
1. IMPORTANT SAFETY INFORMATION
.................................................
2
2. FEATURES............................................................................................ 5
3. INSTALLATION......................................................................................6
4. DOOR REMOVAL..................................................................................8
5. DOOR HANDLE INSTALLATION........................................................ 12
6. WATER SUPPLY CONNECTION........................................................14
7. ICE MAKER..........................................................................................16
8. CONTROLS AND SETTINGS..............................................................17
9. STORAGE FEATURES........................................................................19
10. NORMAL OPERATING SOUNDS..................................................... 21
11. FILTER REPLACEMENT...................................................................22
12. CARE AND CLEANING..................................................................... 23
13. TROUBLESHOOTING....................................................................... 24
14. LIMITED WARRANTY........................................................................26
1. IMPORTANT SAFETY
INFORMATION
1.1 Keep a record for
quick reference
Model number
..........................................................
Serial number
..........................................................
Purchase date
..........................................................
2 ENGLISH
1.2 Serial number
location
WARNING!
You must follow these guidelines to
ensure that your refrigerator’s safety
mechanisms are operating correctly.
1.3 Safety definitions
This is the safety alert symbol. It is
used to alert of potential personal
injury hazards. Obey all safety
messages that follow this symbol to
avoid possible injury or death.
DANGER
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or serious
injury.
WARNING!
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION!
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
IMPORTANT
IMPORTANT indicates installation,
operation or maintenance information
which is important but not hazard-
related.
DANGER
DANGER Risk of fire or
explosion. Flammable refrigerant
used. Do not use mechanical
devices to defrost refrigerator. Do
not puncture refrigerant tubing.
DANGER Risk of fire or
explosion. Flammable refrigerant
used. To be repaired only by
trained service personnel. Use
only manufacturer-authorized
service parts. Any repair
equipment used must be
designed for flammable
refrigerants. Follow all
manufacturer repair instructions.
Do not puncture refrigerant
tubing.
CAUTION!
CAUTION Risk of fire or
explosion. Dispose of refrigerator
properly in accordance with the
applicable federal or local
regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant
tubing. Follow handling
instructions carefully. Flammable
refrigerant used.
WARNING!
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive
Harm http://www.P65Warnings.ca.gov
1.4 Child safety
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
ENGLISH 3
appliance by a person responsible
for their safety.
Destroy or recycle the carton,
plastic bags, and any exterior
wrapping material immediately after
the refrigerator is unpacked.
Children should never use these
items to play. Cartons covered with
rugs, bedspreads, plastic sheets or
stretch wrap may become airtight
chambers, and can quickly cause
suffocation.
1.5 Important safety
instructions
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
Do not store explosive substances
such as aerosol cans with a
flammable propellant in this
appliance.
Do not operate the refrigerator in
the presence of explosive fumes
Avoid contact with any moving parts
of automatic ice maker.
Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy finishes if they come in
contact with other appliances or
furniture.
WARNING!
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
1.6 Proper disposal of
your refrigerator or
freezer
Risk of child entrapment
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned refrigerators
or freezers are still dangerous –
even if they will sit for “just a few
days”. If you are getting rid of your
old refrigerator or freezer, follow the
instructions below to help prevent
accidents.
We strongly encourage responsible
appliance recycling/disposal
methods. Check with your utility
company or visit http://
www.energystar.gov/recycle for
more information on recycling your
old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
•
Leave shelves in place so children may
not easily climb inside.
• Have it removed by a qualified service
technician.
4 ENGLISH
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and
HCFCs are believed to harm
stratospheric ozone if released to the
atmosphere. Other refrigerants may
also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant
is removed for proper disposal by a
qualified technician. If you intentionally
release refrigerant, you may be
subject to fines and imprisonment
under provisions of environmental
legislation.
1.7 Electrical
information
IMPORTANT
Turning on the appliance controls to
OFF will disable the appliance cooling
system but does not disconnect the
power to the light bulb and other
electrical components. To turn off
power to the appliance you must
unplug the power cord from the
electrical outlet.
• The appliance must be plugged into its
own dedicated 115 Volt, 60 Hz., 15
Amp, AC only electrical outlet. The
power cord of the appliance is
equipped with a three-prong grounding
plug for your protection against
electrical shock hazards. It must be
plugged directly into a properly
grounded three-prong receptacle. The
receptacle must be installed in
accordance with local codes and
ordinances. Consult a qualified
electrician. Do not use an extension
cord or adapter plug.
WARNING!
Avoid fire hazard or electric shock.
• If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
•
Never unplug the appliance by pulling
on the power cord. Always grip the plug
firmly, and pull straight out from the
receptacle to prevent damaging the
power cord.
•
Unplug the appliance before cleaning
and before replacing the AC LED light
bulb to avoid electrical shock. Use only
a 5-watt or less AC LED light bulb.
• Performance may be affected if the
voltage varies by 10% or more.
Operating the appliance with
insufficient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or pull
cord to prevent the appliance from
being turned off accidentally.
• Do not pinch, knot, or bend the power
cord in any manner.
WARNING!
Do not, under any circumstances, cut,
remove, or bypass the grounding
prong (A). Always use the power cord
with a three-prong grounded plug and
grounding type wall receptacle.
2. FEATURES
IMPORTANT
*Features may vary by model.
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling toll-free
1-800-374-4432.
ENGLISH 5
2.1 Gallery
1
5
2
3
6
10
8 97
4
1
Crispers
2
Crisper Cover
3
Deli Drawer*
4
Full Shelves
5
Refrigerator Control
6
Freezer Shelf
7
Ice Bin*
8
Freezer Control
9
Ice Maker*
10
Fixed Door Bins
2.2 Professional
1
6
2
3
4
7
12
11
9 108
5
1
Crispers
2
Crisper Cover
3
Auto Humidity Control Membrane
4
Full Width Deli Drawer
5
Full Shelves
6
Refrigerator Control
7
Freezer Shelf
8
Ice Bin*
9
Freezer Control*
10
Ice Maker
11
Fixed Door Bins
12
Adjustable Door Bins
3. INSTALLATION
This User Manual provides general
installation and operating instructions for
your model. We recommend using a
service or kitchen contracting professional
to install your appliance. Use the
appliance only as instructed in this User
Manual. Before starting the appliance,
follow these important first steps.
3.1 Installation Checlist
Doors
❐ Handles are secure and tight (some
models)
❐ Refrigerator door seals completely to
the cabinet on all sides
❐ Freezer door is level from side to side
across the top
Leveling
❐ Appliance is level side-to-side and
tilted 1/4" (6 mm) front-to-back
❐ Cabinet is setting solid on all corners
❐ Anti-tip bracket set in front on both
sides
Electrical Power
❐ House power is turned on
❐ Appliance is plugged in
Ice Maer
❐ House water supply is connected to
the appliance
ARNING!
Potable water supply only.
6 ENGLISH
❐ No water leaks present in any
connections - recheck in 24 hours
❐
Ice maker is turned on
Final Checks
❐ Shipping material is removed
❐ Refrigerator and freezer temperatures
are set
❐ Crisper humidity controls are set
❐ Registration card is sent in

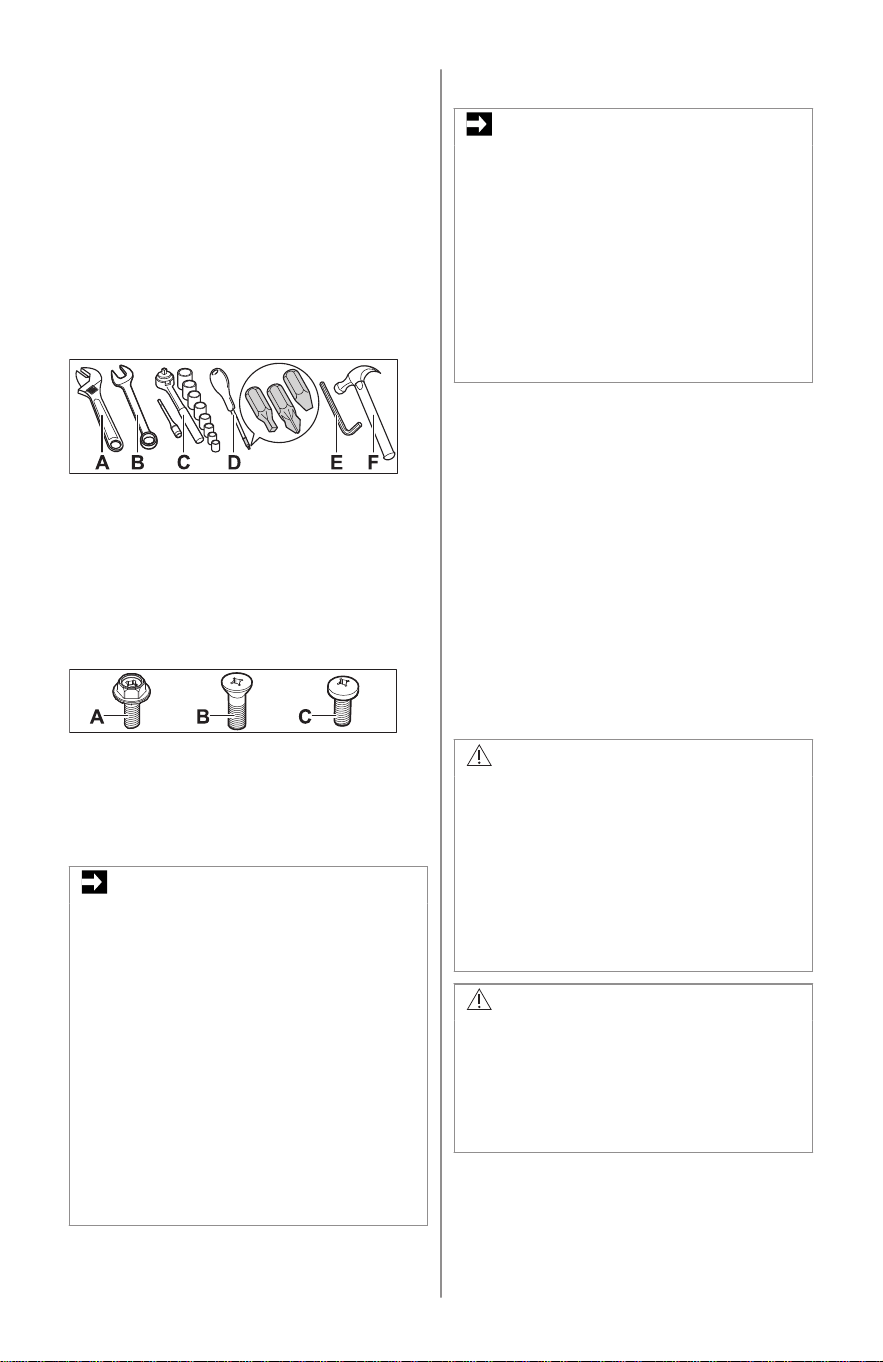

3.2 Tools necessary
These tools are necessary at different
stages of the installation process:
A. Adjustable Wrench
B. 5/16" Fixed Wrench
C. Socket Wrench
D. Screwdriver: Multi-bit with #2 Square
Bit and Flat Head
E. 6 mm Allen Wrench
F. Hammer
Components Provided
A. Top hinge screw MSX16 Quadrex
B. Center hinge
C. Pan Head Quadrex MSX12
3.3 Cleaning the appliance
IMPORTANT
Remove tape and glue residue from
surfaces before turning the appliance
on. Rub a small amount of liquid dish
soap over the adhesive with your
fingers. Rinse with warm water and
dry with a soft cloth.
Do not use sharp instruments, rubbing
alcohol, flammable fluids, or abrasive
cleaners to remove tape or glue.
These products can damage the
surface of the appliance.
After you remove all of the package
materials, clean the inside of the
appliance before using it. Refer to
Care and Cleaning.
3.4 Moving the appliance
IMPORTANT
The appliance is heavy. When moving
the appliance for cleaning or service,
raise the anti-tip bracket (refer to
Setting the anti-tip brackets). Be sure
to cover the floor with cardboard or
hardboard to avoid floor damage.
Always pull the appliance straight out
when moving it. Do not wiggle or
“walk” the appliance when trying to
move it as you could damage the
floor.
3.5 Location
• Choose a place that is near a
grounded, non-GFCI, electrical outlet.
Do not use an extension cord or an
adapter plug.
• If possible, place the appliance out of
direct sunlight and away from the
range, dishwasher, or other heat
sources.
•
The appliance must be installed on a
floor that is level and strong enough to
support a fully loaded appliance.
• Consider water supply availability for
models equipped with an automatic ice
maker.
WARNING!
This appliance is intended for use in
residential household and similar
interior applications such as:
• Kitchen / kitchenette
•
Pantry room
• Basement
• Enclosed garage
• Other interior residential type
environments
CAUTION!
Do not install the appliance where the
temperature will drop below 38°F
(3°C) or rise above
110 °F (43 °C).
The compressor will not be able to
maintain proper temperatures inside
the appliance.
ENGLISH 7
NOTE
Do not block the lower front of the
appliance.
Sufficient air circulation is essential for
the proper operation of the appliance.
WARNING!
Allow the following clearances for
ease of installation, proper air
circulation, and plumbing and
electrical connections:
• Sides and top
3/8" (9.5 mm)
• Back 1" (25.4 mm)
NOTE
If you place the appliance with the
door hinge side against a wall, you
may have to allow additional space so
the door can be open wider.
3.6 Cabinet leveling and door
alignment
Guidelines for final positioning of
appliance:
• All 4 corners of the cabinet must rest
firmly on the floor.
•
The cabinet should be level at the front
and rear.
• The sides should tilt 1/4" (6 mm) from
front to back to ensure that doors close
and seal properly.
• Align the doors with each other and
level them.

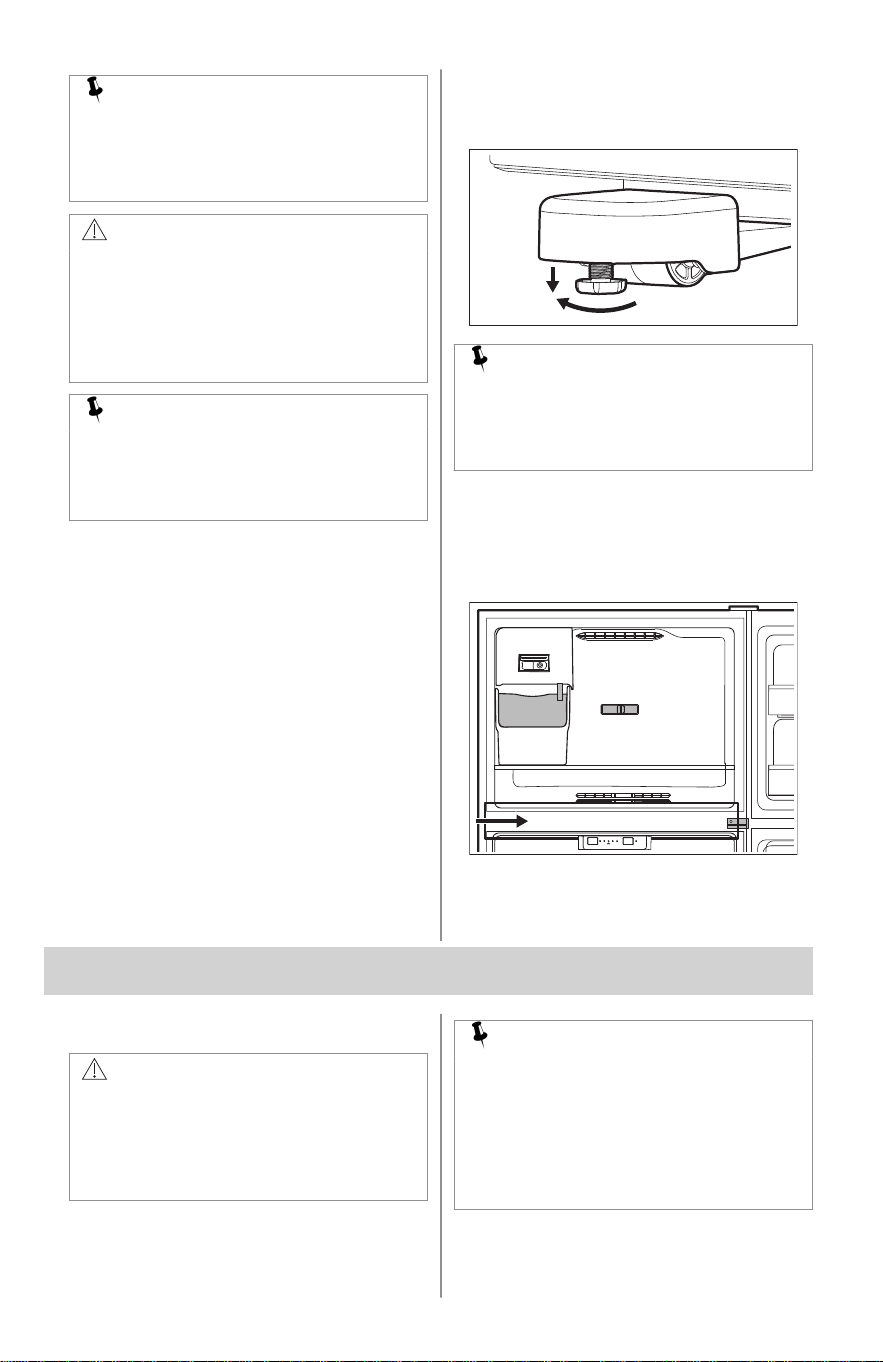

3.7 Setting the anti-tip brackets
The anti-tip brackets are located on the
lower front corners of the cabinet. Lower
the anti-tip brackets on each side
clockwise until they contact the floor. Do
not raise the cabinet.
NOTE
The anti-tip bracket must be installed
according to the instructions in the
User Manual. Failure to do so may
result in injury.
3.8 Mullion
When you first turn on the appliance, the
mullion might be warm to the touch for the
first 24 hours of operation. This is normal.
Temp
Recommended
Cold
Coldest
Replace
Hold to Reset
Air
Fil
ter
4. DOOR REMOVAL
4.1 Door Removal
CAUTION!
Before you begin, turn the appliance
temperature control to OFF and
remove the electrical power cord from
the wall outlet. Remove any food from
door shelves.
NOTE
The direction in which the appliance
doors open (door swing) can be
reversed, from left to right or right to
left, by moving the door hinges from
one side to the other. Reversing the
door swing should be performed by a
qualified person.
8 ENGLISH
NOTE
We do not recommend to use an
electric tool to unscrew and screw
parts because it may damage the
screw threads or cause screw heads
to be stripped off.
NOTE
Keep the screws so they can be used
on the opposite side.

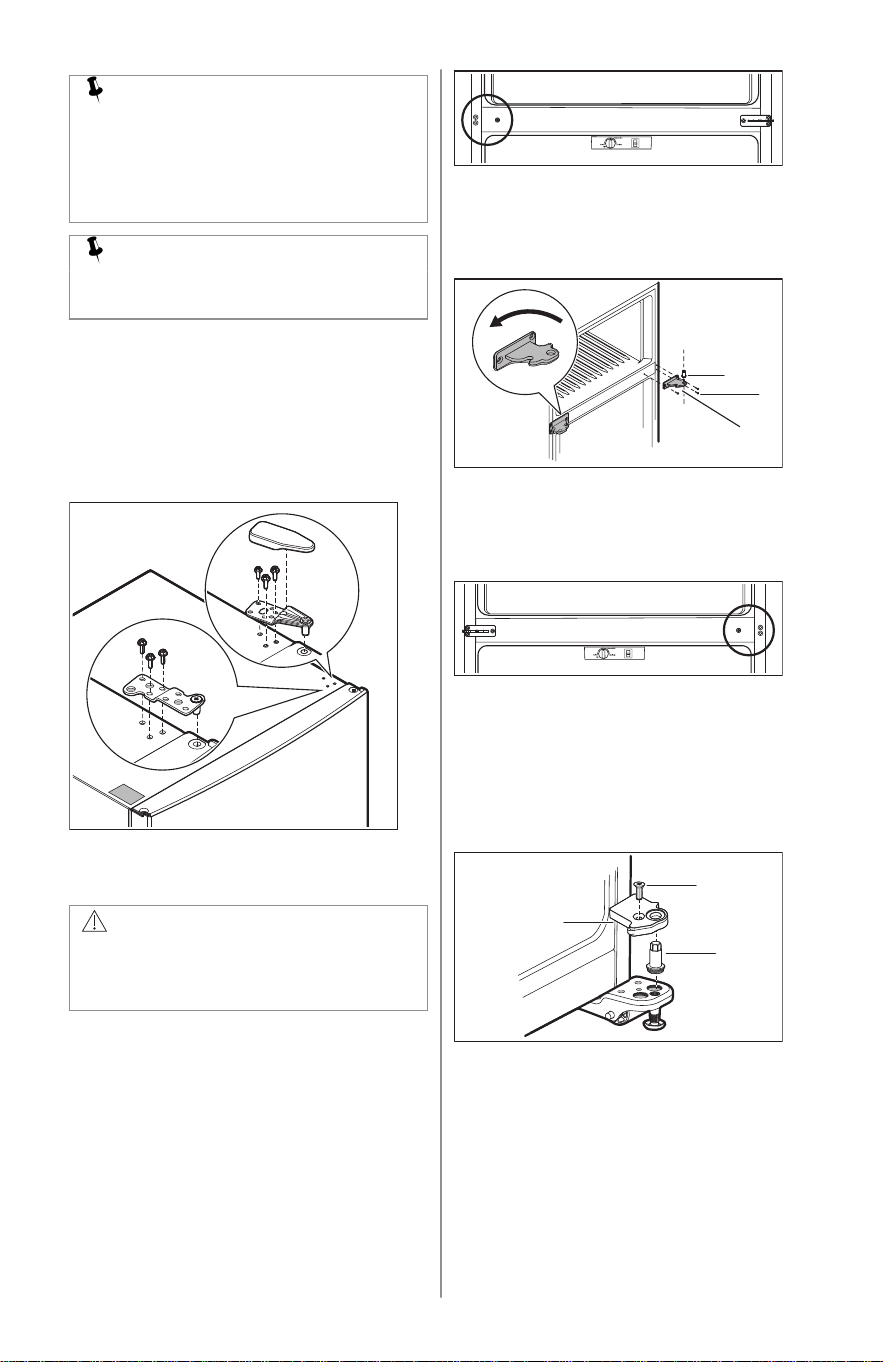

1. Unplug the appliance.
2. Remove the top hinge cover (some
models).
3. Using a 5/16"
socket, remove the 3
screws from the hinge. Remove the
tape covering the top hinge holes on
the opposite side of the appliance.
Remove the top hinge.
4. Carefully open the freezer door, and
lift the door off of the center hinge pin.
Set the door aside.
CAUTION!
Place the doors on a padded surface
to avoid damage where they cannot
fall and cause personal injury.

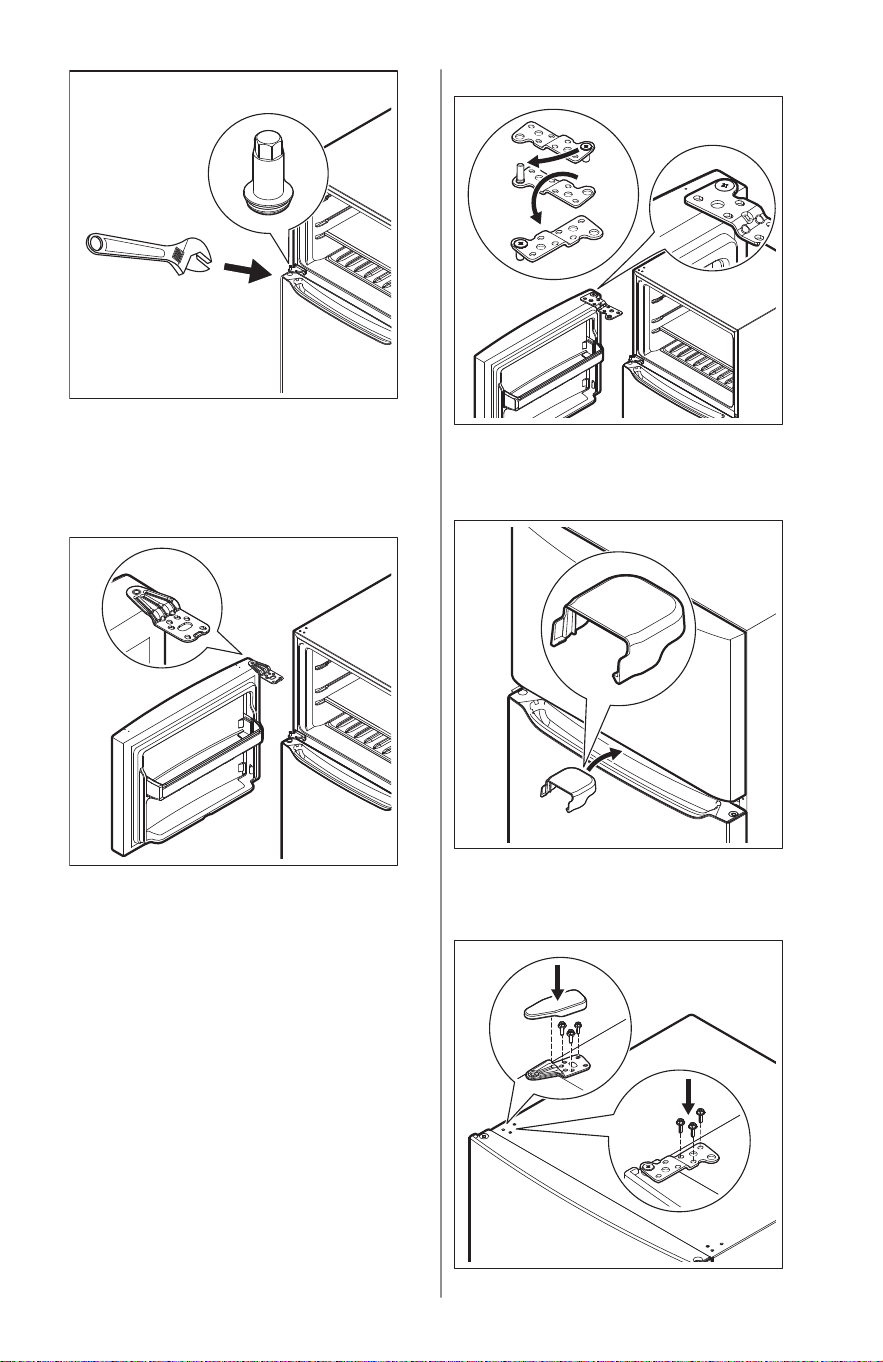

5. Unscrew the center hinge pin using an
adjustable wrench and set it aside.
6. Open the refrigerator door and lift the
door off of the bottom hinge pin. Set
the door aside.
7. Remove the 3 pan head screws using
a multi-bit screwdriver with a #2
square bit.
x
x
x
8. Remove the 3 screws from the center
hinge using a multi-bit screwdriver with
a #2 square bit. Flip the center hinge
over and install it on the left side of the
unit.
A
B
C
A. Hinge pin
B. Screws
C. Center hinge
9. Install the 3 pan head screws on the
right side.
x
x
x
10. Remove both lower hinge covers if
installed.
11. Remove the screw from the door
stopper with a multi-bit screwdriver
with a #2 square bit.
12. Unscrew the bottom hinge pin from the
right-hand position using an adjustable
wrench.
A
B
C
A. Door Stopper
B. Door Stopper Screw
C. Bottom Hinge Pin
13. Install the bottom hinge pin in the left-
hand hole of the left-hand lower hinge.
14. With the assistance of another person,
tilt the appliance back, to have access
to the bottom hinge. Loosen the hinge
screws slightly. Flip the door stopper,
and place it on top of the bottom
ENGLISH 9
hinge, making adjustments until the
stopper is flush against the unit.
Tighten all screws.

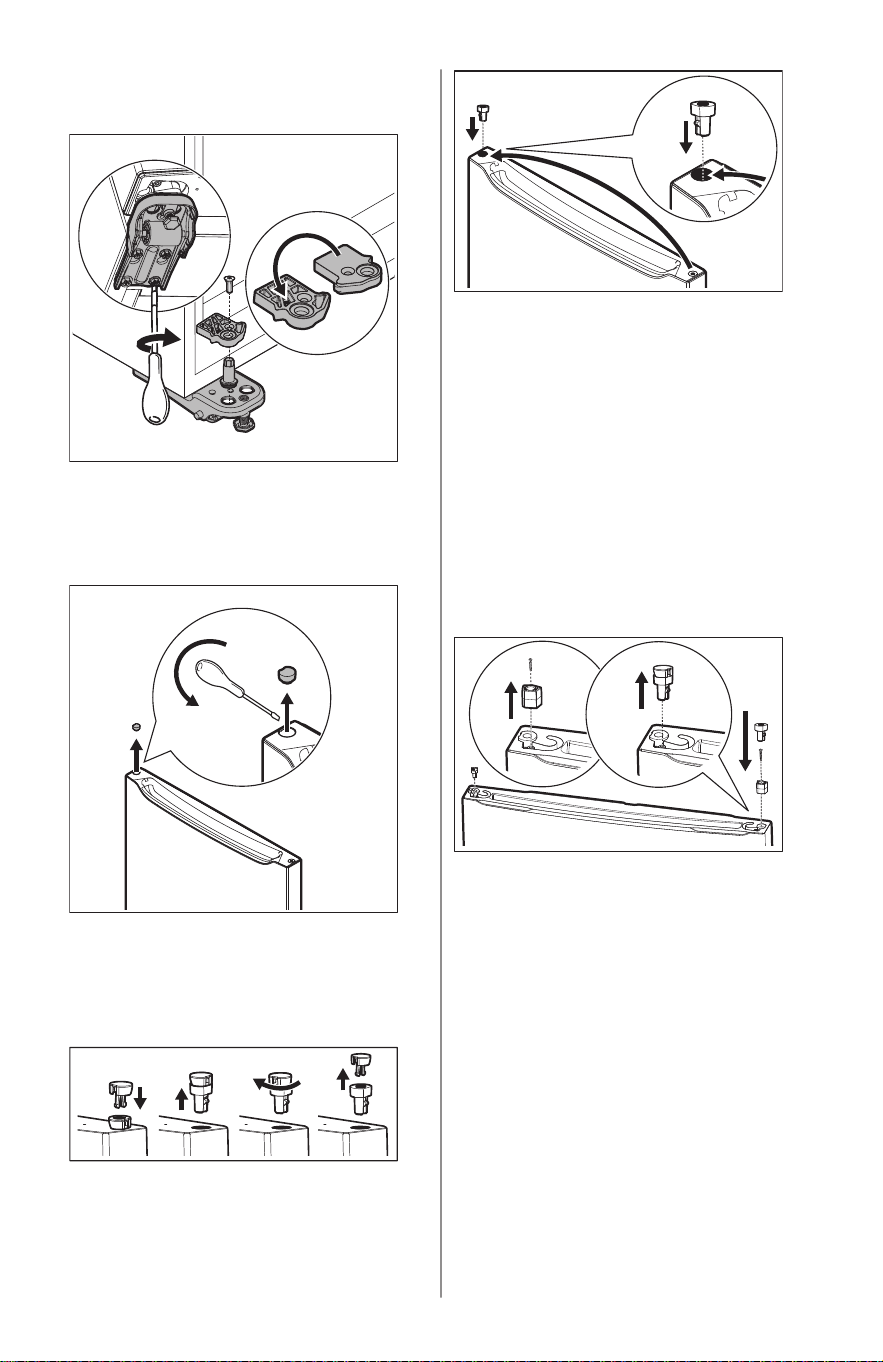

4.2 Door reversal
1. With a flathead screwdriver, pry out
bearing cover from the left side of the
refrigerator door.
2. Snap the cover into the upper right
bearing of the refrigerator door and
pull it straight out.
3. Twist and pull the cover to release
from the bearing. Insert bearing in the
hole at the opposite end of the door.
4. Reverse the door handle if applicable
(refer to Door Handle Installation)
5. Flip the refrigerator door over and
follow the procedure:
A. Remove the screw from the
stopper using a multi-bit
screwdriver with a
#2 square bit
and set it aside.
B. Snap the bearing cover in the
bearing and pull to remove the
bearing. Twist the cover to release
it from the bearing.
C. Install the bearing on the opposite
side of the door. Flip the stopper,
replace it on the opposite side of
the door, and replace the screw.
A B C
6. Repeat steps for the freezer door.
7. Place the bearing cover in the
remaining open hole at the top of the
refrigerator door.
8. Screw in and tighten the center hinge
pin using an adjustable wrench.
10 ENGLISH
9. For type A top hinge, attach the top
hinge to the freezer door. Lower the
freezer door over the center hinge pin
at a 90° angle, and close the door,
holding it in place.
Type A hinge
10. For type B top hinge, remove the
hinge pin from the top hinge. Put the
hinge pin through the hole on the
opposite side. Flip the top hinge over
and attach it to the freezer door. Lower
the freezer door over the center hinge
pin at a 90° angle, and then close the
door, holding it in place.
Type B hinge
11. Place the lower hinge cover between
the freezer door and refrigerator door
to keep it level while attaching the top
hinge.
12. Align the top hinge to the holes on the
unit and attach screws with 5/16"
socket, then place the top hinge cover
on the unit (some models).
ENGLISH 11
13. Replace the lower hinge covers.
5. DOOR HANDLE INSTALLATION
CAUTION!
Wear gloves and safety goggles. Use
extreme caution when installing these
handles.
The rounded end of the handles may
be sharp (some models).

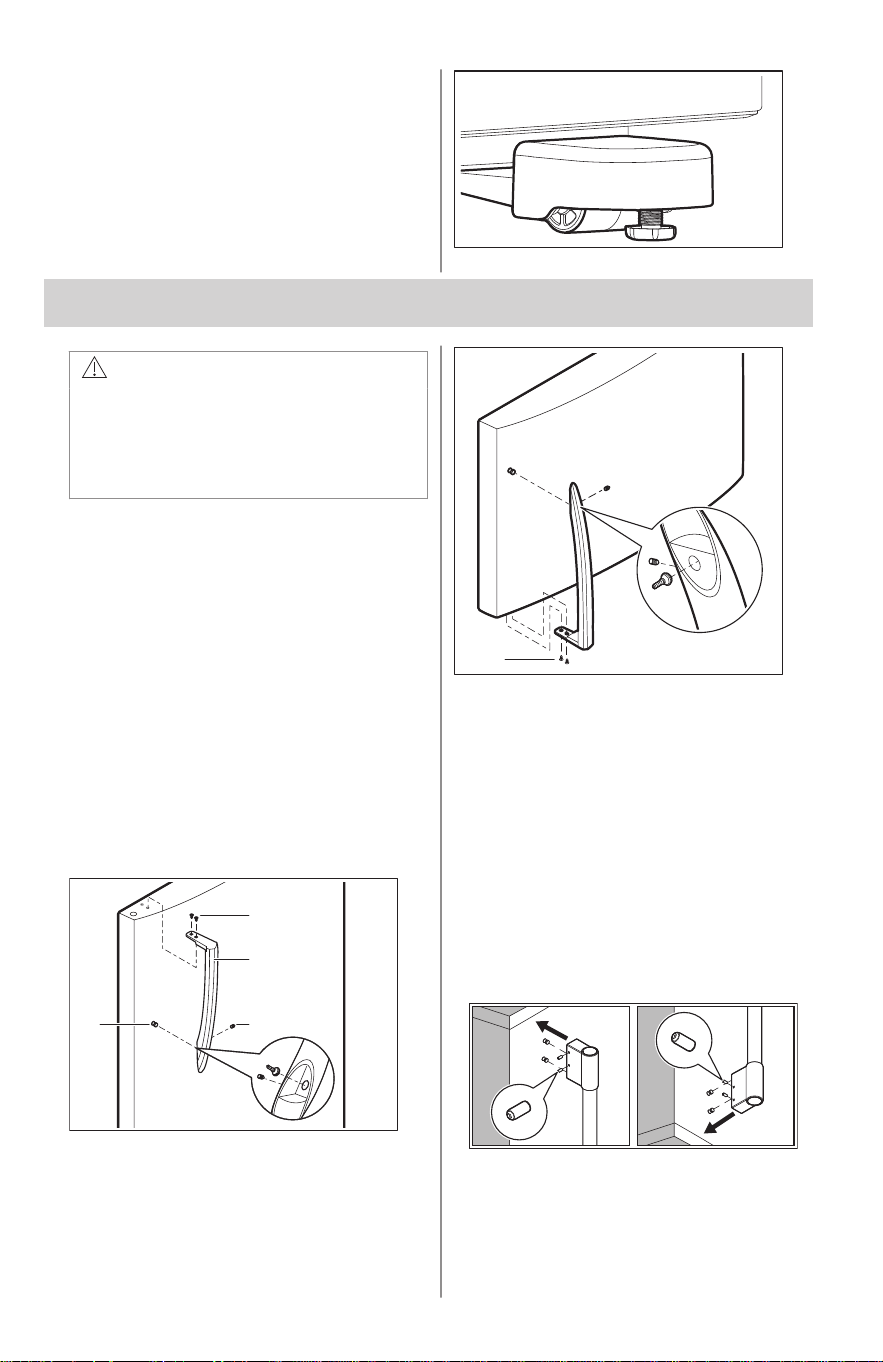

5.1 Metal handle
To attach the refrigerator/freezer metal
handle:
1. Open the door.
2. Place the rounded part of the handle
onto the shoulder screw on the face of
the door and align the 2 holes:
•
for the refrigerator: at the top of the
handle with the 2 holes at the top of
the door.
• for the freezer: at the bottom of the
handle with the 2 holes at the
bottom of the door.
Do not tighten the set screw yet.
3. Install the 2 screws into:
• the top of the refrigerator handle:
A
B
C
D
A. Shoulder screw
B. Screw
C. Handle
D. Set screw
• the bottom of the freezer handle:
B
C
D
A
A. Screw
B. Shoulder screw
C. Set screw
D. Handle
4. Tighten the set screw on the rounded
part of the handle until the handle is
flush with the door, then tighten
another 1/2 turn
For professional models:
With the door open, place the handle over
the shoulder screw. Tighten the set
screws.

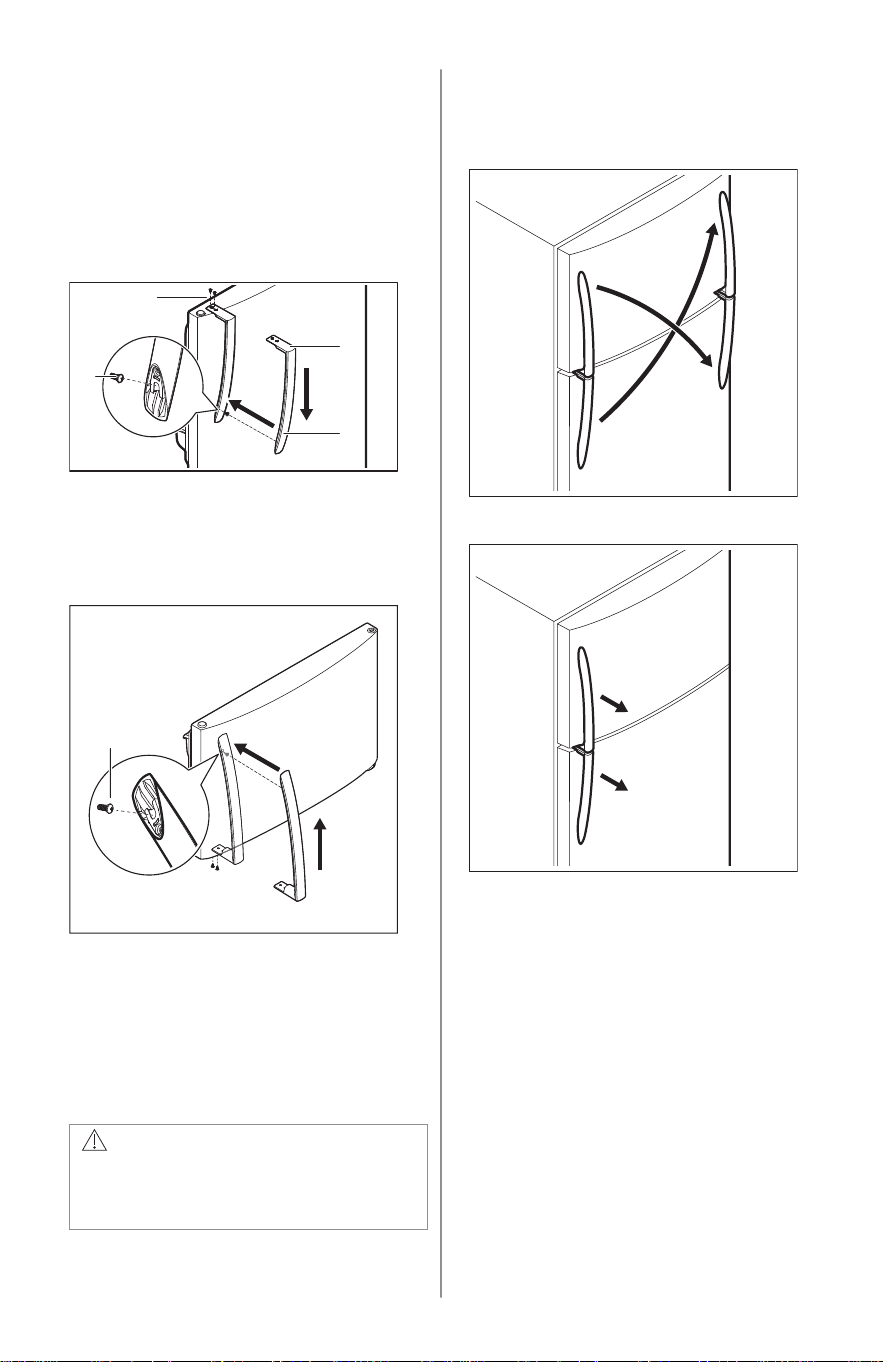

5.2 Plastic handle
To attach the refrigerator/freezer plastic
handle:
12 ENGLISH
1. Open the door.
2. Place the end of the handle on the
mounting screw and pull it:
• for the refrigerator: down to secure
it in place.
•
for the freezer: up to secure it in
place.
3. Align the handle base with the holes:
• in top of the door for the refrigerator
handle.
A
B
C
D
A. Mounting screw
B. Screws
C. Handle base
D. Handle
• in the bottom of the door for the
freezer handle.
A
B
C
D
A. Mounting screw
B. Handle
C. Handle base
D. Screws
4. Install screws packaged with the
handle.
5.3 Door handle reversal
CAUTION!
Ensure the doors are set aside in a
secure position where they cannot fall
and cause personal injury.
Reverse and attach the freezer and
refrigerator handles as shown. The
handles may be easier to reverse while
the doors are off.
Unscrew and remove the handles.
To reverse the door handles:

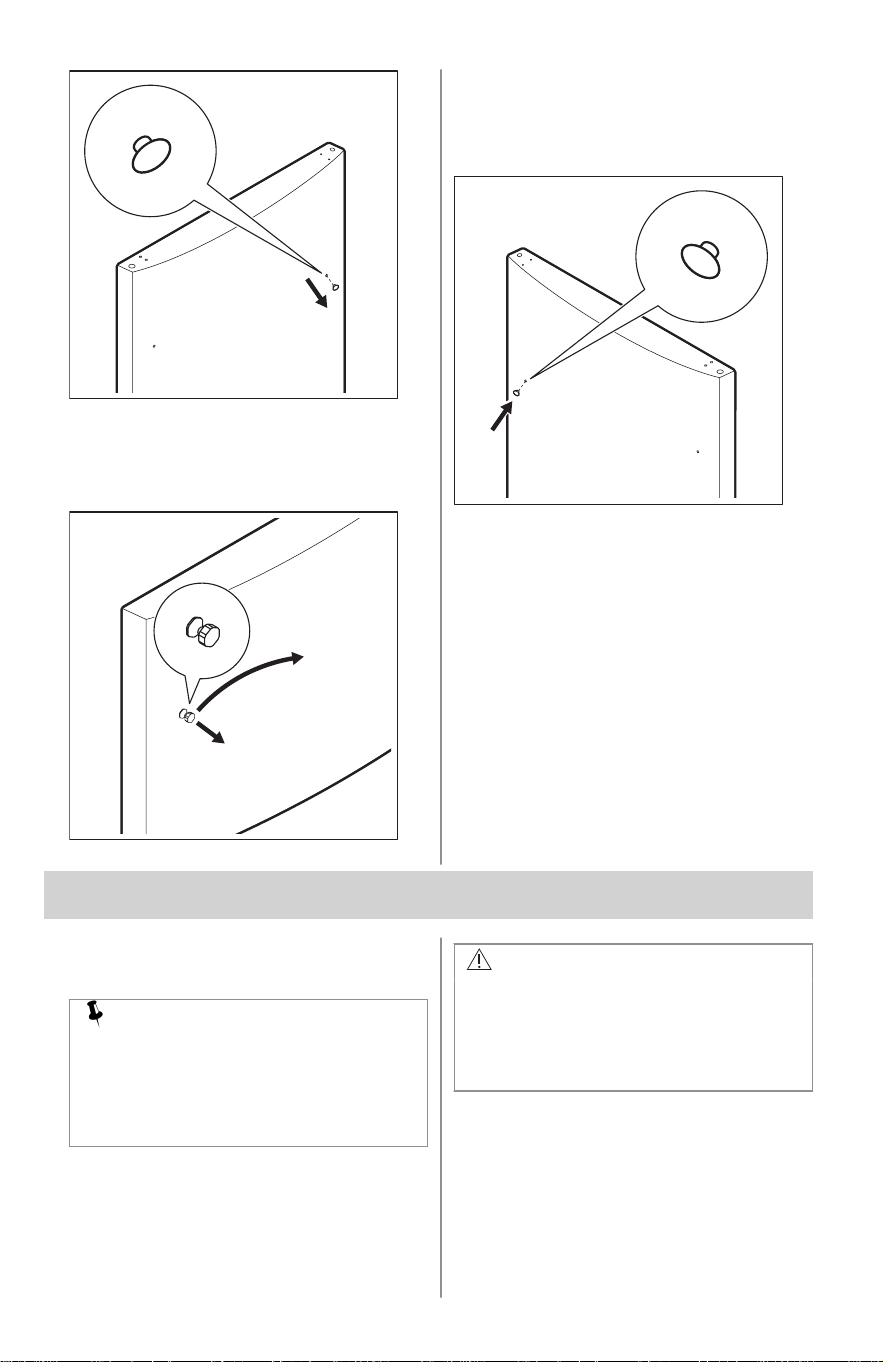

1. Remove and discard the button plugs
from the front of the refrigerator and
freezer doors.
ENGLISH 13
2. Remove the screw using an adjustable
wrench or multi-bit screwdriver (varies
by model) and install it where the
button plugs were removed on the
opposite side of the door.
3. Install the button plugs from the
literature bag on the opposite side of
the front of the refrigerator and freezer
doors. Push firmly to ensure button
plug is fully seated.
To install your specific handle, reference
door handle installation on the previous
pages.
6. WATER SUPPLY CONNECTION
6.1 Before Installing The Water
Supply Line
NOTE
Automatic ice makers are optional
accessories that you may install in
most models at any time. Visit
Frigidaire.com
for information about
Ice Maker Kit 117000
.
WARNING!
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the appliance from the
electrical power before connecting a
water supply line to the appliance.
14 ENGLISH
CAUTION!
To avoid property damage:
• User stainless steel braided tubing
for the water supply line. Do not
use water supply tubing made of
1/4"
plastic. Plastic tubing greatly
increases the potential for water
leaks, and the manufacturer will not
be responsible for any damage if
you use plastic tubing for the
supply line.
• Do not install water supply tubing in
areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice
maker. If the ice maker is
connected to soft water, ensure
that the softener is maintained and
working properly.
IMPORTANT
Ensure your water supply line
connections comply with all local
plumbing codes.
6.2 You will need
• Basic tools: adjustable wrench, flat-
blade screwdriver, and Phillips™
screwdriver.
•
Access to a household cold water line
with water pressure between
30 and
100 psi.
• A water supply line made of stainless
steel tubing. To determine the length of
tubing needed, measure the distance
from the ice maker inlet valve at the
back of the appliance to your cold
water pipe. Then add approximately 6 ft
(1.8 m) to ensure you can move the
appliance for cleaning.
• A shutoff valve to connect the water
supply line to your household water
system. Do not use a self-piercing type
shutoff valve.
• Do not reuse compression fitting or use
thread seal tape.
NOTE
Check with your local building
authority for recommendations on
water lines and associated materials
prior to installing your new refrigerator.
Depending on your local/state building
codes, Frigidaire recommends:
•
for homes with existing valves its
Smart Choice® water line kit
5304437642 with a 6 ft stainless
steel water line.
• for homes without an existing
valve, we recommend Smart
Choice® water line kit 5304493869
with a 6 ft polyline waterline.
Please refer to Frigidaire.com for
more information.
6.3 Installing the water supply
line
NOTE
These instructions do not cover after
market ice maker installation.
Instructions in after market ice maker
kit should be used.
To connect water supply line to ice maker
inlet valve:
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into sink
or bucket. Turn on water supply and
flush supply line until water is clear.
Turn off water supply at shutoff valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. Depending on the tubing you use:
• Copper tubing - Slide brass
compression nut, then ferrule
(sleeve) onto water supply line.
Push water supply line into water
valve inlet as far as it will go (
1/4" /
6.4 mm). Slide ferrule (sleeve) into
valve inlet and finger tighten
compression nut onto valve.
Tighten another half turn with a
wrench; do not over tighten.
• Braided flexible stainless steel
tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten
nut onto valve. Tighten another half
turn with a wrench; do not over
tighten.
ENGLISH 15
5. With steel clamp and screw, secure
water supply line to rear panel of the
appliance.
6. Coil excess water supply line (copper
tubing only), about 2.5 turns, behind
refrigerator as shown and arrange
coils so they do not vibrate or wear
against any other surface. Do not kink
tubing.
7. Turn on water supply at shutoff valve
and tighten any connections that leak.
8. Reconnect refrigerator to electrical
power source.
9. Turn the ice maker on.
servi
c
e
mo
d
e
Copper tubing installation
A
B
E
F
D
H
C
I
G
Braided flexible stainless steel tubing
installation
A
B
J
F
H
K
G

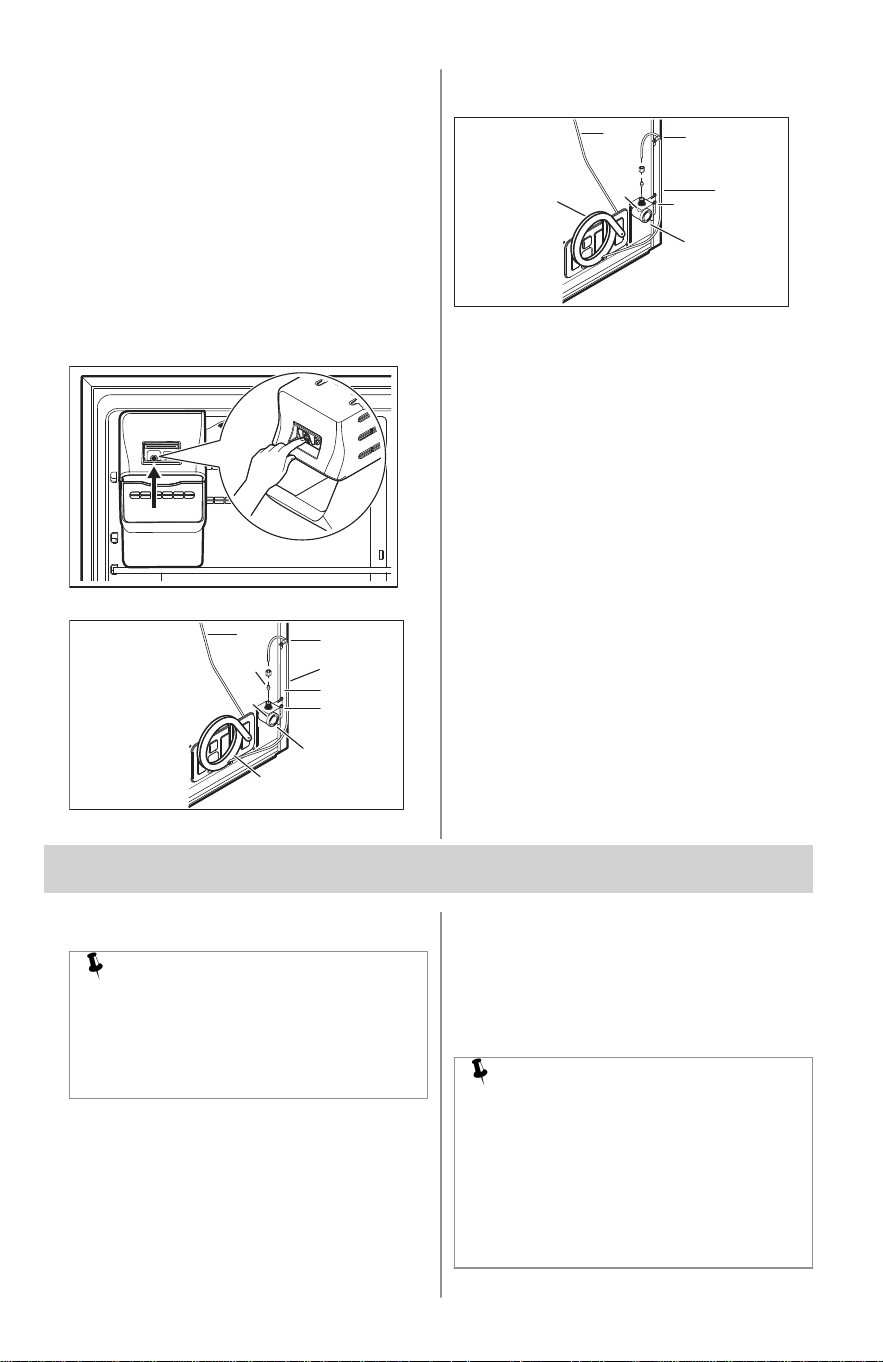

A. Plastic water tubing to ice maker fill
tube
B. Steel clamp
C. Brass compression nut
D. Ferrule (sleeve)
E. Copper water line
F. Water valve bracket
G. Valve inlet
H. Water valve
I. Copper water line from household
water supply*
J. Braided flexible stainless steel water
line
K. 6 ft (1.8 m) braided flexible stainless
steel water line from household water
supply*
*Include enough tubing in the loop to allow
moving the refrigerator out for cleaning.
7. ICE MAKER
7.1 Automatic ice maker
NOTE
Automatic ice makers are optional
accessories that you may install in
most models at any time. Visit
Frigidaire.com for information about
ice maker kit 117000
.
If your appliance has an automatic ice
maker, it will produce minimal ice during
the first 24 hours of operation. Air in new
plumbing lines may cause the ice maker to
cycle 2 or 3 times before making a full tray
of ice. With no usage, it will take
approximately 1 to 2 days to fill the ice
container.
New plumbing connections may cause the
first production of ice cubes to be
discolored or have an odd flavor. Discard
the ice produced during the first 24 hours.
NOTE
The ice maker is shipped in the ON
position. To ensure proper function for
your ice maker, hook up the water
supply immediately or turn the ice
maker OFF. If the ice maker is on and
the water supply is not connected, the
water valve will make a loud
chattering noise.
16 ENGLISH

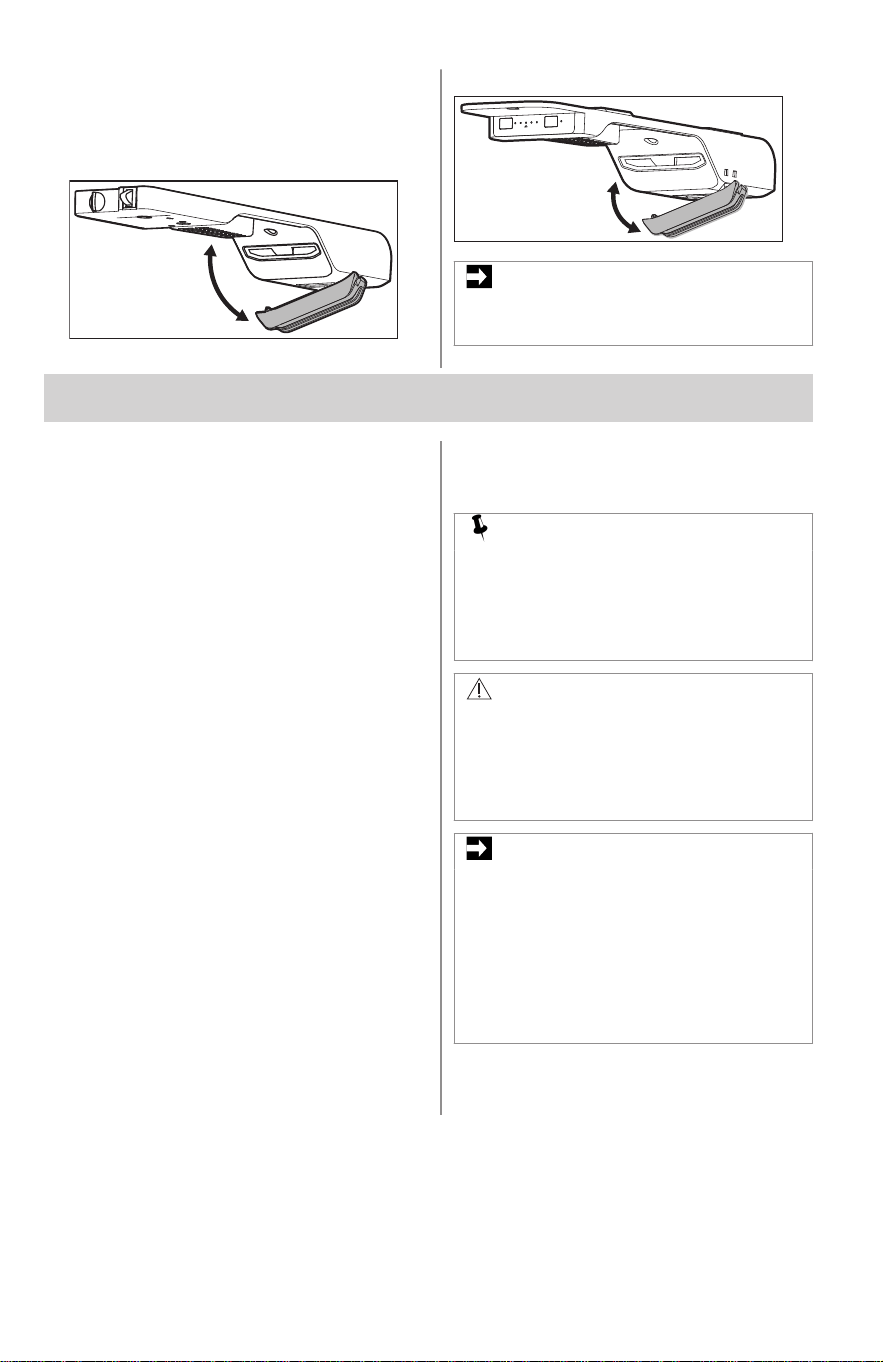

7.2 Turning ice maker on
After connecting the plumbing, open the
water supply valve. Place the ice container
under the ice maker, pushing it as far back
as possible. Press the ice maker’s On/Off
button.
7.3 Turning ice maker off
To stop the ice maker, press the ice
maker’s On/Off
button. The ice maker
regulates the ice production and stops
making ice when full and starts again
when ice is low in the ice container.
7.4 Ice production
The ice maker produces 2 to 2.5 lbs of ice
every 24 hours depending on usage
conditions. Ice is produced at a rate of 10
cubes every 100
to 160 minutes.
NOTE
Set the freezer to a colder setting to
increase the output of the ice maker.
Allow 24 hours for the temperature to
stabilize.
NOTE
Do not place the ice container in a
dishwasher.
8. CONTROLS AND SETTINGS
8.1 Cool down period
To ensure safe food storage, allow the
appliance to operate with the doors closed
for at least 8 hours before loading it with
food.
NOTE
When first turning the appliance on,
adjust the control to Recommended
.
After 24 hours, adjust the controls as
needed.
8.2 Appliance Control
Freezer Control
All models
NOTE
If your appliance is in a garage or area
where the temperature is below 50 °F,
adjust the freezer control to the
coldest setting to improve
performance.
Refrigerator Control
varies by model
Temperature Adjustment
NOTE
Adjusting the temperature control to
OFF turns off the compressor and
prevents the refrigerator from cooling,
but does not disconnect the power to
the light bulb and other electrical
components. To turn off power to your
refrigerator, you must unplug the
power cord from the wall outlet.
Adjust the temperature gradually: adjust
the dial in small increments, allowing the
temperature to stabilize.
• For colder temperatures, adjust the
control toward
Coldest.
• For warmer temperatures, adjust the
control toward Cold.
ENGLISH 17
To maintain temperature, a fan circulates
air in the refrigerator and freezer
compartments. For good circulation, do
not block cold air vents with food items.
Adjusting the refrigerator control will
change temperatures in both
compartments. The freezer control can be
left at the factory preset (Recommended)
or adjusted as desired.

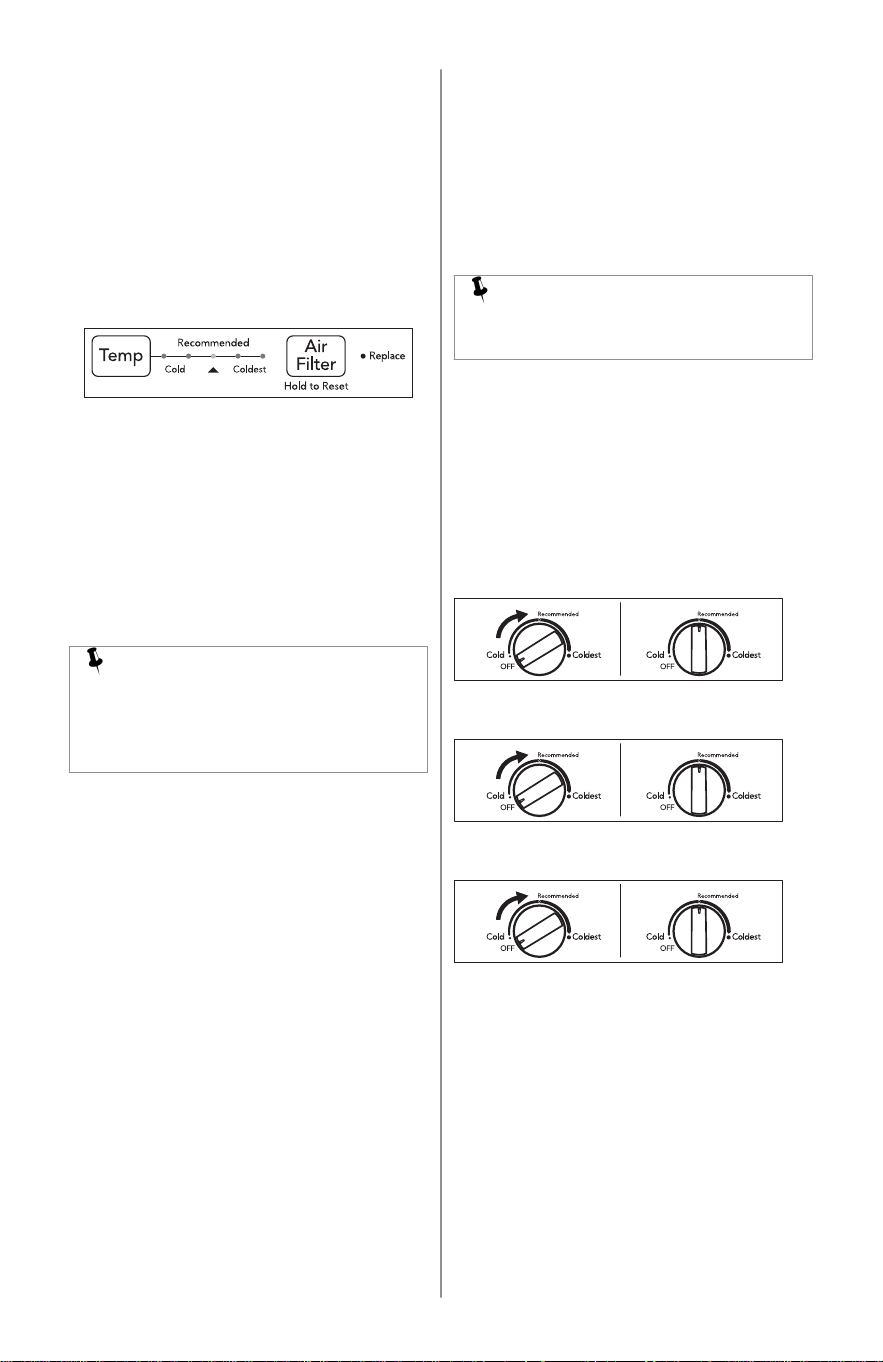

8.3 Professional
Temperature adjustment
Adjust the temperature gradually: adjust in
small increments, allowing the
temperature to stabilize.
• For colder temperatures, press the
Temp button to change the
temperature setting toward
Coldest.
• For warmer temperatures, press the
Temp button to change the
temperature setting toward Cold.
NOTE
Pressing the Temp button will scroll
through the 5 temperature settings
toward the coldest setting, and then
loop back to the least coldest setting.
Adjusting the refrigerator control will
change temperature in both
compartments. The freezer control can be
left at the factory preset (Recommended)
or adjusted as desired.
To maintain temperatures, a fan circulates
air in the refrigerator and freezer
compartments. For good circulation, do
not block cold air vents with food items.
8.4 Air Filter
The filter status light on the control panel
will prompt you to replace the filter after
6
months. After replacing the air filter, the air
filter status on the control panel should be
reset. To reset, press and hold for 3
seconds.
8.5 Door Alarm
If the door is left open for 5 or more
minutes, the door alarm will sound. Clear
the alarm by closing the door or by
pressing any button.
8.6 Sabbath Mode
The Sabbath mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
NOTE
The temperature setting is not
affected by the Sabbath mode.
To enter Sabbath mode:
1. Turn the appliance control from
OFF
to
Recommended and back 3 times
within 15 seconds.
2. Wait for the interior light to blink off
and on at Recommended. After the
third time, the light remains off
indicating the appliance is in Sabbath
mode.
Stage 1
1 2
No change then light blinks OFF/ON.
Stage 2
1 2
Light blinks OFF/ON.
Stage 3
1 2
Light blinks OFF/ON then light is OFF. The
appliance is in Sabbath Mode.
3. Set the appliance control to the
desired temperature setting.
To exit Sabbath mode, turn the appliance
control to OFF and wait for 5 seconds
before returning it to the desired
temperature setting.
18
ENGLISH
NOTE
While in Sabbath mode, the lights and
the control panel will not work until
Sabbath mode is deactivated. The
refrigerator stays in Sabbath mode
after power failure recovery.
Deactivate it with the appliance
control.
For further assistance, guidelines for
proper use and a complete list of models
with the Sabbath feature, please visit star-
k.org.

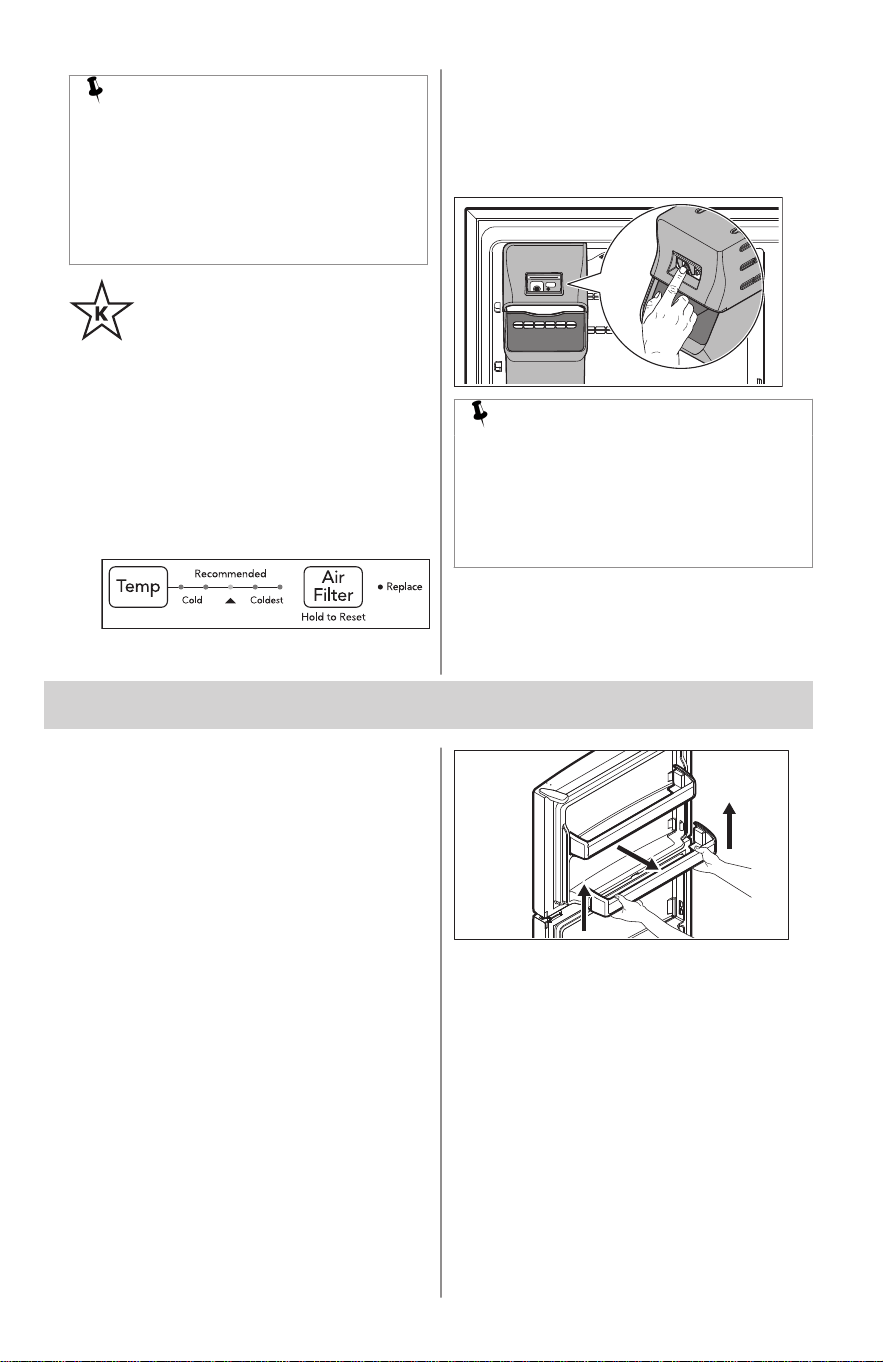

Sabbath Mode Professional
To enter Sabbath mode:
1. Press and hold the Temp and Air Filter
buttons for 5 seconds.
One LED on each side of Recommended
setting will be lit while the appliance is in
Sabbath mode.
2. Press the ice maker's On/Off power
switch to turn the ice maker off. The
LED will not be illuminated.
service
mode
NOTE
Although you have entered the
Sabbath mode, the ice maker will
complete the cycle it had already
initiated. The ice cube compartment
will remain cold and you can make
new ice cubes with standard trays.
To exit Sabbath mode, reverse the steps
above.
9. STORAGE FEATURES
9.1 Door Storage
Door bins, shelves, and racks conveniently
store jars, bottles, and cans. You can
quickly select frequently used items.
9.2 Door Bin
Door bins can accommodate gallon-sized
plastic drink containers and economy-
sized jars and containers.
To remove the door bin:
1. Lift up the bin.
2. Pull it straight out.
To install the door bin:
1. Push the bin back and down into the
locking tabs.
2. The bin sides will lock into the tabs.
9.3 Shelf adjustment
Adjust the shelves to suit individual needs.
Before adjusting the shelves, remove all
food.

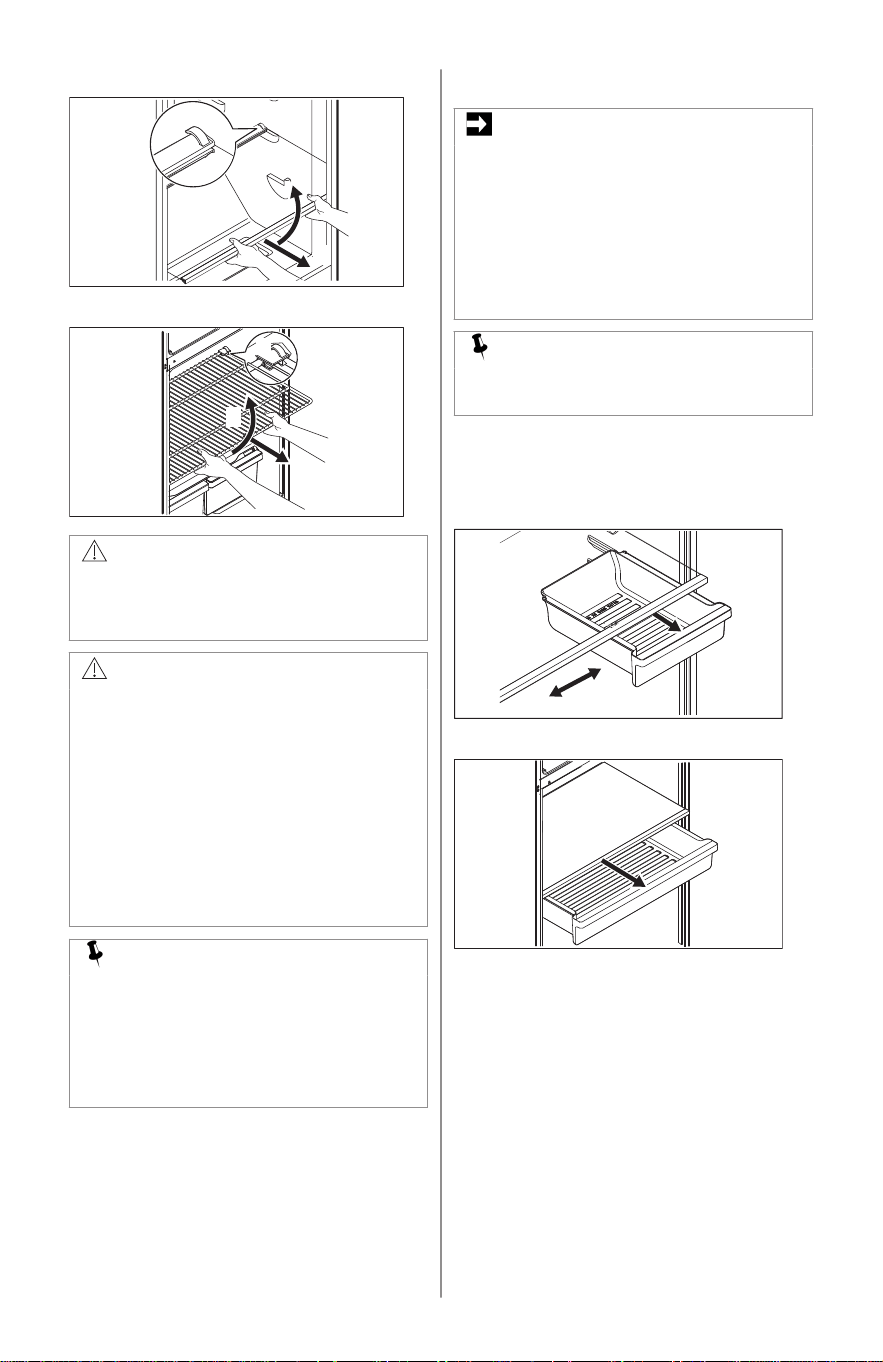

To adjust shelves, slide the shelf by
moving it forward and lifting it upward.
To replace shelves, insert the rear of the
shelf into any pair of shelf rails and
carefully push the shelf back into position,
making sure the shelf clips (A) go in the
notch in the liner.
ENGLISH
19
Glass Shelf
1
2
A
Wire Shelf
1
2
A
CAUTION!
When reinstalling the shelf, ensure the
shelf clip is attached to the liner and
holds it in place.
CAUTION!
Do not clean glass shelves or covers
with warm water when they are cold.
Shelves and covers may break if
exposed to sudden temperature
changes or impact, such as bumping.
Tempered glass is designed to shatter
into many small, pebble-size pieces.
This is normal. Glass shelves and
covers are heavy. Use both hands
when removing them to avoid
dropping.
NOTE
To avoid personal injury or property
damage, handle tempered glass
shelves carefully. Shelves may break
suddenly if nicked, scratched, or
exposed to sudden temperature
change.
9.4 Deli Drawer (some models)
IMPORTANT
Using the deli drawer to store fruits
and vegetables may result in frozen
produce. The deli drawer is designed
to stay colder than the crisper drawers
and should only be used to store
lucheon meets, spreads, cheeses,
and other deli items. Store vegetables
and/or fruit in the crisper drawers.
NOTE
Be sure to support the glass when
removing the drawer.
Store deli meats or spreads in the half- or
full-width sliding deli drawer found in the
middle section of your appliance.
Half-width sliding deli drawer
Full-width sliding deli drawer

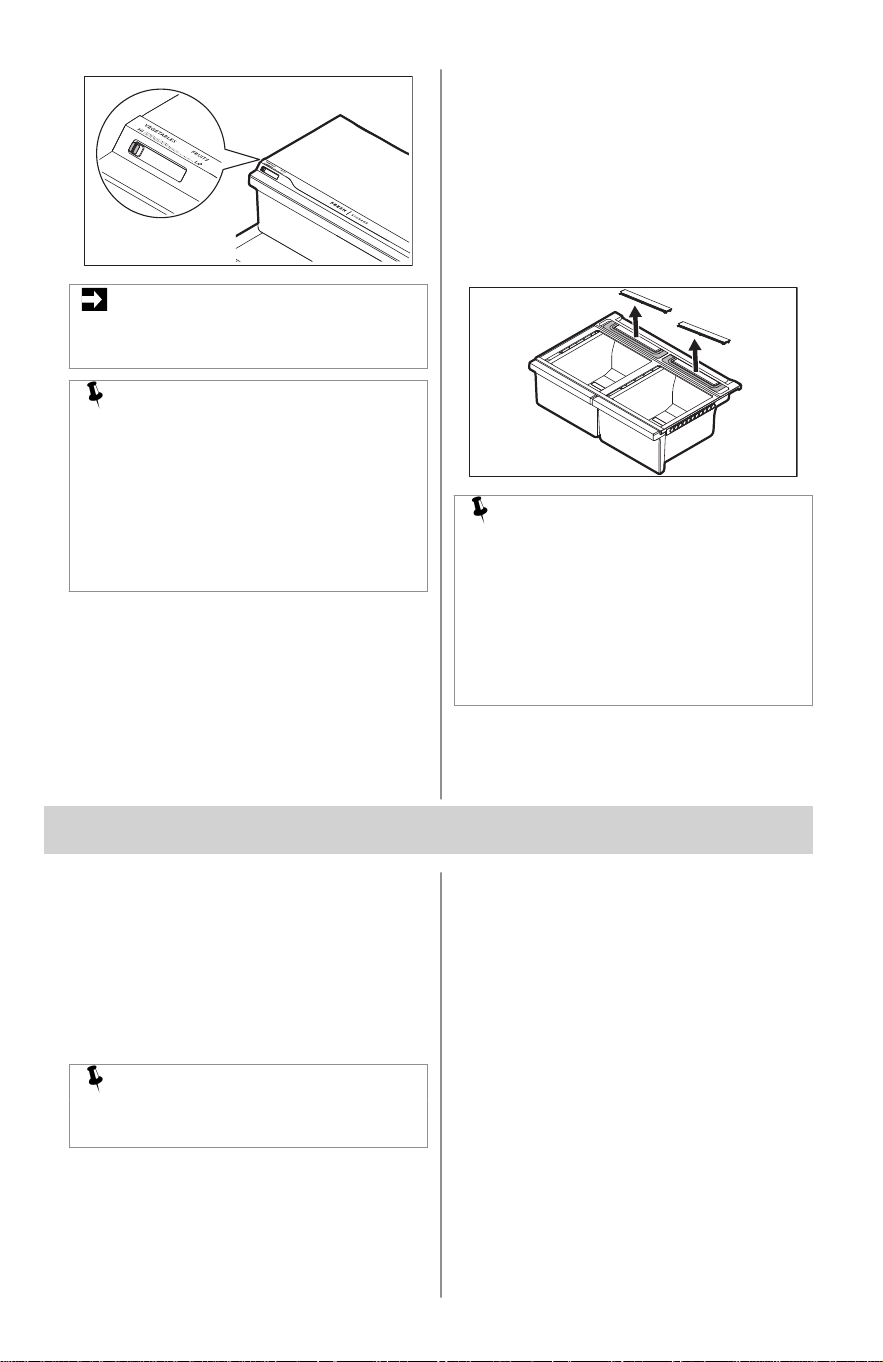

9.5 Crisper Humidity Control
(some models)
The crisper humidity control, present on
the crisper drawers of some models,
allows you to adjust the humidity within the
crisper. This can extend the life of fresh
vegetables that keep best in high humidity.
20 ENGLISH
IMPORTANT
Store vegetables and/or fruit in the
crisper drawers.
NOTE
Leafy vegetables keep best when
stored with the humidity control set on
high humidity, or in a drawer without a
humidity control. This keeps incoming
air to a minimum and maintains
maximum moisture content. Store
non-leafy vegetables and fruits still in
their skins at the low humidity setting.
9.6 Auto-humidity control (some
models)
Some crispers have an auto-humidity
control at the rear of each crisper under
the humidity control cover.
To remove the auto humidity control for
cleaning:
1. Reach to the back of the humidity
control cover.
2. Pull up on the cover.
3. Pull the cover toward the back of the
cabinet and remove.
4. Clean the humidity control with hot
soapy water.
5. Replace the clean humidity control
cover by reversing the steps above.
Repeat for both crispers.
NOTE
We do not recommend replacing the
auto-humidity membrane unless it
becomes damaged or ruined. If the
membrane becomes soiled, it can be
washed with soap and water. Ensure
the membrane is dry before replacing
it in the cover and back in the
appliance.
10. NORMAL OPERATING SOUNDS
10.1 Understanding the sounds
you may hear
Your new, high-efficiency appliance may
introduce unfamiliar sounds. These
sounds normally indicate your appliance is
operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
NOTE
Energy efficient foam in your
appliance is not a sound insulator.
Following is a list of major components in
your appliance and the sounds they can
cause:
A. Evaporator. Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B. Evaporator fan. You may hear air
being forced through the refrigerator
by the evaporator fan.
C. Defrost heater. During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
occur.
D. Automatic Ice maker. When ice has
been produced, you will hear ice
cubes falling into the ice bin.
E. Condenser fan. You may hear air
being forced through the condenser.
F. Compressor. Modern, high-efficiency
compressors run much faster than
previous models. The compressor may
ENGLISH 21
have a noticeable hum or pulsating
sound during operation.
G. If your appliance is equipped with an
automatic ice maker, you will hear a
buzzing sound as the water valve
opens to fill the ice maker during each
cycle.
H. Drain pan (not removable). You may
hear water dripping into the drain pan
during the defrost cycle.
I. Condenser. May create minimal
sounds from forced air.

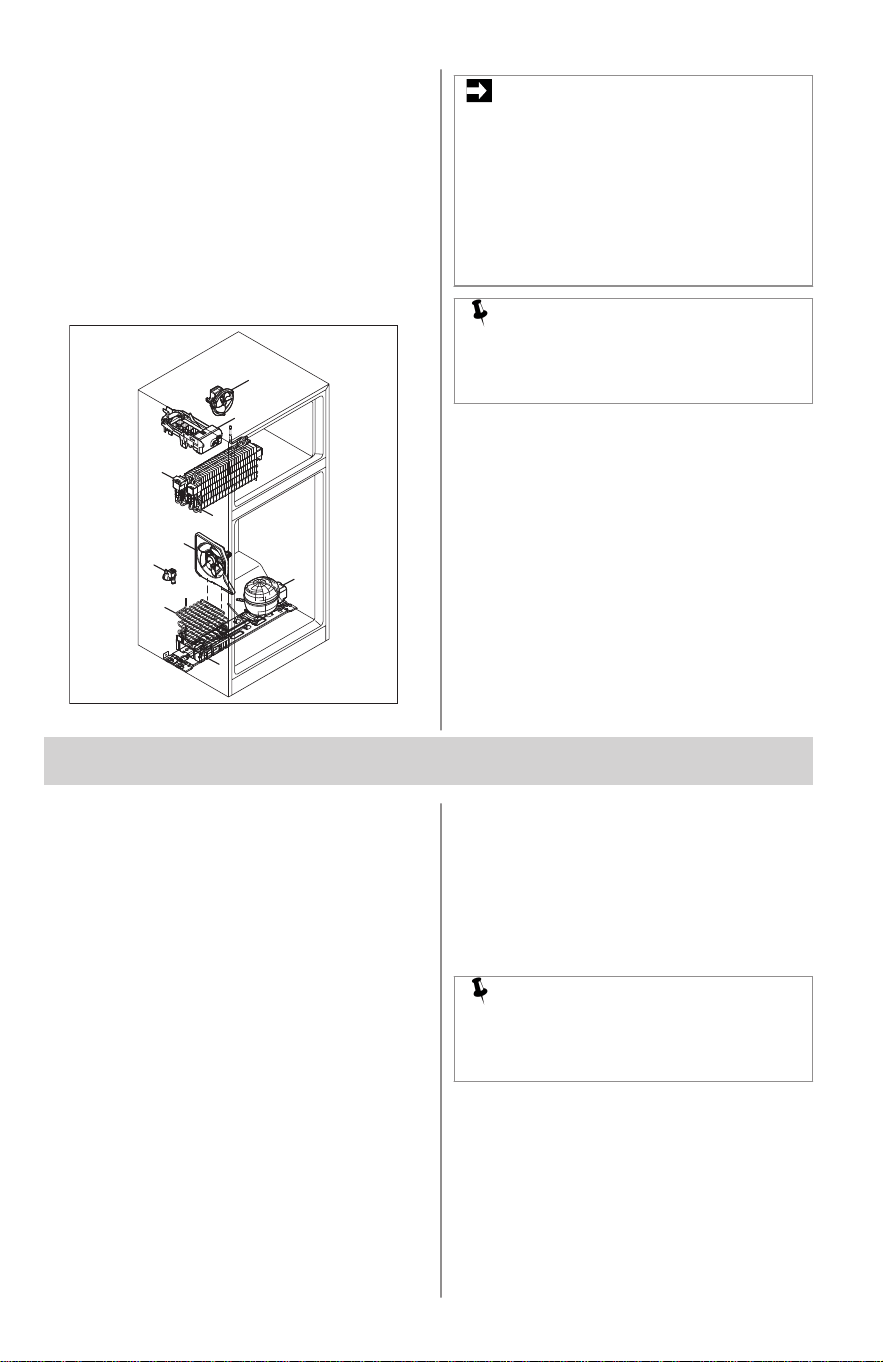

D
C
B
A
H
F
G
E
I
IMPORTANT
Ice maker models only: If the ice
maker is not connected to the
household water supply, you may
hear a loud chattering noise. Turn off
the ice maker by pressing the green
On/Off power switch (green LED light
will turn off) until you install the water
supply line.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
11. FILTER REPLACEMENT
11.1 PureAir™ RAF-1 Air Filter
Keep your refrigerator fresh with our
PureAir™ RAF-1 air filter's active carbon
technology that absorbs and captures
undesirable odors more effectively than
baking soda. To ensure optimal filtering of
refrigerator odors, change the filter every 6
months.
The air filter is located in the top center of
the fresh food compartment.
To order replacement filters, please visit
our online store at
Frigidaire.com or call
toll-free at 1-800-374-4432. Here are the
product numbers to request when
ordering:
PureAir™ RAF-1 Air Filter FRGPAAF1
For models with the filter housing already
installed (such as Gallery and
Professional) use numbers shown above
when your order replacement filter. For
models that are air filter ready (Frigidaire
),
you will need to purchase a starter kit
(TMFRGPAAF1KIT) at Frigidaire.com.
The kit includes:
• 1 Filter Housing
• 1 Air filter (FRGPAAF1)
NOTE
We recommend you always use
genuine Frigidaire
replacement filters
only.
11.2 Replacing the Air Filter
Some features of the filter housing may
vary.
1. Unpack the new filter and snap it into
the filter housing. The open face (black
carbon media) of the filter should be
installed facing outward in the cover.
22 ENGLISH
2. Place the air filter housing in the
refrigerator by snapping it into the
back section of the control housing as
shown.
Air filter ready starter kit
Already installed air filter housing
IMPORTANT
For optimal performance, change the
filter every 6 months.
12. CARE AND CLEANING
12.1 Protecting your investment
Keeping your appliance clean maintains its
appearance and prevents odor build-up.
Wipe up any spills immediately and clean
the freezer and fresh food compartments
at least twice a year. When cleaning, take
the following precautions:
• Never use chloride or cleaners with
bleach to clean stainless steel.
•
Do not wash any removable parts in a
dishwasher.
• Always unplug the electrical power cord
from the wall outlet before cleaning.
• Do not remove the serial plate.
Removal of your serial plate voids your
warranty.
• Remove adhesive labels by hand. Do
not use razor blades or other sharp
instruments which can scratch the
appliance surface.
Do not use abrasive cleaners such as
window sprays, scouring cleansers,
brushes, flammable fluids, cleaning
waxes, concentrated detergents, bleaches
or cleansers containing petroleum
products on plastic parts, interior doors,
gaskets or cabinet liners. Do not use
paper towels, metallic scouring pads, or
other abrasive cleaning materials or strong
alkaline solutions.
Refer to the guide below for more details
on caring and cleaning specific areas of
your appliance.
NOTE
If you set your temperature controls to
turn off cooling, power to lights and
other electrical components will
continue until you unplug the power
cord from the wall outlet.
CAUTION!
Pull the appliance straight out to move
it. Shifting it from side to side may
damage flooring. Be careful not to
move the appliance beyond the
plumbing connections.
IMPORTANT
If you store or move your appliance in
freezing temperatures, be sure to
completely drain the water supply
system. Failure to do so could result in
water leaks when the appliance is put
back into service. Contact a service
representative to perform this
operation.
ENGLISH 23
12.2 Care & Cleaning Tips
Part What to use Tips and precautions
Interior and door liners
• Soap and water
•
Baking soda and water
Use 2 tablespoons of baking soda in
1 quart of
warm water. Be sure to wring excess water out of
sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Door gaskets Soap and water Wipe gaskets with a clean soft cloth.
Drawers and bins Soap and water Use a soft cloth to clean drawer runners and
tracks.
Glass shelves
• Soap and water
•
Glass cleaner
•
Mild liquid sprays
Allow glass to warm to room temperature before
immersing in warm water.
Exterior and handles
• Soap and water
• Non abrasive glass
cleaner
Do not use commercial household cleaners con‐
taining ammonia, bleach or alcohol to clean han‐
dles. Use a soft cloth to clean smooth handles.
Do not use a dry cloth to clean smooth doors.
Exterior and handles
(Stainless steel models
only)
•
Soap and water
• Stainless steel cleaners
Never use chloride or cleaners with bleach to
clean stainless steel.
Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth. Use a non-abrasive
stainless steel cleaner. These cleaners can be
purchased at most home improvement or major
department stores. Always follow manufacturer’s
instructions. Do not use household cleaners con‐
taining ammonia or bleach.
Always clean, wipe and dry with the grain to pre‐
vent scratching. Wash the rest of the cabinet with
warm water and mild liquid detergent. Rinse well,
and wipe dry with a clean soft cloth.
Replacing
LED bulbs
1. Unplug the appliance.
2. Wear gloves.
3.
Remove light cover.
4. Replace old bulb.
5. Replace light cover.
6. Plug in the appliance.
Caution: Wear gloves when replacing LED light
bulbs to avoid getting cut.
Use same wattage when replacing bulb.
Use only a 5-watt or less AC LED light bulb.
Air Filter Order Air Filter Housing Kit
TMFRGPAAF1KIT, which
includes a
PureAir™ RAF-1
air filter at Frigidaire.com.
Our PureAir™ RAF-1 air filter’s active carbon
technology absorbs and captures undesirable
odors more effectively than baking soda.
13. TROUBLESHOOTING
Let us help you troubleshoot your concern! This section will help you with common issues. If
you need us, visit our website, chat with an agent, or call us. We may be able to help you
avoid a service visit. If you do need service, we can get that started for you!
Visit Frigidaire.com
or call toll-free
1-800-374-4432.
24 ENGLISH
13.1 Common occurences
Refrigerator does not run.
• Ensure the plug is tightly pushed into an
electrical outlet.
• Check/replace the fuse with a
15amp time-delay
fuse. Reset the circuit breaker.
• The refrigerator control is turned to OFF.
• Refrigerator may be in defrost cycle. Wait 20
minutes and check again.
Freezer temperature is colder than preferred. Re‐
frigerator temperature is satisfactory.
Set the auxiliary freezer control to a warmer setting
until the freezer temperature is satisfactory. Allow
24 hours for the temperature to stabilize.
Refrigerator temperature is too cold. Freezer tem‐
perature is satisfactory.
Set the refrigerator control to a warmer setting. Al‐
low 24 hours for the temperature to stabilize. Then
check the freezer temperature and adjust as need‐
ed.
Freezer temperature is warmer than preferred. Re‐
frigerator temperature is satisfactory.
Set the auxiliary freezer control to a colder setting
until the freezer temperature is satisfactory. Allow
24 hours for the temperature to stabilize.
Refrigerator temperature is too warm. Freezer tem‐
perature is satisfactory.
Set the refrigerator control to a colder setting. Allow
24 hours for temperature to stabilize. Then check
refrigerator temperature and adjust as needed.
Refrigerator is noisy or vibrates.
• The cabinet is not level.
•
Floor is weak.
•
Refer to Normal Operating Sounds.
Odors in the refrigerator.
• The interior needs to be cleaned.
• Foods that produce odors should be covered or
wrapped.
Cabinet light is not working.
•
Replace with only a 5Watt or less AC LED light
bulb.
• Ensure the plug is tightly pushed into an electri‐
cal outlet.
•
The light switch may be stuck. Push in the light
switch, located on the refrigerator side wall, to
release.
Automatic ice maker is not working (some models)
• Ensure the ice maker is on (green light).
• The ice maker should produce
2 to 2.5 pounds
of ice in a 24 hour period.
• Ensure the water supply is turned on.
• The water pressure may be too low.
• The freezer may not be cold enough.
Ice Maker is not making enough ice (some models) Set the freezer control to a colder setting to improve
the performance of the ice maker. Allow 24 hours
for the temperature to stabilize.
Mullion is warm Mullion may be warm to the touch for the first 24
hours of operation. This is normal.
ENGLISH 25
14. LIMITED WARRANTY
Your appliance is covered by a one year
limited warranty. For one year from your
date of delivery, Electrolux will pay all
costs for repairing or replacing any parts of
this appliance that prove to be defective in
materials or workmanship when such
appliance is installed, used and
maintained in accordance with the
provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers
that have been removed, altered or
cannot be readily determined.
2. Product that has been transferred from
its original owner to another party or
removed outside the USA or Canada.
3. Rust on the interior or exterior of the
unit.
4. Products purchased “as-is” are not
covered by this warranty.
5. Food loss due to any refrigerator or
freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve
malfunction or defects in materials or
workmanship, or for appliances not in
ordinary household use or used other
than in accordance with the provided
instructions.
8. Service calls to correct the installation
of your appliance or to instruct you
how to use your appliance.
9. Expenses for making the appliance
accessible for servicing, such as
removal of trim, cupboards, shelves,
etc., which are not a part of the
appliance when it is shipped from the
factory.
10. Service calls to repair or replace
appliance light bulbs, air filters, water
filters, other consumables, or knobs,
handles, or other cosmetic parts.
11. Surcharges including, but not limited
to, any after hour, weekend, or holiday
service calls, tolls, ferry trip charges,
or mileage expense for service calls to
remote areas, including the state of
Alaska.
12. Damages to the finish of appliance or
home incurred during transportation or
installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services
performed by unauthorized service
companies; use of parts other than
genuine Electrolux parts or parts
obtained from persons other than
authorized service companies; or
external causes such as abuse,
misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED
WARRANTIES; LIMITATION OF
REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS
PROVIDED HEREIN. CLAIMS BASED
ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED
BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE
LIABLE FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY
BREACH OF THIS WRITTEN LIMITED
WARRANTY OR ANY IMPLIED
WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES,
SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS
THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some
other appropriate payment record to
establish the warranty period should
service be required. If service is
performed, it is in your best interest to
obtain and keep all receipts. Service under
this warranty must be obtained by
26 ENGLISH
contacting Electrolux at the addresses or
phone numbers below.
This warranty only applies in the USA and
Canada. In the USA, your appliance is
warranted by Electrolux Major Appliances
North America, a division of Electrolux
Home Products, Inc. In Canada, your
appliance is warranted by Electrolux
Canada Corp. Electrolux authorizes no
person to change or add to any obligations
under this warranty. Obligations for service
and parts under this warranty must be
performed by Electrolux or an authorized
service company. Product features or
specifications as described or illustrated
are subject to change without notice.
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
ENGLISH 27
*
A13110310 (October 2024)
