R
Wire-Free
Security Camera
QUICK START GUIDE (CG2K)
WIRELESS WIFI OUTDOOR
SPOTLIGHT
FCC ID：2AXBN-CG7
Thanks for your shopping and trust.
We are keeping to optimize product and improve lifetime
customer service to offer you a better shopping experience.
If you have any problems, please feel free to send us an
E-mail. We will solve your problems within 24 hours. Besides,
your suggestions will be much appreciated and welcomed.
Register via the link below to get 3 Years Warranty Extension.
http://bit.ly/zuReg
Email: [email protected]
Distributor: [email protected]
Cell/iMessage/SMS/Whatsapp/Wechat: +8618938687483
Warranty Service
Product Service
Web: www.dzees.net
Facebook: www.facebook.com/zumimalloffice
More About Us
Contents
1. Packing List ----------------------------------------------------------
2. Product Appearance ------------------------------------------------
3. Download & Install App --------------------------------------------
4. Account Registration ------------------------------------------------
5. Add Camera to App ------------------------------------------------
5.1 Preparation for Connection -------------------------------------
5.2 Connect Camera to App ----------------------------------------
6. Install the Camera --------------------------------------------------
7. Battery Management -----------------------------------------------
8. Indicator Light Status -----------------------------------------------
9. Device Menu --------------------------------------------------------
10. PIR Motion Detection ----------------------------------------------
11. Solar Panel---------------------------------------------------------
P1
P2
P3
P4
P5
P6
P7
P8
P10
P10
P11
P13
P15
Contents
12. Night Mode -------------------------------------------------------
13. Activity Zone -------------------------------------------------------
14. Filter Video ---------------------------------------------------------
15. Two-Way Audio ----------------------------------------------------
16. Share Camera -----------------------------------------------------
17. Multi-Device Management ---------------------------------------
18. Camera Reset ------------------------------------------------------
19. Files Storage -------------------------------------------------------
20. Product Specification ----------------------------------------------
21. Firmware Upgrade ------------------------------------------------
22. FAQ -----------------------------------------------------------------
P17
P18
P19
P20
P20
P22
P23
P23
P24
P24
P25
01
1.Packing List
All about Your Smart Security
R
User Guide
Charging Cable
Screws Set
Metal Mount
Camera
R
Wire-Free
Security Camera
QUICK START GUIDE (CG2)
WIRELESS WIFI OUTDOOR
SPOTLIGHT
2. Product Appearance
Microphone
Spotlight
Antenna
Lens
Indicator Light
PIR Sensor
Infrared Light
Power Button
Micro-SD Card Slot
Speaker
DC-5V USB Port
P Hole
All about Your Smart Security
R
02
All about Your Smart Security
R
03
The camera supports Android and iOS systems.
Please
scan the QR code below or search 'Dzees Home' in an App store
to download the App, and follow the instruction to register an account.
If you encounter any problems during the installation process, please feel
free to contact us via [email protected]
3. Download & Install App
Dzees Home App
Download on the
App Store
Android App on
Google play
New users need to sign up by Email ID.
Click 'Sign up a New Account' and follow the steps to complete the
registration.
4. Account Registration
5:39
....
<
>
Sign up
Enter an email ID, and we’ll send a verification code
to you.
Country/Region
United States
Email ID
I understand and agree with
Agreement
User
andPrivacy Policy
Next Step
5:39
....
<
Next Step
Verification Code
We just send a verification code to your email ID
, please fill in correctly.
Done
1 2
0
A B C
4
G H I
5
J K L
6
M N O
7
P Q R S
8
T U V
9
W X Y Z
3
D E F
X
5:41
<
Finish
Set Password
For your safety,password must contain at least one
uppercase letter,one lowercase letter,one number
and has a minimum length of 8 characters.
Password
Confirm Password
Step 3
Step 2
Step 4
All about Your Smart Security
R
Sign up for a New Account
Step 1
04
1. Allow 'Dzees Home' App to access mobile cellular data and wireless
LAN, or it will fail to add camera.
2. Allow
'Dzees Home' App to receive pop-up messages, otherwise, the
smartphone will not receive notification when motion is detected.
5. Add Camera to App
5:44
<
Settings
Dzees Home
ALLOW Dzees Home TO ACCESS
PREFERRED LANGUAGE
Always
Location
>
English
Language
>
Microphone
Camera
Siri & Search
Notifications
Background App Refresh
Banners,Sounds,Badges
Wireless Data
WLAN & Cellular
Read and Write
Photos
>
>
>
>
5:43
>
>
<
Notifications
Dzees Home
ALERTS
Allow Notifications
9:41
Lock Screen
Banner Style
Sounds
Badges
OPTIONS
When Unlocked(Default)
Show Previews
Temporary
>
>
Automatic
Notification Grouping
>
Notification Center Banners
All about Your Smart Security
R
05
1. Insert Mirco SD card when the camera is off(Supports up to 128GB.SD
card not included). We also provide 7-day free cloud storage for you, the
camera can work without SD Card.
2. The camera only works with 2.4GHz Wi-Fi, not support 5G.
3. Take the camera close to the router while connecting.
4. Keep pressing the power button for 2-4s to power on/off the camera.
5.1 Preparation for Connection
All about Your Smart Security
R
06
5.2 Connect Camera to App
Sign in Dzees Home App,
add the camera.
Turn on camera Confirm connection mode
5:45
All camera
Add Camera NOW!
Home Library User
No camera
you have not added any camera yet.
Add another cameraSetup done
Name the camera and
mark location
5:39
....
Set the camera name
and Location
Location
Camera Name
Smart Camera
Edit
Finish
Garden
Default location
Back doorFront door
Living room
Bedroom Office
+
Connect to Wi-Fi
(Choose 2.4GHz Wi-Fi
and input correct password)
All about Your Smart Security
R
Turn on your camera
and scan QR code
5:46
<
Continue
Scan QR code to connect
5:46
<
Next Step
Cannot turn on?
Turn on the camera according to
the camera body guide
I hear the scanning sound or see the light on.
Please press the power button or
connect a power source until you
hear a scanning sound or see the
light on.
14:04
<
Next Step
Didn't hear the scanning sound?
Confirm whether the camera is
emitting a beeping sound
I heard the scanning sound
"Ding Dong Ding Dong"
If you can't hear 'Ding Dong Ding Dong', please double-click the
power button to enter the network configuration mode again.
6-12 inches
After the connection is successful,it will
automatically jump to the next step.
5:48
Home Library User
5:48
All camera
Home Library User
Smart Camera
Add a new camera
Add Friend's Camera
5:46
<
Next Step
Add a new camera
Please enter the network name(SSID) and
Learn more
Junan
Password
5GHz Wi-Fi and enterprise Wi-Fi are not supported.
password to be connected to the camera.Currently
All camera
Smart Camera
+
07
(1) Select a proper position for your camera.
Make sure the camera is not blocked and ensure it is in coverage of
Wi-Fi.
6. Install the Camera
All about Your Smart Security
R
08
(2) Install bracket
Step 1: Choose a clean, smooth and dry surface (avoid uneven wood
leather and stucco walls).
Step 2: Stick magnetic bracket to wall surface with adhesive.
Step 3: Adjust the camera to a proper angle.
Tips: To avoid falling down, it is recommended you fasten the bracket
with screws.
All about Your Smart Security
R

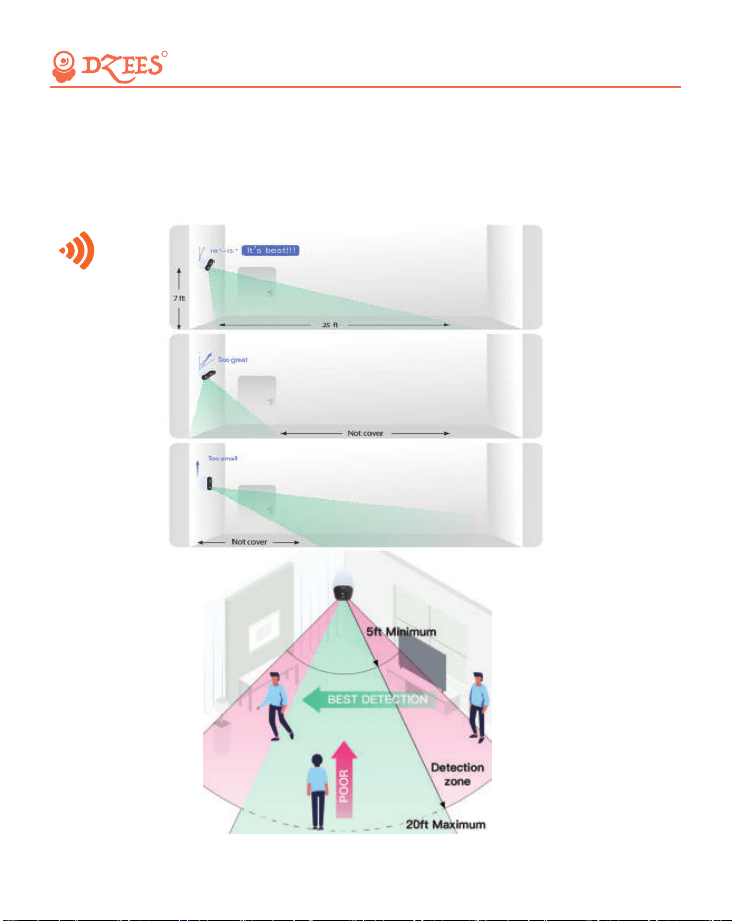

To reduce false alerts, please note that:
Do not install the camera in a position facing strong lights/mirror/window/swimming pool.
Do not place the camera too close to any angle with busy traffic.
Recommended distance between the camera and motion objects is within 8M (25ft)
Stay away from the outlets, including air conditioner vents, humidifier outlets, the heat
transfer vents of the projectors, etc.
Keep the camera at least 1 meter away from any wireless devices to avoid interference,
such as microwave stove or Wi-Fi routers and etc.
If there is any motion detection delay or false alerts, please contact the 24/7 after-sales
service via [email protected].
09
1. Battery can last 3-5 months, assuming triggering of 30 times/day.
2. Charger Standard: DC 5V 2A (adapter not included).
3. It takes 8-10 hours to fully charge it. Please fully charge the camera
before first use.
4. The battery durability depends on how frequently the camera is woken
up. The more times the camera is woken up, the faster the battery drains.
It is recommended to lower down the 'Motion Detection' sensitivity or turn
it off occasionally.
7. Battery Management
8. Indicator Light Status
Mode
Working mode
Sleep mode
Charging mode
Fully charged Green
Status
Blue
Off
Yellow
Mode
All about Your Smart Security
R
10
5:48
All camera
Home Library User
Smart Camera
+
Sound Alarm
Hold and
speak
White light
9. Device Menu
Select Camera
Location Marks
Battery Status
History Playback
Do not Disturb Mode
Add a New Camera
Show all Cameras in
One Screen
Camera Settings
Share Camera to Family
All about Your Smart Security
R
5:49
Jun
Home Library User
S
21
M
22
T
23
W
24
Smart Camera
PM 12：08
T F
25
S
27
25
Smart Camera
X
Smart Camera
PM 12：08
00：10
Smart Camera
PM 12：08
Smart Camera
PM 12：08
Smart Camera
PM 12：08
Filter Videos
Manage Videos
Delete/Download
Video to Mobile
Phone
Date of History
Record
11
View Camera Information
Edit Motion
Detection Zone
On-off Motion Detection
Detection Sensitivity/
Duration/ Resolution
Setting
Classification Notification
Setting
SD Card Video Playback
View SD Card Capacity/
Format SD Card
View Firmware Info
On-off Alarm Siren
Camera Voice Languages
and Volume Setting
On-off Camera Indicator
Light/Alarm Flash
Night Vision Mode
Setting
Share Device with
Others
All about Your Smart Security
R
Volume On/Off
Alarm/Spotlight/
Camera Info
Two-Way Talk
HD/SD/Auto
Switch
Live
2020/07/21 15:14:54
<
41KB/s
SD
Screenshot
Record
On-off Anti-Flicker
Set Flicker Rate 50Hz or 60Hz
12
5:50
Dzees Home Smart Camera
High sensitivity
Firmware Info
Motion Detection Notification Setting
Camera Setting
Wi-Fi strength: Strong
>
Status: Power saving
Location: Office
activity zone 0
Motion Detection
SD Card Video
SD Card 0.0GB/32GB
>
>
Lighting Setting
Sound Setting
>
>
Advanced Setting
Share
>
>
10. PIR Motion Detection
1. Turn on 'Motion Detection' and adjust sensitivity.
PIR Motion Detection is defaulted to 'High' level. But it is adjustable.
2. When you turn on 'Alarm Siren' (In Sound Setting) or 'Alarm Flash'
(In Lighting Setting), the camera will sound an alarm or keep flashing
when motion detected.
5:51
Motion Detection
Detection sensitivity
High
Motion Detection
<
>
Duration
10s
HD
>
Resolution
After Motion Detection is turned on, the camera can be triggered
by the moving objects and record video, helping you to detect
environmental changes at all times.
>
Cancel Finish
High
Medium
low
All about Your Smart Security
R
13
5:50
Dzees Home Smart Camera
High sensitivity
Firmware Info
Motion Detection Notification Setting
Camera Setting
Wi-Fi strength: Strong
>
Status: Power saving
Location: Office
activity zone 0
Motion Detection
SD Card Video
SD Card 0.0GB/32GB
>
>
Lighting Setting
Sound Setting
>
>
Advanced Setting
Share
>
>
All about Your Smart Security
R
5:51
Notification
Notification Setting
<
Classification
After Classfication is turned on, the video will
analyze the content of the video. At present,
the main recognition categories include person,
pet, and package.
After Notification is turned on, the camera will
push the trigger recording of abnormal activities.
Person
Pet
Vehicle
Vehicle approaching
Vehicle leaving
Package (Beta) User guides
Package delivered
Package picked up
14
5:50
Dzees Home Smart Camera
High sensitivity
Firmware Info
Motion Detection Notification Setting
Camera Setting
Wi-Fi strength: Strong
>
Status: Power saving
Location: Office
activity zone 0
Motion Detection SD Card Video
SD Card 0.0GB/32GB
>
>
Lighting Setting
Sound Setting
>
>
Advanced Setting
Share
>
>
Before turn on 'Notification', please first turn on 'Motion Detection' to receive
alarm messages.
All about Your Smart Security
R

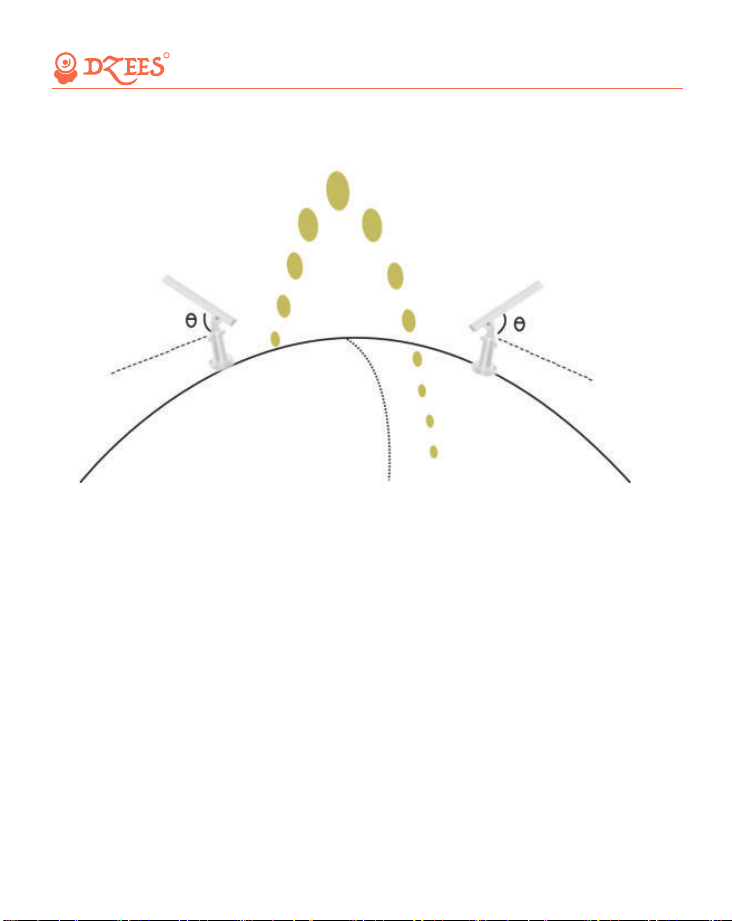

11. Solar Panel
Step1：
Please find a place which has sunlight for most of a day and adjust the
angle to make sure maximum exposure.
The Dzees solar panel needs few hours of direct sunlight to convert solar
energy into electricity. The conversion efficiency is affected by weather
conditions, seasonal changes, geographic locations, etc.
The Southern HemisphereThe Ideal Angle=The Local Latitude ± 5°The Northern Hemisphere
15
All about Your Smart Security
R
Step 2:
Mount the bracket with the mounting template
andtj the screws provided in the package.
Step 3:
Slot the solar panel into the bracket and
make sure it's secure.
Step 4:
Loosen the adjusting control on the bracket,
adjust the solar panel's angle to make it receive
direct sunlight, and then retighten the adjusting.
Step 5:
Connect the solar panel to the Dzees Camera with the micro USB cable.
Important Notes:
1. Make sure that there is NO blocking on the solar panel. The energy
harvesting effciency drops drastically even when a small portion of the solar
panel is blocked.
2. Please don't install the solar panel completely horizontally. Otherwise
your solar panel might accumulate dust and other debris easily. It's advised
to install the solar panel angularly to make it receive direct sunlight.
3. Wipe the solar panel regularly to remove the dust or debris.
360°
16
After Night Vision is turned on, the camera will support night viewing to
improve camera shooting performance in a dark environment.
12. Night Mode
All about Your Smart Security
R
5:50
Lighting Setting
After night vision is turned on, the camera will support
night viewing. Improve camera shooting performance in
dark environments.
After the Indicator Light is turned on, the camera informs
the current working status through the indicator light.
Indicator light
<
After Alarm Flash is turned on, the camera will
automatically light up the flash when the motion detection
is triggered.
Alarm Flash
Night Vision
Night Vision Mode
Infrared mode
>
Light Sensitivity Level
Medium
>
'Infrared mode' is a black and white
view under night vision; 'White light
mode' is a color view under night
vision.
The light sensitivity level indicates the
intensity of light, and it is easy to
detect when high sensitivity is turned
on in a dark place.
'White light mode' will turn on the spotlight at night and capture a
colorful view. The spotlight will be constantly on when there is a
motion detected or when living view.
17
1. All videos will still be recorded after setting activity zones, but you will
only receive notification of movements in your activity zone.
13. Activity Zone
5:51
Activity Zone
<
+
Zone 1
All video will still be recorded after setting activity zones, but
you will only receive notifications of movements in your activity
zones.
All about Your Smart Security
R
5:50
Dzees Home Smart Camera
High sensitivity
Firmware Info
Motion Detection Notification Setting
Camera Setting
2. The principle of Activity Zone is to judge the objects activity in pointed
area with combining intelligent analyses on the cloud. Therefore it's a
cloud-based AI.
Wi-Fi strength: Strong
>
Status: Power saving
Location: Office
activity zone 0
Motion Detection
SD Card Video
SD Card 0.0GB/32GB
>
>
Lighting Setting
Sound Setting
>
>
Advanced Setting
Share
>
>
18
14. Filter Video
Select videos by camera names, tags and others.
5:49
Jun
Home Library User
S
21
M
22
T
23
W
24
Smart Camera
PM 12：08
T F
25
S
27
25
Smart Camera
X
Smart Camera
PM 12：08
00：10
Smart Camera
PM 12：08
Smart Camera
PM 12：08
Smart Camera
PM 12：08
All about Your Smart Security
R
5:50
Filter
Reset Save
Dzees Smart Camera
Video Tag
Other
Person
Mark
Vehicle
Package(Beta)
Pet
Camera
Unread
Vehicle approaching
Vehicle leaving
Vehicle parked
Package delivered
Package picked up
Package stranded
19
15. Two-Way Audio
16. Share Camera
Step 1: Activate the audio option.
Step 2: Press and hold the intercom button to speak.
A is the person who shares the camera; B is the person who is shared
(Register own account).
1. A enter the
'Device info' page and open the QR code.
All about Your Smart Security
R
14:59
<
Please use Dzees Home APP to
scan the QR code below to add
a camera
QR code will expire at
Check the Live stream, playback
video clips.
The invitee needs to download and
install Dzees Home.
Permission
How to add shared cameras?
Camera sharing
1
Go to the APP homepage and click on
the“+”sign inthe unner right corner,
2
Live
2020/07/21 15:14:54
<
41KB/s SD
5:50
Dzees Home Smart Camera
High sensitivity
Firmware Info
Motion Detection Notification Setting
Camera Setting
Wi-Fi strength: Strong
>
Status: Power saving
Location: Office
activity zone 0
Motion Detection
SD Card Video
SD Card 0.0GB/32GB
>
>
Lighting Setting
Sound Setting
>
>
Advanced Setting
Share
>
>
20
2. B enters the 'Home' page and click 'Add Friend’s Camera', then scan
A's QR code. After A accepts sharing, sharing is complete!
All about Your Smart Security
R
5:48
All camera
Home Library User
Smart Camera
Add a new camera
Add Friend's Camera
21
17. Multi-Device Management
Strong Wi-Fi Connection View Multiple
Cameras at the Same Time
Split screen setting can watch live broadcast
from multiple cameras at the same time
Click '+' to add more devices
All about Your Smart Security
R
All camera
Library User
Smart Camera
+
Home
5:48
All camera
Home Library User
Front Door Backyard
Living Room Bedroom
22
Micro SD Card
19. Files Storage
1. Press buttons on both sides, and pull out the back cover.
2. Insert the Micro SD card and wait a few seconds until you hear 'SD card
detected', or you can check if the Micro SD card is inserted successfully in
'Advanced Setting' (If not, try it again after turning off the camera).
Cloud Recording
1. Cloud Recording can be subscribed on 'Dzees Home Awareness'.
2. Subscribe different service.
No plan
Cloud 7 days 15 days 30 days 60days
Recording
Intelligent
Notification
Activity
Zone
(≤1GB)
X
X
(≤3GB) (≤5GB) (≤10GB)
Basic Plus Pro
All about Your Smart Security
R
18. Camera Reset
23
Power Button
1. Press the
'P' hole with a pin to reboot camera.
2. Double-click the camera power button to reset the camera and enter
connection mode again.
P Hole
20. Product Specification
21. Firmware Upgrade
When you connect your camera to the 'Dzees Home' App, it will prompt
you if the latest firmware is available. You can also manually check the
firmware upgrade in the 'Advanced Setting' of the App.
Please make sure that your camera is fully charged or charging while
upgrading the firmware, please do not cut off the power supply during
upgradation.
Item Specification
Camera lens Field of view: 130°
Video bit rate Adaptive
Storage media Micro SD card (Up to 128GB)
Adapter requirement 5V 2A
Size
120*54*79mm
All about Your Smart Security
R
Resolution
HD
24
22. FAQ
1. Q: How to share my camera with others？
A: 1. Go to 'Home' page and click 'Share' in the upper right corner of this page,
or click 'Setting' to get to setting interface, then click 'Share'. You will see a QR
code.
2. Have him/her download 'Dzees Home' App . Then register his/her account
on App and log in.
3. Then he/she should go to 'Home' page, click '+' and select 'Add Friend's
Camera'. Then scan your QR code with his/her phone.
4. You will receive a share request, then just click 'Accept' to finish sharing.
2. Q: What should I do if I cannot connect to the camera？
A: 1. Make sure the camera is powerful enough and turned on.
2. Make sure your Wi-Fi router is 2.4GHz instead of 5GHz.
3. Make sure to enter the correct Wi-Fi name and password.
4. Take camera and phone close to your router to ensure strong signal.
5. Go to 'Home' page and click '+'. Click 'Add a new camera' and follow the steps
till done.
All about Your Smart Security
R
3. Q: What should I do if my camera doesn’t work？
A: 1. Please open the camera back cover and rubber plug, find the 'P' hole, insert
a pin, and press it for more than 5s to reboot the camera.
2. Double-click the camera power button to reset the camera and add it again.
If you cannot connect successfully, please contact us at [email protected].
We will offer solutions within 24 hours.
25
6. Q: How to turn on white light mode？
A: 1. Go to
'
Hom
e'
page and click
'
Setting
'
on upper right corner of this page.
2. Click
'
Lighting Setting
'
and turn on
'Night Vision'.
3. Click '
Night Vision Mode
'
, then choose
'
White light mode
'.
Note:
'
White light mode
'
means that when the camera detects motion at night
or view real-time live broadcast, the spotlight will stay on to get a colorful view.
4. Q: What if I did not receive motion detection notification？
A: 1. Go to
'
Setting
'
page of your phone -> Notification -> Dzees Home App ->
turn on
'
Notification
'
.
2. Go to
'
Home
'
page of App -> Setting -> Notification -> turn on
'
Notification
'
.
3. Make sure to turn on the
'
Motion Detection
'
function of the camera in App.
4. Reboot your internet router and make sure a strong Wi-Fi signal. Add your
camera to your phone again in App.
5. Q: How to turn on the alarm and flashlight？
A: 1. Go to
'
Home
'
page and click
'
Setting
'
on upper right corner of this page.
2. Click
'
Motion Detection
'
to turn on this function.
3. Click
'Sound Setting'
to
turn on 'Alarm Siren' and
click
'Lighting Setting' to turn
on 'Alarm Flash'.
All about Your Smart Security
R
8. Q: What is the longest time for the camera to record
an alarm video？
A: 1. It records 3 minutes maximum under 'Auto' mode.
2. If you want each video to be 10s, 15s or 20s, you can set it in App.
7. Q: How to find the serial number (SN) of the camera？
A: 1. Go to 'Home' page and click 'Setting' on upper right corner of this page.
2. View 'Camera Info' and click 'More info', you will see the SN number.
26
Please Email us for Better Solution
instead of returning any unqualified product to Amazon
THANK YOU
9. Q: What if the SD card cannot be detected？
A: 1. It must be a Micro SD card; at least 10 MB/S can be used (For a Micro SD
card 64GB, 128G, 30 MB/S is recommended).
2. Insert the SD card to your camera when it is power on. You will hear 'SD card
detected'. If no voice reminding, please turn off your camera and then insert the
card again. Then turn on the camera and check the SD card status in App.
3. If it still cannot be detected, try formatting the SD card and reinsert.
4. Try to use another SD card and see if it works well.
All about Your Smart Security
R
10. Q: Why does the camera battery drain fast？
A: 1. The longer the camera works, the faster the battery drains. Therefore, we
suggest, if it’s possible, reduce the sensitivity of motion detection, the time of
two-way calls and watching live.
2. If you receive too many alarm notifications, please adjust the sensitivity from
'High' to 'Low' to reduce the number of alarms, or set the 'Activity Zone' to narrow
the detection range.
3. You can adjust the installation angle of the camera to avoid unnecessary alarms,
to save battery power. For example, don't let the camera face a sparkling
swimming pool, swaying trees, or heavy traffic, etc.
4. As you may know, battery drains faster in cold enviroment.
27
