AUDIO CENTRALIZER
WITH STEREO MATRIXING
AC-AEX-RC-HUB
User Manual
Page 2 of 32
AC-AEX-RC-HUB USER MANUAL
CONTENTS
Contents ........................................................................................................................................................................................................... 2
Important Safety Instructions ................................................................................................................................................................... 4
Introduction..................................................................................................................................................................................................... 6
Compatible Devices ................................................................................................................................................................................. 6
AC-AEX-T................................................................................................................................................................................................. 6
Product Overview .......................................................................................................................................................................................... 7
Box Contents .............................................................................................................................................................................................. 7
Technical Specifications ......................................................................................................................................................................... 7
Front and Rear Panels ............................................................................................................................................................................. 8
Installation ....................................................................................................................................................................................................... 9
Rack Mounts ............................................................................................................................................................................................... 9
Mounting Feet Assembly ....................................................................................................................................................................... 9
Grounding Cable .................................................................................................................................................................................... 10
Front Panel Control ................................................................................................................................................................................... 10
View Input/Output Mapping ............................................................................................................................................................. 10
Configure Mode ..................................................................................................................................................................................... 10
Wiring and Connections .......................................................................................................................................................................... 11
Audio Connections................................................................................................................................................................................ 11
RS-232 Control ....................................................................................................................................................................................... 12
LAN Wiring ............................................................................................................................................................................................... 12
Initial Setup ................................................................................................................................................................................................... 13
Connecting the Devices ...................................................................................................................................................................... 13
Locating the IP Address ...................................................................................................................................................................... 13
Accessing the Web UI .......................................................................................................................................................................... 14
OTA Cloud Services .......................................................................................................................................................................... 14
Navigating the Web UI ............................................................................................................................................................................ 17
Matrix ......................................................................................................................................................................................................... 18

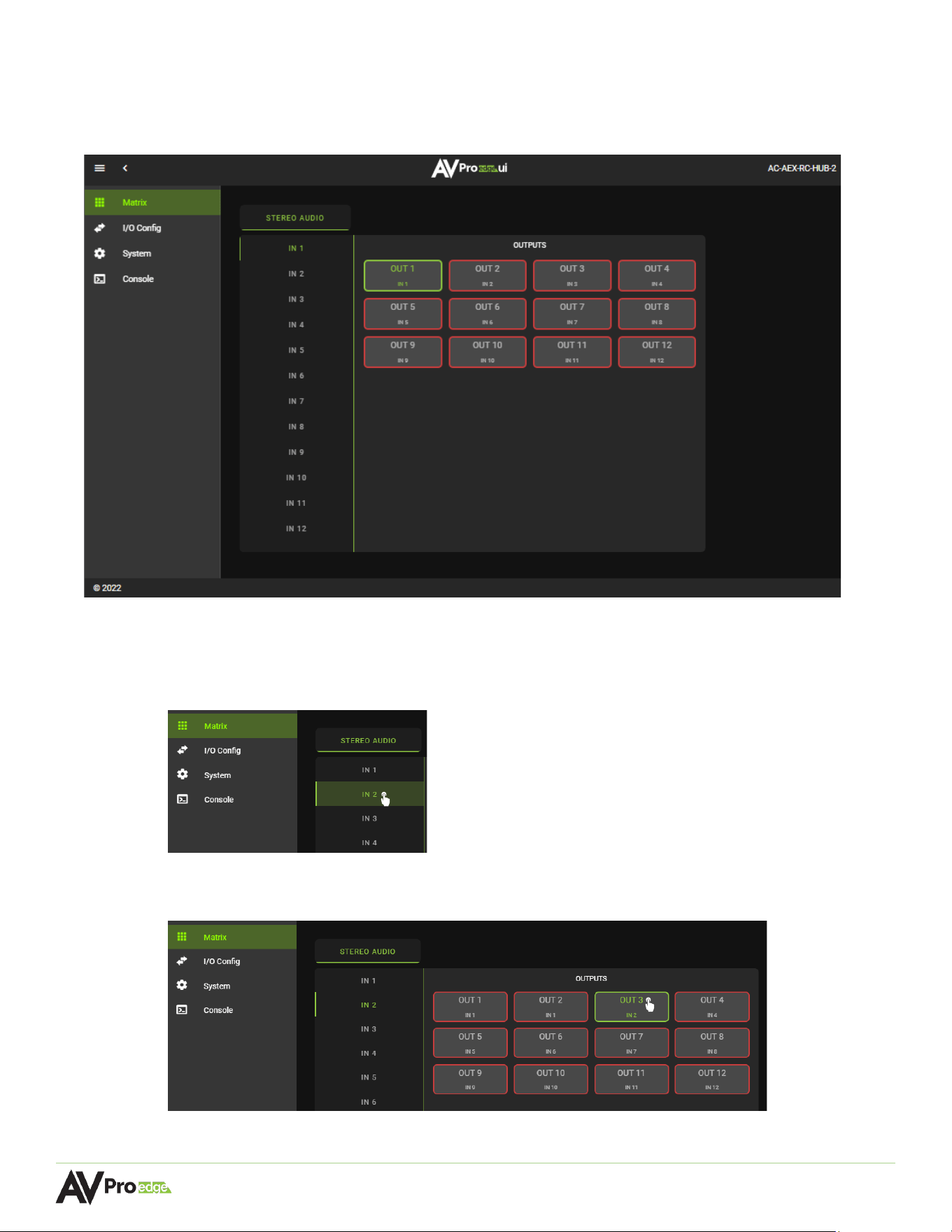

Matrix Switching ................................................................................................................................................................................ 18
I/O Config ................................................................................................................................................................................................. 19

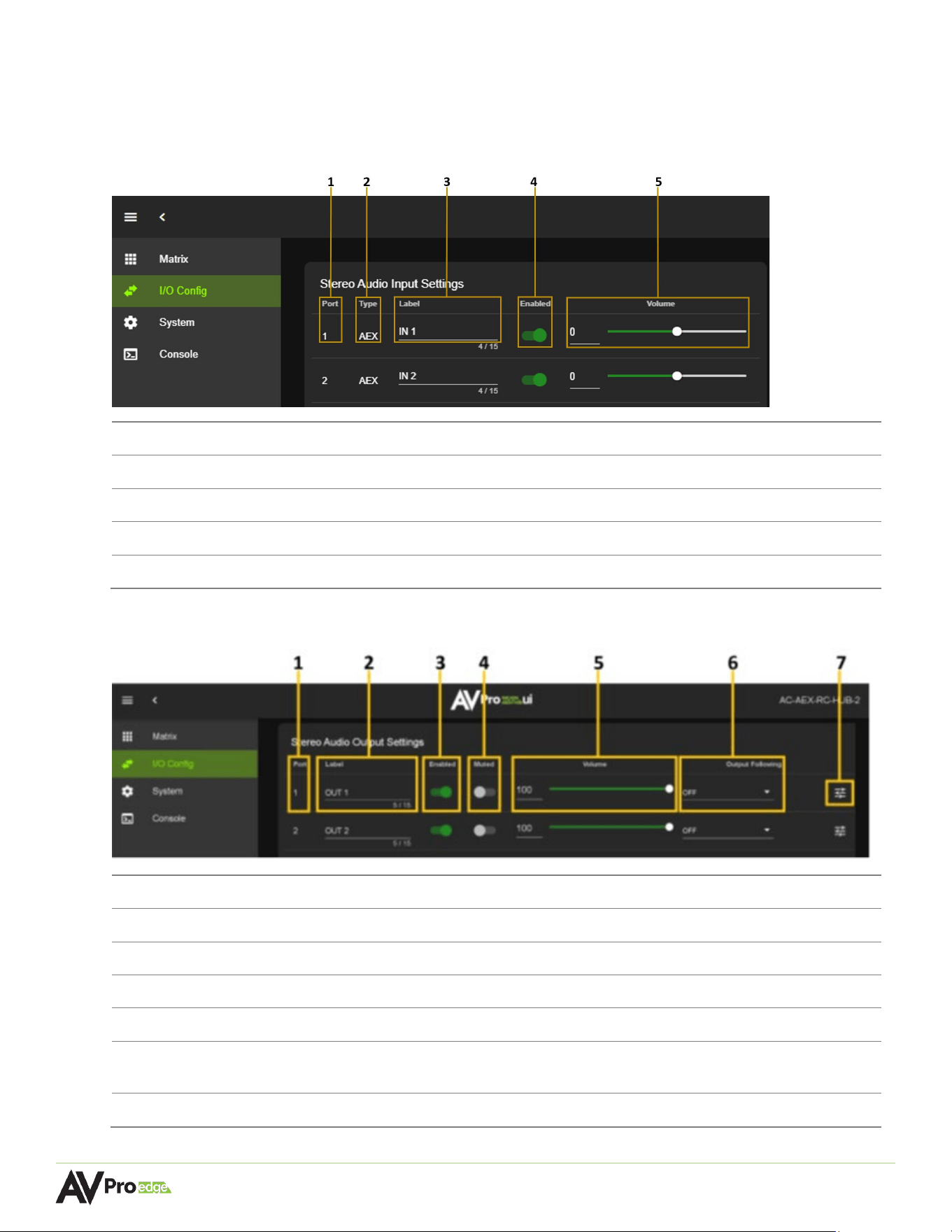

Stereo Audio Input Settings .......................................................................................................................................................... 19
Stereo Audio Output Settings ...................................................................................................................................................... 19

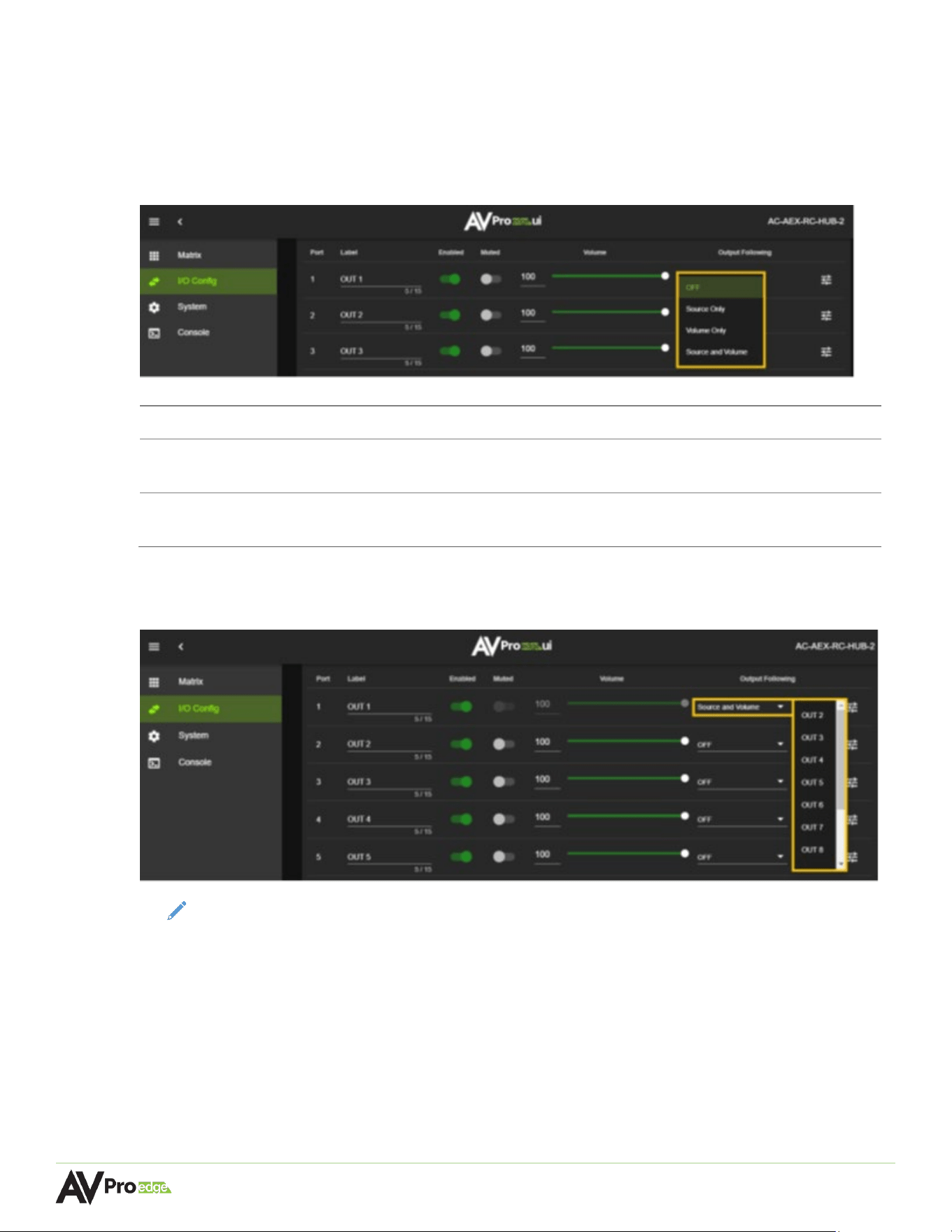

Output Following .............................................................................................................................................................................. 20

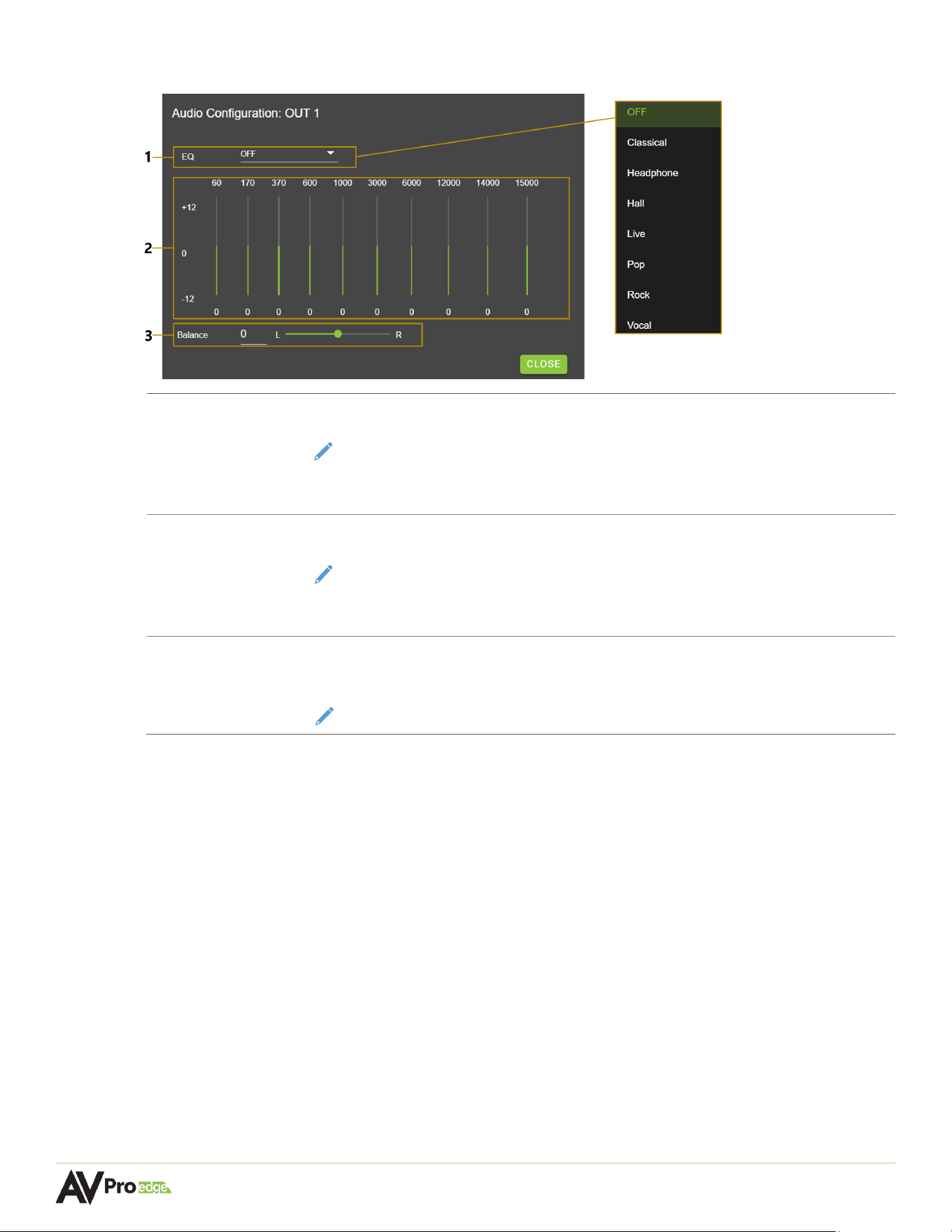

Audio Configuration ........................................................................................................................................................................ 21
Page 3 of 32
AC-AEX-RC-HUB USER MANUAL
System ....................................................................................................................................................................................................... 22

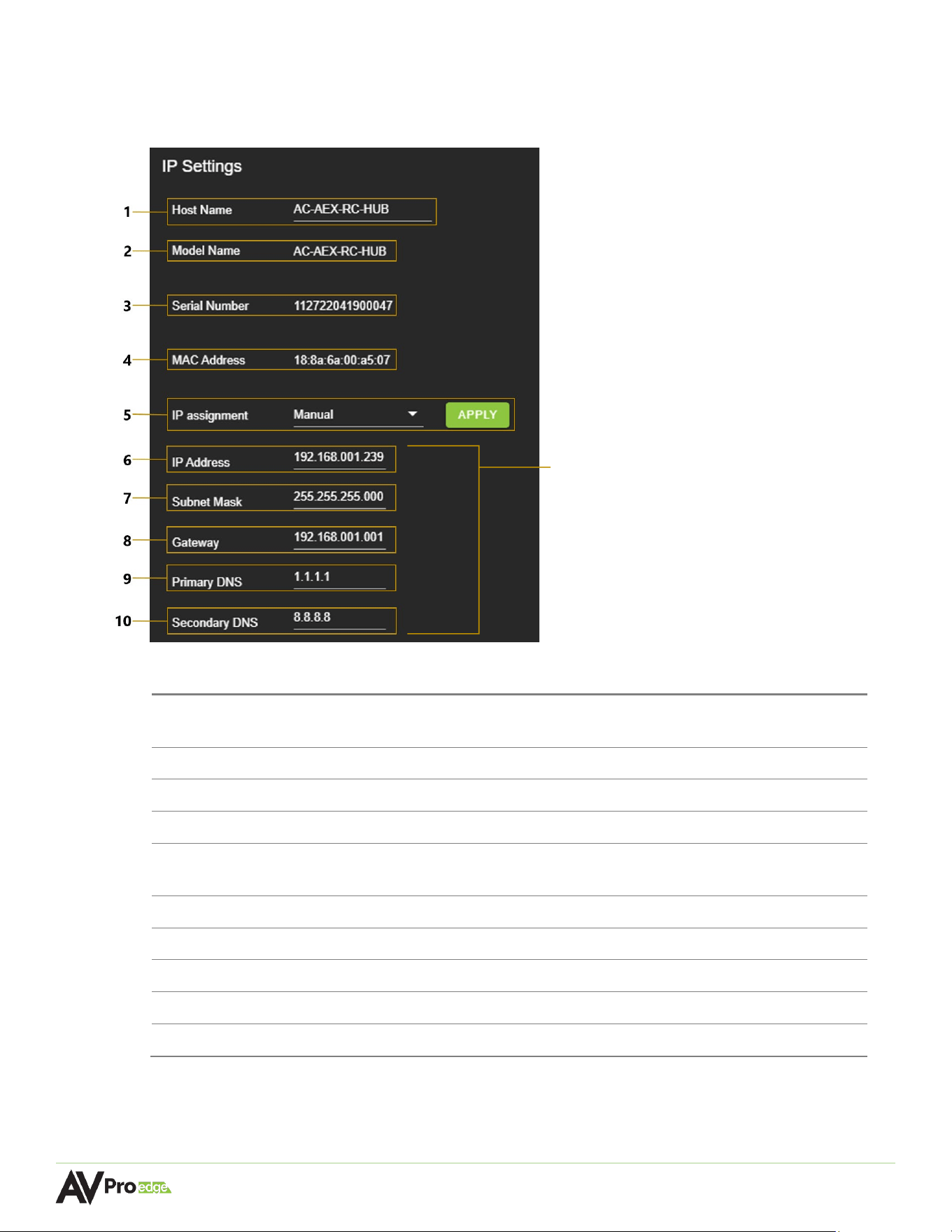

IP Settings ............................................................................................................................................................................................ 22
IP Control ............................................................................................................................................................................................. 23
Admin Web Interface....................................................................................................................................................................... 23

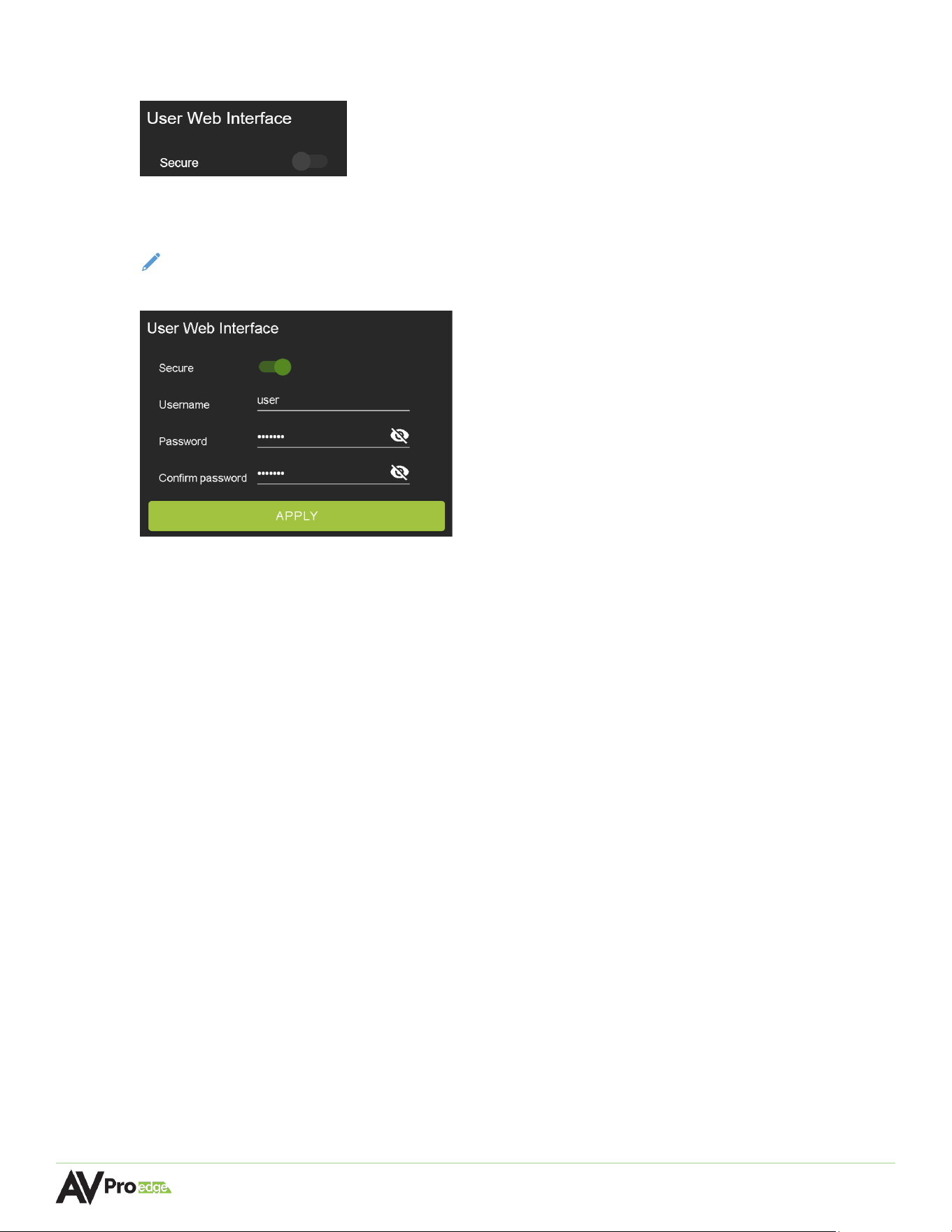

User Web Interface ........................................................................................................................................................................... 24
Cloud Services .................................................................................................................................................................................... 25
Hardware .............................................................................................................................................................................................. 26
Console ...................................................................................................................................................................................................... 27
Command List .................................................................................................................................................................................... 27
Troubleshooting ......................................................................................................................................................................................... 29
Maintenance ................................................................................................................................................................................................ 29
Damage Requiring Service ..................................................................................................................................................................... 29
Support .......................................................................................................................................................................................................... 30
Warranty ........................................................................................................................................................................................................ 30
The Basics ................................................................................................................................................................................................. 30
Coverage Details .................................................................................................................................................................................... 30
Red Tape ................................................................................................................................................................................................... 30
Obtaining an RMA................................................................................................................................................................................. 31
Shipping .................................................................................................................................................................................................... 31
Limitation on Liability ........................................................................................................................................................................... 31
Exclusive Remedy .................................................................................................................................................................................. 32
Page 4 of 32
AC-AEX-RC-HUB USER MANUAL
IMPORTANT SAFETY INSTRUCTIONS
Before installing, configuring, and operating the devices and other vendor equipment, AVPro Edge
recommends that each dealer, integrator, installer, and all other necessary personnel access and read all the
required technical documentation, which can be located by visiting AVProEdge.com.
Read and understand all safety instructions, cautions, and warnings in this document and the labels on
the equipment.
Safety Classifications in this Document
NOTE:
Provides special information for installing, configuring, and operating the devices.
TIP:
Provides suggestions and considerations for installing, configuring, and
operating the devices.
IMPORTANT:
Provides special information that is critical for installing, configuring, and
operating the equipment.
CAUTION:
Provides special information for avoiding situations that may cause damage to
the devices.
WARNING:
Provides special information for avoiding situations that may cause physical
danger to the installer, end user, etc.
Electrical Shock Prevention
ELECTRIC SHOCK:
The source power poses an electrical shock hazard that can potentially cause serious injury to installers and end
users.
ELECTRICAL DISCONNECT:
The source power outlet and power supply input power sockets should be easily accessible to disconnect power in
the event of an electrical hazard or malfunction.
Weight Injury Prevention
WEIGHT INJURY:
Installing some of the MXNet devices requires two installers to ensure safe handling during installation. Failure to
use two installers may result in injury.
Page 5 of 32
AC-AEX-RC-HUB USER MANUAL
Safety Statements
Follow all of the safety instructions listed below and apply them accordingly. Additional safety information will
be included where applicable.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use these devices near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-type plug has two blades and a third grounding
prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the devices.
11. Only use attachments and accessories specified by the manufacturer.
12. Unplug these devices during lightning storms or when unused for long periods of time.
13. To reduce the risk of electric shock or damage to these devices, never handle or touch the devices
and power cord if your hands are wet or damp. Do not expose these devices to rain or moisture.
14. Refer all servicing to qualified service personnel. Servicing is required when the devices have been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled, objects
have fallen into the devices, the devices have been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. The devices and their accessories should never be exposed to open flames or excessive heat.
Page 6 of 32
AC-AEX-RC-HUB USER MANUAL
INTRODUCTION
The AC-AEX-RC-HUB is a 12 I/O 1U rack-mountable audio recall centralizer with stereo matrix switching.
Designed to receive extended audio over Category Cable, TOSLINK digital audio, and line-level analog stereo
signals from up to 12 source devices, the AC-AEX-RC-HUB provides remote audio source signals to a centrally
located audio distribution system, such as an audio matrix or multi-zone amplifier, with a maximum distance of
up to 130 meters (426 feet).

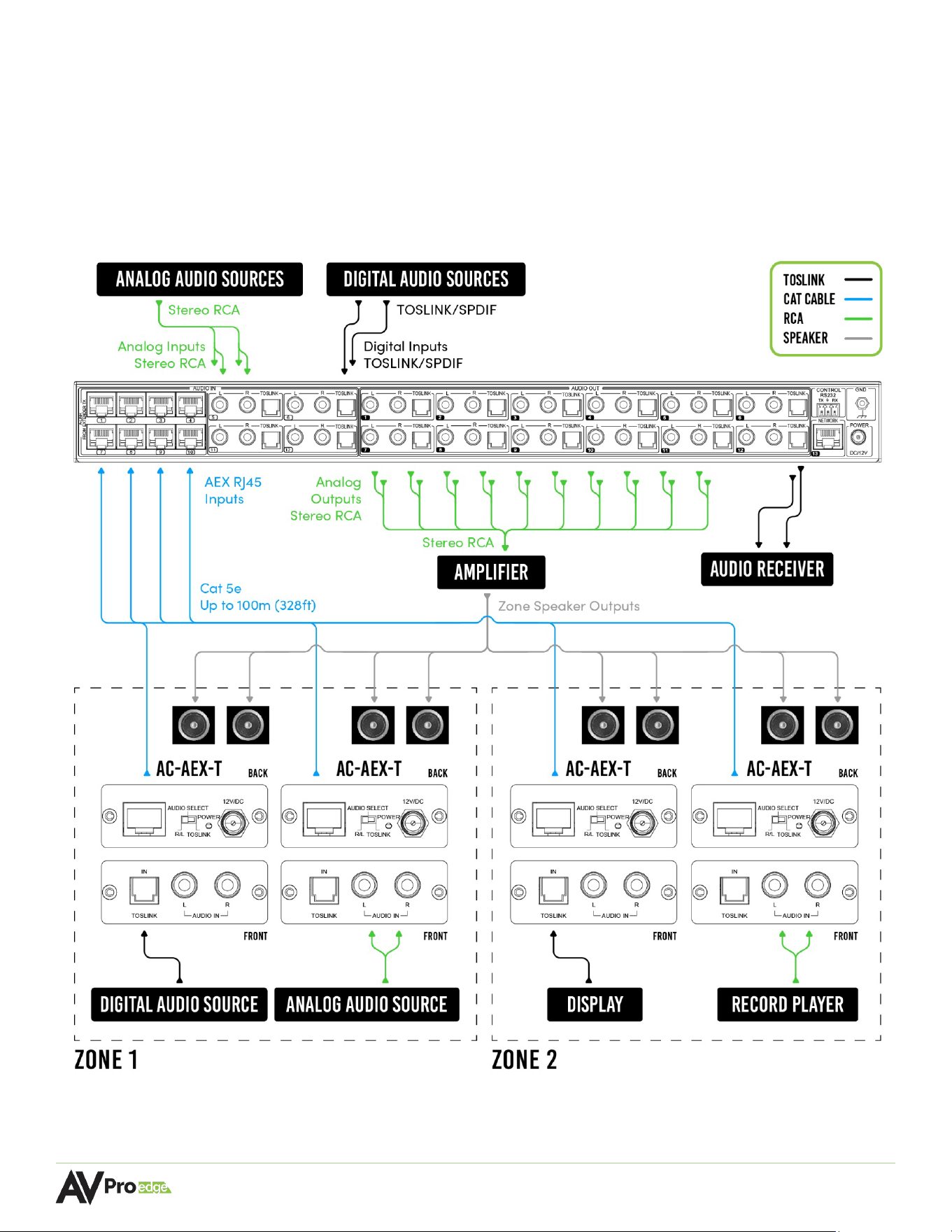

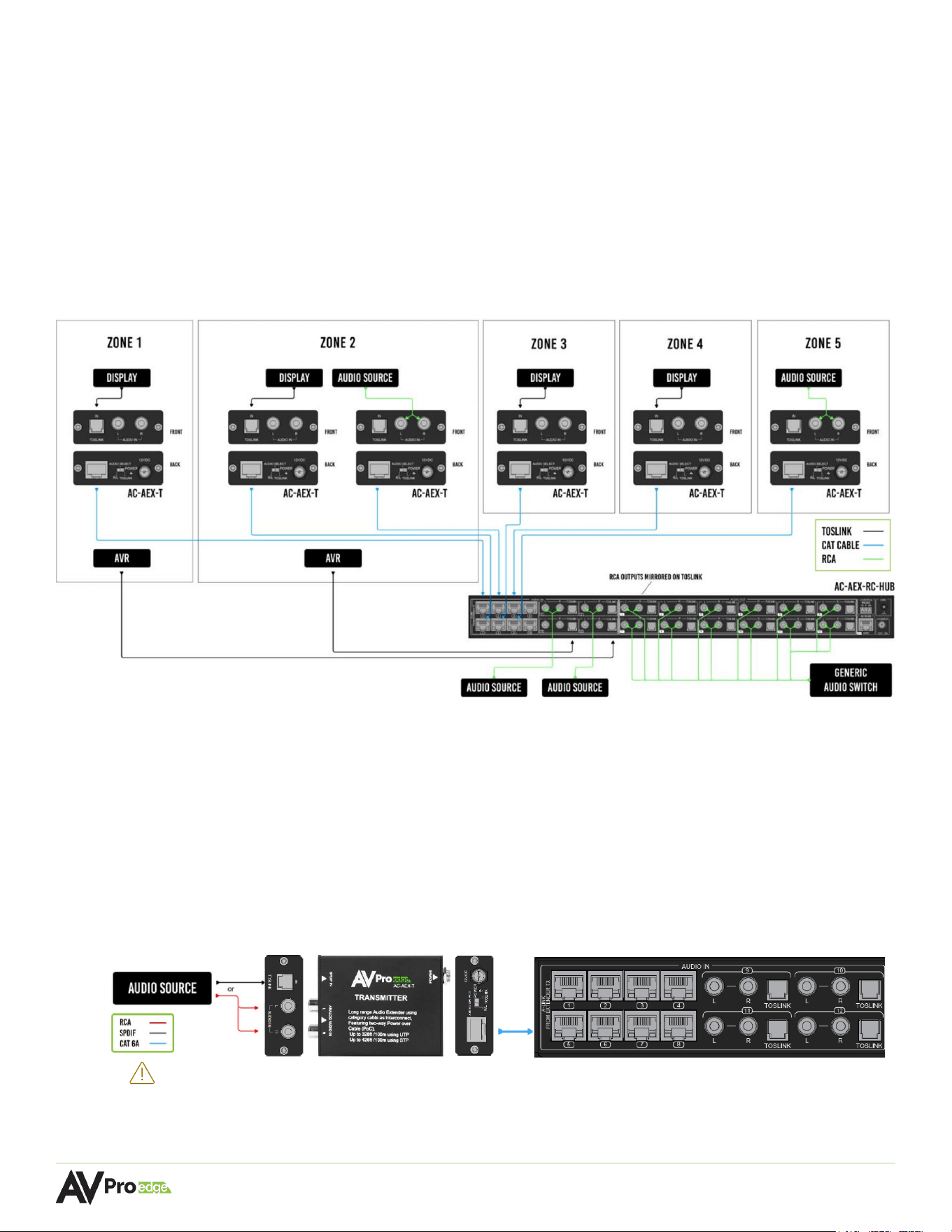

The diagram below shows the basic application of the AC-AEX-RC-HUB. The audio path can either come from
the audio sources directly, or from a separate output (non-HDMI) like the AC-AEX-T as shown below.
Compatible Devices
AC-AEX-T
The AVPro Edge AC-AEX-T is a digital/analog audio transmitter that extends stereo signals over a
Category cable via AVPro Edge’s exclusive AEX technology. The AC-AEX-T is powered remotely via PoC
(Power over Cable) when connected to the AC-AEX-RC-HUB or AC-AEX-R. Ideal for sending audio from
a source device (such as a display, record player, or local auxiliary input) located in a separate zone back
to a centrally located audio distribution system.
AC-AEX-T AC-AEX-RC-HUB
IMPORTANT: Each A-LINK port on the AC-AEX-RC-HUB must be paired with an AC-AEX-T audio extender
transmitter for complete operation.
(sold separately)
Page 7 of 32
AC-AEX-RC-HUB USER MANUAL
PRODUCT OVERVIEW
Box Contents
(1x) AC-AEX-RC-HUB Audio Centralizer
(2x) 1U Rack Mounting Brackets (pre-assembled)
(1x) 3-Pin Terminal Block Connector
(4x) Mounting Feet
(4x) Mounting Feet Screws
(1x) Ground Wire
(1x) Power Supply
Technical Specifications
Audio
Analog Input Voltage
0.8 VRMS, 2.3 VPP
Analog Output Voltage
1 VRMS, 2.828 VPP
Digital
2-Channel PCM
Supported Sample Rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, 192 kHz
Latency
30ms
Mute
Available on all outputs
Audio Inputs
AEX Audio
8
RCA
4
Digital (TOSLINK)
4
Audio Outputs
AEX Audio
0
RCA
12
Digital (TOSLINK)
12
Control
Interfaces
RS-232, IP/LAN
Power
Total Power Consumption
24 Watts Maximum
DC Power
DC 12V 2A
Dimensions
Height x Width x Depth
(Standalone Unit)
Millimeters: 44.45 x 444.5 x 234.95
Inches: 1.75 x 17.5 x 9.25
Height x Width x Depth
(Packaged Unit)
Millimeters: 127 x 571.5 x 381
Inches: 5 x 22.5 x 15
Weight
(Standalone Unit)
6.6 lbs. (2.99 kg)
Weight
(Packaged Unit)
9 lbs. (4.08 kg)
Rack Space
1U
*Specifications are subject to change without notice. Mass and dimensions are approximate.
Page 8 of 32
AC-AEX-RC-HUB USER MANUAL

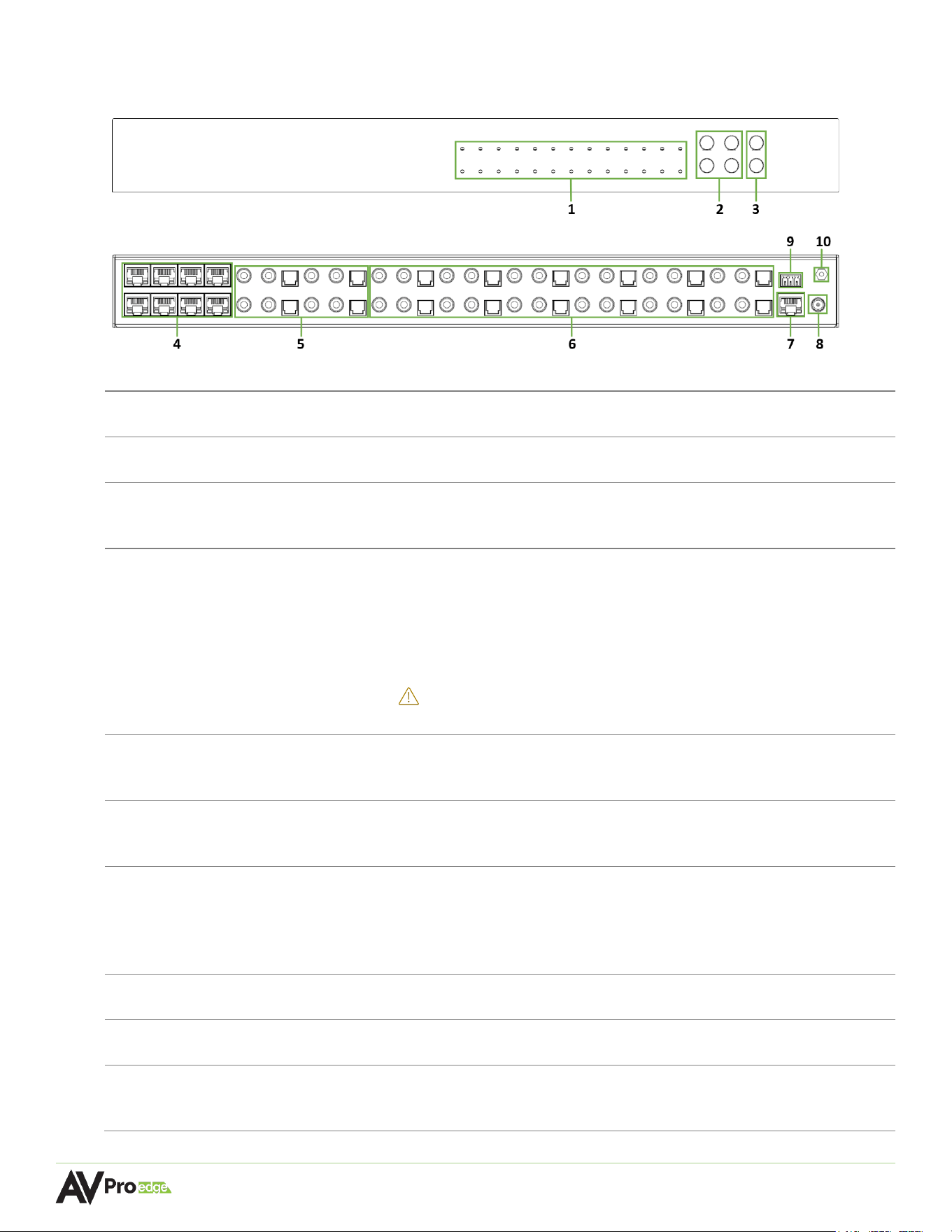

Front and Rear Panels
Front Panel
Rear Panel
1
INPUT and OUTPUT LEDs
• Blue LED status indicator lights for the inputs and outputs
2
AUDIO CHANNEL SELECT
• Navigation buttons to cycle through the inputs and outputs
3
CONTROL
•
Navigation buttons to confirm or exit the selected input and
outputs
4
A-LINK FROM EXTENDER TX
•
(8x) 8-pin RJ-45 female connector
• Long-range audio extension input ports for connecting AC-AEX-T
• Power over Cable (PoC)
• Unshielded Twisted Pair (UTP): up to 100 meters (328 ft)
• Shielded Twisted Pair (STP): up to 130 meters (426 ft)
IMPORTANT: Each A-LINK port must be paired with an AC-AEX-T
digital/analog audio extender transmitter for complete operation.
5
AUDIO IN
•
(4x) Stereo RCA line-level analog audio inputs
• (4x) TOSLINK (optical) digital audio inputs
6
AUDIO OUT
•
(12x) Stereo RCA analog audio outputs
• (12x) TOSLINK (optical) mirrored digital audio outputs
7
NETWORK
•
8-pin RJ-45 female connector
• Connect to the LAN, router, or third-party control system
• Future-use I/O support for web-based audio such as Josh.ai
VoiceCast
8
POWER
• DC 12V 2A locking ring power input
9
CONTROL RS232
• 3-pin terminal block connector port
10
GND
•
Ground screw
• Connect with the supplied ground wire to the conducting parts
Page 9 of 32
AC-AEX-RC-HUB USER MANUAL
INSTALLATION

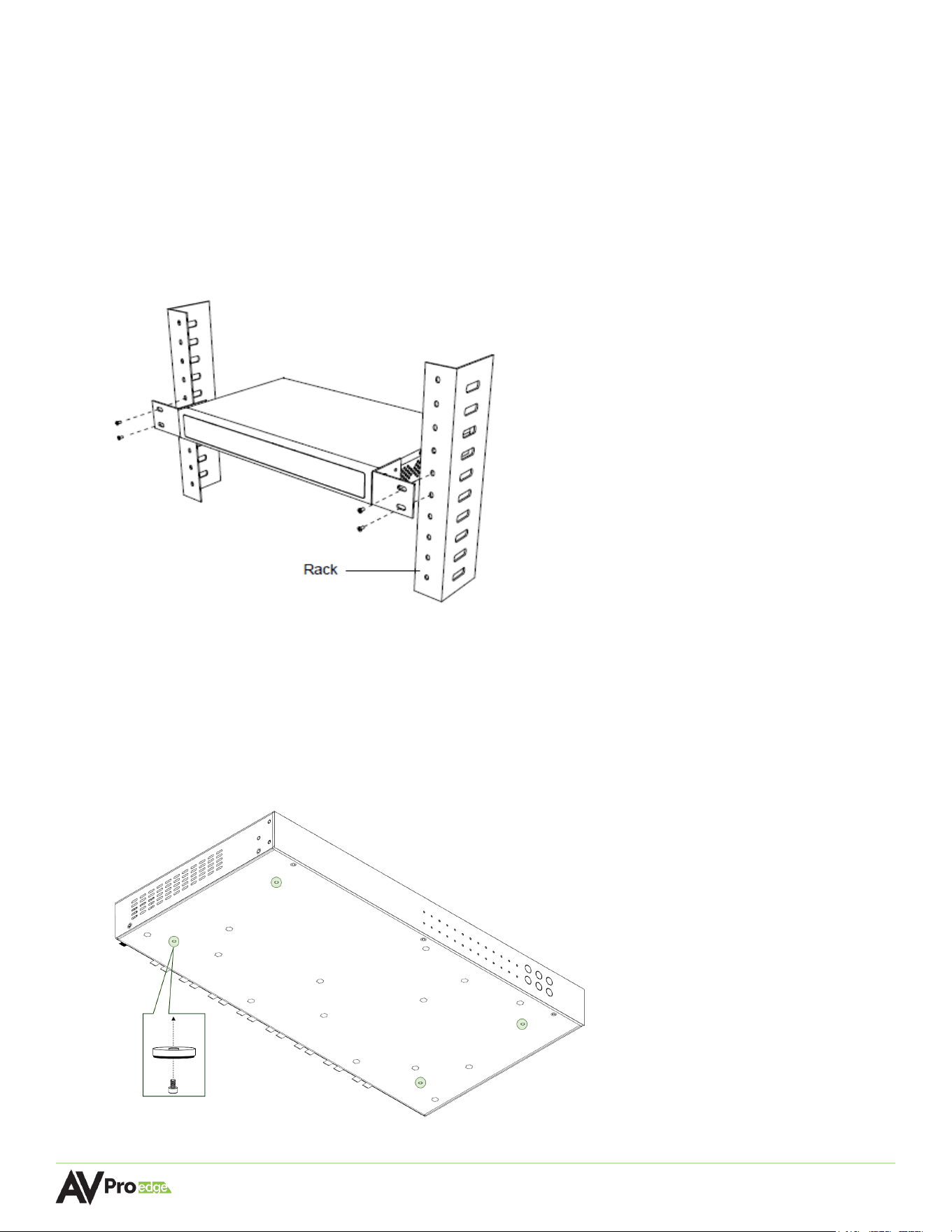

Rack Mounts
The AC-AEX-RC-HUB can be mounted in a 1U rack-style enclosure and is compatible with all standard 19-
inch rack mounts. The (2x) mounting brackets are pre-assembled to the unit for quick installation.
1 Align the holes on the mounting brackets with the holes on both sides of the rack.
2 Attach the mounting brackets to the rack with rack screws (not included).
Mounting Feet Assembly
The (4x) mounting feet can be assembled to the AC-AEX-RC-HUB with the (4x) provided mounting screws.
1 Align the holes on the mounting feet with the holes underneath the AC-AEX-RC-HUB.
2 Attach the mounting feet to the AC-AEX-RC-HUB with the provided screws.
Page 10 of 32
AC-AEX-RC-HUB USER MANUAL

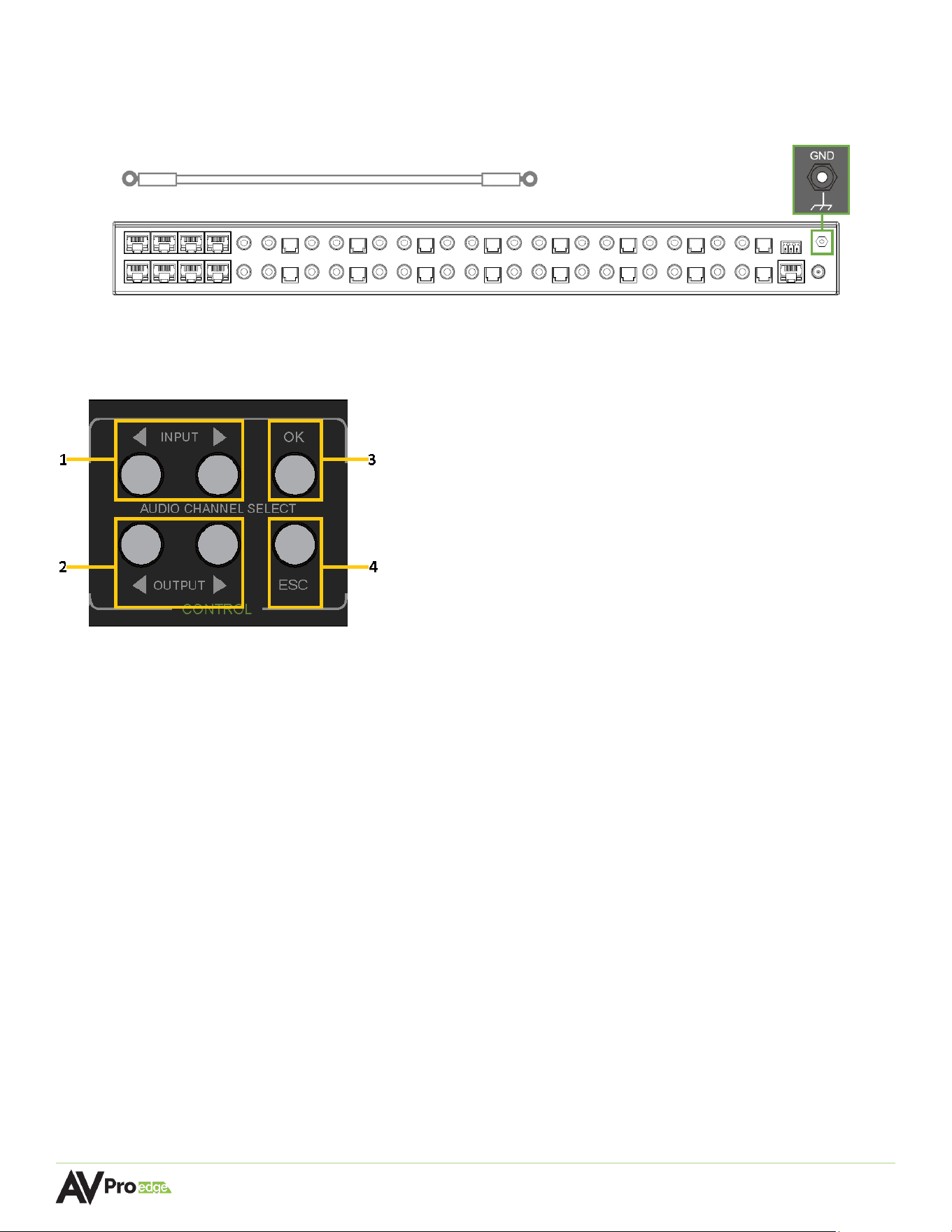

Grounding Cable
Use a screwdriver to attach the yellow grounding cable to the pre-installed screw on the back of the
unit, then attach the other end to a suitable grounded object.
FRONT PANEL CONTROL
1 Left and Right Input buttons select the desired input, indicated by a blue LED under the port number.
2 Left and Right Output buttons select the desired output, indicated by a blue LED above the port
number.
3 OK button enters the configuration mode and confirms the selected inputs and outputs.
4 ESC button exits configuration mode.
View Input/Output Mapping
Use the front panel Input Left and Right buttons to navigate the blue LED to the desired input’s port
number. Output LEDs mapped to the selected input will then light up.
Configure Mode
Press the OK button, this will light up one of the input LEDs and all output indicators will pulse on, followed
by a blinking output LED. Press the Left and Right Input buttons to navigate the blue LED to the desired
input. Next, press the Left and Right Output buttons to navigate the blue LED to the desired output. Press
the OK button again to map the selected input to the selected output. Mapping is confirmed by a pulse
from all output LEDs. The process is repeated until all inputs and outputs are mapped as desired, or the ESC
button is pressed. Mapping can be checked outside of configuration mode.
Page 11 of 32
AC-AEX-RC-HUB USER MANUAL
WIRING AND CONNECTIONS
Audio Connections
AVPro Edge recommends using shielded RCA interconnected cabling between the AC-AEX-RC-HUB and
the connected analog devices to maintain a high level of audio performance.
The diagram below shows the audio connections of the AC-AEX-RC-HUB.
Page 12 of 32
AC-AEX-RC-HUB USER MANUAL

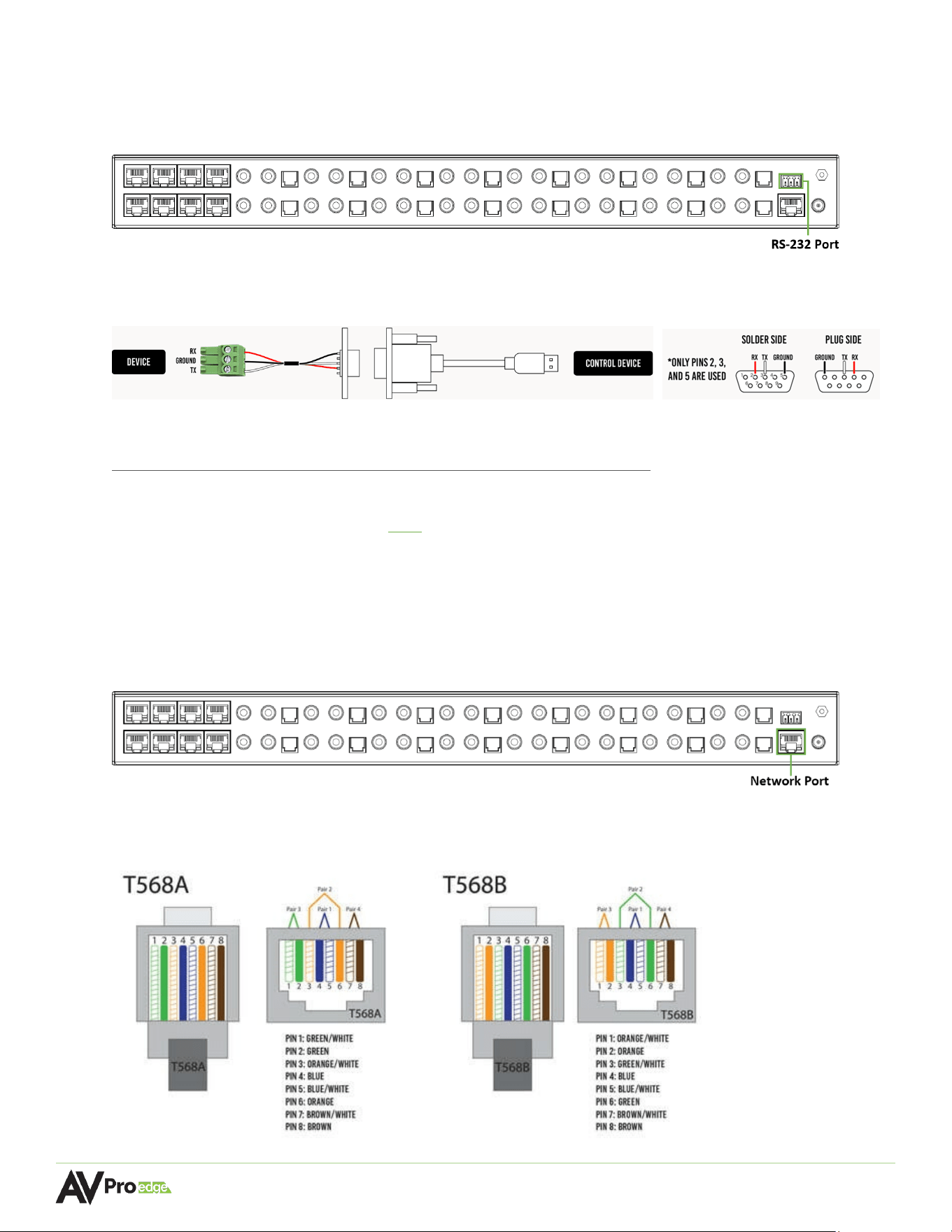

RS-232 Control
The RS-232 control port located in the top right corner on the rear panel is used to communicate with
the AC-AEX-RC-HUB via a computer or third-party control system.
Wiring for this port uses a 3-pin terminal block connector to DB9 where only pins 2, 3, and 5 are used. If
the control devices do not have a DB9 port, a USB to DB9 adapter may be required.
For RS-232 control, use a null modem serial cable adapter and set the serial communications to:
Baud: 57600, no parity, 8 data bits, and 1 stop bit, with no handshaking.
Add a carriage return (Enter key) after each command when using direct commands. The unified
command list (ASCII) can be located here.
LAN Wiring
The IP control port located in the bottom right corner on the rear panel is used to communicate with
the AC-AEX-RC-HUB via a LAN, router, or third-party control system processor.
For TCP/IP control, commands use Telnet Port 23.
The recommended termination is based on TIA/EIA T568A or T568B standards for the wiring of the
twisted pair cables:
Page 13 of 32
AC-AEX-RC-HUB USER MANUAL
INITIAL SETUP
Make the physical connections to the input and output devices using the following steps below. For initial
setup, it is recommended to connect the AC-AEX-RC-HUB to a LAN (Local Area Network) using a control PC on
the same network once all the physical connections are made, followed by accessing the Web UI and checking
for any firmware updates to the unit.

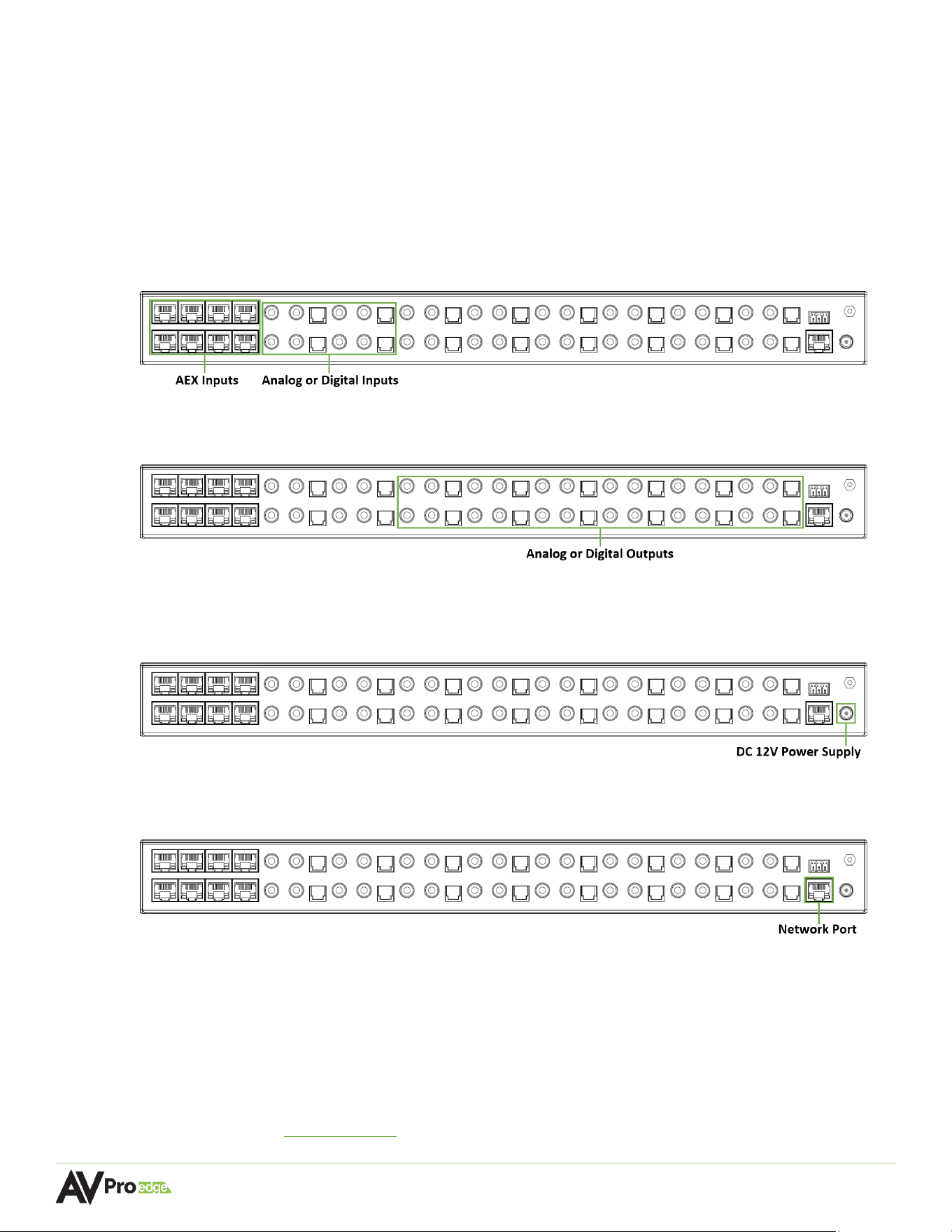

Connecting the Devices
1 Connect the audio source devices to the audio inputs on the back of the unit.
2 Connect the audio output devices to the audio outputs on the back of the unit.
3 Connect the power port on the back of the unit to a suitable power source with the supplied power
cable.
4 Connect the NETWORK port on the back of the unit to a LAN, router, or third-party control system.
Locating the IP Address
The default IP setting is DHCP mode, an IP address will automatically be assigned to the unit by the DHCP
server. Use a PC on the same network to locate the unit’s IP address, then enter it into a web browser (such
as Chrome or Edge) to access the unit’s Web UI. Once connected, you can use the Web UI to assign a static
IP address. If there is no DHCP server on the network, the unit’s IP address can also be located by
connecting to the RS-232 port on the back of the unit and sending serial commands using the API. For
more information, see the RS-232 Control page.
Page 14 of 32
AC-AEX-RC-HUB USER MANUAL
Accessing the Web UI
The AC-AEX-RC-HUB features the built-in AVPro Edge User Interface (AEUI) and can be accessed through a
web browser for configuration and control. For initial setup, it is recommended to connect the AC-AEX-RC-
HUB to a local area network (LAN) with a computer on the same network to access the built-in Web UI and
check for any firmware updates to the unit.
OTA Cloud Services
Firmware updates to the unit can be performed OTA (Over-the-Air) by enabling the Cloud Services
setting on the Web UI. This allows the unit to search the Cloud for the latest versions of firmware. If a
newer version is detected that what is currently installed on the unit, a dialog box will prompt the new
update is available from the Web UI.

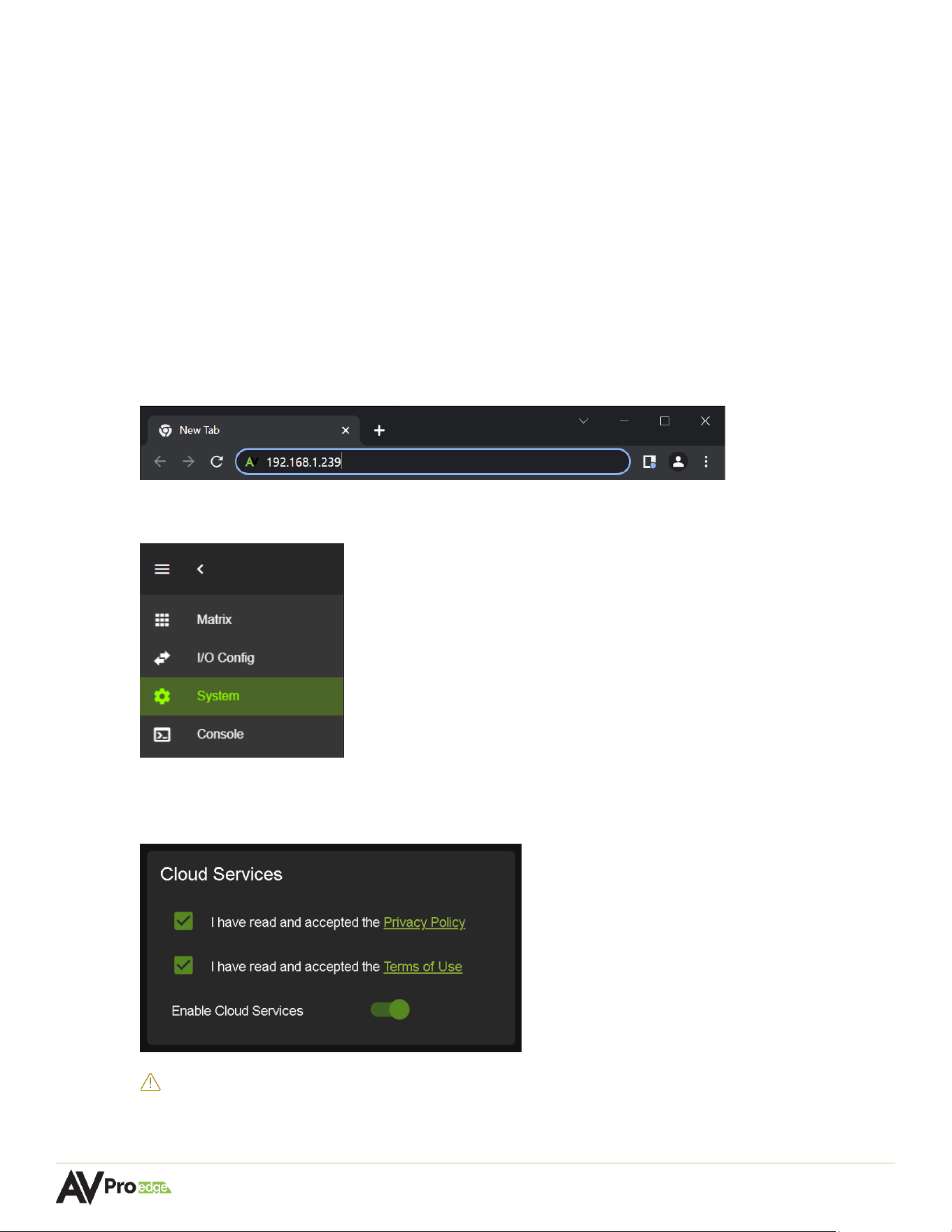

1 Enter the unit’s IP address into a Chrome or Edge web browser to access the unit’s Web UI.
2 Navigate to the System tab page.

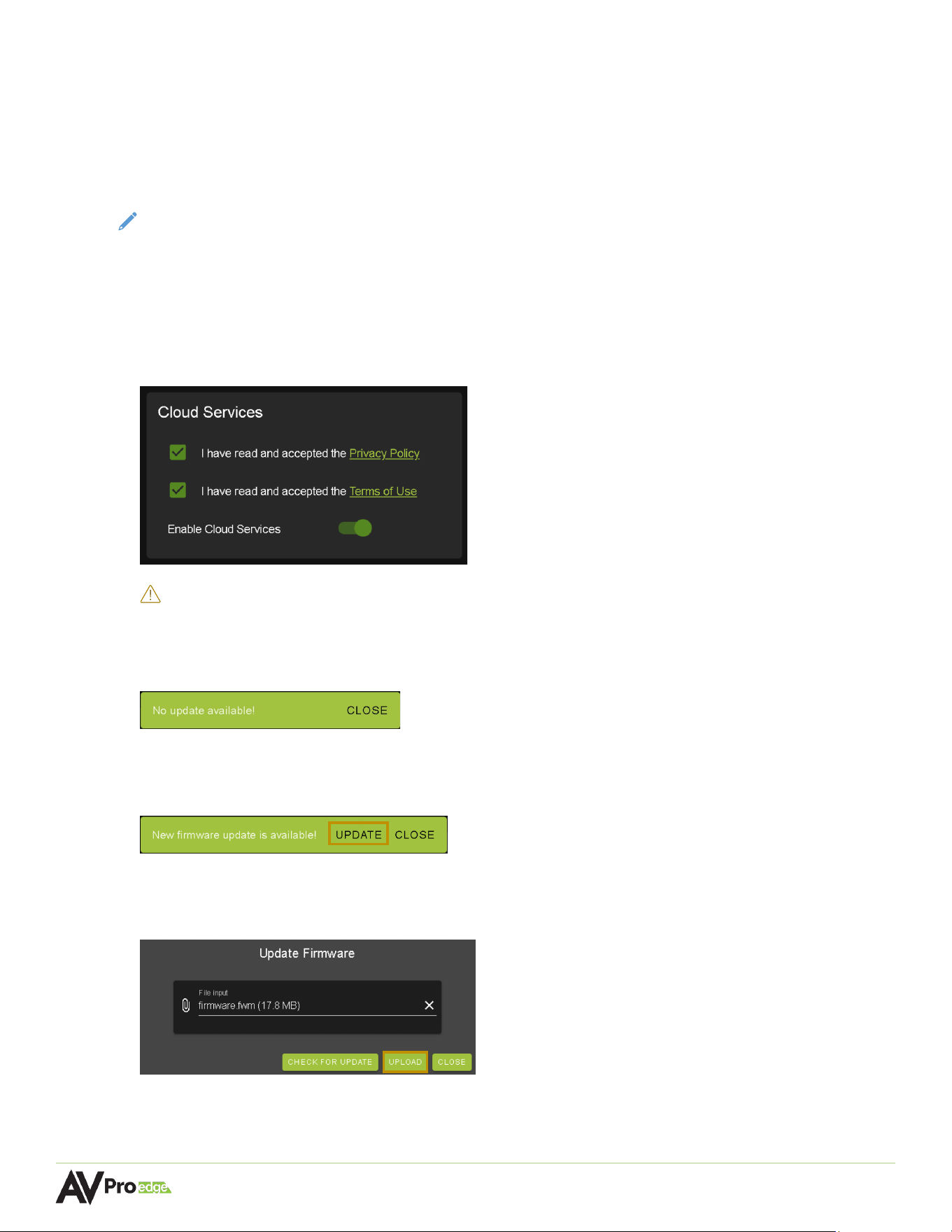

3 In the Cloud Services section, review the Privacy Policy and Terms of Use, then check both boxes and
select the Enable Cloud Services toggle setting.
IMPORTANT: This is a required step to enable the unit to perform OTA firmware updates.
Page 15 of 32
AC-AEX-RC-HUB USER MANUAL

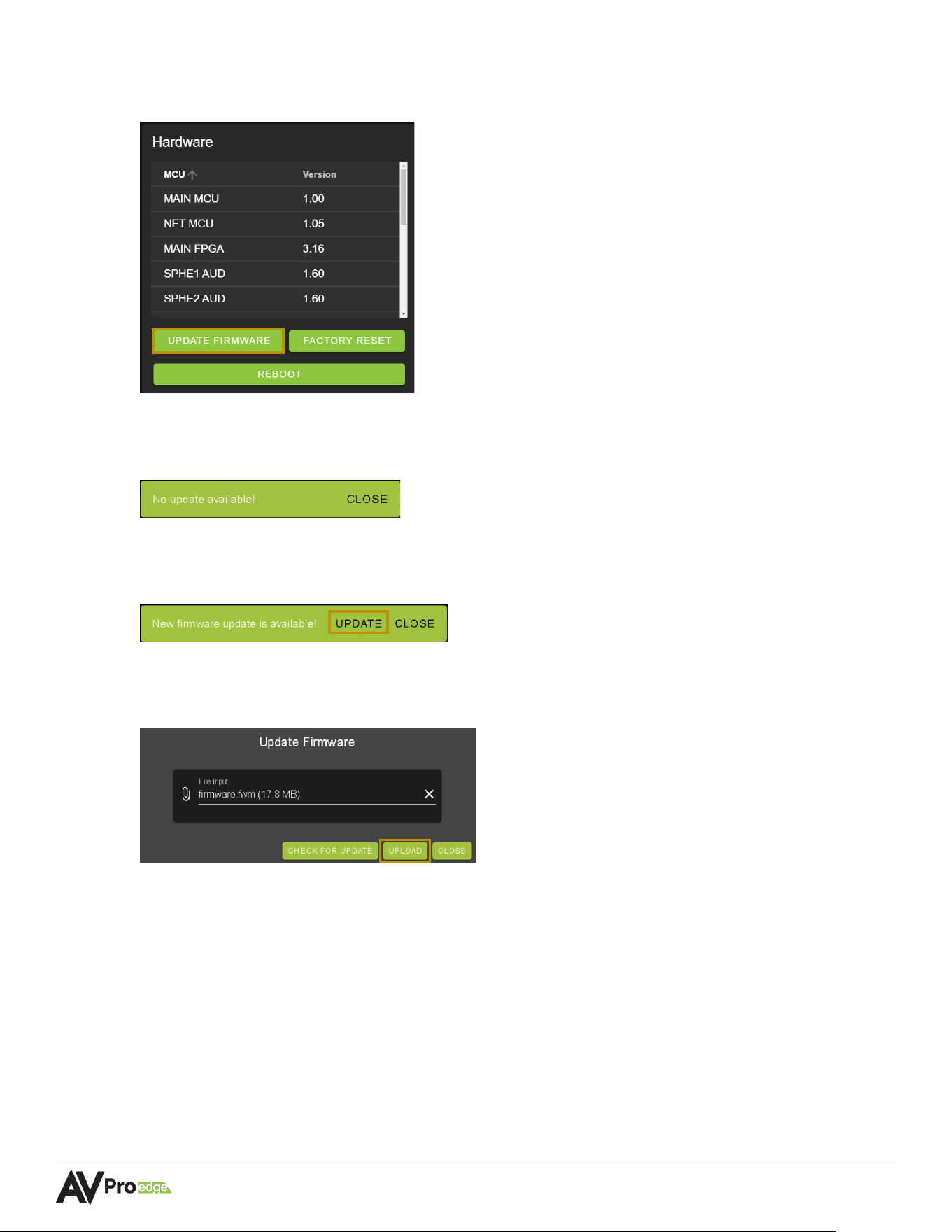

4 In the Hardware section, select the Update Firmware button. The unit will now check the Cloud for
available firmware updates.
5 If the unit is already installed with the latest version of firmware, a notification window will prompt
the message “No update available!” at the top of the page.
6 If a newer version of firmware is detected from the Cloud, a notification window will prompt the
message “New firmware update is available!”. Select the Update button.
7 The unit’s new firmware file will automatically populate into the File input field from the Cloud.
Select the Upload button.

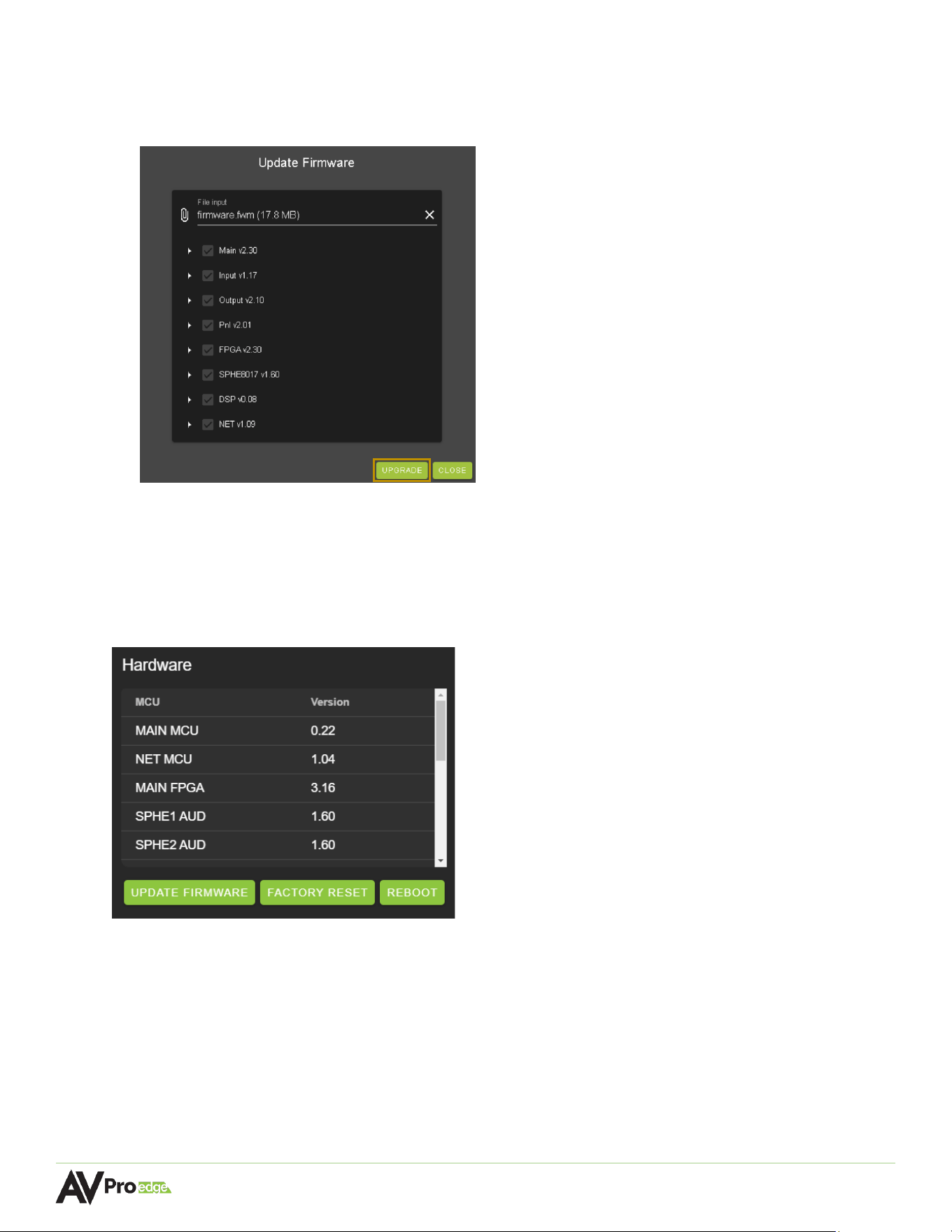

8 From this screen, newer versions of firmware can be viewed before they are installed. Select the
Upgrade button. The unit will now begin installing the latest versions of firmware. DO NOT refresh
the webpage or power off the unit during the update.
Page 16 of 32
AC-AEX-RC-HUB USER MANUAL

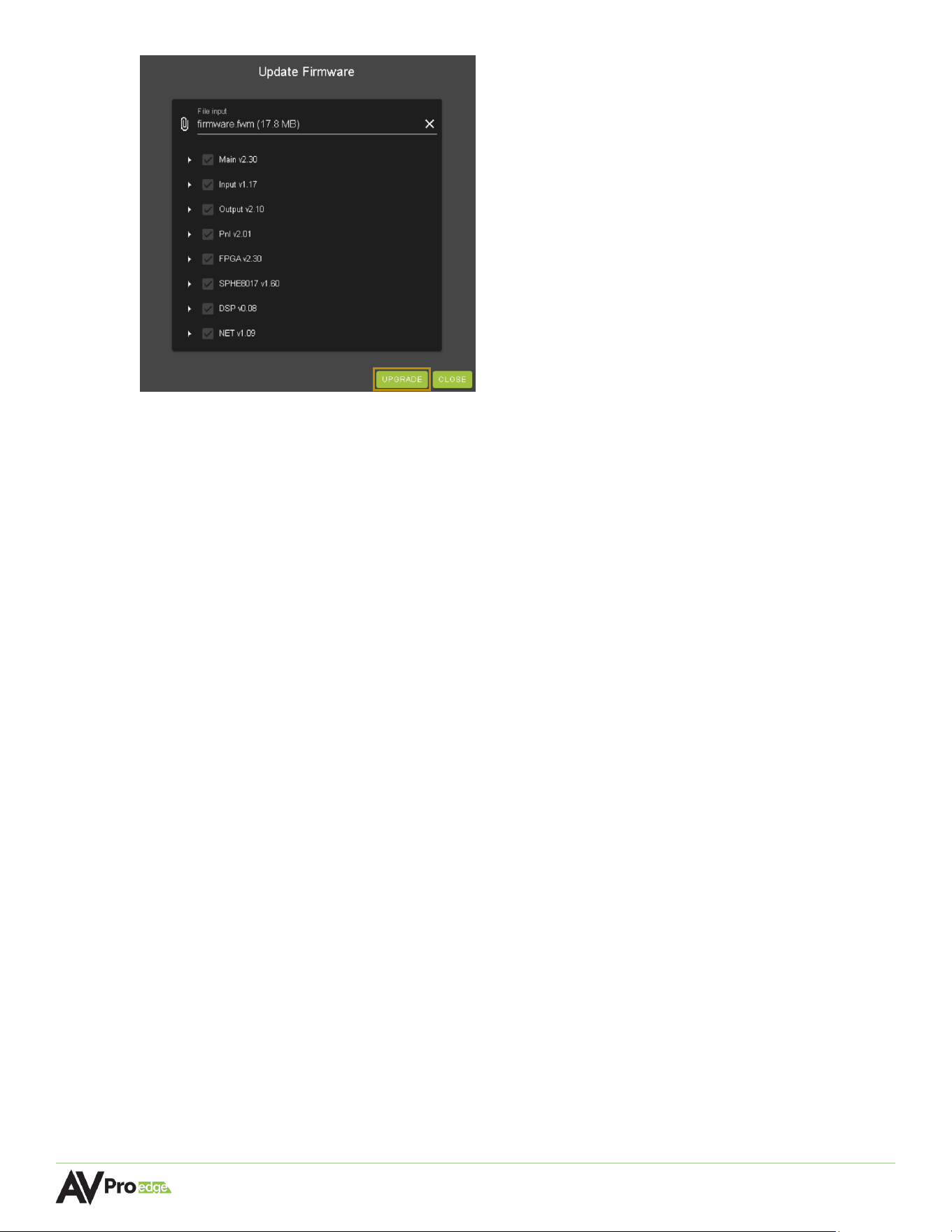

9 Once the progress bar reaches 100%, select the Close button and refresh the webpage.
10 The unit will automatically reboot once the firmware updates are complete. After the unit reboots,
refresh the webpage to verify that the firmware update was successful.
Page 17 of 32
AC-AEX-RC-HUB USER MANUAL

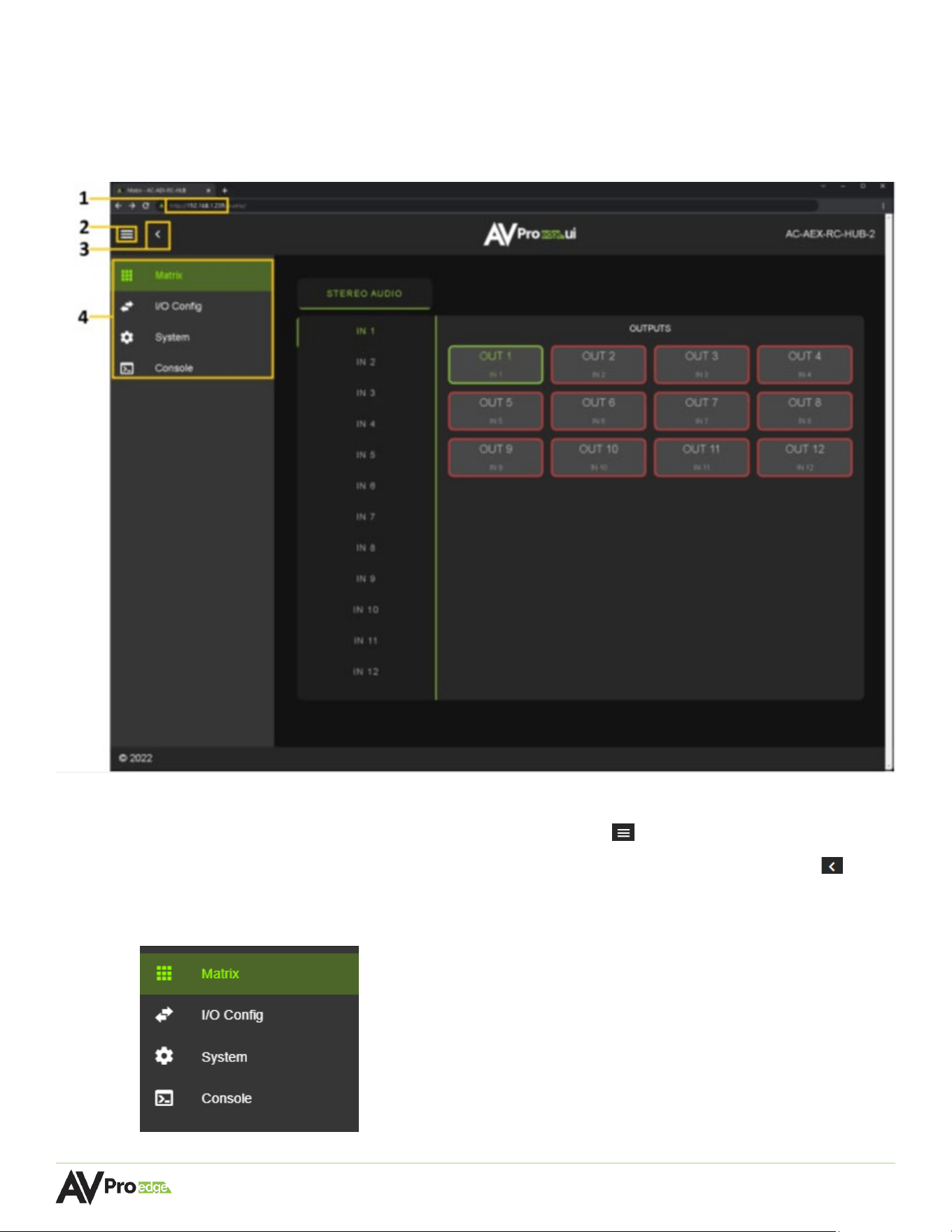

NAVIGATING THE WEB UI
The AC-AEX-RC-HUB features the built-in AVPro Edge User Interface (AEUI) and can be accessed through a
web browser for configuration and control. Different tools and settings can be selected from the tab pages
located on the navigation menu column on the left side of the screen.
1 Enter the unit’s IP address into a web browser, such as Chrome or Edge, to access the Web UI.
2 To hide the navigation menu, select the hamburger menu icon .
3 To hide the navigation menu text and show only the menu icons, select the left arrow icon .
4 To navigate through the different pages, select the individual tab pages from the navigation menu.
This will highlight the tab page in green to indicate the currently selected page.
Page 18 of 32
AC-AEX-RC-HUB USER MANUAL
Matrix
The Matrix page layout consists of the Stereo Audio Inputs column on the left and the Outputs grid on the
right. Each Input and Output can be individually selected to route the input audio signals to the outputs.
Matrix Switching
1 From the Inputs column, select the desired input. This will highlight the input with a green text
to indicate the selection was made.
2 From the Outputs grid, select the desired output(s) to route the selected input to. This will
highlight the output(s) with a green border to indicate the selection was made.
3 The selected input’s audio signals are now routed to the selected output(s).
Page 19 of 32
AC-AEX-RC-HUB USER MANUAL
I/O Config
The I/O Config tab page features tools and settings for configuring the audio inputs and outputs.
Stereo Audio Input Settings
1
Port
Shows the audio input port number.
2
Type
Shows the audio input connection type.
3
Label
Select the text field to enter a custom name for the input. (Limit of 15 characters)
4
Enabled
Select the toggle switch to enable or disable the audio input.
5
Volume
Adjust the volume by using the slider bar or entering a value (0~100) in the text field.
Stereo Audio Output Settings
1
Port
Shows the audio output port number.
2
Label
Select the text field to enter in a custom name for the output. (Limit of 15 characters)
3
Enabled
Select the toggle switch to enable or disable the audio output.
4
Muted
Select the toggle switch to mute or unmute the audio output.
5
Volume
Adjust the volume by using the slider bar or entering a value (0~100) in the text field.
6
Output
Following
Select the output following mode (source, volume, or both).
7
EQ
Select to view the outputs Audio Configuration settings.
Page 20 of 32
AC-AEX-RC-HUB USER MANUAL
Output Following
This setting allows an output to mirror, or “follow”, the same operation as another output. It can
also be used to create groups of outputs that will continually share the same input source, output
volume level, or both. Changes to a followed output will automatically update any outputs when
this setting is enabled.
Source Only
Matrix to the same input as the selected followed output.
Volume Only
Set volume equivalent to the selected following output, including if the followed
output is muted.
Source and
Volume
Matrix to the same input and set volume equivalent to the selected followed
output.
Once selected, an additional drop-down menu is provided to match the output it will follow.
NOTE: Once an output is set to follow another output, you will lose the ability to adjust either the input
source or volume for that output until Output Following is disabled.
Page 21 of 32
AC-AEX-RC-HUB USER MANUAL
Audio Configuration
1
EQ
The dropdown menu contains a list of several preset equalizer settings that can be
applied to change the frequency response of the audio output.
NOTE: EQ SETTINGS WILL ONLY APPLY TO ANALOG OUTPUTS
TOSLINK audio output is unaffected by EQ settings.
2
Frequency
Graphic equalizer showing the individual frequency bands of the output’s audio.
NOTE: This graphic equalizer is only intended to be used as a visual reference of
the individual audio frequency gains. Manual adjustments cannot be made
to it.
3
Balance
Adjust the Left and Right volume by using the slider bar or entering a value
(-10 to +10) in the text field.
NOTE:
-10 is balanced left, 0 is balanced, and +10 is balanced right.
Page 22 of 32
AC-AEX-RC-HUB USER MANUAL
These can be assigned by a DHCP reservation
from the router when the IP Assignment is set
to Automatic, or they can be manually entered
in when the IP Assignment is set to Manual.
Select the Apply button when manually
entering in the IP Assignment, IP Address,
Subnet Mask, Gateway, Primary DNS, and
Secondary DNS for changes to take effect.
System
IP Settings
1
Host Name
Select the text field to enter a custom name for the unit.
The default shows the unit model number.
2
Model Name
Shows the unit’s AVPro Edge model number.
3
Serial Number
Shows the unit’s unique serial number.
4
MAC Address
Shows the unit’s unique MAC address.
5
IP Assignment
Select the dropdown menu to set the unit’s IP mode to DHCP
(default) or Manual (Static IP), then select the Apply button.
6
IP Address
Shows the unit’s IP address.
7
Subnet Mask
Shows the unit’s subnet mask.
8
Gateway
Shows the unit’s default gateway.
9
Primary DNS
Shows the unit’s primary domain name server.
10
Secondary DNS
Shows the unit’s secondary domain name server.
Page 23 of 32
AC-AEX-RC-HUB USER MANUAL

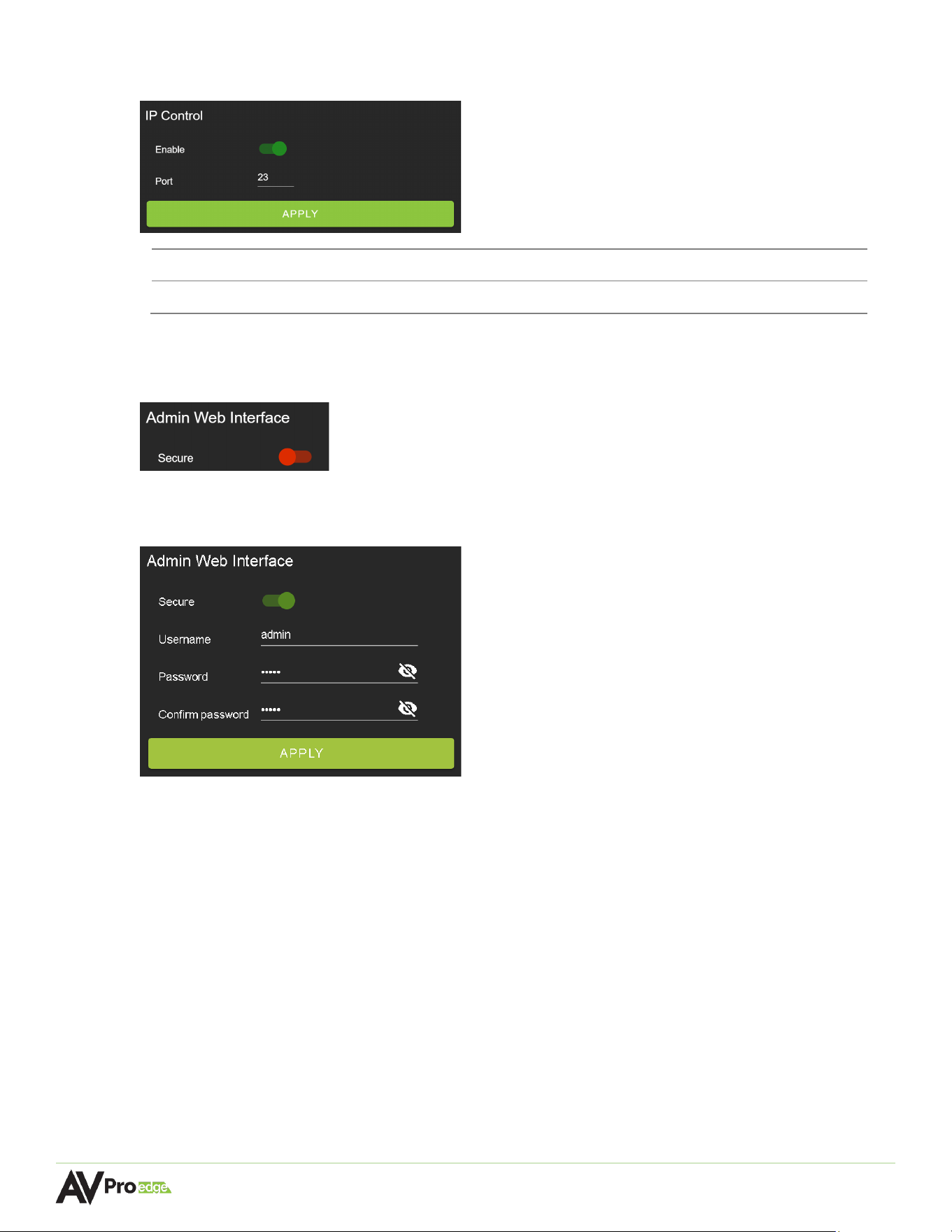

IP Control
2
Enable
Select the toggle switch to enable or disable IP/TCP control.
3
Port
Select the text field to set the Telnet port. The default is Telnet port 23.
Admin Web Interface
Select the Secure toggle switch to enable (green) or disable (red). When enabled, the username and
password can be changed.
With the Admin Web Interface enabled, the only menu that will be accessible on the Web UI will be
the Matrix tab page. The rest of the settings will require the Admin login.
Default username: admin
Default password: admin
Page 24 of 32
AC-AEX-RC-HUB USER MANUAL
User Web Interface
Select the Secure toggle switch to enable (green) or disable (grey). When enabled, the username
and password can be changed.
NOTE: The Admin Web Interface must first be enabled before this setting can be changed.
With the Admin and User Web Interfaces enabled, no menus will be accessible on the Web UI
without first logging in.
Logging in with the User credentials, the only menu that will be accessible on the Web UI will be the
Matrix tab page. The rest of the settings will require the Admin login.
Default username: user
Default password: user123
Page 25 of 32
AC-AEX-RC-HUB USER MANUAL
Cloud Services
Cloud Services allows OTA (Over-the-Air) firmware updates to be performed onto the unit. This allows
the unit to search the Cloud for the latest versions of firmware, as well as enable third-party remote
management services. If Cloud Services are disabled, the unit will opt out of any previously enabled
services and will not be able to access OTA firmware updates.
NOTE: When updating firmware, some settings and configurations may revert to their
original factory default settings and may need to be re-applied after the firmware
updates are complete. It is always recommended to back up and save your settings and
configurations before updating firmware.
1 Review the Privacy Policy and Terms of Use, then select both check boxes and select the Enable
Cloud Services toggle setting.
IMPORTANT: This is a required step to enable the unit to perform OTA firmware updates.
2 If the unit is already installed with the latest version of firmware, a notification window will prompt
the message “No update available!” at the top of the page.
3 If a newer version of firmware is detected from the Cloud, a notification window will prompt the
message “New firmware update is available!”. Select the Update button.
4 The unit’s new firmware file will automatically populate into the File input field from the Cloud.
Select the Upload button.
Page 26 of 32
AC-AEX-RC-HUB USER MANUAL
5 From this screen, newer versions of firmware can be viewed before they are installed. Select the
Upgrade button. The unit will now begin installing the latest versions of firmware. DO NOT refresh
the webpage or power off the unit during the update.
6 Once the progress bar reaches 100%, select the Close button and refresh the webpage.
7 The unit will automatically reboot once the firmware updates are complete. After the unit reboots,
refresh the webpage to verify that the firmware update was successful.
Hardware
This section shows the unit’s current firmware versions and provides options for updating firmware,
factory resetting the unit, and rebooting the unit.
Page 27 of 32
AC-AEX-RC-HUB USER MANUAL
Console
The Web UI features a built-in command console that allows API commands to be sent directly to the unit.
Command List
Command
Action
H
Help
STA
Show global system status
SET RST
Reset to factory defaults
SET RBT
System reset to reboot
SET LAN RBT
Set LAN MCU reset to reboot
SET ADDR xx
Set System Address to xx {xx=[00-99](00=single)}
SET BAUDR x
Set System Baudrate to x {x=[0~5]
(0=9600, 1=14400, 2=19200, 3=38400, 4=57600, 5=115200)}
GET ADDR
Get System Address
GET STA
Get System Status
GET CONFIG
Get System Configuration
GET BAUDR
Get System Baudrate
Input Setup Commands
SET INx EN/DIS
Set Audio Input Enable/Disable {x=[0-12](0=all)}
SET INx VOLy
Set Audio Input Volume Adjustment {x=[0-12](0=all), y=-50~+50}
GET INx EN
Get Audio Input Enable/Disable {x=[0~12](0=all)}
GET INx VOL
Get Audio Input Volume Adjustment {x=[0~12](0=all)}
GET INx SIG STA
Get Input x Signal Status {x=[0~12](0=all)}
Output Setup Commands
SET OUTx EN/DIS
Set Audio Output Enable/Disable {x=[0~12](0=all)}
SET OUTx AS IN y
Set Audio Output x to Input y {x=[0~12] (0=all), y=[1~12]}
SET OUTx FOLLOW y OUTz
Set Audio Output x follow settings {x= [0~12] (0=all[excluding self])}
Follow Modes 0=None, 1=Source, 2=Volume, 3=Source+Volume
If Follow Mode ! 0, then OUTz is the output that will be followed
SET OUTx MUTE/UNMUTE
Set Audio Output Mute/Unmute {x=[1~12](0=all)}
SET OUTx VOL y
Set Output x EQ-Audio Volume Level y {x=[0~12](0=all), y=[0~100]}
SET OUTx VOL + y
Increase Output x Volume by y {x=[1~12], y=[1~100, optional default 1]}
SET OUTx VOL – y
Decrease Output x Volume by y {x=[1~12], y=[1~100, optional default 1]}
SET OUTx BAL + y
Increase Output x Balance by y {x=[1~12], y=[1~100, optional default 1]}
SET OUTx BAL - y
Decrease Output x Balance by y {x=[1~12], y=[1~100, optional default 1]}
SET OUTx EQ y
Set Output x Audio Volume EQ Mode y {x=[0~12](0=all), y=[0~7]
(0=Off, 1=Classical, 2=Headphone, 3=Hall, 4=Live, 5=Pop, 6=Rock, 7=Vocal)}
GET OUTx EN
Get Audio Output Enable/Disable Status {x=[0~12](0=all)}
GET OUTx AS
Get Output x Audio Route {x=[0~12](0=all)}
GET OUTx FOLLOW
Get Audio Output x follow settings {x=[0~12](0=all[excluding self])}
Follow Modes 0=None, 1=Source, 2=Volume, 3=Source+Volume
If Follow Mode ! 0, then OUTz is the output that will be followed
Page 28 of 32
AC-AEX-RC-HUB USER MANUAL
GET OUTx MUTE
Get Audio Output Mute/Unmute {x=[0~12](0=all)}
GET OUTx VOL
Get Output x EQ-Audio Volume Level {x=[0~12](0=all)}
GET OUTx EQ
Get Output x Audio Volume EQ Mode Status {x=[0~12](0=all)}
GET OUTx BAL
Get Output x Balance {x=[0~12](0=all),
y=[0~20, Left=0, Right=20, Balanced=10]}
Network Setup Commands
SET RIP xxx.xxx.xxx.xxx
Set Route IP Address to xxx.xxx.xxx.xxx (xxx=[000~255])
SET HIP xxx.xxx.xxx.xxx
Set Host IP Address to xxx.xxx.xxx.xxx (xxx=[000~255])
SET NMK xxx.xxx.xxx.xxx
Set Net Mask to xxx.xxx.xxx.xxx (xxx=[000~255])
SET TIP zzzz
Set TCP/IP Port to zzzz (zzzz=[0001~9999])
SET DHCP y
Set DHCP {y=[0~1](0=Dis,1=Enable)}
GET RIP
Get Route IP Address
GET HIP
Get Host IP Address
GET NMK
Get Net Mask
GET TIP
Get TCP/IP Port
GET DHCP
Get DHCP Status
GET MAC
Get MAC Address
Page 29 of 32
AC-AEX-RC-HUB USER MANUAL
TROUBLESHOOTING
• Verify Power - Check that the power supply is properly connected and on an active circuit. Press the OK
button on the front panel, this should illuminate the Input/Output LEDs.
• Verify Connections - Check that all cables are securely connected and properly terminated.
• Verify Current Versions - Check if are any firmware/software/driver updates available for the devices.
• Good Indicator Lights, but No Sound - Verify the signal being sent is compatible with the connected
devices in the signal chain. Ensure the device’s volume level is properly adjusted and not set to mute. If
a signal is present from the input source, the selected output(s) will have a visible red optical light that
can be seen from the TOSLINK port.
• Static, Buzzing, or Humming Noises - Use shielded RCA cabling between the AC-AEX-RC-HUB and the
connected analog devices to maintain a high level of audio performance. Ground the matrix to the
conducting parts (equipment rack, mounting devices, truss systems, electrical switchboards, metal
electrical conduits, etc.) This technique ensures all the equipment in an electrical system will use the
same reference value for their signals and reduces the possibility of a ground loop, which can result in a
shift in video signals and mains frequencies to exhibit a buzzing or humming noise in audio systems.
MAINTENANCE
To ensure reliable operation of this product as well as protecting the safety of any person using or
• handling this device while powered, please observe the following instructions.
• Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it
has sufficient power to supply the device it is connected to.
• Do not operate these products outside the specified temperature and humidity range given in the
above specifications.
• Ensure there is adequate ventilation to allow this product to operate efficiently.
• Repair of the equipment should only be carried out by qualified professionals as these products contain
sensitive components that may be damaged by any mistreatment.
• Only use this product in a dry environment. Do not allow any liquids or harmful chemicals to come into
contact with these products.
• Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
DAMAGE REQUIRING SERVICE
The unit should be serviced by qualified service personnel if:
• The DC power supply cord or AC adapter has been damaged
• Objects or liquids have gotten into the unit
Page 30 of 32
AC-AEX-RC-HUB USER MANUAL
• The unit has been exposed to rain
• The unit does not operate normally or exhibits a marked change in performance
• The unit has been dropped or the housing damaged
SUPPORT
Should you experience any problems while using this product, first, refer to the Troubleshooting section of this
manual before contacting Technical Support. When calling, the following information should be provided:
• Product name and model number
• Product serial number
• Details of the issue and any conditions under which the issue is occurring
• Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
WARRANTY
The Basics
AVPro Edge warranties its products that are purchased from all Authorized AVPro Edge Resellers or direct
purchases. Products are guaranteed to be free from manufacturing defects and of sound physical and
electronic condition.
AVPro Edge has developed a warranty that anyone can get behind. We really wanted to take all the “red
tape” out of a warranty and just make is simple. Our 10 YEAR NO BS warranty hinges on 3 elements.
• If you are having trouble, call us. We will attempt to troubleshoot your issue over the phone.
• If it’s broken, we will replace it in advance on our dime and we’ll also cover the return shipping.
Repair is an option too, but it’s YOUR call.
• We know you know what you are doing. We will not make you go through unnecessary steps to
troubleshoot an extender...
Coverage Details
AVPro Edge will replace or repair (at the customer's choosing) a defective product. If the product is out of
stock or on back order it can either be replaced with a comparable product of equal value/feature set (if
available) or repair.
Your warranty begins at receipt of product (as confirmed by shipping firm tracking). If tracking information
is unavailable for any reason, the warranty will commence 30 ARO (After Receipt of Order). The coverage
continues for 10 years.
Red Tape
AVPro Edge is not responsible for untraceable purchases or those that were made outside of an authorized
channel.
Page 31 of 32
AC-AEX-RC-HUB USER MANUAL
If we conclude that a product or serial number has been tampered with as identified by warranty seal or
physical examination the warranty will be void. Additionally, excessive physical damage (beyond normal
wear & tear) the warranty may be voided or prorated based on the extent of the damage as examined by
an AVPro Edge representative.
Damage caused by “acts of God” are not covered. They can include natural disasters, power surges, storms,
earthquakes,
tornadoes, sink holes, typhoons, tidal waves, hurricanes, or any other uncontrollable event related to nature.
Damage caused by incorrect installation will not be covered. Incorrect power supply, inadequate cooling,
improper cabling, inadequate protection, static discharge are examples of this.
Products installed or sold by a third party to AVPro Edge will be serviced by the Authorized AVPro Edge
Reseller. Accessories (IR Cables, RS-232, Power Supplies, etc.) are not included in the warranty. We will
make every acceptable effort to source and supply replacements for defective accessories at a discounted
rate as needed.
Obtaining an RMA
Dealers, Re-sellers, and Installers can request an RMA from AVPro Edge Tech Support Rep or their Sales
Engineer.
You may also email [email protected] or fill out the general contact form at avproedge.com/contact
End users may not request an RMA directly from AVPro Edge and will be referred to a Dealer, Re-seller, or
Installer.
Shipping
For USA (not including Alaska and Hawaii). Shipping is covered on advanced replacements for FedEx
Ground (some expressed exceptions may apply). Defective product return shipping is covered by AVPro
Edge using an emailed return label. Item must be returned within 30 days of receipt of replacement
product, after 30 days, the customer will be billed. Other return shipping methods will not be covered.
For International (and Alaska and Hawaii) return shipping costs will be the responsibility of the returnee.
Once the unit is scanned for return shipping AVPro Edge will ship a new unit for replacement.
Limitation on Liability
The maximum liability of AVPro Global Holdings LLC under this limited warranty shall not exceed the actual
purchase price paid for the product. AVPro Global Holdings LLC is not responsible for direct, special,
incidental, or consequential damages resulting from any breach of warranty or condition, or under any
other legal theory to the maximum extent permitted by law. Taxes, Duties, VAT, and freight forwarding
service charges are not covered or paid for by this warranty.
Obsolescence or incompatibility with newly invented technologies (after manufacture of product) is not
covered by this warranty.
Obsolescence is defined as:
Page 32 of 32
AC-AEX-RC-HUB USER MANUAL
“Peripherals are rendered obsolete when current technology does not support product repair or re-
manufacture. Obsolete products cannot be re-manufactured because advanced technologies supersede
original product manufacturer capabilities. Because of performance, price and functionality issues, product
redevelopment is not an option.”
Discontinued or out of production items will be credited at fair market value towards a current product of
equal or comparable capabilities and cost. Fair market value is determined by AVPro Edge.
Exclusive Remedy
To the maximum extent permitted by law, this limited warranty and the remedies set forth above are
exclusive and in lieu of all other warranties, remedies, and conditions, whether oral or written, express or
implied. To the maximum extent permitted by law, AVPro Global Holdings LLC specifically disclaims any and
all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular
purpose. If AVPro Global Holdings LLC cannot lawfully disclaim or exclude implied warranties under
applicable law, then all implied warranties covering this product, including warranties of merchantability
and fitness for a particular purpose, shall apply to this product as provided under applicable law.
This warranty supersedes all other warranties, remedies, and conditions, whether oral or written, express or
implied.
