USE + CARE
MANUAL
REV.072025.TBR24US
24 INCH
UNDERCOUNTER
SINGLE ZONE
BEVERAGE COOLER
TBR24US
3
TABLE OF CONTENTS
➢ WARNING..................................................................................................................4
➢ IMPORTANT SAFETY INSTRUCTIONS…………………………………………………5
➢ INSTALLATION INSTRUCTIONS............................................................................................6
➢ OPERATING THE APPLIANCE………………………………………………………………7
➢ BEVERAGE COOLER OR WINE CHART …………………...………………………………...9
➢ RECOMMENDED DRINKING TEMPERATURE...................................................................10
➢ CARE AND MAINTENANCE...............................................................................................11
➢ WARRANTY……………......................………………………………………………………….12
4
• To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric
cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with
wine. You might distort the body. The wine cellar should be installed in a suitable place in
order to avoid Touching the compressor with the hand. Children should be supervised to
ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or
a similarly qualified person in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Children aged from 3 to 8 years aren’t allowed to load and unload beverage center.
To avoid contamination of wine, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with bottles and accessible
drainage systems.
- Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
- WARNING:This refrigerating appliance is not suitable for freezing foodstuffs.
This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in
accordance with the instructions.
PLEASE DON’T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY CASE.
WARNING
5
WARNING
To
reduce the risk of fire, electrical shock,
or
injury when using your appliance, follow
these
basic precautions:
•
Read all instructions before using the beverage center.
•
DANGER or WARNING: Risk of child entrapment.
Child entrapment and suffocation are not problems of the past. Junked or
abandoned appliances are still dangerous . . . even if they will “just sit in the
garage a few days”.
•
Before you throw away your old beverage center: Take off the door. Leave
the shelves in place so that children may not easily climb inside.
•
Never allow children to operate, play with, or crawl inside the appliance.
•
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
•
Do not store or use gasoline or any other flammable vapors and liquids in the
vicinity of this or any other appliance. The fumes can create a fire hazard or
explosion.
•
If the refrigerant of these appliances are R600a , Flammable and explosive
articles should not be put in or near the cabinet, to avoid the fire or explode
caused.
Save these instructions-
IMPORTANT SAFETY INSTRUCTIONS
6
➢ Before Using Your beverage center
• Remove the exterior and interior packing.
• Before connecting the beverage center to the power source, let it stand upright for
approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system
from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

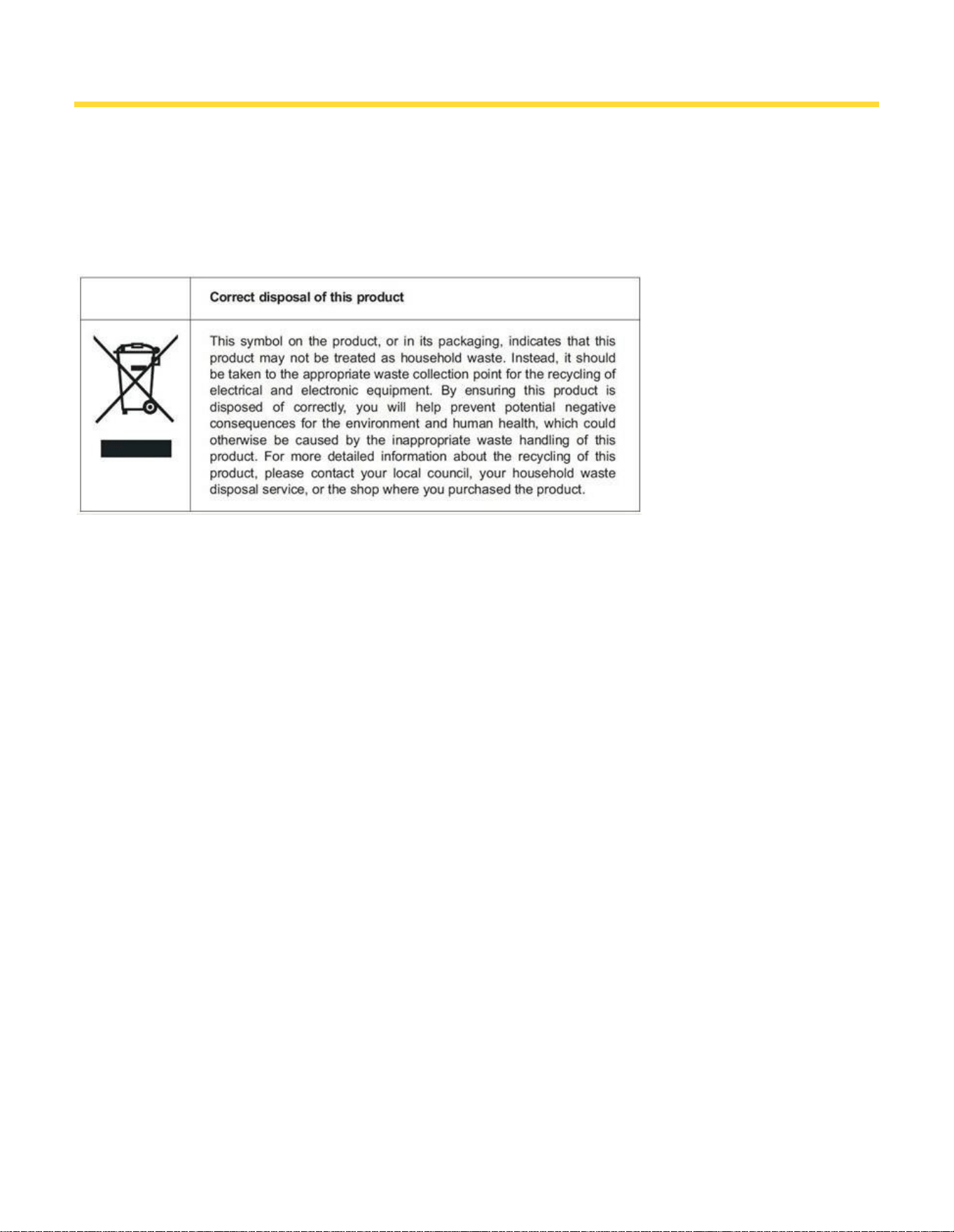

• When disposing your appliance, please choose an authorized disposal site.
➢ Installation of Your beverage center
• This appliance is designed to be for free standing installation or built-in (fully recessed) (Refer
to sticker location the back of this appliance).
This appliances are intended to be used exclusively for the storage of wine and
beverage.
• Place your beverage center on a floor that is strong enough to support it when it is fully
loaded. To level your beverage center, adjust the front leveling leg at the bottom of the
beverage center.
• This appliance is using flammability refrigerant. So never damage the cooling pipe work
during the transportation. Locate the beverage center away from direct sunlight and sources of
heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat
sources may increase electrical consumption. Extreme cold ambient temperatures may also
cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the beverage center into an exclusive, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power cord. Any
questions concerning power and/or grounding should be directed toward a certified electrician
or an authorized Products service center.
➢ Attention
• Store wine in sealed bottles;
• Do not overload the cabinet;
• Do not open the door unless necessary;
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air
circulation;
• Should the beverage center be stored without use for long periods it is suggested, after a
careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to
avoid possible formations of condensation, mold or odors.
➢ Ambient Room Temperature Limits
This appliance is designed to operate in ambient temperatures specified by its temperature
class marked on the rating plate.
Class
Symbol Ambient Temperatures range(℃)
Extended
Temperate
SN
﹢10 to﹢32
Temperate
N
﹢16 to﹢32
Subtropical
ST
﹢16 to﹢38
Tropical
T
﹢16 to﹢43
INSTALLATION INSTRUCTIONS
7
1. Child Lock
The default setting is unlock when appliance connect the power. Press and hold the button
for 3 seconds to lock it. And press again and hold this button for 3 seconds for unlock.
2. Changing the running modes
The default setting is “STD” (Standard) mode when appliance connect the power.
a. Each press button to alternate the three modes: STD, ECO and DEMO.
b. Press and hold for three seconds, system enter into Sab mode. Press and
hold again for 3 seconds. System alternate to STD mode.
3. Changing the LED light color
The LED light and button backlight default setting is white color when appliance connect
the power.
Each press button. The LED light and button backlight alternated three colors:
white1. blue and white2.
4. Changing the LED light mode
The system opens the door and turns on the light by default,closing the door and turning off
the light.
Each time you click,the system will be between the default/24hr/30Min/1Min.
Default:50%brightness after opening the door,and extinguishing after closing the door.
24hr:100%brightness after opening the door,according to the set light brightness after
closing the door,the light will be on for 24 hours.
30Min:100%brightness after opening the door,according to the set light brightness after
closing the door,the light will be on for 30minutes.
1Min:100%brightness after opening the door,according to the set light brightness after
closing the door,the light will be on for 1minutes.
5. Adjusting the LED light brightness.
In24hr/30Min/1Min light mode,the brightness of the door is 100%,and the default
brightness after closing the door is 50%.
Each press the button. The brightness alternate between 50%. 75% and 100%.
6. Power button
Press and hold this button for 3 seconds to turn off the appliance. With a slight press
again to turn it on.
7. temperature setting (up button)
Press this button to increase the temperature by one degree increments. When the
setting reach the temperature upper limit value 50°F/10℃. The set temperature will no
change again.
OPERATING THE APPLIANCE
OPERATING YOUR BEVERAGE CENTER AND
SETTING THE TEMPERATURE CONTROL
8
8. temperature setting (down button)
Press this button to lower the temperature by one degree increments. When the setting reach
the temperature lower limit value 34°F/1°C. The set temperature will no change again.
9. To switch between the Celsius or Fahrenheit.
Press and hold and for 3 seconds to switch between °C and °F. The
indicator light will illuminate on the desired temperature setting.
Temperature control range:34-50°F /1-10°C.
The temperature preset at the factory is 43°F/ 6°C.
The product have power off memory function.
➢ Temperature Alarm
If inner temperature is higher than 73°F/23°C, The “HI” is shown in display panel, and the
buzzer
alarm after one hour continuously. It inform that the inner temperature is too high, please check
the reason.
If inner temperature is lower than 32°F/0°C, The “LO” is shown in display panel, and the
buzzer alarm .
➢ Temperature Recollection Function
In the event of a power interruption, beverage center can remember the previous
temperature settings, and when the power is recovery, the cooler temperature will go back the
same setting temperature as power off.
➢ Door Ajar Alarm Function
If the door is not closed completely the alarm will sound after 1 minutes.Please close the
door completely to avoid the loss of cold energy.
➢ NOTE
If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before
restarting the unit. If you attempt to restart before this time delay, the beverage center will not
start.
When you use the beverage center for the first time or restart the beverage center after
having been shut off for a long time, there could be a few degrees variance between the
temperature you select and the one indicated on the LED readout. This is normal and it is due to
the length of the activation time. Once the beverage center is running for a few hours everything
will be back to normal.
OPERATING THE APPLIANCE
9

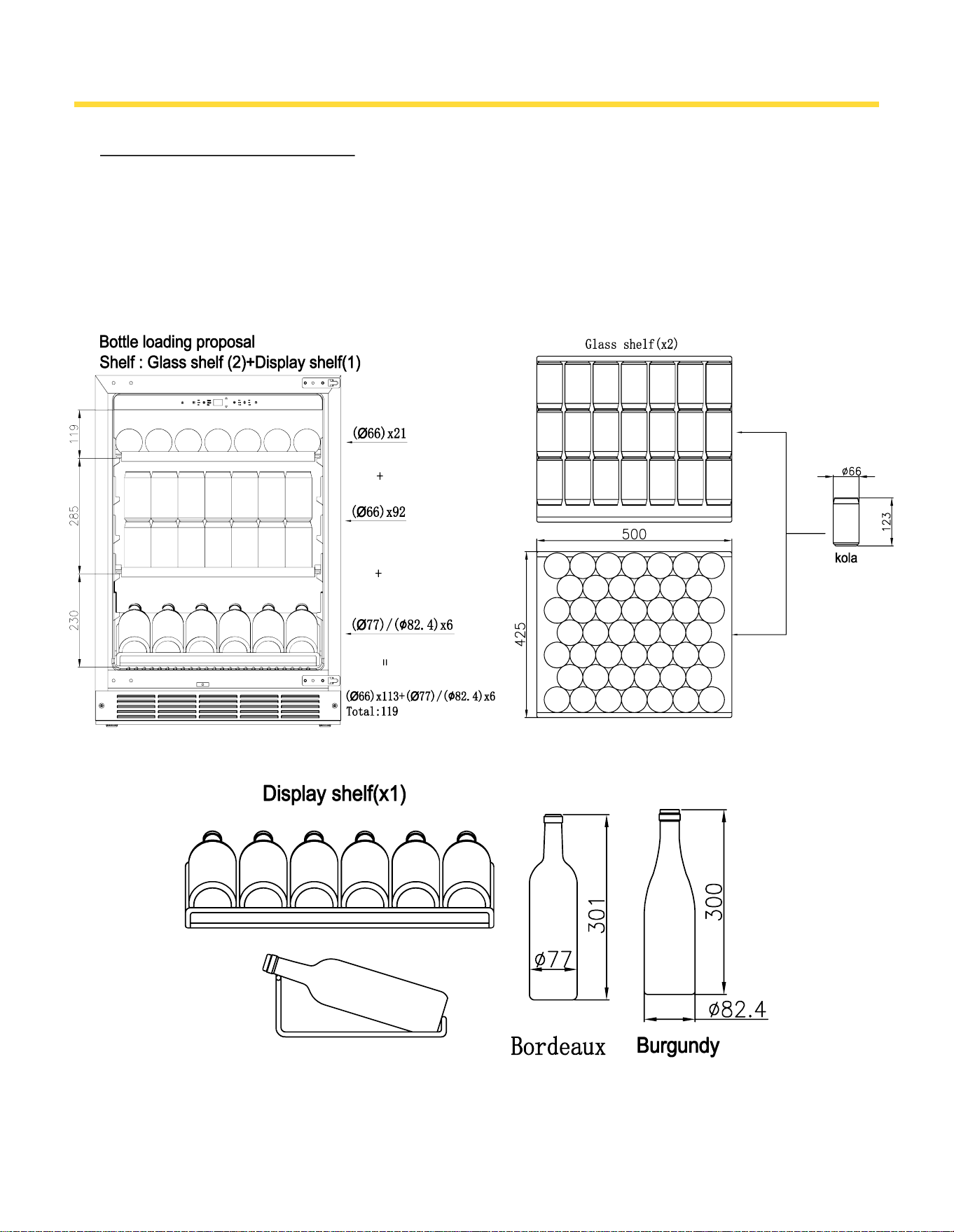

➢ BEVERAGE OR WINE CHART
The maximum number of bottles that can be loaded into the cabinet are for information
only; this information is not contractual; it provides a means for rapidly estimating the size of
the device.
Total:119 bottles（kola 113 bottles +Bordeaux 6 bottles / Burgundy 6 bottles)
COOLER OR WINE CHART
10
RECOMMENDED DRINKING TEMPERATURE
➢ RECOMMENDED DRINKING TEMPERATURE
The following (approximate) temperatures are recommended for wine drinking:
• For storing ALL TYPES OF WINES
• Champagne NV, Sparkling
• Champagne Vintage
• Dry White Semillon, Sauvignon Blanc
• Dry White Gewürztraminer, Riesling
• Dry White Chardonnay
• Vintage Chardonnay
• Sweet White Sauternes Monbaillac, Late Harvest ice wine
• Sweet whites vintage Sauternesz
• Beaujolais
• Red Pinot Noir
• Vintage Pinot Noir red
• Red Grenache, Syrah
• Red Cabernet, Merlot, French, Australian, New Zealand, Chilean,
Argentinean, Italian, Spanish, Californian
12 – 14°C
6°C
10°C
8°C
10°C
10°C
14°C
10°C
14°C
13°C
16°C
18°C
16°C
18°C
11
CARE AND MAINTENANCE
➢ Cleaning Your beverage center
• Turn off the power, unplug the appliance, and remove all items including shelves and
rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution
should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
• Wash the outside cooler with warm water and mild liquid detergent. Rinse well and wipe
dry with a clean soft cloth.
➢ Power Failure
• Most power failures are corrected within a few hours and should not affect the
temperature of your appliance if you minimize the number of times the door is opened. If
the power is going to be off for a longer period of time, you need to take the proper steps
to protect your contents.
➢ Vacation Time
• Short vacations: Leave the beverage center operating during vacations of less than
three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items
and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and
mold growth, leave the door open slightly: blocking it open if necessary.
➢ Moving Your beverage center
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also
protect outside of appliance with a blanket, or similar item.
➢ Energy Saving Tips
• The beverage center should be located in the coolest area of the room, away from heat
producing appliances, and out of the direct sunlight.
➢ Availability Of Spare Parts
• Thermostats, temperature sensors, printed circuit boards and light sources are available
for a minimum period of seven years after placing the last unit of the model on the market.
• Door handles, door hinges, trays and baskets for a minimum period of seven years and
door gaskets for a minimum period of 10 year, after placing the last unit of the model on
the market.
12
CARE AND MAINTENANCE
PROBLEMS WITH YOUR BEVERAGE CENTER?
You can solve many common beverage center problems easily, saving you the cost
of a possible service call. Try the suggestions below to see if you can solve the
problem before calling the service.
TROUBLESHOOTING GUIDE
PROBLEM
POSSIBLE CAUSE
beverage center does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
beverage center is not cold enough.
Check the temperature control setting. External
environment may require a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal properly.
Turns on and off frequently.
The room temperature is hotter than normal. A
large amount of contents has been added to the
beverage center.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly. The
door gasket does not seal properly.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown fuse.
The bulb has burned out.
The light button is “OFF”.
Vibrations.
Check to assure that the beverage center is level.
The beverage center seems to
make too much noise.
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling
sounds caused by the flow of refrigerant in your
beverage center.
Contraction and expansion of the inside
walls may cause popping and crackling
noises.
The beverage center is not level.
The door will not close properly.
The beverage center is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
13
Before disposal of the appliance.
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
CARE AND MAINTENANCE
14
WARRANTY
Warranty&Service
This product has been manufactured by Thor International, 4651 E Airport Dr, Ontario, CA 91761
For Customer Service, please call (877) 288 - 8099
For the most up to date warranty and service policy, please refer to our website
WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION
For in-warranty service requests, please visit our website at
WWW.THORKITCHEN.COM/SERVICE
Please Note: You must provide proof of purchase or installation date for any in-
warranty service requests
Warranty Registration
Made Easy.
We Stand Behind
the Quality of Our
Appliances.
Reliability and customer satisfaction are our top priorities. We offer a
solid two-year warranty on both parts and labor. Enjoy professional-grade
performance with the condence that we’ve got you covered.
01
02
03
Scan the QR Code or visit thorkitchen.
com/register-your-product.
Input your purchase and product
information and select register.
That’s it. You’re all set.
Enjoy!
WARRANTY
PARTS
Questions: [email protected]
