6.5'' Waterproof Rated Marine Speakers
with Amplified Wireless BT Remote Control Receiver,
Compact Dual Vehicle Speaker System for ATV, UTV,
4x4, Jeep, Powersports Vehicles
PLMRKT401
www.PyleUSA.com
2

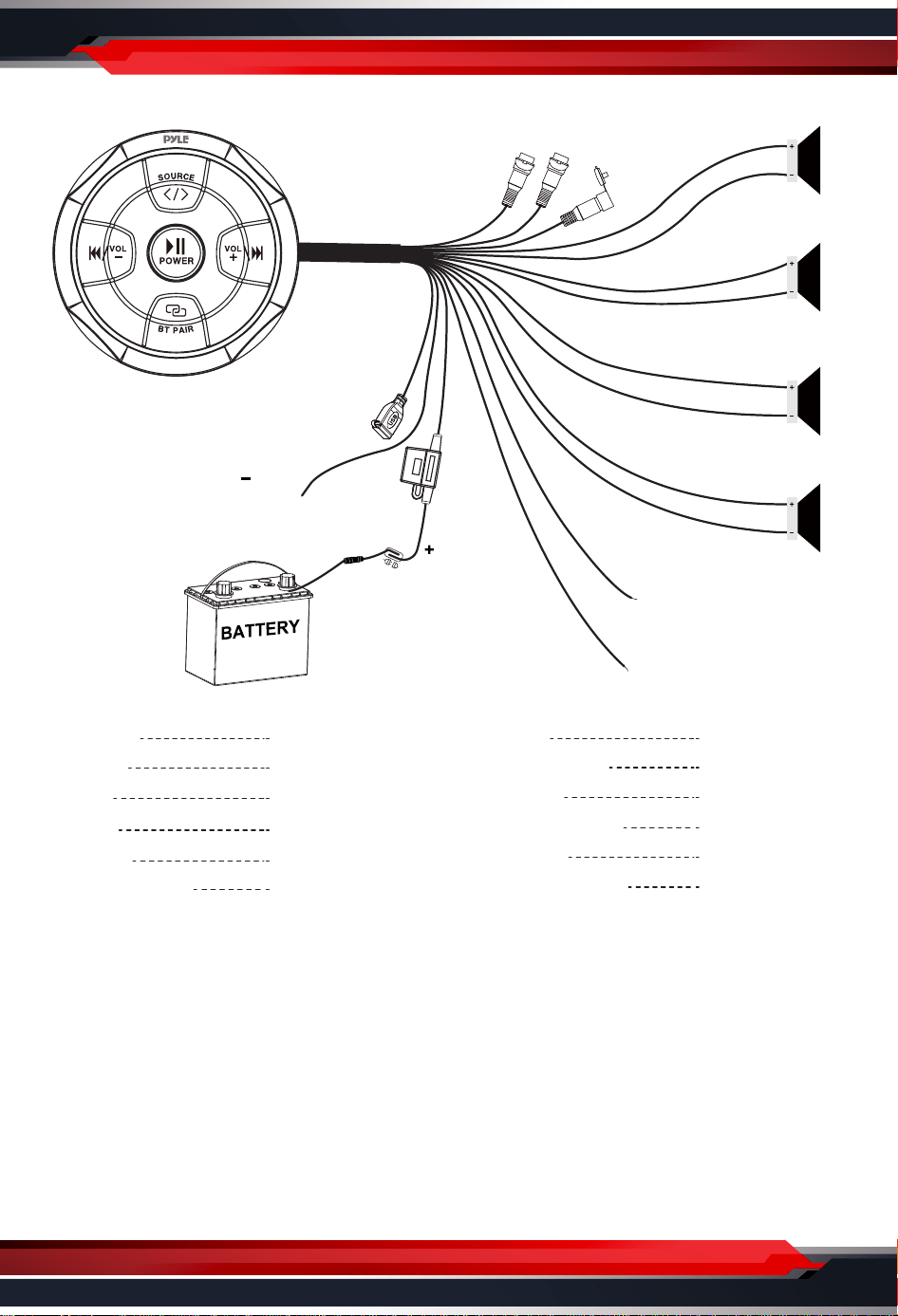

WIRE DIAGRAM
WIRELESS BT PAIRING AND CONNECTION
Power: Press and hold the power button to power ON/OFF.
Wireless BT Streaming Connection:
a. Ensure BT ability is activated, then search for the PLMRKT401 from your BT-
enabled device. The light will turn blue and blinks while waiting for BT connection.
b. The PLMRKT401 BT Network Name will appear as "PyleUSA"
(No password is required for connecting).
c. When the BT is connected, the light will turn blue and stops blinking.
d. Input mode indicator: Blue light for BT, red light for AUX In, and purple light
for USB.
Wire Color
Yellow
Black
Red
Blue
White
White/Black
Description
Battery (+), 12dc
Battery (-), Ground
ACC
REMOTE
CH1 (+)
CH1 (-)
Wire Color
Gray
Gray/Black
Green
Green/Black
Purple
Purple/Black
Description
CH2 (+)
CH2 (-)
CH3 (+)
CH3 (-)
CH4 (+)
CH4 (-)
YELLOW
Fuse:15A
AUX Input
Line out-L
Line out-R
RED
ACC
BLUE
REMOTE
USB
PURPLE/BLACK
PURPLE
GRAY/BLACK
GRAY
WHITE/BLACK
WHITE
GREEN/BLACK
GREEN
BLACK
DC12V(-) Grounded to
metal chassis.
DC12V(+)
Recommended wiring
with fuse (parts are not included)
4 OHM
SPEAKERS
www.PyleUSA.com
3
AUX-IN
Short press to switch BT mode/Aux-in /USB mode.
AUTO RECONNECTION
a. When the device is out of the BT range, BT will be disconnected automatically,
the light turns blue while blinking.
b. BT will automatically reconnect when detected in range again in 10 minutes.
c. Disconnected BT after 10 minutes, you need to process BT connection steps
(above) to reconnect BT again.
d. If the other device occupied the BT during this period (10mins), you need to
process BT connection steps (above).
e. If there is no connection during this period (10mins), it will turn to standby mode.

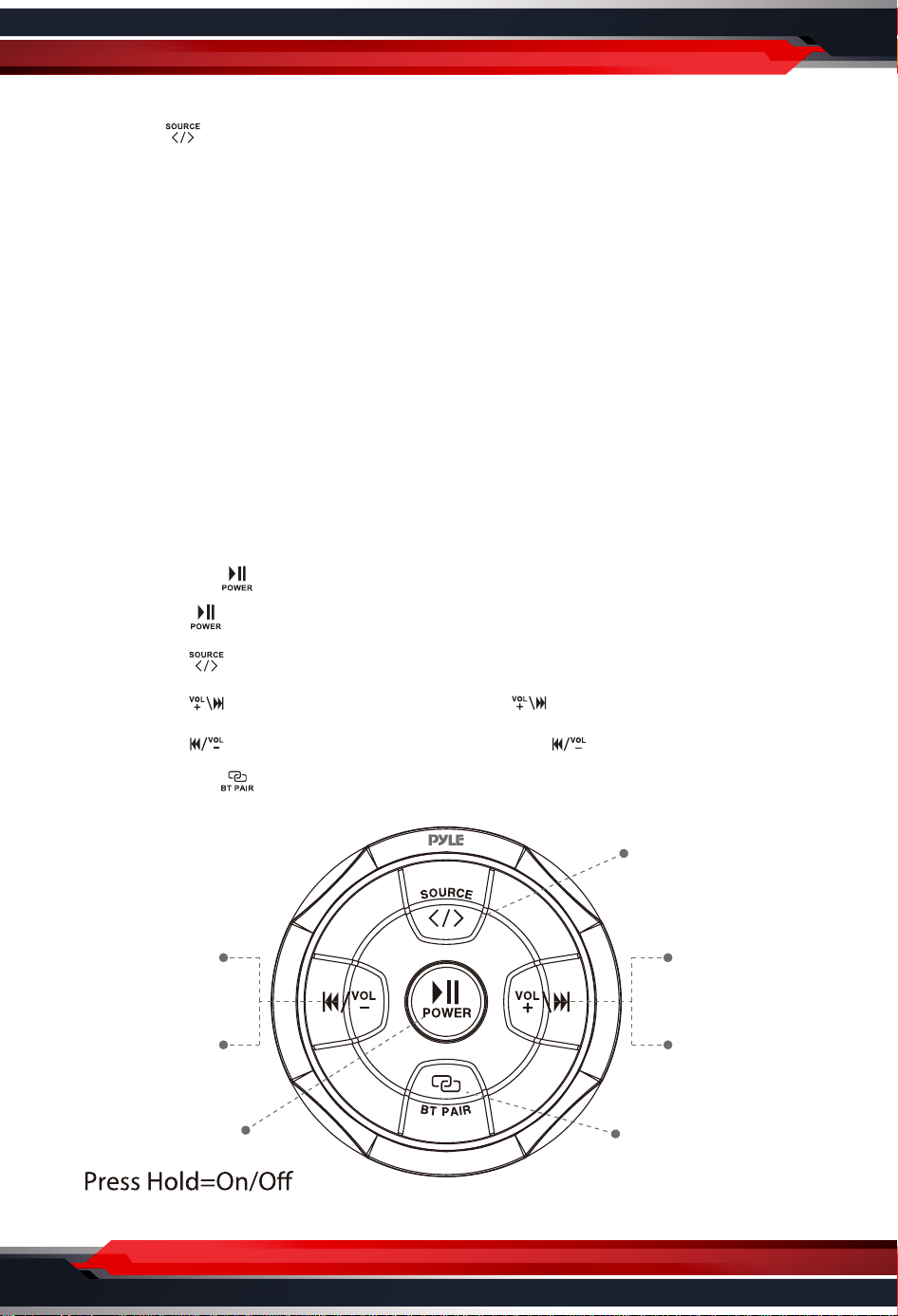

PLAYING MUSIC
1. Press and hold for 3 seconds to Power ON or OFF.
2. Short press to play music or pause.
3. Short press to switch BT mode/Aux-in /USB mode.
4. Short press for next track, press and hold for volume up.
5. Short press for previous track, press and hold for volume down.
6. Press and hold to disconnect BT.
Play / Pause
Short Press
Previous Song
Press and Hold
Volume Down
Short Press
Next Song
Press and Hold
Volume Up
BT/AUX/USB Switch
Disconnect
Wireless BT
www.PyleUSA.com
4

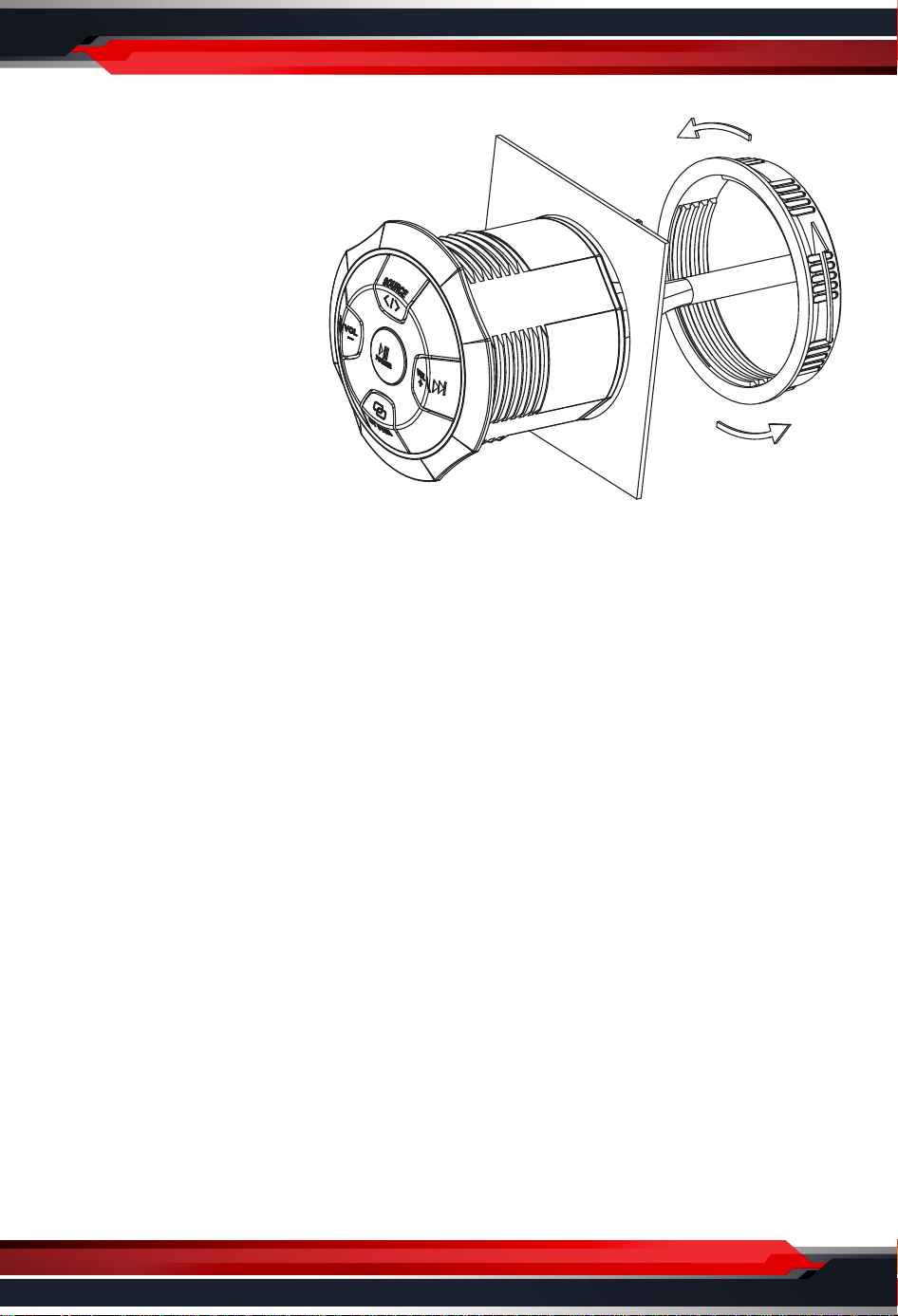

INSTALLATION (SEAMLESS FLUSH MOUNT)
FEATURES:
• Waterproof Rated Speakers + Wireless BT Streaming Controller System Kit
• Universal Mount System for Convenient Audio Control
• Wireless BT Music Streaming Ability
• Waterproof-Rated Marine Grade Construction
• Weatherproof & Water-Resistant Design
• Used for Car, Truck, ATV, UTV, 4x4, Boat, Marine Watercraft, Power Sport Vehicles
WIRELESS BT CONTROL UNIT:
•
Built-in Wireless BT Streaming Audio Receiver
• 4-Channel Amplier Style
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Connect & Stream Audio from Additional External Devices
• Aux (3.5mm) Input connector Jack /USB Port
• Full Range Stereo Sound Reproduction
• Integrated Power Wiring Harness
• Pre-Amp RCA Out to Any OEM/Factory-Made Mono-Block/Full-Range Amplier
• Flush Mount Mounting Kit Included
• Universal Vehicle Mounting
• Can be In-Console Flush Mounted
• Anti-Thump Turn-On
• Soft Turn On / O
• Overload & Power Protection Circuitry
Size:
96mm/3.8’’ (Out Diameter)
76mm/3.0’’ (Cutout Diameter)
93mm/3.7’’ (Depth)
www.PyleUSA.com
5
WHAT’S IN THE BOX:
•
(4) 6.5’’ -inch Marine Speakers
• Amplied Wireless BT Streaming Control Unit
• Installation / Mounting Kit
• Audio Connection Cable, 3.5mm
WIRELESS BT CONTROL UNIT TECHNICAL SPECS:
•
Power Output: 300 Watt MAX
• 4 x 35 Watts RMS @ 4 Ohm
• 4 x 75 Watts MAX @ 4 Ohm
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PyleUSA’
• Wireless Range: 30’+ ft.
• Marine Grade IP65 Rating
• T.H.D: 0.1%
• S/N Ratio: > 95 dB
• Channel Separation: > 65 dB
• Frequency Response: 10 - 40kHz
• Fuse: 15A
• Power: DC 12V
• Unit Dimensions (Diameter x Depth): 3.8’’ x 3.8’’ x 4.17’’ - inches
MARINE SPEAKERS:
•
MAX Power: 70 Watt (35 Watt RMS)
• 4 Ohm Impedance
• Sensitivity: 90dB
• 6.4 oz. Circuit Magnet
• Voice Coil: 1.0'', KSV
• Dual Cone Speaker
• Frequency Response: 85Hz-20kHz
• Total Diameter: 6.9” -inches
• Cut-Out Diameter: 5.75” -inches
• Total Depth: 3.16’’ -inches
• Mounting Depth: 2.3” -inches
