INSTRUCTION MANUAL
RACKABLE LFP BATTETY SERIES
Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read
these instructions carefully & keep this user manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the
product. They are trained and ready to serve you at the best.
INTRODUCTION
MODEL VT-51201-B
SKU 12327
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS.
V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
5

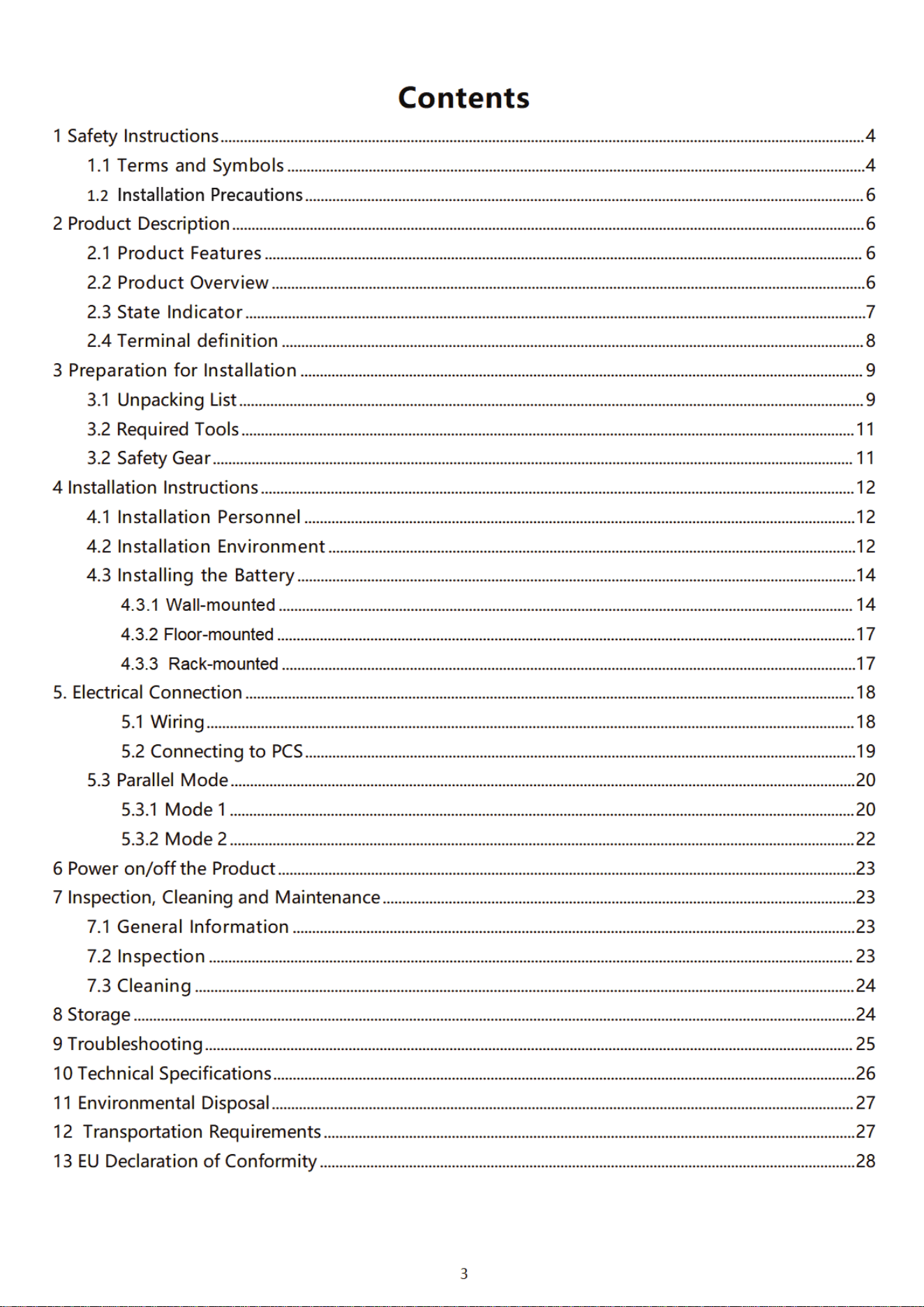

1 Safe Instructions
心
Warning!
Read and follow carefully all safety warnings and all instructions . Failure to do so may result in electrical
shock, fire, serious injury, or death. Save these instructions for future reference.
1.1 Terms and Symbols
Terms /Symbols Description
&
Dang
er
Indicates a hazard with a high level of risk which, if not avoided, will
result in death or serious injury.
&
warnin
g
Indicates a hazard with a medium level of risk which, if not avoided,
will result in death or serious injury.
&
caution
Indicates a hazard with a low level of risk which, if not avoided, will
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided,
&
Notice
could results in equipment damage, data loss, peormance
deterioration, or unanticipated results. NOTICE is used to address
practices not related to personal iury.
&
Note
Supplements the important information in the main text. NOTE is
used to address information not related to personal iury
,
equipment damage, and environment deterioration.
公
Caution , risk of electric shock symbol indicates important safety
instructions , which if not correctly followed , could result in electric
shock.
A
The DC input terminals of the inverter must not be grounded.
公
Surface high temperature , Please do not touch the inverter case .
CE mark of conformity
口
Please read the instructions carefully before use .
Indicate that this product is recyclable
＠
Do not place near open fire or incinerate. Do not use near heaters or
hot temperature source.

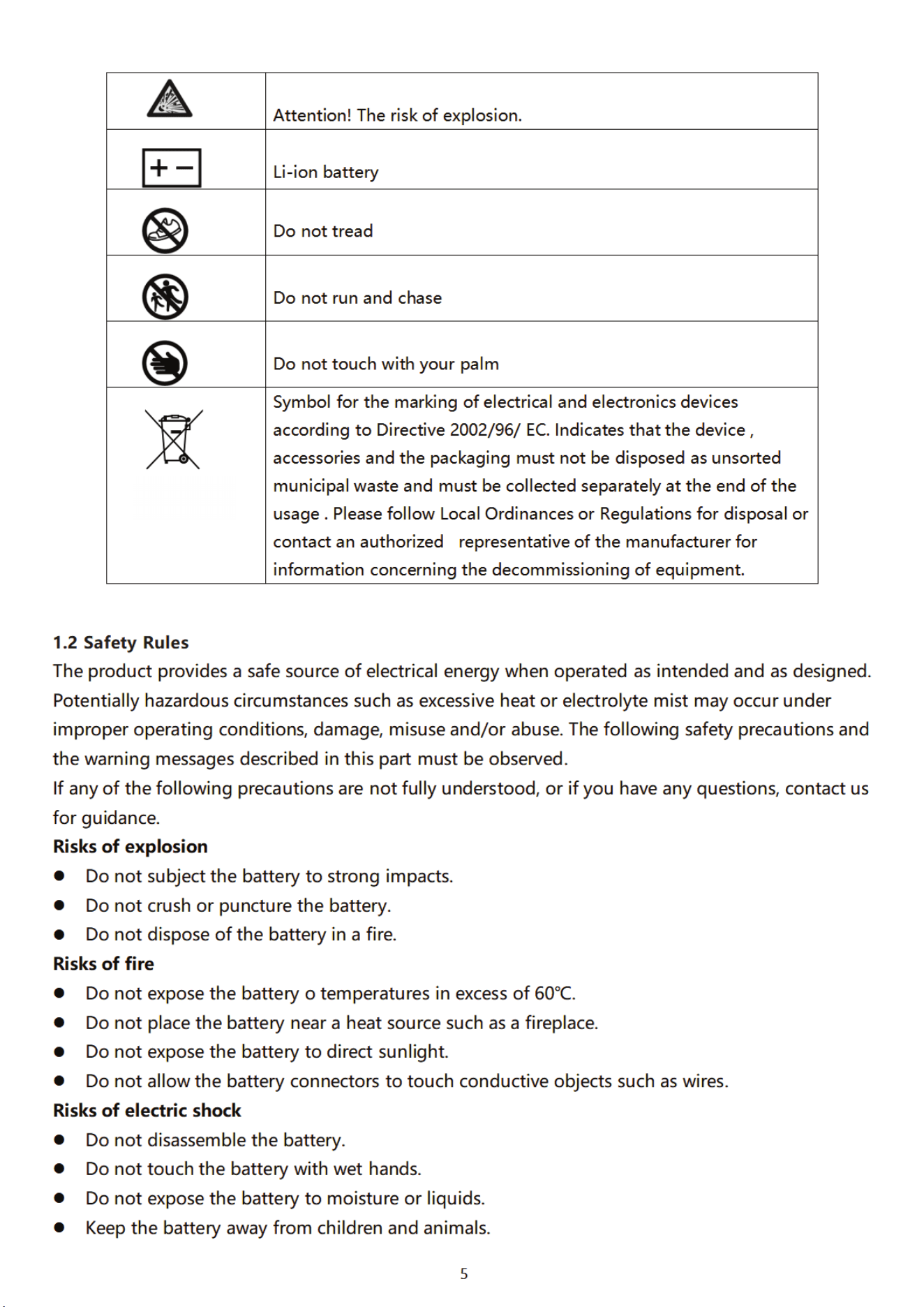

4

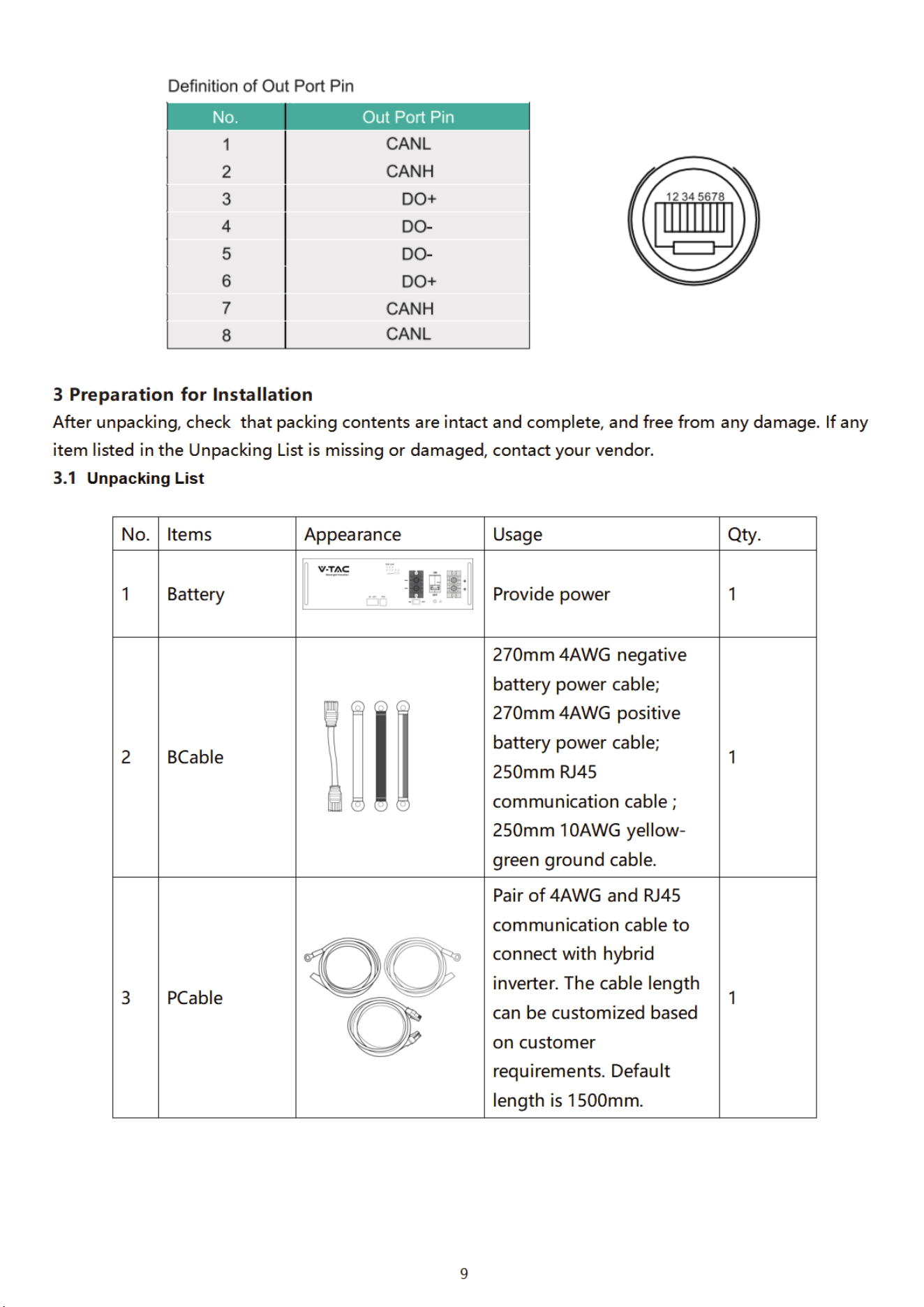

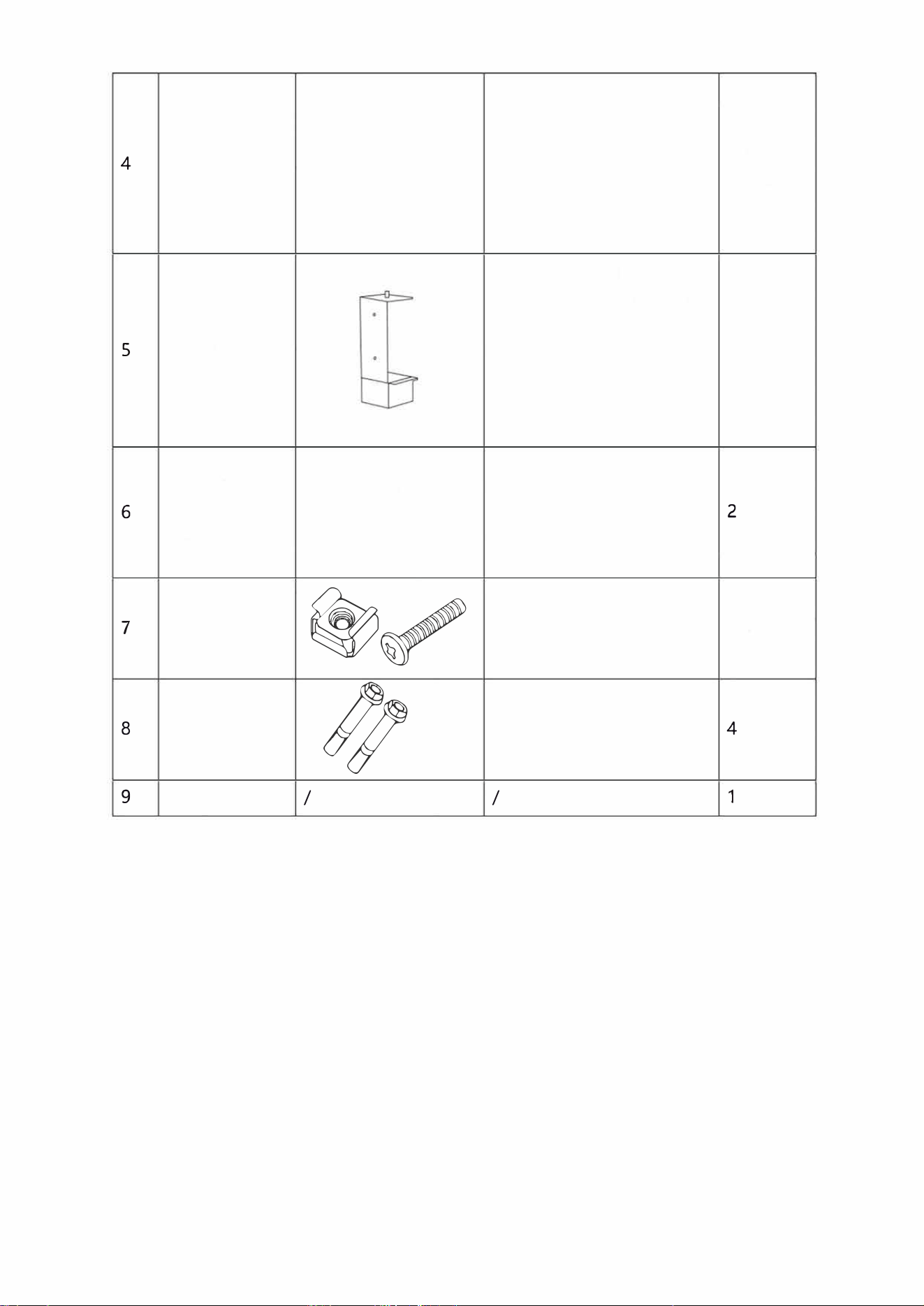

4
Hanging ears
二
Pair of hanging ears used
for battery fixing with rack
or cabinet, including 6
screws of M4, 4 sets of M6
screws and buckle nuts.
Hangin
g
ears:2
5
3U-Bracket-B
Si mple stacking bracket,
with height of 180mm. 1
set includes 4 brackets
and 8 screws of M4. The
number of batteries
stacked is 4 at most.
4pcs
6

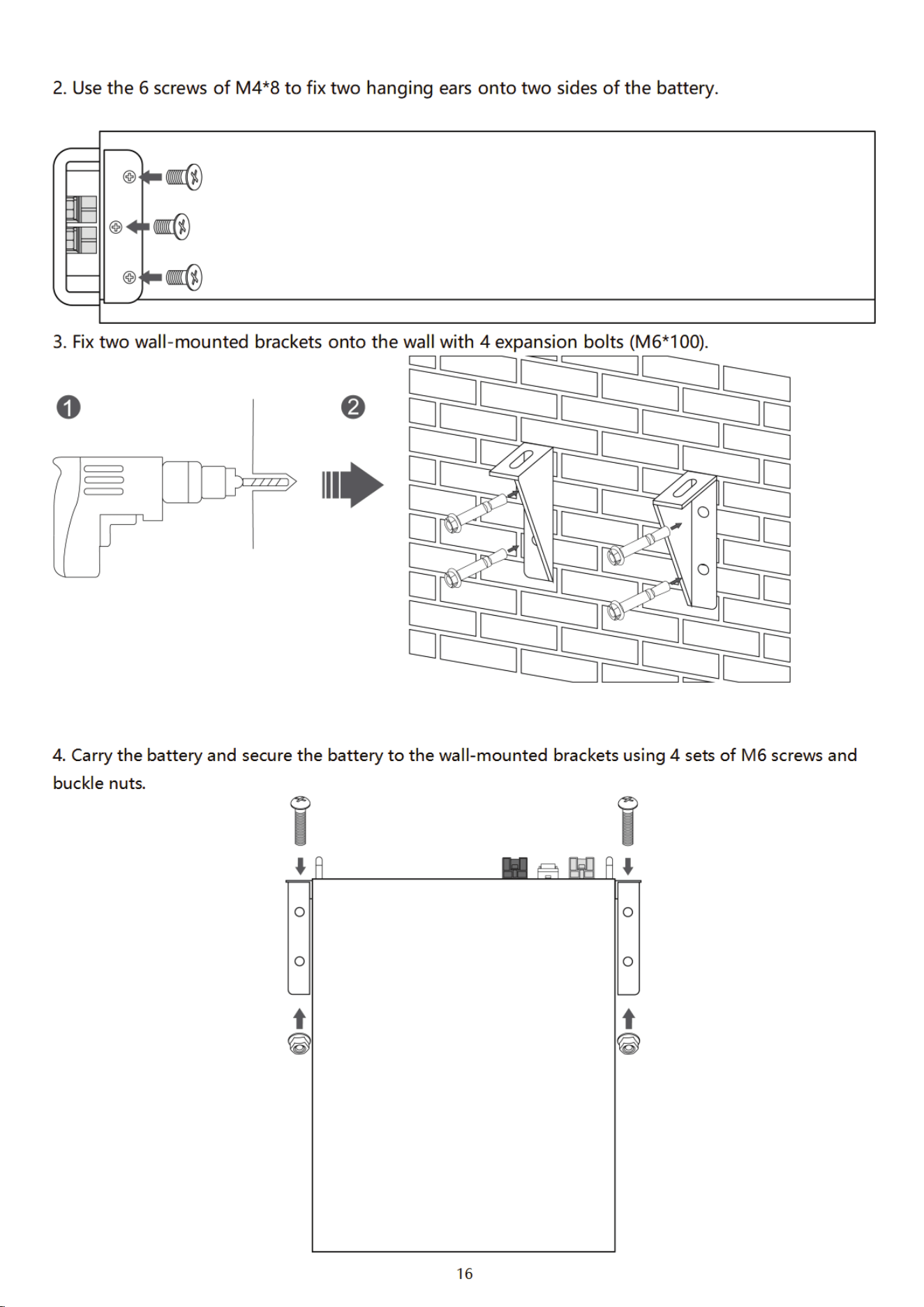

Battery Wall
Mounted
Brackets
勹丿
Pair of simple wall
hanging
support,
including 4 sets of M6
expansion screws.
2
7
M6*16 bolt
and nut
8
M6 Expansion
／
｀
：
Fix the battery on the rack
or cabinet
Fixed wall bracket
4 sets
4
9
User Manual
／
／
1
10
Class 9 Miscellaneous Dangerous Goods and UN Identification Label

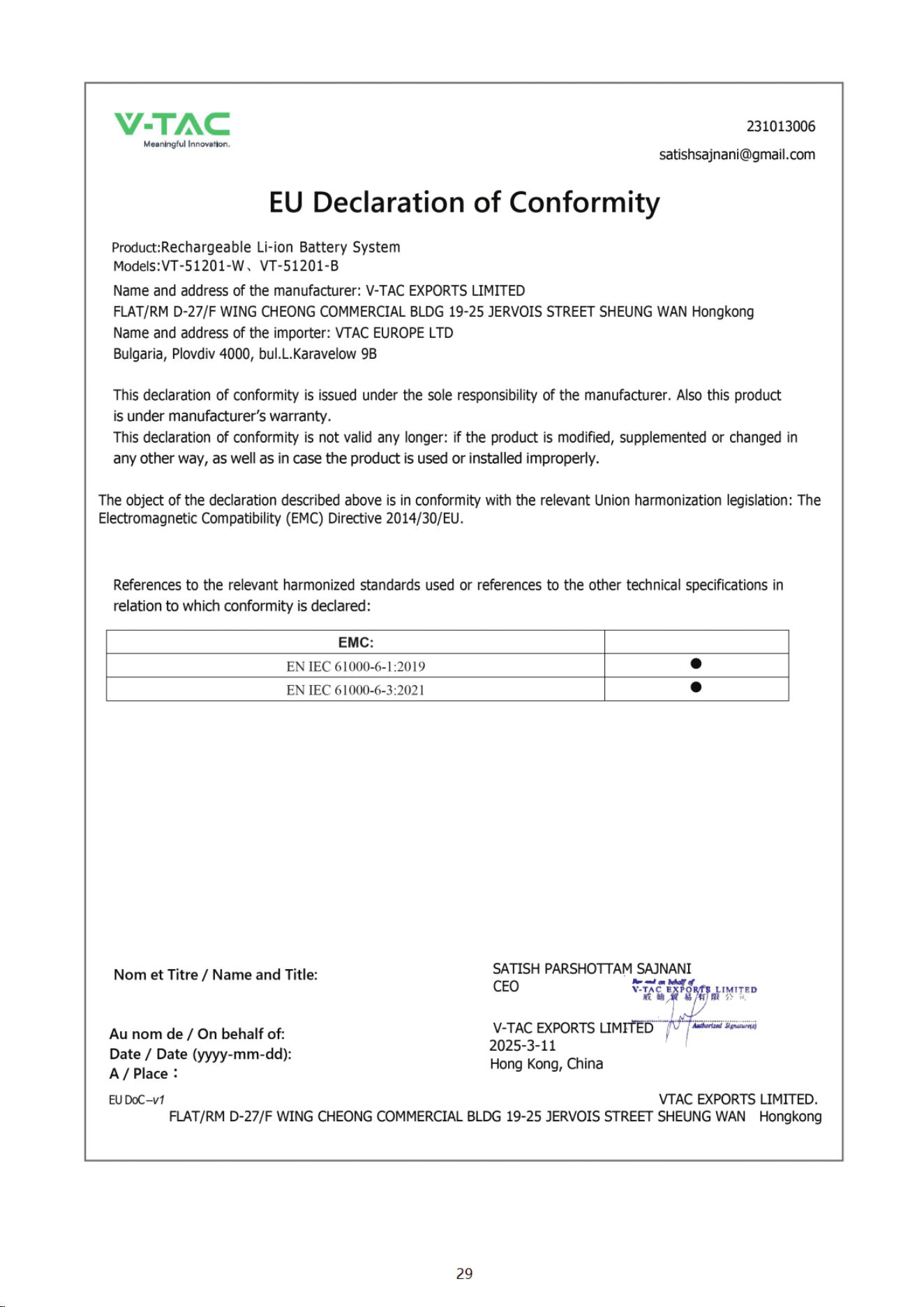

13 EU Declaration of Conformity
