MODEL NUMBER:
CF-09VCBF-T/CF-09VCBC-T
CF-12VCBF-T/CF-12VCBC-T
USER MANUAL
Warning notices: Before using this product, please read this manual and SAFETY
MANUAL(if any) carefully and keep it for future reference. The design and
specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.The diagram above is just for
reference. Please take the appearance of the actual product as the standard.
Split Type Air Conditioner
THANK YOU LETTER
Thank you for choosing COMFEE! Before using your new COMFEE product, please
read this manual thoroughly to ensure that you know how to operate the
01
CONTENTS
01
02
06
07
08
10
20
29
25
31
32
34
34
39
50
55
52
33
THANK YOU LETTER
SAFETY PRECAUTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
Installation of Indoor Unit
Installation of Outdoor Unit
Refrigerant Piping Connection
Air Evacuation
Gas Leaks and Electrical Checks
Test Run
Packing and Unpacking The Unit
OPERATION INSTRUCTIONS
Indoor Unit Display
Remote Control Operation
CARE AND MAINTENANCE
TROUBLESHOOTING
DISPOSAL AND RECYCLING
02
It’s really important that you read the safety precautions before operation and
installation. Incorrect installation can cause serious damage or injury.
SAFETY PRECAUTIONS
Read these operating instructions carefully and attentively before using/commis-
sioning the unit and keep them in the immediate vicinity of the installation site or
unit for later use!
Warning
This symbol indicates the possibility of personal injury or loss of
life.
Caution
This symbol indicates the possibility of property damage or serious
consequences.
Attention
Important information is indicated by the “Attention” symbol where
there is no danger to people but where damage may occur or it is a
point of particular relevance.
Explanation of Symbols
WARNING
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision(European Union countries).
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
ELECTRICAL WARNING
If an abnormal situation arises (e.g. a burning smell), immediately turn o the unit
and disconnect the power. Call your dealer for instructions to avoid electric shock,
fire or injury.
Do not insert fingers, rods or other objects into the air inlet or outlet. This may
cause injury, as the fan may be rotating at high speeds.
Do not use flammable sprays such as hair spray, lacquer or paint near the unit.
This may cause fire or combustion.
Do not operate the air conditioner in places near or around combustible gases.
Emitted gas may collect around the unit and cause an explosion.
Do not operate your air conditioner in a wet room such as a bathroom or laundry
room. Too much exposure to moisture can cause electrical components to short
circuit.
Do not expose your body directly to cool air for a prolonged period of time.
If the air conditioner is used together with burners or other heating devices,
thoroughly ventilate the room to avoid oxygen deficiency.
In certain functional environments, such as kitchens, server rooms, etc., the use of
specially designed air-conditioning units is highly recommended.
Do not allow children to play with the air conditioner. Children must be supervised
around the unit at all times.
●
●
●
●
●
●
●
●
●
Only use the specified power cord. If the power cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
The product must be properly grounded at the time of installation, or electrical
shock may occur.
For all electrical work, follow local and national wiring standards, regulations,
and as well as consulting the installation manual. Connect cables properly, and
clamp them securely to prevent external forces from damaging the terminal.
Improper electrical connections can overheat and cause fire, and or cause electrical
shock. All electrical connections must be made according to the Electrical
Connection Diagram located on the panels of the indoor and outdoor units.
All wiring must be properly arranged to ensure that the control board cover can
close properly. If the control board cover is not closed properly, it can lead to
corrosion and cause the connection points on the terminal to heat up, catch fire,
or cause electrical shock.
Disconnection must be incorporated in the fixed wiring in accordance with the
wiring regulations.
Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the
outlet. Pulling directly on the cord can damage it, which can lead to fire or electric
shock.
Do not modify the length of the power supply cord or use an extension cord to
power the unit.
Do not share the electrical outlet with other appliances. Improper or insucient
power supply can cause fire or electrical shock.
Keep the power plug clean. Remove any dust or grime that accumulates on or
around the plug. Dirty plugs can cause fire or electric shock.
If connecting power to fixed wiring, an all-pole disconnection device which has at
least 3mm clearances in all poles, and have a leakage current that may exceed
10mA, the residual current device(RCD) having a rated residual operating current
not exceeding 30mA, and disconnection must be incorporated in the fixed wiring ‘
in accordance with the wiring rules.
●
●
●
●
●
●
●
●
●
●
WARNING FOR PRODUCT USE
03
●
●
●
●
●
●
TAKE NOTE OF FUSE SPECIFICATIONS
The air conditioner’s circuit board (PCB) is designed with a fuse to provide
overcurrent protection. The specifications of the fuse are printed on the circuit board ,
for example : T3.15AL/250VAC, T5AL/250VAC, T3.15A/250VAC, T5A/250VAC,
T20A/250VAC, T30A/250VAC,etc.
NOTE: For the units with R32 refrigerant , only the blast-proof ceramic fuse can be
used.
UV-C lamp(Applicable to the unit contains an UV-C lamp only)
This appliance contains a UV-C lamp. Read the maintenance instructions before
opening the appliance.
Do not operate UV-C lamps outside of the appliance.
Appliances that are obviously damaged must not be operated.
Unintended use of the appliance or damage to the housing may result in the
escape of dangerous UV-C radiation. UV-C radiation may, even in small doses,
cause harm to the eyes and skin.
Before opening doors and access panels bearing the ULTRAVIOLET RADIATION
hazard symbol for the conducting USER MAINTENANCE, it is recommended to
disconnect the power.
The UV-C lamp can not be cleaned, repaired and replaced.
UV-C BARRIERS bearing the ULTRAVIOLET RADIATION hazard symbol should
not be removed.
This appliance contains an UV emitter. Do not stare at the light
source.
WARNING
04
PRODUCT INSTALLATION WARNING
Installation must be performed by an authorized dealer or specialist. Defective
installation can cause water leakage, electrical shock, or fire.
Installation must be performed according to the installation instructions.
Improper installation can cause water leakage, electrical shock, or fire.
Contact an authorized service technician for repair or maintenance of this unit.
This appliance shall be installed in accordance with national wiring regulations.
Only use the included accessories, and specified parts for installation.
Using non-standard parts can cause water leakage, electrical shock, fire, and or
cause the unit to fail.
Install the unit in a sturdy location that can support the unit’s weight. If the chosen
location cannot support the unit’s weight, or the installation is not done properly,
the unit may drop and cause serious injury or damage.
Install drainage piping according to the instructions in this manual. Improper
drainage may cause water damage to your home and property.
For units that have an auxiliary electric heater, do not install the unit within 1
meter (3 feet) of any combustible materials.
Do not install the unit in a location that may be exposed to combustible gas leaks.
If combustible gas accumulates around the unit, it may cause fire.
Do not turn on the power until all work has been completed.
Only a qualified technician may move or relocate the air conditioner.
Pleae read the sections covering the indoor and outdoor unit installation for
additional information.
●
●
●
●
●
●
●
●
●
●
●
05
Turn o the air conditioner and disconnect the power if you are not going to use
it for a long time.
Turn o and unplug the unit during storms.
Make sure that water condensation can drain unimpeded from the unit.
Do not operate the air conditioner with wet hands. This may cause electric shock.
Do not use the device for any purpose other than its intended use.
Do not climb onto or place objects on top of the outdoor unit.
Do not allow the air conditioner to operate for long periods of time with doors or
windows open, or if the humidity is very high.
●
●
●
●
●
●
●
Do not clean the air conditioner with combustible cleaning agents. Combustible
cleaning agents can cause fire or deformation.
Turn o the device and disconnect the power before cleaning. Failure to do so
can cause electrical shock.
A moist cloth may be used to clean the device. It should not be wased with water.
●
●
●
CAUTION
CLEANING AND MAINTENANCE WARNINGS
●
●
●
●
●
Note about Fluorinated Gasses
This air-conditioning unit contains fluorinated greenhouse gasses. For specific
information on the type of gas and the amount, please refer to the relevant label on
the unit itself or the “Owner's Manual - Product Fiche ” in the packaging of the
outdoor unit. (European Union products only).
Installation, service, maintenance and repair of this unit must be performed by a
certified technician.
Product uninstallation and recycling must be performed by a certified technician.
For equipment that contains fluorinated greenhouse gases in quantities of 5 tonnes
of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the
system has a leak-detection system installed, it must be checked for leaks at least
every 24 months.
When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.
●
●
●
WARNING FOR USING R32
2
When flammable refrigerants are employed, appliances shall be stored in a well
ventilated area where the room size corresponds to the room area as specified for
operation.
For R32 refrigerant models:
Appliances shall be installed, operated and stored in a room with a floor area larger
than 4m .
Reusable mechanical connectors and flared joints are not allowed indoors.
06
SPECIFICATIONS
220-240V~50Hz,
Product Model
Power source
Cooling capacity(W)
Heating capacity(W)
Rated current(A)
Rated power input(W)
Refrigerant(kg)
CF-09VCBF-T
CF-09VCBC-T
2600
-
10.5
2300
0.5
16～23
CF-12VCBF-T
CF-12VCBC-T
3500
-
10.5
2300
0.5
16～23
Applicable room area (m )
Water ingress protection
of outdoor unit
2
IPX4
1 Ph
07
Wall Mounting Plate
Power Cable(not all units)
Refrigerant Piping
Signal Cable
Remote Controller
Drainage Pipe
Louver
Remote controller Holder
(not supplied)
Functional Filter (On Back of
Main Filter - Some Units)
Front Panel
Outdoor Unit Power Cable
(not all units)
1
2
3
4
5
6
7
8
9
10
11
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may
be slightly dierent.
NOTE ON ILLUSTRATIONS:

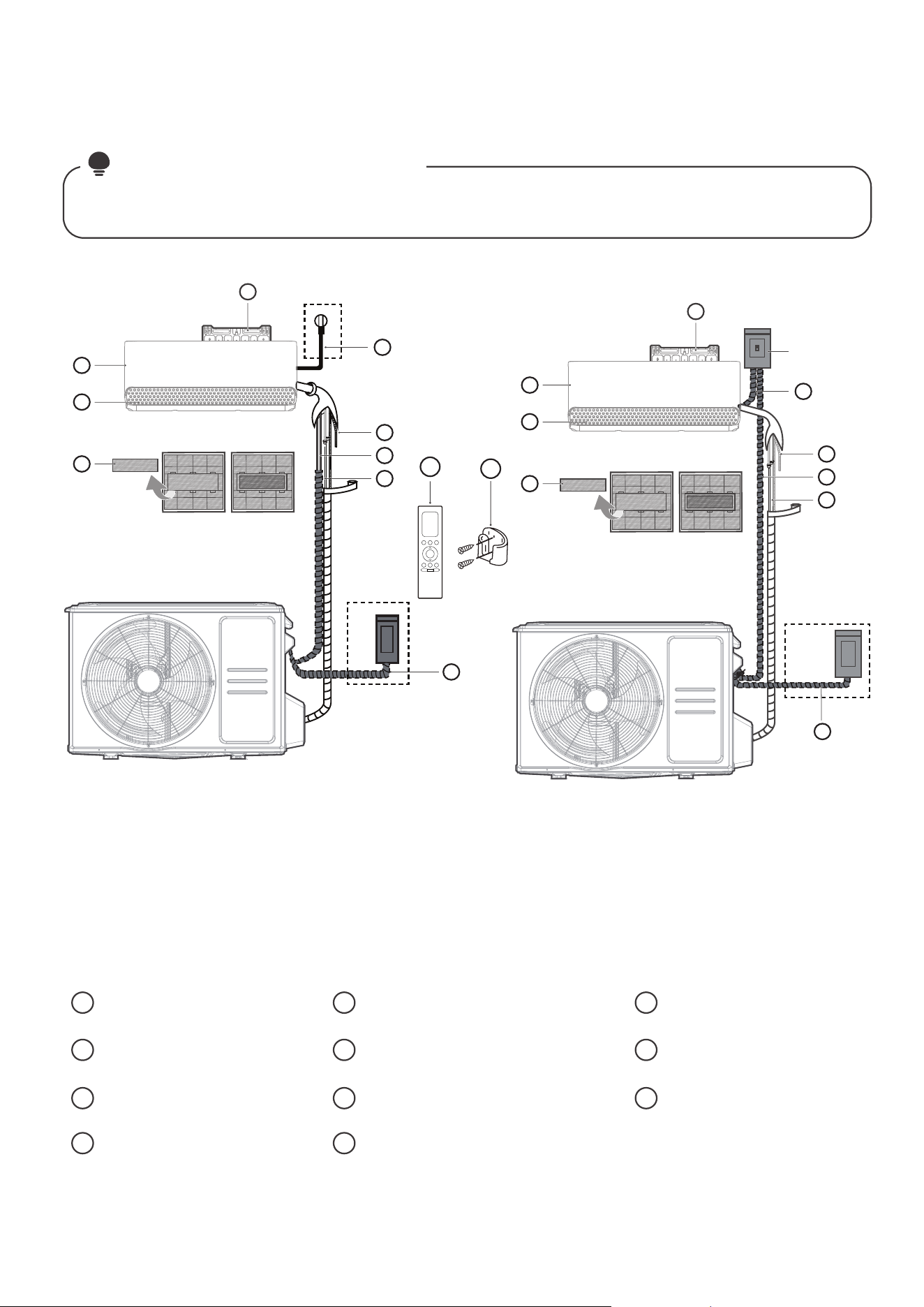

PRODUCT OVERVIEW
(1)
(2)
9
10
3
6
7
8
11
1
5
2
4
Air-break
switch
3
1
5
6
7
8
11
2
4
PRODUCTION INSTALLATION

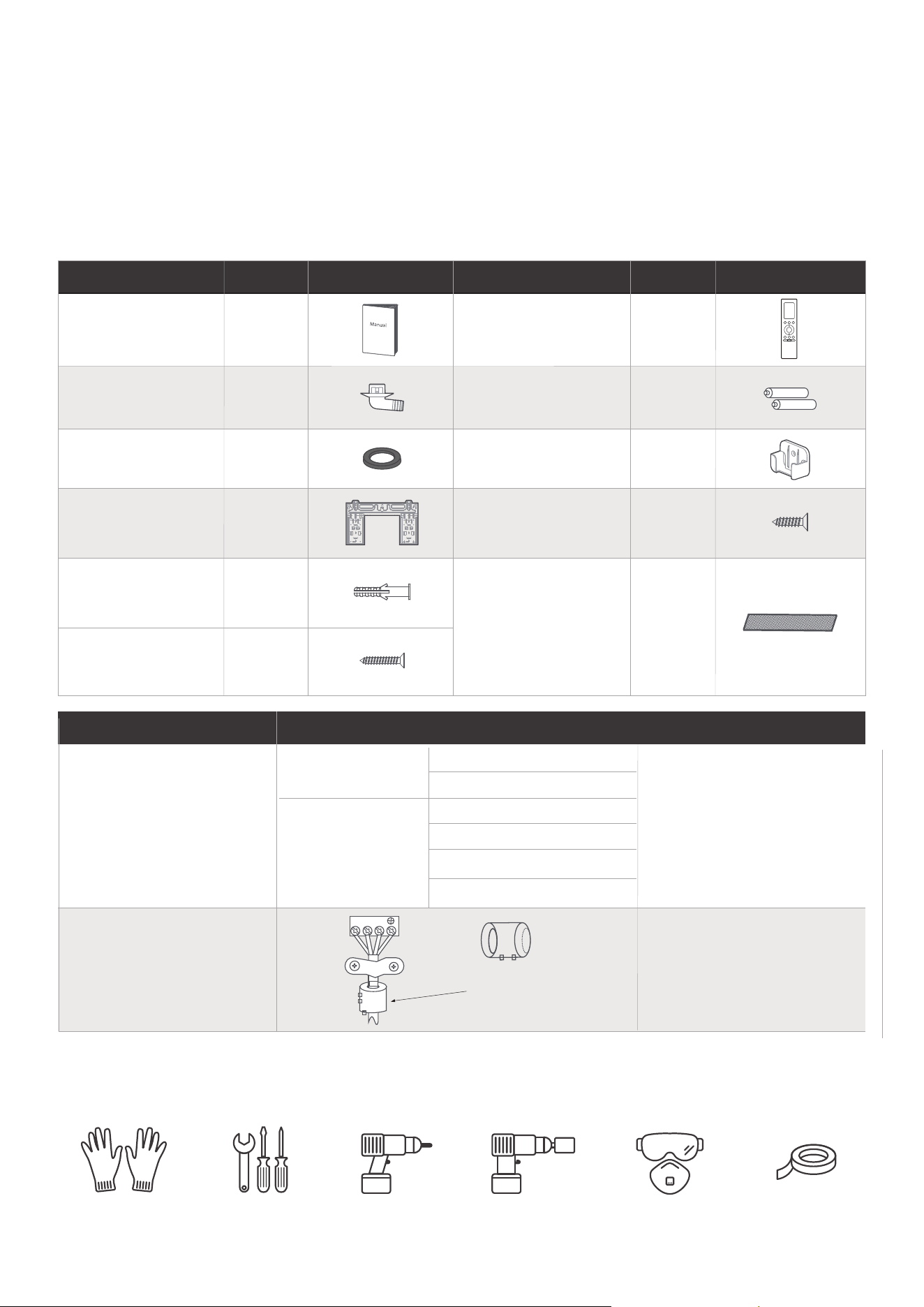

Accessories
The air conditioning system comes with the following accessories. Use all of the installation parts and
accessories to install the air conditioner. Improper installation may result in water leakage, electrical
shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must
be purchased separately.
Magnetic ring and belt
Varies by model
(Not all units. Where applicable,
please refer to the wiring
diagram)
Pass the belt(packed with
the magnetic ring) through
the hole of the magnetic
ring to fix it to the cable
1 2 3
Name Shape Quantity(PC)
(needs to be installed
behind the main air filter
by an authorized technician
during installation)
Mounting plate
fixing screw
Gloves Screwdriver &
wrench
Hammer
drill
Core drill Goggles & masks Vinyl tape
Remote controller
Fixing screw for
remote controller
holder(sold
separately)
Remote controller
holder(sold
separately)
Drain joint
(for cooling &
heating models)
Seal
(for cooling &
heating models)
Mounting plate
Manual
Connective pipes must be
purchased separately. Please
consult the dealer for the correct
size for the unit purchased
Connecting pipe
assembly
Liquid side
Gas side
Φ
6.35( 1/4 i n)
Φ
9.52( 3/8in)
Φ
9.52( 3/8in)
Φ
12.7( 1/2in)
Φ
16( 5/8in)
Φ
19( 3/4in)
1-3
1
1
1
Anchor
1
2
1
2
Battery
Small Filter
2
5~8
(depending
on models)
5~8
(depending
on models)
Name of Accessories Name of AccessoriesQ’ty(pc) Shape Q’ty(pc) Shape
Tools required
08
09

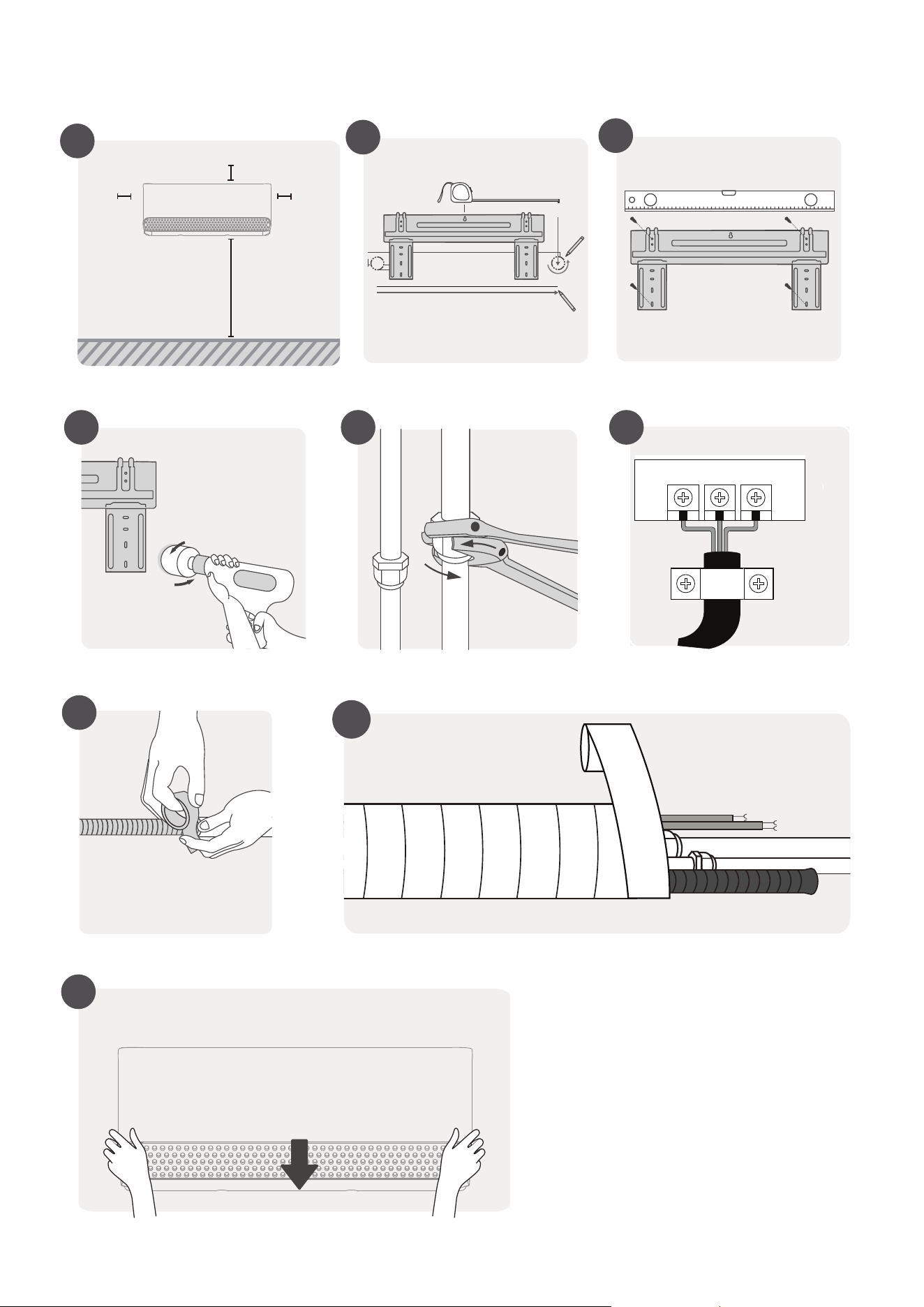

Installation summary - indoor unit
Mount indoor unit
9
Drill wall hole
Wrap piping and cable
(Not applicable for some locations in north america )
Connect piping
(For using R32 refrigerant units, the pipe
connection points must be placed outside
of the room)
Prepare drain hose
Connect wiring
(Not applicable for some
Locations in north america )
4
5
6
7
8
Select installation location
1
Determine wall hole position
2
Attach mounting plate
3
12cm
(4-3/4")
12cm
(4-3/4")
15cm (5-7/8")
≥
≥
≥
≥
2.5m(98-7/16'')

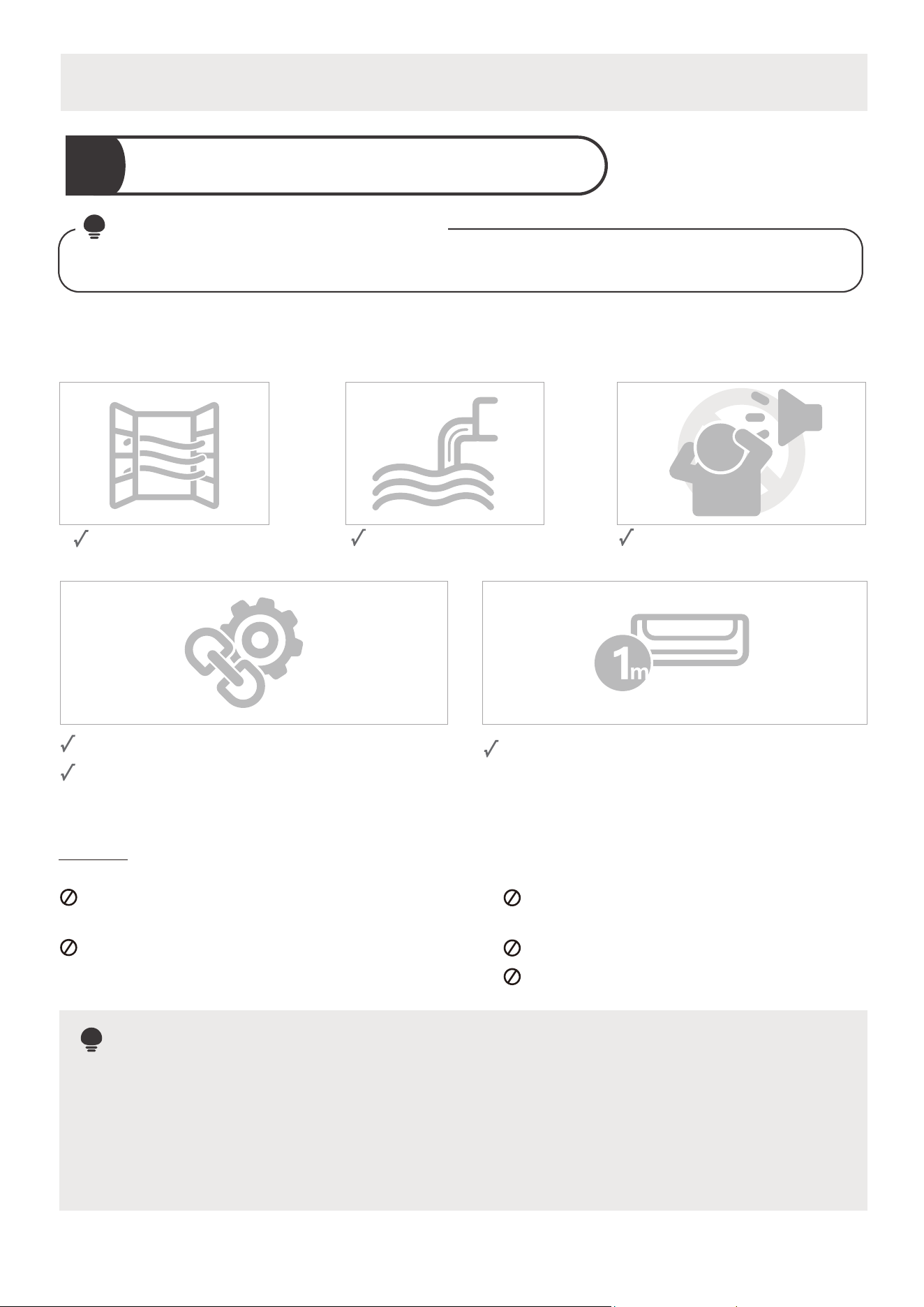

Before installing the indoor unit, refer to the label on the product box to make sure that the
model number of the indoor unit matches the model number of the outdoor unit.
The following are standards that will help you choose an appropriate location for the unit.
Proper installation locations meet the following standards:
Good air circulation
Convenient drainage
Noise from the unit will not
disturb other people.
Firm and solid—the location will not vibrate
Strong enough to support the weight of the
unit
A location at least one meter from all other
electrical devices (e.g., TV, radio, computer)
DO NOT
install unit in the following locations:
Near any source of heat, steam, or
combustible gas
Near flammable items such as curtains or
clothing
Near any obstacle that might block air
circulation
Near the doorway
In a location subject to direct sunlight
Installation Of Indoor Unit
Select installation location1
10
NOTE
NOTE: For product installation
: PRIOR TO INSTALLATION
If there is no fixed refrigerant piping:
When choosing a location, be aware that you should leave ample room for a wall hole (see
Drill wall hole for connective piping step) for the signal cable and refrigerant piping that
connect the indoor and outdoor units. The default position for all piping is the right side of
the indoor unit (while facing the unit). However, the unit can accommodate piping to both
the left and right.

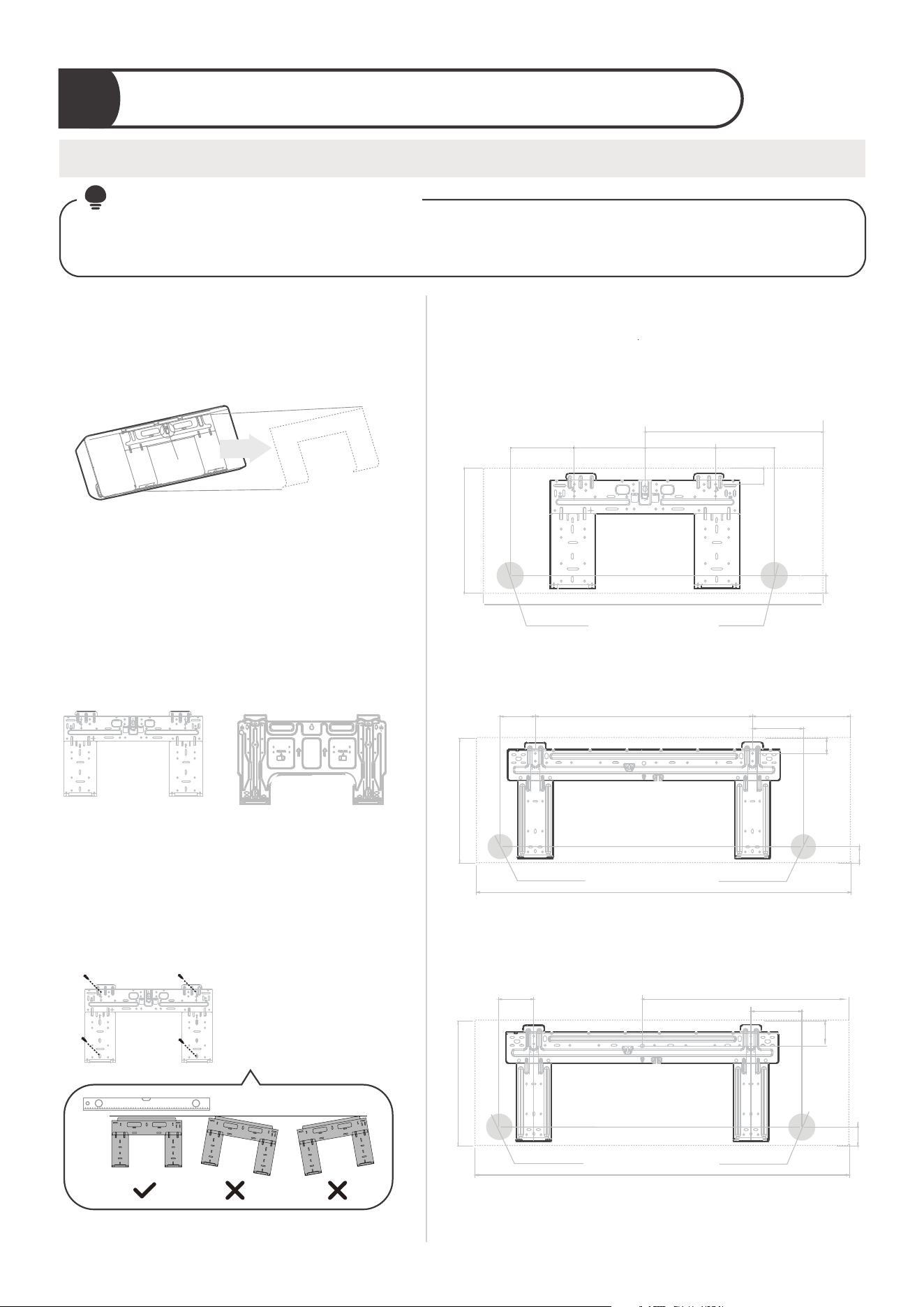

Determine wall hole location
Correct orientation of Mounting Plate
Remove the screw that attaches the
mounting plate to the back of the
indoor unit.
Secure the mounting plate to the wall
with the screws provided. Make sure
that mounting plate is flat against
the wall.
Drill wall hole for connective piping2
Screw
Step 1：
Step 4：
Step 2：
Step 3：
Confirm the mounting plate you own. Determine the
location of the wall hole based on the position of the
mounting plate.The dotted rectangular box above
shows the size of your product.
The size of the wall hole is determined by the connective pipes. When the size of the gas side
connective pipe is 16mm(5/8") or more, the wall hole should be 90mm(3-9/16"). For the size of
connective pipe is less than 16mm(5/8"), the wall hole should be 65mm(2-1/2").
NOTE
: THE WALL HOLE SIZE
11
Φ
Φ
Type A Type B
Dierent models have dierent mounting plates.
For the dierent customization requirements, the
shape of the mounting plate may be slightly
dierent. But the installation dimensions are the
same for the same size of indoor unit.
See Type A and Type B for example.
Wall hole 65mm(2.56in)
Indoor unit dimensions(WxH):
812mm(40.0in)x299mm(11.8in)
Indoor unit dimensions(WxH):
968mm(38.1in)x322mm(12.7in)
43mm
(1.7in)
39mm
(1.5in)
39mm
(1.5in)
43mm
(1.7in)
140mm(5.5in)
132mm(5.2in)
253mm(9.97in)
169mm(6.6in)
169mm(6.6in)
561mm(22.1in)
153mm(6.0in)
91mm
(3.6in)
H
H
426mm(16.8in)
W
W
Φ
Wall hole 65mm(2.56in)
Φ
Indoor unit dimensions(WxH):
1030mm(40.55in)x338mm(13.3in)
72.2mm
(2.84in)
58mm
(2.28in)
116.3mm(4.58in)
532mm(22.9in)
115.3mm
(4.54in)
H
W
Wall hole 90mm(3.5in)
Φ
Drill wall hole
Using a 65mm (2.5") or 90mm(3.54")
core drill(depending on models ), drill a
hole in the wall. Make sure that the hole
is drilled at a slight downward angle, so
that the outdoor end of the hole is lower
than the indoor end by about 5mm to
7mm (3/16-5/16"). This will ensure
proper water drainage.
Place the protective wall cu in the hole.
This protects the edges of the hole and
will help seal it when you finish the
installation process.
12
When drilling the wall hole, make sure to avoid wires, plumbing, and other sensitive components.
CAUTION
Φ 90mm
(3-9/16")
Φ 65mm
(2-1/2")
Step 1：
Step 2：
Using a 65mm (2-1/2") or 90mm(3-9/16")
core drill(depending on models )
Wall
Indoor
Outdoor
5-7mm
(3/16-5/16")
Fig.3.2
Drill the wall hole
Place the protective wall cu in the hole.
wall hole.
the protective
wall cu
If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in
the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by
tightening the screws directly into the clip anchors.
NOTE
: FOR CONCRETE OR BRICK WALLS
Prepare refrigerant piping
Based on the position of the wall hole relative
to the mounting plate, choose the side from
which the piping will exit the unit. You have four
options for the exit direction of the piping. The
description of the piping angle below for details.
Four chooses to exit
the piping
connect the indoor unit’s refrigerant piping to
the connective piping that will join the indoor
and outdoor units. Refer to the Refrigerant
Piping Connection section of this manual for
detailed instructions.
CAUTION
Be extremely careful not to dent or damage the pipes while bending them
away from the unit. Any dents in the pipes will aect the unit’s performance.

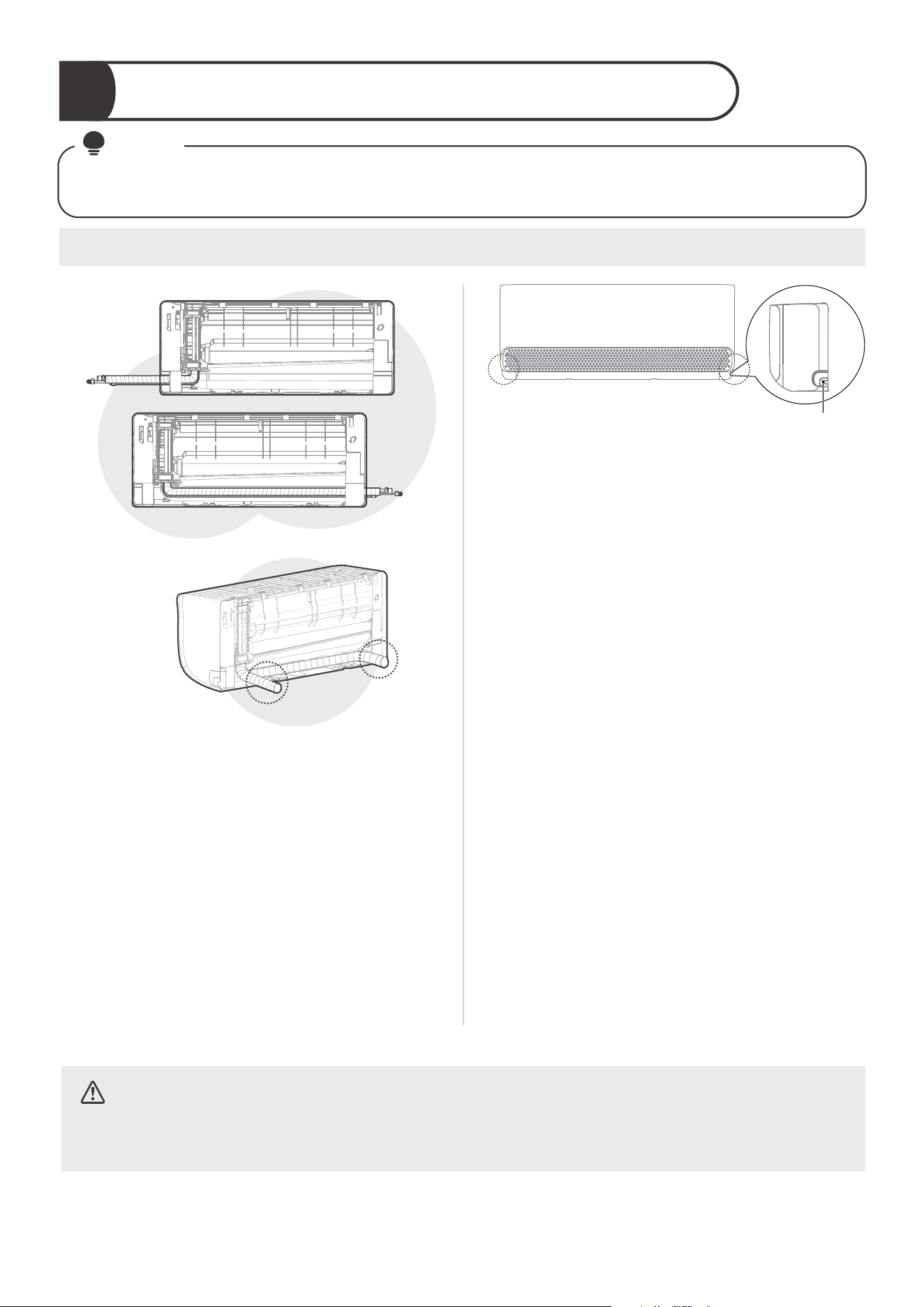

Install refrigerant pipe & drain hose
3
13
Step 1：
Step 3：
The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare
the piping before passing it through the hole in the wall.
NOTE
Left-hand
side
Left rear
Right rear
Right-hand
side
If the wall hole is behind the unit, keep the
knock-out panel in place. If the wall hole is to
the side of the indoor unit, remove the plastic
knock-out panel from that side of the unit. Use
needle nose pliers if the plastic panel is too
dicult to remove by hand.
Note: Groove has been made in the knock-out
panel in order to cut it conveniently. The size
of the slot is determined by the diameter of
pipings.
Knock-out
Panel
Knock-out Panel on
the left & right side
Step 2：
NOTE：If existing connective piping is
already embedded in the wall, proceed directly
to the Connect Drain Hose step.
PLUG THE UNUSED DRAIN HOLE
To prevent unwanted leaks you
must plug the unused drain hole
with the rubber plug provided.
CORRECT
Make sure there are no
kinks or dent in drain hose
to ensure proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
NOT CORRECT
Do not place the end of
the drain hose in water or
in containers that collect
water. This will prevent
proper drainage.
NOT CORRECT
Kinks in the drain hose
will create water traps.
CAUTION
For the portion of the drain hose that will
remain indoors, wrap it with foam pipe
insulation to prevent condensation.
Remove the air filter and pour a small amount
of water into the drain pan to make sure that
water flows from the unit smoothly.
●
●
14
The drain hose can be attached to the left
or right side. To ensure proper drainage,
attach the drain hose on the same side as the
refrigerant piping. Attach the drain hose
extension (purchased separately) to the end
of the drain hose.
Wrap the connection point firmly with
Teflon tape to ensure a good seal and to
prevent leaks.
●

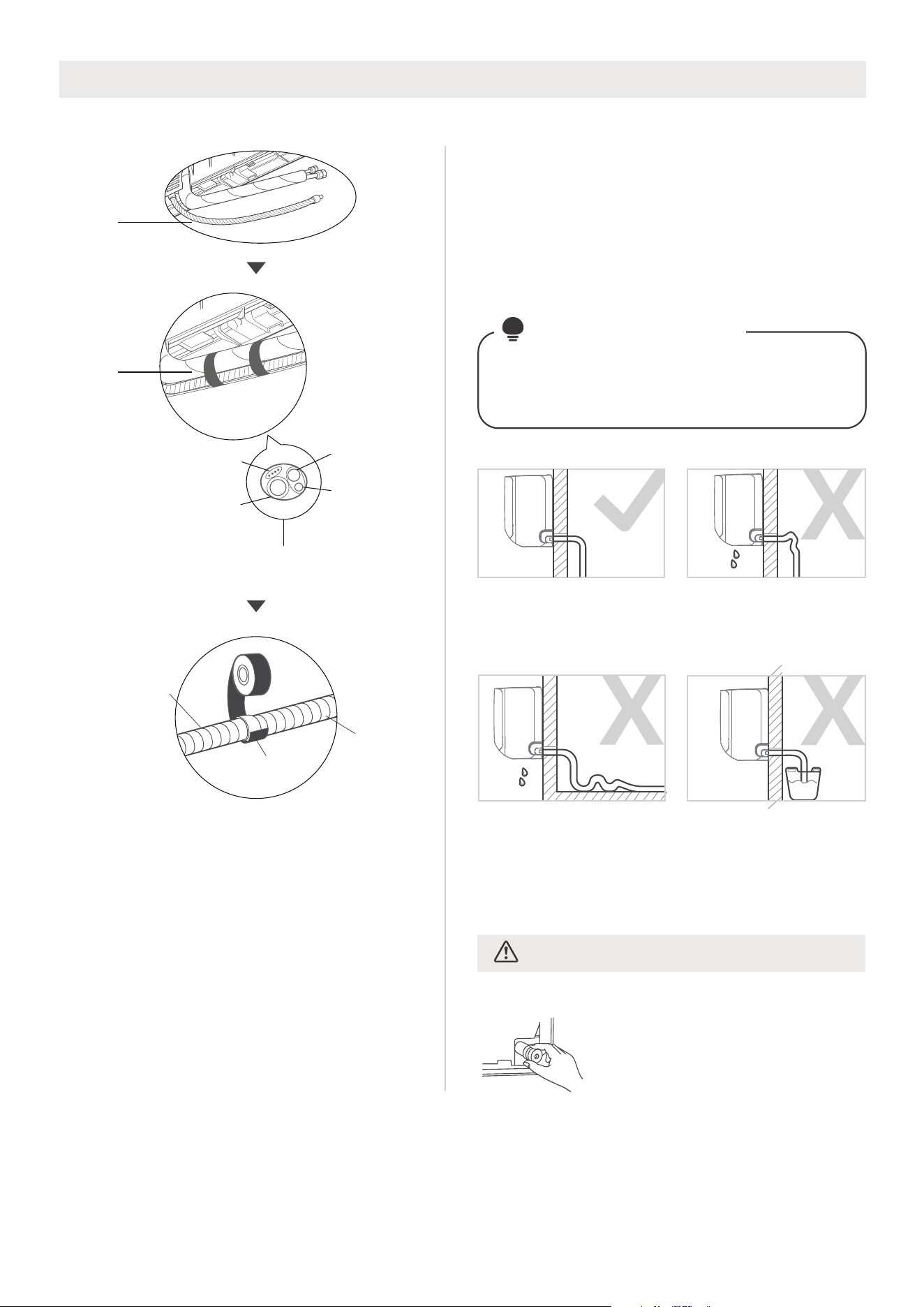

Step 1：
Make sure to arrange the drain hose
according to the following figures.
NOTE ON DRAIN
HOSE PLACEMENT
Connect drain hose
Drain
hose
Make sure the drain hose
is at the bottom
vinyl
tape
Connecting
cable
Gas side
piping
Liquid side
piping
Drain
hose
Vinyl tape(narrow)
Drain pipe
extension
Drain
pipe
15
Electrical work preparation
4
Before performing any electrical work, read these instructions.
1. All wiring must comply with local and national
electrical codes, and regulations and must be
installed by a licensed electrician.
2. All electrical connections must be made
according to the Electrical Connection Diagram
located on the panels of the indoor and outdoor
units.
3. If there is a serious safety issue with the power
supply, stop work immediately. Explain the
situation to the client, and cease installation
until the safety issue is properly resolved.
4. If connecting power to fixed wiring, a switch
or circuit breaker that disconnects all poles and
has a contact separation of at least 1/8in (3mm)
must be incorporated in the fixed wiring. The
qualified technician must use an approved
circuit breaker or switch.
5. Only the unit and no other appliance or power
point must be connected to an individual branch
circuit outlet.
6. Make sure to properly ground the air conditioner.
7. Every wire must be firmly connected. Loose
wiring can cause the terminal to overheat,
resulting in product malfunction and possible fire.
8. Do not let wires touch or rest against refrigerant
tubing, the compressor, or any moving parts
within the unit.
9. To avoid getting an electric shock, never touch
the electrical components soon after the power
supply has been turned o. After turning o
the power, always wait 10 minutes or more
before you touch the electrical components.
10 Power voltage should be within 90-110% of
rated voltage. Insucient power supply can
cause malfunction, electrical shock, or fire.
WARNING
All wiring must be performed strictly in
accordance with the wiring diagram located on
the back of the Indoor Unit’s front panel.
Before performing any electrlcal or wiring work, turn o the main power to the
system.
Connect signal and power cables
The signal cable enables communication between
the indoor and outdoor units. You must first
choose the right cable size before preparing it for
connection.
1. Open front panel of the indoor unit.
2. Using a screwdriver, open the wire box cover on
the right side of the unit. This will reveal the
terminal block.
3. Unscrew the cable clamp below the terminal
block and place it to the side.
●
●
WARNING

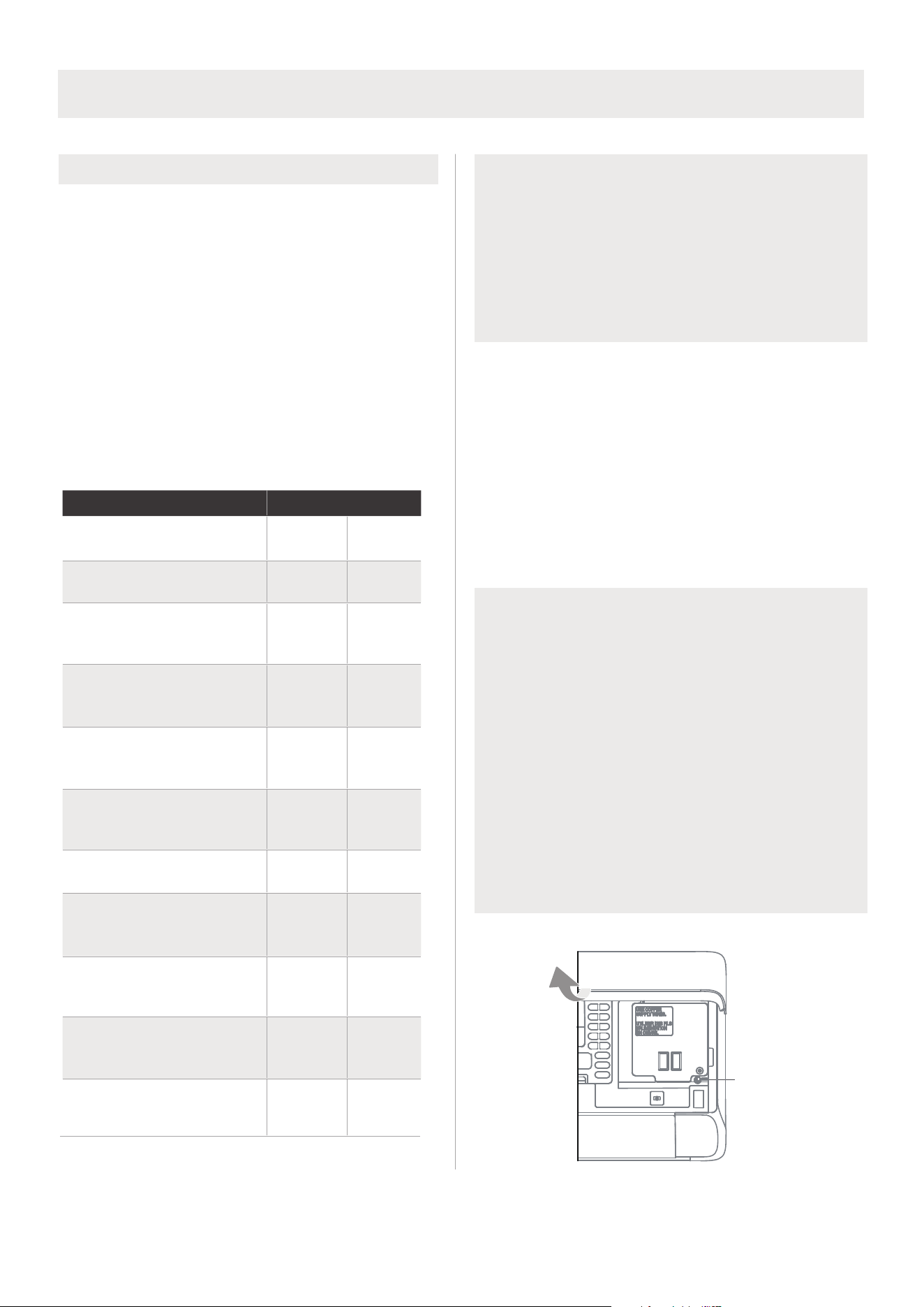

Cable Types(Not applicable for North America)
• Indoor Power Cable
(if applicable):
H05VV-F or H05V2V2-F
• Outdoor Power Cable: H07RN-F or H05RN-F
• Signal Cable: H07RN-F
Minimum Cross-Sectional Area of
Power and Signal Cables (For reference)
Rated Current of
Appliance (A)
Nominal Cross-Sectional
Area (mm2)
> 3 and ≤ 6
0.75
> 6 and ≤ 10
1
> 10 and ≤ 16
1.5
> 16 and ≤ 25
2.5
> 25 and ≤ 32
4
> 32 and ≤ 40
6
CHOOSE THE RIGHT CABLE SIZE
The size of the power supply cable, signal
cable, fuse; and switch needed is determined
by the maximum current of the unit. The
maximum current is indicated on the nameplate
located on the side panel of the unit. Refer to
this nameplate to choose the right cable, fuse,
or switch.
16

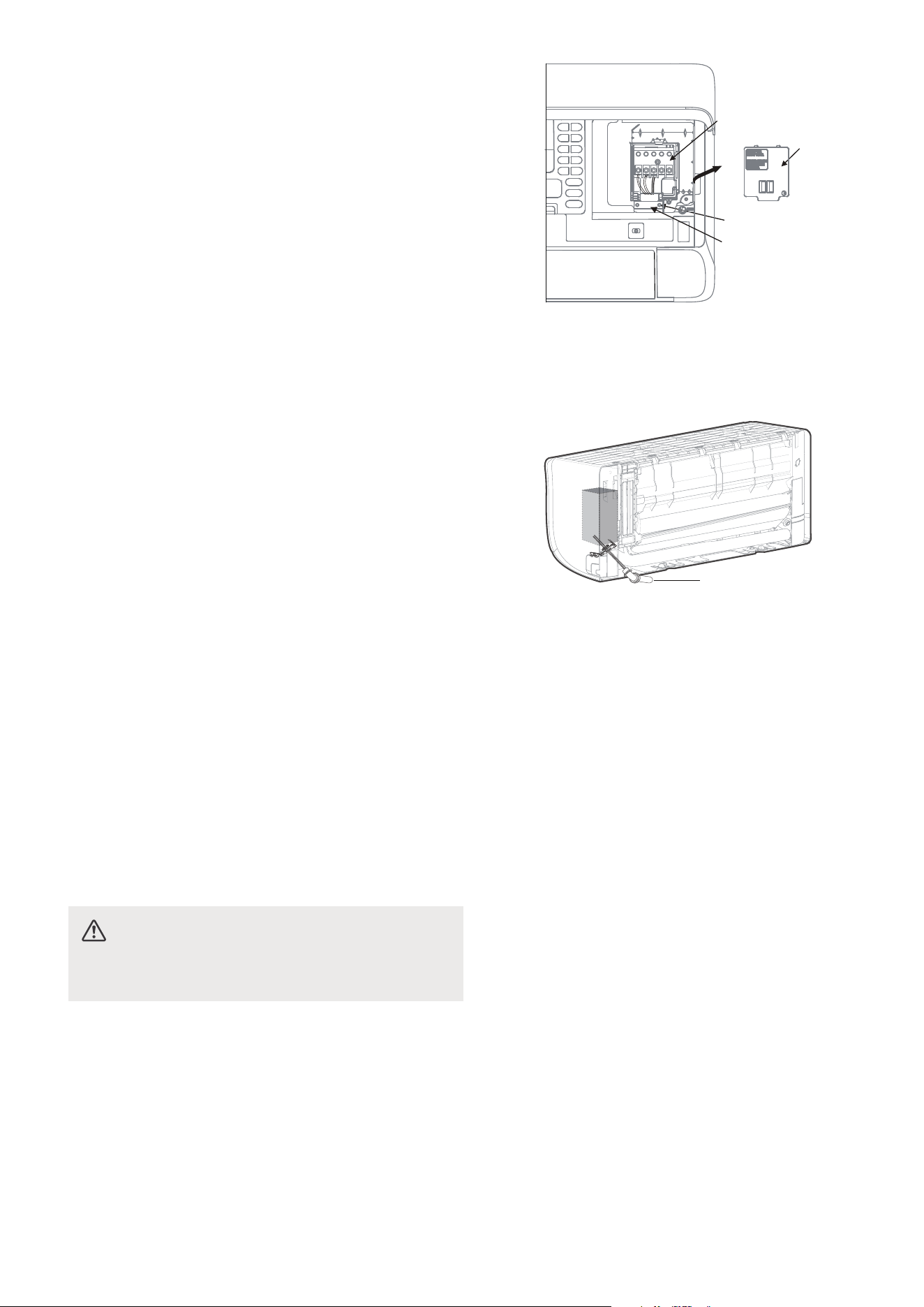

4. Remove the plastic panel on the bottom left-hand
side(facing the back of the unit).
5. Feed the signal wire through this slot, from
the back of the unit to the front.
6. Facing the front of the unit, connect the wire
according to the indoor unit’s wiring diagram,
connect the u-lug and firmly screw down each
wire to its corresponding terminal.
7. After checking to make sure every connection
is secure, use the cable clamp to fasten the
signal cable to the unit. Screw the cable clamp
down tightly.
8. Replace the wire cover on the front of the
unit and the plastic panel on the back.
In North America
NOTE: Choose the cable type according to the local
electrical codes and regulations. Please choose the
right cable size according to the Minimum Circuit
Ampacity indicated on the nameplate of the unit.
1. Facing the back of the unit, remove the plastic
panel on the bottom left-hand side.
2. As shown in the illustration, insert the wires
including the ground wire into the conduit
and secure them with the lock nut onto the conduit
mounting plate.
3. Match wire colors with terminal numbers on the indoor
and outdoor unit’s terminal blocks and firmly
screw down the wires to the corresponding terminals.
4. Connect the ground wires to the corresponding
terminals.
5. Pull the wires and check that the wires are
securely fixed to the terminal block.
DO NOT MIX UP LIVE AND NULL WIRES
This is dangerous and can cause the air
conditioning unit to malfunction.
Conduit
Wire cover
Cable clamp
Screw
Terminal block
Wrap piping & Cables
5
THE DRAIN HOSE MUST BE ON THE BOTTOM
Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle
can cause the drain pan to overflow, which can lead to fire or water damage.
Do not intertwine signal cable with
other wires
While bundling these items together,do not intertwine
or cross the signal cable with any other wiring.
When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for
leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this
manual).
DO NOT WRAP THE ENDS OF THE PIPING

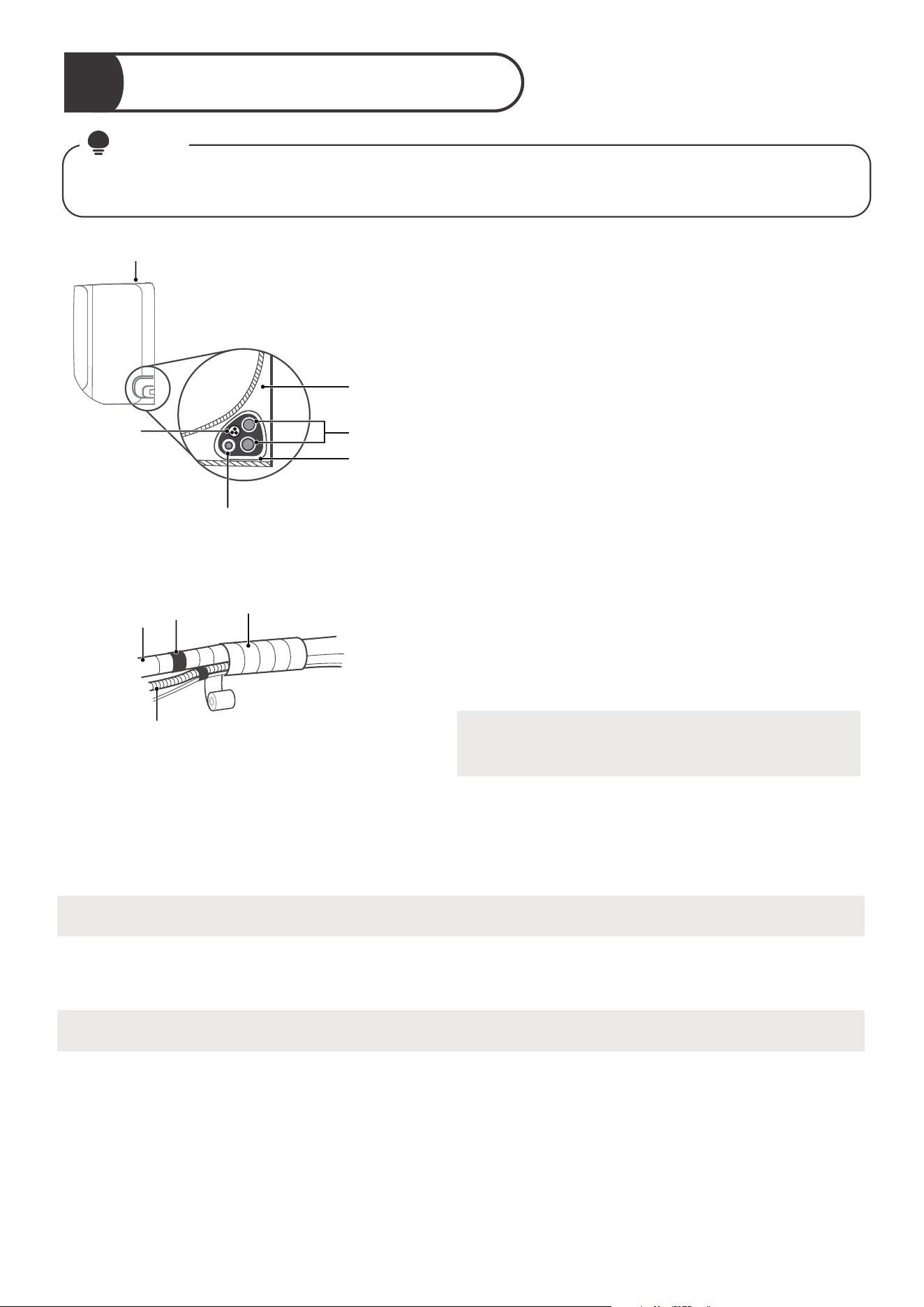

Bundle the drain hose, refrigerant pipes, and signal
cable as shown in the figure(Not applicable for some
locations in North America ).
Using insulation tape, wrap the refrigerant pipes,
signal wire and drain hose tightly together.
Double-check that all items are bundled.
Using adhesive vinyl tape, attach the drain hose to
the underside of the refrigerant pipes.
17
NOTE
Before passing the piping, and drain hose and the signal cable through the wall hole, you must bundle
them together to save space, protect them, and insulate them.
Space behind
unit
Signal
wire
Indoor Unit
Refrigerant
piping
Drain hose
Insulation
tape
Step 1：
Step 2：
Step 3：
Drain hose
Vinyl tape
(narrow)
Pipe
Wrap with
insulation tape
Mount indoor unit
6
18

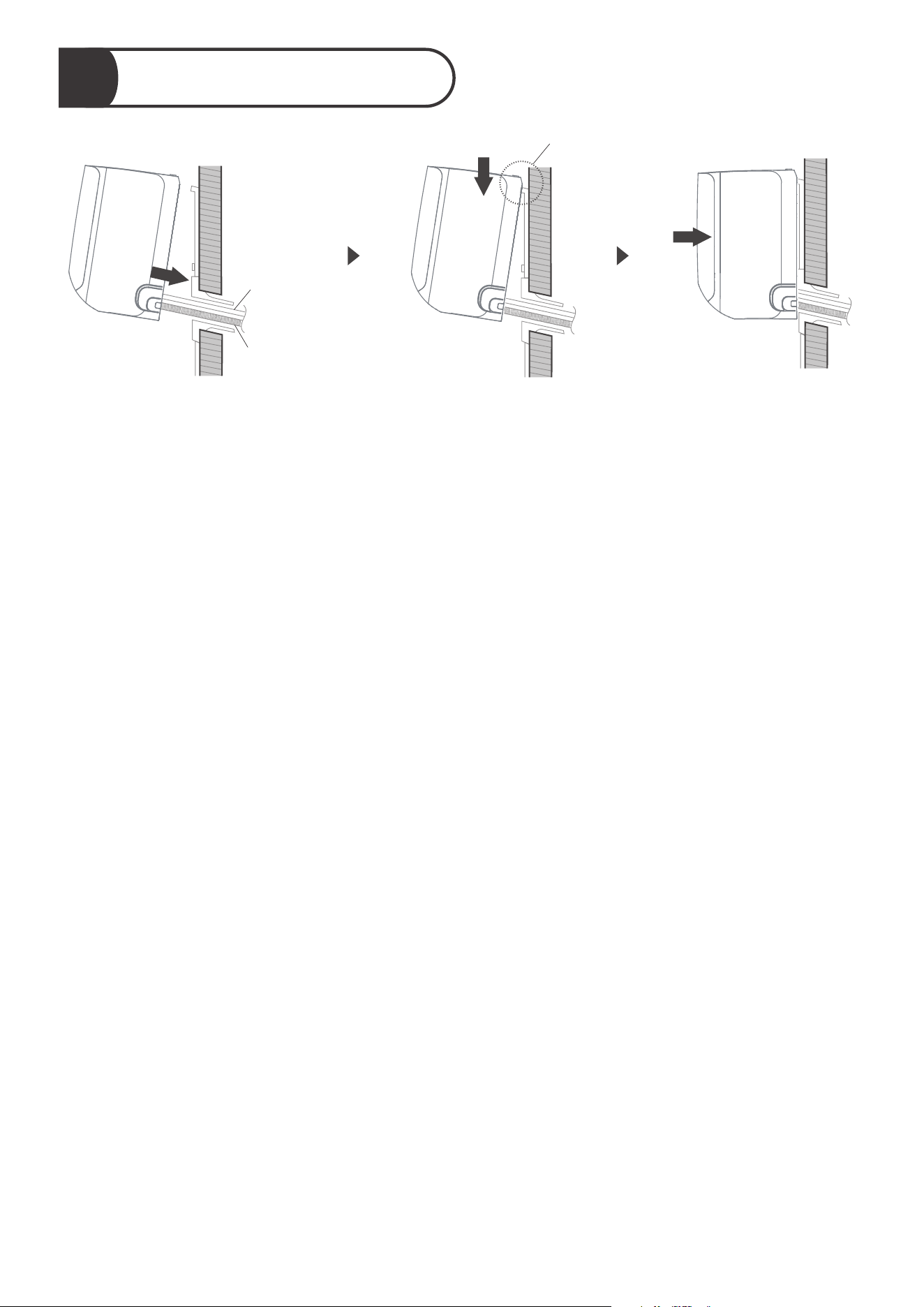

If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign
materials from entering the pipes.
Slowly pass the wrapped bundle of refrigerant pipes, drain hose and signal wire through the hole
in the wall.
Hook the top of the indoor unit on the upper hook of the mounting plate.
Check that the unit is hooked firmly on the mounting plate by applying slight pressure to the left and
right-hand sides of the unit. The unit should not jiggle or shift.
Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit
snaps onto the hooks along the bottom of the mounting plate.
Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand
sides of the unit.
Put pipes in wall hole Hook it and press down
lightly to secure
Check that the unit is
firmly mounted
●
●
●
●
●
●
●
If you installed new connective piping to the outdoor unit, do the following:
Drain
hose
Connecting
cable
Hook it
19
If the refrigerant piping is already embedded in the wall,
do the following:
Hook the top of the indoor unit on the upper hook of the
mounting plate.
Use a bracket or wedge to prop up the unit, giving you
enough room to connect the refrigerant piping, signal cable
and drain hose.
Connect drain hose and refrigerant piping (refer to
Refrigerant Piping Connection section of this manual for
instructions).
Keep the pipe connection point exposed to perform the leak
test (refer to Electrical Checks and Leak Checks section of
this manual).
After the leak test, wrap the connection point with
insulation tape.
Remove the bracket or wedge that is propping up the unit.
Using even pressure, push down on the bottom half of the
unit. Keep pushing down until the unit snaps onto the hooks
along the bottom of the mounting plate.
Move to left or right
30-50mm
（1-3/16~2in）
30-50mm
（1-3/16~2in）
Wedge
30°

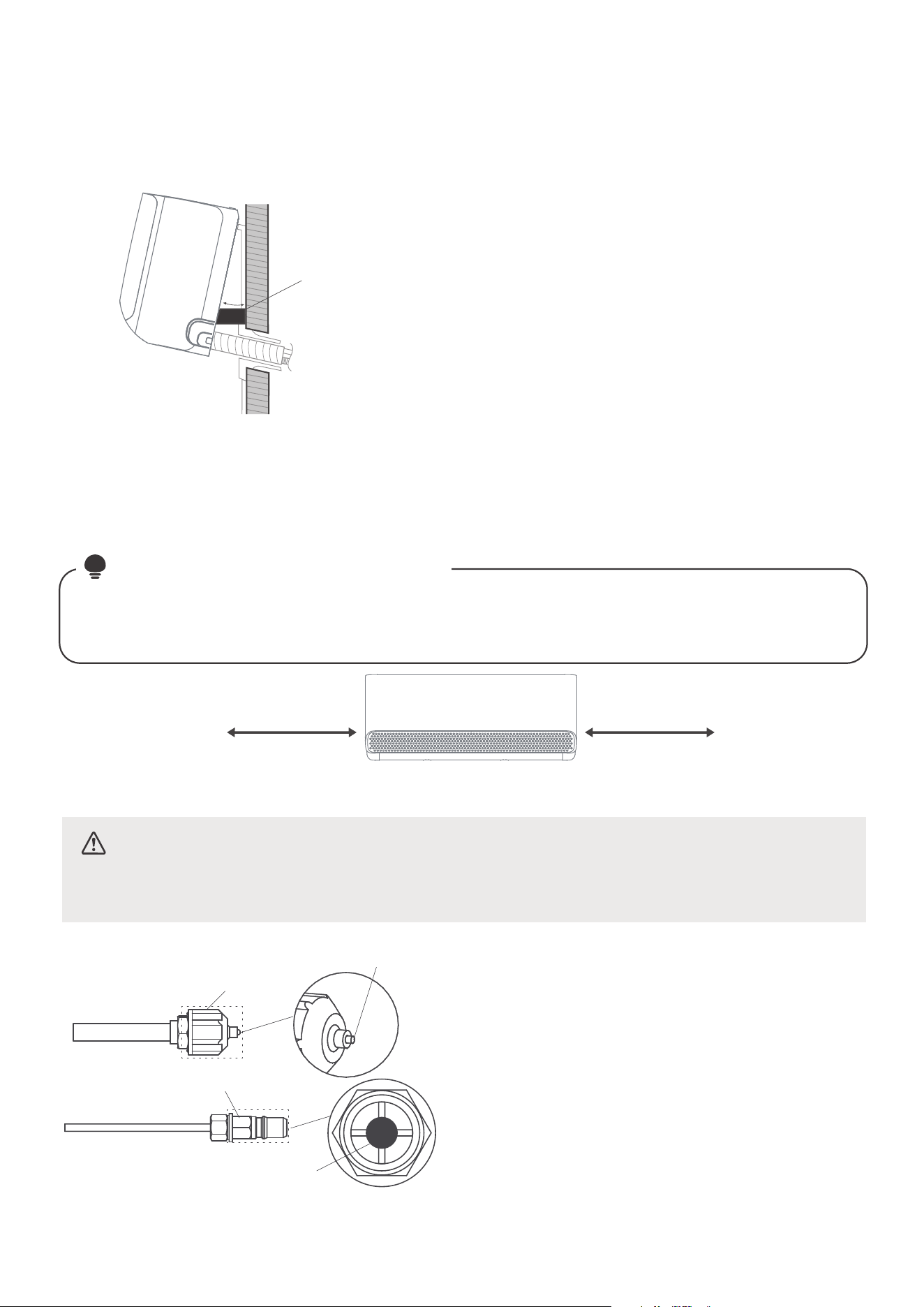

Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit.
If you find that you don’t have ample room to connect embedded pipes to the indoor unit, the unit
can be adjusted left or right by about 30-50mm (1.18-1.96in), depending on the model.
NOTE
: UNIT IS ADJUSTABLE
CAUTION
For the units adopt the following pipe connectors, please strictly perform the piping work in
accordance with the following instructions.
Connector A
Connector B
Cross-shape
part
Red point
protruding
Before performing the refrigerant piping
connection, always wear work gloves and
goggles and remember that the connectors
A and B are not allowed to face people directly.
Keep pressing the cross-shape part of connector
B with a tool for about 5~10 seconds until the
red protruding point of connector A retracts
completely.
Remove connectors A and B, then perform
the refrigerant piping connection between
indoor unit and outdoor unit.
●
●
●
●
●
●
●
●
●
●

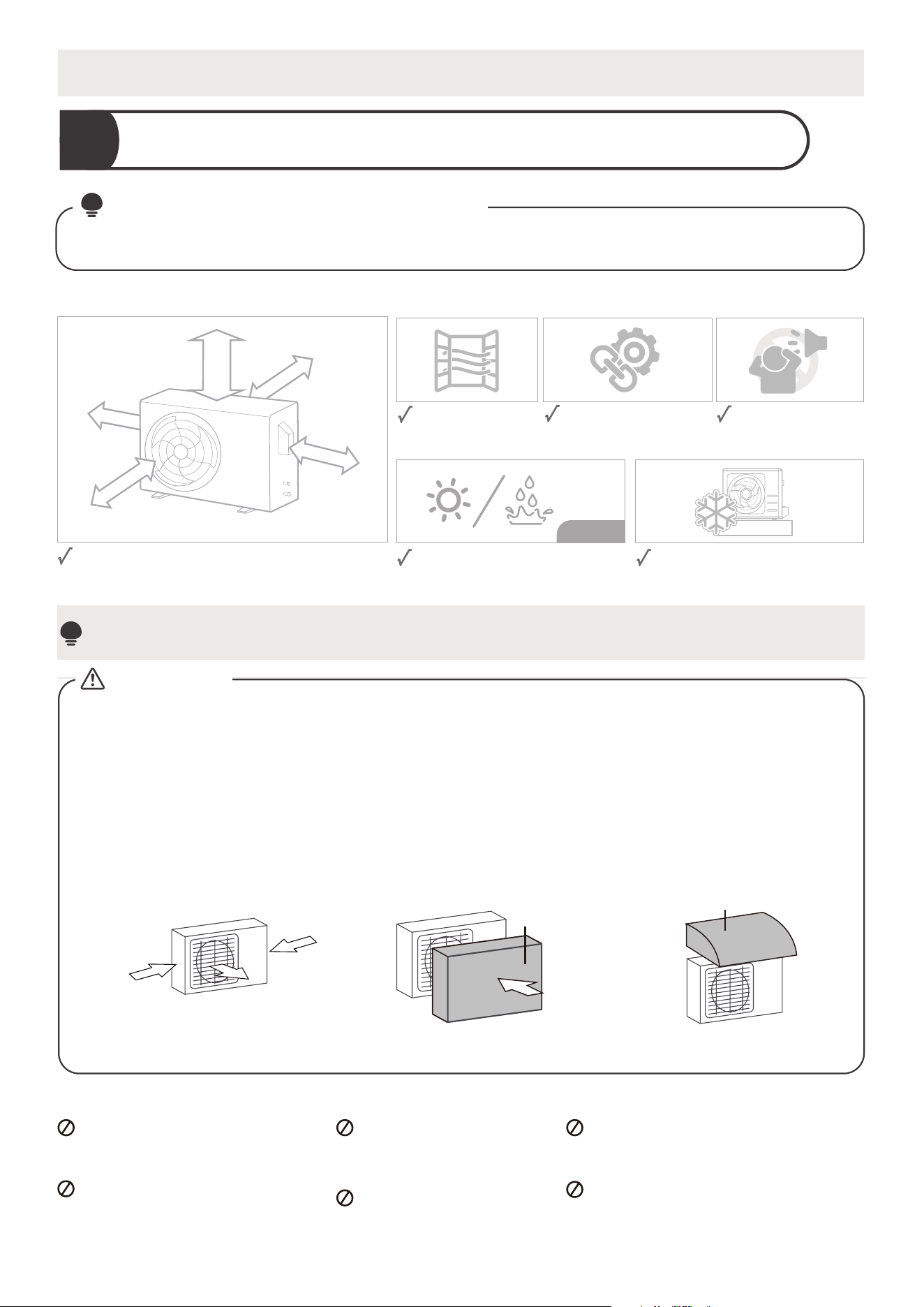

Installation Of Outdoor Unit
Select installation location
Before installing the outdoor unit, you must choose an appropriate location. The following are
standards that will help you choose an appropriate location for the unit.
Proper installation locations meet the following standards:
Firm and solid—the
location can support the
unit and will not vibrate.
Protected from prolonged periods
of direct sunlight or rain.
Where snowfall is anticipated, take
appropriate measures to prevent
ice buildup and coil damage.
DO NOT install unit in the following locations:
Near an obstacle that will
block air inlets and outlets.
Near a public street, crowded
areas, or where noise from
the unit will disturb others.
Near animals or plants
that will be harmed
by hot air discharge.
Near any source of
combustible gas.
In a location that is exposed to large
amounts of dust
In a location exposed to a excessive
amounts of salty air.
1
NOTE
Install the unit by following local codes and regulations , there may be dier slightly between
dierent regions.
NOTE
: PRIOR TO INSTALLATION
60cm（24"）
above
60cm（24"）
on right
200cm（79"）
in front
30cm（12"）
on left
30cm（12"）
from back wall
Good air circulation
and ventilation.
Meets all spatial requirements shown in Installation
Space Requirements above.
Noise from the unit
will not disturb other
people.
Long-term
Strong
wind
Strong
wind
Strong
wind
Wind Baffle
If the unit is frequently exposed to heavy rain or snow:
Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow
around the unit.
If the unit is frequently exposed to salty air(seaside):
Use outdoor unit that is specially designed to resist corrosion.
90° angle to the
direction of the wind
Build a wind Bae
to protect the unit
Build a shelter
to protect the unit
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier
in front of the unit to protect it from extremely heavy winds. See illustrations below.
CAUTION:
SPECIAL CONSIDERATIONS FOR EXTREME WEATHER
Shelter
20

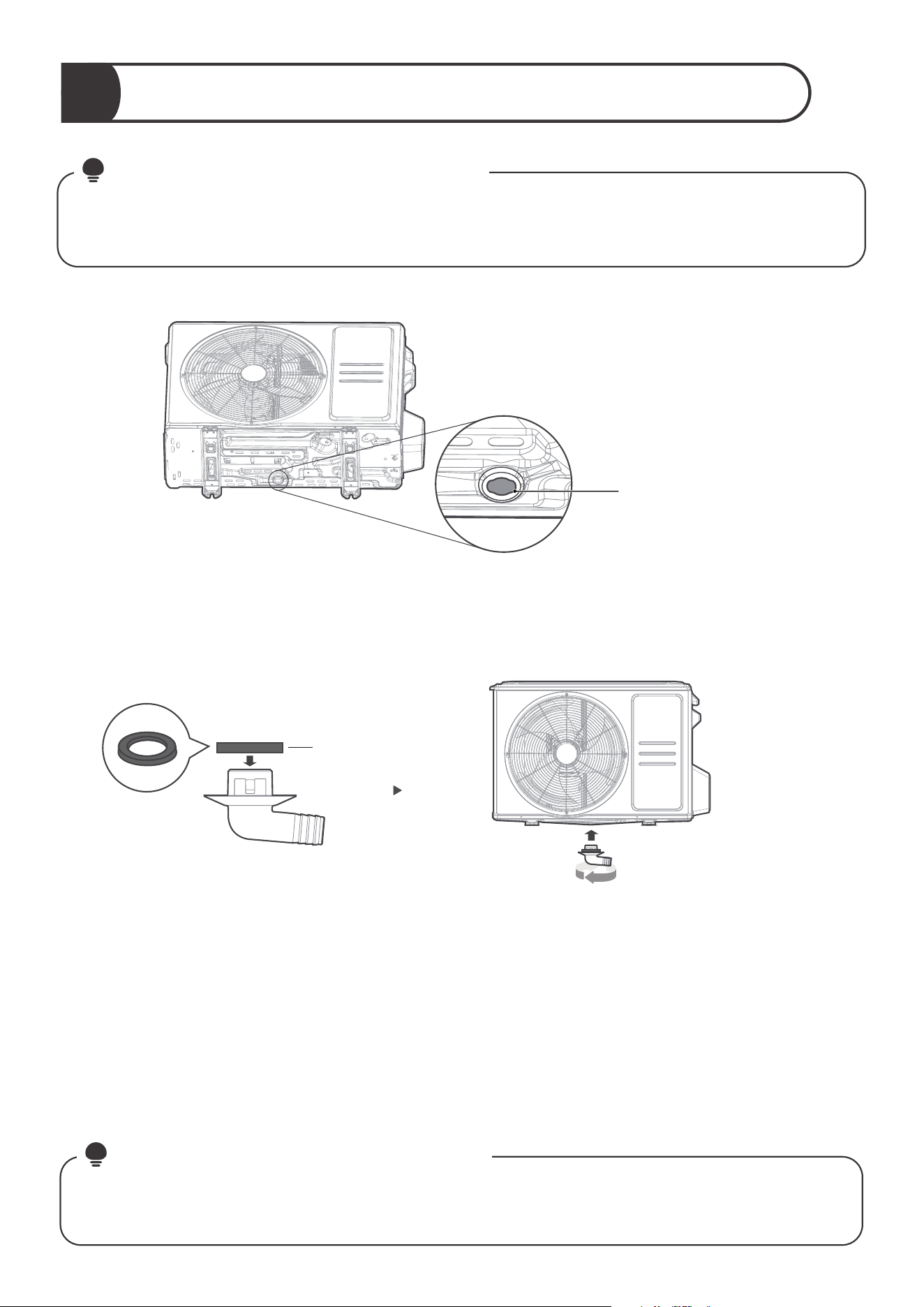

Install drain joint(Heat pump unit only)2
21
Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit.
For the units with built in base pan with multiple holes for draining , the drain joint does not need to
be installed.
NOTE
: PRIOR TO INSTALLATION
Seal
In areas with cold climates, make sure that the drain hose is as vertical as possible to ensure swift
water drainage. If water drains too slowly, it can freeze in the hose and flood the unit.
NOTE
: IN COLD CLIMATES
Base pan hole of
outdoor unit
Fit the rubber seal on the end of the drain joint that will connect to the
outdoor unit.
Insert the drain joint into the hole in the base pan of the unit. The drain joint
will click in place.
Connect a drain hose extension (not included) to the drain joint to redirect
water from the unit during heating mode.
●
●
●
Find out the base pan hole of outdoor unit.
Step 1：
Step 2：

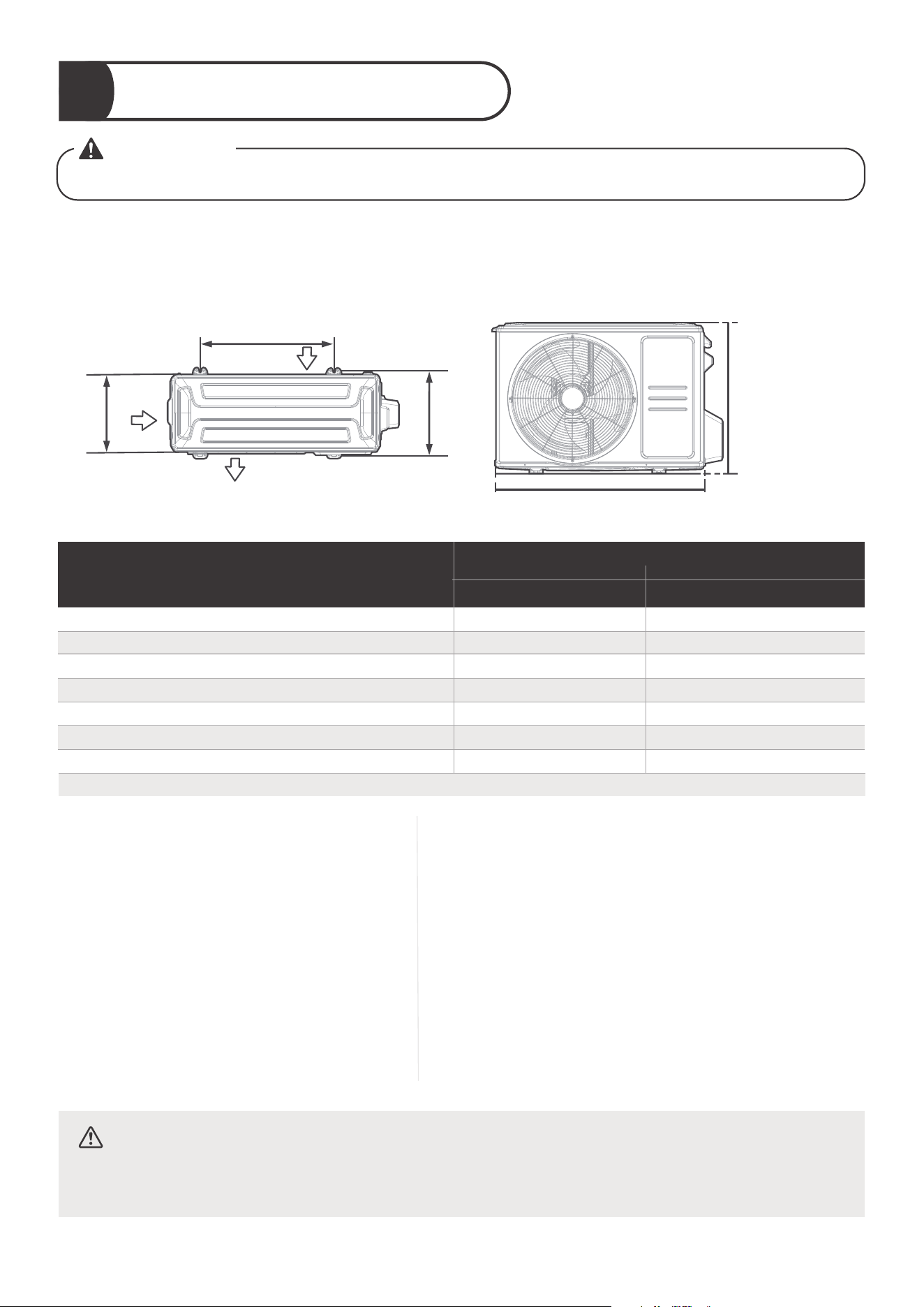

Anchor Outdoor Unit
3
The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare
the installation base of the unit according to the dimensions below.
The following is a list of dierent outdoor unit sizes and the distance between their mounting feet.
W
H
Top view Front view
If you install the unit on a wall-mounted
bracket , do the following:
Mark the position of bracket holes based on dimensions
chart.
Pre-drill the holes for the expansion bolts.
Place a washer and nut on the end of each expansion bolt.
Thread expansion bolts through holes in mounting
brackets, put mounting brackets in position and hammer
expansion bolts into the wall.
Check that the mounting brackets are level.
Carefully lift unit and place its mounting feet on the brackets.
Bolt the unit firmly to the brackets.
If allowed, install the unit with rubber gaskets to reduce
vibrations and noise.
If you install the unit on the
ground or on a concrete mounting
platform, do the following：
Mark the positions for four expansion bolts
based on the dimensions chart.
Pre-drill holes for expansion bolts.
Place a nut on the end of each expansion bolt.
Hammer expansion bolts into the pre-drilled
holes.
Remove the nuts from the expansion bolts and
place outdoor unit on bolts.
Put a washer on each expansion bolt and the
replace the nuts.
Using a wrench, tighten each nut until snug.
Outdoor Unit Dimensions (mm)
W x H x D
Mounting Dimensions
Distance A (mm) Distance B (mm)
765x555x303 (30.1”x 21.8”x 11.9”) 452 (17.8”) 286(11.3”)
890x673x342 (35.0”x 26.5”x 13.5”)
946x810x420 (37.2”x 31.9”x 16.5”)
663 (26.1”)
673 (26.5”)
354 (13.9”)
403 (15.9”)
946x810x410 (37.2”x 31.9”x 16.1”) 673 (26.5”) 403 (15.9”)
720x495x270 (28.3”x 19.5”x 10.6”) 452 (17.8”) 255 (10.0”)
680x542x248 (26.8”x 21.3”x 9.8”) 452 (17.8”) 230 (9.1”)
805x554x330 (31.7”x 21.8”x 12.9”) 511 (20.1”) 317 (12.5”)
22
D
A
B
Air inlet
Air inlet
Air outlet
WARNING
WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS RECOMMENDED AT ALL TIME.
CAUTION
Make sure that the wall is made of solid brick, concrete or of a similarly strong material.
The wall must be able to support at least four times the weight of the unit.
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
668x458x243 (26.3”x 18.0”x 9.57”) 231 (9.1”)
430 (16.9”)
WARNING

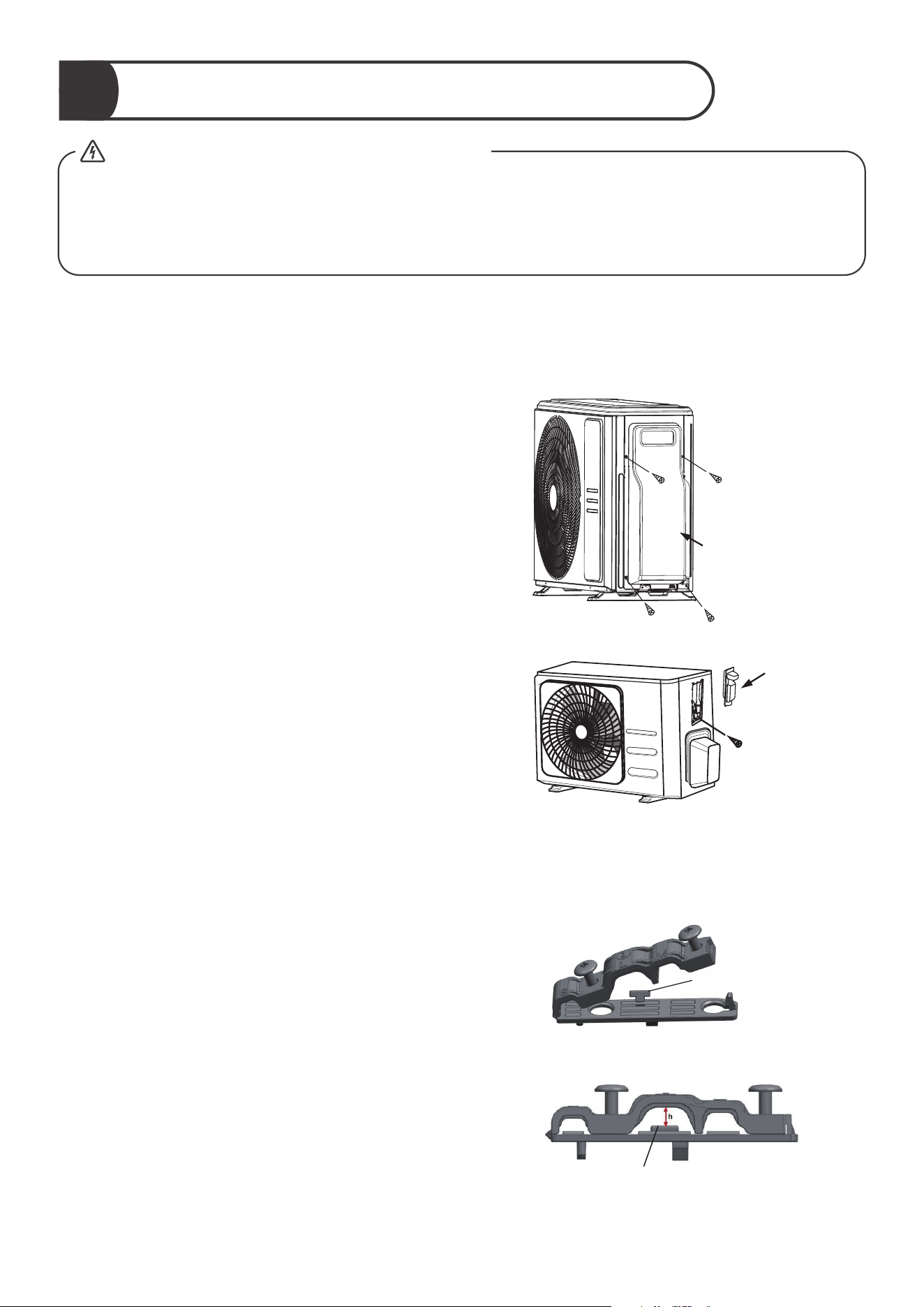

Connect signal and power cables
4
All wiring work must be performed strictly in accordance with the wiring
diagram located inside of the wire cover of the outdoor unit.
Before performing any electrical or wiring work,turn o the main power to
the system.
- Before the Operation
23
●
●
Unscrew the electrical wiring cover and remove
it.
Unscrew the cable clamp below the terminal
block and place it to the side.
Connect the wire according to the wiring
diagram, and firmly screw the u-lug of each
wire to its corresponding terminal.
After checking to make sure every connection is
secure, loop the wires around to prevent rain
water from flowing into the terminal.
Using the cable clamp, fasten the cable to the
unit. Screw the cable clamp down tightly.
Insulate unused wires with PVC electrical tape.
Arrange them so that they do not touch any
electrical or metal parts.
Replace the wire cover on the side of the unit,
and screw it in place.
The outside unit’s terminal block is protected by
an electrical wiring cover on the side of the unit.
A comprehensive wiring diagram is sticked on
the inside of the wiring cover.
●
●
●
●
●
●
●
●
●
●
Prepare the cable for connection
Please choose the right cable according
to the “Cable types” in page 15.
Using wire strippers, strip the rubber jacket
from both ends of cable to reveal about
40mm (1.57in) of the wires inside.
Strip the insulation from the ends of the wires.
Using a wire crimper, crimp u-lugs on the ends
of the wires.
Pay attention to live wire
While crimping wires, make sure you clearly
distinguish the Live (“L”) Wire from other wires.
Choose the right cable size
The size of the power supply cable, signal cable,
fuse, and switch needed is determined by the
maximum current of the unit. The maximum
current is indicated on the nameplate located
on the side panel of the unit.
Three size hole: Small, Large, Medium
When the calbe is not fasten enough, use the
buckle to prop it up , so it can be clamped tightly.
Buckle
NOTE: If the cable clamp looks like the
following, please select the appropriate
through-hole according to the diameter of
the wire.
Cover
Screw
NOTE: The unit you purchased may be slightly
dierent.The illustrations are for explanatory
purposes. The actual shape shall prevail.
Cover
Remove four
screws
In North America
24

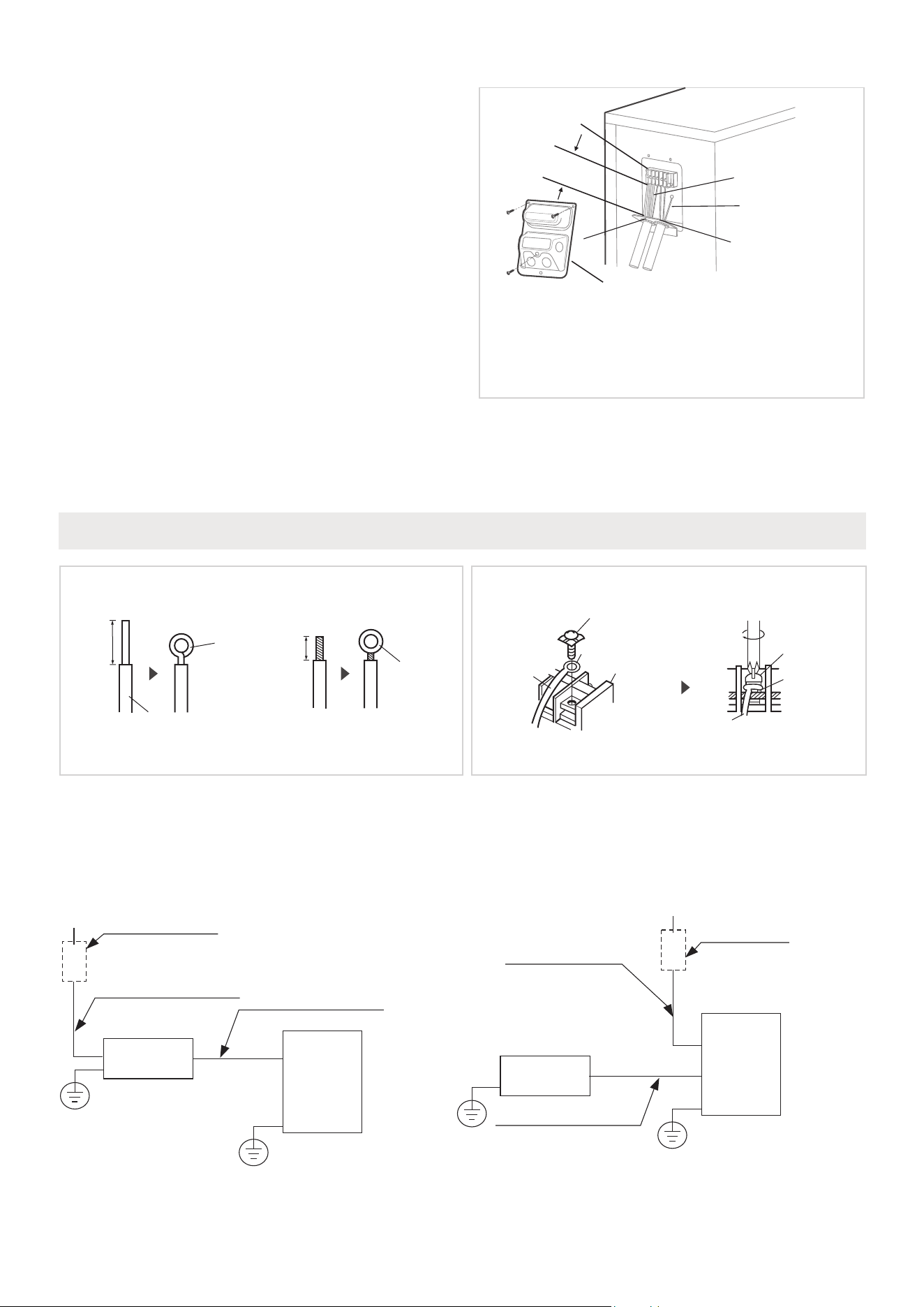

GG
Wire Cover
Over
1-9/16"
(40mm)
Terminal block
Conduit panel
Connecting cable
Power supply cord
Please select the appropriate through-hole according
to the diameter of the wire.
Remove the wire cover from the unit by
loosening the 3 screws.
Dismount caps on the conduit panel.
Temperarily mount the conduit tubes(not
included) on the conduit panel.
Properly connect both the power supply and
low voltage lines to the corresponding
terminals on the terminal block.
Ground the unit in accordance with local codes.
Be sure to size each wire allowing several inches
longer than the required length for wiring.
Use lock nuts to secure the conduit tubes.
The outside unit’s terminal block is protected by
an electrical wiring cover on the side of the unit.
A comprehensive wiring diagram is sticked on
the inside of the wiring cover.
Step 2：Step 1：
How to properly connect the wire lines.
Loop
Insulation
Strip 25mm(15/16")
Solid wire
Round
terminal
Strip 10mm(3/8")
Strand wire
Screw with
special
washer
Round terminal
Terminal plate
Wire
Screw with
special
washer
Wire
Round
terminal
Termination of wire: Connecting the line to the corresponding terminals
on the terminal block.
●
●
●
●
●
●
●
NOTE: Please choose the right cable size
according to the Minimum Circuit Ampacity
indicated on the nameplate of the unit.
Indoor unit
Outdoor unit
Wall receptacle or
Air break switch(North America)
(purchased separately)
Wall receptacle or
Air break switch
(North America)
(purchased separately)
(purchased separately)
Outdoor unit power wires
Indoor & Outdoor
connective wires
(A)
Indoor unit
Outdoor unit
(purchased separately)
Indoor unit power wires
Indoor & Outdoor
connective wires
(B)

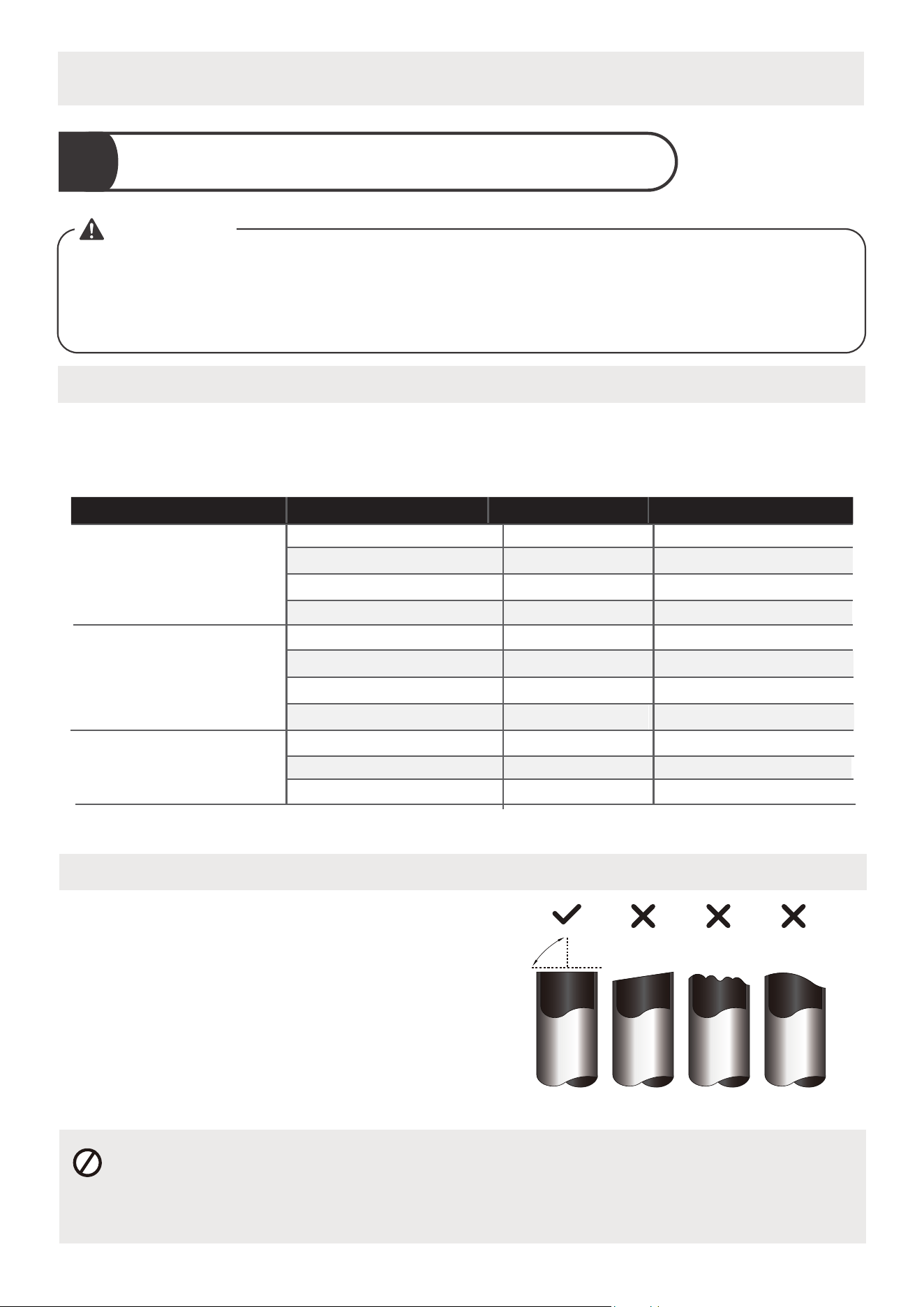

Piping Connection Precautions
Refrigerant Piping Connection
1
Note on Pipe Length
Connection Instructions – Refrigerant Piping
Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and flare them properly. This will
ensure efficient operation and minimize the
need for future maintenance.
Measure the distance between the indoor
and outdoor units.
Using a pipe cutter, cut the pipe a little
longer than the measured distance.
Make sure that the pipe is cut at a perfect
90° angle.
Oblique Rough Warped
90°
Maximum Length and Drop Height of Refrigerant Piping per Unit Model
DO NOT DEFORM PIPE WHILE CUTTING
WARNING
WHEN CONNECTING REFRIGERANT PIPING, DO NOT LET SUBSTANCES OR GASES OTHER THAN
THE SPECIFIED REFRIGERANT ENTER THE UNIT. THE PRESENCE OF OTHER GASES OR
SUBSTANCES WILL LOWER THE UNIT’S CAPACITY AND CAN CAUSE ABNORMALLY HIGH
PRESSURE IN THE REFRIGERATION CYCLE. THIS CAN CAUSE EXPLOSION AND INJURY.
The length of refrigerant piping will aect the performance and energy eciency of the unit. Nominal
eciency is tested on units with a pipe length of 5 meters (16.5ft). A minimum pipe run of 3 metres is
required to minimise vibration & excessive noise.
Be extra careful not to damage, dent; or deform the pipe while cutting. This will drastically reduce
the heating eciency of the unit.
25
●
●
●
Model
Capacity (BTU/h)
Max. Length (m)
Max. Drop Height (m)
R410A,R32 Inverter
Split Air Conditioner
R22 Fixed-speed
Split Air Conditioner
R410A, R32 Fixed-speed
Split Air Conditioner
< 15,000
< 18,000
25 (82ft) 10 (33ft)
10 (33ft) 5 (16ft)
≥ 15,000 and < 24,000 30 (98.5ft)
30 (98.5ft)
20 (66ft)
20 (66ft)
≥ 24,000 and < 36,000
≥ 36,000 and < 60,000
≥ 36,000 and < 60,000
50 (164ft) 25 (82ft)
65 (213ft) 30 (98.5ft)
≥ 21,000 and < 35,000
≥ 35,000 and < 41,000
10(33ft)
≥ 18,000 and < 21,000
≥ 18,000 and < 36,000
15 (49ft)
15 (49ft)
8(26ft)
8(26ft)< 18,000
20 (66ft)
25 (82ft)
10(33ft)
10 (33ft)25 (82ft)
Max.

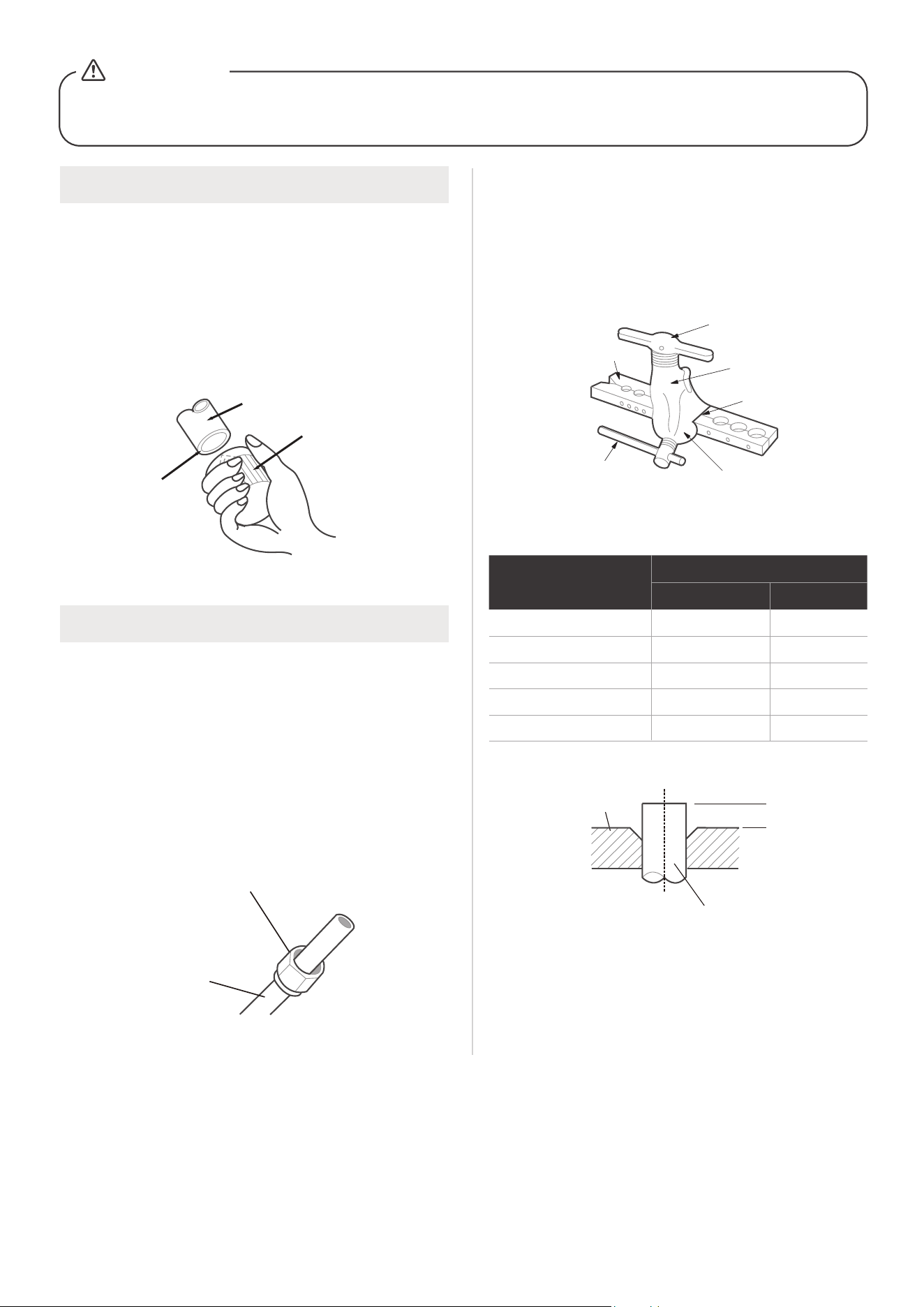

Step 2: Remove burrs
Burrs can aect the air-tight seal of the refrigerant
piping connection. They must be completely
removed.
Pipe
Reamer
Point down
Step 3: Flare pipe ends
Proper flaring is essential to achieve an airtight
seal.
Flare nut
Copper pipe
PIPING EXTENSION BEYOND FLARE FORM
Outer Diameter of
Pipe (mm)
A (mm)
Min. Max.
Ø 6.35 (Ø 1/4”)
0.7 (0.0275”) 1.3 (0.05”)
Ø 9.52 ( Ø 3/8”)
1.0 (0.04”)
1.6 (0.063”)
Ø12.7 ( Ø 1/2”) 1.0 (0.04”) 1.8 (0.07”)
Ø 16 ( Ø 5/8”)
Ø 19 ( Ø 3/4”)
2.0 (0.078”) 2.2 (0.086”)
2.0 (0.078”) 2.4 (0.094”)
Flare form
Pipe
A
26
Hold the pipe at a downward angle to prevent
burrs from falling into the pipe.
Using a reamer or deburring tool, remove all
burrs from the cut section of the pipe.
After removing burrs from cut pipe, seal
the ends with PVC tape to prevent foreign
materials from entering the pipe.
Sheath the pipe with insulating material.
Place flare nuts on both ends of pipe. Make
sure they are facing in the right direction,
because you can’t put them on or change
their direction after flaring.
Remove PVC tape from ends of the pipe when
ready to perform the flaring process.
Clamp flare form on the end of the pipe.
The end of the pipe must extend beyond the
edge of the flare form in accordance with the
dimensions shown in the table below.
Place flaring tool onto the form.
Turn the handle of the flaring tool clockwise
until the pipe is fully flared.
Remove the flaring tool and flare form, then
inspect the end of the pipe for cracks and
even flaring.
CHECK THAT PIPE WAS FLARED EVENLY AND THAT THERE ARE NO CRACKS.
ENSURE THE PIPE IS SEALED.
CAUTION
Clamp handle
Red arrow mark
Cone
Yoke
Handle
Bar
●
●
●
●
●
●
●
●
●
●

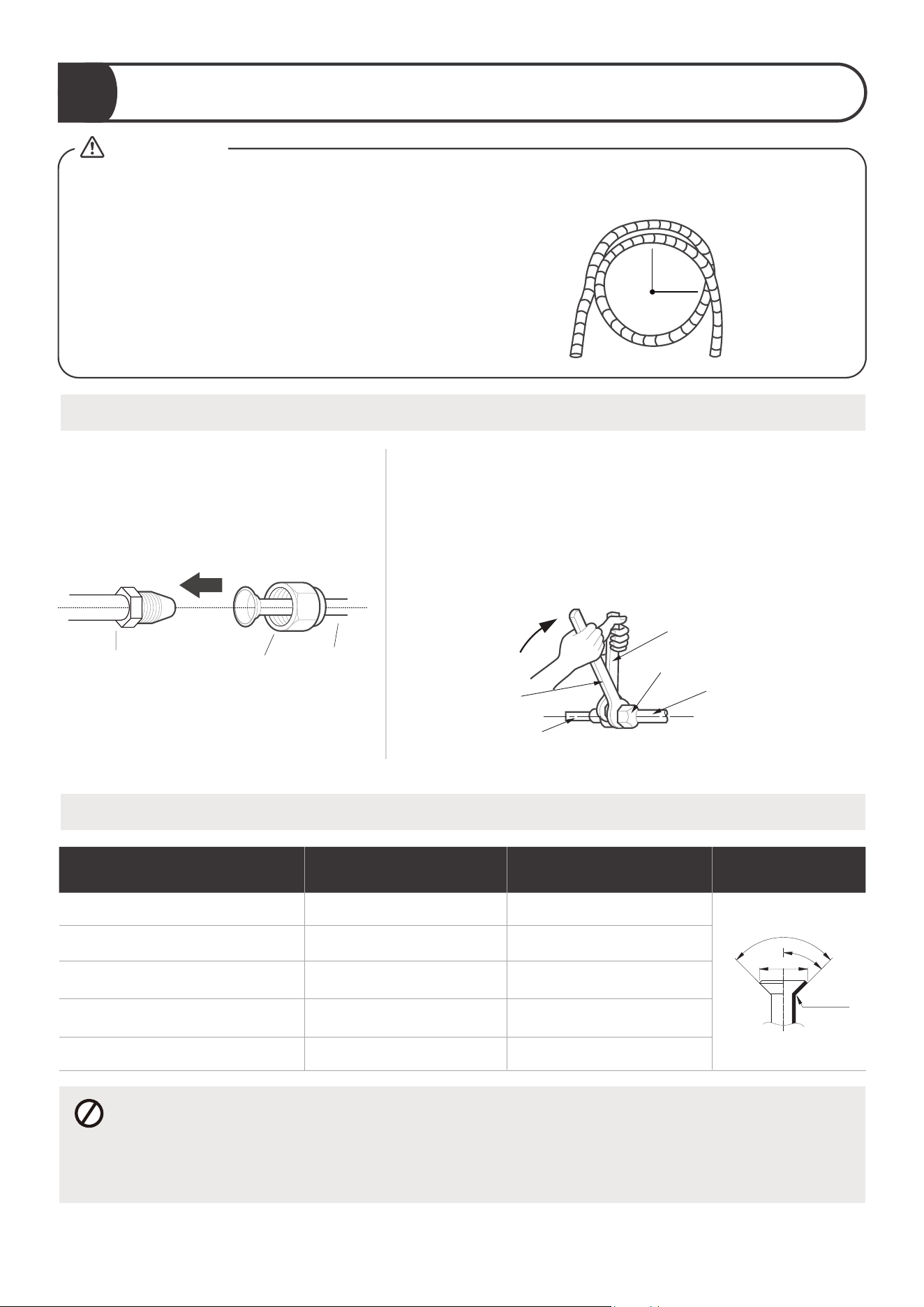

MINIMUM BEND RADIUS
When bending connective refrigerant piping,
the minimum bending radius is 10cm.
≥10cm
(4")
Radius
Instructions for Connecting Piping to Indoor Unit
Align the center of the two pipes
that you will connect.
Tighten the flare nut as tightly as possible by hand.
Using a spanner, grip the nut on the unit tubing.
While firmly gripping the nut on the unit tubing, use a
torque wrench to tighten the flare nut according to the
torque values in the Torque Requirements table below.
Loosen the flaring nut slightly, then tighten again.
Refer to Torque Requirement to connect pipes
2
TORQUE REQUIREMENTS
Outer Diameter of Pipe(mm) Tightening Torque(N•m) Flare dimension(B)(mm)
Flare shape
Ø 6.35 (Ø 1/4”) 8.4~8.7 (0.33~0.34”)
13.2~13.5 (0.52~0.53”)
16.2~16.5 (0.64~0.65”)
19.2~19.7 (0.76~0.78”)
23.2~23.7 (0.91~0.93”)
18~20(180~200kgf.cm)
32~39(320~390kgf.cm)
49~59(490~590kgf.cm)
57~71(570~710kgf.cm)
67~101(670~1010kgf.cm)
Ø 9.52 (Ø 3/8”)
Ø 12.7 (Ø 1/2”)
Ø 16 ( Ø 5/8”)
Ø 3/4”)
Ø 19 (
DO NOT USE EXCESSIVE TORQUE
Excessive force can break the nut or damage the refrigerant piping. You must not exceed the
torque specifications shown in the table above.
WHEN CONNECTING REFRIGERANT PIPES, BE CAREFUL NOT TO USE EXCESSIVE
TORQUE OR TO DEFORM THE PIPING IN ANY WAY. YOU SHOULD FIRST CONNECT THE
LOW-PRESSURE PIPE, THEN THE HIGH-PRESSURE PIPE.
CAUTION
Indoor unit tubing Flare nut Pipe
Torque
wrench
Indoor unit tubing
Spanner (fixed)
Connection pipe
Flare nut
Step 1： Step 2：
27
●
●
●
●
R0.4~0.8
45
°
2
90
°
4
B
+
_
+
_
Outdoor unit
Liquid side piping
(Smaller diameter)
(Bigger
Torque wrench

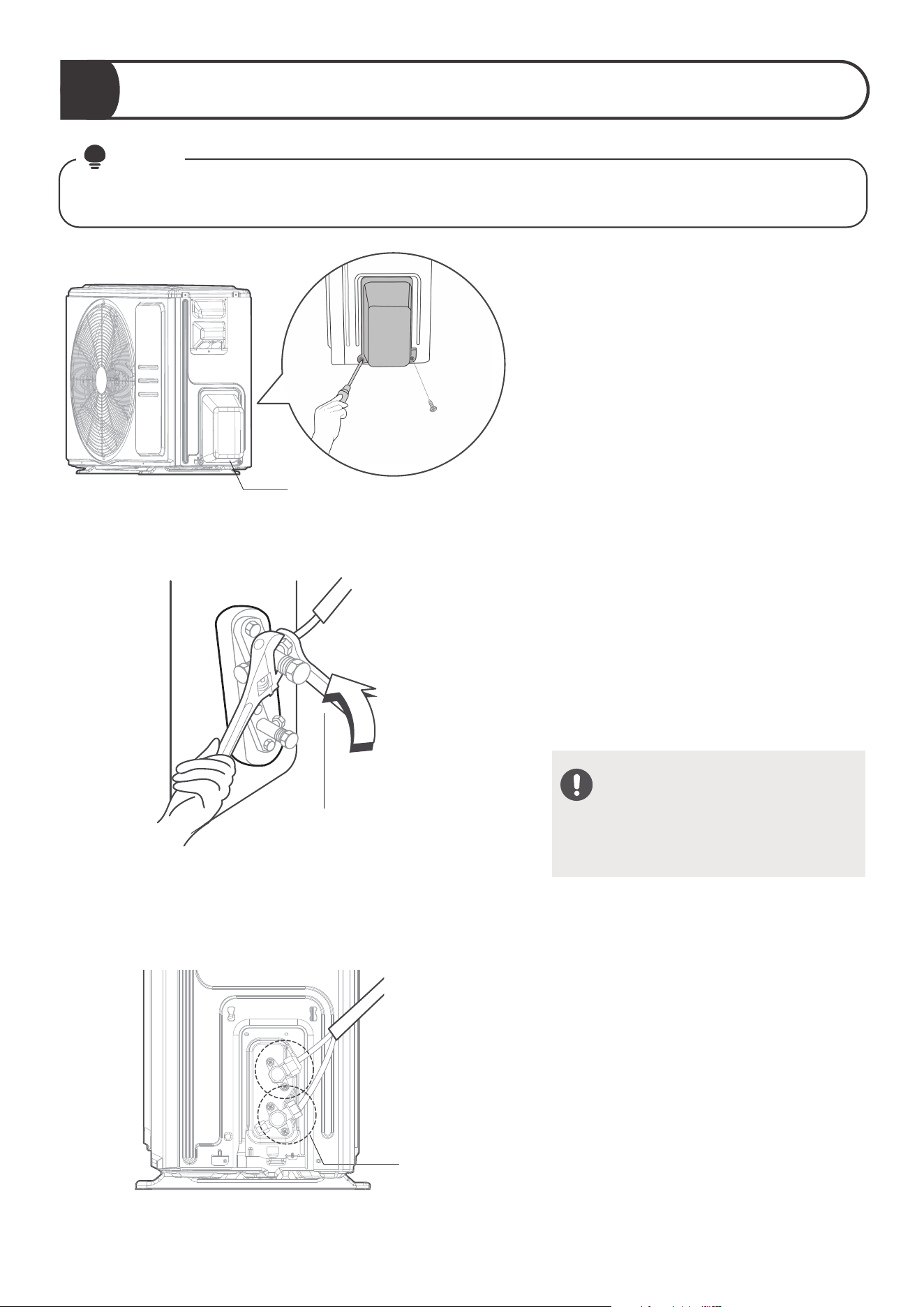

Unscrew the cover from the packed
valve on the side of the outdoor unit.
Remove protective caps from ends of
valves.
Align flared pipe end with each valve,
and tighten the flare nut as tightly as
possible by hand.
Using a spanner, grip the body of the
valve. Do not grip the nut that seals
the service valve.
28
Connecting Piping to Outdoor Unit
3
While firmly gripping the body of the
valve, use a torque wrench to tighten
the flare nut according to the correct
torque values.
Loosen the flaring nut slightly, then
tighten again.
Repeat Steps 1 to 3 for the remaining
pipe.
USE SPANNER TO GRIP MAIN
BODY OF VALVE
Torque from tightening the flare nut
can snap o other parts of valve.
This section still needs to be operated according to the TORQUE REQUIREMENTS chart on the
previous page.
NOTE
Step 1：
Step 2：
Step 3：
Valve cover
Connect all
pipes
Unscrew
the cover
●
●
●
●
●
●
●
Outdoor unit
Indoor unit

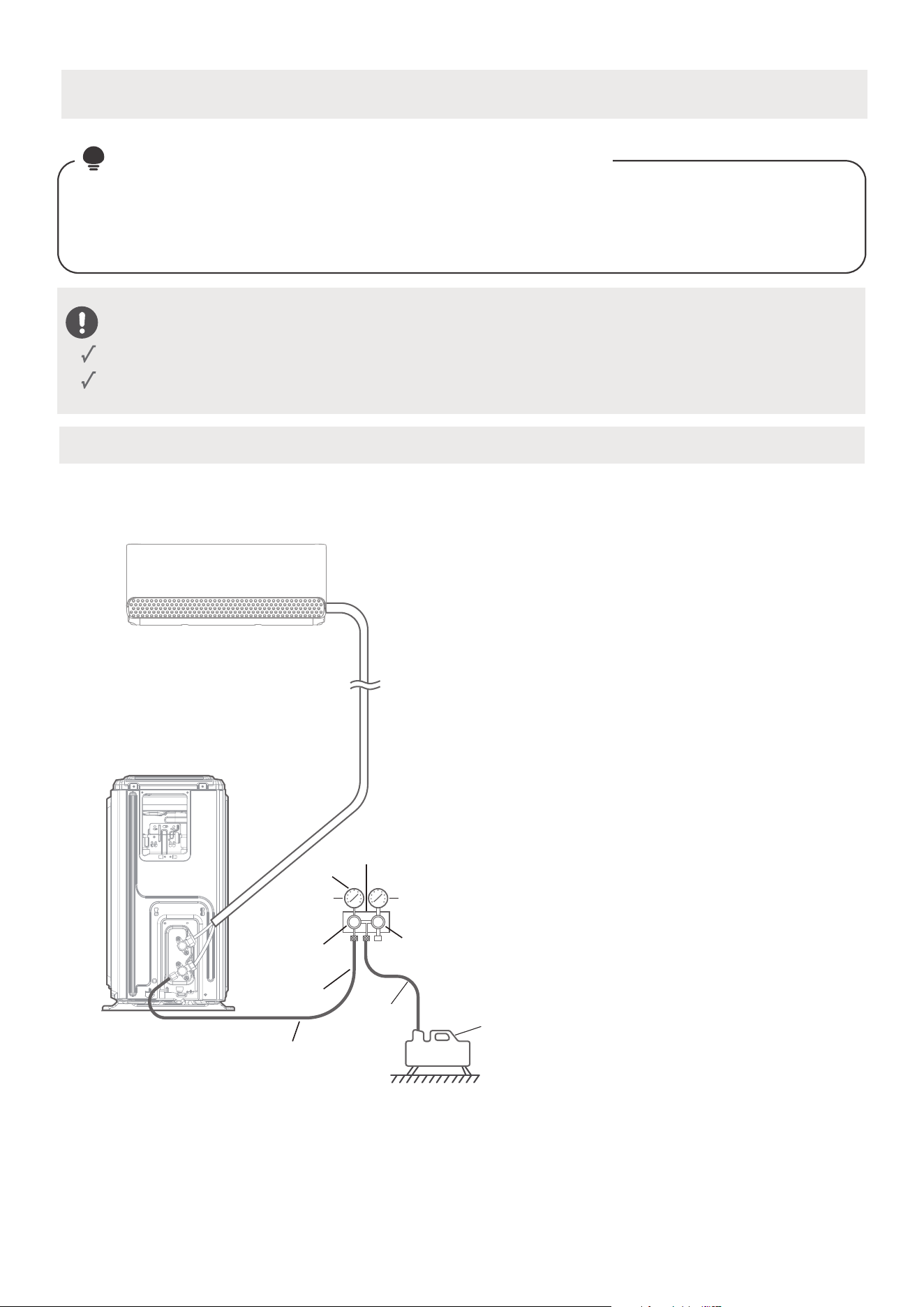

Evacuation Instructions
Air Evacuation
29
NOTE
:
PREPARATIONS AND PRECAUTIONS
Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can
damage the air conditioner, reduce its eciency and cause injury. Use a vacuum pump and manifold
gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the
system. Evacuation should be performed upon initial installation or if the unit is relocated.
BEFORE PERFORMING EVACUATION
Make sure the connective pipes between the indoor and outdoor units are connected properly.
Check to make sure all wiring is connected properly.
Connect the charge hose of the manifold
gauge to the service port on the outdoor unit’s
low pressure valve.
Connect another charge hose from the
manifold gauge to the vacuum pump.
Open the low pressure side of the manifold
gauge. Keep the high pressure side closed.
Turn on the vacuum pump to evacuate the
system.
Run the vacuum pump for at least 15 minutes,
or until the compound meter reads -76cmHG
(-10 Pa).
Close the Low Pressure side of the manifold
gauge and turn o the vacuum pump.
Wait for 5 minutes, then check that there
has been no change in system pressure.
Step 1：
Compound
gauge
-76cmHg
Low
pressure
valve
High
pressure
valve
Pressure hose
or
Charge hose
Vacuum
pump
Pressure
gauge
Low pressure
valve
Charge
hose
Manifold
valve
●
●
●
●
●
●
●
5

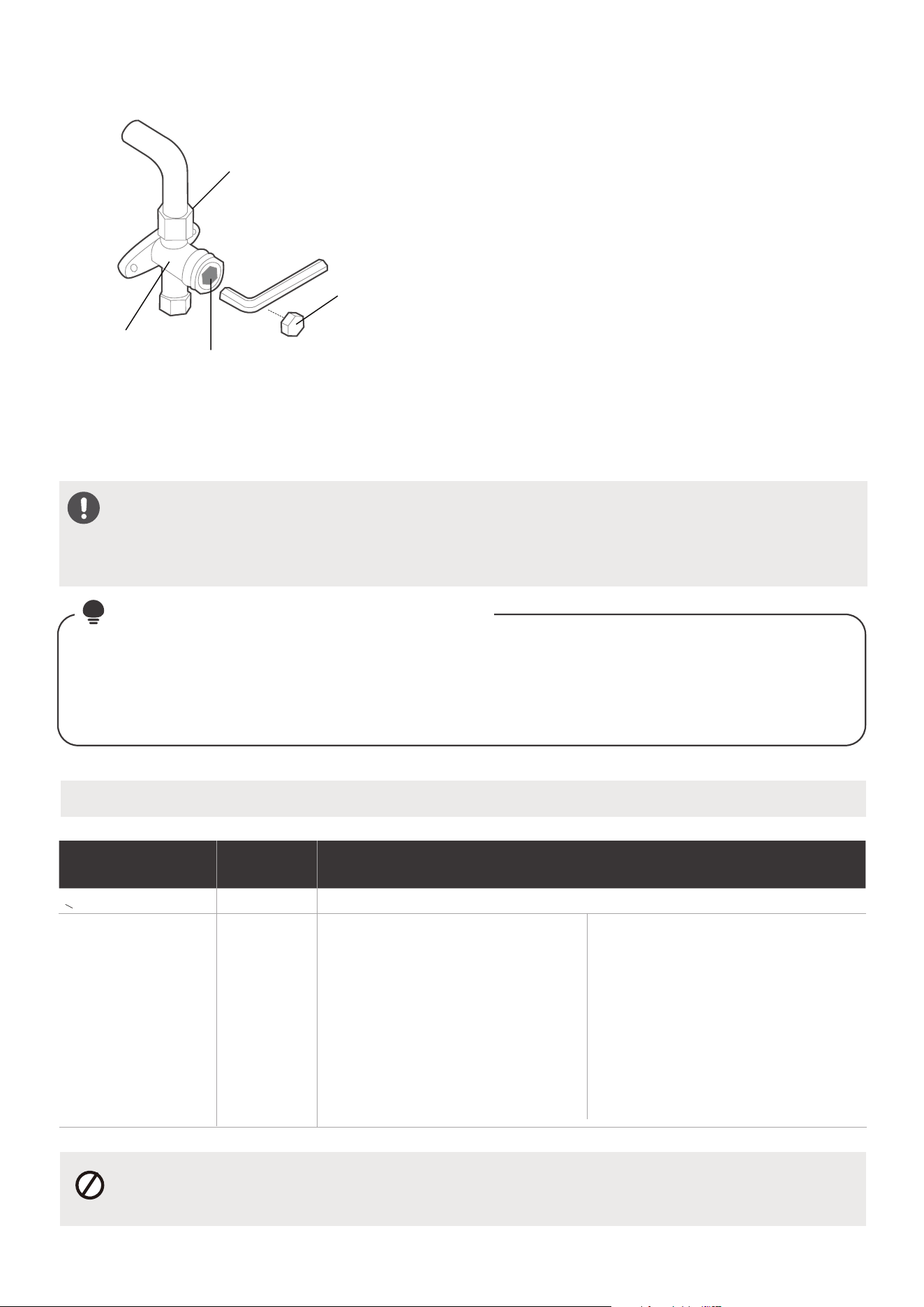

OPEN VALVE STEMS GENTLY
When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not
try to force the valve to open further.
ADDITIONAL REFRIGERANT PER PIPE LENGTH
30
If there has been a change in system pressure, refer to the
Gas Leak Check section for information on how to check
for leaks.
If there is no change in system pressure, unscrew the cap
from the packed valve (high pressure valve).
Insert hexagonal wrench into the packed valve(high
pressure valve) and open the valve by turning the wrench
in a 1/4 counter clockwise turn. Listen for gas to exit the
system, then close the valve after 5 seconds.
Watch the Pressure Gauge for one minute to make sure
that there is no change in pressure. The Pressure Gauge
should read slightly higher than atmospheric pressure.
Remove the charge hose from the service port.
Using a hexagonal wrench, fully open both the high
pressure and low pressure valves.
Tighten valve caps on all three valves (service port, high
pressure and low pressure) by hand. You may tighten it
further using a torque wrench if needed.
NOTE
Some systems require additional charging depending on pipe lengths. The standard pipe length varies
according to local regulations. For example, in North America, the standard pipe length is 7.5m (25’).
In other areas, the standard pipe length is 5m (16‘). The refrigerant should be charged from the service
port on the outdoor unit’s low pressure valve. The additional refrigerant to be charged can be
calculated using the following formula:
ON ADDING REFRIGERANT
Flare nut
Cap
valve body
valve stem
Step 2：
●
●
●
●
●
●
DO NOT MIX REFRIGERANT TYPES.
Connective Pipe
Length (m)
Air Purging
Method
Additional Refrigerant
< Standard pipe length Vacuum Pump N/A
> Standard pipe
length
Vacuum Pump
Liquid Side: Ø 6.35 (1/4”)
Liquid Side: Ø 9.52 (3/8”)
R410A:
R410A:
(Pipe length – standard length) x 15g/m
(Pipe length – standard length) x 30g/m
R32:
R32:
(Pipe length – standard length) x 24g/m
R22:
(Pipe length – standard length) x 20g/m
R22:
(Pipe length – standard length) x 40g/m
(Pipe length – standard length) x 12g/m
(Pipe length – standard length) x 0.16oZ/ft
(Pipe length – standard length) x 0.32oZ/ft
(Pipe length – standard length) x 0.13oZ/ft
(Pipe length – standard length) x 0.26oZ/ft
(Pipe length – standard length) x 0.21oZ/ft
(Pipe length – standard length) x 0.42oZ/ft

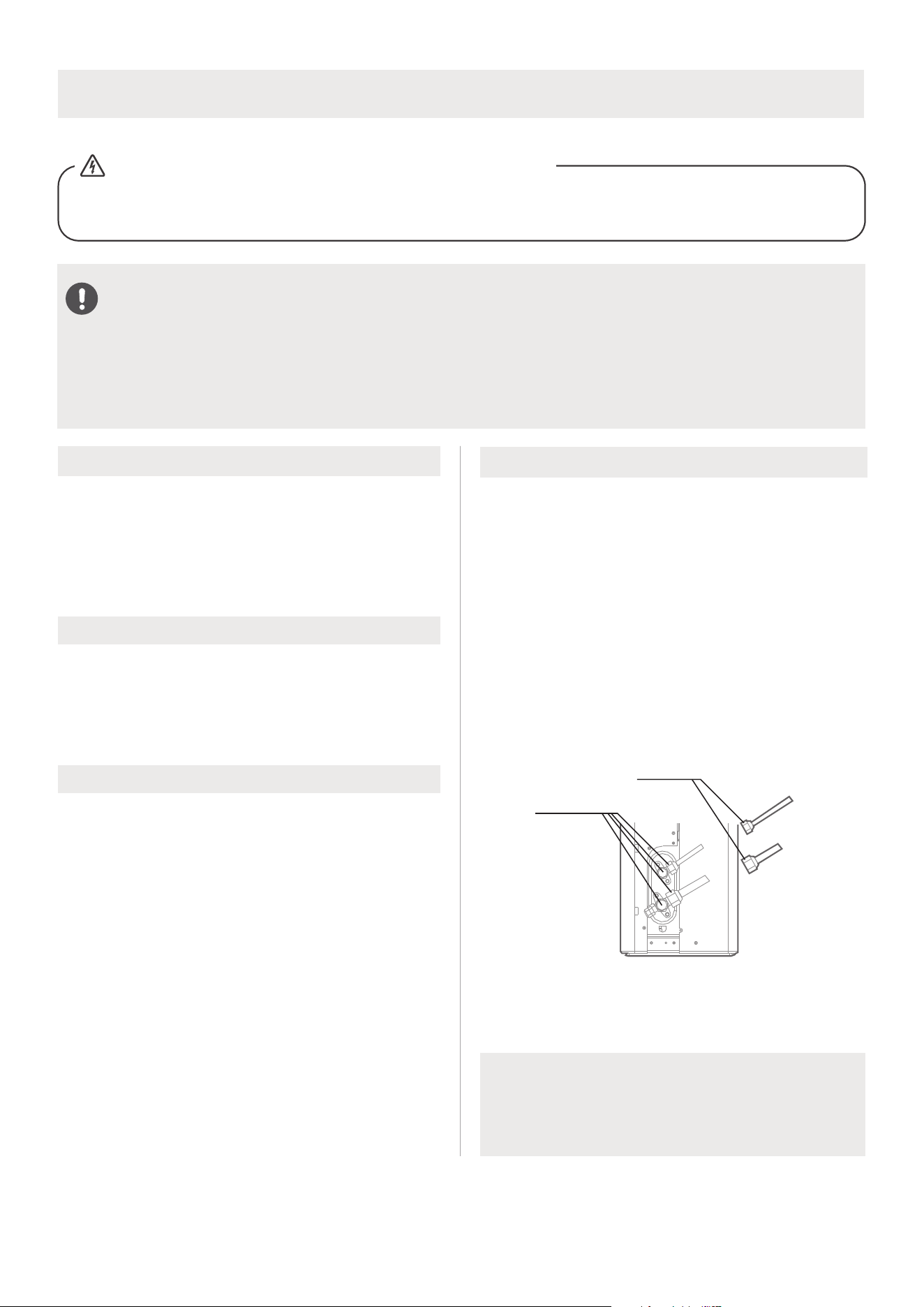

Electrical Safety Checks
After installation, confirm that all electrical wiring
is installed in accordance with local and national
regulations and according to the Installation
Manual.
BEFORE TEST RUN
Check Grounding Work
Measure grounding resistance by visual detection
and with grounding resistance tester.
DURING TEST RUN
Check for Electrical Leakage
During the Test Run, use an electroprobe and
multimeter to perform a comprehensive electrical
leakage test.
If electrical leakage is detected, turn o the unit
immediately and call a licensed electrician to find
and resolve the cause of the leakage.
Note: This may not be required for some
locations in North America.
Gas Leak Checks
There are two dierent methods to check for gas
leaks.
Soap and Water Method
Using a soft brush, apply soapy water or liquid
detergent to all pipe connection points on the
indoor unit and outdoor unit. The presence of
bubbles indicates a leak.
Leak Detector Method
If using leak detector, refer to the device’s
operating manual for proper usage instructions.
AFTER PERFORMING GAS LEAK CHECKS
After confirming that the all the pipe connection
points DO NOT leak, replace the valve cover on
the outside unit.
ALL WIRING MUST COMPLY WITH LOCAL AND NATIONAL ELECTRICAL CODES AND MUST BE
INSTALLED BY A LICENSED ELECTRICIAN.
Electrical and Gas Leak Checks
WARNING
- RISK OF ELECTRIC SHOCK
BEFORE TEST RUN
Only perform test run after you have completed the following steps:
• Electrical Safety Checks – Confirm that the unit’s electrical system is safe and operating properly
• Gas Leak Checks – Check all flare nut connections and confirm that the system is not leaking
• Confirm that gas and liquid (high and low pressure) valves are fully open
31
A: Low pressure stop valve
B: High pressure stop valve
C& D: Indoor unit flare nuts
Check-point of
indoor unit
Check-point of
outdoor unit
A
B
C
D
Test Run Instructions
You should perform the Test Run for at least 30
minutes.
Connect power to the unit.
Press the ON/OFF button on the remote
controller to turn it on.
Press the MODE button to scroll through the
following functions, one at a time:
• COOL–Select lowest possible temperature
• HEAT–Select highest possible temperature
Let each function run for 5 minutes and
perform the following checks:
List of Checks to Perform PASS/FAIL
No electrical leakage
Unit is properly grounded
All electrical terminals
properly covered
Indoor and outdoor units
are solidly installed
All pipe connection
points do not leak
Outdoor
(2):
Indoor
(2):
Water drains properly
from drain hose
All piping is properly
insulated
Unit performs COOL
function properly
Unit performs HEAT
function properly
Indoor unit louvers
rotate properly
Indoor unit responds to
remote controller
DOUBLE-CHECK PIPE CONNECTIONS
During operation, the pressure of the
refrigerant circuit will increase. This may
reveal leaks that were not present during your
initial leak check. Take time during the Test
Run to double-check that all refrigerant pipe
connection points do not have leaks. Refer to
Gas Leak Check section for instructions.
After the Test Run is successfully completed
and you confirm that all checks points in the
List of Checks to Perform have PASSED, do
the following:
a. Using remote control, return unit to
normal operating temperature.
b. Using insulation tape, wrap the indoor
refrigerant pipe connections that you
left uncovered during the indoor unit
installation process.
IF AMBIENT TEMPERATURE IS
BELOW 16°C(60°F)
You can’t use the remote controller to turn
on the COOL function when the ambient
temperature is below 16°C/62°F. In this instance,
you can use the MANUAL CONTROL button
to test the COOL function.
Lift the front panel of the indoor unit and
raise it until it clicks in place.
The MANUAL CONTROL button is located
on the right-hand side of the unit. Press it 2
times to select the COOL function.
Perform Test Run as normal.
Test Run
32
Manual
control
button
●
●
●
●
●
●
●
●
Instructions for packing and unpacking the unit:
Unpacking:
Indoor unit:
1. Cut the sealing tape on the carton with a knife, one cut on the left, one cut in the middle and one
cut on the right.
2.Use a pair of pliers to take out the sealing nails on the top of the carton.
3.Open the carton.
4.Take out the middle support plate if it is included.
5.Take out the accessory package and take out the connecting wire if it is included.
6.Lift the machine out of the carton and lay it flat.
7.Remove the left and right packaging foam or the upper and lower packaging foam, untie the
packaging bag.
Outdoor Unit
1.Cut the packing belt.
2.Take the unit out of the carton.
3.Remove the foam from the unit.
4.Remove the packaging bag from the unit.
Packing:
Indoor unit:
1.Put the indoor unit into the packing bag.
2.Attach the left and right packaging foam or the upper and lower packaging foam to the unit.
3.Put the unit into the carton, then put the accessory package in.
4.Close the carton and seal it with the tape.
5.Using the packing belt if necessary.
Outdoor unit:
1.Put the outdoor unit into the packaging bag.
2.Put the bottom foam into the box.
3.Put the unit into the carton, then put the upper packaging foam on the unit.
4.Close the carton and seal it with the tape.
5.Using the packing belt if necessary.
NOTE:
Please keep all packaging items if you may need then in the future.
Packing and Unpacking the Unit
33
OPERATION INSTRUCTIONS
34

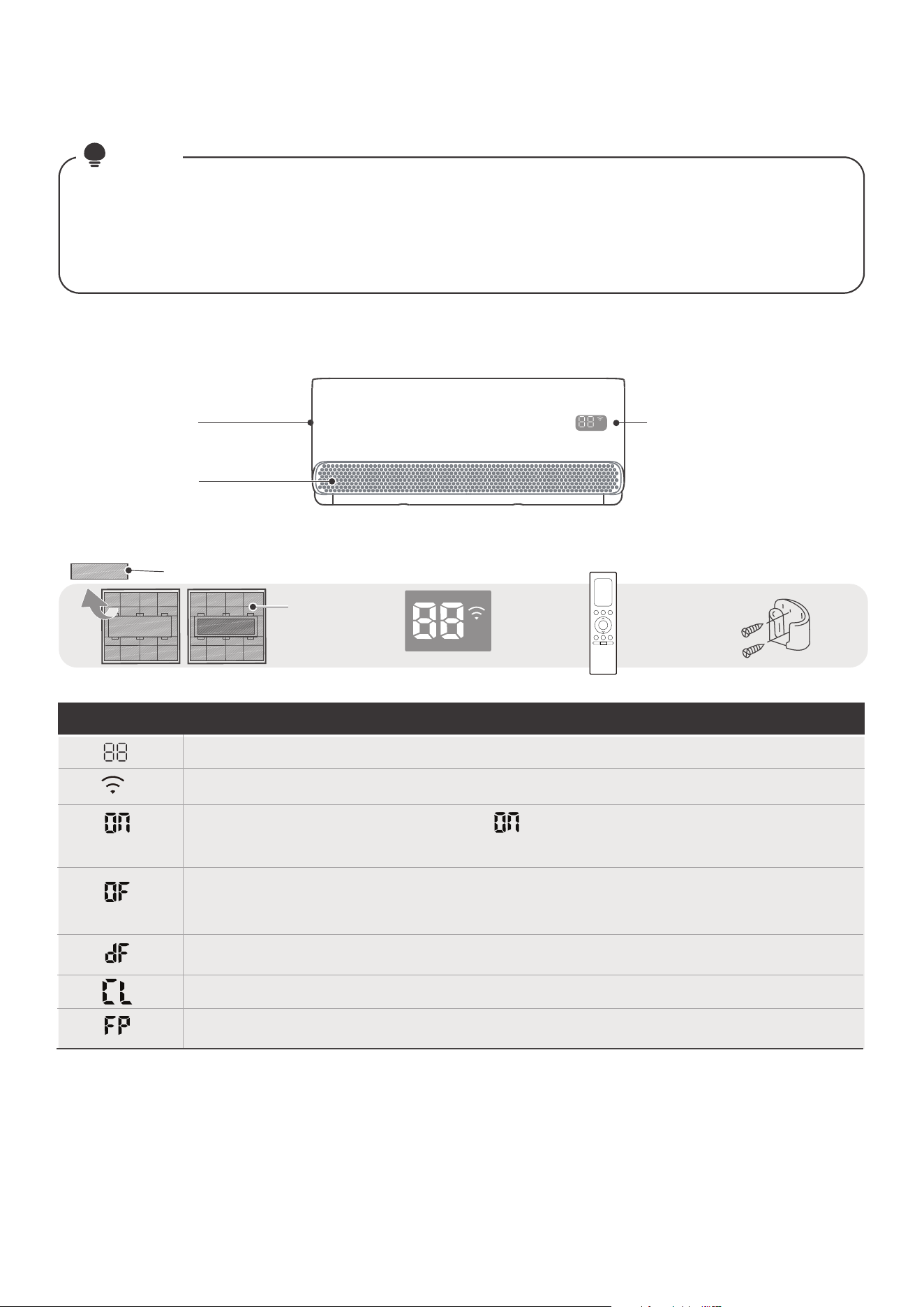

Indoor Unit Display
Front Panel Display window
Air Outlet
Dierent models have dierent front panels and display window. Some features described below
may not be applicable to the air conditioner you purchased. Please check the indoor display
window of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may
be slightly dierent.
Functional Filter
(On Back of Main Filter-
not all Units)
Remote Control Holder
(sold separately)
Remote Control
Display window
Air Filter
●
●
NOTE
Display Code Meanings Display Code
（for 3s when）
（for 3s when）
●
●
●
●
●
●
●
●
●
When Wireless Control feature is activated(not all units).
Fresh, SWING, ECO,TURBO, or SILENT features is turned on.
TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set ).
“ ”
TIMER OFF is set.
Fresh, SWING, ECO,TURBO, or SILENT features is turned o.
When defrosting(cooling & heating units).
When active clean function is turned on.
When 8°C(46°F) heating mode is turned on.
Displays temperature, operation feature and Error codes.
35
Operating Temperature
When your air conditioner is used outside of the following temperature ranges, cer-
tain safety protection features may activate and cause the unit to stop operation.
COOL Mode
Inverter Split Type
HEAT Mode
FOR OUTDOOR UNITS WITH AUXILIARY ELECTRIC HEATER
When the outside temperature is below 0°C (32°F ), we strongly recommend keeping the unit plugged in
at all time to ensure smooth ongoing performance.
For models with low temp.
cooling systems.
Fixed-speed Type
16°C~32°C(60°F~90°F) 0°C~30°C(32°F~86°F)
Room
Temp.
Outdoor
Temp.
DRY Mode
10°C~32°C(50°F~90°F)
0°C~50°C(32°F~122°F)
-15°C~50°C(5°F~122°F) -15°C~24°C(5°F~75°F)
-15°C~24°C(5°F~75°F)
0°C~50°C(32°F~122°F)
For special tropical
models
For special tropical
models
0°C~52°C(32°F~126°F)
COOL Mode HEAT Mode
For models with low-temp
cooling systems
16°C~32°C (60°F~90°F) 0°C~30°C (32°F~86°F)
Room
Temp.
Outdoor
Temp.
DRY Mode
10°C~32°C(50°F~90°F)
18°C~43°C (64°F~109°F)
-7°C~43°C (19°F~109°F) -7°C~24°C(19°F~75°F) 18°C~43°C (64°F~109°F)
11°C~43°C (52°F~109°F)
For special tropical
models
18°C~52°C (64°F~126°F) -15°C~24°C(5°F~75°F)
For special tropical
models
18°C~52°C (64°F~126°F)
NOTE: If the air conditioner is operated when the relative humidity of the room is more than 80%, the
surface of the air conditioner may attract condensation. Please set the vertical air flow louver to its
maximum angle (vertically to the floor) and set the fan mode to HIGH.
0°C~52°C(32°F~126°F)
36
More features
●
●
●
●
Auto-Restart
If the unit loses power, it will automatically
restart with its prior settings once power has
been restored.
Wireless Control (model dependent)
Wireless control allows you to control your air
conditioner using your mobile phone and a
wireless connection.
Louver Angle Memory
When turning on your unit, the louver will
automatically resume its former angle.
Refrigerant Leakage Detection
The indoor unit will automatically display
“EL0C” when it detects refrigerant leakage.
USB device access, parts replacement
and maintenance operations must be
●
●
The SLEEP function is used to decrease
energy use while you sleep (less cooling or
heating is required during the bodies sleep
cycle).
Press the SLEEP button on the remote control
when in COOL mode. The unit will increase
the temperature by 1°C (2°F) after the first hour.
It will increase an additional 1°C (2°F) after
another hour. The fan speed is automatically
adjusted to LOW .
When in HEAT mode, the SLEEP function will
decrease the temperature by 1°C (2°F) after the
first hour. It will decrease the temperature by
an additional 1°C (2°F) after another hour. The
fan speed is automatically adjusted to LOW .

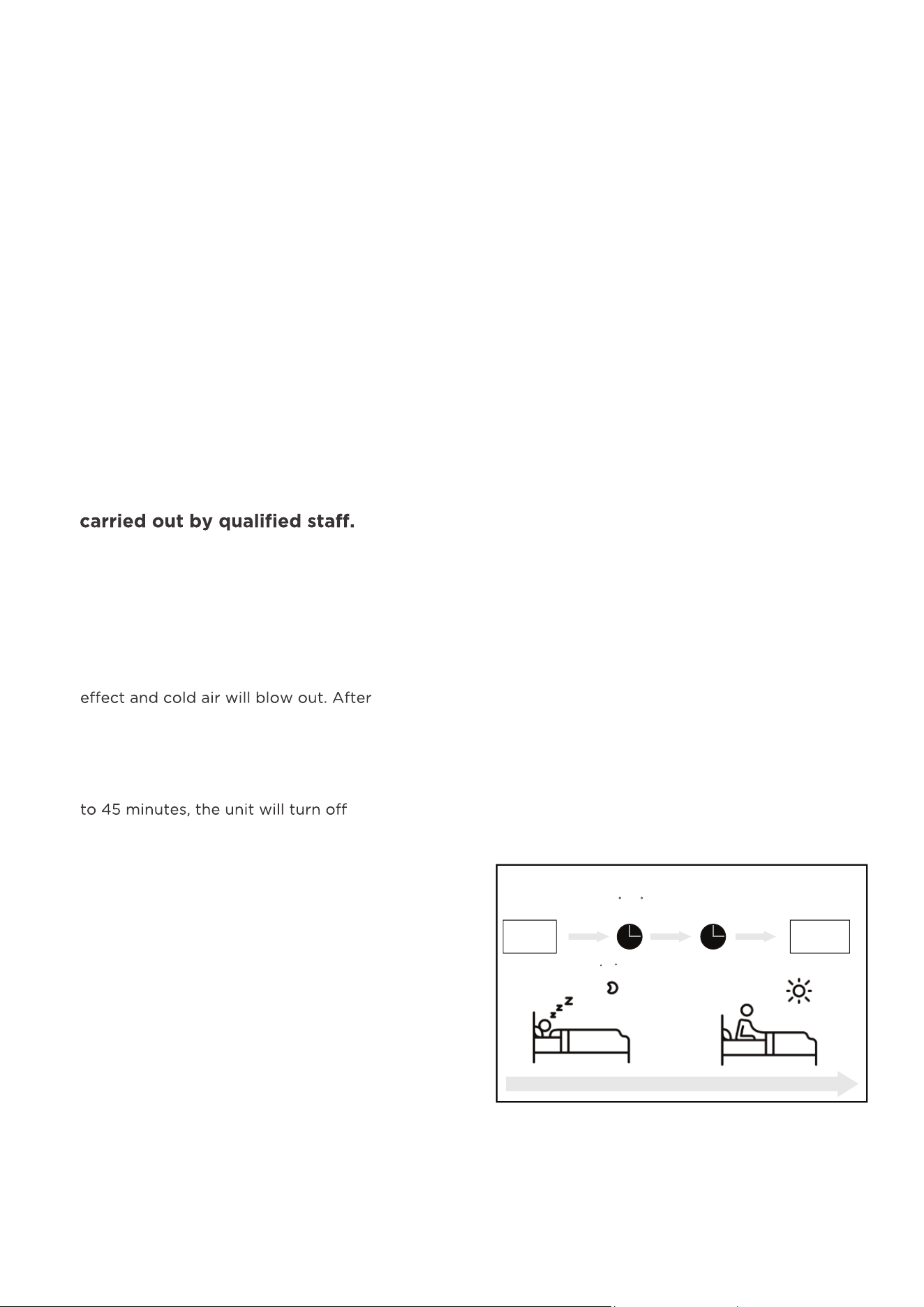

Sleep Operation
Set
temperature
1hr 1hr
Keep
running
SLEEP Operation
Saving energy during sleep
Heat mode( -1 C/2 F) per hour for the first two hours
Cool mode(+1 C/2 F) per hour for the first two hours
Then the air conditioner will operate at the new
temperature for another six hours. After that,
the SLEEP function will stop, the fan speed
will revert back to the original setting.
To further optimize the performance of your unit, do the following:
Keep doors and windows closed.
Limit energy usage by using TIMER ON and TIMER OFF functions.
Do not block air inlets or outlets.
Regularly inspect and clean air filters.
●
●
●
●
• Active Clean function(not all units)
-- The Active Clean Technology washes away
dust when it adheres to the heat exchanger by
automatically freezing and then rapidly thawing
the frost. A “beep-beep” sound will be heard.
The Active clean operation is used to produce
more condensed water to improve the cleaning
cleaning, the internal fan then keeps
operating with hot air to dry the
evaporator, thus keeping the inside clean.
-- When this function is turned on, the indoor
unit display window displays “CL ” , after 20
automatically and terminate Active Clean function.
●
Cool Flash function
Cool Flash technology can very rapidly
cool an entire room. This is achieved by
producing a large air volume and high flow
of air.
●
Heat Flash function
Similarly, a fast and strong flow of heated
air can warm up an entire room in a short time.
This feature avoids direct air flow blowing on
the body and makes you feel indulging in silky
coolness.
NOTE: This feature is available under cool,
Fan and Dry mode only.
Comfort Wind function
37

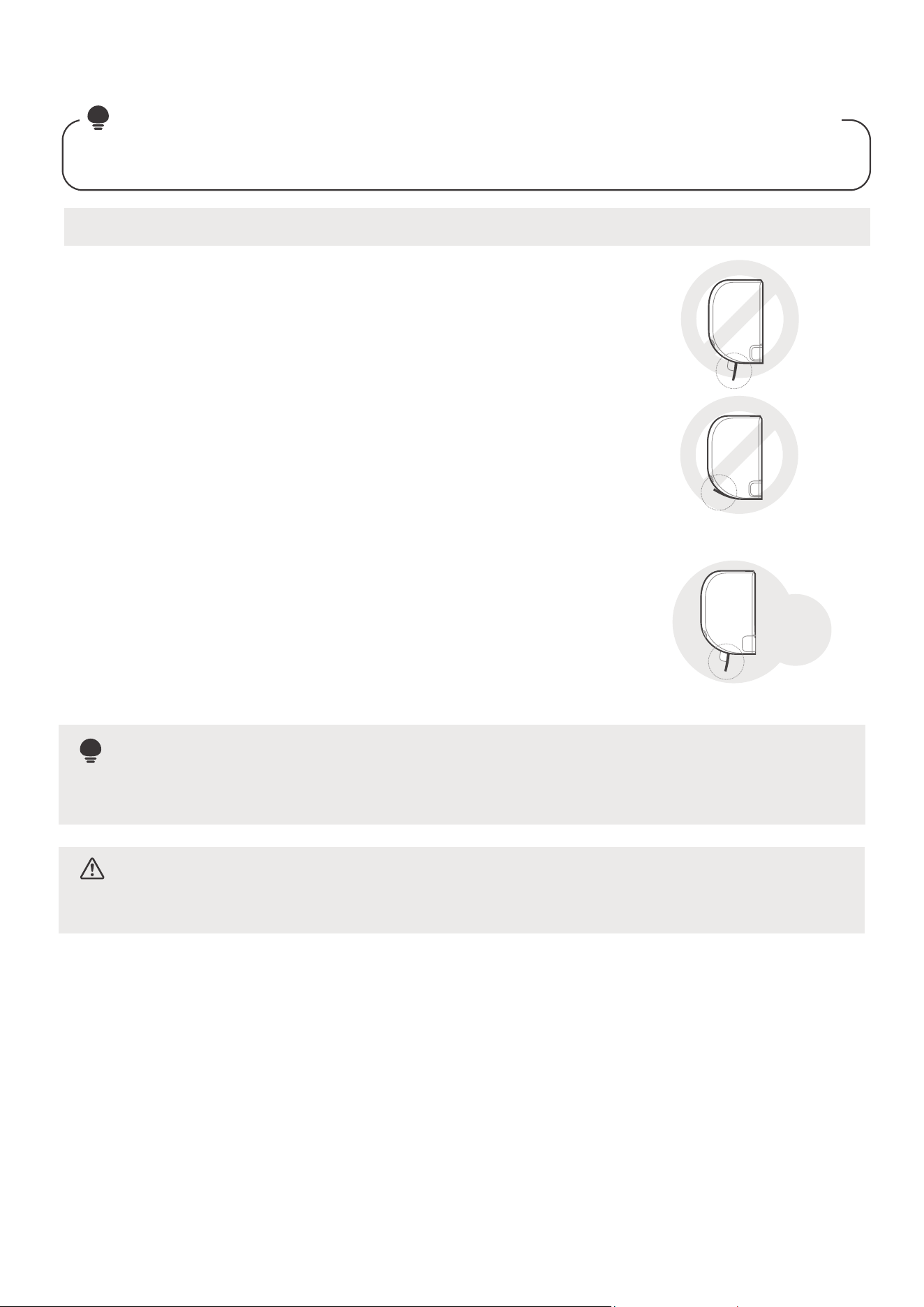

Do not put your fingers in or near the blower and suction side of the unit. The
high-speed fan inside the unit may cause injury.
CAUTION
NOTE ON LOUVER ANGLES
●
Do not set louver at too vertical an angle for long periods of time
when using COOL or DRY mode. Condensation will form on the
louver blade, which will drip on the floor or furnishings.
●
Setting the louver at too small an angle when using COOL or HEAT
mode, can reduce the performance of the AC due to restricted
air flow.
Setting Angle of Air Flow
While the unit is on, use the SWING button on the remote control to set the direction (vertical/
horizontal angle) of airflow. Please refer to the section Remote Control operation for more details.
NOTE
: SETTING THE ANGLE OF AIR-FLOW(REMOTE CONTROL)
Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn
o the unit and unplug it for a few seconds, then restart the unit. This will reset the louver.
NOTE
●
According to the relative standards requirement, please sets the
vertical air flow louver to its maximum angle during the heating
capacity test.
Heating
Capacity
Test
38
Open the front panel of the indoor unit.
Locate the MANUAL CONTROL button on the
right-hand side of the unit.
Press the MANUAL CONTROL button once to
activate FORCED AUTO mode.
Press the MANUAL CONTROL button a second
time to activate FORCED COOLING mode.
Press the MANUAL CONTROL button a third time
to turn the unit o.
Close the front panel.
Manual Operation(without remote)
The manual button is intended for testing purposes and emergency operation only. Please do
not use this function unless the remote control is lost and it is absolutely necessary. To restore
regular operation, use the remote control to activate the unit. Unit must be turned o before
manual operation.
FOR PRODUCT USE
CAUTION :
●
●
●
●
●
●
To operate the unit manually:
Manual
control
button
39
Remote Control Operation
FUNCTION EXPLANATION
Refer to the How to Use Basic Functions and How to Use Advanced Functions sections
of this manual for a more detailed description of how to use your air conditioner.
SPECIAL NOTE
•
Button designs on your unit may dier slightly from the example shown.
If the indoor unit does not have a particular function, pressing that function’s button on
the remote control will have no eect.
•

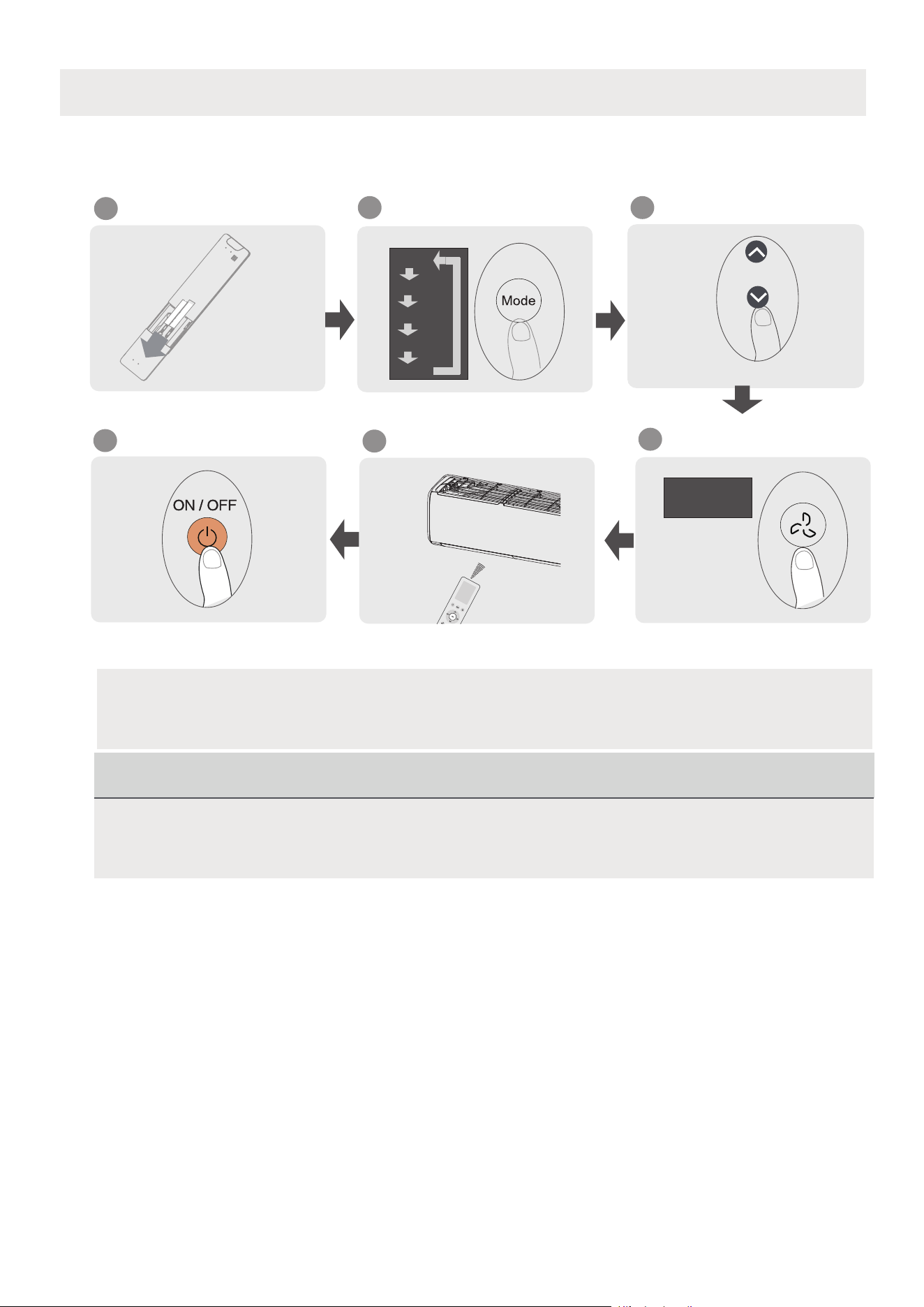

Quick Start Guide
FIT BATTERIES
POINT REMOTE TOWARD UNITPRESS POWER BUTTON
SELECT MODE
SELECT TEMPERATURE
SELECT FAN SPEED
1
6
2
3
4
5
AUTO
COOL
DRY
HEAT
FAN
AU-100%
LED
Cool/Heat
Flash
Swing
Swing
40
TIPS FOR USING REMOTE CONTROL
•
The remote control must be used within 8
meters of the unit.
The unit will beep when the remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal
receiver.
Remove batteries if the remote will not be
used for a long time.
•
•
•
•
•
•
•
•
•
•

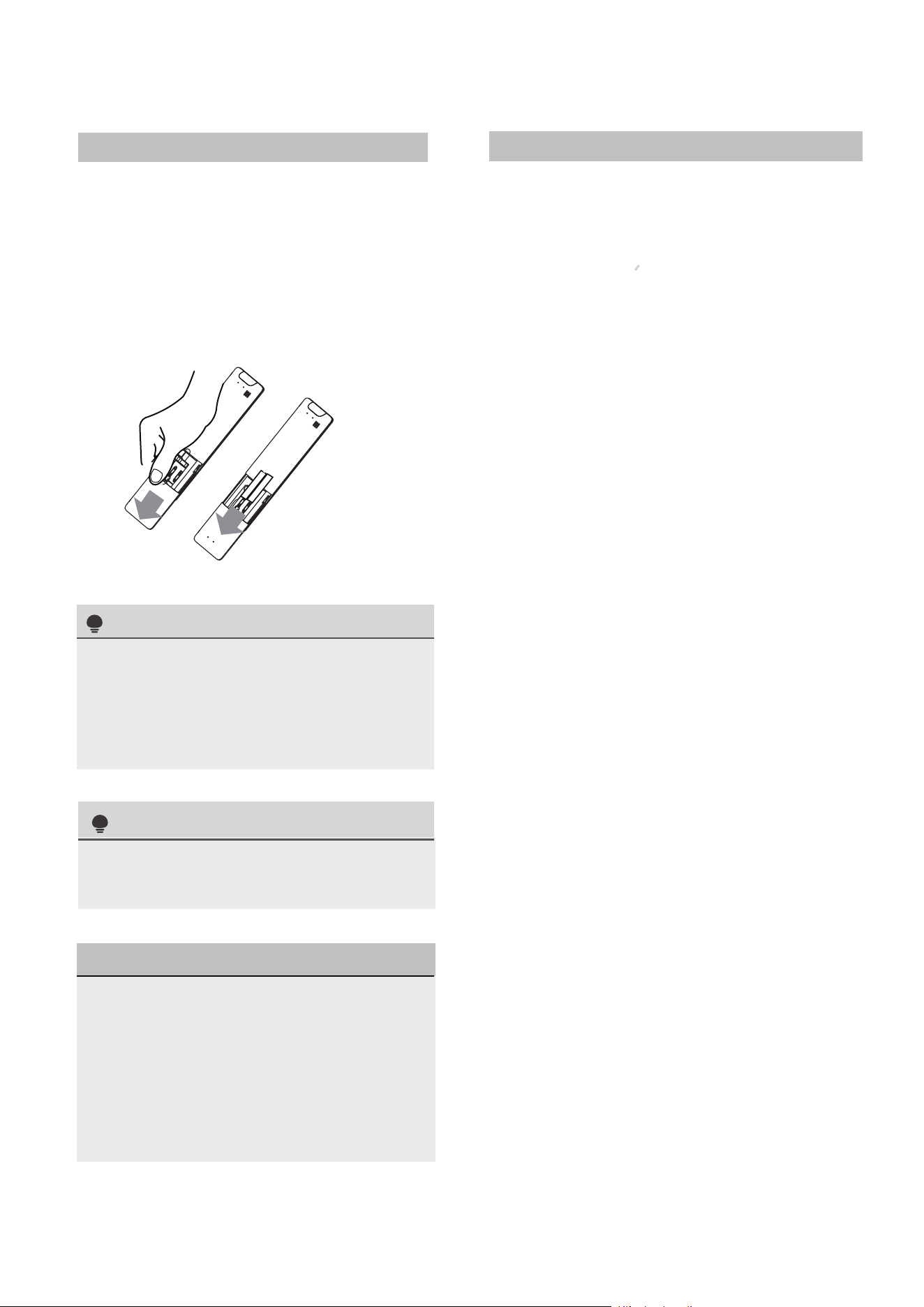

Inserting and Replacing Batteries
Your air conditioning unit may come with two
batteries(not all units). Put the batteries in the
remote control before use.
1. Slide the back cover from the remote control
downward, exposing the battery compartment.
Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
Slide the battery cover back into place.
2.
3.
BATTERY NOTES
For optimal product performance:
• Do not mix old and new batteries or
dierent brands of batteries.
•
Do not leave batteries in the remote
control if you don’t plan on using the
device for more than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries in normal
household waste. Refer to local laws for
proper disposal of batteries.
The device could comply with the local national
regulations.
In Canada, it should comply with
CAN ICES-3(B)/NMB-3(B).
In USA, this device complies with part 15 of
the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception,which can be determined by turning
the equipment o and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not approved by the
party responsible for compliance could void
user’s authority to operate the equipment.
Handling the Remote Controller
NOTES FOR USING REMOTE CONTROL
41

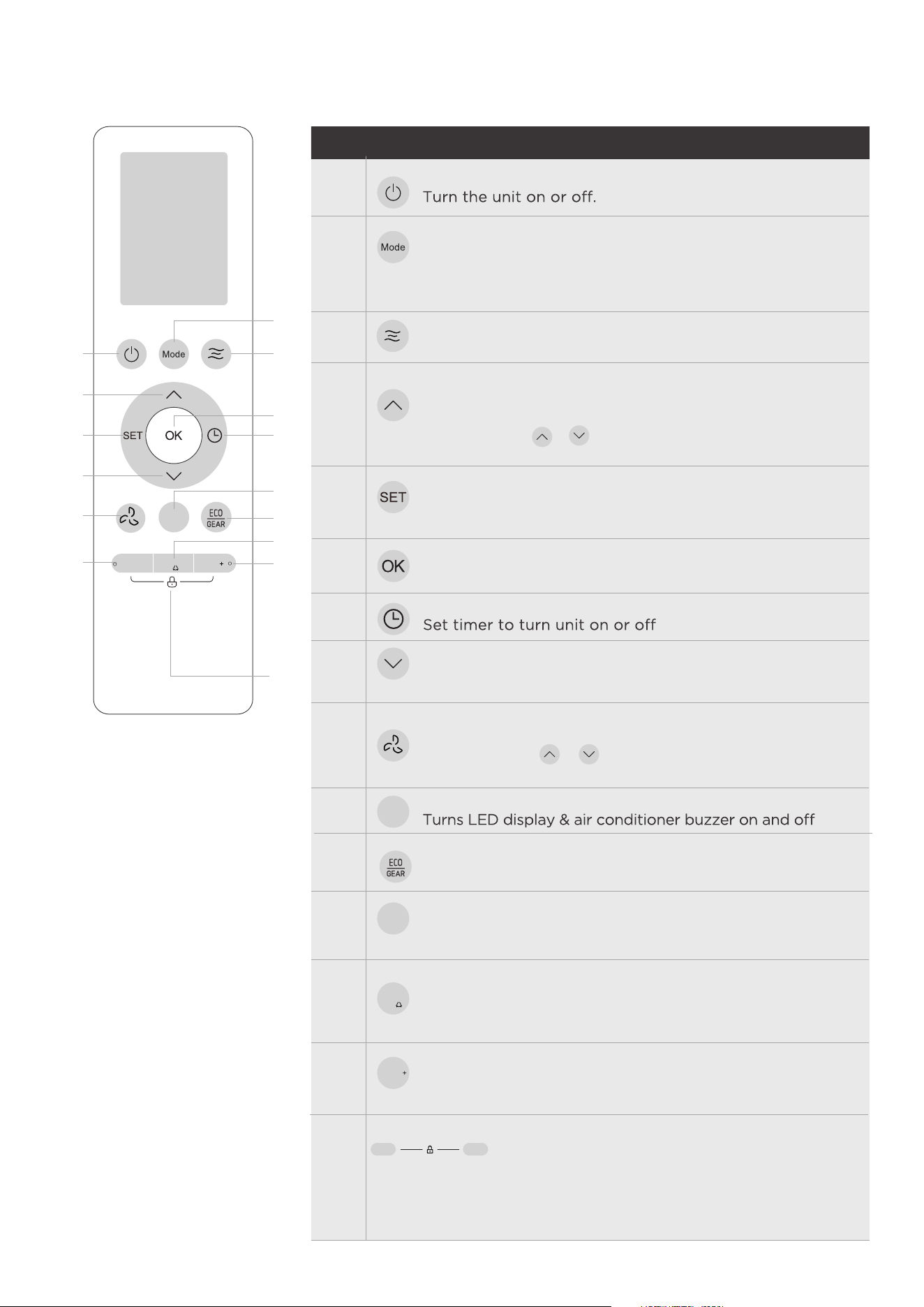

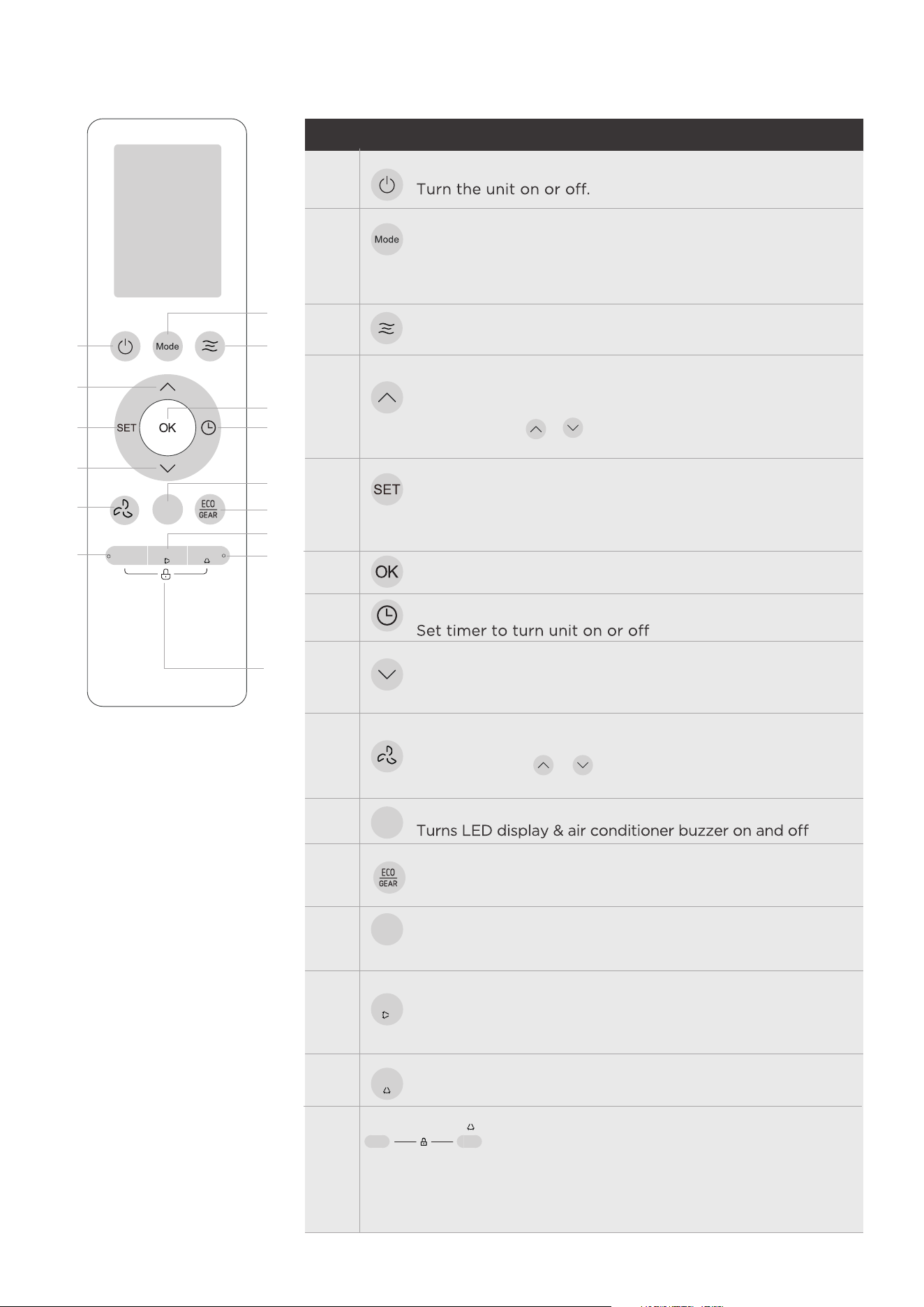

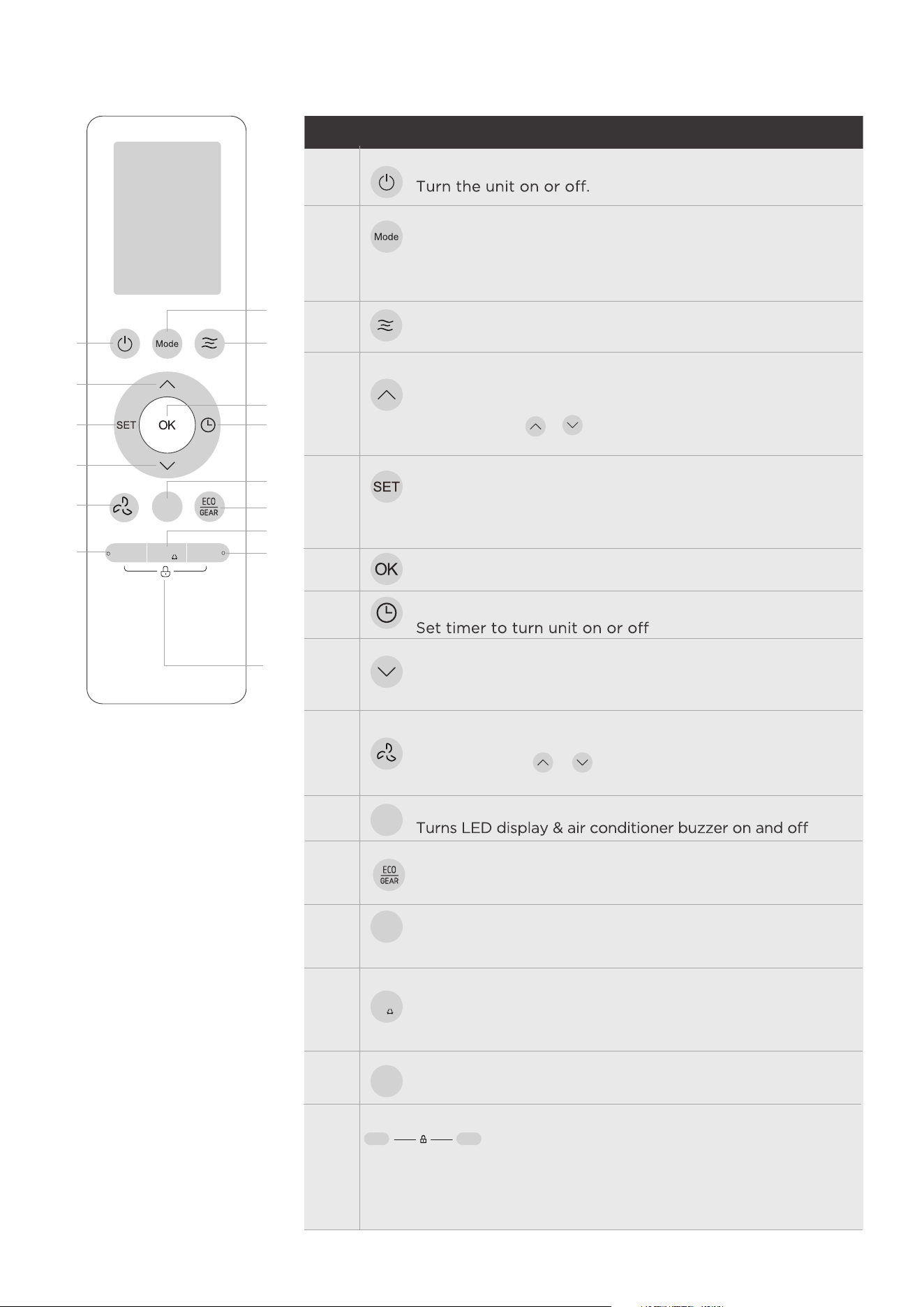

Buttons and Functions
Description
ON/OFF
No.1
No.3
No.4
No.5
No.6
No.8
No.2
No.7
No.9
No.10
1
4
2
3
5
8
9
12
6
7
10
11
13
14
OK
Used to confirm the selected functions
TEMP.
Decreases temperature in 1°C (1°F) increments. Min. tem-
perature is 16°C (60°F)
TIMER
COMFORT WIND
LED
Cool/Heat
Flash
FAN SPEED
SWING(up and down)
Starts and stops the horizontal louver movement. Hold
down for 2 seconds to initiate horizontal louver auto swing
feature(some units).
SWING(left and right)
Starts and stops the vertical louver movement.
No.11
TEMP.
Increases temperature in 1°C (1°F) increments. Max. tem-
perature is 30°C (86°F).
(Press together & buttons at the same time for 3 seconds
will alternate the temperature display between the °C & °F).
SET
Active clean > Sleep > Follow Me > Air magic > AP mode >
Active clean
MODE
Auto > Cool > Dry > Heat > Fan
AU > 20% >40% >60% > 80% > 100%
Press the TEMP or button to increase/ decrease the fan
speed in 1% increments.
Cool/Heat Flash
No.12
No.13
Reduce(cool mode) or rise(heat mode) temperature in a
short time.
LED
Model: RG10A19(B2S)/BGEF
Cool/Heat
Flash
LED
No.14
No.15
Swing
Swing
Swing
Swing
ECO/GEAR
ECO > GEAR(75%) > GEAR(50%) > Previous setting mode
> ECO
LOCK
Press together these two buttons simultaneously for 5 seconds
to lock the keyboard. Press together these two buttons for 2
seconds to unlock the keyboard.
Cool/Heat
Flash
15
NOTE: HEAT mode is not supported by the cooling only
appliance.
[*]: Model dependent
Swing
*
*
Starts the wind flow away from people feature.
42
Buttons and Functions
Description
ON/OFF
No.1
No.3
No.4
No.5
No.6
No.8
No.2
No.7
No.9
No.10
1
4
2
3
5
8
9
12
6
7
10
11
13
14
OK
Used to confirm the selected functions
TEMP.
Decreases temperature in 1°C (1°F) increments. Min. tem-
perature is 16°C (60°F)
TIMER
COMFORT WIND
LED
Cool/Heat
Flash
FAN SPEED
SWING
Starts and stops the horizontal louver movement. Hold
down for 3 seconds to initiate vertical louver auto swing
feature(some units).
No.11
TEMP.
Increases temperature in 1°C (1°F) increments. Max. tem-
perature is 30°C (86°F).
(Press together & buttons at the same time for 3 seconds
will alternate the temperature display between the °C & °F).
SET
Active clean>Sleep > Follow Me > AP mode > Active clean
MODE
Auto > Cool > Dry > Heat > Fan
AU > 20% > 40% >60% > 80% > 100%
Press the TEMP or button to increase/ decrease the fan
speed in 1% increments.
Cool/Heat Flash
No.12
No.13
Reduce(cool mode) or rise(heat mode) temperature in a
short time.
LED
Cool/Heat
Flash
LED
No.14
No.15
Air magic+
Used to start/stop the Air magic and UV-C lamp (if any)
function.
Swing
3s
Swing
3s
Air
magic
Air
magic
ECO/GEAR
ECO > GEAR(75%) > GEAR(50%) > Previous setting mode
> ECO
LOCK
Press together these two buttons simultaneously for 5 seconds
to lock the keyboard. Press together these two buttons for 2
seconds to unlock the keyboard.
Cool/Heat
Flash
Air
magic +
15
NOTE: HEAT mode is not supported by the cooling only
appliance.
[*]: Model dependent
*
Starts the wind flow away from people feature.
Model: RG10A20(B2S)/BGEF
43
Buttons and Functions
Description
ON/OFF
No.1
No.3
No.4
No.5
No.6
No.8
No.2
No.7
No.9
No.10
1
4
2
3
5
8
9
12
6
7
10
11
13
14
OK
Used to confirm the selected functions
TEMP.
Decreases temperature in 1°C (1°F) increments. Min. tem-
perature is 16°C (60°F)
TIMER
COMFORT WIND
LED
Cool/Heat
Flash
FAN SPEED
SWING
Starts and stops the horizontal louver movement. Hold
down for 3 seconds to initiate vertical louver auto swing
feature(some units).
FRESH
Starts and stops the UV-C lamp function.
No.11
TEMP.
Increases temperature in 1°C (1°F) increments. Max. tem-
perature is 30°C (86°F).
(Press together & buttons at the same time for 3 seconds
will alternate the temperature display between the °C & °F).
SET
Active clean >Sleep > Follow Me > AP mode > Active clean
MODE
Auto > Cool > Dry > Heat > Fan
AU > 20% >40% > 60% > 80% > 100%
Press the TEMP or button to increase/ decrease the fan
speed in 1% increments.
Cool/Heat Flash
No.12
No.13
Reduce(cool mode) or rise(heat mode) temperature in a
short time.
LED
Cool/Heat
Flash
LED
No.14
No.15
Fresh
Fresh
Fresh
ECO/GEAR
ECO > GEAR(75%) > GEAR(50%) > Previous setting mode
> ECO
LOCK
Press together these two buttons simultaneously for 5 seconds
to lock the keyboard. Press together these two buttons for 2
seconds to unlock the keyboard.
Cool/Heat
Flash
15
NOTE: HEAT mode is not supported by the cooling only
appliance.
[*]: Model dependent
*
Swing
3s
Swing
3s
Starts the wind flow away from people feature.
Model: RG10A21(B2S)/BGEF
44
1. All indicators shown above are for information purposes. During the actual operation, only the
relevant indicators will be shown on the display.
NOTE

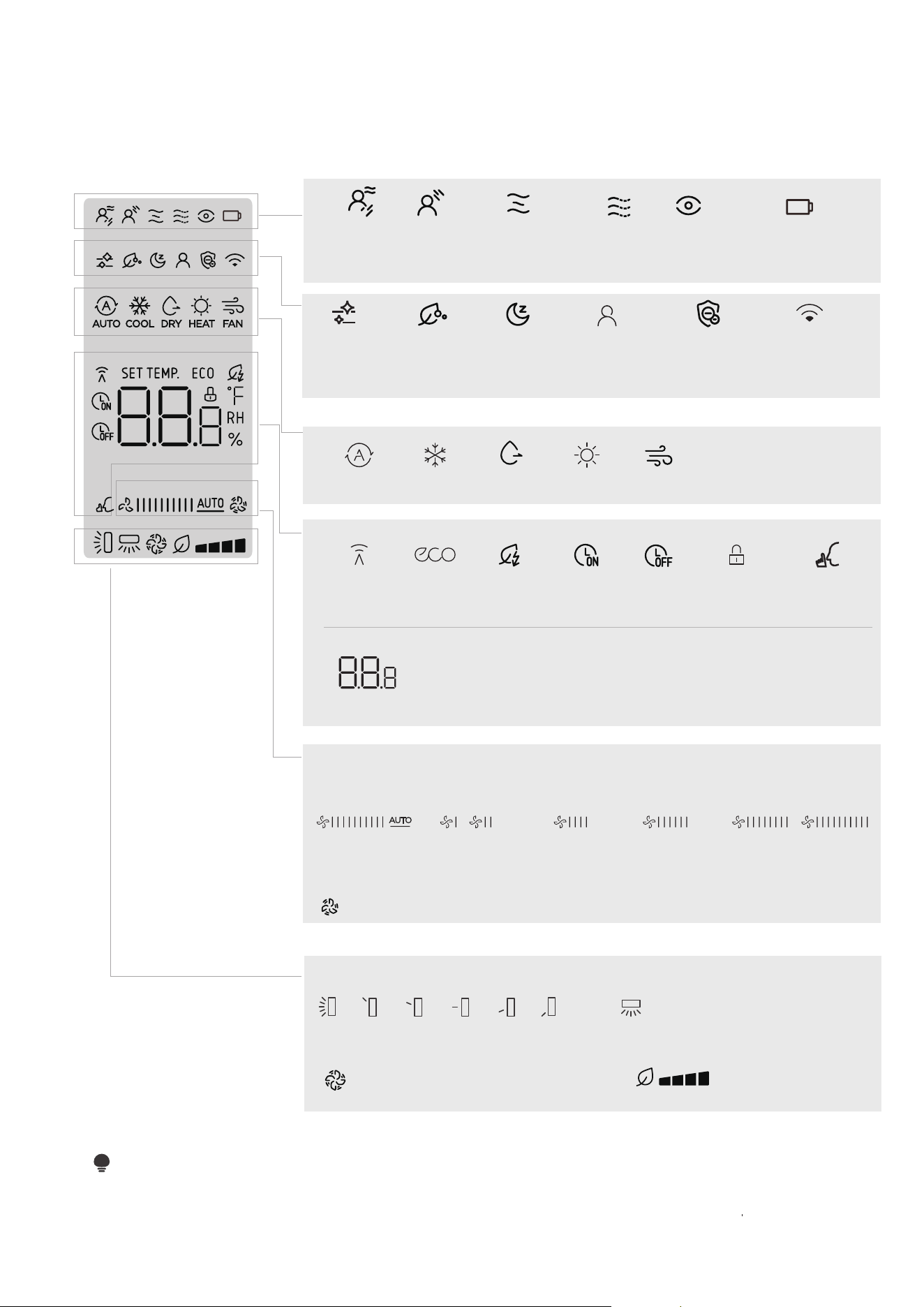

Remote Control Screen Indicators
Temperature/Timer/Fan speed display
Displays the set temperature by default, or fan speed
or timer setting when using TIMER ON/OFF functions.
Information displayed when the remote controller is powered up.
Low battery
(If flashes)
Comfort
Wind
AUTO COOL
DRY
HEAT FAN
MODE display
Displays the current mode
Transmission
Indicator
ECO
Feature
GEAR
Feature
Timer
OFF
Lock
Feature
Timer
ON
Slience
Feature
SLIENCE
1%
NOTE: The fan speed can not be adjusted in AUTO or DRY mode.
2-20%
FAN SPEED
LOW MED
21-40% 41-60%
HIGHAUTO
61-80%
81-100%
Horizontal louver swing Vertical louver auto swing
Not available for this unit
Not available for this unit
Cool/Heat Flash mode
[*]: Model dependent
Active
clean
Sleep
mode
Follow
me
Wireless
control
Air magic+
mode
*
*
Not available
for this unit.
Not available
for this unit.
Not available
for this unit.
45
MODE

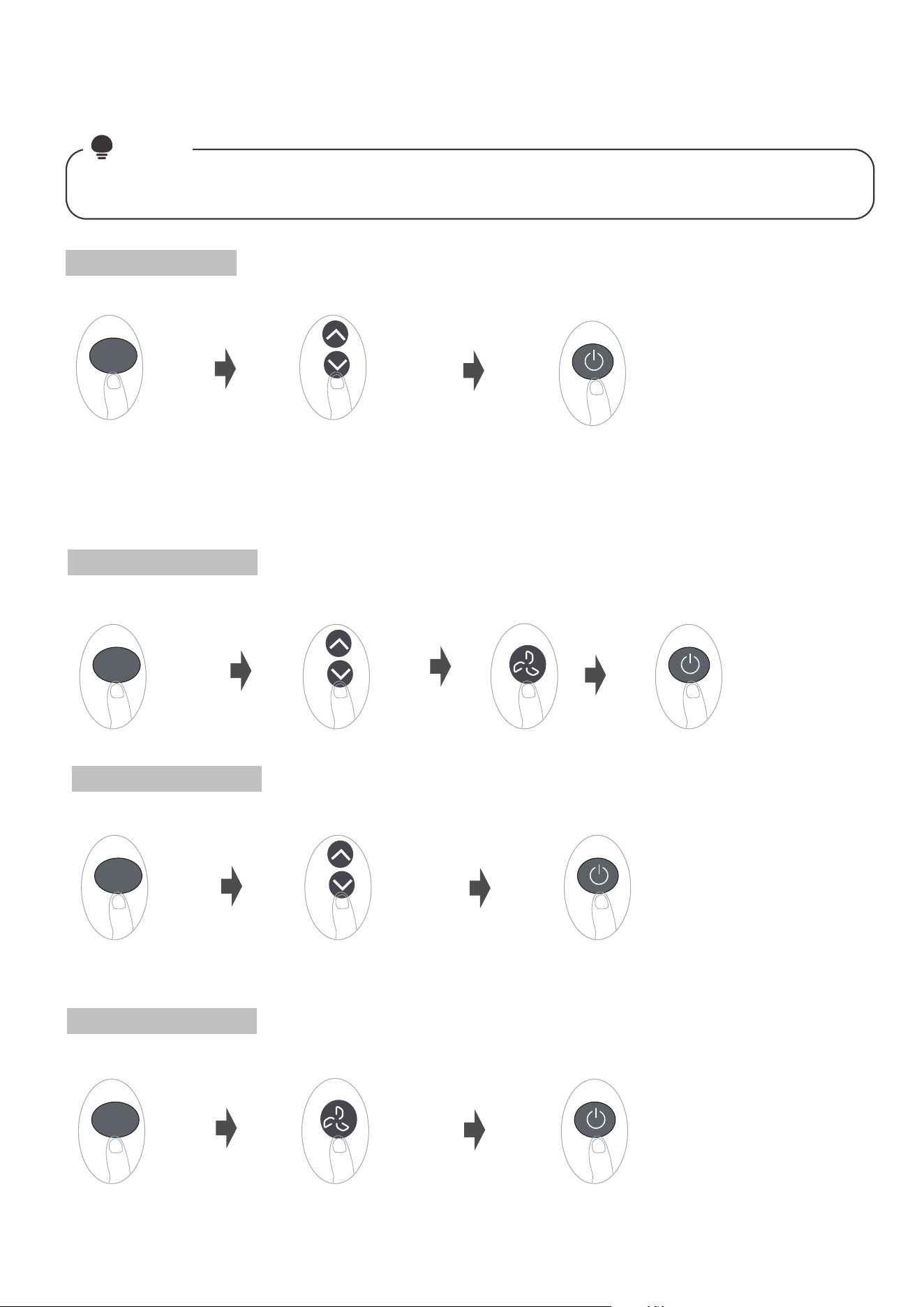

How to Use Basic Functions
AUTO Mode
COOL or HEAT Mode
DRY Mode
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the selected
temperature.
2. In AUTO mode, fan speed cannot be set.
Turn on the air conditioner
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
Select FAN mode Turn on the air conditioner
Select COOL/HEAT mode
Set the temperature
Turn on the air
conditioner
Set the fan speed
Set the fan speed
NOTE: In DRY mode, fan speed cannot be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature is displayed on the remote’s
screen.
MODE
MODE
MODE
Before operation, please ensure the unit is plugged in and power is available.
NOTE
46

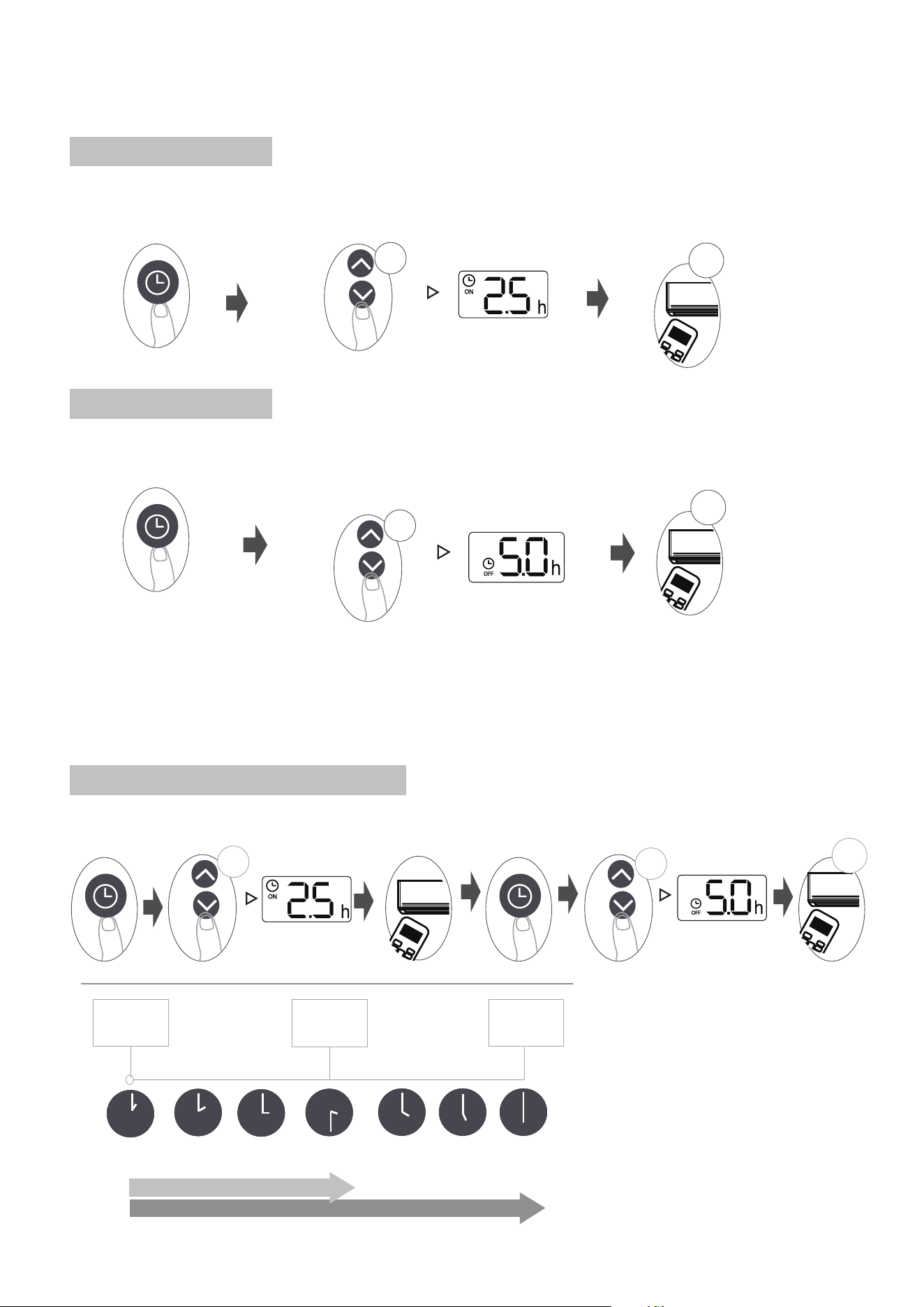

Setting the TIMER
TIMER ON setting
TIMER OFF setting
TIMER ON & OFF setting(example)
TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/o.
Press TIMER button to initiate
the time ON sequence.
Press Temp. up or down buttons to set the length of time after which
you would like the unit to turn ON. Wait for 1 second to activate time
to turn on the unit.
Press Temp. up or down buttons to set the length of time after which
you would like the unit to turn OFF. Wait for 1 second to activate time
to turn o the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase in 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting the timer to 0.0h.
Press TIMER button to initiate
the time OFF sequence.
Current
time 1PM
2:00PM 3:00PM
4PM 5PM
6PM
Timer starts
Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn o at 6:00PM.
Keep in mind that the time periods you set for both functions refer to hours after the current time.
ON/OFF
MODE
F
AN
SHORT
CUT
TIMER ON
TIM
ER OF
F
TEM
P
S
L
E
EP
1 sec
ON/OFF
MODE
F
AN
SHORT
CUT
TIMER ON
TIM
ER OF
F
TEM
P
S
L
E
EP
ON/OFF
MODE
F
AN
SHORT
CUT
TIMER ON
TIM
ER OF
F
TEM
P
S
L
E
EP
ON/OFF
MODE
F
AN
SHORT
CUT
TIMER ON
TIM
ER OF
F
TEM
P
S
L
E
EP
x5
1 sec
1 sec
xn
xn
x5
47

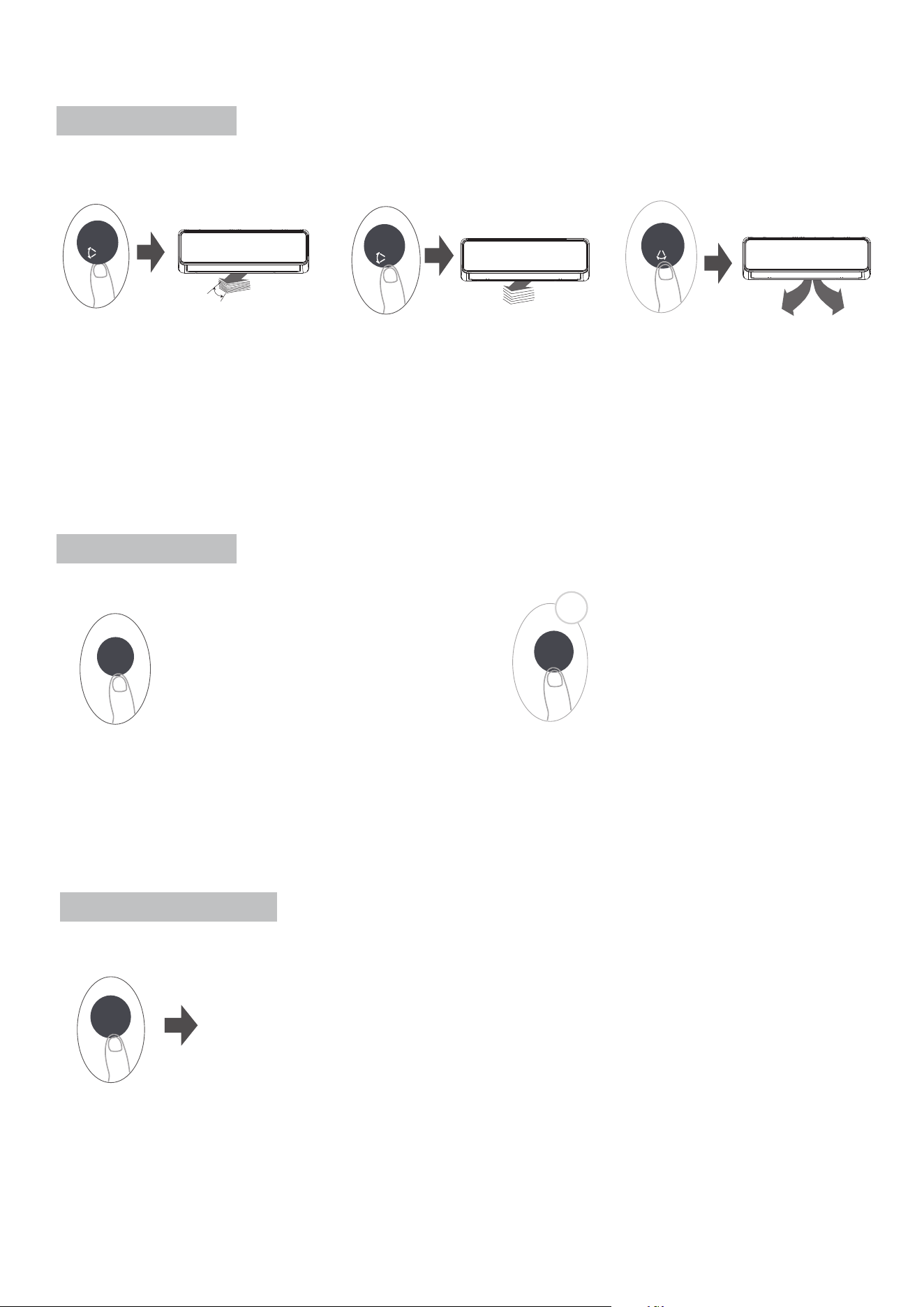

How to Use Advanced Functions
Swing function
LED DISPLAY
Keep pressing this button more than 5 seconds,
the indoor unit will display the actual room
temperature. Press more than 5 seconds again
will revert back to display the setting temperature.
Press this button to turn on and turn o
the display on the indoor unit.
5s
Press this button more
than 5 seconds(some units)
LED
LED
Cool/Heat Flash Function
When you press this button in COOL mode, the Cool Flash function will start. The
unit will produce a large volume of air and high airflow, the temperature
of the whole room will be reduced in a short time.
When you press this button in HEAT mode, the Heat Flash function will start. Fast
and strong hot airflow will warm up your whole room in a short time.
Press this button
Press Swing button Set airflow direction
The horizontal louver will swing
up and down automatically when
pressing the Swing button.
If you repeatedly press the SWING
button, five dierent airflow
directions can be set. The louver
will move incrementally
each time you press the button.
Press the button until the
direction you prefer is reached.
Press this button , the vertical
louver swing function is
activated.
Swing
Swing
Swing
Cool/Heat
Flash
48

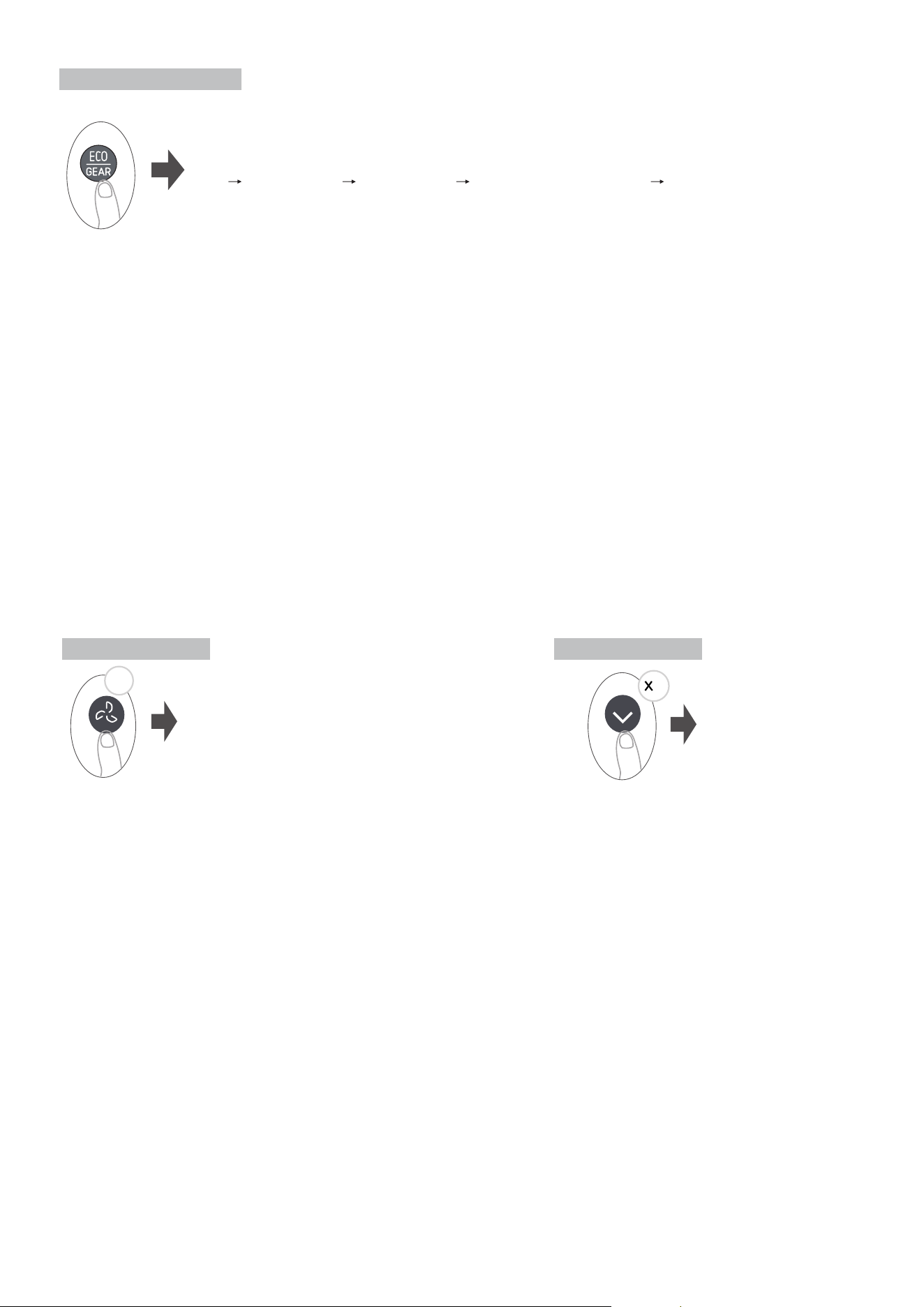

ECO/GEAR Function
Keep pressing Fan button for more than
2 seconds to activate/disable Silent function.
Due to the low frequency operation of the
compressor, it may result in insucient cooling
or heating. Pressing ON/OFF, Mode, Sleep,
Boost or Clean button while operating will
cancel the silent function.
Silent Function
FP function
O
O
O
O
Press this button twice rapidly during HEAT
Mode and setting temperature of
16 C/60 F to activate the FP function.
The unit will operate at high fan speed (while
the compressor is on) with temperature will
automatically be set to 8 C/46 F.
2
2s
Press this button to enter into one of the following energy eciency modes:
ECO GEAR(75%) GEAR(50%) Previous setting mode ECO......
Note:This function is only available under COOL mode.
If used during cooling mode, pressing this button
will adjust the temperature automatically
to 24 C/75 F and place the fan speed on Auto
to save energy. If the set temperature is higher,
it will remain at that setting.
O
O
ECO Operation:
GEAR operation:
O
O
OO
NOTE: Pressing the ECO button again, or
modifying the mode or adjusting the set
temperature to less than 24 C/75 F will stop
ECO operation.
Under ECO operation, the set temperature
may not be lower than 24 C/75 F. This may
result in insucient cooling. Press the ECO
button again to return to normal operation.
Press the ECO/GEAR button to enter into GEAR operation as following:
75%(up to 75% electrical energy consumption) 50%(up to 50% electrical energy consumption)
Previous setting mode.
49

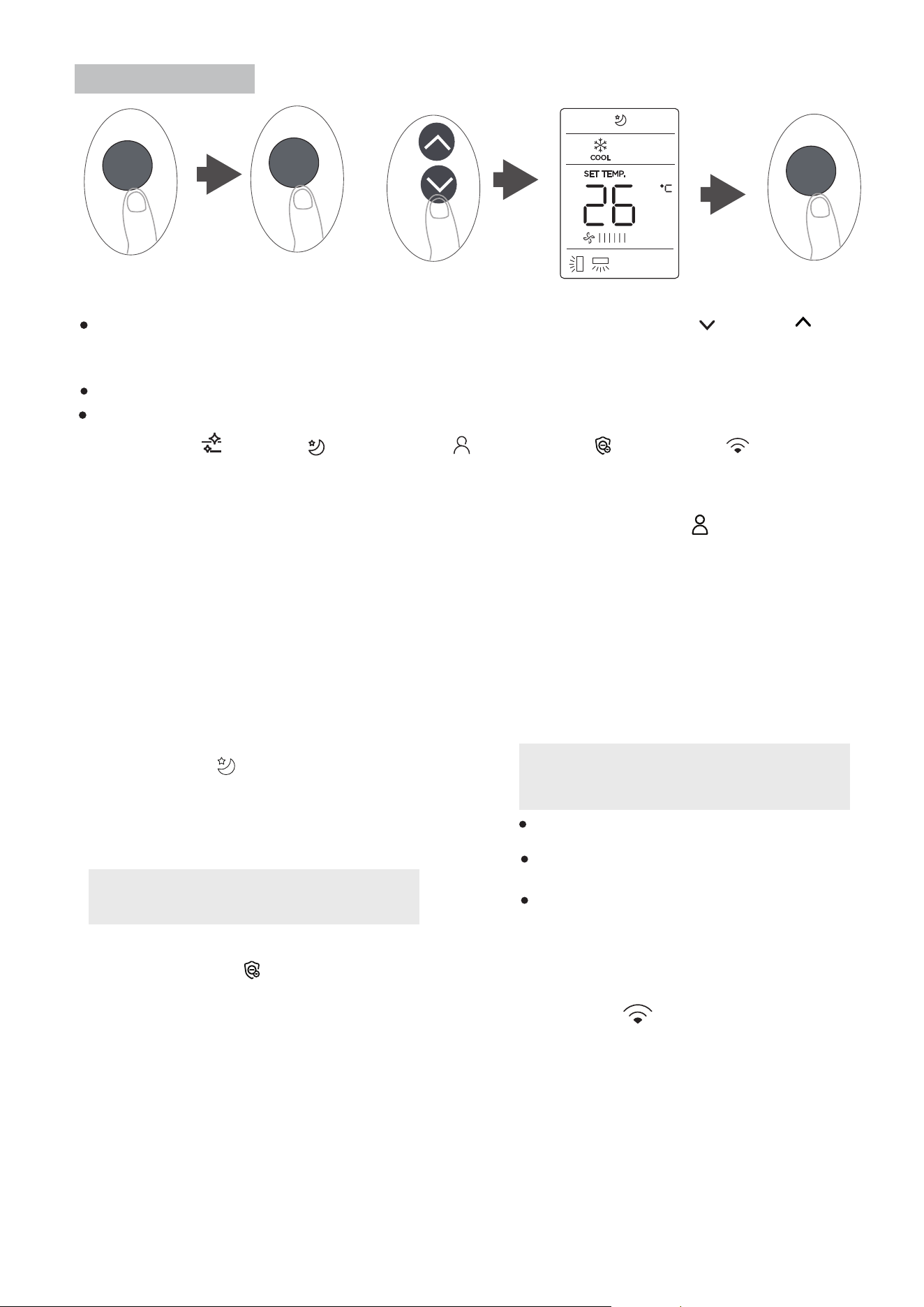

Sleep Function( ) :
Air magic Function( ) (some units):
AP Function( )(some units) :
Follow Me Function( ):
SET function
or
SET
SET
OK
Press the SET button to change the function, press the SET button again or TEMP or TEMP
button to select the desired function. The selected symbol will flash on the display area, press the
OK button to confirm.
To cancel the selected function, just perform the same procedures as above.
Press the SET button to scroll through operation functions as follows:
Active clean( ) Sleep( ) Follow Me( ) Air magic ( ) AP mode ( )
*
*
*
The FOLLOW ME function enables the remote
control to measure the temperature at its
current location and send this signal to the
air conditioner in 3 minute intervals.
When using AUTO, COOL or HEAT modes,
measuring ambient temperature from the
remote control(instead of from the indoor
unit itself) will enable the air conditioner to
optimize the temperature around you and
ensure maximum comfort.
The SLEEP function is used to decrease
energy use while you sleep(and don’t
need the same temperature settings to
stay comfortable).
,
,
,
,
,
,
,
,
If the memory feature is stopped, OF
displays for 3 seconds on the screen.
While the memory feature is activated,
pressing the ON/OFF button, shifting the
mode or a power failure will not cancel the
Follow Me function.
NOTE: Press and hold Cool/Heat Flash
button for 7 seconds to start/stop the
memory feature of the Follow Me function.
If the memory feature is activated,
On
displays for 3 seconds on the screen.
Use the SET button to choose AP(Access
Point) mode to enable wireless configuration.
If this function is not available on this unit,
it might be possible to enter AP mode by
pressing the LED button 7 times in 10 seconds.
NOTE: The SLEEP function is not available
in FAN and DRY mode.
Active Clean Function
The Active Clean technology removes
dust and mold that may cause odors. Active
Clean rapidly freezes and thaws the heat
exchanger, to clean away material that has
adhered to it. When this function is turned on,
the indoor unit displays “CL”. After 20 to 45
minutes, the unit will turn o automatically and
terminate CLEAN function.
[ ]: If your remote controller has Air magic button, you can not use the SET button to select Air magic
feature.
When this function is selected, the ionizer or
UV-C lamp(model dependent) will be activated.
If has both features, these two features will be
activated at the same time. It will help to purify
the air in the room.

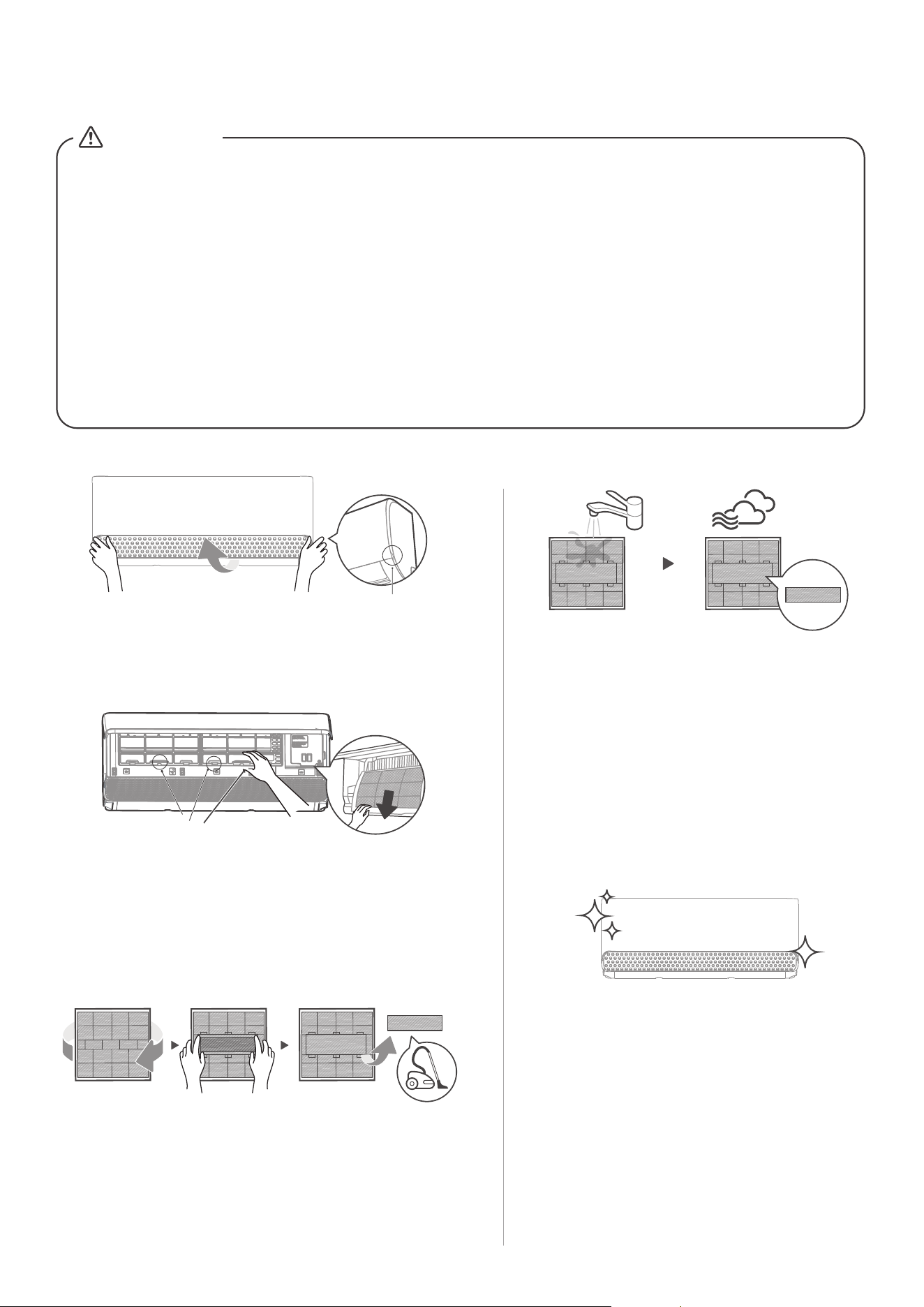

Cleaning Your Indoor Unit, Air Filter
Lift the front panel of the indoor unit.
If your filter has a small air freshening filter, unclip it
from the larger filter. Clean this air freshening filter
with a hand-held vacuum.
Grip the tab on the end of the filter, lift it up, then pull
it towards yourself and pull the filter out.
CARE AND MAINTENANCE
• A clogged AC may reduce the eciency of your unit or possibly impact your
health. Make sure to clean the filter every two weeks.
• Always TURN OFF your AC system and disconnect its power supply before
cleaning or maintenance.
• Do not touch air freshening (Plasma) filter at least 10 minutes after turning o
the unit.
• Only use a soft, dry cloth to wipe the unit clean. You can use a cloth soaked in
warm water to wipe it clean if the unit is especially dirty.
• Do not use chemicals or chemically treated cloths to clean the unit
• Do not use benzene, paint thinner, polishing powder or other solvents to clean
the unit. They can cause the plastic surface to crack or deform.
• Do not use water hotter than 40°C (104°F) to clean the front panel. This can
cause the panel to deform or become discolored.
CAUTION
Step 1：
Step 3：
Clean the large air filter with warm, soapy
water. Be sure to use a mild detergent.
Rinse the filter with fresh water, then shake
o excess water. Dry it in a cool, dry place
and refrain from exposing it to direct
sunlight.
Step 4：
When dry, re-clip the air freshening filter
to the larger filter, then slide it back into
the indoor unit. Finally, close the front
panel of the indoor unit.
Step 5：
Step 2：
Grab the clasp
and lift
(Front)
1. Flip to back 2. Remove air
freshening filter
o (some units)
3. Clean it by
vacuum cleaner
(Back)
Don't forget to
install me back
50

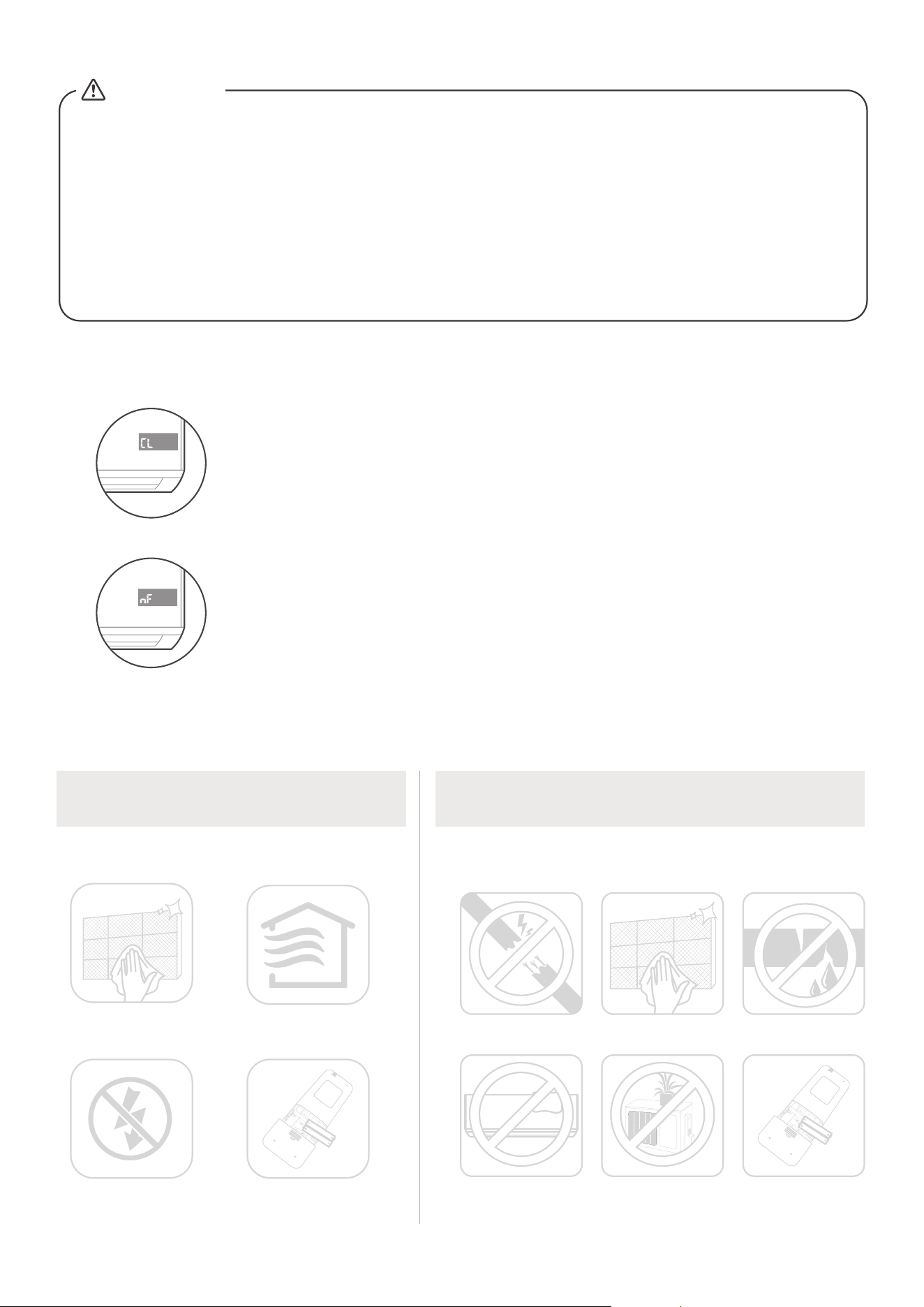

Filter Tabs
Display window: “CL”
Display window: “nF”
Air Filter Reminders (Optional)
Maintenance –
Long Periods of Non-Use
If you plan not to use your air conditioner for
an extended period of time, do the following:
Clean all filters Turn on FAN function until
unit dries out completely
Turn the unit o and
disconnect the power
Remove batteries
from remote control
Maintenance –
Pre-Season Inspection
After long periods of non-use, or before periods of
frequent use, do the following:
Check for damaged wires
Clean all filters Check for leaks
Replace batteriesMake sure nothing is blocking
all air inlets and outlets
Maintenance of your air conditioner
Air Filter Cleaning Reminder
• After 240 hours of use, the display window on the indoor unit will flash “CL.”
This is a reminder to clean your filter. After 15 seconds, the unit will revert to
its previous display.
• To reset the reminder, press the LED button on your remote control 4 times,
or press the MANUAL CONTROL button 3 times. If you don’t reset the
reminder, the “CL” indicator will flash again when you restart the unit.
Air Filter Replacement Reminder
• After 2,880 hours of use, the display window on the indoor unit will flash “nF.”
This is a reminder to replace your filter. After 15 seconds, the unit will revert to
its previous display.
• To reset the reminder, press the LED button on your remote control 4 times,
or press the MANUAL CONTROL button 3 times. If you don’t reset the
reminder, the “nF” indicator will flash again when you restart the unit.
• Before changing the filter or cleaning, turn o the unit and disconnect its
power supply.
• When removing the filter, do not touch metal parts in the unit. The sharp
metal edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can destroy
insulation and cause lectrical shock.
• Do not expose the filter to direct sunlight when drying. This can shrink the
filter.
• Any repair, maintenance or cleaning of the outdoor unit should be
performed by an authorized dealer or a licensed service provider.
CAUTION
51
52
Common Issues
The following problems are not a malfunction and in most situations will not require repairs.
Issue Possible Causes
Unit does not turn
on when pressing
ON/OFF button
The Unit has a 3-minute protection feature that prevents the unit from
overloading. The unit cannot be restarted within three minutes of being
turned o.
The unit may change its setting to prevent frost from forming on the unit.
Once the temperature increases, the unit will start operating in the
previously selected mode again.
Once the set temperature has been reached, the unit will automatically turn
the compressor o. The compressor will resume when the temperature
fluctuates again.
The indoor unit
emits white mist
In humid regions, a large temperature dierence between the room’s air
and the conditioned air can cause white mist.
Both the indoor and
outdoor units emit
white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated from the defrosting process.
TROUBLESHOOTING
The unit changes from
COOL/HEAT mode to
FAN mode
The indoor unit makes
some occasional noise
A rushing air sound may occur when the louver resets its position.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor unit
and outdoor unit make
noises
The unit emits a low hissing sound during operation: This is normal and is
caused by refrigerant gas flowing through both indoor and outdoor units.
The unit emits a low hissing sound when the system starts, has just stopped
running, or is defrosting: This noise is normal and is caused by the refrigerant
gas stopping or changing direction.
The unit emits a squeaking sound: Normal expansion and contraction of
plastic and metal parts caused by temperature changes during operation
can cause squeaking noises.
If any of the following conditions occurs, turn o your unit immediately!
• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
• Water or other objects fall into or out of the unit
DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED
SERVICE PROVIDER IMMEDIATELY.
CAUTION
53
Issue Possible Causes
The outdoor unit
makes noises
The unit will make dierent sounds based on its current operating mode.
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use, which will
be emitted when the unit is turned on. This can be mitigated by covering the
unit during long periods of inactivity.
The unit emits a
bad odor
The unit may absorb odors from the environment (such as furniture, cooking,
cigarettes, etc.) which will be emitted during operations.
The unit’s filters have become moldy and should be cleaned.
The fan of the outdoor
unit does not operate
During operation, the fan speed is controlled to optimize product operation.
Operation is erratic,
unpredictable, or
unit is unresponsive
Interference from cell phone towers and remote boosters may cause the unit
to malfunction.
In this case, try the following:
•
Disconnect the power, then reconnect.
•
Press ON/OFF button on remote control to restart operation.
NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide them
with a detailed description of the unit malfunction as well as your model number.
If problems occur, please check the following points before contacting a repair company.
Problem Possible Causes Solution
Poor Cooling
Performance
Temperature setting may be higher
than ambient room temperature
Lower the temperature setting
The heat exchanger on the indoor
or outdoor unit is dirty
The air filter is dirty
Remove the filter and clean it according to
instructions
The air inlet or outlet of either
unit is blocked
Turn the unit o, remove the obstruction
and turn it back on
Doors and windows are open
Make sure that all doors and windows are
closed while operating the unit
Excessive heat is generated
by sunlight
Close windows and curtains during periods
of high heat or bright sunshine
Too many sources of heat in the
room (people, computers,
electronics, etc.)
Reduce amount of heat sources
SILENT function is activated
(optional function)
SILENTfunction can lower product
performance by reducing operating
frequency. Turn o SILENT function.
CAUTION
Use Clean function by remote control to
clean the aected heat exchanger
54
NOTE: If your problem persists after performing the checks and diagnostics above, turn o your unit
mmediately and contact an authorized service center.
Error code appears and
begins with the letters
as the following in the
window display of
indoor unit:
E(x), P(x), F(x)
EH(xx), EL(xx), EC(xx)
PH(xx), PL(xx), PC(xx)
•
•
•
Problem Possible Causes Solution
The unit is not
working
Power failure
Wait for the power to be restored
The power is turned o Turn on the power
The fuse is burned out
Call service center to replace the fuse
Remote control batteries are dead
Replace batteries
The Unit’s 3-minute protection
has been activated
Wait three minutes after restarting
the unit
Timer is activated
Turn timer o
The unit starts and
stops frequently
There’s too much or too little
refrigerant in the system
Call service center to check for leaks
and recharge the system with
refrigerant.
Incompressible gas or moisture
has entered the system.
Call service center to evacuate and
recharge the system with refrigerant
The compressor is broken
Call service center to replace the
compressor
The voltage is too high or
too low
Install a manostat to regulate the
voltage
Poor heating
performance
The outdoor temperature is
extremely low
Use auxiliary heating device
Cold air is entering through
doors and windows
Make sure that all doors and
windows are closed during use
Low refrigerant due to leak or
long-term use
Call service center to check for leaks,
re-seal if necessary and top o
refrigerant
Indicator lamps
continue flashing
The unit may stop operation or continue to run safely. If the indicator
lamps continue to flash or error codes appear, wait for about 10
minutes. The problem may resolve itself.
If not, disconnect the power, then connect it again. Turn the unit on.
If the problem persists, disconnect the power and contact your nearest
customer service center.
DISPOSAL AND RECYCLING
Important instructions for environment(European Disposal Guidelines)
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
This symbol indicates that this product shall not be dis-
posed with other household wastes at the end of its ser-
-
tion point for recycling of electrical electronic devices. To
find these collection systems please contact to your local
authorities or retailer where the product was purchased.
Each household performs important role in recovering
and recycling of old appliance. Appropriate disposal of
used appliance helps prevent potential negative conse-
quences for the environment and human health.
55
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
Any updates to the manual will be uploaded to the service website, please check
for the latest version.
Manufacturer: Midea Refrigeration equipment (Thailand) Co., LTD
Distributor: Toshiba Thailand Co.,LTD.
201 VIBHAVADEE RANGSIT ROAD CHATUJAK 10900 THAILAND
No.18/16 Moo. 8, Khao Khansong Sub-District, Si Racha District,
Chonburi Province 20110
16122000A76420
