MFL69661761
Rev.01_022020
Copyright © 2019-2020 LG Electronics Inc. All Rights Reserved
18
19
21
22
25
To Reverse the Doors(Optional)
Setting Wi-Fi
Freezer Compartmet(Optional)

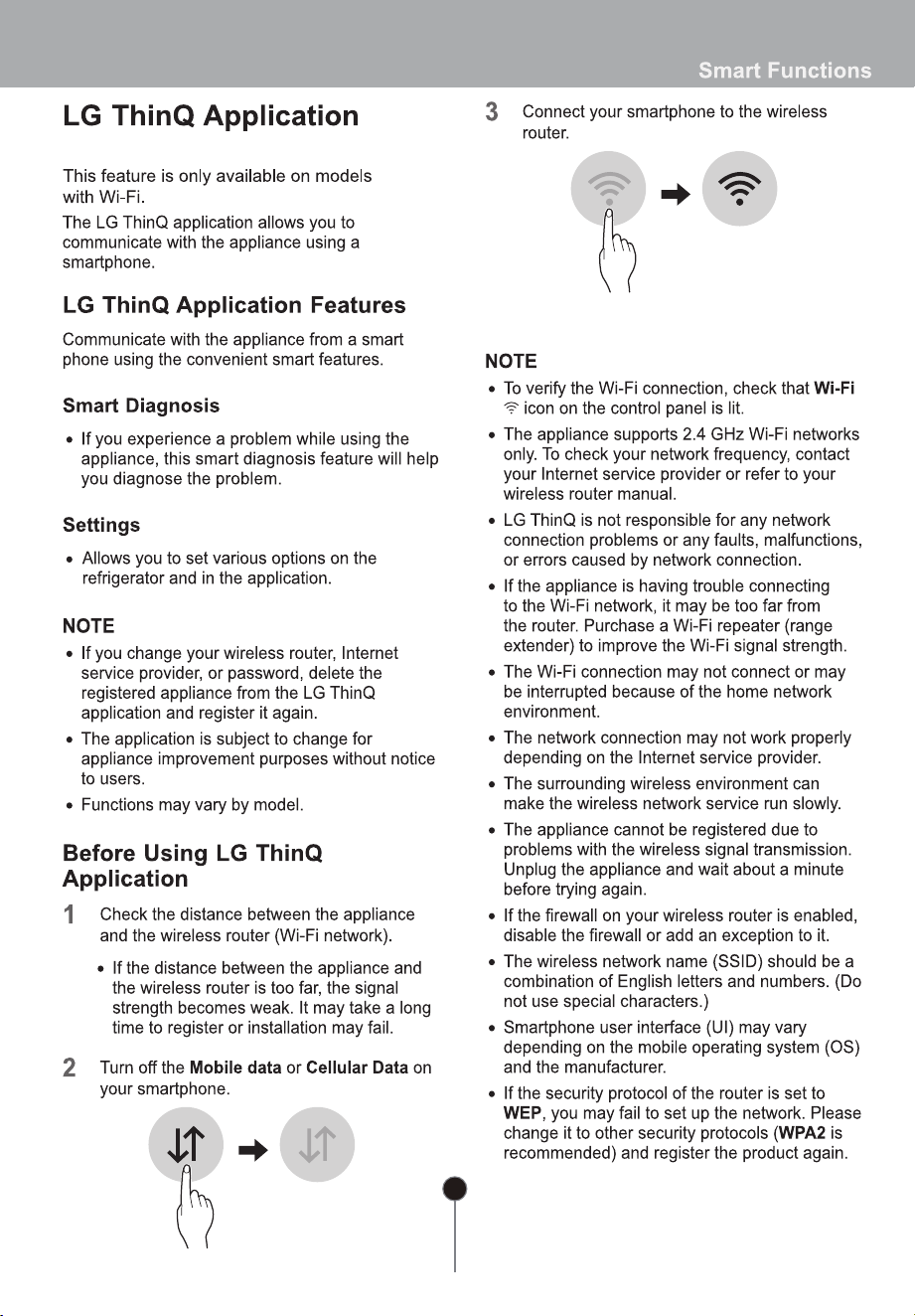

LG ThinQ Application

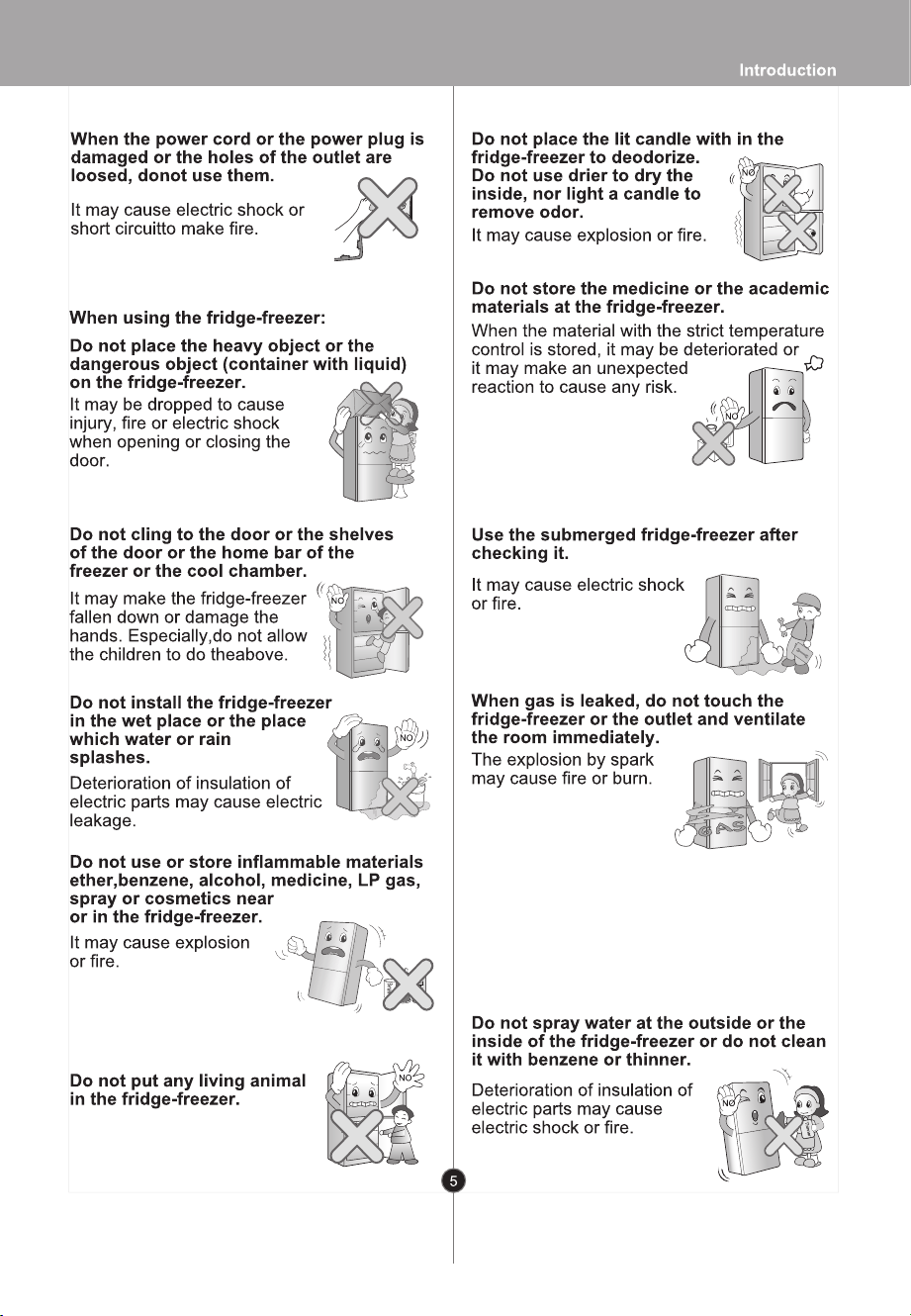

If there is a gas leakage
(isobutane, propane,
natural gas, etc.),do not
touch the appliance or power plug and ventilate
the area immediately. This appliance uses a
refrigerant gas (isobutane,R600a). Although it
uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance
transport,installation or operation can cause fire,
explosion or injury if sparks are caused.

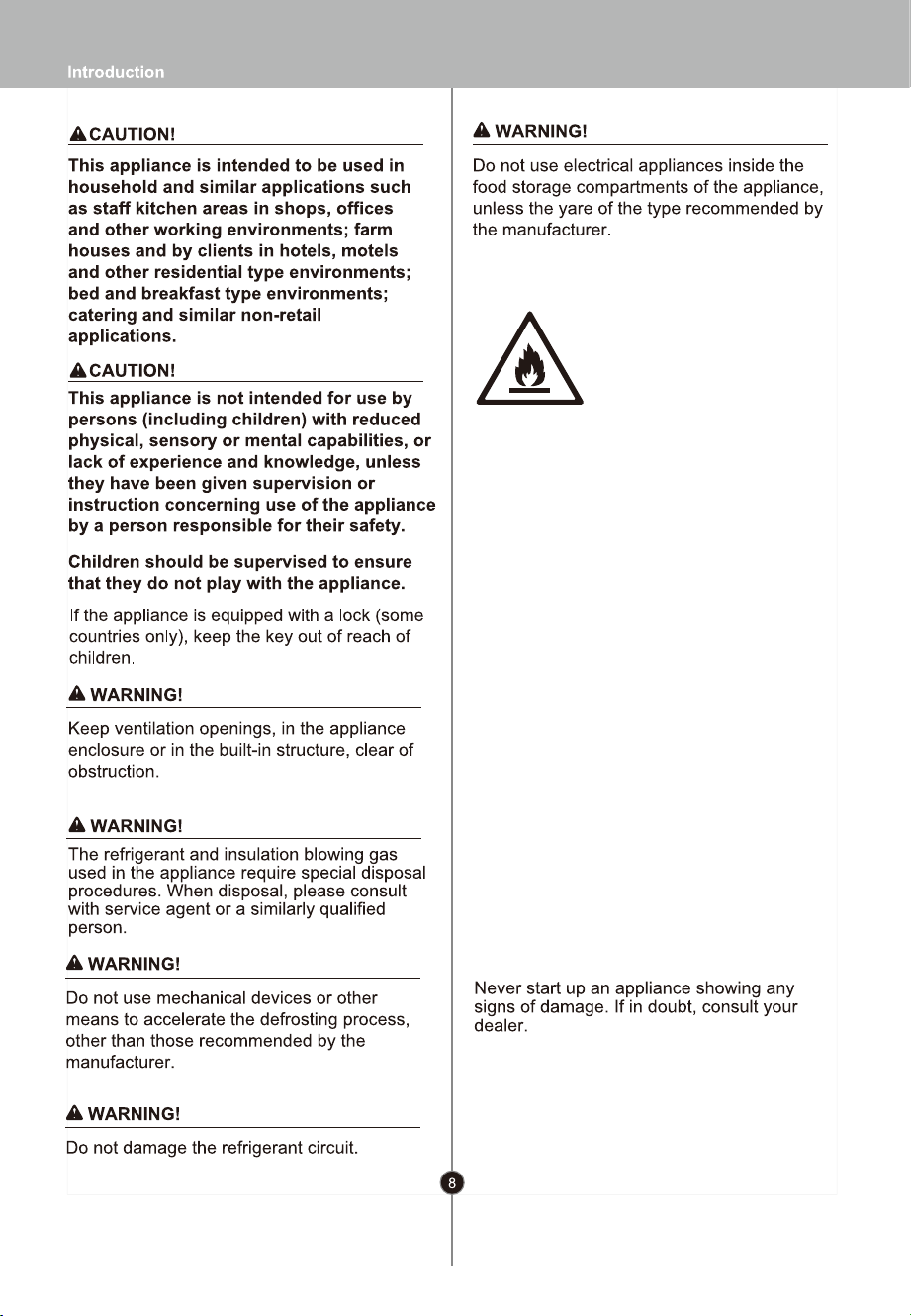

Risk of Fire and Flammable Materials
This symbol alerts you to
flammable materials that can
ignite and cause a fire if you
do not take care.
• This appliance contains a small amount of
isobutane refrigerant (R600a), but it is also
combustible. When transporting and
installing the appliance, care should be
taken to ensure that no parts of the
refrigerating circuit are damaged.
• If a leak is detected, avoid any naked flames
or potential sources of ignition and air the
room in which the appliance is standing for
several minutes. In order to avoid the
creation of a flammable gas air mixture if a
leak in the refrigerating circuit occurs, the
size of the room in which the appliance is
used should correspond to the amount of
refrigerant used. The room must be
1 m² in size for every 8 g of R600a
refrigerant inside the appliance.
• When positioning the appliance, ensure the
supply cord is not trapped or damaged.
•
Do not locate multiple portable socket-outlets
or portable power supplies at the rear of
the appliance.
(2 or 3 EA) (4 or 6 EA)
Dimensions and Clearances
Too small of a distance from adjacent items may result in degradation of freezing capability
and increased electricity costs. Allow over 50mm clearance from each adjacent wall when
installing the appliance.
B
A
C
- Size(mm)
A 643
B 595
C 1737
D 541
E 578
F 643
G 1150
H 970
F
H
G
D
E
y

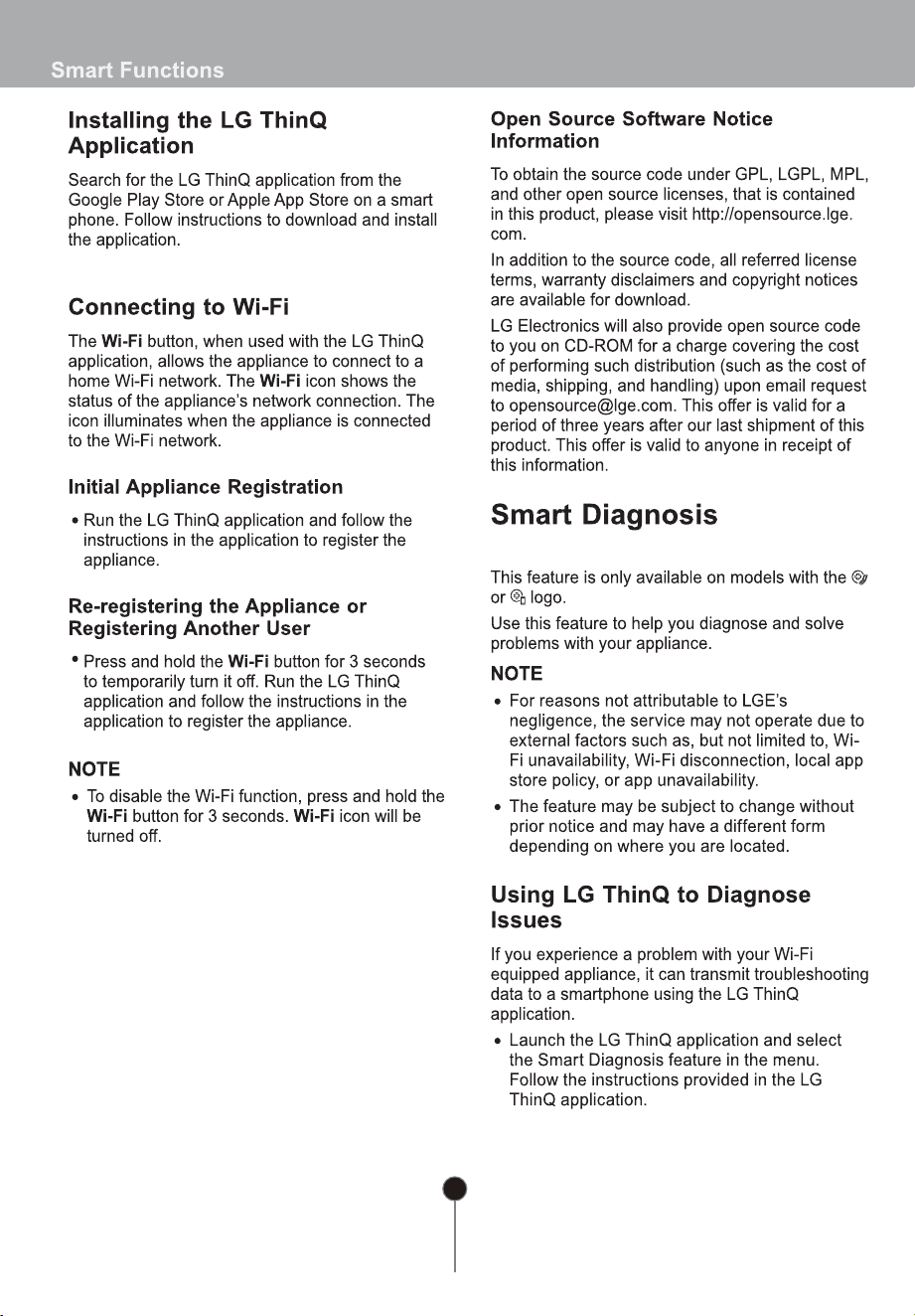

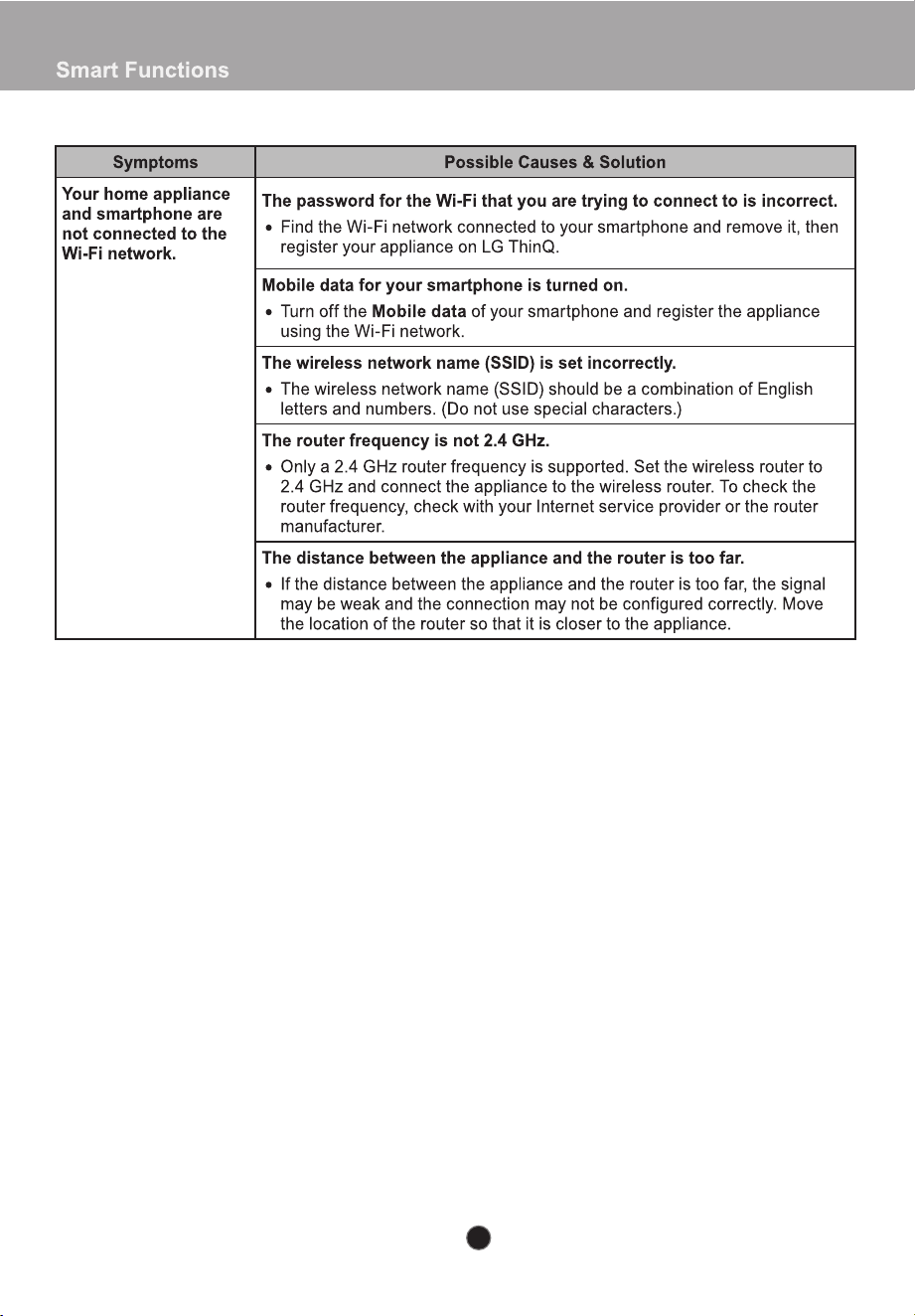

Setting Wi-Fi
The Wi-Fi button, when used with the LG
ThinQ application, allows the refrigerator to
connect to a home Wi-Fi network.
The Wi-Fi icon shows the status of the
refrigerator’s network connection. The icon
illuminates when the refrigerator is connected to
the Wi-Fi network.
Press and hold the Wi-Fi button for 3 seconds to
connect to the network. The icon blinks while the
connection is being made, then turns on once the
connection is successfully made.
y

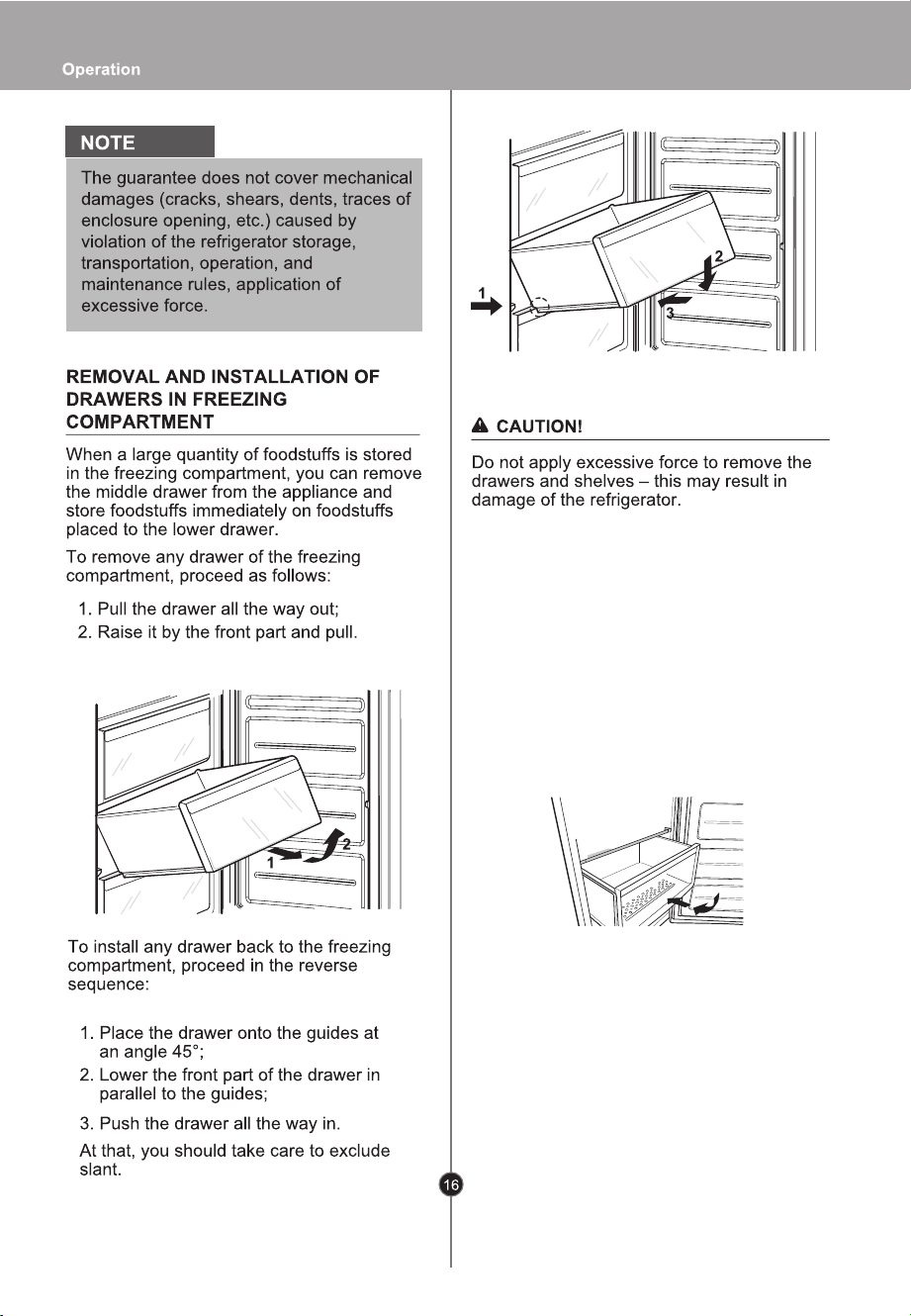

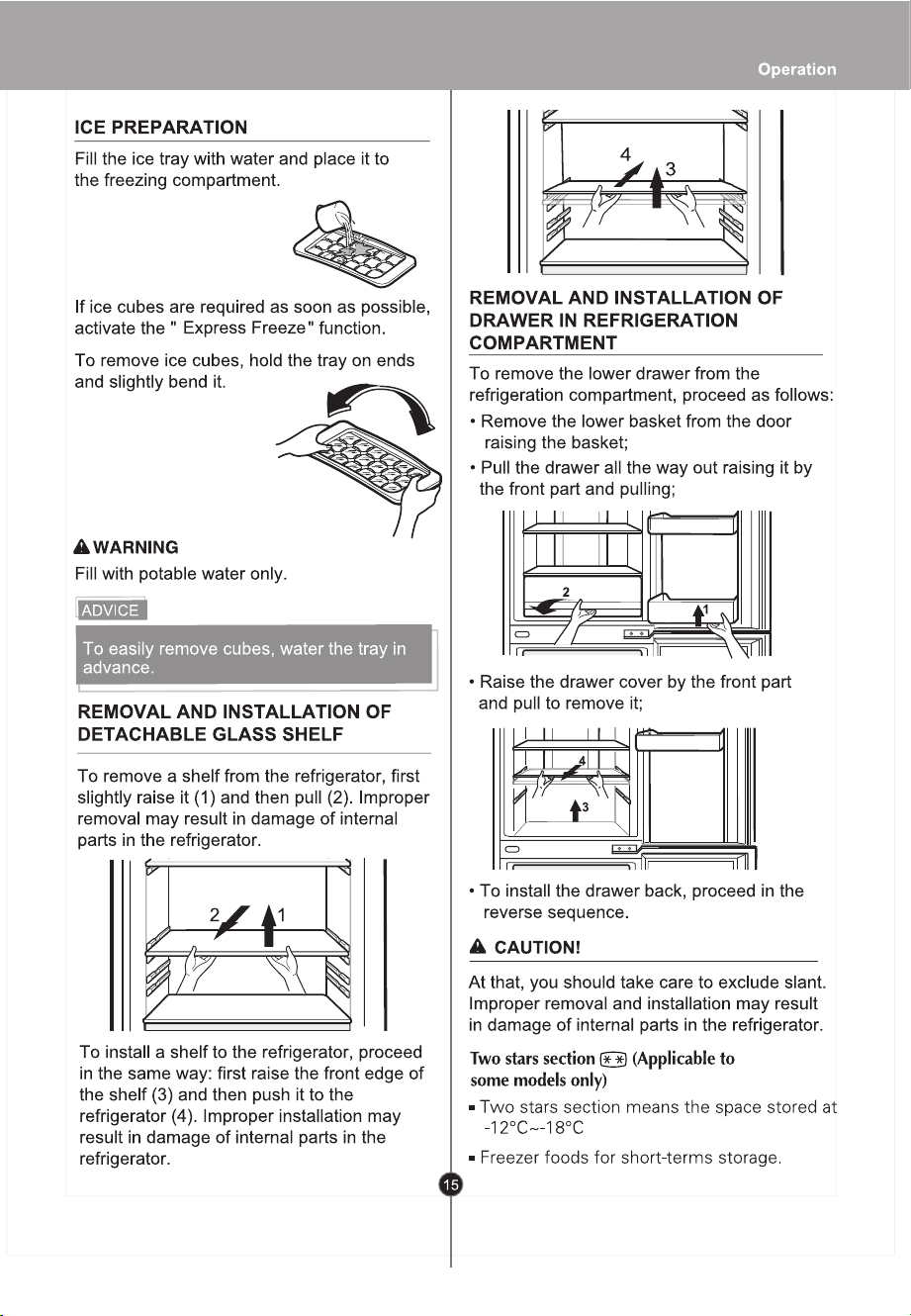

Freezer Compartment (Optional)
If a large quantity of food is to be placed in the
freezer compartment,
The middle drawer of freezer compartment
shall be taken out of the appliance and food
shall be stacked directly on the wire shelf.
Freezer compartment provides wire shelf on
default to maximize food storage capacity. And
also the drawer is provided to convenient usage
for watery meat or half-liquid state food.
Notes for Operation
• If you are leaving the appliance turned off for
an extended period of time, remove all food
and unplug the power cord. Clean the interior,
and leave the doors slightly ajar to prevent
mold from growing in the appliance.
• The automatic defrosting system in the
appliance ensures that the compartment
remains free of ice buildup under normal
operating conditions
CAUTION!
1. Before cleaning, make sure that power
1.
supply is switched off;
2. Outside and inside, the refrigerator should
2. For products with a stainless steel exterior,
use a clean sponge or soft cloth and a
mildDetergent in warm water.
Do not use abrasive or harsh cleaners.
Dry thoroughly with a Soft cloth.
Do not use appliance wax, bleach, or other
products containing chlorine on stainless
steel.
be washed with a clean napkin wetted in
warm water with a liquid detergent.
Then wipe dry with a dry napkin;
3. After cleaning, make sure that the power
cord is not damaged.
Then tightly insert the plug to the power
outlet.
CLEANING
It is prohibited to use abrasive materials,
gasoline, benzene, solvents, hydrochloride,
hot water, hard brushes, etc., which may
damage the refrigerator surface.
• If there are chill compartments in the
appliance, do not store vegetables and fruits
with higher moisture content in the chill
compartments as they may freeze due to the
lower temperature.
• In the event of a blackout, call the electricity
company and ask how long it is going to last.
− You should avoid door openings while the
power is off.
− When the power supply gets back to normal,
check the condition of the food.
To Reverse the Doors(Optional)
Your fridge-freezer is designed with reversible
doors,so that they may open from either the left
or right hand side to suit your kitchen design.
However, when you want to reverse the
doors, you must call to service agent.
Reversing the doors is not covered by the
warranty.
21
22
Close the Freezer and Fridge doors, then
press and hold the Lock button to activate
the lock function.
26
24
26
25
