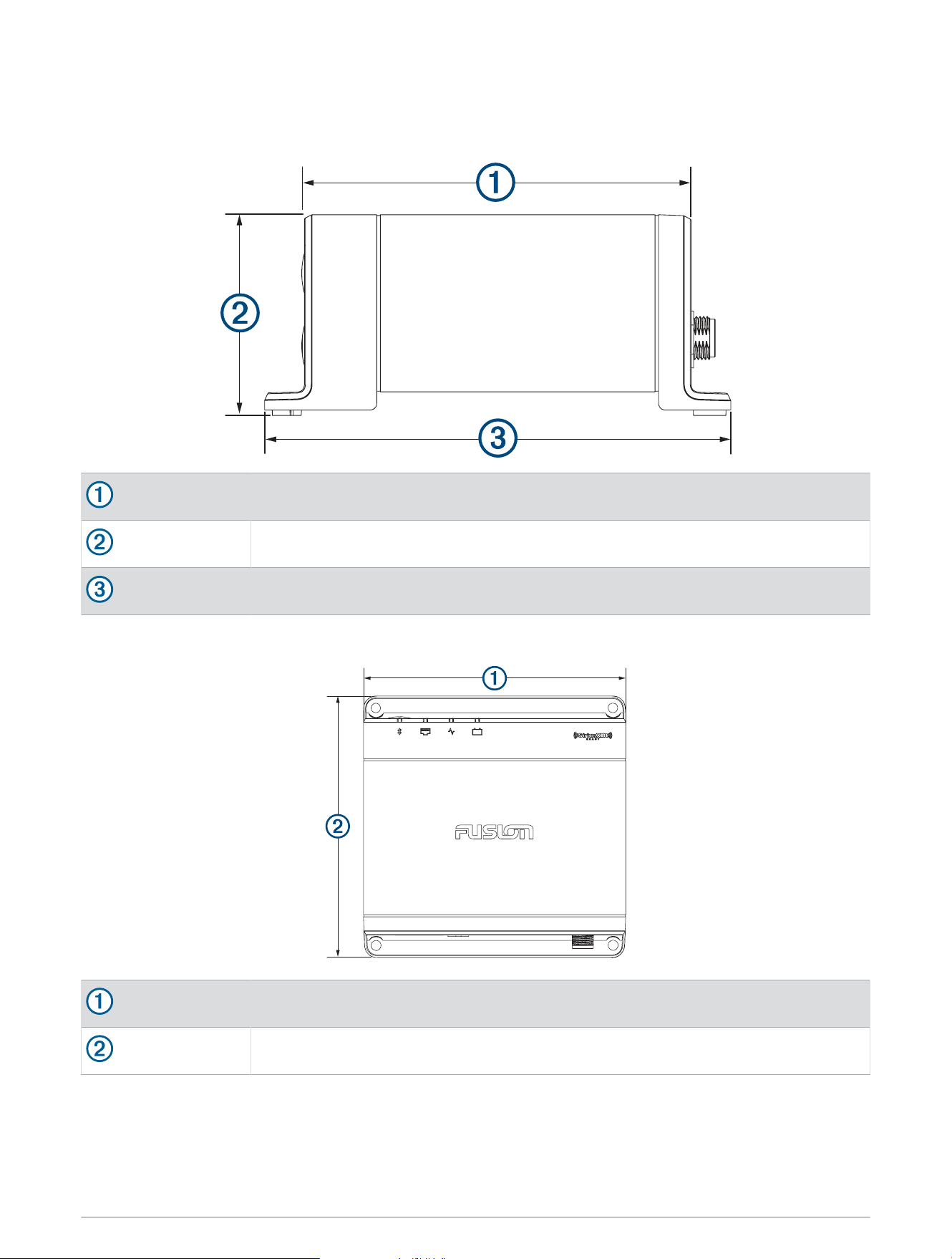

Stereo Dimension Drawings................. 38

Side Dimensions................................38

Top Dimensions................................ 38

Table of Contents iii

Getting Started

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other

important information.

Stereo Buttons and Status LEDs

Because this device is designed to be installed in a location that may not be easily accessible, almost all

playback and device interaction is done through a network-connected remote control, stereo, or chartplotter. In

some instances, you may need to watch the LEDs or press the buttons on the device itself.

Stereo Buttons

Press to turn on the stereo.

Press and hold for two seconds to turn off the stereo.

Press and hold for ten seconds to reset the stereo.

Press to make the stereo discoverable to BLUETOOTH

devices.

and

Press and hold both buttons together for ten seconds to revert the stereo to factory settings.

Status LEDs

Icon LED Activity LED Status

Solid The stereo is receiving power.

Blinking The stereo is turning on.

Solid The stereo is on and operating normally.

Off The stereo is off.

Blinking The stereo is communicating using Ethernet.

Blinking The stereo is discoverable to BLUETOOTH devices.

Solid The stereo is connected to a BLUETOOTH device.

Getting Started 1

Controls

NOTE: These stereo controls are available when you use a connected remote control, such as a Fusion

ERX400. If you control the stereo using a chartplotter, an NRX remote control, or another stereo on the network,

you should see the owner's manual for that device for more information.

2 Getting Started

Dial

• Turn to adjust the volume.

• When adjusting the volume, press to switch between zones.

• Turn to move through the menus or adjust a setting.

• When in a menu, press to select the highlighted option.

• Press and hold to activate certain functions such as opening the radio presets or muting all connected

stereos from the mute screen (Muting all Connected Stereos, page6).

• Press to turn on the remote control.

• Press to mute and un-mute the audio.

• Press and hold to turn off the stereo or all stereos on the network.

• Press and hold for longer than 10 seconds to reset the remote control.

NOTE: The stereo turns on and off when you turn the connected remote control on or off.

• Press to open the menu.

• Press to return to the previous screen from the menu.

• Press and hold to exit the menu.

Press to select a source.

TIP: You can turn the dial to browse, and press the dial to select the source.

Press and hold to open the GROUPS menu when connected to a Fusion PartyBus

™

network (Fusion

PartyBus Networking, page22).

• Press to skip to the previous track, when using an applicable source.

• Press and hold to rewind the track when using an applicable source.

• AM/FM:

◦ Press to tune to the previous station or preset.

◦ Press and hold for faster tuning (manual mode only).

• AUX: Press to decrease the gain.

• SiriusXM source:

◦ In Live Mode, press to tune to the previous station or preset.

◦ In Live Mode, press and hold for faster tuning, in Manual mode only.

◦ In Replay Mode, press to skip to the previous track.

◦ In Replay Mode, press and hold to rewind the current track.

• DAB source:

◦ Press to return to the previous DAB station in the ensemble. When you reach the beginning of the

current ensemble, the stereo automatically changes to the last available station in the previous

ensemble.

◦ Press and hold to return to the previous DAB ensemble.

• BLUETOOTH or USB: Press to pause or resume the current track.

• AM/FM:

◦ Press to cycle through the tuning modes (auto, manual, and presets).

◦ Press and hold to save the current station as a preset.

• SiriusXM source:

◦ Press and hold to switch between Replay Mode and Live Mode.

◦ In Live Mode, press to cycle through the tuning modes (Manual, Category, and Preset).

◦ In Replay Mode, press to pause and play.

• DAB:

◦ Press to switch between manual tuning mode and presets.

◦ Press and hold to scan for DAB stations.

• Press to skip to the next track, when using an applicable source.

• Press and hold to fast-forward the track when using an applicable source.

• AM/FM:

Getting Started 3

◦ Press to tune to the next station or preset.

◦ Press and hold for faster tuning (manual mode only).

• AUX: Press to increase the gain.

• SiriusXM source:

◦ In Live Mode, press to tune to the next station or preset.

◦ In Live Mode, press and hold for faster tuning, in Manual mode only.

◦ In Replay Mode, press to skip to the next track, if applicable.

◦ In Replay Mode, press and hold to fast-forward the current track, if applicable.

• DAB source:

◦ Press to advance to the next DAB station in the ensemble. When you reach the end of the current

ensemble, the stereo automatically changes to the first available station in the next ensemble.

◦ Press and hold to advance to the next DAB ensemble.

Entering Text

1 In a field that allows you to enter text, select to erase the existing characters.

2 If necessary, select or to use numerals, symbols, or lower-case letters when available.

3 Turn the dial to choose a character, and press the dial to select it.

4 Select to save the new text.

Using the Dial to Select Items

You can use the dial to highlight and select items on the screen.

• Turn the dial to highlight an item on the screen.

• Press the dial to select the highlighted option.

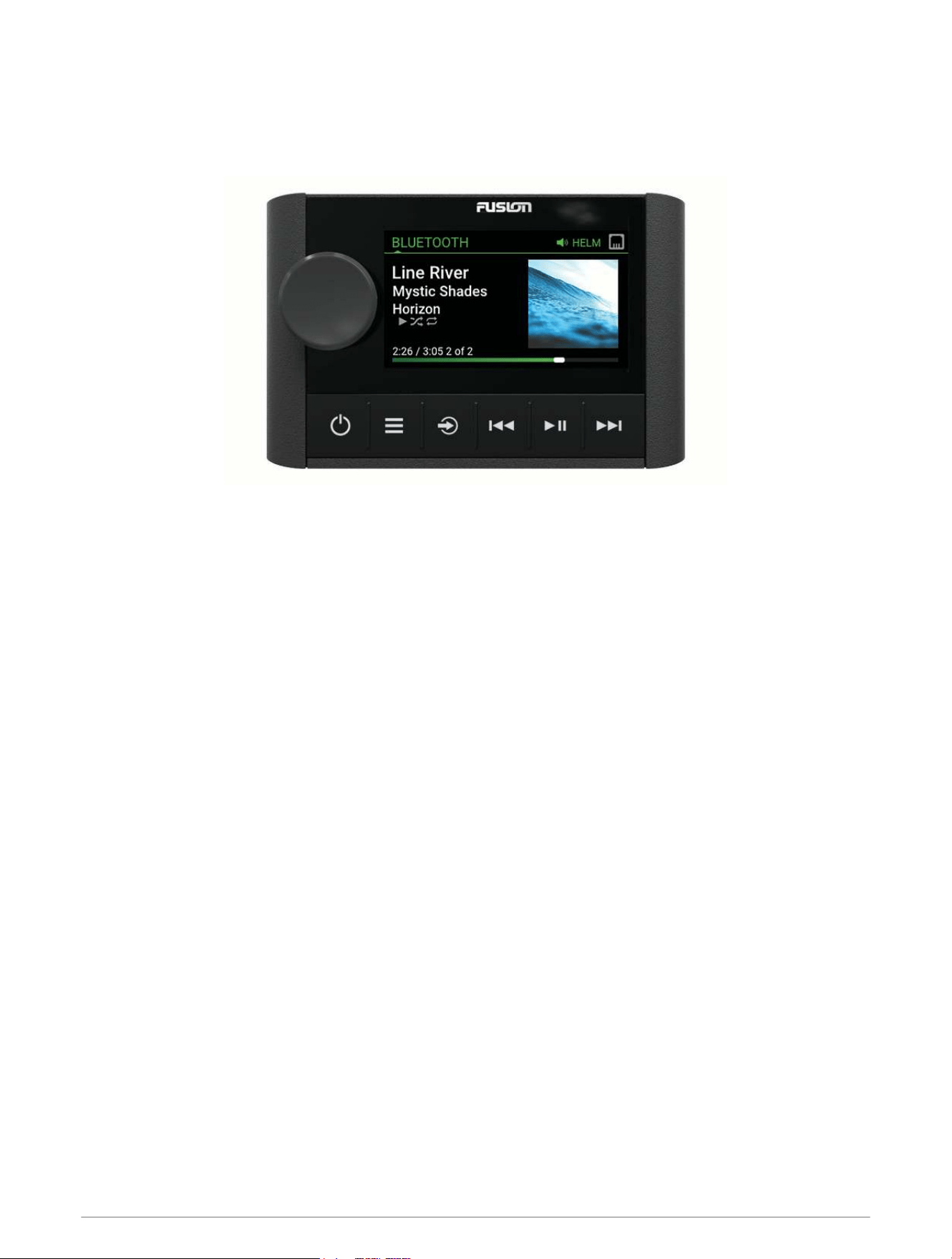

Stereo Screen

The information displayed on the screen varies depending on the source selected. This example shows a track

playing on a device connected using Bluetooth

wireless technology.

NOTE: The screen shown is from a connected remote control, such as an Apollo ERX400. If you are using your

chartplotter to control the stereo, see your chartplotter's owner's manual for more information.

4 Getting Started

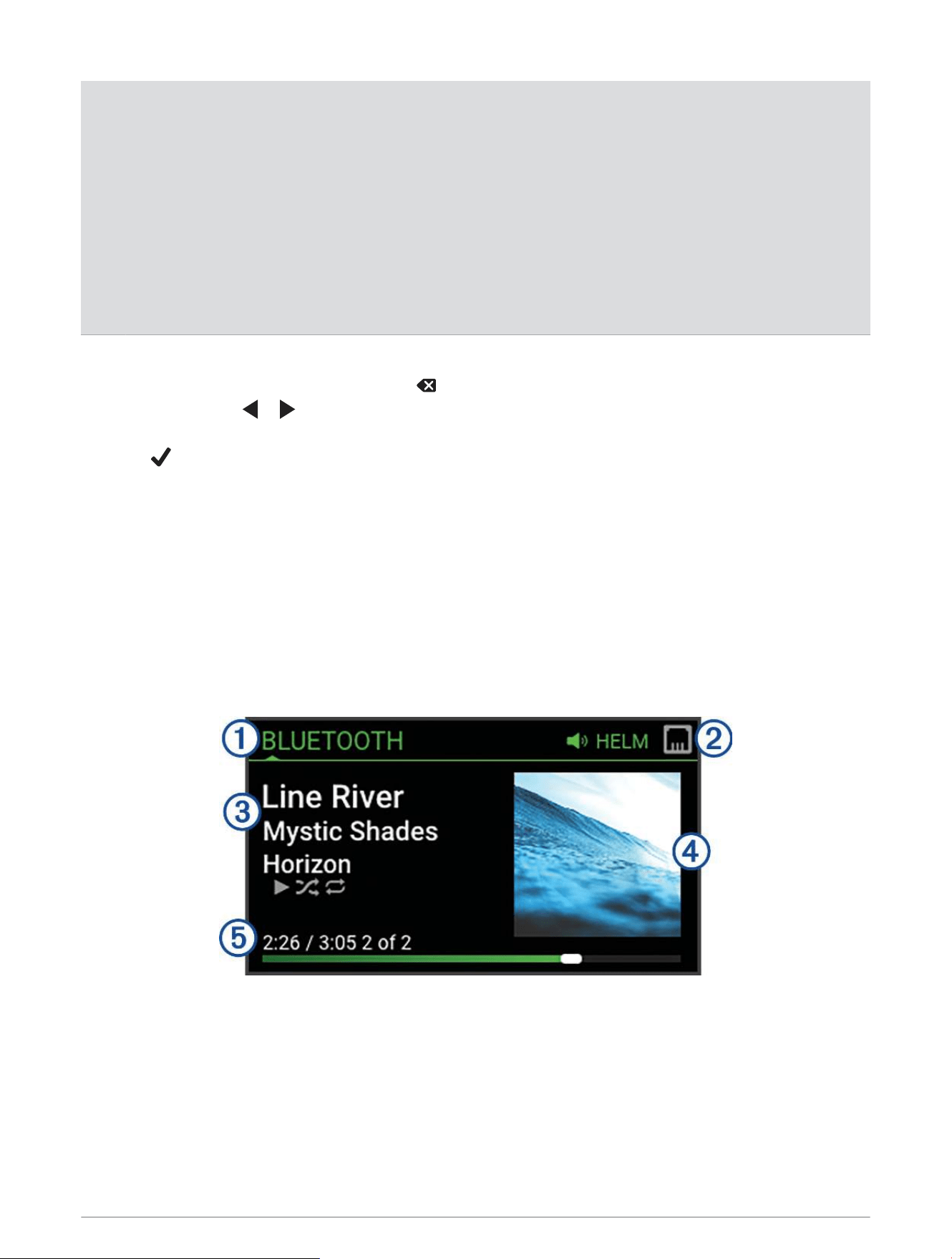

Source name

Active zone and status icons (Network Status Icons, page35)

Track details (if available)

Album art (if available from a compatible source)

Elapsed time, track duration, and the current track number out of the total number of tracks in the playlist

(if available)

Naming the Device

You should provide a unique name for this device so you can easily identify it when viewing devices on the

Fusion PartyBus network.

NOTE: You should provide unique names for all of the devices and zones on the network to avoid confusion

when grouping, controlling, and setting up stereos and zones. You should also turn off zones that are not in use

(Speaker Zone Settings, page25).

For further customization, you can provide unique names for the sources on each stereo and turn off unused

sources (General Settings, page25).

1 Select > SETTINGS.

2 Select the device to rename.

3 Select DEVICE NAME, and select an option:

• Select a pre-defined name from the list.

• Select CUSTOM NAME, and enter a unique name for the device.

Setting the Home Zone

The home zone is the speaker zone that you adjust by default when you turn the dial on the remote control.

1 Select > SETTINGS.

2 Select the name of the remote control you plan to use with this stereo.

3 Select ASSIGN HOME ZONE.

4 Select a zone.

Selecting a Source

1 Select .

2 Turn the dial to highlight a source.

NOTE: If the device is part of a group, continue turning the dial to access the sources on other devices in the

group (Fusion PartyBus Networking, page22).

If a source cannot be shared with the group, it will appear gray and you cannot select it.

3 Press the dial to select the source.

Getting Started 5

Audio Control

Adjusting the Volume

Using this remote control, you can control the volume of any zone on any stereo connected to the Fusion

PartyBus network.

1 Turn the dial to adjust the volume for the home zone on the stereo.

2 If necessary, press the dial to switch between zones.

NOTE: If this stereo is part of a group, you can adjust the volume of all stereos in the group or individual

zones on each stereo (Fusion PartyBus Networking, page22).

Muting all Connected Stereos

You can quickly mute the audio from this stereo or from all stereos connected to the Fusion PartyBus network

(Fusion PartyBus Networking, page22).

1 From any source, press .

The mute symbol appears and audio from this stereo is silenced.

NOTE: If the stereo is part of a group, the audio from all grouped stereos is silenced.

2 Press and hold the dial to select MUTE SYSTEM.

Audio from all connected stereos is silenced.

3 Press and hold the dial to select UNMUTE SYSTEM.

Audio is restored to all connected stereos.

Adjusting the Subwoofer Level

You can adjust the subwoofer level for each zone.

1 Press the dial, and select a zone with a connected subwoofer.

2 Press and hold the dial.

The SUB LEVEL adjustment for the zone appears.

3 Adjust the subwoofer level and press the dial to set it.

Adjusting the Tone

1 Select > AUDIO.

2 Select the zone to adjust.

3 Press the dial to select a tone.

4 Adjust the tone level and press the dial to set it.

Disabling the Loud Setting for a Zone

The LOUD setting maintains frequency response at low volumes and increases perceived loudness at high

volumes. This setting is enabled by default in all zones.

1 Select > AUDIO.

2 Select a zone to adjust.

3 Select LOUD to clear the check box.

6 Audio Control

Adjusting the Gain for an Auxiliary Device

You can adjust the gain for a connected auxiliary device to achieve a volume level similar to that of other media

sources. You can adjust the gain in 1dB increments. You can also adjust the gain for digital sources using an

optical audio connection.

1 Select an auxiliary source.

2 Select an option:

• To increase the gain, select .

• To decrease the gain, select .

NOTE: To achieve the best audio quality when using a portable media player with headphone output, it may

be necessary to adjust the volume control on the media player, instead of adjusting the gain.

Speaker Zones

You can group speakers in one area into a speaker zone. This enables you to control the audio level of the

zones individually. For example, you could make the audio quieter in the cabin and louder on deck.

You can set the balance, volume limit, tone, subwoofer frequency, and name for each zone, and configure other

zone-specific settings (Speaker Zone Settings, page25).

DSP Settings

This stereo features digital signal processing (DSP). You can select pre-configured DSP settings for Fusion

speakers and amplifiers to optimize audio reproduction in their installed locations.

All DSP settings are configured using the Fusion-Link

™

remote control app (Fusion-Link Wireless Remote Control

App, page32).

Configuring the DSP Settings

You must download and install the Fusion-Link remote control app on your compatible Apple

or Android

™

device before you can configure the DSP settings (Fusion-Link Wireless Remote Control App, page32).

You can configure the DSP settings to optimize the sound on each zone with the installed speakers, amplifiers,

and environment.

1 From the settings menu on your Apple or Android device, connect to the stereo using Bluetooth technology,

or connect to the same wireless network as the stereo.

2 Open the Fusion-Link remote control app on your compatible Apple or Android device.

3 If necessary, select the stereo you want to configure.

4 Select .

5 If necessary, select the MUSIC tab.

6 Select a zone.

7 Select DSP SETTINGS.

8 Configure the DSP settings as needed, depending on the models of Fusion speakers and amplifiers

connected to the zone.

9 Repeat these steps for each zone.

10 After you have finished configuring the DSP settings for all zones, select an option:

• On an Apple device, select > SEND DSP SETTINGS

• On an Android device, select > Zone > SEND DSP SETTINGS.

Audio Control 7

Automatic Volume Adjustment Based on Speed

If your stereo is connected to a NMEA 2000

network with a device that provides speed information such as an

engine, chartplotter, GPS antenna, water speed sensor, or wind speed sensor, you can set the stereo to adjust

the volume automatically based on the selected speed source (Enabling Automatic Volume Adjustment Based

on Speed, page26).

For example, if a chartplotter with an internal GPS antenna or a stand-alone GPS antenna is on the same NMEA

2000 network as the stereo and you set the SPEED SOURCE to SPEED OVER GROUND, the volume increases as

your speed increases.

NOTE: When the volume increases to adjust for speed, the actual volume output changes, but the volume-level

indicator bar and number stays the same.

For more information about connecting the stereo to a NMEA 2000 network, see the installation instructions for

your stereo.

Media Player Connection

CAUTION

Always disconnect your media player from the stereo when not in use and do not leave it in your vessel. This

can help reduce the risk of theft and damage from extreme temperatures.

Do not remove the media player or use your stereo in a distracting manner while operating the vessel. Check

and obey all marine laws in association with use.

NOTICE

It is the user's responsibility to comply with all applicable laws and ordinances associated with the use of this

device. Garmin

is not responsible for any fines, penalties, or damages that you may incur for failing to abide by

any such laws and ordinances.

The stereo accepts a variety of media players, including smartphones and other mobile devices. You can

connect a compatible media player using a Bluetooth wireless connection or a USB connection to the USB port.

The stereo can play media from Universal Plug and Play (UPnP) devices, such as a Network Attached Storage

(NAS) device connected to the same network. The stereo can play media from a compatible Apple device

connected to the same network using the AirPlay

feature.

Bluetooth Device Playback

You can pair the stereo to up to eight Bluetooth media devices.

You can control the playback using the controls on a connected remote control, chartplotter, or stereo on all

Bluetooth devices, and on some devices you can browse the music collection from the menu on the remote

control, chartplotter, or stereo.

On Bluetooth devices that do not support media browsing, you should select the song or playlist on the media

device.

The availability of song information such as song title, artist name, track duration, and album art depends on the

capability of the media player and music application.

8 Media Player Connection

Connecting a Compatible Bluetooth Device

You can play media from a compatible Bluetooth device using the Bluetooth wireless connection.

You can control the music playback with the media app on a Bluetooth device or using the Fusion-Link remote

control app (Fusion-Link Wireless Remote Control App, page32).

1 Select the BLUETOOTH source.

2 Select > BLUETOOTH > CONNECTIONS > DISCOVERABLE to make the stereo visible to your compatible

Bluetooth device.

TIP: You can also press the button on the stereo to make it discoverable.

3 Enable Bluetooth on your compatible Bluetooth device.

4 Bring the compatible Bluetooth device within 10m (33ft.) of the stereo.

5 On your compatible Bluetooth device, search for Bluetooth devices.

6 On your compatible Bluetooth device, select the stereo from the list of detected devices.

NOTE: The stereo appears in the Bluetooth device list as the device name (the default name is MS-WB675

unless it was changed in the settings).

7 On your compatible Bluetooth device, follow the on-screen instructions to pair and connect to the discovered

stereo.

When pairing, your compatible Bluetooth device may ask you to confirm a code on the stereo. The stereo

does not display a code, but it does connect correctly when you confirm the message on the Bluetooth

device.

8 If your compatible Bluetooth device does not immediately connect to the stereo, repeat steps 1 through 7.

NOTE: If another Bluetooth device is already playing music on the stereo, connecting a new device will not

interrupt playback. You must select the newly-added device if you want to use it instead (Selecting a Different

Bluetooth Device, page9).

The DISCOVERABLE setting is disabled automatically after two minutes.

NOTE: On some Bluetooth devices, adjusting the volume on the device affects the volume level on the stereo.

Bluetooth Range Information

The stereo and Bluetooth wireless devices have a range of 10 m (33 ft.). For optimal performance, the Bluetooth

wireless device should also have a clear line of sight to the stereo.

Selecting a Different Bluetooth Device

When you have more than one Bluetooth device paired to the stereo, you can select a different device when

needed. You can pair the stereo with up to eight Bluetooth devices.

1 With the BLUETOOTH source selected, select > BLUETOOTH > CONNECTIONS > PAIRED DEVICES.

2 Select a Bluetooth device.

Bluetooth Device Playback 9

Bluetooth Source Menu and Settings

With the BLUETOOTH source selected, select > BLUETOOTH.

NOTE: The options in this menu vary based on the connected device.

CONNECTIONS > DISCOVERABLE: Allows the stereo to be visible to Bluetooth devices. You can turn off this

setting to prevent possible interruption to audio after pairing a Bluetooth device to the stereo.

CONNECTIONS > PAIRED DEVICES: Shows a list of Bluetooth devices paired with the stereo. You can select a

device in the list to connect it to the stereo if it is in range.

CONNECTIONS > REMOVE DEVICE: Removes the Bluetooth device from the stereo. To listen to audio from this

Bluetooth device again, you must pair the device again.

NOTE: You should also remove the stereo from the list of paired devices on your Bluetooth device to avoid

connection issues when pairing the device again.

REPEAT: Sets the repeat mode for the current selection (Apple devices only). You can repeat the current

selection by selecting the REPEAT ONE option. You can repeat all items in the selection by selecting the

REPEAT ALL option.

SHUFFLE: Shuffles the tracks in the folder, album, or playlist (Apple devices only).

PLAYLIST: Displays the playlists on the device (Apple devices only).

ARTISTS: Displays the artists on the device (Apple devices only).

ALBUMS: Displays the albums on the device (Apple devices only).

GENRES: Displays the genres of music on the device (Apple devices only).

SONGS: Displays the songs on the device (Apple devices only).

Disabling Bluetooth Auto Connection

By default, the stereo automatically reconnects to the last connected Bluetooth device when you turn it on. You

can disable this setting.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select SOURCE > BLUETOOTH > AUTO CONNECT.

When the AUTO CONNECT checkbox is clear, the stereo will not attempt to automatically reconnect to a

Bluetooth device. When this feature is disabled, you must select a Bluetooth device manually to connect it

(Selecting a Different Bluetooth Device, page9).

10 Bluetooth Device Playback

USB Device Playback

You can connect various USB media players, USB flash drives, and smartphones to the stereo. How you access

the USB source depends on the type of connected media player or smartphone.

Media Player Source Selections

Android device MTP

Apple device iPod

USB flash drive USB

MP3 media player (as a mass-storage device)

USB

NOTE: If your MP3 media player does not support

mass-storage when connected using USB, you must

connect it to the stereo as an auxiliary device

(Connecting an Auxiliary Device, page15).

You can control the playback using the stereo controls on all USB devices, and on some devices you can browse

the music collection from the menu on the stereo. On USB devices that do not support media browsing, you

should select the song or playlist on the media device.

The availability of song information such as song title, artist name, and track duration depends on the capability

of the media player and music application.

USB Device Compatibility

You can use a USB flash drive or the USB cable included with your media player to connect a media player or

mobile device to the USB port.

The stereo is compatible with iAP2 Apple devices such as the iPhone

Xs Max, iPhone Xs, iPhone XR, iPhone X,

iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6,

iPhone 5s, and iPod touch

(6th generation).

The stereo is compatible with Android devices that support MTP mode.

The stereo is compatible with media players and other USB mass storage devices, including USB flash drives.

Music on USB drives must meet these conditions:

• The music files must be formatted as MP3, AAC (.m4a), or FLAC, files.

• If you connect a portable hard drive, you must connect it to an external power source. The USB port on this

stereo cannot provide power for a portable hard drive.

• The USB mass storage device must be formatted using one of the following systems:

◦ Microsoft

: NTFS, VFAT, FAT

, MSDOS

◦ Apple: HFS, HFSPLUS

◦ Linux: EXT2, EXT3, EX4

Connecting a USB Device

You can connect a USB device to the USB port on the stereo.

1 Locate the USB port on the back of the stereo.

2 Connect the USB device to the USB port.

FAT includes most types of FAT file systems except exFAT.

USB Device Playback 11

Controlling Music Playback on a USB Flash Drive or Media Player

1 Connect a compatible USB flash drive or media player to the stereo.

2 Select the USB source.

3 Select > USB.

4 Select the name of the USB device.

5 Browse the music files on the device and begin playback.

You can use the remote control, chartplotter, or stereo controls to select, play, pause, and skip tracks.

TIP: If the USB media player has a screen and controls, you can use the controls on the USB media player to

control playback.

Controlling Music Playback on a Connected Android Device

You can connect an Android device to the stereo using a USB cable to play media files stored on the Android

device. To play media from an app on the Android device, you should connect the device using Bluetooth

technology instead (Bluetooth Device Playback, page8).

1 Connect a compatible Android device to the stereo using an appropriate USB cable.

2 If necessary, enable USB file transfer or MTP on your Android device.

See the documentation available for your Android device for more information.

3 Select the MTP source on the stereo.

4 Select > MTP.

5 Browse the music files on the Android device and begin playback.

You can use the stereo controls to select, play, pause, and skip tracks.

Controlling Music Playback on a Connected Apple Device

1 Connect a compatible iAP2 Apple device to the stereo using USB.

2 Select the iPod source on the stereo.

3 Launch a music application on the connected Apple device, and begin playback.

You can use the music application on the Apple device or you can use the stereo controls to browse the music

library and to select, play, pause, and skip tracks.

USB Source Settings

With a USB device connected and a USB source selected, select , then select USB, iPod, or MTP.

NOTE: You can browse the files on the device using this menu. The options in this menu vary based on the

connected device.

REPEAT: For a USB or MTP source, select to start playing the tracks in the list from the beginning after the last

track has played.

For an iPod source, select REPEAT ONE to repeat the current track, or select REPEAT ALL to start playing the

tracks in the folder, album, or playlist from the beginning after the last track has played.

SHUFFLE: For a USB or MTP source, select to randomly play the tracks in the list.

For an iPod source, select to randomly play the tracks in the folder, album, or playlist.

12 USB Device Playback

Radio

To listen to AM or FM radio, you must have a suitable marine AM/FM antenna properly connected to the stereo

and be within range of a broadcasting station. For instructions on connecting an AM/FM antenna, see the

stereo installation instructions.

To listen to SiriusXM

radio, you must have the appropriate equipment and subscriptions (SiriusXM Satellite

Radio, page15). For instructions on connecting a SiriusXM Connect Vehicle Tuner, see the stereo installation

instructions.

To listen to DAB stations, you must have the appropriate equipment (DAB Playback, page21). For instructions

on connecting a DAB adapter and antenna, see the installation instructions provided with your adapter and

antenna.

Setting the Tuner Region

You must select the region you are in to receive AM and FM stations properly.

If you are connected to a compatible SiriusXM tuner and antenna, and have a subscription (USA only), you must

select the region you are in to receive SiriusXM stations properly.

NOTE: SiriusXM service is not available in all regions.

You must select the region you are in to receive DAB stations properly.

NOTE: You must connect a compatible DAB module and antenna (not included), to receive DAB stations.

DAB stations are not available in all regions.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select TUNER REGION.

4 Select the region you are in.

Changing the Radio Station

1 Select an applicable source, such as FM.

2 Select repeatedly to move through the tuning modes, and select an option:

• Select AUTO to scan and stop on the next available station.

• Select MANUAL to select a station manually.

• Select PRESET to select a saved station preset.

3 Select or to tune to the station.

When in MANUAL tuning mode, you can hold or to quickly advance through the stations.

Radio 13

Apple AirPlay

Connecting an Apple Device Using AirPlay

1 From the settings menu on your Apple device, connect to the same wireless network as your compatible

Fusion stereo.

NOTE: You can connect some Apple devices to the network using a wired Ethernet connection, if applicable.

Go to the Apple website for more information.

2 On your Apple device, open the music app you want to stream to the stereo.

3 From the music app or program, select or , and select the name of the stereo.

4 If necessary, start playing music on the app.

The stereo changes to the AirPlay source automatically and plays audio from your Apple device.

NOTE: If your Apple device is using AirPlay 2 software, you can connect to multiple stereos on the same

network.

NOTE: You cannot stream the AirPlay source to other stereos on the network using the Fusion PartyBus

network (Fusion PartyBus Networking, page22). Using AirPlay 2 software, you can play content on multiple

stereos on the network, but the stereos must not be grouped.

NOTE: On some AirPlay devices, adjusting the volume on the device affects the volume level on the stereo.

Setting an AirPlay Password

You can set a password that a user must enter when connecting to the stereo using the AirPlay feature.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select SOURCE > AirPlay > AirPlay PASSWORD.

4 Enter a password.

NOTE: The AirPlay password is case-sensitive.

When connecting to this stereo using the AirPlay feature, the user must enter the password on their Apple

device.

UPnP Playback

This stereo can play content from Universal Plug and Play (UPnP) devices connected to the network, such as

computers and media servers. You must connect your UPnP device to the same network as the stereo using

a wired or wireless connection, and you must configure the device to share media over the network. See the

owner's manual from your UPnP device for more information.

After you have connected your UPnP device to the network and configured it to share media, the UPnP source

appears on the source selection screen of each stereo on the network (Selecting a Source, page5).

Connecting a UPnP Device

You must connect your stereo to a network to play media from a UPnP device, such as a NAS device.

1 Connect your UPnP device to the same network as the stereo, referring to the instructions provided with your

UPnP device and router if necessary.

2 Select the UPnP source on the stereo (Selecting a Source, page5).

You can browse and play media from the UPnP device.

14 Apple AirPlay

Connecting an Auxiliary Device

You can connect various auxiliary devices to the stereo. These devices have either RCA connectors, a line

output, or a headphone output jack.

1 Locate the auxiliary connectors on the wiring harness.

2 If necessary, connect an RCA-to-3.5mm adapter cable to the auxiliary device.

3 Connect the auxiliary device to the AUX IN RCA connectors on the wiring harness.

4 Select the Aux source.

Optical Audio Connection

You can connect devices with an optical audio output to the stereo using an optical audio cable. Televisions,

DVD players, CD players, and other devices may supply digital optical audio output.

This stereo supports PCM audio only. You may have to change the settings on your device to output PCM audio.

NOTE: Because streaming audio over the Fusion PartyBus network introduces a slight delay, streaming content

from a television or DVD player may not be ideal. You can disable Optical as a streaming source in the settings,

if needed (Source Settings, page29).

SiriusXM Satellite Radio

Only SiriusXM brings you more of what you love to listen to, all in one place. Get over 140 channels, including

commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world

of satellite radio. A SiriusXM Vehicle Tuner and subscription are required. For more information, go to www

.siriusxm.com.

Setting the Tuner Region for the SiriusXM Source

You must set the stereo to use the USA tuner region before you can listen to SiriusXM Satellite Radio.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select TUNER REGION > USA.

Locating the SiriusXM Radio ID

You must have the radio ID of your SiriusXM Connect Tuner before you can activate your SiriusXM subscription.

You can locate the SiriusXM Radio ID on the back of the SiriusXM Connect Tuner or its packaging, or by tuning

your stereo to channel 0.

With the SiriusXM source selected, select > SiriusXM > CHANNELS > ALL CHANNELS > 000 RADIO ID.

The SiriusXM Radio ID does not include the letters I, O, S, or F.

Activating a SiriusXM Subscription

1 With the SiriusXM source selected, tune to channel 1.

You should be able to hear the preview channel. If not, check the SiriusXM Connect Tuner and antenna

installation and connections, and try again.

2 Tune to channel 0 to locate the Radio ID.

3 Contact SiriusXM listener care by phone at (866) 635-2349 or go to www.siriusxm.com/activatenow to

subscribe in the United States. Contact SiriusXM by phone at (877) 438-9677 or go to www.siriusxm.ca

/activatexm to subscribe in Canada.

4 Provide the Radio ID.

The activation process usually takes 10 to 15 minutes, but can take up to an hour. For the SiriusXM Connect

Tuner to receive the activation message, it must be turned on and receiving the SiriusXM signal.

5 If the service is not activated within the hour, go to

http://care.siriusxm.com/refresh or contact SiriusXM

Listener Care by phone at 1-866-635-2349.

Connecting an Auxiliary Device 15

Selecting a Category

You can control which categories of channels are available when using the CATEGORY tuning method.

1 With the SiriusXM source selected, select > SiriusXM > CATEGORY.

2 Select a category.

Using Replay Mode

You can use Replay Mode to control playback of a SiriusXM broadcast.

NOTE: The device enables Replay Mode automatically when playing saved preset channels.

1 If necessary, hold to enable Replay Mode.

A progress bar appears at the bottom of the screen.

2 Select an option:

• Press to pause and resume playback.

• Press or to skip backward or forward in increments.

NOTE: If you fast-forward or skip forward to the end of the progress bar, the stereo exits Replay Mode

automatically.

• Hold or to rewind or fast-forward the track.

• Hold to exit Replay Mode.

Alerts

WARNING

Use caution when using the stereo or media player while operating the vessel, because doing so can cause

distraction which could lead to an accident causing serious personal injury or death.

NOTE: The Artist, Song, and Game Alerts feature is compatible with the SXV300 tuner (sold separately). Other

tuners are compatible, but may limit the features. Review the user manual supplied with your SiriusXM tuner to

learn about features available with your tuner module.

Adding an Artist or Song Alert

You can set alerts for artists and songs so that when a particular song or a song from a particular artist begins

to play on any music channel, you can quickly tune to that channel.

1 While a particular song or a song from a particular artist is playing, select > SiriusXM > ADD ALERT >

SAVE ARTIST/SONG.

2 Select the song or the artist.

Adding Teams for Game Alerts

You can set alerts for sports teams so that when a game featuring a saved team begins to play on any sports

channel, you can quickly tune to that channel.

NOTE: A Game Alert is different than a SportsFlash

™

alert. A Game Alert lets you know when a game begins,

while a SportsFlash alert lets you know when an exciting play occurs during a game.

1 Select > SiriusXM > ADD ALERT > GAME ALERT TEAMS.

2 Select a sports league.

3 Select a team to fill the check box and add a Game Alert.

4 Repeat steps 2 and 3 for each team you want to add to the list of Game Alerts.

Adding Teams from a Live Game

While listening to a game, you can quickly add a team playing to your list of Game Alert teams.

1 While listening to a game on a channel, select

> SiriusXM > ADD ALERT > SAVE TEAM.

A list of teams playing in the current game appears.

2 Select the team or teams to add to your list of Game Alert teams.

16 SiriusXM Satellite Radio

Viewing Active Alerts

You can review active Artist, Song, and Game Alerts.

1 Select > SiriusXM > ACTIVE ALERTS.

2 Select a category.

Managing Alerts

You can manage your saved alerts to select which ones you want to receive. You can delete saved alerts you do

not want.

1 Select > SiriusXM > SXM SETTINGS > ALERT MANAGEMENT.

2 Select an option:

• To enable saved alerts for songs only, artists only, or games only, select ENABLE BY TYPES, and select a

type.

• To enable saved alerts for specific artists only, select ENABLE ARTISTS, and select the artists.

• To enable saved alerts for specific songs only, select ENABLE SONGS, and select the songs.

• To enable saved game alerts for specific teams, select ENABLE TEAMS, and select the teams.

• To delete all saved alerts for songs, artists, or teams, select DELETE BY TYPES, and select a type.

• To delete saved alerts for specific artists, select DELETE ARTISTS, and select the artists.

• To delete saved alerts for specific songs, select DELETE SONGS, and select the songs.

• To delete saved alerts for specific teams, select DELETE TEAMS, and select the teams.

TuneMix

™

Feature

NOTE: The TuneMix feature is compatible with the SXV300 tuner (sold separately). Other tuners are compatible,

but may limit the features. Review the user manual supplied with your SiriusXM tuner to learn about features

available with your tuner module.

Starting and Stopping a TuneMix Collection

Before you can start playing a TuneMix collection, you must create one (Creating and Customizing a TuneMix

Collection, page17).

The TuneMix feature enables you to mix your favorite music channels to create a custom listening experience.

1 Select > SiriusXM > TUNEMIX.

2 Select a TuneMix collection.

The stereo begins playing the TuneMix collection.

3 To stop playing a TuneMix collection, select > CHANNELS, and select a channel.

The stereo stops playing the TuneMix collection and begins playing the selected channel.

Creating and Customizing a TuneMix Collection

You can create up to 10 unique TuneMix collections on the stereo.

NOTE: A TuneMix collection must include at least two of your favorite SiriusXM music channels.

1 Select > SiriusXM > SXM SETTINGS > TUNEMIX SETUP.

2 Select a TuneMix collection.

3 Select a channel to fill the check box and add it to the TuneMix collection.

4 After you are finished customizing the TuneMix collection, select .

5 Repeat steps 2 through 4 for each TuneMix collection you want to customize.

SiriusXM Satellite Radio 17

SportsFlash Feature

WARNING

Use caution when using the stereo or media player while operating the vessel, because doing so can cause

distraction which could lead to an accident causing serious personal injury or death.

The SportsFlash feature alerts you to key plays from your favorite teams during a live game. When an exciting

play happens, a SportsFlash alert appears, and you can tune to the broadcast and hear the play. When the

SportsFlash alert ends, you can choose to return to the previous channel, or remain tuned to the game.

NOTE: To receive SportsFlash alerts, your subscription package must include play-by-play sports channels for

the sports leagues you want to include in the alerts.

You can enable, disable, or delete SportsFlash alerts that you have added (Managing Alerts, page17).

NOTE: A SportsFlash is different than a Game Alert. A SportsFlash alert lets you know when an exciting play

occurs during a game, while a Game Alert lets you know when a game begins.

NOTE: The SportsFlash feature is compatible with the SXV300 tuner (sold separately). Other tuners are

compatible but may limit the features. Review the user manual supplied with your SiriusXM tuner to learn

about features available with your tuner module.

Adding Teams to Receive SportsFlash Alerts

1 Select > SiriusXM > SPORTSFLASH > TEAM SELECT.

2 Select a sports league.

3 Select a team to fill the check box and add a SportsFlash alert.

4 Repeat steps 2 and 3 for each team you want to add to the list of SportsFlash alerts.

Changing SportsFlash Team Priority

If more than one team for which you have set up SportsFlash alerts are playing at the same time, you can adjust

the team priority to hear SportsFlash alerts from your preferred team first.

1 Select > SiriusXM > SPORTSFLASH > TEAM PRIORITIES.

A list of your selected SportsFlash teams appears, in order of priority.

2 Select a team to move it up one priority level in the list.

3 Repeat the previous step with each team you want to reorder until the priority list is ordered the way you

prefer.

Enabling the TuneStart

™

Feature

When you enable the TuneStart feature and tune to a preset channel, the stereo starts the current song from the

beginning of the song instead of starting it from the point it is at in the live broadcast.

NOTE: The TuneStart feature is available when tuning to preset channels only. The TuneStart feature is

compatible with the SXV300 tuner (sold separately). Other tuners are compatible but may limit the features.

Review the user manual supplied with your SiriusXM tuner to learn about features available with your tuner

module.

If necessary, select > SiriusXM > SXM SETTINGS > TUNESTART.

When the TuneStart feature starts a song from the beginning, a progress bar appears and you can control the

track using the same controls as Replay Mode (Using Replay Mode, page16).

Parental Controls

The parental control feature allows you to limit access to any SiriusXM channels, including those with mature

content. When the parental control feature is enabled, you must enter a passcode to tune to the locked

channels. You can also change the 4-digit passcode.

18 SiriusXM Satellite Radio

Unlocking the Parental Controls

You can unlock the parental controls to access locked channels.

1 With the SiriusXM source selected, select > SiriusXM > PARENTAL.

2 Select UNLOCK.

3 Enter the passcode.

TIP: The default passcode is 0000.

The parental controls remain unlocked until you turn off the vehicle or until you lock them again.

Locking Channels

1 With the SiriusXM source selected, select > SiriusXM > PARENTAL.

2 Select the UNLOCK check box.

3 Enter the passcode.

TIP: The default passcode is 0000.

4 Select LOCK/UNLOCK.

A list of available channels appears.

5 Select one or more channels to lock, and select .

6 Clear the UNLOCK check box to lock the parental controls.

You cannot access the locked channels while the parental controls are locked. You must unlock the parental

controls to tune the locked channels.

Clearing All Locked Channels

1 With the SiriusXM source selected, select > SiriusXM > PARENTAL > UNLOCK.

2 Enter the passcode.

3 Select > SiriusXM > PARENTAL > CLEAR ALL LOCKED.

Changing the Parental Control Passcode

1 With the SiriusXM source selected, select > SiriusXM > PARENTAL > UNLOCK.

2 Enter the passcode.

3 Select > SiriusXM > PARENTAL > CHANGE PIN.

4 Follow the on-screen instructions.

SiriusXM Satellite Radio 19

SiriusXM Troubleshooting

Advisory Description Resolutions

Check

Antenna

The radio has detected a fault

with the SiriusXM antenna. The

antenna cable may be disconnected

or damaged.

• Verify the antenna cable is connected to the

SiriusXM Connect Vehicle Tuner.

• Inspect the antenna cable for damage and kinks.

Replace the antenna if the cable is damaged.

SiriusXM products are available at your local car

audio retailer, or at www.shop.siriusxm.com.

Check Tuner

The stereo is having difficulty

communicating with the SiriusXM

Connect Vehicle Tuner. The tuner

may be disconnected or damaged.

Verify the SiriusXM Connect Vehicle Tuner cable is

connected securely to the stereo.

No Signal

The SiriusXM Connect Vehicle Tuner

is having difficulty receiving the

SiriusXM satellite signal.

• Verify the SiriusXM antenna is outdoors with a clear

view of the sky.

• Verify the SiriusXM antenna is mounted securely.

• Remove obstructions above or next to the SiriusXM

antenna.

• Inspect the cable antenna for damage and kinks.

Replace the antenna if the cable is damaged.

SiriusXM products are available at your local car

audio retailer or at www.shop.siriusxm.com.

• Consult the SiriusXM Connect Vehicle Tuner installa

tion instructions for more information on antenna

installation.

Subscription

Updated

The radio has detected a change in

your SiriusXM subscription status.

• Select any button to clear the message.

• Go to www.siriusxm.com or call 866-635-2349 with

questions about your subscription.

Channel Not

Available

The channel you requested is not

a valid SiriusXM channel, or the

channel that you were listening to

is no longer available. You may see

this message briefly the first time

you connect a new SiriusXM Connect

Vehicle Tuner.

Go to www.siriusxm.com for more information about

the SiriusXM channel lineup.

Channel Not

Subscribed

The channel you requested is not

included in your SiriusXM subscrip

tion package, or the channel you were

listening to is no longer included in

your SiriusXM subscription package.

Go to www.siriusxm.com or call 866-635-2349 for

more information about your subscription package or

to subscribe to the channel.

Channel

Locked

The channel you requested is locked

by the parental control feature.

Refer to the parental control section in the owner's

manual to unlock channels.

Clearing SiriusXM Data

You can clear all entered SiriusXM user information, such as favorite teams and alerts.

Use the FACTORY RESET option in the settings menu to reset the stereo (Update Options, page31).

NOTE: The factory reset setting resets all data in the stereo, including AM and FM presets, zone settings, etc.

in addition to clearing all SiriusXM user information.

20 SiriusXM Satellite Radio

DAB Playback

When you connect the MS-DAB100A module and antenna to the Apollo WB675 stereo, you can tune in to and

play DAB stations. For instructions on connecting the DAB adapter and antenna, see the installation instructions

provided with your adapter and antenna.

DAB broadcasts are not available in all regions. When the stereo is not set to a compatible region, the DAB

source is not available.

See the troubleshooting section if you cannot access the DAB source or if DAB stations are not playing properly.

(The stereo does not receive DAB stations, page36)

Setting the Tuner Region

You must select the region you are in to receive DAB stations properly.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select TUNER REGION.

4 Select the region you are in.

Scanning for DAB Stations

Before you can scan for DAB stations, you must connect a compatible DAB module and antenna (not included)

to the stereo.

NOTE: Because DAB signals are broadcast in select countries only, you must set the tuner region to a location

where DAB signals are broadcast.

1 Select the DAB source.

2 Hold to scan for available DAB stations.

When scanning is complete, the first available station in the first ensemble found begins playing.

NOTE: After the first scan is complete, you can hold again to re-scan for DAB stations. When the re-scan

is complete, the system starts playing the first station in the ensemble you were listening to when you

started the re-scan.

Changing DAB Stations

1 Select the DAB source.

2 If necessary, hold to scan for local DAB stations.

3 Select or to change the station.

When you reach the end of the current ensemble, the stereo automatically changes to the first available

station in the next ensemble.

TIP: You can hold or to change the ensemble.

Selecting a DAB Station from a List

1 Select the DAB source.

2 If necessary, hold to scan for local DAB stations.

3 Select > DAB > BROWSE > STATIONS.

4 Select a station from the list.

Selecting a DAB Station from a Category

1 Select the DAB source.

2 If necessary, hold to scan for local DAB stations.

3 Select

> DAB > BROWSE > CATEGORIES.

4 Select a category from the list.

5 Select a station from the list.

DAB Playback 21

Presets

You can save your favorite AM stations and FM stations as presets for easy access.

You can save your favorite SiriusXM channels if the stereo is connected to an optional SiriusXM tuner and

antenna.

You can save your favorite DAB stations if the stereo is connected to the proper DAB equipment and set to the

correct tuner region. (DAB Playback, page21)

Saving a Station or Channel as a Preset

1 With an applicable source selected, tune the stereo to a station or a channel.

2 Press and hold the dial, and select .

TIP: For the AM, FM, or SiriusXM source, you can press and hold to save the current station or channel as

a preset.

TIP: You can also select , the name of the source, and PRESETS > SAVE CURRENT to save the current

station or channel as a preset.

Selecting a Preset from a List

1 With an applicable source selected, press and hold the dial.

TIP: You can also select , the name of the source, and PRESETS > VIEW PRESETS to view the list of

presets.

2 Select a preset.

Removing Presets

1 With an applicable source selected, press and hold the dial.

2 Select .

3 Select each preset station or channel you want to remove.

4 When you are finished removing presets, select .

TIP: You can also select , the name of the source, and PRESETS > REMOVE PRESETS or REMOVE ALL

PRESETS to remove preset stations or channels.

Fusion PartyBus Networking

The Fusion PartyBus networking feature allows you to connect multiple compatible stereos together on a

network, using a combination of wired or wireless connections.

You can group a compatible stereo, such as the Apollo RA770 stereo, with other compatible stereos connected

to the network. Grouped stereos can share available sources and control media playback on all of the stereos in

the group, which allows for a synchronized audio experience across the vessel. You can quickly create, edit, and

break up groups as needed from any compatible stereo or remote control on the network.

You can use compatible stereos and remote controls, whether they are grouped or not, to adjust the volume of

the available speaker zones for any stereo on the network.

You should refer to the installation instructions provided with your stereo when constructing the Fusion

PartyBus network.

22 Presets

Creating a Group

Before you can create a group, you must connect multiple compatible stereos to the Fusion PartyBus network.

See the installation instructions provided with your stereo for information about installing and configuring the

network.

NOTE: There are some limitations and other considerations when using stereos in groups. See Grouped Stereo

Source Considerations, page24for more information.

1 Select > GROUPS.

TIP: You can hold from any screen to open the GROUPS menu.

2 Select the name of the stereo you want to be the primary stereo in the group.

3 Select the stereos you want to add to the group.

4 Select DONE.

From the source screen, you can select a source from any stereo in the group except a zone stereo, such as

the Apollo SRX400 stereo or any sources that are disabled for use on the Fusion PartyBus network (General

Settings, page25).

Editing a Group

1 Select > GROUPS.

2 Select the name of an existing group.

3 Select the stereos you want to add to or remove from the group.

4 Select DONE.

Leaving a Group

You can leave the Fusion PartyBus group to play local sources on the stereo.

1 Select > GROUPS.

2 Select the name of the existing group you want to leave.

3 Select the stereos you want to remove from the group.

4 Select DONE.

Grouped Stereo Functions

After you create a group of stereos, additional functions and options are available to all stereos in the group.

• After you create a group, all of the stereos in the group share the same synchronized display.

• You can select a source from any stereo in the group, with a few limitations (Grouped Stereo Source

Considerations, page24), and the source will play simultaneously on all stereos in the group (Selecting a

Source, page5).

• You can control playback (such as pausing and skipping tracks) on any stereo in the group, and it will affect

all stereos in the group.

• You can adjust the volume for any zone on any stereo in the group.

TIP: When adjusting the volume, you can select ALL to adjust the volume of all the stereos in the group at the

same time.

Fusion PartyBus Networking 23

Grouped Stereo Source Considerations

When selecting sources to play over the network, you should observe these considerations.

• A zone stereo, such as the Apollo SRX400, can create or join a group to control and play sources from other

stereos, but it cannot share its sources with the group.

• You cannot share an AirPlay source with grouped stereos. Using AirPlay 2 software, you can play content

on multiple stereos on the network, but the stereos must not be grouped (Connecting an Apple Device Using

AirPlay, page14).

• You can disable sharing on most sources by changing the GROUP ENABLED setting for the source. When

disabled, the source cannot be selected from a grouped stereo (General Settings, page25).

• When audio sources are streamed over a data network, there is a slight delay in the synchronized audio that

may be noticeable if you are also using an external audio source.

◦ If you have a television with an Optical Out connection to a stereo and you continue to use the television

speakers, there will be a delay between the audio from the television speakers and the optical audio

streamed on the grouped stereos.

◦ If you synchronize a radio station and tune that same radio station on a non-networked stereo, there will be

a delay between the audio from the non-networked stereo and the audio from the radio station streamed

on the grouped stereos.

◦ You can remove this delay by changing the GROUP ENABLED setting for the source, but the source cannot

be shared with grouped stereos (General Settings, page25).

NOTE: You cannot change the settings when a stereo is part of a group. You must remove the stereo from the

group before you can change any settings.

Group Synchronization

By default, groups you create are not maintained when you turn off stereos in the group. If you turn off a single

stereo added to the group, it leaves the group. If you turn off the primary stereo in the group, the group is

dissolved. You can enable group synchronization to preserve group membership for a stereo after turning it off.

Group synchronization behaves differently based on how you turn the stereos off and on.

• If you turn a synchronized stereo off and on by using either the power button on the stereo or a physical

switch on the ignition wire (the red wire), all of the synchronized stereos in the group turn off and on together.

This applies to all of the synchronized stereos in the group, whether or not a stereo is the primary stereo in

the group.

NOTE: Selecting ALL OFF from the power menu on a stereo turns off all stereos on the network, even if they

are not in a group or have group synchronization enabled.

• If you turn a synchronized stereo off and on using a physical switch on the power wire (the yellow wire), the

other synchronized stereos in the group behave differently:

◦ If the synchronized stereo is the primary stereo in the group and you turn it off using a physical switch on

the power wire, the other synchronized stereos in the group remain on, but leave the group. When you turn

the primary stereo back on again, the other synchronized stereos rejoin the group.

◦ If the synchronized stereo is not the primary stereo in the group and you turn it off and on using a physical

switch on the power wire, all of the other synchronized stereos in the group remain on and grouped, and

the stereo rejoins the group when you turn it on again.

24 Fusion PartyBus Networking

Enabling Group Synchronization

You must remove the stereo from an existing group before you can enable the GROUP SYNC setting. You

cannot update settings when a stereo is part of a group.

You must enable this setting on each stereo that you want to retain group settings after a power cycle.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select POWER OPTIONS > GROUP SYNC.

The stereo retains group settings after a power cycle.

4 Repeat for additional stereos as needed.

NOTE: You must enable GROUP SYNC on all networked stereos for synchronization to work properly.

General Settings

NOTE: When the stereo is in a group, you cannot change the settings on that stereo.

Select > SETTINGS, and select the name of the stereo.

NOTE: When a check box is filled, the option is on. When the check box is clear, the option is off.

DEVICE NAME: Sets a name for this device.

TUNER REGION: Sets the region used by the FM and AM sources.

This setting is also needed to configure DAB and SiriusXM sources.

TELEMUTE: Sets the behavior of the stereo when it detects a signal on the TELEMUTE wire in the wiring

harness. This is commonly used to change to the Aux source when you hold the button on a Fusion handheld

microphone. You can also choose to either mute the audio or change to the Aux source when connected

to a hands-free mobile phone kit. See yourFusion handheld microphone or hands-free mobile phone kit

instructions for more information.

NOTE: This setting does not affect a phone connected to the stereo using Bluetooth technology.

POWER OPTIONS: Adjusts the power settings, such as the power-save mode.

SEARCHING: Enables Fusion Alpha Search Technology (FAST), which allows you to quickly search for tracks by

letter or number. You can select a number to enable the FAST menu if your music device contains more than

the selected number of items.

ZONE: Enables you to configure the speaker zones (Speaker Zone Settings, page25).

SOURCE: Allows you to enable, disable, and name the sources on the stereo (Source Settings, page29).

NETWORK: Enables you to configure the Fusion PartyBus network settings (Network Settings, page29).

UPDATE: Updates the stereo or connected devices using the appropriate update file on a connected USB flash

drive (Update Options, page31).

NOTE: It is not necessary to use this menu if you are updating the software using the Fusion-Link app on a

mobile device instead of using an update file loaded onto a USB flash drive (Updating the Software Using the

Fusion Link App, page34).

UPDATE > FACTORY RESET: Restores all settings to the factory default values.

ABOUT: Shows the software version information for the stereo.

Speaker Zone Settings

Disabling the Internal Amplifier

If you do not connect speakers directly to zones 1 and 2, you can disable the internal amplifier to reduce power

consumption.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select INTERNAL AMP ON to clear the check box.

General Settings 25

Setting the Home Zone

The home zone is the speaker zone that you adjust by default when you turn the dial on the remote control.

1 Select > SETTINGS.

2 Select the name of the remote control you plan to use with this stereo.

3 Select ASSIGN HOME ZONE.

4 Select a zone.

Synchronizing the Source and Zone Volume Levels

You can synchronize the volume levels on one or all zones with some source devices, such as a Bluetooth,

AirPlay, or UPnP source.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE > PHONE VOLUME SYNC.

4 Select a zone or ALL.

When you adjust the volume on the connected source, the volume on the selected zone is also adjusted.

Adjusting the Power-On Volume Limit

By default, when you turn on the stereo, the system automatically reduces the volume to level 12 if it was louder

than that when you turned it off. You can adjust this limit if you want to retain a louder volume or limit to a lower

volume when you turn on the stereo.

NOTE: This setting affects all zones on the stereo.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE > POWER ON VOLUME LIMIT.

4 Adjust the volume limit.

Maintaining Individual Zone Volume Levels

If you adjust the volume levels of individual zones so that some zones are louder than others, the individual

zone volume settings are all affected when you adjust the volume for ALL zones. By default, if you adjust the

volume for ALL to 00, this sets of the volume levels for all zones to 00 and resets all individual zone volume

adjustments. You can enable the KEEP VOLUME RATIOS option to retain individual zone volume adjustments

when you adjust the volume for ALL to 00.

NOTE: This setting applies to volume adjustments on the stereo or a connected Apollo ERX400 remote control

only. If you adjust the volume on the stereo using a connected chartplotter or NRX remote control, the volume

levels will still be reset.

TIP: For the best results when enabling this setting, you should set the power-on volume limit to 24 (Adjusting

the Power-On Volume Limit, page26).

1 Select > SETTINGS.

2 Select the name of the remote control.

3 Select KEEP VOLUME RATIOS.

Enabling Automatic Volume Adjustment Based on Speed

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE > SPEED VS VOLUME > ENABLED

4 If needed, update the settings to select the speed source (Automatic Volume Control Settings, page27).

26 General Settings

Automatic Volume Control Settings

Select > SETTINGS, select the name of the stereo, then select ZONE > SPEED VS VOLUME.

ENABLED: Enables the automatic volume control feature.

SPEED SOURCE: Sets the source that the stereo uses to determine the speed (Speed Source Information,

page27).

MAX/MIN SPEED: Sets the expected maximum and minimum speed range for the selected SPEED SOURCE.

The MIN setting indicates the speed at which the volume plays at the level you set by turning the dial. The

MAX setting indicates the speed at which the volume plays at the highest level set in the VOLUME INCREASE

setting.

TIP: You should start by setting these values at the speeds you typically expect from your engine or sensor

and adjust them as needed.

VOLUME INCREASE: Sets the total volume increase for each zone when the selected SPEED SOURCE reaches

the set maximum speed set in the MAX/MIN SPEED setting. The higher you set this level, the louder the

volume will be as you approach the set maximum speed.

NOTE: When the volume increases to adjust for speed, the actual volume output changes but the volume-

level indicator bar and number stays the same.

CUSTOM UNITS: Changes the measurement unit used to indicate the vessel or wind speed.

Speed Source Information

Select > SETTINGS, select the name of the stereo, then select ZONE > SPEED VS VOLUME > SPEED

SOURCE.

ENGINE SPEED: Uses the RPM reading provided by a supported NMEA 2000 engine. The volume increases as

the engine RPM increases from the set MIN speed to the set MAX speed. If multiple supported engines are

connected, the stereo uses the average RPM reading from all engines.

SPEED OVER GROUND: Uses the speed over ground (SOG) reading provided by a supported NMEA 2000 GPS

antenna or chartplotter with an internal GPS antenna. The volume increases as the SOG increases from the

set MIN speed to the set MAX speed.

SPEED THROUGH WATER: Uses the speed through water (STW) reading provided by a supported NMEA 2000

water-speed sensor. The volume increases as the STW increases from the set MIN speed to the set MAX

speed.

WIND SPEED: Uses the wind speed reading provided by a supported NMEA 2000 wind-speed sensor. The

volume increases as the wind speed increases from the set MIN speed to the set MAX speed.

Disabling a Zone

You can disable an unused zone and remove it from the audio level pages. When a zone is disabled, you cannot

change any of the settings for that zone. You cannot disable zone 1.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select a zone.

5 Select ZONE ENABLED to clear the check box.

General Settings 27

Setting a Zone Name

You can set a name for a speaker zone to make it easier to identify.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select a zone.

5 SelectZONE NAME, and select an option:

• Select a pre-defined name from the list.

• Select CUSTOM NAME, and enter a unique name for the zone.

Linking Zones

You can link zones 1 and 2 to keep the volume levels synchronized. Adjusting the volume of either of the linked

zones affects both zones.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE > ZONE 2 > LINK TO ZONE 1.

NOTE: After zones 1 and 2 are linked, you cannot adjust the volume of each zone individually.

Enabling Volume Control of Zone 3 or 4 from a Connected Amplifier

By default the volume of zones 3 and 4 are controlled by the stereo. You can control the volume of these zones

using the connected amplifier instead.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select zone 3 or zone 4.

5 Select VOLUME CONTROL to clear the check box.

The audio signal from the zone is provided to the amplifier as a fixed-line-level output at maximum volume.

Adjusting the Subwoofer Filter

You can use the subwoofer filter setting to control the subwoofer cutoff frequency for each zone, which can

enhance the blend of the sound produced by the speakers and the subwoofer. Audio signals above the selected

frequency are not passed to the subwoofer.

NOTE: If a DSP setting has been applied to the zone using the Fusion-Link app, this setting cannot be changed

on the stereo.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select a zone.

5 Select SUB. FREQ..

6 Select a frequency.

28 General Settings

Adjusting Additional Audio Settings for a Zone

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select ZONE.

4 Select a zone.

5 Select one or more options:

• To limit the maximum volume output of this zone, select VOLUME LIMIT, and adjust the level.

• To adjust the right and left speaker balance of this zone, select BALANCE, and adjust the balance.

• To reduce the power output to the external amplifier associated with this zone, select EXT. AMP GAIN,

and adjust the gain level.

• To reduce the power output to the internal amplifier associated with this zone, select INT. AMP GAIN, and

adjust the gain level.

NOTE: This setting is available only for zones associated with an internal amplifier, typically zones 1 and

• To change the output of this zone from stereo to mono, select MONO.

NOTE: The mono setting is useful if a listening position is closer to one speaker than the other and

predominantly hear only that channel. The mono setting combines both channels in each speaker in the

zone.

Source Settings

Select > SETTINGS, select the name of the stereo, select SOURCE, and select the name of the source you

want to configure.

NOTE: This menu contains system-wide source settings. Most sources also have source-specific settings. See

the sections of this manual for each source for more information about source-specific settings.

Not all options are available for every source on the stereo.

SOURCE ENABLED: Enables and disables the source on this stereo. You may want to disable sources that will

never be used on the stereo so they no longer appear on the source-selection screen.

GROUP ENABLED: Enables and disables the sharing of the source when connected to other stereos in a group

(Fusion PartyBus Networking, page22). You may want to disable sharing for some sources, such as AM,

because streaming over the Fusion PartyBus network introduces a small audio lag that is not desirable in

some situations.

SOURCE NAME: Changes the name of the source as it appears on this stereo. This also affects how the source

appears to other stereos in a group.

Network Settings

Select > SETTINGS, select the name of the stereo, then select NETWORK.

DHCP CLIENT: Sets the device as a DHCP client. This is the default setting for all devices that are not

configured to be a DHCP server.

STATIC IP: Allows you to set a static IP address for the device (Setting a Static IP Address, page30).

GARMIN MARINE NETWORK: Allows the device to be used on a Garmin Marine Network so it can be viewed and

controlled by connected Garmin chartplotters (Configuring the Stereo for use with a Garmin Marine Network,

page30).

DETAILS: Shows information about the network configuration.

ADVANCED: Allows you to configure the DHCP server and reset all network settings for this stereo to the factory

default values.

SAVE: Allows you to save changes to the network settings.

General Settings 29

Setting the Stereo as the DHCP Server

If you connected more than two network devices together directly or using a network switch or wireless access

point and did not install a router, you should configure only one Fusion PartyBus stereo to be a DHCP server.

NOTE: Although the Fusion PartyBus devices can communicate with each other without a DHCP server on the

network, the devices take longer to connect to each other when you first turn them on. It is highly recommended

to have a properly-configured DHCP server on the network for the best results.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select NETWORK > STATIC IP > SAVE.

You must set the stereo to use a static IP address before you can set it as a wired DHCP server.

4 Select ADVANCED > DHCP SERVER > DHCP ENABLED > SAVE.

You can configure the IP address range of the DHCP server (DHCP Settings, page30).

Setting a Static IP Address

If the stereo is configured as a static IP, it is automatically assigned the IP address of 192.168.0.1. You can

change this IP address.

If the stereo is a DHCP client on the network and you do not want the DHCP server to automatically assign an IP

address to the stereo, you can set a static IP address.

NOTE: Every device on the network must have a unique IP address. If you select a static IP address that is the

same as the IP address on the network, the devices will not work properly.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select NETWORK > STATIC IP.

4 Select an option:

• To set the IP address, select IP, and enter the IP address.

• To set the subnet mask, select MASK, and enter the subnet mask.

NOTE: The subnet mask must match all other devices on the network to work properly. A typical subnet

mask is 255.255.255.0.

• To set the default gateway IP address, select GATEWAY, and enter the gateway IP address.

NOTE: The default gateway is typically set as the IP address of the DHCP server on the network.

5 Select SAVE.

DHCP Settings

Select > SETTINGS, then select NETWORK > ADVANCED > DHCP SERVER.

DHCP ENABLED: Sets the device as the DHCP server on the network.

START IP: Sets the first IP address in the IP-address range of the DHCP server.

END IP: Sets the final IP address in the IP-address range of the DHCP server.

Configuring the Stereo for use with a Garmin Marine Network

You can connect this stereo to a Garmin Marine Network in order to view and control the stereo using a

compatible Garmin chartplotter.

NOTE: When you configure the stereo for use with a Garmin Marine Network, you are limited to using only

Garmin and Fusion devices. You may not be able to use third-party routers, storage devices, or other network

products with this stereo directly.

When the stereo is connected to a Garmin Marine Network, you can connect a smartphone to a wireless access

point on a connected Garmin chartplotter and use the Fusion-Link app to control the stereo.

1 Select

> SETTINGS.

2 Select the name of the stereo.

3 Select NETWORK > GARMIN MARINE NETWORK.

30 General Settings

Resetting Network Settings

You can reset all network settings for this stereo to the factory default values.

1 Select > SETTINGS.

2 Select the name of the stereo.

3 Select NETWORK > ADVANCED > RESET > YES.

Update Options

NOTICE

Do not turn off the device or disconnect the power during a software update. Turning off the power during a

software update may cause the device to become unresponsive.

NOTE:

• You can update the device software using an update file loaded onto USB flash drive (Updating the Software

Using a USB Flash Drive, page33).

• If the stereo is connected to a wireless network, you can update the software using the Fusion-Link app on a

mobile device instead of using an update file loaded onto a USB flash drive (Updating the Software Using the

Fusion Link App, page34).

• The device may restart a few times when updating. This is normal.

• You can program only newer versions of software on the device.

Select , select the name of the device, and select SETTINGS > UPDATE.

STEREO: Updates the stereo using a valid software update file on a connected USB flash drive (Updating the

Software Using a USB Flash Drive, page33).

NRX REMOTE: Updates an optional NRX remote connected to the NMEA 2000 port or NMEA 2000 network.

ERX REMOTE: Updates an optional Apollo ERX400 remote connected to the ETHERNET port or the Fusion

PartyBus network using a valid software update file on a connected USB flash drive (Updating the Software

Using a USB Flash Drive, page33).

DAB MODULE: Updates an optional DAB module connected to the SIRIUS XM port.

Additional Stereo Control Options

Connecting to a Garmin Watch

For more information about the watch, see the watch manual at garmin.com/manuals.

1 Following the instructions in the watch manual, install the Fusion-Link Lite

™

app from the Connect IQ

™

store

onto the watch.

2 On the stereo, select the BLUETOOTH source.

3 Select > BLUETOOTH > CONNECTIONS > DISCOVERABLE.

The stereo remains discoverable for two minutes.

4 Bring the watch within 3m (10ft.) of the stereo.

NOTE: Stay 10m (33ft.) away from other ANT

devices while pairing.

5 Open the Fusion-Link Lite app on the watch.

The first time you open the app on the watch, the watch automatically pairs with and connects to the stereo.

If you need to pair to another stereo, in the Fusion-Link Lite app, select Settings > Pair new.

6 Control the audio playback using the Fusion-Link Lite app on the watch.

After the devices are paired, they connect automatically when they are turned on, within range, and the app is

open on the watch.

Additional Stereo Control Options 31

Connecting to an ARX70 Remote Control

1 On the stereo, select the BLUETOOTH source.

2 Select > BLUETOOTH > CONNECTIONS > DISCOVERABLE.

TIP: You can also press the button on the stereo to make it discoverable.

3 Bring the ARX70 remote control within 10m (33ft.) of the stereo.

NOTE: Stay 10m (33ft.) away from other ANT devices while pairing.

4 On the ARX70 remote control, press and hold until the status LED starts alternating green and red.

The remote control searches for the stereo. When the remote control pairs successfully, the status LED turns

on green briefly and then turns off.

If the remote control cannot find the stereo, the status LED turns on red briefly and then turns off.

Fusion-Link Wireless Remote Control App

You can use the Fusion-Link remote control app on your compatible Apple or Android device to adjust the

stereo volume, change the source, control playback, select and manage radio presets, and adjust some stereo

settings.You can use the app to set up and configure DSP profiles on the stereo.You can use the app to update

the stereo software.

The app communicates with the stereo using a wireless connection to the mobile device. You must connect

your compatible device to the stereo using Bluetooth technology to use the app.

If the stereo is connected to a network with a Wi‑Fi

access point, the app can communicate with the stereo

using the network for greater range than a Bluetooth connection.

NOTE: You cannot update the stereo software using a Bluetooth connection. You must connect the app using a

Wi‑Fi connection to update the stereo software wirelessly.

You can connect an Apple device to the stereo using a USB cable to update the stereo software.

For information about the Fusion-Link remote control app for compatible Apple or Android devices, go to the

Apple App Store

or the Google Play

™

store.

FUSION-Link

™

Network Technology

FUSION-Link network technology allows you to fully control compatible Fusion entertainment systems on

compatible multi-function displays installed at the helm, flybridge, or navigation station of the vessel. This

provides integrated entertainment control and a less cluttered console.

The partnered multi-function display becomes the portal on which you can control all audio on the vessel, no

matter where on the vessel the connected stereo is installed. The FUSION-Link equipped stereo can be installed

out of sight if space is an issue and users need to access the stereo only to replace removable media.

FUSION-Link technology on this device can communicate using existing industry-standard network connections

including Ethernet and Wi‑Fi wireless technology.

FUSION-Link technology offered on this device can communicate using existing industry-standard NMEA 2000

networks.

NMEA 2000 Information

NMEA 2000 is the most popular marine standard for data communication within vessels. It has become the

standard for sending navigation and engine management data within vessels. Fusion introduces an industry-

first product by incorporating NMEA 2000 functionality in its audio remote control devices. This enables the

user to monitor a series of NMEA

sentences available over the NMEA 2000 network on a connected remote

control.

32 Additional Stereo Control Options

Appendix

Registering Your Fusion Device

Help us better support you by completing our online registration today.

• Go to garmin.com/account/register/.

• Keep the original sales receipt, or a photocopy, in a safe place.

Cleaning the Device

1 Dampen a soft, clean, lint-free cloth with fresh water.

2 Gently wipe the device.

Software Updates

For best results, you should update the software in all Fusion devices regularly.

If the device is connected to a Fusion PartyBus network with a Wi‑Fi router, you can also update the software

using the Fusion-Link remote control app on your compatible Apple or Android device.

Updating the Software Using a USB Flash Drive

You can update the device software using a USB flash drive.

NOTICE

Do not turn off the device or disconnect the power during a software update. Turning off the power during a

software update may cause the device to become unresponsive.

NOTE:

• You cannot update the software using a USB flash drive formatted using the NTFS file system. If you

encounter problems updating the device, format the USB flash drive using FAT32 and try the update process

again.

• The device may restart a few times while updating the software. This is expected behavior.

• You can program only newer versions of software on the device.

1 Go to the page for your device on support.garmin.com, and download the update file.

2 Extract the contents of the .zip file to the root of your USB storage device.

The contents of the software update are contained in a folder named Garmin.

3 Insert the USB storage device into the USB port of the stereo.

4 Select > SETTINGS.

5 Select the name of the stereo.

6 Select UPDATE > STEREO > YES.

The LED flashes four times and repeats while the software update is in progress.

Appendix 33

Updating the Software Using the Fusion Link App

You must connect the Fusion-Link app to the network using a wireless router or wireless access point to update

the software. You cannot update the software using a Bluetooth connection.

NOTE: If the stereo you want to update is in a group, you must remove it from the group (Leaving a Group,

page23).

If the Fusion PartyBus network has a wireless router or wireless access point, you can update the stereo

software using the Fusion-Link app, available for compatible Apple or Android on the Apple App Store or the

Google Play store.

NOTICE

Do not turn off the device or disconnect the power during a software update. Turning off the power during a

software update may cause the device to become unresponsive.

NOTE:

• The device may restart a few times while updating the software. This is expected behavior.

• You can program only newer versions of software on the device.

1 Connect your mobile device to a wireless router or wireless access point on the Fusion PartyBus network.

2 Open the Fusion-Link app, and verify that you can see the stereo in the app.

3 If the Fusion PartyBus network is not connected to the internet, disconnect the mobile device from the

wireless router or access point.

4 In the Fusion-Link app, select > CHECK FOR UPDATES.

5 Select the stereo.

6 Select Download.

The app downloads the software update file.

7 If the Fusion PartyBus network is not connected to the internet, after the app finishes downloading the

update file, reconnect the mobile device to the wireless router or access point on the Fusion PartyBus

network.

8 In the Fusion-Link app, reconnect to the stereo.

9 Select > GENERAL > Software Updates > Online Software Update.

The app transfers the software update to the stereo over the Wi‑Fi network, the stereo updates the software,

and then it restarts.

The LED flashes four times and repeats while the software update is in progress.

Troubleshooting

The stereo does not respond to key presses

• Hold until the stereo turns off, and turn it on again to reset the stereo.

• Disconnect power to the stereo for two minutes to reset the stereo.

My Bluetooth audio is interrupted by short breaks

• Ensure the media player is not covered or obstructed.

Bluetooth technology performs best with line-of-sight operation.

• Bring the media player within 10m (33ft.) of the stereo.

• Turn off the DISCOVERABLE setting after pairing a Bluetooth device to the stereo.

The stereo does not display all song information from my Bluetooth source

The availability of song information such as song title, artist name, track duration, and album cover artwork

depends on the capability of the media player and music application.

34 Appendix

Network Troubleshooting

If you cannot see or connect to Fusion PartyBus devices on the network, perform these steps.

• Verify that all Fusion PartyBus devices, network switches, routers, and wireless access points are connected

to the network and turned on.

• Verify that wireless Fusion PartyBus devices are connected to a wireless router or wireless access point on

the network.

NOTE: Wired connections are more reliable than wireless connections. If possible, you should connect

devices to the network using an Ethernet cable.

• Verify that only one device, either a stereo or a router, is configured as a DHCP server.

• Change the channel on your router or wireless access point to test for and correct interference.

You may experience wireless interference if there are many nearby wireless access points.

• Disconnect Bluetooth devices to test for and correct interference.

Connecting a Bluetooth device to a stereo configured as a wireless access point or client may reduce

wireless performance.

• If you are experiencing trouble connecting, make sure your router supports 2.4GHz band connections.

When connecting to a wireless router, this device is compatible with only 2.4GHz band connections, and

cannot connect to a 5GHz band.

• If you configured static IP addresses, verify that every device has a unique IP address, that the first three sets

of numbers in the IP addresses match, and that the subnet masks on every device are identical.

• If you have made configuration changes that might be causing networking issues, reset all network settings

to the factory default values.

Network Status Icons

A network-status icon is shown on some screens of the device. You can refer to this table to understand the

appearance of the icon and help diagnose issues with the Fusion PartyBus network.

You can also observe the network status LED on the stereo for further information when troubleshooting (Stereo

Buttons and Status LEDs, page1).

The device is connected correctly to a network.

The device cannot detect the network. An Ethernet cable may not be connected or there may be other

problems with the network.

The stereo keeps locking up when connected to an Apple device

• Press and hold the power button to reset the stereo.

• Reset the Apple device. Go to www.apple.com for more information.

• Make sure you have the latest version of iTunes

and the latest operating software on your Apple device.

The stereo is not finding my connected Apple device

• Make sure your Apple device supports Interface Accessory Protocol 2 (iAP2). This stereo is not compatible

with iAP1 devices.

• Make sure you have the latest version of iTunes and the latest operating software on your Apple device.

• Make sure you have the latest version of the Fusion-Link application on your Apple device.

• Reset the Apple device.

Go to www.apple.com for more information.

• Contact your Fusion dealer or go to support.garmin.com.

Appendix 35

My Apple AirPlay audio is interrupted by short breaks

• Make sure the Apple device is not covered or obstructed.

• Make sure the Apple device has a good connection to the same Wi‑Fi network as the stereo.

• Make sure the Apple device is not connected to the stereo using Bluetooth technology and Wi‑Fi.

Using both a Bluetooth and a Wi‑Fi connection may cause playback interruptions.

The stereo does not receive DAB stations

NOTE: The Apollo WB675 stereo does not include a built-in DAB module and requires a compatible DAB module

and antenna.

• Make sure the stereo is set to a tuner region where DAB stations are broadcast (Setting the Tuner Region,

page21).

• Make sure that you have connected a compatible DAB module and antenna, and that the connections are

secure.

• Make sure you are physically located in a region where DAB stations are broadcast.

• For additional information, go to support.garmin.com and contact Product Support.

36 Appendix

Specifications

Weight 475g (16.75oz.)

Water rating IEC 60529 IPX2

Operating temperature range From 0 to 50°C (from 32 to 122°F)

Storage temperature range From -20 to 70°C (from -4 to 158°F)

Input voltage From 10.8 to 16Vdc

Current (max.) 15A

Current (muted) Less than 700mA

Current (off) Less than 200mA

Fuse 15A mini blade-type

NMEA 2000 LEN @ 9Vdc 1 (50mA)

Bluetooth wireless range Up to 10m (30ft.)

ANT wireless range Up to 3m (10ft.)

Wireless frequencies/protocols

Bluetooth 2.4GHz @ 12dBm nominal

ANT 2.4GHz @ 11.77dBm nominal

Compass-safe distance 15cm (6in.)

On-board, Class D amplifier

Output music power per channel 4 x 70W max. 2ohm

Total output peak power 280W max.

Output power per channel

4 x 43WRMS at 14.4Vdc input, 2ohm, 10%THD

4 x 26W RMS at 14.4Vdc input, 4ohm, 10%THD

Line output level (max.) 5.5V (peak to peak)

Aux input level (typical) 1 VRMS

Tuner frequencies

Tuner Europe and Australasia USA Japan

FM radio frequency range 87.5 to 108MHz 87.5 to 107.9MHz 76 to 95MHz

FM frequency step 50kHz 200kHz 50kHz

AM radio frequency range 522 to 1620kHz 530 to 1710kHz 522 to 1620kHz

AM frequency step 9kHz 10kHz 9kHz

Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle of 15° from its normal position.

The stereo may limit the output power to prevent the amplifier from overheating, and to maintain the audio dynamics.

Appendix 37

Stereo Dimension Drawings

Side Dimensions

107mm (4.21in.)

55mm (2.17in.)

130mm (5.10in.)

Top Dimensions

130mm (5.10in.)

38 Appendix

support.garmin.com

GUID-38C8EEA6-CA0D-46DE-B7DA-A3AC6EDE85DE v3June 2023

Garmin 010-02346-50 Fusion Apollo Marine Hideaway Stereo

Product's Documents

Owner's Manual

Specifications

Garmin 010-02346-50 Questions and Answers
