Attach (E) tripod leg screw to the extension
base on each of the (P) tripod legs.
Attach each (Q) tripod leg to the (I) yolk
mount using the (D) leg to yolk screw sets.
Use the (J) center leg brace screws on
accessory tray (K) on each of the center leg
braces to the three (P) tripod legs.
Slide (H) finderscope till it locks in place to
(O) main telescope optical tube with the
battery compartment and lens facing the
front of the telescope.
Insert the chrome barrel of the (L) barlow
lens into the focuser tube on the (O) main
telescope optical tube and tighten the
set screw.
Choose one (B) eyepiece and insert the
Barlow Lens of the eyepiece into the (L)
Barlow and tighten the set screw.
For detailed usage see included telescope
manual.
P Three Tripod Legs
G Moon Filter
F Screwdriver
C Two Optical
Tube Screws
D Three Leg to
Yolk Screws
E Three Tripod
Leg Screws
I Yolk Mount
L Barlow Lenses
H Finderscope
N Control Rod Screw
M Slow Motion Control Rod
O Main Telescope Optical Tube
1 2
7
8
9
CAUTION: DO NOT LOOK DIRECTLY AT THE SUN.
VIEWING THE SUN OR ANY LIGHT SOURCE WITH THIS
OPTICAL DEVICE CAN CAUSE PERMANENT EYE DAMAGE.
Assembly

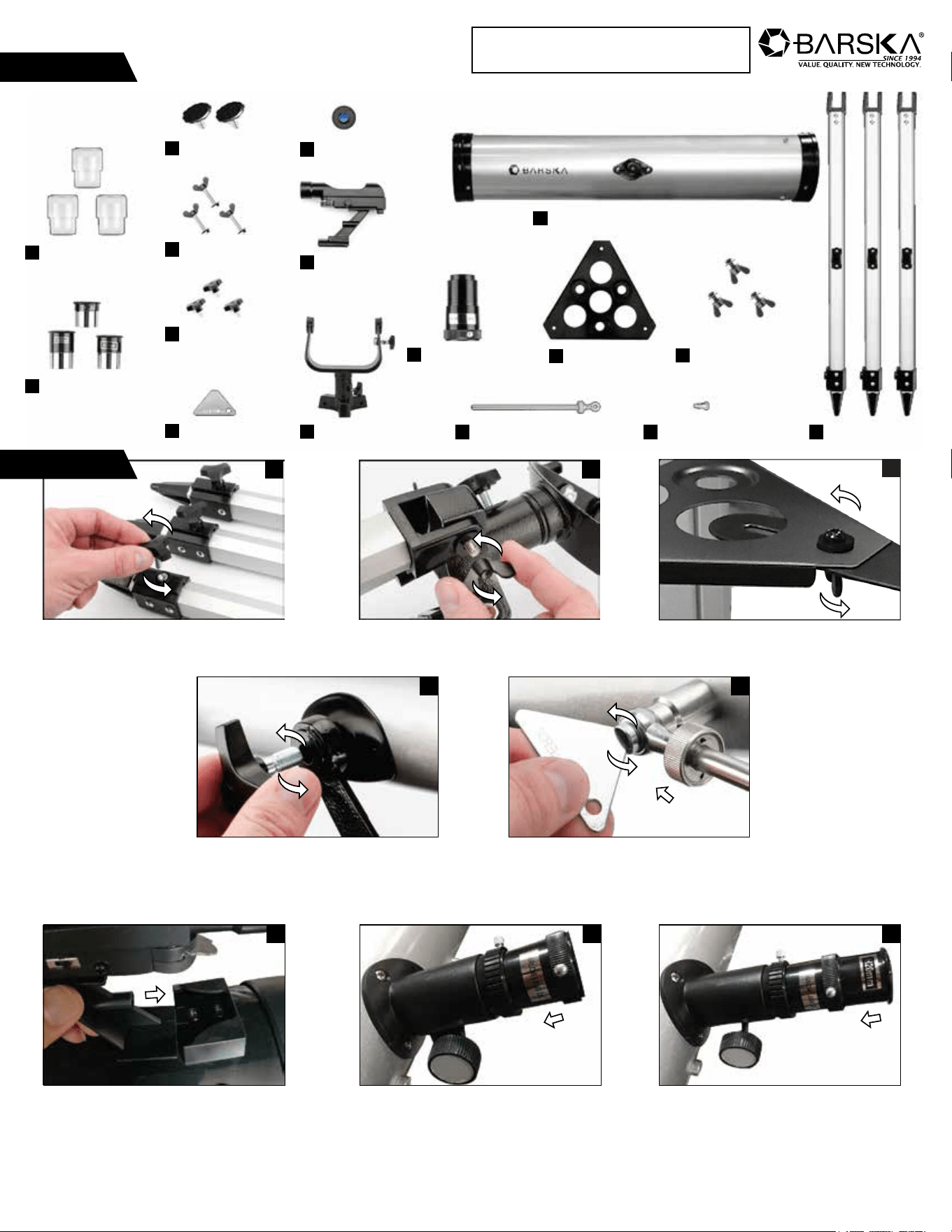

Starwatcher Telescope Quick Set Up - 70060, 525 Power
K Accessory Tray
J Three Tripod Screws
Parts Included
A Three Eyepiece
Containers
B Three Eyepieces
BC569
Line up the (O) main telescope optical tube
with the side mount holes on the (I) yolk
mount and secure in place using the two (C)
optical tube screws.
Insert the (M) slow motion control rod into
the hole on the (I) yolk mount. Then secure
the (M) slow motion control rod with the
included (N) control rod screw by tightening
it with the included (F) screwdriver.
