PLANNING GUIDE
FABRIC CARE
Series 11 Fabric Care Cabinet | FC1260H2 FC1260HG2
Series 11 Front Loader Washer| WH1260H5 WH1260HG5
Series 11 Heat Pump Dryer | DH1060H5 DH1060HG5
Series 11 Display-free Heat Pump Dryer | DH1060HL5
Series 11 Storage Plinth | FM2060S2 FM2060SG2
Stacking Kit with Tray | ASKS60W5 ASKS60G5
© FISHER & PAYKEL LIMITED 2025 PAGE 290004467A PLANNING GUIDE VERSION B - APRIL 2025
CONCEPT DESIGN PAGE
DEVELOPED AND DETAILED DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
PRODUCT OVERVIEW
Product Overview 4
Product Configurations 5
SPECIFICATION GUIDE
Fabric Care - All Models 7
Fabric Care - Cabinet 8
Front Loader Washer Specification 9
Display-free Heat Pump Dryer Specification 10
Heat Pump Dryer Specification 11
Fabric Care Cabinet Specification 12
SUPPORT
For additional design planning and installation support please
contact the Fisher & Paykel design support team.
designsupport@fisherpaykel.com
CONTENTS | FABRIC CARE
CONTENTS
INTRODUCTION
This comprehensive planning guide provides you with the
framework and tools to achieve your desired design outcome
with Fisher & Paykel appliances. In this guide, you will find a
range of conceptual, detailed, and dimensional product
information to bring your ideas to life and create spaces that
truly reflect your vision.
NOTES
The models shown in this Planning Guide may not be available
in all markets and are subject to change at any time. For the
latest version of this document, please visit our website at
fisherpaykel.com. Product specifications may vary from those
shown.
This Planning Guide is not intended to be used as installation
guidance for any product. Detailed installation instructions are
available on our website.
PAGE 3© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE VERSION B - APRIL 202590004467A

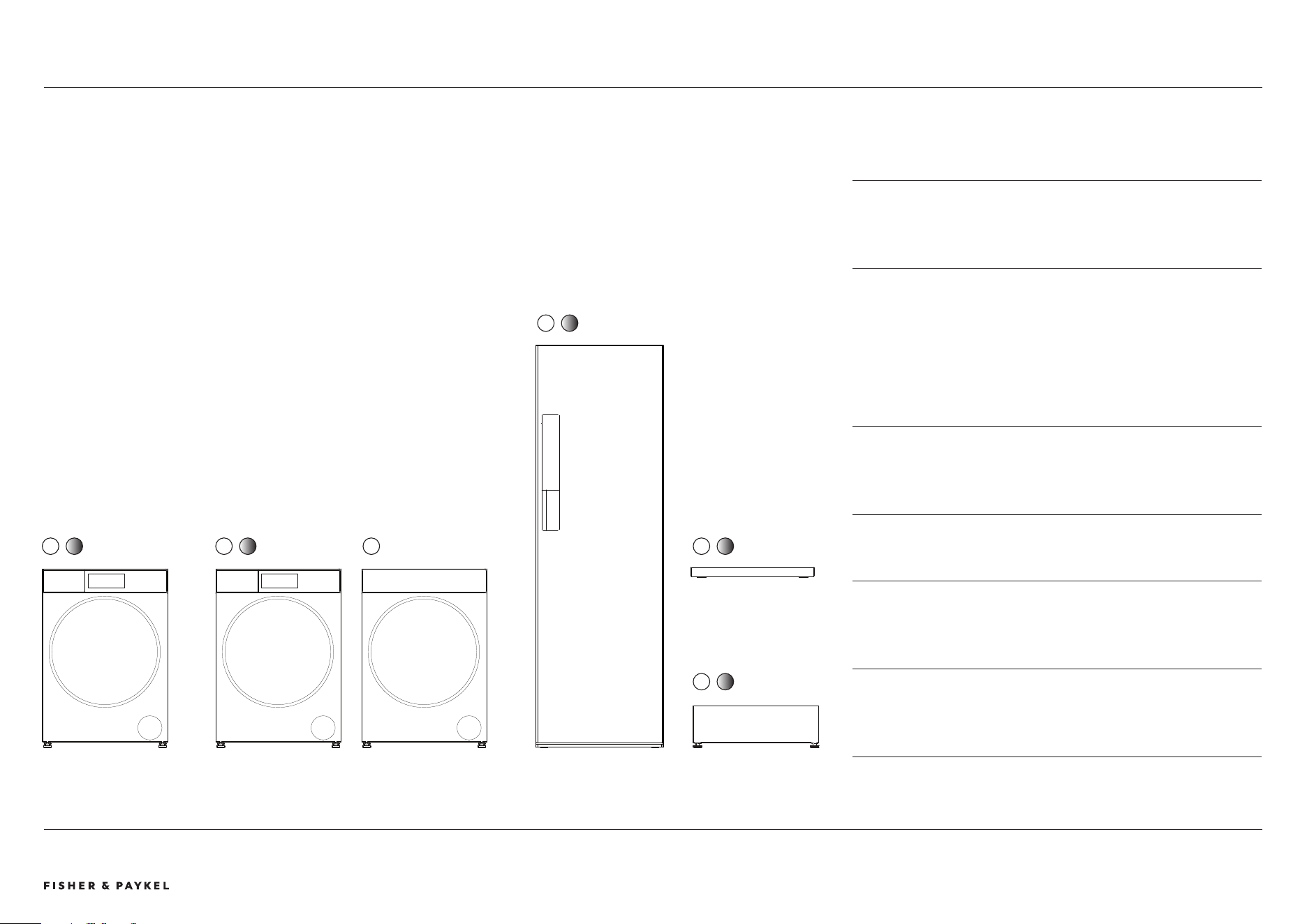

PRODUCT OVERVIEW
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 490004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
SPECIFICATION GUIDE | PRODUCT OVERVIEW
PRODUCT OVERVIEW
1
WH1260H5
12kg Series 11 Front Loader Washer, White
WH1260HG5
12kg Series 11 Front Loader Washer, Graphite
2
DH1060H5
10kg Series 11 Heat Pump Dryer, White
DH1060HG5
10kg Series 11 Heat Pump Dryer, Graphite
3
DH1060HL5
10kg Series 11 Display-free Heat Pump Dryer, White
4
FC1260H2
60cm Series 11 Fabric Care Cabinet, White
FC1260HG2
60cm Series 11 Fabric Care Cabinet, Graphite
ACCESSORIES OVERVIEW
5
ASKS60W5
Stacking Kit with Tray, White
ASKS60G5
Stacking Kit with Tray, Graphite
6
FM2060S2
18L Series 11 Storage Plinth, White,
FM2060SG2
18L Series 11 Storage Plinth, Graphite
1 2 43
5
6
Product Overview
FC1260H2 | FC1260HG2 | WH1260H5 | WH1260HG5 | DH1060H5 | DH1060HG5 | DH1060HL5
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
SPECIFICATION GUIDE | CONFIGURATIONS
1
2
4
3
5
6

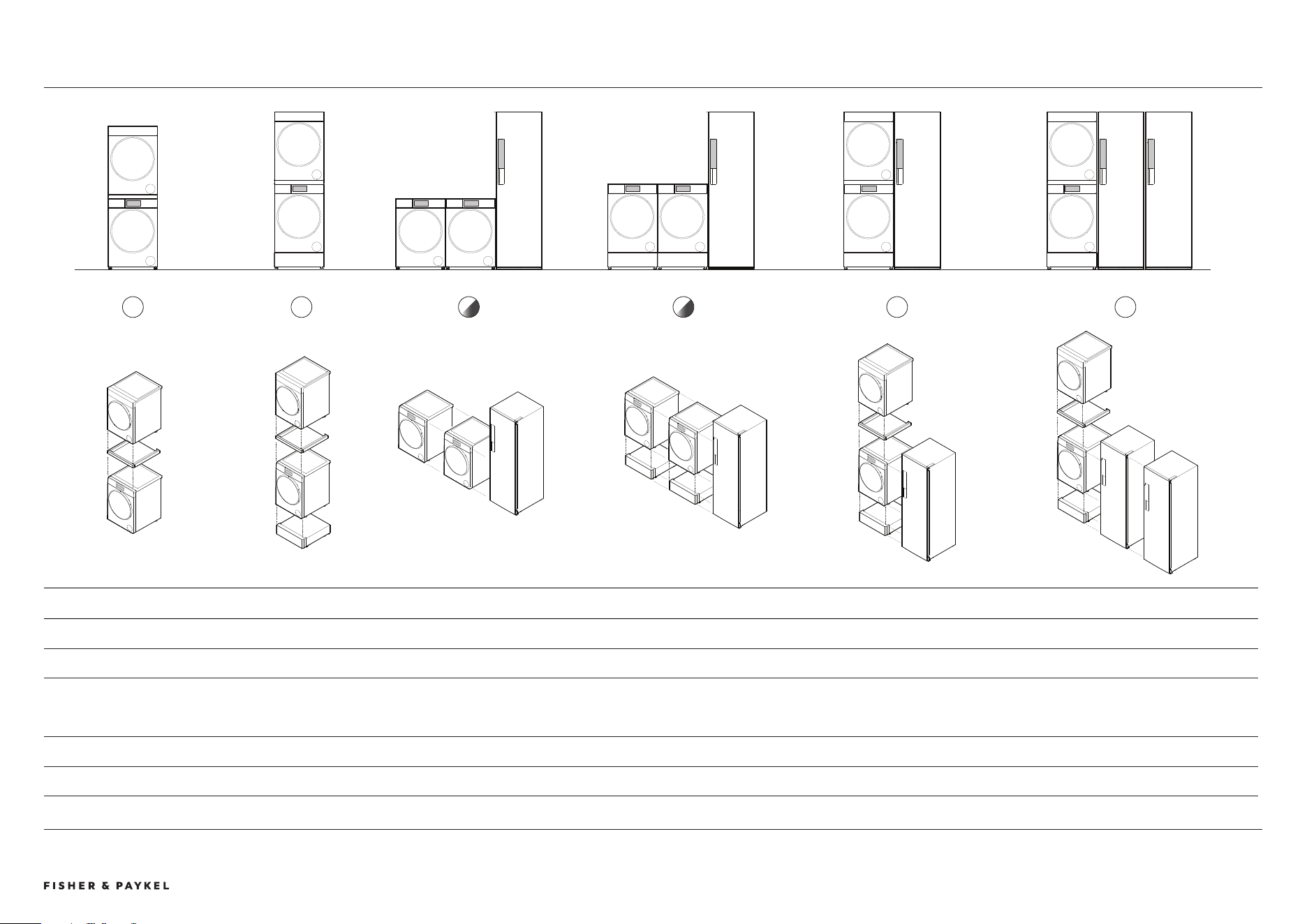

Product Configurations
1
1
1
2
2
2
2
3
3
3
5
5
5
6
6
MODEL CODE COLOUR MODEL CODE COLOUR PRODUCT DESCRIPTION HINGE LOCATION
1
FC1260H2 White FC1260HG2 Graphite Fabric Care Cabinet
Right Hand Hinge
2
WH1260H5 White WH1260HG5 Graphite Front Loader Washer
Left Hand Hinge
3
DH1060HL5 White - - Display-free Heat Pump Dryer
Left Hand Hinge, Reversible Hinge
4
DH1060H5 White DH1060HG5 Graphite Heat Pump Dryer
Right Hand Hinge, Reversible Hinge
5
ASKS60W5 White ASKS60G5 Graphite Stacking Kit with Tray
-
6
FM2060S2 White FM2060SG2 Graphite 18L Series 11 Storage Plinth
-
* Other product configuration possible
6
6
2
FC1260H2 | FC1260HG2 | WH1260H5 | WH1260HG5 | DH1060H5 | DH1060HG5 | DH1060HL5
PAGE 6© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE VERSION B - APRIL 202590004467A
SPECIFICATION GUIDE
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 790004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
OVERVIEW
Care for every corner of the wardrobe with an ecosystem of
fabric care products that combine diverse functions to deliver
exceptional results. From precision sensing to autonomous
technologies, the fabric care suite removes the guesswork,
delivering the perfect balance across each product to ensure
optimal care for every garment.
PRODUCTS | SERIES 11
FC1260H2 | FC1260HG2
60cm Fabric Care Cabinet, White | Graphite
WH1260H5 | WH1260HG5
12kg Front Loader Washer, White | Graphite
DH1060HL5
10kg Display-free Heat Pump Dryer, White
DH1060H5 | DH1060HG5
10kg Heat Pump Dryer, White | Graphite
ACCESSORIES | SERIES 11
ASKS60W5 | ASKS60G5
Stacking Kit with Tray, White | Graphite
FM2060H2 | FM2060HG2
18L Storage Plinth, White | Graphite
FEATURES
1 With multiple configurations from compact to large, this
modular fabric care solution is designed to work for every
space of the evolving home.
2 From delicates to durables, and everyday to occasional,
there is a specialist cycle that ensures optimal care for a
wide range of garments.
3 A range of specialised environments and cycles extends the
life of your garments while caring for them with minimal
environmental impact.
4 Timeless in design, the fabric care suite is engineered with
premium materials and precise manufacturing, enabling
long-lasting care for both product and garment.
SPECIFICATION GUIDE | FABRIC CARE
FC1260H2 | FC1260HG2 | WH1260H5 | WH1260HG5 | DH1060H5 | DH1060HG5 | DH1060HL5
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 890004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
OVERVIEW
Enjoy the luxury of ready-to-wear convenience with the Fabric
Care Cabinet, thoughtfully designed to bring tailored care to
your wardrobe. Gentle features like refreshing, deodorising,
sanitising, and drying help keep your delicate fabrics, from silk
to wool and leather, looking their best.
PRODUCTS | SERIES 11
FC1260H2 | FC1260HG2
60cm Fabric Care Cabinet, White | Graphite
FEATURES
1 Experience effortless garment care with treatments like
refreshing, drying, deodorising, and sanitising, all tailored
for different fabric types in a convenient cabinet.
2 Create a complete fabric care ecosystem by pairing with our
Front Loader Washing Machine and Heat Pump Dryer.
3 Choose from sleek Graphite Steel Finish or classic White
Steel finish for a clean, considered laundry.
4 Connected Home and Wi-Fi enabled. The cabinet connects
with the Fisher & Paykel SmartHQ™ app for seamless
control.
5 The non-plumbed design provides flexibility, making it
suitable for any area in your home.
6 Customised care for a wide range of garment types, from
leather, wool and silk to outdoor gear, with treatments
tailored to varying durability levels. Conveniently treat up to
12 garments at a time.
7 Preserve the quality of delicate silks, woollens, and cottons
by reducing the need for frequent washing.
8 Spacious capacity with multiple loading configurations, and
four adjustable folding racks.
9 Keep footwear fresh and hygienic with a dedicated shoe
care cycle, complete with a specialised shoe rack.
!0 Designed to minimise energy and water usage by reducing
the reliance on traditional washing methods.
FC1260H2 | FC1260HG2
SPECIFICATION GUIDE | FABRIC CARE CABINET
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 990004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.

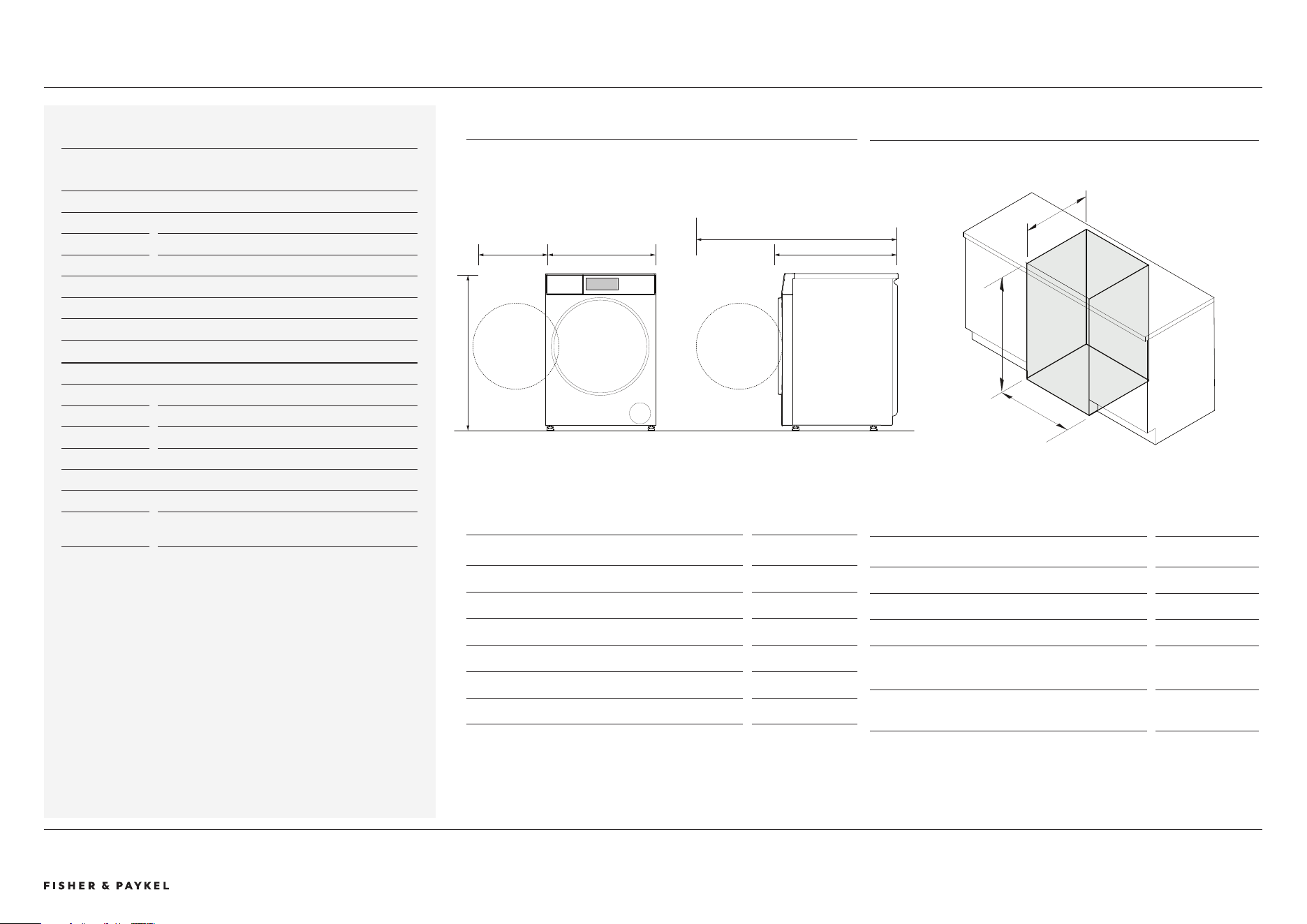

WH1260H5 | WH1260HG5
Front Loader Washer Specification
ISOMETRIC VIEW
SPECIFICATION GUIDE | FRONT LOAD WASHER
PRODUCT DIMENSIONS
mm
A Overall height 850
Height of adjustable mounted feet
max +10
B Overall width 602
C Overall depth* 661
D Depth with the door open
1146
E Door clearance to adjacent wall 267
*Includes door when closed
SPECIFICATIONS
Model Number
WH1260H5* Front Loader Washer, White
WH1260HG5* Front Loader Washer, Graphite
*Left Hand Hinge
Product Dimensions
H 850mm W 602mm D 661mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
Plumbing
Supply Hose set provided
Service Max. 1MPa (150psi); Min. 50KPa (7psi);
Min 6 litres/min
CAVITY DIMENSIONS
mm
A Minimum height 865
B Minimum width 622
C Minimum depth 668
Minimum gap to adjacent product and
cabinetry
10
Minimum visual gap to adjacent product
and cabinetry* **
15
* Visual gap is dierent from the gap between products due to the angled
front on the product
**Applies to sides and top
FRONT VIEW PROFILE VIEW
a
b
c
b
a
c
d
e
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1090004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.

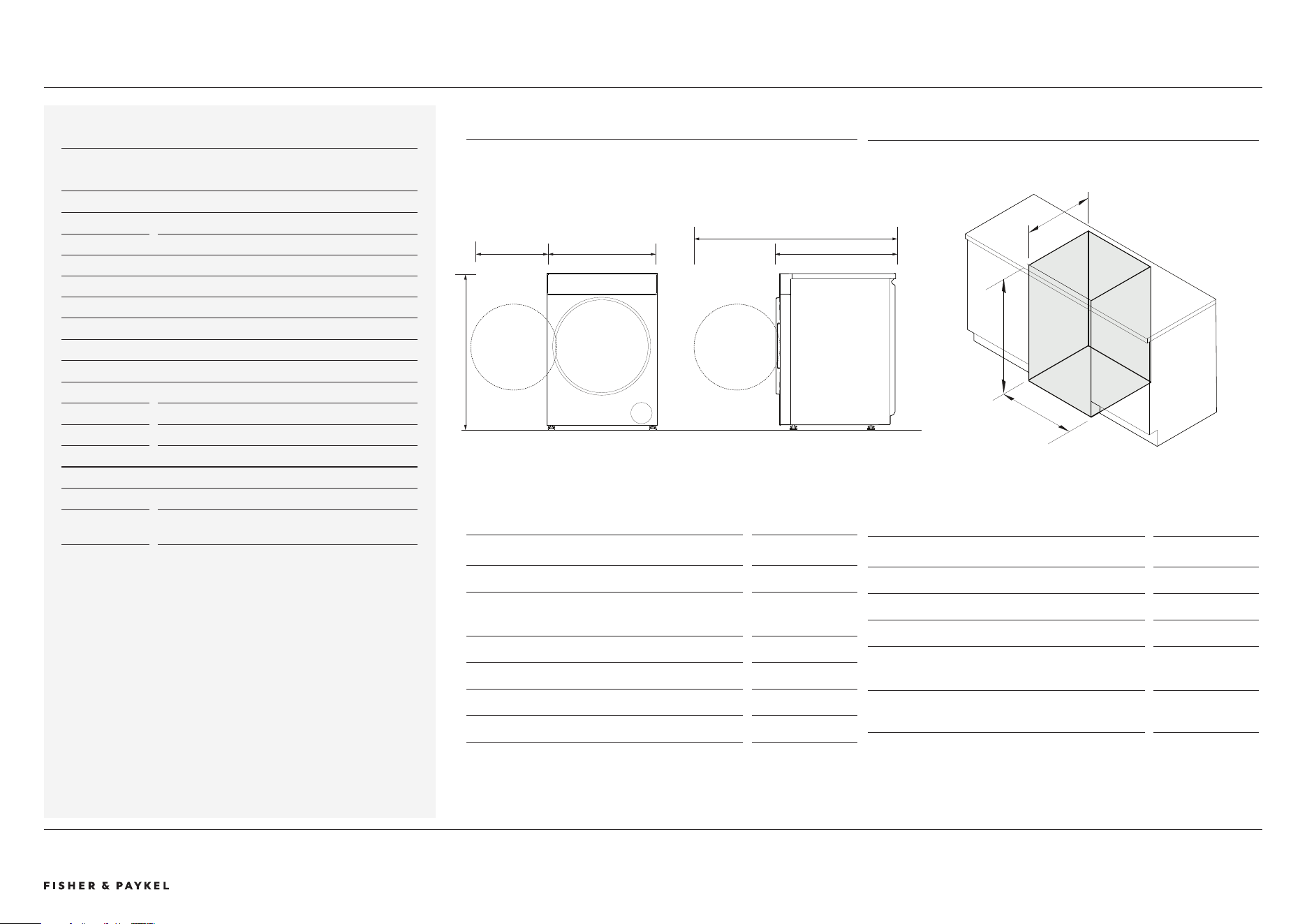

DH1060HL5
Display-free Heat Pump Dryer Specification
SPECIFICATION GUIDE | HEAT PUMP DRYER
a
b
c
SPECIFICATIONS
Model Number
DH1060HL5* ** Display-free Heat Pump Dryer, White
* Inter-Product communication cable is included
** Left Hand Hinge, Reversible Hinge
Product Dimensions
H 850mm W 602mm D 682mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
Plumbing
Supply Hose set provided
Service Max. 1MPa (150psi); Min. 50KPa (7psi);
Min 6 litres/min
PRODUCT DIMENSIONS
mm
A Overall height 850
Height of adjustable mounted feet
min -5
max +5
B Overall width 602
C Overall depth* 682
D Depth with the door open
1167
E Door clearance to adjacent wall 267
*Includes door when closed
CAVITY DIMENSIONS
mm
A Minimum height 865
B Minimum width 622
C Minimum depth 688
Minimum gap to adjacent product and
cabinetry
10
Minimum visual gap to adjacent product
and cabinetry* **
15
* Visual gap is dierent from the gap between products due to the angled
front on the product
**Applies to sides and top
ISOMETRIC VIEWFRONT VIEW PROFILE VIEW
b
a
c
d
e
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1190004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.

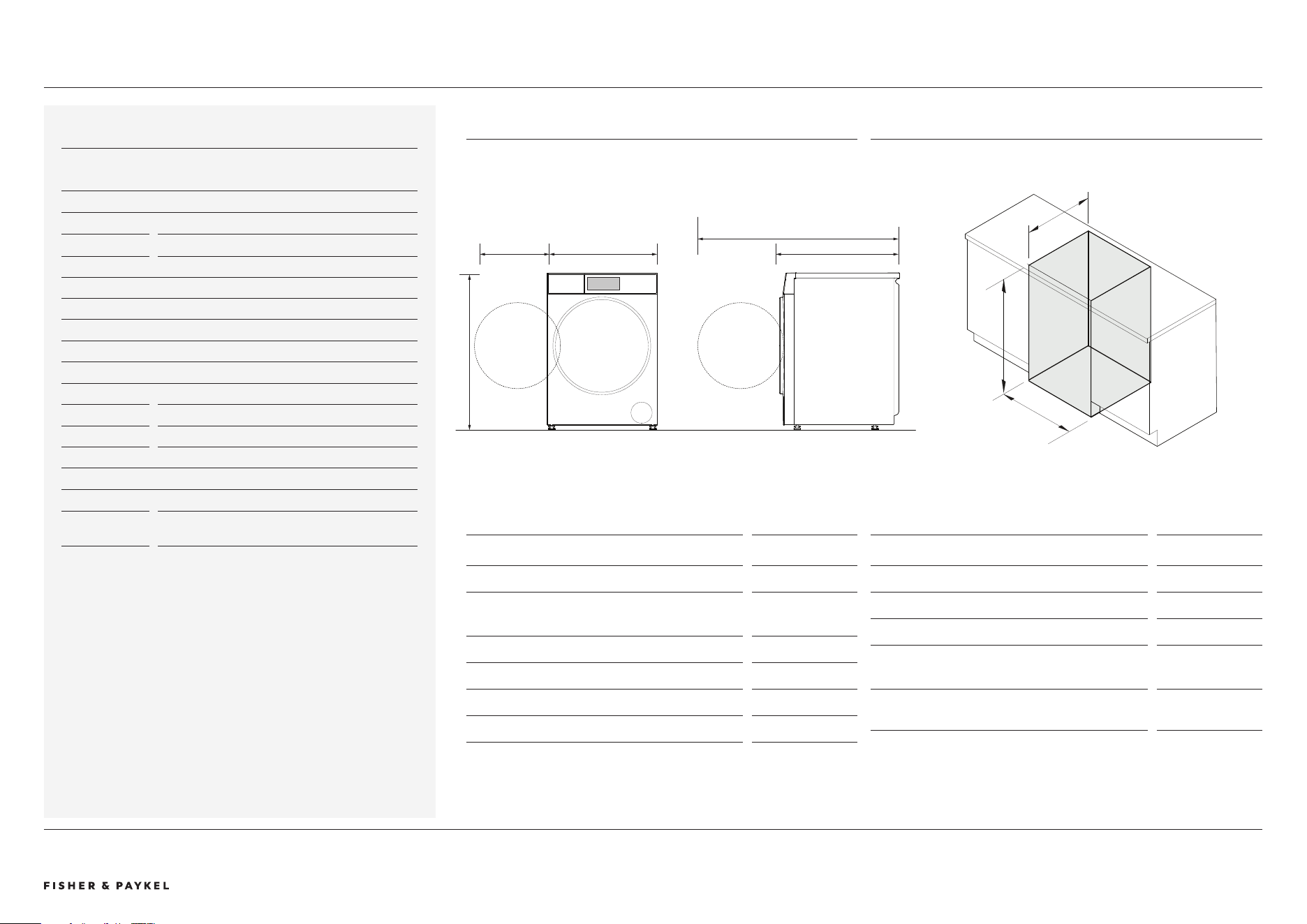

DH1060H5 | DH1060HG5
Heat Pump Dryer Specification
SPECIFICATION GUIDE | HEAT PUMP DRYER
b
a
c
a
b
c
SPECIFICATIONS
Model Number
DH1060H5* Heat Pump Dryer, White
DH1060HG5* Heat Pump Dryer, Graphite
* Right Hand Hinge, Reversible Hinge
Product Dimensions
H 850mm W 602mm D 682mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
Plumbing
Supply Hose set provided
Service Max. 1MPa (150psi); Min. 50KPa (7psi);
Min 6 litres/min
PRODUCT DIMENSIONS
mm
A Overall height 850
Height of adjustable mounted feet
min -5
max +5
B Overall width 602
C Overall depth* 682
D Depth with the door open
1167
E Door clearance to adjacent wall 267
*Includes door when closed
CAVITY DIMENSIONS
mm
A Minimum height 865
B Minimum width 622
C Minimum depth 688
Minimum gap to adjacent product and
cabinetry
10
Minimum visual gap to adjacent product
and cabinetry* **
15
* Visual gap is dierent from the gap between products due to the angled
front on the product
**Applies to sides and top
ISOMETRIC VIEWFRONT VIEW PROFILE VIEW
d
e
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 1290004467A PLANNING GUIDE VERSION B - APRIL 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. For the latest version of this document, please visit our website at fisherpaykel.com. Product specifications may vary from those shown. The Planning Guide is not intended to be used as
installation guidance for any product. Detailed installation instructions are available on our website.
FC1260H2 | FCS1260HG2
Fabric Care Cabinet Specification

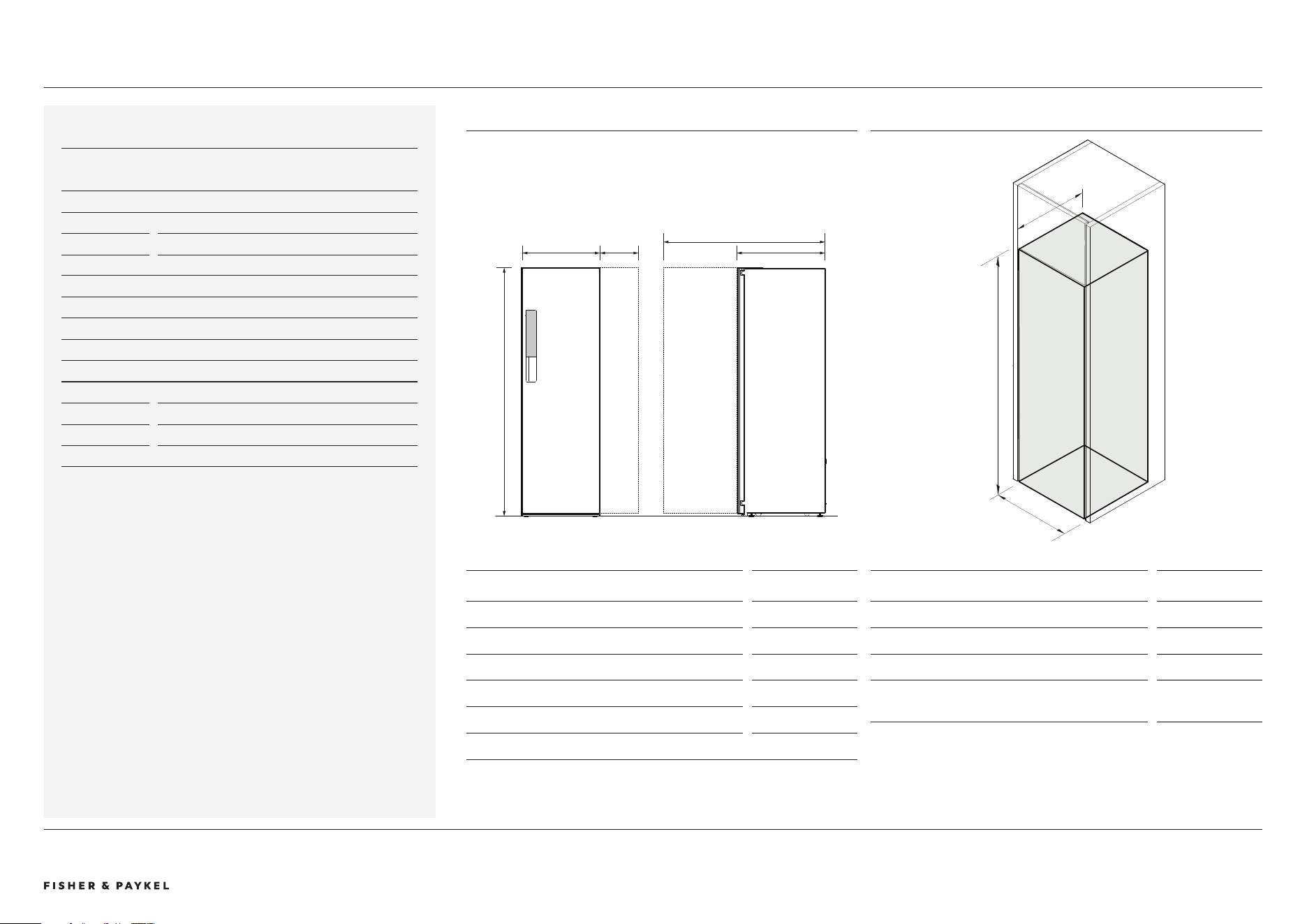

ISOMETRIC VIEW
SPECIFICATION GUIDE | FABRIC CARE CABINET
PRODUCT DIMENSIONS
mm
A Overall height 1900
Height of adjustable mounted feet
max +12
B Overall width 600
C Overall depth* 666
D Depth with the door open 1285
E Door clearance to adjacent wall min 235
*With door closed
ISOMETRIC VIEW
b
a
c
a
b
c
SPECIFICATIONS
Model Number
FC1260H2* Fabric Care Cabinet, White
FC1260HG2* Fabric Care Cabinet, Graphite
* Right Hand Hinge
Product Dimensions
H 1900mm W 600mm D 660mm
Electrical
Supply 220–240 V, 50 Hz
Service 10 A
Connection 3-prong grounding-type
CAVITY DIMENSIONS
mm
A Minimum height 1915
B Minimum width 630
C Minimum depth 700
Minimum visual gap to adjacent cabinetry
and product*
15
*Applies to sides and top
e
d
PAGE 13© FISHER & PAYKEL APPLIANCES LIMITED 2025PLANNING GUIDE VERSION B - APRIL 202590004467A
