AP15756.(05/10)
..FOR YOUR SAFETY!
—. Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this or
any other appliance. To do so may result in an
explosion or fire.
—. WHAT TO DO IF YOU SMELL GAS
● Do not try to light any appliance.
● .Do not touch any electrical switch; do not
use any phone in your building.
● .Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
● .If you cannot reach your gas supplier, call
the fire department.
● .Do not return to your home until authorized
by the gas supplier or fire department.
—..Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, personal injury, or death. Refer to
this manual. Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
.WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
The.purpose.of.this.manual.is.twofold:.one,.to.provide.the.installer.with.the.basic.directions.and.
recommendations.for.the.proper.installation.and.adjustment.of.the.water.heater;.and.two,.for.the.owner–
operator,.to.explain.the.features,.operation,.safety.precautions,.maintenance.and.troubleshooting.of.the.
water.heater.This.manual.also.includes.a.parts.list
It.is.imperative.that.all.persons.who.are.expected.to.install,.operate.or.adjust.this.water.heater.read.the.
instructions.carefully.so.they.may.understand.how.to.perform.these.operations.If.you.do.not.understand.
these.instructions.or.any.terms.within.it,.seek.professional.advice
Any.questions.regarding.the.operation,.maintenance,.service.or.warranty.of.this.water.heater.should.
be.directed.to.the.seller.from.whom.it.was.purchased.If.additional.information.is.required,.refer.to.the.
section.on.“If.you.need.service”
Do not destroy this manual. Please read carefully and keep in a safe place for future reference.
Recognize this symbol as an indication of Important Safety Information!
.
California Proposition 65 Warning:.This.product.contains.chemicals.known.to.the.State.of.
California.to.cause.cancer,.birth.defects.or.other.reproductive.harm
Residential.38,.40,.and.50.Gallon
Use.&.Care.Manual
With.Installation.Instructions.for.the.Installer
Printed in USA
Water.Heaters
Residential.Gas.-.FVIR Certified
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
®
!
Warning: This water heater is not suitable
for use in manufactured (mobile) homes!
!
!
!
!
El.manual.en.Español.está.disponible.en.wwwrheemcom
W I T H . D A M P E R . & . E L E C T R O N I C . C O N T R O L
Care and Cleaning
Draining. .20
Maintenance. .20
Burner.Inspection . .21
Extended.Shut-Down. 21
Safety Information
Safety.Precautions. .3–6
LP.Gas.Models . .5
Installation Instructions
Location. .7
Water.Supply.Connections. .9
Flue.Damper . 10
Gas.Supply. .11
Pipe.Insulation. 14
Heat.Traps . 14
Installation.Checklist. 15
Potable/Space.Heating . .16
Operating Instructions

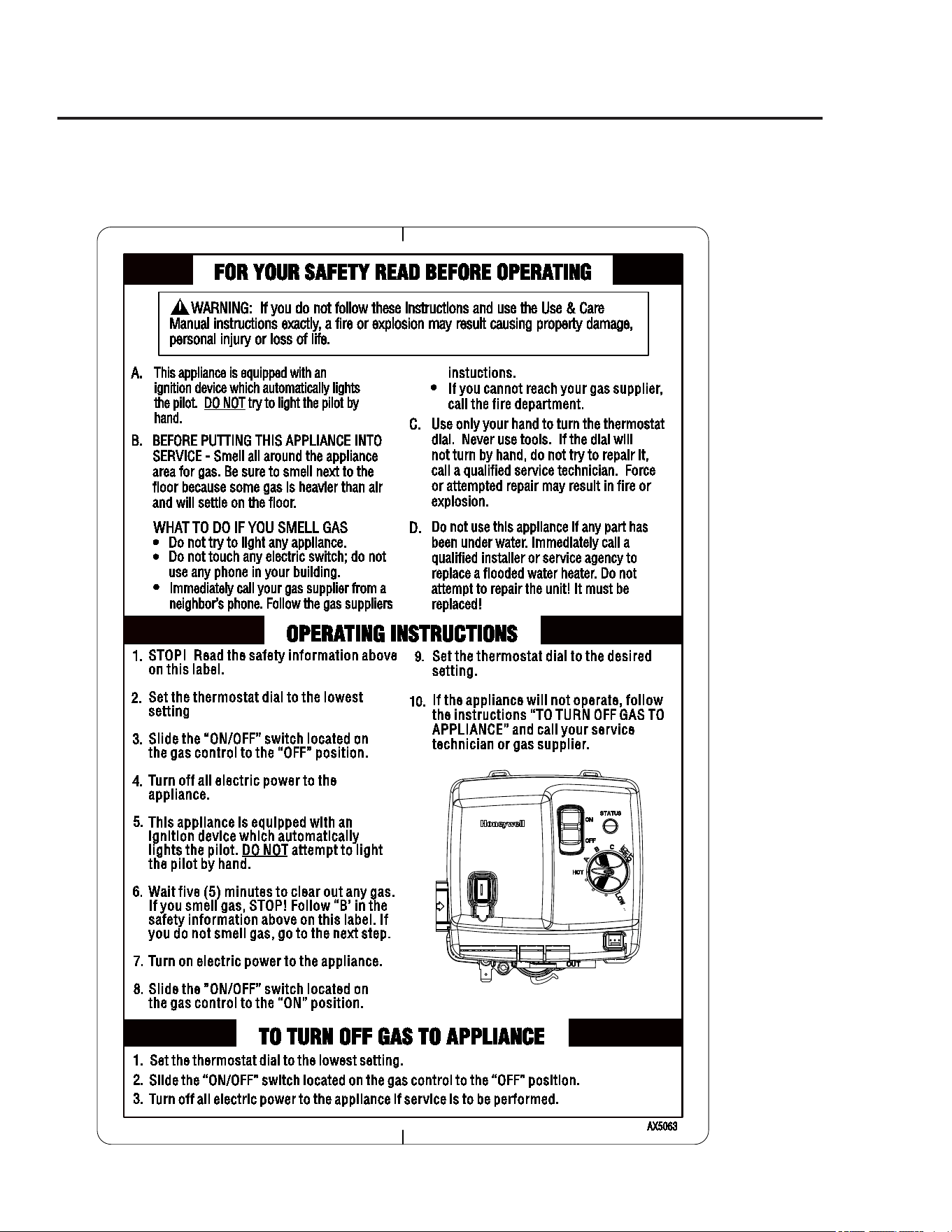

Lighting.Instructions. .17
Water.Temperature . 18,.19
Troubleshooting Tips
Before.You.Call.
For.Service. .22,.23
LED.Codes. 24,.25
Customer Service
Parts.List. .26
If.You.Need.Service . 28
FOR.YOUR.RECORDS
Write.the.model.and.serial.numbers.here:
#
#
You.can.find.them.on.a.label.on.the.appliance
Staple sales slip or cancelled check here..
Proof.of.the.original.purchase.date.is.needed.to.obtain.service.under.
the.warranty
2
Inside you will find many helpful hints on how to use and
maintain your water heater properly. A little preventive care
on your part can save you time and money over the life of your
water heater.
You’ll find many answers to common problems in
the Troubleshooting Guide. If you review the chart of
Troubleshooting Tips first, you may not need to call for service.
READ.THIS.MANUAL
READ.THE.SAFETY.INFORMATION
!
Your safety and the safety of others are very important. There
are many important safety messages in this manual and on your
appliance. Always read and obey all safety messages.
This is the safety alert symbol. Recognize this symbol as an
indication of Important Safety Information!
This symbol alerts you to potential hazards that can kill or hurt
you and others.
All safety messages will follow the safety alert symbol and
either the word “DANGER”, “WARNING”, “CAUTION” or
“NOTICE”.
These words mean:
DANGER
An imminently hazardous situation
that will result in death or serious
injury.
WARNING
A potentially hazardous situation that
could result in death or serious injury
and/or damage to property.
CAUTION
A potentially hazardous situation that
may result in minor or moderate
injury.
Notice:
Attention is called to observe a
specified procedure or maintain
a specific condition.
!
!
!
Be sure to read and understand the entire Use and Care Manual before attempting to install or operate
this water heater. It may save you time and money. Pay particular attention to the Safety Instructions.
Failure to follow these warnings could result in serious bodily injury or death. Should you have
problems understanding the instructions in this manual, or have any questions, STOP, and get help
from a qualified service technician, or the local gas utility.
IMPORTANT.SAFETY.INFORMATION
READ.ALL.INSTRUCTIONS.BEFORE.USING
3
Failure to install the draft hood and properly vent the water heater to the outdoors as
outlined in the Venting Section of the Installation Instructions in this manual can result in
unsafe operation of the water heater. To avoid the risk of fire, explosion, or asphyxiation
from carbon monoxide, never operate this water heater unless it is properly vented and
has an adequate air supply for proper operation. Be sure to inspect the vent system
for proper installation at initial start-up; and at least annually thereafter. Refer to the
Care and Cleaning section of this manual for more information regarding vent system
inspection.
!
DANGER!
INSTALL.THE.DRAFT.HOOD.AND.PROPERLY.vENT.THE.
WATER.HEATER…
Gasoline, as well as other flammable materials and liquids (adhesives, solvents, paint
thinners etc.), and the vapors they produce are extremely dangerous. DO NOT handle,
use or store gasoline or other flammable or combustible materials anywhere near or in the
vicinity of a water heater or any other appliance. Be sure to read and follow warning label
pictured below and other labels on the water heater, as well as the warnings printed in
this manual. Failure to do so can result in property damage, bodily injury or death.
!
WARNING!
!
!
FLAMMABLES
Flammable Vapors
FIRE AND EXPLOSION HAZARD
Can result in serious injury or death.
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance. Storage of or use of gasoline
or other flammable vapors or liquids in the vicinity of this or any other
appliance can result in serious injury or death.
W A R N I N G
The.chart.shown.above.may.be.used.as.a.guide..
in.determining.the.proper.water.temperature.for.your.
home
DANGER: Households with small children,
disabled, or elderly persons may require a 120°F
or lower gas control (thermostat) setting to
prevent contact with “HOT” water.
Maximum.water.temperatures.occur.just.after.the.
burner.has.shut.off.To.find.water.temperature.being.
delivered,.turn.on.a.hot.water.faucet.and.place.
a.thermometer.in.the.water.stream.and.read.the.
thermometer(See.page.18.and.19.for.more.details)
The.temperature.of.the.water.in.the.heater.can.be..
regulated.by.setting.the.temperature.dial.on.the.front.
of.the.gas.control.(thermostat).To.comply.with.
safety.regulations.the.gas.control.(thermostat).was.
set.at.its.lowest.setting.before.the.water.heater.was.
shipped.from.the.factory.
.The.illustration.below.details.the.approximate.water.
temperature.for.each.mark.on.the.Gas.Control.
(Thermostat).Temperature.Dial
Water Temperature Time.To.Produce.a.Serious.Burn
120°F More than 5 minutes
125°F 1
1
/2 to 2 minutes
130°F About 30 seconds
135°F About 10 seconds
140°F Less than 5 seconds
145°F Less than 3 seconds
150°F About 1
1
/2 seconds
155°F About 1 second
Table.courtesy.of.Shriners.Burn.Institute
Time/Temperature Relationship in Scalds
D A N G E R
!
HOT
Water temperature over 125°
can
cause severe burns
instantly or
death from scalds.
Children, disabled and elderly are
at highest risk of being scalded.
See instruction manual before
setting temperature at water
heater.
Feel water before bathing or
showering.
Temperature limiting valves are
available, see manual.
BURN
F (52°C)
!
DANGER!
WATER.TEMPERATURE.SETTING
Safety and energy conservation are factors to be considered when selecting the water
temperature setting of a water heater’s gas control. Water temperatures above 125°F
can cause severe burns or death from scalding. Be sure to read and follow the warnings
outlined on the label pictured below. This label is also located on the water heater.
Notice: Mixing valves are available for reducing
point of use water temperature by mixing hot and
cold water in branch water lines. Contact a licensed
plumber or the local plumbing authority for
further information.
4
IMPORTANT.SAFETY.INFORMATION
READ.ALL.INSTRUCTIONS.BEFORE.USING
!
!
DANGER: Hotter water increases the potential for
Hot Water SCALDS.
valve.Set.
Point
Estimated.
Temperature Burns.on.Adult.Skin
LOW
90°F ------------------------
●
98°F ------------------------
●
105°F ------------------------
●
113°F ------------------------
HOT
120°F More.than.5.minutes
A
130°F About.30.seconds
B
140°F Less.than.5.seconds
C
150° About.1-1/2.seconds
vERY.HOT
160°F About.1/2.second
5
LP and Natural gas have an odorant added to aid in detecting a gas leak. Some people
may not physically be able to smell or recognize this odorant. If you are unsure or
unfamiliar with the smell of LP or natural gas, ask the gas supplier. Other conditions,
such as “odorant fade”, which causes the odorant to diminish in intensity, can also hide or
camouflage a gas leak.
!
DANGER!
LIqUEFIED.PETROLEUM.(LP.-.PROPANE.OR.BUTANE).
AND.NATURAL.GAS.MODELS
● Water heaters utilizing LP gas are
different from natural gas models. A
natural gas water heater will not function
safely on LP gas and vice versa.
● No attempt should ever be made to
convert the water heater from natural
gas to LP gas. To avoid possible
equipment damage, personal injury or
fire, do not connect the water heater to a
fuel type not in accordance with the unit
data plate. LP for LP units. Natural gas
for natural gas units. These units are not
certified for any other fuel type.
● LP appliances should not be installed
below grade (for example, in a basement)
if such installation is prohibited by
federal, state and/or local laws, rules,
regulations or customs.
● LP gas must be used with great caution.
It is heavier than air and will collect first
in lower areas making it hard to detect at
nose level.
● Before attempting to light the water
heater, make sure to look and smell for
gas leaks. Use a soapy solution to check
all gas fittings and connections. Bubbling
at a connection indicates a leak that must
be corrected. When smelling to detect a
gas leak, be sure to sniff near the floor
also.
● Gas detectors are recommended in LP
& natural gas applications and their
installation should be in accordance
with the detector manufacturer’s
recommendations and/or local laws,
rules, regulations or customs.
● It is recommended that more than one
method, such as soapy solution, gas
detectors, etc., be used to detect leaks in
gas applications.
!
DANGER: If a gas leak is present or
suspected:
● Donotattempt to find the cause yourself.
● Donot try to light any appliance.
● Donot touch any electrical switch.
● Donot use any phone in your building.
● Leave the house immediately and make
sure your family and pets leave also.
● Leave the doors open for ventilation
and contact the gas supplier, a qualified
service agency or the fire department.
● Stay away from the house (or building)
until the service call has been made, the
leak is corrected and a qualified agency
has determined the area to be safe.
6
IMPORTANT.SAFETY.INFORMATION
READ.ALL.INSTRUCTIONS.BEFORE.USING
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of
life.
FOR.INSTALLATIONS.IN.THE.STATE.OF.CALIFORNIA
California Law requires that residential water heaters must be braced, anchored or
strapped to resist falling or horizontal displacement due to earthquake motions. For
residential water heaters up to 52-gallon capacity, a brochure with generic earthquake
bracing instructions can be obtained from: Office of the State Architect, 1102 Q Street,
Suite 5100, Sacramento, CA 95814 or you may call 916-445-8100 or ask a water heater
dealer.
However, applicable local codes shall govern installation. For residential water heaters
of a capacity greater than 52 gallons, consult the local building jurisdiction for acceptable
bracing procedures.
Have.the.installer.show.you.the.location.of.the.gas.shut-off.valve.and.how.to.shut.it.off.
if.necessary.Turn.off.the.manual.shut-off.valve.if.the.water.heater.has.been.subjected.to.
overheating,.fire,.flood,.physical.damage.or.if.the.gas.supply.fails.to.shut.off
● Read.this.manual.entirely.before.installing.
or.operating.the.water.heater
● Use.this.appliance.only.for.its.intended.
purpose.as.described.in.this.Use.and.Care.
Manual
● Be.sure.your.appliance.is.properly.installed.
in.accordance.with.local.codes.and.the.
provided.installation.instructions
● Do not attempt.to.repair.or.replace.any.part.
of.your.water.heater.unless.it.is.specifically.
recommended.in.this.manual.All.other.
servicing.should.be.referred.to.a.qualified.
technician
SAFETY.PRECAUTIONS
READ.AND.FOLLOW.THIS.SAFETY.INFORMATION.
CAREFULLY
SAvE.THESE.INSTRUCTIONS
!
Combustion.Air.Inlet.
Openings
Installing the water heater.
This water heater must be installed in accordance with these instructions, local codes, utility company
requirements, and/or in the absence of local codes, use the latest edition of the American National
Standard/National Fuel Gas Code. A copy can be purchased from either the American Gas Association,
400 N. Capitol Street NW, Washington, DC 20001 as ANSI standard Z223.1 or National Fire Protection
Association, 1 Batterymarch Park, Quincy, MA 02269 as booklet NFPA 54.
Location
The water heater should not be located
in an area where leakage from the tank
or connections will result in damage
to the area adjacent to the heater or to
lower floors of the structure.
When such areas cannot be avoided it is
recommended that a suitable catch pan,
adequately drained, must be installed
under the water heater.
The pan must not restrict air flow to the
combustion air inlet openings (perforation
openings) located around the lower
perimeter of the water heater.
Catch.pan.kits.are.available.from.the.store.
where.the.water.heater.was.purchased,.or.
any.water.heater.distributor
Make.certain.the.floor.underneath.the.water.
heater.is.strong.enough.to.sufficiently.
support.the.weight.of.the.water.heater.once.
it.is.filled.with.water
A.gas-fired.water.heater.or.any.other.
appliance.should.not.be.installed..
in.a.space.where.liquids.which.give.off.
flammable.vapors.are.to.be.used.or.stored..
Such.liquids.include.gasoline,.LP.gas.
(butane.or.propane),.paint.or.adhesives.and.
their.thinners,.solvents.or.removers
When installed in a closet, DO NOT
block or obstruct any of the combustion
air inlet openings located around the
perimeter of the water heater. A
minimum of 1” is required between these
combustion air inlet openings and any
obstruction.
DO NOT obstruct or block the
Flammable Vapor Sensor.
Because.of.natural.air.movement.in.a.room.
or.other.enclosed.space,.flammable.vapors.
can.be.carried.some.distance.from.where.
liquids.which.give.off.flammable.vapors.
are.to.be.used.or.stored.The.open.flame.of.
the.water.heater’s.pilot.or.main.burner.can.
ignite.these.vapors.and.create.a.shut down
condition of the water heater which
will not allow the water heater to ignite
until examined by a Qualified Service
Technician.
FvIR.certified.gas.water.heaters.can.be.
installed.on.a.residential.garage.floor.
without.the.use.of.an.18-inch.stand.in.
accordance.with.the.National.Fuel.Gas.
Code,.NFPA.54,.ANSI.Z2231.2006,.unless.
otherwise.directed.by.State.and.Local.
code.requirements.The.water.heater.must.
be.located.so.it.is.not.subject.to.physical.
damage,.for.example,.by.moving.vehicles,.
area.flooding,.etc
● The.water.heater.should.be.installed.
as.close.as.practical.to.the.gas.vent.or.
chimney.
● Hot.water.lines.should.be.insulated.to.
conserve.water.and.energy.
● .The.water.heater.and.water.lines.should.
be.protected.from.exposure.to.freezing.
temperatures
● Do not install.this.water.heater.in.
bathrooms,.bedrooms,.any.occupied.
rooms.normally.kept.closed,.or.in.
unprotected.outdoor.areas
● .Minimum.clearance.from.combustible.
construction:.
●..If.the.clearances.stated.on.the.
Instruction/Warning.Label,.located.on.
the.front.of.the.heater.differ,.install.the.
water.heater.according.to.the.clearances.
stated.on.the.label
●..If.the.water.heater.is.to.be.installed.
directly.on.carpeting.,.the.water.heater.
shall.be.installed.on.a.metal.or.wood.
panel.extending.beyond.the.full.width.
and.depth.of.the.water.heater.by.at.least.
3.in.(76.cm).in.all.directions.or,.if.
the.water.heater.is.to.be.installed.in.an.
alcove.or.closet,.the.entire.floor.must.be.
covered.by.a.wood.or.metal.panel
The auxiliary catch pan
installation MUST conform
to local codes.
Diameter.of.
water.heater.
plus.2”.min
Max.
2”
WARNING: Combustible
construction refers to
adjacent walls and ceilings
and should not be confused
with combustible or
flammable products and
materials. Combustible and/
or flammable products and
materials should never be
stored in the vicinity of this
or any gas appliance.
Location Front Sides Rear Top
Alcove
3”.
(762.cm)
0”.
(0.cm)
0”.
(0.cm)
12”.
(305.cm)
Closet
3”.
(762.cm)
1”.
(25.cm)
0”.
(0.cm)
12”.
(305.cm)
Rear
Sides
Front.Open
Sides
Front.Enclosed
Top View Closet
Top View Alcove
Rear
7
!
Flammable.
vapor.
Sensor
Notice: DO NOT allow the
flammable vapor sensor to
become submerged in water.
Make sure the catch pan is
properly drained.
8
Installing the water heater.
Combustion and Ventilation Air
Proper operation of the water heater
requires air for combustion and
ventilation. Provisions for combustion
and ventilation air must comply with
referenced codes and standards.
When installed in a closet, DO NOT block
or obstruct any of the combustion air inlet
openings located around the perimeter
of the water heater. A minimum of 1” is
required between these combustion air inlet
openings and any obstruction.
NOTICE: If the water heater is installed
in an unconfined space within a building
of conventional frame, masonry or metal
construction, infiltration air is normally
adequate for proper combustion and
ventilation. If the water heater is installed in
a confined space, provisions for combustion
and ventilation air must be made.
A.confined.space.is.one.having.a.volume.
of.less.than.50.cubic.feet.per.1000.Btuh.
of.the.aggregate.input.of.all.appliances.
within.that.space.
The.air.must.be.supplied.through.two.
permanent.openings.of.equal.area.One..
is.to.be.located.within.12”.above.the.floor.
and.the.other.is.to.be.located.within.12”.
from.the.ceiling
The.minimum.net.free.area.of.each.opening.
must.not.be.less.than.one.square.inch.
per.1,000.Btuh.of.the.total.input.rating.
of.all.the.appliances.in.the.enclosure.
(but.not.less.than.100.square.inches),.if.
each.opening.communicates.with.other.
unconfined.areas.inside.the.building
Buildings.of.unusually.tight.construction.
shall.have.the.combustion.and.ventilation.
air.supplied.from.outdoors,.or.a.freely.
ventilated.attic.or.crawl.space
If.air.is.supplied.from.outdoors,.directly.or.
through.vertical.ducts,.there.must.be.two.
openings.located.as.specified.above.and.
each.must.have.a.minimum.net.free.area.
of.not.less.than.one.square.inch.per.4000.
Btuh.of.the.total.input.rating.of.all.the.
appliances.in.the.enclosure
If.horizontal.ducts.are.used.to.
communicate.with.the.outdoors,.each.
opening.must.have.a.minimum.net.free.
area.of.not.less.than.one.square.inch.per.
2000.Btuh.of.the.total.input.rating.of.all.
the.appliances.in.the.enclosure.If.ducts.
are.used,.the.minimum.dimensions.of.
rectangular.air.ducts.shall.not.be.less.than.
3”
NOTICE: If the duct openings which supply
combustion and ventilation air are to be
covered with a protective screen or grill,
the net free area (openings in the material)
of the covering material must be used
in determining the size of the openings.
Protective screening for the openings MUST
NOT be smaller than 1/4”mesh to prevent
clogging by lint or other debris.
Corrosive Atmospheres
The.air.in.beauty.shops,.dry.cleaning.
establishments,.photo.processing.
labs,..and.storage.areas.for.liquid.and.
powdered.bleaches.or.swimming.pool.
chemicals.often.contain.such.halogenated.
hydrocarbons
An.air.supply.containing.halogenated.
hydrocarbons.may.be.safe.to.breathe,..
but.when.it.passes.through.a.gas.flame.
corrosive.elements.are.released.that..
will.shorten.the.life.of.any.gas.burning.
appliance
Propellants.from.common.spray.cans.
or.gas.leaks.from.A/C.and.refrigeration.
equipment.are.highly.corrosive.after.
passing.through.a.flame
The.water.heater.warranty.is.voided.when.
failure.of.the.heater.is.due.to.operation.in.
a.corrosive.atmosphere
NOTICE: The water heater
should not be installed near
an air supply containing
halogenated hydrocarbons.
Carefully.inspect.the.water.heater.for.damage.before.proceeding.with.the.
installation..Of.specific.interest.should.be.any.dents.or.damage.to.the.draft.hood.
and/or.flue.damper.assembly..If.you.find.damage,.DO.NOT.install.or.attempt.
any.repair.to.the.water.heater..Contact.the.manufacturer.as.detailed.under.the."IF.
YOU.NEED.SERvICE".section.of.this.manual
Inspect Shipment
Thermal Expansion
Determine if a check valve exists in the inlet
water line. Check with your local water
utility company It.may.have.been.installed.
in.the.cold.water.line.as.a.separate.back.flow.
preventer,.or.it.may.be.part.of.a.pressure.
reducing.valve,.water.meter.or.water.softener.
A.check.valve.located.in.the.cold.water.inlet.
line.can.cause.what.is.referred.to.as.a “closed
water system”.A.cold.water.inlet.line.with.no.
check.valve.or.back.flow.prevention.device.is.
referred.to.as.an.“open”.water.system
As.water.is.heated,.it.expands.in.volume.and.
creates.an.increase.in.the.pressure.within.the.
water.system.This.action.is.referred.to.as.
“thermal expansion”.In.an.“open”.water.
system,.expanding.water.which.exceeds.the.
capacity.of.the.water.heater.flows.back.into.
the.city.main.where.the.pressure.is.easily.
dissipated
A.“closed water system”,.however,.prevents.
the.expanding.water.from.flowing.back.into.the.
main.supply.line,.and.the.result.of.“thermal
expansion”.can.create.a.rapid.and.dangerous.
pressure.increase.in.the.water.heater.and.
system.piping.This.rapid.pressure.increase.can.
quickly.reach.the.safety.setting.of.the.relief.
valve,.causing.it.to.operate.during.each.heating.
cycle.Thermal.expansion,.and.the.resulting.
rapid,.and.repeated.expansion.and.contraction.
of.components.in.the.water.heater.and.piping.
system.can.cause.premature.failure.of.the.relief.
valve,.and.possibly.the.heater.itself.Replacing.
the.relief.valve.will not.correct.the.problem!
The.suggested.method.of.controlling.thermal.
expansion.is.to.install.an.expansion.tank.in.
the.cold.water.line.between.the.water.heater.
and.the.check.valve.(see.illustration.below).
The.expansion.tank.is.designed.with.an.air.
cushion.built.in.that.compresses.as.the.system.
pressure.increases,.thereby.relieving.the.over.
pressure.condition.and.eliminating.the.repeated.
operation.of.the.relief.valve.Other.methods.
of.controlling.thermal.expansion.are.also.
available.Contact.your.installing.contractor,.
water.supplier.or.plumbing.inspector.for.
additional.information.regarding.this.subject
Typical Installation
Refer.to.the.illustration.below.for.suggested.
typical.installation.The.installation.of.unions.
or.flexible.copper.connectors.is.recommended.
on.the.hot.and.cold.water.connections.so.that.
the.water.heater.may.be.easily.disconnected.
for.servicing.if.necessary.The.HOT.and.COLD.
water.connections.are.clearly.marked.and.are.
3/4”.NPT.on.all.models.Install.a.shut-off.valve.
in.the.cold.water.line.near.the.water.heater
Water Supply Connections
IMPORTANT: Do not
apply heat to the HOT or
COLD water connections. If
sweat connections are used,
sweat tubing to adapter
before fitting adapter to the
cold water connections on
heater. Any heat applied
to the cold water supply
fittings will permanently
damage the dip tube.
NOTICE: The National
Fuel Gas Code (NFGC)
mandates a manual
gas shut-off valve: See
(NFGC) for complete
instructions. Local codes
or plumbing authority
requirements may vary
from the instructions or
diagrams provided and
take precedent over these
instructions.
9
Heat.trap..
6”.minimum
Heat.trap..
6”.minimum
Union
To.gas.supply
Sediment.trap
Cap
Ground.joint.union
Drain.Pan.Pipe.
to.suitable.drain
Drain.
valve
Relief.valve.discharge.
line.to.suitable.open.
drain
To.cold.water.
supply
6”.Air.gap
Draft.hood
Pitch.up.1/4” .
per.foot
Auxiliary.catch.pan
Union
Anode
Manual.gas.shut-off
Thermostatic.gas.valve
Jacket.door
Temperature.and.
pressure.relief.valve
Shut-off.valve
Shut-off.
valve
Thermal.expansion.
tank.(if.required)
Combustion.Air.
Inlet.Openings
Hot.water.outlet.to.
fixtures
Water.Heater.Jacket
vent.connector.to.
chimney
Flammable.vapor.Sensor
Vacuum Relief Valve
(Not Supplied)
If required, install per local codes
and valve manufacturer’s
instructions.
10
Installing the water heater.
A new combination temperature and pressure relief valve, complying with the Standard for Relief Valves
and Automatic Gas Shut-Off Devices for Hot Water Supply Systems, ANSI Z21.22/CSA 4.6, is supplied
and must remain in the opening provided and marked for the purpose on the water heater. No valve
of any type should be installed between the relief valve and the tank. Local codes shall govern the
installation of relief valves.
Relief Valve
The.pressure.rating.of.the.relief.valve.
must.not.exceed.150.psi.(1,034.kPa),.the.
maximum.working.pressure.of.the.water.
heater.as.marked.on.the.rating.plate.
The.Btuh.rating.of.the.relief.valve.must.
equal.or.exceed.the.Btuh.input.of.the.
water.heater.as.marked.on.its.rating.plate
Position.the.outlet.of.the.relief.valve.
above.a.suitable.open.drain.to.eliminate.
potential.water.damage.Piping.used.
should.be.of.a.type.approved.for.hot.water.
distribution.
The.discharge.line.must.be.no.smaller.
than.the.outlet.of.the.valve.and.must.
pitch.downward.from.the.valve.to.allow.
complete.drainage.(by.gravity).of.the.
relief.valve.and.discharge.line.
The.end.of.the.discharge.line.should.not.
be.threaded.or.concealed.and.should.be.
protected.from.freezing.No.valve.of.
any.type,.restriction,.or.reducer.coupling.
should.be.installed.in.the.discharge.line
To Fill the Water Heater
WARNING: The tank
must be full of water before
the water heater is turned
on. The water heater
warranty does not cover
damage or failure resulting
from operation with an
empty or partially empty
tank.
Condensation
Condensation.can.form.on.the.tank.
when.it.is.first.filled.with.water.
Condensation.might.also.occur.with.a.
heavy.water.draw.and.very.cold.inlet.
water.temperatures.
Drops.of.water.falling.on.the.burner.can.
produce.a.sizzling.or.pinging.sound
This.condition.is.not.unusual,.and.will.
disappear.after.the.water.becomes.heated.
If,.however,.the.condensation.continues,.
examine.the.piping.and.fittings.for.
possible.leaks
Additional.information.on.this.subject.
may.be.found.at.wwwrheemcom,.under.
“Library”,.scroll.down.to.the.Technical.
Service.Bulletins.1400.Series.Section.and.
choose.Bulletin.#1402
This.water.heater.has.a.factory.installed.
flue.damper.device.for.increased.energy.
efficiency..Removal.of.the.flue.damper.
connections.will.render.the.heater.
inoperable..Do.not.operate.the.water.
heater.without.the.damper.housing.in.
place.on.the.damper.assembly..A.draft.
hood.is.shipped.with.this.water.heater..
The.draft.hood.must.be.installed.on.the.
damper.housing.using.the.holes.provided..
for.alignment.and.fastening..The.damper.
must.be.in.open.position.as.shown.in.the.
figure.when.water.heater.main.burner.
is.operating..See.trouble.shooting.
instructions.if.a.condition.other.than.this.
occurs
Flue Damper
Follow these instructions for proper installation and operation
Make.certain.that.the.drain.valve.is.
closed,.then.open.the.shut-off.valve.in.the.
cold.water.supply.line
Open.each.hot.water.faucet.slowly.to.
allow.the.air.to.vent.from.the.water..
heater.and.piping.
A.steady.flow.of.water.from.all.hot.water.
faucet(s).indicates.a.full.water.heater
Do.not.allow.the.flammable.vapor.sensor.
to.become.submerged.in.water
11
WARNING: Do not
attempt to convert this
water heater for use with a
different type of gas other
than the type shown on the
rating plate. Such
conversion could result in
hazardous operating
conditions.
High Altitude
This.water.heater.is.suitable.and.certified.
for.use.at.high.altitude..Refer.to.the.
altitude.information.on.the.water.heater.
rating.label.for.maximum.allowable.
installation.altitude
!
WARNING:..Installations.above.the.
rated.altitude.as.specified.on.the.altitude.
label.are.not.authorized.and.may.result.in.
improper.and.inefficient.operation.of.the.
appliance,.producing.carbon.monoxide.gas.
in.excess.of.acceptable.limits,.which.could.
result.in.serious.injury.or.death
Pressure Testing the Gas Supply System
The.water.heater.and.its..shut.off.valve.
must.be.disconnected.from.the.gas.supply.
piping.system.during.any.pressure.testing.
of.that.system.at.test.pressures.in.excess.
of.1/2.psi.(35.kPa)
The.water.heater.must.be.isolated.from.
the.gas.supply.piping.system.by.closing.
it's.individual.manual.shut.off.valve.
during.any.pressure.testing.of.the.gas.
supply.piping.system.at.test.pressures.
equal.to.or.less.than.1/2.psi.(35.kPa)
Gas Supply
Leak Testing
The.water.heater.and.its.gas.connections.
must.be.leak.tested.at.normal.operating.
pressures.before.it.is.placed.in.operation
.Turn.on.the.manual.gas.shut-off.
valve.near.the.water.heater
Use.a.soapy.water.solution.to.test.for.
leaks.at.all.connections.and.fittings.
Bubbles.indicate.a.gas.leak.that.must.
be.corrected
The.factory.connections.to.the.gas.control.
should.also.be.leak.tested.after.the.water.
heater.is.placed.in.operation
WARNING: Never use
an open flame to test for
gas leaks, as property
damage, personal injury, or
death could result.
The.branch.gas.supply.line.to.the.water.
heater.should.be.clean,.properly.sized.
steel.pipe.or.other.approved.gas.piping.
material
A.union.or.ANSI.design.certified.semi-
rigid.or.flexible.gas.appliance.connector.
should.be.installed.in.the.gas.line.close.to.
the.water.heater.The.National.Fuel.Gas.
Code.(NFGC).mandates.a.manual.gas.
shut-off.valve:.See.(NFGC).for.complete.
instructions
If.flexible.connectors.are.used,.the.
maximum.length.shall.not.exceed..
36".(914.cm).and.must.meet.the.
requirements.in.ANSI.Z2124/CSA.610-.
Connectors.for.Gas.Appliances
Compound.used.on.the.threaded.joints.of.
the.gas.piping.must.be.of.the.type.resistant.
to.the.action.of.LP.gas.Use.compound.
sparingly.on.male.threads.only.
Where.a.sediment.trap.is.not.incorporated.
as.part.of.the.appliance,.a.sediment.trap.
shall.be.installed.downstream.of.the.
equipment.shutoff.valve.as.close.to.the.
inlet.of.the.appliance.as.practical.at.the.
time.of.the.appliance.installation.
Do.not.use.excessive.force.over.[315.
ft.lbs.(427.Nm)].in.tightening.the.pipe.
joint.at.the.gas.control.inlet,.particularly.if.
teflon.pipe.compound.is.used,.as.the.valve.
body.may.be.damaged
The.inlet.gas.pressure.to.the.water.
heater.must.not.exceed.140.in.wc.(35.
kPa).wc.for.natural.gas,.and.LP.gas.
For.purposes.of.input.adjustment,.the.
minimum.inlet.gas.pressure.(with.main.
burner.on).is.shown.on.the.water.heater.
rating.plate.If.high.or.low.gas.pressures.
are.present,.contact.your.gas.supplier.for.
correction
Installing the water heater.
Wiring.Diagram
CAUTION! Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation. VERIFY PROPER OPERATION AFTER SERVICING!
R
L
C
N
DAMPER
END SWITCHES
END SWITCHES
TRANSFORMER
3 x 2 CONNECTOR VALVE
P1
P3
P2
E1
GND
P4
24 VAC
120 VAC
TSTAT
PILOT
ELECTRODE
ASSY
TS1
TS2
FV
M
1
2
3
4
5
1
2
3
1
2
3
1
1
2
SCHEMATIC
CONNECTION DIAGRAM
WV 4460E CONTROL
24 VAC
N
L
G
AX5044
TS2
BK
BK
TS1
1
2
3
BL
R
Y
W
BK
G
5
4
3
2
1
120
LCD DISPLAY OPTIONAL
TSTAT
DISPLAY
M
1
SPARK
<
>
BK = BLACK
BL = BLUE
G = GREEN
R = RED
W = WHITE
Y = YELLOW
1
2
W
W
FV
1
2
3
NUETRALNUETRAL
120 VAC
GROUNDGROUND
24 VAC
12
This water heater is factory installed with a 3-pin 24VAC wall transformer. A sufficiently long length of wire is provided
for easy access to an outlet. It is recommended that you do not use an extension cord for powering this water heater.
13
The water heater must be installed with the factory supplied draft hood in place.
Insulation Blankets
Venting
vent.connectors.must.be.attached.to.the.
draft.hood.outlet.to.connect.the.water.
heater.to.the.gas.vent.or.chimney.The.
vent.connectors.must.be.the.same.size.
(diameter).as.the.draft.hood.or.larger,.
never.smaller.
For.proper.venting.in.certain.installations.
a.larger.vent.connector.size.may.be.
needed.Consult.the.vent.Tables.in.
Appendix.G.of.the.latest.version.of.the.
National.Fuel.Gas.Code.(ANSI.Z2231/
NFPA.54)
Horizontal.vent.connectors.must.be.
pitched.upward.to.the.chimney.at.least.
1/4".per.linear.ft..Single.wall.vent.
connectors.must.be.at.least.6”.from.
adjacent.unprotected.combustible.surface.
vent.joints.must.be.securely.fastened.
by.sheet.metal.screws.or.other.approved.
method
Test.for.spillage.at.the.draft.hood.relief.
opening.after.5.minutes.of.main.burner.
operation..Use.a.flame.of.a.match.or.
candle.or.smoke..The.flame.or.smoke.
should.be.pulled.into.the.draft.hood’s.
relief.opening(s)..If.the.flame.or.smoke.
is.not.pulled.into.the.draft.hood's.relief.
opening,.shut.off.the.water.heater.and.
make.proper.adjustments/repairs.to.the.
venting.system
Insulation.blankets,.available.to.the.
general.public,.for.external.use.on.gas.
water.heaters.are.not.necessary..The.
purpose.of.an.insulation.blanket.is.to.
reduce.the.standby.heat.loss.encountered.
with.storage.tank.heaters..This.water.
heater.meets.or.exceeds.the.National.
Appliance.Energy.Conservation.Act.
standards.with.respect.to.insulation.and.
standby.loss.requirements.making.an.
insulation.blanket.unnecessary.
The.manufacturer’s.warranty.does.not.
cover.any.damage.or.defect.caused.by.
installation,.attachment.or.use.of..
any.type.of.energy.saving.or.other.
unapproved.devices.(other.than.those.
authorized.by.the.manufacturer).into,.onto.
or.in.conjunction.with.the.water.heater.
The.use.of.unauthorized.energy.saving.
devices.may.shorten.the.life.of.the.water.
heater.and.may.endanger.life.and.property
The.manufacturer.disclaims.any.
responsibility.for.such.loss.or.injury.
resulting.from.the.use.of.such.
unauthorized.devices
CAUTION: If local codes require the
application of an external insulation
blanket to this water heater, pay careful
attention to the following so as not to
restrict the proper function and
operation of the water heater:
●. Do.not.cover.the.operating.or.warning.
labels.attached.to.the.water.heater.or.
attempt.to.relocate.them.on.the.exterior.
of.insulation.blanket
Do.not.apply.insulation.to.the.top.of.the.
water.heater.This.will.interfere.with.the.
safe.operation.of.the.draft.hood
Do.not.cover.the.burner.access.door,.
jacket.door,.gas.control.(thermost.at)/gas.
valve.or.pressure.and.temperature.relief.
valve
Do.not.apply.insulation.to.the.bottom.
of.the.water.heater.or.the.area.where.
the.combustion.air.inlet.openings.are.
located.This.area.must.be.unobstructed.
so.as.not.to.restrict.combustion.air.flow.
to.the.burner
Inspect.the.insulation.blanket.frequently.
making.certain.it.has.not.sagged.and.is.
restricting.the.air.flow.to.the.combustion.
air.inlet.openings.(perforation.holes).
located.around.the.lower.perimeter.of.
the.water.heater.jacket.This.could.result.
in.an.unsafe.operating.condition
DANGER: Failure to
install the draft hood and
properly vent the water
heater to the outdoors as
outlined in the Venting
section of this manual will
result in unsafe operation of
the water heater causing
bodily injury, explosion,
fire or death. To avoid the
risk of fire, explosion, or
asphyxiation from carbon
monoxide, NEVER operate
the water heater unless it is
properly vented and has
adequate air supply for
proper operation as
outlined in the Venting
section of this manual.
WARNING: If local codes
require external application
of insulation blanket kits
the manufacturer’s
instructions included with
the kit must be carefully
followed.
14
For.increased.energy.efficiency,.some.
water.heaters.have.been.supplied.with.
two.24”.sections.of.pipe.insulation.
Please.install.the.insulation,.according.
to.the.illustrations.above,.that.best.meets.
your.requirements
DO
. ❑. DO. check. inlet. gas. pressure. to. ensure.
that. it. is. within. the. range. specified. on. the.
rating.plate
. ❑.DO provide.adequate.air.for.combustion.
and.ventilation.as.discussed.in. the.Use.and.
Care. Manual. and. the. National. Fuel. Gas.
Code
. ❑.DO maintain. proper. clearances. to.
combustibles.as.specified.on.the.rating.plate
. ❑.DO ensure. that. the. venting. system.
complies. with. the. guidelines. found. in. the.
Use.and.Care.Manual.and.National.Fuel.Gas.
Code
. ❑.DO contact.a.qualified.service.technician.
if. the. pilot. or. main. burner. will. not. stay.
lit. . The. burner. chamber. is. designed. to. be.
sealed.utilizing.a.gasket.and.tamper.resistant.
screws
. ❑.DO ensure. that. the. flue. damper. is. not.
obstructed.and.is.free.of.debris
DON’T
.
❑.DON’T block. or. restrict. Combustion.
Air.Inlet.Openings.located.around.the.lower.
portion.of.the.water.heater.jacket
. ❑.DON’T remove. the. Burner. Access.
Door. unless. absolutely. necessary. . This.
should. only. be.done. by.a. qualified. service.
technician..A.new.burner.access.door.gasket.
must.be.installed.on.any.burner.access.door.
that.has.been.removed
. ❑ DON’T install. this. water. heater. where.
standing.water.may.occur..The.base.of.the.
water.heater.is.meant.to.be.mounted.on.a.dry.
surface
. .❑.DON’T operate. the. water. heater. if. the.
sight.glass.or.burner.access.door.grommet.is.
damaged.or.broken
. ❑.DON'T manually. open. or. close. the.
damper
Typical vertical piping arrangement
Typical horizontal piping arrangement
During Installation of this water heater...........
Heat Trap
Hot and Cold Pipe Insulation Installation
For.increased.energy.efficiency,.some.
water.heaters.have.been.supplied.with.
factory.installed.3/4”.NPT.heat.traps..in.
the.hot.outlet.line.and.cold.water.inlet.line
These.heat.traps.may.require.a.minimum.
of.one.(1).90°, 3/4”.NPT.elbow.and.may.
require.an.additional.90°, 3/4”.NPT.elbow.
or.a.3/4”.coupling.depending.on.your.
installation.needs..See.Illustration.of.
nipples.and.heat.traps.in.the."Replacement.
Parts".section.of.this.manual
Burner Access
Door Grommet
Sight Glass
Installing the water heater.
Flammable.
vapor.Sensor
Installation Checklist
A. Water Heater Location
B. Water Supply
C. Gas Supply
D. Relief Valve
E. Venting
❑ Close.to.area.of.vent
❑ Indoors.and.protected.from.freezing.. .
.. temperatures
❑ Proper.clearance.from.combustible.surfaces..
.. observed.and.water.heater.not.installed.on...
.. carpeted.floor
❑ Sufficient.fresh.air.supply.for.proper.. .
.. operation.of.water.heater
❑ Air.supply.free.of.corrosive.elements.and...
.. flammable.vapors
❑ Provisions.made.to.protect.area.from.water..
.. damage
❑ Sufficient.room.to.service.heater
❑ Combustible.materials,.such.as.clothing,.. .
.. cleaning.materials,.rags,.etc.clear.of.the. .
.. .base.of.the.heater
. .❑ Clearances.from.combustion.air-inlet.
openings.observed.(see.page.7)
❑ Flammable.vapor.sensor.is.not.blocked
❑ Water.heater.completely.filled.with.water
❑ Air.purged.from.water.heater.and.piping
❑ Water.connections.tight.and.free.of.leaks
❑ Gas.line.equipped.with.shut.off.valve,.
. .. union.and.sediment.trap
❑ Approved.pipe.joint.compound.used
❑ Soap.and.water.solution.used.to.check.all.............
.. connections.and.fittings.for.possible.gas.leak
❑ Gas.Company.inspected.installation.(if.. .
.. required)
❑ Temperature.and.Pressure.Relief.valve.. .
.. properly.installed.and.discharge.line.run.to..
.. open.drain
❑ Discharge.line.protected.from.freezing
❑ Flue. baffle. properly. hung. in. water. heater’s..
.. flue.tube
❑ Draft.hood.properly.installed.on.damper.. .
.. housing
❑ vent.connector(s).pitched.upward.to.chimney.
. .. or.vent.(¼".per.linear.foot.minimum)..
❑ vent.connector(s).securely.fastened.together..
.. with.screws
❑ Single.wall.vent.connector(s).at.least.6".. .
.. from.combustible.material.
❑ Flue.damper.properly.installed.and.operating.
. .. normally
F. Wiring
❑ Correct.power.supply.(24.vAC).transformer
❑ Electrical.connection.tight
❑ Heater.properly.grounded.and.proper.polarity
. .. observed
15
Tee fitting for vertical hot
water supply lines.
Hot water
supply to
house
From HOT
outlet on
water heater
Hot water
supply to
heating
unit
Supplemental instructions for gas water heaters installed in
potable/space heating applications.
Local codes or plumbing authority requirements may vary from the instructions or diagrams provided in this
manual and take precedent over these instructions.
Tee fitting for horizontal hot
water supply lines.
From HOT
outlet on
water heater
Hot water
supply to
house
Hot water supply
to heating unit
Combination Potable and Space Heating Application
Tee.fitting.must.be.installed.as.shown.This.
ensures.that.any.air.in.the.water.lines.will.be.
purged.through.the.domestic.water.faucets.and.
showers
DANGER: When this system requires
water for space heating at elevated
temperatures (above 125°F [52°C.]), a mixing
or tempering valve must be installed in the
hot water supply line to the house in order to
reduce the scald hazard potential.
DANGER: Any piping or components used
in the installation of this water heater in a
combination potable and space heating
application must be suitable for use with
drinking water.
DANGER: If this water heater is installed
in an application intended to supply domestic
hot water needs and hot water for space
heating purposes, do not connect the heater
to an existing heating unit or components of
a heating system that have previously been
used with a non drinking water system. Toxic
chemicals such as those used for boiler
treatment may be present and will
contaminate the drinking water supply
causing possible health risks. Never
introduce toxic chemicals, such as those used
for boiler treatment, into this system.
Notice:..50'.-.0".maximum.distance.
from.water.heater.to.fan.coil.
(developed.length).is.required.for.
Massachusetts.State
Typical Piping Diagram for Combination Potable/Space Heating Installation
Spring.loaded.check.valve.in.heating.unit.
hot.water.supply.line.and.cold.water.return.
line.(not.supplied.with.water.heater)
NOTE:.This.check.valve.is.incorporated.
in.some.heating.units.Refer.to.the.
installation.instructions.supplied.with.
specific.heating.unit.to.determine.if.it.is.
required
Isolation.valve.in.
cold.water.return.line.
from.heating.unit.(not.
supplied.with.water.
heater)
Nominal.3/4".size.mixing.or.tempering.valve.
(refer.to.warning.above)..Follow.mixing.or.
tempering.valve.manufacturer’s.instructions.for.
installation.of.the.valve
Temperature.and.pressure.relief.
valve.discharge.line
Air.Handler
Drain.valve
(not.supplied.with
.water.heater)
Hot.water..
to.space.heater
Temperature.and.Pressure.Relief.
valve,.tie.to.location.approved.by.
local.code
See.diagrams.above.for.proper..
pipe.application.for.vertical..
or.horizontal.supply.lines
Isolation.valve.in.hot.water.supply.line.
to.heating.unit.(not.supplied.with.water.
heater)
3/4".cold.water.supply
3/4".Tempered.
domestic.hot.water.
supply.to.house
Gas.line.to.water.heater
6”.Air.Gap
Combustion.Air.Inlet.
Openings
2.Gallon.Thermal.
Expansion.Tank.(if.
required-not.supplied.
with.water.heater)
Air.vent
Heat.Trap
6”.Min
3/4".Shut-Off.valve.(Typ)
3/4".Check.valve.with.1/8".Hole
Pressure.Gauge
3/4".Shut-Off.valve.(Typ)
3/4".Shut-
Off.valve.
(Typ)
Hot.water.coil
All.bronze.pump
Check.valve.
internal.in.pump
Air.bleed.valve
Water.Sample.Tap
.T
FAN
ON
OFF
HEAT
COOL
To.HvAC.Unit
Electronically.controlled.pump.timer..
Activates.every.6.hours.for.60.seconds..
Wire.to.bronze.pump
3/4".HWS.&.HWR.
to.Heating.Coil
Minimum.of.2'-0".developed.
length.of.3/4".pipe
Water.Heater.drain.pan.installed.in.
accordance.with.the.Local.and.State.
Code
Water.Heater.to.be.in.accordance.with.
the.Local.and.State.Energy.Code
Gas.Fired.
Water.Heater.
Gas.Direct.vent.discharge.
must.comply..with.Local.
and.State.Code
.120°.to.130°..
.........
140°..
16
Vacuum Relief Valve
(Not Supplied)
If required, install per local codes
and valve manufacturer’s
instructions.
All.water.heater.piping.shall.be.
insulated.in.accordance.with.Local.
and.State.Energy.Code
17
Lighting the water heater..
Before operating this water heater, be sure to read and follow the instructions on the label pictured
below and all other labels on the water heater, as well as the warnings printed in this manual. Failure to
do so can result in unsafe operation of the water heater resulting in property damage, personal injury,
or death . Should you have any problems reading or following the instructions in this manual, STOP,
and get help from a qualified person.
18
Safety.Precautions
...Do turn.off.manual.gas.shut.off.valve.if.water.heater.
has.been.subjected.to.over.heating,.fire,.flood,.
physical.damage.or.if.the.gas.supply.fails..
to.shut.off
Do.Not turn.on.water.heater.unless.it.is.completely.
filled.with.water
Do Not turn.on.water.heater.if.cold.water.supply.shut.
off.valve.is.closed
Do Not allow.combustible.materials.such.as.
newspaper,.rags.or.mops.to.accumulate.near..
water.heater
Do Not store.or.use.gasoline.or.other.flammable.
vapors.and.liquids,.such.as.adhesives.or.paint.thinner,.
in.vicinity.of.this.or.any.other.appliance..
If.such.flammables.must.be.used,.open.doors..
and.windows.for.ventilation,.and.all.gas.burning.
appliances.in.the.vicinity.should.be.shut.off.including.
their.pilot.burners,.to.avoid.vapors.lighting
NOTICE: Flammable vapors can be drawn by air
currents from surrounding areas to the water heater.
...If.there.is.any.difficulty.in.understanding.or.following.
the.Operating.Instructions.or.the.Care.and.Cleaning.
section,.it.is.recommended.that.a.qualified.person.or.
serviceman.perform.the.work
Operating the water heater.
CAUTION: Hydrogen gas can be produced in a hot water system served by this water heater that has not been used for a
long period of time (generally two weeks or more). HYDROGEN GAS IS EXTREMELY FLAMMABLE!! To dissipate such
gas and to reduce risk of injury, it is recommended that the hot water faucet be opened for several minutes at the kitchen sink
before using any electrical appliance connected to the hot water system. If hydrogen is present, there will be an unusual sound
such as air escaping through the pipe as the water begins to flow. Do not smoke or use an open flame near the faucet at the
time it is open.
!
DANGER: Hotter water
increases the Potential
for Hot Water SCALDS
.
Households with small
children, disabled, or elderly
persons may require a
120°F or lower gas control
(thermostat) setting to
prevent contact with HOT
water.
Water Temperature Setting
The.temperature.of.the.water.in.the.water.
heater.can.be.regulated.by.setting.the.
temperature.dial.on.the.front.of.the.gas.
control.(thermostat)
Safety.and.energy.conservation.are.factors.
to.be.considered.when.selecting.the.water.
temperature.setting.of.the.water.heater’s.
gas.control.(thermostat).The.lower.the.
temperature.setting,.the.greater.the.savings.
in.energy.and.operating.costs
To.comply.with.safety.regulations,.the.gas.
control.(thermostat).was.set.at.its.lowest.
setting.before.the.water.heater.was.shipped.
from.the.factory..The.recommended.
starting.point.temperature.is.120°F
Water.temperatures.above.125°F..
can.cause.severe.burns.or.death.from.
scalding.Be.sure.to.read.and.follow.the.
warnings.outlined.in.this.manual.and.on.
the.label.located.on.the.water.heater.near.
the.gas.control.thermostat
Mixing.valves.are.available.for.reducing.
point.of.use.water.temperature.by.mixing.
hot.and.cold.water.in.branch.water.
lines.Contact.a.licensed.plumber.or.
the.local.plumbing.authority.for.further.
information
The.chart.on.the.next.page.may.be.used.
as.a.guide.in.determining.the.proper.water.
temperature.for.your.home
This.water.heater.is.equipped.with.an.
ignition.device.which.automatically.
lights.the.pilot..Do.not.try.to.light.the.
pilot.by.hand..On.initial.start-up,.it.is.
recommended.that.the.outer.door.be.
removed.(leave.inner.door.in.place.for.
safety).to.determine.if.the.pilot.and.main.
burner.are.operating.properly
Once.filled.with.water,.plug.in.the.
electrical.supply.cord.and.slide.the.“ON/
OFF”.switch.located.on.the.front.of.the.
combination.gas.control.to.the.“ON”.
position..Set.the.thermostat.dial.to.the.
desired.setting
After.the.pilot.and.main.burner.ignite,.
replace.the.outer.door..If.no.pilot.and.
main.burner.flames.are.established,.the.
combination.gas.control.will.go.through.
three.trials.for.ignition.before.going.into.
a.“lock-out”.mode..A.warning.light.will.
alert.the.user.of.this.“lock-out”.mode.
condition.If.this.happens,.refer.to.the.
“Gas.valve.LED.codes”
Operating Procedure
!
19
Maximum.water.temperatures.occur.just.after.the.burner.
has.shut.off..To.determine.the.water.temperature,.turn.on.
a.hot.water.faucet.and.place.a.thermometer.in.the.water.
stream.
A.condition.known.as.“stacking”.or.“layering”.can.occur.
when.a.series.of.short.and.frequent.hot.water.draws.are.
taken
The.hottest.temperature.water.will.be.at.the.top.of.the.tank,.
closest.to.the.outlet.pipe.delivering.hot.water.to.the.home
Stacking.can.cause.this.top.layer.of.water.to.be.hotter.than.
the.water.toward.the.bottom.of.the.tank.near.the.gas.control.
(thermostat)...Therefore,.always.remember.to.test.the.water.
temperature.with.your.hand.before.use.and.remember.that.
hotter.water.increases.the.risk.of.scald.injury.
Also,.always.supervise.young.children.or.others.who.are.
incapacitated
The.gas.control.(thermostat).is.constructed.with.a.built.in.
safety.shutoff.device.designed.to.shut.off.the.gas.supply.to.
the.burner.if.the.main.burner.is.extinguished.for.any.reason
The.gas.control.(thermostat).is.also.equipped.with.a.gas.
shutoff.device.that.will.shut.off.the.gas.supply.to.the.burner.
if.the.water.heater.exceeds.normal.operating.temperatures..
Refer.to.the.“Before.You.Call.For.Service”.section.of.this.
manual,.or.contact.your.dealer
!
WARNING: Should overheating occur or the gas
supply fail to shut off, turn off the manual gas control
valve to the appliance
.
NOTICE: Replace any part of the gas control system
which has been under water.
If.the.water.heater.has.been.subjected.to.re,.ood.or.physi-
cal.damage,.turn.off.the.manual.gas.control.(shutoff).valve.
and.do.not.operate.the.water.heater.again.until.it.has.been.
checked.by.a.qualied.service.technician
Time/Temperature Relationship in Scalds
...Water.Temperature. Time.To.Produce.a.Serious.Burn
. 120°F More than 5 minutes
125°F 1
1
/2 to 2 minutes
130°F About 30 seconds
135°F About 10 seconds
140°F Less than 5 seconds
145°F Less than 3 seconds
150°F About 1
1
/2 seconds
155°F About 1 second
Table.courtesy.of.Shriners.Burn.Institute
Water Temperature Setting…
90° F
113°F
98°F
105°F
120°F
130°F
140°F
150°F
160°F
Temperatures are approximate
20
Care and cleaning of the water heater.
Draining the Water Heater
CAUTION: Shut off gas to the water
heater at the manual gas shutoff valve
before draining water.
DANGER: Before manually operating
the temperature and pressure relief valve,
make certain no one will be exposed to the
hot water released by the valve. The water
drained from the tank may be hot enough
to present a scald hazard and should be
directed to a suitable drain to prevent injury
or damage.
Before.turning.off.the.cold.water.supply.to.
the.water.heater,.open.a.hot.water.faucet.
allowing.sufficient.cold.water.into.the.
tank.to.prevent.the.risk.of.a.scald.injury.
while.draining.the.water.heater..Once.the.
water.in.the.tank.is.no.longer.hot,.turn.off.
the.cold.water.supply.to.the.water.heater..
Open.a.hot.water.faucet.or.lift.the.handle.
on.the.relief.valve.to.admit.air.to.the.tank.
Attach.a.garden.hose.to.the.drain..
valve.on.the.water.heater.and.direct..
the.stream.of.water.to.a.drain.Open..
the.valve
Housekeeping
Make.sure.the.flammable.vapor.sensor.is.
not.blocked.or.obstructed
To.ensure.sufficient.ventilation.and.
combustion.air.supply,.proper.clearances.
must.be.maintained.
When installed in a closet,
DO NOT
block or obstruct any of the combustion air
inlet openings located around the perimeter
of the water heater. A minimum of 1” is
required between these combustion air inlet
openings and any obstruction.
Routine Preventative Maintenance
Properly.maintained,.your.water.heater.
will.provide.years.of.dependable.trouble-
free.service.
It.is.recommended.that.a.periodic.
inspection.of.the.gas.control.(thermostat),.
burner,.relief.valve,.internal.flue-way.and.
venting.system.should.be.made.by.service.
personnel.qualified.in.gas.appliance.repair
It.is.suggested.that.a.routine.preventative.
maintenance.program.be.established.and.
followed.by.the.user
Periodically,.lift.and.release.the.lever.
handle.on.the.temperature.pressure.relief.
valve,.located.near.the.top.of.the.water.
heater,.to.make.certain.the.valve.operates.
freely.Allow.several.gallons.to.flush.
through.the.discharge.line.to.an.open.drain
NOTICE: If the temperature and
pressure relief valve on the hot water
heater discharges periodically, this
may be due to thermal expansion in a
closed water system. Contact the water
supplier or your plumbing contractor on
how to correct this. DO NOT plug the
relief valve outlet.
A.water.heater’s.tank.can.act.as.a.settling.
basin.for.solids.suspended.in.the.water.
It.is.therefore.not.uncommon.for.hard.
water.deposits.to.accumulate.in.the.bottom.
of.the.tank..If.allowed.to.accumulate,.
these.solids.can.cover.the.gas.control.
(thermostat).sensors,.causing.the.sensors.to.
operate.erratically..Because.accumulated.
solids.can.prevent.the.gas.control.
(thermostat).sensors.from.accurately.
reading.the.water.temperature,.the.water.
at.the.fixture.can.be.hotter.than.the.gas.
control.(thermostat).dial.setting..It.is.
suggested that.a.few.quarts.of.water.be.
drained.from.the.water.heater’s.tank.every.
month.to.clean.the.tank.of.these.deposits.
Rapid.closing.of.faucets.or.solenoid.valves.
in.automatic.water.using.appliances.can.
cause.a.banging.noise.heard.in.a.water.
pipe.Strategically.located.risers.in.the.
water.pipe.system.or.water.hammer.
arresting.devices.can.be.used.to.minimize.
the.problem
The.anode.rod.should.be.removed.from.the.
water.heater’s.tank.annually.for.inspection.
and.replaced.when.more.than.6”.of.core.
wire.is.exposed.at.either.end.of.the.rod
.Make.sure.the.cold.water.supply.is.turned.
off.before.removing.anode.rod
This.water.heater.incorporates.a.
combustion.shut.off.device.that.shuts.
the.operation.of.the.water.heater.down.if.
undesirable.combustion.conditions.occur,.
such.as.the.presence.of.flammable.vapors.
or.blockage.of.the.combustion.air.inlet.
openings..Please.contact.a.qualified.
Service.Technician.if.this.occurs
DANGER: Before
manually operating the
relief valve, make certain
no one will be exposed to
the danger of the hot water
released by the valve. The
water may be hot enough to
create a scald hazard. The
water should be released
into a suitable drain to
prevent injury or property
damage.
!
DANGER: Combustible
materials, such as clothing,
cleaning materials, or
flammable liquids, etc., must
not be placed against or next
to the water heater.
!
DANGER: Failure to
perform the recommended
Routine Preventative
Maintenance can harm the
proper operation of this
water heater, which can cause
carbon monoxide dangers,
excessive hot water
temperatures and other
potentially hazardous
conditions.
DANGER: Hotter water
increases the potential for
Hot Water Scalds.
!
!
!
!
21
Venting System Inspection
The.water.heater’s.internal.flue.must.be.
inspected.periodically.to.be.certain.it.is.
clean.by.removing.the.flue.damper,.draft.
hood,.and.flue.baffle
When.reinstalling.the.flue.baffle.make.
certain.it.is.hung.securely.by.its.collar.at.
the.top.of.the.flue.way
Reinstall.the.flue.damper.and.the.draft.
hood
Inspect.the.gas.venting.system.and/or.the.
chimney
Make.certain.the.vent.connector.from.
the.draft.hood.to.the.vent.system.and/or.
the.chimney.is.properly.positioned.and.
securely.attached
If.after.inspection.of.the.vent.system..
you.found.soot.or.deterioration;..
call.the.local.gas.utility.to.correct.the.
problem.and.clean.the.flue,.or.replace.
the.flue.baffle,.and.venting.system.before.
resuming.operation.of.the.water.heater
Test.for.spillage.at.the.draft.hood.relief.
opening.after.5.minutes.of.burner.
operation..Use.a.flame.of.a.match.or.
candle.or.smoke..The.flame.or.smoke.
should.be.pulled.into.the.draft.hood’s.
relief.opening(s)..If.the.flame.or.smoke.
is.not.pulled.into.the.draft.hood's.relief.
openings,.shut.off.the.water.heater.and.
make.proper.adjustments/repairs.to.the.
venting.system
Burner Inspection
visually.inspect.the.pilot.burner.and.main.
burners.periodically
Through.the.sight.glass,.inspect.the.pilot.
burner.flame.with.the.main.burner.off.and..
inspect.the.main.burner.while.firing.
If.any.unusual.burner.operation.is.noted,.
the.water.heater.should.be.shut.off.
until.qualified.service.assistance.can.be.
obtained
CAUTION: For your safety, cleaning
of the burner must be performed only by
qualified service personnel. The burner
chamber is a sealed area. If the burner
access door is removed, the burner access
door gasket must be replaced.
For.cleaning,.remove.the.burner.from.the.
water.heater.A.vacuum.cleaner.can.be.
used.on.the.burner.and.floor.shield.inside.
the.water.heater.The.burner.can.also.be.
cleaned.by.scrubbing.with.mild.detergent
Proper burner and pilot burner
pattern.
Vacation and Extended Shut-Down
If.the.water.heater.is.to.remain.idle.for.an.
extended.period.of.time,.the.power.and.
water.to.the.appliance.should.be.turned.off.
to.conserve.energy.and.prevent.a.build-up.
of.dangerous.hydrogen.gas
The.water.heater.and.piping.should.be.
drained.if.they.might.be.subjected.to.
freezing.temperatures
After.a.long.shut-down.period,.the.
water.heater’s.operation.and.controls.
should.be.checked.by.qualified.service.
personnel..Make.certain.the.water.heater.
is.completely.filled.again.before.placing.it..
in.operation
NOTICE: Refer to the
Hydrogen Gas Caution in the
Operating Instructions.
Anode Rod
This.water.heater.is.equipped.with.an.
anode.rod.designed.to.prolong.the.life.
of.the.glass.lined.tank.The.anode.rod.is.
slowly.consumed,.thereby.eliminating.or.
minimizing.corrosion.of.the.glass.lined.
tank.
Water.sometimes.contains.a.high.sulfate.
and/or.mineral.content.and.together.with.
cathodic.protection.process.can.produce.
a.hydrogen.sulfide,.or.rotten.egg.odor.in.
the.heated.water.Chlorination.of.the.water.
supply.should.minimize.the.problem
NOTICE: Do not remove
the anode rod from the water
heater’s tank, except for
inspection and/or replacement,
as operation with the anode
rod removed will greatly
shorten the life of the glass
lined tank and will exclude
warranty coverage.
!
Care and cleaning of the water heater.
22
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the charts on the following pages first and you may not need to call for service.
This.water.heater.incorporates.a.combustion.shut.off.device.that.shuts.the.operation.of.the.water.heater.
down.if.undesirable.combustion.conditions.occur,.such.as.the.presence.of.flammable.vapors.or.blockage.of.
the.combustion.air.inlet.openings..Please.contact.a.qualified.Service.Technician.if.this.occurs
CAUTION: For your safety DO NOT attempt repair of gas piping, gas control (thermostat), burners, vent connectors,
dampers, or other safety devices. Refer repairs to qualified service personnel.
Problem Possible Causes What To Do
Condensation
This.usually.happens.when.a.
new.heater.is.lled.for.the.rst.
time
•. This.is.normal..After.the.water.in.the.tank.warms.
up,.the.condensation.will.disappear..If,.however,.the.
condition.persists,.examine.the.piping.and.ttings.for.
possible.leaks..Refer.to.the."Condensation".informa-
tion.in.the."Installing.the.Water.Heater".section.of.this.
manual
Moisture.from.the.products.of.
combustion.condensing.on.the.
tank.surface
•. This.is.normal.and.will.disappear.in.time..Excessive.
condensation.can.cause.main.burner.outage..Refer.to.
the."Condensation".information.in.the."Installing.the.
Water.Heater".section.of.this.manual
An.undersized.water.heater.will.
cause.condenstion
•. Use.a.water.heater.size.that.meets.the.requirements.of.
your.needs
Yellow flame
or soot
Scale.on.top.of.the.burner •. Contact.a.qualied.service.technician.to.purge.air.from.
the.gas.line
Flue.or.combustion.air.inlet.
openings.are.restricted
•. Remove.obstruction.or.debris.from.ue.or.combustion.
air.inlet.openings.on.water.heater.jacket
Not.enough.combustion.or.ven-
tilation.air.supplied.to.the.water.
heater.location
•. Proper.operation.of.the.water.heater.requires.air.for.
combustion.and.ventilation..See.the."Combustion.and.
ventilation.Air".information.in.the."Installing.the.Water.
Heater".section.of.this.manual
Unable to light
main burner
Air.in.gas.line •. Contact.a.qualied.service.technician.to.purge.air.from.
the.gas.line
Pilot.burner.orice.clogged •. Pilot.should.be.cleaned.or.replaced.by.a.qualied.ser-
vice.technician
Pilot.burner.tube.pinched.or.
clogged
•. The.pilot.burner.should.be.cleaned,.repaired,.or.re-
placed.by.a.qualied.service.technician
Damper.unable.to.open •. Contact.a.qualied.service.technician.to.evaluate.
damper
•. Refer.to."Gas.valve.Error.Codes".in.the."Gas.valve.
LED.Codes".section.of.this.manual
Wire.connection(s).not.fully.
secured
•. Contact.a.qualied.service.technician.to.conrm.wire.
connection(s)
Combustion.shut-off.device.
tripped
•. Combustion.shut-off.device.should.be.inspected.by.a.
qualied.service.technician
Gas.control.(thermostat).prob-
lem
•. Contact.a.qualied.service.technician
•. Refer.to."Gas.valve.Error.Codes".in.the."Gas.valve.
LED.Codes".section.of.this.manual
Main burner does not
stay lit
Combustion.shut-off.device.
tripped
•. Combustion.shut-off.device.should.be.inspected.by.a.
qualied.technician
Gas.control.(thermostat).shut-
off.device.tripped
•. Contact.a.qualied.service.technician
23
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the charts on the following pages first and you may not need to call for service.
This.water.heater.incorporates.a.combustion.shut.off.device.that.shuts.the.operation.of.the.water.heater.down.
if.undesirable.combustion.conditions.occur,.such.as.the.presence.of.flammable.vapors.or.blockage.of.the.
combustion.air.inlet.openings..Please.contact.a.qualified.Service.Technician.if.this.occurs
CAUTION: For your safety DO NOT attempt repair of gas piping, gas control (thermostat), burners, vent connectors,
dampers, or other safety devices. Refer repairs to qualified service personnel.
Problem Possible Causes What To Do
Rumbling noise
Scale.and.sediment •. Drain.the.water.heater.to.remove.scale.and.sediment.
from.the.tank..Refer.to.the."Drain.the.Water.Heater".
information.in.the."Care.and.Cleaning.of.the.Water.
Heater".section.of.this.manual
Relief valve
producing popping
noise or draining
Pressure.build.up.caused.
by.thermal.expansion.to.a.
closed.system
•. This.is.an.unacceptable.condition.and.must.be.cor-
rected..Contact.the.water.heater.supplier.or.plumb-
ing.contractor.on.how.to.correct.this..Do.not.plug.
the.relief.valve.outlet
Not enough or no hot
water
Water.usage.may.have.
exceeded.the.capacity.of.
the.water.heater
•. Wait.for.the.water.heater.to.recover.after.an.abnor-
mal.demand
Low.gas.pressure •. Check.gas.supply.pressure.and.manifold.pressure
The.gas.control.(thermo-
stat).may.be.set.too.low
•. Refer.to.the."Water.Temperature.Setting".informa-
tion.in.the.."Installing.the.Water.Heater".section.of.
this.manual
Leaking.or.open.hot.wa-
ter.faucets
•. Make.sure.all.faucets.are.closed
Check.valve.error.codes •. Refer.to.the."Gas.valve.Error.Codes".information.in.
the."Gas.valve.LED.Codes".section.of.this.manual
"ON/OFF".switch.turned.
off
•. Turn."ON"
Gas.control.(thermo-
stat).shut-off.device.has.
tripped
•. Contact.a.qualied.service.technician
Combustion.shut-off.
system.tripped
•. Contact.a.qualied.service.technician
Water is too hot
Gas.control.(thermostat).
is.set.too.high
•. See.the."Water.Temperature.Setting".in.the."Install-
ing.the.Water.Heater".section.of.this.manual
Gas.control.(thermostat).
is.defective
•. Contact.a.qualied.service.technician.to.replace.the.
gas.control.(thermostat)
24
Gas Valve LED Codes
CAUTION: Make certain power to water heater is “OFF” before removing protective cover FOR ANY REASON.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation. VERIFY PROPER OPERATION AFTER SERVICING.
CAUTION: For your safety DO NOT attempt repair of gas piping, remote control, burners, vent connectors or other
safety devices. Refer repairs to qualified service personnel.
GAS VALVE LED STATUS/PROBLEM PROBABLE CAUSE SOLUTION
Short.ash.once.ev-
ery.four.seconds
Normal.Operating.
Condition/.No.Fault.
Condition
Water.Temperature.setpoint.has.been.
achieved
None.required
“Heartbeat”,.alter-
nates.bright/dim
Calling.For.Heat/No.
Fault.Conditions.
Water.temperature.is.below.setpoint.
and.burner.is.on
None.required
One.Flash,.three.
second.pause..
Control.still.operating/
Low.ame.signal.
•. Pilot.tube.restricted.or.damaged
•. Carbon.build-up.on.pilot's.electrode
•. Pilot.igniter.wire.damaged
•. Gas.supply.problems
•. Replace.Pilot.assembly
•. Correct.gas.supply
Two.Flashes,.three.
second.pause
Sytem.in.Lockout/Flue.
Damper.Switch.closed
•. Flue.Damper.improperly.sealed
•. Flue.Damper.switch.stuck.closed
•. Faulty.Flue.Damper.motor
•. Obstruction.or.debris.in.damper.
opening
•. Inspect.Flue.Damper.wiring.and.
connections
•. Replace.Flue.Damper.Assembly
•. Contact.a.qualied.service.techni-
cian.See.."IF.YOU.NEED.SER-
vICE".on.page.28
Three.Flashes,.three.
second.pause
System.in.Lockout/Flue.
Damper.Switch.open.
•. Flue.Damper.improperly.installed
•. Flue.Damper.switch.stuck.open
•. Faulty.Flue.Damper.switch
•. Incorrect.wiring.and/or.connections
•. Faulty.Flue.Damper.motor
•. Obstruction.or.debris.in.damper.
opening
•. Inspect.wiring.and.connections
•. Replace.Flue.Damper.Assembly
•. Contact.a.qualied.service.techni-
cian.See.."IF.YOU.NEED.SER-
vICE".on.page.28
Four.Flashes,.three.
second.pause.
System.in.Lockout/
Thermal.Cutoff.Device.
tripped
•. Thermal.well.fault.in.Gas.Control.
(Thermostat)
•. Gas.Control.(Thermostat).faulty
•. Tank.not.lled.with.water
•. Reset.Gas.Control.(Thermostat).and.
check.for.proper.cycling.of.control
•. Replace.Gas.Control.(Thermostat)
•. Ensure.tank.is.completely.lled.
with.water
Five.Flashes,.three.
second.pause.
System.in.Lockout/No.
Flame.Sense
Pilot.and/or.Main.Burner.valve.has.
failed.to.open
Replace.the.Gas.Control.(Thermostat)
Six-One.Flashes,.
three.second.pause.
System.in.Lockout/
Unit.failed.to.light
•. Pilot.ame.unstable
•. Pilot.tube.restricted.or.damaged
•. Carbon.build-up.on.pilot's.electrode
•. Pilot.igniter.wire.damged
•. Gas.supply.problem(s)
•. Replace.Pilot.assembly
•. Correct.gas.supply
Six-Two.Flashes,.
three.second.pause
System.in.Lockout/
Flue.Damper.Switch.
opened
•. Improper.Flue.Damper.installation
•. Faulty.Flue.Damper.switch
•. Incorrect.wiring.and/or.connections.
•. Inspect.Flue.Damper.wiring.and.
connections
•. Replace.Flue.Damper.Assembly
•. Contact.a.qualied.service.techni-
cian..See."IF.YOU.NEED.SER-
vICE".on.page.28
Six-Three.Flashes,.
three.second.pause
System.in.Lockout/
Flame.Lost
•. Combusstion.air.supply.restricted.
or.blocked
•. Pilot.tube.restricted.or.damaged
•. Carbon.build-up.on.pilot's.electrode
•. Pilot.igniter.wire.damaged
•. Gas.supply.problem(s)
•. Ensure.combustion.air.supply.is.not.
blocked.or.restricted
•. Replace.Pilot.assembly
•. Correct.gas.supply
GAS VALVE LED STATUS/PROBLEM PROBABLE CAUSE SOLUTION
Six-Four.Flashes,.
three.second.pause
System.in.Lockout/
Flame.sense.out.of.
sequence
Gas.Control.(Thermostat's).valve.
stuck.open
Replace.Gas.Control.(Thermostat)
Seven.Flashes,.three.
second.pause.
System.in.Lockout/
Presence.of.Flamma-
ble.vapors.detected
•. Gasoline.or.other.ammable.
vapor(s).were.detected
•. Faulty.Flammable.vapor.Sensor
•. Faulty.Gas.Control.(Thermo-
stat)
•. Ensure.that.no.ammable.vapor(s).
are.present
•. Reset.the.Gas.Control.(Thermostat).
using."ON/OFF".switch.located.on.
the.front.of.the.control
•. Replace.Flammable.vapor.Sensor
•. Replace.Gas.Control.(Thermostat)
Eight-One.Flash,.
three.second.pause
System.in.Lockout/
Flammable.vapor.
Sensor.fault.detected
•. Flammable.vapor.sensor.values.
out.of.range
•. Improper.Flammable.va-
por.Sensor.wiring.and/or.
connection(s)
•. Faulty.Flammable.vapor.Sensor
•. Inspect.the.Flammable.vapor.Sen-
sor.wiring.and.connection(s)
•. Replace.Flammable.vapor.Sensor
•. Replace.Gas.Control.(Thermostat)
Eight-Two.Flashes,.
three.second.pause
System.in.Lockout/
Energy.cutoff.device.
fault.detected
•. Thermal.well.fault.in.Gas.Con-
trol.(Thermostat)
•. Inspect.the.wiring.connection(s).to.
the.thermal.well
•. Replace.the.thermal.well
Eight-Three.Flashes,.
three.second.pause.
System.in.Lockout/
Fault.in.the.electronics.
circuit.detected
•. Thermal.well.fault.in.Gas.Con-
trol.(Thermostat)
•. Faulty.Gas.Control.(Thermo-
stat)
•. Replace.thermal.well
•. Replace.Gas.Control.(Thermostat)
Eight-Four.Flashes,.
three.second.pause
System.in.Lockout/
Fault.with.the.Gas.
Control.(Thermostat)
•. Gas.Control.(Thermostat).needs.
to.be.reset
•. Gas.Control.(Thermostat).has.
been.damaged
•. Cycle.the.power.to.the.Gas.Control.
(Thermostat)
•. Replace.the.Gas.Control.(Thermo-
stat)
Gas Valve LED Codes cont.....
25
CAUTION: Make certain power to water heater is “OFF” before removing protective cover FOR ANY REASON.
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation. VERIFY PROPER OPERATION AFTER SERVICING.
CAUTION: For your safety DO NOT attempt repair of gas piping, remote control, burners, vent connectors or other
safety devices. Refer repairs to qualified service personnel.
Draft.Hood
Flue.Baffle.and.Hanger
Anode.Rod
*Heat.Trap
*Heat.Trap
*Nipple
*Nipple
Dip.Tube
Dip.Tube.Gasket
Drain.valve
Temperature.and.Pressure.
Relief.valve
Gas.Control.(Thermostat)
Burner.Supply.Tube
Burner
Jacket.Door
.Burner.Access.Door.Grommet
.Sight.Glass
.Burner.Access.Door
Burner.Access.Door.Gasket
Pilot.Supply.Tube
Burner..Orifice
Ignitor.
Burner.Assembly.Kit
The.kit.provides.extra.speed.clips.
and.tamper.resistant.screws
*Not.supplied.with.all.models.
26
Replacement Parts.
For.38,.40,.and,.50.gallon.models.using.natural.or.LP.gas
Instructions For Placing a Parts Order
All.parts.orders.should.include:
...The.model.and.serial.number.of.the.
water.heater.from.the.rating.plate
...Specify.type.of.gas.(Natural.or.LP)
as.marked.on.the.rating.plate.
...Part.description.(as.noted.below).and.
number.of.parts.desired
CAUTION: For your safety, DO
NOT attempt repair of gas piping,
Gas Control (Thermostat), burners,
vent connectors or other safety devices.
Refer repairs to qualified service
personnel.
Flue.DamperHousing
Gas.Control.(Thermostat's).
.........Thermal.Well
Transformer
Flue.Damper
Use only original equipment
replacement parts.
27
Notes:
IF.YOU.NEED.SERvICE
1. Should.you.have.any.questions.about.your.new.water.heater,.or.if.it.requires.adjustment,.repair,.
or.routine.maintenance,.it.is.suggested.that.you.first.contact.your.installer,.plumbing.contractor.or.
previously.agreed.upon.service.agency.In.the.event.the.firm.has.moved,.or.is.unavailable,.refer.to.the.
telephone.directory,.commercial.listings.or.local.utility.for.qualified.service.assistance
2. Should. your. problem. not. be. solved. to. your. complete. satisfaction,. you. should. then. contact. the.
Manufacturer’s.National.Service.Department.at.the.following.address:.
. .. . . 1241.Carwood.Court
. .. . . Montgomery,.Alabama.36117
. .. . . Phone:.1-800-432-8373.
. When.contacting.the.manufacturer,.the.following.information.will.be.requested:
a. Model.and.serial.number.of.the.water.heater.as.shown.on.the.rating.plate.attached.to.the.jacket.of.the.
heater
b. Address.where.the.water.heater.is.located.and.physical.location
c. Name.and.address.of.installer.and.any.service.agency.who.performed.service.on.the.water.heater
d. Date.of.original.installation.and.dates.any.service.work.was.performed
e. Details.of.the.problems.as.you.can.best.describe.them
f. List.of.people,.with.dates,.who.have.been.contacted.regarding.your.problem
28
The.Commonwealth.of.Massachusetts.requires.compliance.with.regula-
tion.
508:.Modications.to.NFPA-54,.Chapter.10.:.248.CMR.400.
and.500.for.installation.of.through.–.the.–.wall.vented.gas.appliances.as.
follows:
(1).Revise.NFPA-54.section.10542.by.adding.a.second.exception.as.fol-
lows:
Existing.chimneys.shall.be.permitted.to.have.their.use.continued.when.a.gas.
conversion.burner.is.installed,.and.shall.be.equipped.with.a.manually.reset.
device.that.will.automatically.shut.off.the.gas.to.the.burner.in.the.event.of.a.
sustained.back-draft
(2).Revise.1083.by.adding.the.following.additional.requirements:
(a).For.all.side.wall.horizontally.vented.gas.fueled.equipment.installed.in.
every.dwelling,.building.or.structure.used.in.whole.or.in.part.for.residential.
purposes,.including.those.owned.or.operated.by.the.Commonwealth.and.
where.the.side.wall.exhaust.vent.termination.is.less.than.seven.(7).feet.above.
nished.grade.in.the.area.of.the.venting,.including.but.not.limited.to.decks.
and.porches,.the.following.requirements.shall.be.satised:.
1.INSTALLATION.OF.CARBON.MONOXIDE.DETECTORS.At.the.time.
of.installation.of.the.side.wall.horizontal.vented.gas.fueled.equipment,.the.
installing.plumber.or.gastter.shall.observe.that.a.hard.wired.carbon.monox-
ide.detector.with.an.alarm.and.battery.back-up.is.installed.on.the.oor.level.
where.the.gas.equipment.is.to.be.installed.In.addition,.the.installing.plumber.
or.gastter.shall.observe.that.a.battery.operated.or.hard.wired.carbon.mon-
oxide.detector.with.an.alarm.is.installed.on.each.additional.level.of.the.dwell-
ing,.building.or.structure.served.by.the.side.wall.horizontal.vented.gas.fueled.
equipment.It.shall.be.the.responsibility.of.the.property.owner.to.secure.the.
services.of.qualied.licensed.professionals.for.the.installation.of.hard.wired.
carbon.monoxide.detectors
a.In.the.event.that.the.side.wall.horizontally.vented.gas.fueled.equipment.is.
installed.in.a.crawl.space.or.an.attic,.the.hard.wired.carbon.monoxide.detec-
tor.with.alarm.and.battery.back-up.may.be.installed.on.the.next.adjacent.oor.
level
b.In.the.event.that.the.requirements.of.this.subdivision.can.not.be.met.at.the.
time.of.completion.of.installation,.the.owner.shall.have.a.period.of.thirty.(30).
days.to.comply.with.the.above.requirements;.provided,.however,.that.during.
said.thirty.(30).day.period,.a.battery.operated.carbon.monoxide.detector.with.
an.alarm.shall.be.installed
2.APPROvED.CARBON.MONOXIDE.DETECTORS.Each.carbon.
monoxide.detector.as.required.in.accordance.with.the.above.provisions.shall.
comply.with.NFPA.720.and.be.ANSI/UL.2034.listed.and.IAS.certied.
3.SIGNAGE.A.metal.or.plastic.identication.plate.shall.be.permanently.
mounted.to.the.exterior.of.the.building.at.a.minimum.height.of.eight.(8).feet.
above.grade.directly.in.line.with.the.exhaust.vent.terminal.for.the.horizon-
tally.vented.gas.fueled.heating.appliance.or.equipment.The.sign.shall.read,.
in.print.size.no.less.than.one-half.(1/2).inch.in.size,."GAS.vENT.DIRECTLY.
BELOW.KEEP.CLEAR.OF.ALL.OBSTRUCTIONS"
4.INSPECTION.The.state.or.local.gas.inspector.of.the.side.wall.horizon-
tally.vented.gas.fueled.equipment.shall.not.approve.the.installation.unless,.
upon.inspection,.the.inspector.observes.carbon.monoxide.detectors.and.
signage.installed.in.accordance.with.the.provisions.of.248.CMR.508(2)(a)1.
through.4.
(b).EXEMPTIONS:.The.following.equipment.is.exempt.from.248.CMR.
508(2)(a)1.through.4:.
1.The.equipment.listed.in.Chapter.10.entitled."Equipment.Not.Required.To.
Be.vented".in.the.most.current.edition.of.NFPA.54.as.adopted.by.the.Board;.
and.
2.Product.Approved.side.wall.horizontally.vented.gas.fueled.equipment.in-
stalled.in.a.room.or.structure.separate.from.the.dwelling,.building.or.structure.
used.in.whole.or.in.part.for.residential.purposes.
(c).MANUFACTURER.REqUIREMENTS.-.GAS.EqUIPMENT.vENTING.
SYSTEM.PROvIDED.When.the.manufacturer.of.Product.Approved.side.
wall.horizontally.vented.gas.equipment.provides.a.venting.system.design.or.
venting.system.components.with.the.equipment,.the.instructions.provided.
by.the.manufacturer.for.installation.of.the.equipment.and.the.venting.system.
shall.include:
1.Detailed.instructions.for.the.installation.of.the.venting.system.design.or.
the.venting.system.components;.and
2.A.complete.parts.list.for.the.venting.system.design.or.venting.system.
(d).MANUFACTURER.REqUIREMENTS.-.GAS.EqUIPMENT.vENTING.
SYSTEM.NOT.PROvIDED.When.the.manufacturer.of.a.Product.Approved.
side.wall.horizontally.vented.gas.fueled.equipment.does.not.provide.the.parts.
for.venting.the.ue.gases,.but.identies."special.venting.systems",.the.fol-
lowing.requirements.shall.be.satised.by.the.manufacturer:
1.The.referenced."special.venting.system".instructions.shall.be.included.with.
the.appliance.or.equipment.installation.instructions;.and.
2.The."special.venting.systems".shall.be.Product.Approved.by.the.Board,.
and.the.instructions.for.that.system.shall.include.a.parts.list.and.detailed.
installation.instructions.
(e).A.copy.of.all.installation.instructions.for.all.Product.Approved.side.wall.
horizontally.vented.gas.fueled.equipment,.all.venting.instructions,.all.parts.
lists.for.venting.instructions,.and/or.all.venting.design.instructions.shall.
remain.with.the.appliance.or.equipment.at.the.completion.of.the.installation.
Important.Instructions.for.the.Commonwealth.of.Massachusetts
