MRU21F5BWW
MRU21F5BST
USER MANUAL
Upright Freezer
SINGLE DOOR SERIES
03
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER
------------------------------------------- 03
PRODUCT OVERVIEW
------------------------------------------ 04
PRODUCT INSTALLATION
------------------------------------ 05
OPERATION INSTRUCTIONS
--------------------------------- 12
CLEANING AND MAINTENANCE
---------------------------- 15
TROUBLESHOOTING
------------------------------------------- 17
04
PRODUCT OVERVIEW

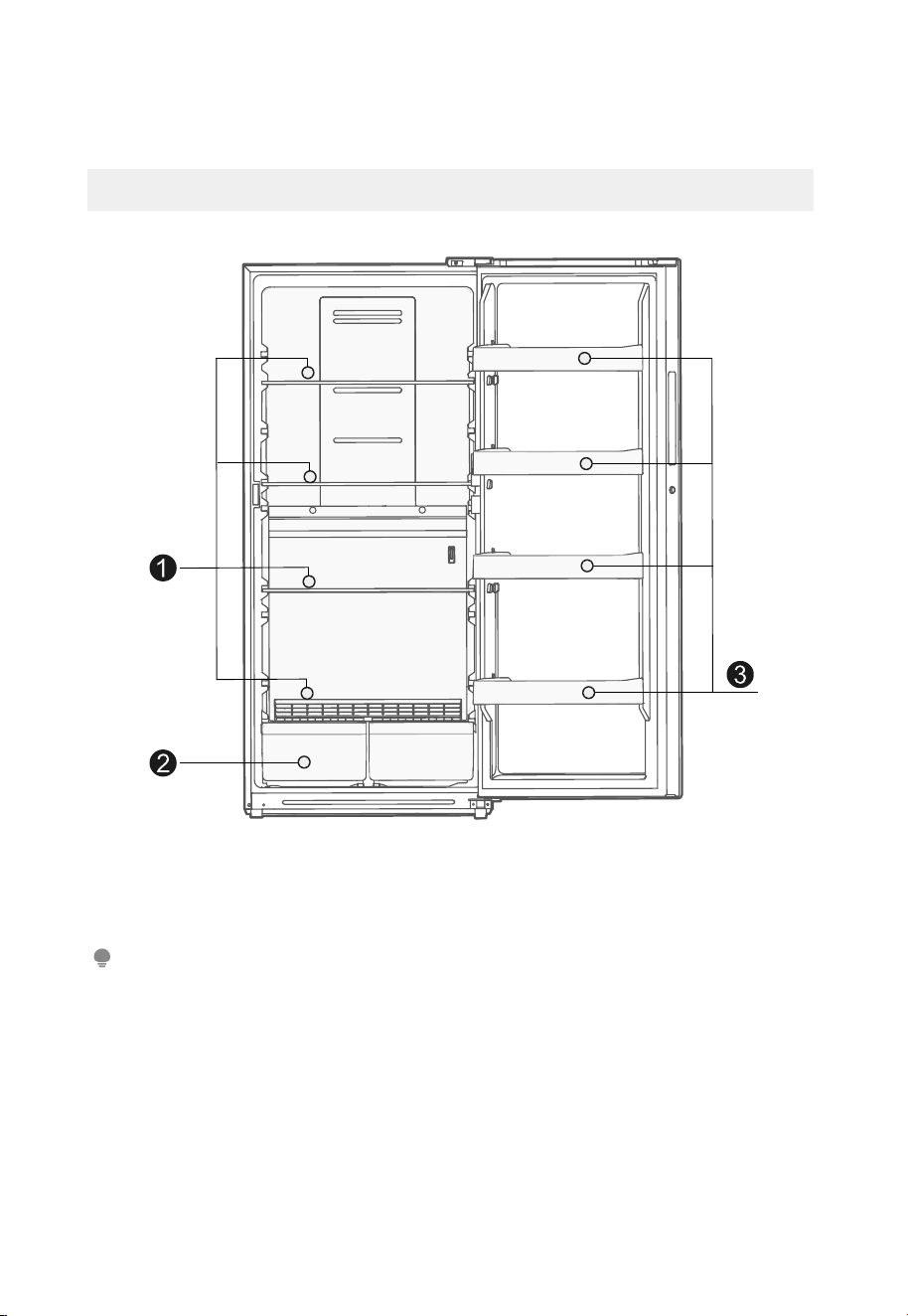

Names of components
1
Shelf
3
Door tray
2
Drawer
This model can be optionally equipped with a lock conguration. If you choose this
conguration, please keep the lock key safe to avoid loss.
ATTENTION
05
PRODUCT INSTALLATION
Install Instruction
Finding a suitable location
• This refrigerator is designed to be free standing only, and should not be
recessed or built-in.
• The refrigerator should be placed in a well-ventilated indoor place; the ground
shall be at and sturdy.
• Keep away from heat and avoid direct sunlight. Do not place the refrigerator in
moist or watery places to prevent rust or reduction of insulating effect.
Dimensions and Clearances
• Too small of a distance from adjacent items may result in the degradation of
freezing capability and increased electricity costs. The refrigerator both sides
should be placed against the wall with a free distance more than 100mm, and
the refrigerator back against the wall distance not more than 75mm.
Providing a proper power supply
• Check your local power source. This refrigerator requires a 115 V, 60 Hz power
supply.
• Use a receptacle that accepts the grounding prong. The power cord is
equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock
hazard from this refrigerator.
CAUTION
The freezer should always be plugged into its own individual electrical outlet which
has a voltage rating that matches the rating plate.
Never unplug your freezer by pulling on the power cord. Always grip the plug rmly
and pull straight out from the outlet.
Start to use
• The freezer shall stay for half an hour before connecting power when it is rstly
started.
• The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer
shall run for more than 4 hours in summer in advance considering that the ambient
temperature is high.
06
Space requirement diagram (when the door is open and when the door is closed)
Width
Overall
Height
Depth
Depth
Only Cabinet
Width
doors open
135
o
Depth
doors open
135
o
A B C C1 D E
755 1692 830 734 1275 1395
Notice: All dimensions in mm
1
07
Door reversal (Optional)
Based on the location where you plan to use your refrigerator, you may nd it
more convenient to reverse the position of the door.
CAUTION
CAUTION: To avoid injury to yourself or your property, we recommend that
someone assist you during the door reversal process.
Preparing to reverse the door position
You will need: A standard screwdriver, a Phillips screwdriver.
• Make sure that your refrigerator is unplugged and empty.
• Have someone available to assist you in the process.
• Keep all of the parts you remove to reuse them later.
Parts included with the hinge kit:
Left top hinge Left top hinge cover
Parts already mounted on the door (as shipped):
Stop block
Right top hinge cover
Hole cover
Bottom hinge
Right top hinge
Step
1. Unplug your refrigerator and remove all food from the refrigerator.

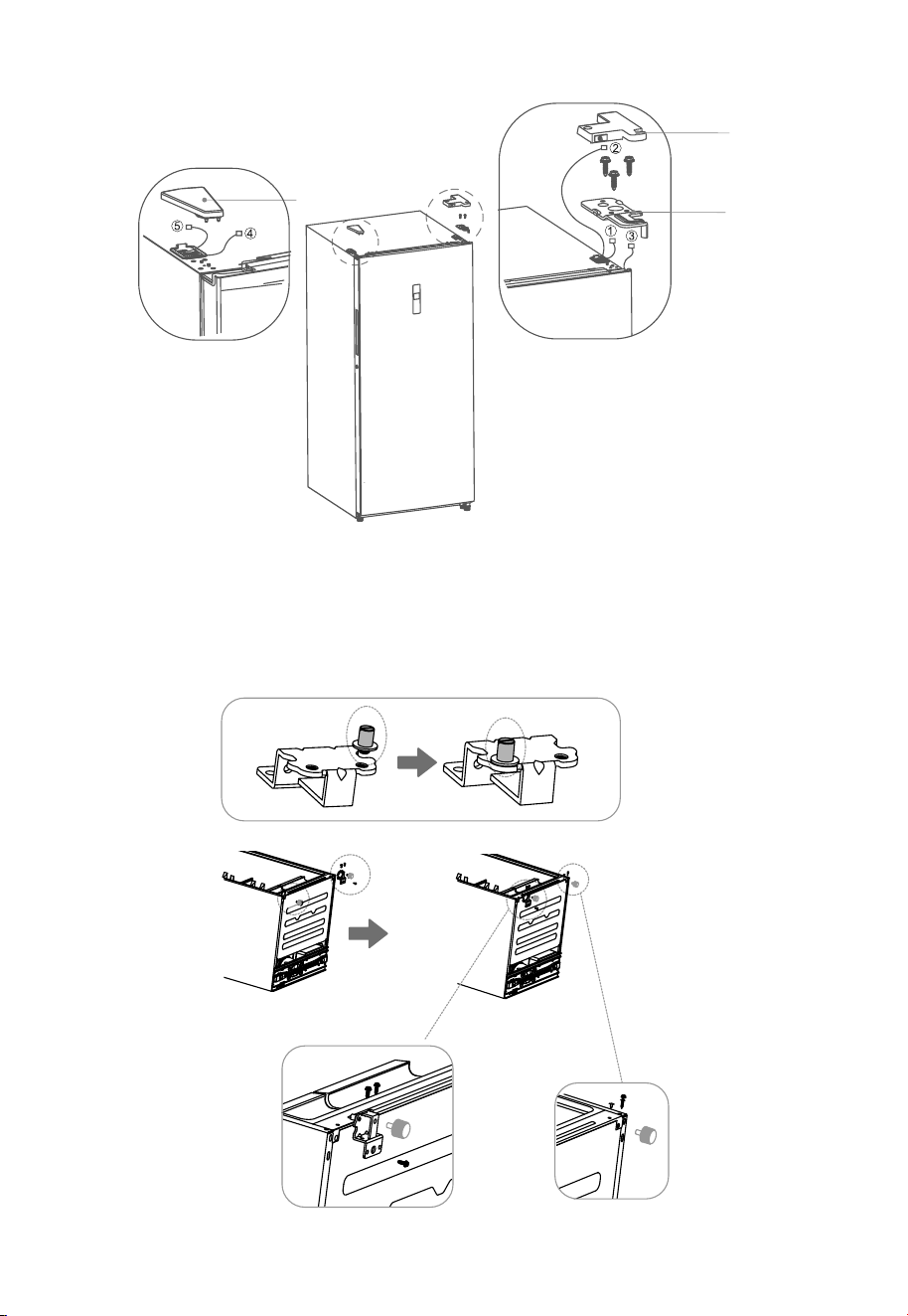

2. Dismantle the upper hinge cover, screws and upper hinge, and remove the hole
cover from the other side. Unplug the wiring connector on the right side of
refrigerator top.
• Images shows a refrigerator that opens to the right. Your refrigerator may be a refrigerator
that opens to the left.
• If you need to change the door left and right, please contact professional after-sales
personnel.
ATTENTION
08
Hinge cover
Hinge
Hole cover
3. Remove the door, set it aside, then lay the back of the refrigerator on the ground
and remove the right bottom hinge assembly and adjustable feet. Pry off the insert
pin, screw cap and adjustable feet on the left side and remove the screw, then install
them on the other side of the refrigerator. Use a athead screwdriver to replace
the hinge shaft of the bottom hinge assembly to the other side of the bottom hinge
assembly, and then assemble the entire hinge assembly on the other side of the
refrigerator. Swap the adjustable feet on the left and right sides.
09

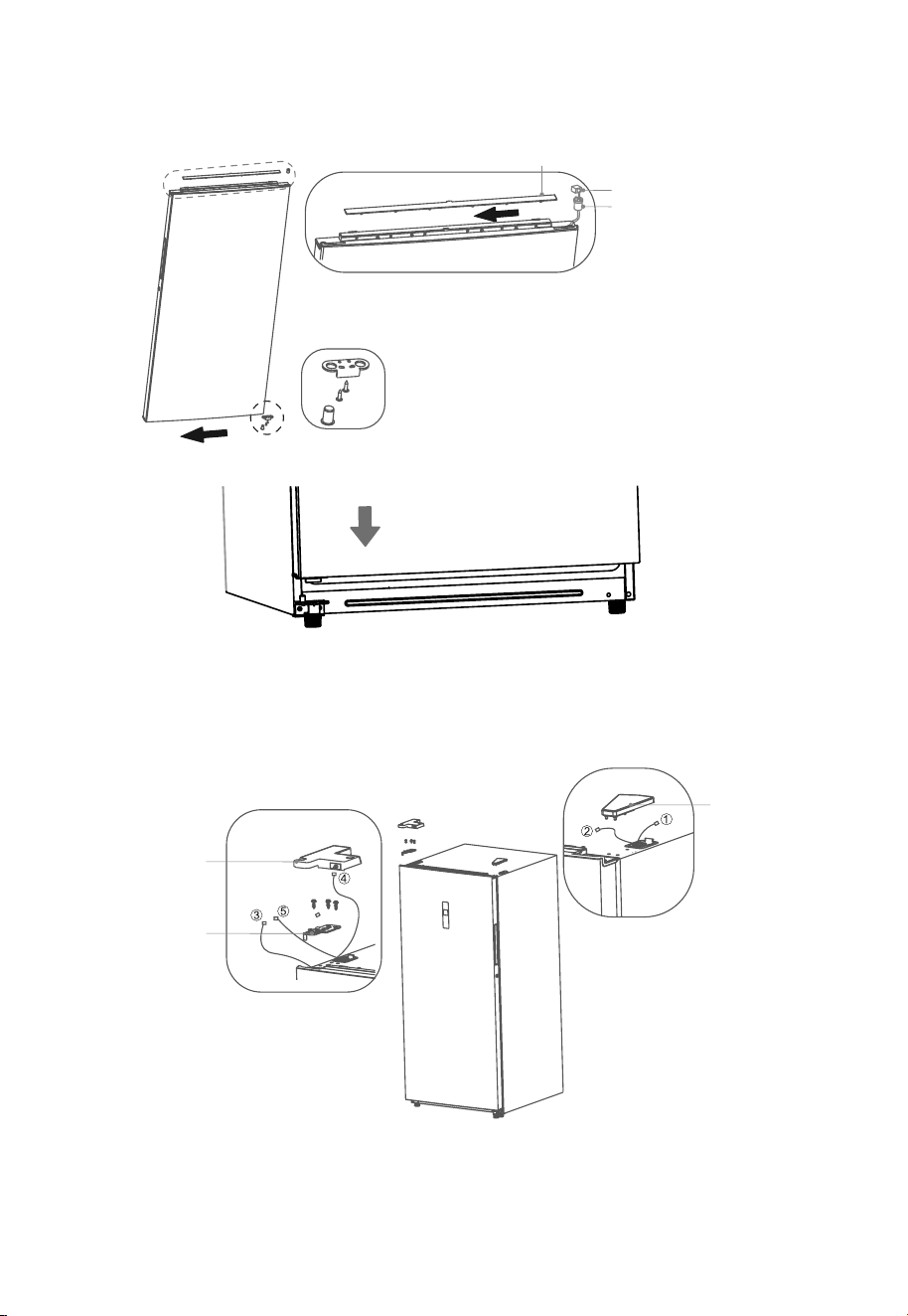

4. Place the door horizontally, remove the stop block and shaft sleeve and install
them on the other side of the door body.
Sleeve pipe
Door signal line
Door upper cover
5. Lift the refrigerator and place the door onto the hinge pin of the bottom hinge.
6. Take out the left top hinge, left top hinge cover from accessories package.
Connect signal line terminal
c
with signal line terminal
e
, connect signal line
terminal
d
to the door switch.
7. Mount left top hinge, left top hinge cover and hole cover.
Hole cover
Hinge cover
Hinge
• The picture above is only for reference. The actual conguration will depend on the
physical product or statement by the distributor.
10
Leveling feet
To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate for the uneven oor.
The front should be slightly higher than the rear to aid in door closing.
Leveling screws can be turned easily by tipping the cabinet slightly.
Turn the leveling screws counterclockwise to raise the unit, clockwise to
lower it.
Moving the appliance
1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and x it into the power plug hook at the rear or
on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off
while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting
the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to
switch on the appliance.
ATTENTION
Precautions before operation:
Before making changes the refrigerator must be disconnected from power.
Precautions should be taken to prevent any personal injury.
Changing the light
• Any replacement or maintenance of the LED lamps is intended to be made by
the manufacturer, its service agent or similar qualied person.
Connecting the appliance
After installing the appliance, connect the power plug into a socket outlet.
ATTENTION
After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you
put food into the appliance. If you add food before the appliance has cooled completely, your
food may spoil.
11
Tips for energy saving
• Do not place the appliance near cookers, radiators or other heat sources. If the
ambient temperature is high, the compressor will run more frequently and for
longer, resulting in increased energy consumption.
• Ensure that there is sufcient ventilation at the base of the appliance, on the sides
of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter “Installation”.
• The arrangement of drawers, shelves and racks as shown in the illustration offers the
most efcient use of energy and should therefore be retained as far as possible. All
drawers and shelves should remain in the appliance to keep the temperature stable
and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the
middle drawers can be removed. The top and bottom drawers and shelves should
be removed last if necessary.
• An evenly lled refrigerator/freezer compartment contributes to optimal energy
use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has
already cooled down increases energy efciency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food
reduces the energy consumption in the refrigerator compartment and thus increases
the energy efciency.
• Open the door only as briey as necessary to minimise cold loss. Opening the door
briey and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close
properly and energy consumption is not increased unnecessarily.
12
OPERATION INSTRUCTIONS
Control panel
1
3
4
A
B
C
D
2
5
Display Button
1
Fridge icon
A
Temperature up
2
Freezer icon
B
Temperature down
3
Temperature display
C
Super cooling / Super freezing
4
Super cooling icon
D
Fridge/Freezer switch
5
Super freezing icon
Display
All temperature icons shine within 3 seconds after power on, for power on at the
rst time, the default set temperature is -20°C
.
The actual control panel may differ from model to model.
Operating instructions
Fridge/Freezer conversion
• Press the button for 3 seconds to achieve Fridge/Freezer conversion, the
corresponding temperature / icons shine.
ATTENTION
13
Temperature settings
• Press the temperature up button can adjust the temperature, each click of the
temperature up button , the set temperature will be rised 1°C; Press the temperature
down button can adjust the temperature, each click of the temperature down button ,
the set temperature will be reduced 1°C; The temperature setting range of refrigerating
chamber is 2~8°C (freezing chamber is -12~-24°C). When the temperature is adjusted to
the boundary value, the refrigerator will sound an alarm if the temperature up button
or the temperature up button still have been pressed.
Super cooling mode
• Press the button after the temperature of the refrigeration room is adjusted to 2°C or
press the button to enter the super cooling mode. In the super cooling mode, the
temperature of the refrigerating chamber is automatically set to 2°C.
• Press the button to exit the super cooling mode or automatically exit the super
cooling mode after 6h. After exiting the super cooling mode, the temperature of the
refrigerator will automatically return to the temperature set before the super cooling
mode.
Super freezing mode
• Press the button after the temperature of the freezing chamber is adjusted to -24°C or
press the button to enter the super freezing mode. In the super freezing mode, the
temperature of the freezing chamber is automatically set to -24°C.
• Press the button to exit the super freezing mode or automatically exit the super
freezing mode after 40h. After exiting the super freezing mode, the freezing chamber
temperature will automatically return to the temperature set before the super freezing
mode.
• Tt is suggested to turn on super freeze mode for 12 hours before placing large am out of
frozen food in freezer compartment at one time.
Opening alarm control
• If the door keeps unclosed for 120 seconds, three alarms beeps will sound, thereafter the
alarm beeps will increase by one every one minute. Close the door or press any button to
cancel this alarm beep.
Fault indication
• When the error occurs, the display panel shows the error code. Otherwise, the display
panel shows the set temperature.
• The display panel will light up in case of error with “visible error code”, then the display
panel will go out after 30 seconds.
Fault Code Fault Description
E1 Refrigerating temperature sensor fault
E2 Freezing temperature sensor fault
E5 Defrost sensor fault
E6 Communication fault
E7 Ambient temperature sensor fault
14
Tips on storing food
Cooling compartment
• To reduce moisture and subsequent ice build-up, never put liquid into the
refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts
of the evaporator. Storing uncovered liquids results in a more frequent need for
defrosting.
• Never put warm foods in the refrigerator. These should rst cool down at room
temperature and then be placed so as to ensure adequate air circulation in the
refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because
they could freeze to the wall. Do not keep regularly opening the door of the
refrigerator.
• Meat and clean sh (packed in a package or plastic foil) can be placed in the
refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for
fresh fruit and vegetables.
ATTENTION
The optimal temperature setting of each compartment depends on the ambient temperature.
Above optimal temperature is based on the ambient temperature of 25 °C.
15
CLEANING AND MAINTENANCE
Defrosting
• The refrigerator is made based on the air-cooling principle and thus has
automatic defrosting function. Frost formed due to change of season or
temperature may also be manually removed by disconnection of the appliance
from power supply or by wiping with a dry towel.

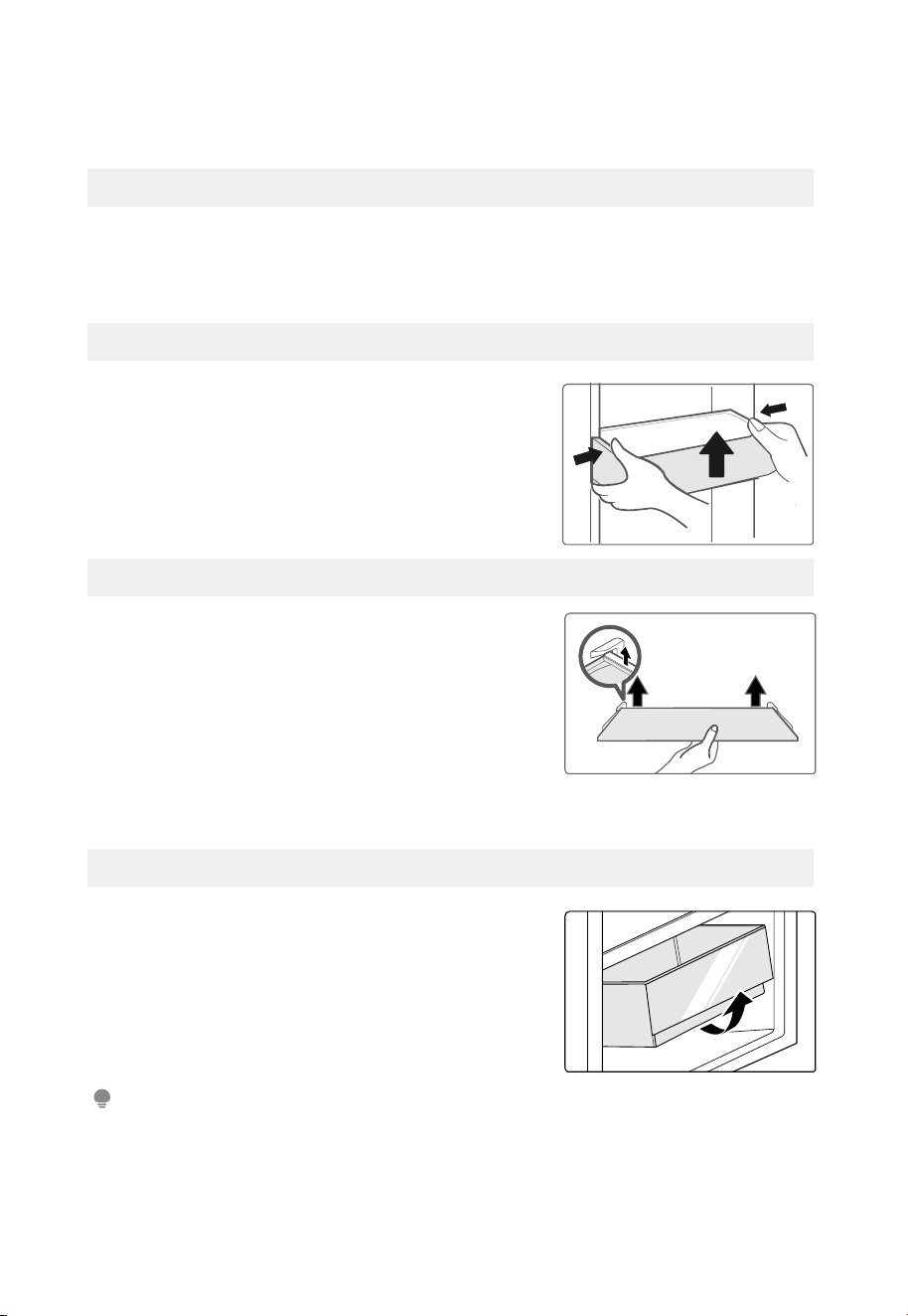

Cleaning of door tray
• According to the direction arrow in the gure
below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
• After washing the tray having been taken
out, you can adjust its installing height in
accordance with your requirement.
Cleaning of glass shelf
• As the innermost part of the refrigerator liner
where contacting the shelves has a backstop,
you shall raise the shelves upward, then you
can be able to take it out.
• Adjust or clean the shelves according to your
requirement.
Cleaning the vegetable drawer
• Remove the contents of the drawer. Hold the
handle of the vegetable drawer and pull it out
completely until it stops.
• Lift the vegetable drawer up and remove it by
pulling it out.
ATTENTION
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested
for cleaning. The freezer of shall be nally cleaned with clean water and dry cloth. Open the
door for natural drying before the power is turned on. Do not use hard brushes, clean steel
balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone,
Isoamyl acetate, etc.), boiling water, acid or alkaline items clean refrigerator considering that
this may damage the fridge surface and interior.
16
Stop using
Power failure:
• In case of power failure, even if it is in summer, foods inside the appliance can
be kept for several hours; during the power failure, the times of door opening
shall be reduced, and no more fresh food shall be put into the appliance.
Long-time nonuse:
• The appliance shall be unplugged and then cleaned; then the doors are left
open to prevent odor.
Moving:
• Before the refrigerator is moved, take all objects inside out, x the glass
partitions, vegetable holder, freezing chamber drawers and etc. with tape,
and tighten the leveling feet; close the doors and seal them with tape. During
moving, the appliance shall not be laid upside down or horizontally, or be
vibrated; the inclination during movement shall be no more than 45°.
• When the refrigerator is not connected to electricity, the power cord hook is
used to hang the power cord.
The appliance shall run continuously once it is started. Generally, the operation of the
appliance shall not be interrupted; otherwise the service life may be impaired.
Foods can be preserved for a couple of hours even in summer in case of power failure; it is
recommended to reduce the frequency of opening door.
ATTENTION
17
TROUBLESHOOTING
The following simple issues can be handled by the user. Please call the after-sale
service department if the issues are not solved.
Problem Possible reason
Failed operation
• Check whether the appliance is connected to power or
whether the plug is in well contact.
• Check whether the voltage is too low.
• Check whether there is a power failure or partial circuits have
tripped.
Odor
• Odorous foods shall be tightly wrapped.
• Check whether there is any rotten food.
• Clean the inside of the refrigerator.
Long-time operation
of the compressor
• Long operation of the refrigerator is normal in summer.
• When the ambient temperature is high It is not suggestible
having too much food in the appliance at the same time.
• Food shall get cool before being put into the appliance.
• The doors are opened too frequently.
Light fails to get lit
• Check whether the refrigerator is connected to power supply
and whether the illuminating light is damaged.
• Have the light replaced by a specialist.
Door can not be
properly closed
• The door is stuck by food packages too much food is placed.
• The refrigerator is tiltedr.
Loud noises
• Check whether the oor is level and whether the refrigerator
is placed stably.
• Check whether accessories are placed at proper locations.
18
Problem Possible reason
Door seal fails to be
tight
• Remove foreign matters on the door seal.
• Heat the door seal and then cool it for restoration (or blow it
with an electrical drier or use a hot towel for heating).
Water pan overows
• There is too much food in the chamber or food stored
contains too much water, resulting in heavy defrosting.
• The doors are not closed properly, resulting in frosting due to
entry of air and increased water due to defrosting.
Hot housing
• Heat dissipation of the built-in condenser via the housing,
which is normal when housing becomes hot due to high
ambient temperature, storage of too much food or shutdown
of the compressor is shut down, provide sound ventilation to
facilitate heat dissipation.
Surface
condensation
• Condensation on the exterior surface and door seals of the
refrigerator is normal when the ambient humidity is too high.
Just wipe the condensate with a clean towel.
Abnormal noise
• Buzz: The compressor may produce buzzes during operation,
and the buzzes are loud particularly upon start or stop. This is
normal.
• Creak: Refrigerant owing inside of the appliance may
produce creak, which is normal.
