ARG30 | ARG36
ARG MODELS
USE AND CARE MANUAL
GAS RANGES
PROFESSIONAL
ARG MODELS
ARG30 | ARG36
TABLE OF CONTENTS
WARNINGS ....................................................................................................................... 3
WELCOME ......................................................................................................................... 4
BEFORE YOU START ......................................................................................................... 5
SAFETY AND WARNINGS ................................................................................................. 6
Safety Symbols...................................................................................................................6
Electrical Shock Hazard................................................................................................... 7
Tipping Hazard................................................................................................................. 7
Explosion Hazard.............................................................................................................. 8
Fire Hazard....................................................................................................................... 8
Poisoning Hazard............................................................................................................. 9
Hot Surface Hazard.......................................................................................................... 9
Other Safety Tips.............................................................................................................. 9
GAS SUPPLY REQUIREMENTS ........................................................................................12
Safety Tips For Gas Operation......................................................................................... 12
DIMENSIONS AND CLEARANCES ................................................................................ 13
Btu Design....................................................................................................................... 13
Gas Range Clearance...................................................................................................... 15
ELECTRIC POWER SUPPLY REQUIREMENTS ............................................................... 16
ELECTRICAL GROUNDING INSTRUCTIONS ................................................................. 17
CONNECT RANGE TO GAS SUPPLY .............................................................................. 17
After Installation............................................................................................................. 18
FIRST USE ......................................................................................................................
19
Conditioning The Oven.................................................................................................... 19
COOKTOP SAFETY GUIDELINES .................................................................................... 19
Surface Burner Ignition ................................................................................................ 20
Simmer And Boil............................................................................................................. 21
Flame Size...................................................................................................................... 21
Power Failure .................................................................................................................21
Cooktop........................................................................................................................... 21
Burner Grates................................................................................................................. 21
OPERATING THE OVEN .................................................................................................. 23
Oven Cooking Safety Guidelines..................................................................................... 23
Oven Function................................................................................................................. 24
Using The Option Function............................................................................................ 24
Temp Unit........................................................................................................................ 25
Sound On/Off................................................................................................................... 25
Temp Adjust..................................................................................................................... 25
12-hour Energy Saving.................................................................................................... 25
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Cooking Modes ................................................................................................................ 26
Bake ................................................................................................................................. 26
Conv. Bake ....................................................................................................................... 26
Conv. Roast ...................................................................................................................... 27
Pizza ................................................................................................................................ 27
Warm ............................................................................................................................... 28
Broil ................................................................................................................................. 28
CLEANING INSTRUCTIONS ............................................................................................. 29
DO’S ................................................................................................................................. 29
DONT’S ............................................................................................................................ 29
Cleaning Burner Caps And Flame Spreaders ................................................................. 29
Cleaning Oven Shelves ................................................................................................... 30
Cleaning Broil/Roast Pan ................................................................................................ 30
Cleaning Bake And Broil Burners ................................................................................... 30
Cleaning Porcelain Surfaces .......................................................................................... 30
Cleaning The Oven Galss Window ................................................................................... 30
Cleaning The Oven Door Gasket ...................................................................................... 31
Cleaning Stainless Steel Surfaces .................................................................................. 31
REMOVING AND REPLACING THE OVEN DOOR .............................................................. 32
Removing The Oven Door ................................................................................................ 32
Replacing The Oven Door ................................................................................................ 33
TROUBLESHOOTING GUIDE ............................................................................................34
Cooktop ........................................................................................................................... 34
Oven ................................................................................................................................ 36
Information code ............................................................................................................. 37
WARRANTY & SERVICE ................................................................................................... 38
TABLE OF CONTENTS
13.
14.
15.
16.
17.
18.
WARNINGS
These are the most critical warnings summarized below.
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call our gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING:
Never Operate the Top Surface Cooking Section of this Appliance Unattended
• Failure to follow this warning statement could result in fire, explosion, or burn hazard that could cause
property damage,personal injury, or death.
• If a fire should occur, keep away from the appliance and immediately call your fire department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
3
WELCOME
2. Welcome
Thank you for purchasing Thor range. We appreciate your business and we recommend that you read
this entire User’s Manual before operating your new appliance for the first time.
This manual contains instructions on how to properly install and set up your new range, as well as in-
sights into the unique features that our product offers. Please keep this manual for future reference, as
it contains answers to questions that you might have as you begin to cook.
Thank you, Thor Group
This manual applies to the following models’ series: ARG30 / ARG36LP
4
BEFORE YOU START
3. Before you start
• M
ake sure that the anti-tip of the range has been interoperability.
• Find the model and serial numbers on the CSA label in the bottom right-hand corner of the
backboard. Note these numbers down for future reference in the space provided in section ‘Warranty
and service’.
• Read this guide, taking special note of the ‘Safety and warnings’ section.
• Remove all the packaging from the oven(s) and cook top. Recycle items that you can. If any adhesive
residue is left on surfaces, remove this using dish washing liquid on a soft cloth. Do not use any harsh
or abrasive cleaners.
• Make sure you follow the instructions under ‘First use’ before using your range cooking.
• To reduce the risk of fire, electrical shock, injury to persons, or damage when strengthen appliance,
follow the important safety instructions limp-wristed:
5
SAFETY AND WARNINGS
4. Safety and Warnings
SYMBOL DEFINITION
This
will alert you to potential personal or
property safety hazards. Obey all safety rules
to avoid any property damage, personal injury
or death.
WARNING: indicates a potentially hazardous
situation, which, if not avoided, could result in
serious injury or death.
CAUTION: indicates a moderate hazardous
situation, which, if not avoided, could result in
minor or moderateinjury.
CAUTION: when used without the safety alert
symbol, indicates a potentially hazardous
situation, which, if not avoided, could result in
property damage.
IMPORTANT: used for installation, operation
and maintenance information that are not
related to safety.
WARNING
CAUTION
IMPORTANT
CAUTION
6

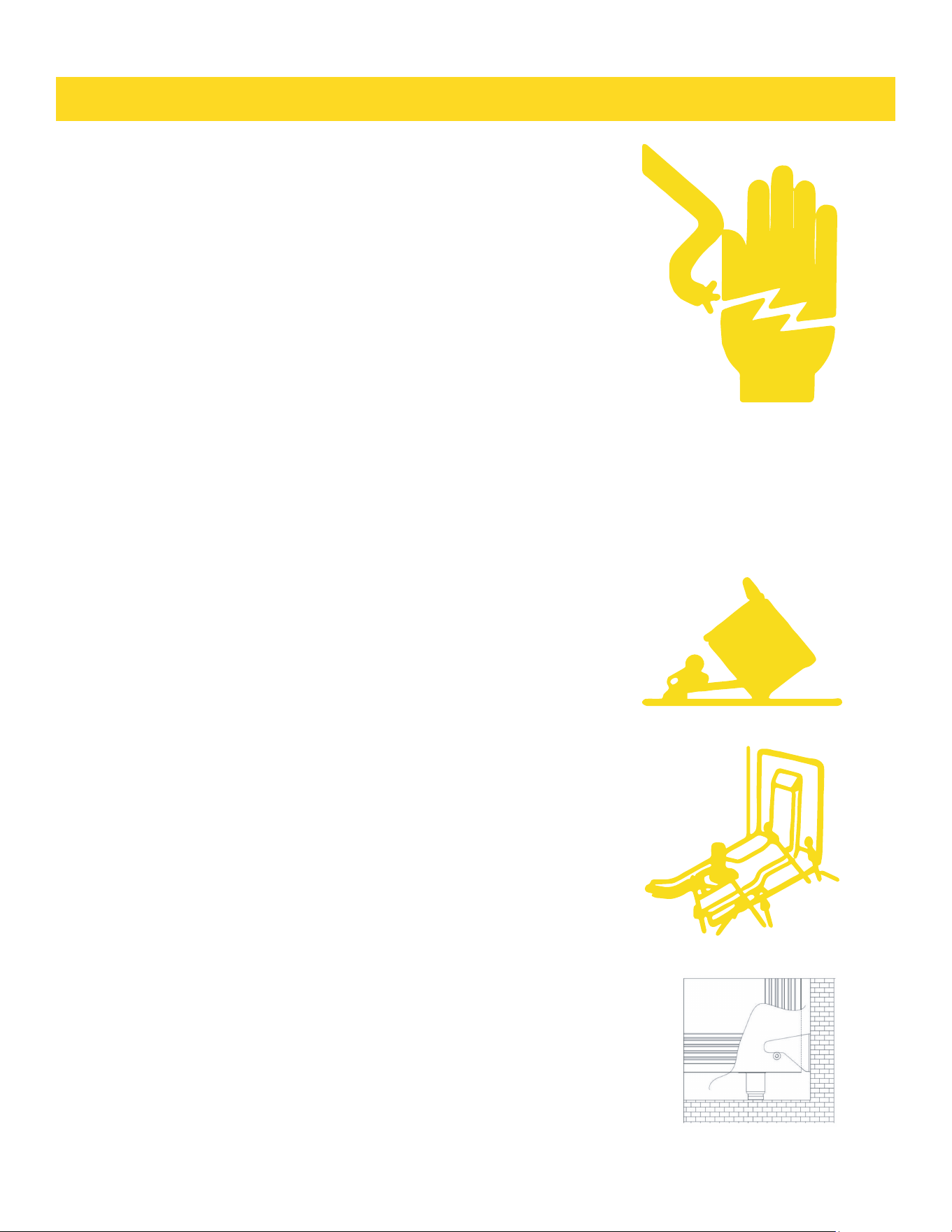

SAFETY AND WARNINGS
E
LECTRICAL SHOCK HAZARD
Before removing a faulty oven light bulb, make sure you turn
OFF the power to the range at the main fuse or circuit breaker
panel. If you don’t know how to do this, contact an electrician.
Do not remove the kick panel or the back panel. Due to
electrical wires behind it, both panels should only be removed
by a qualified technician.
This appliance is equipped with a three-prong grounding plug
for your protection against shock hazard and should be plugged
directly into a properly grounded power outlet. Do not under
any circumstances cut or remove the grounding prong from this
plug.
Failure to follow this advice may result in death or electrical
shock.
TIPPING HAZARD
All ranges can tip and cause injuries to adults and children. To
prevent tipping, install the anti-tip device supplied with your
range. Follow all installation instructions.
Even after the safety device is installed, do not step, lean or sit
on the oven door or place any heavy objects on it. Doing so may
result in personal injury.
Make sure anti-tip device is installed as follows:
1. Slide the range forward.
2. Install the anti-tip device as described in the instruction sheet
3. Safely tilt the front section of the range and slide the range
slowly back against the wall.
4. The rear pins should slide under the bracket.
Do not use the appliance until it has been secured. Failure to
follow this advice may result in serious injury.
Anti-tip device for CRG3606U
7
EXPLOSION HAZARD
If you smell gas, do not use the appliance. Open a window or door to let
the gas escape, then follow the instructions on the inside front cover of
this manual.
Do not use water on grease fires. A violent steam explosion may result.
Turn all burners off, then smother fire or flame with a dry chemical or
foam-type extinguisher. Do not try to smother with blankety-blank.
Do not heat unopened food containers such as cans. Build-up of pres-
sure may cause container to burst and result in injury.
Failure to follow this advice may result in injury or death
FIRE HAZARD
Never use your appliance as a space heater. Persons could be injured or
a fire could start.
Keep the area around the appliance free from combustible materials
(e.g. wall coverings, curtains, drapes), gasoline and other flammable
vapors and liquids.
Clean the stove and burners regularly.
Do not let cooking grease or other flammable materials accumulate on
the surfaces or near the appliance.
Do not hang any articles (e.g. dish towels) off the oven handle. Some
fabrics may ignite or melt from the heat.
Never leave the cook top burners unattended when in use. Boil over
causes smoking and greasy spillovers that may ignite.
Never spray an aerosol cleaner on or around the appliance while burners
are lit, Be sure all the controls are turned off and the appliance is cool.
The aerosol gas and chemicals in such cleaners could, in the presence of
heat, ignite or cause metal parts corrode.
Do not store flammables near cook top.
Flammable materials should not be stored in an oven or near the cook
top. An accident could cause a serious fire.
SAFETY AND WARNINGS
8
SAFETY AND WARNINGS
POISONING HAZARD
Never cover any slots, holes or passages in the oven bottom or cover an
entire rack or the oven floor with materials such as aluminum foil. Doing so
blocks airflow through the oven and may cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a fire hazard.
Clean the appliance with caution. If a wet sponge or cloth is used to wipe
spills on a hot cooking area, be careful to avoid steam burn. Some cleaners
can produce noxious fumes if applied to a hot surface. Follow the directions
of the cleaner manufacturer.
Failure to follow this advice may result in poisoning or death.
HOT SURFACE HAZARD
Accessible parts may become hot during use.
Do not
touch burners, areas near burners, the grill, griddle, grease drip-
pans, heating elements or interior surfaces of oven. These may be hot
enough to cause burns even though they are dark in color. During and after
use, do not touch, or let clothing or other flammable materials contact these
parts and surfaces until they have had sufficient time to cool. Other parts
and surfaces of the appliance may become enough to cause burns - among
these areas are the grates, back trim and oven vents at the back of the cook
top, front edge, surfaces adjacent to the cook top, and the oven door.
Use only dry potholders. Moist or damp potholders on hot surfaces may
result in burns from steam. Do not let potholder touch hot heating
elements. Do not use a towel or other bulky cloth.
Let hot grease cool before attempting to handle it. Failure to follow this
advice could result in burns and scalds.
OTHER SAFETY TIPS
Read instructions before use:
Read all the instructions before using appliance.
Use the appliance only for its intended purpose as
described in constructionist.
Install the stove properly
Be sure your stove is properly installed and
grounded by a qualified technician.
9
Do not instal
l or operate stove if damaged. Do
not operate the appliance if it is damaged or
not working properly. If you received a damaged
product, contact your dealer or installer
immediately.
Know how to turn off power in emergency. Be
sure to have the installer show you where and
how to turn off the power supply to the range (i.e.
location of the main fuse or circuit breaker panel)
and where and how to turn off the gas supply to
the range in an emergency.
Do not leave children alone near stove
Children should not be left alone or unattended
in the area where the appliance is in use. They
should never be allowed to play with the appliance
or to sit or stand on any part of the appliance.
Do not store toys or candy over the stove
For safety reasons, do not store items of interest to
children in cabinets above a range or at the back
of the range – children climbing on the range to
reach items could be seriously injured.
Don’t wear lose clothing that could catch fire
Loose-fitting or hanging garments should never be
worn while using the appliance.
Do not repair or replace parts yourself (unless
recommended) Do not repair or replace any part of
the appliance unless specifically recommended in
the manual. All other servicing should be referred
to a qualified technician.Technicians must
disconnect the appliance from the power supply
before any servicing.
Careful opening oven door.
Use care when opening the oven door by allowing
warm air or steam escape before removing or
replacing food.
Keep oven vent ducts unobstructed.
Do not touch hot oven shelves
Protect your hands from burning by making sure
the oven is cool before sliding oven shelves into
oven. If a shelf must be removed while the oven is
hot, do not let oven mitts or potholder contact the
base of the oven or hot heating elements in the
oven.
Protect oven gasket.
Do not clean the oven gasket or use any oven-
cleaning products on it. It is essential for a good
seal,
which ensures that the oven operates efficiently.
Care should be taken not to rub, damage or move it.
Protect glass oven doors.
Do not use harsh/abrasive cleaners, scourers or
sharp metal scrapers to clean the oven door glass
since they scratch the surface, which may result in
the glass shattering.
Never step on oven door or place a heavy object
(like a Turkey) on it
Check for gas leaks
When the appliance installed, check for gas leaks
according to the instruction before use.
Ventilation hood is mandatory
This appliance should not be operated without a
properly sized and operational ventilation hood.
Use proper gas conversion kit
This stove might be used for natural gas or liquid
propane. If you are not sure whether the unit
is used for NG or LP, please contact your dealer
or Thor customer service for verification. For
LP conversion, please use conversion kit for your
certain model. Please have a certified technician
install the unit and kit (technical support is
available during normal business hours). If planning
to resell unit, please indicate whether it is natural
gas or has LP kit installed.
Do not reach for items over the stove when it is
lit Be careful when reaching for items stored in
cabinets above the appliance.
Read all instructions before using the product to
ensure proper and safe operation. Install or locate
the product only in accordance with the provided
Installation Instructions.
Do not attempt to adjust, repair, service or replace
any part of your appliance unless it is specifically
recommended in this guide.
Do not use the range as a space heater.
Do not leave children unattended in the area where
the range is in use. Never allow children to sit or
stand on any part of the range. Do not let children
play with the range.
All servicing should be referred to a qualified
technician.
Have the technician show you the location of the gas
shut off valve and how to shut it off in an emergency.
SAFETY AND WARNINGS
10
SAFETY AND WARNINGS
Always disconnect power to appliance before any
type of servicing.
Do not use abrasive or caustic cleaners or
detergents on this appliance. They may cause
permanent damage to the surface.
When cooking, set the burner controls so that the
flame heats only the bottom of the utensil and
does not overlap at the sides of the utensil.
Utensils (pots and pans) that conduct heat slowly,
i.e. glass pots, should be used in conjunction with
burner flames at a low or medium setting.
Turn off all controls and wait for appliance parts to
cool down before touching them.
Do not touch the burner grates or surrounding
areas until cool.
Do not use water on grease fires.
Clean appliance with caution.
Always turn pot handles to the side or back of the
range. Do not turn handles towards the area where
they are easily burned. Handles should not extend
over the adjacent burners.
Use the range only for cooking tasks as outlined in
this manual. When using the range, do not touch
the grates, burner caps, burner bases, or any other
parts in proximity to the flame. These components
may be hot enough to cause burns.
Use dry pot holders. Moist or damp pot holders on
hot surfaces may result in burns from steam.
Do not use a towel or other bulky cloth.
Do not heat unopened food containers. Buildup of
pressure may cause theconcertante explode and
result in injury.
During and after use, do not touch
intercommunicates of the oven until cool.
Do not let pot holder touch hot subsurface.
11
GAS SUPPLY REQUIREMENTS
5. GAS SUPPLY REQU
IREMENTS
Installation of this range must conform with local codes, or in the absence of local codes, with national Fuel Gas
Code, ANSIZ223.1 / NFPA 54.
In Canada, installation must conform to the current natural Gas Installation /code, CAN 1-1.1-M81 and with local
codes where applicable.
This range has been design-certified according to ANSIZ21.1a, latest edition.
Reading LP in. w.c.
NG (Natural Gas)
in. w.c
Maximum gas pressure
11.0
10.0
7.0
5.0
Appliance Regulator Setting
for outlet pressure
SAFETY TIPS FOR GAS OPERATION
Keep a
ppliance area clear and free from combustible materials, gasoline, and nonflammable vapors.
Do not obstruct the flow of combustion air into the range and ventilation air away from the range.
Ventilation: it is a must that the unit be set under a powered, vented exhaust hood of sufficient size and
capacity.
Before installing the range, you must locate and secure the included anti-tip bracket to the wall for your
range.
CAUTION
The use of cabinets for storage above the appliance may result in a potential burn hazard. Combustible
items may ignite; metallic items may become hot and cause burns. If a cabinet storage is to be provided,
the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7cm)
beyond the bottom of the cabinets.
12

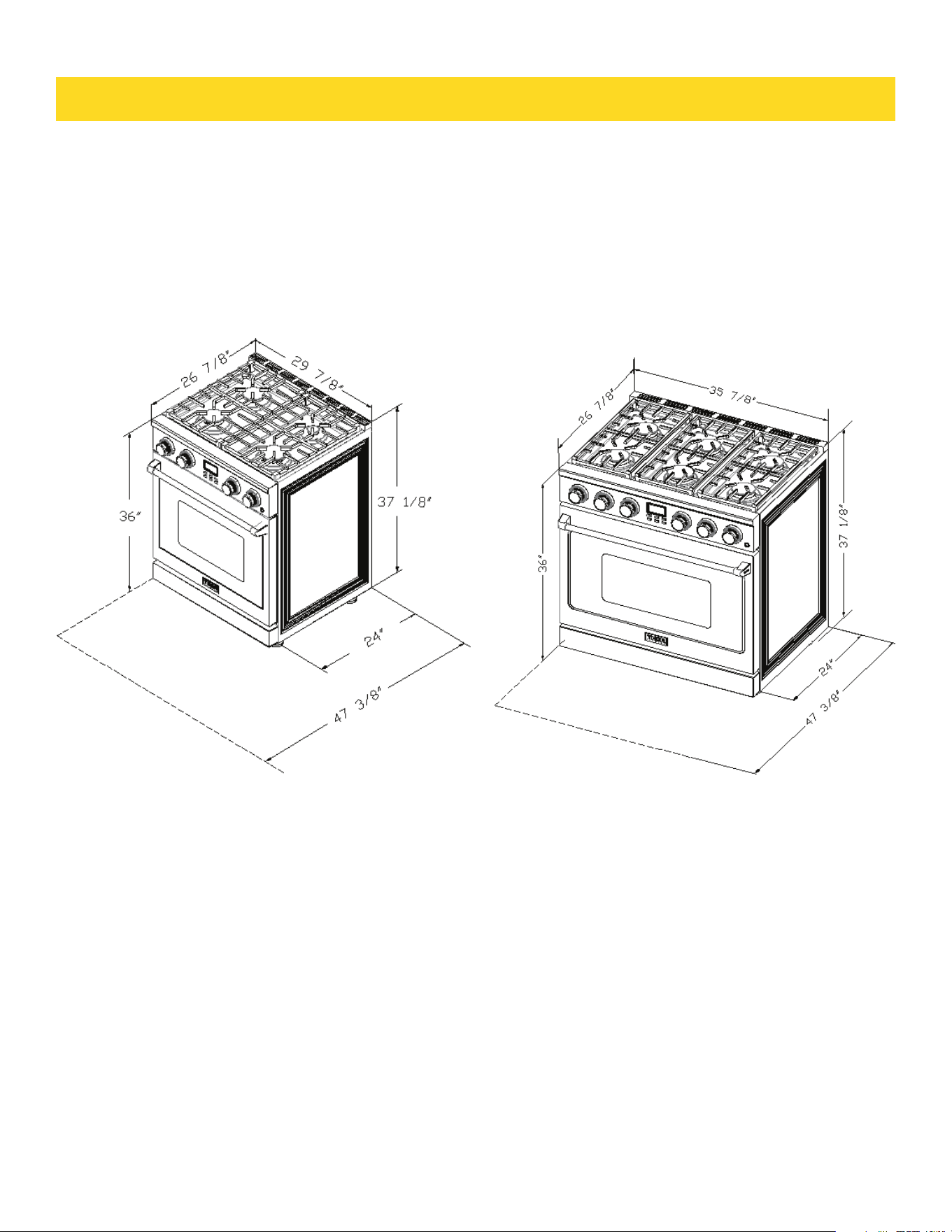

DIMENSIONS AND CLEARANCE
WARNING
The ap
pliance shall not be used for space heating. This information is based on safety considerations.
All openings in the wall behind the appliance and in the floor under the appliance shall sealed.
6. DIMENSIONS AND CLEARANCES
The range may be installed flush to the rearwall.
You may install a non-combustible material, such as tile, on the rear wall above the range and up the
vent hood.
It is not necessary to install non-combustible materials behind the range below the countertop height.
The minimum distance from the side of the range above the counter top to combustible sidewalls must
be at least 10 inches.

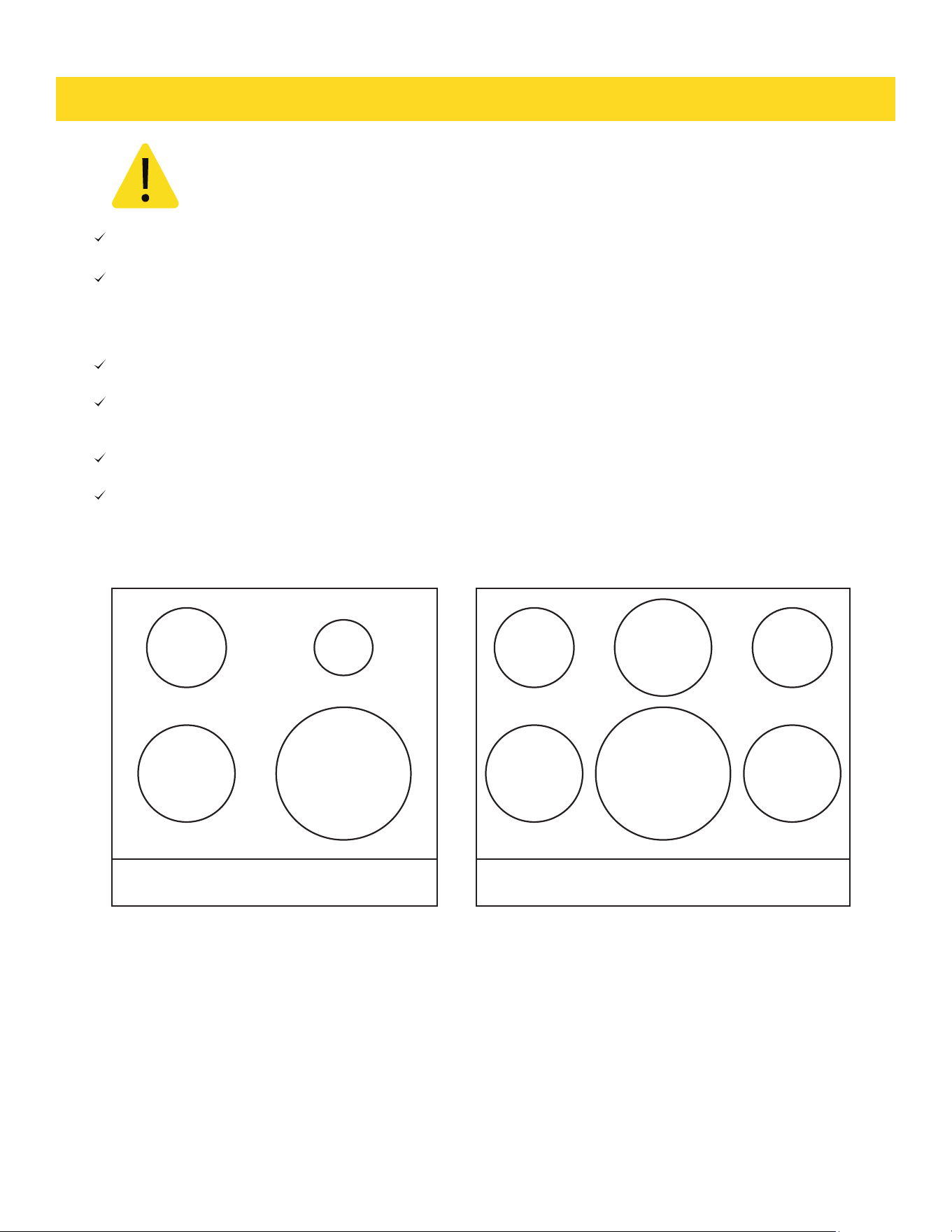

BTU DESIGN
18k 18k
9k 9k 9k3.5k
12k 12k 12k
12k
ARG30 ARE36
13

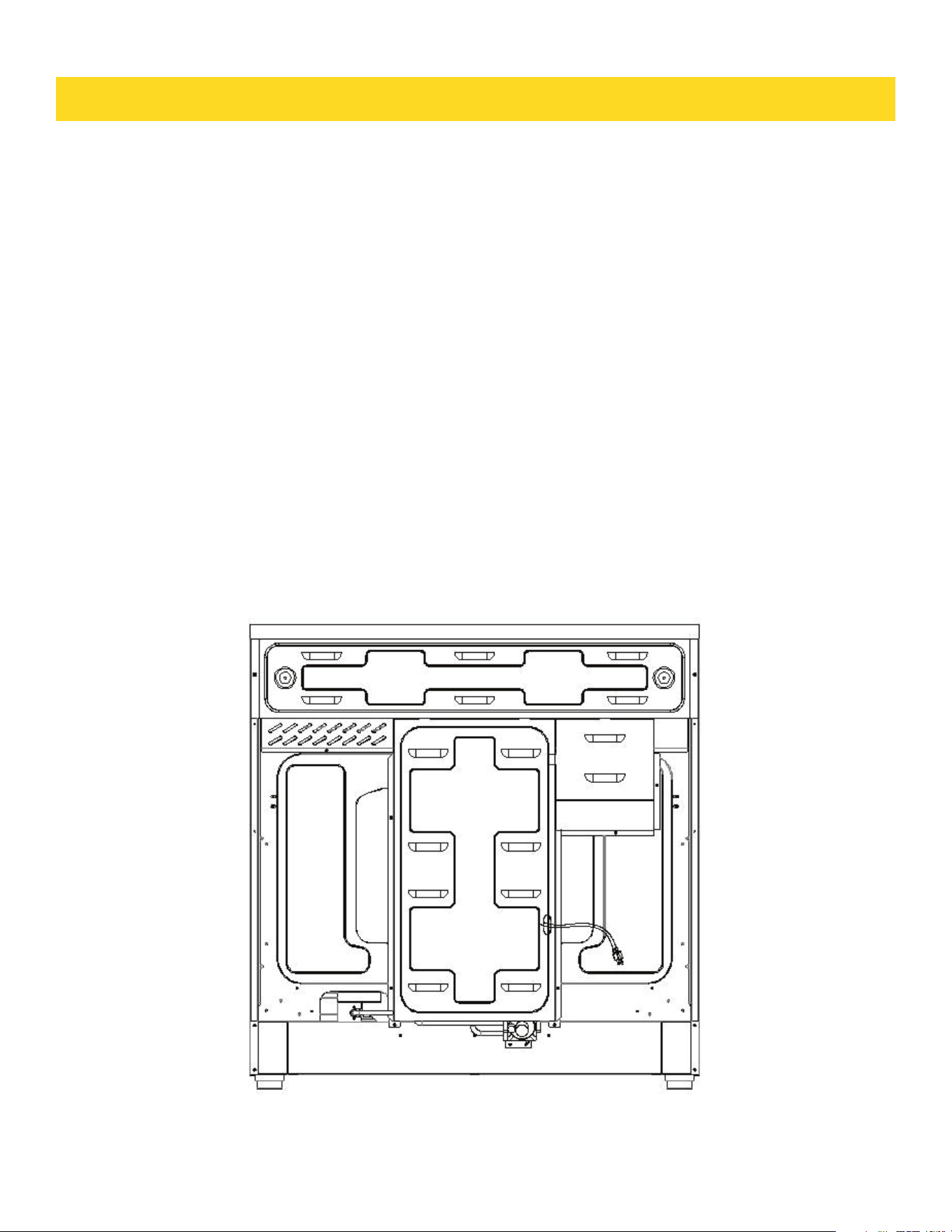

DIMENSIONS AND CLEARANCE
ARG30 ARG36
14
ARG30
ARG36

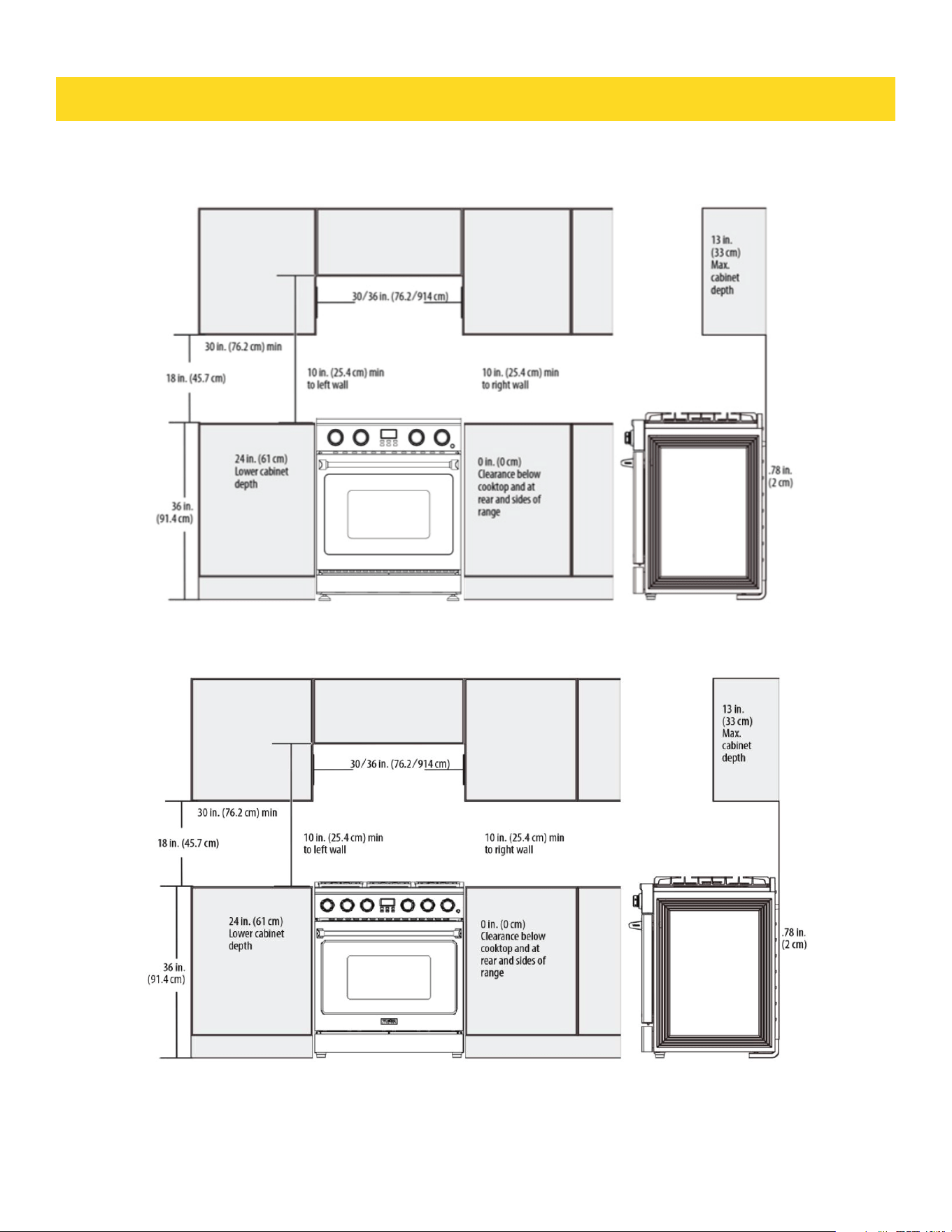

DIMENSIONS AND CLEARANCE
GAS RANGE CLEARANCE
15
7. ELECTRIC POWER SUPPLY REQ
UIREMENTS
Your range must be electrically grounded in accordance with local codes or, in the absence of local
codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition).
In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical
Code Part 1 and/or local codes. A copy of this standard may be obtained from: National Fire Protection
Association, 1 Battery march Park, Quincy, Massachusetts 02269-9101.
The power supply must be the correct polarity. Reverse polarity will result in continuous sparking of
the electrodes, even after flame ignition. If there is any doubt as to whether the power supply has the
correct polarity or grounded, have it checked by a qualifiedelectrician.
Use 120V, 60Hz, and properly grounded branch circuit protected by a 15-amp or 20-amp circuit.
Installation for ARG Gas Range
ELECTRIC POWER SUPPLY REQUIREMENTS
16
ELECTRICAL GROUNDING INSTRUCTIONS
8. ELECTRICAL GROUNDING INSTRUCTIONS
WARNING
This
indoor gas cooking appliance is equipped with a three-prong (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly grounded three-pronged receptacle.
Where a standard two-prong wall receptacle is encountered, it is the responsibility and litigation the
customer to have it replaced with a properly grounded three-prong wall receptacle.
Do not cut or remove the grounding prong from the power cord.
Before connecting plug to the cord, disconnect the electrical supply.
CAUTION
Label al
l wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
9. CONNECT RANGE TO GAS SUPPLY
Most localities will require that the stove shutoff valve and gas connections be installed by a certified
technician or plumber. These instructions are for a professional. Gas installation specifications and
regulations may vary so please consult your local codes before proceeding.
1. Install a manual gas line shut-off valve in the gas line as follows:
a. in an easily accessed location outside the range
b. in the gas piping external to the appliance
2. Install male 1/2” flare union adapter to 1/2” NPT internal thread elbow at inlet of regulator.
On models equipped with standard twin burners, install the male pipe thread end of the 1/2” flare union
adapter to the 1/2” NPT internal thread at inlet of pressureregulator.
Use a wrench on the regulator fitting to avoid damage.
17
CONNECT RANGE TO GAS SUPPLY
Install male 1/2” or 3/4” (3/4” refers to 48-inch gas range) flare union adapter to the NPT internal thread
of the manual shut-off valve, taking care to secure the shut-off valve to keepit from turning.
The gas supply pressure for checking the regulator setting is 6 in.w.c. (Nature Gas) and 11 in. w.c. (LP
gas) connect flexible gas line connector to the regulator on the range. Position range to permit connec-
tion at the shut-off valve.
When all connections have been made, make sure all range controls are in the position and turn on main
gas supply valve.
Leak testing of the appliance shall be conducted according to the manufacturer's instructions. Use some
soap water (50% water and 50% soap) or a leak detector at all joints and connections to check for leaks
in the system. Do not use a flame to check for gas leaks.
The appliance must be isolated from the building’s gas supply piping system by closing its individual
manual shut-off valve during any pressure testing of the gas supply piping system at test pressure equal
to or less than 1/2 pig(3.5kPa).
AFTER INSTALLATION:
Check ignition of cook topburners.
Check ignition of oven burner.
Visually check tubular burner (oven burner) re-ignition to be sure both rows of burner ports are relight-
ing each time.
Check for gas leaks at all gas connections (using a gas detector, never a flame).
Check oven bake and convection bakefunction.
18
FIRST USE
10. First Use
Conditio
ning the oven.
Conditioning will burn off any manufacturing residues and ensure that you get the best results right
from the start.
Follow these steps to condition your new stove’s oven:
1. Insert all the s
helves. See ‘Positioning the shelves’ for instructions.
2. Turn on the ventilation hood above your range on high.
3. Heat the empty oven at the highest temperature for:
a. 30 minutes using BAKE
b. 30 minutes using BROIL (some ovens only).
4. There will be a distinctive smell while you are conditioning the oven. This is normal, but make sure the
kitchen is well ventilated during the conditioning.
5. Once cooled, wipe out the oven with a damp cloth and mild detergent, and dry thoroughly.
6. Positioning the shelves
7. Both the sides panel and shelves with safety stop to keep them sliding out of the oven when pulled
forward;
8. And the front stop prevents the shelves from against hitting the back of the oven
11. C
OOKTOP SAFETY GUIDELINES
There are dual burners have the same low turn-down setting (SIM) for gentle simmering (620 BTU/hr.).
Use the SIM setting for melting chocolate and butter, cooking rice and delicate sauces, simmering soups
and stews, and keeping cooked food hot.
Never leave the cook top unattended when in use. Boil over causes smoking and greasy spills
that may ignite.
Never allow flames to extend beyond cookware or curl up on sides. This could
discolor and damage the utensil and you may get burned touching the
hothandle.
19
COOKTOP SAFETY GUIDELINES
Keep han
dles out of the way. Turn handles so that they don’t extend over the edge of the range or on a
burner that is on.
Take care when deep-frying. Oil or fat can overheat very quickly, particularly on a high setting.
Make sure that all burner parts are properly in place. Incorrectly or incompletely assembled burners
may produce dangerous flames. See ‘Replacing the burner parts’ in ‘Care and cleaning’.
Keep the burners clean, especially after a spill or boil over, make sure you clean the affected burners
before using them again. Food residue may clog the ignite and the notches of the flame spreader,
stopping the burner from functioning correctly. See “Care and cleaning” for instructions.
Check that the burner flames. They should be blue with no yellow tipping, and burn without fluttering all
around the burner cap. If not, see ‘Troubleshooting’ for advice.

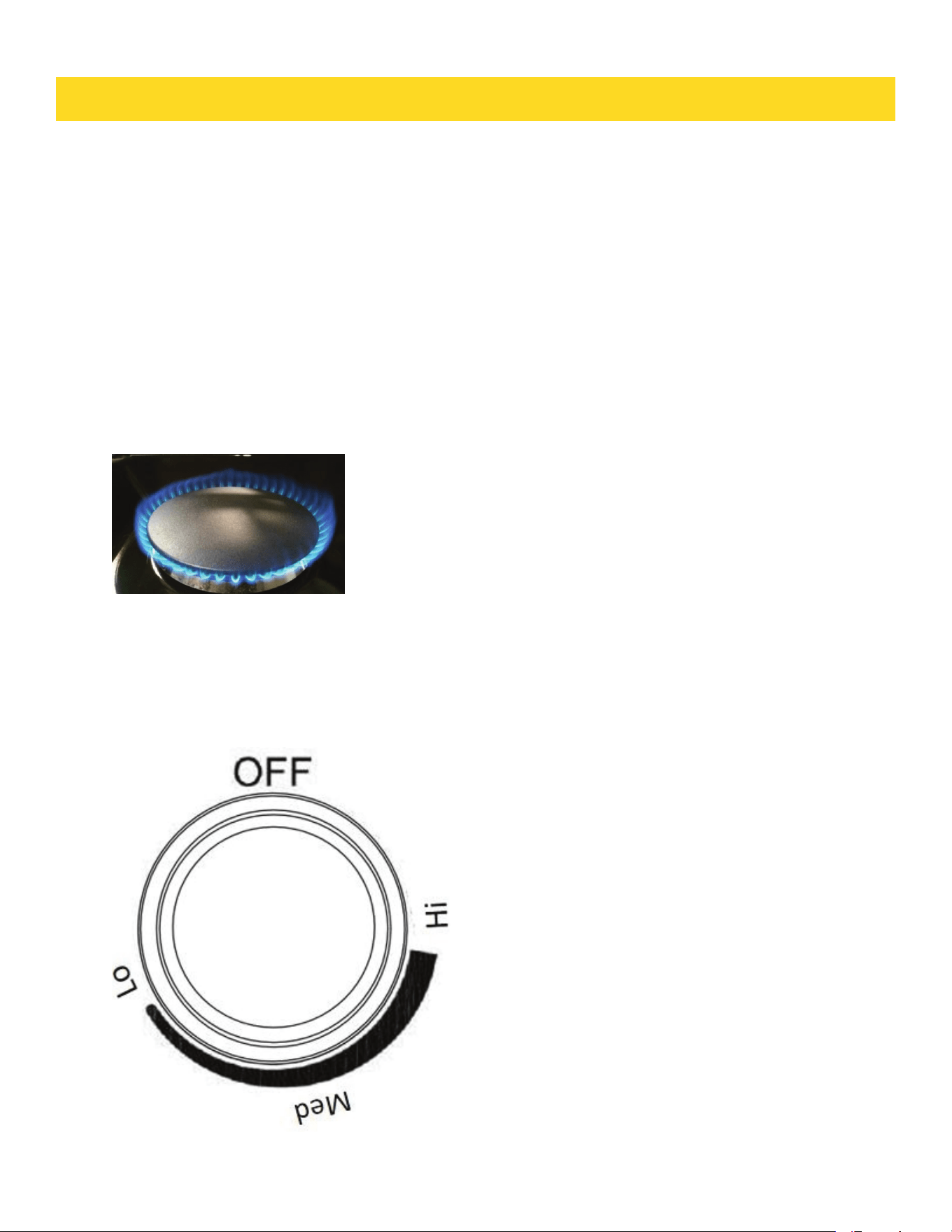

Surface Burner Ignition
To light the top burners, push and turn the
appropriate control knob counter clockwise to
the “Hi”or “Med” or “Lo” position. You will hear
a clicking noise – the sound of the electric spark
igniting the burner. Once burner ignition has been
achieved, then turn the burner control knob to
adjust the desired heat setting.
20
COOKTOP SAFETY GUIDELINES
NOTE: When one burner is turned to the “Hi” position, the burner igniters will park. Do not attempt
to disassemble or clean around any burner while another burner is on. Do not touch any
burner cap, burner base, or ignite while the igniters are sparking.
SIMMER AND BOIL
A smaller flame will give the best simmer results. Small flames offer precise cooking performance for
delicate foods, keeping food warm, melting chocolate or butter, and for cooking that need to cook over
low heat for a long time.
2The highest flame settings provides the maximum heat that is available on your range. This setting
should be used for heavy cooking loads such as water boiling or pastacooking.
FLAME SIZE
When you select the flame size, watch the flame when you turn the knob.
Any flame larger than the bottom of the cookware is wasted.The flame should be steady and blue in col-
or. Foreign material in the gas line may cause an orange flame during initial operation.
POWER FAILURE
If the gas does not ignite within four seconds, turn off the valve and allow at least five minutes for any
gas to dissipate. Repeat the lighting procedure.
If the power fails, it is not capable of being safely placed in operation and user that no attempt should be
made to operate during power failure.
COOKTOP
To prevent the cooktop from discoloring or staining, clean cooktop after each use, and wipe up acidic or
sugary spills as soon as the cooktop has cooled.
The sealed burners of your range are not sealed to your cooktop and are designed to be removed. Boil
overs or spills will not seep underneath the cooktop. The burners should be cleaned after each use.
21
BURNER GRATES
The grates must be properly positioned before cooking. Improper installation of the grates may result in
scratching of the cooktop and / or poor combustion.
Do not place water, ice, or any dish or tray directly on the oven floor, as this will irreversibly dam-
age the enamel.
Do not cover the slotted grid of the broil/roast pan with aluminum foil. This will catch the grease
and could cause fire.
Do not use plastic wrap or wax paper in the oven.
For food safety reasons, do not leave food in the oven for longer than two hours before and after
cooking or defrosting. This is to avoid contamination by organisms which may causefood poison-
ing. Take care duri
ng warmerweather.
NEVER USE THIS APPLIANCE AS A SPACE HEATER TO HEAT OR WARM THE
ROOM.DOING SO MAY RESULT IN CARBON MONOXIDE POISONING AND
OVERHEATING OF THE OVEN.
WARNING
COOKTOP SAFETY GUIDELINES
22
WARNING
WARNING
OPERATING THE OVEN
12. OPERATING THE OVEN
OVEN COOKING SAFETY GUIDELINES
Do not block the ducts on the rear of the range when cooking in the oven. It is important that the flow of
moist warm air from the oven and fresh air into the oven burner never be interrupted.
Avoid touching the vent opening or nearby surfaces during oven or broiler operation because they are
hot. Do not pace plastics, paper or other items that could melt or burn near the oven vent.
Use all the oven modes with the oven door closed.
Never use aluminum foil to cover the oven shelves or to line the floor of the oven. The trapped heat can
irreversibly damage the enamel and may even cause afire.
Do not place water, ice, or any dish or tray directly on the oven floor, as this will irreversibly damage the
enamel.
Do not cover the slotted grid of the broil/roast pan with aluminum foil. This will catch the grease and
could cause fire.
Do not use plastic wrap or wax paper in the oven.
For food safety reasons, do not leave food in the oven for longer than two hours before and after cooking
or defrosting. This is to avoid contamination by organisms which may cause food poisoning. Take care
during warmer weather.
According to the United Sates Department of Agriculture:DO NOT hold foods at temperatures between
40ºF to 140ºF more than 2 hours.Cooking raw foods below 275ºF is not recommended
.
NEVER cover any slots,holes or passages in the oven bottom or Cover an entire rack with materials such
as aluminum foil.Doing so blocks airflow through the oven and may cause carbon monoxide Poisoning.
Aluminum foil linings may also trap heat,causing a fire hazard.
23
OPERATING THE OVEN
OVEN FUNCTION

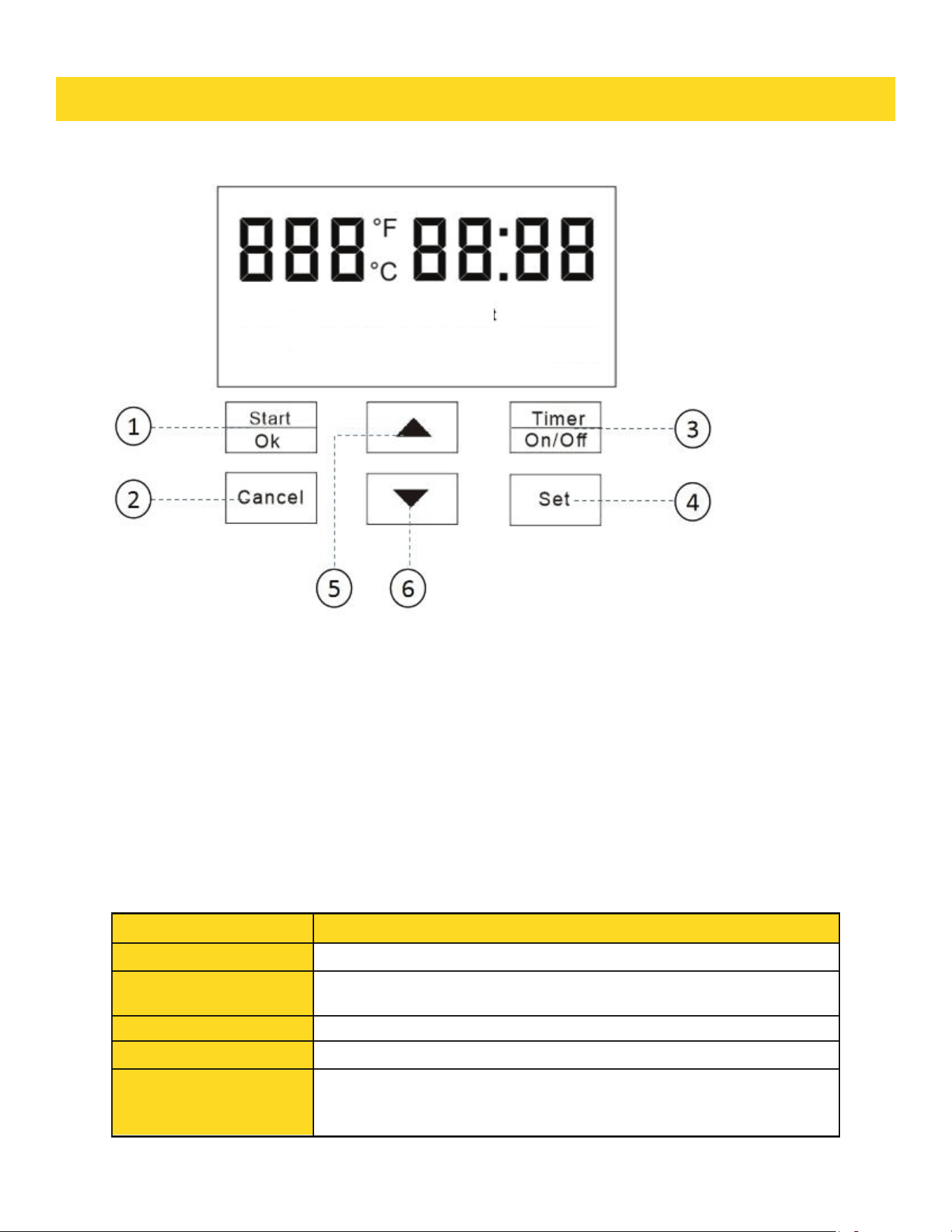

1. Start/OK: start oven cooking and confirm when setting;
2. Cancel:Exit or return to reset and exit work;
3. Timer On/Off:Set or cancel the kitchen timer;
4. Set:Using option settings;
5. Up button:Set options or move up or number to increase up;
6. Down button:Set options to move down or number to decrease;
USING THE OPTION FUNCTION
This function enables you to control various electronic control options. Refer to the following table for
available options.
The option menu is only available when the oven is not being used (not cooking).
24
Bake
Pizza
Conv. Bake Conv. Roast Cooktime
TimerWarm Broil
Options
Feature
Lets you program the oven control to display temperatures in
Fahrenheit or Celcius.
Lets you set the oven controls to operate silently.
Lets you correct the temperature in the oven.
This feaure automatically turns off the oven after 12 hours
during baking functions or after 3 hours during a broil
function.
1.
Temp Unit
2.
Sound On/Off
3.
Temp Adjust
4.
12 hour energy
saving.
OPERATING THE OVEN
Te
mp Unit
Using Temp Unit, you can switch the temperature units you want. How to turn temp unit:
1. Press or to select “TU”,and then press “Start/OK”
2. Press or to select “F”or “C”
3. Press “Start/OK” to save the changes.
Sound On/Off
Using Sound On/Off, you can set the oven controls to operate silent
ly. How to turn temp
unit:
1. Press or to select “Sou”,and then press “Start/OK”
2. Press or ro select “ON” or “OFF”
3. Press “Start/OK” to save the changes.
Temp Adjust
The temperature in the oven has been calibrated at the factory. When first using the
oven, be sure to follow recipe times and temperatures. If you think the oven is too hot or
too cool, you can correct the temperature in the oven. Before correcting, test a recipe by
using a temperature setting that is higher or lower than the recommended temperature.
The baking results should help you to decide how much of an adjustment is needed
.
The oven temperature can be adjusted ±30 °F . How to correct the oven temperature:
1. Press or to select “TEP”and then press “Start/OK”
2. Press or to select you want number,
3. Press “Start/OK” to save the changes.
NOTE:
This adjustment will not affect the broiling or the self-cleaning temperatures. The
adjustment will be retained in memory after a power failure.
12-hour energy saving
If you accidentally leave the oven on, this feature will automatically turn off the oven
after 12-hours during baking functions or after 3 hours during a broil function. (Default
setting : ON) How to turn the 12-hour energy saving feature on or off:
1. Press or to select “ENE” and then press “Start/OK”
25
OPERATING THE OVEN
2. Press or to select “On” or “Off”
3. Press “Start/OK” to save the changes.
Cooking Modes Bake
The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking
temperature and time will vary depending on the ingredients and the size and shape of the
baking pan used. Dark or nonstick coatings may cook faster with more browning.
How to set the oven for baking:
1. Press or to select “Bake”,and then press “Start/OK”
2. Press or to select the desired temperature,and then press “Start/OK”
3. Displays cooking time Settings,you can press or to select you want cooking
time.
4. Press “Start/OK”,or
do not set
cooktime directly press “Start/OK” and then the oven
will work on the maximum safe time, The temperature display will start to change
once the oven temperature reaches 100 °F (the actual oven temperature is displayed
when the remaining oven temperature is greater than 100°F)
5. Press “Start/OK” to save the changes.
6. If you want change the cooking time,Press “Cancel” to reset it,
7. If you want to cancel baking or if you have finished, press “Cancel” for 3 seconds,
or short press the “Cancel” button the oven will stop working and return to cook
Time setting to reset the time, 30 seconds without setting the oven to return to
standby.
NOTE
Place food in the oven after p
reheati
ng if the recipe calls for it. Preheating is very important for
good results when baking cakes,cookies, pastry, and breads. After the oven has reached the
desired temperature, the range will beep six times.
Conv Bake
The oven convection fan circulates and distributes the heat in the oven for faster and even
cooking. Convection cooking allows you to bake more items on multiple racks.
To bake using the convection fan:
1.Position the oven bottom cover and the oven shelves before using oven.
2.Remove any unused shelves and baking utensils from the oven.
3. Preheat the oven to the temperature stated in the recipe. Depending on the temperature and
the size o
f the ov
en, preheating will take around 15-20minutes.
4. Arrange pans and food items evenly on the shelves. Make sure pans do not touch each other
or the sides of the oven. When baking a single item, always center the item on the oven shelf.
If baking on multiple shelves, make sure you stagger items on the shelves so that one is never
directly above another.
5. When baking using convection, either reduce the temperature stated in the recipe and
leave the baking time unchanged, or reduce the baking time by several minutes and leave
the temperature unchanged. For foods with a baking time of over an hour, reducing both the
temperature and time slightl
y may give the best resul
ts.
26
6. Dark metal baking pans or those with a dull finish absorb heat faster than shiny pans, an
dare excellent for pies and breads, or anything that needs browning or a crisper crust.
7. A shiny finish may work best for foods that require lighter, delicate browning (e.g. cakes and
cookies), as it reflects some heat and gives a less intense baking surface.
8. Avoid opening the oven door frequently during baking.
How to set the oven for convection bake:
1. Press or to select “Conv Bake”,and then press “Start/OK”
2. Press or to select the desired temperature,and then press “Start/OK”
3. Displays cooking time Settings, you can press or to select you want cooking time
4. Pre
ss “Start/OK”,or do not set cooktime directly press “Start/OK” and then the oven will
work on the maximum safe time,The temperature display will start to change once the oven
temperature reaches 100 °F (the actual oven temperature is displayed when the remaining
oven temperature is greater than 100°F)
5. Press “Start/OK” to save the changes.
6. If you want change the cooking time,Press “Cancel” to reset it,
7. If you want to cancel convection baking or if you have finished, press “Cancel” for 3 seconds
or short press the “Cancel” button the oven will stop working and return to cooktime setting
to reset the time, 30 seconds without setting the oven to return to standby.
Conv Roast
For best res
ults
use the broiler pan. The pan is used to catch grease spills and has a cover to
prevent grease splatter.
The convection fan circulates heated air over the around the food being roasted, sealing juices
quickly for a moist and tender product while, at the same time, creating a rich golden-brown
exterior.
Use the broil/roast pan and slotted grid supplied with the range when roasting in order to
elevate the meat on a metal roasting rack. This allows hot air to circulate around the meat,
browning it more evenly like a rotisserie. A suitable roasting rack can be purchased through
your CRG by the distribute or Customer Care.
When roasting larger items like a whole turkey, use o
nly the pa
n and grid for greater stability.
How to set the oven for convection roast:
1. Press or to select “Conv Roast”,and then press “Start/OK”
2. Press or to select the desired temperature,and then press “Start/OK”
3. Displays cooking time Settings,you can press or to select you want cooking time
4. Press “Start/OK”,or do not set cooktime directly press “Start/OK” and then the oven will
work on the maximum safe time,The temperature display will start to change once the oven
temperature reaches 100 °F (the actual oven temperature is displayed when the remaining
oven temperature is greater than 100°F)
5. Press “Start/OK” to save the changes.
6. If you want change the cooking time,Press “Cancel” to reset it,
short press the “Cancel” button the oven will stop working and return to cookTime setting to
reset the time, 30 seconds without setting the oven to return to standby.
OPERATING THE OVEN
27
OPERATING THE OVEN
Pizza
The oven can be programmed to bake at any temperature from 175 °F to 550 °F. Baking temperature
and time will vary depending on the ingredients and the size and shape of the baking pan used. Dark or
nonstick coatings may cook faster with more browning.
How to set the oven for pizza:
1. Press or to select “Pizza”, and then press “Start/OK”
2. Press or to select the desired temperature, and then press “Start/OK”
3. Displays cooking time Settings,you can press or to select you want cooking
time.
4. Press “Start/OK”, or do not set the cooktime directly press “Start/OK” and then the
oven will work on the maximum safe time, The temperature display will start to
change once the oven temperature reaches 100 °F (the actual oven temperature is
displayed when the remaining oven temperature is greater than 100 °F)
5. Press “Start/OK” to save the changes.
6. If you want to change the cooking time, Press “Cancel” to reset it.
7. If you want to cancel pizza or if you have finished, press “Cancel” for 3 seconds, or
short press the “Cancel” button the oven will stop working and return to cookTime
setting to reset the time, 30 seconds without setting the oven to return to standby.
Warm
When cooking is finished, Keep Warm will hold the food at a safe serving temperature for up to 3 hours.
After 3 hours, the feature will shut off automatically. You can use the keep warm feature without any
other cooking operations, or you can set it to activate after a timed or delay timed cooking operation.
You should not use this feature to reheat cold food. How to set the oven for warm:
1. Press or to select “Warm,”,and then press “Start/OK”,Displays the default
temperature but cannot be set.
2. You can press or to select you want cooking time.
3. Press “Start/OK” to save the changes,or do not set cooktime directly press “Start/
OK” and then the oven will work on the maximum safe time.
4. If you want change the cooking time, Press “Cancel” to reset it.
5. If you want to cancel warming or if you have finished, press “Cancel” for 3 seconds,
or short press the “Cancel” button the oven will stop working and return to
cookTime setting to reset the time, 30 seconds without setting the oven to return to
standby.
Broil
Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven.
The high heat cooks quickly and gives a rich, brown outer appearance. Broil mode is best for meats, fish,
and poultry up to 1” thick.
Always preheat the oven for 5-10 minutes before broiling.
How to set the oven for broiling:
1. Press or to select “Broil,”,and then press “Start/OK”.
2. You can press or to select “Hi”or “Lo”.
3. Press “Start/OK” to save the changes.
4. If you want to cancel broiling , press “Cancel” for 3 seconds, or short press the “Cancel” button the
oven will stop working and return to select “Hi”or “Lo”, 30 seconds without setting the oven to return to
standby.
28
CLEANING INSTRUCTIONS
13. CLEANING INSTRUCTIONS
Do
Read these cleaning instructions and the ‘Safety and warnings’ section before you start cleaning your
range.
Before cleaning or removing any part, make sure that everything on the range has been turned off.
Unless suggested otherwise in the following chart, allow any part to cool to a safe temperature before
cleaning. If you do need to handle a warm or hot part (e.g. grill or griddle), take extreme care. Wear long
protective mitts to avoid burns from steam or hotsurfaces.
Try using any cleaner on a small area first, to ensure it does not stain.
See the pages following this chart for instructions on removing and replacing various partsof the ran
ge
for cleaning or maintenance.
To help you identify any parts, see illustrations in section ‘Introduction’ and after this cleaning chart.
Don’t
Do not use aerosol cleaners until the range has completely cooled. The propellant substance in these
cleaners could catch fire in the presence ofheat.
Do not let soiling or grease accumulate anywhere in or on the range. This will make future cleaning
more difficult and may present a firehazard.
Do not use any abrasive or harsh cleaners, cloths, scouring pads or steel wool. These will scratch your
range and damage itsappearance.
Do not use a steam cleaner to clean any part of therange.
Do not lift the black grill and griddle frames off the cooktop.
Cleaning Burner caps and flame spreaders
1. Check that the burner is turned OFF and allow it to cool. Lift off the burner cap and flame spreader.
Wash them in hot soapy water, rinse, and dry.
2. Use a stiff nylon brush or straight-ended paper clip to clear the notches of a flame spreader. Replace
the flame spreader and burner capcorrectly.
3. Before cleaning the cooktop, ensure that all burners are turned off and that all components are cool
enough to safely touch.
4. To avoid electrical shock or burns, turn off controls and ensure the cooktop is cool before cleaning.
29
5. Do not use harsh or abrasive cleaning detergents, waxes, polishes, or commercial
cooktop cleaners to clean the cooktop.
6. Use only a sponge, soft cloth, fibrous or plastic brush, and nylon pad for cleaning.
7. Always dry components completely before using thecooktop.
8. Control Panel, Door Handle, Control Housing
Clean the control panel, door handle and control housing with a solution of mild detergent and warm
water.
9. Do not use abrasive cleaners or scrubbers; they may permanently damage thefinish.
10. Dry the components with a soft, lint-free cloth.
Cleaning ovenshelves
1. To remove stubborn or ‘baked-on’ soiling, scrub with a dampened, soap-filled, non-
2. metal, non-abrasive pad, then wipe dry.
3. Apply a chrome cleaner with a damp sponge or cloth following
manufacturer’sinstructions.
4. Wipe and dry.
Cleaning broil/roast pan
Pre-soak any stubborn soiling in a solution of mild detergent and hot water.
Wash by hand or in a dishwasher.
Cleaning bake and broil burners
Do not clean these parts. They self-clean during normaluse.
Cleaning porcelain surfaces
Clean oven interior and inner door liners with a solution of mild detergents and hot water. Rinse and dry
with a soft, lint-free cloth. Do not use abrasives or commercial oven cleaners.
Cleaning the oven glass window
Clean all glass surfaces with a solution of mild detergent and hot water. Use a mild glass cleaner to
remove fingerprint or smears.
Dry completely with a soft, lint-free cloth.
CLEANING INSTRUCTIONS
30
CLEANING INSTRUCTIONS
CLEANING THE OVEN DOOR GASKET
Avoid cleaning this part. If you need to remove large food particles off it, proceed as follows:
1. Dampen a sponge with clean hot water.
2. Gently wipe off the soiling, but do not rub.
3.Press a dry towel gently on the gasket to dry.
Do not use any cleaning detergents on the gasket. The gasket is essential for a good seal.
CAUTION: Do not scratch, displace, or damage it.
CLEANING STAINLESS STEEL SURFACES
Do not use any cleaning product with chlorinebleach.
Do not use a steel wool pad; it will scratch thesurface.
Use a hot, damp cloth with a mild detergent.
Use a clean, hot, damp cloth to remove soap. Dry with a dry, cleancloth.
31
REMOVING AND REPLACING THE OVEN DOOR
14. REMOVING AND REPLACING THE OVEN DOOR
Do not lift the oven door by its handle. Doing so may damage the door. Make sure the oven and the door
are cool before you begin to remove the door.
IMPORTANT
Before removing the door, make sure there is a large enough clear, protected surface in the kitchen to
rest the door on.
The oven door is heavy!

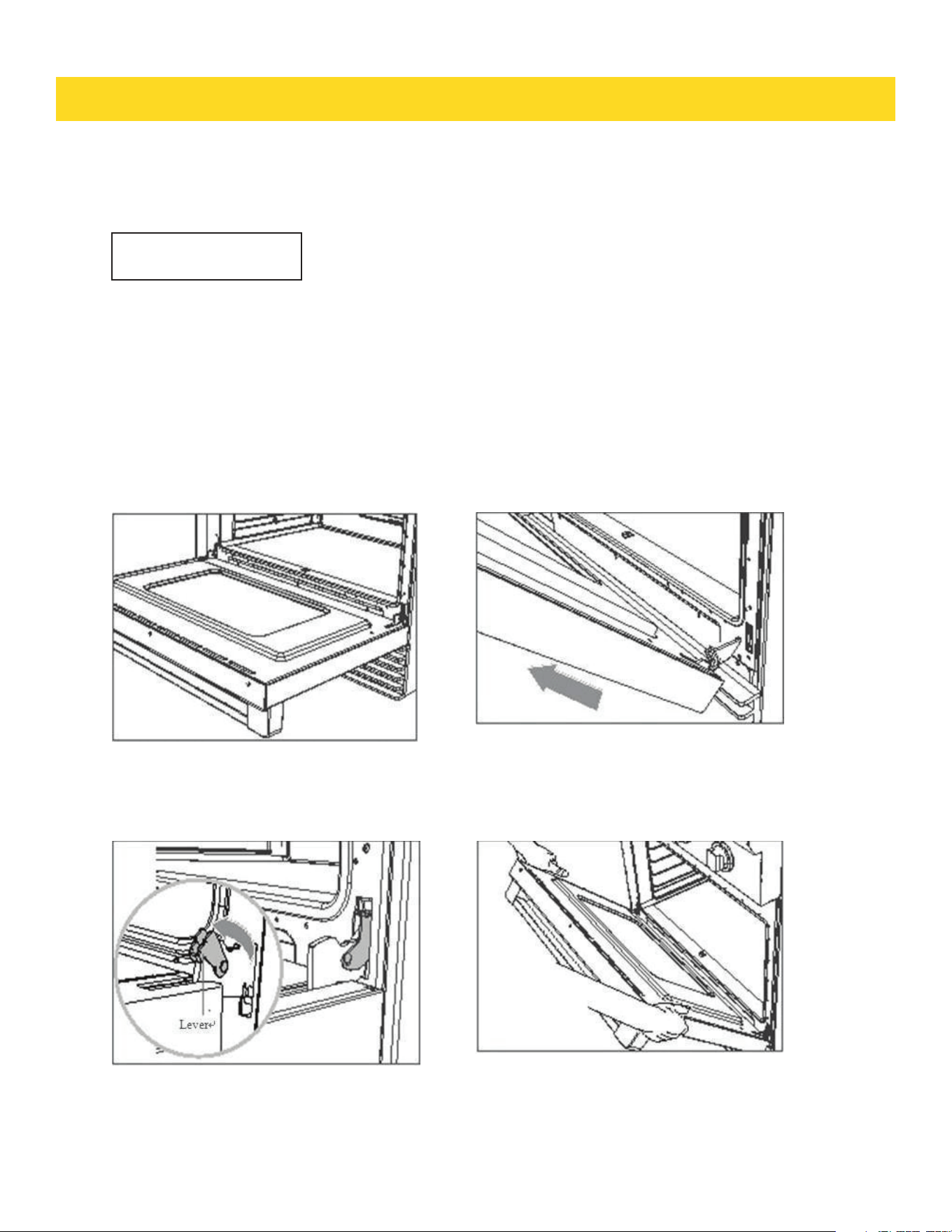

REMOVING THE OVEN DOOR
1. Open the door very carefully
2. Open the levers fully on bothsides.
3. Holding the door firmly on bothsides.
4. Disengage the hinges and remove the
gently close it about halfway. door, place on
a protected surface.
32
REMOVING AND REPLACING THE OVEN DOOR

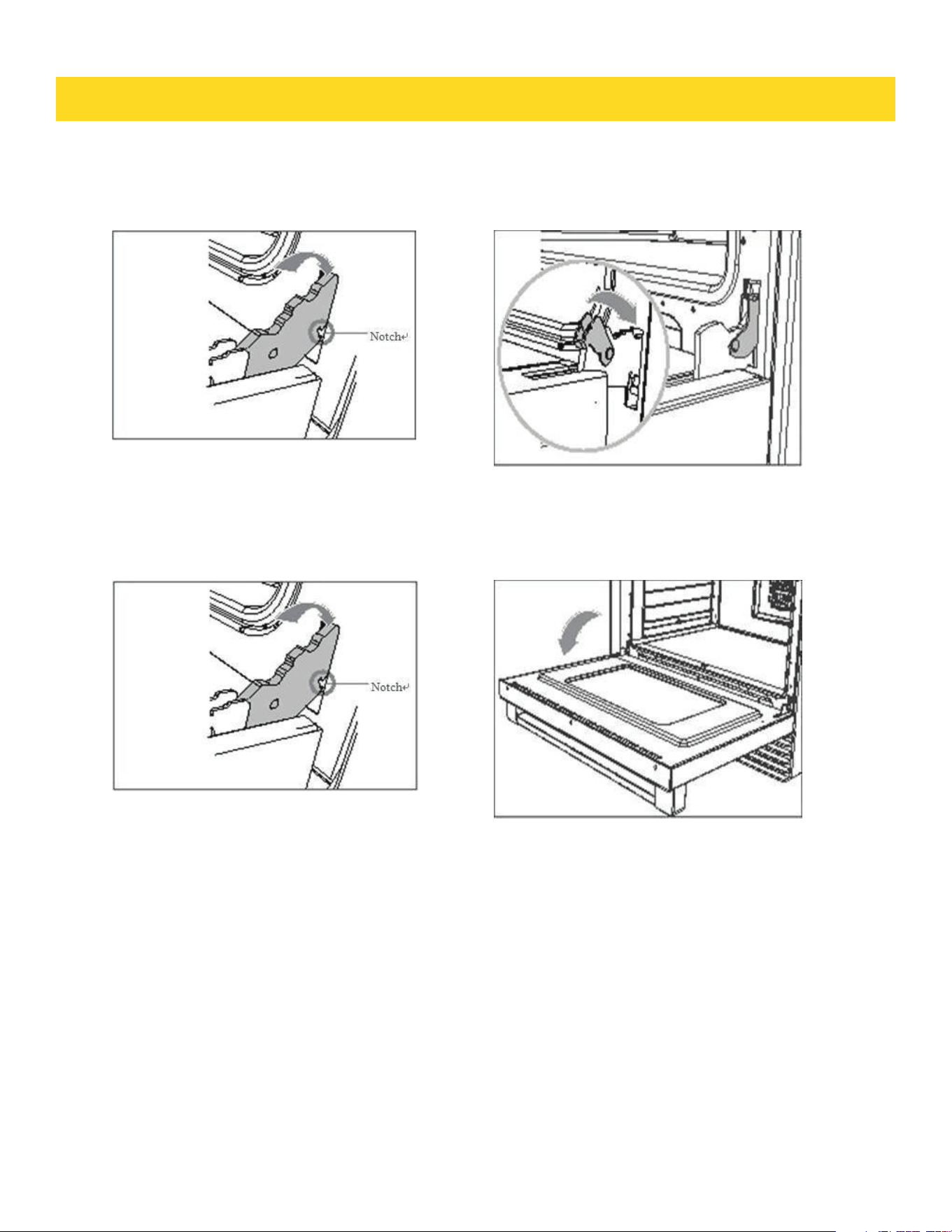

REPLACING THE OVEN DOOR
1. Hold the door firmly in an approximately
open position.
2. Insert the hinge tongues into the
slots making sure that the notches on
bothsides drop into place as shown.
3. Open the door fully as shown,
4. Fully close the levers on the left and
right hinges, as shown, then close the
door.
33
TROUBLESHOOTING GUIDE
15. Troubleshooting Guide
If you can’t find an answer to your problem in the chart below, or if the problem cannot
be fixed, you will need technical help. Contact your Authorized Service Center orCus-
tomer Care.
COOKTOP
Some burners will not
light.
Flames do not burn all
around the burner cap.
Burner flames very large and
yellow.
Sparking but no flame
ignition.
Igniters spark
continuously after
flame ignition.
Burner flame goes out
at low setting.
Bur
ner parts or igniters may be
wet, dirty, or misaligned.
Burner bezel ports are clogged.
Burner ports or burner caps are
not positioned properly. Cooktop
is being operated with the wrong
type of gas. Regulator is not
installed, is faulty, or is set for
the wrong type of gas.
Gas shut-off valve is in the ‘OFF’
position.
Power supply polarity is
reversed. Igniters are wet or
dirty.
Low gas supply pressure. Air
intake holes around knobs are
obstructed.
Check that the burner parts are
clea
n, dry, and correctly assembled.
Check that the igniters are clean
and dry. See ‘Care and cleaning’ for
instructions.
Clean burner bezel ring ports with
straightened paper clip, needle, or
wire. Remove and carefully re-install
burner bezel and caps.
Ensure that the type of cooktop
matches the natural gas supply.
Check installation, replace regulator,
or set regulator for proper gas.
Turn shut-off valve to the ‘ON’
position.
Have polarity corrected. Dry or
clean igniters.
Contact gas company. Remove
obstruction.
Problem Probable Causes What To Do
34
The flames have
suddenly gone out.
There is a power
failure – can I still
use the cooktop
burners?
A draft or a spill has
extinguished the flame.
Power outage in your
area.
No action required. The burn-
er will detect this and auto-
matically relight. However,
if there has been a large spill,
we recommend turning the
burners off and cleaning the
burners and sump area. See
‘Care and cleaning’ for in-
structions
The cooktop burners can still
be used. To light them:
Holding a lighted match to the
flame spreader, push in on the
control knob and turn coun-
terclockwise to LITE.
When the flame is burning all
the way around the burner,
you m
ay adjust the heat.
Important!
If the flame is blown out
during a power failure, turn
the knob immediately to OFF,
as the burner will not auto-
matically relight and gas may
escape.
35
TROUBLESHOOTING GUIDE
OVEN
The oven doesn’t work (no
heating).
One of the oven lights does
not come on, but the oven
works.
Condensation around oven
(e.g. on control panel or top
of oven door.)
Steam coming from oven
vents at the back of the
range.
The convection fan does not
come on in a CONVECTION
mode.
No power supply (oven light and halos do
not come on either).
No gas supply (gas ovens).
The light bulb is loose. The light bulb has
blown.
Food has high moisture content or local
climate (temperature, humidity) is con-
tributing to condensation.
Moisture from food evaporating during
cooking.
Technical fault.
Check that the circuit breaker hasn’t tripped
and there is no power outage in your area. If
there
is a power outage, you cannot use the
oven until power has been restored.
The supply to the house may notbe working
or there may be anoutage. Contact your local
gas supplier.
See instructions for ‘Replacing the oven light bulb’ in
section ‘Care and cleaning’. Instead of replacing the
bulb, simply ensure that it is secure in its socket.
Replace the bulb. See instructions for ‘Replacing the
oven light bulb’ in section ‘Care and cleaning.’
Condensation is normal. You can wipe the
drops off the control panel. If there is fre-
quent or excessive condensation, make sure
that cabinetry around the range is mois-
ture-proofed.
This is normal, especially if you are cooking
large quantities of food in the oven using
a
CONVECTION mode.
Contact your Authorized Service Center or
Customer Care.
Problem Probable Causes What To Do
TROUBLESHOOTING GUIDE
36
TROUBLESHOOTING GUIDE
Oven will not heat
Foods over-cooked
or under-cooked.
“Cracking” or “
Popping” sound.
There is a power
failure – can I still
use the oven?
Oven settings are not
corrected.
Incorrect cooking time or
temperature.
This is the sound of metal
heating and cooling.
Power outage in your home
or neighborhood.
Follow mode selection and
clock settings as specified
in Oven Operation section
of the manual.
Adjust time, temperature,
or rack position.
This is normal.
The oven cannot be used
until power is restored.
Information code
E0
E2
E3
E5
Oven NTC sensor is faulty
PBC ambient temperature detection circuit fault
Oven not heating
Over Temperature
NOTE
P
to
your range for at least 30 seconds, then reconnect the power. If this does not solve the
problem, call for service.
37
E09
E10
E15
E17
CPU clock frequency deviation
CPU chip internal system fault
PCB over temperature
Cooling fan hall sensor error
16. Warranty & S
ervice
This product has been manufactured by Thor International, 4651 E Airport Drive, California 91761
For Customer Service, please call (877) 288 - 8099
For the most up to date warranty and service policy, please refer to our website WWW.
THORKITCHEN.COM/WARRANTY-REGISTRATION
For in-warranty service requests, please visit our website at WWW.THORKITCHEN.COM/
SERVICE
Please Note: You must provide proof of purchase or installation date for any in-warranty
service requests
WARRANTY
38
APPENDIX 1

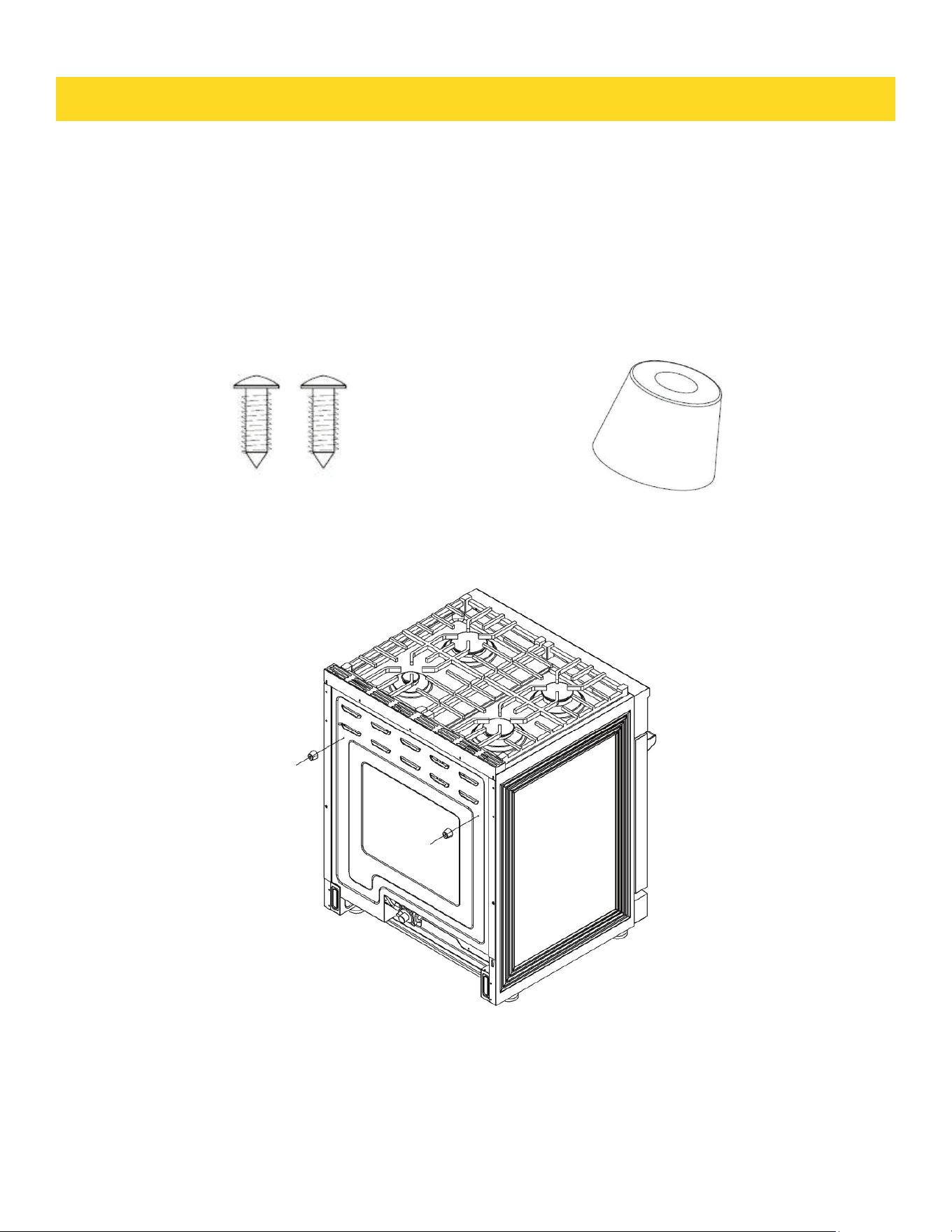

Rubber Pad Installation on Back Panel
In order to meet the requirement for the clearance for the back of you Thor Kitchen
Range, please install 2 pcs Rubber Pad provided in the manual package. Please find
the accessories and follow the below steps:
1. check the installation kit included in the manual package;
2* screws
2* rubber pad
2. Install 2 pcs rubber pad shown above
39
WARRANTY REGISTRATION
Scan theQR code or visit
thorkitchen.com/warranty
Input your product info
and select register
You’re done.
Let’s get cookin’.
You chose THOR Kitchen to enhance your culinary journey and
we’re stoked to have you in the club. Think of it as a secret
society of really savvy people, such as yourself, choosing
professional power and performance at an affordable price.
Register your product by following the steps below.
WELCOME
TO THE CLUB
WARRANTY NEED PARTS?
