Table of contents
3
EN
1 Description 12
1.1 General Description 12
1.2 Available accessories 13
2Use 14
2.1 Using the accessories 15
2.2 Using the cooktop 15
3 Cleaning and maintenance 18
3.1 Cleaning the cooktop 19
WARNING
Never Operate the Top Surface Cooking Section of this Appliance
Unattended.
• Failure to follow this warning statement could result in fire, explosion,
or burn hazard that could cause property damage, personal injury,
or death.
• If a fire should occur, keep away from the appliance and immediately
call your fire department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH
WATER.
We recommend that you read this manual carefully as it contains all the information you
need to maintain the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
Instructions
4
Important Note to the Customer • Read all instructions before using
this appliance.
• Do not attempt to install or
operate your appliance until you
have read the safety precautions
in this manual. Safety instructions
throughout this manual are
identified by a WARNING or
CAUTION statement, depending
on the type of risk.
• Warnings and important
instructions appearing in this
guide are not meant to cover all
possible conditions and situations
that may occur. Common sense,
caution, and care must be
exercised with installing,
maintaining or operating your
appliance.
• Keep these instructions with your
owner's guide for future
reference.
Definitions
• This manual contains important
safety symbols and instructions.
Please pay attention to these
symbols and follow all instructions
given.
WARNING
Failure to follow the instructions in
this manual may result in fire or
explosion, causing property
damage, personal injury or loss of
life.
FOR YOUR SAFETY
• Do not store or use gasoline or
other flammable vapors, liquids
or materials near this or any
other appliance.
WHAT TO DO IF YOU SMELL
GAS
• Do not try to light any
appliance.
• Do not touch any electrical
switches.
• Do not use any telephones in
your building.
• Immediately call your gas
supplier from a neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas
supplier, call the fire
department.
• Installation and service must be
performed by a qualified
installer, service company or
gas supplier.
WARNING
This symbol will help alert you to
situations that may cause serious injury
death or property damage.
Instructions
5
EN
Unpacking and installation
• Remove all tape and packaging
before using the appliance.
Dispose of the packaging after
unpacking the appliance. Never
allow children to play with
packaging material.
• Remove all temporary labels from
the cooktop.
• Record the Model and Serial
number on Page 2 of this booklet.
The Model and Serial numbers
are on the Cooker ID plate. The
plate is visibly located on the right
side of the oven doorframe. THE
ID PLATE MUST NOT BE
REMOVED.
• Do not leave the packing
materials around the home. Sort
the various items of waste and
take them to the nearest
specialized waste collection
facility.
• Never modify or alter the
appliance.
• Cold temperatures can damage
the electronic control. If this
appliance has not been used for
a long time, make sure that it has
been stored at temperatures
above 32°F (0°C) for at least
3 hours before turning the power
on.
• Be sure to have an appropriate
foam-type fire extinguisher
available, clearly visible and
easily accessible located near
the appliance.
• All materials used to make
cabinets, enclosures, and
supports surrounding the product
must have a temperature rating of
above 200°F (94°C).
Grounding instructions
• Fire or electrical shock hazard.
• Failure to follow these instructions
may result in electrical shock or
other personal injury.
• Do not use an adapter.
• Do not use an extension cord.
• Installation must conform with
local codes or, in the absence of
local codes, with the National
Fuel Gas Code, ANSI Z223.1/
NFPA 54 or, in Canada, the
Natural Gas and Propane
Installation Code, CSA B149.1.
CAUTION
This symbol will help alert you to
situations that may cause injury or
property damage.
Instructions
6
• For appliances equipped with a
cord and plug, do not cut or
remove the ground prong. It must
be plugged into a matching
grounding type receptacle to
avoid electrical shock, fire,
serious injury, or death. If there is
any doubt as to whether the wall
receptacle is properly grounded,
the customer should have it
checked by a qualified
electrician.
• The appliance must be electrically
grounded in accordance with
local codes or, in the absence of
local codes, with the National
Electrical Code, NFPA 70 latest
edition or, in Canada, the
Canadian Electric Code, CSA
C22.1-02.
• Install only as per the installation
instructions provided in the
documentation received with this
appliance.
• It is the personal responsibility of
the consumer to have the
appropriate outlet or junction box
with the correct, properly
grounded wall receptacle
installed by a qualified
electrician.
• It is the responsibility and
obligation of the consumer to
contact a qualified installer to
ensure that the electrical
installation is suitable and in
conformance with all local codes
and ordinances.
• See the installation instructions
provided with this appliance for
complete installation and
grounding instructions.
Instructions for using the appliance
• Flammable materials should not
be stored near surface burners or
heating elements. This includes
paper, plastic, and cloth items,
such as cookbooks, plasticware
and towels, as well as flammable
liquids.
• Do not store explosives, such as
aerosol cans, on or near the
appliance.
• DO NOT LEAVE CHILDREN
UNATTENDED: Children should
not be left alone or unattended in
the area where the appliance is
being used. Never allow children
to sit or stand on any part of the
appliance.
Instructions
7
EN
• Do not allow children to climb or
play around the appliance. The
weight of a child on an open
oven door may cause the
appliance to tip, resulting in
serious burns or other injury. An
open drawer when hot may
cause burns.
• Do not attempt to repair or
replace any part of this appliance
unless specifically recommended
in this manual. All other servicing
should be done by a qualified
technician.
• DO NOT TOUCH THE
SURFACE BURNERS: Burners
may be hot even though they are
dark in color. During and after
use, do not touch areas near the
burners until they have had
sufficient time to cool. Do not
allow garments or any flammable
material to come into contact with
hot surfaces. If personal clothing
or hair catches on fire, drop to the
floor immediately and roll over to
extinguish the flames.
WARNING
Never leave children alone or
unattended in the area where an
appliance is in use. As children grow,
teach them the proper, safe use of all
appliances. Never leave the oven door
open when the cooker is unattended.
CAUTION
Do not store items of interest to children in
cabinets above a cooker or on the
backguard of a cooker - children
climbing on the cooker to reach items
could be seriously injured
WARNING
• DO NOT cover any slots, holes
or passages in the oven bottom
or cover an entire rack with
materials such as aluminum foil.
Doing so will block the airflow
through the oven and may cause
carbon monoxide poisoning.
Aluminum foil linings may also
trap heat, causing a fire hazard.
• DO NOT use this appliance as a
space or room heater. This can
cause carbon monoxide
poisoning and overheating of
the appliance.
• In case of fire or a gas leak, turn
off the main gas shutoff valve.
Instructions
8
• WEAR PROPER APPAREL: loose-
fitting or hanging garments should
never be worn while using the
appliance.
• DO NOT USE WATER ON
GREASE FIRES: Turn the
appliance off and smother the fire
with baking soda or use a dry
chemical or a foam-type
extinguisher.
• USE ONLY DRY POTHOLDERS:
Moist or damp potholders on hot
surfaces may cause burns from
steam. Do not allow potholders to
touch hot surface burners. Do not
use towels or other bulky cloth in
place of potholders.
• DO NOT HEAT UNOPENED
FOOD CONTAINERS: A buildup
of pressure can cause the
containers to burst.
• Electronic controllers can be
damaged by cold temperatures.
When using the appliance for the
first time, or if it has not been used
for a long time, make sure it has
been stored at temperatures
above 32°F/0°C for at least 3
hours before turning the power
on.
• Adjust the size of the surface
burner flame so that it does not
extend beyond the edge of the
pan. An excessively large flame is
hazardous.
• Do not use stove top grills on the
burner grates of sealed gas
burners. If you use a stove top grill
on a sealed gas burner, it will
cause incomplete combustion
and can result in exposure to
carbon monoxide levels above
allowable current standards.
• Know which knob controls each
surface burner. Place a pan of
food on the burner before turning
it on, and turn the burner off
before removing the pan.
• IMPORTANT: After a spill or
boilover, turn off the burner and
clean around it. After cleaning,
check that the burner functions
properly.
• Use the proper pan size. Select
utensils having flat bottoms large
enough to cover the surface
burner. If the pan is smaller than
the burner, part of the flame will
be exposed. This can cause
clothing to catch fire. Correct pan
size will also improve efficiency.
• To reduce the risk of burns,
ignition of flammable materials,
and spillage due to unintentional
contact with the utensil. The
handle of the utensil should be
positioned so that it is turned
inward and does not extend over
adjacent surface burners.
Instructions
9
EN
• Never leave the cooker
unattended when using high heat
settings. Boilover can cause
smoke and spattered grease can
ignite.
• Prevent aluminum foil from
contacting the heating elements.
• Not all types of glass, thermally
resistant glass-ceramic, ceramic,
earthenware, or other glazed
cookware are suitable for cooker
use. This type of cookware can
break with sudden temperature
changes. Use only on low or
medium heat settings in
accordance with the instructions
supplied by the manufacturer.
• Air curtains or other overhead
cooker hoods, which operate by
blowing air downwards onto a
cooker, shall not be used in
conjunction with gas cookers
other than when the hood and
cooker have been designed,
tested and listed by an
independent test laboratory for
use in combination with each
other.
• Do not use a Searing Grill on the
cooktop. The searing grill is not
designed for use on the cooktop.
Doing so may result in a fire.
• Do not use decorative surface
burner covers. If a burner is turned
on accidentally, the decorative
cover will become hot and
possibly melt. Touching the hot
covers may cause burns.
• The cooktop or burners may also
become damaged because the
covers may cause overheating.
Air will be prevented from
reaching the burner and cause
combustion problems.
• Always check that the controls are
in the "zero" (off) position when
the cooker is not in use.
• Use only pots or pans with
perfectly smooth, flat bottoms on
the cooktop burners. DO NOT
USE THE COOKTOP AS A
WORK SURFACE.
• Never allow garments,
potholders or other flammable
materials to come into direct or
indirect contact with burners until
they have completely cooled.
• Do not use a broiler pan without
its insert. The broiler pan and grid
allow dripping fat to drain and be
kept away from the high heat of
the broiler.
• Do not cover the broiler grid with
aluminum foil. Exposed fat and
grease could ignite.
Instructions
10
• In the event of an electrical power
outage, the surface burners can
be lit manually. To light a surface
burner, hold a lit match to the
burner head and slowly turn the
Surface Control knob to LITE. Be
careful when lighting surface
burners manually.
• Do not store or use gasoline or
other flammable vapors and
liquids near this or any other
appliance. Explosions or fires
could result.
• To eliminate the need to reach
over the surface burners, cabinet
storage space above the burners
should be avoided.
• BEFORE BAKING OR BROILING
FOR THE FIRST TIME, turn on the
broiler to burn off any dirt, oil or
grease left over from the
manufacturing process. Turn the
oven on and set to 450°F
(230°C) for 20 to 30 minutes,
then turn on the broiler for the
same amount of time.
Cleaning and maintenance
instructions
• Make sure that all range burner
controls are turned off and that the
cooktop is cool before using any
cleaning products. The chemicals
in these products can ignite in the
presence of heat or cause
corrosion of metal parts.
• DO NOT USE FLAMMABLE
PRODUCTS TO CLEAN THE
COOKER.
• ONLY QUALIFIED SERVICE
PERSONNEL SHOULD
PERFORM REPAIRS. Service
personnel must disconnect the
power supply before servicing this
unit.
• Make sure that your cooker is
properly secured and the anti-tip
device is correctly installed. Refer
to the instructions in the installation
manual.
• Unlike the standard gas cooker,
THIS COOKTOP IS NOT
REMOVABLE. Do not attempt to
remove the cooktop.
WARNING
Do not repair, replace or remove any
part of the appliance unless specifically
recommended in the manuals. Improper
installation, service or maintenance can
cause injury or property damage. Refer
to this manual for guidance. All other
servicing should be done by an
authorized service provider.
State of California Proposition 65
WARNING
Cancer or Reproductive Harm -
www.P65Warnings.ca.gov
Instructions
11
EN
This appliance has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 18 of the FCC rules (United
States) and ICES-001 (Canada).
These limits are designed to provide
reasonable protection against
harmful interference in a residential
installation. This unit uses and can
radiate radio frequency energy that
may interfere with radio
communications if not installed and
used in accordance with the
instructions manual. However, there
is no guarantee that interference will
not occur in a particular installation. If
this unit does cause interference to
radio or television reception, which
can be determined by turning the unit
off and on, the user is encouraged to
try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving
antennas.
• Increase distance between unit
and receiver.
• Connect the unit into an outlet or a
circuit different from the one to
which the receiver is connected.
How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instructions.
SAVE THESE INSTRUCTIONS
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Safety instructions
Advice/Information
Description
12

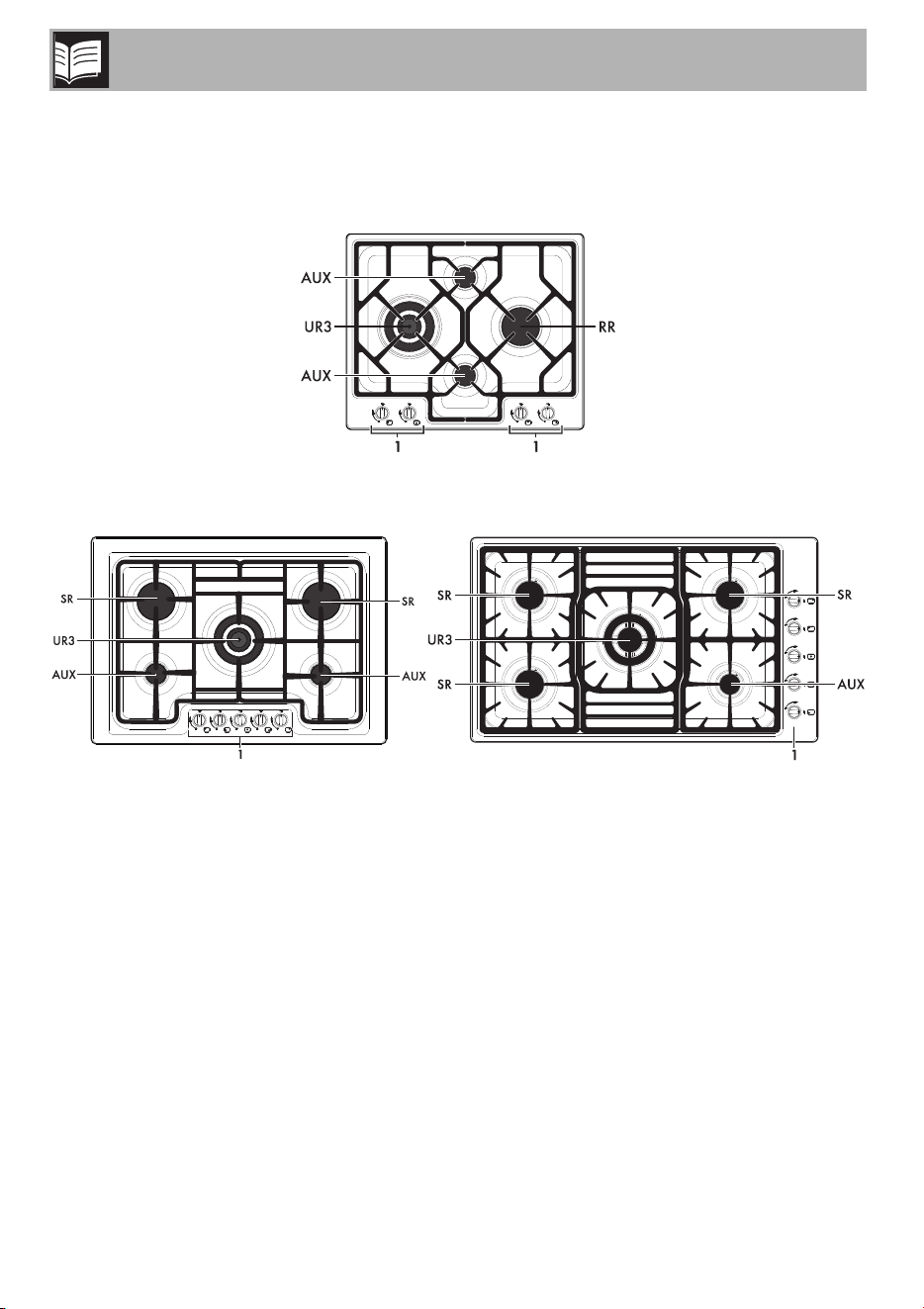

1 Description
1.1 General Description
1 = Control panel
AUX = Auxiliary burner
RR = Reduced rapid burner
UR3 = Ultra-rapid triple crown burner
SR = Semi-rapid burner
Description
13
EN
Cooking zone symbols
Front
Center right
Rear
Center left
Front right
Front left
Rear right
Rear left
Center
Burner knobs
Used for lighting and adjusting the burners.
Press and turn the knobs counterclockwise
to the value to light the respective
burners. Turn the knobs to the zone
between the maximum and minimum
settings to adjust the flame. Turn the knobs
back to the position to turn off the
burners.
1.2 Available accessories
Raised pan support
To be placed under the pans when they
exceed the diameter.
Use
14
2 Use
Instructions
A gas leak can cause an explosion.
If you smell gas or there are faults in the gas
system:
• Immediately turn off the gas supply or
close the valve on the gas cylinder.
• Extinguish all naked flames and
cigarettes.
• Do not turn on power switches or
appliances and do not remove plugs
from power sockets. Do not use phones
or mobile phones inside the building.
• Open the window in order to ventilate
the room.
• Call customer assistance services or your
gas supplier.
Malfunctions
Any of the following indicate a malfunction
and you should contact a service center.
• Yellowing of the burner plate.
• Damage to kitchen utensils.
• The burners do not ignite properly.
• It is difficult to keep the burners lit.
• The burners go out when the appliance
is in use.
• It is difficult to turn the gas valves.
If the appliance does not work properly,
contact your local Authorized Assistance
Center.
First-time use of the range
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove all labels (except for the
technical data plate) from the
accessories and from the body of the
appliance.
High temperature
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and grease could catch fire if
overheated. Be very careful.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Do not use spray aerosol products near
the appliance.
• Do not touch the burners when the
appliance is in use. Allow them to cool
before cleaning.
• Keep children under the age of 8 away
from the appliance when it is in use.
Improper use
Risk of damage to surfaces
• Do not use aluminum foil to cover the
burners or cooktop body.
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the cooktop.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the cooktop.
Use
15
EN
3. Remove and wash all the appliance
accessories (see 3 Cleaning and
maintenance).

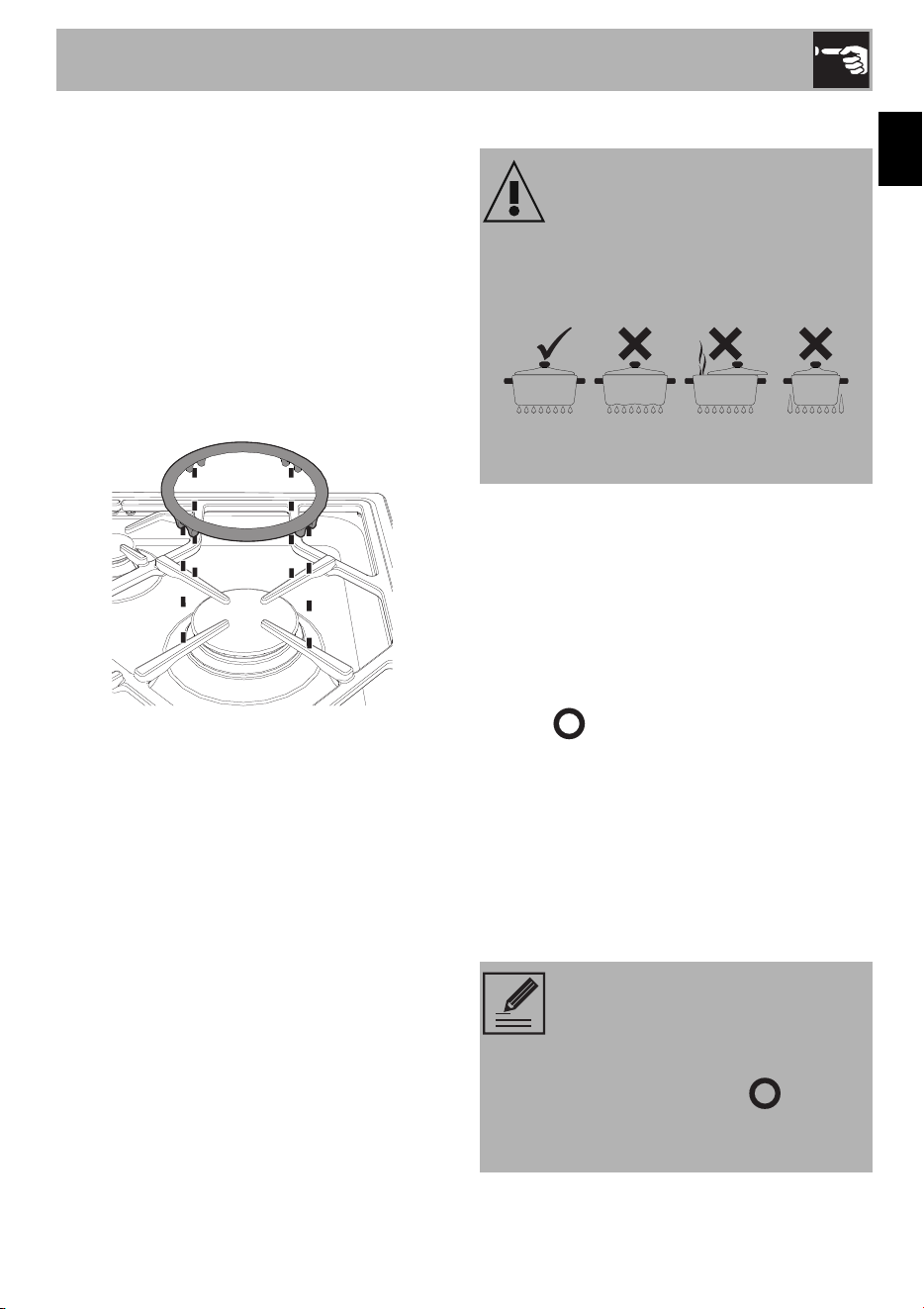

2.1 Using the accessories
Raised pan support
To prevent damage to the work surface, a
raised pan support is available to be
placed under the pans when they exceed
the diameters listed in the table “Practical
tips for using the cooktop”.
The pan support should be placed on the
grid as shown in the picture above.
In any case, pans larger than 28 cm (11”)
in diameter should only be used on the
Ultra-rapid burner (UR3).
This ring can also be used with woks.
2.2 Using the cooktop
All of the appliance's control and
monitoring devices are grouped together
on the front panel. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it
counterclockwise to the maximum flame
symbol until the burner lights. If the burner
does not light in the first 15 seconds, turn the
knob to and wait 5 minutes before
trying again. After lighting, keep the knob
pressed in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently. Wait a few moments and repeat
the operation. Keep the knob pressed in
longer.
WARNING
FIRE HAZARD
• For your safety: do not allow the burner
flame to extend beyond the edge of the
pan.
• Turn off all controls when the appliance
is not in use.
NOTE: If the burner is turned off
accidentally, a safety device is
activated that cuts off the gas
supply, even if the gas tap is open.
Turn the knob back to and wait
at least 60 minutes before lighting
it again.
Use
16

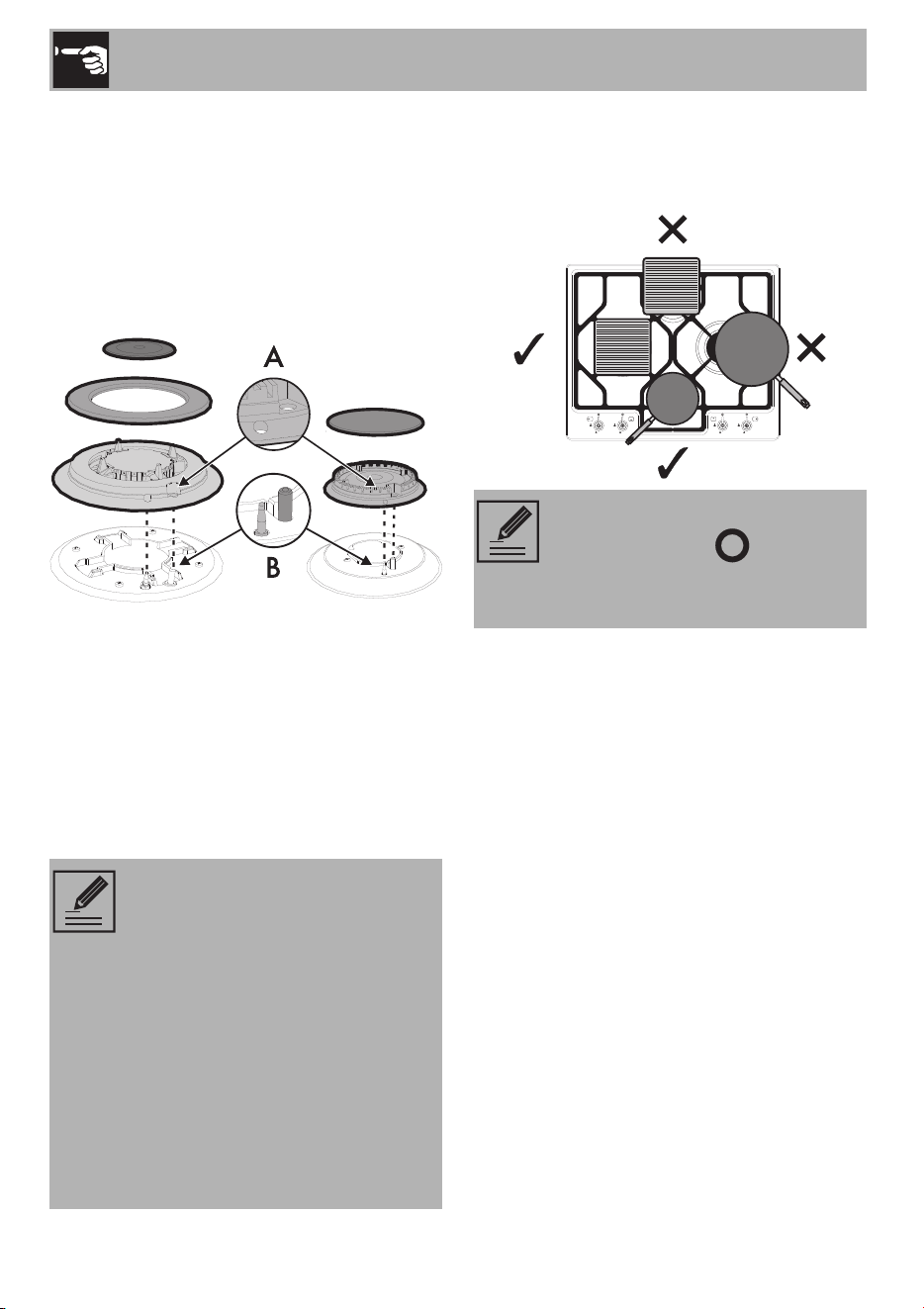

Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the burners, check that the
flame spreader crowns are correctly fitted
with their respective burner caps, making
sure that the holes (A) in the burner are
aligned with the igniters and thermocouples
(B).
Practical tips for using the cooktop
For better burner efficiency and to minimize
gas consumption, use pans with lids and of
suitable size for the burner so that the flames
do not reach up the sides of the pan. Once
the contents come to the boil, turn down the
flame far enough to ensure that the liquid
does not boil over.
To avoid burns or damage to the cooktop
or counter top, all cookware or griddles
must be placed within the perimeter of the
cooktop.
In the event of a power failure
In the event of a power failure, the burners
can be lit with a match. Press the control
knob for the selected burner and turn it
counterclockwise to the highest power
setting. Hold a lit lighter or match carefully
against the burner.
Cookware
Ideally, cookware should have a flat
bottom, straight sides, a tight-fitting lid and
medium-to-heavy thickness.
Rough cookware finishes may scratch the
appliance. Aluminum and copper may be
used in cookware as a core material or for
the base. However, when used as a base
they can leave permanent marks on the
appliance or grates.
Cookware properties are a factor in how
quickly and evenly heat is distributed, which
affects cooking results. A non-stick finish has
Cookware diameters:
AUX= 12-16 cm / 5-6”
RR= 18-24 cm / 7-9”
SR= 18-24 cm / 7-9”
UR3= 22-26 cm / 8-10”
Cookware diameters with raised
pan support
AUX= 16-26 cm / 6-10”
RR= 24-28 cm / 9-11”
SR= 24-28 cm / 9-11”
UR3= 26-34 cm / 10-13”
NOTE: Always check that the
controls are in the (off)
position when you have finished
using the appliance.
Use
17
EN
the same characteristics as its base material.
For example, a non-stick finish on aluminum
cookware will take on the properties of
aluminum.
Refer to the following chart as a guide to
the physical properties of cookware.
Aluminum
• Heats quickly and evenly.
• Suitable for all types of cooking.
• Medium or heavy thickness is best for
most cooking tasks.
Cast iron
• Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
Ceramic or glass-ceramic
• Follow the manufacturer’s instructions.
• Heats slowly but unevenly.
• Best results with low to medium heat
settings.
Copper
• Heats very quickly and evenly.
Earthenware
• Follow the manufacturer’s instructions.
• Use low heat settings.
Porcelain enameled steel or cast iron
• See stainless steel or cast iron.
Stainless steel
• Heats quickly but unevenly.
• Stainless steel cookware with an
aluminum or copper core or bottom
provides even heating.
Limitations on griddle use
A few precautions are necessary when
using a griddle:
• Griddles should not extend beyond the
perimeter of the cooktop.
• To avoid damaging the appliance and
the Teflon coating, aluminum griddles
with Teflon coating should not be
preheated for more than 5 minutes. After
preheating, place the food on the
griddle to cook; do not use the griddle
for more than 40 minutes.
• Do not use griddles or griddle plates to
cook or heat food on the ultra-rapid
burner (UR3).
• If one of the burners near the wooden
rear wall is an ultra-rapid burner (UR3),
leave a clearance of at least 160 mm
(6") between the wall and the edge of
the griddle.
• Do not allow the burner flames to extend
beyond the edge of the griddle.
• Leave a clearance of at least 160 mm
(6") between the edge of the griddle
and the side wall.
• Do not place the griddle over more than
one burner at the same time.
• Do not use the griddle for more than
40 minutes.
Cleaning and maintenance
18
3 Cleaning and maintenance
Instructions
Recommendations
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Regular daily cleaning
Always use only specific products that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfiber cloth.
Food stains or residues
Do not use metallic sponges or sharp
scrapers as they will damage the surfaces.
Use ordinary non-abrasive products with
the aid of wooden or plastic utensils if
necessary. Rinse thoroughly and dry with a
soft cloth or a microfiber cloth.
Cooktop grates
Remove the grates and clean them with
lukewarm water and non-abrasive
detergent. Take care to remove any
encrustations. Dry thoroughly and place
them back on the cooktop.
WARNING
ELECTRICAL SHOCK HAZARD
• Before servicing, disconnect the
appliance from the power supply.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on steel
parts or parts with metallic finishes on
the surface (e.g. anodizing, nickel- or
chromium-plating).
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the cooktop pan
support, flame spreaders and burner
caps in a dishwasher.
• Keep cooktop area clear and free from
combustible materials, gasoline other
flammable vapors and liquids.
• Do not obstruct the flow of combustion
and ventilation air.
NOTE: We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
19
EN

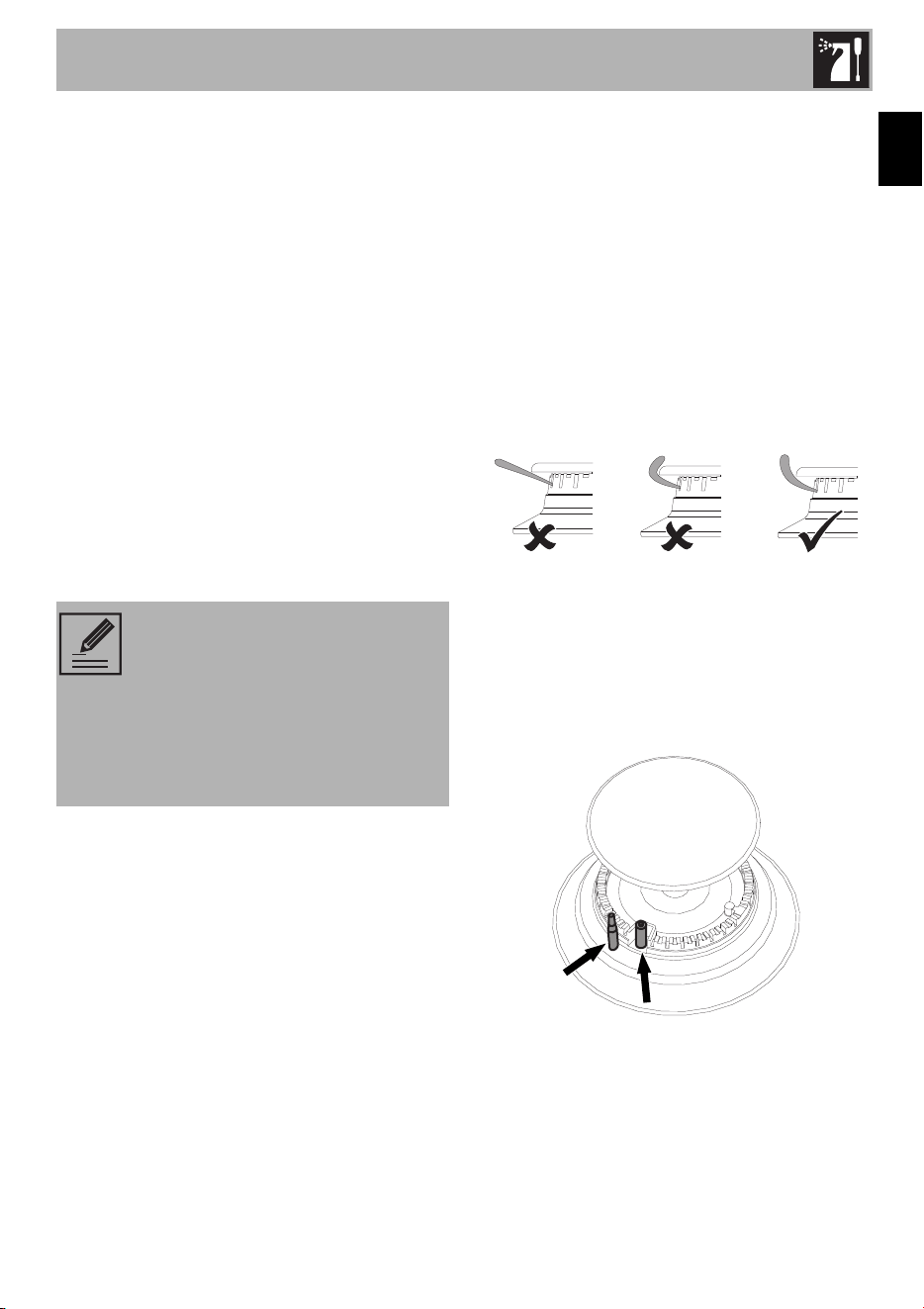

3.1 Cleaning the cooktop
1. Pour some non-abrasive detergent on a
damp cloth and wipe the surfaces.
2. Rinse thoroughly.
3. Dry with a soft cloth or a microfiber cloth.
Cleaning cooktop grates, flame-
spreader crowns and burner caps
1. Remove the components from the
cooktop.
2. Clean with lukewarm water and non-
abrasive detergent. Take care to remove
any encrustations.
3. Dry thoroughly with a soft cloth or a
microfiber cloth.
4. Replace the components on the cooktop.
Flame spreaders and burner caps
The flame spreaders and the burner caps
can be removed for easier cleaning. Wash
them in hot water and non-abrasive
detergent. Carefully remove any
encrustations and wait until they are
perfectly dry. Refit the flame spreaders,
making sure that they are correctly
positioned in their seats with their respective
burner caps.
Visually checking the pilot(s) and burner
flames.
Cleaning the igniters and thermocouples
• If necessary, clean the igniters and
thermocouples with a damp cloth.
• Remove any dry residue with a toothpick
or needle.
NOTE: Continuous contact
between the grates and the flame
can lead to the enamel becoming
modified on the parts exposed to
heat. This is normal and has no
effect on the operation of this
component.
Cleaning and maintenance
20
Knobs
The knobs should be cleaned with a soft
cloth dampened with warm water and then
carefully dried. The knobs can easily be
removed by pulling them upwards.
CAUTION: When cleaning the
knobs, do not use aggressive
products containing alcohol or
products for cleaning steel and
glass, as these products may
cause permanent damage.
