Sharp VL-A40U Liquid Crystal Camcorder User Manual

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Page

1. IMPORTANT SERVICE NOTES ......................................................................................................... 2

2. SPECIFICATIONS .............................................................................................................................. 5

3. PART NAMES AND FUNCTION ......................................................................................................... 6

4. DISASSEMBLY OF THE SET ............................................................................................................. 7

5. MECHANISM ADJUSTMENT ........................................................................................................... 13

6. ADJUSTMENT OF VCR AND CAMERA ........................................................................................... 25

7. SYSTEM BLOCK DIAGRAMS .......................................................................................................... 38

8. SCHEMATIC DIAGRAMS ................................................................................................................. 44

9. SEMICONDUCTOR LEAD IDENTIFICATION .................................................................................. 86

10.PRINTED WIRING BOARD ASSEMBLIES ....................................................................................... 88

11.REPLACEMENT PARTS LIST .......................................................................................................... 99

12.PACKING OF THE SET .................................................................................................................. 117

S30X3VL-A40U/

SERVICE MANUAL

LIQUID CRYSTAL CAMCORDER Hi 8 NTSC

CONTENTS

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

In the interests of user-safety (Required by safety regula-

tions in some countries) the set should be restored to its

original condition and only parts identical to those specified

be used.

MODELS

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

SERVICE MANUAL

LIQUID CRYSTAL CAMCORDER

NTSC

MODELS VL-A40U/A45U/AH50U/T/K/AH60U/K

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

1. IMPORTANT SERVICE NOTES

1. NOTES DE SERVICE IMPORTANTES

BEFORE RETURNING THE VIDEO CAMERA

RECORDER

Before returning the video camera recorder to the user,

perform the following safety checks.

1. Inspect all lead dress to make certain that leads are

not pinched or that hardware is not lodged between

the chassis and other metal parts in the video camera

recorder.

2. Inspect all protective devices such as non-metallic

control knobs, insulating materials, cabinet backs,

adjustment and compartment covers or shields, isola-

tion resistor/capacitor networks, mechanical insula-

tors etc.

3. To be sure that no shock hazard exists, check for

leakage current in the following manner.

· Plug the AC line cord directly into a 120 volt AC outlet

(Do not use an isolation transformer for this test).

· Using two clip leads, connect a l.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all

exposed metal cabinet parts and a known ground,

such as a water pipe or conduit.

· Use a VTVM or VOM with 1000 ohm per volt, or higher

sensitivity or measure the AC voltage drop across the

resistor (See Diagram).

· Move the resistor connection to all exposed metal

parts having a return path to the chassis (antenna

connections, metal cabinet, screw heads, knobs and

control shafts, etc.) and measure the AC voltage drop

across the resistor. Reverse the AC plug (a non

polarized adaptor plug must be used but only for the

purpose of completing these checks) on the set and

repeat the AC voltage measurements for each ex-

posed metallic part. Any reading of 0.45V rms (this

corresponds to 0.3mA rms AC.) or more is excessive

and indicates a potential shock hazard which must be

corrected before returning the video camera recorder

to the user.

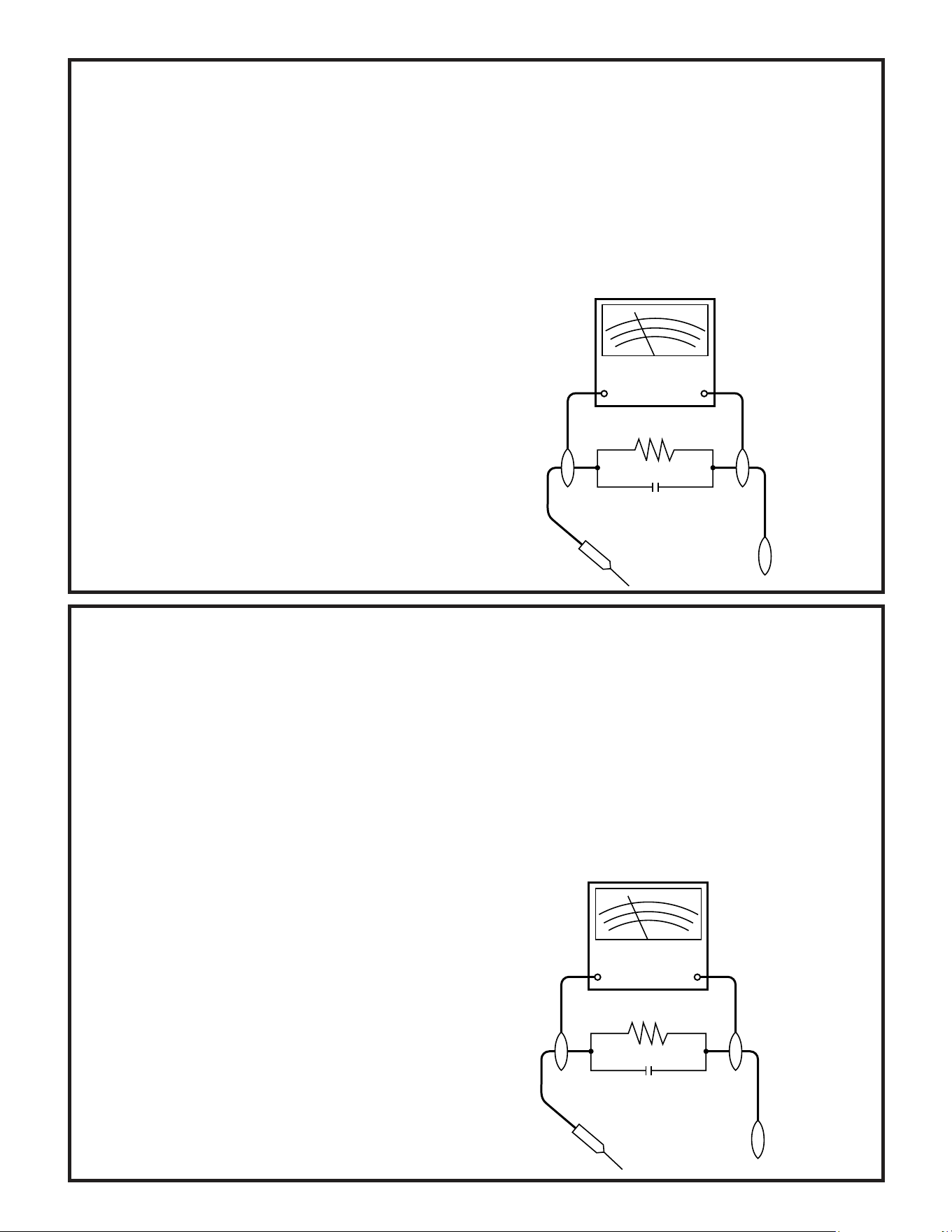

VTVM

AC SCALE

1.5k ohms

10W

CONNECT TO

KNOWN EARTH

GROUND

TO EXPOSED

METAL PARTS

0.15 µF

TEST PROBE

AVANT DE RENDRE LE MAGNETOSCOPE

Avant de rendre le magnétoscope à l’utilisateur, effectuer

les vérifications de sécurité suivantes.

1. Vérifier toutes les gaines de fil pour être sûr que les fils

ne sont pas pincés ou que le matériel n’est pas coincé

entre le châssis et les autres pièces métalliques dans le

magnétoscope.

2. Vérifier tous les dispositifs de protection tels que les

boutons de commande non métalliques, les matériaux

d’isolement, le dos du coffret, les couvercles de

compartiment et ajustement ou les boucliers, les

réseaux de résistance / condensateur d’isolement,

Ies isolateurs mécaniques, etc.

3. Pour être sûr qu’il n’y a aucun risque de choc électrique,

vérifier le courant de fuite de la maniére suivante.

· Brancher le cordon d’alimentation secteur directement

dans une prise de courant de 120 volts. (Ne pas

utiliser de transformateur d’isolement pour cet essai).

· Utiliser deux fils à pinces et connecter une résistance

de 10 watts 1,5 kohm en parallèle avec un

condensateur de 0,15 µF en série avec des pièces du

coffret métallique exposées et une masse de terre

connue telle qu’un tuyau ou un conduit d’eau.

· Utiliser un VTVM ou VOM avec une sensibilité de

1000 ohms par volt ou plus ou mesurer la chute de

tension CA entre la résistance (voir diagramme).

· Déposer la connexion de la résistance à toutes les

pièces métalliques exposées ayant un parcours de

retour au châssis (connexions d’antenne, coffret

métallique, tétes de vis, boutons et arbres de commande,

etc.) et mesurer la chute de tension CA entre la résistance.

Inverser la fiche CA (une fiche intermédiaire non polarisée

doit être utilisée à seule fin de faire ces vérifications.) sur

l’appareil et répéter les mesures de tension CA pour

chaque piéce métallique exposée. Toute lecture de

0,45 V rms (ceci correspond à 0,3 mA rms CA) ou plus

est excessive et signale un danger de choc qui doit être

corrigé avant de rendre le magnétoscope à son

utilisateur.

0.15 µF

SONDE D'ESSAI

VERS PIECES

METALLIQUES

EXPOSEES

VTVM

ECHELLE CA

1.5KOHMS

10W

CONNECTER A

UNE MASSE DE

TERRE CONNUE

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

WARNING :TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO WET LOCATIONS.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER. NO

USER·SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

This symbol mark means following.

For continued protection against fire haz-

ard, replace only with same type fuse.

(CP901; 2.5A 64V, CP902; 2.5A 64V,

CP903; 2.5A 64V)

Camcorder

only

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION: POUR REDUIRE LES RESQUES D'INCENDIE OU DE CHOC ELECTRIQUE,

NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L'HUMIDITE.

ATTENTION: AFIN DE REDUIRE LES RISQUES DE

CHOC ELECTRIQUE, NE PAS RETIRER LE

COUVERCLE, AUCUN ORGANE INTERNE

NE PEUT ETRE REPARE PAR

L'UTIUSATEUR, CONFIER L'APPAREIL A

UN DEPANNEUR QUALIFIE.

ATTENTION

Ce symbole signifie que l'on devra uti-

liser un fusible de même type (CP901;

2,5A 64V, CP902; 2,5A 64V, CP903;

2,5A 64V) pour assurer la sécurité.

This symbol alerts the user that there are

important operating and maintenance instruc-

tions in the literature accompanying this unit.

This symbol warns the user of uninsulated

voltage within the unit that can cause danger-

ous electric shocks.

Ce symbole signale à l'utilisateur la présence

d'une tension non isolée à l'intérieur de l'appareil

qui peut être la cause de secousses électriques

dangereuses.

Ce symbole avertit l'utilisateur que des in-

structions importantes relatives à l'utilisation

et àl'entretien se trouvent dans le manuel

accompagnant l'appareil.

Camcorder

seulement

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

CAUTION

This symbol mark means following.

"RISK OF FIRE–

REPLACE FUSE AS MARKED."

(F101; 2A 250V)

1.5A 250V

AC Adapter

only

ATTENTION

La signification de ce symbole est la

suivante.

"RISQUE D' INCENDIE – REMPLACEZ

LE FUSIBLE SELON L' INDICATION."

(F101; 2A 250V)

Adaptateur CA

seulement

1,5A 250V

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

The RBRCTM Seal

SHARP participates in the RBRCTM* Nickel-Cadmium Battery Recycling Program in the United

States. The RBRCTM Seal on our battery pack contained in our product indicates that SHARP is

voluntarily participating in an industry program to collect and recycle these batteries. The RBRCTM

program provides you with a convenient alternative to placing spent Nickel-Cadmium battery packs into

the trash or municipal waste stream, which is illegal in some areas. At the end of their useful life, the

Nickel-Cadmium battery can be dropped off at the nearest collection center for recycling. For information

on the nearest collection center, call 1-800-8-BATTERY or your local recycling center. If you are located

outside the United States, contact your local authorities for information concerning proper disposal and/

or recycling of this battery. SHARP’s involvement in this program is part of our commitment to protecting

our environment and conserving natural resources.

[Footnote] *RBRCTM is trademark of the Rechargeable Battery Recycling Corporation.

The following program is available in the United States. Please consult local environmental

authorities concerning the availability of this or other programs in your area.

CAUTION

BEFORE BATTERY DESTROY

NICKEL-CADMIUM BATTERY

NICKEL-METAL HYDRIDE BATTERY

Battery disposal

Contains the above (Rechargeable) Battery. must be recycled or disposed of properly.

Remove the Battery from the products and contact Federal or State Environmental Agencies for

information on recycling and disposal options.

SEALED LEAD BATTERY

LITHIUM or LITHIUM-ION BATTERY

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Signal System: NTSC standard

Recording System: 2 rotary heads, helical scanning system

Cassette: 8 mm video tape, MP type or Hi8 MP, ME type

Recording/Playback Time: 120 minutes (P6-120)

Tape Speed: 14.345 mm/second

Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor (with approx.

270,000 pixels including optical black)

Lens: 16 × power zoom lens (F1.4, f=4.0-64.0 mm), and full-range auto focus

Lens Filter Diameter: 46 mm

Monitor: VL-A40U/A45U/AH60U/K : 3.5" (8.8 cm)

VL-AH50U/T/K : 3" (7.5 cm) full-color LCD screen (TFT active matrix)

Microphone: Electret monaural microphone

Color Temperature Compensation: Auto white balance with white balance lock

Minimum Illumination: 0.8 lux (5 lux measured by EIA standard )(with gain-up, F1.4)

Video Output Level: 1.0 Vp-p 75-ohm unbalanced

Audio Output Level: –8 dBs, impedance less than 2.2 kohms

Speaker Output: 200 mW

Power Requirement: DC 3.6V (with battery pack)

DC 7.0V (with AC adapter)

Power Consumption: VL-A40U/A45U/AH60U/K :

5.2W

VL-AH50U/T/K : 5.1W

(during camera recording in full auto mode with

zoom motor off and backlight in normal mode)

Operating Temperature: 0°C to + 40°C(32°F to 104°F)

Operating Humidity: 30% to 80%

Storage Temperature: –20°C to +60°C(–4°F to 140°F)

Dimensions (approx.): 7

" (W) × 4

" (H) × 3

" (D)

[183 mm (W) × 109 mm (H) × 99 mm (D)]

Weight (approx.): VL-A40U/A45U/AH60U/K : 1.55 lbs (705g)

VL-AH50U/T/K : 1.54 lbs (700g)

(without battery pack, lithium battery, video cassette, and lens cap)

2. SPECIFICATIONS

SERVICE INFORMATION (For the U.S.)

For the location of the nearest Sharp Authorized Service, or to obtain product literature, accessories,

supplies or customer assistance, please call 1-800-BE SHARP (1-800-237-4277) or visit SHARP's

website (http://www.sharp-usa.com)

Battery Pack BT-H22

DC Output: 3.6V

Dimensions (approx.): 2

" (W) ×

" (H) × 2

" (D)

[54 mm (W) × 19 mm (H) ×

56 mm (D)]

Weight (approx.): 0.30 lbs (136 g)

AC Adapter/Battery Charger

UADP-0312TAZZ

(VL-A40U/A45U/AH50U/UC/T/AH60U)

UADP-0316TAZZ

(VL-AH50K/AH60K)

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 7.0 V

Power Consumption: 15 W

Dimensions (approx.): 2

"(W) × 1

"(H) × 5

"(D)

[68 mm (W) × 37 mm (H) × 137

mm (D)]

Weight (approx.): 0.68lbs (308 g)

Specifications are subject to change without notice.

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

3. PART NAMES AND FUNCTION

For details on the use of each control.

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

4. DISASSEMBLY OF THE SET

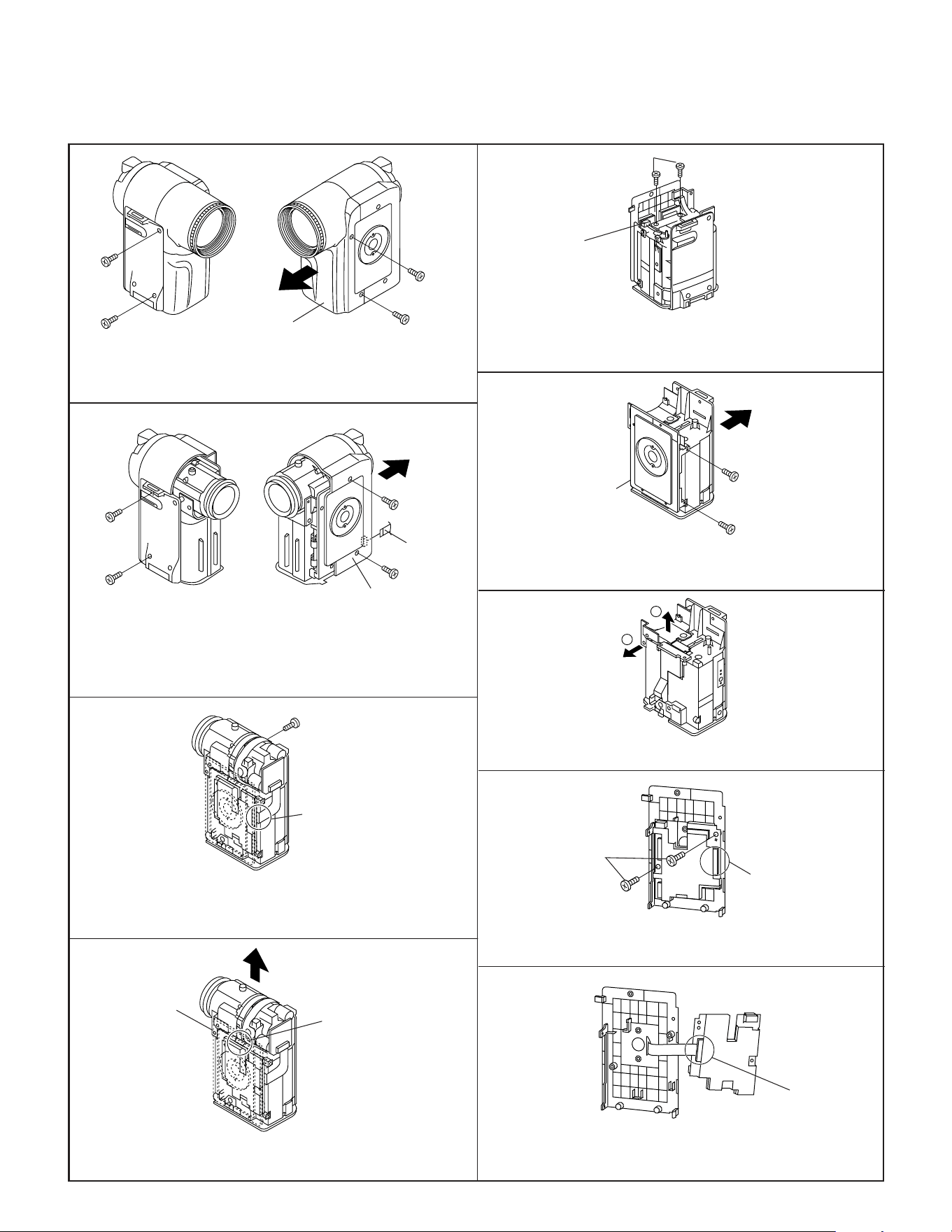

4-1. REMOVAL OF THE CAMERA SECTION

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.

Pull out

Lens connector

(d)

(b)

Pull out

(a)

(1)

Camera front cabinet

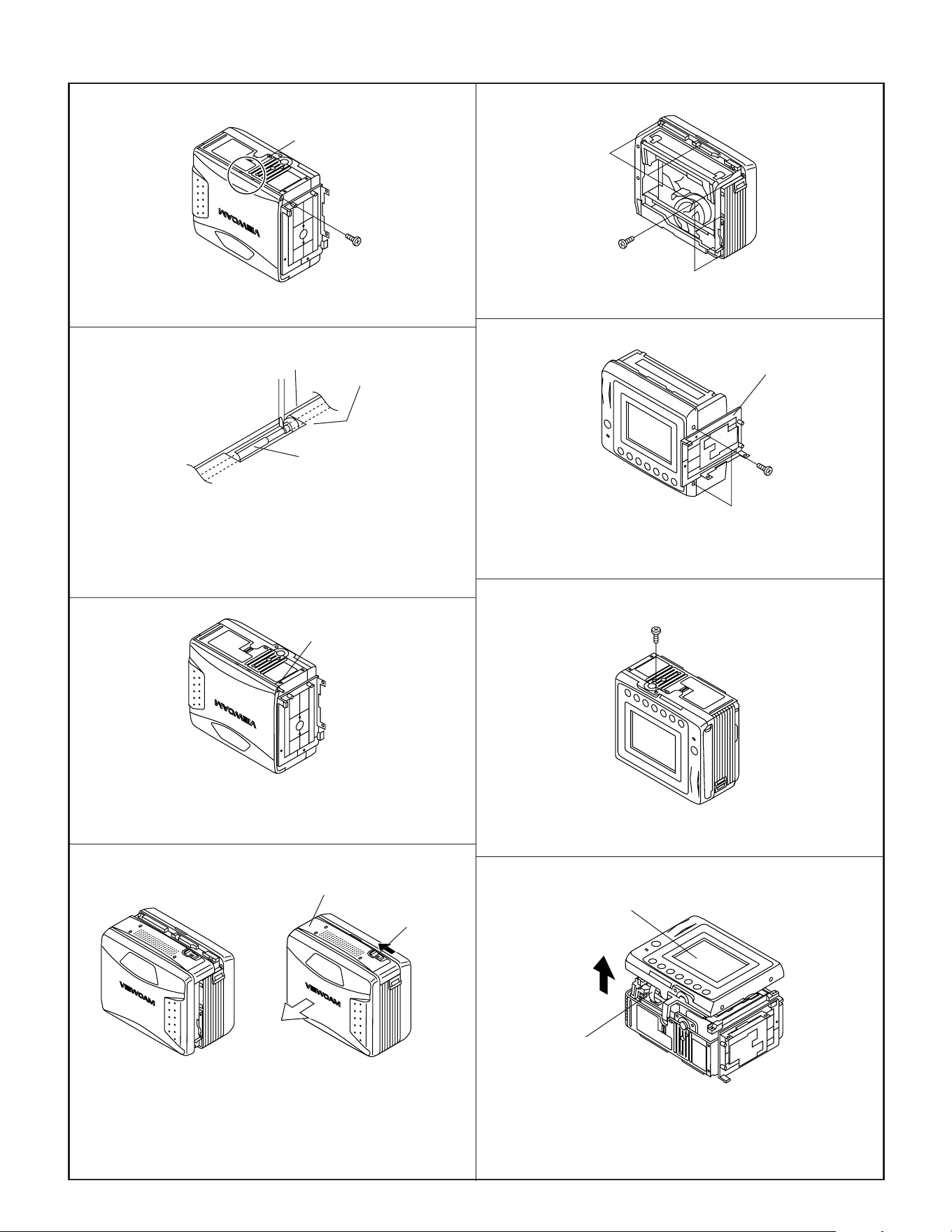

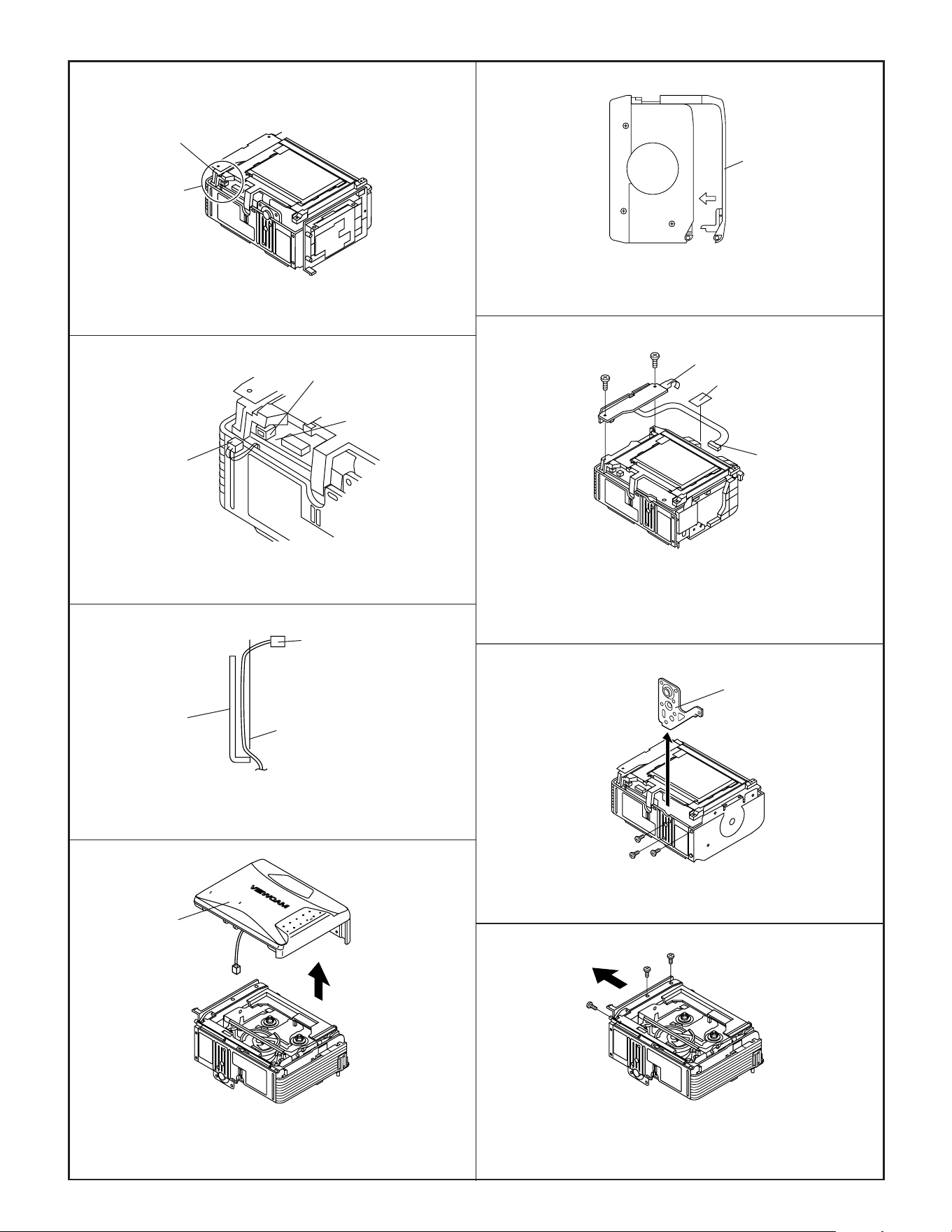

1. Remove one screw ((d)XiPSF20P04000), one screw ((b)LX-

HZ0018TAFF), two screws ((a)LX-HZ0018TAFN), and pull

out the camera front cabinet (1).

CCD

connector

(c)

Lens holder

4. Pulling the lens holder, and pull out the lens upwards. Then,

remove the lens connector.

(b)

Connector

(c)

Connector

2. Remove one screw ((b)LX-HZ0018TAFF), one screw

((d)XiPSF20P04000) and two screws ((a)LX-HZ0018TAFN)

and pull out the camera rear cabinet (2) backwards.

Remove the FPC in the camera rear cabinet.

(b)

(d)

Connector

(a)

Pull out

(2)

Camera rear cabinet

6. Remove two screws ((b)LX-HZ0018TAFF) and pull out the

camera side cover from the tilt frame C.

Tilt frame C

(b)

Pull out

9. After removing the camera PWB from the tilt frame, remove

the connector on the rear of the PWB.

Connector

8. Remove one connector of the camera PWB, and remove two

screws ((c)LX-HZ0045TAFN) fixing the PWB.

7. Remove the battery catcher from the camera side cover.

3. Firstly, remove the CCD connector from the Camera PWB, then

remove one screw ((c)LX-HZ0045TAFN), the reverse side in this

figure (Not remove the lens holder in this section).

5. Remove the connector of the 6-cell detection switch, and

remove two screws ((b)LX-HZ0018TAFF) fixing the battery

catcher.

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

4-2. DISASSEMBLY OF THE VCR MAIN BODY

(1) Slide the “VCR lid knob” in the arrow direction, and slide the

VCR lid in the arrow direction as far as the cabinet L fastening

screw is visible. (Left figure) Since the connector of the

microphone is still connected, take care to prevent exces-

sively sliding the VCR lid.

<2. Disassembly of the cabinet L>

(3) Pull out the VCR lid shaft head which projects beyond the

surface of the VCR lid.

VCR lid shaft

VCR lid

Frame V

VCR lid shaft

(2) Bring the jig (example: slotted precision screwdriver) into

contact with the removal groove of the VCR lid shaft, and

slide the screwdriver with care to prevent injuring the VCR lid

and frame V.

(1) Remove one screw ((k)LX-HZ0063TAFC).

(2) Remove five screws ((b)LX-HZ0018TAFF).

(3) Turn the tilt frame C so that the screwdriver can be easily

inserted, and remove two screws ((i)XiPSN20P04000).

(4) Remove one screw ((i)XiPSN20P04000).

Cabinet L

FPC connector

(b)

(i)

Area A

(k)

VCR lid knob

VCR lid

Tilt frame C

(5) Remove the cabinet L to the midway, and disconnect the FPC

connector.

<1. Removal of the VCR lid shaft>

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

<3. Removal of the VCR lid>

Frame V

Microphone wire spacer

Microphone connector

Caution for installation of the VCR lid

Microphone connector

Microphone wire

spacer

VCR Lid

VCR lid

When installing the VCR lid, move the VCR lid in the arrow

direction, keeping the VCR lid parallel to the main body as

shown above.

(2) Remove the connector cable from the hole of the microphone

wire spacer.

(1) Disconnect the microphone connector.

(3) Remove the microphone wire spacer from the Frame V.

Wire fixing tape

(4) Pull out the microphone wire cable with care to prevent it from

interfering with the mechanical parts, and remove the VCR

lid.

Pull out

Area B

Microphone connector

AV unit wire

AV unit FPC

(b)

<4. Removal of the AV unit and AV unit cover>

<5. Disassembly of the LCD holder>

Tripod angle

(b)

(1) Peel the wire fixing tape.

(2) Remove the AV unit wire.

(3) Remove the AV unit FPC.

(4) Remove two screws ((b)LX-HZ0018TAFF) fixing the AV unit

and LCD holder.

(d)

(1) Remove three screws ((d)XiPSF20P04000) pull out the

tripod angle.

(2) Remove three screws ((b)LX-HZ0018TAFF) on the tilt frame

Move the tilt frame V by a looseness of the tilt FPC.

(d)

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

<8. Removal of the Lithium PWB>

(1) Remove the connector of the speaker from the Main PWB.

(b)

<7. Removal of the speaker cover>

Inverter transformer

Main PWB

Connector

Lithium PWB

LCD unit

(b)

Battery terminal

unit

<6. Removal of the tilt unit>

Tilt frame V

Main PWB

Connector

Tilt frame C

Connector

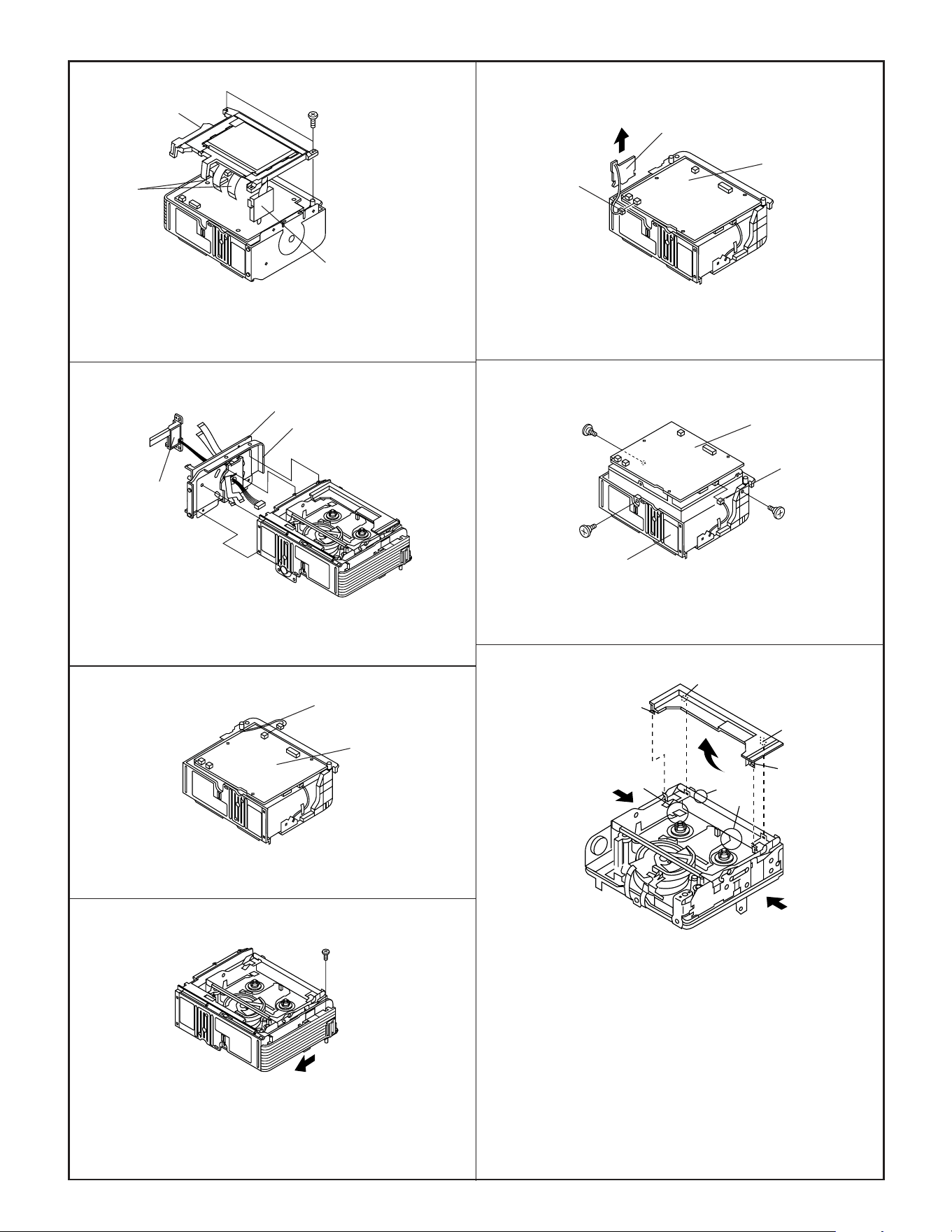

<9. Disassembly of the frame V>

(e)

Mechanism unit

(e)

<10. Removal of the cassette compartment lid>

(1) Using the slotted precision screwdriver, push and turn the

two claws (C and D) which fasten the cassette compartment

lid, and the cassette compartment lid will be removed from

the hook area of the cassette component.

(2) Turning the cassette compartment lid in the arrow direction,

lift it, and the claws A and B will be disengaged to remove the

cassette compartment lid.

Note:

Take care to prevent breaking the claws of the cassette com-

partment lid.

(2) Remove the screw ((b)LX-HZ0018TAFF) fixing the speaker

cover.

(3) Move the speaker holder in the direction of the arrow to

remove it.

Frame V

Connector

(1) Remove three screws ((e)LX-BZ0191TAFD) and one con-

nector, and remove the frame V from the main body.

(1) Disconnect three connectors.

Remove the tilt unit from the cabinet of the main body.

(3) Remove two screws ((b)LX-HZ0018TAFF) and two connec-

tors, and remove the LCD unit (with inverter) from the main

body.

(1) Remove the connector of the Lithium PWB from the Main

PWB.

(2) Move the lithium unit in the direction of the arrow.

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

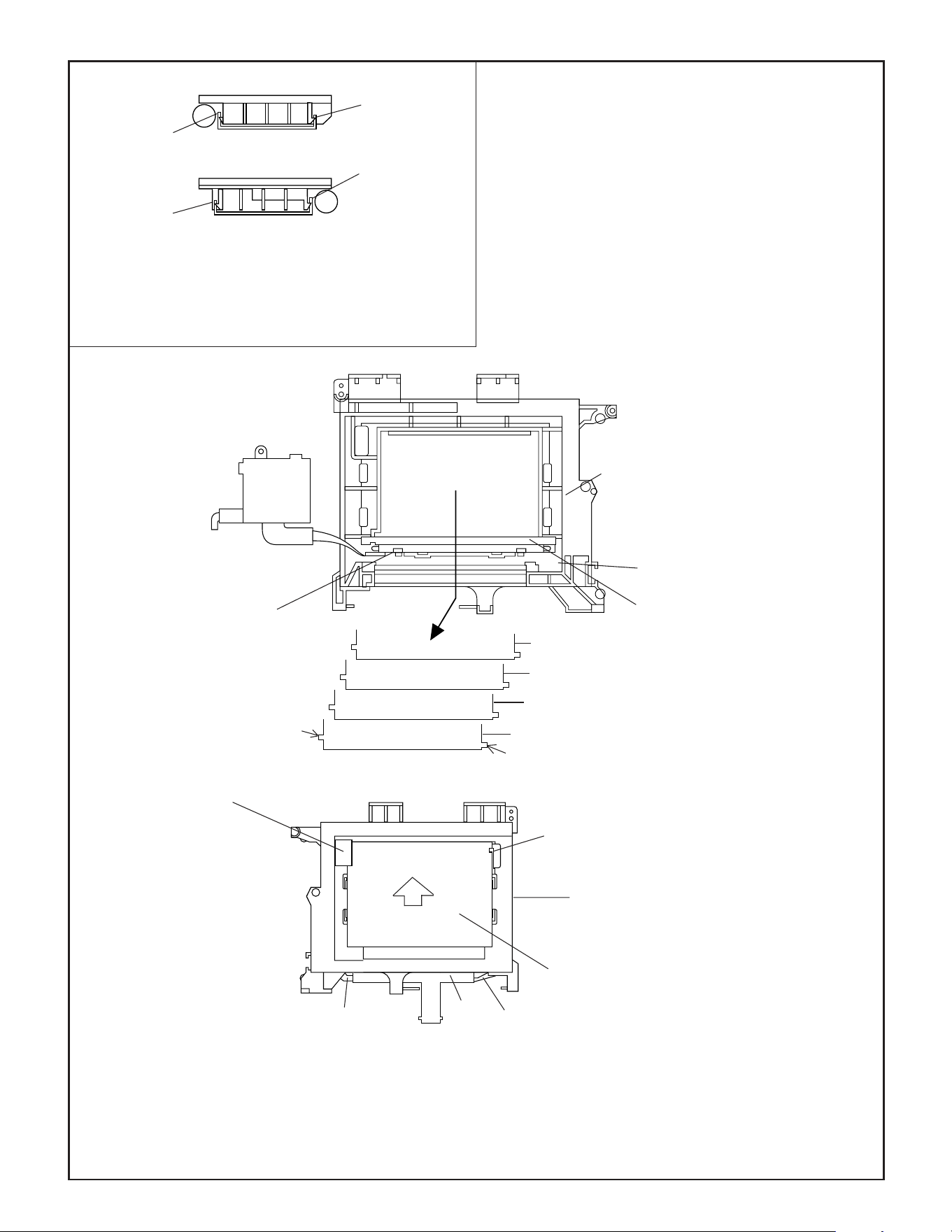

<11. Disassembly of the LCD panel>

(2)

Claw (A)

(1)

Light guide plate

Reflection sheet

Lugs

(3)

(C)

(4)

(2)

Claw (B)

Disengage the claw, and remove the

LCD panel.

Arm(E)

Arm(D)

FPC

Prism sheet

Diffusion sheet

1. Disengage two claws (A), and remove the lamp inverter unit (1) from the LCD holder (2).

2. Remove the sheets from the LCD holder (2).

3. Pull the LCD glass retaining (3).

4. Remove the FPC from Arm(D) and (E).

5. Disengage the claw (B), and slide the LCD panel (4) in the (C) direction to remove the LCD holder (2).

Note:

When handling the prism sheet, diffusion sheet, light guide plate, reflection sheet and reflection polarizing sheet do not touch any parts

other than lugs and sides.

Put the light guide plate and reflection sheet between reflectors of lamp. Therefore, install them together with the lamp ass'y.

Note:

When fixing the cassette compartment lid, first engage the claws

A and B, and then engage the claws C and D, verify that the four

claws (A, B, C and D) of the cassette compartment lid are

securely engaged as shown in the view above.

Claw C

Claw A

Claw B

Claw D

View E

View F

VL-E990E

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

4-3-2. REMOVAL OF CCD

1) Unsolder the CCD sensor leads from the sensor PWB.

2) Take out the sensor PWB.

3) Remove the two screws (6), and remove the sensor holder and CCD sensor.

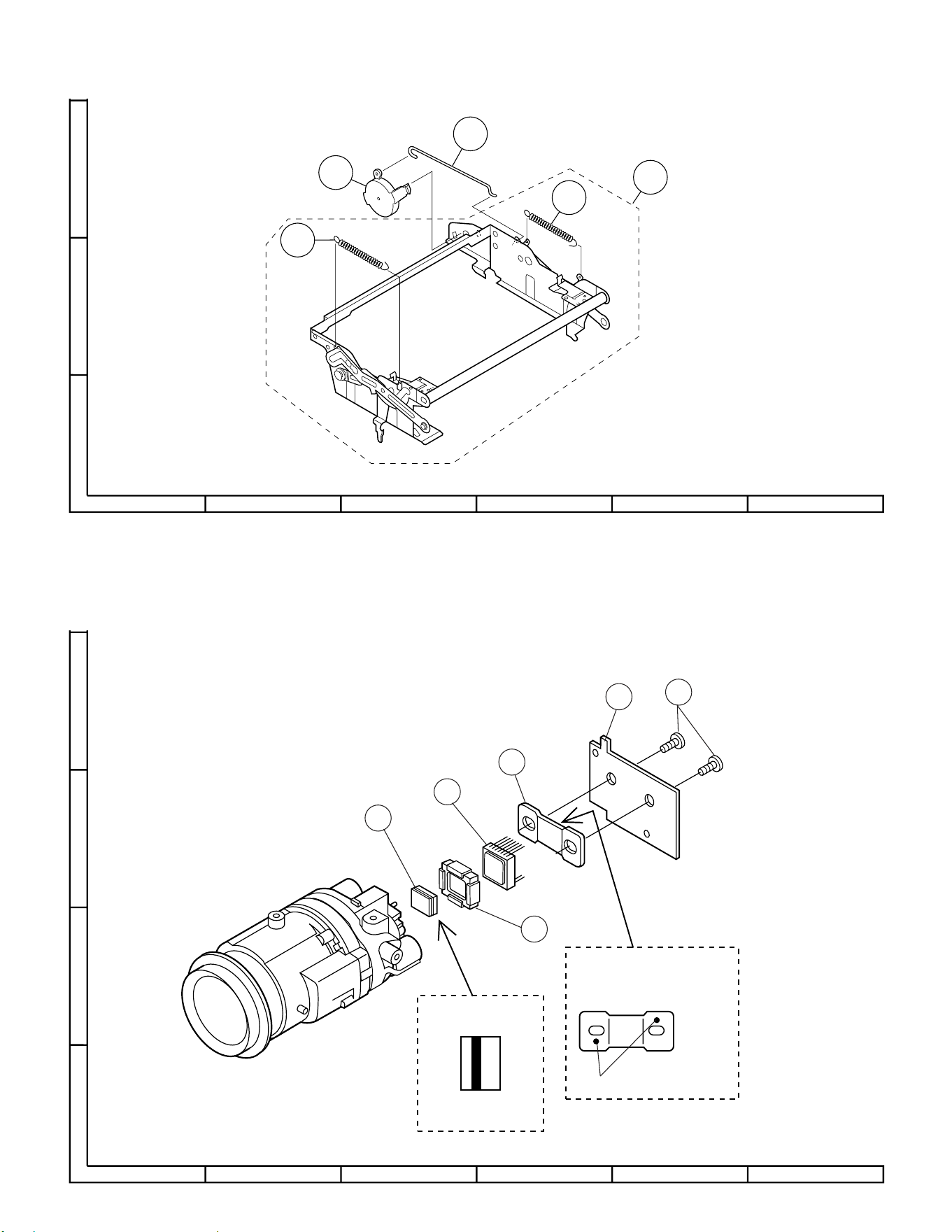

4-3-3. MOUNTING OF CCD

1) Place the lens unit upright (since the CCD sensor mount ID faces upward, care must be taken so as not to damage the front lens of

unit), put the crystal filter first and then the dust protection rubber into the CCD holder of lens unit. Set the crystal unit with its thin side

toward the lens unit.

2) Place the CCD sensor so that the its No. 1 pin is at the right lower (Positioning hole to be at right), and put the CCD sensor into the

CCD holder. For smooth and tight fitting, press the right lower part of back of CCD sensor, and then press the left upper part.

Note: Pay attention to the direction of CCD sensor.

3) Place the sensor holder so that its two round markings be visible, and fix the sensor holder with the two screws ((6)LX-HZ0013TAFF).

4) Mount the sensor PWB so that the CCD sensor leads go thorough the PWB holes.

5) Solder the CCD sensor lead to the sensor PWB.

Note: Take care not to apply excessive heat.

Rubber

Lens

Side

CCD

Side

The THIN SIDE

faces the lens

Crystal

CCD Sensor

Sensor Holder

(6)

Mark

The mark must be on

this face.

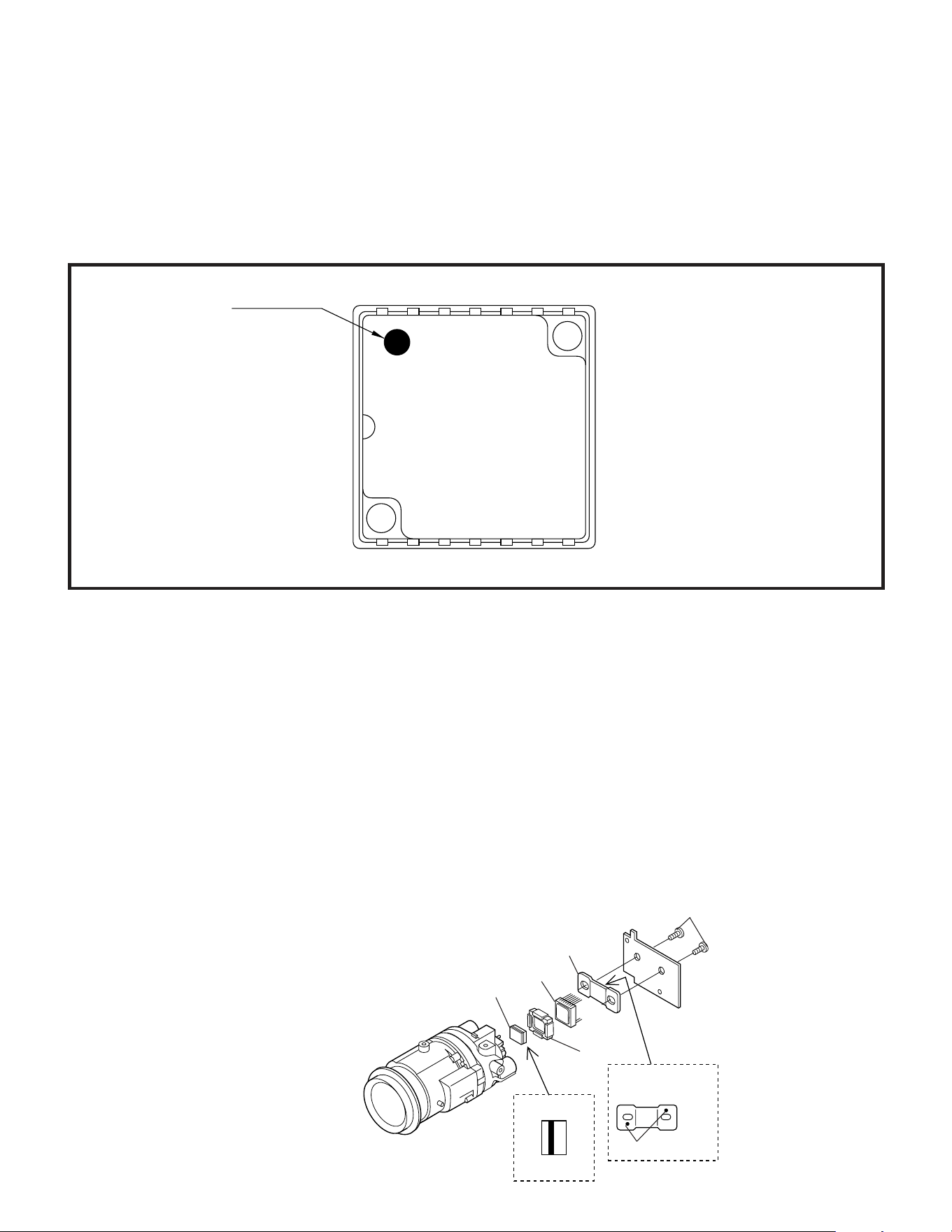

4-3. REPLACEMENT OF CCD SENSOR

4-3-1. BEFORE REPLACEMENT

1) The CCD image sensor is more sensitive to electrostatic breakage than C-MOS LSI. Therefore sufficient means to prevent

electrostatic damage must be taken when it is replaced.

• Ground the soldering iron.

• Ground also the human body, using the wrist strap(through an 1 Mohm resistor).

• Until the CCD sensor is mounted on the PWB, fit it to the conductive sponge, and short-circuit the foot lead.

2) Take utmost care so that the surface glass of CCD sensor and optical filter are not contaminated and damaged. If any contamination

is found, for example fingerprint, wipe it off with silicon paper or clean chamois skin.

3) When replacing the CCD sensor, use the static electricity prevention grounded soldering-iron, and perform quickly soldering.

JAPAN

SHARP

Index Mark

LZ2413H5

YYWWXXX

14 8

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5. MECHANISM ADJUSTMENT

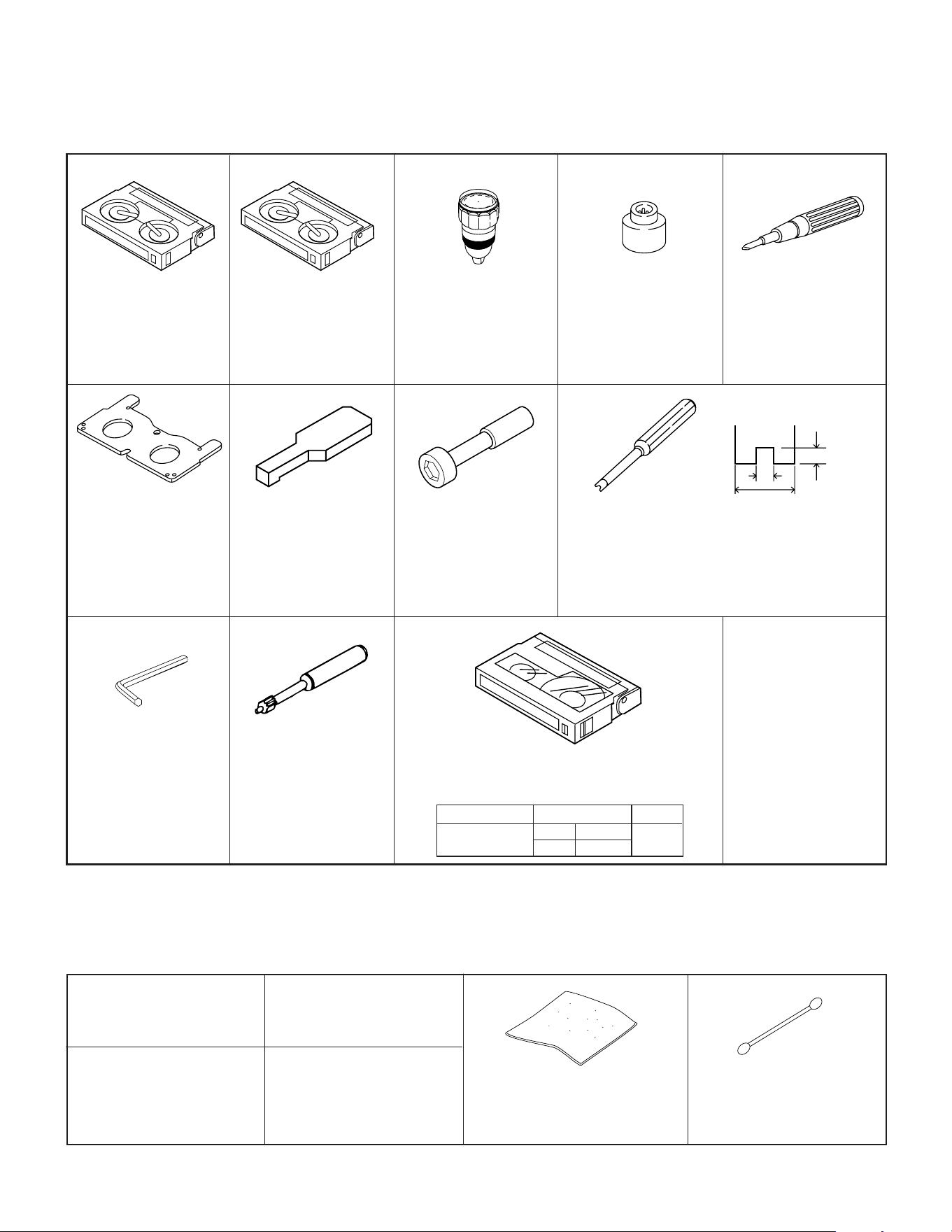

5-1. MECHANISM CHECKING/ADJUSTING JIGS, TOOLS AND PARTS

5-1-1. Mechanism checking/adjusting jigs and tools

<Note: The entries of list>

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

1. Screw locking agent

(1401B)

* Three Bond

1. Cleaning liquid

(Industrial-use ethyl alcohol)

1. Oil

COSMOHYDRO HV100

* Cosmo Oil Co., Ltd.

1. Greases

Morycoat YM-103/X5-6020

* Dow Coaning

1. Superfine swab

* Commercially available

item

1. Cleaning paper

2. JiGDUSPER

3. AP

* Dusper ∑ (Sigma) (Ozu Co., Ltd.)

1. Height adjusting jig

2. 9DAGH-E31S

3. BM

* For adjustment of Tu

guide height and Si

roller height

1. Master plane

2. JiGMP-MX7U

3. CG

* For adjustment of Tu guide

height, Si roller height and

checking of reel disk height

(1) Slide calipers

(2) High-precision screw-

drivers (Phillips head,

slotted head)

(3) Radio pliers (with thin

jaws)

(4) A pair of tweezers

<Note: The entries of list>

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

1. Cassette torquemeter

for PB

2. JiG8T-012

3. CV

* (10 g·cm/25 g·cm)

1. Cassette torquemeter

for VS-REW

2. JiG8T-032

3. CV

* (50 g·cm/25 g·cm)

1. Torque gauge

2. JiGTG0045

3. CN

* For measurement of

loading brake torque

1. Torque gauge head

2. JiGTH-MX7U

3. BS

* For torque gauge listed

left

1. Torque driver

(1.5 kg·cm)

2. JiGTD1500RT0H

3. CB

1.8

Tolerance±0.1

Edge

thickness 0.5

5-1-2. Parts for periodic inspection and maintenance.

1. Alignment tape

2. VR2ABOPS

3. BT

TAPE CONTENTS

VIDEO IMAGE AUDIO TIME

MONOSCOPE L-CH 400Hz 30MIN

R-CH 1,000Hz

1. Tu guide height

adjusting driver

2. 9EQDRiVER-V712

3. BL

1. Guide roller height adjusting driver

2. JiGDRiVERHMX7U

3. BU

* Bit shape (See the figure above.)

1. Hex wrench

3. —

For loosening or tight-

ening of Motor stator

(1.3mm)

1. Tension Band and Plate

Adjusting Jig

2. JiGDRiVERMX7U2

3. BN

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5-2. ITEMS AND TIMINGS OF INSPECTION AND MAINTENANCE

The mechanism of VCR needs the following periodic inspection and maintenance in order that it maintains its high quality. Also,

after the machine is repaired, execute the following maintenance and checks regardless of how long it has been used.

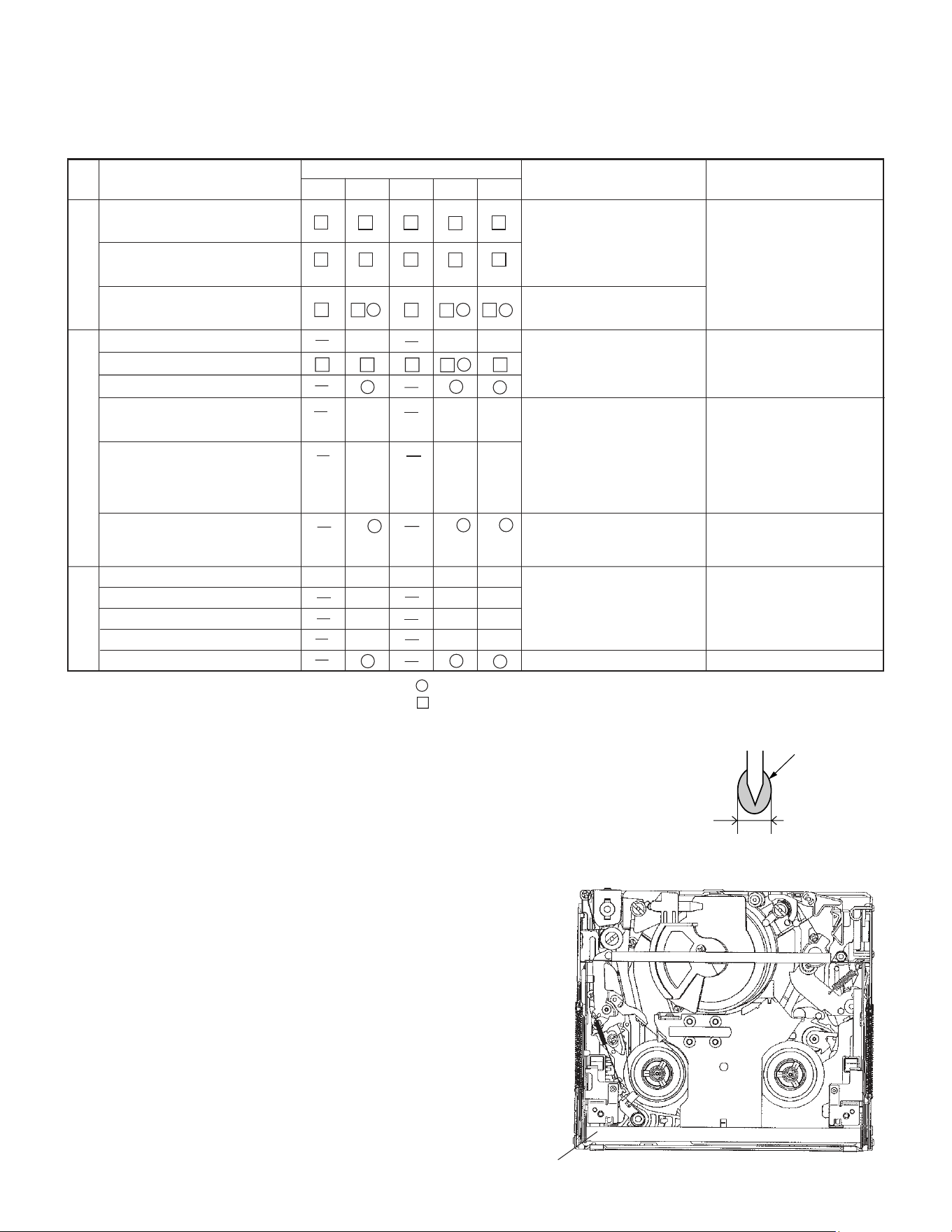

5-2-1. Inspection and maintenance list

Checking/Maintenance point

Possible symptom

encountered

Remarks

Usage time (hrs.)

500 1,000 1,500 2,000 3,000

• Improper S/N ratio

• No color appears.

Tape travelling route

(Refer to Section)

Drum (Refer to Section)

Video head

Tape travel system

Timing belt

Pinch roller

Capstan D.D. motor

★★★

• Tape does not run.

• Tape slackens.

• Screen shakes.

Rollers

• If abnormal rotation or de-

flection (significant) is

found, replace the roller.

Other than rollers

• Clean the tape contacting

areas. Be sure to use the

specified cleaning agent.

• Lateral noise

• Unclean head

• Screen shaking

• Replace if failure is found.

∆∆∆

Relay Pulle shaft

Pulle gear shaft

Drive gear shaft

• Abnormal sound • Apply oil.

(Oil : COSMOHYDRO

HV100)

∆∆∆

Driving system

Figure 2

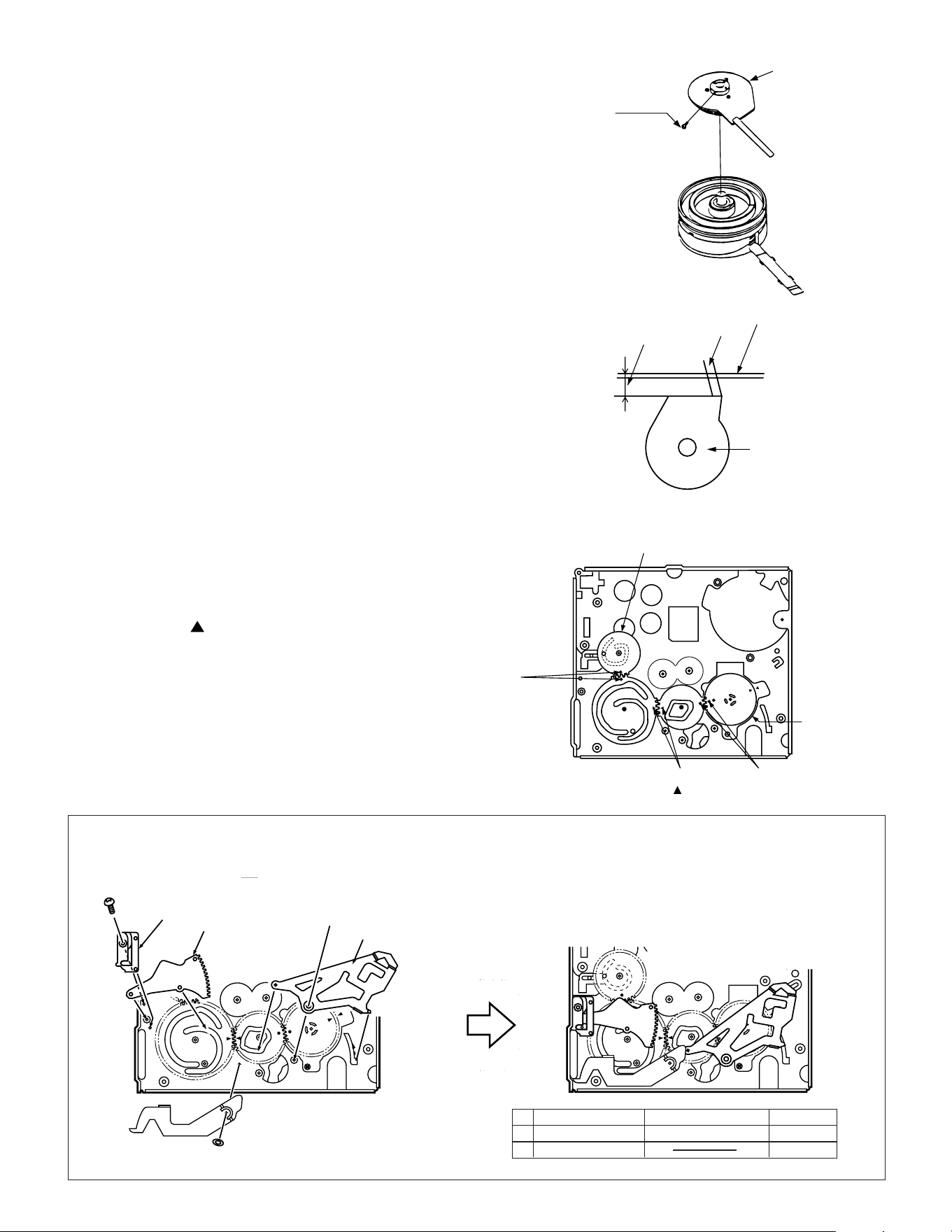

5-2-2. Notes and cautions

(1) Any cut washers, once removed for parts replacement or for other

reason, must be replaced with new ones.

(2) The mechanism of this VCR does not involve any volume adjustment.

If the specified range is not satisfied, either cleaning or replacing the

parts is required.

(3) Oils

a) Be sure to use the specified oils (different viscosity may cause

troubles).

b) For the bearings, be sure to use oil that is free form dust and other

foreign substances. (Dust or foreign substance contained in the oil

may cause wear or seizure of the bearings.)

c) A drop of oil represents the amount of oil which is held on the needle

top as shown in the figure 1.

(4) The circuit repair must be executed without removing the V frame.

(5) For operating the mechanism alone, actuate it with the motor. The

terminal-to-terminal voltage must be DC4V or less.

(6) When installing the cassette control, press the part A shown in Figure

*Do not press other parts.

(7) Take care so that the whole mechanism is not deformed.

Loading motor

• Replace if failure (abnor-

mal sound) is detected.

• Not ejectable

• The specific mode cannot

be set.

★★★

Abnormal sound

PB/VS-REW take-up torque

PB/VS-REW back tension torque

Tu brake

HC (Head Cleaner)

★★★★★

★★★

• If conformance to the

standard is not ensured,

replace part.

Note:

After oil is applied to the

drive gear shaft, slightly

wipe it off with swab.

Oil: COSMOHYDRO HV100

Greases: MORYCOAT YM-103/X5-6020

Screw locking agent: THREE BOND 1401B

Cleaning liquid: Industrial-use ethyl alcohol

: Replace.

: Clean.

∆ : Apply oil.

★ : Check.

Performance check

Oil

Diameter φ1.5 or less

Figure 1

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5-3. MECHANISM CHECKS AND ADJUSTMENTS

The description given below relates to the general field services, but does not relate to the adjustment and replacement that require

high level equipments, jigs, and technical skills.

In order to maintain the initial characteristics of the machine, it is necessary to execute the maintenance and check and to prevent

damage to tapes and other parts. For adjustments which need jigs, be sure to use the jigs.

Notes and cautions

(1) For mechanism checks and adjustments, be sure to use the AC adapter as the power supply.

(2) For running the tape, be sure to install the cassette control ass’y in advance. (If the cassette control ass’y is to be removed

subsequently after its installation.)

5-3-3. Checking and adjusting the back tension torque for playback (recording)

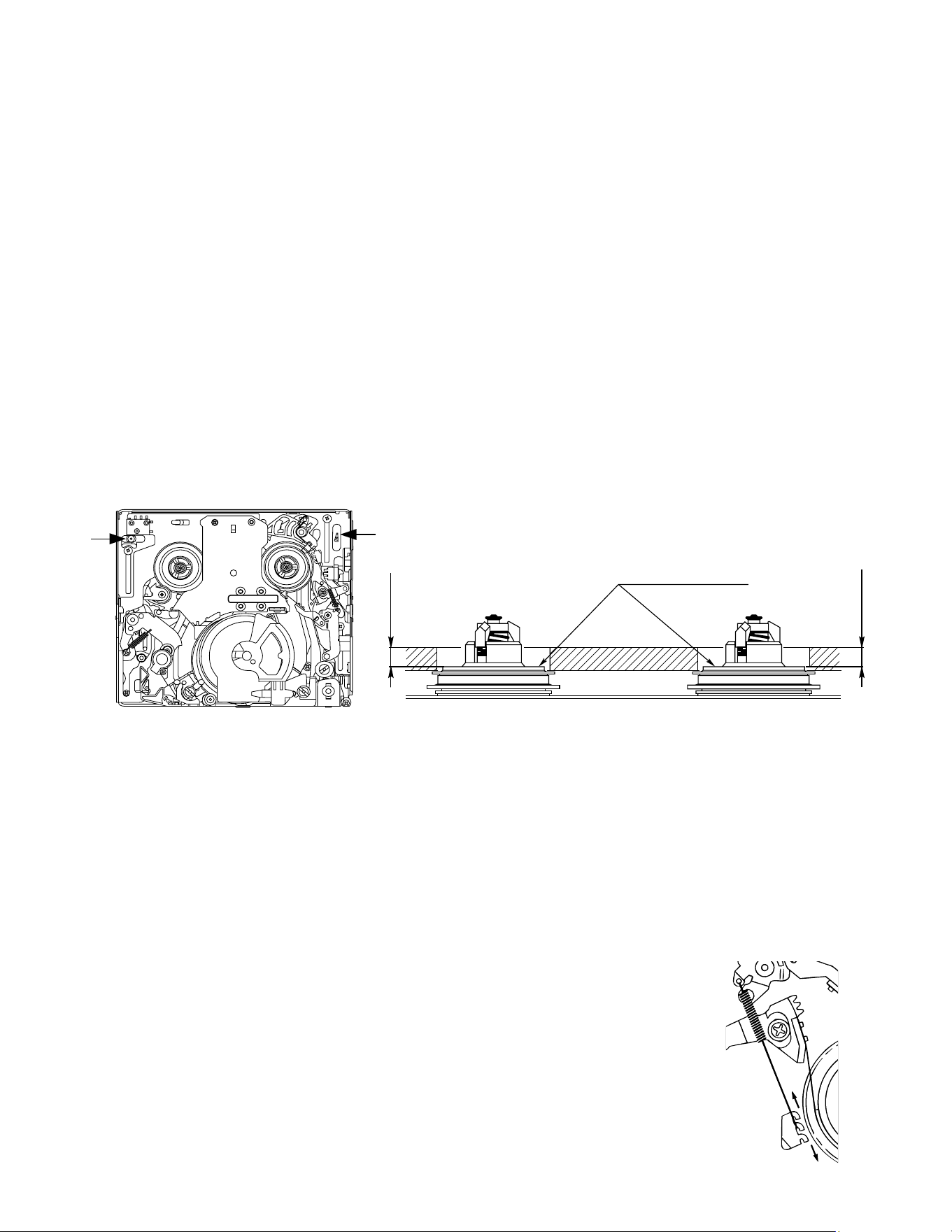

5-3-1. Checking the reel disk height

(1) Remove the cassette control ass’y.

(2) Taking due care not to let the master plane touch the tape running areas such as the drum and the guide rollers, position the

master plane so that the two guides (A and B in the figure 1) are set in the holes of master plane, then properly set it in the

mechanism.

(3) Using the slide callipers or the like, check that the distance from the upper surface of master plane to the reel support surface

of the S/Tu reel disk is within the specified range. (Figure 2)

Note:

When measuring, do not apply excessive force to the reel support surface of reel disk.

(4) If the measurement is not within the specified range, replace the reel disk ass’y.

(5) Check the items (2) to (4) above in the following two modes.

a) Standby mode

b) Playback (recording) mode

5-3-2. Checking the take-up torque for playback (recording)

(1) Set the torque cassette (JiG8T-012) in position, and check in the SP-mode recording mode (tape recorded in SP mode) that

the torque at the tape taking-up side is within the standard range.

Standard of take-up torque for SP-mode recording (playback)

9 ± 3 g·cm with ripples less than 4 g·cm

(If the torque ripples appear, read the center value of torque between the ripples.)

4.4 ± 0.15

Reel support surface

4.4 ± 0.15

Figure 2Figure 1

(1) Checking

1) Set the torque cassette (JiG8T-012) in position, and check in the SP-mode recording mode

(tape recorded in SP mode) that the torque at the tape supply side is within the standard

range.

Standard of back tension torque for SP-mode recording (playback):

8 ± 2 g·cm with ripples of less than 2 g·cm

(Torque ripple must be within 8 ± 2g·cm)

(2) Adjustment

1) If the back tension torque is not within the standard range, adjust the tension spring hooking

position. If the back tension is too high, hook the spring in the direction A. If the back tension

is too low, hook the spring in the direction B.

Note:

1. After back tension torque adjustment be sure to check the tension pole position.

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5-3-4. Checking and adjusting the tension pole position

(1) Check

When winding of P6-120 tape is started, check whether the tension pole is in the

specified position against Si roller as shown or not.

If it is not in the specified position, remove the cassette and adjust the position

in the following procedure.

(2) Adjustment

1. Don’t set up any tape, and select the PB mode. (Refer to Item 5-5-1-(4).)

2. Slightly loosen the screw (a) (to such a strength as the T band holder B can

be moved).

3. If the tension pole is in the inner position than specified, dislocate the T band

holder B in the arrow (A) direction and if it is in the outer position, dislocate it

in the arrow (B) position. Then, tighten the screw (a). (For reference, dislocate

it 0.4 to 0.8 mm outer from the position specified above.) For the position

adjustment, it is convenient to use the position adjustment screwdriver

(JiGDRiVERMX7U2). (Set it in the hole (C).)

4. Check the position in the “(1) Check” procedure described above.

5. If it is not in the specified position, repeat the adjusting procedure 1 thru 3.

Note:

• Tightening torque of screw (a) 70 mN·m

• To check the position, be sure to run the tape.

• If the cassette compartment assembly is removed, it makes the work easier. (Refer

to Item 5-5-3.)

3 – 0.5

Si roller

Tension pole

T Band

Holder B

Screw

(a)

(B)

Hole (C)

(A)

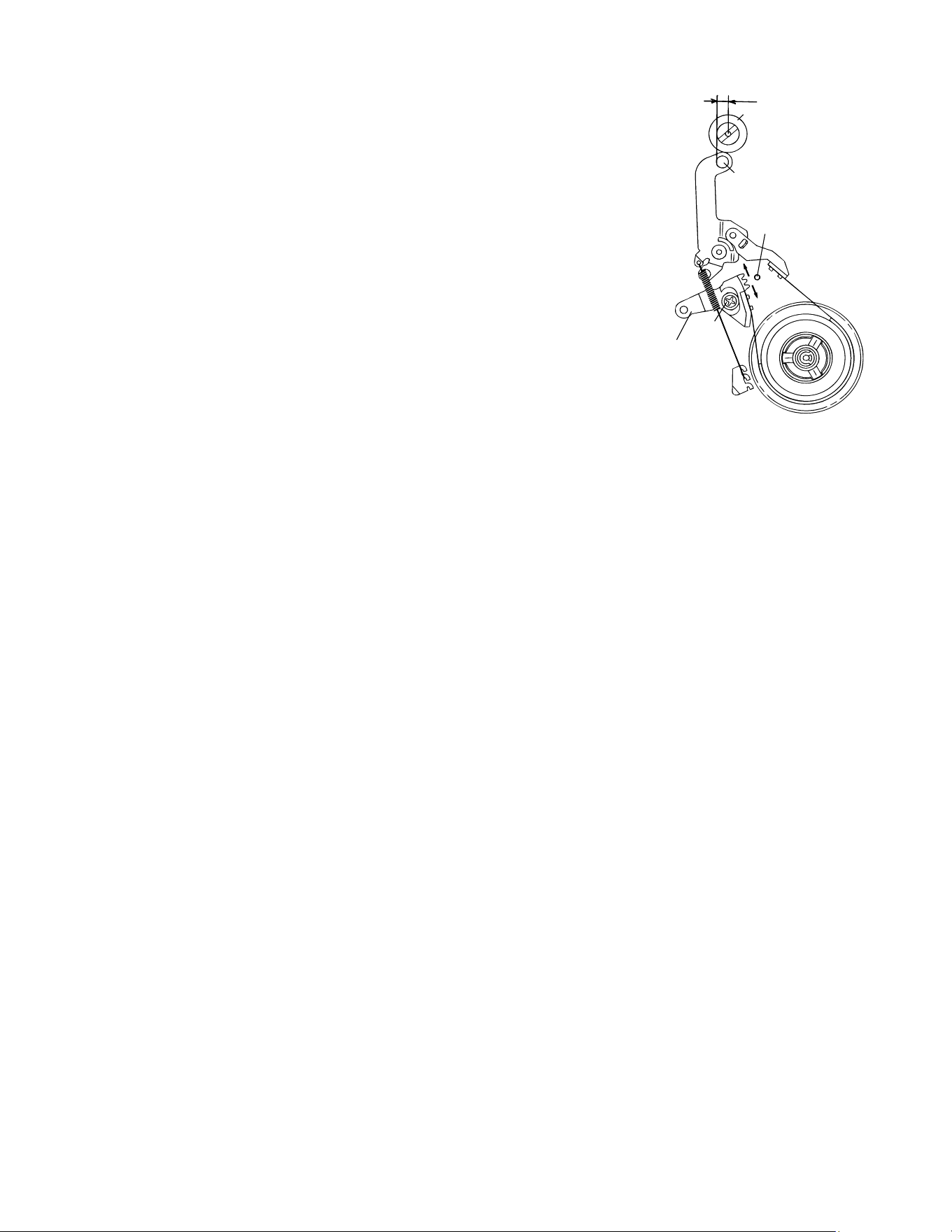

5-3-5. Checking the take-up torque for rewind playback (VS-REW)

(1) Remove the cassette compartment ass'y and set to the sensor OFF mode.

(2) Set the torque gauge (JiGTG0045) on the S reel disk, and check in the rewind playback (VS-REW) that the torque at the supply

side is within the specified range.

Standard of take-up torque in rewind playback (SP mode)

31 ± 5 g·cm with ripples less than 5 g·cm.

(If the torque ripples appear, read the center value of torque between the ripples.)

5-3-6. Checking the back tension torque for rewind playback (VS-REW)

(1) Set the torque cassette (JiG8T-032) in position, and check in the rewind playback (VS-REW) mode that the torque at the tape

take-up side is within the specified range.

Standard of back tension torque in rewind playback (SP mode):

14 ± 5 g·cm with ripples less than 5 g·cm

(If the torque ripples appear, read the center value of torque between the ripples.)

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5-4. ADJUSTMENT OF MECHANISM TAPE TRAVEL SYSTEM

5-4-1. Preparation for adjustment

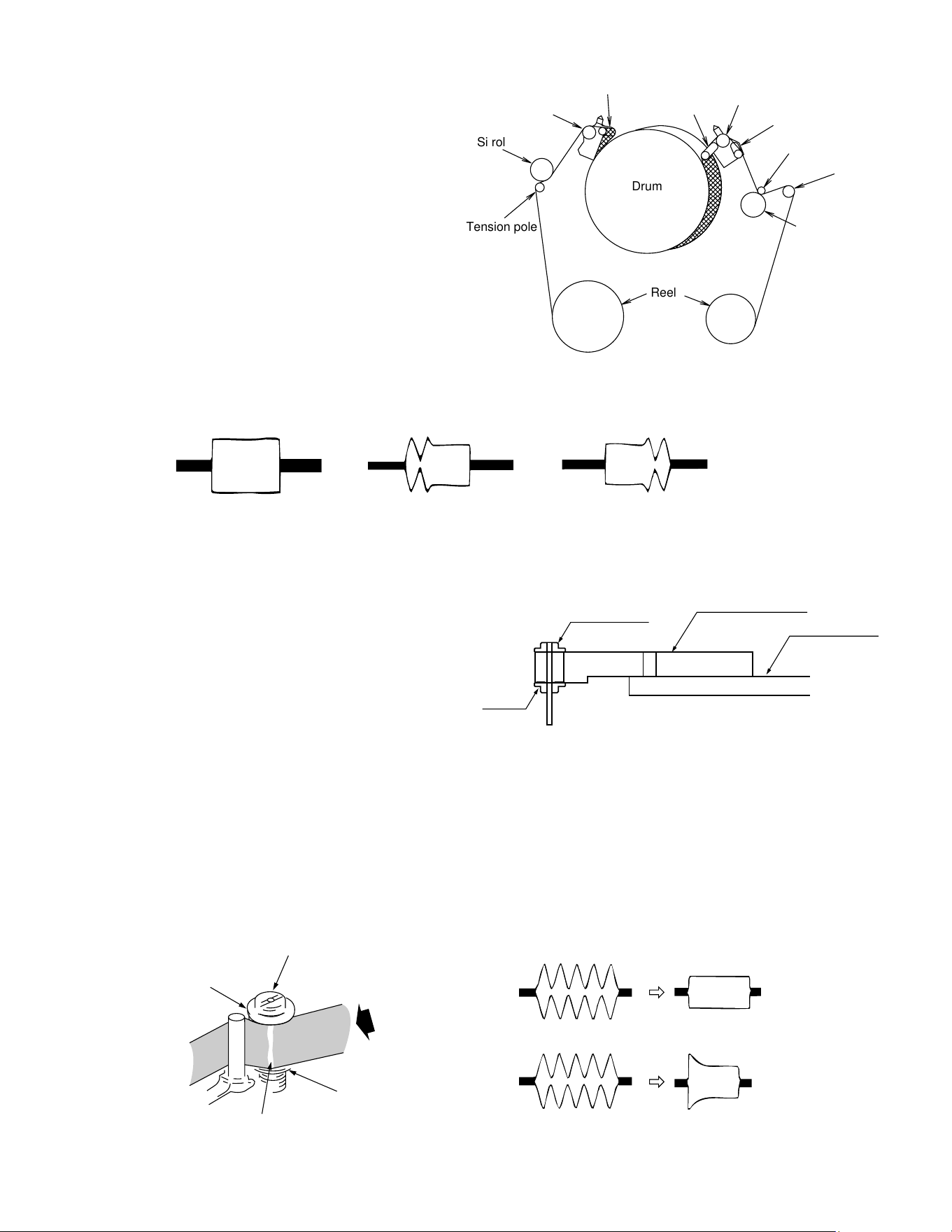

Tape travel system (Figure 1)

,,,,

Drum

Reel

Tension pole

Si roller

Sup GR

Sup tilted pole

Tu tilted pole A

Tu GR

Tu tilted pole B

Capstan shaft

Tu guide

Pinch roller

5-4-2. Adjusting the Sup GR and Tu GR

(1) Turn the Sup and Tu guide rollers to get the flat waveform at the inlet and outlet sides.

Inlet side Outlet side

(a) Normal

(b) Inlet side

waveform is disturbed.

Figure 2

5-4-3. Adjusting the Si roller height

After replacement of Si roller preset and adjust the Si roller

height.

(1) Si roller height presetting

Adjust the height from the upper surface of mechanism

chassis to the upper surface of lower flange with the aid of jig.

Then lower it by 90° (clockwise).

Upper flange

Lower

flange

Height adjusting jig

Master plane

(JiGMP-MX7U)

Upper flange (A)

Si roller

REV mode

Lower flange (B)

Tape must be free from folden

(2) Adjusting the Si roller

1 Playback the tape to set the V/SR mode.

2 Ascertain that the tape is not folded on the lower flange (B) of Si roller. (Figure 4)

If tape folding is found, turn the upper flange (A) of Si roller with the driver (clockwise) to eliminate the folding.

3 Playback the alignment tape (VR2ABOPS).

4 Adjust the Sup GR and Tu GR by the procedure described in section 4-2 above.

5 After V/S F,R perform playback so as to ascertain that the waveform rises horizontally within 2 seconds.

6 Unless the normal waveform is obtained (Figure 5), turn counterclockwise the upper flange (A) of Si roller, and repeat the step

(5) above. Repeat the steps (5) and (6) until the normal waveform is obtained. At this time ascertain that the inlet travel does

not change in the normal playback state. If any change is found, adjust the Sup GR, and redo the step (5).

Figure 3

Rise waveform

REV OK Playback

REV NG Playback

Figure 4

Figure 5

(1) Clean the tape running areas (guide poles, rollers, drum,

Capstan shaft, Pinch roller) (Figure 1)

(2) Connect the oscilloscope to the following TPs.

RF output ..... TL7410

H-SW-P ....... TL7417

GND ............. TL7413

(3) Playback the alignment tape (VR2ABOPS).

(4) Ascertain that each guide is free from remarkable curl.

(5) Ascertain that the RF waveform of inlet and outlet sides is flat

on the oscilloscope (Figure 2, (a)). Unless the waveform is

flat, (Figure 2, (b), (c)), make an adjustment as follows.

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

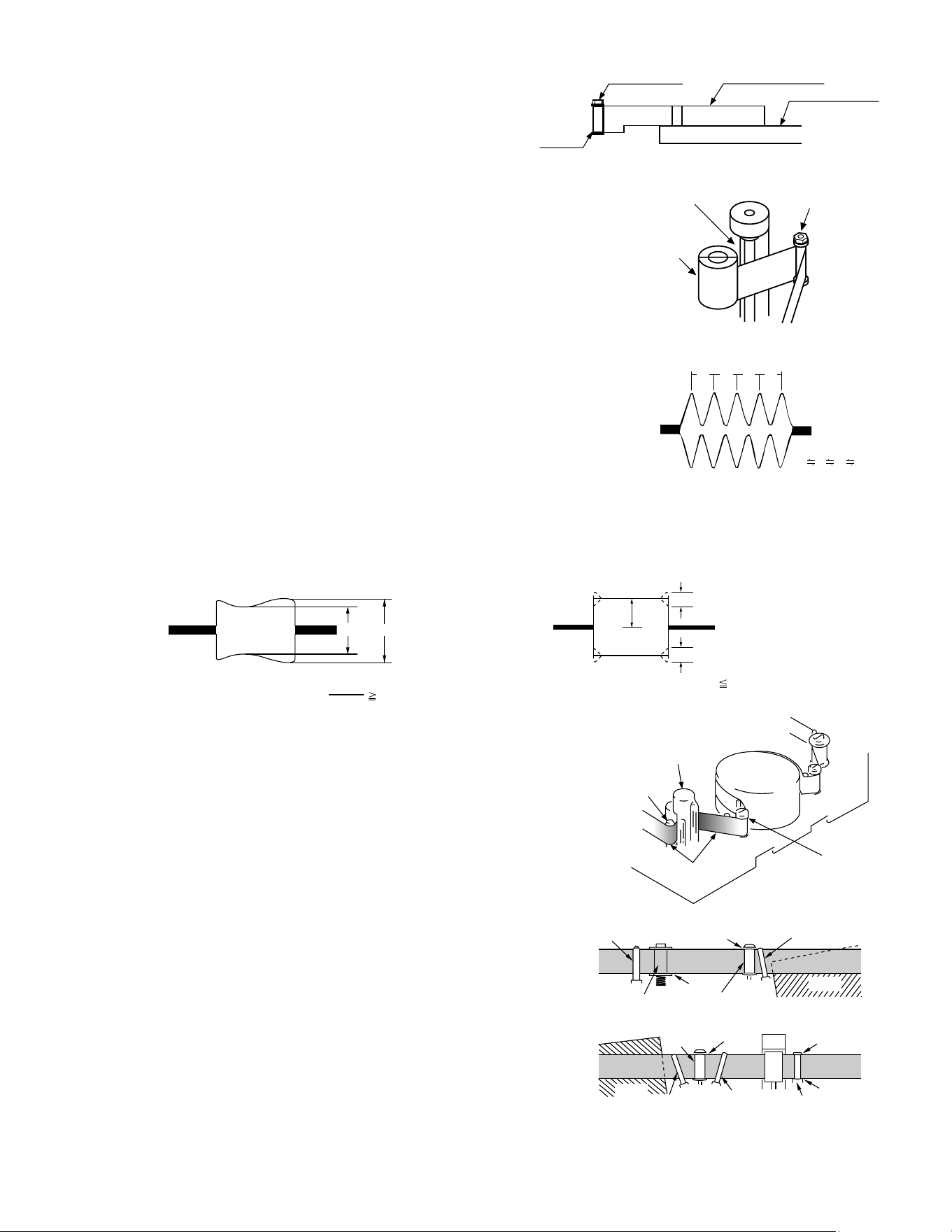

5-4-4. Adjusting the Tu guide

After replacement of Tu guide preset and adjust the height.

(1) Tu guide height presetting (Figure 6)

Adjust the height from the upper surface of mechanism chassis to the

upper surface of lower flange with the aid of jig.

(2) Adjusting the Tu guide (Figure 7)

1 Playback the alignment tape (VR2ABOPS).

2 Check that the tape runs at the same height near the capstan shaft in case of

V/S F and V/S R.

3 If the tape running position in case of V/S R is higher than the tape running

position in case of V/S F, turn clockwise the Tu guide nat.

If the tape running position in case of V/S R is lower than the running position

in case of V/S F, turn counterclockwise the Tu guide nat.

5-4-5. Checking the V/S F and R waveforms (Figure 8)

(1) Playback alignment tape (VR2ABOPS), and set the V/S R mode. At this time

ascertain that the waveform crest pitch is kept constant for more than 5 seconds.

(2) Set the V/S F mode. At this time ascertain that the waveform crest pitch is kept

constant for more than 5 seconds.

Unless the constant pitch is obtained, execute the checks of Section 4-2, 3, and

Figure 6

5-4-6. Checking after adjustment

(1) Envelope check

1 Playback the alignment tape (VR2ABOPS).

2 Ascertain that the envelope maximum to minimum ratio is 65% or more. (Figure 9)

3 Ascertain that the waveform does not change remarkably. (Figure 10)

Figure 10

MAX

MIN

MAX

MIN

65 (%)

Figure 9

C 1/8A

(2) Rise check

1 Playback the alignment tape (VR2ABOPS).

2 Once eject the cassette, and then load it again.

3 Set the playback mode, and ascertain that the RF waveform rises horizontally

within 2 seconds. At this time ascertain that there is no tape slackness near

the pinch roller.

4 After V/S F, R and FF/REW execute playback, and ascertain that the RF

waveform rises horizontally within 2 seconds. At this time ascertain that there

is no tape slackness near the pinch roller.

Capstan shaft

Tu guide

Tape slackness

Tu GR

Figure 11

Tension pole

Si roller

Sup tilted pole

Sup GR

Drum

Tu GR

Pinch roller

Tu guide

Tu tilted pole

Figure 12

(3) Checking the tape travel

1 When the tape is played back, ascertain that tape lift and tape curl of 0.3 mm

or more do not occur at the lower flange of Si roller, upper flange of Sup GR,

upper flange of Tu GR, and upper/lower flange of Tu guide.

2 In case of V/S F and R ascertain that no curl is found at each flange.

5-4-7. Checking and adjusting the playback switching point

Refer to the description of playback switching point adjustment in section of VCR circuit adjustment.

Figure 8

abcd

a b c d

Figure 7

Nat

Capstan shaft

Pinch roller

Upper flange

Lower

flange

Height setting jig

Master plane

(JiGMP-MX7U)

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

5-5. MECHANISM ASSEMBLING AND PARTS REPLACEMENT

(DISASSEMBLING AND ASSEMBLING)

Below is given an explanation of assembling of mechanism and its parts replacement.

The removal of cabinet and Circuit Board is explained in the relevant service manual.

Notes

1 After removal of cut washers be sure to replace them with new ones.

2 Do not place the mechanism upside down on the table. Otherwise, the mechanism part may be deformed or damaged, resulting

in malfunction.

3 When assembling, take care so that screw, washer or other foreign substance do not enter. Otherwise mechanism malfunction

may occur.

4 Be sure to use the specified cleaning liquid, oil, grease and screw lock as listed below. Otherwise mechanism malfunction may

occur.

Oil: Cosmo Oil Co., Ltd.

COSMOHYDRO HV100

Greases: Dow Coaning

MORYCOAT YM-103/X5-6020

Screw lock: THREE BOND

1401B

Cleaning liquid: Industrial-use ethyl alcohol

5-5-1. Mechanism modes

To actuate the mechanism, apply DC3 to 4V to the L motor. At this time the L motor connector must have been disconnected in advance.

Below is given an explanation of the mechanism mode necessary for mechanism check, adjustment and replacement.

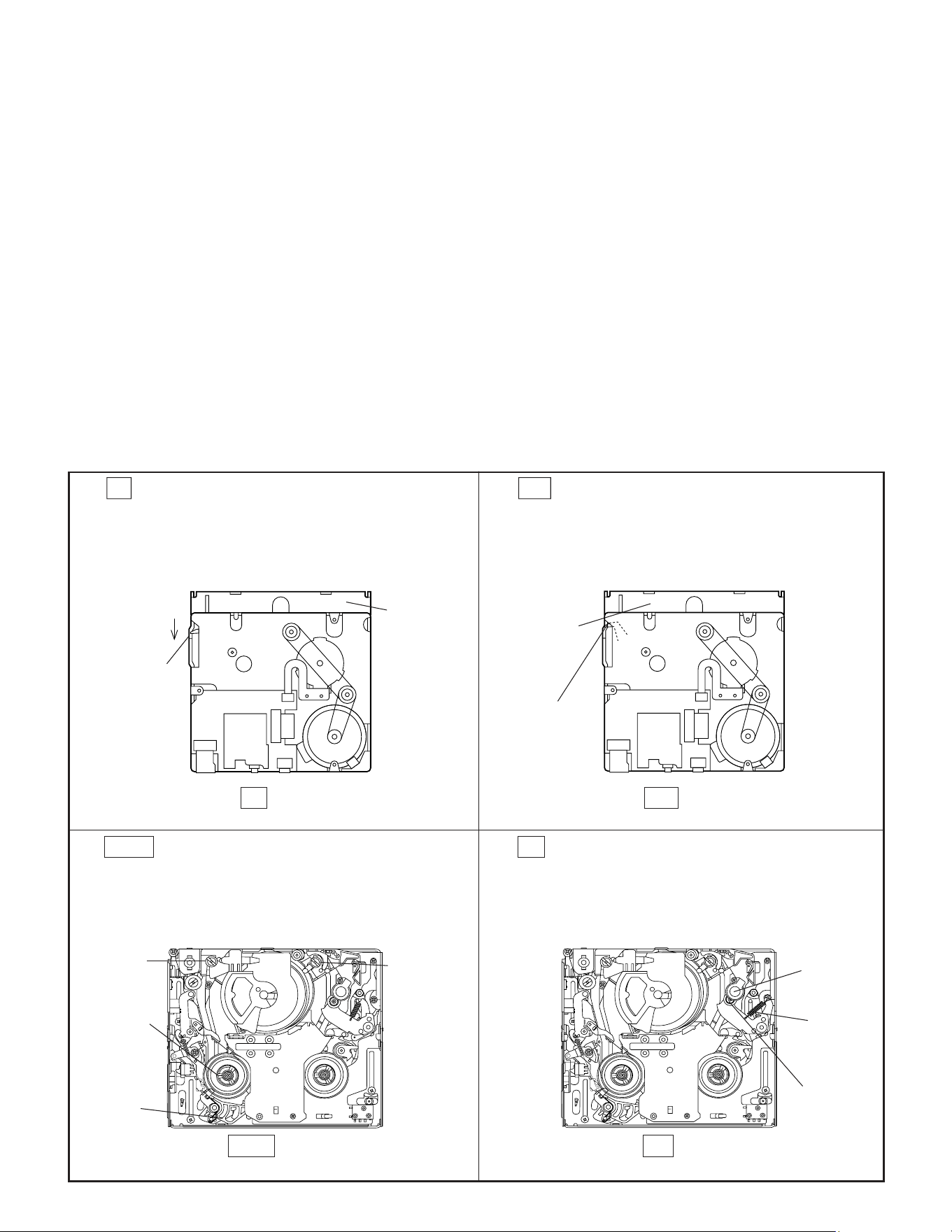

(1). EJ (Eject) mode (See Figure 1)

In this mode, it is mechanically positioned to eject the

cassette. It is the position where the EJECT lever is moved

the farthest in the direction A in the S/B mode. (In this

mode, the cassette compartment assembly can not be

locked.)

(2). S/B (Standby) mode (See Figure 2)

When the cassette is loaded, the mechanism is set to the

S/B mode. In this mode the slide chassis is most far from

the drum. In this mode the Eject lever is in position shown

in Figure 2 (in position where the cassette control ass’y

can be locked).

Slide

chassis

EJECT

Lever

Slide

chassis

EJECT

Lever

(4). PB mode (See Figure 4)

In this mode, it is positioned for the replay, record and so

on. It is the mechanical position where the pinch roller is

pressed against the capstan shaft to make the pinch-

pressing spring the most longest.

(3). STOP mode (See Figure 3)

In the STOP mode the S.T pole base is depressed in the

STOP position (or Rec Lock position in CAMERA mode),

and the S brake is in contact with the S reel disk.

EJ mode

Figure 1

S/B mode

Figure 2

Figure 3

STOP mode

Figure 4

PB mode

S pole base

T pole base

S reel disk

S brake

Capstan

shaft

Pinch

Spring

Pinch roller

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

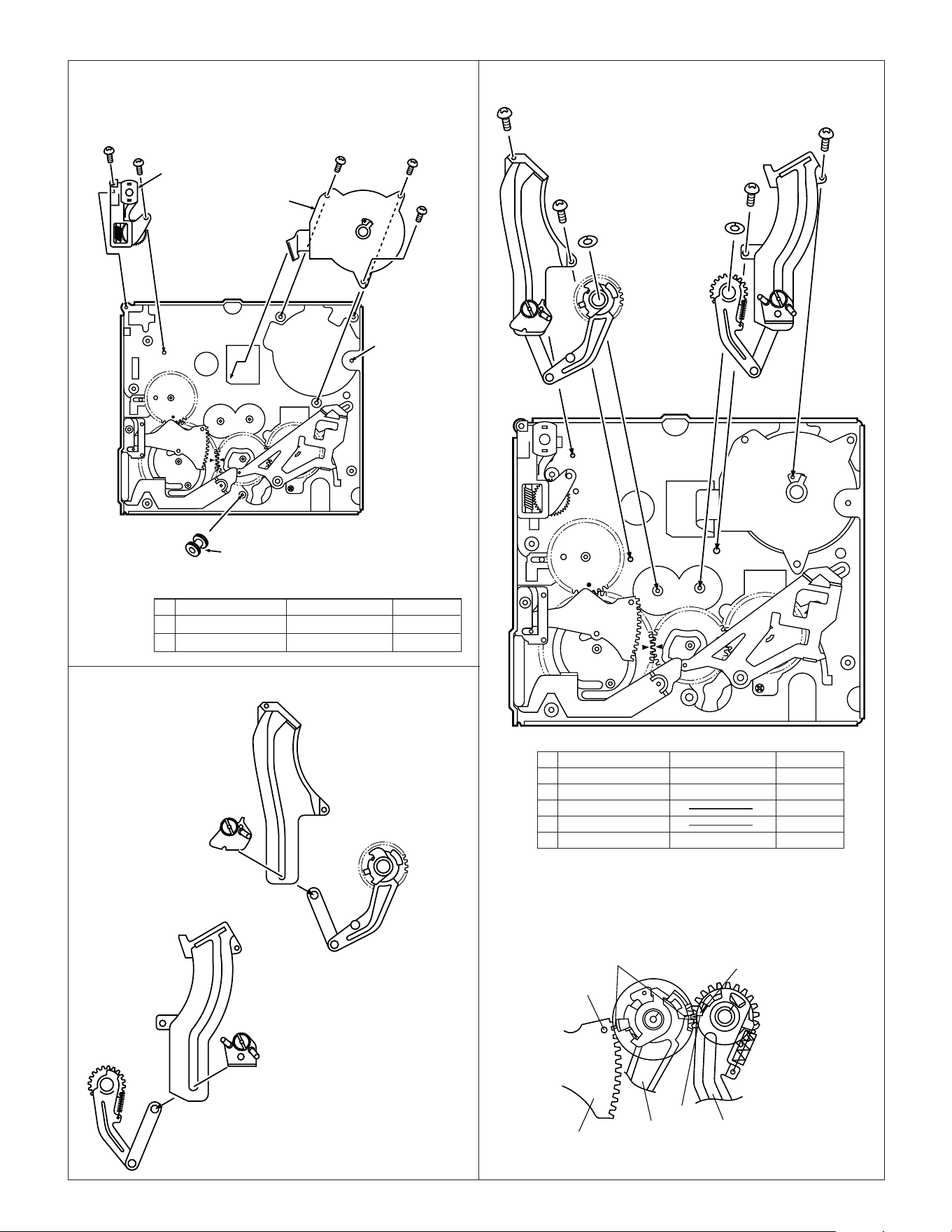

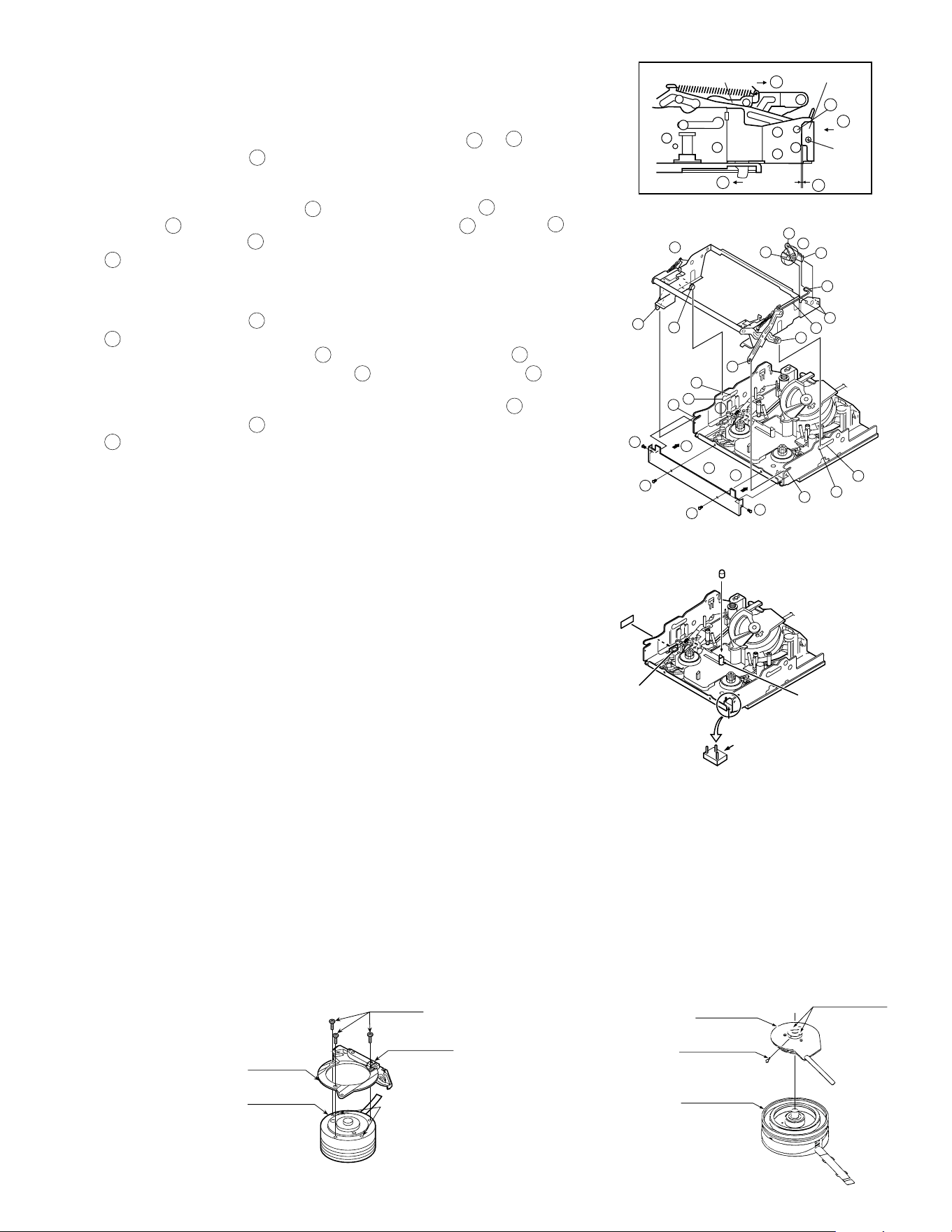

5-5-2. Cassette control ass’y

(1) Set the unit to the EJECT mode, and let the housing stand upright. Or set the

unit to the STANDBY mode, press the lock lever in the arrow direction, and

let the housing stand upright. (See Fig. 5: in the direction

) (When

pushing in the direction

, slightly lift the housing by hand to release the lock

lever.)

(2) Remove the four screws 2 and take out the down guide 3.

(3) Slide the two link support shafts

and the two roller shafts

to the round

openings

on their respective slide chassis slits (two at

and two at

(4) Deflect the roller shafts

a little inward to get them out of the round openings

on the slide chassis. (Be careful not to deform the inner links.)

Figure 2

5-5-3. Actuating the mechanism with the cassette

control ass’y removed

(1) Turn on the power supply with the cabinet and camera unit removed,

referring to the Service Manual (so as to actuate the mechanism).

(2) Put the cap on the light guide.

(3) Press the cassette control down switch through the adhesive tape in

the arrow direction so as to turn it on. At this time take care to avoid

contact with the cassette. Keep the switch pressed (if the switch is

turned off, unloading occurs).

Note: To set the Rec mode, press the pin (marked with the asterisk *)

of recognition switch (this operation is not necessary in other

modes).

(1) Set the unit to the STANDBY mode.

(2) Deflect the roller shafts

a little inward, and fit them into the round openings

on the slide chassis. (Be careful not to deform the inner links.)

(3) Align the flanges of roller shafts

with the slide chassis slits

. While

sliding the flanges, fit the support shafts

in the slide chassis slits

, and

slide them until they reach the slits.

(4) Attach the down guide. (While pressing the guide in the direction

, tighten

the screws until the gap

between the down guide 3 and the support shafts

becomes zero.)

Tightening torque: 70±7 mN·m (0.7±0.07 kg·cm)

Screw tightening

torque (4 locations)

0.069±0.007 N·m

(0.7±0.07kg·cm)

Lock Lever

Down Guide

Screw

Figure 5. Lock lever section

Figure 6

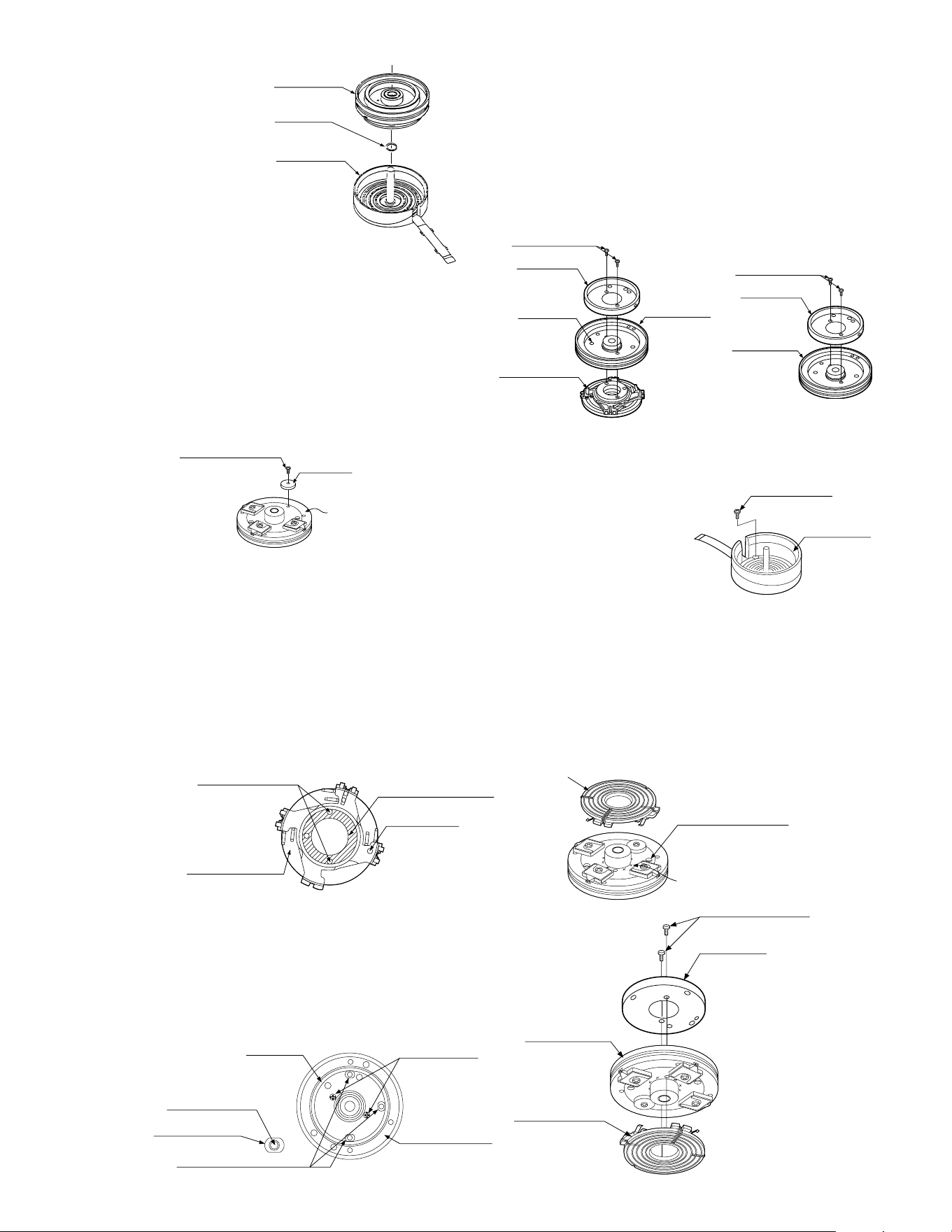

5-5-4. Drum and Drum base

For the drum mounted in this model, there are 2 types. One is the same configuration as the former type, which the rotary transformer

rotor ass'y and balancer can be removed. When replacing the upper drum, use the upper drum for service (CDRMU0032GE01) as

before. The disassembly/assembly procedure is the same as before.

The other is a type directly bonding the rotary transformer rotor. For this type of drum, the rotary transformer rotor and balancer cannot

be removed. Therefore, the disassembly procedure is partially different. When replacing the upper drum, use the dedicated service

unit (CDRMU0033GE01) including the following parts. The assembly procedure becomes equal to that of the former drum.

* To replace the upper drum, be sure to put on gloves. Due care is required so that the drum is not damaged.

• Upper drum ass'y (former type)

• Balancer

• Balancer mounting screw

• Rotary transformer rotor ass'y (former type)

Recognition switch

Cap

Cassette control

down switch

Light guide

Adhesive tape

(1) Drum base (Both common type)

Remove the 3 mounting screws

as shown in Figure 1, and re-

move the drum base.

Mounting

screw

Drum base

Upper/lower

drum ass'y

Positioning

hole

Earth spring

Figure 1

(2) Drum motor stator

(Both common type)

Remove the stator mounting

screw with the hexagonal

wrench as shown in Figure 2,

remove the motor stator.

Upper/lower

drum ass'y

Motor stator

Stator mounting

screw

Phase matching

hole

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

(3) Upper drum ass’y

(Both common type)

Remove the upper drum

ass’y from the lower drum

ass'y as shown in Figure 3.

At this time take care so as

not to lose the gap shim.

In this state put the motor rotor on the upper surface of upper

drum ass'y, and tighten the mounting screw. At this time make

sure that the head screw in the three places is visible through

the motor rotor hole (Figure 8). The screw tightening torque

must be 0.1N·m (1 kg·cm).

Figure 7

(4)-a Motor rotor ass'y and ro-

tary transformer rotor

ass'y(former type)

Remove the 2 rotor

mounting screws as

shown in Figure 4-a, and

remove the motor rotor

and the rotary trans-

former ass'y.

(4)-b Motor rotor ass'y

(bonded type)

Remove two screws fix-

ing the rotor as shown in

Figure 4-b, then remove

only the motor rotor.

Balancer mounting

screw

Balancer

Upper drum

ass'y

Figure 5

Motor rotor

Positioning

hole

Upper drum

ass'y

Rotor mounting

screw

Positioning pin

Figure 4-a

Motor rotor

Upper drum

ass'y

Rotor mounting

screw

Figure 4-b

Upper drum

ass'y

Gap shim

Lower drum

ass'y

Figure 3

(5)-a Balancer

(former type)

Remove the balancer

mounting screw as

shown in Figure 5, and

remove the balancer.

(5)-b. Balancer

(bonded type)

For the bonded type of

drum, the balancer can-

not be removed.

(6) Lower drum ass'y

(Both common type)

Remove the FPC mounting

screw from the lower drum

ass'y as shown in Figure 6.

Figure 6

Lower drum

ass'y

FPC mounting

screw

Rotary transformer

rotor

Positioning pin

Cleaning (shaded area)

(holder)

Mounting screw hole

Rotary transformer

Rotor ass'y

Positioning hole

To be aligned with

RTr rotor side position

pin.

Cleaning

Alignment position (3 pcs.)

L ch

R ch

Motor rotor

Mounting screw

Upper drum ass'y

Head mounting

screw

Screw relief hole

Motor rotor

Upper drum ass'y

Rotor mounting screw

Rotary transformer

rotor ass'y

Figure 8

Install the upper drum in the reverse order of removal.

(1) Balancer

Mount the balancer to the upper drum ass'y with the balancer mounting screw. The screw tightening torque must be 0.1N·m

(tighting torque 1kg·cm). (Figure 5)

(2) Motor rotor, rotary transformer rotor ass’y

Clean the contact surfaces of rotor ass’y holder and upper drum ass'y, and ascertain that there are no contamination and flaws.

Next, adjust the phase so that the positioning pin of rotor ass'y is inserted into the positioning hole of upper drum, and tight fit the

rotor ass'y to the lower surface of upper drum ass'y (Figure 7).

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

(3) Lower drum ass'y

Tighten the FPC mounting screw to the lower drum ass'y. The screw

tightening torque must be 0.08N·m (tighting torque 0.8kg·cm). (Fig-

ure 6)

(4) Upper drum ass’y

After fitting the gap shim which was removed when the upper drum

ass'y was dismantled to the shaft of lower drum ass’y, fit the upper

drum ass’y. (Figure 3)

At this time slightly turn the upper drum ass'y by hand to ascertain that

RTr does not scrape. If scrape is found, replace the gap shim with the

gap shim packaged together with the replacement upper drum ass’y.

(5) Drum motor stator

Fit the motor stator to the shaft. Then, apply the preliminary pressure

0.07N·m (0.7kg) to the motor stator, tighten the stator mounting

screw. The tightening torque must be 0.15N·m (1.5kg·cm).

Install the stator so that the chassis line is nearly parallel with the

motor stator straight section when it is installed on the chassis.

(Figure 9)

(6) Drum base

Align the positioning pin, and tighten the screws (3 pcs.).

(7) Drum ass’y

Install the drum ass’y on the main chassis, and tighten the screws (3

pcs.).

(8) Tape guide

Align the positioning pin, and tighten the screw (one pc.).

Motor stator

Stator set

screw

Figure 9

5-5-5. Phase matching

The phase of the following parts must be matched as

shown in the figure below.

(Ascertain that the marks and round holes align.)

(1) Lo relay gear (2) Main cam

(3) Sub-cam (4) Mode switch

Lo relay gear

Phase

alignment mark

(Round hole)

Phase alignment

mark ( Mark)

Phase alignment mark

(Round hole)

Mode switch

5-6. MECHANISM ASSEMBLING METHOD

T arm guide

Segment gear

M-function lever

Move claw

to rear side.

Move claw to

rear side.

(1) Adjust the phase of each part.

(2) Install screws and washers.

(3) Install the segment gear, T arm guide and the M-function

lever. Install the eject lever.

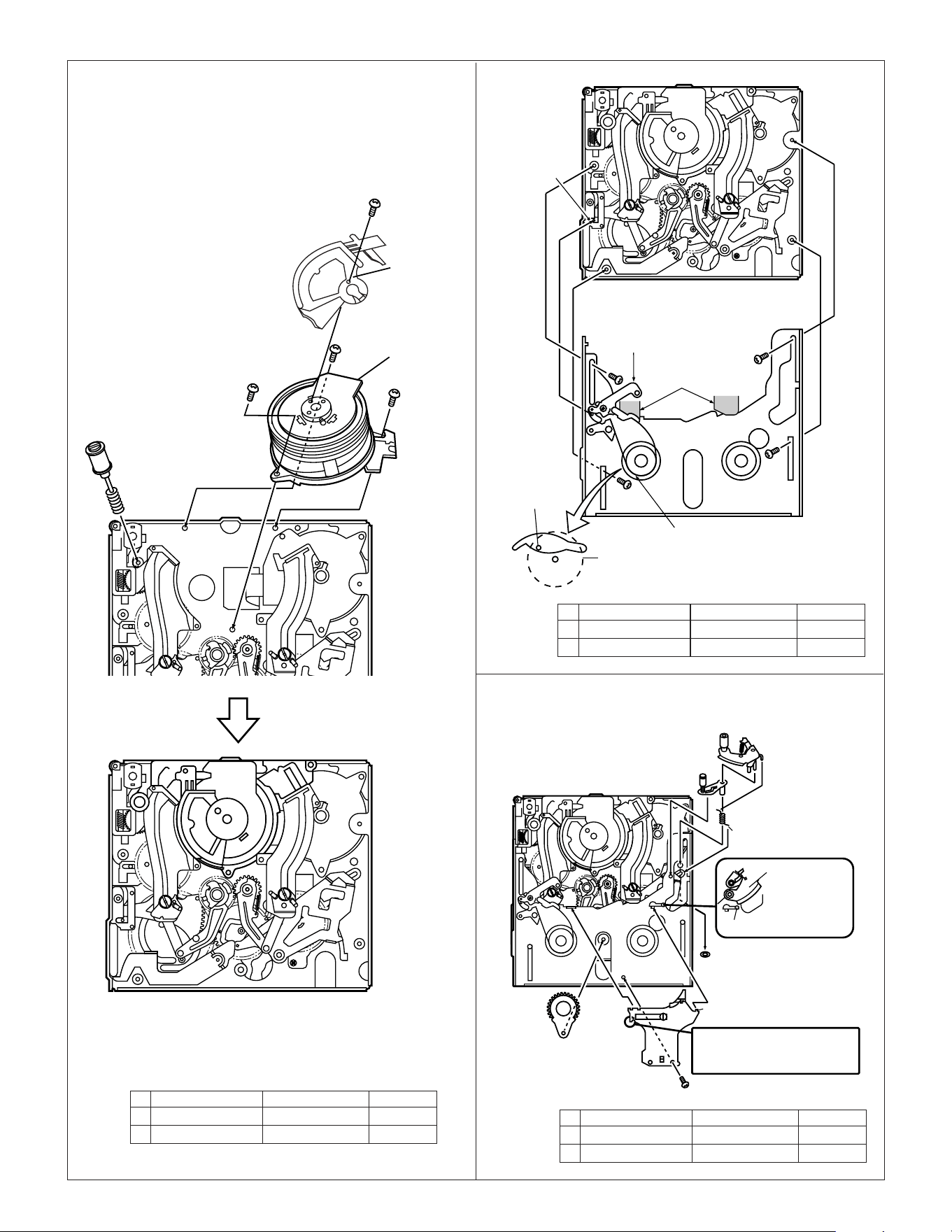

Item Tightening torque Quantity

a S Tight M1.4 x 3 70mN·m (0.7kgf·cm) 1

B ø0.8-ø3-t0.2 1

Arrange parallel.

Motor stator

circuit board

Chassis line

FPC

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

(4) Install the loading block assembly and the capstan motor.

(5) Install the drive gear. At this time, pay attention to the

direction of gear. (The small gear must be located in the

chassis side.)

Insert the part in the

rail and slide it down.

Make sure not to

deform the arm.

Insert the part in the rail

and slide it down.

(6) Install the guide rail assembly.

(7) Install the guide rail assembly taking care to position it

correctly.

Make sure not deform the arm.

Segment gear

Su arm Ass'y

T Lo arm Ass'y

Square Hollow Mark

Triangle Mark

Edge A

Round Hole

Align the marks on the parts.

Loading motor

Drive gear

Position the small gear of the drive

towards the chassis.

Capstan motor

Move FF

downwards

Install the

motor under

this plate.

Item Tightening torque Quantity

A S Tight M1.4 x 2.5 70mN·m 1

a S Tight M1.4 x 3 70mN·m 4

Item Tightening torque Quantity

A S Tight M1.4 x 2.5 70mN·m 2

B S Tight M1.4 x 4 40mN·m 1

C ø0.8-ø3-t0.2 1

D ø2.1-ø5-t0.25 1

a S Tight M1.4 x 3 70mN·m 1

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

(8) Install the drum assembly in the chassis.

(9) Install the tape guide in the drum assembly.

(10) Install the Si roller.

(11) Install the slide chassis.

Item Tightening torque Quantity

A S tight M1.7 x L5.3 100mN·m 3

B S tight M1.7 x L2.5 60mN·m 1

Si roller

Roller spring

Drum assembly

Chassis drawing

Tape guide

T arm guide

Slide this part towards the T arm.

Place the slide chassis

on the guide rail.

Main cam pin

Sup reel base

Insert the main cam pin into the

hole of cam of slide chassis.

Item Tightening torque Quantity

A S tight M1.4 x 2.5 70mN·m 1

B CW ø0.8-ø3-t0.2 70mN·m 1

Take care not to bend the

tension band during assembly

or disassembly.

Pinch lever

Tu guide lever

Tu guide lever SPR

Attach to hook

Take care of position.

Pinch lever

Stopper

The pinch lever

is positioned on

the stopper.

Secure on back side

Claw

Swing arm

(12) Install in the following order: T guide lever spring, T guide

lever, pinch lever.

(13) Install the swing arm.

(14) Install the right guide holder.

Item Tightening torque Quantity

A M1.4 x 1.5 ø4 40mN·m 1

B M1.4 x 1.5 ø3.5 40mN·m 3

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6. ADJUSTMENT OF VCR AND CAMERA

6-1. INITIAL SETTING OF E

PROM IC

6-1-1. E

PROM data alterable ways

1) Set the switch of main body to CAM, and use the remote control (RRMCG0033TASA) for adjustment to turn on the adjustment

mode.

2) VCR adjustment address setting.

V ADJ

0000 “0000” is blinking

After an objective address was established, play key is pushed and set.

In addition, numerical change uses a “REW” or “FF” key.

3) VCR adjustment data setting.

V ADJ

0000 ## Value of “##” differs by an address.

After an objective data was established, “PLAY” key is pushed and set.

4) When data of other address are changed successively, push “STOP” key, and please repeat operation to 5) from 3).

5) When SW of the substance is turned into off, data are written to E

PROM from systematic microcomputer.

6-3. ADJUSTMENT OF VCR SECTION

6-3-1. Before starting the electric circuit adjustment

• Electric circuit adjustment becomes necessary, in most cases, when any of the wear mechanical parts or the video head has been

replaced. Before starting the electric circuit adjustment, be sure to check that the mechanical parts work well (i.e., the mechanical

parts have all been perfectly adjusted). In case a trouble or troubles are found in the electric circuitry, be sure to pinpoint the cause(s)

by using the measuring instruments described below. After locating the trouble spot(s), then proceed to repair, replacement or

adjustment. Do not change the positions of the controls when adequate measuring instruments are not available.

• In order to implement a higher-density, smaller machine, most of the electric circuit parts used on the Circuit Boards are of small-

sized, surface-mounted type. For replacing part(s) as after-sales service, work with a soldering iron as speedily as possible. The

heat resistance of the surface-mounted components is poor, when compared with the larger-sized discrete parts used for television

sets and stationary decks, owning to their small sizes. Therefore, exercise due care to avoid long-time exposure of the pins of these

parts to the heat of the soldering iron which may possibly damage them. Such care should be exercised especially for chip-layer

capacitor replacement. It is advisable to use a temperature-controlled ceramic soldering iron (temperature at the tip: 250°C,

contacting time: less than 5 seconds).

6-2. ADJUSTING THE Y/C, AUDIO AND LCD CIRCUITS ON MODELS WITHOUT A/V IN MODE

(A/V IN MODE SET-UP PRODUCE)

1) Set the switch of main body to CAM, and use the remote control (RRMCG0033TASA) for adjustment to turn on the adjustment

mode.

2) Set up the adjustment address (example : EE mode adjustment address 14). Once this address has been set up, the A/V IN mode (test

mode) is automatically brought and the images appear on the LCD display.

3) Now make the adjustments referring to the instruotions in the manual.

6-1-2. IC703 (E

PROM)

When the IC703 has been replaced, make the following settings and

adjustments.

1. Remove the backup battery (CR2025).

2. Turn power switch to CAMERA.

3. Setting up the V ADJ mode as follows.

* After press the CONTINUE key, press the VCR ADJ key on service

remote control (RRMCG0033TASA).

4. After setting the above data, clear the V ADJ mode and turn off the power

by pull out the battery pack or DC cable.

Neglect about 30 seconds after turned of power, because data of

address becomes effective after microcomputer is reset.

Now the setting of data is completion.

Adjustments to follow

Make the system controller servo, VCR, and LCD adjustments according

to their respective instructions.

6-1-3. Camera adjustment

When the IC2 has been replaced, make the camera adjustment according

to its instructions.

All the camera adjustment data are written in the E

PROM provided on

the lens unit. Therefore, when the lens is replaced, the camera must be

adjusted again according to the camera adjusting procedure.

Data

Address

A40U A45U

AH50U AH50T AH50K AH60U AH60K

01 00 00 00 00 00 00 00

09 FF FF FF FF FF FF FF

02 01 01 01 07 06 01 06

0A FE FE FE F8 F9 FE F9

03 60 60 00 00 00 00 00

0B 9F 9F FF FF FF FF FF

04 00 00 00 40 40 00 40

0C FF FF FF BF BF FF BF

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

< Adjusting the video/LCD section >

• Measuring instruments:

*Color monitor TV set *Oscilloscope *DC cable (AC adapter accessory)

*Digital voltmeter *Frequency counter *Video extension cables

*DC power supply *Signal generator *Vector scope

*Audio generator (CR oscillator) *AV output cable (accessory) *AC adapter

*Alignment tape (JiGWR5-5NSP) *Video recording tape

(JiGWR5-8NSE) (For Y/C, audio and servo adjustments)

AV OUT

DC-IN

AV JACK

UNIT

MECHA UNIT

VCR UNIT

INVERTER

LCD UNIT

CAMERA

UNIT

6-3-2. Servicing the VCR section Adjustment

Configuration

<Note: The entries of list> 1. Name 2. Part No. 3. Code

4. Note * Model, Uses Remarks

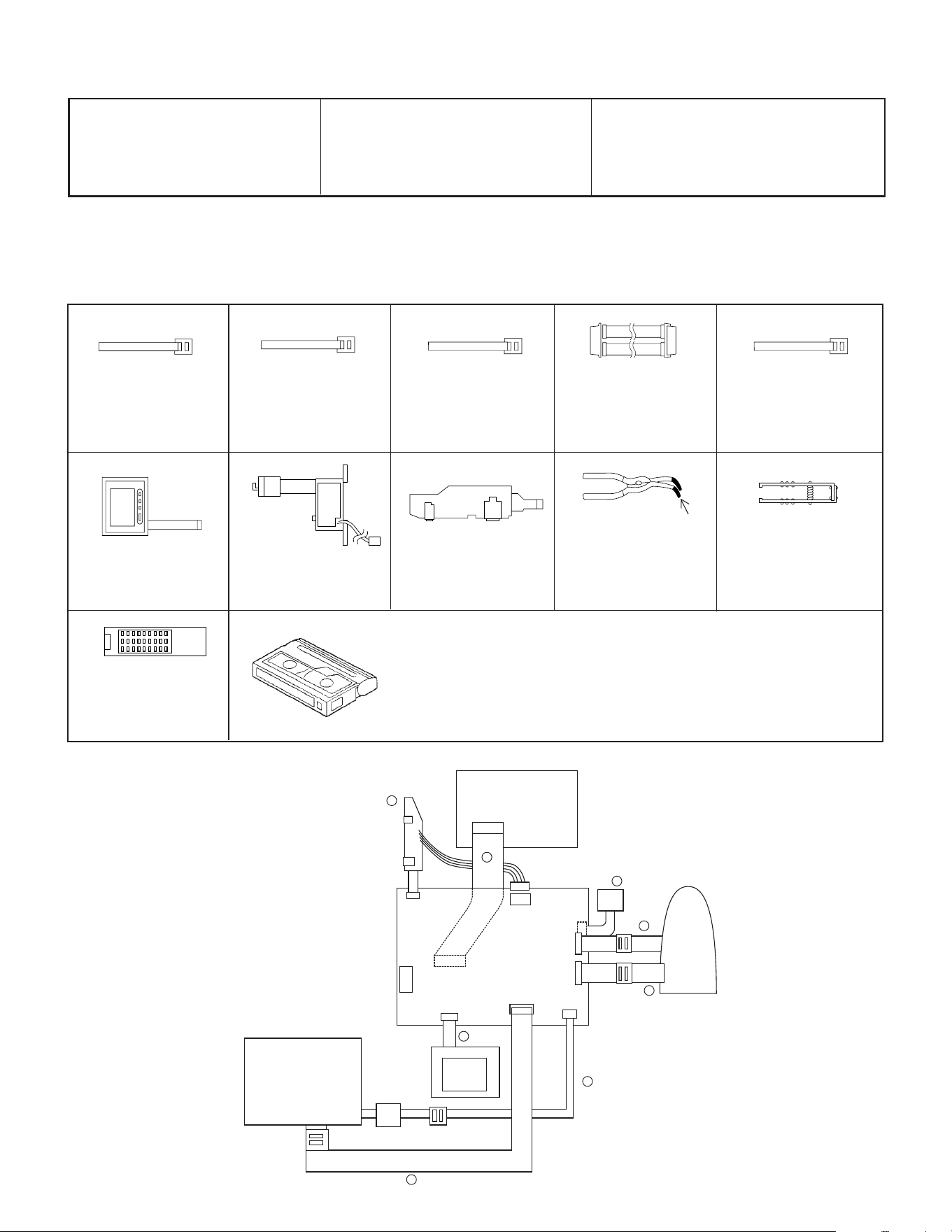

6-3-2-1. Typical connections

1. Extension Cable LCD~

VCR (24pin)

2. QCNW-1382TAZZ

3. BD

1. Extension Cable

Inverter~VCR (7pin)

2. QCNW-1265TAZZ

3. AX

1. Extension Cable

Camera~VCR (20pin)

2. QCNW-1774TAZZ

3. BH

1. Extension Cable

Camera~VCR (24pin)

2. QCNW-1382TAZZ

3. BD

1. Extension Cable

MECHA~VCR (70pin)

2. QCNW-1534TAZZ

3. BS

12345

1. Service remote control

2. RRMCG0033TASA

3. BT

· Alignment Tape

JiGWR5-5NSP (NTSC) .... Normal 8 TAPE (MONO)

JiGWR5-8NSE (NTSC) ... Hi8 TAPE (MONO)

* Y/C Audio Alignment

insulating sleeve

1. Connector fitting and

withdrawing tweezers

2. 9EQPiNSET06GE

3. BR

1. Battery Terminal Unit

2. QTANZ0146TAZZ

3. AK

1. Operation Unit

2. QSW-Z0287TAZZ

3. AW

1. AV Jack Unit

2. RUNTK0352TAZZ

3. AS

1. Connector fitting and

withdrawing extractor

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-3-2-2. Setting up the VCR section adjustment mode (camera section adjustment)

• Select adjustment items by using addresses. Rewrite the adjustment data to change the settings.

Below shown the adjustment procedures and on-screen display.

Procedural steps

1 Turn up or down the flashing hexadecimal number with the FF or REW key to select the V ADJ

address of a desired adjustment item. (Initial address: 00H)

Note: The addresses change as follows. 01FE 01FF 0000 0001 0002

2 Press the PB key to read the data of the selected address. V ADJ

002C A3

3 Turn up or down the data setting with the FF or REW key. The data display starts flashing. V ADJ

002C

4 Press the PB key again to write the data setting into the selected address. V ADJ

002C 72

5 Press the STOP key in the above step 2 or 4, and the screen returns back to the step 1. V ADJ

Display

( : flashing)

When the FF or REW key is held down for 0.3 second or longer, the address selection is repeated in cycles of 100 msec. The data

setting changes by ± 4 by holding the key down for 2 seconds or longer.

• Below discussed are these seven test modes.

1 [TEST No. 1] Sensors off mode

All the sensors, except for the cassette controller switch, dew sensor and battery sensor, stay off. This enables

to bring the VCR in the loading mode without tape. The VCR/camera performance can now be checked with no

tape inside.

2 [TEST No. 3] Automatic battery alarm adjustment

Used to automatically adjust the voltage level which makes the “battery” appear on the LCD display.

3 [TEST No. 4] Battery alarm check/error display

• The difference between the preset battery alarm voltage and the current supply voltage is displayed as follows.

• A past error is displayed at the right of the current battery alarm error.

4 [TEST No. 5] PASS mode

Used to adjust the tape travelling condition. The tracking is shifted by 1/4 from the center to make the tape

running-related RF envelope fluctuations easier to observe.

5 [TEST No. 6] Camera adjustment mode

Used to adjust the camera section. (For details, see Servicing the Camera Section.)

6 [TEST No. 7] VCR adjustment mode

Used to adjust the VCR section. (For details, see Servicing the VCR Section.)

7 [TEST No. 8] Automatic switching point adjustment

Used to automatically adjust the playback switching point. (For details, see Automatic Adjustment of the

Playback Switching Point.)

TEST No. Sensor on/off

• Types of test modes

Title

Contents

1 When the battery adjustment mode is selected from the camera adjustment mode with a cassette with the erase protection tab,

the VCR is automatically put in the REC mode.

1 Sensors off All sensors but the cassette controller switch, dew sensor and

battery sensor stay off.

3 Automatic battery sensor Battery sensor’s input voltage put in memory.

adjustment

4 Battery adjustment error Battery sensor’s adjustment errors are displayed at the right of All sensors on

display the “past errors” area. All but sensors

5 PASS mode Track shift mode (1/4 shift) All sensors on

6 Camera adjustment mode Camera adjustment mode [VCR

interrupted]

7 VCR adjustment mode VCR adjustment mode

8 Automatic switching point Play standard tape and call this mode. Switching point is

adjustment (STOP ADJ) automatically adjusted.

VCR ADJ

0000 00

T-07

Enlarged view

(CAM ADJ) camera

V ADJ VCR, LCD

0000 00

(Address) (Data)

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-3-2-3. Battery shut-off voltage adjusting method

1) Supply power to the main unit, using the variable-voltage DC power supply (range of 2.5V to 5.0V).

2) Set the CAM/OFF/VCR SW to CAM to switch to the camera mode.

3) Load a recordable tape and set the main unit to CAM REC. PAUSE.

4) Set the main unit to TEST mode No. 3, and start recording.

5) Measure voltage between TL2911(+) and TL2914(GND), and adjust the supply voltage to 3.1V.

6) The adjustment is complete if "BATTERY" is displayed on the monitor screen for a second when the PLAY key of operation unit

is pressed.

7) The adjustment is regarded as proper if the auto shut-off is actuated after the warning is displayed when the TEST mode is

cancelled.

* In case of automatic adjustment of shut-off voltage, adjustment is impossible if voltage is above 3.1V ± 0.2V.

If the adjustment is made at 2.9V or below, the low-voltage operation may become unstable.

•Type of test modes

To adjust the camera section of this machine, the remote control for servicing (RRMCG0033TASA) is used.

Press the "CONTINUE" key → "TEST SEL", this will show [T-01] on the LCD OSD, (01:flashing), and select the below TEST No. with

"FF" or :REW" key and set with "PLAY" key.

Same procedures of adjustment from now on.

Use the SW2 thru SW9 switches on the adjustment tool to select the following test modes.

TEST No. Title

Contents

Sensor on/off

1 Sensors off All sensors but the cassette controller switch, dew sensor and

battery sensor stay off.

2 Mechanism adjustment 1 Automatic SP/LP detection prohibited All sensors on

mode 2 Different-mode detection prohibited

3 ATF sampling limited to center

3 Automatic battery sensor Battery sensor’s input voltage put in memory.

adjustment

4 Error display Past errors appear on the counter display of the viewfinder. All sensors on

Battery adjustment error Battery sensor’s adjustment errors are displayed at the right of the All but sensors

display “past errors” area. on

5 PASS mode Track shift mode (1/4 shift) All sensors on

6 Camera adjustment mode Camera adjustment mode [VCR

interrupted]

7 VCR adjustment mode VCR adjustment mode

8 Automatic switching point Play standard tape and call this mode. Switching point is

adjustment (STOP ADJ) automatically adjusted.

1 When the battery adjustment mode is selected from the camera adjustment mode with a cassette with the erase protection tab,

the VCR is automatically put in the REC mode.

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-3-3. Adjusting the VCR circuit

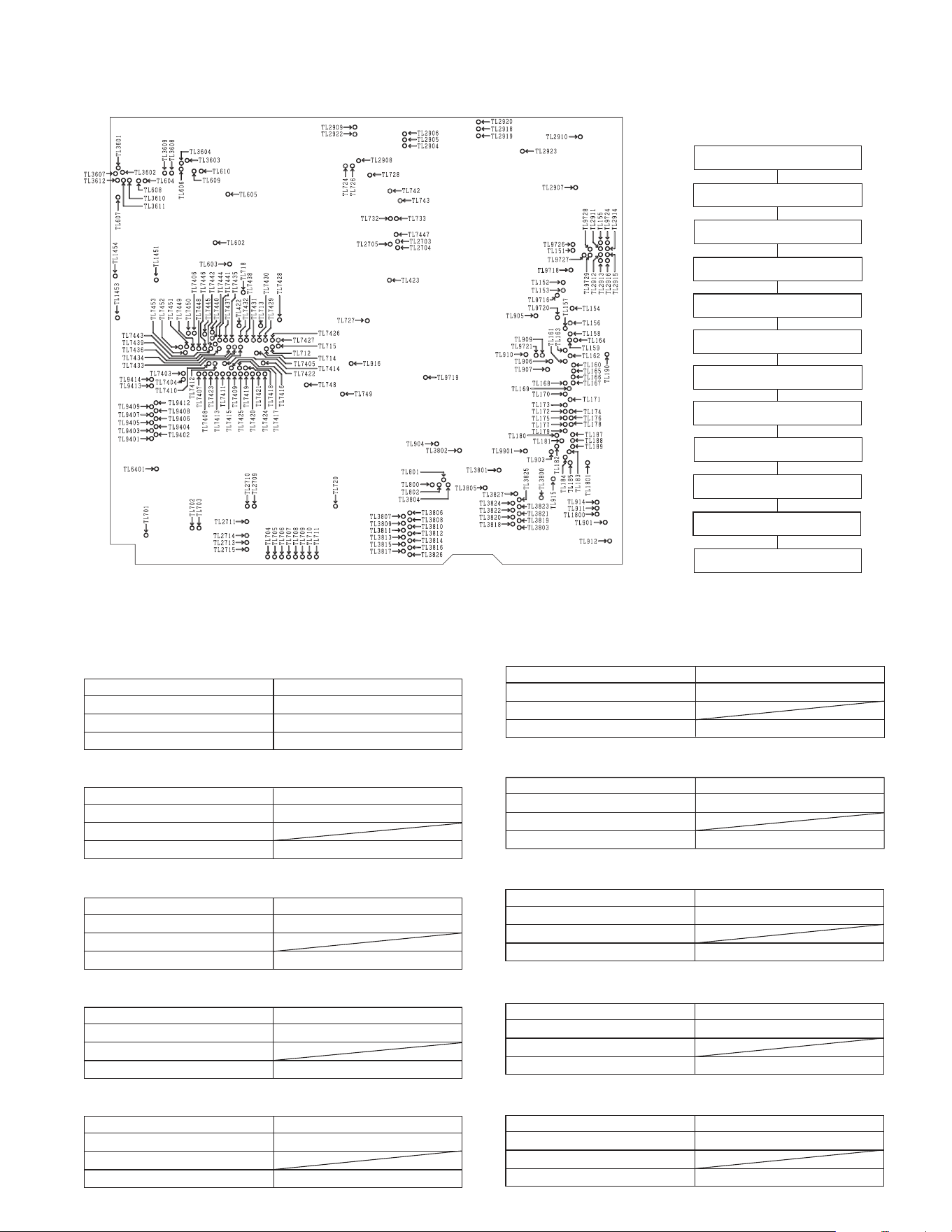

• Test Points on the Video Circuit Board

a) POWER CIRCUIT ADJUSTMENT

PROCEDURE

6-3-3-1. Adjusting the power

circuit

Turn on power

1. Adjust to CAM 15V

2. Check P-CON 4.9V

3. Check P-CON 3.3V

4. Check P-CON 3.1V

5. Check DSP 2.5V

6. Check DSP 1.8V.

7. Check LCD 13.2V

8. Check LCD 7V

9. Check LCD -15.2V

10. Check CAM -8V

Æ Turn off power.

1. Adjustment to CAM 15V

Make an adjustment so that the digital voltmeter indicates 15V

± 0.05V.

Measuring instrument Digital voltmeter

Measuring terminal TL905

Adjustment address 32h

Standard 15V ± 0.05V

Measuring instrument Digital voltmeter

Measuring terminal TL901

Adjustment address

Standard 4.9V ± 0.1V

3. Checking of P-CON 3.3V

Ascertain that the digital voltmeter indicates 3.3V ± 0.1V.

Measuring instrument Digital voltmeter

Measuring terminal TL903

Adjustment address

Standard 3.3V ± 0.1V

4. Checking of P-CON 3.1V

Ascertain that the digital voltmeter indicates 3.1V ± 0.1V.

Measuring instrument Digital voltmeter

Measuring terminal TL9718

Adjustment address

Standard 3.1V ± 0.1V

5. Checking of DSP 2.5V

Ascertain that the digital voltmeter indicates 2.5V ± 0.1V.

Measuring instrument Digital voltmeter

Measuring terminal TL916

Adjustment address

Standard 2.5V ± 0.1V

2. Checking of P-CON 4.9V

Ascertain that the digital voltmeter indicates 4.9V ± 0.1V.

POWER CIRCUIT ADJUSTMENT METHOD

Æ Input 7V

from DC Jack, and set the power switch to the camera side.

` Don't fail to fix the back light unit before adjusting them.

6. Checking of DSP 1.8V

Ascertain that the digital voltmeter indicates 1.8V ± 0.1V.

Measuring instrument Digital voltmeter

Measuring terminal TL910

Adjustment address

Standard 1.8V ± 0.1V

7. Checking of LCD 13.2V

Ascertain that the digital voltmeter indicates 13.2V ± 0.2V.

Measuring instrument Digital voltmeter

Measuring terminal TL907

Adjustment address

Standard 13.2V ± 0.2V

8. Checking of LCD 7V

Ascertain that the digital voltmeter indicates 7V + 0.4/-0.5V.

Measuring instrument Digital voltmeter

Measuring terminal TL904

Adjustment address

Standard 7V + 0.4/-0.5V

9. Checking of LCD -15.2V

Ascertain that the digital voltmeter indicates -15.2V ± 1V.

Measuring instrument Digital voltmeter

Measuring terminal TL906

Adjustment address

Standard -15.2V ± 1V

10.Checking of CAM -8V

Ascertain that the digital voltmeter indicates -8V ± 0.5V.

Measuring instrument Digital voltmeter

Measuring terminal TL909

Adjustment address

Standard -8V ± 0.5V

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

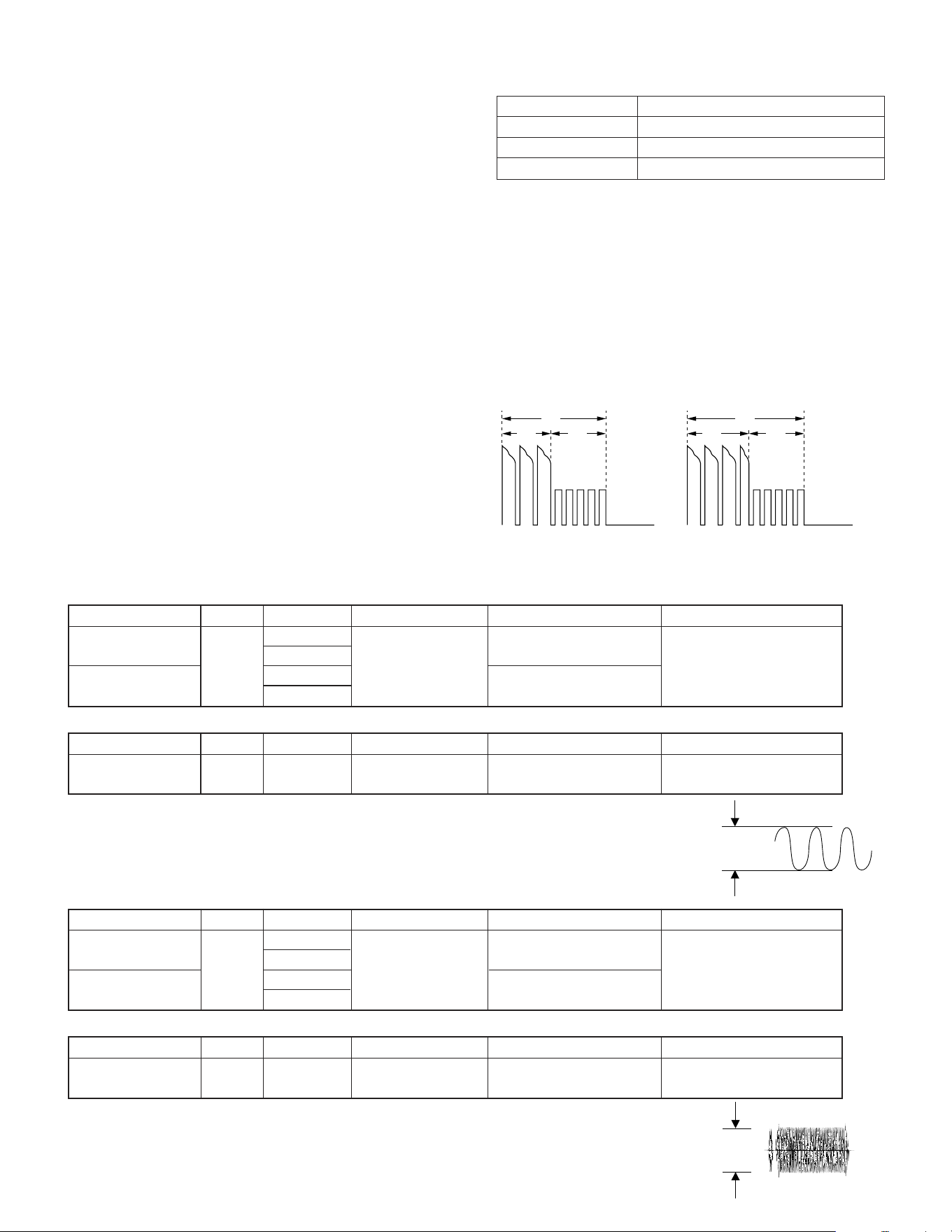

Figure 6.1.1

Figure 6.1.2

Mode Playback

Adjustment address 30h

Tape Alignment tape (JiGWR5-5NSP)

Oscilloscope

Measuring instrument

6-3-4. Adjustment of system controller and servo circuit

6-3-4-1. Adjustment of playback switching point

b) CHARGING CIRCUIT ADJUSTMENT PROCEDURE

1) Play back the alignment tape (JiGWR5-5NSP)

2) Press the “CONTINUOUS PUSH” and “TEST MODE SELEC-

TION” of adjustment remote controller to set the test mode.

(At this time the numeral of “TEST01” blinks.)

3) Using the “FF” and “REW” keys, select “TEST08”, and press the playback key to set the SW-P adjustment mode.

4) After a while the adjustment is completed, and operation stops automatically.

In case of adjustment failure the tape is ejected automatically.

3H 3H

V sync signal

3H 3H

V sync signal

4) Select the address 30h, set the sync slope of oscilloscope to (–),

adjust the data with “REW” and “FF” so that the interval between

the trigger point and the V sync signal is set to 6H, and fix the data

with the “PLAY” button. (See Figure 6.1.1.)

5) Then, set the sync slope to (+), and ascertain that the interval

between the trigger point and the V sync signal has been set to 6H.

(See Figure 6.1.2.)

6) Keep the STOP key pressed for about 3 seconds to exit from the

adjustment mode.

Only in the case when the satisfactory result was not obtained by the adjusting method described above, perform the following

adjustment.

1) Connect each signal to the oscilloscope.

1ch: SEP Y OUT ...... TL1453

2ch: H-SW-P ............ TL7417

GND: GND ................. TL1454

2) Play back the alignment tape (JiGWR5-5NSP)

3) Press the “CONTINUOUS PUSH” and “VCR ADJUSTMENT” of adjustment remote controller to set the VCR adjustment mode.

Mode Address Measuring point Adjustment standard Measuring instrument

3F ME 130±5mVP-P

40 MP 95±5mVP-P

41 ME 125±5mVP-P

42 MP 120±5mVP-P

REC Y current

adjustment (Hi-8)

REC Y current

adjustment (Nor 8)

VCR

STOP

Oscilloscope

TL9413(Sig)

TL9414(Gnd)

Mode Address Measuring point Adjustment standard Measuring instrument

REC Y current

adjustment (Nor 8)

Oscilloscope

MP 120±5mVP-P

VCR

STOP

TL9413(Sig)

TL9414(Gnd)

(1) Enter the VCR STOP mode.

(2) Select the above applicable address with the adjustment remote control.

(3) Measurement signal is output to TL9413.

(4) Adjust the amplitude so as to get the adjustment standard value at TL9413(Sig) and TL9414(Gnd).

Mode Address Measuring point Adjustment standard Measuring instrument

43 ME 115±5mVP-P

44 MP 105±5mVP-P

45 ME 135±5mVP-P

46 MP 120±5mVP-P

REC C current

adjustment (Hi-8)

REC C current

adjustment (Nor 8)

VCR

STOP

Oscilloscope

TL9413 (Sig)

TL9414 (Gnd)

Mode Address Measuring point Adjustment standard Measuring instrument

REC Y current

adjustment (Nor 8)

Oscilloscope

MP 120±5mVP-P

VCR

STOP

TL9413 (Sig)

TL9414 (Gnd)

2. C recording current adjustment

· Hi-8model (VL-AH30U Series)

· Nor8model (VL-A10U Series)

6-3-5. Y/C circuit adjustment method

1. Y recording current adjustment

· Hi-8model (VL-AH30U Series)

(1) Enter the VCR STOP mode.

(2) Select the above applicable address with the adjustment remote control.

(3) Measurement signal is output to TL9413.

(4) Adjust the amplitude so as to get the adjustment standard value at TL9413(Sig) and TL9414(Gnd).

Standard value

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-3-6. Adjustment of audio circuit

1. Adjustment of filter f0

Measuring instrument Oscilloscope

Mode PB

Input signal (tape) JiGWR5-5NSP

Measuring terminal TL605/AUDIO.OUT

Adjustment address 33

Set value Clear the waveform

Audio Check

Checking of self-recording/playback

1) Input the audio signal (400Hz, -8dBs) into the Audio line IN/

OUT terminal, and record.

2) Connect the valve voltmeter (oscilloscope) to the Audio line

IN/OUT terminal.

3) Play back the record, and ascertain that the output waveform

level is -8 dBs ± 4 dBs (580 to 1370 mVp-p on the oscillo-

scope).

4) If there is any deviation from the specified value, perform

adjustment again as stated in items 1) above, and check again

the self-recording/playback level.

1) Set the alignment tape (JiGWR5-5NSP).

2) Using the adjustment remote controller (RRMCG0033TASA),

set the VCR adjustment mode, and set the address “33” with

the operation switch (FF/REWIND key).

3) Play back the standard tape.

4) Using the operation switch (FF/REWIND key), make an

adjustment so that the most clear playback waveform is

obtained on TL605.

5) Press the operation switch (PLAYBACK key) to write the

data.

6) Press the operation switch (STOP key) to exit from the

address “33”.

(The address “33” blinks.)

Measuring instrument Valve Voltmeter (oscilloscope)

Mode REC →PB

Input signal (tape) 400 Hz, -8 dBs (872 mVp-p)

Measuring terminal Audio IN/OUT

Adjustment address —

Set value -8 dBs ± 4 dBs (580 to 1370 mVp-p)

2. Dac full-Scalle adjustment

Measuring point TL1801 (G-OUT)

Address 039

Mode VCR

Adjusting method 1) Set the data of address 082 changed to 80, address 0A2 changed to 00, address 0A5 changed to 80.

2) Connect TL3804 to P-CON 3.1V.

3) Connect the Digital voltmeter to TL801 and adjust the DC volt.

4) Set the data of address 082 changed to 40, address 0A2 28. (Restore)

Adjustment standard 0.78V ± 10mV

Remarks ———————

VCR ADJ

Address Data(3 type) Data(3.5 type)

50 8F 95

51 8A 90

52 6F 74

1. Inverter input Voltage Setting

6-3-7. Adjustment of LCD display circuit

Adjustment procedures and connections are the same as with the VCR section. (Refer to item 6-3-3)

3. R-W/B adjustment

Measuring point TL3814 (G-OUT) TL3813 (R-OUT)

Address 090

Mode VCR

Adjusting method 1) Set the data of address 082 at the address 80.

2) TL3814 (G-OUT): Oscilloscope CH1

TL3813 (R-OUT): Oscilloscope CH2

3) Adjust P-P of TL3813 becomes bigger 0.15V than TL3814.

4) Set the data of address 082 at the address 40. (Restore)

Adjustment standard ±0.1Vp-p

Remarks ———————

G R

Measuring point TL3814 (G-OUT) TL3815(B-OUT)

Address 092

Mode VCR

Adjusting method 1) Set the data of address 082 at the address 80.

2) TL3814 (G-OUT): Oscilloscope CH1

TL3815 (B-OUT): Oscilloscope CH2

3) Adjust P-P of TL3815 become bigger 0.1V than TL3814.

4) Set the data of address 082 at the address 40. (Restore)

Adjustment standard ±0.1Vp-p

Remarks ———————

4. B-W/B adjustment

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

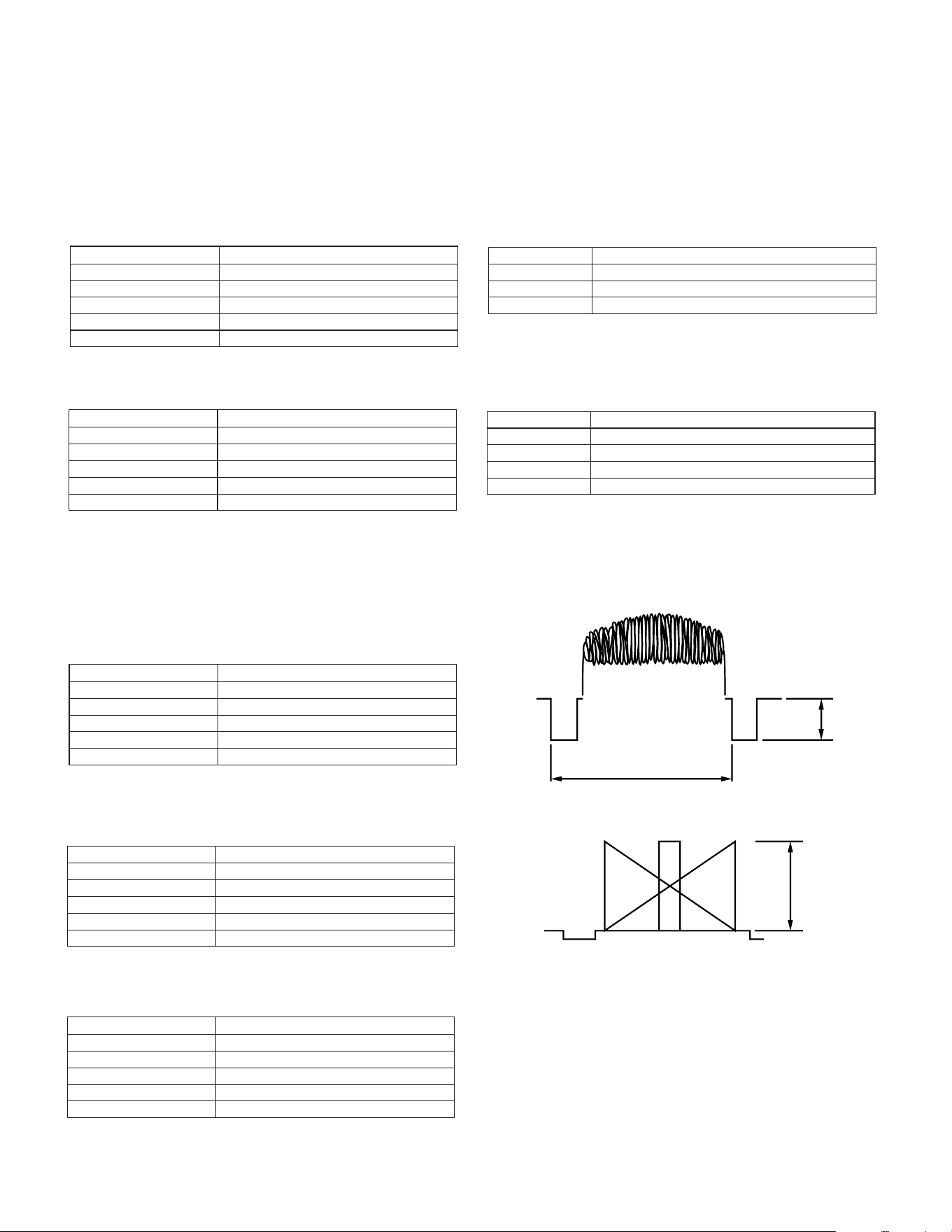

5. VCO adjustment

Measuring point TL3802

Address 03E

Mode VCR

Adjusting method 1) Connect TL3803 to GND.

2) Connect the frequency counter to TL3802, and adjust the frequency.

Adjustment standard 15.734kHz ± 100Hz

Remarks ———————

Measuring point TL1801

Address 037

Mode VCR

Adjusting method 1) Set the data of address 0A5 at the address 80.

2) Connect TL1800 to GND.

3) Connect the Digital voltmeter to TL1801, and adjust the DC Volt.

Adjustment standard 6.85V ± 50mV

Remarks ———————

7. COMMON PULSE adjustment

Measuring point TL3802

Address 03B

Mode VCR

Adjusting method 1) Connect the oscilloscope to TL3802, and adjust the pulse width.

Adjustment standard 3 type: 2.8µsec ±0.15µsec (VL-AH50), 3.5 type: 3.7µsec ±0.15µsec (VL-A40/A45/AH60)

Remarks ———————

6. H-position adjustment

Measuring point LCD panel display surface

Address 03C

Mode VCR

Adjusting method 1) Set data of address 0A5 at the address 80 and address 082 at the address A9.

2) Set the illuminometer (TOPCON IM-3) on the LCD panel surface (do not allow entry of external light).

3) Connect the illuminometer to the oscilloscope.

4) Make an adjustment so as to minimize the ripple of output waveform.

Response time: 0.6 sec

5) Adjust again if longitudinal stripe appears evidently.

6) Set data of address 082 at the address 40. (Restore)

* Or set to the point where the black is settled deepest with the grey scale signal.

Adjustment standard Minimum

Remarks Make an adjustment after aging for 5 minutes or more.

8. COM-BIAS adjustment

Measuring point LCD panel display surface

Address 090, 092

Mode VCR

Adjusting method 1) Set data of address 0A5 at the address 80, and address 082 at the address A9.

2) Adjust so as to get the same white screen as that of standard monitor. (Adjust again, visually checking as

stated in item 3. 4.)

3) Set data of address 082 at the address 40. (Restore)

Adjustment standard Standard monitor

Remarks Make an adjustment after aging for 5 minutes or more.

9. W/B adjustment

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-4. ADJUSTMENT OF CAMERA SECTION

6-4-1. Servicing of camera section

(1) Object, measuring instrument and jigs necessary for camera section servicing

• Gray scale chart • Color bar chart • Halogen light (2 pcs.)

• Vectorscope • Color temperature conversion filter • Color video monitor

• Extension cable HOYA "LB-165" • AC adapter

• Oscilloscope • Digital voltmeter • Service Remote Control

• Video output cable

Note:

1. Color temperature conversion filter (jig item No.3) may be obtained from HOYA Optics in your local market.

2. N: Indicates the new jigs.

Configuration

<Note: The entries of list> 1. Name 2. Part No. 3. Code

1. Color Bar Chart

(240 x 320 mm)

2. JiGCHART-4

3. DA

1. Color Temperature

Conversion Filter

2. JiGHOYA-LB165

3. BN

1. Service Remote Control

2. RRMCG0033TASA

3. BT

1. Gray Scale Chart

(390 x 520 mm)

2. JiGCHART-1

3. CP

• Connections for Camera Section Servicing

6-4-2. Adjustment procedures

This adjusting procedure covers all the steps for conducting the adjustments all the way. There are some steps that may be skipped,

depending on the specific needs for servicing and adjustment.

1. Checking the power supply voltage

2. Adjusting the auto focus

* Preparation: Set the auto focus adjustment mode.

3. Adjusting the camera signal

1. Adjusting the camera signal

* Preparation: Set the camera signal adjustment mode.

2. Adjusting the iris AE

3. Adjusting the black balance and AF noise level

4. Adjusting the burst gain

5. Adjusting the white balance

6. Adjusting the color gain

7. Adjusting the out door white balance

CCD

PWB

20pin

24pin

19pin

SC6

SC2

SC3

SC4

LENS

Connected FPC between the camera

and the VCR.

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-4-2-1. Checking the power supply voltage

• Measuring terminal:

P-CON 4.9V

P-CON 3.1V

CAM 15V

CAM -8V

LENS 5.7V

• Measuring instrument: Digital voltmeter

6-4-2-3. Adjustment of Camera signal

• Before starting these adjustment, auto focus adjustment must be finished.

• Set up the camera signal adjustment mode (Write 00 to the address 70)

1. Sync level adjustment

Measuring instrument Oscilloscope

Subject Anything

Tape —

Test point VIDEO OUT (Terminated in 75Ω)

Adjustment address 74

Adjustment level 286mVp-p

1) Connect the oscilloscope to the VIDEO-OUT. Adjust the sync

level to 286mVp-p.

Video

SYNC

286mVp-p

6-4-2-2. Auto focus adjustment

Measuring instrument None

Subject —

Tape —

Test point None

Adjustment address 71

Adjustment level 09, 0A, 0B

• Basic iris adjustment

1) Set up the auto focus adjustment mode. (Write 01 to the address 70)

2) Write the adjustment data 09, 0A and 0B one after the other to the address 71, the adjustment are as above.

DATA Adjustment

09 Hall offset

0A Iris offset

0B Iris close

• Lens adjustment

Measuring instrument None

Subject More than 50 m away

Tape —

Test point None

Adjustment address 71

Adjustment level 12, 06, 08, 0D

DATA Adjustment

12 Optical wide-end adjustment

06 Wide-end focus ∞ position adjustment

08 Tele-end focus ∞ position adjustment

0D Zoom tracking adjustment

1) Set up the auto focus adjustment mode.

(This is unnecessary after the above basic iris adjustment has been made.)

2) Write the adjustment data 12, 06, 08 and 0D one after the other to the address 71. The adjustments are as above.

Write FF to the address 70 to exit the auto focus adjustment mode.

700mVp-p

Measuring instrument Oscilloscope

Subject Gray scale

Tape —

Test point VIDEO-OUT

Adjustment address 9C

Adjustment level 700mVp-p

1) Shoot the gray scale in the standard way. Observe the VIDEO-OUT signal on the oscilloscope screen and rewrite the data of

address 9C to get an amplitude of 700mVp-p as shown above.

2. Iris AE adjustment

3. Black balance , AF noise level adjustment

Measuring instrument None

Subject Anything

Tape —

Test point None

Adjustment address 71

Adjustment level 01

1) Write the data 01 to the address 71.

The following adjustments are automatically

carried on ; 1 Black balance adjustment

2 AF noise level adjustment

at AGC Gain Min , AGC Gain Max and Gain up.

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Measuring instrument Vector scope

Subject Gray scale

Tape —

Test point VIDEO OUT (Terminated in 75 Ω)

Adjustment address R-W/B 00, B-W/B 02

Adjustment level R-W/B 0 % ± 3 %

B-W/B 0 % ± 3 %

1) Adjust the spot to the center of vector scope (R-Y : 0%, B-Y : 0%)

using address 00 and 02.

4. White balance adjustment

5. Color gain adjustment

B spot

R-Y

B-Y

R spot

R level

100°

344°

Burst

B level

Measuring instrument Vector scope

Subject Color bar chart

Tape —

Test point VIDEO OUT (Terminated in 75 Ω)

Adjustment address R GAIN 1C4

B GAIN 1C2

R MAT 1C0

B MAT 1BE

Adjustment level R GAIN; Burst ratio 1.2 ± 0.1

B GAIN; Burst ratio 1.0 ± 0.1

R MAT; 100 ± 2°

B MAT; 344 ± 2°

1) Using the address 1C4, adjust the R level to a burst ratio of 1.2. With

the address 1C2, adjust the B level to a burst ratio of 1.0.

2) Using the address 1C0, adjust the R phase to 100°. With the

address 1BE, adjust the B phase to 344°.

3) Repeat the above steps 1) and 2).

Measuring instrument Vector scope

Subject Gray scale

Tape —

Test point VIDEO OUT (Terminated in 75 Ω)

Adjustment address R-OUT DOOR 6C

B-OUT DOOR 6E

Adjustment level R-OUT DOOR; 0 ± 3 %

B-OUT DOOR; 0 ± 3 %

1) Attach the color temperature conversion filter (JiGHOYA-LB165) to the front of the lens.

2) Using the addresses R-OUT DOOR 6C and B-OUT DOOR 6E, adjust the spot to the center.

3) Take off the color temperature conversion filter.

6. Out door white balance adjustment

Center point

Spot

R-Y

B-Y

When you have finished, write FF to the adress 70 to exit camera signal

adjustment mode.

Center point

Spot

R-Y

B-Y

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

No function at all

YES

No tape ejection

YES

No LCD light-up

Check the inverter transformer and power circuit.

YES

No picture in EE mode

* Check the camera section and Y/C circuit and LCD

circuit.

YES

No picture playback

Check the Y/C circuit and head amplifier circuit.

YES

No video recording

Check the Y/C circuit and head amplifier circuit.

YES

Streaking at self-recording/playback

YES

Noises at regular intervals in playback

Check the ATF circuit.

No recorded characters on screen

YES

Check the LCD circuit and character generator (IC705).

YES

No color in EE mode

* Check the camera section and Y/C circuit.

YES

No color in playback

YES

Black streaking

No sound

Check the Y/C circuit and head amplifier circuit.

Check the audio circuit.

Check the system controller and CAP MOTOR DRIVER

circuit.

Check the Y/C circuit and head amplifier circuit.

Check the Power circuit and system control circuit.

Check the system control and loading motor circuit.

Check the Y/C circuit and head amplifier circuit.

Error message (e.g. E007)

6-5. TROUBLE SHOOTING

6-5-1. Classification of troubles

No color in recording

Normal

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

6-5-2. Troubleshooting for the camera section

No picture

Check the lens drive circuit (IC551) and main signal

line.

YES

No color

YES

Check IC201 (DSP), and their peripherals.

No auto white balance function

YES Check IC706 (camera CPU part of I chip µ-computer),

IC551 (Lens driver) and its peripherals.

YES

No auto focus function

Check IC706 (camera CPU part of I chip µ-computer),

IC551 (Lens driver) and their peripherals.

ûYES

Check IC706 (camera CPU part of I chip µ-computer),

IC551 (Lens driver) and their peripherals.

Normal

No power zoom function

6-5-3. Charging mode troubles

Start

Check the circuit of SYSCON.

Check Q2911, R2914, R2915

and battery terminal unit.

Battery is defective.

Check the AC adapter.

Check Q2905, IC2901 and around the circuits.

Is ADP-DET "H"? *1

Is CHG-ON "L" or "H"? *2

Is BAT DET "OV" ?

Is BAT DET CK voltage more

than 2.8V or less than 5.9V.

Is the output voltage of Q2901,

1pin more than 7V.

Is Q2905 collect voltage

indicating.

Check the D2913 ,

R2921~R2923 and CP901.

*1: Inputting DC power and set the ADP DET "L".

*2: Inputting charging mode as CHG ON "H".

"H"

"L"

"H"

YES

more than 3V

"L"

YES

less than 3V

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

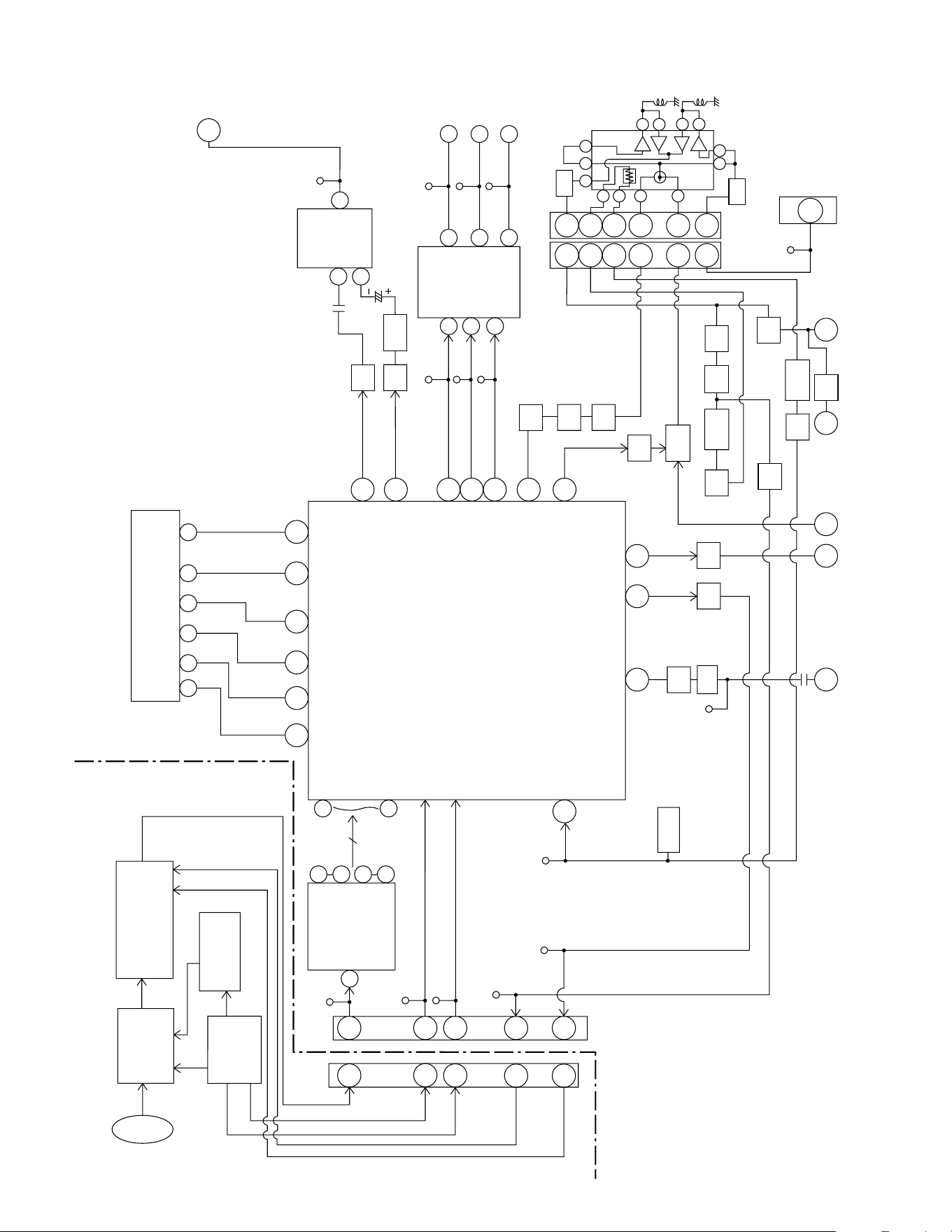

* On this model, all the circuits of the VCR and camera sections are controlled by IC706.

1) IC401 are controlled with the serial data from IC706.

2) IC703 is a memory that serves to store the adjustment data of the VCR section.

3) IC2 is a memory that serves to store the adjustment data of the camera section.

4) The other circuits and ICs are under the L/H level or the PWM control.

BATTERY

NONREGE

IC900

IC2

DSP

IC401

IC601

IC3801

IC707 & IC2701

D/A

IC706

IC705

POWER (CAMERA)

PROM

LENS

PROM

SERIAL BUS

CAM

Y/C

ATF

CAM

HEAD

AUDIO

SERVO

CIRCUIT

LCD

CONTROLER

H/A

UNIT

MECHA-

NISM

MECHA-

CHASSIS

POWER (SIGNAL)

POWER (MOTOR)

SYSTEM SERVO

CONTROL

KEY

3.1V

Reg

POWER (AT 3.1V)

POWER (SYS 3.1V)

Power Control IC

CAMERA

CONTROL

IC701

I CHIP µ-COM

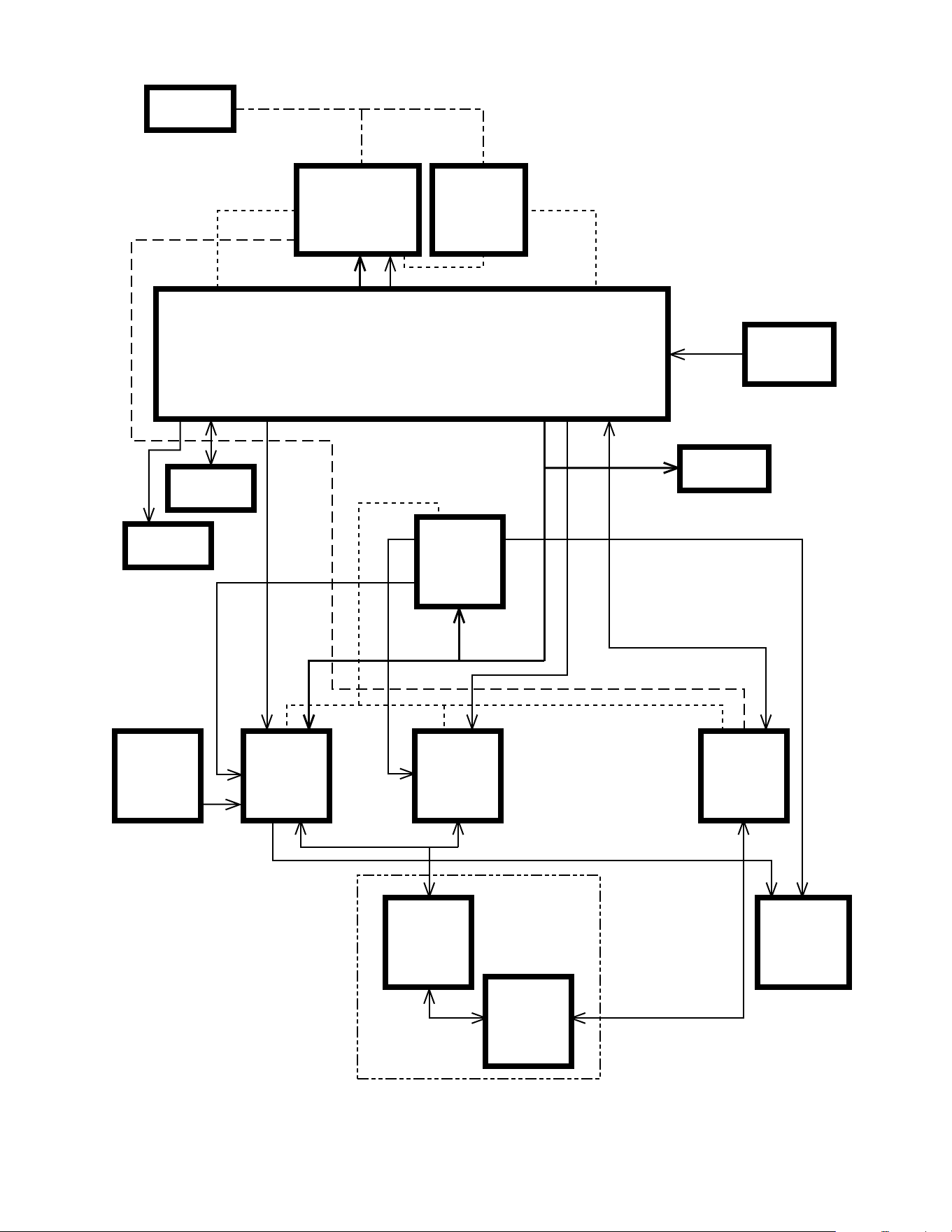

7. SYSTEM BLOCK DIAGRAMS

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

7-1. VIDEO SIGNAL BLOCK DIAGRAM

IC707

OSD

11 12 18 16 17

127128129130131132

101

103

107

115

117

124

IC401

CAM

Y/C

ATF

LCD SIG

OSD MIX

DATA IN

CCD9CK

CCD14CK

AD IN

CLAMP

BLK1

BLK0

BLK1

CHAR0 CHAR2

C OUT

Y OUT

LCD G

LCD R

LCD B

REC FM

REC LOW C OUT

CHAR1

ATF

ERROR

ACCFSC

IC151

SC152

SC102

TL191

TL174

TL177

10 bit

ADC

223

TL405

Q409

TL166

TL165

TL407

117

Q410

IC706

IC601

118

IC601

IC706

Q707/IC708

MIX

AMP

PEAKING

AMP

IC101

CDS, AGC

3231

øVøH

IC11

V-DRIVER

IC12

IC1

Lens

CCD

SENSOR

TL801

GIN

RIN

R OUT

G OUT

B OUT

BIN

TL800

TL802

Q1401

Q1403

Q1402

Q1404

IC1451

DRIVER

IC800

CN3601

TL1451

CN3800

CN7401 SC305

Q307

TL3813

TL3814

TL3815

BUF

ENV.

DET

BUF

Q407

Q8401

Q8402

Q8404

1616

Q6451

Q7455

Q7452

Q7451

Q6404

Q6402

Q7401

Q8452

Q8451

Q7404 Q7406 Q7407

PEAKING

AMP

AUDIO

TRAP

BUF

IC301

H/A

CN9401

Q302

REC RF-OUT

TL9413

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

ADD 43, 44, 45, 46

Signal waveform

ADD 3F, 40, 41, 42

(A) TL319

(B) TL319

25 AV REC-H

REC

SC305

SC305 Q307

SC305

IC 301

HEAD AMP-PROCESS

VCC

RECORDING

AMPLIFIER

CH-1

SC305

SC301

ROTALY

ERASING

HEAD

VIDEO HEAD

(CH-2)

VIDEO HEAD

(CH-1)

ROTALYTRANSFORMER

Q315

Q302

13 PB RF EVN.

24 H-SW-P

23 OVER-P

28 REC-Y

31 REC-C

16 AGC IN

19 PB Y FM

D.O. PULSE

SC305

REC RF

ROT ERASE

BUF

VGC

Q315

FF30

AMP

AGC

DOC

PLAYBACK

AMPLIFIER

CH-2

RECORDING

AMPLIFIER

CH-2

ERASING OSCILLATOR

SWITCH

ERASING

OSCILLATOR

PLAYBACK

AMPLIFIER

CH-1

1FE (S)

SC301

5L (S)

SC301

6L (F)

SC301

9R (S)

SC301

8R (F)

2FE (F)

4.9V

(A),(B)

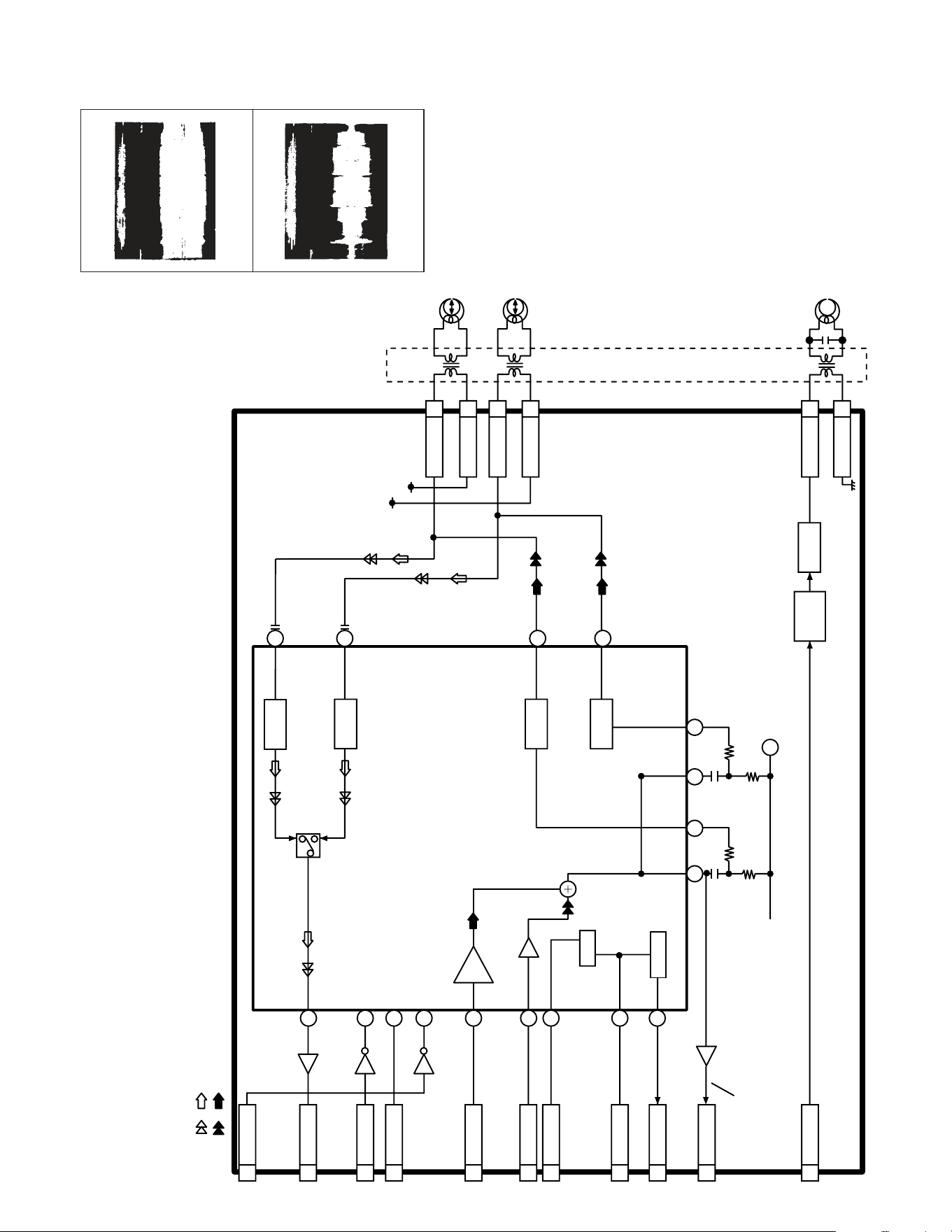

7-2. HEAD AMP BLOCK DIAGRAM

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

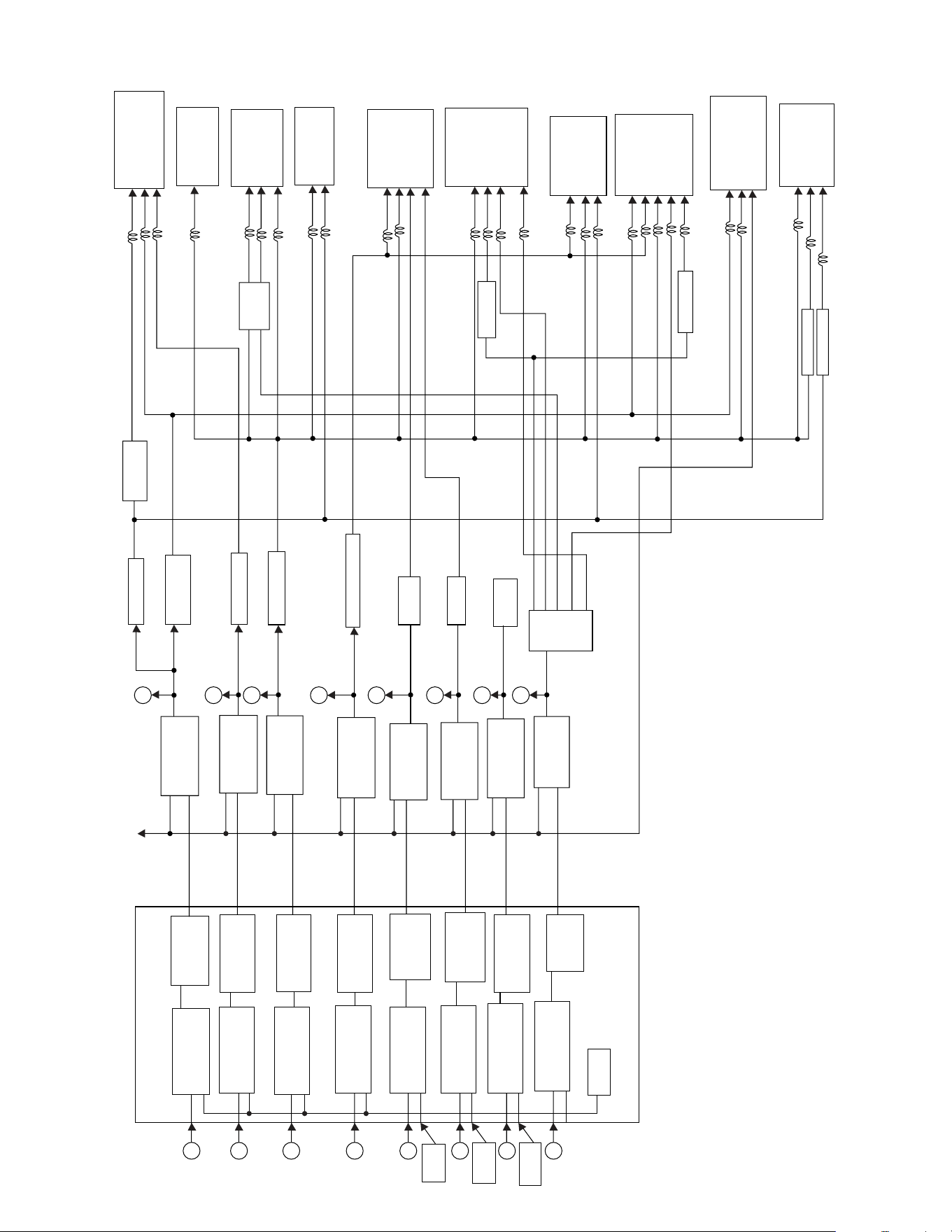

7-3. POWER SYSTEM BLOCK DIAGRAM

Power control IC (8CH)

CH1 ERROR AMP.

IN- Comparator

section

CH2 ERROR AMP.

IN- Comparator

section

CH1 output

Drive circuit

(Voltage drop)

CH2 output Drive

circuit (Rise and

fall voltage)

CH3 ERROR AMP.

IN- Comparator

section

CH3 output Drive

circuit (Rise and

fall voltage)

CH4 ERROR AMP.

IN- Comparator

section

CH4 output Drive

circuit (Rise and

fall voltage)

CH7 ERROR AMP.

IN-

Comparator section

IN+

CH7 output Drive

circuit (Rise and

fall voltage)

CH8 ERROR AMP.

IN-

Comparator section

IN+

CH8 output

Drive circuit

(NPN)

CH5 ERROR AMP.

IN- Comparator

section

CH5 output

Drive circuit

(Voltage drop)

CH6 ERROR AMP.

IN- Comparator

section

CH6 output

Drive circuit

(Voltage drop)

Standard

power

DRUM

ERROR

CAP

ERROR

B/L CTL

3.3V Power

Rise and fall voltage

circuit

(PNP Tr)

4.9V Power

Rise and fall voltage

circuit

(PNP Tr)

Mecha 5V

Rise and fall voltage

circuit

(PNP Tr)

B/L POW

Rise and fall voltage

circuit

(PNP Tr)

2.8V Power

Valtage drop circuit

(PNP Tr)

DRUM VS

Valtage drop circuit

(PNP Tr)

CAP VS

Valtage drop circuit

(PNP Tr)

Trans circuit

(NPN)

P-CON 3.3V

2.5V REG

Circuit

DSP 1.8V

P-CON 4.9V

MECHA 5V(5.7V)

DRUM VS

CAP VS

BACK

LIGHT

15V

+7V

-4.9V

-8V

-15.2V

3.1V REG Circuit

(P-CON3.1V)

I/O power

13.2V REG

CAM15V SW

D/A4.9V SW

D/A3.3V SW

DSP (DELTA)

2.5V

3.1V

1.8V

4.9V

I/O

YC4.9V

YC-4.9V

4.9V

A/D, DSP

4.9V

3.3V

MOTOR DRIVER

MECHA 5V

4.9V

DRUM VS

CAP VS

LCD

4.9V

13.2V

+7V

-15.2V

AUDIO

MECHA 5V

4.9V

3.3V

CAM HEAD

3.1V

MECHA 5V

4.9V

-9V

15V

SYS

3.1V

4.9V

NONREG

SYSDAC

P-CON4.9V

D/A4.9V

D/A3.3V

NON REG (3V~7V)

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

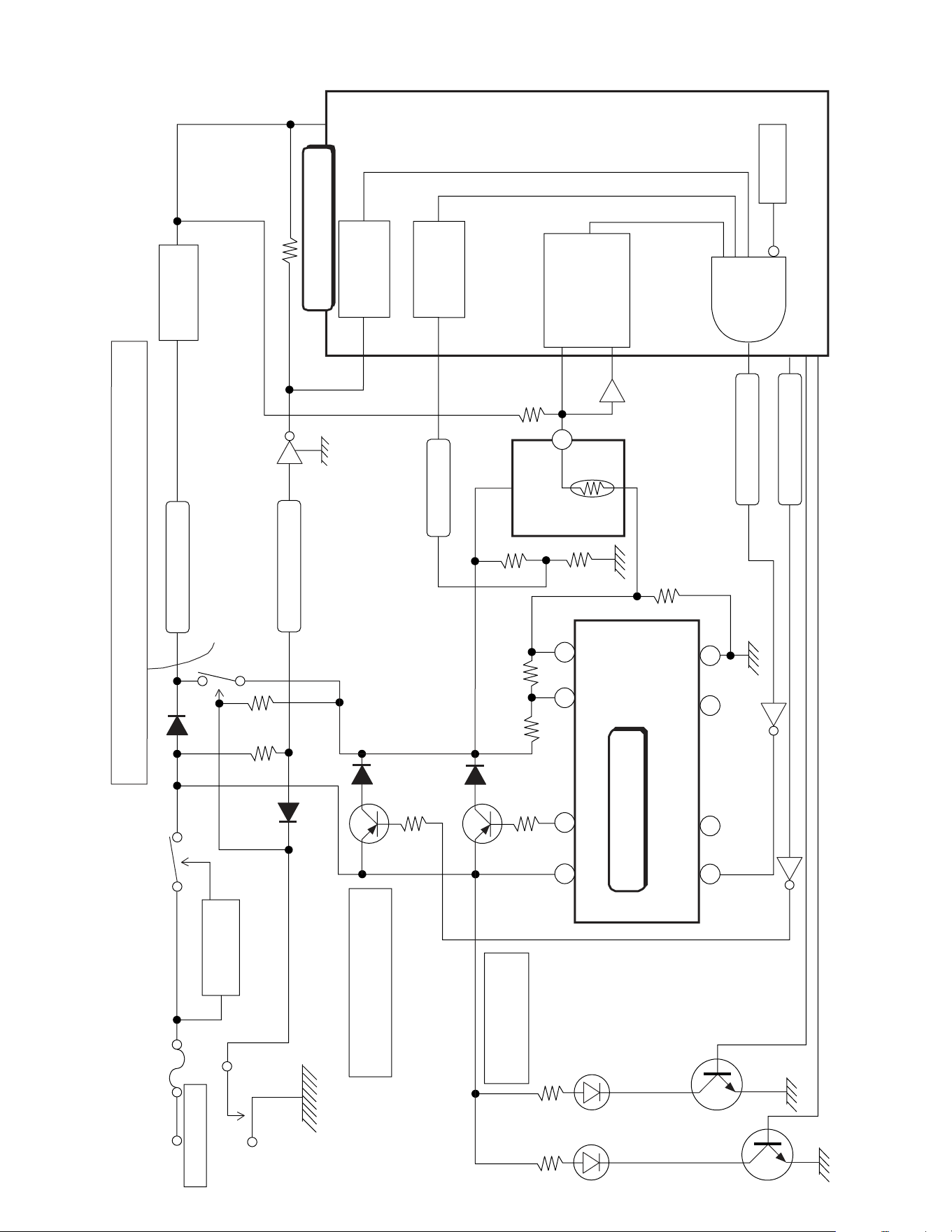

7-4. MAIN BATTERY CIRCUIT SECTION BLOCK DIAGRAM

DC JACK input

Voltage detective

circuit

<8V

with JACK : OPEN

with out JACK : GND Short circuit

Q2903 with FET always is "OFF" at DC input.

NON REG

Q2903

SYS 3.0V

REG circuit

ADP-DET

BATT.-DET

Charging : Red light up

Completion : Green light up

CHARGE-ON_H

PRE-CHARGE-ON

Charge control IC

Vcc

SW1 SW2

MM1332G

LV GND

EXT CEL CS

234

LED Red

LED Green

LED_G

LED_R

Ni-MH

battery

System microcomputer

Vcc

DC input lived

DC input "ON"

"OFF" detection

Battery voltage

detection

(BATT-TEMP)

T Terminal

detection

(BATT-IN)

VCR-H

Q2901

VL-H875T

VL-H890T

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

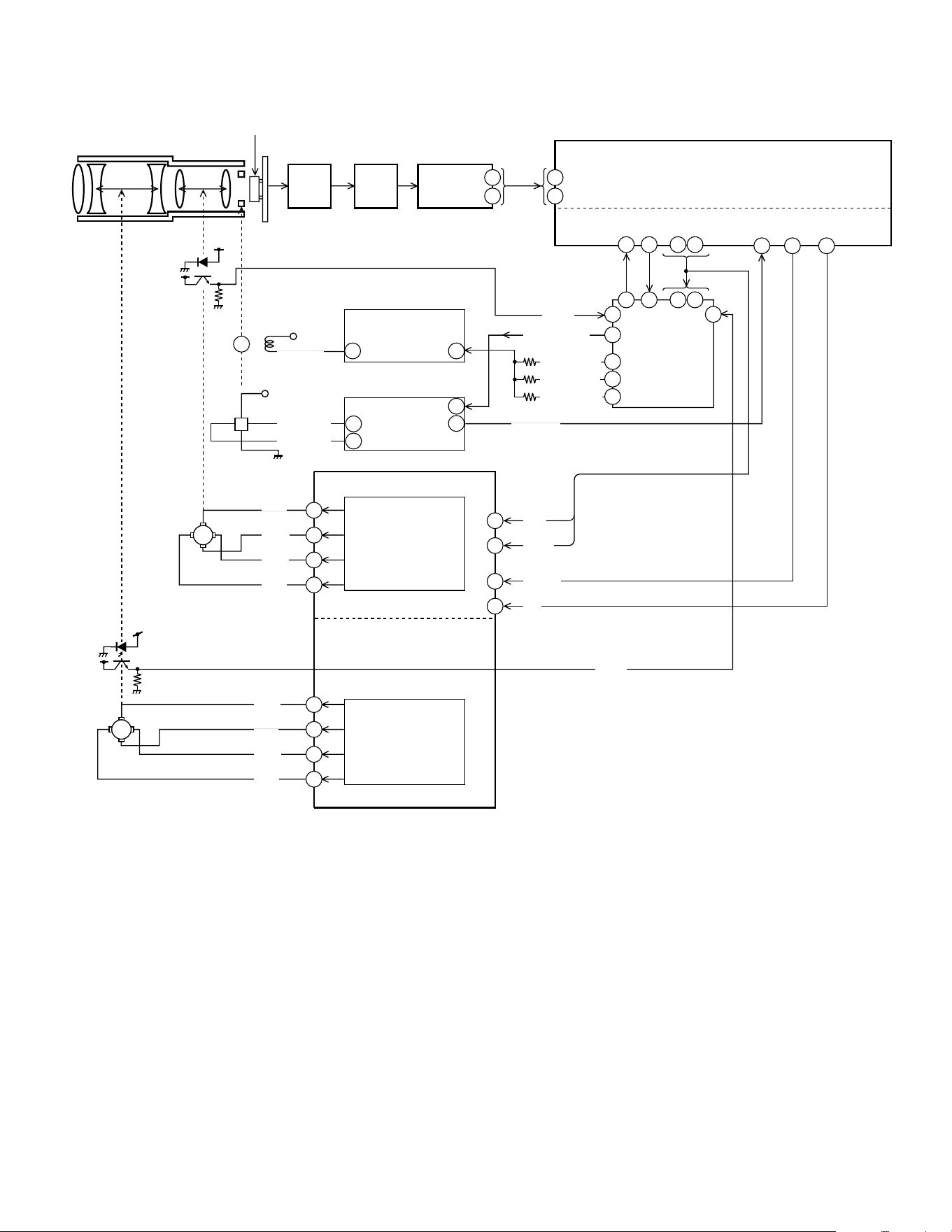

7-5. LENS DRIVE BLOCK DIAGRAM

IC1

CCD SENSER

IC401

DSP

IC706

DATA

SYSCON

160

21 22 20 19

212 34

17 18

IC102

D/A

4.9V

(PHIRF)

(HALL OFFSET)

(HALL IN (–))

(DRIVE (+))

(IRIS OFFSET)

(IRIS L )

(IRIS H )

IC151

A/D

IC101

CDS

AGC

ZOOM LENS MASTER LENS

IRIS

METER

Device

IC551 LENS DRIVER

(FO2+)

(FO2-)

(FO1+)

(FO1-)

FOCUS

MOTOR

Master

Lens

POSI

ZOOM

LENS

POSI

ZOOM

MOTOR

(ZO1+)

(ZO1-)

(ZO2+)

(ZO2-)

(CLK)

(DATA)

(LATCH)

(VD)

ZOOM MOTOR

DRIVE

(PHIRZ)

(HALL OUT)

IRIS, FOCUS, ZOOM CONTROL

LENS

DATA2

DATA

CLKCS

(HALL IN (+))

FOCUS MOTOR

DRIVE

124 10

IC553

OP-AMP

IC552

OP-AMP

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

44~45

(VL-A40U/A45U/

AH50U/UC/AH60U)

RUNTK0369TAZZ

(VL-AH50T)

RUNTK0373TAZZ

(VL-AH50K/AH60K)

RUNTZ0353TAZZ

(U, UC only)

(VL-AH60U/K)

(VL-A40U/A45U/AH50U/UC/T/K)

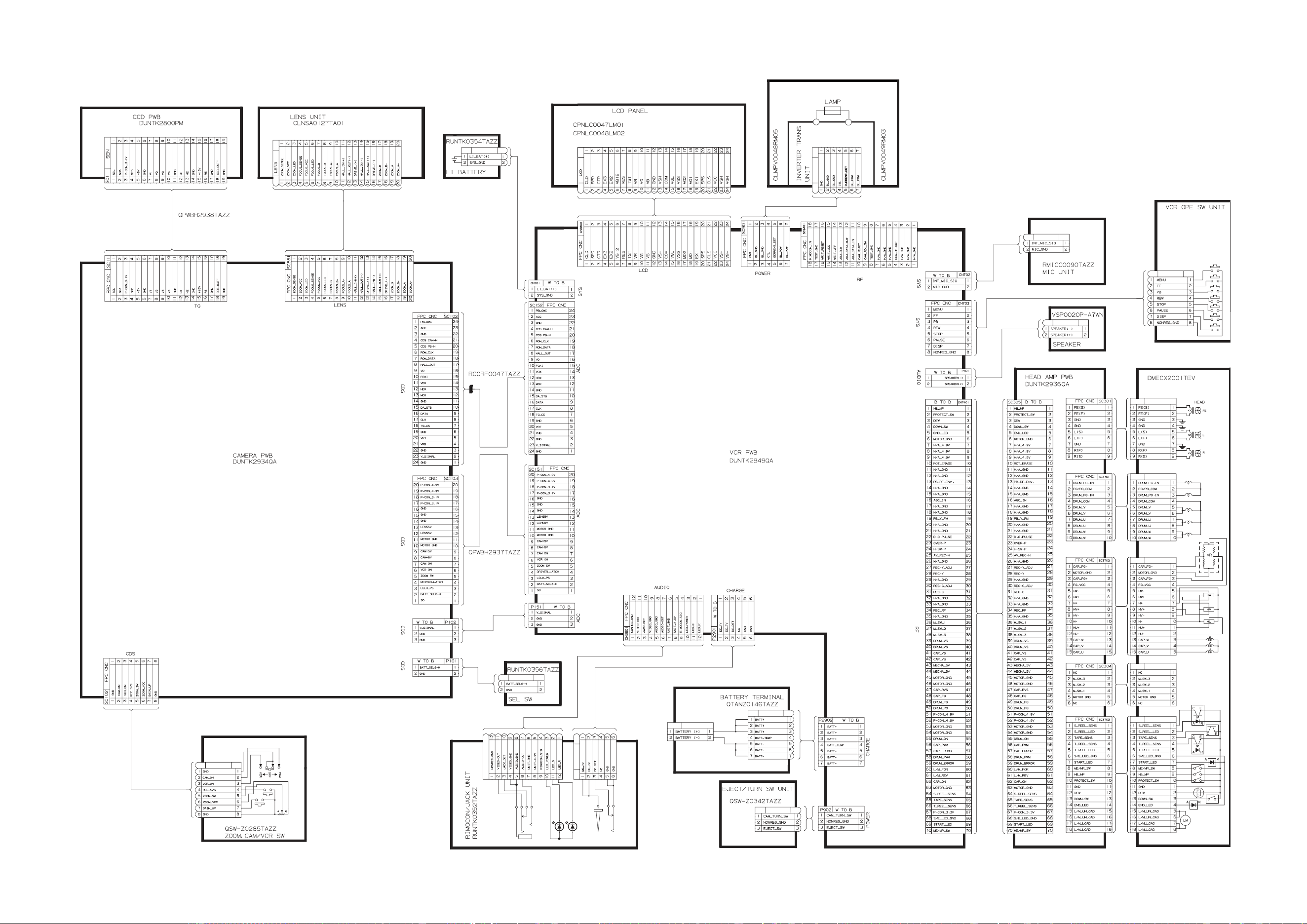

8. SCHEMATIC DIAGRAMS 8-1. OVERALL SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

46~47

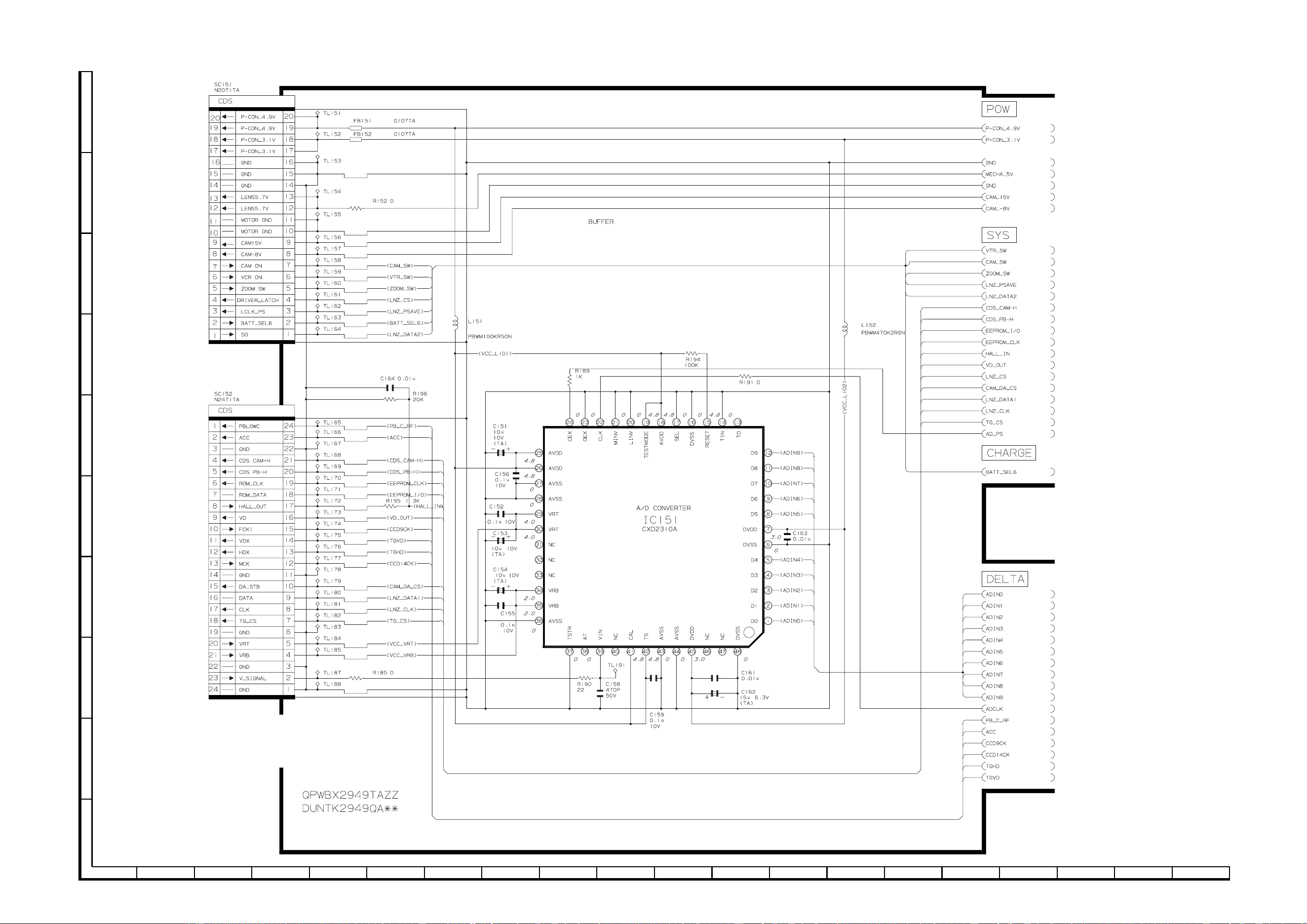

8-2. ADC SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

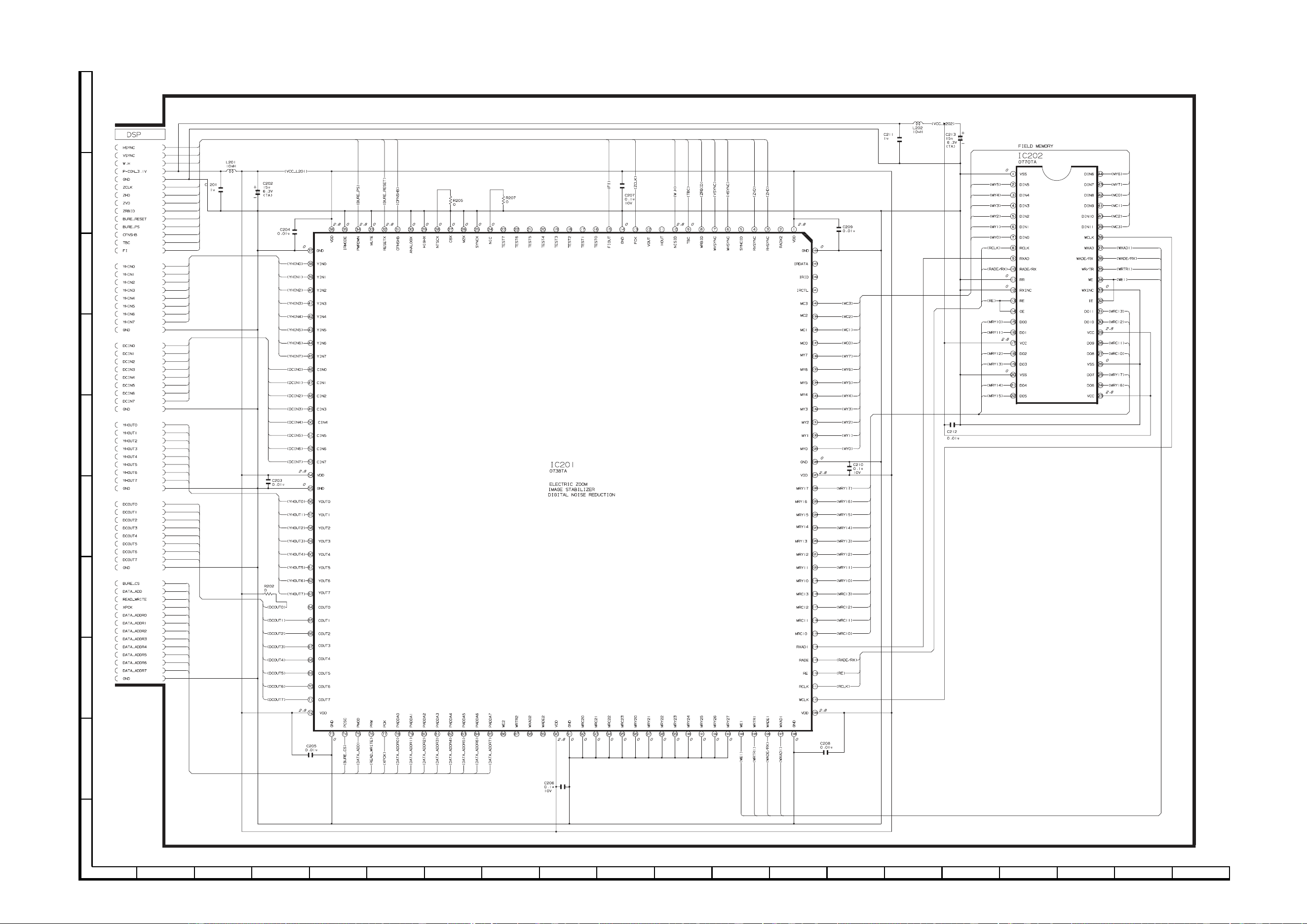

8-3. ZOOM SCHEMATIC DIAGRAM

48~49

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

50~51

8-4. DSP SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

52~53

8-5. AUDIO SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

IC706

RH-iX0764TAZZQ (A40U/A45U/AH50U/UC/AH60U)

RH-iX0806TAZZQ (AH50T/AH50K/AH60K)

IC707

RH-iX0766TAZZ~ (AH50T)

RH-iX0768TAZZ~ (A40U/A45U/AH50U/UC/AH60U)

RH-iX0777TAZZ~ (AH50K/AH60K)

54~55

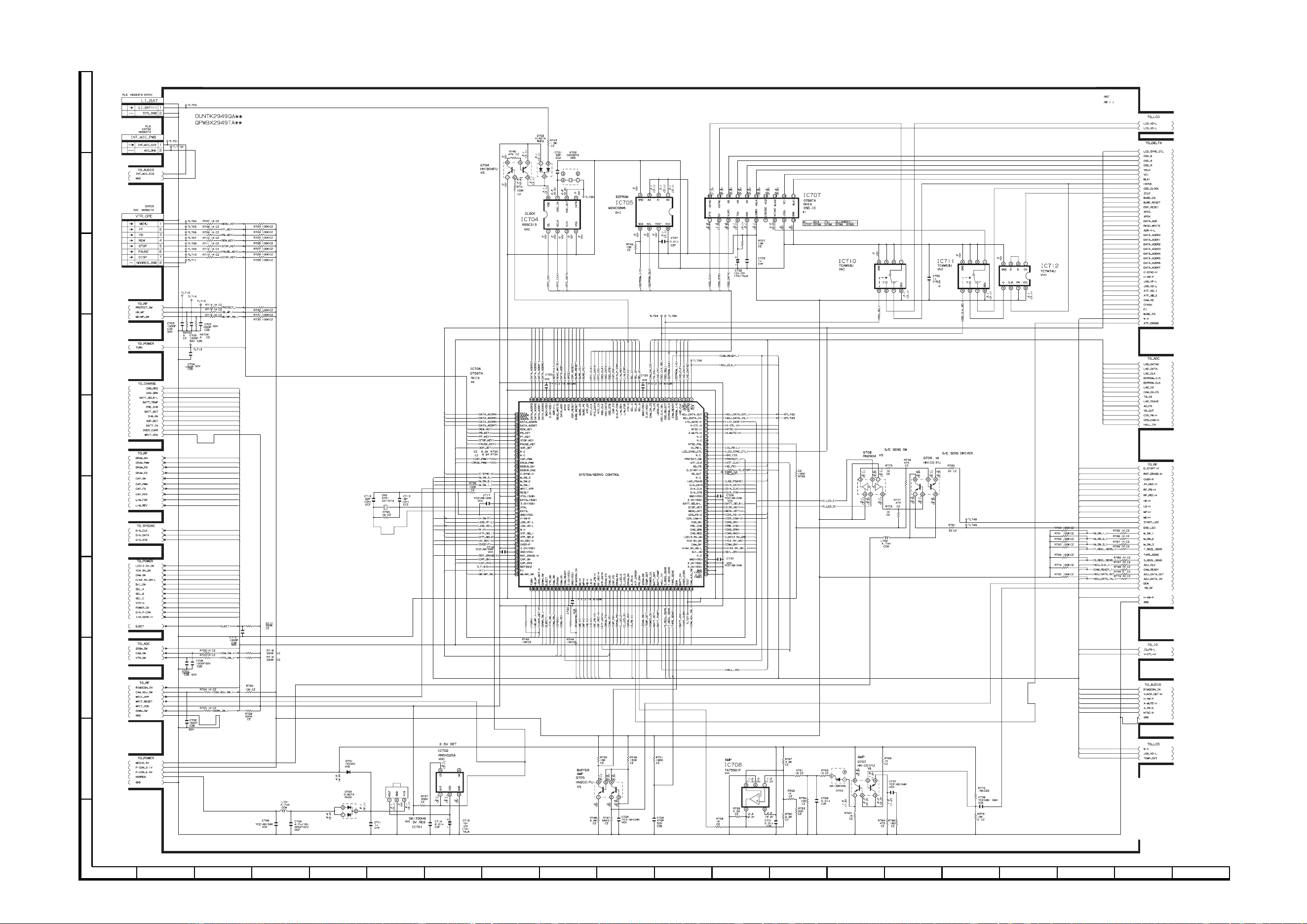

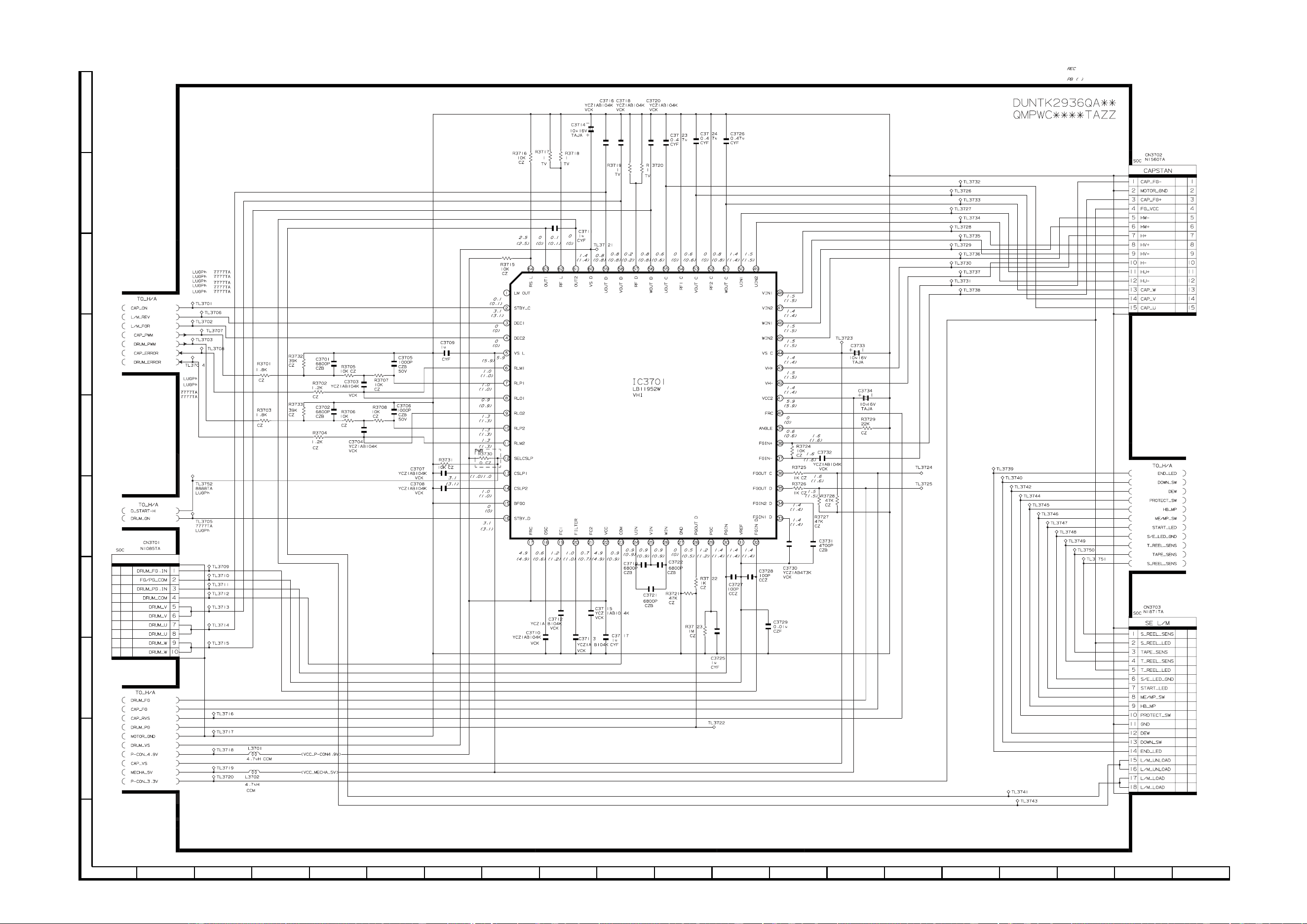

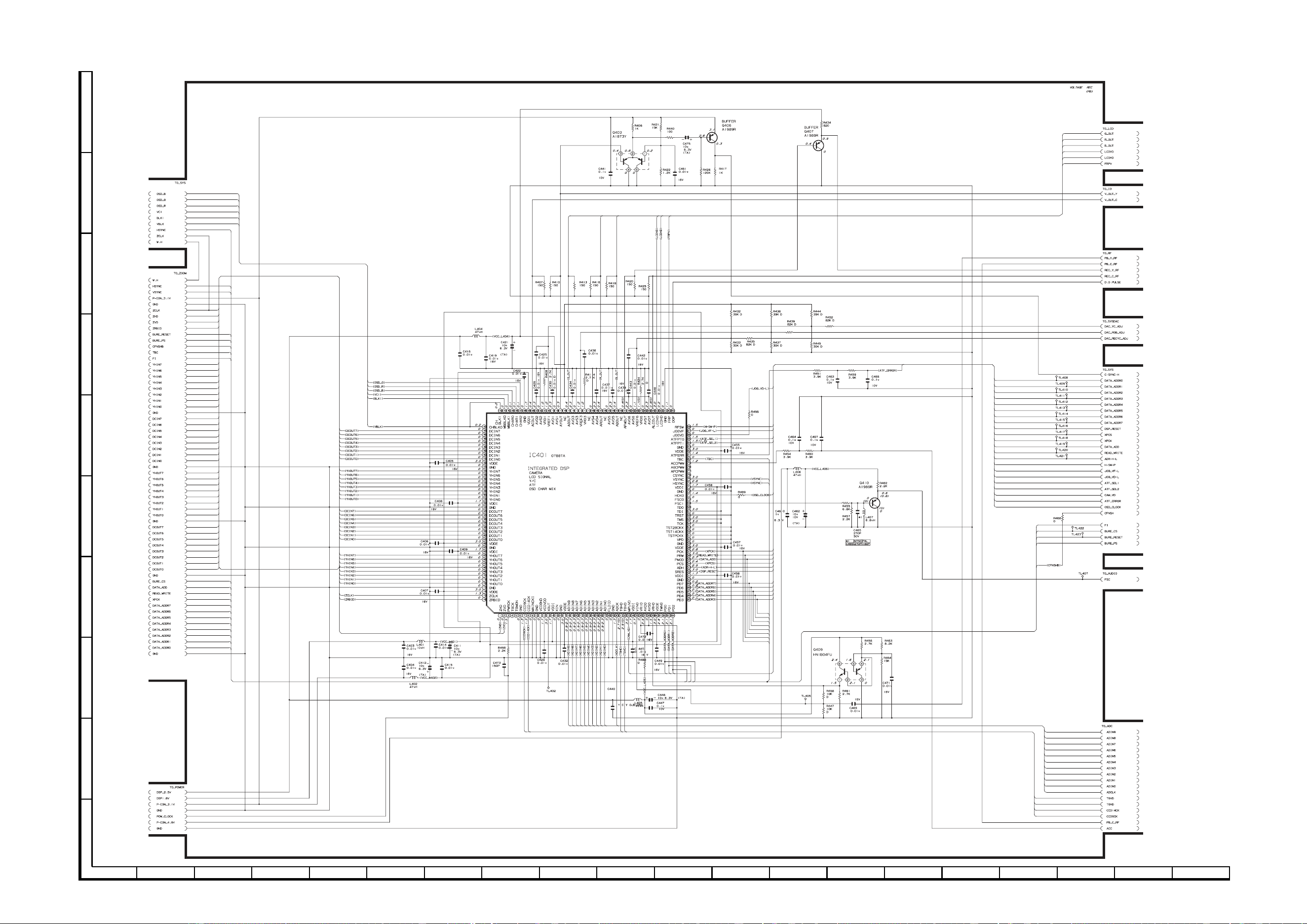

8-6. SYSCON SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

56~57

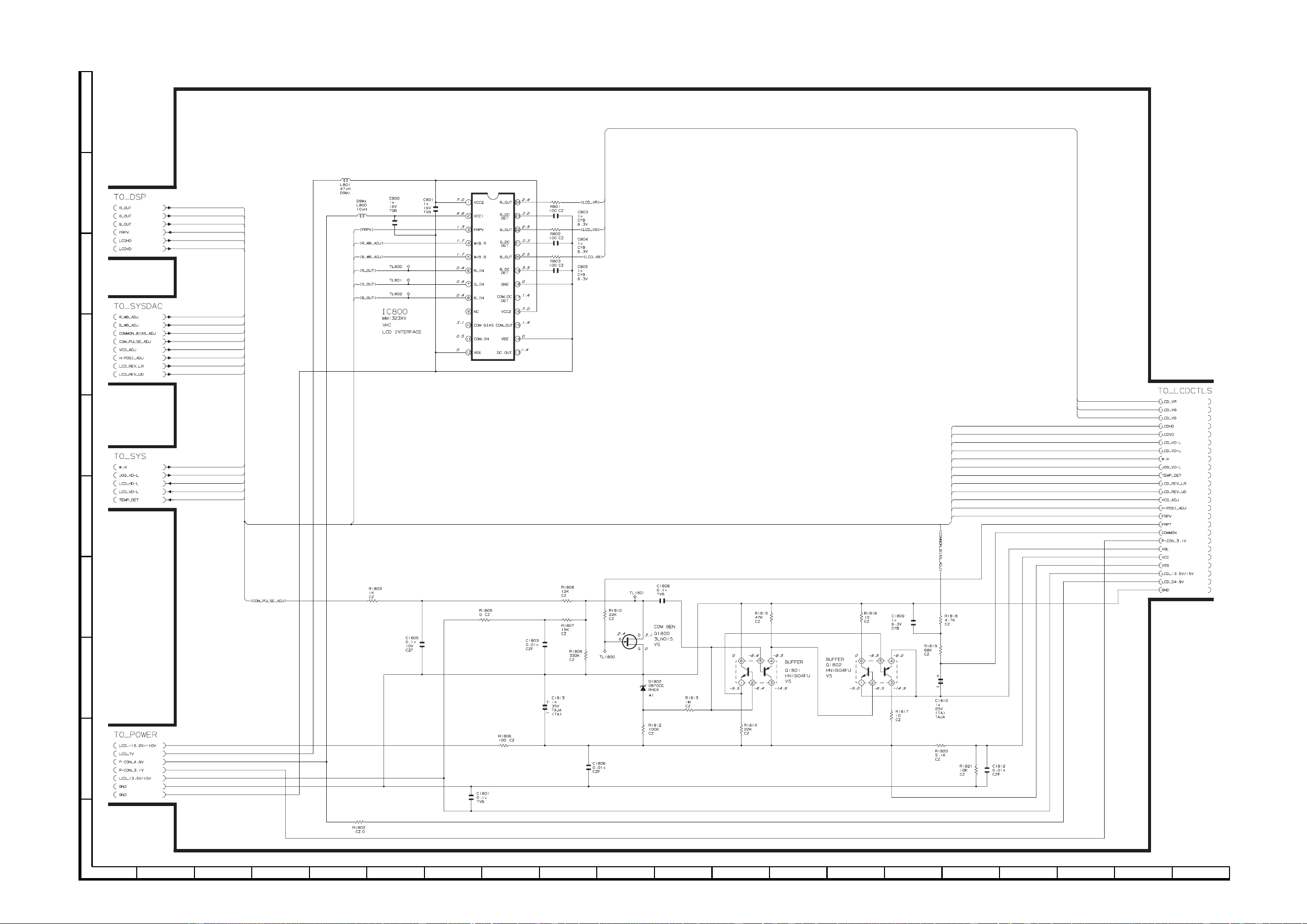

8-7. LCD_INT SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

58~59

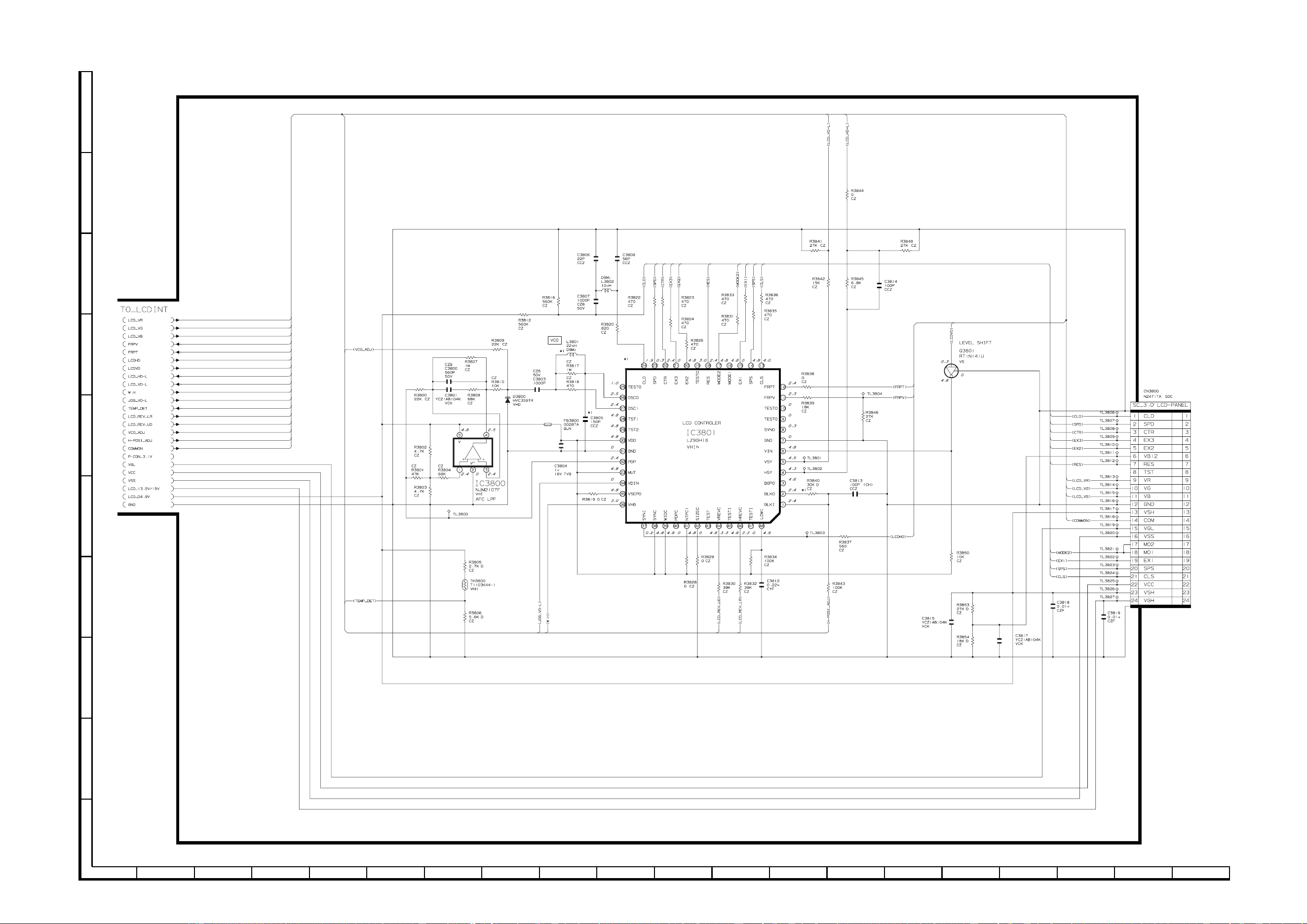

8-8. LCD_CTL SCHEMATIC DIAGRAM(VL-AH50)

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

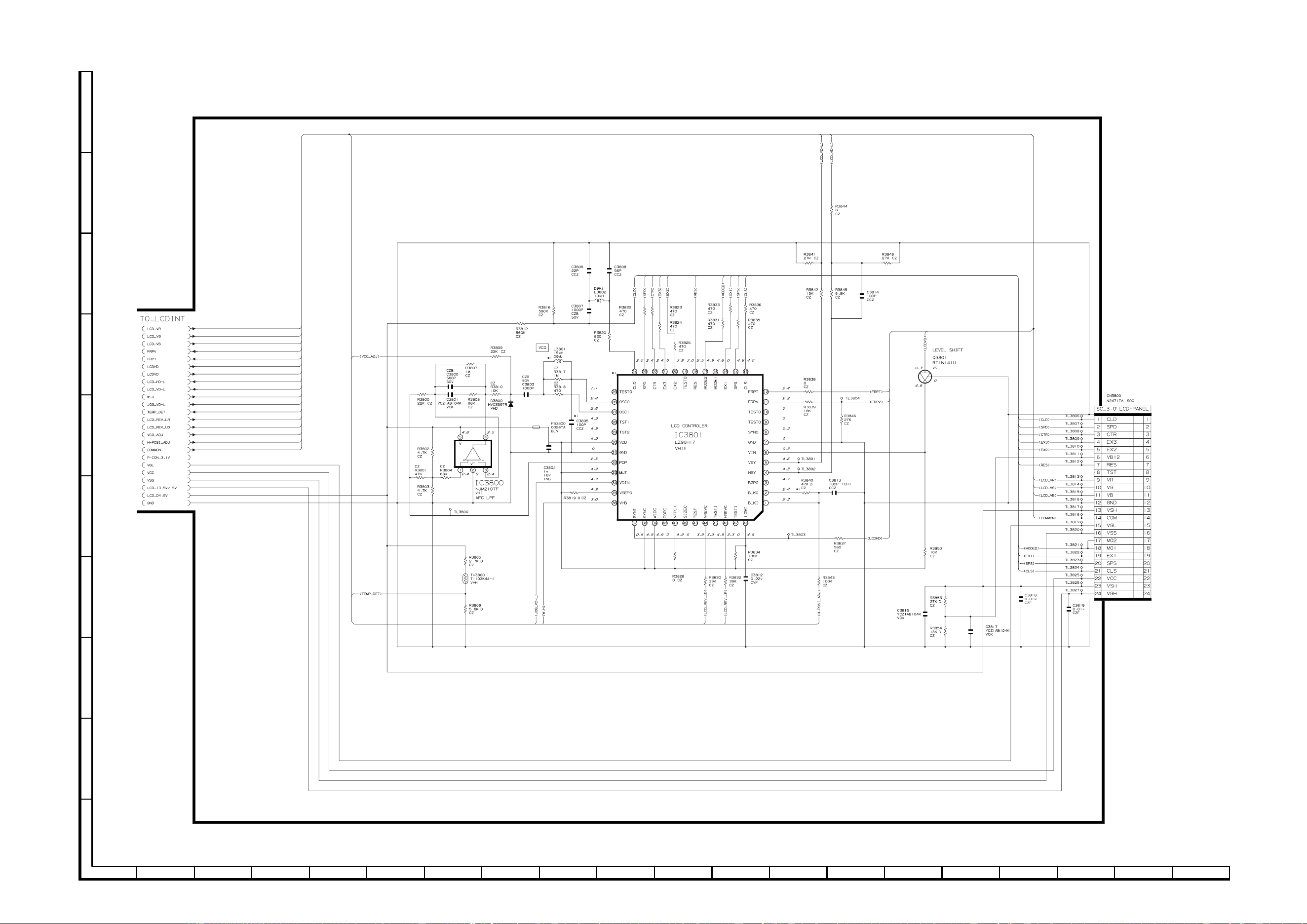

8-9. LCD_CTL SCHEMATIC DIAGRAM(VL-A40/A45/AH60)

60~61

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

62~63

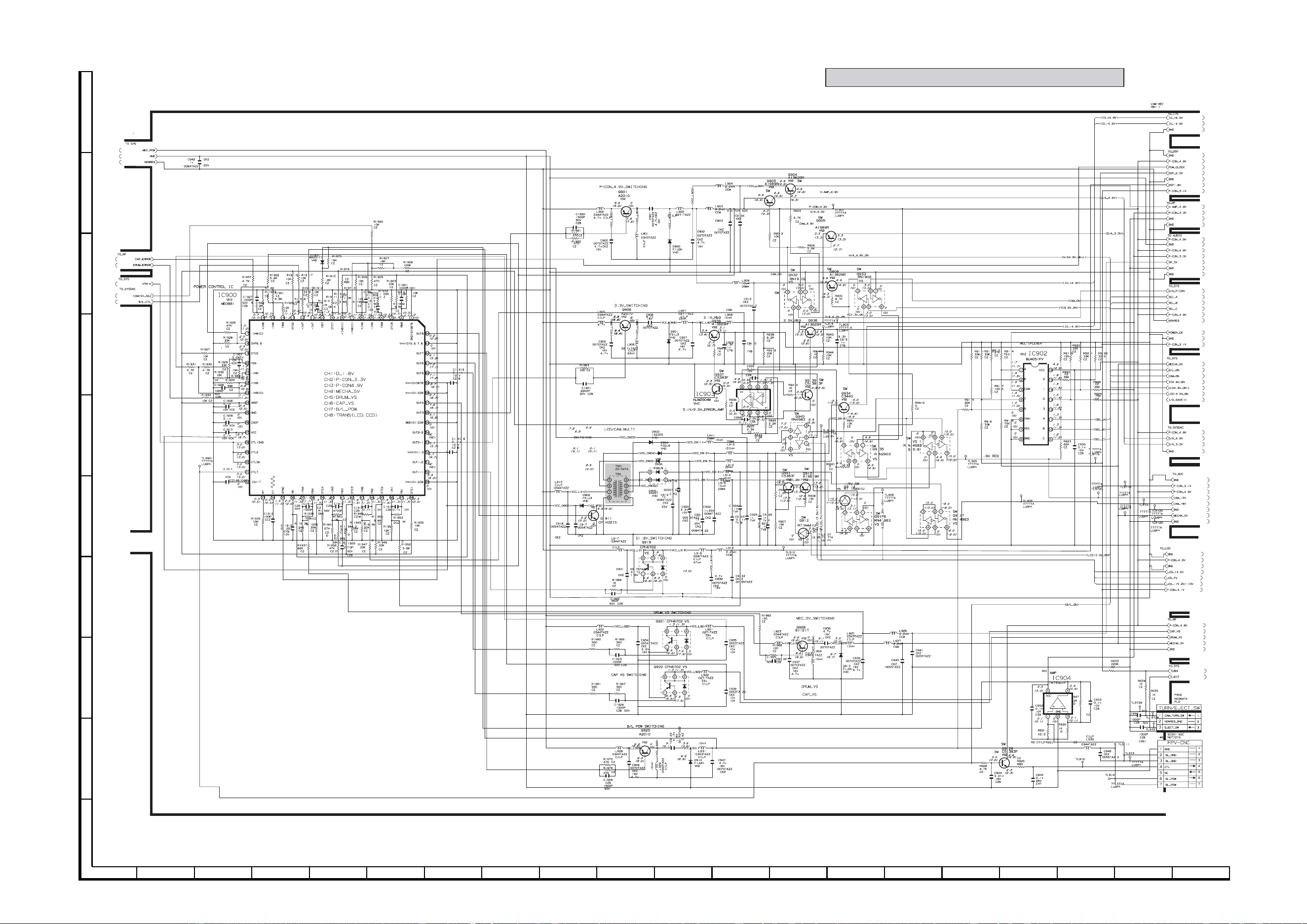

8-10. POWER SCHEMATIC DIAGRAM

å

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

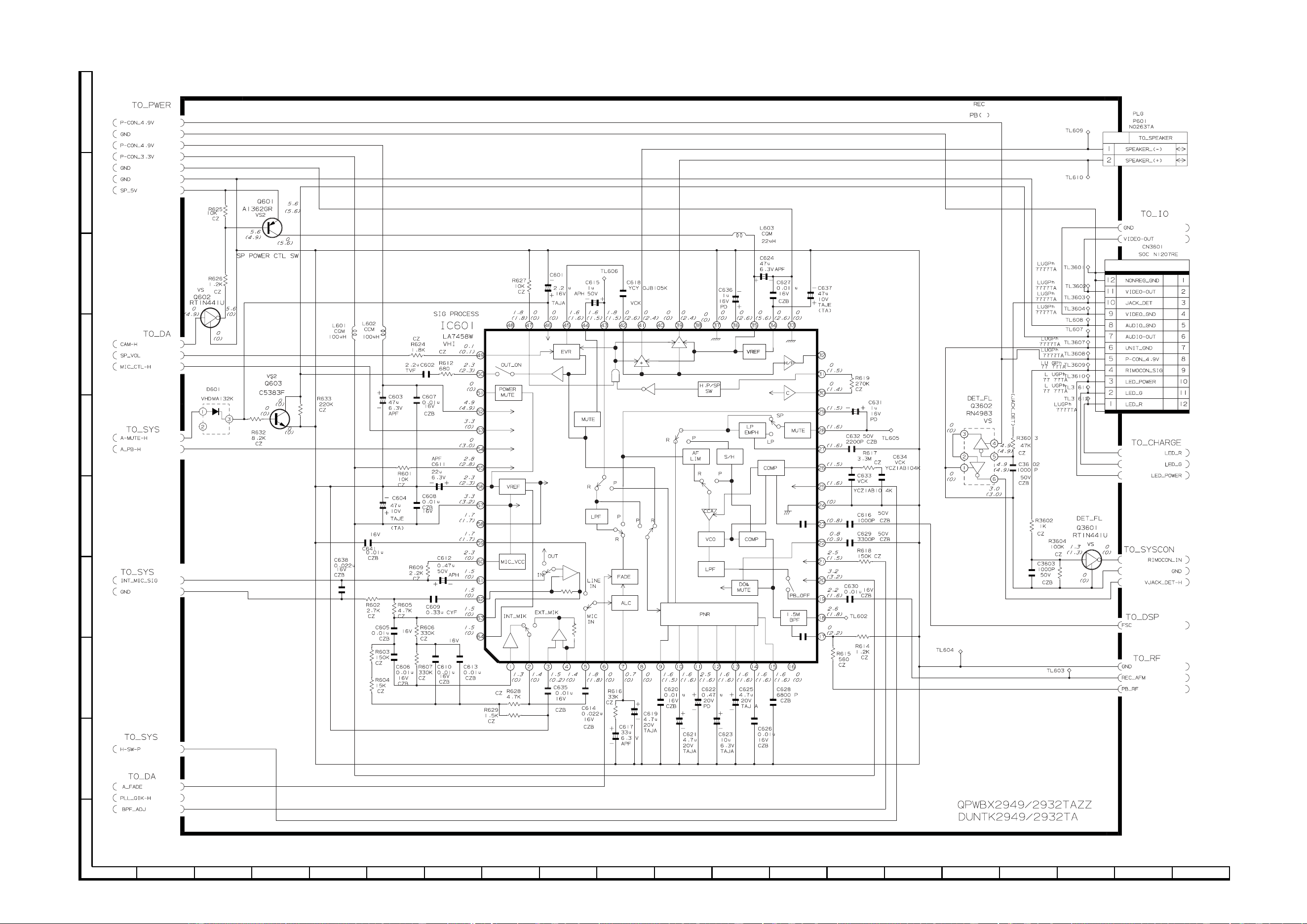

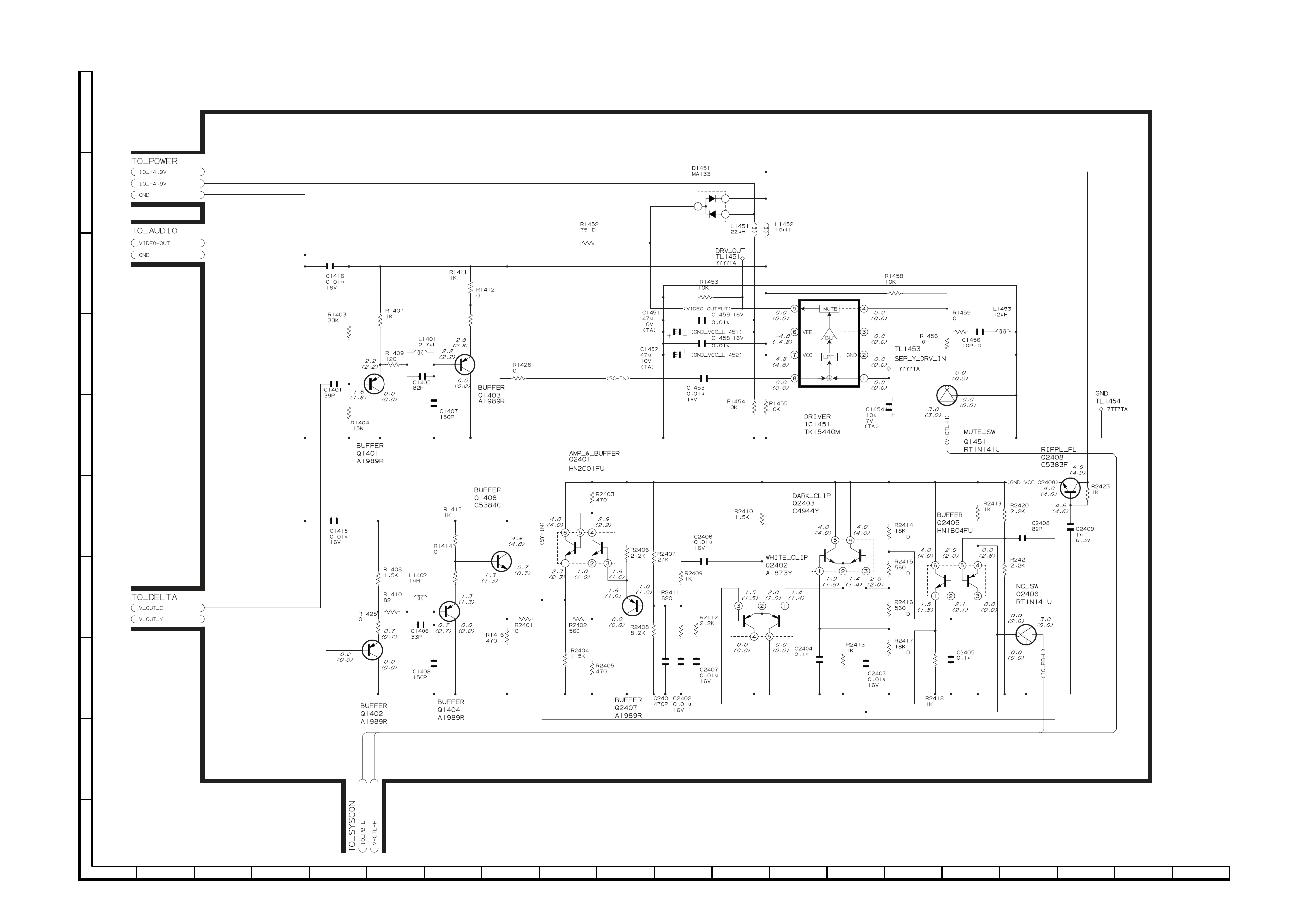

8-11. I/O SCHEMATIC DIAGRAM

64~65

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

66~67

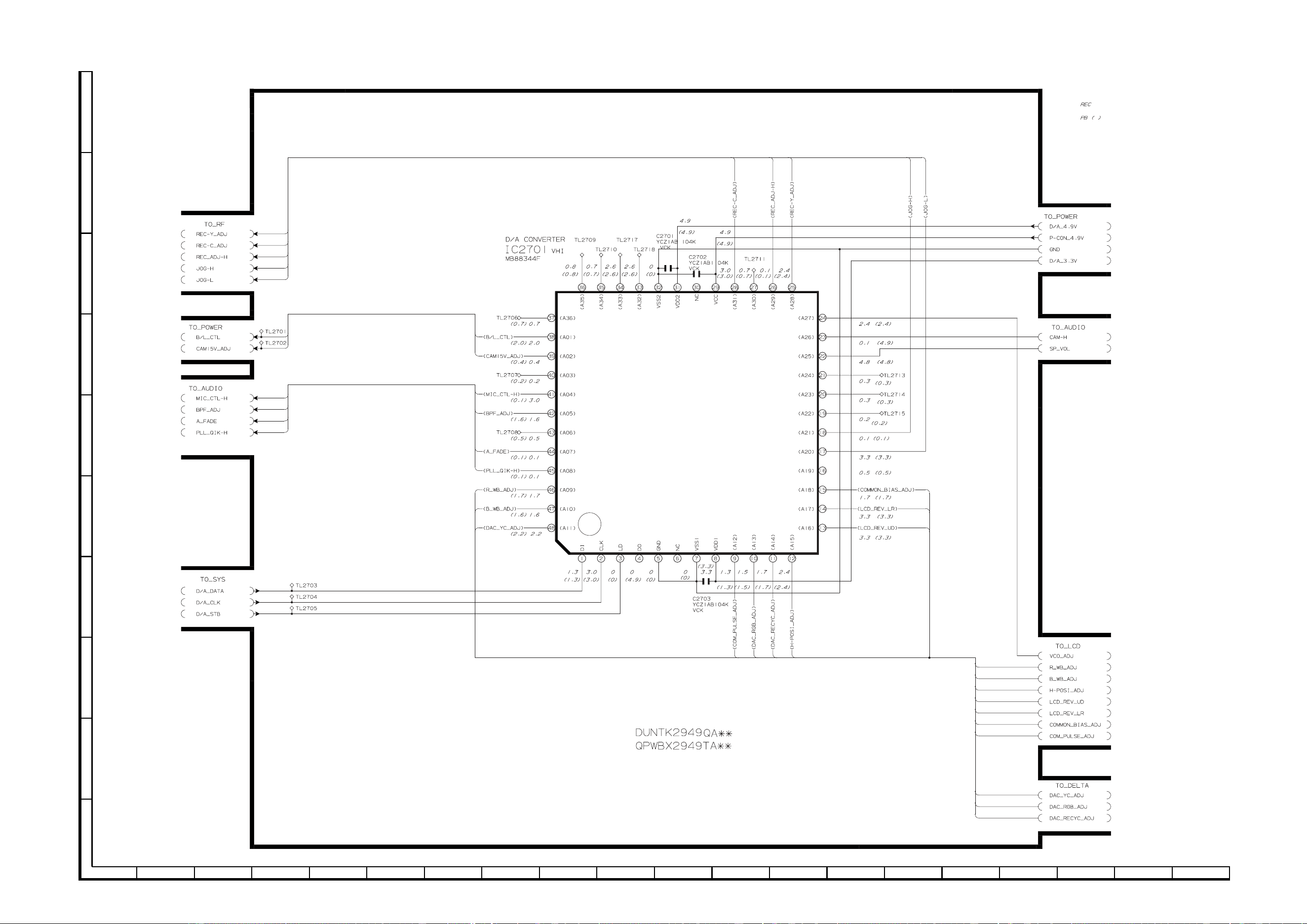

8-12. SYSDAC SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

å

68~69

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

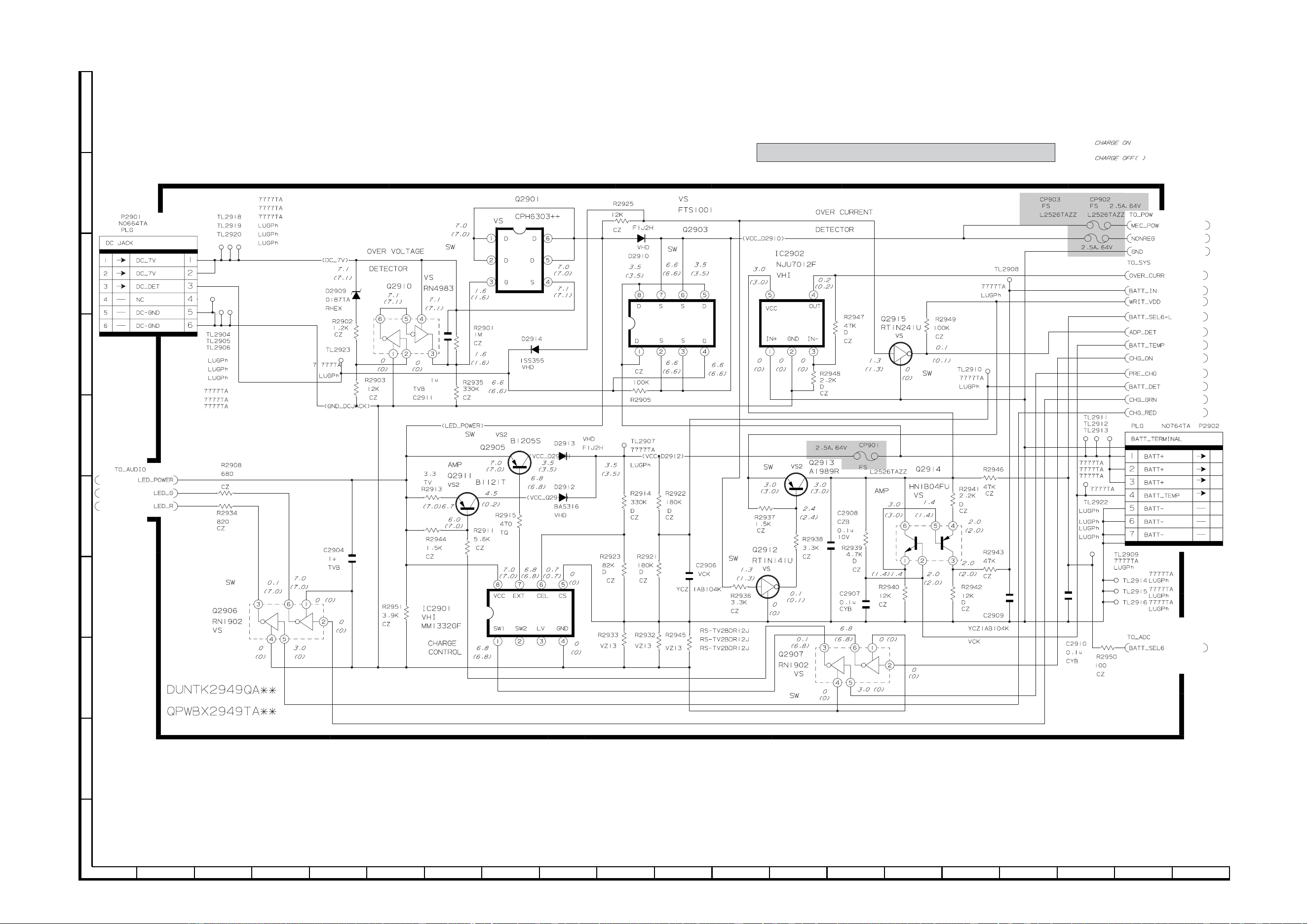

8-13. CHARGE SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

70~71

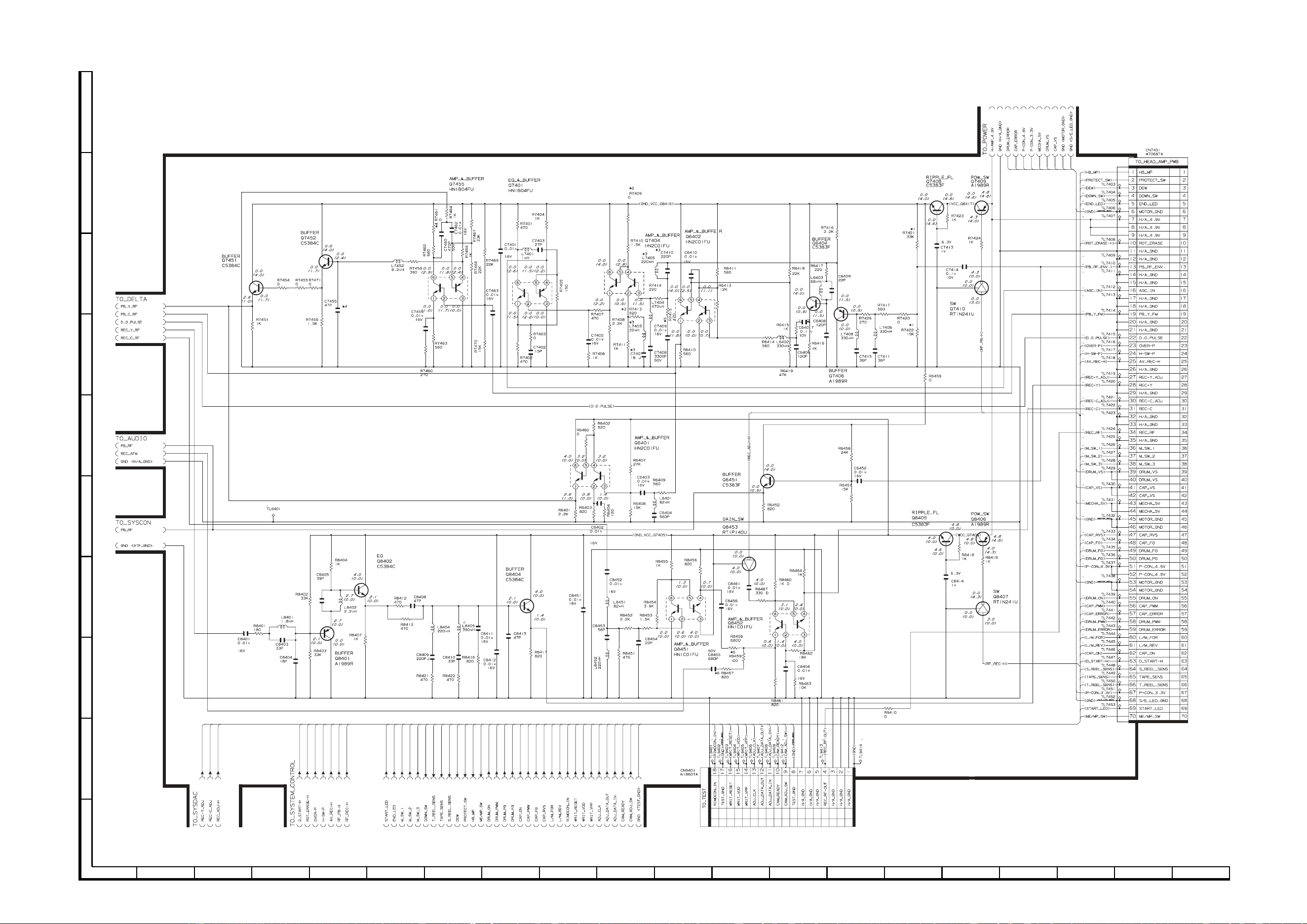

8-14. RF SCHEMATIC DIAGRAM(VL-A40/A45)

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

72~73

8-15. RF SCHEMATIC DIAGRAM(VL-AH50/AH60)

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

74~75

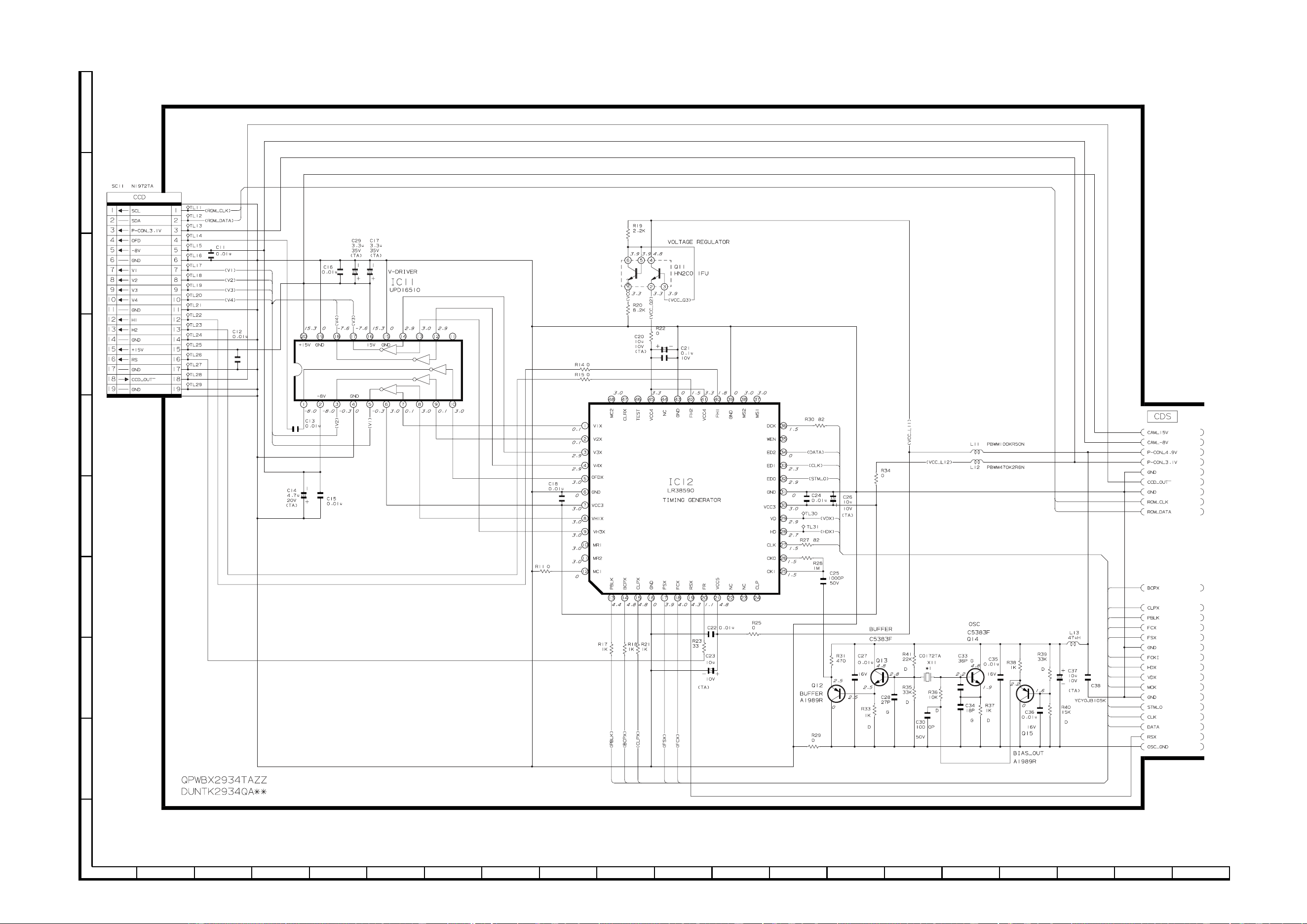

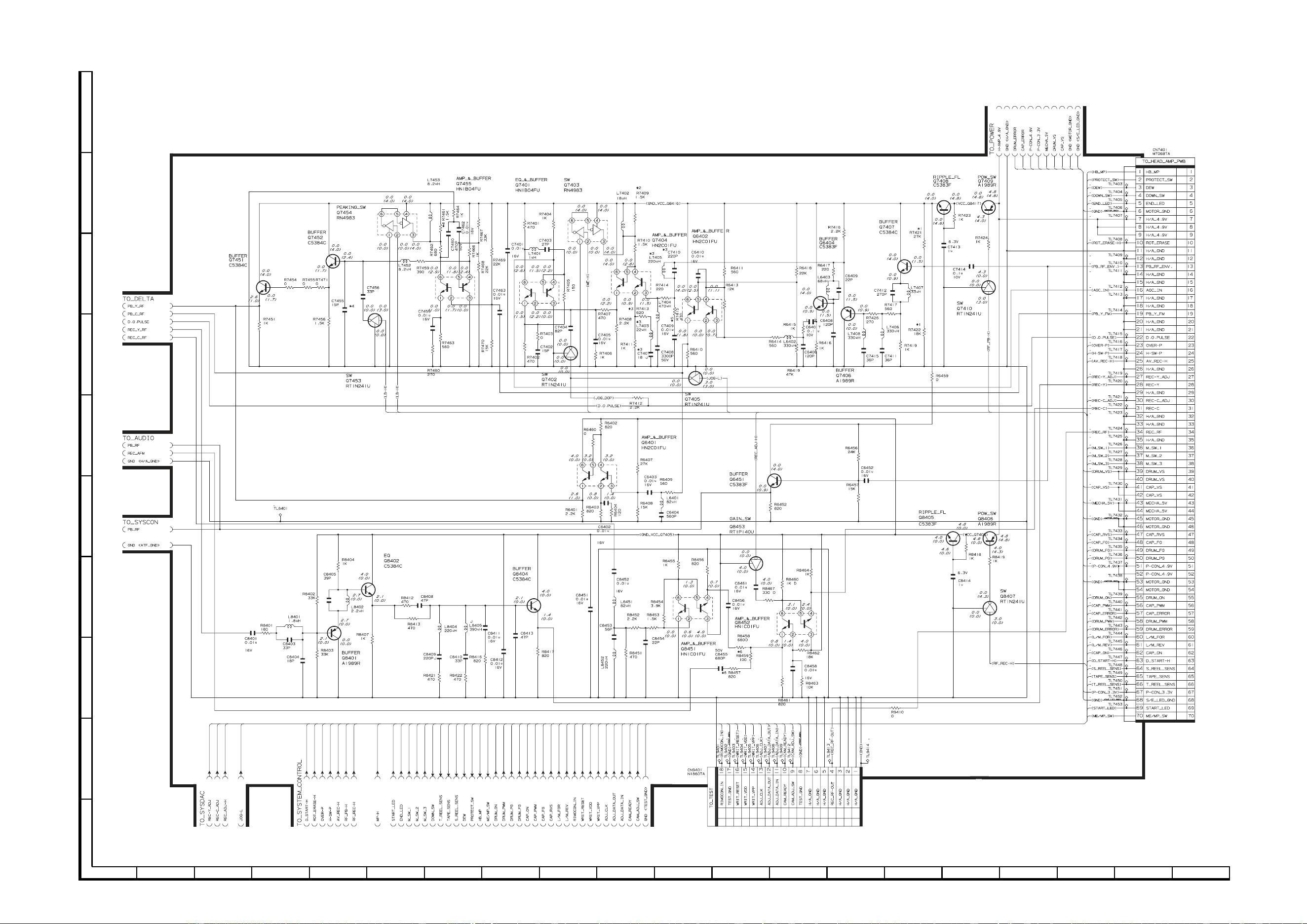

8-16. TG SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

470P

76~77

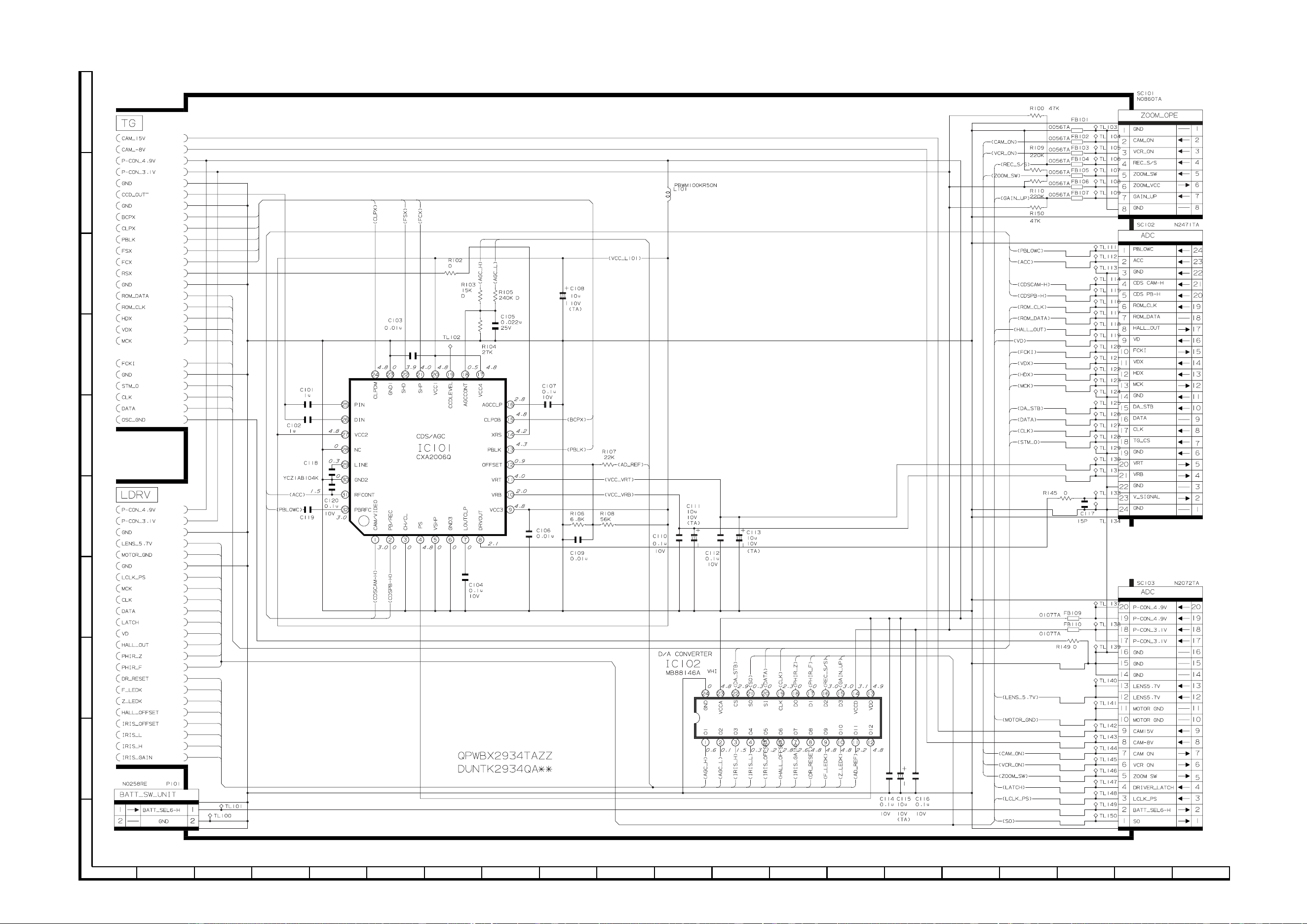

8-17. CDS SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

78~79

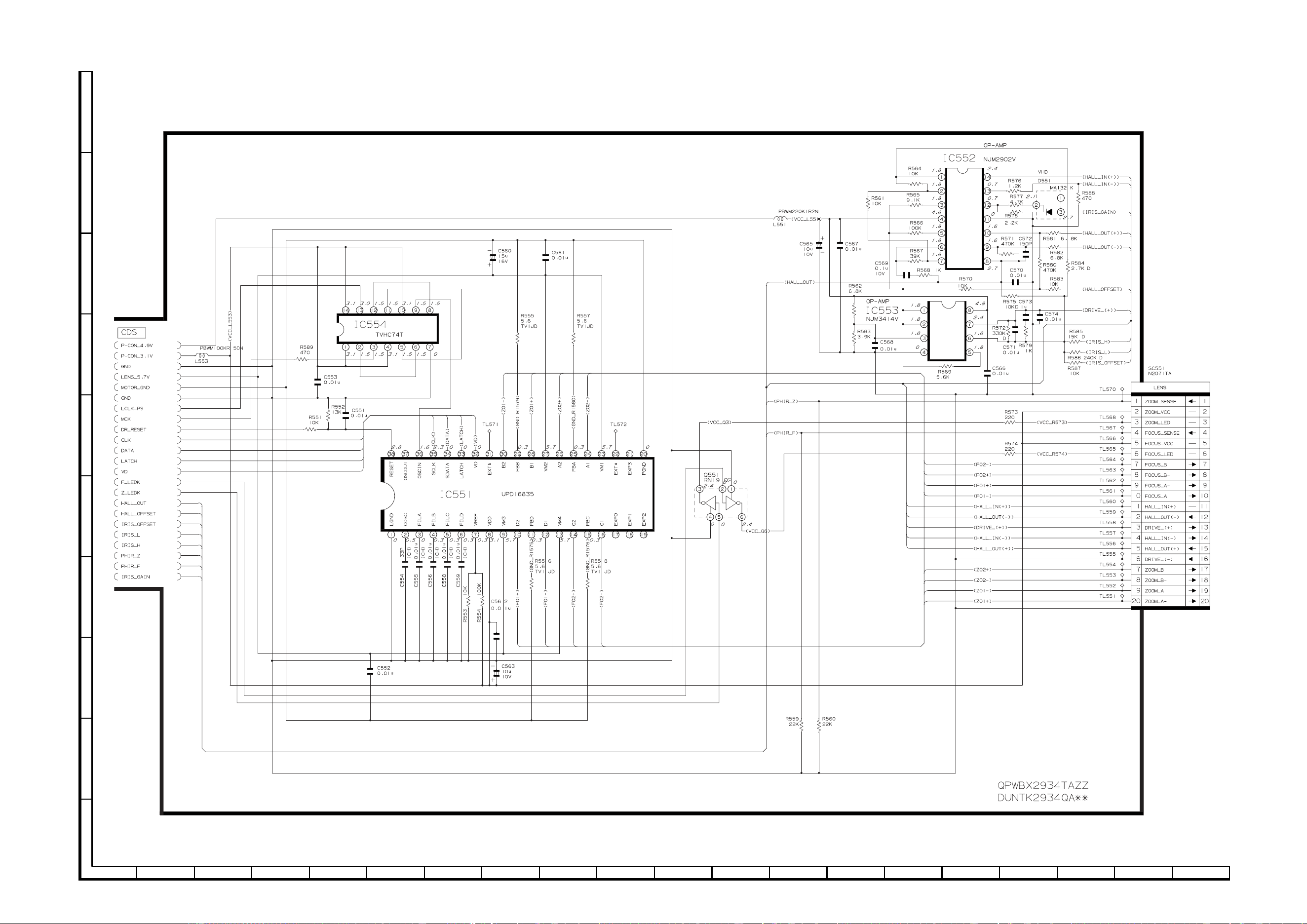

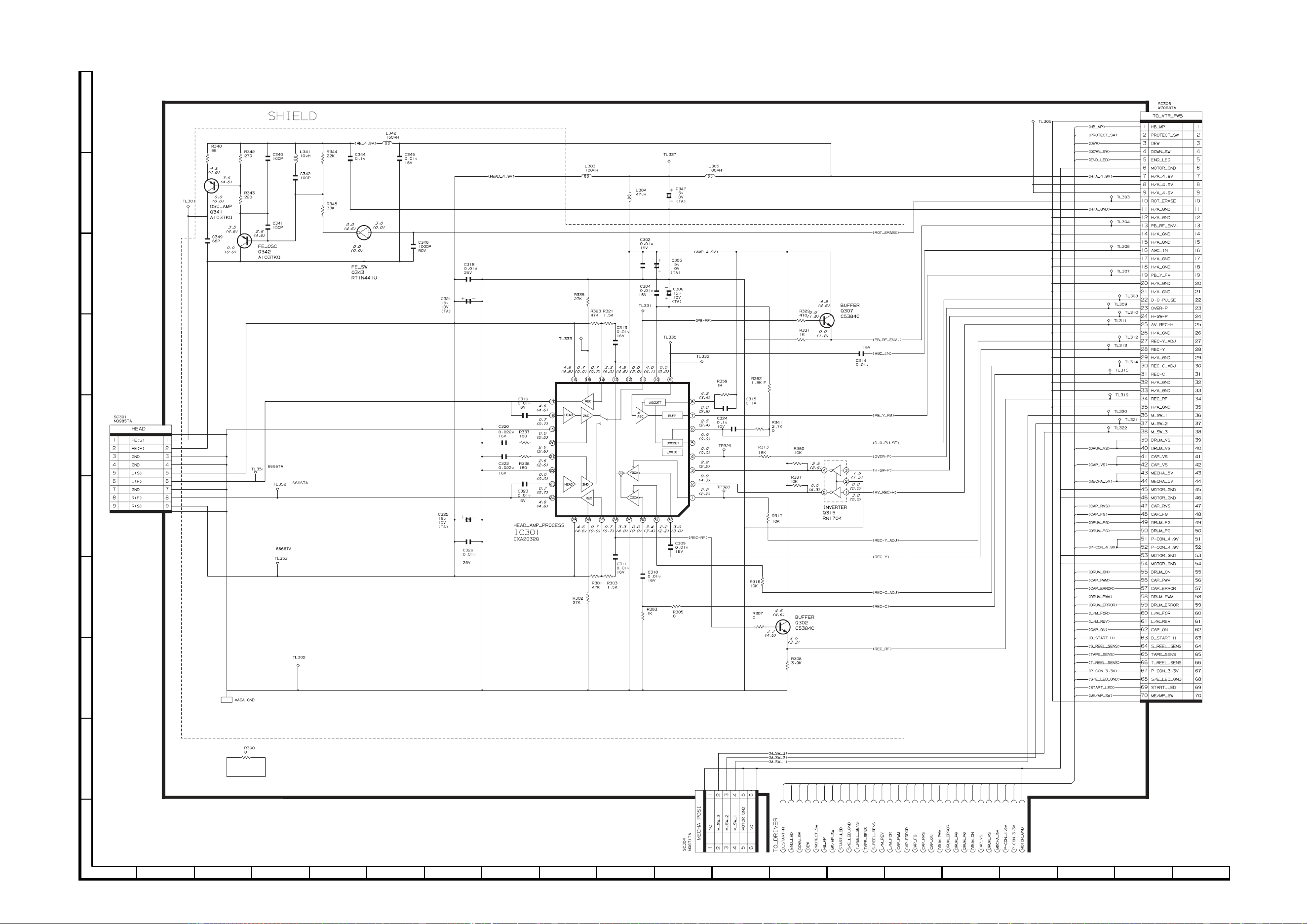

8-18. LDRV SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

80~81

8-19. HEAD AMP SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

82~83

8-20. MOTOR DRIVER SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

84~85

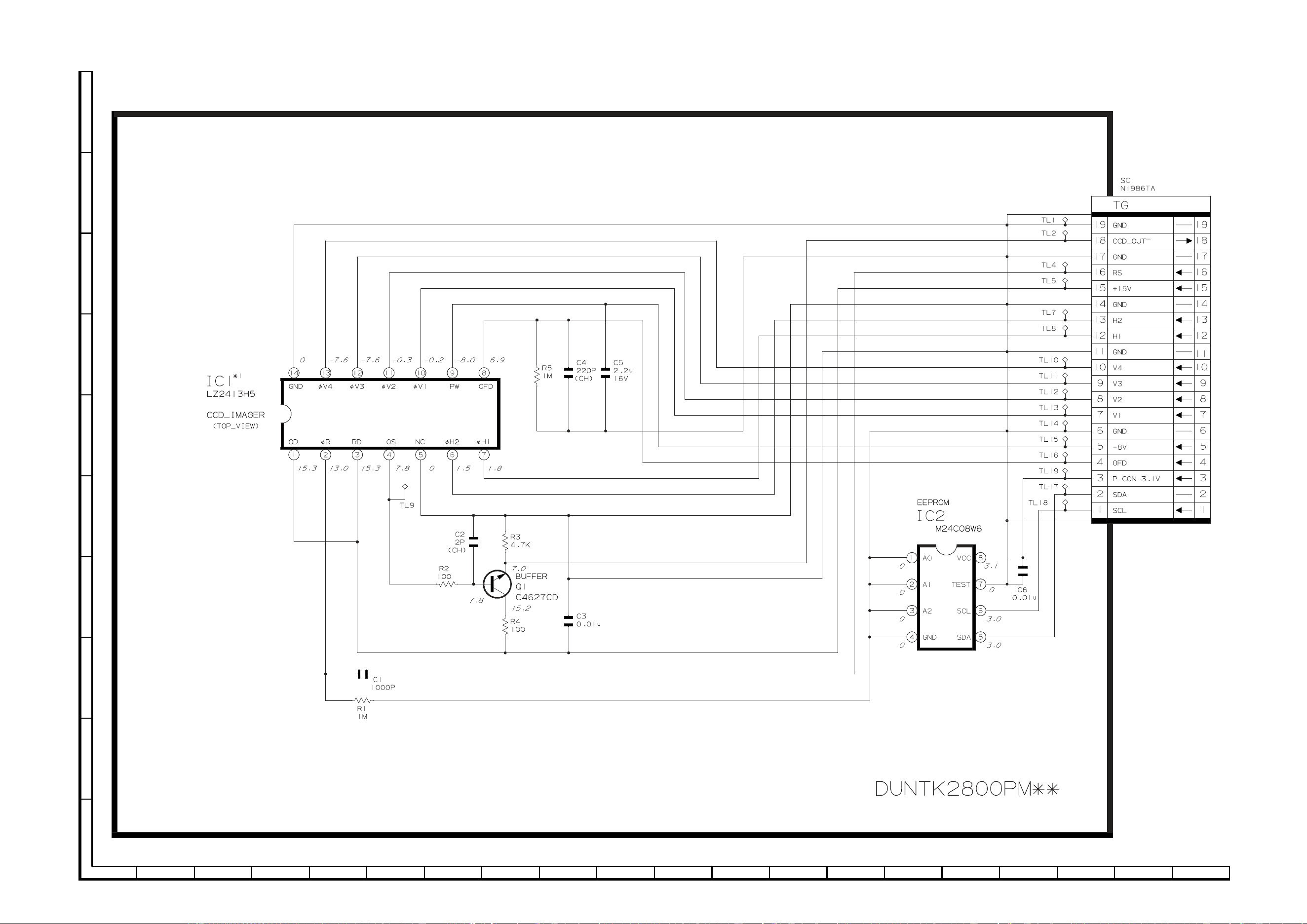

8-21. CCD SCHEMATIC DIAGRAM

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

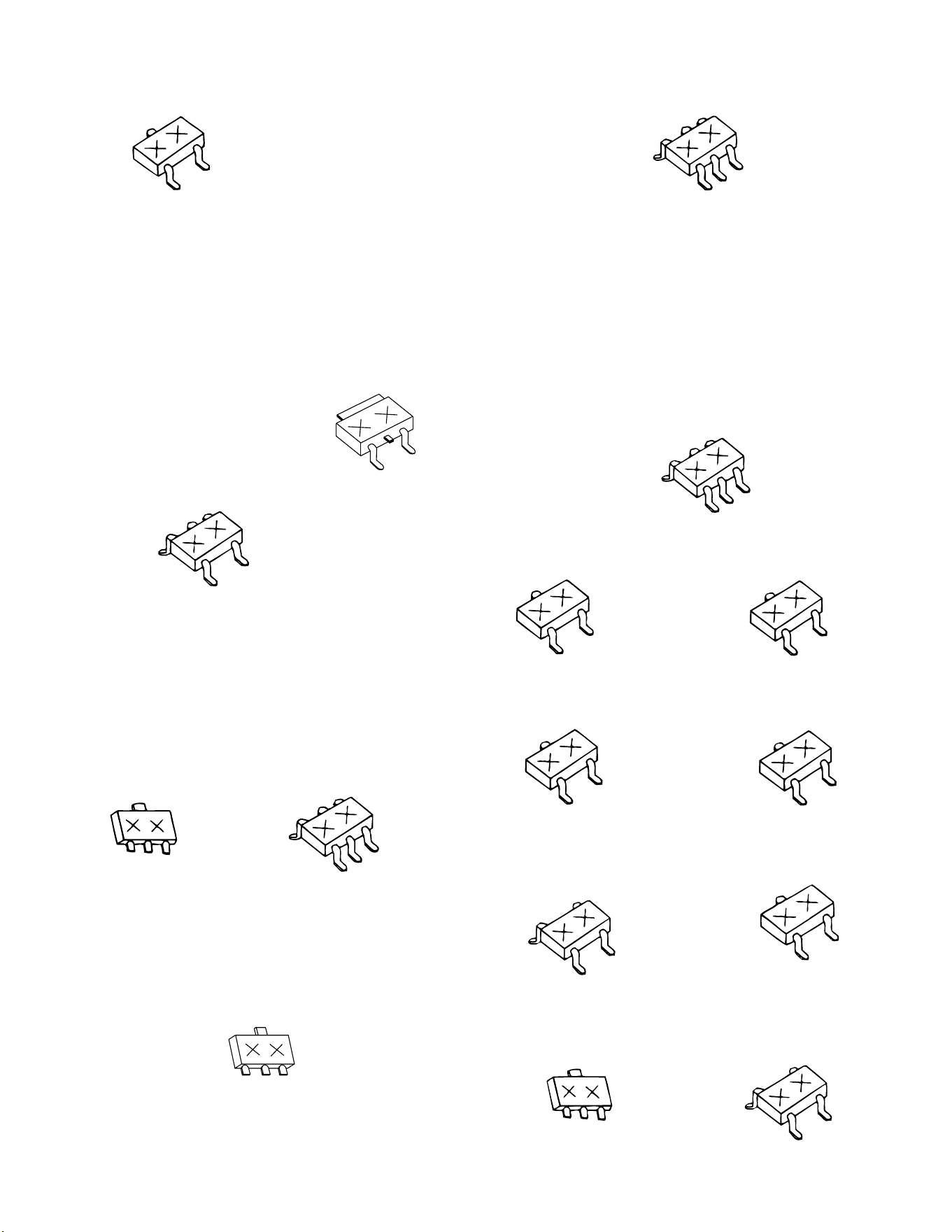

2SA1577R

2SA1774F

2SB12956

2SC4617B

2SC4738Y

2SD2216

FMMT717

ZH431F01

2SC3931C

CPH3106

2SD1979S

2SC4116Y

2PC4617R

2SA1362GR

2SA1989R

2SC5383F

2SC5384C

RT1P141U

RT1N441U

DTD123TK

2SC4627CD

2SB1197KQ

2SD1819A

DTC144EE

UN9111

UN9214

2SD1805

2SB1205

2SB1121T

2SB1302S

IMX9

XN4604

IMD16A

XN4404

RH5RE58A

C.A

(A)

(C)

(A)

MA704WA

DAN222

SI2301DS

DA121

DA227

DA221

MA147

MA133

NJM79L09

PST592KM

DTA144EE

CPH3209

CPH3109

RT1P241U

RT1P441U

RT1N241U

RT1N141N

RT1P140U

RT1N140U

RN1902

RN1903

RN1904

CPH6303

HN1B04FU

HN1A01FU

HN2A01FU

HN1C01FU

HN2C01FU

RN4982

RN4983

RN4984

RN4990

RN2902

RN2903

RN2904

UMB2

UMD12N

UMT2

UMX2

UPUMZ1

XP6501

(A)

(C)

(A)

UMR11N

MA6S121

XP4311

XP4316

XP4113

HN1B01FU

XP4501

UMZ1

XP4601

UMD6

UMD3

UPUMX1

FMG12

UMG2

UMG5N

XP1B301

XP1213

S81230SG

XPIC301

PST597KN

RN5RL43

TC7SL04U

NJM2107F

TA75S01F

TC7S08U

TA7SL02U

NJU7012F

2SA1873Y

2SC4944Y

RN2702

RN2703

RN2704

RN1702

RN1703

RN1704

9. SEMICONDUCTOR LEAD IDENTIFICATION

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

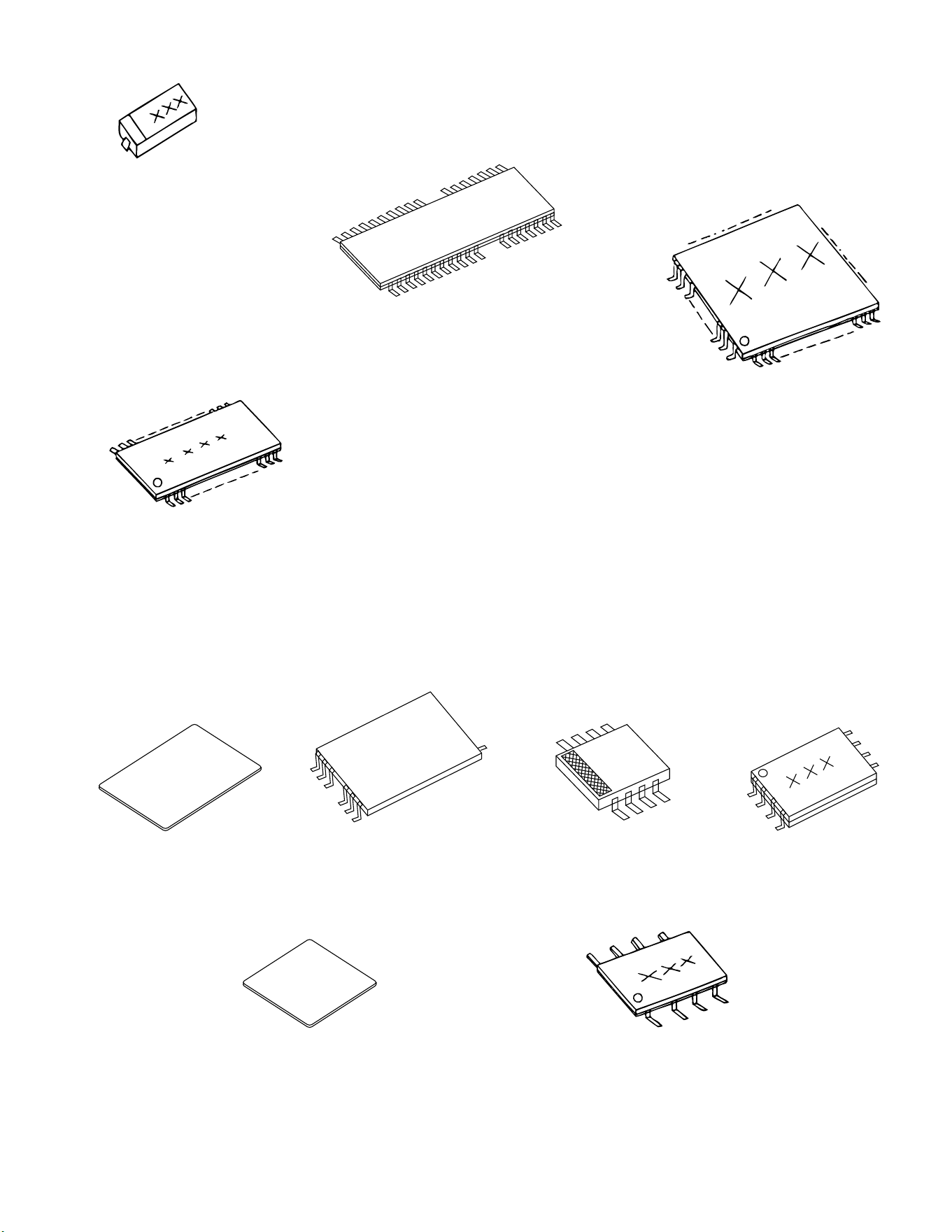

MA729

MA2S111

F1J2H

HVU350B

HVU359TR

F02J9

EX0161TA

EX0210TA

EX0870CE

HVU362

KV1812K

FS1J2E

IX0616TA

CXA2096N

MS548331

MM1323XV

BU4051FV

LA7473V

PCMB3006T

M40C558V

T7A164S

UPD16510

NJM2904V

IX0468TA

IX0613TA

NJM2902V

NJM3414V

MB8346BV

BU2090FS

IX0768TA

IX0766TA

IX0777TA

132

120

108

100

120

144

160

176

109

121

133

IX0806TA

IX0764TA

IX0756TA

IX0775TA

ADS933Y

IX0474TA

IX0422TA

IX0469TA

BH7268KV

IX0605TA

IX0606TA

IX0607TA

MB3785V

FA3675F

IX0788TA

IX0775TA

LB11952W

IX0759TA

BA7761KV

BH7273KV

LR38610

BH7272KV

MB88344F

UPC2391G

LB1990W

MM1449XQ

MB86611

C111306F

LA7458W

IX0604TA

IX0629TA

IX0630TA

IX0625TA

IX0608TA

IX0620TA

M5412450

S84235F

S24C02A

TA75W558

MM1332G

TC7W14U

TC7W74U

TC7W08U

TC4W53U

24LC8BIN

TC7WH74U

TC7W66U

IX0494TA

IX0560TA

S84235F

MM1116FS

FTS1001

TK15440M

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R1802

L1800

C1802

L1801

R1805

C1803

C1804

C1813

C1800

R1811

C1805

R1806 R1808R1809

C1807

C1801

R1803R1807

D1802

R1812

R1815

C1806 R1810

Q1801

R1820

C1812

R1821

R1813

D1801

C1808

Q1800

R1814

R1817

R3802

R3804

Q1802

R1816 C1809

R1819

R1818

R3803

R3801

IC3800

R3809

C1810

C1811

R3814

R3810

C3802

R3800

C3800

L3800

C3804

R3807

C3801

FB3800

R3808

R3819

R3860

R3818

R3862

R3861

R3863

R3837

R3825

R3828

R3827

IC3801

R3830

R3829

C3812

R3834

R3850

R3832

C3813

D3801

L805

R3843

R3840

C808

R4401

C811

C810

R803

C805

C807

IC800

R802

C804

L804

R801

C803

C809 C806

TL413

TL412

L803

TL415

TL411

TL414

TL416

C460

TL419

TL418

TL421

TL417

TL420

C462

L406

C458

R446

C459

R455

C468

TL407

R462

R495

Q411

C457

R453 R450

R494

C467

Q410

R460

C464

R457 R449

R454

R489

C466

C465

C463

C454

R451

R459

L407

C450

C456

R433

R437

C452

C451

R435 R439

R497

C455

C2703

R496

Q412

R445

R452

TL2708

IC2701

TL2707

TL2701

TL2706

TL2702

TL2718

TL2717

C2701

C2702

C1724

C1730

R1710

R1708

C1728

R1711

C1721

IC1709

C1720

C1722

R1705

C1725

C1729

C1723

C1726

L1703

C1727

R1712

R1704

R1703

R1706

R1709

C1716

C1717

R1701

IC1707

C1718

C1719

IC1708

C7402

R1702

C7405

L7403

R7407

R7403

R7406

Q7402

R7402

C7403

C7407

C7404

C7408

R7405

R7411

R7413

Q7401

R7408

L7402

R7401R7404 R7410

L7401

Q7404

R7409

Q7405 Q7403

C7406

C7411

R7425R7412

C7415

R6410

R6409

Q6402

L6401 R6419

Q6404

C6404

R6414

R6416

C6409

R6413

R6418

C6408

R6411

C6403

C6407

R6404

R6403

C6410

C6402

L6402

R6415

R6412

C6405

L6403

C6406

Q6401

R6407

R6408

R6401

Q6403

R6405R6460

R6406

R6402

R7472

R7465

Q7454

C7453 R7455R7471

C7401

Q7452

R7460

C7451 C7452R7456

C7459

L7454

R7453 R7454C7455

R7461

L7453 C7461

R7457

Q7453

C7458

L7451 R7451C7456

R7458

R7467

R7462

C7460

C7462

D7451

Q7455

L7452

Q7451

R7452

R7459

C7457

R7464

R7468

R7466

R424

C442

R420

R418

R416

R414

R413 R410

R425

C446

R407

R432

C425

R490

C439

C437

C443

R436

C436

C434

C430

R444

R408

C426

IC401

TL410

C429

R467 C472

R492

TL409

C432

C449

C445

TL408

R488

TL402

C469 C447

C448

C444

R458

R461 R447

TL405

C440

C471

R464

L405

Q409

R463

R456

R4400

R3836 C3811

C3814

R923

R919

R920

R925

R924

R3835 C3810

R3845

R3848

R3833 C3809

C930

R3831 R3826

R921

IC3802

R3824 R3823

R926

IC902

R3844

R3822

R916

R3820

L3802

C3808

R3821

R918

C3806

R911

C3805

C3807

R3816

R917

R913

R914

R915

R912

L3801

R3817

R3812

C152

C3803

C156

C154

C153

C151

L152

C155

D3800

L151

R1822

R189

TL191

C160 R190

R191 C158

R188

C159

IC151

R194

IC152

C161

D1800

C157

C162

C163

P151

Q940

Q934

R951

C925

R187

L911

R9921

R185

R9922

Q918

C923

R9915

Q914

Q935

L915

R9916

C924

Q916

L914

Q917

Q941

R9917

R949

R937

R946

R945

C910

Q912

R944

R9923

R940

R907

R908

L908

R941

Q939

Q913

IC903

Q938

Q936

R943

C955

C909

C915

Q937

R922

R942

R936

C956

R939

R938

C4400

IC4400

R498

C473

C402

L402

R487

C404

C201

C411

C415

C412

C407

C202

C409

C414 R486

C406

C403

C204

L401

C408

C413

C405

R202

C416

C419

C203

C421

L404

R203

C422

R785

R786

C205

R794

R7470

R7469

C7463

CN7401

R1403

R7463

R1407

R1426

R2451

Q7456 R2452

R2453

Q2451

R789 R788

R6417

C1458

R1455

C7414

R7422

L7406

R7421

R7420

C1453

C7412

L7407

Q7407

C1454

R7417

R7419

R7418

R7426

L7408

Q7406

R7416

R7415

C7409

C7410

L7405

R7414

L7404

C1457

R1460

Q1451

L1453

C1456R1459

R1456

R1451

R1452

R1458

R1453

IC1451

R616

D1451

C619

C1459

R1454

C622

C1451

C1452

R1411

C620

L2451

C625

R1412

C1409

C2451 C2452

Q1403

L1403

R1423

Q1401

C1403

C1407

R1409

C1405

L1401

R1404

R1402

C1401

C206

R790

R791

IC201

R205 R207

R468

R204

C207

R206

L201

R9911

R9918

L917

R9907

L921

L922

L931

L924

L929

T901

R934

R935

C950

R933

C951

L913

L912

C927

C926

P902

P2902

R2914R2923

R2945

R2932

R2933

R2951

IC2901

R2944

L910

R2922 R2921

C2906

L907

L906

R2902

D2909

L902

L901

L925

L918

L909

L900 L905

C912

Q908

R9914

R9912

R9913

R903

R905

Q933

C209

IC202

C210 C212

C213

R795

C713

X701

C712

IC711

R792

R796

C208

IC710

R626

Q602

R625

C750

C627

Q601

C637

C624

C604

L603

C615

C617

C603

L602

L601

C612

C611

Q3601

C3601

R3604

R3602C3603

R3601

Q3602

R3606

R3605

R642

R3603

C3602

IC712

C211

L202

Q905

Q932

R904

R902

Q903

Q904

C903

C904

L904

L903

D2914

R2953

R2952

Q2901

C2911

Q2910

R2903

R2935

R2901

C942

Q2907

R2911

R2915

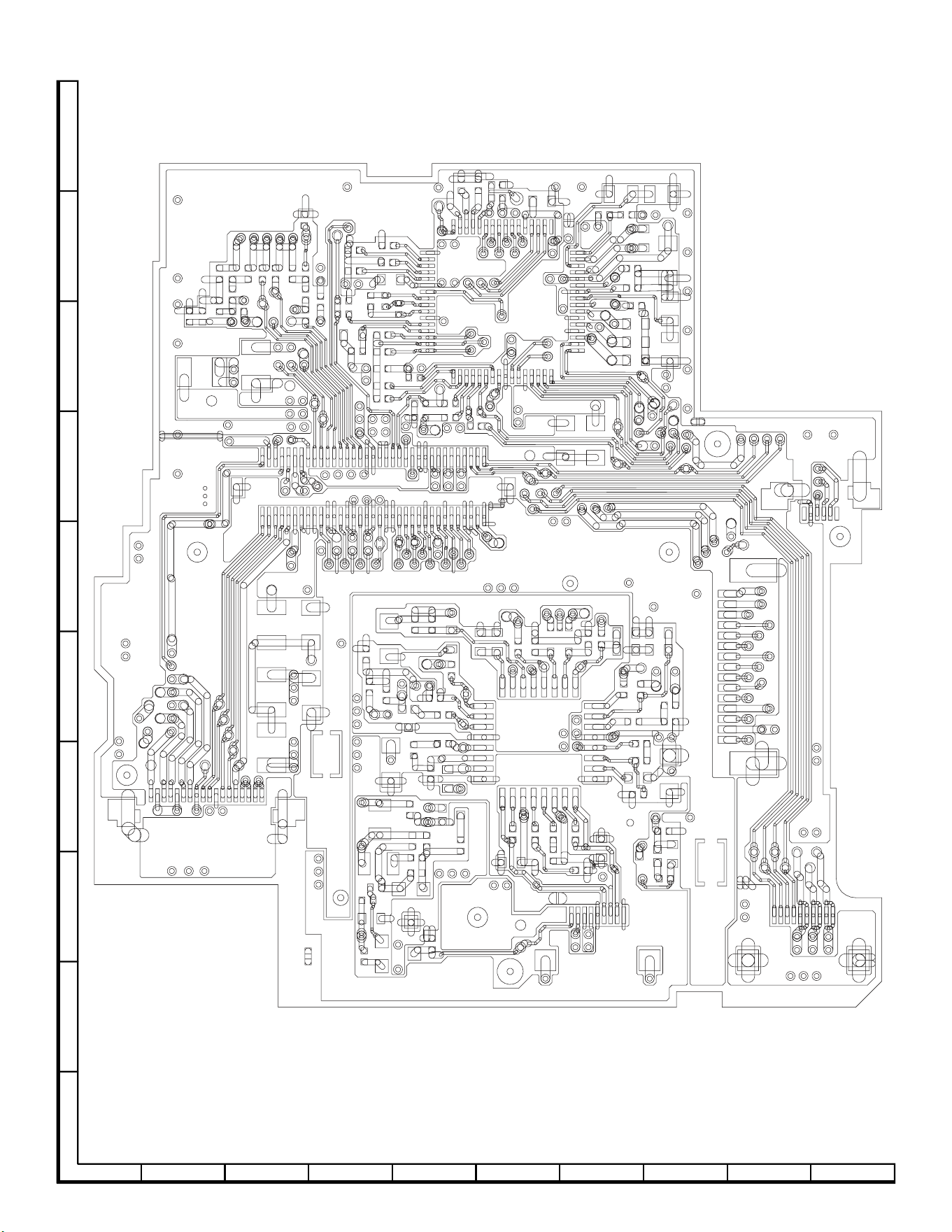

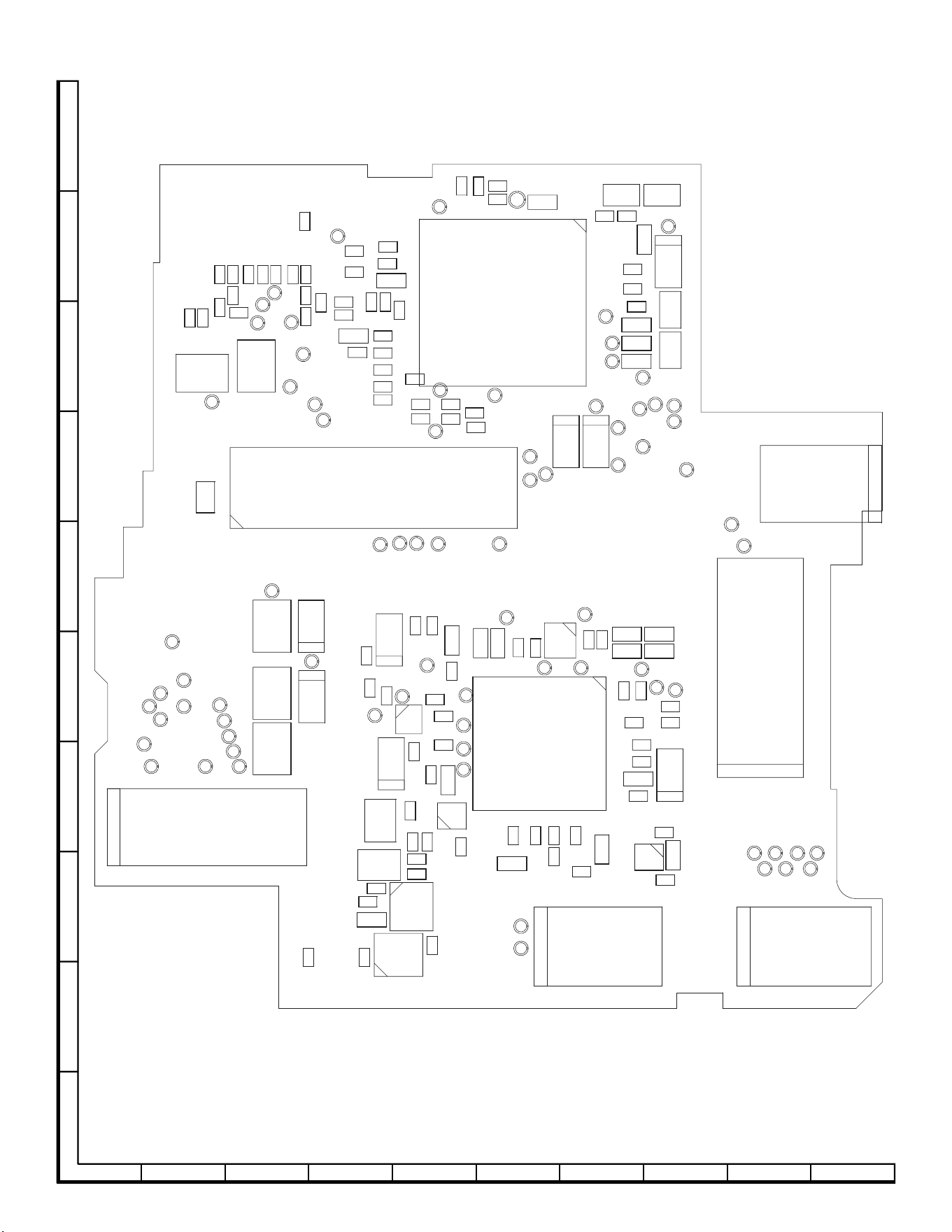

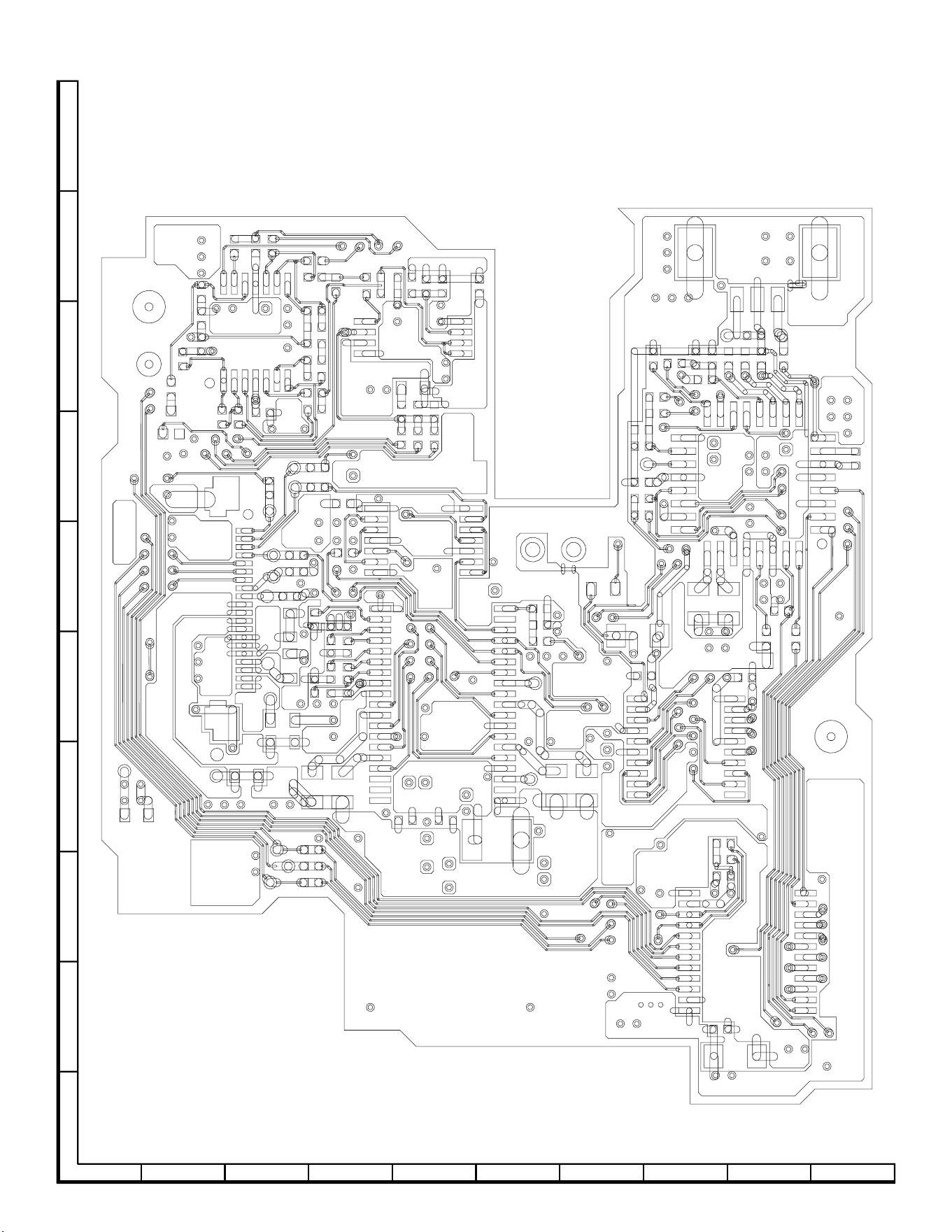

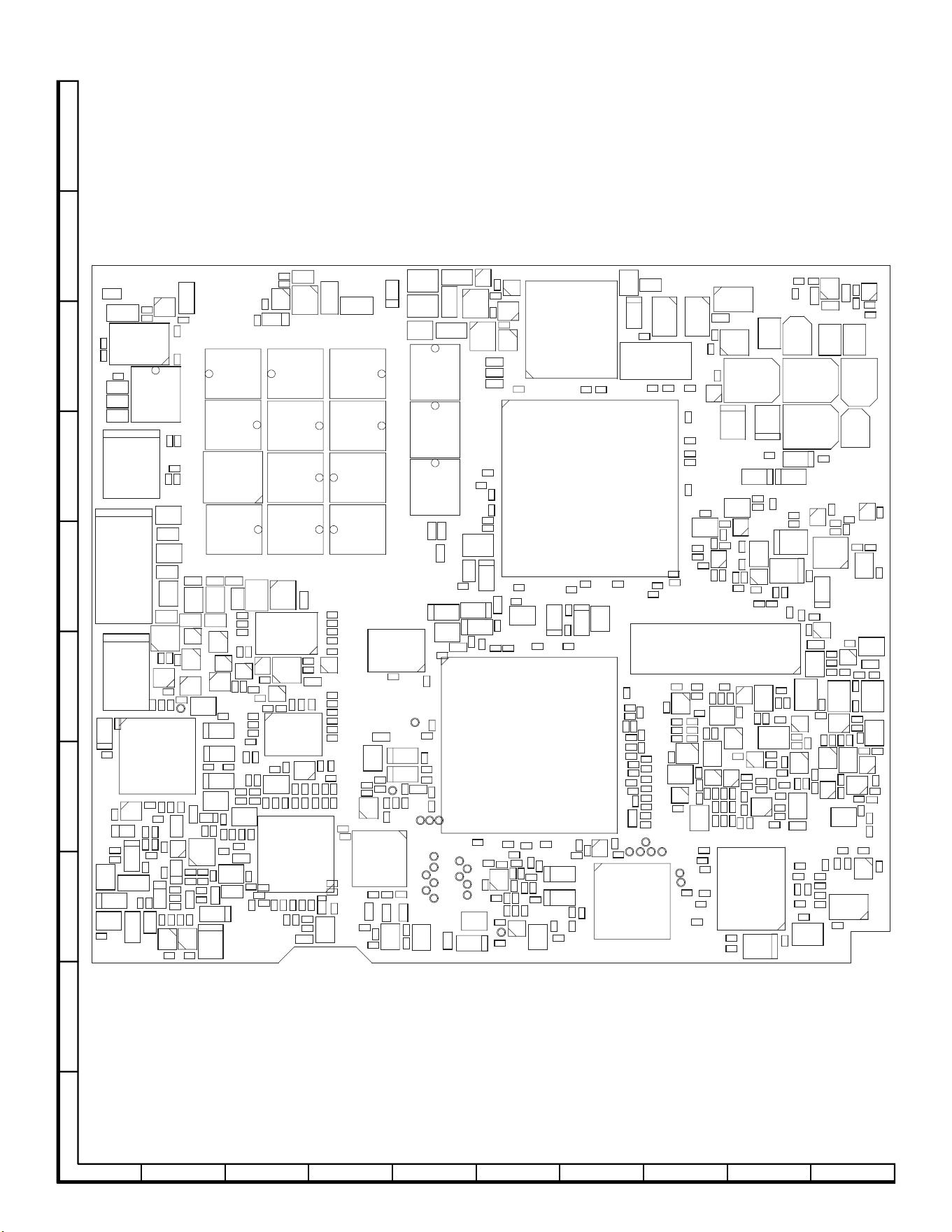

10. PRINTED WIRING BOARD ASSEMBLIES VCR PWB Component Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

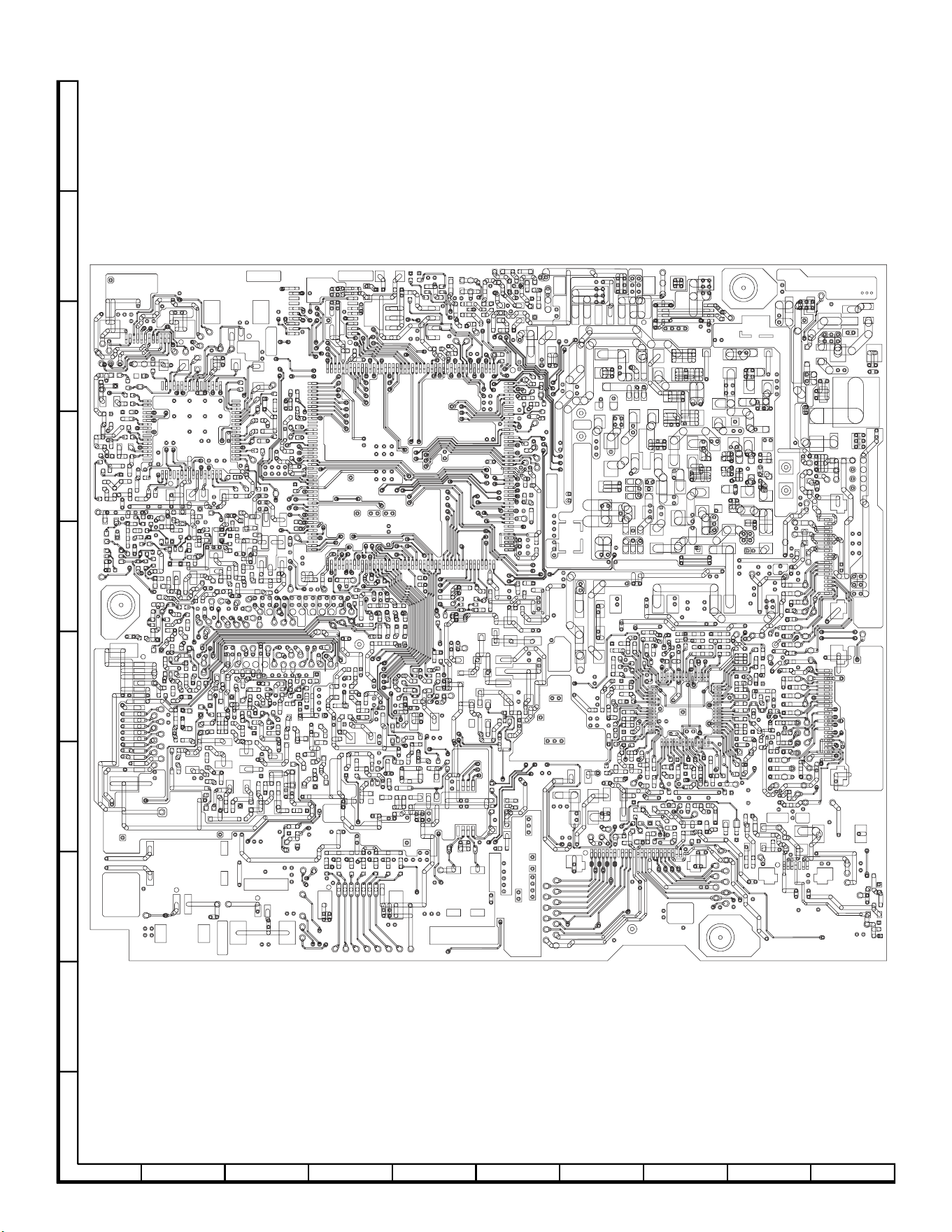

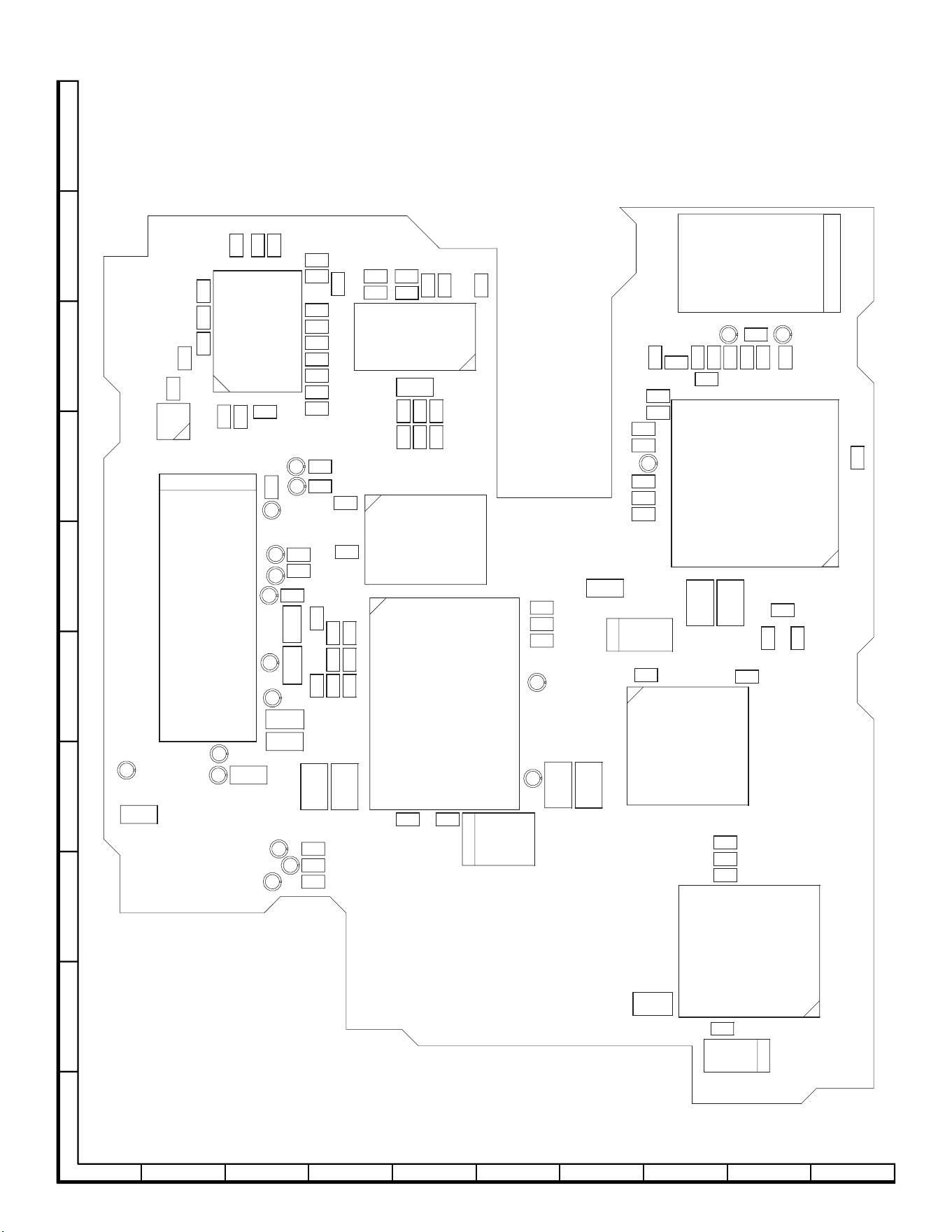

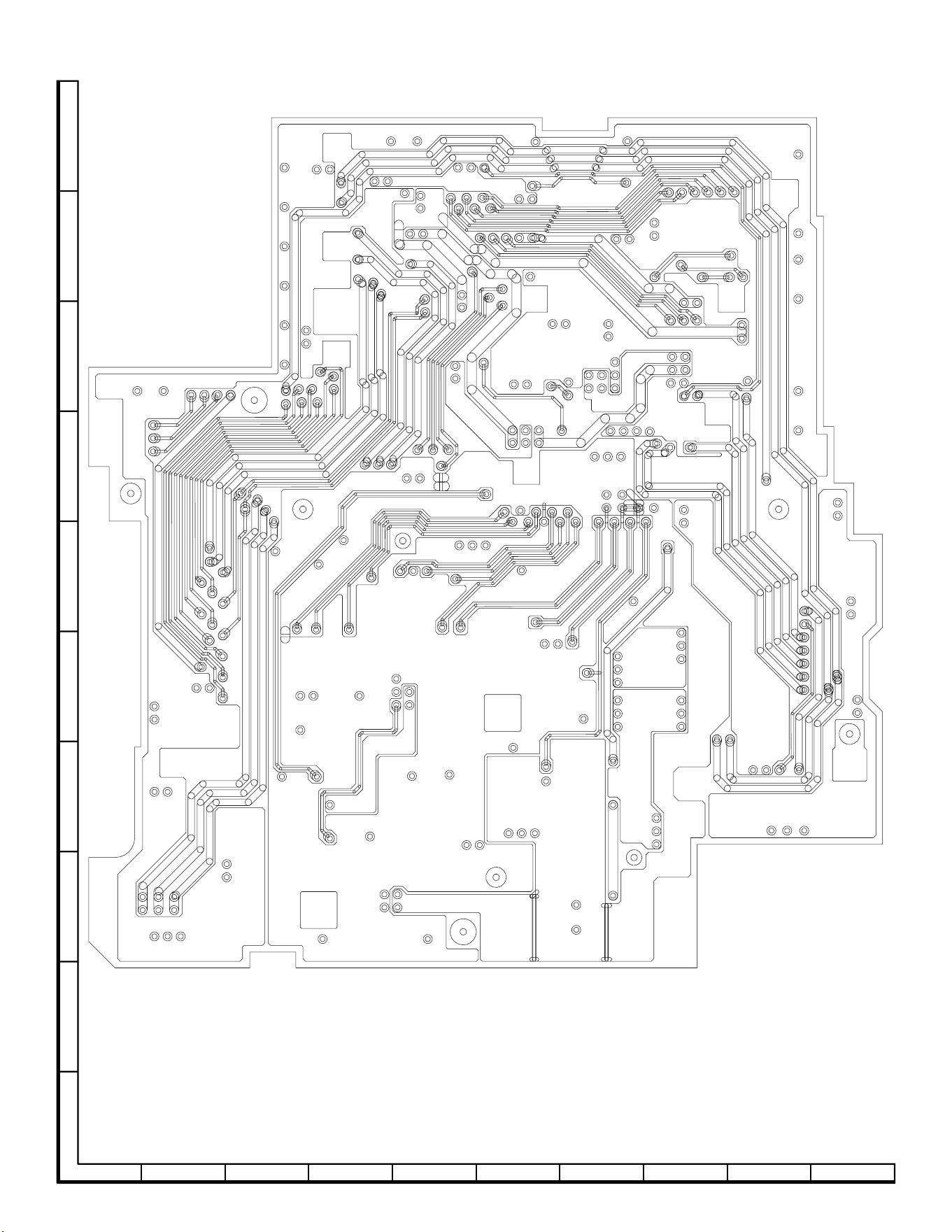

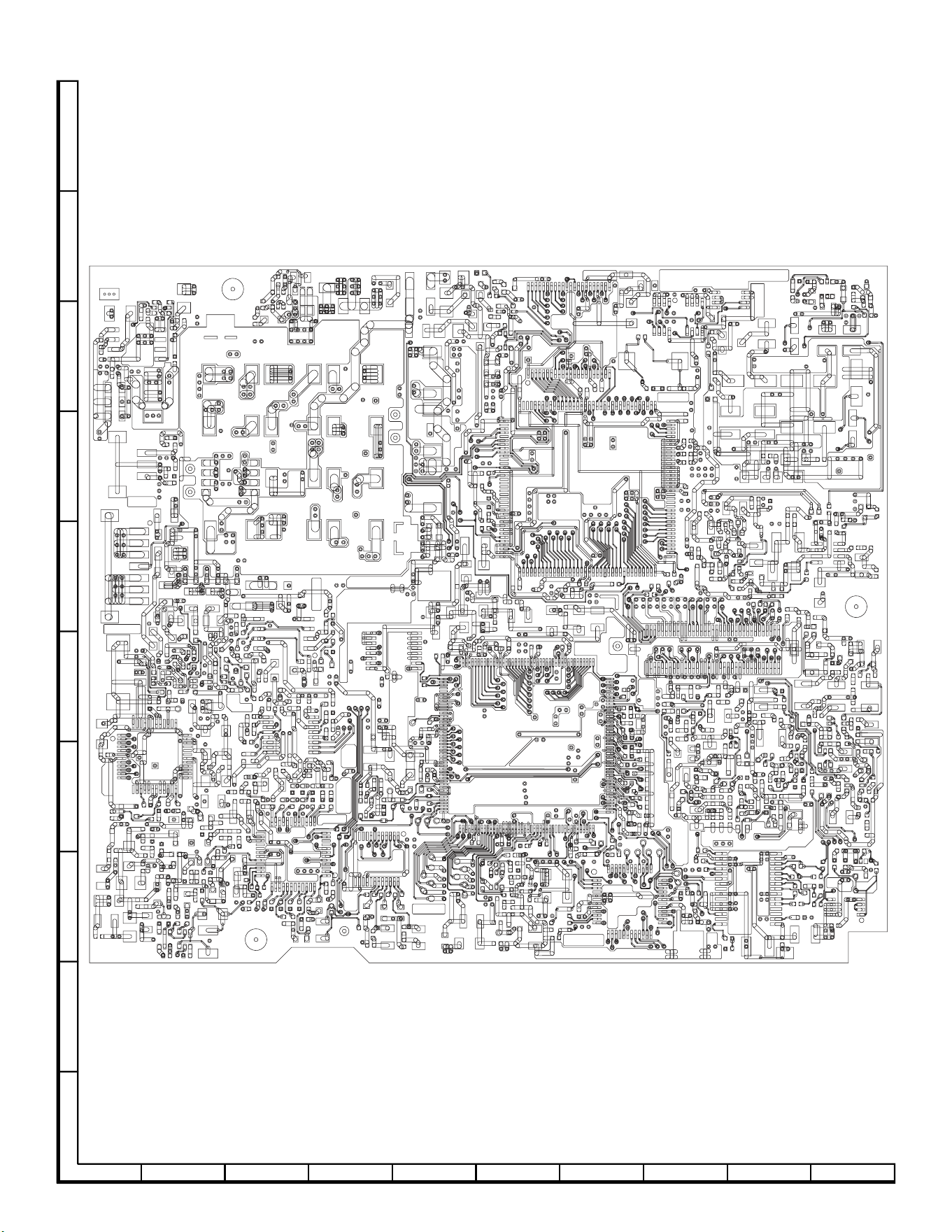

VCR PWB Wiring Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

TL701

X1703

CN702

TL702TL703

CN701

Q407

R434

TL2715

TL2713

TL2714

TL2711

TL2710

R429

TL2709

R707R723

TL704

R708R724

TL705TL706

R709R725

CN703

TL707

R710R726

TL708

R711R727

TL709

R712R728

TL710

R713R729

TL711

TL720

C723

X702

C721

R743

TL3817

TL3815

TL3813

TL3811

TL3809

TL3807

TL3826

TL3816

TL3814

TL3812

TL3810

TL3808

TL3806

TL800TL802

TL3804

R3846

CN3800

Q3800

R3849

Q3801

TL3805

R3852

R3851

C3815

C3819

C3818

R3853

TL3818

TL3820

TL3822

TL3824

TL3827

C3817

TL3803

TL3819

TL3821

TL3823

TL3825

R3805

R3806

C953

R947

TL3800

IC904

C952

R931

SC901

C946

L930

TL1800

TL911

TL914

TL901

TL912

R928

C945

Q926

R948

C944

R929

SC152

TL1801

TL189

TL188

TL187

R186

TL178

TL176

TL174

TL185

TL171

TL183

TL184

TL179

TL177

TL175

TL172

TL173

R182

TL181

R183

R177

R173

R174

R170

R171

R169

TL182

TL180

TL915

R196

TL903

R180

R179

R178

R175

R195

R172

R1942

C164

R1940R1941

R1939

R1936C1914C1915

R930

C1913

R1937R1938R1943

R1935

C1912

TL9901

TH3800

R1931

C1911

C1909

C1910

R3847

R3854

R1932

R1933

C1928

TL3801

R1930R1934

C1908

R3838

IC900

R3842

R1959

R1929

R1927

R1926

C1907

R3841

R1925

R1922

R1923

R1920

C1905

C3816

R1921

R3855

R800

R1957

R1917R1915R1913

C1927

R3839

TL3802

R1975

R1916R1914C1904

R1909

R1924

D1901

R1911

L802

L800

R1974

R1912

R1919

R1910

R1973

TL801

R1960

TL904

C802

C800

L801

C801

C719

R740

IC703

R737

D702

Q704

R741

C714

IC702

IC704

R760

R758

R759

IC708

R4701

L702

C731

R4702

R766

R767

R756

R761

R784

C737

Q710

C728

R753

R755

R762

R769

C441

Q707

D703

R706

C461

R422

R421

R768R772

C475

R763

C738Q406

R440

R773

R426

R417

R7424

Q7410

Q8405

Q8406

R8418

C8460

Q7409

R8420

C8401

R8419

C8414

Q8407

C8459

C7413

Q7408

R7423

R8401

R8456C8456

R8465

L8452

R8458

C8403

C8402

L8401

C8452

R8467

R8403

C8404

Q8451

R8455

C8453

R8460

L8451

R8452R8453

Q8401

R8454

R8402

L8402

L8405

R8405

C8405

R8451

C8454

R8404

R8421

Q8402

C8413

R8417

R9402

Q6454

C8409R8422C8410

R8407

L8404

C8411

Q8404

Q9402

C8408

R8416

C8412

C8451

R9401

R9405

R8412

R8413

TL6401

TL9402

TL9404

TL9406

TL9408

TL9412

TL9401

TL9403

TL9405

TL9407

TL9409

CN9401

TL1453

R6459

TL9413

TL9414

R6453

Q6452

R1416

R9410

Q6451

Q1406

R1427

R6456

R9409

Q9401R6457

R1413

R6452

C9401

C1410

C6452

R6455

L1404

R6454

R9404

R9407

Q6453

R9412R9411

C6451

R9408

TL7452

C1415

R9403

C9402

TL7404

TL7403

TL7453

TL7451

R1414

TL7450

TL7449

R6458

TL7406

C6453

Q1404

TL7407

TL7448

R1424

TL7408

TL7446

TL7445

C1408

Q8453

R8462

C1404

TL7410

R8463

TL7423

TL7443

TL7444

TL7440

R1410

TL7412

TL7442

C8458

TL7413

R8468

TL7439

R1425

TL7441

TL7411

Q1402

C8461R8464

TL7414

TL7437

TL7415

TL7436

Q8452

R1406R1405

TL7416

TL7435

TL7409

TL7434

R1401

TL7417

TL422

TL7425

TL7433

TL7432

R8461

R8459

TL7418

TL7419

TL7438

C8457

R8457

TL7420

TL7431

R8466

TL7405

TL7421

TL7430

C704

C8455

TL713

TL7422

TL7424

TL7429

TL714

R787

TL7426

TL712

Q403

TL7427

TL715

TL7428

R412

C474

R4704

R742

R406

C707

C722

R732

R716

C705

R744

R731

R4703

R715

R730

C703

R714

TL748

R719

C701

R703

R778

R780

R775R718

C706

R702

Q709

Q708

R793

R771

R783

R781

R770

R777R776

R747

C724

TL749

R746

TL916

C711

D701

Q705

C726

Q703

R748

R745

R751

D704

TL727

IC701

C709

C716

C708

R720

R704

L701

C702

TL9719

C940

L927

L926

C941

R1905

R1904

R1972

R1902

R1907

R1903

R1908R1906

C1901

R1901

C1902

C1903

L920

R1981

C1926

C1924

R1967

R1976

R1970

C1923

C1919

R1966

R1980

R1969

R1982

C1918

L923

R1962C1925

R1961R1968

C1920C1921

C1922R1964

R1965R1963

TL910

R1948R1946C1917R1951

R1947

TL9721

C1916R1953R1952

TL905

L928

R1956

R1944

R1945

R1950

R1949

R1955

TL909

TL907

C1929

R2950

TL906

TL9720

R168

R166

R159

R160

R161

R155

R154

R164

R163

R158

R162

R157

R167

R156

TL170

TL168

TL161

TL163

TL157

TL169

TL159

TL162

TL158

TL156

TL167

TL166

TL165

TL160

TL164

TL190

TL2916

TL2915

TL2914

TL9724

SC151

TL155

TL2913

TL2912

TL2911

R153

TL9729

TL9728

TL9727

FB151

R151

FB152

TL151

TL154

TL9726

TL9718

R152

TL153

TL152

TL9716

C917C916

D906

D904

C922

D902C920

D903

C948

Q911

C918

D905

Q925

C943

C921

D914

C937

C947

Q928

Q922

C934

Q921

D913

C935C936

C730

R774

TL2704

TL2703

TL7447

R735

C729

R798

TL423

TL2705

IC706

C718

C717

R738

TL718

TL603

L1451

L1452

C1402

R615

C1416R2423

C630

TL602

C628R614

C2409

R1408

Q2408

R2421

C626

R2420

R2419C2408

R634

C1406

L1402

C623

Q2405

R2418

Q2406

C2405

R2415R2416

R2414

C2404

R2413

C621

Q2403

R2417

Q2402

TL1451

R2401

R2410

R2405

C2403

C614

R1428

C2402

C2407

R2404

R2402

C2406

C635

R2411

R606

R628

R629

R2408

R2406

R2407

R2412

R2409

R605

C605

R607

C609

C610

R602

Q2401

R2403

Q2407

C2401

C613

C638

C606

R603

R604

TL1454

TL3607

TL3612

R621

TL3601

TL607

R633

TL3602

C608

C607

TL3611

C602

TL3610

Q603

C641

R601

R609

R612

R624

R632

TL608

R640

TL604

CN3601

D601

R627

TL3609

C601

TL3608

IC601

TL3604

TL606

C618

TL3603

TL609

C636

TL610

P601

R619

R618

C629

C616

C633

C632

C631

TL605

R630C634R617

R734

R733

C715

R717

R722

R705

C720

IC705

C725

R701

TL724

R2942

C2909

TL726

TL2908

R2943

TL728

R2948

R797

R2947

TL742

R764

R9919

TL733

R9920

R799

TL743

Q2915

R750

L919

C933

R779

R765

C932

C939

Q920

C931

Q919

C938

C901

C900

C902

C919

D900

Q901

C907

R2905

TL2923

C905

Q907

C906

Q906

D901

CP903

TL2907

D2912

D2913

C2904

Q2911

CP901

Q2905

R2913

TL2910

CP902

D2910

Q2903

TL2919

TL2918

TL2920

P2901

TL2904

TL2905

TL2906

Q2912

R2925

R2936

R2938

R2949

R2937

IC2902

Q2913

C2908

R2941

R2939

R2946

Q2914

TL2922

TL2909

R2940

C2907

C2910

Q2906

R2934

R2908

R749

C727

C732

R757

C733

IC707

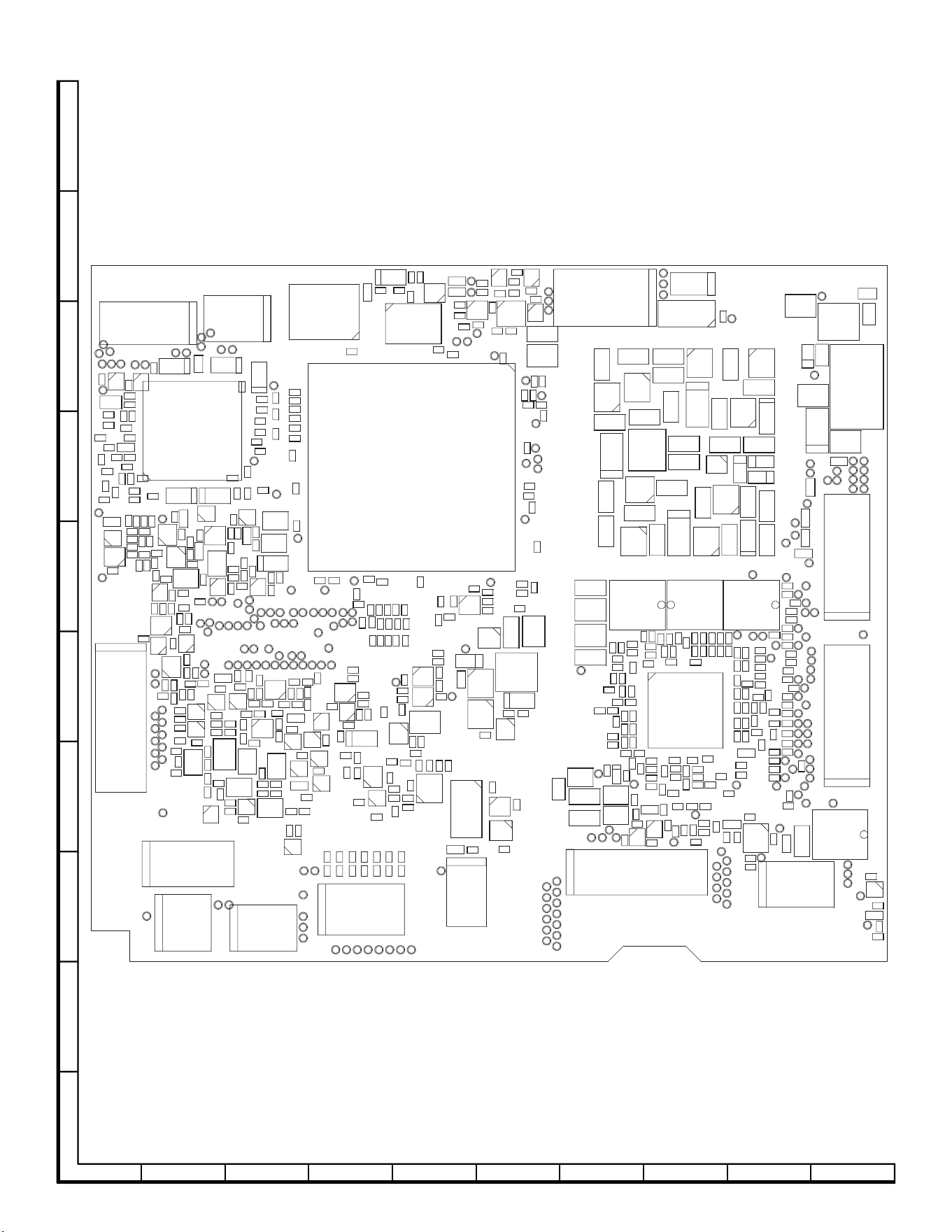

VCR PWB Component Side SIDE B

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

VCR PWB Wiring Side SIDE B

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

SC101

R17

R18

C19

TL107

TL103

TL105

TL104

R23

TL109

TL108

TL106

C22

FB107

FB106

FB104

FB103

FB102

C23

R25

FB101

R110

R109

R29

L11

FB105

C27

C28

R35

Q13

R33

R41

R38 R39

C36

R40

Q15

X11

C30

Q14

R36

C37

C33

R37

C35

C34

TL129

TL124

SC102

R140

TL128

R123

R124

TL120

TL111

TL125

TL127

TL117

TL112

R126

TL116

TL119

TL123

TL126

TL113

R127

TL114

R128

R129

R131

R132

R135

R137

TL115

R133

R139

TL30

TL121

R134

TL122

R138

TL31

C563

C38

L553

L13

L12

L551

C29

R34

R31

C26

TL25

Q12

C17

R30

C25

R28

R27

C24

R19

R26

R24

R14

Q11

R15

IC12

R20

TL22

C20

C21

R22

C12

TL27

R16

TL23

TL28

C18

R21

R11

R13

R12

TL29

TL20

TL19

TL26

L101

C108

SC11

C113

TL101

TL21

TL18

TL16

TL15

TL13

TL11

C111

TL17

TL14

TL12

TL24

C11

C565

TL551

TL552

TL553

TL554

TL561

TL555

TL562

TL563

TL558

TL564

SC551

R574

R145

R146

Q551

R559

R142

R143

R573

C117

TL130

TL131

TL133

TL134

R560

R130

TL118

TL570TL568TL567TL566TL565TL560TL559TL557TL556

TL100

P101

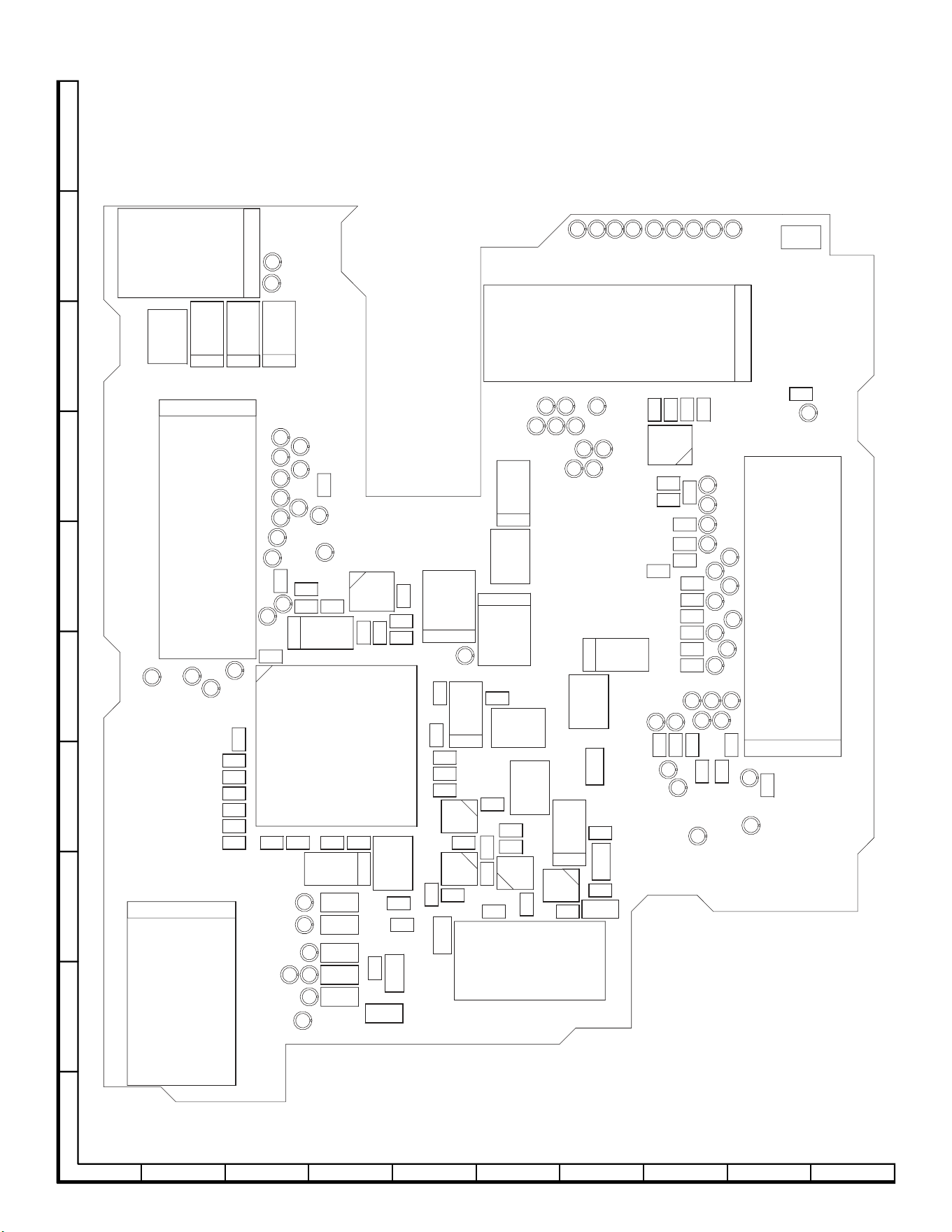

CAMERA PWB Component Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

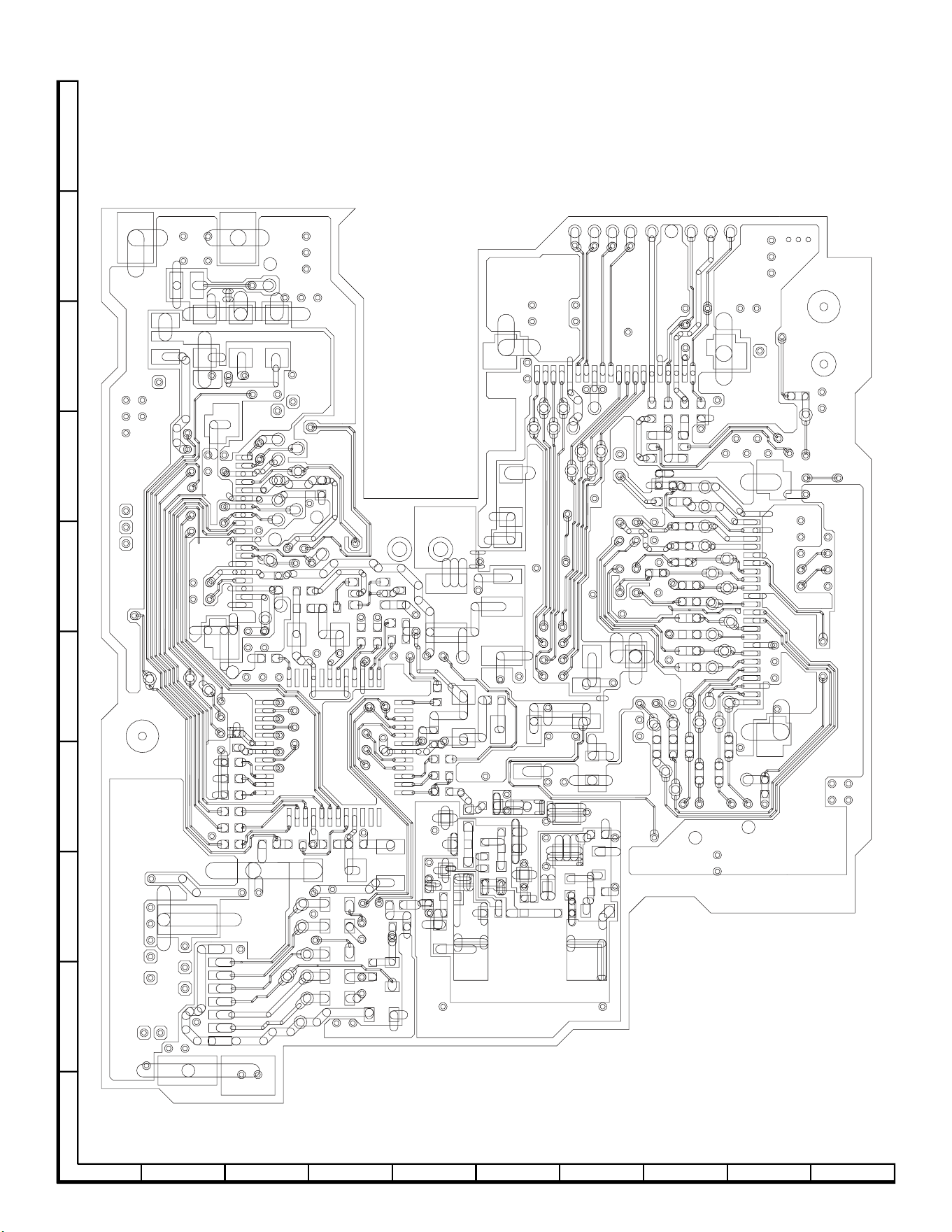

CAMERA PWB Wiring Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

TL145

TL146

TL144

R117

R116

R118

C560

C114

C116

R150

R100

C115

IC102

C119

C120

C118

C16

C102

C101

IC11

C15

C14

C13

R555

R557

R551

R552

C551

TL571

TL572

IC551

C561C552

R554C559C556

R558

C562C558C555

R553C554

R556

FB110

R111

R115

R119

R114

R112

FB109

TL143

TL147

TL137

TL138

TL142

R113

SC103

TL140

TL141

R149

TL139

D551R577

R584

R575C570R578

R564

R561

C567

IC552

TL150

R122

TL149

TL148

R565

R566

R567

C569

R568

C572

R571

R120

R121

C553

R589

R583

R569 R562

IC553

R587R579

C573

IC554

R586C571

R563

R585R572

C568

C574

R102

R101

C103

C105

R104

TL102

R105

R103

C107

R107

R108

R106

C109

TL136

C112

IC101

R148

C110

C106

TL135

R147

C104

P102

C566R570R580

R582

R581

R588

R576

CAMERA PWB Component Side SIDE B

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

CAMERA PWB Wiring Side SIDE B

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

CN3703

R390

R342

C344

R340

R343

L341

L342

Q341

C341

C342

C345

Q342

C340

R344

C349

Q343

R345

C318

TL301

TL302

C319

TL351

R337

C322 R338

C320

C323

SC301

C326

TL352

TL353

R301

Q302

R308

R307

R306

TL3709

TL3710

TL3711

TL3712

TL3713

CN3701

TL3714

TL3715

CN3702

C325

TL315

R363

R305

R315

R319

TL314

R316

R303

C311

TL313

R302

C310

C309

R318

R314

R317

R361

TL311

TP328

Q315

R360

TP329

IC301

R313

C315

TL309

R359

TL330

TL333

TL332

TL331

C314 R362

R335

C313

R329

C324

R323

C304

TL306

R341

R321

Q307

TL304

C321

C306

R331

C346

C302

TL303

C305

C347

TL327

L303 L304 L305

TL305

TL3739

TL3740

TL3742

TL3744

TL3745

TL3746

TL3749

TL3747

TL3720

TL3750

TL3748

TL3751

TL3741

TL3743

L3702

TL3719

L3701

TL3718

TL3702

TL3701

TL3706

SC305

TL307

C3731

C3730

C3729

TL308

R3729

TL310

R3728

R3727

TL3724

TL3725

TL312

R3725

R3726

R3724

C3732

TL3716

TL319

TL3717

TL322

TL321

C3734

TL3723

C3733

TL3733

TL3731

TL3736

C3726

TL3728

TL3735

TL3734

TL3727

TL3738

TL3729

R3719

TL320

TL3737

TL3730

SC304

R3720

C3714

TL3721

R3717

C3711

C3724

C3723

C3720

C3718

C3716

R3716

R3718

TL3726

R3715

TL3732

C3709

TL3752

IC3701

R3730

R3731

C3707

C3708

TL3705

C3722

C3719

C3717

C3710

C3713

C3728

C3727

C3721

R3723

C3715

C3712

C3725

R3722

R3721

TL3722

C3702

R3701R3705R3707

C3705

C3703

TL3707

R3702

R3704

TL3708

TL3704

C3704

TL3703

R3706R3708

R3703

R3733 C3706

C3701

R3732

HEAD AMP PWB Component Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

HEAD AMP PWB Wiring Side SIDE A

12345678910

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

HEAD AMP PWB Wiring Side SIDE B

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTK2949QA17 VCR Unit(VL-A40U/A45U) —

DUNTK2949QA04 VCR Unit(VL-AH50U/UC) —

DUNTK2949QA07 VCR Unit(VL-AH50T) —

DUNTK2949QA15 VCR Unit(VL-AH50K) —

DUNTK2949QA02 VCR Unit(VL-AH60U) —

DUNTK2949QA16 VCR Unit(VL-AH60K) —

DUNTK2949QA11 VCR Unit —

(VL-AH60U JAPAN)

DUNTK2934QA00 CAMERA Unit —

(VL-A40U/A45U/AH50U/UC/T/K/

AH60U/K)

DUNTK2934QA10 CAMERA Unit —

(VL-AH60U JAPAN)

DUNTK2936QA00 HEAD AMP Unit —

(VL-A40U/A45U/AH50U/UC/T/K/

AH60U/K)

DUNTK2800PM03 CCD Unit —

(VL-A40U/A45U/AH50U/UC/T/K/

AH60U/K)

DUNTK2800PM10 CCD Unit

(VL-AH60U JAPAN)

—

TUNER AND ASSEMBLY UNITS

RUNTK0352TAZZ AV Jack Unit AS

RUNTK0353TAZZ VCR Operation Unit AS

(VL-A40U/A45U/AH50U/UC/AH60U)

RUNTK0369TAZZ VCR Operation Unit AS

(VL-AH50T)

RUNTK0373TAZZ VCR Operation Unit AS

(VL-AH50K/AH60K)

RUNTK0354TAZZ Lithium Battery Unit AF

RUNTK0356TAZZ 6-cell Detection Unit AG

11. REPLACEMENT PARTS LIST/

EXPLODED VIEWS

ELECTRICAL PARTS LIST

Parts marked with

are important for maintaining the safety of the

set. Be sure to replace these parts with specified ones for maintaining

the safety and performance of the set.

Les pièces marquéss

sont importantes pour maintenir la sècurité de

l'appareil. Ne remplacer ces pieces que par des pièces dont le numéro

est spécifié pour maintenir la sécurité et protéger le bon fonctinnement

de l'appareil.

HOW TO ORDER REPLACEMENT PARTS

in USA: Contact your nearest SHARP Parts Distributor. For loca-

tion of SHARP Parts Distributor,

Call Toll-free 1-IBE800-SHARP

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100.

★MARK : SPARE PARTS-DELIVERY SECTION:ALL JAPAN

To have your order filled promptly and correctly, please furnish

the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

5. PRICE CODE

å MARK: SAFETY RELATED PARTS

å PIECES: RELATIVES A LA SECURITE

PWB ASSEMBLY IS NOT REPLACEMENT ITEM

L'ASSEMBLANGE P.C.I. EST UN ARTICLE NON REMPLACABLE

DUNTK2949QA17(VL-A40U/A45U)

DUNTK2949QA04(VL-AH50U/UC)

DUNTK2949QA07(VL-AH50T)

DUNTK2949QA15(VL-AH50K)

DUNTK2949QA02(VL-AH60U)

DUNTK2949QA16(VL-AH60K)

DUNTK2949QA11(VL-AH60U JAPAN)

VCR UNIT

INTEGRATED CIRCUITS

IC151 VHiCXD2310A-1 CXD2310A, A/D Converter AV

IC201 RH-iX0738TAZZ IX0738TA, Electric Memory AV

IC202 RH-iX0770TAZZ IX0770TA, Field Memory AW

IC401 RH-iX0788TAZZ IX0788TA, Integrated DSP BB

IC601 VHiLA7458W/-1 LA7458W, Sig Process AT

IC701 VHiS81330HG-1 S81330HG, 3V REG AF

IC702 VHiRN5VD25A-1 RN5VD25A, 2.5V DET AE

IC704 VHiRS5C313/-1 RS5C313, Clock AL

IC705 VHiM24C08W6-1 M24C08W6, E

PROM AH

IC706 RH-iX0764TAZZ IX0764TA, System/Servo

Control

(A40U/A45U/AH50U/UC/

AH60U/AH60U JAPAN)

IC706 RH-iX0806TAZZ IX0806TA, System/Servo BD

Control(AH50T/K/AH60K)

IC707 RH-iX0766TAZZ IX0766TA, OSD.IC(AH50T) AP

IC707 RH-iX0768TAZZ IX0768TA, OSD.IC AP

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

IC707 RH-iX0777TAZZ IX0777TA, OSD.IC AP

(AH50K/AH60K)

IC708 VHiTA75S01F-1 TA75S01F, Amp AD

IC710 VHiTC4W53U/-1 TC4W53U AF

IC711 VHiTC4W53U/-1 TC4W53U AF

IC712 VHiTC7W74U/-1 TC7W74U AD

IC800 VHiMM1323XV-1 MM1323XV, LCD Interface AN

IC900 VHiMB3881//-1 MB3881, Power Control IC AT

IC902 VHiBU4051FV-1 BU4051FV, Multiplexer AF

IC903 VHiNJM2904M-1 NJM2904M, 3.1V/2.5V AE

Error Amp

IC904 VHiTA75S01F-1 TA75S01F, Amp AD

IC1451 VHiTK15440M-1 TK15440M, Driver AF

IC2701 VHiMB88344F-1 MB88344F, D/A Converter AV

IC2901 VHiMM1332GF-1 MM1332GF,

Charge Control AH

IC2902 VHiNJU7012F-1 NJU7012F, AE

Over Current Detector

IC3800 VHiNJM2107F-1 NJM2107F, AFC LPF AE

IC3801 VHiLZ9GH16/-1 LZ9GH16, LCD Controler AP

(AH50U/UC/T/K)

IC3801 VHiLZ9GH17/-1 LZ9GH17, LCD Controler AP

(A40U/A45U/AH60U/K/AH60U JAPAN)

TRANSISTORS

Q403 VS2SA1873Y/-1 2SA1873Y AC

Q406 VS2SA1989R/-1 2SA1989R AB

Q407 VS2SA1989R/-1 2SA1989R AB

Q409 VSHN1B04FU/-1 HN1B04FU AC

Q410 VS2SA1989R/-1 2SA1989R AB

Q601 VS2SA1362GR-1 2SA1362GR AC

Q602 VSRT1N441U/-1 RT1N441U AB

Q603 VS2SC5383F/-1 2SC5383F AB

Q704 VSHN1B04FU/-1 HN1B04FU AC

Q705 VSHN2C01FU/-1 HN2C01FU AC

Q707 VSHN1C01FU/-1 HN1C01FU AC

Q708 VSRN2904///-1 RN2904 AC

Q709 VSHN1C01FU/-1 HN1C01FU AC

Q901 VS2SA2010//-1 2SA2010 AD

Q903 VS2SA1989R/-1 2SA1989R AB

Q904 VS2SA1362GR-1 2SA1362GR AC

Q905 VS2SA1989R/-1 2SA1989R AB

100

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Q7408 VS2SC5383F/-1 2SC5383F AB

Q7409 VS2SA1989R/-1 2SA1989R AB

Q7410 VSRT1N241U/-1 RT1N241U AB

Q7451 VS2SC5384C/-1 2SC5384C AB

Q7452 VS2SC5384C/-1 2SC5384C AB

Q7453 VSRT1N241U/-1 RT1N241U AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

Q7454 VSRN4983///-1 RN4983 AC

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

Q7455 VSHN1B04FU/-1 HN1B04FU AC

Q8401 VS2SA1989R/-1 2SA1989R AB

Q8402 VS2SC5384C/-1 2SC5384C AB

Q8404 VS2SC5384C/-1 2SC5384C AB

Q8405 VS2SC5383F/-1 2SC5383F AB

Q8406 VS2SA1989R/-1 2SA1989R AB

Q8407 VSRT1N241U/-1 RT1N241U AB

Q8451 VSHN1C01FU/-1 HN1C01FU AC

Q8452 VSHN1C01FU/-1 HN1C01FU AC

Q8453 VSRT1P140U/-1 RT1P140U AB

DIODES

D601 VHDMA132K//-1 MA132K AA

D701 VHD1SS355//-1 1SS355 AB

D702 RH-DX0182TAZZ DX0182TA AD

D703 VHDMA132K//-1 MA132K AA

D704 RH-DX0182TAZZ DX0182TA AD

D900 VHDF1J2H///-1 F1J2H AD

D901 VHDFS1J3///-1 FS1J3 AD

D902 VHDFS1J3///-1 FS1J3 AD

D903 VHD1SS355//-1 1SS355 AB

D904 VHDF02J9///-1 F02J9 AD

D905 VHDDA227///-1 DA227 AB

D906 VHDF02J9///-1 F02J9 AD

D913 VHDF1J2H///-1 F1J2H AD

D914 VHDF1J2H///-1 F1J2H AD

D1451 VHDMA133///-1 MA133 AB

D1802 RH-EX0870CEZZ Zener, EX0870CE AD

D1901 VHDMA2S111/-1 MA2S111 AC

D2909 RH-EX0187TAZZ Zener, EX0187TA AC

D2910 VHDF1J2H///-1 F1J2H AD

D2912 VHDBAS316//-1 BAS316 AB

D2913 VHDF1J2H///-1 F1J2H AD

D2914 VHD1SS355//-1 1SS355 AB

D3800 VHDHVC359TR-1 HVC359TR AD

PACKAGED CIRCUITS

TH3800 VHHT1103K44-1 Thermistor AD

X701 RCRSC0170TAZZ Crystal, CRSC0170TA AG

X702 RCRSC0032TAZZ Crystal, CRSC0032TA AG

COILS AND TRANSFORMERS

L151 VPBWM100KR50N Peaking, 10µHAC

L152 VPBWM470K2R6N Peaking, 47µHAC

L201 VPCCM100KR22N Peaking, 10µHAB

L202 VPD9M100KR86N Peaking, 10µHAC

L401 VPD9M100KR86N Peaking, 10µHAC

L402 VPD9M470K4R1N Peaking, 47µHAC

L404 VPD9M470K4R1N Peaking, 47µHAC

L405 VPD9M470K4R1N Peaking, 47µHAC

L406 VPD9M470K4R1N Peaking, 47µHAC

L407 VPD9M6R8J1R8N Peaking, 6.8µHAC

L601 VPCQM101K4R3N Peaking, 100µHAB

L602 VPCCM101K2R1N Peaking, 100µHAC

L603 VPCQM220K1R0N Peaking, 22µHAB

L701 VPCCM4R7MR13N Peaking, 4.7µHAB

L702 VPCCM4R7MR13N Peaking, 4.7µHAB

L800 VPD9M100J1R7N Peaking, 10µHAC

L801 VPD9M470J6R6N Peaking, 47µHAC

L900 RCiLP0344TAZZ Coil, 4.7µHAD

L901 RCiLP0343TAZZ Coil, 10µHAD

L902 RCiLP0271TAZZ Coil, 33µHAE

L903 VPCCM2R2MR09N Peaking, 2.2µHAC

L904 VPCCM2R2MR09N Peaking, 2.2µHAC

Q906 VS2SA2010//-1 2SA2010 AD

Q908 VS2SA1362GR-1 2SA1362GR AC

Q911 VSCPH3215//-1 CPH3215 AD

Q912 VS2SA1989R/-1 2SA1989R AB

Q913 VSRT1N441U/-1 RT1N441U AB

Q914 VSRT1N441U/-1 RT1N441U AB

Q916 VSRN4983///-1 RN4983 AC

Q917 VSRN4983///-1 RN4983 AC

Q918 VSRN4983///-1 RN4983 AC

Q919 VSCPH6702//-1 CPH6702 AD

Q921 VSCPH6702//-1 CPH6702 AD

Q922 VSCPH6702//-1 CPH6702 AD

Q925 VS2SA2010//-1 2SA2010 AD

Q926 VS2SC5383F/-1 2SC5383F AB

Q928 VS2SB1121T/-1 2SB1121T AC

Q932 VSRN1902///-1 RN1902 AC

Q933 VSRN1902///-1 RN1902 AC

Q934 VS2SC3440//-1 2SC3440 AC

Q935 VSRN2903///-1 RN2903 AC

Q936 VS2SA1362GR-1 2SA1362GR AC

Q937 VS2SC5383F/-1 2SC5383F AB

Q938 VS2SA1362GR-1 2SA1362GR AC

Q939 VS2SC5383F/-1 2SC5383F AB

Q940 VSRN4983///-1 RN4983 AC

Q941 VS2SC5383F/-1 2SC5383F AB

Q1401 VS2SA1989R/-1 2SA1989R AB

Q1402 VS2SA1989R/-1 2SA1989R AB

Q1403 VS2SA1989R/-1 2SA1989R AB

Q1404 VS2SA1989R/-1 2SA1989R AB

Q1406 VS2SC5384C/-1 2SC5384C AB

Q1451 VSRT1N141U/-1 RT1N141U AB

Q1800 VS3LN01S///-1 3LN01S AC

Q1801 VSHN1B04FU/-1 HN1B04FU AC

Q1802 VSHN1B04FU/-1 HN1B04FU AC

Q2401 VSHN2C01FU/-1 HN2C01FU AC

Q2402 VS2SA1873Y/-1 2SA1873Y AC

Q2403 VS2SC4944Y/-1 2SC4944Y AC

Q2405 VSHN1B04FU/-1 HN1B04FU AC

Q2406 VSRT1N141U/-1 RT1N141U AB

Q2407 VS2SA1989R/-1 2SA1989R AB

Q2408 VS2SC5383F/-1 2SC5383F AB

Q2901 VSCPH6303++-1 CPH6303 AE

Q2903 VSFTS1001//-1 FTS1001 AG

Q2905 VS2SB1205S/-1 2SB1205S AE

Q2906 VSRN1902///-1 RN1902 AC

Q2907 VSRN1902///-1 RN1902 AC

Q2910 VSRN4983///-1 RN4983 AC

Q2911 VS2SB1121T/-1 2SB1121T AC

Q2912 VSRT1N141U/-1 RT1N141U AB

Q2913 VS2SA1989R/-1 2SA1989R AB

Q2914 VSHN1B04FU/-1 HN1B04FU AC

Q2915 VSRT1N241U/-1 RT1N241U AB

Q3601 VSRT1N441U/-1 RT1N441U AB

Q3602 VSRN4983///-1 RN4983 AC

Q3801 VSRT1N141U/-1 RT1N141U AB

Q6401 VSHN2C01FU/-1 HN2C01FU AC

Q6402 VSHN2C01FU/-1 HN2C01FU AC

Q6404 VS2SC5383F/-1 2SC5383F AB

Q6451 VS2SC5383F/-1 2SC5383F AB

Q7401 VSHN1B04FU/-1 HN1B04FU AC

Q7402 VSRT1N241U/-1 RT1N241U AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

Q7403 VSRN4983///-1 RN4983 AC

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

Q7404 VSHN2C01FU/-1 HN2C01FU AC

Q7405 VSRT1N241U/-1 RT1N241U AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

Q7406 VS2SA1989R/-1 2SA1989R AB

Q7407 VS2SC5384C/-1 2SC5384C AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

101

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

L905 RCiLP0344TAZZ Coil, 4.7µHAD

L906 RCiLP0271TAZZ Coil, 33µHAE

L907 RCiLP0271TAZZ Coil, 33µHAE

L908 VPCQM100KR41N Peaking, 10µHAC

L909 VPD9M100KR86N Peaking, 10µHAC

L910 RCiLP0344TAZZ Coil, 4.7µHAD

L911 VPD9M100KR86N Peaking, 10µHAC

L912 VPD9M121J140N Peaking, 120µHAC

L913 VPD9M220K2R0N Peaking, 22µHAC

L914 VPD9M100KR86N Peaking, 10µHAC

L915 VPD9M100KR86N Peaking, 10µHAC

L917 RCiLP0344TAZZ Coil, 4.7µHAD

L918 RCiLP0287TAZZ Coil, 47µHAD

L919 VPCCM2R2MR09N Peaking, 2.2µHAC

L920 RCiLP0344TAZZ Coil, 4.7µHAD

L921 RCiLP0271TAZZ Coil, 33µHAE

L922 RCiLP0271TAZZ Coil, 33µHAE

L923 RCiLP0344TAZZ Coil, 4.7µHAD

L924 RCiLP0343TAZZ Coil, 10µHAD

L925 RCiLP0343TAZZ Coil, 10µHAD

L926 VPCCM2R2MR09N Peaking, 2.2µHAC

L927 VPCQM2R2MR15N Peaking, 2.2µHAC

L928 RCiLP0344TAZZ Coil, 4.7µHAD

L929 RCiLP0343TAZZ Coil, 10µHAD

L930 RCiLP0344TAZZ Coil, 4.7µHAD

L931 RCiLP0343TAZZ Coil, 10µHAD

L1401 VPD9M2R7J1R0N Peaking, 2.7µHAC

L1402 VPD9M1R0JR57N Peaking, 1µHAB

L1451 VPD9M220K2R0N Peaking, 22µHAC

L1452 VPD9M100KR86N Peaking, 10µHAC

L1453 VPD9M120J1R9N Peaking, 12µHAB

L3801 VPD9M150J2R2N Peaking, 15µHAC

(

A40U/A45U/

AH60U/

AH60U JAPAN)

L3801 VPD9M220J2R7N Peaking, 22µHAC

(AH50U/UC/T/K)

L3802 VPD9M100J1R7N Peaking, 10µHAC

L6401 VPD9M820J9R5N Peaking, 82µHAC

L6402 VPBBM331J260N Peaking, 330µHAB

L6403 VPD9M680J8R6N Peaking, 68µHAC

L7401 VPD9M1R0JR57N Peaking, 1µHAB

L7402 VPD9M180J2R4N Peaking, 18µHAC

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN

)

L7403 VPD9M470J6R6N Peaking, 47µHAC

L7404 VPBBM471J310N Peaking, 470µHAB

L7405 VPD9M181J190N Peaking, 180µHAC

L7406 VPBBM331J260N Peaking, 330µHAB

L7407 VPD9M330J3R6N Peaking, 33µHAC

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

L7408 VPBBM331J260N Peaking, 330µHAB

L7452 VPD9M8R2J2R0N Peaking, 8.2µHAC

L7453 VPD9M8R2J2R0N Peaking, 8.2µHAC

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

L8401 VPD9M1R8JR84N Peaking, 1.8µHAC

L8402 VPD9M2R2JR96N Peaking, 2.2µHAC

L8404 VPD9M221J210N Peaking, 220µHAB

L8405 VP-1M391J330N Peaking, 390µHAB

L8451 VPD9M820J9R5N Peaking, 82µHAC

L8452 VPD9M221J210N Peaking, 220µHAB

å T901 RTRNZ0154TAZZ Power Transformer AF

CAPACITORS

C151 VCSATA1AJ106M 10 10V Tantalum AC

C152 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C153 VCSATA1AJ106M 10 10V Tantalum AC

C154 VCSATA1AJ106M 10 10V Tantalum AC

C155 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C156 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C158 VCKYCZ1HB471K 470p 50V Ceramic AB

C159 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C161 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C162 VCSATA0JJ156M 15 6.3V Tantalum AC

C163 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C164 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C201 VCKYTV1AB105K 1 10V Ceramic AD

C202 VCSATA0JJ156M 15 6.3V Tantalum AC

C203 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C204 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C205 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C206 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C207 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C208 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C209 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C210 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C211 VCKYTV1AB105K 1 10V Ceramic AD

C212 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C213 VCSATA0JJ156M 15 6.3V Tantalum AC

C403 VCKYCZ1CB103K 0.01 16V Ceramic AB

C404 VCKYCZ1CB103K 0.01 16V Ceramic AB

C405 VCKYCZ1CB103K 0.01 16V Ceramic AB

C406 VCKYCZ1CB103K 0.01 16V Ceramic AB

C407 VCKYCZ1CB103K 0.01 16V Ceramic AB

C408 VCKYCZ1CB103K 0.01 16V Ceramic AB

C409 VCKYCZ1CB103K 0.01 16V Ceramic AB

C411 VCSATA0JJ106M 10 6.3V Tantalum AD

C412 VCSATA0JJ106M 10 6.3V Tantalum AD

C414 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C415 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C416 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C419 VCKYCZ1CB103K 0.01 16V Ceramic AB

C421 VCSATA0JJ106M 10 6.3V Tantalum AD

C422 VCKYCZ1CB103K 0.01 16V Ceramic AB

C425 VCKYCZ1CB103K 0.01 16V Ceramic AB

C426 VCKYCZ1CB103K 0.01 16V Ceramic AB

C429 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C430 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C432 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C434 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C436 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C437 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C439 VCKYCZ1CB103K 0.01 16V Ceramic AB

C440 VCKYCY0JB105K 1 6.3V Ceramic AC

C441 VCKYCZ1AB104K 0.1 10V Ceramic AB

C442 VCKYCZ1CB103K 0.01 16V Ceramic AB

C443 VCKYCZ1CB103K 0.01 16V Ceramic AB

C445 VCKYCZ1CB103K 0.01 16V Ceramic AB

C446 VCKYCZ1CB103K 0.01 16V Ceramic AB

C447 VCKYCZ1AB104K 0.1 10V Ceramic AB

C448 VCSATA0JJ106M 10 6.3V Tantalum AD

C449 VCKYCZ1CB103K 0.01 16V Ceramic AB

C455 VCKYCZ1CB103K 0.01 16V Ceramic AB

C456 VCKYCZ1CB103K 0.01 16V Ceramic AB

C457 VCKYCZ1CB103K 0.01 16V Ceramic AB

C458 VCKYCZ1CB103K 0.01 16V Ceramic AB

C460 VCKYCY0JB105K 1 6.3V Ceramic AC

C461 VCKYCZ1CB103K 0.01 16V Ceramic AB

C462 VCSATA1AJ106M 10 10V Tantalum AC

C463 VCKYCZ1AB104K 0.1 10V Ceramic AB

C464 VCKYCZ1AB104K 0.1 10V Ceramic AB

C465 VCKYCZ1HB271K 270p 50V Ceramic AC

C466 VCKYCZ1AB104K 0.1 10V Ceramic AB

C467 VCKYCZ1AB104K 0.1 10V Ceramic AB

C469 VCKYCZ1CB103K 0.01 16V Ceramic AB

C471 VCKYCZ1CB103K 0.01 16V Ceramic AB

C472 VCKYCZ1CB103K 0.01 16V Ceramic AB

C473 VCCCCZ1HH151J 150p 50V Ceramic AB

C475 VCSATA0JJ106M 10 6.3V Tantalum AD

C601 VCSATA1CJ225M 2.2 16V Tantalum AC

C602 VCKYTV1CF225Z 2.2 16V Ceramic AC

C603 VCEAPF0JW476M 47 6.3V Electrolytic AB

C604 VCSATE1AJ476M 47 10V Tantalum AD

C605 VCKYCZ1CB103K 0.01 16V Ceramic AB

C606 VCKYCZ1CB103K 0.01 16V Ceramic AB

C607 VCKYCZ1CB103K 0.01 16V Ceramic AB

C608 VCKYCZ1CB103K 0.01 16V Ceramic AB

C609 VCKYCY1CF334Z 0.33 16V Ceramic AA

C610 VCKYCZ1CB103K 0.01 16V Ceramic AB

C611 VCEAPF0JW226M 22 6.3V Electrolytic AB

102

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

C612 VCEAPH1HW474M 0.47 50V Electrolytic AB

C613 VCKYCZ1CB103K 0.01 16V Ceramic AB

C614 VCKYCZ1CB223K 0.022 16V Ceramic AC

C615 VCEAPH1HW105M 1 50V Electrolytic AB

C616 VCKYCZ1HB102K 1000p 50V Ceramic AB

C617 VCEAPF0JW336M 33 6.3V Electrolytic AB

C618 VCKYCY0JB105K 1 6.3V Ceramic AC

C619 VCSATA1DJ475M 4.7 20V Tantalum AC

C620 VCKYCZ1CB103K 0.01 16V Ceramic AB

C621 VCSATA1DJ475M 4.7 20V Tantalum AC

C622 VCSAPD1DJ474M 0.47 20V Tantalum AD

C623 VCSATA0JJ106M 10 6.3V Tantalum AD

C624 VCEAPF0JW476M 47 6.3V Electrolytic AB

C625 VCSATA1DJ475M 4.7 20V Tantalum AC

C626 VCKYCZ1CB103K 0.01 16V Ceramic AB

C627 VCKYCZ1CB103K 0.01 16V Ceramic AB

C628 VCKYCZ1EB682K 6800p 25V Ceramic AB

C629 VCKYCZ1HB332K 3300p 50V Ceramic AA

C630 VCKYCZ1CB103K 0.01 16V Ceramic AB

C631 VCSAPD1CJ105M 1 16V Tantalum AC

C632 VCKYCZ1HB222K 2200p 50V Ceramic AB

C633 VCKYCZ1AB104K 0.1 10V Ceramic AB

C634 VCKYCZ1AB104K 0.1 10V Ceramic AB

C635 VCKYCZ1CB103K 0.01 16V Ceramic AB

C636 VCSAPD1CJ105M 1 16V Tantalum AC

C637 VCSATE1AJ476M 47 10V Tantalum AD

C638 VCKYCZ1CB223K 0.022 16V Ceramic AC

C641 VCKYCZ1CB103K 0.01 16V Ceramic AB

C701 VCKYCZ1HB102K 1000p 50V Ceramic AB

C702 VCKYCZ1HB102K 1000p 50V Ceramic AB

C703 VCKYCZ1HB102K 1000p 50V Ceramic AB

C704 VCKYCZ1HB102K 1000p 50V Ceramic AB

C705 VCKYCZ1HB102K 1000p 50V Ceramic AB

(AH50U/UC/T/K/AH60U/

AH60U JAPAN)

C706 VCKYCZ1HB102K 1000p 50V Ceramic AB

(AH50U/UC/T/K/AH60U/

AH60U JAPAN)

C707 VCKYCZ1HB102K 1000p 50V Ceramic AB

C708 VCKYCZ1AB104K 0.1 10V Ceramic AB

C709 RC-KZ0052TAZZ Capacitor AC

C711 VCKYCY1AF105Z 1 10V Ceramic AC

C712 VCCCCZ1HH220J 22p 50V Ceramic AB

C713 VCCCCZ1HH180J 18p 50V Ceramic AB

C714 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C715 VCKYCZ1HB102K 1000p 50V Ceramic AB

C716 VCSATA1AJ106M 10 10V Tantalum AC

C717 VCKYCZ1AB104K 0.1 10V Ceramic AB

C718 VCKYCZ1AB104K 0.1 10V Ceramic AB

C720 VCKYCZ1AB104K 0.1 10V Ceramic AB

C721 VCCCCZ1HH330J 33p 50V Ceramic AB

C722 VCKYCZ1AB104K 0.1 10V Ceramic AB

C724 VCKYCZ1AB104K 0.1 10V Ceramic AB

C725 VCKYCZ1AB104K 0.1 10V Ceramic AB

C726 VCKYCZ1HB471K 470p 50V Ceramic AB

C727 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C728 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C729 VCKYCZ1AB104K 0.1 10V Ceramic AB

C730 VCKYCZ1AB104K 0.1 10V Ceramic AB

C731 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C732 VCSATA1AJ106M 10 10V Tantalum AC

C733 VCKYCY1AF105Z 1 10V Ceramic AC

C737 VCKYCZ1AB104K 0.1 10V Ceramic AB

C738 VCKYCZ1AB104K 0.1 10V Ceramic AB

C750 VCKYCY0JB105K 1 6.3V Ceramic AC

C800 VCKYTQ1CB105K 1 16V Ceramic AC

C801 VCKYTV1CB105K 1 16V Ceramic AC

C803 VCKYCY0JB105K 1 6.3V Ceramic AC

C804 VCKYCY0JB105K 1 6.3V Ceramic AC

C805 VCKYCY0JB105K 1 6.3V Ceramic AC

C900 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C901 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C902 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C903 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C904 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C905 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C906 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C907 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C909 VCKYCY0JB105K 1 6.3V Ceramic AC

C910 VCKYTV1AB105K 1 10V Ceramic AD

C912 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C915 VCKYCY0JB105K 1 6.3V Ceramic AC

C916 RC-KZ0054TAZZ 2.2 16V Ceramic AD

C917 RC-KZ0054TAZZ 2.2 16V Ceramic AD

C918 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C919 RC-KZ0084TAZZ 1 25V Ceramic AC

C920 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C921 RC-KZ0084TAZZ 1 25V Ceramic AC

C922 RC-KZ0084TAZZ 1 25V Ceramic AC

C923 VCKYTV1EB104K 0.1 25V Ceramic AB

C924 VCKYTV1CF105Z 1 16V Ceramic AB

C925 VCKYTV1CF105Z 1 16V Ceramic AB

C926 VCKYTV1CF105Z 1 16V Ceramic AB

C927 VCKYTV1EB104K 0.1 25V Ceramic AB

C930 VCKYCZ1AB104K 0.1 10V Ceramic AB

C931 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C932 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C933 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C934 RC-KZ0054TAZZ 2.2 16V Ceramic AD

C935 RC-KZ0053TAZZ 10 10V Ceramic AD

C936 RC-KZ0053TAZZ 10 10V Ceramic AD

C937 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C938 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C939 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C940 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C941 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C942 RC-KZ0084TAZZ 1 25V Ceramic AC

C943 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C944 VCKYCZ1CB103K 0.01 16V Ceramic AB

C945 VCKYCY1EF104Z 0.1 25V Ceramic AA

C946 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C947 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C948 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C950 VCKYCZ1HB102K 1000p 50V Ceramic AB

C951 VCKYCZ1HB102K 1000p 50V Ceramic AB

C952 VCKYCZ1AB104K 0.1 10V Ceramic AB

C953 VCKYCZ1AB104K 0.1 10V Ceramic AB

C955 VCKYCZ1AB104K 0.1 10V Ceramic AB

C956 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1401 VCCCCZ1HH390J 39p 50V Ceramic AB

C1405 VCCCCZ1HH820J 82p 50V Ceramic AB

C1406 VCCCCZ1HH330J 33p 50V Ceramic AB

C1407 VCCCCZ1HH151J 150p 50V Ceramic AB

C1408 VCCCCZ1HH151J 150p 50V Ceramic AB

C1415 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1416 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1451 VCSATE1AJ476M 47 10V Tantalum AD

C1452 VCSATE1AJ476M 47 10V Tantalum AD

C1453 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1454 VCSATA0YJ106M 10 7V Tantalum AC

C1456 VCCCCZ1HH100D 10p 50V Ceramic AB

C1458 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1459 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1801 VCKYTV1EB104K 0.1 25V Ceramic AB

C1803 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C1805 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1806 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C1808 VCKYTV1EB104K 0.1 25V Ceramic AB

C1809 VCKYCY0JB105K 1 6.3V Ceramic AC

C1810 VCSATA1EJ105M 1 25V Tantalum AC

C1812 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C1813 VCSATA1VJ105M 1 35V Tantalum AC

C1901 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1902 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1903 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1904 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1907 VCKYCZ1AB473K 0.047 10V Ceramic AB

C1908 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1909 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1910 VCKYCZ1AB104K 0.1 10V Ceramic AB

103

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

C7407 VCCCCZ1HH100D 10p 50V Ceramic AB

C7408 VCKYCZ1HB332K 3300p 50V Ceramic AA

C7409 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7410 VCCCCY1HH271J 270p 50V Ceramic AA

C7411 VCCCCZ1HH360J 36p 50V Ceramic AA

C7412 VCCCCY1HH271J 270p 50V Ceramic AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

C7413 VCKYCY0JB105K 1 6.3V Ceramic AC

C7414 VCKYCZ1AB104K 0.1 10V Ceramic AB

C7415 VCCCCZ1HH360J 36p 50V Ceramic AA

C7455 VCCCCZ1HH150J 15p 50V Ceramic AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

C7455 VCCCCZ1HH470J 47p 50V Ceramic AB

(A40U/A45U)

C7456 VCCCCZ1HH330J 33p 50V Ceramic AB

(AH50U/UC/T/K/AH60U/K

AH60U JAPAN)

C7459 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7460 VCKYCZ1HB471K 470p 50V Ceramic AB

C7462 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7463 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8401 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8403 VCCCCZ1HH330J 33p 50V Ceramic AB

C8404 VCCCCZ1HH180J 18p 50V Ceramic AB

C8405 VCCCCZ1HH390J 39p 50V Ceramic AB

C8408 VCCCCZ1HH470J 47p 50V Ceramic AB

C8409 VCCCCZ1HH221J 220p 50V Ceramic AB

C8410 VCCCCZ1HH330J 33p 50V Ceramic AB

C8411 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8412 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8413 VCCCCZ1HH470J 47p 50V Ceramic AB

C8414 VCKYCY0JB105K 1 6.3V Ceramic AC

C8451 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8452 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8453 VCCCCZ1HH560J 56p 50V Ceramic AB

C8454 VCCCCZ1HH220J 22p 50V Ceramic AB

C8455 VCKYCZ1HB681K 680p 50V Ceramic AB

C8456 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8458 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8461 VCKYCZ1CB103K 0.01 16V Ceramic AB

RESISTORS

R152 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R185 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R189 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R190 VRS-CZ1JF220J 22 1/16W Metal Oxide AA

R191 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R194 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R195 VRS-CZ1JF133J 13k 1/16W Metal Oxide AA

R196 VRS-CZ1JF203J 20k 1/16W Metal Oxide AA

R202 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R205 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R207 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R406 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R407 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R408 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R410 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R413 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R414 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R416 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R417 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R418 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R420 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R421 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R422 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R424 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R425 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R426 VRS-CZ1JF124J 120k 1/16W Metal Oxide AA

R432 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R433 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R434 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R435 VRS-CZ1JF823D 82k 1/16W Metal Oxide AB

R436 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

C1911 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1912 VCCCCZ1HH101J 100p 50V Ceramic AB

C1913 VCKYCY1AB224K 0.22 10V Ceramic AB

C1914 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1915 VCKYCZ1EB472K 4700p 25V Ceramic AB

C1916 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1917 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1918 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1919 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1920 VCKYCZ1HB152K 1500p 50V Ceramic AB

C1921 VCKYCZ1HB222K 2200p 50V Ceramic AB

C1922 VCKYCZ1HB561K 560p 50V Ceramic AC

C1923 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1924 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1925 VCKYCZ1HB332K 3300p 50V Ceramic AA

C1926 VCKYCZ1HB152K 1500p 50V Ceramic AB

C1927 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1928 VCKYCZ1HB102K 1000p 50V Ceramic AB

C1929 VCKYCZ1HB271K 270p 50V Ceramic AC

C2401 VCCCCY1HH471J 470p 50V Ceramic AA

C2402 VCKYCZ1CB103K 0.01 16V Ceramic AB

C2403 VCKYCZ1CB103K 0.01 16V Ceramic AB

C2404 VCKYCY1CB104K 0.1 16V Ceramic AB

C2405 VCKYCY1CB104K 0.1 16V Ceramic AB

C2406 VCKYCZ1CB103K 0.01 16V Ceramic AB

C2407 VCKYCZ1CB103K 0.01 16V Ceramic AB

C2408 VCCCCZ1HH820J 82p 50V Ceramic AB

C2409 VCKYCY0JB105K 1 6.3V Ceramic AC

C2701 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2702 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2703 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2904 VCKYTV1AB105K 1 10V Ceramic AD

C2906 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2907 VCKYCY1CB104K 0.1 16V Ceramic AB

C2908 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2909 VCKYCZ1AB104K 0.1 10V Ceramic AB

C2910 VCKYCY1CB104K 0.1 16V Ceramic AB

C2911 VCKYTV1AB105K 1 10V Ceramic AD

C3602 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3603 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3800 VCKYCZ1HB561K 560p 50V Ceramic AC

C3801 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3803 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3804 VCKYTV1CB105K 1 16V Ceramic AC

C3805 VCCCCZ1HH101J 100p 50V Ceramic AB

(A40U/A45U/AH60U/K/

AH60U JAPAN)

C3805 VCCCCZ1HH151J 150p 50V Ceramic AB

(AH50U/UC/T/K)

C3806 VCCCCZ1HH220J 22p 50V Ceramic AB

C3807 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3808 VCCCCZ1HH560J 56p 50V Ceramic AB

C3812 VCKYCY1CF224Z 0.22 16V Ceramic AA

C3813 VCCCCZ1HH101J 100p 50V Ceramic AB

C3814 VCCCCZ1HH101J 100p 50V Ceramic AB

C3815 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3817 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3818 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C3819 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C6402 VCKYCZ1CB103K 0.01 16V Ceramic AB

C6403 VCKYCZ1CB103K 0.01 16V Ceramic AB

C6404 VCCCCY1HH561J 560p 50V Ceramic AB

C6406 VCCCCZ1HH121J 120p 50V Ceramic AB

C6407 VCKYCZ1AB104K 0.1 10V Ceramic AB

C6408 VCCCCZ1HH121J 120p 50V Ceramic AB

C6409 VCCCCZ1HH220J 22p 50V Ceramic AB

C6410 VCKYCZ1CB103K 0.01 16V Ceramic AB

C6452 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7401 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7402 VCCCCZ1HH150J 15p 50V Ceramic AB

C7403 VCCCCZ1HH270J 27p 50V Ceramic AB

C7404 VCCCCZ1HH820J 82p 50V Ceramic AB

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

C7405 VCKYCZ1CB103K 0.01 16V Ceramic AB

104

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R731 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R732 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R733 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R734 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R735 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R737 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R738 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R740 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R741 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R742 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R743 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R744 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R745 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R746 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R747 VRS-CZ1JF563D 56k 1/16W Metal Oxide AA

R748 VRS-CZ1JF154J 150k 1/16W Metal Oxide AA

R749 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R750 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R751 VRS-CZ1JF184J 180k 1/16W Metal Oxide AA

R753 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R755 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R756 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R757 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R758 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R759 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R760 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R761 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R762 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R763 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R765 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R766 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R767 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R768 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R769 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R772 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R773 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R774 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R775 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R776 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R777 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R778 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R779 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R780 VRS-CZ1JF330J 33 1/16W Metal Oxide AA

R781 VRS-CZ1JF330J 33 1/16W Metal Oxide AA

R785 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R786 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R787 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R788 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R789 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R790 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R791 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R792 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R793 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R794 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R795 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R797 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R798 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R799 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R801 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R802 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R803 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R902 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R903 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R904 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R905 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R907 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R908 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R911 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R912 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R913 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R914 VRS-CZ1JF753J 75k 1/16W Metal Oxide AA

R437 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R439 VRS-CZ1JF823D 82k 1/16W Metal Oxide AB

R440 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R444 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R445 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R447 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R451 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R452 VRS-CZ1JF823D 82k 1/16W Metal Oxide AB

R454 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R455 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R456 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R457 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R458 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R459 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R460 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R461 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R462 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R463 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R464 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R468 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R488 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R489 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R496 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R498 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R601 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R602 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R603 VRS-CZ1JF154J 150k 1/16W Metal Oxide AA

R604 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R605 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R606 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R607 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R609 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R612 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R614 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R615 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R616 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R617 VRS-CZ1JF335J 3.3M 1/16W Metal Oxide AA

R618 VRS-CZ1JF154J 150k 1/16W Metal Oxide AA

R619 VRS-CZ1JF274J 270k 1/16W Metal Oxide AA

R624 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R625 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R626 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R627 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R628 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R629 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R632 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R633 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R702 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R703 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R704 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R705 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R707 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R708 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R709 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R710 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R711 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R712 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R713 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R714 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R715 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R716 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R717 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R718 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R719 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R720 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R722 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R723 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R724 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R725 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R726 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R727 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R728 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R729 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R730 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

105

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R915 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R916 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R917 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R918 VRS-CZ1JF753J 75k 1/16W Metal Oxide AA

R919 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R920 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R921 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R922 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R923 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R924 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R925 VRS-CZ1JF753J 75k 1/16W Metal Oxide AA

R926 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R928 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R929 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R930 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R931 VRS-CY1JFR22J 0.22 1/16W Metal Oxide AA

R933 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R934 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R935 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R936 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R937 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R938 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R939 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R940 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R941 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R942 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R943 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R944 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R945 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R946 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R947 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R949 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R951 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1403 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1404 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1407 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1408 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R1409 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R1410 VRS-CZ1JF820J 82 1/16W Metal Oxide AA

R1411 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1412 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1413 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1414 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1416 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1425 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1426 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1452 VRS-CZ1JF750D 75 1/16W Metal Oxide AA

R1453 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1454 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1455 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1456 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1458 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1459 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1802 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1803 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1805 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1806 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R1807 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1808 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R1809 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R1810 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1812 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1813 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1814 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1815 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R1816 VRS-CZ1JF100J 10 1/16W Metal Oxide AA

R1817 VRS-CZ1JF100J 10 1/16W Metal Oxide AA

R1818 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R1819 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1820 VRS-CZ1JF512J 5.1k 1/16W Metal Oxide AB

R1821 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1901 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1902 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1903 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1905 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1906 VRS-CZ1JF124J 120k 1/16W Metal Oxide AA

R1907 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R1908 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1909 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1910 VRS-CZ1JF363J 36k 1/16W Metal Oxide AA

R1911 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R1912 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R1913 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1914 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1915 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1916 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1917 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1919 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1920 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1921 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R1922 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R1923 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R1924 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R1925 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R1926 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1927 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1929 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1930 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R1931 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R1932 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R1933 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R1934 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1935 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1936 VRS-CZ1JF243J 24k 1/16W Metal Oxide AA

R1937 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R1938 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1939 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R1940 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R1941 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R1942 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R1943 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1944 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R1945 VRS-CZ1JF563D 56k 1/16W Metal Oxide AA

R1946 VRS-CZ1JF203D 20k 1/16W Metal Oxide AA

R1947 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R1948 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1949 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1950 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R1951 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R1952 VRS-CZ1JF562D 5.6k 1/16W Metal Oxide AB

R1953 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1955 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1956 VRS-CZ1JF473D 47k 1/16W Metal Oxide AB

R1957 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R1959 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1960 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1961 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1962 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1963 VRS-CZ1JF331J 330 1/16W Metal Oxide AA

R1965 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1966 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1967 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1968 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R1970 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1972 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1973 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1974 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1975 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R1976 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1980 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1981 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1982 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R2401 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2402 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R2403 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R2404 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R2405 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R2406 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R2407 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R2408 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

106

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R2409 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2410 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R2411 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R2412 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R2413 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2414 VRS-CZ1JF183D 18k 1/16W Metal Oxide AB

R2415 VRS-CZ1JF561D 560 1/16W Metal Oxide AA

R2416 VRS-CZ1JF561D 560 1/16W Metal Oxide AA

R2417 VRS-CZ1JF183D 18k 1/16W Metal Oxide AB

R2418 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2419 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2420 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R2421 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R2423 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2901 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R2902 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R2903 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R2905 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R2908 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R2911 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R2913 VRS-TV1JD3R3J 3.3 1/16W Metal Oxide AA

R2914 VRS-CZ1JF334D 330k 1/16W Metal Oxide AA

R2915 VRS-TQ2BD471J 470 1/8W Metal Oxide AA

R2921 VRS-CZ1JF184D 180k 1/16W Metal Oxide AB

R2922 VRS-CZ1JF184D 180k 1/16W Metal Oxide AB

R2923 VRS-CZ1JF823D 82k 1/16W Metal Oxide AB

R2925 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R2932 VRS-TV2BDR12J 0.12 1/8W Metal Oxide AB

R2933 VRS-TV2BDR12J 0.12 1/8W Metal Oxide AB

R2934 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R2935 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R2936 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R2937 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R2938 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R2939 VRS-CZ1JF472D 4.7k 1/16W Metal Oxide AB

R2940 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R2941 VRS-CZ1JF222D 2.2k 1/16W Metal Oxide AA

R2942 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R2943 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R2944 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R2945 VRS-TV2BDR12J 0.12 1/8W Metal Oxide AB

R2946 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R2947 VRS-CZ1JF473D 47k 1/16W Metal Oxide AB

R2948 VRS-CZ1JF222D 2.2k 1/16W Metal Oxide AA

R2949 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R2950 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R2951 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R3602 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3603 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R3604 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R3800 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R3801 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R3802 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3803 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3804 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R3805 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R3806 VRS-CZ1JF562D 5.6k 1/16W Metal Oxide AB

R3807 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R3808 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R3809 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R3810 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3812 VRS-CZ1JF564J 560k 1/16W Metal Oxide AA

R3816 VRS-CZ1JF564J 560k 1/16W Metal Oxide AA

R3817 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R3818 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3819 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3820 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R3822 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3823 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3824 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3826 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3828 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3829 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

(AH50U/UC/T/K)

R3830 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R3831 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3832 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R3833 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3834 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R3835 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3836 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3837 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R3838 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3839 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R3840 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

(AH50U/UC/T/K)

R3840 VRS-CZ1JF473D 47k 1/16W Metal Oxide AB

(A40U/A45U/AH60U/AH60U JAPAN)

R3841 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R3842 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R3843 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R3844 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3845 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R3846 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R3848 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R3850 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3853 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R3854 VRS-CZ1JF183D 18k 1/16W Metal Oxide AB

R4703 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

(A40U/A45U)

R4704 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

(A40U/A45U)

R4705 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6401 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R6402 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R6403 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R6404 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R6407 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R6408 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R6409 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R6410 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R6411 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R6413 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R6414 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R6415 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R6416 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R6417 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R6418 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R6419 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R6452 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R6456 VRS-CZ1JF243J 24k 1/16W Metal Oxide AA

R6457 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R6459 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6460 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7401 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R7402 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R7403 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7404 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7405 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R7406 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7407 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R7408 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R7409 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

(A40U/A45U)

R7409 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R7410 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R7411 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7412 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R7413 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R7414 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R7415 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R7416 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R7417 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R7419 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

107

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R7420 VRS-CY1JF000J 0 1/16W Metal Oxide AA

(A40U/A45U)

R7421 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R7421 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

(A40U/A45U)

R7422 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

(A40U/45U)

R7422 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R7423 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7424 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7426 VRS-CZ1JF271J 270 1/16W Metal Oxide AA

R7451 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7454 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7455 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7456 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R7459 VRS-CZ1JF391J 390 1/16W Metal Oxide AA

R7460 VRS-CZ1JF271J 270 1/16W Metal Oxide AA

R7461 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

(A40U/45U)

R7461 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

R7462 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R7463 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R7464 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7466 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7467 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R7468 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R7469 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R7470 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R7471 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R8401 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R8402 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R8403 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R8404 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8407 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8412 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R8413 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R8416 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R8417 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R8418 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8419 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8421 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R8422 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R8451 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R8452 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R8453 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R8454 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R8455 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8456 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R8457 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R8458 VRS-CZ1JF681D 680 1/16W Metal Oxide AB

R8459 VRS-CZ1JF102J 100 1/16W Metal Oxide AA

R8460 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R8461 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R8462 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R8463 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R8464 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R8467 VRS-CZ1JF331D 330 1/16W Metal Oxide AA

R9410 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9919 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9921 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

PSLDM3238TAFW Shield AC

PSLDM3239TAFW Shield AC

PSLDM3344TAFW Shield AC

PSLDM9156TAZZ Shield(AH60U JAPAN) AD

PZETV0412TAZZ Insulator AD

CN701 QPLGN0263TAZZ Plug, 2Pin AB

CN702 QPLGN0264TAZZ Plug, 2Pin AC

CN703 QSOCN0860TAZZ Socket, 8Pin AE

CN3601 QSOCN1207REN1 Socket, 12Pin AD

CN3800 QSOCN2471TAZZ Socket, 24Pin AE

CN7401 QCNCM7068TAZZ Connector, 70Pin AG

CN9401 QSOCN1860TAZZ Socket, 18Pin AE

å CP901 QFS-L2526TAZZ Fuse, 2.5A 64V AC

å CP902 QFS-L2526TAZZ Fuse, 2.5A 64V AC

å CP903 QFS-L2526TAZZ Fuse, 2.5A 64V AC

FB151 RBLN-0107TAZZ Balun, BLN-0107TA AB

FB152 RBLN-0107TAZZ Balun, BLN-0107TA AB

FB3800 RBLN-0028TAZZ Balun, BLN-0028TA AB

P601 QPLGN0263TAZZ Plug, 2Pin AB

P902 QPLGN0364TAZZ Plug, 3Pin AC

P2901 QPLGN0664TAZZ Plug, 6Pin AD

P2902 QPLGN0764TAZZ Plug, 7Pin AD

SC151 QSOCN2071TAZZ Socket, 20Pin AD

SC152 QSOCN2471TAZZ Socket, 24Pin AE

SC901 QSOCN0772TAZZ Socket, 7Pin AC

DUNTK2934QA00

(VL-A40U/A45U/AH50U/UC/T/K/AH60U/K)

DUNTK2934QA10

(VL-AH60U JAPAN)

CAMERA UNIT

INTEGRATED CIRCUITS

IC11 VHiUPD16510-1 UPD16510, V-Driver AR

IC12 VHiLR38590/-1 LR38590, Timing AR

Generator

IC101 VHiCXA2006Q-1 CXA2006Q, CDS/AGC AV

IC102 VHiMB88146A-1 MB88146A, D/A Converter AH

IC551 VHiUPD16835-1 UPD16835 AM

IC552 VHiNJM2902V-1 NJM2902V, OP-Amp AD

IC553 VHiNJM3414V-1 NJM3414V, OP-Amp AF

IC554 VHiTVHC74T/-1 TVHC74T AF

TRANSISTORS

Q11 VSHN2C01FU/-1 HN2C01FU AC

Q12 VS2SA1989R/-1 2SA1989R AB

Q13 VS2SC5383F/-1 2SC5383F AB

Q14 VS2SC5383F/-1 2SC5383F AB

Q15 VS2SA1989R/-1 2SA1989R AB

Q551 VSRN1902///-1 RN1902 AC

DIODE

D551 VHDMA132K//-1 MA132K AA

PACKAGED CIRCUIT

X11 RCRSC0172TAZZ Crystal, CRSC0172TA AG

TRANSFORMERS

L11 VPBWM100KR50N Peaking, 10µHAC

L12 VPBWM470K2R6N Peaking, 47µHAC

L13 VPD9M470J6R6N Peaking, 47µHAC

L101 VPBWM100KR50N Peaking, 10µHAC

L551 VPBWM220K1R2N Peaking, 22µHAC

L553 VPBWM100KR50N Peaking, 10µHAC

CAPACITORS

C11 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C12 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C13 VCKYCY1HB103K 0.01 50V Ceramic AA

C14 VCSATA1DJ475M 4.7 20V Tantalum AC

C15 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C16 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C17 VCSATE1VJ335M 3.3 35V Tantalum AD

C18 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C20 VCSATA1AJ106M 10 10V Tantalum AC

C21 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C22 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C23 VCSATA1AJ106M 10 10V Tantalum AC

C24 VCKYCZ1HF103Z 0.01 50V Ceramic AB

108

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R36 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R37 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R38 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R39 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R40 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R41 VRS-CZ1JF223D 22k 1/16W Metal Oxide AB

R100 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R102 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R103 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R104 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R105 VRS-CZ1JF244D 240k 1/16W Metal Oxide AA

R106 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R107 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R108 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R109 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R110 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R145 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R149 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R150 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R551 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R552 VRS-CZ1JF133J 13k 1/16W Metal Oxide AA

R553 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R554 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R555 VRS-TV1JD5R6J 5.6 1/16W Metal Oxide AA

R556 VRS-TV1JD5R6J 5.6 1/16W Metal Oxide AA

R557 VRS-TV1JD5R6J 5.6 1/16W Metal Oxide AA

R558 VRS-TV1JD5R6J 5.6 1/16W Metal Oxide AA

R559 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R560 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R561 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R562 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R563 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R564 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R565 VRS-CZ1JF912J 9.1k 1/16W Metal Oxide AB

R566 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R567 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R568 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R569 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R570 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R571 VRS-CZ1JF474J 470k 1/16W Metal Oxide AA

R572 VRS-CZ1JF334D 330k 1/16W Metal Oxide AA

R573 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R574 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R575 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R576 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R577 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R578 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R579 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R580 VRS-CZ1JF474J 470k 1/16W Metal Oxide AA

R581 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R582 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R583 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R584 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R585 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R586 VRS-CZ1JF244D 240k 1/16W Metal Oxide AA

R587 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R588 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R589 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

PSLDM3346TAFW Shield AC

PSLDM3347TAFW Shield AC

FB101 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB102 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB103 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB104 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB105 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB106 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB107 RBLN-0056TAZZ Balun, BLN-0056TA AC

FB109 RBLN-0107TAZZ Balun, BLN-0107TA AB

FB110 RBLN-0107TAZZ Balun, BLN-0107TA AB

P101 QPLGN0258REZZ Plug, 2Pin AD

SC11 QSOCN1972TAZZ Socket, 19Pin AD

SC101 QSOCN0860TAZZ Socket, 8Pin AE

SC102 QSOCN2471TAZZ Socket, 24Pin AE

C25 VCKYCZ1HB102K 1000p 50V Ceramic AB

C26 VCSATA1AJ106M 10 10V Tantalum AC

C27 VCKYCZ1CB103K 0.01 16V Ceramic AB

C28 VCCCCY1HH270G 27p 50V Ceramic AB

C29 VCSATE1VJ335M 3.3 35V Tantalum AD

C30 VCKYCZ1HB102K 1000p 50V Ceramic AB

C33 VCCCCY1HH360G 36p 50V Ceramic AB

C34 VCCCCY1HH180G 18p 50V Ceramic AB

C35 VCKYCZ1CB103K 0.01 16V Ceramic AB

C36 VCKYCZ1CB103K 0.01 16V Ceramic AB

C37 VCSATA1AJ106M 10 10V Tantalum AC

C38 VCKYCY0JB105K 1 6.3V Ceramic AC

C101 VCKYTV1AB105K 1 10V Ceramic AD

C102 VCKYTV1AB105K 1 10V Ceramic AD

C103 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C104 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C105 VCKYCZ1EF223Z 0.022 25V Ceramic AB

C106 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C107 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C108 VCSATA1AJ106M 10 10V Tantalum AC

C109 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C110 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C111 VCSATA1AJ106M 10 10V Tantalum AC

C112 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C113 VCSATA1AJ106M 10 10V Tantalum AC

C114 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C115 VCSATA1AJ106M 10 10V Tantalum AC

C116 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C117 VCCCCZ1HH150J 15p 50V Ceramic AB

C118 VCKYCZ1AB104K 0.1 10V Ceramic AB

C119 VCKYCZ1HB471K 470p 50V Ceramic AB

C120 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C551 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C552 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C553 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C554 VCCCCZ1HH330J 33p 50V Ceramic AB

C555 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C556 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C558 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C559 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C560 VCSATE1CJ156M 15 16V Tantalum AD

C561 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C562 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C563 VCSATA1AJ106M 10 10V Tantalum AC

C565 VCSATA1AJ106M 10 10V Tantalum AC

C566 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C567 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C568 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C569 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C570 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C571 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C572 VCCCCZ1HH151J 150p 50V Ceramic AB

C573 VCKYCY1AF105Z 1 10V Ceramic AC

C574 VCKYCZ1HF103Z 0.01 50V Ceramic AB

RESISTORS

R11 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R14 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R15 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R17 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R18 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R19 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R20 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R21 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R22 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R23 VRS-CZ1JF330J 33 1/16W Metal Oxide AA

R25 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R27 VRS-CZ1JF820J 82 1/16W Metal Oxide AA

R28 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R29 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R30 VRS-CZ1JF820J 82 1/16W Metal Oxide AA

R31 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R33 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R34 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R35 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

109

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

SC103 QSOCN2072TAZZ Socket, 20Pin AD

SC551 QSOCN2071TAZZ Socket, 20Pin AD

DUNTK2936QA00

(VL-A40U/A45U/AH50U/UC/T/K/AH60U/K)

HEAD AMP UNIT

The part no. of the head amplifier used in the VL-AH60U,

manufactured in Japan is RAMP-0034TAN0, but it is equal to

DUNTK2936QA00 used in other models in performance.

Therefore, use DUNTK2936QA00 when servicing it.

INTEGRATED CIRCUITS

IC301 VHiCXA2032Q-1 CXA2032Q, Head Amp AN

Process

IC3701 VHiLB11952W-1 LB11952W AV

TRANSISTORS

Q302 VS2SC5384C/-1 2SC5384C AB

Q307 VS2SC5384C/-1 2SC5384C AB

Q315 VSRN1704///-1 RN1704 AC

Q341 VS2SA1037KQ-1 2SA1037KQ AA

Q342 VS2SA1037KQ-1 2SA1037KQ AA

Q343 VSRT1N441U/-1 RT1N441U AB

TRANSFORMERS

L303 VPCCM101K2R1N Peaking, 100µHAC

L304 VPCCM470KR95N Peaking, 47µHAC

L305 VPCQM101K4R3N Peaking, 100µHAB

L341 VPD9M100J1R7N Peaking, 10µHAC

L342 VPD9M151J170N Peaking, 150µHAC

L3701 VPCCM4R7MR13N Peaking, 4.7µHAB

L3702 VPCCM4R7MR13N Peaking, 4.7µHAB

CAPACITORS

C302 VCKYCZ1CB103K 0.01 16V Ceramic AB

C304 VCKYCZ1CB103K 0.01 16V Ceramic AB

C305 VCSATA1AJ156M 15 10V Tantalum AD

C306 VCSATA1AJ156M 15 10V Tantalum AD

C309 VCKYCZ1CB103K 0.01 16V Ceramic AB

C310 VCKYCZ1CB103K 0.01 16V Ceramic AB

C311 VCKYCZ1CB103K 0.01 16V Ceramic AB

C313 VCKYCZ1CB103K 0.01 16V Ceramic AB

C314 VCKYCZ1CB103K 0.01 16V Ceramic AB

C315 VCKYCY1CB104K 0.1 16V Ceramic AB

C318 VCKYCY1EB103K 0.01 25V Ceramic AA

C319 VCKYCZ1CB103K 0.01 16V Ceramic AB

C320 VCKYCZ1CB223K 0.022 16V Ceramic AC

C321 VCSATA1AJ156M 15 10V Tantalum AD

C322 VCKYCZ1CB223K 0.022 16V Ceramic AC

C323 VCKYCZ1CB103K 0.01 16V Ceramic AB

C324 VCKYCZ1AB104K 0.1 10V Ceramic AB

C325 VCSATA1AJ156M 15 10V Tantalum AD

C326 VCKYCY1EB103K 0.01 25V Ceramic AA

C340 VCCCCZ1HH101J 100p 50V Ceramic AB

C341 VCCCCZ1HH151J 150p 50V Ceramic AB

C342 VCCCCZ1HH101J 100p 50V Ceramic AB

C344 VCKYCY1CB104K 0.1 16V Ceramic AB

C345 VCKYCZ1CB103K 0.01 16V Ceramic AB

C346 VCKYCZ1HB102K 1000p 50V Ceramic AB

C347 VCSATA1AJ156M 15 10V Tantalum AD

C349 VCCCCZ1HH680J 68p 50V Ceramic AB

C3701 VCKYCZ1EB682K 6800p 25V Ceramic AB

C3702 VCKYCZ1EB682K 6800p 25V Ceramic AB

C3703 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3704 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3705 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3706 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3707 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3708 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3709 VCKYCY1AF105Z 1 10V Ceramic AC

C3710 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3711 VCKYCY1AF105Z 1 10V Ceramic AC

C3712 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3713 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3714 VCSATA1CJ106M 10 16V Tantalum AD

C3715 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3716 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3717 VCKYCY1AF105Z 1 10V Ceramic AC

C3718 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3719 VCKYCZ1EB682K 6800p 25V Ceramic AB

C3720 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3721 VCKYCZ1EB682K 6800p 25V Ceramic AB

C3722 VCKYCZ1EB682K 6800p 25V Ceramic AB

C3723 VCKYCY1CF474Z 0.47 16V Ceramic AB

C3724 VCKYCY1CF474Z 0.47 16V Ceramic AB

C3725 VCKYCY1AF105Z 1 10V Ceramic AC

C3726 VCKYCY1CF474Z 0.47 16V Ceramic AB

C3727 VCCCCZ1HH101J 100p 50V Ceramic AB

C3728 VCCCCZ1HH101J 100p 50V Ceramic AB

C3729 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C3730 VCKYCZ1AB473K 0.047 10V Ceramic AB

C3731 VCKYCZ1EB472K 4700p 25V Ceramic AB

C3732 VCKYCZ1AB104K 0.1 10V Ceramic AB

C3733 VCSATA1CJ106M 10 16V Tantalum AD

C3734 VCSATA1CJ106M 10 16V Tantalum AD

RESISTORS

R301 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R302 VRS-CY1JF273J 27k 1/16W Metal Oxide AA

R303 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R305 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R307 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R308 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R313 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R316 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R317 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R321 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R323 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R329 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R331 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R335 VRS-CY1JF273J 27k 1/16W Metal Oxide AA

R337 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R338 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R340 VRS-CZ1JF680J 68 1/16W Metal Oxide AB

R341 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R342 VRS-CZ1JF271J 270 1/16W Metal Oxide AA

R343 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R344 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R345 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R359 VRS-CY1JF105J 1M 1/16W Metal Oxide AA

R360 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R361 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R362 VRS-CY1JF182F 1.8k 1/16W Metal Oxide AA

R363 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R390 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3701 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R3702 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R3703 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R3704 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R3705 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3706 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3707 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3708 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3715 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3716 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3717 VRS-TV1JD1R0J 1 1/16W Metal Oxide AA

R3718 VRS-TV1JD1R0J 1 1/16W Metal Oxide AA

R3719 VRS-TV1JD1R0J 1 1/16W Metal Oxide AA

R3720 VRS-TV1JD1R0J 1 1/16W Metal Oxide AA

R3721 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R3722 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3723 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R3724 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3725 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3726 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

110

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

R3727 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R3728 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R3729 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R3731 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3732 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R3733 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

PSLDM0106AJFW Shield AC

CN3701 QSOCN1085TAZZ Socket, 10Pin AE

CN3702 QSOCN1560TAZZ Socket, 15Pin AE

CN3703 QSOCN1871TAZZ Socket, 18Pin AE

SC301 QSOCN0985TAZZ Socket, 9Pin AE

SC304 QSOCN0671TAZZ Socket, 6Pin AC

SC305 QCNCW7068TAZZ Connector, 70Pin AG

DUNTK2800PM03

(VL-A40U/A45U/AH50U/UC/T/K/AH60U/K)

DUNTK2800PM10

(VL-AH60U JAPAN)

CCD UNIT

INTEGRATED CIRCUIT

IC2 VHiM24C08W6-1 M24C08W6, E

PROM AH

TRANSISTOR

Q1 VS2SC4627CD-1 2SC4627CD AB

CAPACITORS

C1 VCKYCY1HB102K 1000p 50V Ceramic AA

C2 VCCCCY1HH2R0C 2p 50V Ceramic AA

C3 VCKYTV1HF103Z 0.01 50V Ceramic AA

C4 VCCCCY1HH221J 220p 50V Ceramic AA

C5 VCKYTQ1CF225Z 2.2 16V Ceramic AB

C6 VCKYCY1HF103Z 0.01 50V Ceramic AA

RESISTORS

R1 VRS-CY1JF105J 1M 1/16W Metal Oxide AA

R2 VRS-CY1JF101J 100 1/16W Metal Oxide AA

R3 VRS-CY1JF472J 4.7k 1/16W Metal Oxide AA

R4 VRS-CY1JF101J 100 1/16W Metal Oxide AA

R5 VRS-CY1JF105J 1M 1/16W Metal Oxide AA

MISCELLANEOUS PART

SC1 QSOCN1986TAZZ Socket, 19Pin AF

300 LCHSM0163GEZZ Main Chassis Ass'y AW

301 NGERH1280GEZZ Main Cam AD

302 NGERH1281GEZZ Sub-Cam AD

303 MLEVF0470GEFW Eject Lever AD

304 MLEVF0492GEFW M Function Lever AF

305 LHLDZ1966GEZZ L Block Holder AD

306 NGERW1064GEZZ Worm Pulley AC

307 NGERW1065GEZZ Worm AD

308 NGERH1282GEZZ Worm Wheel AC

309 NGERH1283GEZZ Lo Relay Gear AC

310 MARMM0126GEZZ S Lo Arm Ass'y AF

311 MARMM0128GEZZ T Lo Arm Ass'y AG

312 LANGA0069GEFW S Lo Arm Retainer AD

313 PGiDM0146GEZZ Sup Rail AD

314 PGiDM0171GEZZ Tu Rail AD

315 NGERH1284GEZZ Sup Lo Gear AC

316 NGERH1285GEZZ Tu Lo Gear AC

317 MSPRD0167GEZZ S Lo Arm Double-Acting AE

Spring

318 MSPRT0407GEZZ T Lo Arm Double-Acting AC

Spring

319 MLEVP0310GEZZ HC Lever Ass'y AF

321 MSLiF0074GEFW Ten Arm Operation Lever AD

322 PGiDM0148GEZZ Ten Arm Guide AC

323 NGERH3061GEZZ Segment Gear AD

324 MLEVF0472GEZZ Tu Guide Ass'y AC

325 PGiDP0027GEZZ Tu Guide AE

326 MSPRC0183GEZZ Tu Guide Spring AA

327 MSPRC0184GEZZ Si Roller Spring AA

328 MSPRC0208GEZZ Tu Guide Lever Spring AC

329 CCHSS0049GE01 Slide Chassis Ass'y AR

330 MLEVF0495GEZZ Ten Arm Ass'y AC

331 LBNDK3023GEZZ Ten Band Ass'y AF

332 NiDR-0016GEZZ Swing Gear Ass'y AF

333 NGERH1286GEZZ Driving Gear AC

334 NGERH1287GEZZ Pulley Gear AD

335 NPLYV0157GEZZ Relay Pulley AD

336 MLEVP0284GEZZ S Brake AC

337 NGERH1288GEZZ Tu Brake Gear AC

338 MLEVP0285GEZZ Tu Main Brake AC

339 MLEVP0286GEZZ Tu Sub-Brake AC

340 MSPRD0169GEZZ Tu Brake Spring AD

341 LHLDZ2053GEZZ Light Guide Holder Ass'y AF

342 LANGG9102GEFW Down Guide AF

343 MSPRT0408GEZZ Tension Spring AD

344 MSPRD0186GEZZ S Brake Spring AD

345 DDRMU0038TEV1 Upper Drum Ass'y

346 PGiDM0154GEZZ Tape Guide AB

348 QBRSK0039GEZZ Earth Spring AD

349 PGiDM0182GEZZ Drum Base AF

350 DDRML0020TEV1 Lower Drum Ass'y AF

351 RMOTP1137GEZZ Drum Motor AS

352 PSPAQ0010GEZZ Gap Adjusting Shim AC

353 NRTR-0096GEZZ R Tr Rotor Ass'y AP

354 MSPRC0209GEZZ Gr Adjusting Spring AC

355 LPOLM0058GEZZ S Pole Base AK

356 LPOLM0059GEZZ T Pole Base AK

357 NDAiV1071GEZZ Sup Reel Support AG

358 NDAiV1072GEZZ Tu Reel Support AG

359 MLEVF0517GEZZ Pinch Lever Ass'y AS

360 NBLTT0012GEZZ Timing Belt S AE

361 NBLTT0013GEZZ Timing Belt L AE

362 NROLP0127GEZZ Guide Roller Ass'y AG

363 NROLP0129GEZZ Si Roller Ass'y AG

364 QPWBH5428GEZZ Mode FPC AK

365 CPWBN5877GE01 Sensor Ass'y AT

366 QSW-M0042GEZZ Recognition SW AH

367 RDTCH0037GEZZ Dew Sensor AF

368 RMOTV1020GEZZ Capstan Motor AZ

369 RMOTM1075GEZZ Load. Motor AL

370 QSW-R0038GEZZ Mode SW AG

372 DUNTK2936QA00 H/A PWB —

MECHANISM PARTS

111

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

3 CCABC6104TAK2 Camera Front Cabinet AP

Ass’y(A40U)

3-2 GCOVA1654TASA Hood Cover AF

3-3 GCOVA1653TASA Lens Hood AK

4 DCABD6105LM01 Camera Rear Cabinet AP

Service(AH50U/UC/AH60U/

AH60U JAPAN)

4 DCABD6112LM01 Camera Rear Cabinet AP

Service(AH50K/AH60K)

4 DCABD6105LM02 Camera Rear Cabinet AP

Service(A45U)

4 DCABD6105LM03 Camera Rear Cabinet AP

Service(A40U)

4 DCABD6107LM01 Camera Rear Cabinet AP

Service(AH50T)

4-2 JBTN-0276TASA Camera Button AD

(A40U/A45U)

4-2 JBTN-0276TASB Camera Button AF

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

5 DFTAC1304LM04 VCR Lid Service(A40U) AR

5 DFTAC1304LM03 VCR Lid Service(A45U) AR

5 DFTAC1302LM05 VCR Lid Service AR

(AH50U/UC/T/K)

5 DFTAC1302LM02 VCR Lid Service AR

(AH60U/K/AH60U JAPAN)

5-2 HDECP0074TASA VCR Lid Decoration Plate AE

(A40U)

5-2 HDECP0075TASA VCR Lid Decoration Plate AE

(A45U)

5-2 HDECP0058TASA VCR Lid Decoration Plate AE

(AH50U/UC/T/K)

5-2 HDECP0056TASA VCR Lid Decoration Plate AE

(AH60U/K/AH60U JAPAN)

5-3 LANGK0533TAFF VCR Lid Spring Angle AC

5-4 LANGK0400TAFW Eject Fitting AD

5-5 MSPRD0070TAFJ VCR Lid Spring AC

6 DCOVA1647LM01

Camera Side Cover Service AR

(A40U/A45U/AH50U/AH60U/

AH60U JAPAN)

6 DCOVA1647LM02

Camera Side Cover Service AR

(AH50UC)

6 DCOVA1647LM04

Camera Side Cover Service AR

(AH50T)

6 DCOVA1647LM05

Camera Side Cover Service AR

(AH50K/AH60K)

6-2 NSFTZ0049TAFW Battery Lid Axle AC

6-3 MSPRD0050TAFJ Battery Lid Open/Close AC

Spring

6-4 TLABH0264TAZZ Recycling Label AB

(A40U/A45U/AH50U/AH60U/

AH60U JAPAN)

6-4 TLABH0317TAZZ Recycling Label(AH50UC) AB

6-5 GFTAB1066TAKA Battery Lid AE

6-6 HDECP0045TASA Battery Decoration Plate AC

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

6-6 HDECP0047TASA Battery Decoration Plate AC

(AH50T)

6-6 HDECP0070TASA Battery Decoration Plate AC

(AH50K/AH60K)

6-7 MSPRC0102TAFJ Battery Lock Lever Spring AA

6-8 MLEVP0030TASA Battery Lid Open/Close AC

Lever

6-9 LHLDZ1532TAZZ Battery Lock Holder AC

6-10 MLEVP0044TASA Battery Lock Lever AC

6-11 MSPRC0101TAFJ Battery Push-out Spring AD

6-12 LHLDZ1445TAZZ Lens Holder AD

6-13 LANGK0398TA00 Battery Lid Angle Fitting AH

6-14 UBNDT0122TAZZ Hand Strap AH

7 DCOVA1650LM01 Tilt Service AP

7-2 PSPAZ0190TAZZ Tilt Spacer AE

7-3 GCOVA1537TAKA Tilt Frame V AL

7-4 PSPAZ0189TAZZ Rotation Spacer AD

7-5 LANGH0071TAFW Stopper Fitting AD

374 TLABH0584GEZZ Caution Label E AB

(A40U/A45U/AH50U/AH60U)

374 TLABH0586GEZZ Caution Label C(AH50T) AB

374 TLABH0588GEZZ Caution Label H AB

(AH50K/AH60K)

375 PSHEM0014GEZZ Counter Balance AC

376 PSHEP0013GEZZ Interruption Sheet AC

200 XAPSF17P03200 Screw M1.7x3.2 AA

201 LX-XZ3036GEFP Screw M2.0x6.0 AD

202 LX-BZ3175GEFN Screw M1.7x4.0 AC

203 LX-BZ3163GEFN Screw M1.7x2.5 AC

204 LX-HZ3074GEFN Screw M1.7x5.3 S Tight AA

205 LX-BZ3177GEFF Screw M1.4x1.5 AB

206 LX-BZ3132GEFF Screw M1.4x1.5xD3.5 AA

207 LX-BZ3178GEZZ Screw M1.4x1.5xD4.0 AD

208 LX-HZ3083GEFF Screw M1.4x2.5 S Tight AB

209 LX-HZ3077GEFN Screw M1.4x3.0 S Tight AA

211 LX-HZ3084GEFF Screw M1.4x4.0 S Tight AC

212 LX-HZ3116GEFD Screw M1.4x3.2 S Tight AB

213 LX-NZ3053GEZZ Screw M1.4 Nut AC

214 LX-WZ1076GE02 Washer D0.8xD3.0x0.2t AA

Plastics

215 LX-WZ1075GE02 Washer D2.1xD5.0x0.25t AA

Plastics

216 XWHJZ12-02040 Washer D1.2xD4.0x0.25t AC

Plastics

217 QCNW-1714TAZZ Ground Lead Wire AC

CABINET PARTS LIST

1 DCABA6183LM01 V Frame Service AL

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

1 DCABA6183LM05 V Frame Service AL

(AH50K/AH60K)

1 DCABA6183LM02 V Frame Service(AH50T) AL

1-2 PSPAG0095TAZZ VCR Lid Cushion AA

1-3 TLABH0355TAZZ Lithium Label AB

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

1-3 TLABH0412TAZZ Lithium Label AB

(AH50K/AH60K)

1-3 TLABH0259TAZZ Lithium Label(AH50T) AD

1-4 LHLDB1027TAZZ Lithium Holder AD

2 DCABB6216LM01 L Cabinet Service AS

(AH50U/UC)

2 DCABB6235LM02 L Cabinet Service(A40U) AS

2 DCABB6235LM01 L Cabinet Service(A45U) AS

2 DCABB6230LM01 L Cabinet Service(AH50K) AS

2 DCABB6221LM01 L Cabinet Service(AH50T) AS

2 DCABB6231LM01 L Cabinet Service(AH60K) AS

2 DCABB6218LM01 L Cabinet Service AS

(AH60U/AH60U JAPAN)

2-2 QEARP0262TAFW LCD Earth Panel AE

(AH50U/UC/T/K)

2-2 QEARP0264TAFW LCD Earth Panel AE

(A40U/A45U/AH60U/AH60U JAPAN)

2-3 TLABH0318TAZZ Turn Caution Label AB

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

2-3 TLABH0326TAZZ Turn Caution Label AB

(AH50T)

2-3 TLABH0413TAZZ Turn Caution Label AB

(AH50K/AH60K)

2-4 GCOVH1251TASA Jack Cover AD

2-5 GCOVA1535TAZZ Remote Control Receptor AD

Cover

2-6 GCOVA1648TAZZ LED Cover AC

3 CCABC6104TAK1 Camera Front Cabinet AP

Ass’y(A45U/AH50U/UC/T/K/

AH60U/K/AH60U JAPAN)

112

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

8 LHLDZ1533TAZZ LCD Holder(AH50U/UC/T/K) AH

8 LHLDZ1544TAZZ LCD Holder AF

(A40U/A45U/AH60U/K/

AH60U JAPAN)

9 PSHEP0044TAZZ

Prism Sheet(AH50U/UC/T/K)

9 PSHEP0093TAZZ Prism Sheet AH

(A40U/A45U/AH60U/K/

AH60U JAPAN)

10 PSHEP0045TAZZ Diffusion Sheet AD

(AH50U/UC/T/K)

10 PSHEP0090TAZZ Diffusion Sheet AD

(A40U/A45U/AH60U/K/

AH60U JAPAN)

11 PGiDM0037TAZZ Light Guide Plate AG

(AH50U/UC/T/K)

11 PGiDM0030TAZZ Light Guide Plate AH

(A40U/A45U/AH60U/K/AH60U JAPAN)

12 PMiR-0021TAZZ Reflection Sheet AC

(AH50U/UC/T/K)

12 PMiR-0032TAZZ Reflection Sheet AD

(A40U/A45U/AH60U/K/AH60U JAPAN)

å 13 CLMPV0048RM05 Lamp Inverter Unit BA

(AH50U/UC/T/K)

å 13 CLMPV0049RM03 Lamp Inverter Unit

(A40U/A45U/AH60U/K/AH60U JAPAN)

14 CPNLC0047RM02 LCD Panel BY

(A40U/A45U/AH50U/UC/T/K)

14 CPNLC0048RM02 LCD Panel CD

(AH60U/K/AH60U JAPAN)

15 PZETV0343TAZZ LCD Lead Sheet AA

(AH50U/UC/T/K)

15 PZETV0370TAZZ LCD Lead Sheet AB

(A40U/A45U/AH60U/K/AH60U JAPAN)

17 TLABM2084TAZZ Model Label(AH50U) AC

17 TLABM2085TAZZ Model Label(AH50UC) AC

17 TLABM2086TAZZ Model Label(AH50T) AC

17 TLABM2100TAZZ Model Label(AH50K) AC

17 TLABM2130TAZZ Model Label(A40U/A45U) AC

17 TLABM2075TAZZ Model Label AC

(AH60U JAPAN)

17 TLABM2070TAZZ Model Label(AH60U) AC

17 TLABM2111TAZZ Model Label(AH60K) AC

18 CLNSA0127TA01 Lens Unit BS

19 GFTAC1241TASA Cassette Compartment AD

Cover

20 DUNTK2949QA17 VCR Unit(A40U/A45U) —

20 DUNTK2949QA04 VCR Unit(AH50U/UC) —

20 DUNTK2949QA07 VCR Unit(AH50T) —

20 DUNTK2949QA15 VCR Unit(AH50K) —

20 DUNTK2949QA02 VCR Unit(AH60U) —

20 DUNTK2949QA16 VCR Unit(AH60K) —

20 DUNTK2949QA11 VCR Unit(AH60U JAPAN) —

21 DUNTK2934QA00 CAMERA Unit —

(A40U/A45U/AH50U/UC/T/K/

AH60U/K)

21 DUNTK2934QA10 CAMERA Unit —

(AH60U JAPAN)

22 QPWBH2937TAZZ Tilt FPC AQ

23 LHLDW1038TA00 FPC Holder AC

24 RUNTK0353TAZZ VCR Operation Unit AS

(A40U/A45U/AH50U/UC/AH60U)

24 RUNTK0369TAZZ VCR Operation Unit AS

(AH50T)

24 RUNTK0373TAZZ VCR Operation Unit AS

(AH50K/AH60K)

25 QTANZ0146TAZZ Battery Terminal Unit AK

26 QSW-Z0285TAZZ Power/Zoom Unit AR

27 LHLDZ1452TAZZ Power Lock Holder AC

28 MSPRC0083TAFJ Power Lock Spring AA

29 JBTN-0277TASA Power Button(A40U/A45U) AD

29 JBTN-0277TASB Power Button AF

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

30 LHLDZ1451TAZZ Power Holder AC

31 JKNBP0152TASA Power Knob AD

32 JKNBP0153TASA Zoom Knob(A40U/A45U) AD

32 JKNBP0153TASB Zoom Knob AF

(AH50U/UC/T/K/AH60U/K/

AH60U JAPAN)

33 LHLDZ1453TASA Zoom Knob Holder AD

34 JKNBP0154TASA Open Knob AC

35 PSPAZ0191TAZZ Microphone Spacer AA

36 RMiCC0090TAZZ Microphone AN

37 MSPRT0034TAFJ Lid Lock Spring AC

38 LHLDZ1454TA00 Lid Lock AD

39 NSFTZ0084TAFW VCR Lid Shaft AD

40 PSPAZ0318TAZZ Microphone Ware Spacer AD

41 LHLDZ1450TAZZ Speaker Holder AC

42 VSP0020P-A7WN Speaker AM

43 PSPAG0103TAZZ Speaker Spacer AC

46 DCOVA3056LM01 Speaker Cover AE

47 PSPAH0031TAZZ Wire Holder AB

48 QSW-Z0342TAZZ Turn/Eject SW AH

49 MLEVP0031TAZZ Eject Lever AC

50 LANGK0399TAZZ Tripod Angle AH

51 PSHEP0160TAZZ Microphone Lead Sheet AC

52 RUNTK0354TAZZ Lithium Unit AF

54 GCOVA1651TAKA Microphone Cover AG

55 QPWBH2815TAZZ CCD FPC AE

56 CCOVA1652LM01 AV Unit Cover Service AD

(A40U/A45U/AH50U/UC/K/

AH60U/K/AH60U JAPAN)

56 CCOVA1652LM03 AV Unit Cover Service AD

(AH50T)

56-2 HiNDP0214TASA Video indication Panel AC

(A40U/A45U/AH50U/UC/K/

AH60U/K/AH60U JAPAN)

56-2 HiNDP0223TASA Video Indication Panel AC

(AH50T)

57 GCOVA1649TASA Adjust Hole Cover AC

58 RUNTK0352TAZZ AV Jack Unit AS

59 RUNTK0356TAZZ 6-cell Detection Unit AG

60 PSHEP0159TAZZ Wire Fix Sheet AB

61 TLABZ0501TAZZ Label(AH50K/AH60K) AC

62 PSPAZ0331TAZZ Microphone Spacer AB

a LX-HZ0018TAFN M2x6 Tapping, Silver AA

b LX-HZ0018TAFF M2x6 Tapping, Black AA

c LX-HZ0045TAFN M2x4 Tapping, Silver AA

d XiPSF20P04000 M2x4 Small Screw, Black AA

Zinc Plating

e LX-BZ0191TAFD M2 Special Screw AC

f XiPSD20P03000 M2x3 Screw AA

g LX-UZ0016TAFD M2x5 Special Screw AA

h LX-BZ0200TAFD M2x7 Special Screw AB

i XiPSN20P04000 M2x4 Small Screw, Silver AA

k LX-HZ0063TAFC M1.7x6 Tapping, Silver AA

CAMERA UNIT PARTS

1 PCOVM8016TA00 Dustproof Rubber AC

2 LANGK0324TAFW CCD Retaining Plate AG

3 PFiLW0060TAZZ Optical Filter AS

4 VHiLZ2413H5-1 CCD Sensor BE

5 DUNTK2800PM03 CCD Unit

—

(A40U/A45U/AH50U/UC/T/K/

AH60U/K)

5 DUNTK2800PM10 CCD Unit(AH60U JAPAN) —

6 LX-HZ0013TAFF Screw (1.7 X 6) AA

CASSETTE HOUSING PARTS

400 CHLDX3077GE01 Cassette Compartment AY

Ass'y

401 MSPRT0414GEZZ Up Main Spring AD

402 MROD-0014GEFJ Damper rod AG

403 PDMP-0013GEZZ Cassette Compartment AG

Damper

113

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

SUPPLIED ACCESSORIES

ACCESSORIES

GCOVH1225TASA Lens Cap AG

å QACCZ0052TAZZ AC Cord(AH50K/AH60K) AM

QCNW-1448TAZZ A/V Cable AH

QCNW-1295TAZZ A/V Cable AK

RRMCG0084TASA Infrared Remote Control AL

(AH50U/UC/AH60U/AH60U JAPAN)

RRMCG0085TASA Infrared Remote Control AN

(A40U/A45U)

RRMCG0086TASA Infrared Remote Control

(AH50T)

RRMCG0092TASA Infrared Remote Control

(AH50K/AH60K)

TiNS-6031TAZZ Operation Manual(AH50T)

TiNS-6034TAZZ Operation Manual

(AH50K/AH60K)

TiNSE0362TAZZ Operation Manual AG

(AH60U JAPAN)

TiNSE0366TAZZ Operation Manual AG

(AH50U/AH60U)

TiNSE0375TAZZ Operation Manual(A45U)

TiNSE0376TAZZ Operation Manual(A40U)

TiNSL0224TAZZ Operation Manual

(AH50UC)

TCAUH0262TAZZ Caution Card AC

(A40U/A45U/AH50U/UC)

TCAUH0267TAZZ Ferrite Core Install Manual AC

(AH50T)

å UADP-0312TAZZ AC Adaptor BB

(A40U/A45U/AH50U/UC/T/AH60U/

AH60U JAPAN)

å UADP-0316TAZZ AC Adaptor BE

(AH50K/AH60K)

UBNDS0010TASA Shoulder Strap AH

UBATL0011TAZZ Lithium Battery AE

UBATM0010TA01 Battery BC

(A40U/A45U/AH50U/K/AH60U/K)

UBATM0010TAZZ Battery(AH60U JAPAN) BC

UBATM0011TA01 Battery(AH50T) BC

UBATU0013TAZZ AA Size Battery(x2)

(AH60U JAPAN)

UBATU0247AJZZ AA Size Battery(x2) AE

(A40U/A45U/AH50U/UC/T/K/

AH60U/K)

RCORF0038TAZZ Ferrite Core Large AK

(A40U/A45U/AH50U/UC/AH60U)

RCORF0083CEZZ Ferrite Core Small AL

(A40U/A45U/AH50U/UC/AH60U)

ACCESSORIES

(NOT REPLACEMENT ITEM)

TGANE0044TAZZ Guarantee Card —

(AH60U JAPAN)

TGANE0071TAZZ Guarantee Card —

(A40U/A45U/AH50U/AH60U)

TGANZ0024TAZZ Guarantee Card(AH50UC) —

TGANZ0027TAZZ Guarantee Card(AH50T) —

TGANZ0028TAZZ Guarantee Card —

(AH50K/AH60K)

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKC7500TAZZ Packing Case(AH60U) —

SPAKC7505TAZZ Packing Case —

(AH60U JAPAN)

SPAKC7516TAZZ Packing Case(AH50U) —

SPAKC7518TAZZ Packing Case(AH50T) —

SPAKC7540TAZZ Packing Case(AH50K) —

SPAKC7541TAZZ Packing Case(AH60K) —

SPAKC7561TAZZ Packing Case(A45U) —

SPAKC7562TAZZ Packing Case(A40U) —

SPAKP6049TAZZ Wrapping Paper —

(AH60U JAPAN)

SPAKP6123TAZZ Wrapping Paper —

(A40U/A45U/AH50U/T/K/AH60U/K)

SPAKP6129TAZZ HOSO-PP —

(A40U/A45U/AH50U/UC/AH60U/

AH60U JAPAN)

SSAKA0087TAZZ Polyethylene Bag —

(AH60U JAPAN)

SSAKA0105TAZZ Polyethylene Bag —

(A40U/A45U/AH50U/T/K/AH60U/K)

SSAKA0107TAZZ Polyethylene Bag —

(AH60U JAPAN)

SPAKA6343TAZZ Packing ADD. —

SPAKA6344TAZZ Packing ADD. —

SPAKA6345TAZZ Packing ADD. —

SPAKF0266TAZZ AC Adapter Packing —

114

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

123456

362

375

354

356

200

203

217

351

346

201

345

350

351

209

213

359

324

325

328

209

368

204

348

202

349

362

354

355

208

369

313

363

208

202

214

312

310

202

209

215

318

332

316

311

304

209

370

364

333

302

214

303

301

214

309

323

322

209

315

317

214

327

307

308

208

209

306

208

341

376

343

330

212

357

329

336

206

344

339

338

337

214

358

206

209

342

209

372

334

335

214

300

353

352

214

361

360

331

207

214

340

305

205

209

326

321

214

209

216

204

209

211

314

319

365

366

367

208

374

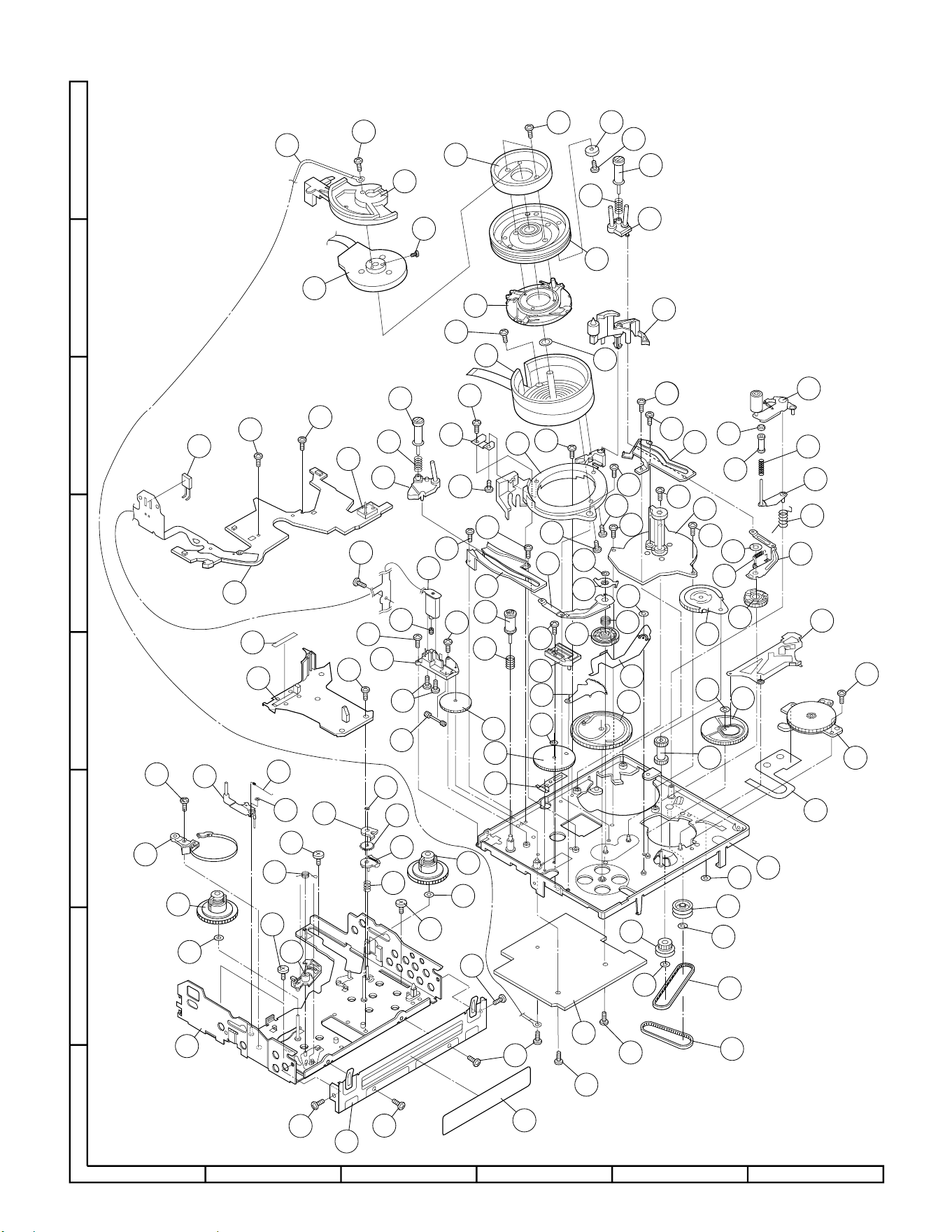

MECHANISM CHASSIS EXPLODED VIEW

115

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

123456

3-2

3-3

4-2

6-3

6-2

6-4

6-5

6-6

7-2

7-3

7-4

7-5

2-5

2-4

2-3

2-2

2-6

6-9

6-7

6-8

6-12

6-14

6-11

6-10

6-13

56-2

1-3

1-4

5-5

5-3

5-4

5-2

1-2

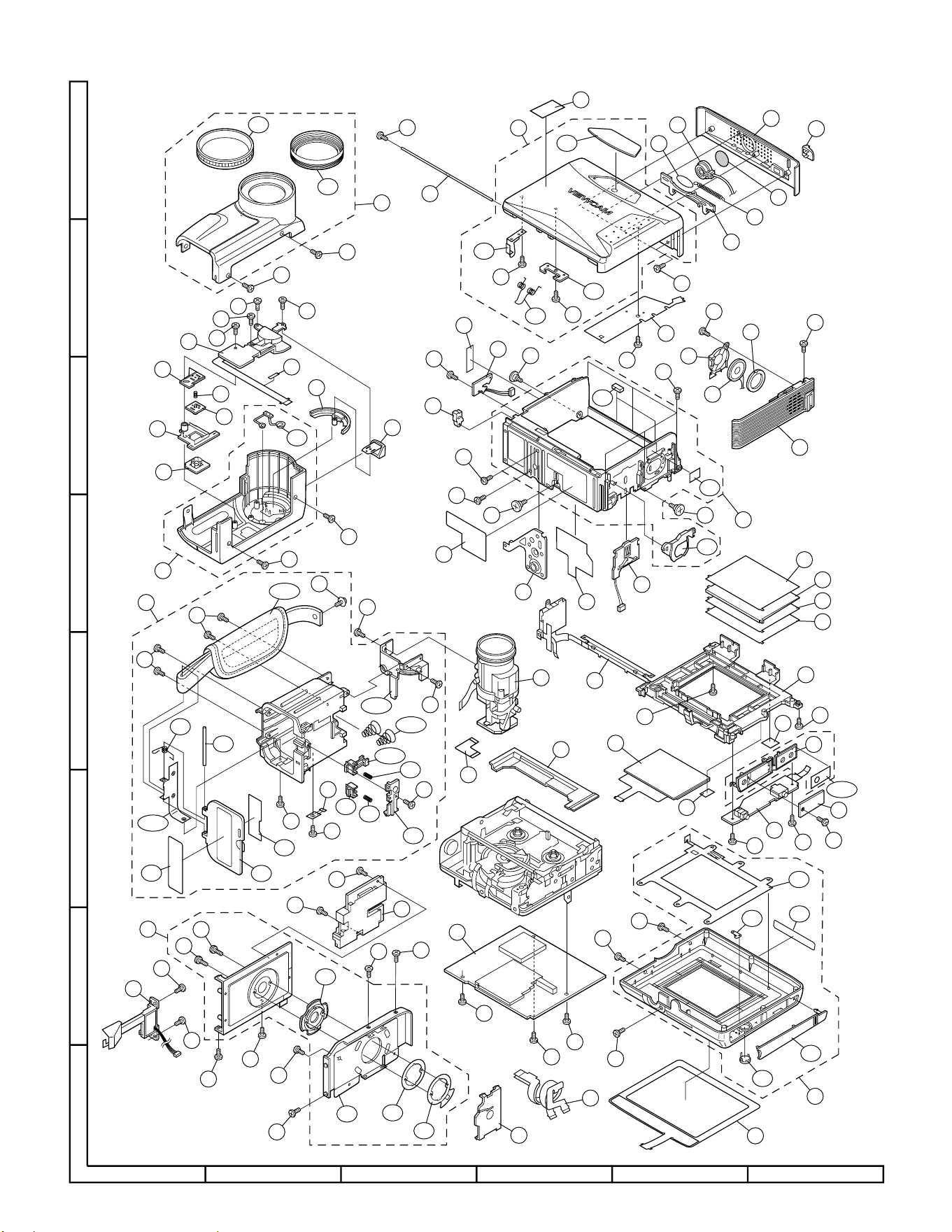

CABINET EXPLODED VIEW

116

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

CASSETTE HOUSING CONTROL UNIT EXPLODED VIEW

123456

Face the thinner part

toward the lens side.

Lens

side

CCD

side

The mark must be on the

face.

Mark

CAMERA UNIT EXPLODED VIEW

403

402

401

400

117

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

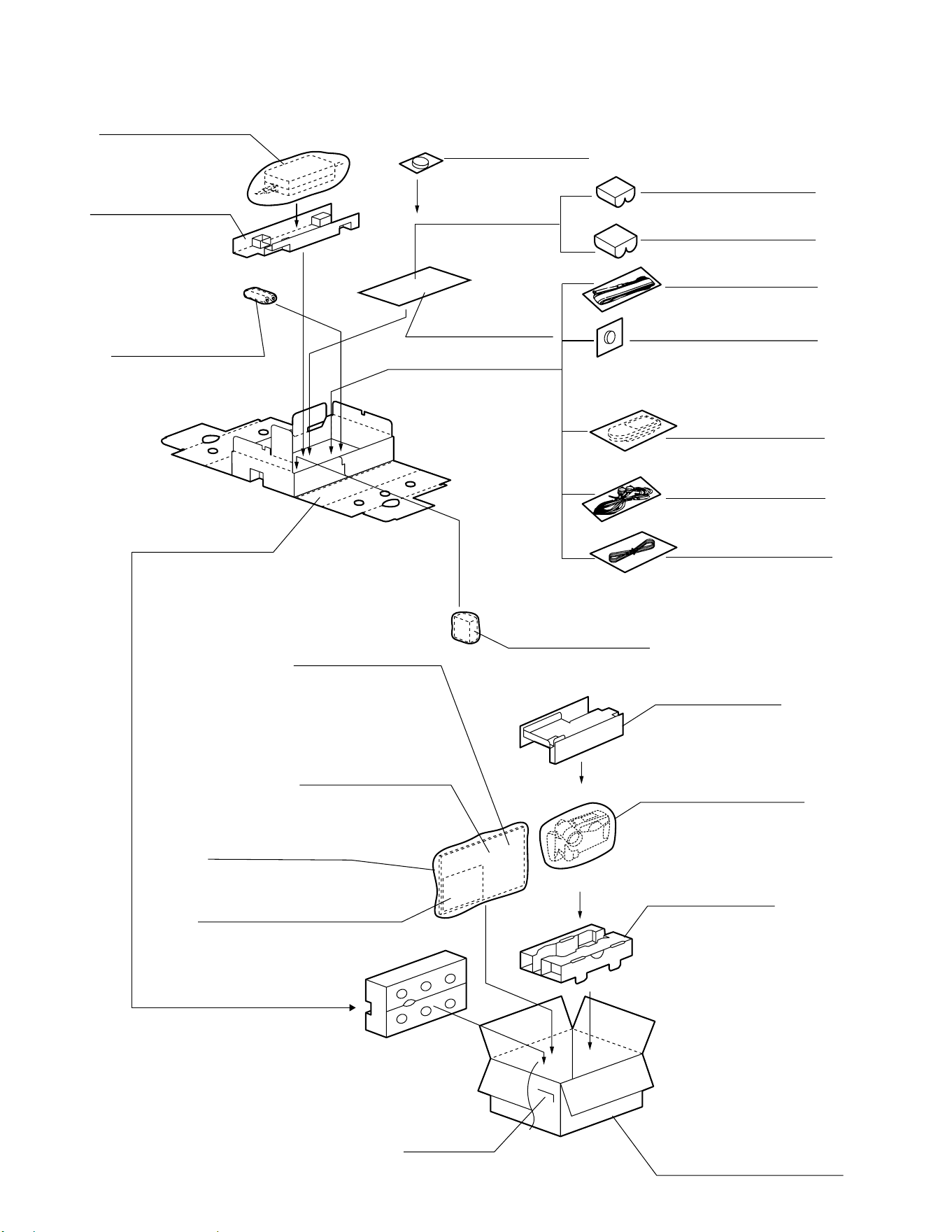

12. PACKING OF THE SET

★ Not Replacement Item

✳ For Detail, see page p113

UBNDS0010TASA

(Shoulder Strap)

GCOVH1225TASA

(Lens Cap)

✳RCORF0038TAZZ

(Ferrite Core Large)

✳RCORF0083CEZZ

(Ferrite Core Small)

✳åUADP-0312TAZZ

✳åUADP-0316TAZZ

(AC Adapter)

★ SPAKF0266TAZZ

(AC Adapter Packing)

★SPAKA6345TAZZ

(Packing ADD.)

✳UBATM0010TA01

✳UBATM0011TA01

✳UBATM0010TAZZ

(Battery)

✳TCAUH0262TAZZ

✳TCAUH0267TAZZ

(Ferrite Core Install Manual)

QCNW-1295TAZZ

QCNW-1448TAZZ

(A/V Cable)

✳åQACCZ0052TAZZ

(AC Cord)

UBATL0011TAZZ

(Lithium Battery)

★SPAKA6344TAZZ

(Packing ADD.)

✳TiNS-6031TAZZ

✳TiNS-6034TAZZ

✳TiNSE0362TAZZ

✳TiNSE0366TAZZ

✳TiNSE0375TAZZ

✳TiNSE0376TAZZ

✳TiNSL0224TAZZ

(Operation Manual)

✳★SPAKP6049TAZZ

✳★SPAKP6123TAZZ

(Wapping Paper)

✳★SPAKC7500TAZZ

✳★SPAKC7505TAZZ

✳★SPAKC7516TAZZ

✳★SPAKC7518TAZZ

✳★SPAKC7540TAZZ

✳★SPAKC7541TAZZ

✳★SPAKC7561TAZZ

✳★SPAKC7562TAZZ

(Packing Case)

(No. Card)

★SPAKA6343TAZZ

(Packing ADD.)

✳★TGANE0044TAZZ

✳★TGANE0071TAZZ

✳★TGANZ0024TAZZ

✳★TGANZ0027TAZZ

✳★TGANZ0028TAZZ

(Guarantee Card)

✳RRMCG0084TASA

✳RRMCG0085TASA

✳RRMCG0086TASA

✳RRMCG0092TASA

(Remote Control)

✳UBATU0013TAZZ

✳UBATU0247AJZZ

(AA Size Battery x 2)

✳★SSAKA0087TAZZ

✳★SSAKA0105TAZZ

✳★SSAKA0107TAZZ

(Polyethylene Bag)

★✳SPAKP6129TAZZ

(HOSO-PP)

118

VL-E990E

Ref. No. Part No. ★ Description Code

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

TQ0852-S

Mar. 2000 Printed in JAPAN

SA. NS

VL-A40U/A45U

VL-AH50U/T/K

VL-AH60U/K

Sharp VL-A40U Liquid Crystal Camcorder

Product's Documents

User Service

Specifications

Sharp VL-A40U Questions and Answers
