Battery Charger WA3880
SAFETY AND OPERATING MANUAL
1
3 2
3
Battery Charger WA3880
GENERAL SAFETY
WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future
reference.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Additional safety instructions for your Battery
Charger
1. Before charging, read the instructions.
2. For charge Li-ion battery pack only.
3. Do not charge a leaking battery.
4. Do not use chargers for works other than those
for which they are designed.
5. Before charging, ensure your charger is
matching the local AC supply.
6. The charging device must be protected from
moisture.
7. Do not use the charging device in the open.
8. Do not short out the contacts of battery or
charger.
9. Respect the polarity “+/-“ when charging.
10. Do not open the unit and keep out of the reach
of children.
11. Do not charge the batteries of other
manufactures or ill-suited models.
12.Ensure that the connection between the battery
charger and battery is correctly positioned and is
not obstructed by foreign bodies.
13.Keep battery charger’s slots are free of foreign
objects and protect against dirt and humidity.
Store in a dry and frost-free place.
14.When charging batteries, ensure that the battery
charger is in a well-ventilated area and away
from inflammable materials. Batteries can get
hot during charging. Do not overcharge any
batteries. Ensure that batteries and chargers are
not left unsupervised during charging.
15.Do not recharge non-rechargeable batteries, as
they can overheat and break.
16.Longer life and better performance can be
obtained if the battery pack is charged when the
air temperature is between 18
0
C and 24
0
C. Do
not charge the battery pack in air temperatures
below 0
0
C, or above 40
0
C. This is important as it
can prevent serious damage to the battery pack.
17. Charge only battery pack of the same model
provided by Worx and of models recommended
by Worx
SYMBOLS
Read the operator’s manual.
Warning
For indoor use only
Double insulation
Fuse
Positive terminal
Negative terminal
RCM marking
ABN: Australian Business Number. By this
number, business information such as entity type,
status, business location etc. can be found at
website http://abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682
357

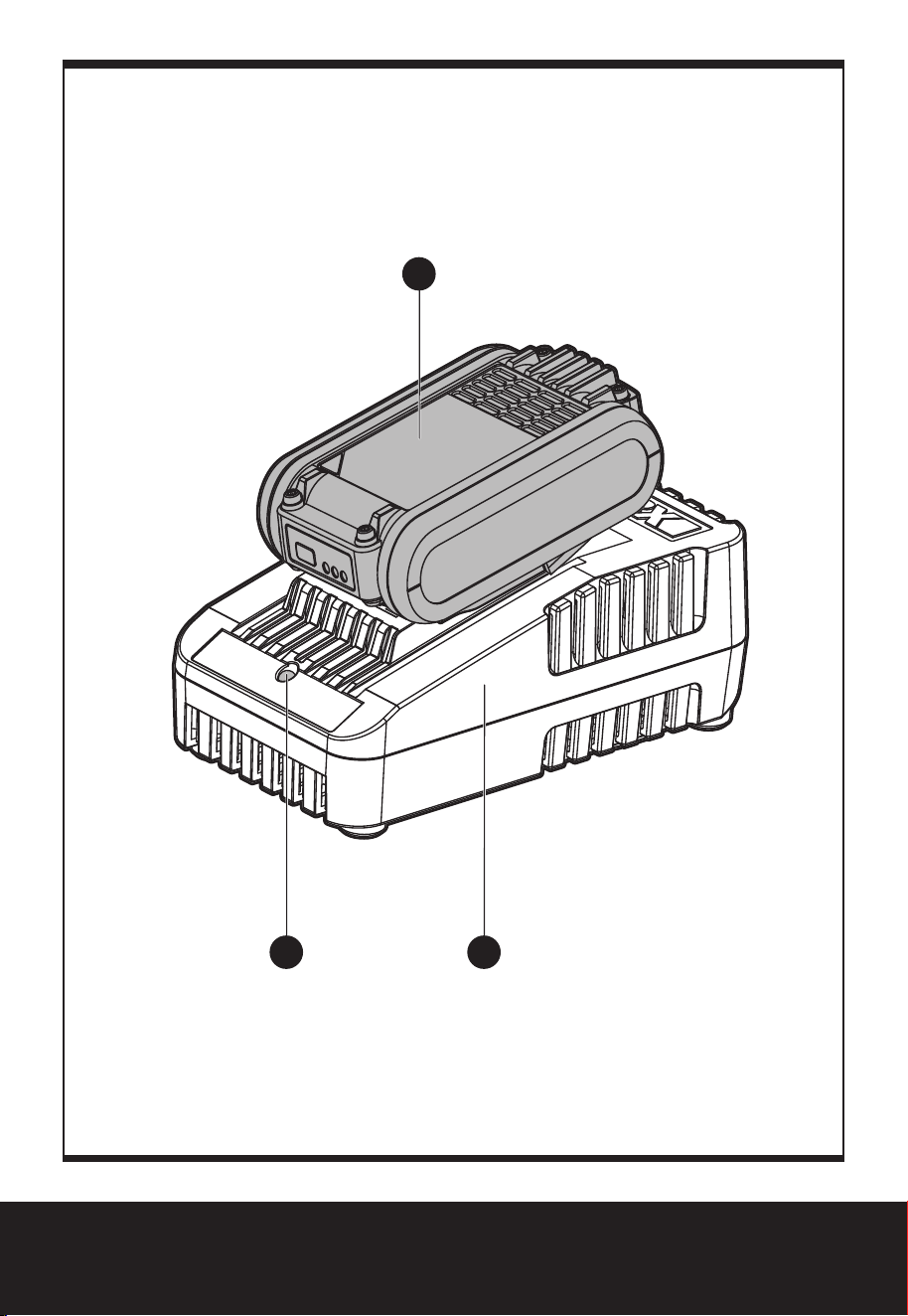

COMPONENT LIST
1. BATTERY PACK *
2. CHARGER
3. CHARGE INDICATOR LIGHT
* Not all the accessories illustrated or
described are included in standard delivery.
We recommend that you purchase your accessories
listed in the above list from the same store that
4
Battery Charger WA3880
sold you the battery charger. Refer to the accessory
packaging for further details. Store personnel can
assist you and offer advice.
TECHNICAL DATA
Rated Input voltage 100-240V~50/60Hz
Output voltage 20V
Charging current 2A
Rated Input power 50W
Charge battery Li-Ion
Number of cells: 4/5/10
Charging time (approx.)
Battery pack -- 1.3Ah 42mins
-- 1.5Ah 45mins
-- 2.0Ah 58mins
-- 2.5Ah 77mins
-- 3.0Ah 95mins
-- 4.0Ah 125mins
-- 5.0Ah 145mins
-- 6.0Ah 183mins
Protection class
/II
Machine weight 0.45kg
For the technical data of the types, the number of
cells and the rated capacity of the batteries that
can be charged, please refer the nameplate of the
battery pack supplied by Worx.
CHARGING PROCEDURE
NOTE: Before using the tool, read the
instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
WARNING: The charger and battery pack are
specifically designed to work together so do
not attempt to use any other devices. Never insert
or allow metallic objects into your charger or battery
pack connections because an electrical failure and
hazard will occur.
2. BEFORE USING YOUR CORDLESS TOOL
Your battery pack is UNCHARGED and you must
charge once before use.
3. HOW TO CHARGE YOUR BATTERY
CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet.
2) Slide the battery pack into the charger. The
LIGHT (3) will become green and flash to show
charging has started.
3) After charging approx 1-2 hours, the light will
stay green without flashing, which means the
battery is full, and charging is completed.
WARNING: When battery charge runs
out after continuous use or exposure
to direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.
CHARGING INDICATOR
This charger is designed to detect some problems
that can arise with battery packs. Indicator lights
indicate problems (see table below). If this occurs,
insert a new battery pack to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned
to a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.
Light ON/ Flash Status
Red on
Defective Battery
Red flash
- - - - -
Battery Temperature
Protection
The temperature of
battery pack is less
than 0
o
C or more than
45
o
C.
Green on
Fully Charged
Green flash
- - - - - - Charging
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection
feature. When the charger detects a battery pack
that is too hot or cold (the light will be red and
flash), it automatically activates the protection
5
Battery Charger WA3880
circuit, and suspends charging until the battery pack
has reached the correct temperature. The charging
process will then automatically begin (the light will
be green and flash). This feature ensures maximum
battery life.
LEAVING THE BATTERY PACK IN THE CHARGER
If a fully charged battery pack is left in the charger,
the Light will remain green. The battery pack will
remain charging with a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack.
When a defective battery pack is inserted into the
charger, the charger will try to repair it. This process
will last about 30mins (the light will be green and
flash). If the repair is successful, the charger will
automatically begin to charge the battery pack to
the highest capacity possible (the light will be green
and flash). If the light becomes solid red, the battery
pack is dead.
NOTE: Repaired battery packs are still usable but
should not be expected to perform as much work as
new battery packs.
IMPORTANT CHARGING NOTES:
1. For a new battery or a battery that has been
in storage for sometime, please recharge the
battery before use. If you want to store the
battery for a long time, please fully charge the
battery pack to ensure maximum battery life.
2.
Longer life and better performance can be
obtained if the battery pack is charged when the
air temperature is between (18
0
-24
0
C). Do not
charge the battery pack in air temperatures below
4.5
0
C, or above 40.5
0
C. This is important as it can
prevent serious damage to the battery pack.
3. Never freeze your charger or immerse charger
in water or any other liquid.
4. When the battery pack fails to produce sufficient
power on jobs that were previously done easily,
please recharge your battery, do not continue
to use under this condition. You may charge a
partially used pack whenever you desire with
no adverse affect on the battery pack.
5. When charging it is normal that the charger and
battery pack may become warm to touch.
6. If the battery pack does not charge properly:
a. Check current at power outlet by plugging in
another appliance.
b. Plug and unplug to check whether the charger is
ok
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 18
0
-24
0
C.
e. If the charging problem persists, take the tool,
battery pack and charger to an authorized
service center.
f. Under certain conditions, when the charger is
plugged into the power supply, the exposed
charging contacts inside the charger can be
shorted by foreign material. Foreign materials
of a conductive nature such as metallic particles
should be kept away from charger cavities.
Always unplug the charger from the power
supply when there is no battery pack in the
charger or before attempting to clean.
PROBLEM SOLUTION
I CANNOT FIT THE BATTERY INTO THE
BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are
specifically designed for working together.
b) The battery can be inserted into the charger
only in one direction. Turn the battery around
until it can be inserted into the slot, the
indicator light should be green and flash when
the battery is charging.
REASONS FOR DIFFERENT
CHARGING TIMES
The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it
may be re-charged in less than rated charging
time.
b) If the battery pack and ambient temperature are
very cold/ hot, it may take longer to re-charge.
Please find an appropriate environment with
proper air temperature to start charging.
c) If the battery pack is very hot, remove battery
pack from the charger and allow battery pack
to cool first to ambient temperature and then
recharging can be started.
MAINTENANCE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your battery charger requires no additional lubrication
or maintenance. Never use water or chemical
cleaners to clean your charger. Wipe clean with a dry
cloth. Always store your charger in a dry place.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Positec Australia Pty Limited
10 Corporate Blvd Bayswater , VIC 3153, Australia
Copyright © 2020, Positec. All Rights Reserved.
AR03041900
