MBVC Air Handlers
REPAIR PARTS
RP-565
This manual is to be used by qualified technicians only.
www.goodmanmfg.com www.amana-hac.com
© 2009 Goodman Manufacturing Company, L.P. ◊ 5151 San Felipe, Suite 500 ◊ Houston, TX 77056
October 2009
MBVC1200AA-1AA
MBVC1600AA-1AA
MBVC2000AA-1AA
Important Information
For assistance within the U.S.A. contact:
International Division
Goodman Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
For assistance outside the U.S.A. contact:
Index
Functional Parts List
Illustration and Parts
...................................................................................................
...................................................................................................
Views shown are for parts illustrations only, not servicing procedures.
AR - As Required
NA - Not Available
NS - Not Shown
00000000 - See Note
QTY - Quantity Example (QTY 3) (If Quantity not shown, Quantity = 1)
M - Model Example (M1) (If M Code not shown, then part is used on all Models)
Text Codes:
Example
M1 - Model#1
M2 - Model#2
M3 - Model#3
Expanded Model Nomenclature:
Goodman Manufacturing Company, L.P. is not responsible for personal injury or property damage resulting from
improper service. Review all service information before beginning repairs.
Warranty service must be performed by an authorized technician, using authorized factory parts. If service is
required after the warranty expires, Goodman Manufacturing Company, L.P. also recommends contacting an
authorized technician and using authorized factory parts.
Goodman Manufacturing Company, L.P. reserves the right to discontinue, or change at any time, specifications
or designs without notice or without incurring obligations.
2
Consumer Affairs Department
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
877-254-4729-Telephone
713-863-2382-Facsimile
International Division
Goodman Manufacturing Company, L.P.
7401 Security Way
Houston, Texas 77040
713-861-2500-Telephone
713-863-2382-Facsimile
www.goodmanmfg.com www.amana-hac.com
4 - 9
3
RP-565
Functional Parts
Part
No:
Description:
0131M00111 BLOWER MOTOR 1/2 HP, SERIAL ECM (M1)
0131M00112 BLOWER MOTOR 3/4 HP SERIAL ECM (M2,
M3)
PCBJA101 PCB, CONTROL, AIR HANDLER
0259A00002PF WIRE ASSY, 9 PIN MALE CONN.
0259A00007 WIRE HARNESS
0259A00008 WIRE HARNESS
3
RP-565
www.goodmanmfg.com
www.amana-hac.com

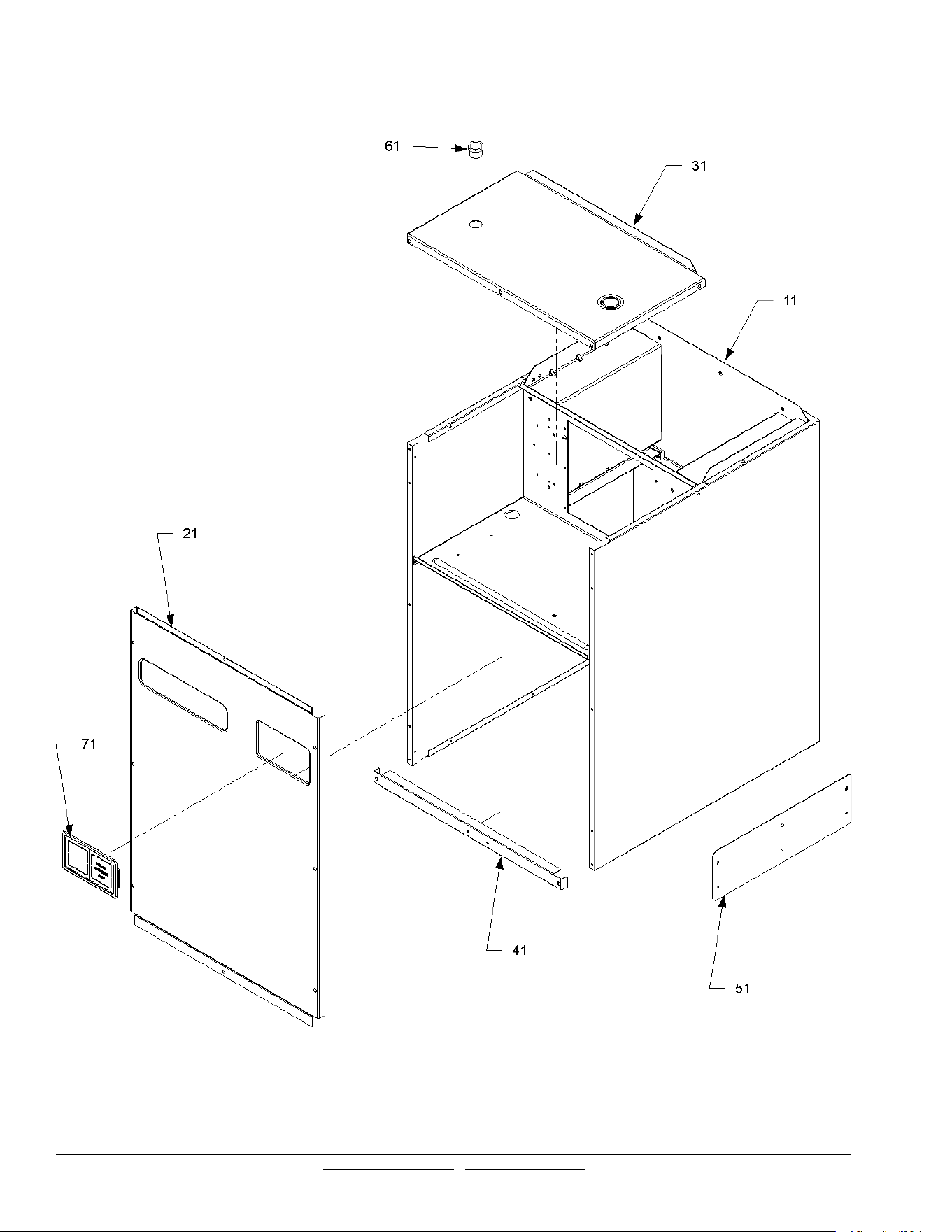

Cabinet
4
RP-565
www.goodmanmfg.com
www.amana-hac.com
Cabinet
Ref.
No:
Part
No:
Description:
Ref.
No:
Part
No:
Description:
Image 1:
WRAPPER 17.5" X 26" PAINT (M1)5002010PDGS11
WRAPPER 21" X 30" PAINT (M2)5002011PDG11
WRAPPER 24.5" X 30" PAINT (M3)5002012PDGS11
FRONT PANEL (M1)5601500PDGS21
FRONT PANEL (M2)5601501PDG21
FRONT PANEL (M3)5601502PDGS21
TOP PLATE (M1)5601000PDG31
TOP PLATE (M1)5601000PDG31
TOP PLATE (M2)5601001PDG31
TOP PLATE (M3)5601002PDG31
BOTTOM RAIL 17.5" (M1)5001205PDG41
BOTTOM RAIL 21" (M2)5001209PDG41
BOTTOM RAIL 24.5" (M3)5001210PDG41
TIE-IN-PLATE (QTY 4)5651200PDG51
PLASTIC CIRCUIT BREAKER INSERT B139264171
Expanded Model Nomenclature
M1 - MBVC1200AA-1AA
M2 - MBVC1600AA-1AA
M3 - MBVC2000AA-1AA
5
RP-565
www.goodmanmfg.com
www.amana-hac.com

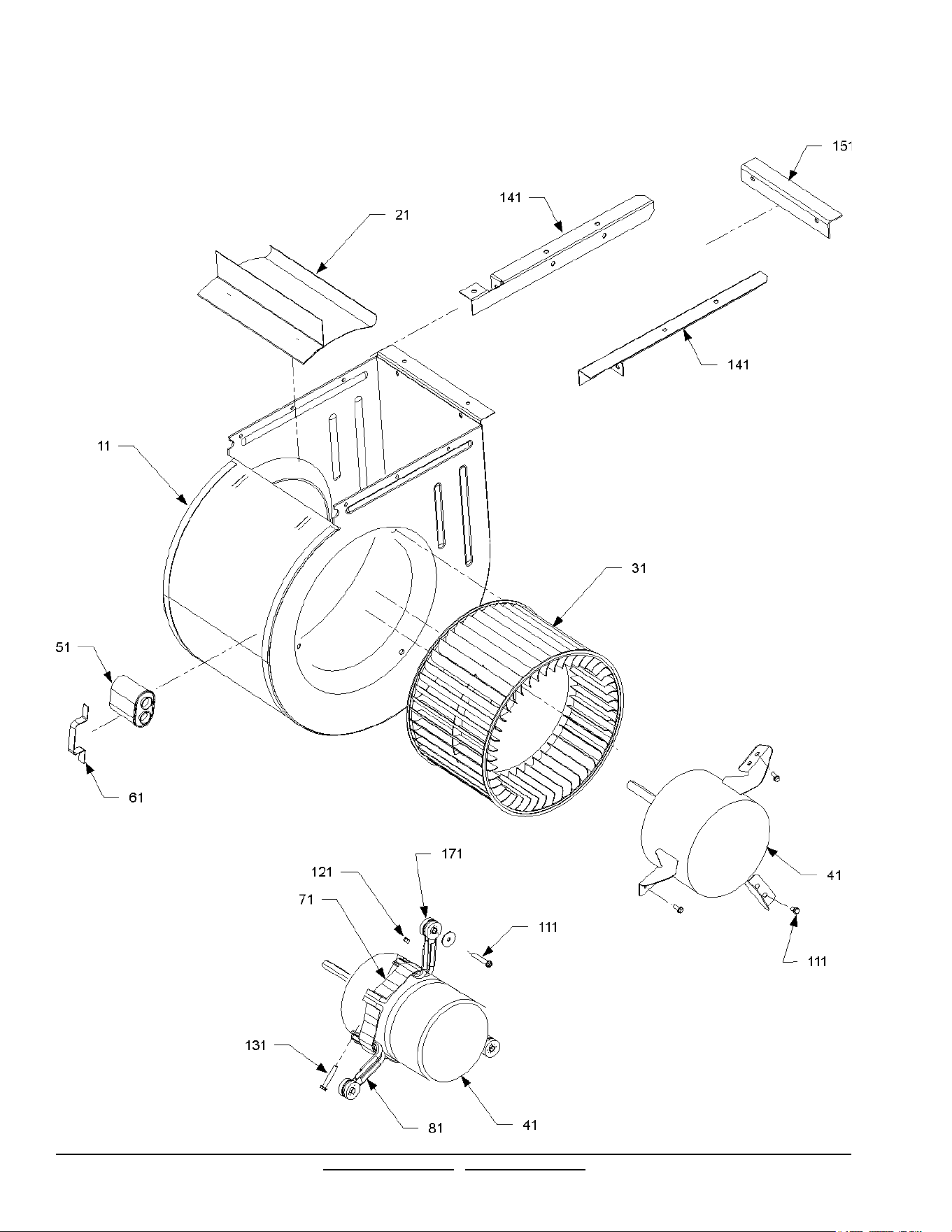

Blower Assembly
6
RP-565
www.goodmanmfg.com
www.amana-hac.com
Blower Assembly
Ref.
No:
Part
No:
Description:
Ref.
No:
Part
No:
Description:
Image 1:
BLOWER HOUSING ASSY 10 X 8 (M1, M2)5660205S11
BLOWER SHELL ASSEMBLY (M3)566020711
BLOWER CUT-OFF (M3)181712221
BLOWER CUT-OFF (M3)186470021
BLOWER CUT-OFF (M1, M2)564700221
BLOWER WHEEL 10 X 8 (M1, M2)B1368016S31
BLOWER WHEEL 11 X 10 (M3)B1368000S31
BLOWER MOTOR 1/2 HP, SERIAL ECM (M1)0131M0011141
BLOWER MOTOR 3/4 HP SERIAL ECM (M2, M3)0131M0011241
MOTOR MOUNT BAND (M1, M2)0121M0003871
MOTOR MOUNT BAND (HEAVY DUTY) (M3)0121M0003971
MOTOR MOUNT ARM (M3)0163A0000881
MOTOR MOUNT ARM (M1, M2)B137685381
MACHINE SCREW HWH 1/4-20 X 1-1/2 BZ B1393323111
LOCKNUT, NYLON, INSERT 1/4, 20 B1393800121
BLOWER RAIL (M1)5601806141
BLOWER RAIL (M2, M3)5601807141
BLOWER MOUNTING ANGLE (M2)1717111151
BLOWER MOUNTING ANGLE (M3)1717112151
BLOWER MOUNTING ANGLE (M1)1717113151
Expanded Model Nomenclature
M1 - MBVC1200AA-1AA
M2 - MBVC1600AA-1AA
M3 - MBVC2000AA-1AA
7
RP-565
www.goodmanmfg.com
www.amana-hac.com

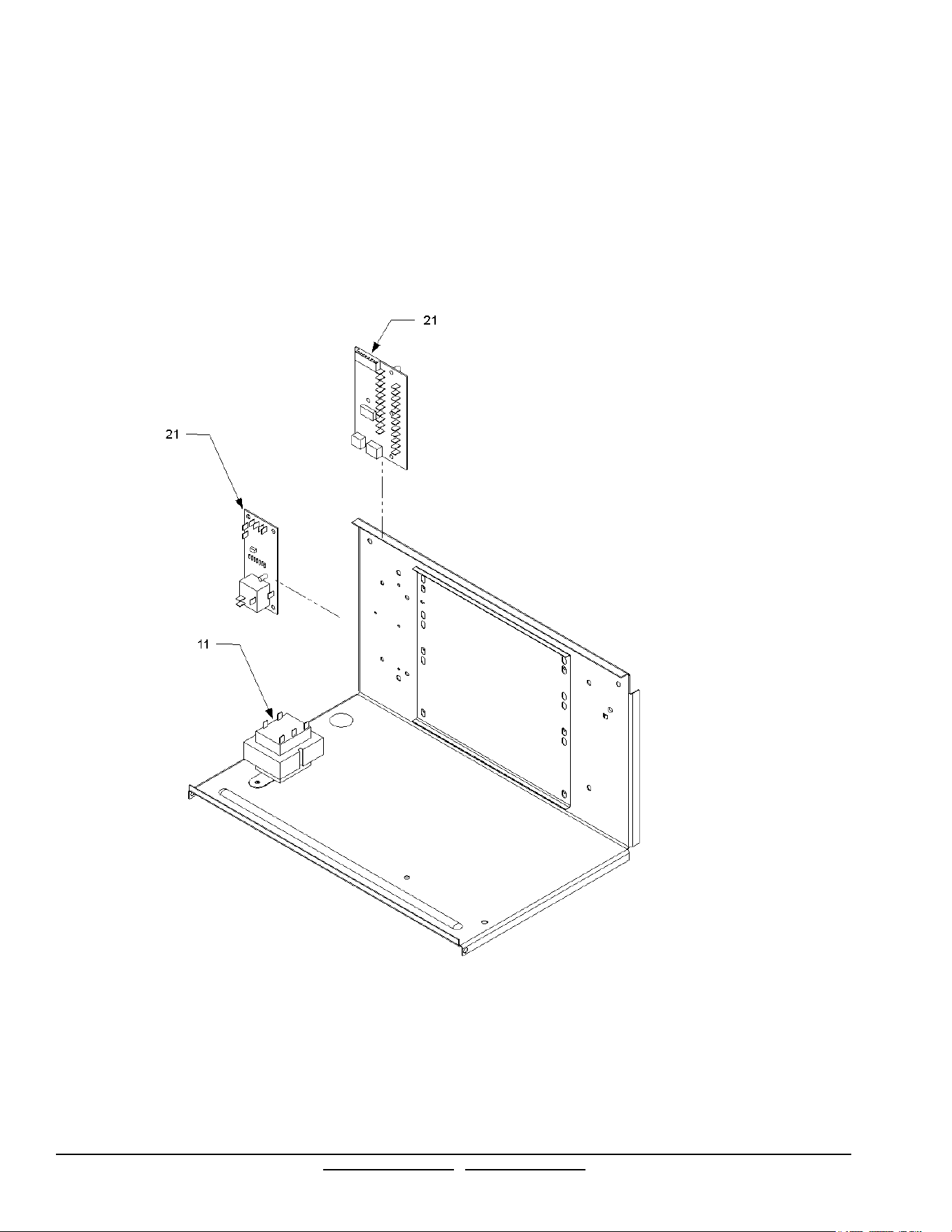

Control/Electrical
8
RP-565
www.goodmanmfg.com
www.amana-hac.com
Control/Electrical
Ref.
No:
Part
No:
Description:
Ref.
No:
Part
No:
Description:
Image 1:
TRANSFORMER 208/230, 24V B114164311
PCB, CONTROL, AIR HANDLER PCBJA10121
WIRE ASSY, 9 PIN MALE CONN. 0259A00002PFNS
WIRE HARNESS 0259A00007NS
WIRE HARNESS 0259A00008NS
Expanded Model Nomenclature
M1 - MBVC1200AA-1AA
M2 - MBVC1600AA-1AA
M3 - MBVC2000AA-1AA
9
RP-565
www.goodmanmfg.com
www.amana-hac.com
THIS PAGE INTENTIONALLY LEFT BLANK
