www.SQUATZ.com
2
Features:
•
Compact and Comfortable to Massage
• Helps Relieve Pain
• TENS Stimulation for muscle therapy - Firm and Eective
• Auto Power O from 5 mins to 60 mins
• Comes with 5 small pads and 5 large pads
• 25 Massage Modes
• Both size pads can be used at the same time
• Portable Pocket Size
• Stimulate Healthy Muscles in Order to Improve Muscle Performance and Recovery
• Non-Invasive, Solution for relieving pain
• Microcomputer Intelligent Control Technology
• Stimulates a variety of muscles through multiple massage settings
• Can Operate with Dierent Intensity Settings for Each Channel
• Portable and compact - can be used anywhere
• Reusable Fastening Cable Ties and Self-Adhesive Conductive Reusable Electrode Pads
• Dierent Sizes of Electrode Pads
• Battery Level indicator for optimal performance recovery
• Built-in Powerful Rechargeable Lithium Battery
Technical Specs:
•
Construction Material: ABS
• Battery: 350mAh
• Intensity Level: 0-50 levels
• Adjustable Time Settings: from 5 mins. to 60 mins.
• Product Dimensions (L x W x H): 5.31’’ x 2.4’’ x 0.98’’ -inches
www.SQUATZ.com
3
PLEASE READ THE USER MANUAL CAREFULLY BEFORE USE
AND KEEP IT IN A CONVENIENT PLACE FOR FUTURE REFERENCE.
Safety Guide
Read the entire instruction manual before you use the SQTS-1 Electronic Massage Stimulator.
This manual will give you a better understanding of how the product works. If you are unsure
whether a medical condition should preclude you from using the device, consult your physiotherapist,
osteopath, or medical practitioner.
Intended Use / Indications for Use
T.E.N.S. Transcutaneous Electrical Nerve Stimulation
To be used for temporary pain relief associated with sore and aching muscles in the shoulder, waist,
back, back of the neck, arm, leg, and foot due to strain from exercise or daily activities by applying
current to stimulate nerve.
DEVICE DESCRIPTION
General Description
The SQTS-1 Electronic Massage Stimulator is a household multifunctional device. It can stimulate
healthy muscles in order to improve muscle performance and recovery. This device can help relieve the
pain associated with sore and aching muscles in the waist, upper and lower back, back of the neck,
upper extremities (shoulder, arm, and hand), lower extremities (hip, knee, ankle, leg, and feet) due to
strain from exercise or daily activity.
The SQTS-1 Electronic Massage Stimulator has 25 operation modes and two channels that can
deliver electrical pulses through 2 pairs of electrode patches that are applied to the skin.
The Electronic Massage Stimulator has the operating elements of ON/OFF Switch, Display screen,
Mode Selection key, Intensity Modication keys and Time selection keys.
The LCD display screen can show selected mode, output intensity of body and/or sole, and time
remaining of an application mode.
The device is equipped with electrode patches, connection line, USB charging cable.
The connection line is used to connect the electrode patches to the LCD display.
The product is recommended to be used once a day for at least 4 weeks. If the treatment stops,
results may diminish. In order to experience the optimal eects of treatment, it is recommend to
perform a full treatment cycle and to drink sucient water during the treatment cycle.
Electrode patches should be securely attached to the skin.
The patches can be posted in the positions where you are experiencing pain or tension.
The output of the two groups can be carried out simultaneously.
The device is intended to be operated by the user.
www.SQUATZ.com
4
Warning:
Do not use this unit for purposes other than treatment indicated
in this manual. Use of this device for reasons not outlined
in this manual may lead to accidents, complications,
injury, or failure of the unit.

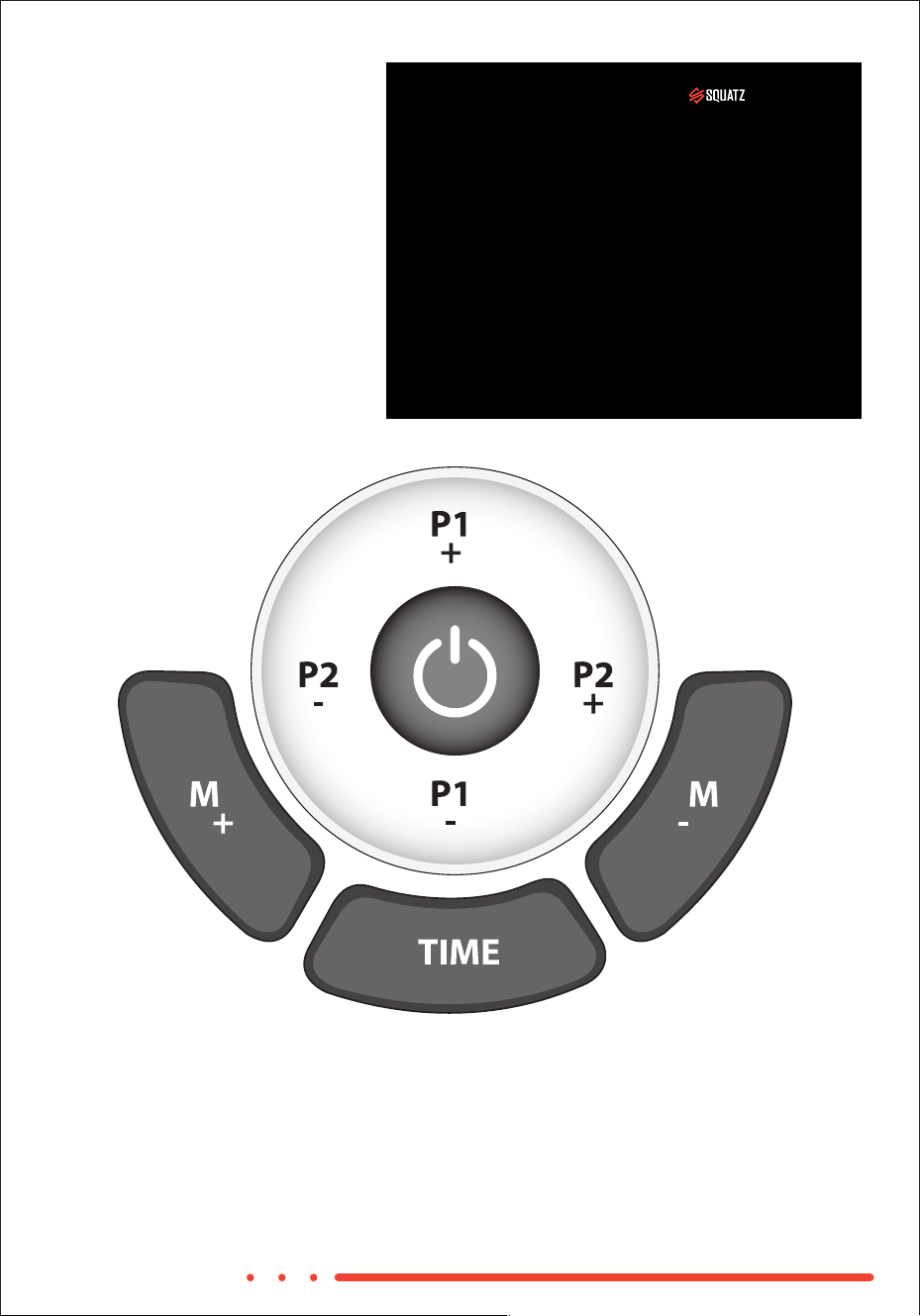

Features & Functions
Instrument Functions
M+, M-:Mode +/- total 25 modes
P1+, P1-:Left part EMS pad intensity Control, total 25 levels
P2+, P2-:Right part EMS pad intensity Control, total 25 levels
(Remark: The right/left EMS P1 and P2 intensities can be adjusted independently)
TIME:You can set timer for every 5 minutes. Minimum treatment time is 5 minutes to 60 minutes.
www.SQUATZ.com
5
Treatment Modes
This product has 25 modes.
Mode description with loading @1000 Ω
Mode
Pulse duration
(US)
Pulse repetition
frequencies (Hz)
Pulse repetition
amplitudes (V)
Output
current
Remarks
Mode 1 480 7 33 4.36 --
Mode 2 480 100 15 6.12 --
Mode 3 480 6 37 4.72 --
Mode 4 480 9 34 5.06 --
Mode 5 480 25 33 7.08 --
Mode 6 480 10 24 4.32 --
Mode 7 480 7 32 4.28 --
Mode 8 480 23 32 7.04 --
Mode 9 480 13 24 4.88 --
Mode 10 480 22 35 6.46 --
Mode 11 480 41 24 4.90 --
Mode 12 480 22 34 5.28 --
Mode 13 480 126 14 6.62 --
Mode 14 480 10 32 3.88 --
Mode 15 480 4 30 3.96 --
Mode 16 480 28 25 5.12 --
Mode 17 480 21 35 7.48 --
Mode 18 480 50 25 4.82 --
Mode 19 480 34 24 5.28 --
Mode 20 480 46 25 5.26 --
Mode 21 480 14 33 4.7 --
Mode 22 480 46 37 7.42 --
Mode 23 480 128 14 6.88 --
Mode 24 480 22 30 4.5 --
Mode 25 480 39 25 5.12 --
www.SQUATZ.com
6

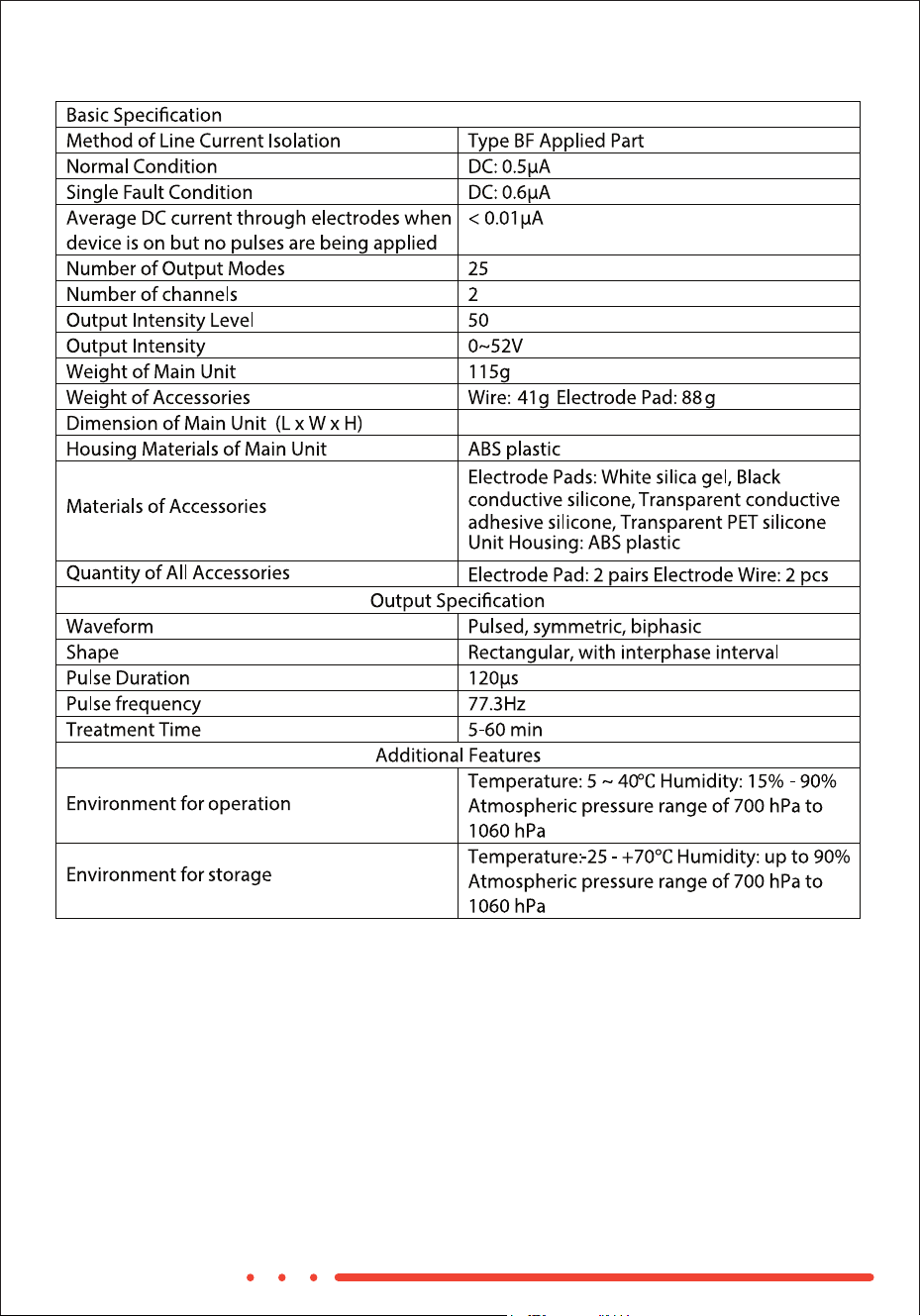

Specications
Instructions for Use
Preparation for Use
Step 1: Charge the Lithium battery in the main unit. Connect the LCD display with the power adapter
and USB charging cable. The device is equipped with a rechargeable battery. Before using the device,
it needs to charge the battery to support the power supply. Connect the LCD display with the power
adapter and USB charging cable, then insert the adapter pins into the AC outlet.
Warning: The device will not work during charging, please fully charged the battery before using.
5.31’’ x 2.4’’ x 0.98’’ -inches
www.SQUATZ.com
7
Step 2: Connect LCD display with the electrode patch and connection line
Push the Wire Plug tightly into the output port at the top of the main unit.
Ensure that the wires and the electrode Patches are well connected.
Step 3: Patch placement
Place four patches on a clean, dry and healthy skin near the area where you are experiencing
discomfort. DO NOT overlap the patches.
Operation
1. Place the electrode patches in the area where you want to massage.
A.Symptoms: Shoulder, back pain. Patches location: shoulder, back.
See Placement Examples:
B. Symptoms: Discomfort and pain. Patches location: back, hips, the waist.
See Placement Examples:
C. Symptoms: Muscle ache, muscle pain Patches location: arm, back.
See Placement Examples:
D. Symptoms: Muscle soreness, pain. Patches location: legs
See Placement Examples:
www.SQUATZ.com
8
2. Turn ON the device: Press and hold the power switch button for 3 seconds to turn ON the device,
then LCD display will turn blue.
Note:
You can stop the treatment at any time by pressing the power switch button for about 3 seconds.
3. Set the treatment time: Default timer is 30 minutes and you can adjust the time by pressing
the “Time” button.
Note:
“Time” button is a cycle button with the minimum setting of 5 minutes and the maximum setting
of 60 minutes. For every press of the button, 5 minutes will be increased and after 60 minutes, the
setting will start at 5 minutes again.
4. Set the treatment mode: The device has 25 dierent modes and you can choose your favorite
mode by pressing the “mode” button.
Note:
You can adust the mode at any time during the treatment. However, after you adjust the mode the
intensity will set to “0”.
5. Set the intensity for both channels: The intensity of channels P1 and P2 can be set to
dierent settings. Press “+” button of P1/P2 to increase the intensity; Press "-" button of P1/P2 to
reduce the intensity.
Note:
Select a setting that is most comfortable for you and your body - it is not recommended that you
use the device at a setting that causes you discomfort.
Adjust the intensity gradually from weak to strong.
What's in the Box:
•
Massage Stimulator
• Bag
• Pads
• Cables
• Adapter
www.SQUATZ.com
9
GENERAL TROUBLESHOOTING
If the unit does not operate after taking the above-mentioned measures,
contact the nearest SQUATZ dealer.
Problem Reason Solution
The power cannot
be turned ON
Product battery is low
Use the standard power supply to charge
The power turns o
too soon
Product standy time is only 60s. Prepare in advance
The power turns OFF
while using the unit
The batteries are worn out
lt's time to set to work
Restart again treatment
or turn o the machine
Using the pad as body massage,
the pad is broken
Replace the pad
The Pad does not
attach to the skin
The clear lm on the adhesive
surface of the Pad is not peeled o
Peel o the clear lm on the
adhesive surface
Used the Pad immediately after washing it
Keep the pad dry enough
Damaged adhesive surface of Pad Replace the pad
The adhesive surface of Pad is dirty
Replace the pad, or dip a smaII amount of
water on the pad, then wipe the pad surface
The adhesive surface
of the pad is sticky
Sweat from using the pad
Leave the Pad in the
refrigerator overnight.
Washing the Pad too long
or too frequent
Pad is stored at high temperatures,
high humdity, or under the sun
Cannot feel the
stimulation
Dry skin Use after washing your hand or shower
The Pad is not attached
close to the skin
Attach the Pad close to the skin
Pad overlap
Attach the Pads by not overlapping them
The Electrode Cord is not
connected correctly
Connect the Electrode Cord correctly
The intensity is adjusted
too weak
Open the switch to enhance
the intensity
The skin turns red.
The skin feels irritating.
The adhesive surface of Pad is
dirty or dried.
Wash the adhesive surface of Pad softly
with your ngertips for several seconds
under slow running water
The adhesive surface of Pad
is damaged
Replace the Pad with a new one
Recharge the unit
www.SQUATZ.com
10
PATCH TROUBLESHOOTING
Important Safe Guards
When using electrical products, especially when children are present, basic safety
precautions should always be followed, including the following:
CLEANING AND MAINTENANCE
LCD Display
1. Before using, use a dry soft cloth or dry towel to wipe the machine. Use a moist cloth to clean the
electrodes’ upper surfaces, but do not wipe, scratch or scrub the adhesive surfaces.
Warning:
• DO NOT repair or rebuild the machine privately or the manufacturer will not guarantee after-sales
services or repair.
Problem Electrode line Solution
No eect ls it connected? Connect the right electrode line
Weak eect
ls the pad protective lm
removed?
Remove the protective lm
Are the pads tightIy attached
to the skin
Pad should be tightly attached
to the skin
Pad overlap
Attach the Pads by not overlapping them
Skin redness and pain
The treatment time is too long
Limit the treatment time to
5 to 10 minutes
Wipe it clean and use it again
ls the pad too tight?
Clean up the pad
The machine stops
working
ls the pad damaged?
Turn o the power and re-attach it
Pads are removed from the skin
The line is broken?
Turn o the power and
connect the pad again
The batteries are worn out Recharge
the unit
Treatment overtime?
The power turns o automatically
after 30 minutes
The adhesive surface
of Pad is dried
Pad dirty
Clean up the pad
ls the pad damaged?
Replace the pad
Replace the pad
www.SQUATZ.com
11
• Keep the machine far away from moisture, high temperature, direct sunlight or sprinkling water.
• Keep the device out of reach of infants, children or pets, inhalation or swallowing of small parts is
dangerous or even fatal.
2. After use, clean the conductive lm. You can use a soft cloth or towel wring dry, when the
conductive lm is particularly dirty, you can use a soft cloth with a little medical alcohol
(alcohol concentration of 75%) to wipe or disinfect.
Electrode Patches
1. Never overlap two electrode patches to each other.
2. Keep the electrode patches clean, and never put them under high temperature and direct sunshine.
3. Gently clean the electrode with a moist cloth or use a rubber to remove dust.
4. DO NOT clean the electrode patches with hot water or any chemical.
5. DO NOT use your gure to touch the gel of the Meridian patches, or it will reduce the gel and lose
its function.
6. DO NOT clean the electrode patches with any chemical.
7. Put the electrode patches on the pallet after each use.
Warning:
1. The eects of degraded sensors and electrodes, or loosened electrodes can degrade the performance
or cause other problems. When the stimulation from the pads feels weak, this may be an indicator
that the battery power is low.
2. It is necessary to clean and disinfect and sterilize the device, parts, and accessories for multiple
patients use between uses on dierent patients.
The device should be cleaned, dried, handled, and stored until re-use or transferred to
another patient.
3. Never operate the equipment while other personnel are cleaning, servicing or performing
maintenance.
Battery
The device has a rechargeable battery. It is suggested that the battery be charged regularly.
If you do not charge the battery for extended periods of time, it will shorten the service life of the
rechargeable battery. We recommend charging the batteries at least once every month.
Batteries should be stored and installed in a clean, cool and dry place, keeping water, oil, and dirt
away from the batteries.
www.SQUATZ.com
12
STORAGE
1. Keep the device out of reach of infants, children or pets, inhalation or swallowing of small parts is
dangerous or even fatal.
2. Keep away from magnetic elds and away from children.
3. Keep away from direct sunlight, moisture, high temperature, exposure, and water.
Keep it in a dry, ventilated place.
4. If the electrode patches are not sticky or dirty, please use a damp cloth to clean or change to a
new patch. Do not clean the patch with any chemicals.
5. In order to protect the electrode patches, after use, please put them on the pallet.
6. If the equipment is not likely to be used for some time, remove all the batteries to prevent the
leaking. Environment for storage:
• Temperature: -25°C - +70°C /-13°F - 158°F
• Humidity: up to 90%
• Atmospheric pressure range of 700 hPa to 1060 hPa
DISPOSAL
1. The device and accessories out of shelf life or use life should not be thrown randomly and should
be recycled by the manufacturer.
2. To dispose of packing materials, take appropriate actions in accordance with the rules and
regulations in force in your area to prevent adverse ecological eects.
3. The expected service life is two or three years according to the rechargeable battery, and the
electrode Patches can be reused for 70-100 times, depending on your skin type and other
conditions.
Warnings
• If you are in the care of a physician, consult with your physician before using this device.
• Do not apply stimulation over your neck because this could cause severe muscle spasms resulting
in closure of your airway, diculty in breathing, or adverse eects on heart rhythm or blood
pressure.
• Do not apply stimulation across your chest because the introduction of electrical current into the
chest may cause rhythm disturbances to your heart, which could be lethal.
• Do not apply stimulation over painful areas. If you have painful areas, you should consult with
your physician before using this device.
www.SQUATZ.com
13
• Stimulation should not be applied across or through the head, directly on the eyes, covering the
mouth, on the front of the neck, (especially the carotid sinus), or from electrodes placed on the
chest and the upper back or crossing over the heart. The application of electrodes near the thorax
may increase the risk of cardiac brillation.
• Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inamed
areas or skin eruptions (e.g., phlebitis, thrombophlebitis, varicose veins).
• Do not apply stimulation over, or in proximity to, cancerous lesions.
• Do not apply stimulation in the presence of electronic monitoring equipment (e.g., cardiac monitors,
ECG alarms), which may not operate properly when the electrical stimulation device is in use.
• Do not apply stimulation when in the bath or shower.
• Do not apply stimulation while sleeping.
• Do not apply stimulation while driving, operating machinery, or during any activity in which
electrical stimulation can put you at risk of injury.
• Do not use the device on children; it has not been evaluated for pediatric use.
• Consult with your physician before using this device, because the device may cause lethal rhythm
disturbances to the heart in susceptible individuals.
• Apply stimulation only to normal, intact, clean, healthy skin.
• Only use the electrode patches supplied by the manufacturer; other electrode patches may present
a risk of unsuitable electrical characteristics with your Low-frequency Multifunction physiotherapy
instrument.
• Do not use the Low-frequency Multifunction physiotherapy instrument on dierent people,
otherwise, skin reaction or cross contamination may occur.
• Always turn o the device before removing or repositioning the electrode patches.
• Wash skin thoroughly, and then dry it before applying the electrode patches.
• Apply the whole surface of the patch rmly to the skin. Do not use electrode patches that do not
stick properly to the skin or only partially stick to the skin.
• In case of skin redness under the electrode patches after stimulation, do not stimulate in the same
place if skin redness is still evident.
• There’s protential electromagnetic or other interference. Operation in close proximity (e.g. 1 m) to
a shortwave or microwave therapy, the device may produce instability in the stimulator output.
• Do not use the device by detached any accessories.
