• Page 1 - English - : 22 PRECAUTIONS 91477A876C PRECAUTIONS 22 General safety instructions 22 Installation 25 Appliance purpose 26 This user manual 26 Manufacturers liability 27 Identification plate 27 Disposal 27 Energy efficiency information 27 To save energy 27 Information on power consumption in offstandby mode 27 How to read the user manual 27 DESCRIPTION 28 General description 28 USE 29 Precautions 29 Using the hob 29 CLEANING AND MAINTENANCE 30 Cleaning the hob 30 Cleaning the surfaces 31 What to do if 31 INSTALLATION 31 Gas connection 31 Gas types and Countries 34 Burner and nozzle specifications tables 35 Electrical connection 36 Section cut from the countertop 36 Mounting 37 Fixing to the builtin cabinet 38 Instructions for the installer 38 These instructions apply only to the destination countries listed on the appliances data plate This is a class 3 builtin hob PRECAUTIONS General safety instructions Risk of personal injury CAUTION During use the appliance and its accessible parts become very hot Keep children well away from the appliance Protect hands with heat resistant gloves during use Never try to put out a fire or flames with water Turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may only be used by children aged 8 years and over and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it Children must not play with the appliance Keep children under the age of eight at a safe distance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Make sure that the flame spreader crowns are correctly positioned in their housings with
• Page 2 - English - : PRECAUTIONS 2391477A876C e their respective burner caps The cooking process must always be kept under control A short cooking process must be continuously monitored CAUTION Cooking foods containing fat andor oil without monitoring them can be dangerous and can cause a fire Fats and oils can catch fire if they overheat Do not leave the appliance unattended while preparing foods containing oils or fats If fats or oils catch fire never put water on them Place the lid on the saucepan and turn off the burner Do not place metal objects such as dishes or cutlery on the surface of the hob during cooking as they may overheat WARNING leaving food unattended when cooking using fat or oil can be dangerous and can cause a fire DO NOT attempt to extinguish a fire with water Turn off the appliance and smother the flames for example with a lid or a blanket Do not cook foods in closed tins or containers or plastic containers Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not use or store flammable materials near the appliance or directly underneath the hob Switch off the appliance immediately after use Do not pull the cable to unplug the appliance if present DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE DO NOT MODIFY THIS APPLIANCE Always wear personal protective equipment PPE before carrying out any work on the appliance installation maintenance positioning or moving Do not clean the appliance if it is still hot or in operation Before performing any work on the appliance switch off the power supply Do not try to repair the appliance yourself or without the assistance of a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards CAUTION A gas cooking appliance produces heat humidity and combustion products in the room where it is installed Make sure there is good ventilation especially when the appliance is in use keep the natural ventilation
• Page 3 - English - : 24 PRECAUTIONS 91477A876C openings open or install a mechanical ventilation device Intensive and prolonged use of the appliance may require additional ventilation for example opening a window or more effective ventilation for example by increasing the power of any mechanical suction devices This appliance is not designed to be installed or operated with aftermarket lids or covers Risk of damaging the appliance Do not sit on the appliance Do not use the appliance as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not use the hob if the pyrolytic cycle is taking place inside any oven installed below Do not use steam jets to clean the appliance Never leave the appliance unattended during cooking operations where fats or oils could be released as these could then heat up and catch fire Be very careful Fire hazard Never leave objects on the cooking surfaces DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER Cooking vessels or griddle plates should be placed inside the perimeter of the hob All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt or catch fire paper plastic or aluminium foil on the appliance while it is in use Place the cookware directly onto the grids above the burners Do not put empty pans or frying pans on burners that are lit Do not use rough or abrasive materials or sharp metal scrapers Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Do not wash removable parts such as the hob pan support grids flamespreader crowns and burner caps in the dishwasher This appliance is not designed
• Page 4 - English - : PRECAUTIONS 2591477A876C e to operate with external timers or with remotecontrol systems To avoid damaging the racks do not drag the pans lift and reposition them instead Installation THIS APPLIANCE MUST NOT BE INSTALLED IN BOATS OR CARAVANS This appliance must not be installed on a dishwasher Position the appliance into the cabinet cutout with the help of a second person Before installation make sure that the local distribution conditions type and pressure of the gas and the regulation of the appliance are compatible This appliance is not connected to a system for extracting combustion products It should be installed and connected in compliance with current installation regulations Pay particular attention to the requirements regarding ventilation The settings for this appliance are shown on the gas settings label Have the gas connection performed by authorised personnel Have the electrical connection performed by authorised technical personnel Installation using a hose must be carried out so that the length of the hose does not exceed 2 metres when fully extended for steel hoses and 15 metres for rubber hoses The gas connection hoses must not come into contact with moving parts of the builtin module for example a drawer and must not be routed through a space that could cause it to be pinched If required use a pressure regulator that complies with current regulations After carrying out any operation check that the tightening torque of gas connections is between 10 Nm and 15 Nm At the end of the installation check for any leaks with a soapy solution never with a flame Check that the carcase has the required openings Check that the carcase material is heat resistant Installation and servicing should be carried out by qualified personnel in accordance with current standards The appliance must be connected to earth in compliance with electrical system safety standards Use cables that can withstand temperatures of at least 90C Run the power cable in the rear
• Page 5 - English - : 26 PRECAUTIONS 91477A876C part of the unit Make sure that it does not come into contact with the lower part of the hob or a builtin oven below it Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones The tightening torque of the screws of the terminal supply wires must be 15 2 Nm The power cable must only be installed or replaced by a qualified technician If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Before performing any work on the appliance switch off the power supply Allow the appliance to be disconnected after installation via an accessible plug or a switch in the case of a fixed connection Fit the power line with an all pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations You should make sure that the appliance is working correctly rotation of knobs positioning of the pan supports etc only once it has been installed and secured to the unit This appliance can be used up to a maximum altitude of 2000 metres above sea level Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered inappropriate It cannot be used in employee kitchens shops offices and other working environments in farmsfarmhouses by guests in hotels motels and residential environments In bed and breakfast accommodation This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance The explanations in this manual include images which describe all that regularly appears on the display However it should be kept in mind that the appliance may be equipped with an updated version of the system and as such all that appears on the display may differ from those in the manual
• Page 6 - English - : PRECAUTIONS 2791477A876C e Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by use of the appliance other than that specified failure to comply with the instructions in the user manual tampering with any part of the appliance use of nonoriginal spare parts Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason Disposal This appliance conforms to the WEEE European directive 201219EU and must be disposed of separately from other waste at the end of its service life The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance with current European directives To dispose of the appliance Cut the power cable and remove it Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Our appliances are packaged in nonpolluting and recyclable materials Deliver the packing materials to the appropriate recycling centre Energy efficiency information The information according to the European ecodesign directive can be found in a separate document together with the product instructions This information can be found in the quotProduct information sheetquot that can be downloaded from the page for the specific product on the website To save energy The diameter of the base of the pan must not extend beyond the lines printed on the glass ceramic surface Pans must not be placed outside the perimeter of the hob or on the display When buying a pan check whether the diameter indicated is that of the base or the top of the pan as the top is almost always larger than the base When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also helps to retain vitamins contained in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Information on power consumption in offstandby mode Technical data on the appliances power consumption in offstandby mode can be found at wwwsmegcom under the page corresponding to the product in question How to read the user manual This user manual uses the following reading conventions Power voltage Danger of electrocution Disconnect the mains power supply Unplug the appliance Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Under certain circumstances if the hob and the oven are used at the same time the maximum power limit of the electrical system might be exceeded WarningCaution

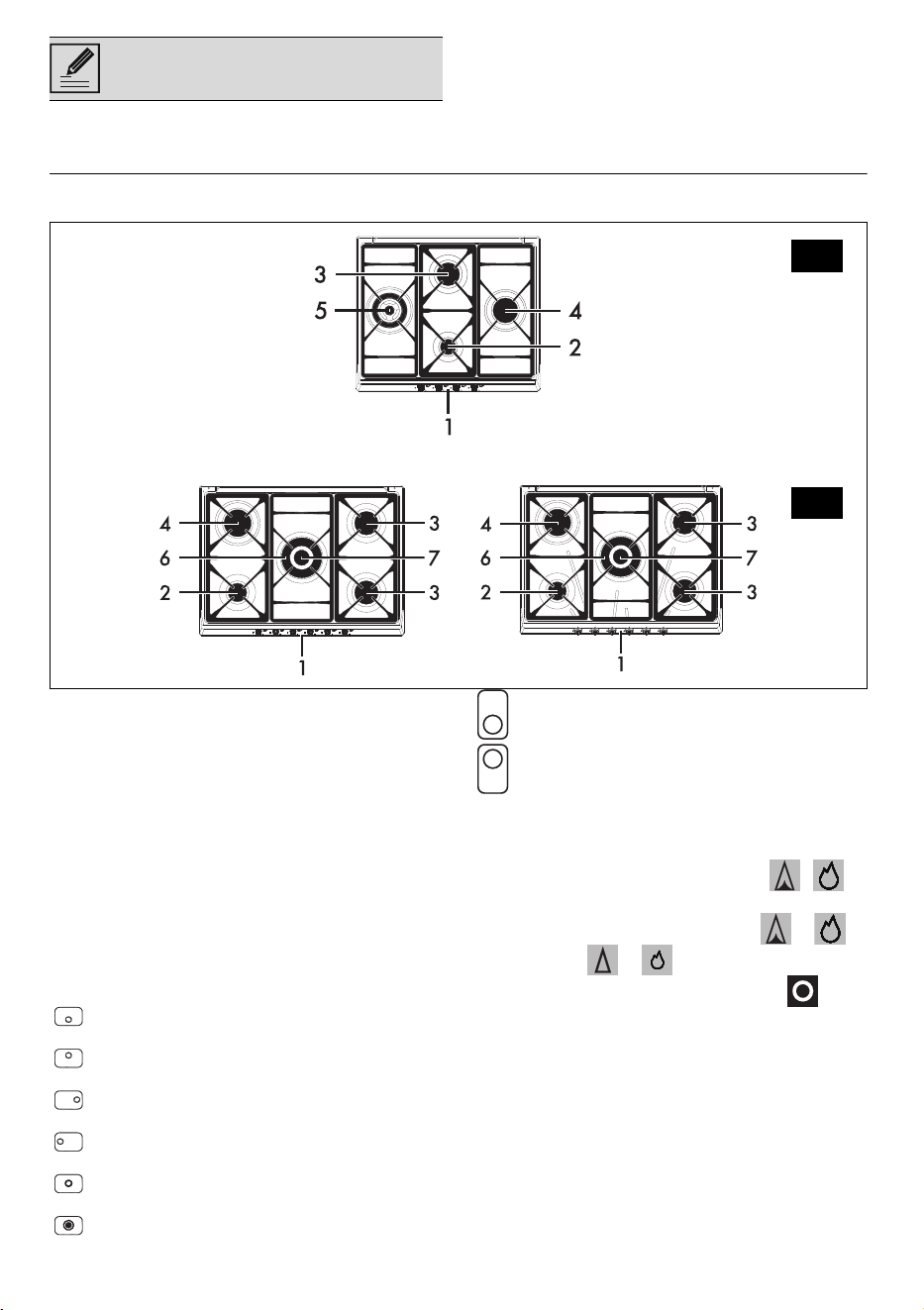

• Page 7 - English - : 28 DESCRIPTION 91477A876C DESCRIPTION General description 1 Control panel 2 Auxiliary burner AUX 3 Semirapid burner SR 4 Rapid burner reduced RR 5 Ultrarapid burner UR3 6 Ultrarapid burner with external crown UR2 ext 7 Ultrarapid burner with internal crown UR2 int Front cooking zone Rear cooking zone Right centre cooking zone Left centre cooking zone External centre zone Internal centre zone Front cooking zone Rear cooking zone Burner knobs For lighting and adjusting the hob burners Press and turn the knobs anticlockwise to in order to light the relevant burners Turn the knobs to the zone between the maximum and minimum setting to adjust the flame Return the knobs to the position to turn off the burners InformationAdvice
• Page 8 - English - : USE 2991477A876C e USE Precautions A gas leak can cause an explosion If you smell gas or there are faults in the gas system Immediately turn off the gas supply or close the valve on the gas cylinder Extinguish all naked flames and cigarettes Do not turn on power switches or appliances and do not remove plugs from power sockets Do not use phones or mobile phones inside the building Open the window in order to ventilate the room Call customer assistance services or your gas supplier Malfunctions Any of the following indicate a malfunction and you should contact a service centre The burners do not ignite properly It is difficult to keep the burners lit The burners go out when the appliance is in use It is difficult to turn the gas cocks Practical tips for using the hob For better burner efficiency to minimise gas consumption and to prevent damage to the hob use pans with lids and of suitable size for the burner so that the flames do not reach up the sides of the pan Once the contents come to the boil turn down the flame far enough to ensure that the liquid does not boil over Use of containers When cooking to avoid burns damage to the hob or top all containers or steak pans must be positioned within the perimeter of the hob Using the hob All the appliances control and monitoring devices are located together on the front panel The burner controlled by each knob is shown next to the knob The appliance is equipped with an electronic ignition device Simply press the knob and turn it anticlockwise to the maximum flame symbol until the burner ignites If the burner does not light in the first 15 seconds turn the knob to and wait 60 seconds before trying again After lighting keep the knob pressed in for a few seconds to allow the thermocouple to heat up The burner may go out when the knob is released In this case the thermocouple has not heated up sufficiently Wait a few moments and repeat the operation Keep the knob pressed in longer See General safety instructions Burner Pan diameter AUX 12 14 cm SR 16 20 cm RR 22 26 cm UR3 22 26 cm UR2 in t UR2ext 22 26 cm At the end of each use always check that the knobs are in position off In case of an accidental switching off a safety device will be tripped cutting off the gas supply even if the gas cock is open Return the knob to and wait at least 60 seconds before lighting it again

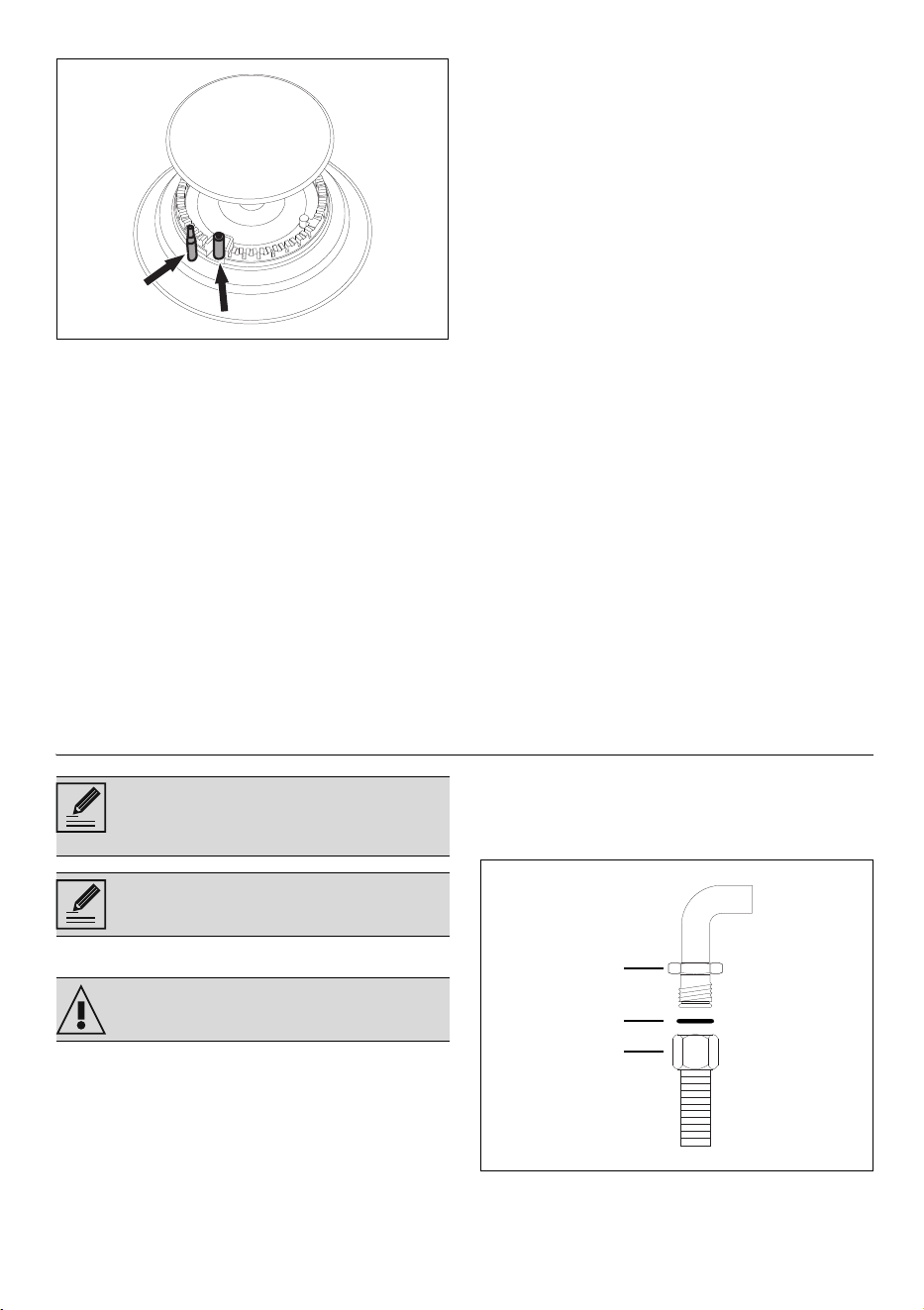

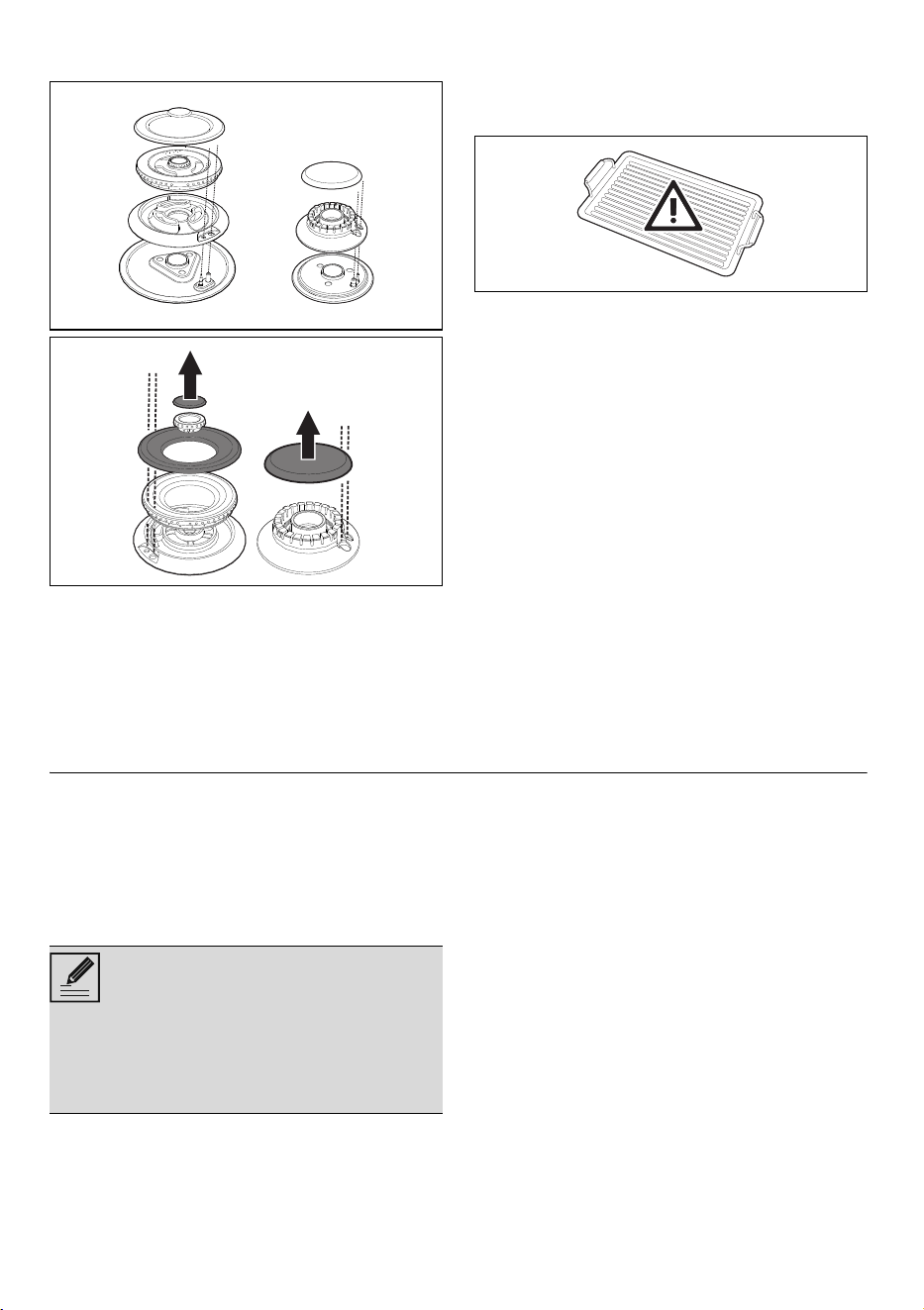

• Page 9 - English - : 30 CLEANING AND MAINTENANCE 91477A876C Correct positioning of the flamespreader crowns and burner caps Before lighting the hob burners make sure that the flamespreader crowns are correctly positioned in their housings with their respective burner caps Make sure that the holes in the burners are aligned with the igniters and thermocouples Also ensure that the flame spreader crowns are correctly engaged in the burner holes Precautions when using the griddle A few precautions are necessary if you wish to use a griddle The griddle must not extend beyond the edge of the hob Do not place the griddle over more than one burner at the same time The griddle can be preheated on the burner at maximum power for no more than 10 minutes Make sure that the burner flame does not extend beyond the edge of the griddle Keep a distance of at least 160 mm between the griddle and the side andor rear wall especially if it is placed on an UltraRapid burner Never use the griddle for more than 40 minutes CLEANING AND MAINTENANCE Cleaning the hob Cooking hob pan support grids Remove the pan support grids and clean them in lukewarm water and nonabrasive detergent Make sure to remove any encrustations Dry them thoroughly and return them to the hob Flamespreader crown and burner caps For easier cleaning the flamespreader crowns and the burner caps can be removed Wash them in hot water and nonabrasive detergent Carefully remove any encrustation then wait until they are perfectly dry Replace the flame spreader crowns making sure that they are correctly positioned in their housings with their respective burner caps Igniters and thermocouples For correct operation the igniters and thermocouples must always be perfectly clean Check them frequently and clean them with a damp cloth if necessary Remove any dry The continuous contact between the pan supports and the flame can cause modifications to the enamel over time in those parts exposed to heat This is a completely natural phenomenon which has no effect on the operation of this component
• Page 10 - English - : INSTALLATION 3191477A876C e residues with a wooden toothpick or a needle Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first Ordinary daily cleaning Always and only use specific products that do not contain abrasives or chlorinebased acids Pour the product onto a damp cloth and wipe the surface rinse thoroughly and dry with a soft cloth or a microfibre cloth Food stains or residues Do not use steel sponges and sharp scrapers as they will damage the surface Use normal non abrasive products and a wooden or plastic tool if necessary Rinse thoroughly and dry with a soft cloth or a microfibre cloth What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker The cooking results are unsatisfactory Make sure that the hob is properly ventilated and that the air inlets are unobstructed The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician INSTALLATION Gas connection Connection to the gas mains can be made using a continuous wall steel hose in compliance with the guidelines established by the standards in force To use other types of gas see the chapter Adaptation to different types of gas The appliances gas connector has a ½ external thread ISO 2281 Connection with a steel hose Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard Carefully screw the connector 3 to the gas connector 1 of the appliance placing the seal 2 between them The appliance must be installed by a qualified technician and according to the regulations in force Appliance factory set for natural gas G20 at a pressure of 20 mbar See General safety instructions

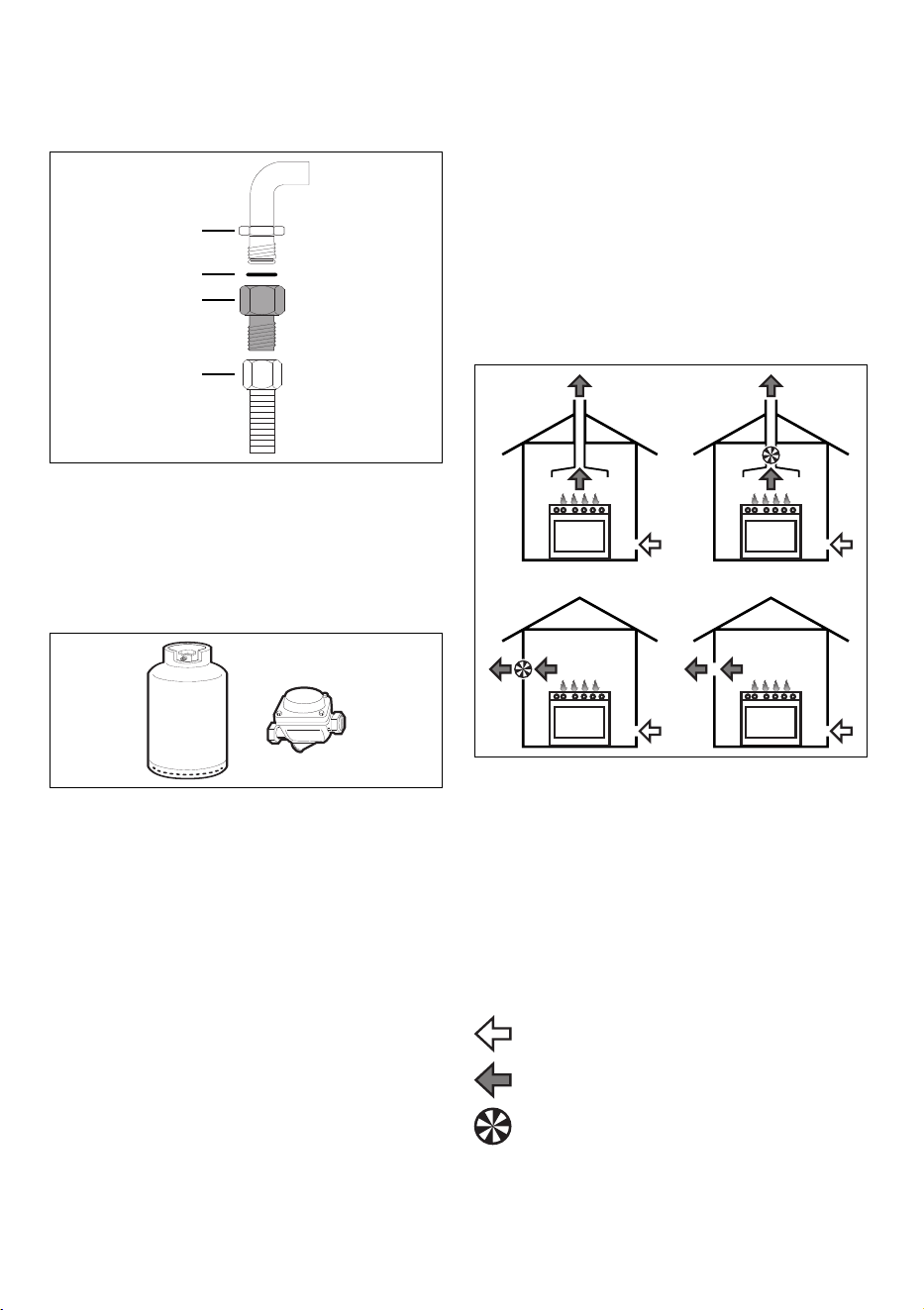

• Page 11 - English - : 32 INSTALLATION 91477A876C Connection with a steel hose with conical fitting Make the connection to the gas mains using a continuous wall steel hose whose specifications comply with the applicable standard Carefully screw the hose connector 3 to the appliances gas connector 1 ½ thread ISO 2281 placing the seal 2 provided between them Apply insulating material to the thread of connector 3 and then screw the steel hose 4 onto the connector 3 Connection to LPG Use a pressure regulator and make the connection on the gas cylinder following the guidelines set out in the standards in force The supply pressure must comply with the values indicated in the Burner and nozzle characteristics table Room ventilation The appliance should be installed in rooms that have a permanent air supply in accordance with the standards in force The room where the appliance is installed must have enough air flow for the regular combustion of gas and the necessary air change in the room itself The air vents protected by grilles must be the right size to comply with current regulations and positioned so that no part of them is obstructed not even partially The room must be kept adequately ventilated in order to eliminate the heat and humidity produced by cooking In particular after prolonged use you are recommended to open a window or to increase the speed of any fans Extraction of the combustion products The combustion products may be extracted by means of hoods connected to a natural draught chimney whose efficiency is certain or via forced extraction An efficient extraction system requires precision planning by a specialist qualified in this area and must comply with the positions and clearances indicated by the applicable standards When the job is complete the installer must issue a certificate of conformity Adaptation to different types of gas If other types of gas are to be used the nozzles must be replaced and the primary air must be 1 Extraction using a hood 2 Extraction without a hood A Extraction with a single natural draught chimney B Extraction with a single chimney with extractor fan C Extraction directly outdoors with wall or windowmounted extractor fan D Extraction directly outdoors through wall Air Combustion products Extractor fan 1A1A 1B1B 2C2C 2D2D

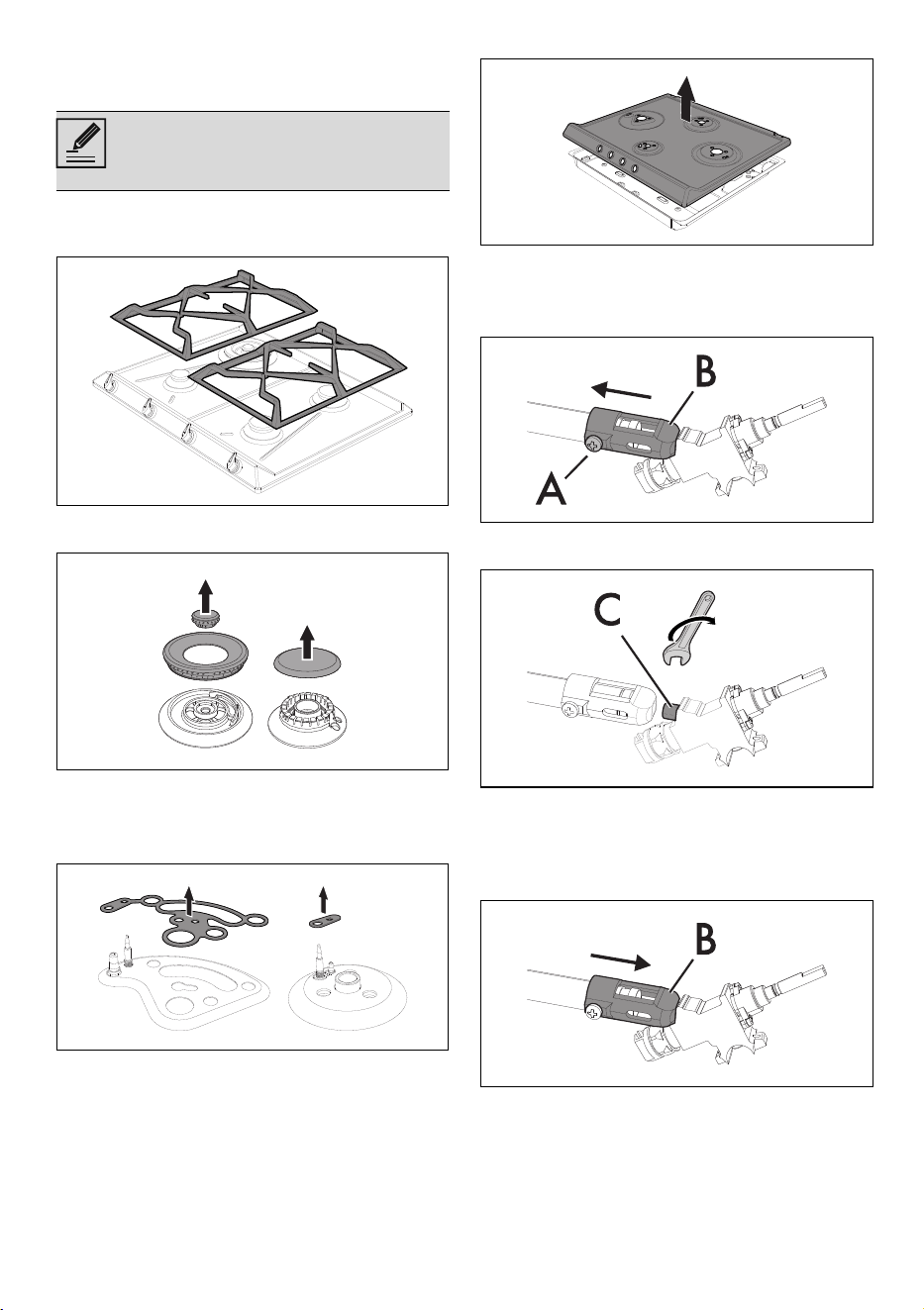

• Page 12 - English - : INSTALLATION 3391477A876C e adjusted The top of the hob has to be removed in order to replace the nozzles and adjust the burners Removing the hob top 1 Remove the grids from the hob top 2 Remove the flamespreader crowns and relative burner caps 3 Remove the knobs lifting them from their housing 4 Remove the seals from the igniters and thermocouples of each burner 5 Lift the hob top and remove it 6 To reassemble the appliance follow the previous instructions in reverse order Replacing the nozzlesair regulation 7 Unscrew screw quotAquot and push air regulator quotBquot as far as it will go 8 Use a spanner to remove the nozzles quotCquot and install the new ones for the required gas supply following the indications given in the relevant table see quotGas types and countriesquot In order to be able to replace the nozzles the appliance must be removed from the builtin unit

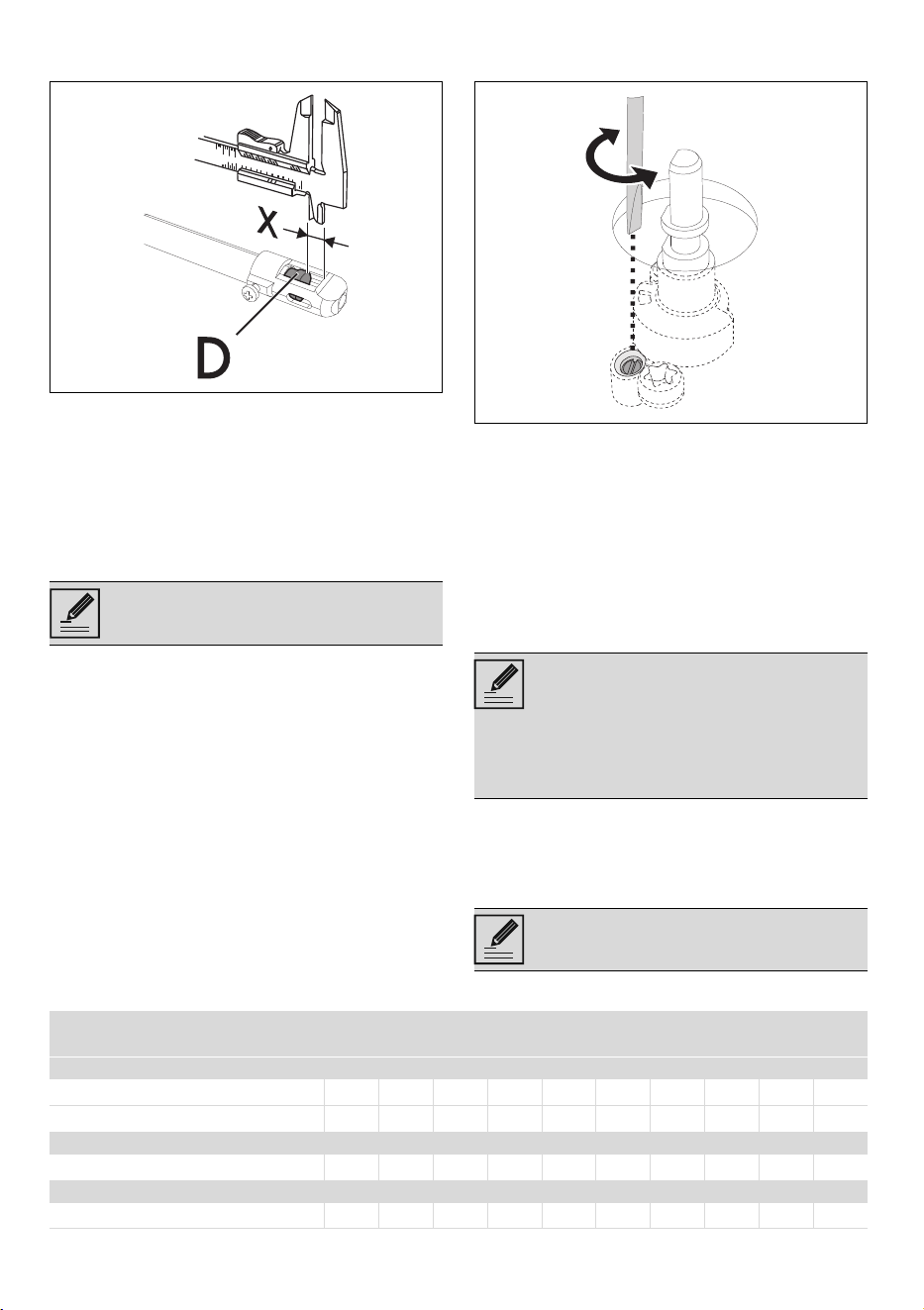

• Page 13 - English - : 34 INSTALLATION 91477A876C 9 Reposition support quotBquot so that nozzle quotCquot is covered completely 10Move the Venturi tube quotDquot to adjust the air flow until distance quotXquot is reached as indicated in the paragraph see Table quotBurner and nozzle characteristicsquot quotPrimary air adjustment mmquot and then secure the tube by means of screw quotAquot 11After adjusting each burner reassemble the appliance correctly Adjusting the minimum setting for natural or town gas 1 Light the burner and turn it to the minimum position 2 Remove the gas tap knob and turn the adjustment screw next to the gas cock spindle depending on the model until the correct minimum flame is achieved 3 Refit the knob and verify that the burner flame is stable 4 Turn the knob rapidly from the maximum to the minimum setting The flame should not go out 5 Repeat the operation on all the gas taps Adjusting the minimum setting for LPG Tighten the screw located at the side of the cock spindle clockwise all the way Lubricating the gas cocks Over time the gas cocks may become difficult to turn and get blocked Clean them internally and replace the lubrication grease Gas types and Countries The nozzle tightening torque must be no more than 3 Nm Following adjustment to a gas other than the one originally set in the factory replace the gas setting label on the appliance with the one corresponding to the new gas The label is inserted inside the nozzle pack where present Lubrication of the gas cocks should be performed by a specialised technician Gas types IT GB IE FR BE ES PT RU SE DK FI NO PL HU 1 Natural Gas G20 G20 20 mbar G2025 2025 mbar 2 Natural Gas G20 G20 25 mbar 3 Natural Gas G251 G251 25 mbar
• Page 14 - English - : INSTALLATION 3591477A876C e It is possible to identify the available gas types based on the country the appliance is to be installed in Refer to the heading number to identify the correct values in the Burner and nozzle characteristics tablesquot Burner and nozzle specifications tables 4 Natural Gas G2350 G2350 13 mbar 5 LPG G3031 G3031 283037 mbar G3031 3030 mbar 6 LPG G3031 G3031 37 mbar 7 Town Gas G110 G110 8 mbar 1 Natural Gas G20 20 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 180 260 110 390 390 Nozzle diameter 1100 mm 73 92 115 73 140 140 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 15 15 1 2 3 15 2 Natural Gas G20 25 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 180 260 110 390 39 Nozzle diameter 1100 mm 73 87 110 73 132 132 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 1 1 1 3 4 15 3 Natural Gas G251 25 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 100 180 260 110 390 390 Nozzle diameter 1100 mm 76 98 123 76 150 150 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 1 1 05 15 3 15 4 Natural Gas G2350 13 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 180 260 110 390 390 Nozzle diameter 1100 mm 100 126 160 100 200 200 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 1 1 1 2 2 3 5 LPG G3031 3037 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 18 26 10 350 390 Nozzle diameter 1100 mm 48 62 76 48 87 95 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 15 15 15 4 10 4 Rated flow rate G30 gh 80 131 189 73 255 284 Rated flow rate G31 gh 79 129 186 71 250 279 6 LPG G3031 37 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 180 260 110 370 390 Nozzle diameter 1100 mm 48 60 73 48 85 89 Reduced flow rate W 450 500 800 400 1400 1600 Primary air mm 15 15 15 4 10 4 Rated flow rate G30 gh 80 131 189 80 269 284 Rated flow rate G31 gh 79 129 186 79 264 276 Gas types IT GB IE FR BE ES PT RU SE DK FI NO PL HU
• Page 15 - English - : 36 INSTALLATION 91477A876C The nozzles not provided are available at Authorised Service Centres Electrical connection General information Check the mains characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires The appliance can work in the following modes 220240 V 1N Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Connection with plug and socket Make sure that the plug and socket are of the same type Avoid using adapters gang sockets or shunts as these could cause overheating and a risk of burns Section cut from the countertop Safety instructions for positioning and installation Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time If the piece of furniture does not have the required recess opening either it will have to be cut or masonry work carried out by a competent technician The minimum clearance between exhaust hoods and the cooking surface must be at least the distance indicated in the exhaust hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the assembly instructions If the appliance is to be installed above an oven the oven must be fitted with a cooling fan 7 Town gas G110 8 mbar AUX SR RR UR2 int ext UR3 Rated heating capacity kW 110 180 260 110 370 370 Nozzle diameter 1100 mm 132 165 210 132 290 290 Reduced flow rate W 400 500 750 400 1200 1400 Primary air mm 05 1 05 1 3 15 See General safety instructions The values indicated refer to the cross section of the internal conductor The aforementioned power cables are sized taking into account the coincidence factor in compliance with standard EN 6033526 See General safety instructions

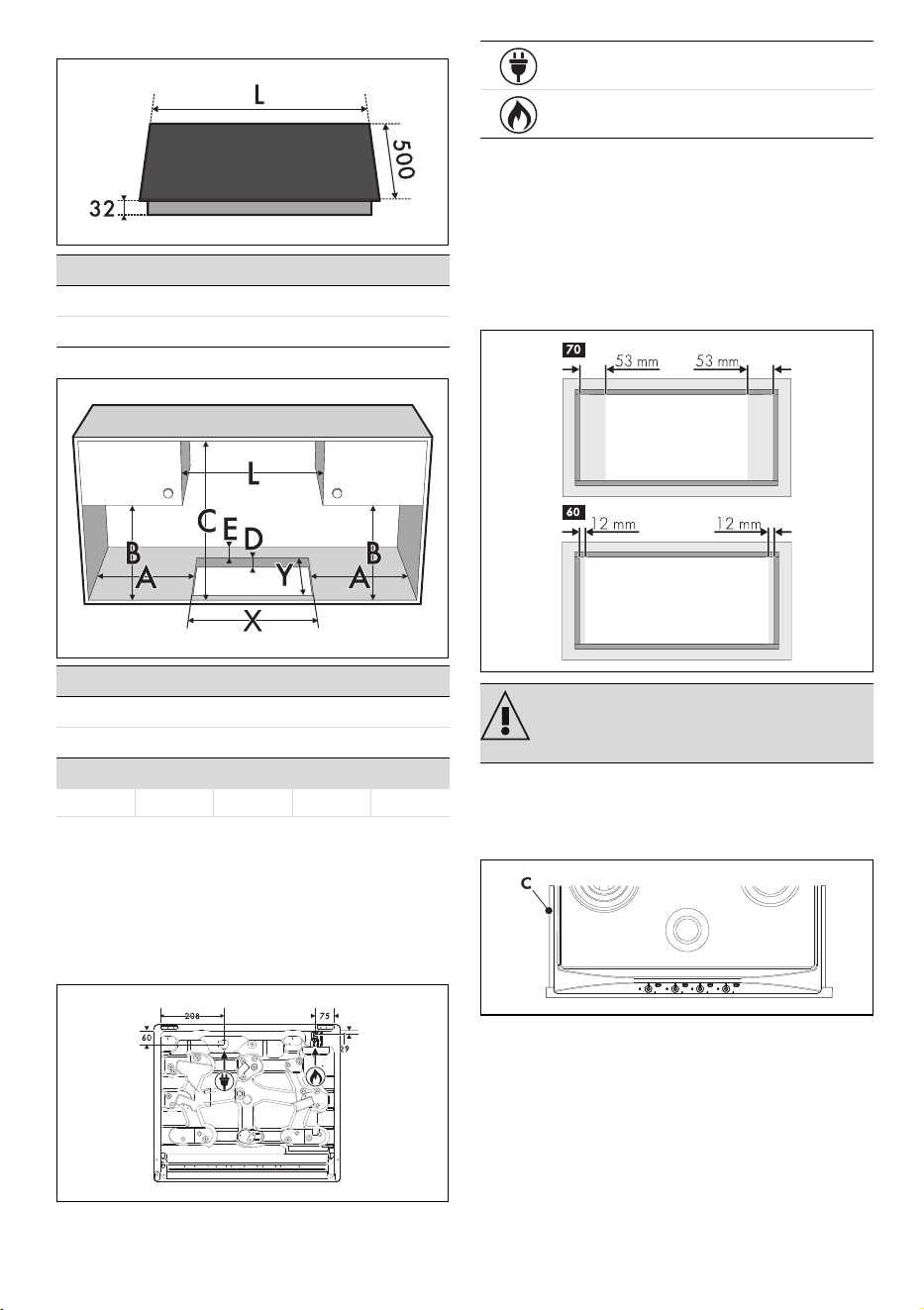

• Page 16 - English - : INSTALLATION 3791477A876C e Appliance overall dimensions mm Builtin cabinet dimensions mm If there is a piece of furniture above the hob In the case of a hood refer to to the dimensions indicated in the relevant manual 70 cm models with central UR Connection dimensions mm Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the adhesive seal provided along the entire outer edge of the hob before assembly 1 Refer to the dimensions in the figure bearing in mind that the front and rear sides of the seal must brush against the hole 2 Use light pressure to make the seal stick to the edge around the hole cut in the worktop 3 Carefully trim the surplus away from edge C beyond the seal Mounting Over builtin oven unit The clearance between the hob and the kitchen units or other builtin appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of L 60 cm models 600 70 cm models 700 Mod mm X mm Y mm 600 555 560 478482 700 555 560 478482 A mm B mm C mm D mm E mm min 150 min 460 min 750 2040 min 50 Electrical connection Gas connection Do not use silicone to secure the hob This would make it impossible to remove the hob without damaging it

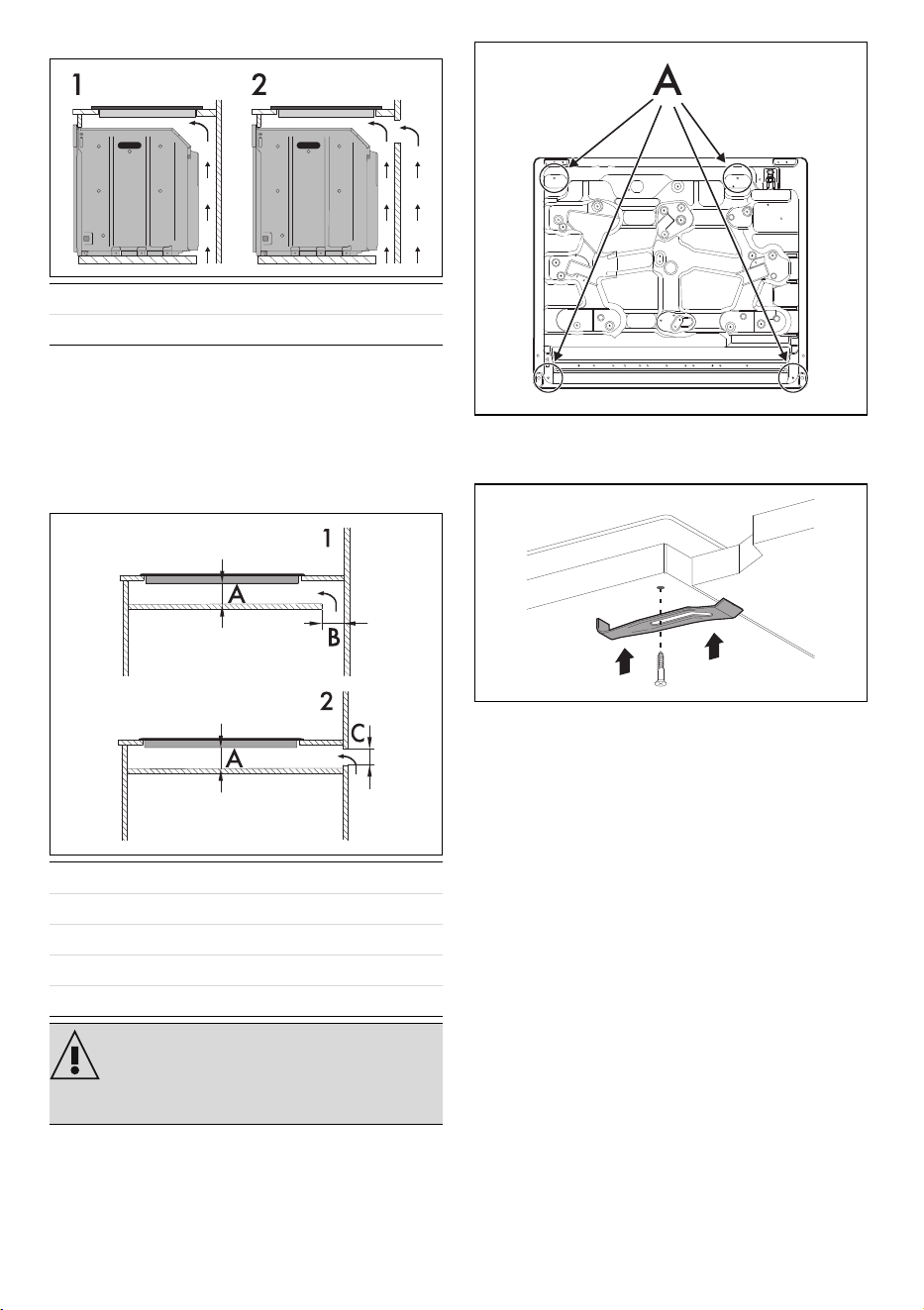

• Page 17 - English - : 38 INSTALLATION 91477A876C the appliance installed below On neutral compartment If there are other pieces of furniture under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer base using suitable equipment Fixing to the builtin cabinet In order to ensure fixing to the builtin cabinet and optimum centring the supplied fixing brackets must be screwed into the holes in the bottom casing Screw the fixing brackets into the dedicated holes to properly fasten the hob to the builtin structure Instructions for the installer If you use a plug to connect to the power supply the plug must be accessible after installation Do not bend or trap the power cable The appliance must be installed according to the installation diagrams Do not try to unscrew or force the threaded elbow of the fitting You may damage this part of the appliance which may void the manufacturers warranty Use soap and water to check for gas leaks on all connections DO NOT use naked flames to search for leaks Turn on all the burners separately and at then all together to make sure that the gas valve burner and ignition are working properly Turn the burner knobs to the minimum position and check that the flame is stable for each individual burner and all the burners together If the appliance does not work correctly 1 Opens on bottom 2 Opens on bottom and back 1 Opens on bottom 2 Opens on rear A min 10 mm max 50 mm B max 50 mm C max 50 mm Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts
• Page 18 - English - : INSTALLATION 3991477A876C e after having carried out all the checks contact your local Authorised Service Centre Once the appliance has been installed please explain to the user how to use it correctly
