DISHWASHER SAFETY
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
CAUTION
WARNINGWARNING
WARNING
This symbol indicates the possibility of dangerous voltage
constituting a risk of electrical shock is present that could
result in death or serious injury.
This symbol indicates the possibility of injury or damage to
property.
This symbol indicates the possibility of death or serious
injury.
4
WARNING/GROUNDING INS
TRUCTIONS
Improper connection of the equipment-gr
ounding conductor can result
in a risk of electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly
grounded. Do not modify the plug if provided with the appliance. If the
plug will not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing
a path of least resistance for electric current. If this appliance is equipped
with a cord having an equipment-grounding conductor and a grounding
plug, the plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the
circuit conductors and connected to the equipment-grounding terminal or
lead on the appliance.
IMPORTANT S
AFETY INSTRUCTIONS
WARNING
When using your dishw
asher, follow basic precautions, including the
following:
•
Read all instructions bef
ore using the dishwasher.
•
Use the dishwasher only f
or its intended function.
•
Use only detergents or rinse/
wetting agents recommended for use in
a dishwasher and keep them out of the reach of children.
•
When loading items to be w
ashed:
•
Locat
e sharp items so that they are not likely to damage the door
seal.
•
Load sharp knives with the handles up t
o reduce the risk of cut-
type injuries.
•
Do not wash plastic it
ems unless they are marked “Dishwasher
Safe” or the equivalent. For plastic items not so marked, check the
manufacturer’s recommendations.
•
Items that ar
e not dishwasher safe may melt and create a potential
fire hazard.
•
Do not touch the heating element during or immedia
tely after use.
•
Do not operat
e your dishwasher unless all enclosure panels are
properly in place.
5
•
Do not tamper with controls.
•
Do not abuse, sit on, or stand on the dish
washer door, or dish racks.
•
To reduc
e the risk of injury, do not allow children to play in or on a
dishwasher.
•
Under certain conditions, h
ydrogen gas may be produced in a
hot-water system that has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on
all hot-water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
•
Sever
e product damage and/or injury could result from the use of
unqualified service technicians or non-original replacement parts.
All repairs must be performed by a qualified service technician using
only original equipment factory replacement parts.
•
Do not stor
e or use combustible materials, gasoline or other
flammable vapors and liquids in the vicinity of this or any other
appliance.
•
Keep young childr
en and infants away from dishwasher when it is
operating.
•
Do not use the dishwasher if it has a damaged po
wer line or plug,
and do not plug the dishwasher into a damaged outlet. Failure to
observe these instructions may result in electrical shock.
•
This manual does not co
ver every possible condition or situation that
may occur.
•
Remov
e the door to the washing compartment when removing an
old dishwasher from service or discarding it.
SAVE THESE INS
TRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
W
ARNING
Tip Over Hazar
d
•
Do not use dishwasher until c
ompletely installed.
•
Do not push down on open door.
•
Doing so can result in serious injury or cuts.
6
ea
tures
e
Stat
e of California Proposition 65 Warnings:
WARNING: Canc
er and Reproductive Harm
-www.P65Warnings.ca.gov.
W
ARNING
Suffocation Hazar
d
•
Before y
ou throw away your old appliance, remove the door or lid so
that children cannot hide or get trapped inside your old appliance.
•
Failure t
o follow these instructions can result in death or brain
damage.
CAUTION
•
Never use harsh chemicals t
o clean your dishwasher. Some chloride-
containing products can damage your dishwasher and may present
health hazards!
•
Never use s
team cleaning products to clean your dishwasher. The
manufacturer will not be responsible for the possible damages or
consequences.
•
To av
oid possible dishwasher damage, do not use harsh chemicals,
abrasive cleaners, scouring pads (metal or plastic), or abrasive
cloths/paper towels to clean your dishwasher’s exterior door panel.
Your dishwasher’s exterior door panel can be damaged by doing so.
•
It is highly recommended tha
t the user become familiar with the
procedure to shut off the incoming water supply and the procedure
to shut off the incoming power supply. See the Installation
Instructions or contact your installer for more information.
•
If the dishwasher dr
ains into a food disposer, make sure disposer is
completely empty before running dishwasher.
•
NSF/ANSI 184 C
ertified residential dishwashers are not intended for
licensed food establishments.
•
Protect y
our dishwasher from the elements. Protect against freezing
to avoid possible damage to the fill valve. Damage caused by
freezing is not covered by the warranty.
•
Not for outdoor use
.
7
Parts and
Dishwasher
Dishwasher Dishwasher
OPERATING REQUIREMENTS
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
•
Electrically ground dishw
asher.
•
Connect ground wir
e to green ground connector in terminal box.
•
Do not use an extension c
ord.
•
Failure t
o follow these instructions can result in death, fire, or
electrical
shock.
This dishw
asher is designed for operation on an adequately wired
individual 120 V, 60 Hz, 15- or 20-amp fused electrical supply with copper
wire only. It is recommended that a time-delay fuse or circuit breaker is
used, and that a separate circuit serving only this appliance is provided. If
an outlet is used, the outlet should be placed in adjacent cabinet.
LOCATION REQUIREMENT
S
•
Install where dish
washer is protected from the elements. Protect
against freezing to avoid possible rupture of fill valve. Such ruptures
are not covered by the warranty. For winter storage information, see
“Storing” in the “Dishwasher Care” section.
•
Install and lev
el dishwasher on a floor that will hold the weight and in
an area suitable for its size and use.
WATER SUPPL
Y REQUIREMENTS
•
The water supply temperature should be 120°F to 150°F (49°C to
66°C).
•
The water supply must maintain water pressure between 20 and 80 psi
for sufficient flow.
8

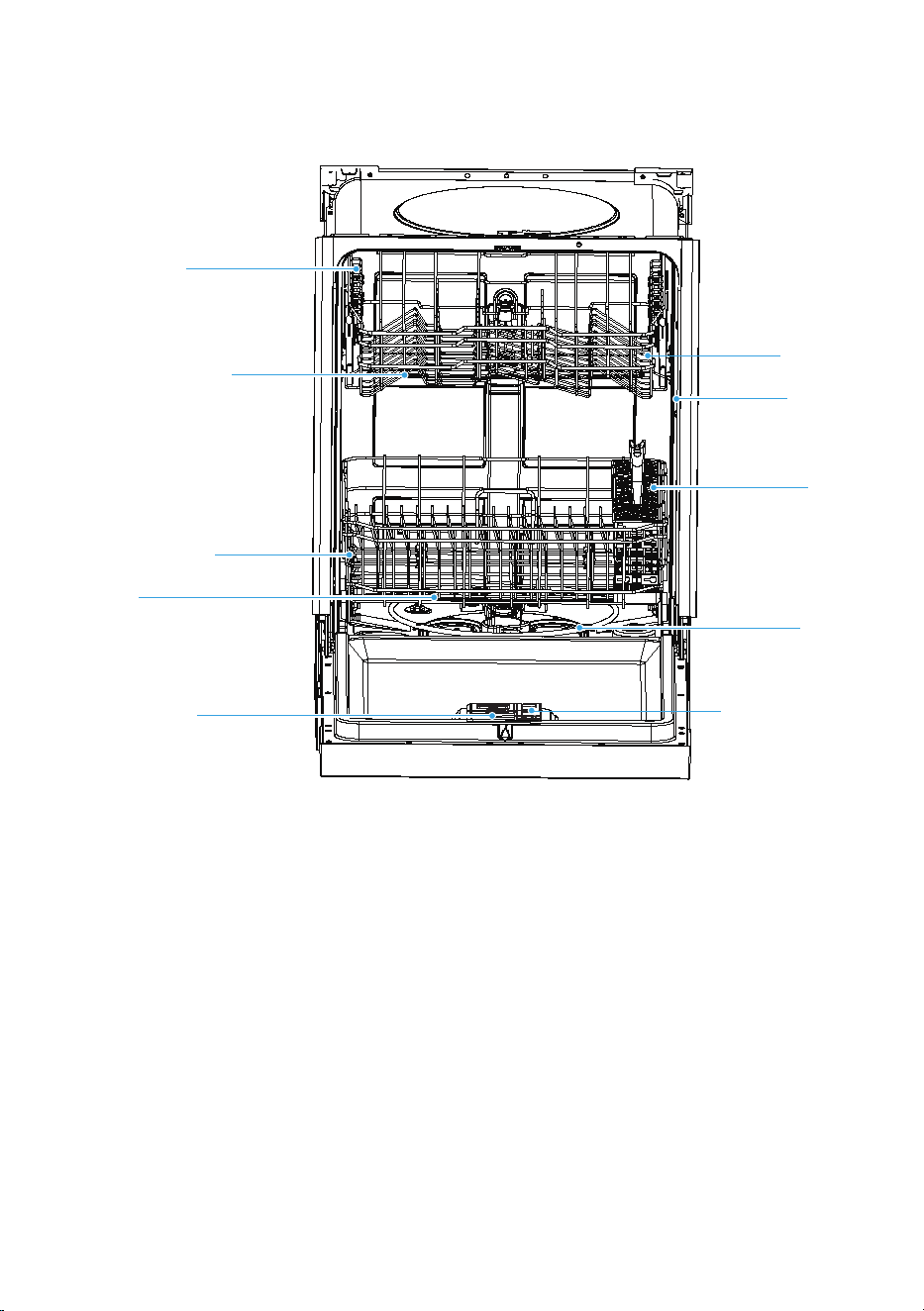

PARTS AND FEATURES
a
b
Cup Shelf
c
Middle Spray Arm
d
Lower Spray Arm
e
Rinse Aid Dispenser
f
Detergent Dispenser
g
h
Upper Rack
i
Tub Gasket
j
Silverware Basket
Lower Rack
Heating Element
f
h
a
b
c
d
i
g
e
j
a
9
SPECIFICATIONS
Capacity:
12 Place Settings
Dimensions (WxDxH):
Weight Unpacked: 81.35 lb (36.9kg)
Power Supply: 120 volts, 60 Hz
Rated Power Usage: Wash motor 50 W Heater 840 W
Water Feed Pressure: 20 - 80 psi (138 - 552 kPA)

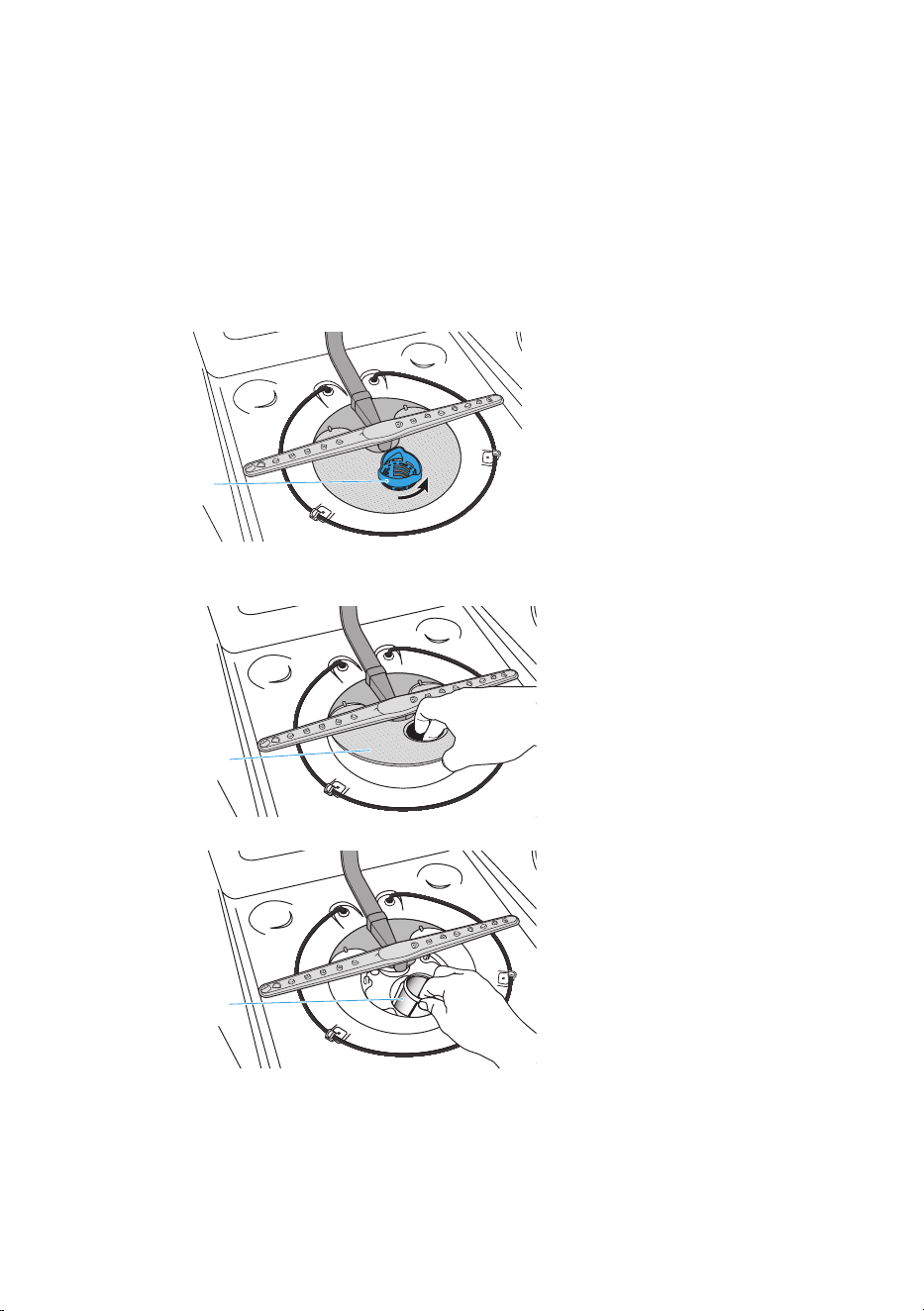

FILTER SYSTEM
Your dishwasher has a multiple filter system, which helps your dishwasher
perform better using less water and less energy
.
The filter system includes three filters that work in combination to
separate dirty and clean water into different chambers.

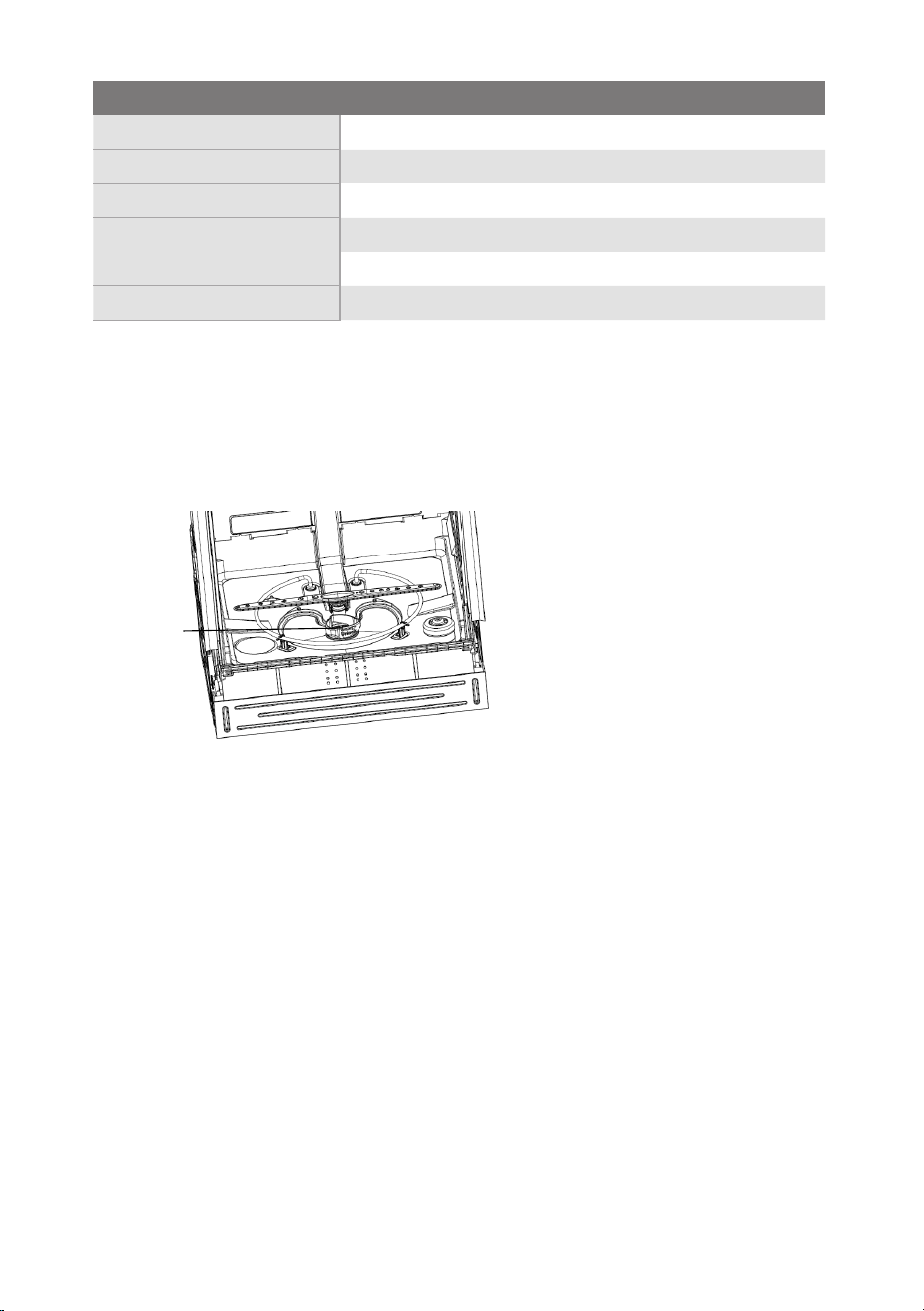

a Filter Location
SMART WASH SYSTEM
Your dishwasher has a Smart Wash system which can be used by selecting
the Auto cycle.
The Smart Wash system senses the soil level of the load and adjusts the
wash cycle accordingly. Your dishwasher can determine the type of cycle
required to clean the dishes and will clean more efficiently every time.
a
23 3/5" x 22 7/10" x 33 3/4" (600x576x855mm)
10
AD
JUS
T
ABLE UPPER RA

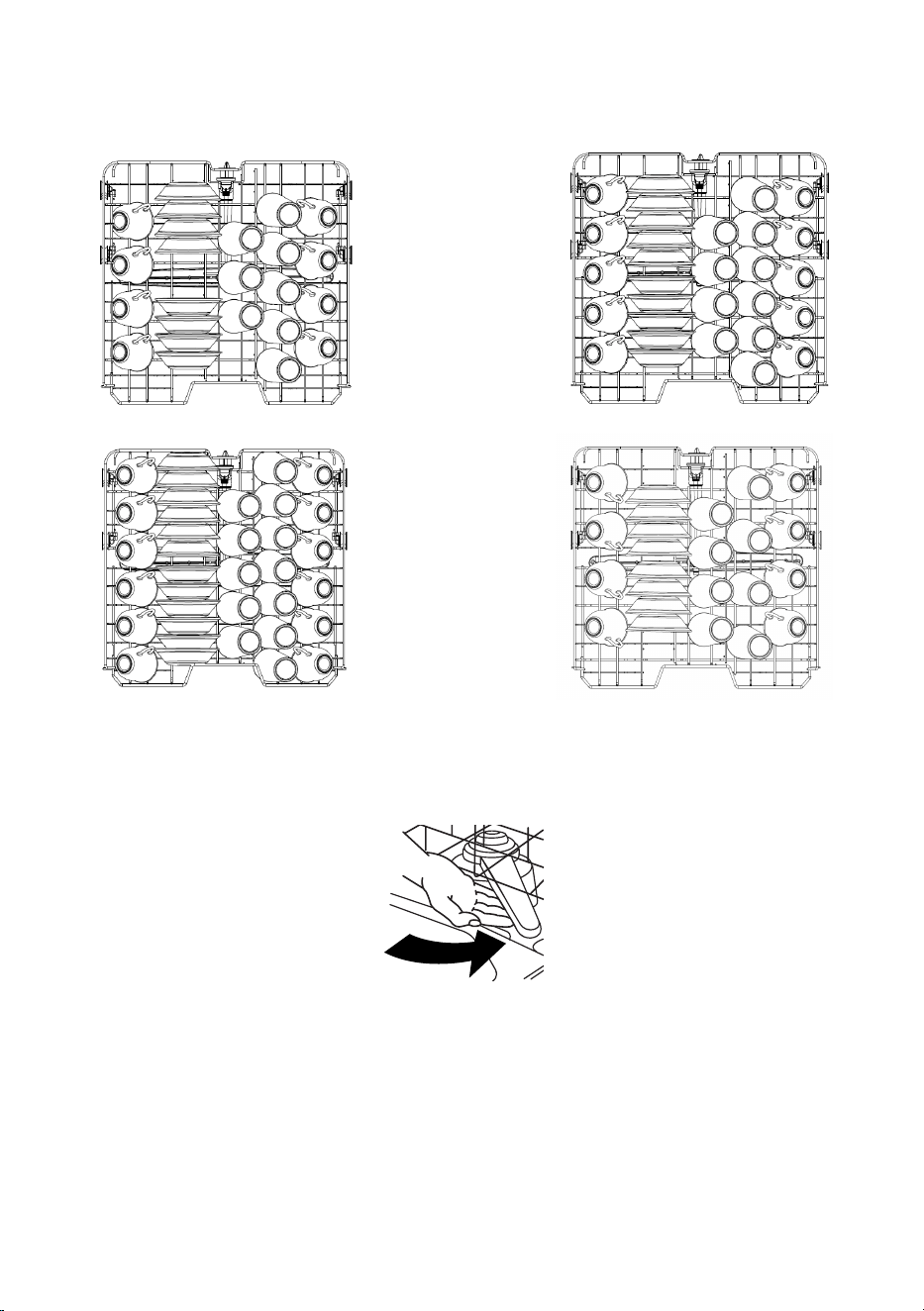

CK

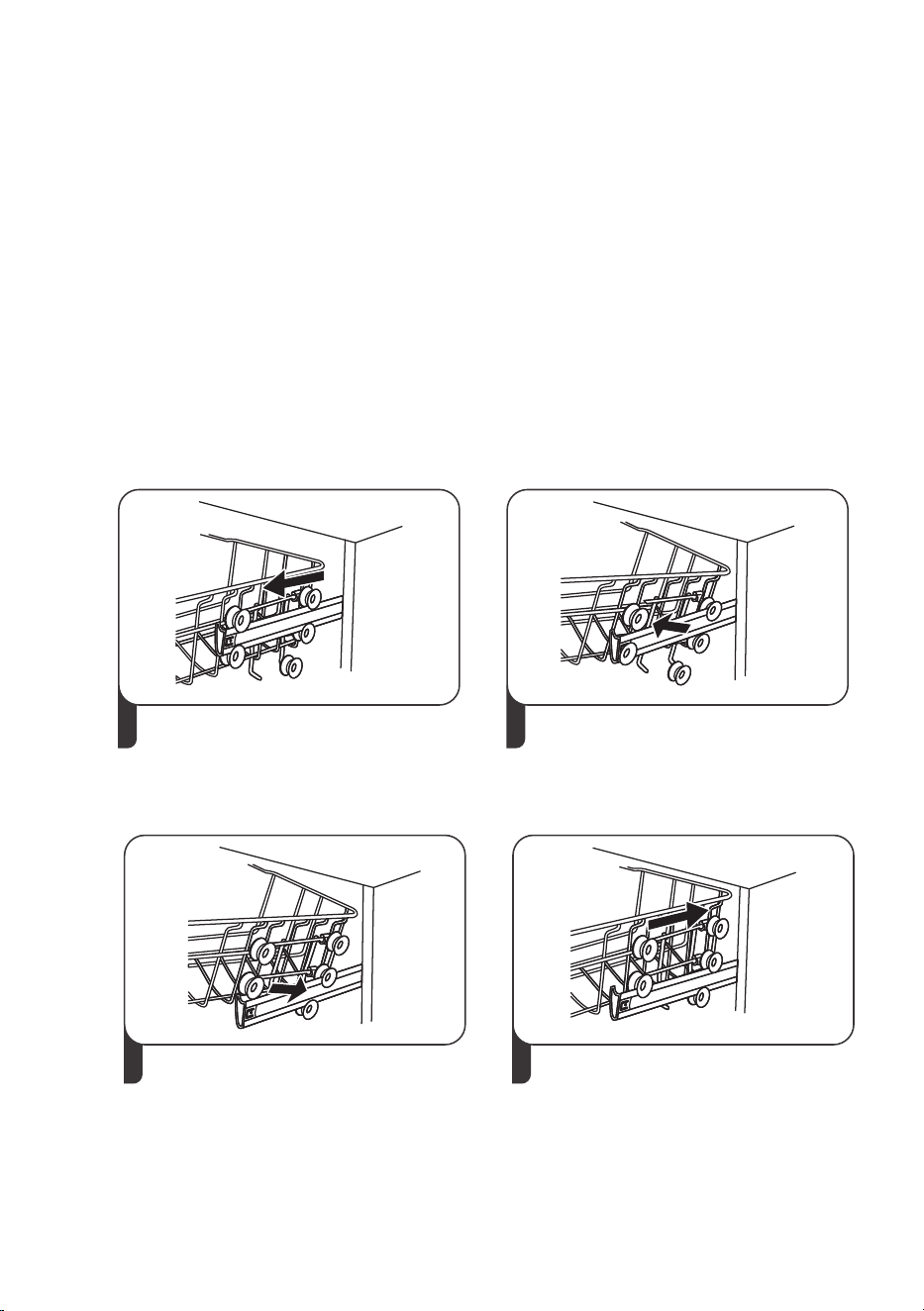

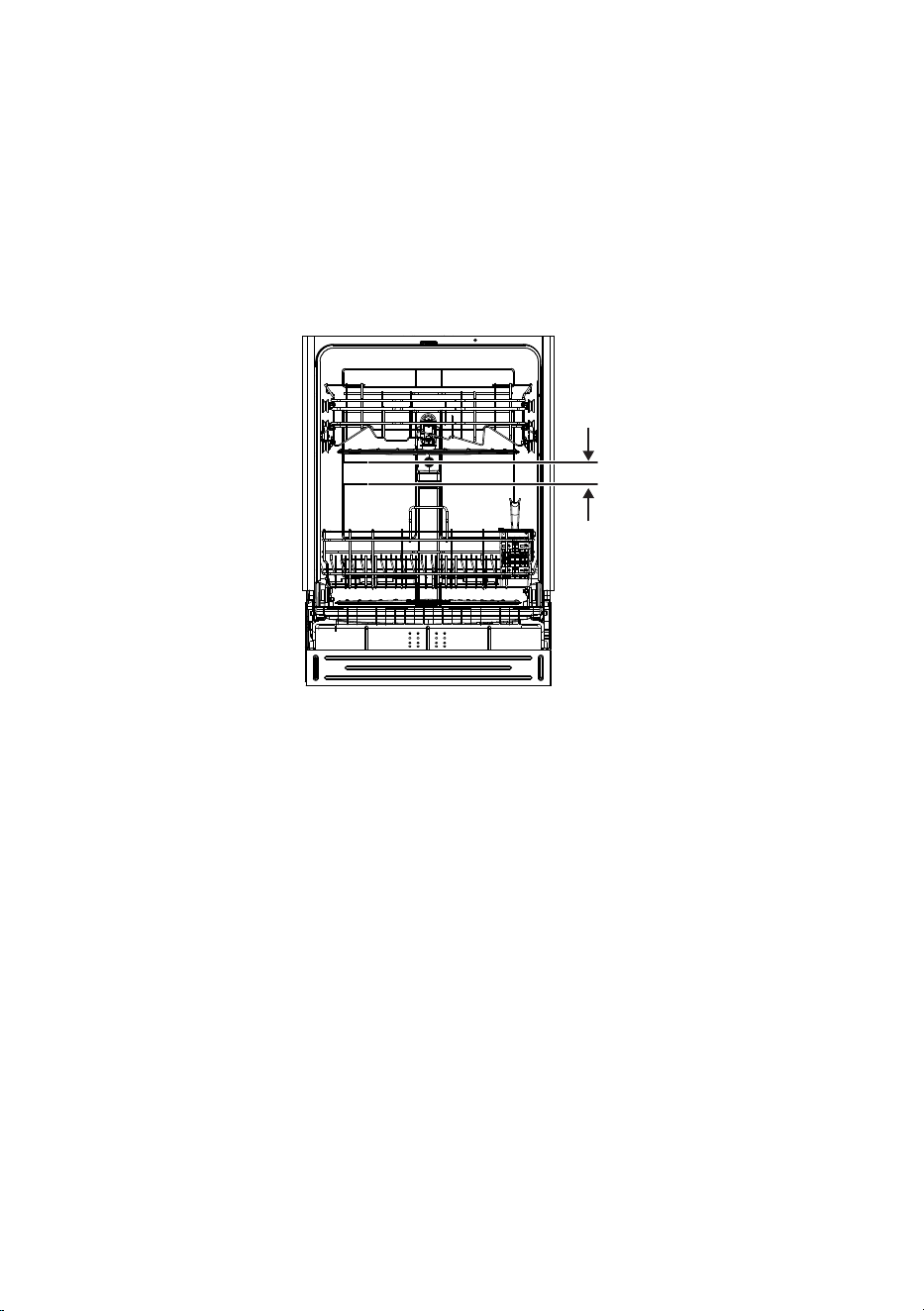

The Adjustable Upper Rack fea
ture allows you to load taller items in either
the upper or lower rack.
The upper rack of your dishwasher can be adjusted 2" (5.08 cm).
Adjusting the clearance of the Upper Rack increases or decreases the
clearance of the lower rack, as shown.
For instructions, see the “Adjustable Upper Rack” section.
2" (5.
08 cm)
11
START UP GUIDE
IMPORTANT:
•
Properly dispose of/recycle all packing material.
•
Read this entire User Manual. You will find important safety information
and useful operating tips.
HOW YOUR DISHWASHER CLEANS
Your dishwasher cleans by spraying a mixture of hot water and detergent
through the spray arms against soiled surfaces.
The dishwasher fills with water covering the filter area. Water is then
pumped through the multiple filters and spray arms. Soil particles are
separated from the water and go down the drain as the water is pumped
out and replaced with clean water.
The number of water fills will vary depending on the cycle selected.
BEFORE USING YOUR DISHWASHER
1. Check the filters for debris that may have been introduced from the
packaging or during installation. See the “Clean Filters” section.
2. Add Rinse Aid. See “Proper Use of Rinse Aid.”
USING YOUR NEW DISHWASHER
NOTE: To decrease cycle time and possibly improve performance, turn on
the hot water faucet nearest to the dishwasher until the water runs hot.
Turn off the water.
1. Load dishwasher. See “Dishwasher Loading.”
2. Add detergent. See “Proper Use of Detergent.”
3. Select desired CYCLE and OPTIONS. See “Cycle and Option Charts.”
• Only the Options available for the Cycle selected will illuminate.
• The controls of the selected Cycle and Options will glow to indicate
they are selected.
4. Close the door firmly to latch.
5.
Press START.
12
CONTROLS
NOTE:
when the door is closed.
a
b
: Heavy Normal Delicate Quick Rinse Heavy
→
Heavy cycle is for pots, pans, casseroles and dinnerware with dried-
on or baked on soil.
Normal cycle with only the Heat Dry option selected is recommended
to completely wash and dry a full load of normally soiled dishes. The
energy usage label is based on this cycle and option combination
with the upper rack in the raised position.
Delicate cycle is for items that need special care such as stemware or
porcelain.
Quick cycle is for lightly soiled or well-rinsed dish loads.
Use for pre-rinsing dishes or glasses. This is only a rinse that keeps
food from drying on your dishes and reduces odor buildup in your
dishwasher until you are ready to wash a full load.
Press this button to turn on or turn off the dishwasher.
Press this button to select corresponding washing program code.
Rinse+++=+
Quick+++=+
Delicate+++=+
Normal+++=+
Heavy+++=+
Power
Cycle+ / Cycle-
Cycle-: Heavy Rinse Quick Delicate Normal Heavy
→ → → →
Cycle+
→ → → → →
a
f
d
b
c
c
e
13
ADDITIONAL FEATURES
The Delay Time feature allows you to program the dishwasher to
begin the selected wash cycle 3, 6 or 9
hours later.
Press the DELAY control repeatedly to toggle between ( 3h/6h/9h
).
The LED next to the selected time will illuminate.
OPTIONS
Options enhance the wash cycle. Some Options are available with only
certain Wash Cycles. Refer to the “Cycle and Options Charts” to see
which Options are available for the wash cycle you selected.
•
Press the desired Option control(s). The Option control(s)
illuminates to indicate which option(s) have been selected.
WARNING: Only sanitizing cycles have been designed to meet the
requirements for soil removal and sanitization efficacy. There is no
intention, either directly or indirectly, that all cycles on a certified
machine have passed the sanitization performance test.
The sanitize option sanitizes dishes and glassware in accordance with
NSF International NSF/ANSI Standard 184 for Residential Dishwashers.
Certified residential dishwashers are not intended for use in licensed
food establishments.
When the Sanitize option is selected, the water temperature will reach
156.2°F (69°C) maximum.
The Sanitize Control illuminates to indicate when the Wash cycle with
the Sanitize option is completed. The light will turn off after the door
has been opened for 30 seconds.
NOTE: It is possible that the water will not reach 156°F (69°C) in the
Sanitize mode, if the temperature of the incoming hot water does not
meet the minimum requirement of 120°F (49°C).
When the Heated Dry option is selected, the heater will work during
the drying process.
NOTE:
To cancel the Delay feature, press and hold the START control
for 3 seconds to Cancel. T
o begin the wash cycle immediately, press
START again.
Use to lock all controls and prevent children from accidently changing the
dishwasher cycle or starting the dishwasher.
• Press and hold Child Lock for 3 seconds to either activate or
cancel the Child Lock option.
After the function is selected the control
lock icon will illuminate. If the the function is canceled, the control lock
Delay+++=+
Child Lock+++=+
icon will light off.
Sanitize+++=+
Heated Dry+++=+
d
c
14
The cycle will begin.
PAUSE - If you need to pause or cancel a dishwasher cycle in process:
IMPORT
ANT: Open the door slightly, and then wait for the spray arms
and wash action to stop before opening the door completely
. Doing
this will help keep you from being splashed with hot water.
1. Open the door slightly and wait a few seconds until the wash
action stops.
2. Open the door to add or remove items.
3. Close the door and then Press START to resume the wash cycle.
CANCEL - To cancel a cycle when the dishwasher is running, press
and hold Start for 3 seconds.
INDICATOR LIGHTS
Rinse Aid
The Rinse Aid indicator light illuminates when the rinse aid level is
low. Rinse Aid should be added to the Rinse Aid dispenser.
Sanitized
The Sanitized indicator light illuminates when the cycle using the
Sanitize option is finished.
The light turns off turns off when the door is opened and then closed or
Turns on after a cycle is finished. Turns off when the door is opened and
any button is pressed.
then closed or any button is pressed.
Clean
Start - Close the door and press Start.
START
e
f
CYCLE AND OPTION CHARTS
Depending on the Cycle selected, the Options available for selection will
illuminate.
Cycle times are approximate and will vary depending on the wash cycle
and options selected.
NOTE: Added Options can add more time and use more water.
Hot Water is necessary t
o activate the dishwasher detergent and melt
fatty food residue.
An automatic sensor checks the temperature of the incoming water. If the
water is not hot enough, the cycle will be lengthened to heat the water for
the main wash.
The Smart Wash Sensor detects the soil level of the dish load and may
increase or decrease cycle time depending on the number of water fills
required to clean the load.
Cycle Options Available Water Usage Cycle Time
Heavy
Normal
Delicate
Quick
Rinse
Sanitize
Heated Dry
Sanitize
151 mins.
103-146 mins.
118 mins.
60 mins.
20 mins.
7.2 gal.
27.2
3.1-7.13 gal.
11.7-27 L
4.1 gal.
15.5 L
2.0 gal.
7.6 L
7.13 gal.
27 L
Sanitize
Sanitize
Heated Dry
Heated Dry
Heated Dry
7.6
L
15
DISHWASHER LOADING
PREPARE DISHES
•
Empty liquids from glasses and cups.
•
Remove leftover food and other items from the dishes and discard.
•
It is not necessary to hand-rinse dishes before loading them into the
dishwasher with the following exceptions:
•
Foods such as mayonnaise, mustard, vinegar, lemon juice and
tomato-based products may discolor stainless steel and plastics if
allowed to remain on them for any length of time.
•
Burned-on foods should be loosened before loading the cookware
into the dishwasher.
LOAD DISHES
•
It is IMPORTANT for the water spray to reach all soiled surfaces.
•
Load dishes so they are not stacked or overlapping if possible. For best
drying results, water must be able to drain from all surfaces.
•
Load heavy pots and pans carefully. Heavy items can dent the stainless
steel interior of the door if they are dropped or bumped.
•
Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not
interfere with the spray arm rotation.
•
Make sure both the upper and lower spray arms are not blocked and
move freely.
QUIET OPERATING TIPS
To avoid thumping/clattering noises during operation:
•
Make sure lightweight items are secured in the racks.
•
Make sure pot lids and handles, pizza pans, cookie sheets, etc., do not
touch interior walls or interfere with the rotation of the spray arm.
•
Load dishes so they do not touch one another.
NOTE: For built-in models, keep sink drain plugs closed during
dishwasher operation to prevent noise transfer through drains.
16
UPPER RACK
The upper dishwasher rack is designed for cups, glasses, small plates,
bowls and plastic items marked dishwasher safe.
The upper rack can be easily adjusted 2" (5 cm) up or down to
accommodate taller items in either in the top or bottom rack.
ADJUST UPPER RACK
IMPORTANT:
• Remove all items before adjusting the rack. The rack must be empty.
To adjust the height of the upper rack, follow these steps:
43
Re-attach the upper basket to upper
or lower rollers.
upper position
Push in the upper basket.
1
lower position
Pull out the upper basket.
2
Remove the upper basket.
17
LOAD UPPER RACK
NOTE: The features on your dishwasher rack may vary from the drawings
shown.
IMPORTANT: Make sure the items loaded in the upper rack do not
interfere with the rotation of the middle spray arm located beneath
the upper rack. Check for interference by turning spray arm by hand.
•
Place items so that the open ends face downward for cleaning and
draining.
•
Load glasses and cups in upper rack only. The lower rack is not
designed for glasses and cups. Damage can occur.
•
Place cups and glasses in the rows between tines. Placing them over
the tines can lead to breakage, water spots, and poor cleaning.
•
Small bowls, pans and other utensils can be placed in the top rack.
Load bowls in the center section for best stability.
•
China, crystal and other delicate items must not touch each other
during dishwasher operation. Damage may occur.
•
Load plastic items so the force of the spray does not move them
during the cycle.

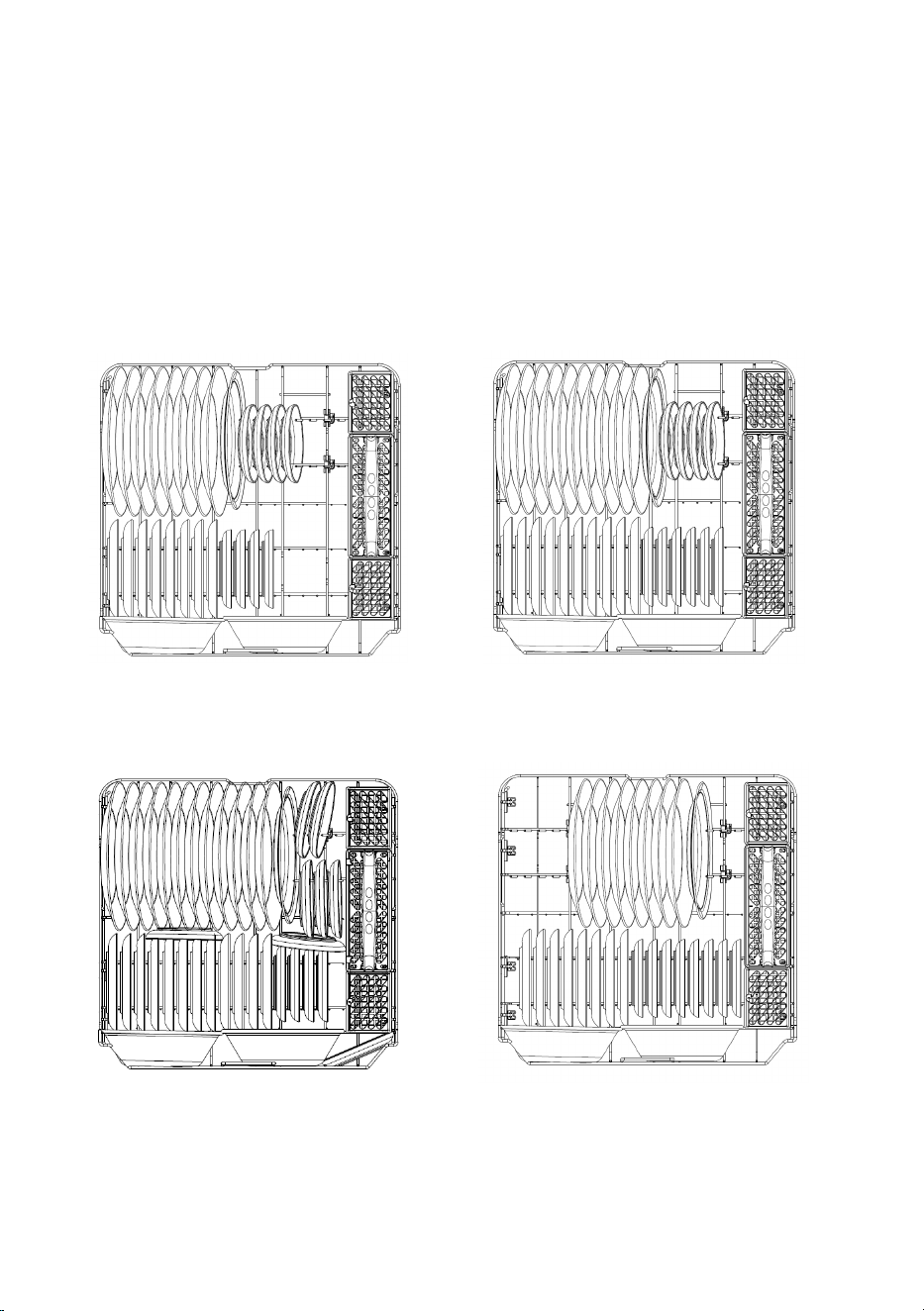

8 Place Setting
10 Place Setting
12 Place Setting
18
8 P
lace Setting(DOE)
LOWER RACK
The lower rack is designed for plates, soup bowls, cookware and
bakeware.
The adjustable upper rack allows you to load items up to 12.6” in height in
the lower rack.
IMPORTANT: Items in the lower rack must be placed so that they do not
interfere with the rotation of the spray arms, block the water inlet, or keep
the water spray from reaching the detergent dispenser.
8 Place Setting
10 Place Setting
12 Place Setting
19
8
Place Setting(DOE)
ADJUSTABLE RACK TINES

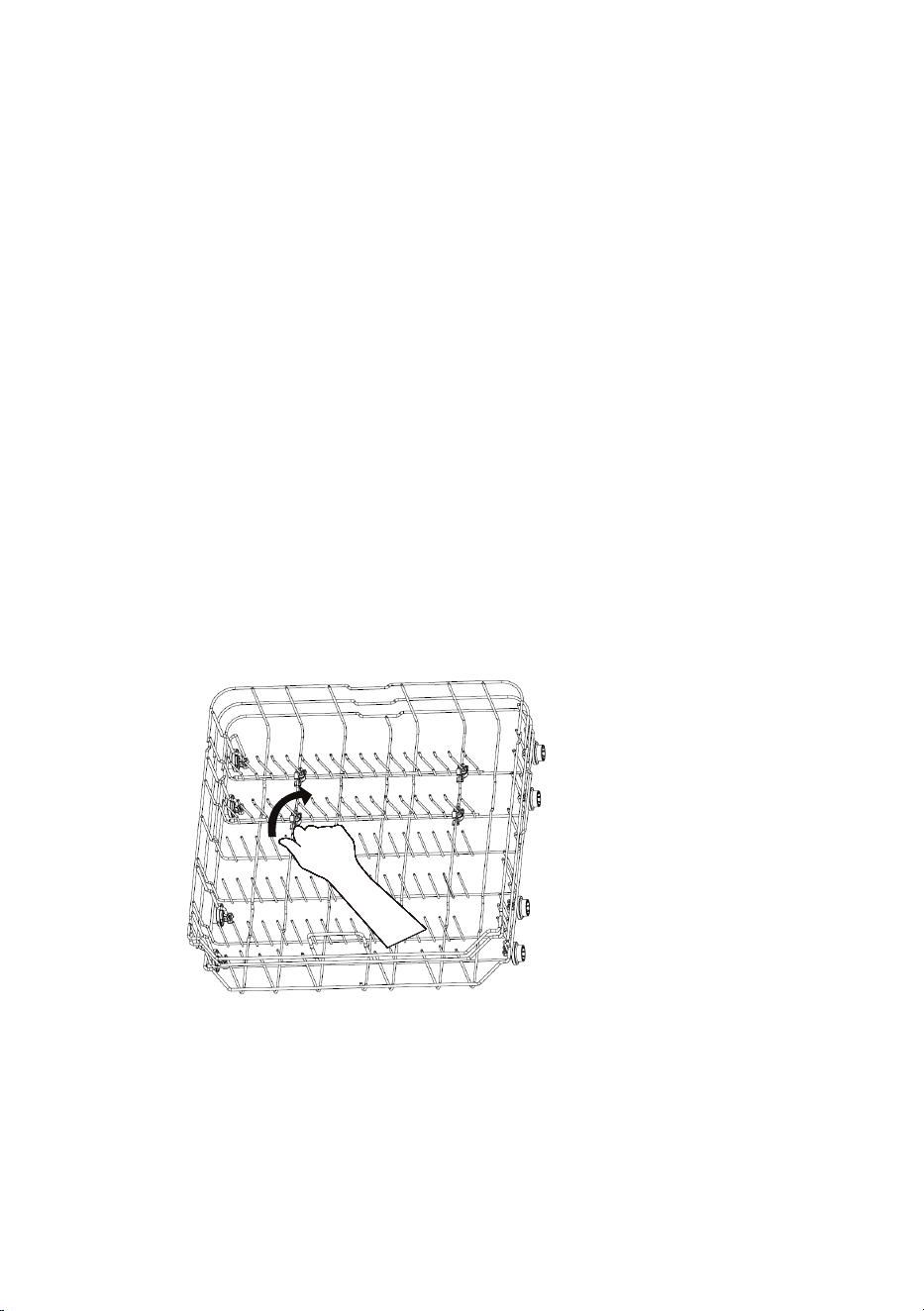

The fold-down tines in the lower rack make it easier to load extra large or
hard-to-fit items such as serving bowls and roasters. The tines may be left
in the up position for normal use, or folded down for more flexible loading.
LOAD LOWER RACK
NOTE: The features on your dishwasher rack may vary from the drawings
shown.
•
Do not load glasses, cups, or plastic items in the lower rack.
•
Load small items in the lower rack only if they are secured in place.
•

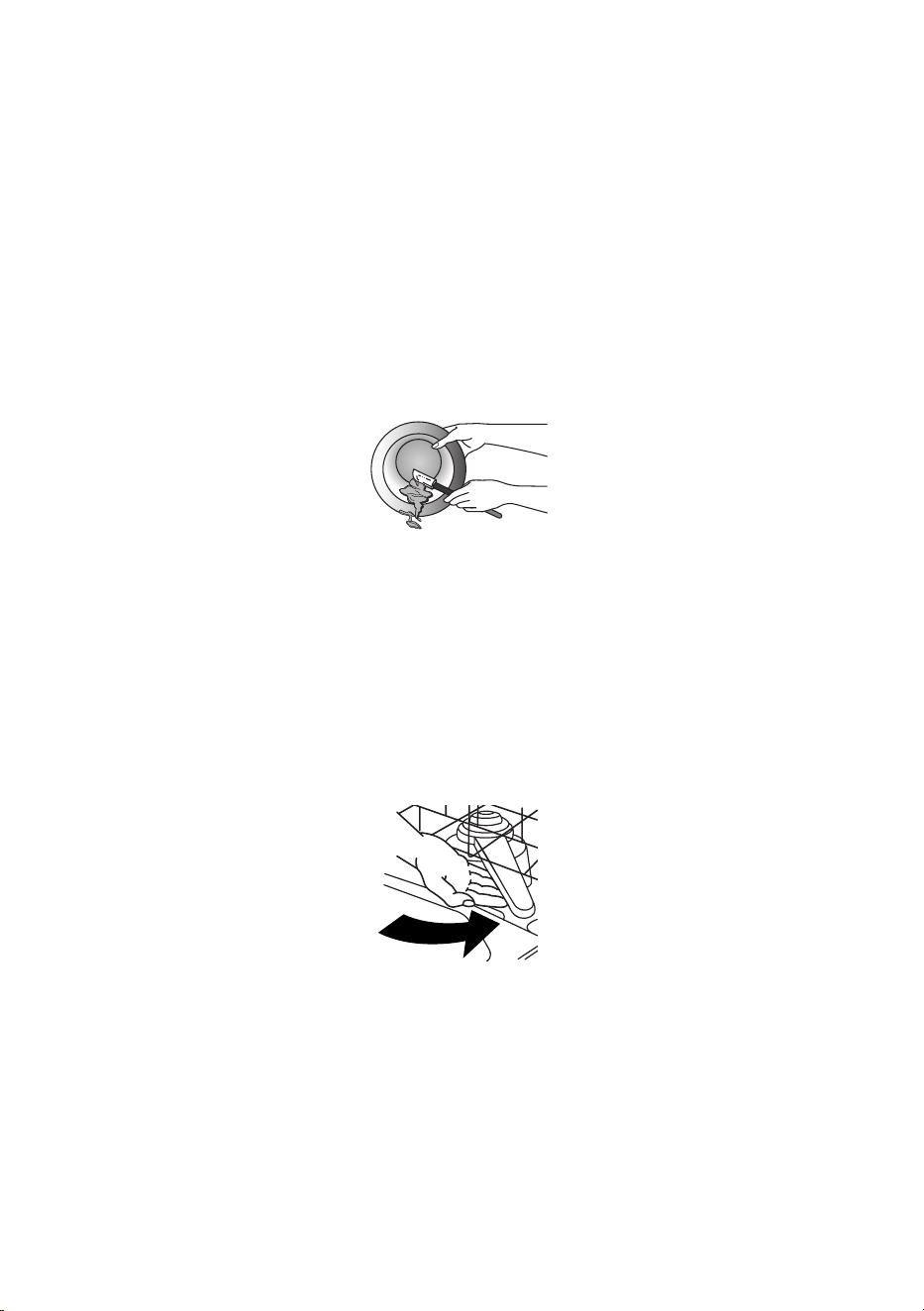

Load plates, soup bowls, etc. between tines. Do not nest bowls
because the spray will not reach all surfaces.
•
Do not load items between the bottom rack and the side of the
dishwasher tub.
•
Place heavily soiled cookware face down in the rack.
20
LOADING SILVERWARE
NOTES:
•
Do not load silver or silver-plated silverware with stainless steel. These
metals can be damaged by contact with each other during washing.
•
Some foods (such as salt, vinegar, milk products, fruit juices, etc.), can
pit or corrode silverware. DO NOT WASH ALUMINUM COOKWARE IN
YOUR DISHWASHER.

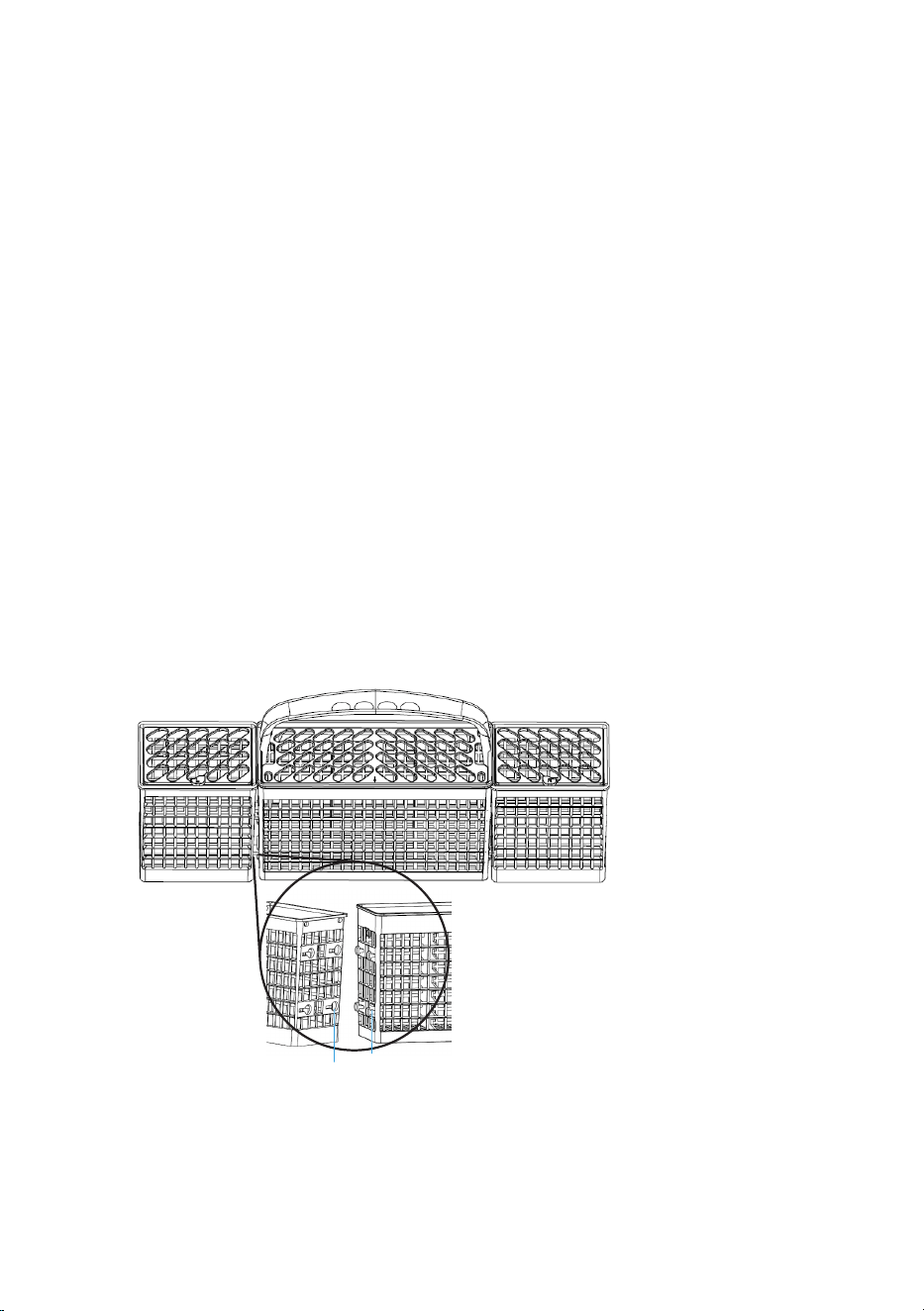

THREE-PIECE SILVERWARE BASKET
The silverware basket consists of three separate sections. For optimum
loading flexibility, the center section of the basket can be used
individually, joined with one or both side sections or removed.
•
Lift handle to remove the silverware basket and set the basket on a
counter or table top.
•
Lift up on each side section to disengage the center section from the
keyhole slots in the side sections.
•
Either replace the section(s) in the bottom rack and load the
silverware, OR load the silverware while the section(s) are on the
countertop and then replace the basket in the bottom rack.
a Keyhole Slots
b Prongs
a
b
21
For Best Results:
•
Load items with handles down, using the separators to prevent
silverware from nesting.
•
Place small items such as baby bottle caps, jar lids, corncob holders,
etc. in the section(s) with hinged cover(s). Close the cover to hold
small items in place.
•
Unload or remove the basket before unloading the racks to avoid water
drops from falling on the silverware.
•
When handles are up, mix items in each section of the basket with
some pointing up and some down to avoid nesting. Spray cannot reach
nested items.
IMPORTANT: Always load sharp items (knives, skewers, etc.) pointing
down. Be sure that nothing protrudes through bottom of the basket or
rack that may block the wash arm.
22

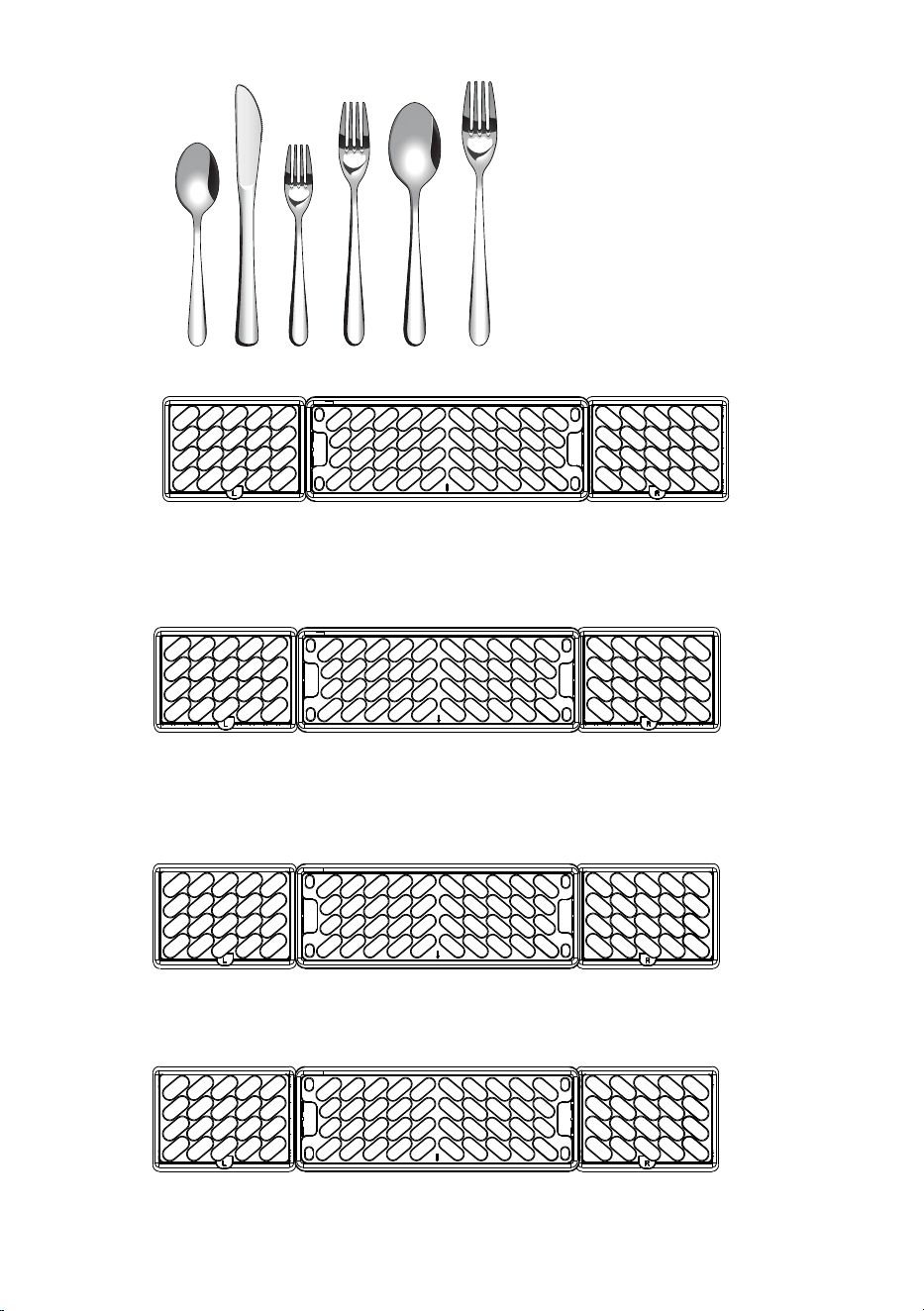

1 2 3 4 65
1. Spoons
2. Knives
3. Salad Forks
4. Forks
5. Large Spoons
6. Large Forks
8 Place Setting
10 Place Setting
12 Place Setting
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
5
1
1
1
1
2
2
2
2
2
2
2
2
2
4
4
4
4
3
3
3
3
3
4
2
2
2
2
2
2
4
4
4
4
4
3
3
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
5
2
2
2
3
3
1
1
1
1
1
1
1
1
5
1
1
1
1
1
1
6
5
1
1
1
1
1
1
2
2
2
2
2
2
2
4
4
4
3
3
3
3
4
2
2
2
2
4
4
4
4
3
3
2
2
2
3
3
1
1
1
1
1
1
1
1
5
1
1
1
1
6
5
1
1
1
1
23
8 Place Setting(DOE)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
5
DISHWASHER USE
PROPER USE OF DETERGENT
IMPORTANT:
•
Use automatic dish washing detergent only. Other detergents can
produce excessive suds that can overflow out of the dishwasher and
reduce washing performance.
•
Add detergent just before starting a cycle.
•
Store detergent tightly closed in a cool, dry place. Fresh automatic
dishwasher detergent results in better cleaning.
DETERGENT DISPENSER

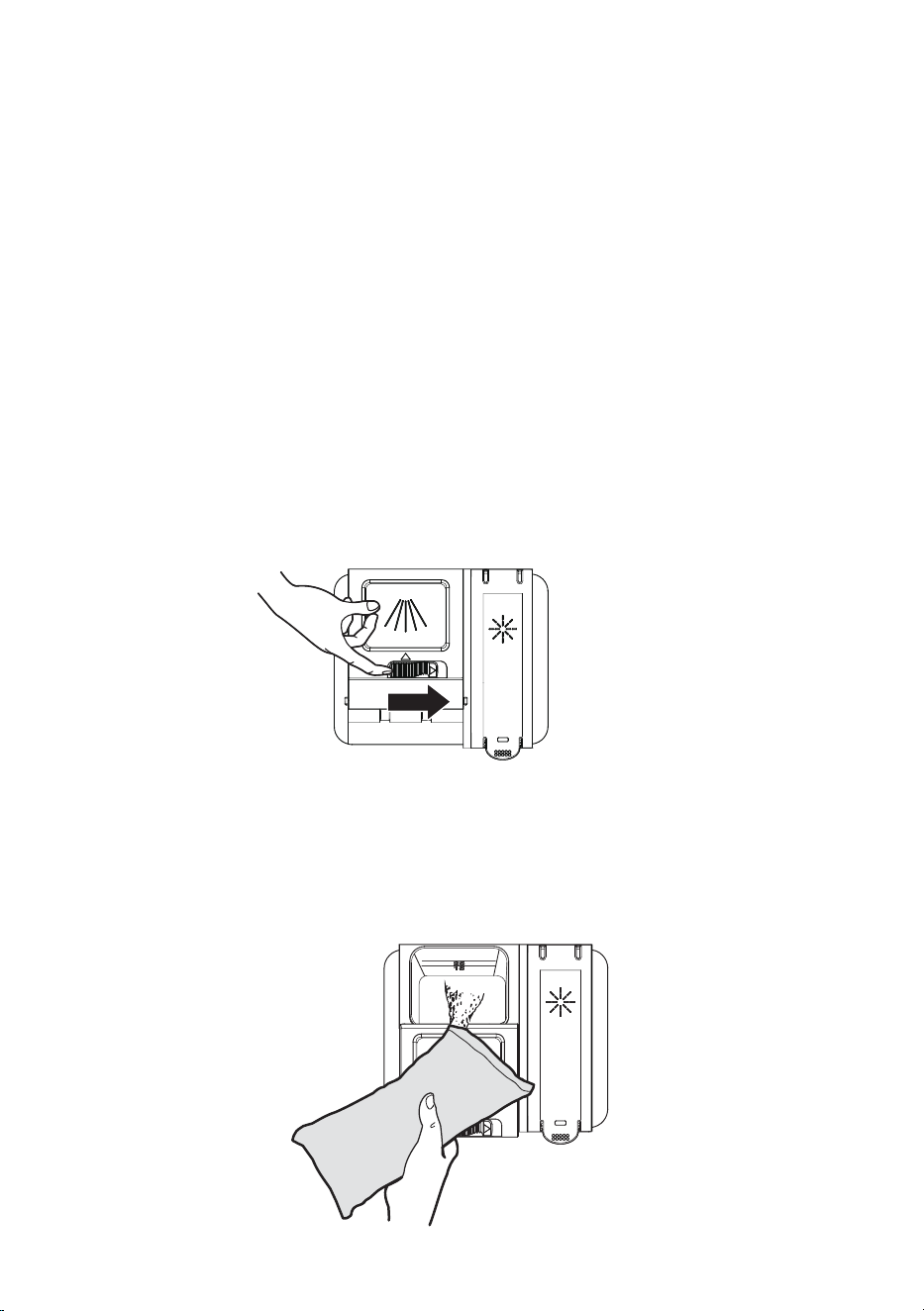

1. Push the dispenser cover release catch to open the main wash
detergent compartment.
NOTE:
The flap is always open at the end of a dishwashing cycle.
2. Add the recommended amount of detergent to the detergent
compartment.
24
HOW MUCH DETERGENT TO USE
The amount of detergent to use depends on the soil level of your load, the
type of detergent used and the hardness of your water.
•
If you use too little detergent, dishes won’t be clean.
•
If you have soft water and use too much detergent, glassware will etch.
Water Hardness
Water hardness varies depending on your water source. For the best
results, your dishwasher is designed to operate with water that has a
hardness of no more than 7 grains per gallon. Test kits are available from
all major appliance parts retail outlets. If your water has a hardness over 8
grains per gallon, you may consider installing a water softener or regularly
use an additive to enhance the performance of your detergent.
PROPER USE OF RINSE AID
Rinse aid prevents water from forming droplets that can dry as spots or
streaks. A small amount of the rinse aid is released into the final rinse
water, which allows water to drain from the dishes.
Rinse aid greatly improves drying performance after the final rinse.
Your dishwasher is designed to use a LIQUID rinse aid. Do not use a solid
or bar-type rinse aid.
3. Press down on the top of the cover to secure.
RINSE AID DISPENSER
Under normal conditions, you will need to fill the rinse aid dispenser
approximately once a month. Rinse aid is released through an opening in
the dispenser. You do not need to wait until the dispenser is empty to refill
it. Try to keep it full, but be careful not to overfill it.
25
To refill the rinse aid dispenser

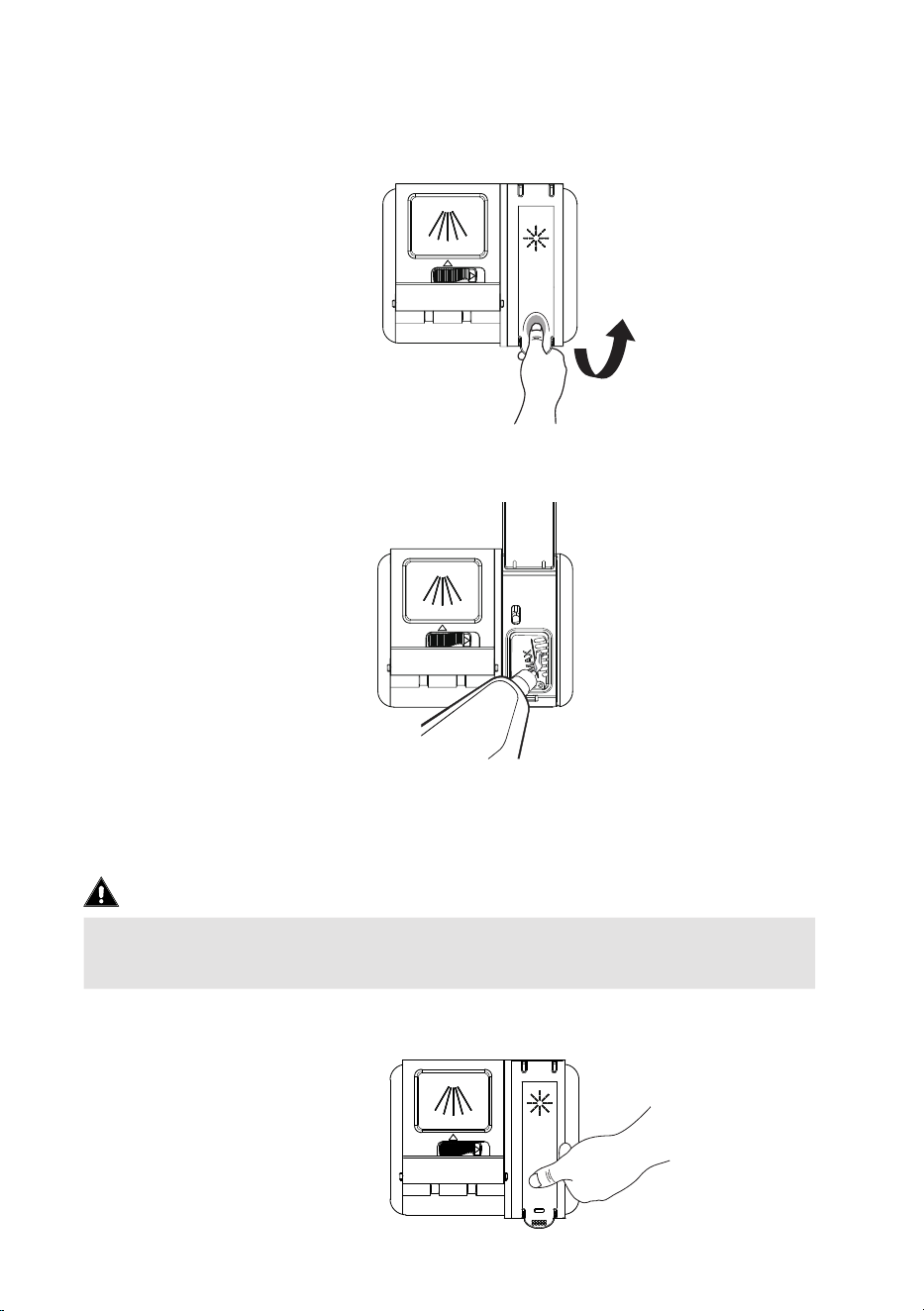

1. Lift up the end tab of rinse aid cover to open.
2. Fill the rinse aid dispenser with liquid rinse aid until full.
DO NOT overfill.
NOTE:
Use the viewing port when filling the rinse aid reservoir.
Do not fill the reservoir above the full level indicator. Excess rinse aid
can overflow during the wash cycle.
WARNING
3. Press the rinse aid cover down firmly to close.
26
WASHING SPECIAL ITEMS
If you have doubts about washing a particular item, check with the
dishware manufacturer to make sure it is dishwasher safe.
Material
Dishwasher
Safe
Comments
Aluminum Possible High water temperature and detergents
can affect finish of anodized aluminum.
Unfinished aluminum will be discolored.
Disposable
Aluminum
No Do not wash disposable aluminum pans in
the dishwasher These might shift during
washing and transfer black marks to dishes
and other items.
Bottles and
cans
No Wash bottles and cans by hand. Labels
attached with glue can loosen and clog the
spray arms or pump and reduce washing
performance.
Cast Iron No Seasoning will be removed and iron will rust.
China /
Stoneware
Yes Always check manufacturer’s
recommendations before washing. Antique,
hand-painted, or over-the-glaze patterns
may fade, gold leaf can discolor or fade.
Crystal Yes Check manufacturer’s recommendations
before washing. Some types of leaded crystal
can etch with repeated washing.
Gold No Gold-colored flatware will discolor.
Glass Yes Milk glass yellows with repeated dishwasher
washing.
Hollow-
Handle
Knives
No Handles of some knives are attached to
the blade with adhesive that can loosen if
washed in the dishwasher.
Pewter
Brass,
Bronze
No High water temperatures and detergent can
discolor or pit the finish.
Disposable
Plastics
No Cannot withstand high water temperatures
and detergents.
Plastics Yes Always check manufacturer’s
recommendations before washing. Plastics
vary in their capacity to withstand high
temperatures and detergents. Load plastics
in top rack only.
Stainless
Steel
Yes Run a rinse cycle if not washing immediately.
Prolonged contact with food containing
salt, vinegar, milk products, or fruit juice can
damage finish.
27
Material
Dishwasher
Safe
Comments
Sterling
Silver or
Silver Plate
Yes Run a rinse cycle if not washing immediately.
Prolonged contact with food containing
salt, acid, or sulfide (eggs, mayonnaise, and
seafood) can damage finish.
Tin No
Wooden
Ware
No Wash by hand. Always check manufacturer’s
instructions before washing. Untreated wood
can warp, crack, or lose its finish.
DISHWASHER CARE
CLEANING
CLEANING THE EXTERIOR
In most cases, regular use of a soft, damp cloth or sponge and a mild
detergent is all that is necessary to clean outside of your dishwasher.
Clean the stainless steel door and handle regularly with a clean, soft cloth
to remove debris.
IMPORTANT: Do not use appliance wax, polish, bleach, or products
containing chlorine to clean the stainless steel door.
Control Panel
Gently clean the control panel with a clean, soft cloth.
CLEANING THE INTERIOR
The tub is made of stainless steel designed to resist rust and corrosion if
the dishwasher is scratched or dented.
Hard water minerals can cause a white film to build up on the inside
surfaces, especially just beneath the door area.
Do not clean the dishwasher interior until it has cooled. Wear rubber
gloves. Do not use any type of cleanser other than dishwasher detergent
because it may cause foaming or create suds.
DOOR GASKET
Clean the steel inner door and tub with a clean, soft damp cloth.
Using a damp cloth, clean around the door gasket regularly to remove
food particles.
28
Mistake on my end. Didn't realize that this
part of the table was a continuation of the
table on the previous page
.
CONTROL PANEL
Clean the Control Panel gently with a lightly dampened cloth.
CLEANING THE FILTERS
Check and clean the filters regularly for best performance.
1. Remove the lower dishwasher rack.
2. Rotate the Cylinder filter counterclockwise a quarter turn and lift up to
remove.
a
a Cylinder Filter
3. Empty the Cylinder filter and rinse it under running water.
4. Remove the Fine filter.
a
a Fine Filter
5. Remove the Micro filter from the bottom of the tub.
a
a Micro Filter
6. Inspect both the Fine filter and the Micro filter for debris, and then
clean them by holding the filters under slow running water.
NOTE: A stiff, plastic bristle brush may be needed to remove some
debris.
7. Reinstall the filters in reverse order making sure the Cylinder filter locks
into place.
29
DRAIN AIR GAP
Check the drain air gap anytime your dishwasher isn’t draining well.
Some state or local plumbing codes require the addition of a drain air
gap between a built-in dishwasher and the home drain system. If a drain
is clogged, a drain air gap prevents water from backing up into the
dishwasher.
The drain air gap is usually located on top of the sink or countertop near
the dishwasher.
NOTE: The drain air gap is an external plumbing device that is not part of
your dishwasher. The warranty provided with your dishwasher does not
cover service costs directly associated with the cleaning or repair of the
external drain air gap.
To Clean the Drain Air Gap:
Clean the drain air gap periodically to ensure proper drainage of
your dishwasher. Follow the cleaning instructions provided by the
manufacturer.
With most types:
1. Turn off the dishwasher.
2. Lift off the metal cover, and then unscrew the plastic cap.
3. Clean the plastic cap with a toothpick.
STORING
STORING FOR THE SUMMER
Protect your dishwasher during the summer months by turning off the
water supply and power supply to the dishwasher.
WINTERIZING YOUR DISHWASHER
Protect your dishwasher and home against water damage caused by
freezing water lines. If your dishwasher is left in a seasonal dwelling or
could be exposed to near freezing temperatures, have your dishwasher
winterized by authorized service personnel.
Prepare for Storage:
1. Turn off electrical power to the dishwasher.
2. Turn off the water supply.
3. Place a pan under the inlet valve, and then disconnect the water line
from the inlet valve.
4. Disconnect the drain line from the pump and drain water into the pan.
30
Prepare for Use:
1. Reconnect the water, drain and electrical power supply.
2. Turn on water and electrical power supply.
3. Fill detergent cup and run the dishwasher through a heated wash
cycle.
4. Check the connections for leaks.
TROUBLESHOOTING
DISHWASHER NOT OPERATING PROPERLY
PROBLEM POSSIBLE CAUSE SOLUTION
Dishwasher
does not
run or stops
during a cycle
There is no power to the
dishwasher.
Replace fuse or reset
circuit breaker.
The door is not closed
tightly and latched.
Close and latch the door.
Most cycles pause for
5 minutes near the start
of a cycle to let the dishes
soak.
This is normal, and reduces
the energy required to
clean the dishes.
Certain cycles repeatedly
pause for 15 to 65 seconds
during the main wash.
This is normal.
The Delay feature is
selected.
To reset, see “Options” in
the Controls section.
Dishwasher
does not start
a cycle
Control Lock feature is
activated.
Deactivate Control Lock.
See “Additional Features”
in the Controls section.
Dishwasher
will not fill
The water shutoff valve is
not turned on.
Turn on the water valve.
The door is not closed
tightly and latched.
Close and latch the door.
Water pressure is too low. Verify a minimum of
20 psi water pressure is
maintained during the
filling operation.
31
PROBLEM POSSIBLE CAUSE SOLUTION
Dishwasher
seems to run
too long
The water supplied to
the dishwasher is not hot
enough.
The dishwasher runs
longer while heating water,
and a delay automatically
occurs in some wash
and rinse cycles until the
water reaches the proper
temperature.
Run the water in the
adjacent sink until it gets
hot before turning on the
dishwasher.
The Sanitize option is
selected.
The cycle time increases
to heat the water to the
correct temperature for
sanitizing.
The cycle time will vary
depending on soil level.
When heavy soil is
detected, the Normal cycle
will automatically increase
the cycle time.
Dishwasher is connected
to the Cold water supply.
Verify the dishwasher is
connected correctly to the
Hot water supply.
Water
remains in the
dishwasher
NOTE: A small
amount of
clean water
around the
outlet in the
bottom of
the tub is
normal. It
keeps the seal
lubricated.
The cycle is not complete
or it is in a pause.
The water will drain when
the cycle is completed.
The drain hose is kinked. Straighten the drain hose.
The knockout plug is still
in the garbage disposal.
Remove the knockout plug.
Drain hose is connected to
the garbage disposal, and
the garbage disposal is
not empty.
Run the garbage disposal
until it is empty.
Drain is clogged. Check the air gap.
Detergent
remains in the
dispenser
The cycle has not
completed.
Close the door and press
START to complete cycle.
The detergent is damp or
has clumped.
Remove detergent and
replace with fresh dry
dishwasher detergent.
An item was blocking the
dispenser.
Remove item. Remove
detergent and replace
with fresh dry dishwasher
detergent.
The spray arm is blocked. Load the dishes in a
manner that does not
block the spray arm from
rotating freely.
32
PROBLEM POSSIBLE CAUSE SOLUTION
Grinding,
grating,
crunching
or buzzing
sounds
A hard object or powder
detergent granules have
entered the wash module.
IMPORTANT: Clear glass
is hard to see in water.
and could result in a cut
wound.
Using care, remove the
hard object. If the noise
was caused by detergent
granules, the noise should
stop once the detergent is
ground up.
NOTE: If the noise persists
after a complete cycle, call
for service.
Beeps
Indicates the wash cycle is
completed.
NOTE: A rapid beep
indicates an error
condition.
This is normal.
See “Error Codes” for
further direction.
Suds in the
Tub
Used wrong type of
detergent.
Use only detergent
approved for automatic
dishwashers.
Dishwasher
Leaks
Excessive suds caused by
using improper detergent.
Use only detergent
approved for automatic
dishwashers.
Dishwasher is not level. Level the Dishwasher. See
Installation Instructions.
Rinse Aid
light is on
The Rinse Aid level is low. Add liquid Rinse Aid.
DISHES ARE NOT COMPLETELY CLEAN
PROBLEM POSSIBLE CAUSE SOLUTION
Food
residue
remains
on the
dishes
Dishwasher is not
loaded correctly.
See “Dishwasher Loading.”
The wrong wash
cycle for the dish
load was selected.
Select the wash cycle based on the
most difficult soil in the dishwasher load.
If you have some items with heavier
soils, use a heavier washing cycle.
Water
temperature is too
low.
For best results, the temperature of the
incoming water should be a minimum
of 120°F (49°C).
Used incorrect
amount of
detergent.
Use a minimum of 1 Tbsp. (15 g)
detergent per load. Heavy soil and/or
hard water generally requires additional
detergent.
33
PROBLEM POSSIBLE CAUSE SOLUTION
Food
residue
remains
on the
dishes
(cont.)
Detergent is too
old.
Detergent must be fresh to be effective.
Store detergent in a cool, dry area.
Detergent is
caked in the
dispenser.
Do not allow detergent to sit for
several hours in a wet dispenser. Clean
dispenser and refill with fresh, dry
detergent.
The pump or
spray arm is
clogged with
labels from
bottles and cans.
Check pump and spray arm for labels
and remove the labels.
The pressure of
the water coming
into the home is
too low.
Water pressure should be 20 to 80 psi
(138 to 552 kPa) for proper dishwasher
fill. A booster pump on the water
supply can be added if pressure is too
low.
High suds are
slowing the wash
arm.
Use only detergent recommended for
the dishwasher. Do not use soap or
laundry detergents.
SPOTS AND STAINS ON DISHES
PROBLEM POSSIBLE CAUSE SOLUTION
Spotting and
filming on dishes
Rinse Aid dispenser
is empty.
Add a liquid rinse aid to the
dispenser.
Hard water. High
mineral content in
your water
Use a rinse aid and keep
the dispenser filled to help
eliminate spotting and
filming. Increase setting on
Rinse aid dispenser 1 number
per cycle until spotting is
eliminated.
NOTE: If your water hardness
is 13 grains (223 ppm)
or above, it is strongly
recommended that you
install a home water softener.
Water temperature
is too low.
For best results, water
should be a minimum 120°F
(49°C) as it enters the
dishwasher.
Did not use enough
detergent.
Use a minimum of 1 Tbsp.
(15 g) of detergent per
load. Heavy soil and/or hard
water generally require extra
detergent.
34
PROBLEM POSSIBLE CAUSE SOLUTION
Spotting and
filming on dishes
(cont.)
Detergent is too old. Detergent must be fresh and
dry to be effective. Store
detergent in a cool, dry area.
Home water
pressure is too low
to fill dishwasher
properly.
Water pressure to the home
should be 20 to 80 psi
(138 to 552 kPa) for proper
dishwasher fill. A booster
pump on the water supply
can be added if pressure is
too low.
Silica film or
etching
Using too much
detergent
If you have soft water use
less detergent, but do not
use less than 1 Tbsp. (15 g)
per load.
The inlet water
temperature
exceeds 150°F
(65°”C).
Lower the incoming water
temperature.
Black or gray
marks on dishes
Aluminum items
rubbing dishes
during washing.
Disposable
aluminum items
can break down in
the dishwasher and
cause marking.
Hand wash aluminum items.
Remove aluminum markings
by using a mild abrasive
cleaner.
Orange stains
on plastic dishes
or dishwasher
interior
Large amounts of
tomato-based foods
on dishes placed in
the dishwasher.
Use a stain removal product
to remove stains from
your dishwasher. Stains
will not affect dishwasher
performance.
DISHES DO NOT DRY COMPLETELY
PROBLEM POSSIBLE CAUSE SOLUTION
Dishes are not
completely dry
NOTE: Plastics
often need towel
drying.
Dishes are not
loaded properly
to allow water
drainage.
Do not overload dishwasher.
Place glasses and cups in
the rack so that the bottom
surface is slanted to allow
water to run off.
Rinse Aid not used
or dispenser is
empty.
Use a liquid rinse aid to
speed drying and keep the
dispenser full.
Used an air dry
or energy-saving
option.
For dryer dishes, select a
Cycle that allows a Heated
Dry option.
35
DISHES ARE DAMAGED DURING A CYCLE
PROBLEM POSSIBLE CAUSE SOLUTION
Dishes are chipped
NOTE: Some types of
china and glassware
might be too delicate
for automatic dish
washing. Wash by
hand.
Dishes not loaded
properly.
Load the dishes and
glasses so they are
stable and will not strike
together from washing
action.
Moving the rack
in or out of the
dishwasher too
quickly.
Minimize chipping by
moving the rack in and
out slowly.
ERROR CODES
CODE MEANING POSSIBLE CAUSE
POSSIBLE SOLUTION
Rinse light flashes
and dishwasher
beeps for 30
seconds
Either the water
flow is insufficient,
or the water
pressure from the
incoming line is too
high
• Faucet is not opened
• Water pressure is too low
• The drain hose is plugged.
• Other (parts failure of inlet or
drain system).
• Make sure that the water is turned on
to the dishwasher.
• Make sure that the water pressure is
20~100 psi.
• Check the drain hose.
• Contact Customer Service.
Delicate light
flashes and
dishwasher beeps
for 30 seconds
Overflow or leak
sensor activated
•A leak
•Too much water in the
tub
Turn off water to the dishwasher,
then check the filter system for
blockage. Unblock if necessary.
If there is no water in the tub, contact
Customer Service
Normal, Delicate,
and Rinse lights
flash and
dishwasher beeps
for 15 seconds
Communication
exception or issue
The display board can’t receive or
the main board can’t send a
signal for over 20 seconds
Contact Customer Service.
36
37
Element Appliance Limited Warranty
(the “Products” or “Product” when referencing a singular product herein)
This Product (including any accessories included in the original packaging) as supplied and distributed in new condi�on, is
warranted by Element Appliance Company, LLC ("Element") to the original customer who purchases the Product from an
authorized Element retailer (the “Original Customer” or “you”) against defects in material and workmanship under proper
use, maintenance, and care according to the owner’s manual, warnings, and instruc�ons accompanying the Product
(“Warranty”) as follows:
* PLEASE NOTE – Proof of purchase evidencing the date of purchase by the Original Purchaser from an authorized Element
retailer (“Valid Proof of Purchase”) is required for all Warranty service. The express Warranty set forth herein is subject
to all terms and condi�ons set forth below.
1. WARRANTY SERVICE:
A. ONE-YEAR WARRANTY: Except as provided in subpart 1.B below, for a period of one (1) year from the
date of purchase by the Original Customer (the “Warranty Period”), if the parts or components covered by this Warranty
are determined by Element or Element’s authorized service provider to be defec�ve in material or workmanship, Element
will, at its sole and absolute discre�on and op�on: (i) repair the defec�ve part or component at no charge to the Original
Customer, (ii) replace the defec�ve Product with a new Product of similar or be�er quality, at no charge to the Original
Customer, or (iii) refund the documented purchase price paid by the Or
iginal Customer (excluding tax) to the Original
Customer upon return of the defec�ve Product as directed by Element. A�er the Warranty Period expires, the Original
Customer must pay for all parts, components, shipping and handling, labor, and replacement costs associated with the
Product or any part or component thereof, regardless of any defects in the Product or any part or component thereof.
B. LIMITED EXTENDED WARRANTY THRO
UGH PRODUCT REGISTRATION: If and only if the Original
Customer registers the Product at www.elementelectronics.com within ninety (90) days of the date of purchase by the
Original Customer, then the Warranty Period discussed in subpart 1.A. above shall be extended an addi�onal one (1) year
to a new Warranty Period equaling two (2) years from the date of purchase by the Original Customer. If the Product is
not registered as provided for in this subpart 1.B, then the standard one-year Warranty Period set forth in subpart 1.A
shall apply.
C. TIMING AND PROCEDURE: Before Warranty service can commence, the Or
iginal Customer must contact
either (i) the retailer from whom the Original Customer purchased the Product, or (ii) Element directly, in either case for
problem determina�on and service procedures. Valid Proof of Purchase evidencing that the Product is within the Warranty
Period MUST be presented by Original Customer in order to obtain the requested Warranty service. Please have your
model and serial number available, along with your date of purchase of the Product. To remain eligible for Warranty
service, Original Customer may not return the Product or any part or component thereof to the retailer or Element without
Element’s prior wri�en consent.
2. EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE
The Warranty covers manufacturing defects in materials and workmanship of the Product encountered in the nor
mal,
non-commercial use of the Product, and does not cover (a) damages or malfunc�ons resul�ng from improper or
unreasonable use or maintenance, abuse, negligence, failure to follow instruc�ons contained in any wri�en materials that
accompany the Product, deteriora�on by reason of excess moisture, corrosive atmosphere, lightning, power surges,
connec�ons to improper voltage supply, unauthorized altera�on, or other external causes s
uch as extremes in
temperature or humidity, modifica�ons, scratches or discolora�on; (b) improper or incorrectly performed repairs by
service providers not authorized by Element; (c) transporta�on, shipping, delivery, pickup, insurance, installa�on, or set-
up costs; (d) ordinary wear and tear, cosme�c damage, or damage due to acts of nature, including but not limited to,
water, floods, wind, storm, tornado, earthquake, or fi
re, or due to damage caused by extraordinary impact events, such
WARRANTY
38
as dropping, crushing, ；
(e) commercial use of the Product, or use of the Product for anything other than single-family household or residen al
use; or (f) modifica on of the Product or any part of the Product.
This Warranty is made to the Original Customer only and does not cover Products sold AS IS or WITH ALL FAULTS. The
Warranty is invalid if the factory-applied serial number has been altered or removed from the Product. This Warranty is
valid only in the United States, and only applies to Product if it was purchased and serviced in the United States. The
addi
on of equipment or features to the Product that are not manufactured or recommended by Element could affect
the intended func on of the Product, and therefore may void the Warranty. Furthermore, the exposure of the Product
to chemicals, heat, cold, humidity, or other elements can affect the Product components, and therefore, the Warranty
does not cover discolora
on, fading, cosmetic changes, rust, or any damages or failure related to any such items. The
Warranty is con ngent upon the proper use, maintenance, and care of the Product. The Warranty may be void if the
Product has been used in a manner contradictory to, or in viola on of, the terms of the user’s manual, warnings, or
instruc ons accompanying the Product.
THIS WARRANTY IS MADE IN LIEU OF AND SUPERSEDES ALL OTHER WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR GENERAL USE, WHETHER EXPRESS, IMPLIED,
COLLATERAL, STATUTORY, OR PROVIDED BY COMMON LAW, THE UNIFORM COMMERCIAL CODE, OR OTHERWISE.
ELEMENT FURTHER DISCLAIMS ALL WARRANTIES AFTER THE END OF THE WARRANTY TERM DEFINED ABOVE. NO
OTHER EXPRESS WARRANTY OR GUA
RANTY GIVEN BY ANY OTHER PERSON, FIRM, OR ENTITY WITH RESPECT TO THE
PRODUCT SHALL BE BINDING ON ELEMENT. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE,
AT ELEMENT’S SOLE DISCRETION, ARE THE EXCLUSIVE REMEDIES OF THE CUSTOMER.
ELEMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR
INABILITY TO USE THE PRODUCT. THESE INCLUDE, BUT ARE NOT LIMITED TO, ANY DAMAGES IN THE
FORM OF LOST
PROFITS, LOSS OF USE, LEGAL FEES, ECONOMIC LOSS, PERSONAL INJURIES, OR ANY OTHER DAMAGES CAUSED BY
CIRCUMSTANCES BEYOND THE CONTROL OF ELEMENT. NOTWITHSTANDING THE FOREGOING, ELEMENT’S AGGREGATE
LIABILITY TO ANY CUSTOMER SHALL NOT EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT. THIS WARRANTY
SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CUSTOMER WHO PURCHASED THE PRODUCT, AND IS NOT
TRANSFERRABLE. NO PERS
ON IS AUTHORIZED TO ALTER, EXTEND, OR WAIVE THIS WARRANTY OR ANY OF ITS TERMS
OR CONDITIONS.
Some states do not allow the exclusion or limita
on of incidental or consequen al damages, or allow limita ons on
warran es, so the above limita ons or exclusions may not apply to you. This Warranty gives you specific rights, and you
may have other rights, which vary from state to state. The exclusions and limita
ons to the Warranty apply to the
maximum extent permi
ed by law and unless restricted or prohibited by law. Where any term of this Warranty is
prohibited by applicable law, it shall be null and void, but the remainder of this Warranty shall remain in effect.
PLEASE DIRECT ALL CORRESPONDENCE TO:
Element Appliance Company, LLC
customerservice@elementelectronics.com
888-842-3577
h
ps://elementelectronics.com/appliances
Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC.
All other trademarks are the property of their respective owner, who has not sponsored, endorsed,
or approved this product. ©2023 Element Appliance Company, LLC. All rights reserved.
Distributed by Element Appliance Company, LLC
Augusta, GA 30909
For service, support and warranty information:
Call 888.842.3577,
email us at customerservice@elementelectronics.com or visit www.elementelectronics.com
