Heater
WES31-1200
PAGE 1
1-866-967-7333
has hot and arcing or sparking parts inside.
PAGE 3
21.Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
22. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
Never locate heater where it may fall into a bathtub or other water container.
23.Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).
24.The front gril is hot in normal use, avoid the power supply cord from coming in contact with the
hot grille.
PAGE 4
METAL SCREW
COVER OF GROUNDED
OUTLET BOX
ADAPTER
GROUNDING
MEANS
GROUNDING
PIN
GROUNDING
PIN
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This heater is for use on 120 volts. the cord has a plug as shown at A in below photo. An adapter as
show at C is available for connecting three-blade grounding-type plugs to two-slot receptacles.
The green grounding plug extending from the adapter must be connected to a permanent ground such
as a properly grounded outlet box. The adapter should not be used if another-slot grounded receptacle
is available.
PAGE 5
PAGE 6
PAGE 9
Luminous indicators
Control Panel
Reflecting panel
Infrared lamp
Protection grille
Front
Back
Hook
Remote
control
PAGE 10
PAGE 11

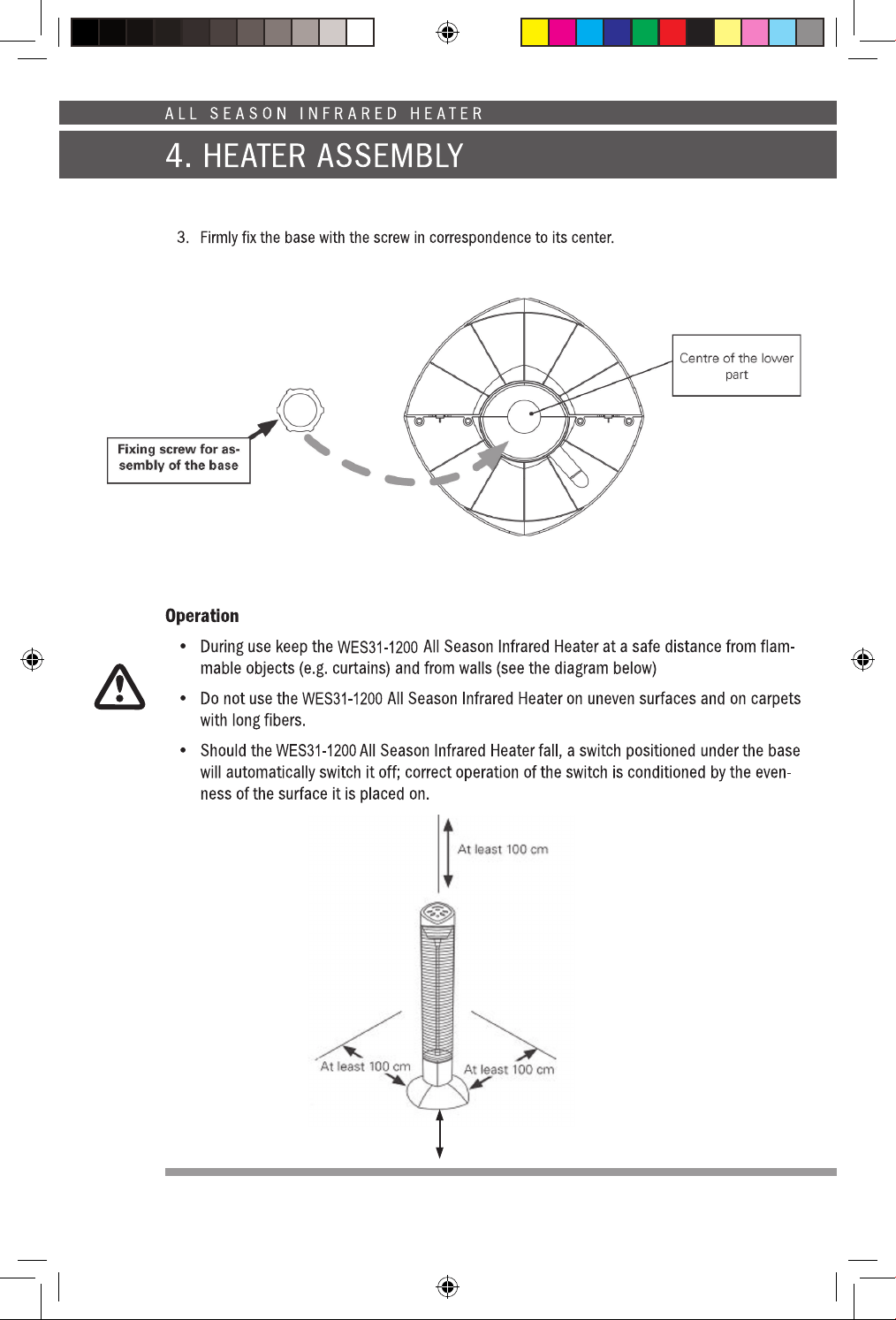

At least 100 cm
PAGE 12
WES31-1200
SWING
SWING
SWING

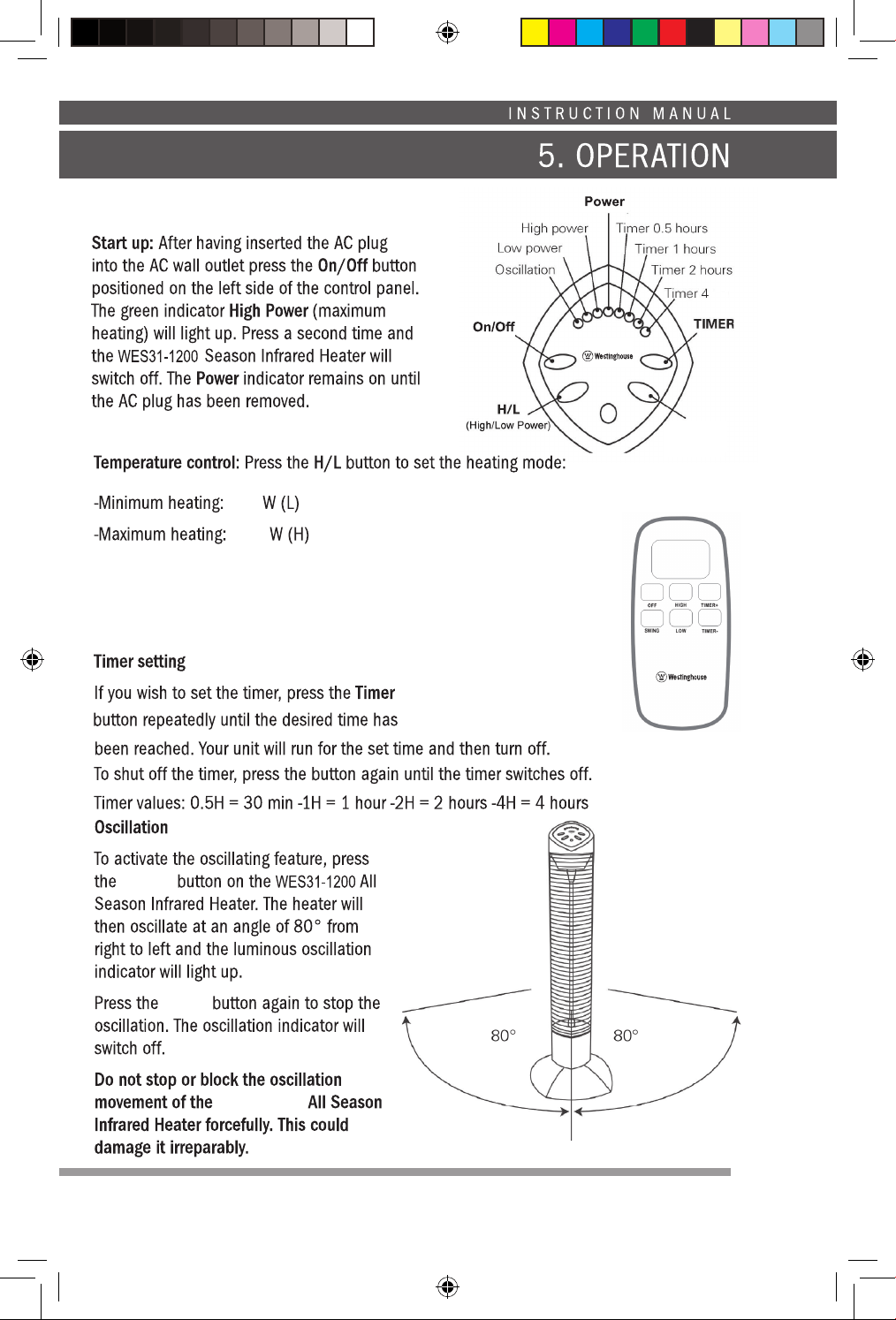

Function on remote control
1: There is not ON function on remote control
2: Press TIMER+, product will run from 0.5H, 1H,2H & 4H accordingly.
3: Press TIMER-, product will run from 4H, 2H, 1H & 0.5H accordingly.
600
1200
ALL SEASON INFRARED HEATER
PAGE 13
In the event of overheating,the device is protected by a thermostat that：
Disconnects the power supply of the lamp
Indicates an error has occured through a beep-beep sound.The sound stops only
when the thermostat reaches a normal temperature.
If this happens,you need to:
Unplug the device
Remove the cause of overheating
Wait until the device has cooled down,before plugging it in.
If the problem persists,do not use the device and contact the dealer.
Thermal protector
reset button
Hook to hold the remote
control for convenient
storage.
Storage
Put the WES31-1200 All Season Infrared Heater in its original packaging or in a box so
that it can be handled and store in a dry place.
Before cleaning the unit,you must first disconnect it from the AC wall outlet.
During cleaning,do not dampen the WES31-1200 All Season Infrared Heater or spray
water onto it.
To clean the WES31-1200 All Season Infrared Heater and the reflector,use a soft cloth.
Should the surface be very dirty,dampen the cloth with warm water or with a neutral/delicate
detergent before cleaning.Use a soft and dry cloth to remove the excess humidity.
Do not apply dilutents,petrol,alcohol,kerosene,benzene,abrasive powders,alkaline
detergents,rigid brushes,or similar material to the paint or to the coating resins.
Note:deterioration or loss of paint will appear on the WES31-1200 All Season Infrared
Heater surface,if these are cleaned with chemically treated fabrics or if in contact
with these for a long time.
Should either dust or humidity be found between the AC plug and socket caused by
prolonged use,remove and clean the AC plug using a dry cloth,then insert it again.
Cleaning
PAGE 14
